D-Link DCS-932 User Manual

USER MANUAL
DCS-932
VERSION 1.0
Table of Contents
Table of Contents
Product Overview ........................................................ 4
Package Contents ...................................................4
System Requirements ............................................. 4
Introduction ..............................................................5
Features ..................................................................6
Hardware Overview ................................................. 7
Installation ....................................................................9
Hardware Installation ...............................................9
Wireless Installation Considerations ...................... 10
Starting the Camera Installation Wizard ................ 11
Conguration ............................................................. 13
Using the Conguration Menu ............................... 13
Setup > Wizard ................................................ 15
Video Conguration .................................... 22
Setup > Motion Detect ..................................... 24
Setup > Mail ..................................................... 25
Email Account ............................................. 25
Time Schedule ............................................ 26
Setup > FTP .....................................................27
FTP Server .................................................27
Time Schedule ............................................ 28
Setup > Time and Date .................................... 29
Setup > Day/Night Mode ..................................30
Maintenance > Admin ...................................... 31

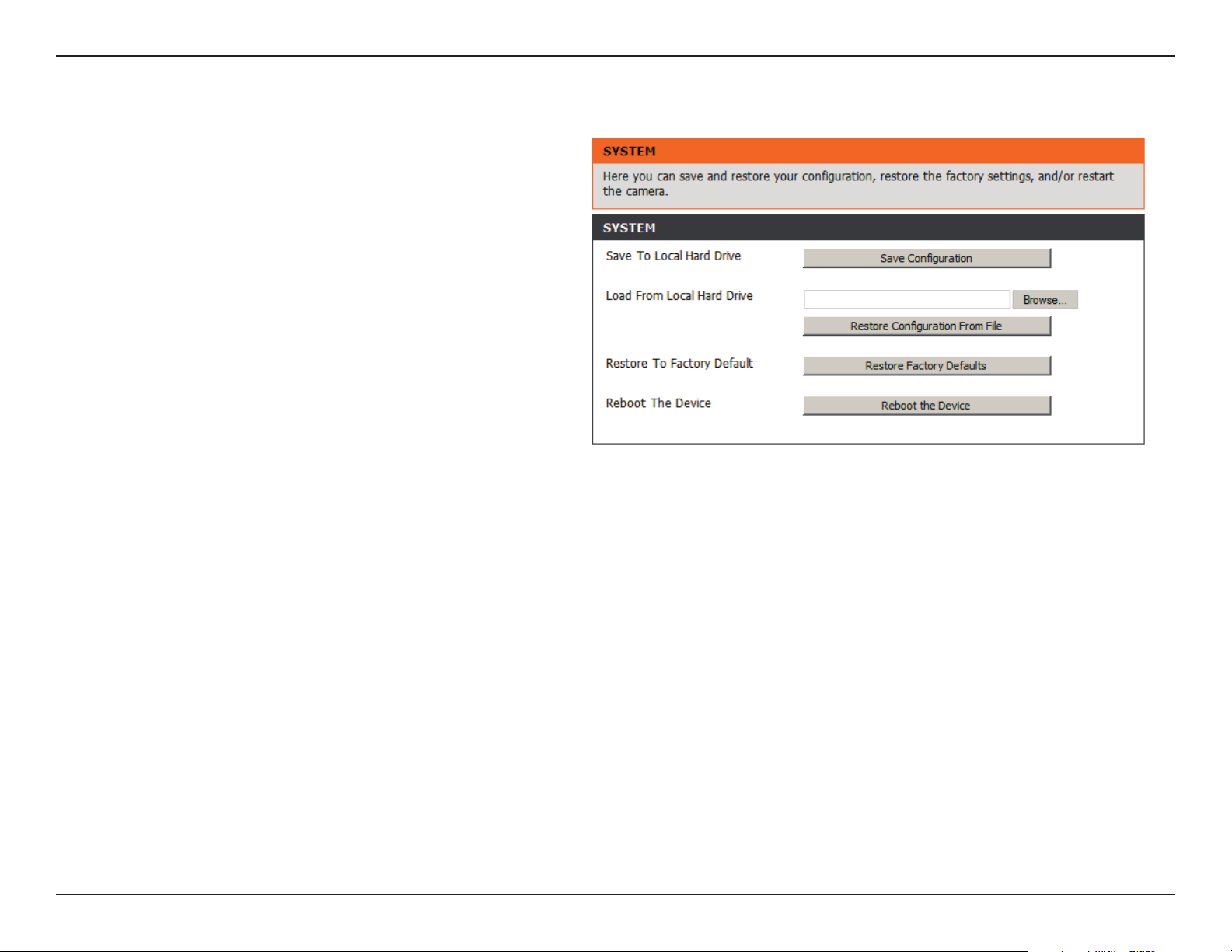

Maintenance > System .................................... 32
Maintenance > Firmware Upgrade .................. 33
Status > Device Info .........................................34
Status > Active User ........................................ 35
Using & Conguring the DCS-932 .........................36
Internet Connection Setup Wizard .............. 16
Network Setup ............................................ 18
Setup > Wireless ..............................................19
Wireless Interface ....................................... 19
Setup > DDNS ................................................ 20

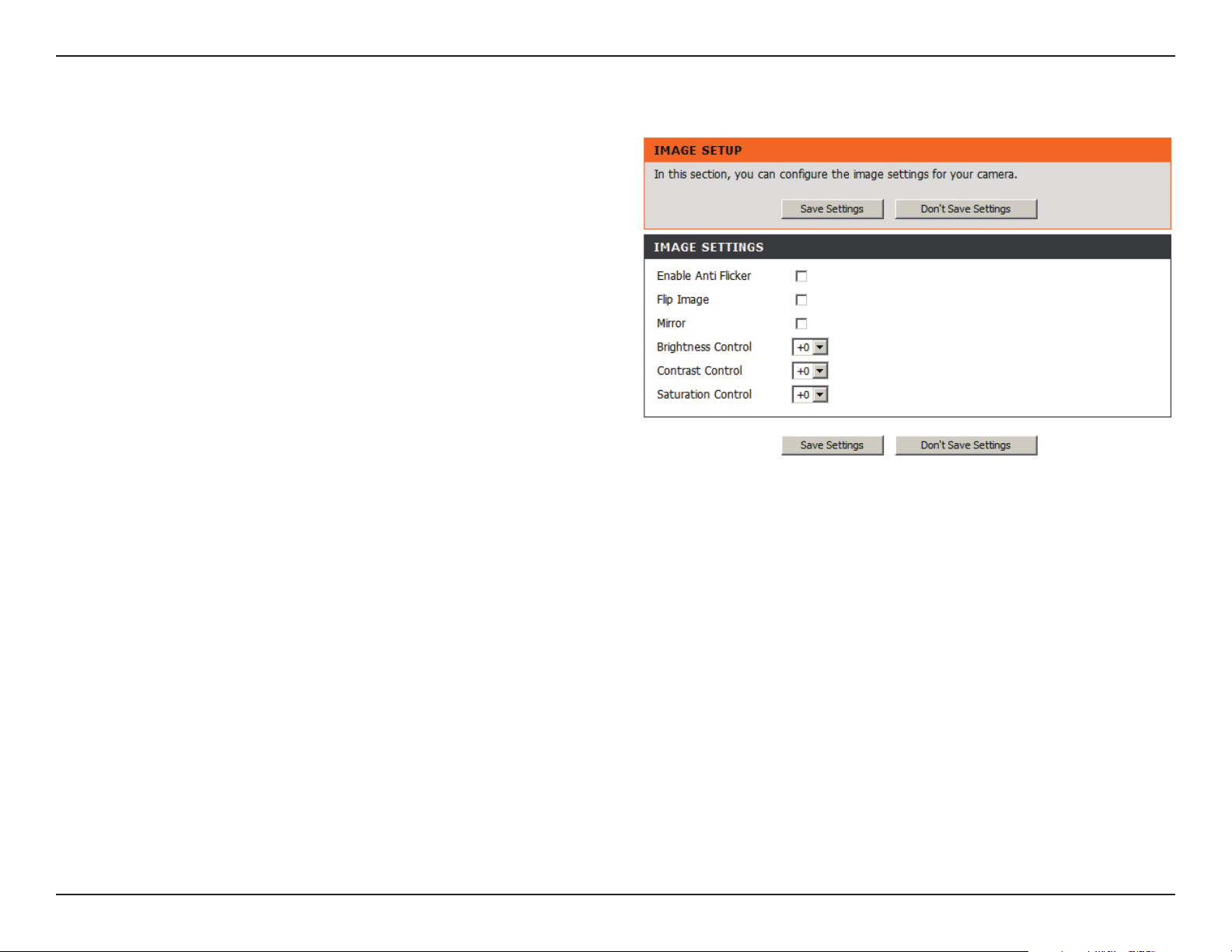

Image Settings ............................................ 21
Wireless Security.......................................................39
What is WEP? .......................................................39
What is WPA? .......................................................40

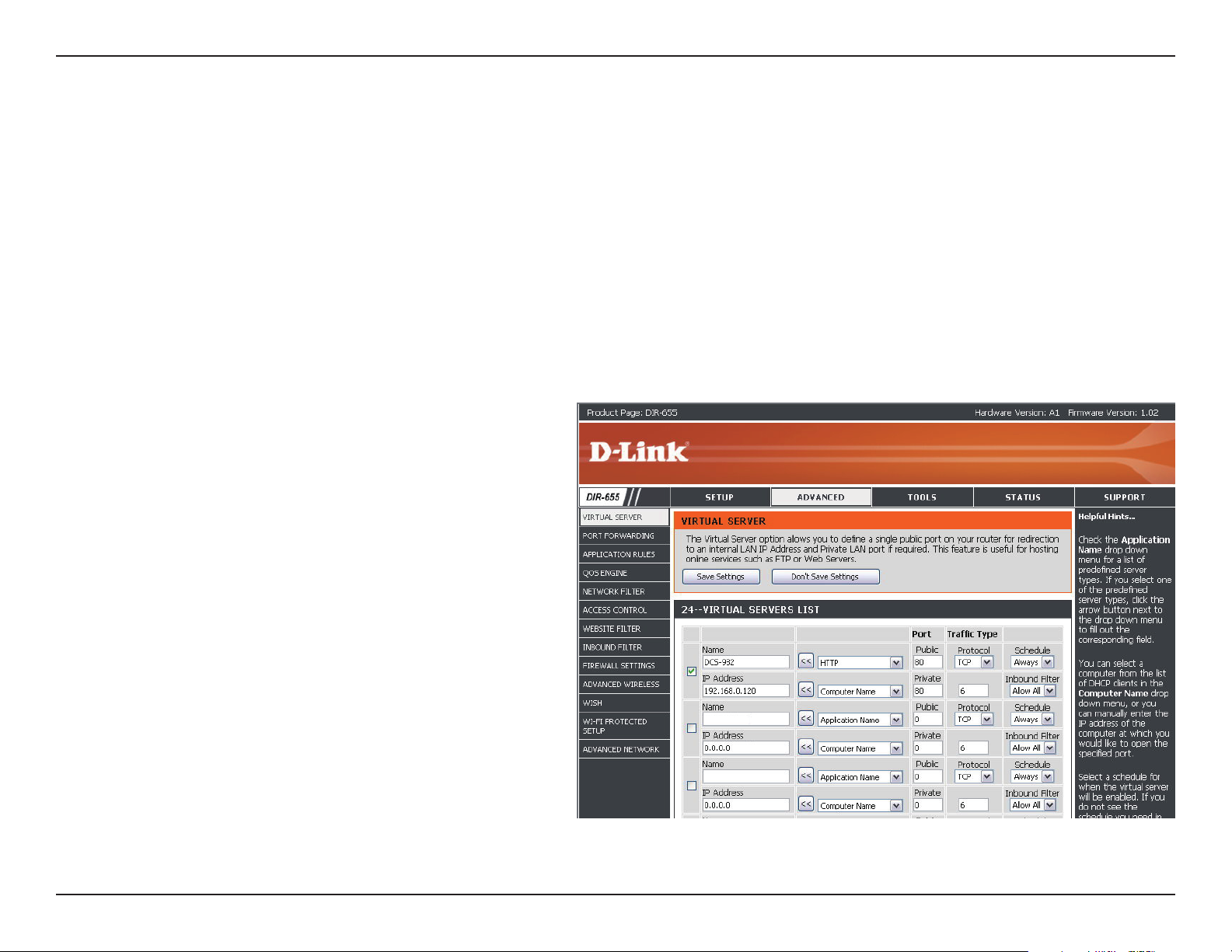

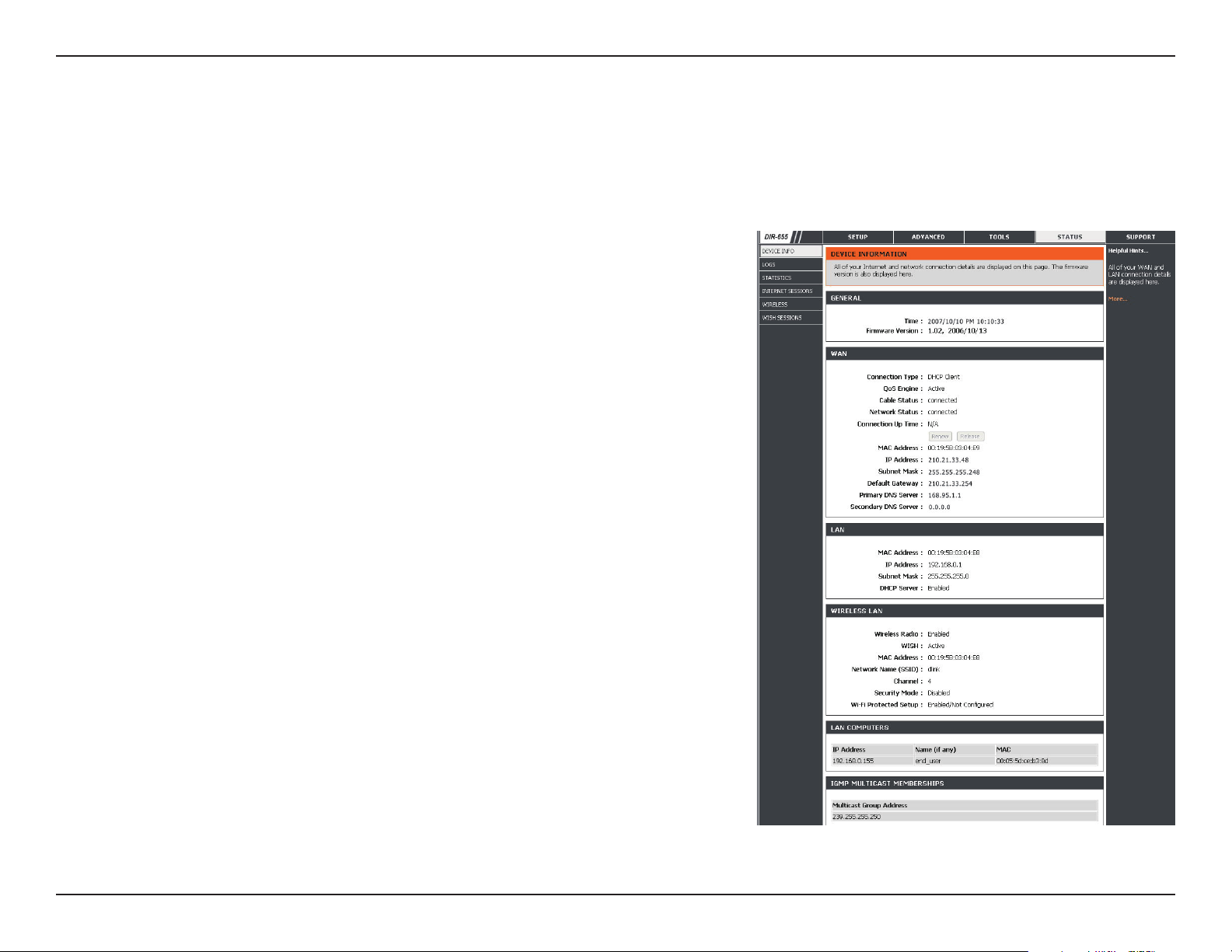

Using & Conguring the DCS-932 with a NAT
2D-Link DCS-932 User Manual
Table of Contents
Troubleshooting ........................................................ 48
Wireless Basics ......................................................... 50
Networking Basics .................................................... 55

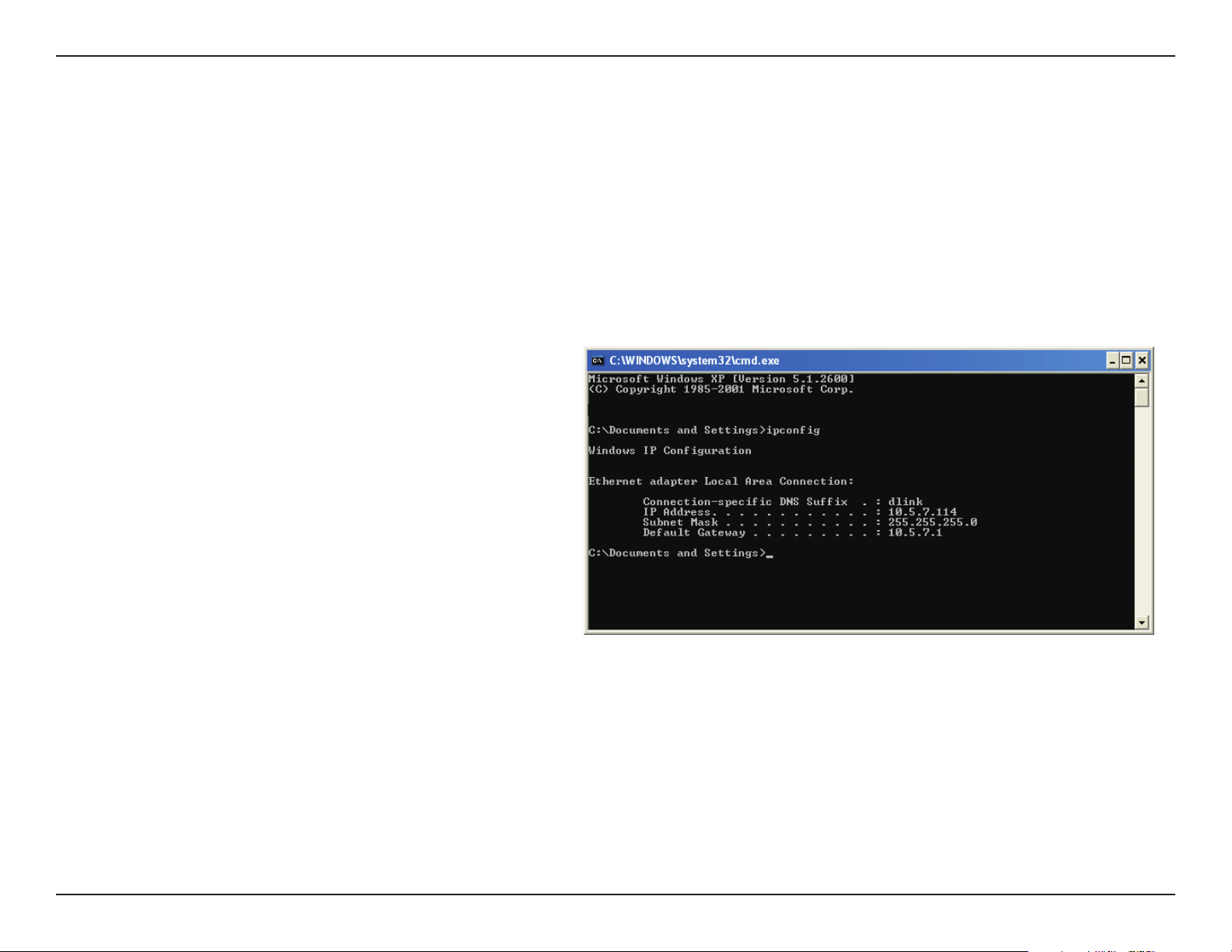

Check your IP address ..........................................55
Statically Assign an IP address ............................. 56
Technical Specications........................................... 57
3D-Link DCS-932 User Manual
Section 1 - Product Overview
• DCS-932 Network Camera
• CAT5 Ethernet Cable
• Power Adapter
• Manual and Software on CD
• Quick Install Guide
• Camera Stand
Note: Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
Product Overview
Package Contents
System Requirements
• Computer with Microsoft Windows® 7, XP®, or Vista
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 6 or above , Firefox 3.5 or above, Safari 4
• Existing 10/100 Ethernet-based network or 802.11n wireless network
®
4D-Link DCS-932 User Manual
Section 1 - Product Overview
Introduction
Congratulations on your purchase of the DCS-932 Network Camera. The DCS-932 is a versatile and unique solution for your small
ofce or home. Unlike a webcam, the DCS-932 is a stand-alone system with a built-in CPU that transmits high quality video images
for monitoring. The DCS-932 can be remotely accessed, and controlled using a Web browser over the Intranet or Internet. The simple installation procedure and intuitive Web-based interface offer easy integration with your Ethernet/Fast Ethernet or 802.11n wireless network. The DCS-932 also comes with remote monitoring capability for a complete and cost-effective home security solution.
5D-Link DCS-932 User Manual
Section 1 - Product Overview
Features
Simple to Use
The DCS-932 is a stand-alone system with a built-in CPU, requiring no special hardware or software such as PC frame grabber cards.
®
The DCS-932 supports both ActiveX mode for Internet Explorer and Java mode for other browsers such as Firefox
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-932 can also be integrated easily into other Internet/Intranet applications because of its standards-based features.
802.11n Wireless or Ethernet/Fast Ethernet Support
The DCS-932 offers wireless 802.11n and Ethernet/Fast Ethernet connectivity, making the DCS-932 easy to integrate into your existing
network environment. The DCS-932 works with a 10 Mbps Ethernet based network or 100 Mbps Fast Ethernet based network for traditional wired environments, and works with 802.11n routers or access points for added exibility. The Site Survey feature also allows
you to view and connect to any available wireless networks.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via
Intranet or Internet. This means you can access your DCS-932 anytime, anywhere in the world.
and Safari®.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing,
and allows the administrator to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring of homes, ofces, banks, hospitals, child-care centers, and amusement parks.
IR LED for night mode
Day and night functionality. The built-in infrared LEDs enables night time viewing of up to 16 feet (5 meters).
6D-Link DCS-932 User Manual
Section 1 - Product Overview
Camera Lens
Hardware Overview
Front View
IR LED
Microphone
Power and Link LED
7D-Link DCS-932 User Manual
Section 1 - Product Overview
Rear View
Power Connector
Reset
WPS Button
Ethernet Connector
WPS LED
Camera Stand
8D-Link DCS-932 User Manual
Section 2 - Installation
Installation
Hardware Installation
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector located on the bottom panel of the DCS-932 and attach it to the network.
Attach the External Power Supply
Attach the external power supply to the DC power input connector located on the bottom panel of the DCS-932 and connect it to
your wall outlet or power strip. Power is conrmed when the green
LED Power Indicator located below the lens on the DCS-932 is illuminated.
9D-Link DCS-932 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your
access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade
your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may
degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible.
The base transmits a signal even if the phone in not in use.
10D-Link DCS-932 User Manual
Section 2 - Installation
Starting the Camera Installation Wizard
Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
The CD-ROM will open the Camera Installation Wizard. Simply click Start to go through the Installation Wizard, which will guide you through the installation process from connecting your hardware to conguring your camera.
11D-Link DCS-932 User Manual
Section 2 - Installation
WPS - Hardware Push Button Setup
Alternatively, you may create a WPS connect using the WPS Button on the back of the camera.
To create a WPS connection:
Step 1
Press and hold the WPS button on the side of the camera for three seconds. The blue WPS status LED above the button will blink.
Step 2
Press the WPS button on your router within 60 seconds. The WPS button is usually on the front or side of your router. On some routers, you may need to log in to the web interface and then click on an onscreen button to activate the WPS feature. If you are not sure where the WPS button is on your router, please refer
to your router’s User Manual.
The DCS-932 will automatically create a wireless connection to your router.
While connecting, the green LED will ash and your camera will reboot.
WPS Button
12D-Link DCS-932 User Manual
Section 3 - Configuration
Conguration
Using the Conguration Menu
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web conguration utility is designed to allow you to easily access and congure your DCS-932. At the end of the wizard, click Go To Camera, or enter the IP address
of your camera into a web browser, such as Internet Explorer®. To log in, use the User name admin and the password you created in the Installation Wizard. If you did not create a password, the default password is blank. After entering your password, click OK.
Note: If you are directly connecting your PC to the camera, or if you are using the camera on a closed network, the default IP is 192.168.0.20.
DCS-9 32
13D-Link DCS-932 User Manual
Section 3 - Configuration
DCS-932
Click the ActiveX or Java radio button to view live video.
DCS- 932
Please make sure that you have the latest version of Java application installed on your computer to ensure proper operation when viewing the video in Java mode. The Java application can be downloaded at no cost from Sun’s web site. (http://www.java.com)
When you connect to the home page of your camera, you will be prompted to download ActiveX. If you want to use ActiveX to view your video images instead of Java, then you must download ActiveX.
14D-Link DCS-932 User Manual
Section 3 - Configuration
Live Video
ActiveX:
For Windows® Users that do not have Java installed, please choose this option to view video streaming on the Home page.
Java:
For Windows
®
users that have Java installed, you can also use this for viewing
video. Mac users must choose this mode to view video.
Setup > Wizard
You may choose to congure your network by using the Internet Connection Setup Wizard that includes step-by-step instructions. Otherwise, you may manually congure
your connection using the Manual Internet Connection Setup.
DCS-932
DCS-9 32
15D-Link DCS-932 User Manual
Section 3 - Configuration
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your
new D-Link Camera and connect the camera to the Internet.
Click Next
You may congure your camera using
• DHCP Connection (by default), where your DHCP server will
automatically assign dynamic IP to your device.
• Static IP Address if your ISP has already assigned an IP address to
you.
• PPPoE connection, where your camera is directly connected to the
Internet through a DSL modem.
* Input the DNS information if you have chosen and assigned a Static IP
Address for your camera.
Click Next
16D-Link DCS-932 User Manual
Section 3 - Configuration
If you have a Dynamic DNS account and would like the camera to update your IP address automatically, enable DDNS and enter your host information.
Click Next
Enter a name for your camera.
Click Next
DCS -93 2
Congure the correct time to ensure that all events triggered, captured and
scheduled at the right time.
Click Next
This page displays your congured settings. Click Apply to save and activate the setting, or Back to change your settings.
Click Apply
DCS -9 32
17D-Link DCS-932 User Manual
Section 3 - Configuration
Network Setup
This section allows you to congure your network settings.
DHCP:
Static IP Client:
PPPoE Settings:
Select this connection if you have a DHCP server running on your network and would like a dynamic IP address to be updated to your camera automatically.
You may obtain a static or xed IP address and other network
information from your network administrator for your camera. A static IP address will ease you for accessing your camera in the future.
IP Address: The xed IP address
Subnet Mask: The default value is “255.255.255.0.” Used to
determine if the destination is the same subnet.
Default Gateway: The gateway used to forward frames to destinations in a different subnet. Invalid gateway settings may cause the failure of transmissions to a different subnet.
Primary DNS: Primary domain name server that translates names to IP addresses.
Secondary DNS: Secondary domain name server to backup the Primary DNS.
If you are using a PPPoE connection, enable it and enter the User Name and Password for your PPPoE account. You can get this information from your Internet service provider (ISP).
Port Settings:
UPnP Settings:
You may congure a Second HTTP port that will allow you to connect to the camera via a standard web browser. The port can be
set to a number other than the default TCP ports 80. A corresponding port must be opened on the router. For example, if the port is changed to 1010, users must type “http://192.168.0.100:1010” instead of only “http://192.168.0.100”.
Enable this setting to congure your camera as an UPnP device in the network.
18D-Link DCS-932 User Manual
