D-Link DCS-5020L User Manual

Version 1.1 | 09/02/2015
User Manual
Wireless N Day & Night Pan/Tilt Cloud Camera
DCS-5020L

Manual Overview

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to the www.mydlink.com website for the most current information.

Manual Revision

Revision Date Description
1.00 08 April, 2013 Initial release
1.10 11 February, 2015 Add power usage
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2012-2015 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior express written permission from D-Link Corporation.

Power Usage

This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energy when it is not needed.
Network Standby: 2.61 watts
Switched O: 0.10 watts
Table of Contents
Table of Contents
Manual Overview............................................................... 2
Manual Revision ............................................................................ 2
Trademarks ..................................................................................... 2
Power Usage ................................................................................... 2
Product Overview .............................................................. 4
Product Overview .............................................................. 4
Package Contents .........................................................................4
System Requirements ................................................................. 4
Introduction ................................................................................... 5
Features ............................................................................................6
Hardware Overview ..................................................................... 7
Front View ................................................................................ 7
Rear View .................................................................................8
Installation ......................................................................... 9
Zero Conguration Setup ........................................................10
Camera Setup Wizard ................................................................13
Windows Users ....................................................................13
Mac Users...............................................................................14
Manual Hardware Installation ................................................15
Wireless Installation Considerations ....................................16
WPS - Push Button Setup .........................................................17
Mounting the Camera...............................................................18
mydlink ...........................................................................................20
Network Setup ..............................................................26
Wireless Setup ......................................................................27
Extender Setup ....................................................................28
Dynamic DNS (DDNS) .......................................................29
Image Setup .........................................................................30
Video .......................................................................................31
Audio .......................................................................................32
Motion Detection ...............................................................33
Sound Detection .................................................................34
Mail ..........................................................................................35
FTP ............................................................................................37
Time and Date ......................................................................39
Day/Night Mode .................................................................40
Camera Control ...................................................................41
Maintenance ................................................................................42
Admin .....................................................................................42
System ....................................................................................43
Firmware Upgrade ..............................................................44
Status ..............................................................................................45
Device Info ............................................................................45
Active User ............................................................................46
Troubleshooting .............................................................. 47
Technical Specications .................................................. 50
Conguration ................................................................... 21
Using the Web Conguration Interface ..............................21
Live Video ......................................................................................22
Setup ...............................................................................................23
Wizard .....................................................................................23

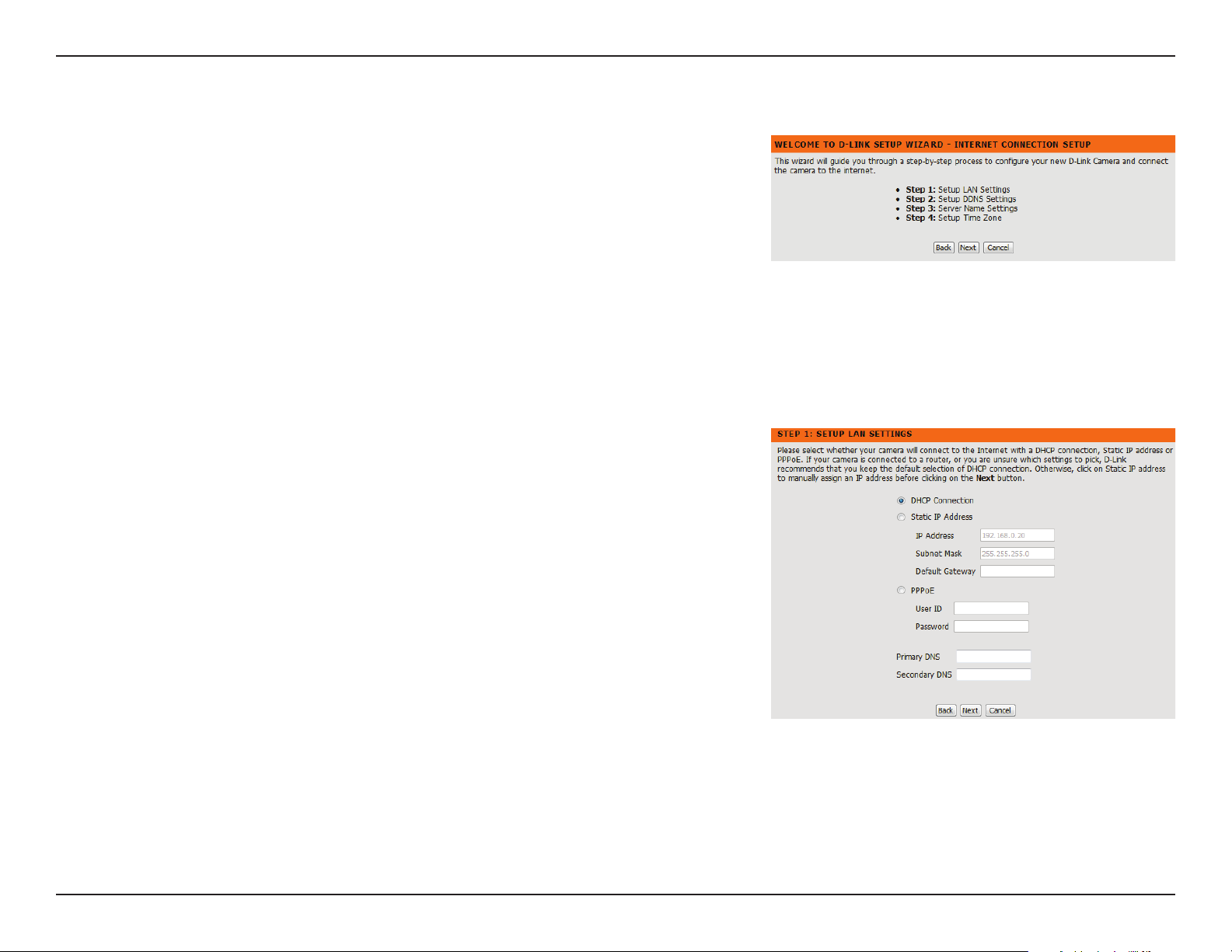

Internet Connection Setup Wizard ........................24
3D-Link DCS-5020L User Manual
Section 1 - Product Overview
• DCS-5020L Wireless N Day & Night Pan/Tilt Cloud Camera
• CAT5 Ethernet Cable
• Power Adapter
• Manual and Software on CD
• Quick Install Guide
• Mounting Bracket and Screws
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product will cause damage and void the warranty for this product.

Product Overview

Product Overview

Package Contents

System Requirements

• Computer with Microsoft Windows® 8/7/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3 GHz or above and at least 128 MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and enabled
• Existing 10/100 Ethernet-based network or 802.11g/n wireless network
4D-Link DCS-5020L User Manual
Section 1 - Product Overview

Introduction

Congratulations on your purchase of the DCS-5020L Wireless N Day & Night Pan/Tilt Cloud Camera. The DCS-5020L is a versatile and unique solution for your home or small oce. Unlike a standard webcam, the DCS-5020L is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance. The pan/tilt function allows the camera to patrol a wide area, while the built-in IR LEDs provide around the clock surveillance regardless of the lighting conditions.
The DCS-5020L can be accessed remotely, and controlled from any PC/Notebook over your local network or through the Internet via a web browser. The simple installation and intuitive web-based interface oer easy integration with your Ethernet/Fast Ethernet or 802.11 b/g/n wireless network, and its Extender Mode even allows you to increase your existing wireless network’s coverage. The DCS-5020L also comes with remote monitoring and sound/motion detection features for a complete and cost­eective security solution.
Your DCS-5020L is mydlink-enabled, which means that you can view and manage your camera from anywhere over the Internet through the mydlink website, or through the mydlink mobile app for iOS and Android. You can view your live video feed, take snapshots, and manage the camera’s conguration, all from anywhere you have Internet access.
5D-Link DCS-5020L User Manual
Section 1 - Product Overview

Features

Easy to Use and mydlink-Enabled for Easy Access and Management
The DCS-5020L is a standalone surveillance camera that requires no special hardware or software, and can operate independently, even without a PC. This camera is also mydlink-enabled, which means you can view and manage your camera through the mydlink website, or through the mydlink mobile app for iOS and Android mobile devices.
Pan/Tilt for Wide Viewing Area
Patrol a large area with one camera thanks to the DCS-5020L’s pan and tilt functions. You can use the web interface to manually adjust the camera lens position, or set up to 24 pre-dened preset positions, enabling you to quickly move to frequently used points of interest.
IR LEDs for Day and Night functionality
The built-in infrared LEDs enable night time viewing of up to 8 meters (26 feet), giving you clear images regardless of lighting conditions.
H.264 Codec for Smooth, Space-Ecient Video
This camera supports use of the H.264 video codec, which gives you high-quality video with reduced bandwidth requirements. This means that you can enjoy smoother, more reliable video streaming over the Internet, and less disk space is required to save recordings.
Motion and Sound Triggered Notications and Recordings
The DCS-5020L can send e-mail notications with snapshots or video clips whenever motion or sound is detected. You can customize areas of the video to monitor for motion to keep watch over specic areas of interest, and you can set volume thresholds to determine the sound level required to trigger a sound notication.
802.11b/g/n Wireless or Ethernet/Fast Ethernet Support
The DCS-5020L oers wireless 802.11b/g/n and Ethernet/Fast Ethernet connectivity, making it easy to integrate into your existing network environment. The DCS-5020L works with either a 10 Mbps Ethernet-based network or 100 Mbps Fast Ethernet-based network for traditional wired environments, and works with 802.11b/g/n wireless routers or access points for added exibility. The Site Survey feature also allows you to view and connect to any available wireless networks within range of the camera.
Extender Mode Increases the Range of Your Wireless Network
You can use the DCS-5020L’s Extender Mode to extend the range of your wireless network, giving your home or oce better wireless coverage.
Remote Monitoring Utility
This camera also includes the D-ViewCam software, which adds enhanced features and functionality that helps you create a full surveillance system for up to 32 cameras. With D-ViewCam, you can view multiple cameras at the same time, record video, and set up scheduled and triggered recordings.
6D-Link DCS-5020L User Manual
Section 1 - Product Overview
Manual Focus Bezel

Hardware Overview

Front View

Light Sensor
IR LED
Camera Lens
Microphone
WPS LED
Power and Link LED
7D-Link DCS-5020L User Manual
Section 1 - Product Overview

Rear View

WPS Button
Reset Button
Power Connector
Ethernet Port
8D-Link DCS-5020L User Manual
Section 2 - Installation
There are three ways to set up your camera:
Zero Conguration Setup: If you have a mydlink-enabled router (D-Link cloud router), this is the easiest way to set up your camera. Refer to “Zero Conguration Setup” on page 10.
Camera Installation Wizard: If you do not have a mydlink-enabled router, use the Camera Installation Wizard to guide you through setup and initial conguration of your camera. Refer to “Camera Setup Wizard” on page 13.
Manual Hardware Installation: This section shows you how to manually set up your camera, however in order to use the mydlink features of your camera, you will still need to run the Camera Installation Wizard. Refer to “Manual Hardware Installation” on page 15.

Installation

9D-Link DCS-5020L User Manual
Section 2 - Installation
Zero Conguration Setup
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration automatically congures your camera's settings for you, and adds the camera to your mydlink account automatically. This type of setup allows you to set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-5020L and add the camera to your mydlink account. After the short time it takes to do this you can remotely access your camera from the website (http://www.mydlink.com) to manage and monitor your DCS-5020L.
Connect the Ethernet Cable and Power Cable
Use the included Ethernet cable and plug it into the camera. Plug the other end into an available port on your D-link Cloud Router. If you wish to use your camera wirelessly, you will be able to remove the cable after Zero Conguration Setup is complete. You can also plug the external power adapter cable into the camera at this time.
Attach the External Power Adapter
Plug the power adapter in to a wall outlet.
10D-Link DCS-5020L User Manual
Section 2 - Installation
Check Your mydlink Account
From any computer with an Internet connection, open a web browser and login to your mydlink account. The mydlink page will check for new devices and display a New device Found! pop-up notication in the bottom-left corner. Click the notication to continue.
A summary and conrmation notication will appear with the automatically congured details. Make a note of the details and click Yes to add the camera to your account.
DCS-5020L
11D-Link DCS-5020L User Manual
Section 2 - Installation
Zero Conguration will navigate to the mydlink Live View tab for your camera where you will see a screen similar to the following.
If you wish to connect your camera to your router wirelessly, you can simply disconnect the Ethernet cable and move the camera to its intended location; your router's wireless settings have been automatically transferred to the camera, and no further conguration is required.
Your camera is now set up, and you can skip to “mydlink” on page 20 to learn more about the mydlink features of this camera, or to “Conguration” on page 21 for advanced conguration of your camera.
Note: If the live image is blurry or out of focus, you can manually adjust the focus by rotating the manual focus bezel surrounding the camera lens.
12D-Link DCS-5020L User Manual
Section 2 - Installation

Camera Setup Wizard

If you do not have a mydlink-enabled cloud router, you can use the Camera Setup Wizard to guide you through the process of adding your camera to the mydlink service

Windows Users

Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program. If the Setup program does not automatically open on your computer, go to Start > Run. In the box, type D:\autorun.exe (where D: represents the drive letter of your CD-ROM drive) and click OK
Simply click Set up your Cloud Camera to go through the Setup Wizard, which will guide you step-by-step through the installation process from connecting your hardware to conguring your camera and registering it with your mydlink account.
If you do not have a CD-ROM drive, or the CD is missing, please download the Setup Wizard from http://www.mydlink.com/support
13D-Link DCS-5020L User Manual
Section 2 - Installation

Mac Users

Insert the Installation CD-ROM into your computer’s optical drive. On the desktop, open your CD drive and double-click on the SetupWizard le.
After about 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation process from connecting your hardware to conguring your camera and registering it with your mydlink account.
If you do not have a CD-ROM drive, or the CD is missing, please download the Setup Wizard from http://www.mydlink.com/support
14D-Link DCS-5020L User Manual
Section 2 - Installation

Manual Hardware Installation

If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard or Zero Conguration Setup.
Connect the Ethernet Cable and Power Cable
Use the included Ethernet cable and plug it into the camera. Plug the other end into an available LAN port on your router. Plug the supplied power adapter into the back of the camera
Plug in the External Power Adapter
Plug the power adapter into a wall outlet.
Congure Your Camera
Refer to “Conguration” on page 21 for information on how to congure your camera.
Optional: Use WPS to Connect Wirelessly
You can use WPS to connect your camera to your network wirelessly. For more information, refer to “WPS - Push Button Setup” on page 17. If your router does not support WPS, you will still be able to set up your camera’s wireless settings in the camera’s web interface.
15D-Link DCS-5020L User Manual
Section 2 - Installation

Wireless Installation Considerations

Your D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each wall or ceiling can reduce your adapter’s range by 1-30 meters (3-90 feet).
2. Be aware of the direct line between network devices. A wall that is half a meter thick (1.5 feet), at a 45-degree angle appears to be almost 1 meter (3 feet) thick. At a 2-degree angle, it can appear over 14 meters (42 feet) thick. Position your devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product at least or 1-2 meters (3-6 feet ) away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.
16D-Link DCS-5020L User Manual
Section 2 - Installation

WPS - Push Button Setup

If your router supports Wi-Fi Protected Setup (WPS), you can create a secure wireless connection using the WPS Button on the back of the camera. Please note that WPS setup only establishes a secure wireless connection, and you will still need to run the Setup Wizard to congure your camera.
To create a WPS connection:
Step 1
Make sure the camera is plugged in, then press and hold the WPS button for ten seconds. The blue WPS status LED will start blinking.
Step 2
Press the WPS button on your router within 60 seconds. The WPS button is usually on the front or side of your router. On some routers, you may need to log in to the web interface and click on an on-screen button to activate the WPS feature. If you are not sure where the WPS button is on your router, please refer to your router’s User Manual.
The DCS-5020L will automatically create a secure wireless connection to your router. While connecting, the blue LED will ash and your camera will reboot.
WPS Button
17D-Link DCS-5020L User Manual
Section 2 - Installation

Mounting the Camera

To mount your camera on a wall or ceiling, please follow the steps below.
It is suggested that you congure the camera before mounting.
Place the mounting bracket where you want to position the camera and use a pencil to mark the holes.
Use appropriate tools to drill two holes the same diameter as the plastic anchors. After drilling the holes, insert the plastic anchors to support the screws.
If desired, the power and Ethernet cables can be concealed behind the mounting bracket. Run the cables through the back of the mounting bracket, securing them with the built-in guides. Be sure to leave enough cable length protruding from the top to allow connection to the camera.
1
2
3
Fasten the mounting bracket to the wall using the screws provided.
Do not overtighten the screws as this may crack the mounting bracket.
4
18D-Link DCS-5020L User Manual
Section 2 - Installation
Using the supplied thumbscrew, fasten the camera to the mounting bracket. Connect the power and Ethernet cables to the camera.
Adjust the angle of the arm on the mounting bracket as required. Tighten the thumbscrew to lock the arm in place.
5
6
19D-Link DCS-5020L User Manual
Section 2 - Installation

mydlink

After registering your DCS-5020L camera with a mydlink account in the Camera Installation Wizard, you will be able to remotely access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User Manual section for your product to nd the latest instruction guide for your camera's mydlink features.
20D-Link DCS-5020L User Manual
Section 3 - Conguration
Conguration
Using the Web Conguration Interface
After completing the Camera Installation Wizard, your camera is ready to use. The camera’s built-in web conguration interface is designed to allow you to easily access and congure your DCS-5020L. There are two ways in which you can access your camera’s web conguration interface:
• Log in to your mydlink account to access your camera’s conguration interface.
• You can also access the interface locally by entering the IP address of your camera into a web browser, such as Internet Explorer a password, leave the password eld blank. After entering your password, click OK.
Note: If you are directly connecting your camera to your PC, or if you are using the camera on a closed network, the default IP is 192.168.0.20. If the camera is connected to a router or network, a dierent IP address may have been assigned.
®
. To log in, use the User name admin and the password you created in the Installation Wizard. If you did not create
DCS-5020L
21D-Link DCS-5020L User Manual 21
Section 3 - Conguration

Live Video

The Live Video screen shows you the live video feed from your camera. For information on how to congure your Live Video streams, refer to “Video” on page 31.
Video
Compression
Format:
Pan/Tilt Wheel:
Go To:
Pan Step:
Tilt Step:
Language:
Zoom:
Click the H.264 or MJPEG radio button to choose which stream to view.
Click on the directional arrows on the pan/tilt wheel to manually control the pan and tilt functions of the camera. At any time, you can click the home button in the center of the wheel to return the camera to its home position.
Select one of the preset locations from the drop down menu to move the camera to that position. Preset positions can be set by going to the Camera Control section of the Setup menu.
Select the increment of movement for each press of a pan (up/down)arrow on the pan/tilt wheel.
Select the increment of movement for each press of a tilt (left/right) arrow on the pan/tilt wheel.
You can select the desired language for the web interface from this drop­down menu.
Click on these buttons to adjust the level of digital zoom applied to the image
Audio:
Night Mode:
Click on these buttons to turn audio playback on and o.
If you have set the night mode to manual, the night mode feature can be toggled using these buttons
Note: If the live image is blurry or out of focus, you can manually adjust the focus by rotating the manual focus bezel surrounding the camera lens.
22D-Link DCS-5020L User Manual 22
Section 3 - Conguration

Setup

Wizard

You may choose to congure your Internet connection by using the Internet Connection Setup Wizard that includes step-by-step instructions. Otherwise, you may manually congure your connection using the Manual Internet Connection Setup.
Note: To register your camera with mydlink and enable its mydlink-related features, you will
need to use the Camera Installation Wizard. Please refer to “Camera Setup Wizard” on page 13 for more details.
23D-Link DCS-5020L User Manual 23
Section 3 - Conguration
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your new D-Link Camera and connect the camera to the Internet.
Click Next to continue.
Select what kind of Internet connection your camera should use:
DHCP Connection (Default): If you are connected to a router, or are not sure which
connection to use, select DHCP Connection.
Static IP Address: This will allow you to manually enter your network settings for the
camera. Select this option if your Internet Service Provider or network administrator has provided you with a set of predened IP addresses. If you are not sure what settings to enter, check with your Internet Service Provider or network administrator.
PPPoE Connection: If your camera is directly connected to a DSL modem, you may
need to use PPPoE. Enter the username and password provided to you by your Internet Service Provider.
Click Next to continue.
24D-Link DCS-5020L User Manual 24
Section 3 - Conguration
If you have a Dynamic DNS account and would like the camera to update your IP address automatically, select Enable and enter your host information. Otherwise, simply select Disable.
Click Next to continue.
Enter a name for your camera. Click Next to continue.
Congure the correct time to ensure that all events are triggered, captured, and scheduled at the right time. Click Next to continue.
This page displays your congured settings. Click Apply to save and activate your changes, or click Back to change your settings.
25D-Link DCS-5020L User Manual 25
Section 3 - Conguration
This section allows you to congure your network settings.
Network Setup
DHCP:
Static IP Client:
PPoE
Port Settings:
Select this connection if you have a DHCP server running on your network and would like a dynamic IP address to be assigned to your camera automatically.
Select this connection type if your Internet Service Provider (ISP) or network administrator has provided you with a static or xed IP address and other network information for your camera. Click on the Static IP
Address radio button to activate this method.
IP Address: The xed IP address Subnet Mask: The default value is “255.255.255.0.” Used to determine if
the destination is the same subnet. Default Gateway: The gateway used to forward data to destinations in a dierent subnet. Invalid gateway settings may cause the failure of transmissions to a dierent subnet. Primary DNS: Primary domain name server that translates names to IP addresses. Secondary DNS: Secondary domain name server to backup the Primary DNS.
If you need to connect to the Internet using a PPoE connection, click on the PPoE radio button and enter the username and password provided to you by your Internet Service Provider or Network Administrator
You may congure a second HTTP port that will allow you to connect to the camera via a standard web browser. The port can be set to a number other than the default TCP port of 80. A corresponding port must be opened on the router. For example, if the port is changed to 1010, users must type http://192.168.0.100:1010 instead of only “http://192.168.0.100”.
UPnP Settings:
Bonjour
Settings:
Enable this setting to congure your camera as a UPnP device in the network. You can also enable UPnP port forwarding.
Enable this setting to allow your camera to be discovered by the Bonjour service. You can also specify a Bonjour name for the device.
26D-Link DCS-5020L User Manual 26
Section 3 - Conguration

Wireless Setup

This section allows you to set up and congure the wireless settings on your camera.
Enable
Wireless:
SSID:
Channel:
Connection
Mode:
Site Survey:
Wireless
Security Mode:
Check this box to allow your camera to connect to your network wirelessly.
Enter the network name (SSID) of the wireless network you want to connect to. You can also click the Site Survey button below to choose an available network and ll in settings automatically.
If you are using Ad-Hoc as your connection mode, select the same channel that is being used by your wireless network.
Select the connection mode used by your wireless network. In most cases, you should select Infrastructure. Ad-Hoc is only used if your camera is directly connecting to another PC or device without the use of a router or access point.
Clicking this button will allow you to select an available wireless network to connect to, and will ll in the necessary settings for you.
Select the wireless security mode used by your wireless network. If you select WEP or WPA-PSK/WPA2-PSK, enter the password for your wireless network in the text box that appears.
27D-Link DCS-5020L User Manual 27
Section 3 - Conguration

Extender Setup

This section allows you to setup and congure the Extender Mode feature of your camera. Extender Mode allows your camera to extend the range of your existing wireless network by repeating the signal it receives. You can choose to use the same network name and settings as your existing wireless network, or you can create a new one.
Enable
Extender
Mode:
Host Wireless
Network Name:
Extended
Wireless
Network Name
(SSID):
Maximum
Clients Allowed
to Connect:
Security Mode:
Check this box to enable Extender Mode.
This shows the name of the Host wireless network that the camera is connected to and will extend.
Select an option:
• Same as Host Wireless Network Name: Your extended network
will use the same name and settings as your Host network. Your devices can use the same wireless information to connect to both the Host and Extended networks.
• Create a New Wireless Network Name: This allows you to
manually set the name and security used for the extended network. You will need to add this information for each wireless device that connects to this Extended network.
Set the maximum number of clients that are allowed to connect to the extended network.
If you choose to Create a New Wireless Network Name, you can set your wireless security options here.
• None - No wireless encryption will be enabled. All data sent over
the wireless connection could be viewed by third parties.
• WEP - WEP is the simplest form of wireless encryption, and should
only be used if you devices do not support WPA/WPA2 encryption.
• WPA/WPA2 - This is currently the most advanced encryption
method. Enter a Pre-shared Key (PSK/password) in the text box provided. Wireless clients will require this password in order to access your extended network.
28D-Link DCS-5020L User Manual 28
Section 3 - Conguration

Dynamic DNS (DDNS)

This section allows you to congure the DDNS setting for your camera. DDNS will allow all users to access your camera using a domain name instead of an IP address.
Enable:
Server Address:
Host Name:
User Name:
Password:
Timeout:
Click to enable the DDNS function.
Select your Dynamic DNS Server from the pull down menu.
Enter the host name of the DDNS server.
Enter your username or e-mail used to connect to the DDNS.
Enter your password used to connect to the DDNS server.
This allows you to specify the periodic update time for the DDNS address.
29D-Link DCS-5020L User Manual 29
Section 3 - Conguration

Image Setup

This section allows you to congure the image settings for your camera.
Enable
Antiicker:
Flip Image:
Mirror:
Brightness
Control:
Contrast
Control:
Saturation
Control:
If you have lights ickering in your camera video, try enabling antiicker. Otherwise, you should leave this disabled.
Select this box to vertically ip the video.
Horizontally ip the video.
Note: If the camera is installed upside down, Flip Image and Mirror should both be checked
Allows you to adjust the brightness level. Select a setting between -5 and +5.
Allows you to adjust the contrast level. Select a setting between -5 and +5.
Allows you to adjust the saturation level. Select a setting between -5 and +5.
30D-Link DCS-5020L User Manual 30
Section 3 - Conguration

Video

This section allows you to congure the video settings for your camera.
Video Prole:
Encode Type:
Resolution:
Bit Rate
FPS:
JPEG Quality:
Default View
Mode:
Light
Frequency:
This section allows you to change the Resolution, FPS, and Quality.
Your camera has separate settings for the H.264 and MJPEG video streams.
Select the desired video resolution from three formats: 640x480, 320x240, and 160x112. Higher settings oer better quality, but will require more bandwidth to stream.
Select the desired bit rate for the video. A higher bit rate will increase image quality, but will require more bandwidth to stream.
Select the frame rate (FPS) to use for the video stream. Higher settings oer better quality, but will require more bandwidth to stream.
Select one of ve levels of image quality: Highest, High, Medium, Low, and Lowest.
Select the default encoding to use when viewing your video on the Live Video page.
Select the frequency used by your lighting and power to help reduce image icker.
31D-Link DCS-5020L User Manual 31
Section 3 - Conguration

Audio

This section allows you to adjust the audio settings for your camera.
Note: Please wait a few seconds for the camera to adjust the audio after making changes.
Audio Settings:
Volume
Settings:
You may Enable or Disable the camera audio feed.
Select the desired volume percentage level.
32D-Link DCS-5020L User Manual 32
Section 3 - Conguration

Motion Detection

Motion detection allows you to mark areas of your camera’s video to monitor for motion, which can be used to trigger snapshots or recordings. Refer to “Mail” on page 35 and “FTP” on page 37 for more details.
Motion
Detection:
Time:
Sensitivity:
Detection
Areas:
Select whether you want to enable or disable the motion detection feature of your camera.
Specify whether you want to Always have motion detection enabled, or according to a Schedule that you dene.
Specify the amount of dierence required to determine whether there was motion.
Use your mouse to click on the areas of the video that you would like to monitor for motion.
33D-Link DCS-5020L User Manual 33
Section 3 - Conguration

Sound Detection

Sound detection allows you to detect when there is a loud sound in the area, which can be used to trigger snapshots or recordings. Refer to “Mail” on page 35 and “FTP” on page 37 for more details.
Sound
Detection:
Time:
Detection
Level:
Select whether you want to enable or disable the sound detection feature of your camera.
Specify whether you want to Always have motion detection enabled, or according to a Schedule that you dene.
Specify the volume level that a sound must exceed in order to trigger the sound detection feature. The graph at the bottom of the page will show the current volume levels being detected by the camera.
34D-Link DCS-5020L User Manual 34
Section 3 - Conguration

Mail

This section allows you to congure your camera to send snapshots and video clips to an e-mail address. If you are not sure what settings to use, check with your e-mail service provider.
SMTP Server
Address:
SMTP Server
Port:
Sender e-mail
Address:
Receiver e-mail
Address:
User Name:
Password:
This is the domain name or IP address of your external e-mail server.
This allows you to set the port for the SMTP Server. The default value is 25, and should only be changed if advised by your e-mail provider.
This is the e-mail address listed as the sender for your notication e-mails.
This is the e-mail address that your notication e-mails will be sent to.
If the SMTP server uses authentication, enter your user name.
If the SMTP server uses authentication, enter your password.
For example, if you want to use Gmail with SSL-TLS for e-mail notications, you can follow the setup procedure as below:
Step 1 - Enter “smtp.gmail.com” in SMTP Server Address. Step 2 - Change the SMTP server port number from 25 to 465. Step 3 - Enter your gmail e-mail address in Sender E-mail Address. Step 4 - Enter the destination e-mail address in Receiver E-mail Address. Step 5 - Enter the user name required to access the SMTP server. Step 6 - Enter the password required to access the SMTP server. Step 7 - Select SSL-TLS and then click Save Settings. Step 8 - Click the Test button to send a test e-mail to the account listed
above.
Note: You can also use STARTTLS, which will use SMTP server port number
587.
Note: If you want to use a Yahoo SMTP server, the SMTP server address will be
dierent between each registered region, and only SMTP port 465 is supported for SSL-TLS.
35D-Link DCS-5020L User Manual 35
Section 3 - Conguration
Enable the
e-mailing of
images to an
e-mail account:
E-mail Interval:
Enable the
e-mailing of
video clips
to an e-mail
account:
Test E-mail
Account:
Enabling this will allow snapshots to be e-mailed to you in dierent ways:
• Choosing Always will e-mail snapshots continuously based on the E-mail Interval specified.
• Choosing Schedule will allow you to schedule when to start and stop the e-mailing of snapshots.
• Select Motion/Sound Detection if you would like the camera to e-mail images only when motion or sound is detected. You can choose whether to e-mail a snapshot immediately, or e-mail 6 snapshots together, with 3 frames before and after motion/sound was detected. You can also set the Frame interval time to specify how far apart the snapshots should be.
This sets the limit for how frequently e-mail notications will be sent. This can be set from 1 to 65535 seconds.
Enabling this will allow video clips to be e-mailed to you in dierent ways. This is the same as e-mailing images, as specied above, but will take video clips according to the Video Limit settings you specify.
This will send a test e-mail according to the e-mail settings you have specied above.
36D-Link DCS-5020L User Manual 36
Section 3 - Conguration
FTP
This section allows you to congure your camera to send snapshots and video clips to an FTP server.
Host Name:
Port:
User Name:
Password:
Path:
Passive Mode:
Enable the uploading of images to an
FTP server:
Frequency:
Enter the IP address of the FTP server that you will be connecting to.
Enter the port of the FTP server that you will be connecting to.
Enter the user name of your FTP server account.
Enter the password of your FTP server account.
Enter the destination path/folder to save les to on the FTP server.
Enabling passive mode may help you reach your FTP server if your camera is behind a router protected by a rewall.
Enabling this will allow snapshots to be uploaded in dierent ways:
• Choosing Always will upload snapshots continuously based on the Image Frequency specified.
• Choosing Schedule will allow you to schedule when to start and stop the uploading of snapshots.
• Select Motion/Sound Detection if you would like the camera to upload images only when motion or sound is detected.
Set how frequently you want images to be taken and uploaded. You can choose to upload by frames per second, or by seconds per frame.
Base File Name:
Set the desired base le name for your snapshots.
37D-Link DCS-5020L User Manual 37
Section 3 - Conguration
File:
Enable the
uploading of
video clip to an
FTP server:
File Name
Prex:
Select how you want uploading of snapshots to be handled:
• Overwrite will replace the old snapshot with the new one. This means you will only have one snapshot that is updated every time a new one is taken.
• Date/Time Suffix will add the date and time to the end of the snapshot file name. You can also choose to make subfolders based on a period of time you specify to help you organize your snapshots.
• Sequence Number Suffix will add a number to the end of the snapshot file name up to the number you specify, after which the oldest files will be overwritten.
Enabling this will allow video clips to be uploaded to your FTP server in various ways.
• Choosing Always will upload video continuously, based on the Video Limit specified below.
• Choosing Schedule will allow you to schedule when to start and stop the uploading of video.
• Select Motion/Sound Detection if you would like the camera to upload video only when motion or sound is detected.
Set the desired base le name for your videos.
Video Limit:
Test FTP Server:
Specify the maximum le size and duration of the videos to be uploaded.
Clicking on the Test button will send a test JPEG snapshot to the FTP server specied above to make sure that your settings are correct.
38D-Link DCS-5020L User Manual 38
Section 3 - Conguration

Time and Date

This section allows you to congure the settings of the internal system clocks for your camera.
Time Zone:
Synchronize
NTP Server:
Set the Date
and Time
Manually:
Select the time zone for your region from the drop down menu.
Enabling this will allow the camera to update its clock automatically from an NTP server. Select the NTP server closest to you, and select whether you want to apply daylight saving corrections.
If Synchronize NTP Server is disabled, you can set the date and time manually. You can also click on the Copy Your Computer’s Time Settings to automatically set the date and time based on your computer’s settings.
39D-Link DCS-5020L User Manual 39
Section 3 - Conguration

Day/Night Mode

This section allows you to congure when Day and Night modes are used. Day mode uses the infrared cut lter to provide a corrected color image for times where there is available lighting. Night mode moves the lter out of the way to use all available light, and turns on the IR LED illuminators to allow for clear black and white video in dark areas with little or no light.
Auto:
Manual:
Always Day
Mode:
Always Night
Mode:
Day Mode
Schedule:
This mode will automatically switch between Day and Night mode based on the amount of available lighting.
This mode allows you to manually switch between modes through the Live Video page.
This sets the camera to always use Day mode.
This sets the camera to always use Night mode.
This sets the camera to use Day mode during the times you specify, and will switch to Night mode outside the times you specify.
40D-Link DCS-5020L User Manual 40
Section 3 - Conguration

Camera Control

This section allows you to congure the pan and tilt operations of your camera. You can specify the lens location for the Home button, and specify up to 24 pre-set lens locations, allowing you to quickly view these pre-determined areas of the camera’s range from the Live Video screen.
Pan/Tilt Wheel:
Set as Home:
Default Home:
Pan Step:
Tilt Step:
Preset Position:
Use the directional arrows on the wheel to move the camera lens through its pan and tilt ranges.
Click this button to set the current lens location as the Home location. Once set, the camera will return to this location whenever the Home button in the center of the pan/tilt wheel is clicked.
Clicking on this button returns the Home location to the factory default setting.
Select the increment of movement for each press of a pan (up/down)arrow on the pan/tilt wheel.
Select the increment of movement for each press of a tilt (left/right) arrow on the pan/tilt wheel.
The camera allows you to specify up to 24 pre-determined lens positions, which can be used to quickly move the camera’s view to areas of interest.
• Select the number of the position that you would like to specify.
• Use the pan/tilt wheel to move the camera’s lens to the desired preset position.
• Enter a name to help you easily identify the preset.
• Click on the Set button to save the preset.
• Any pre-saved positions can be cleared by selecting the desired preset and clicking on the Clear button.
41D-Link DCS-5020L User Manual 41
Section 3 - Conguration

Maintenance

Admin

This section allows you to change the administrator’s password and congure the server settings for your camera. You can also manage the user account(s) that are allowed to access to your camera.
Admin
Password:
Camera Name:
LED Control:
User Access
Control:
Snapshot URL
Authentication:
OSD Time:
Add User
Account:
To change the admin password used to log into the web interface, enter the old password, then enter the new password and retype it in the next text box, then click Apply.
Specify a name for your camera
Select Normal to enable the LEDs on the front of the device, or select O to disable the LED. Disabling the LED function may be useful if you want to make the camera less obvious.
Select Enable to enable user access control or Disable to allow only the administrator account to access the camera.
Select Enable to allow access to the current camera snapshot via the web address indicated.
Select Enable to allow the current time to be added to the camera video, and select a color to use for the text.
You can create new users to provide viewing access for your camera’s video. User accounts will only be able to access the Live Video section of the web conguration interface, but cannot access any other parts or change any settings.
To create a new user, enter a user name, password, and retype the password, then click Add. A maximum of 8 user accounts can be created.
User List:
Displays the account names of authorized users. You can modify or delete an account by clicking on its modify or delete icon.
42D-Link DCS-5020L User Manual 42
Section 3 - Conguration

System

This section allows you to save and restore your conguration, restore the factory settings, and/or restart the camera.
Save To Local
Hard Drive:
Load From Local Hard
Drive:
Restore
To Factory
Default:
Reboot The
Device:
Click the Save Configuration button to save the current camera conguration to your local PC.
To load a previously saved conguration, click the Browse... button, select your saved conguration le, then click the Restore Conguration From File button.
Click the Restore Factory Defaults button to reset all settings back to the factory defaults. Please note that this will erase any changes you have made to the settings of the camera.
Click the Reboot the Device button to reboot the camera.
43D-Link DCS-5020L User Manual 43
Section 3 - Conguration

Firmware Upgrade

Your current rmware version and date will be displayed on your screen. You may go to the D-Link Support Page to check for the latest rmware versions available.
To upgrade the rmware on your DCS-5020L, download the latest rmware from the D-Link Support Page to your local hard drive. Click the Browse... button and select the rmware le, then click the Upload button to start the rmware upgrade.
Warning: The rmware upgrade process must not be interrupted or the camera may be damaged. When upgrading rmware, do not unplug the camera or your PC, or close your web browser until the process is complete. It is also highly recommended that you use a wired connection for your camera and PC when upgrading rmware.
44D-Link DCS-5020L User Manual 44
Section 3 - Conguration

Status

Device Info

This section displays all the detailed information about your device and network settings.
45D-Link DCS-5020L User Manual 45
Section 3 - Conguration

Active User

This page lists all the active users’ information including the User Name, IP address, and the time that camera access began.
46D-Link DCS-5020L User Manual 46
Section 4 - Troubleshooting

Troubleshooting

1. What is Remote Access? How do I enable it?
Remote Access allows you to access your camera from any PC connected to the Internet through a web browser. This lets you view your camera feed and manage your camera’s settings when you’re away from home.
To enable Remote Access, simply go through the Camera Installation Wizard included on the Installation CD that came in your package. You can also download the wizard from: http://www.mydlink.com/support
After going through the wizard, you should see Remote Status: Enabled on the summary page.
If you see Remote Status: Disabled, make sure that:
...the front LED on your camera is lit solid green
...your Internet connection is working
...your router’s LAN & WAN connections are working properly
...your router has UPnP enabled (if your router does not support UPnP, please refer to Appendix A)
...your router can get a public IP address
...your router’s rmware has been upgraded to the latest version
...you have tried rebooting your router by unplugging it, then plugging it back in
After checking the above items, you can click the Retry button to refresh the summary screen to see if Remote Access has been enabled.
2. What can I do if I forget the password for my camera’s web conguration interface?
If you forget your password, you will need to perform a factory reset of your camera. This process will change all your settings back to the factory defaults. It is therefore recommended that you make a record of the password for future reference.
To reset your camera, please use an unfolded paperclip to press and hold the RESET button for at least 10 seconds while your camera is plugged in.
3. The image on the live view is blurry or out of focus, what can I do?
You can manually adjust the focus of the lens by rotating the bezel on the front of the camera (surrounding the lens). While watching the live view, rotate the bezel until the desired level of focus is achieved.
47D-Link DCS-5020L User Manual
Section 4 - Troubleshooting
4. Why don’t the LEDs light up?
The power supply might be faulty. Conrm that you are using the provided DC 12V power supply for this network camera. Verify that the power supply is correctly connected. The WPS LED will only turn on if there is a WPS connection present, the camera may still be functioning correctly even if this LED is not lit. If the camera is functioning normally, the LEDs may have been disabled. See “Admin” on page 42 for information about how to enable the LEDs.
5. Why is the camera’s network connection unreliable?
There might be a problem with the network cable. To conrm that the cables are working, PING the address of a known device on the network. If the cabling is OK and your network is reachable, you should receive a reply similar to the following (…bytes = 32 time = 2 ms).
Another possible problem may be that the network device such as a hub or switch utilized by the Network Camera is not functioning properly. Please conrm the power for the devices are well connected and functioning properly.
If you are using a wireless connection to connect the camera, be aware of the range limitations of the wireless N standard. Most wireless N devices have a maximum indoor range of around 70 metres (230 feet). Also be aware that obstacles such as walls, oors, doors and other solid objects can have an adverse eect on signal range.
6. Why does a series of broad vertical white lines appear through out the image?
It could be that the image sensor has become overloaded when it has been exposed to bright light such as direct exposure to sunlight or halogen lights. Reposition the camera into a more shaded area immediately, as prolonged exposure to bright lights will damage the sensor.
7. The camera is producing noisy images. How can I solve the problem?
The video images might be noisy if the camera is used in a very low light environment. Try switching to night mode if you are consistently monitoring a low light area.
48D-Link DCS-5020L User Manual
Section 4 - Troubleshooting
8. The images are poor quality, how can I improve the image quality?
Make sure that your computer’s display properties are set to at least 6-bit color. Using 16 or 256 colors on your computer will produce dithering artifacts in the image, making the image look as if it is of poor quality.
You may also need to check your image settings to make sure the brightness, contrast, and other settings are set properly. For more, refer to ”Image Setup” on page 30.
9. Why are no images available through the Web browser?
ActiveX might be disabled. If you are viewing the images from Internet Explorer make sure ActiveX has been enabled in the Internet Options menu. You may also need to change the security settings on your browser to allow the ActiveX plug-in to be installed. Also, check that you have the latest version of Java installed. Java can be downloaded from http://www.java.com
If you are using Internet Explorer with a version number 6 or lower, then you will need to upgrade your Web browser software in order to view the streaming video transmitted by the Network Camera.
49D-Link DCS-5020L User Manual
Appendix A - Technical Specications
Technical Specications
SYSTEM REQUIREMENTS
• Microsoft Windows® 8/7/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3 GHz or above and at least 128 MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and enabled
NETWORKING PROTOCOL
• IPV4, ARP, TCP, UDP, ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (Dyndns and D-Link)
• SMTP Client
• FTP Client
• HTTP Server
• PPPoE
WIRELESS TRANSMIT OUTPUT POWER TYPICAL
• 11b - 16 dbm
• 11g/11n - 12 dbm
SDRAM
• 64 MB
FLASH MEMORY
• 8 MB
RESET BUTTON
• Reset to factory default
VIDEO CODECS
• H.264
• MJPEG
• JPEG for still images
• UPnP Port Forwarding
• LLTD
BUILTIN PROTOCOL
• 10/100 BASE-TX Fast Ethernet
• 802.11b/g/n WLAN
WIRELESS CONNECTIVITY
• 802.11b/g/n Wireless with WEP/WPA/WPA2 security
• WPS
VIDEO FEATURES
• Adjustable image size and quality
• Time stamp and text overlay
• Flip and Mirror
• RESOLUTION
• 640 x 480 at up to 30 fps
• 320 x 240 at up to 30 fps
• 160 x 112 at up to 30 fps
50D-Link DCS-5020L User Manual
Appendix A - Technical Specications
LENS
• Focal length: 2.2 mm, F2.0
SENSOR
• VGA 1/5 inch CMOS sensor
IR LED
• 8 meter illumination distance with 10 LEDs and light sensor
MINIMUM ILLUMINATION
• Color: 1 lux @ F2.0 (Day)
• B/W: 0 lux @ F2.0 (Night)
VIEWING ANGLE
• Horizontal: 66.2°
• Vertical: 49.08°
• Diagonal: 77.04°
PAN/TILT RANGE
POWER
• Input: 100-240 V AC, 50/60 Hz
• Output: 12 V DC, 1 A
DIMENSIONS W X D X H
• Camera Only - 102.35 x 101.27 x 133.6 mm (4.03 x 3.99 x 5.26 inches)
• Camera Including Mounting Bracket - 102.35 x 101.27 x 230.0 mm (4.03 x 3.99 x 9.06 inches)
WEIGHT
• Device: 292.4 grams (0.64 lbs)
• Stand: 60.8 grams (0.13 lbs)
MAX POWER CONSUMPTION
• 8.64 W
OPERATION TEMPERATURE
• 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
• Pan Range: +170° ~ -170° (Total 340°)
• Tilt Range: +95° ~ -25° (Total 120°)
DIGITAL ZOOM
• Up to 4x
3A CONTROL
• AGC (Auto Gain Control)
• AWB (Auto White Balance)
• AES (Auto Electronic Shutter)
STORAGE TEMPERATURE
• -20 ˚C to 70 ˚C (-4 ˚F to 158 ˚F)
HUMIDITY
• 20-80% RH non-condensing
EMISSION EMI, SAFETY & OTHER CERTIFICATIONS
• FCC Class B
• IC
• C-Tick
• CE
51D-Link DCS-5020L User Manual
Loading...
