D-Link DCF-560M User Manual

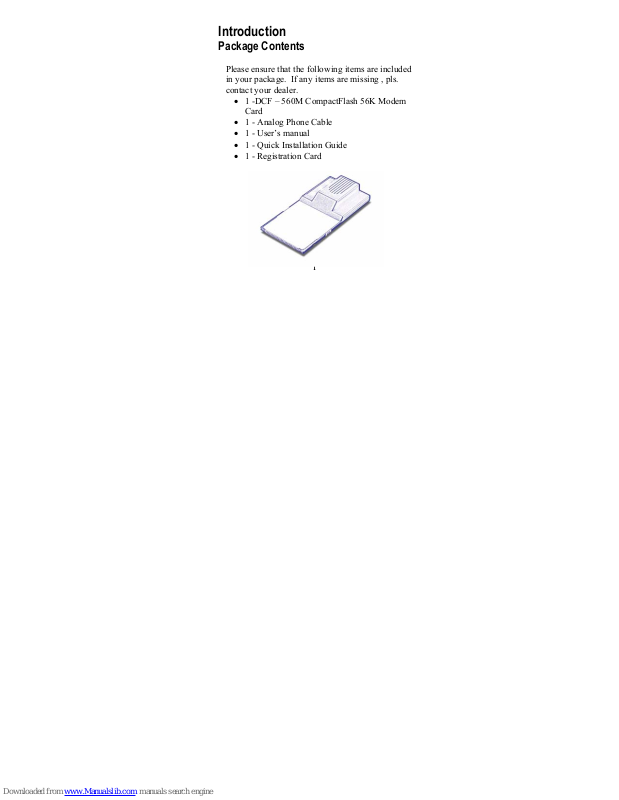

Introduction

Package Contents

Please ensure that the following items are included
in your package. If any items are missing , pls.
contact your dealer.

• 1 -DCF – 560M CompactFlash 56K Modem
Card

• 1 - Analog Phone Cable

• 1 - User’s manual

• 1 - Quick Installation Guide

• 1 - Registration Card

1

—

—

Installation

Hardware Installation

1. Firmly insert the

DCF-560M into the
CompactFlash slot
on top of your
pocket PC with the
50-pin connector
facing the
CompactFlash slot.
You will hear a click
when firmly
connected.

2. Please Press
to skip the warning
message.

“YES”

2

—

—

3. Connect the analog
phone cable to RJ-11
of the DCF-560M.
And insert the other
end of the analog
phone cable into a
standard telephone
outlet.

3

—

—

Configuring a Modem Connection on
Your Pocket PC

1. On your Pocket PC,

“ Start”

tap the
button and choose

Settings.

2. Click the

“

Connections” tab

and choose

Modem” icon.

Note: Consult with

“

your network
administrator
for specific
settings.

4

—

—

3. Click “ New
Connection…”

5

—

—

4. Type a name in the
Enter a name for
the connection text

box.

5. Choose
CompactFlash 56K
Modem from the
Select a modem list.

6. Choose Baud Rate

for your CF modem.

For example:

115200. Click the

“

Advanced” button.

6

—

—

7. Click the “Name
Servers” tab.

8. According to your

ISP account, input
appropriate address
if necessary.

9. Click

“OK“at top

right to continue.

7

—

—

10. Click the “Next”
button.

8

—

—

11. Type in your local
ISP access number.

12. Click

“Next” to

continue.

13. Click
complete the
process…

“Finish” to

9

—

—

Setting up your Pocket PC for POP3
Email

1. Launch the “Inbox”

from your Pocket PC.
Click Services,
followed by New
Service from the

“Next”.

“Next”

menu. Click

2. In the Server Field,

enter the incoming
mail server (usually a
POP3) and your User
ID and Password. If
you are having
problems, please
contact your ISP.

Click

10

—

—

3. Leave the Domain

name blank unless you
are connecting to a
Microsoft NT server.
The SMTP server will
usually be the same as
your POP3 server but
check with your ISP to
make sure. The
return address is the
email you can be
reached at. Click

Next”.

“

4. These are email

options. Choose those
options that you wish
to use. Click

“Next”.

11

—

—

5. The last screen has

options for email
retrieval. You can
select the options on
how you view mail. If
you choose
Copy of Messages”,
you download the
entire email. If you
choose
Headers Only”, you
download only the
summary of the email.
Choose the amount of
lines you wish to
download.

“Get Full

“Get Message
