Dish Network Platinum Remote Control User Manual

Page 1
Page 2
REGULATORY FACTORS
WIRELESS REMOTE CONTROL
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interferencethat may
causeundesiredoperation. Changes or modifications to this device may void your authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide protectionagainst harmful interferencein a residentialinstallation.This equipment generates, uses and can radiate radio fr equency energy and, if not installed and used in accordance with the instructions, may cause harmfulinterference to rad io communications. However,there is no guarantee thatinterference will not occur in a particular installation. If thisequipmentdoes cause harmfulinterference to radio or television reception,which can be determined by turning the equipment offand on, the use is en couraged to try to correct the interferenceby one or moreof the followingmeasures:
• Re-orient or relocatethe receiving antenna.
• Increase the separation between the equipment an d receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experience radio/TV technician for help.
SAFETY INSTRUCTIONS
You must keep safety in mind while using this device. Keep these and any other instructions for future reference.
INSTALLATION
Observe Warnings: Carefully follow all warnings on the device
and in the operatinginstructions.
Heat: DO NOT place the device near heat sources such as radiators, stoves, heat
registers, or other appliances thatproduce heat.
CARE AND USE
Cleaning: DO NOT useliquid,abrasive, solvent, or aerosolcleaners. Use a dampcloth
for cleaning.
When Not in Use: Remove the batteries if this device is to be
left unattendedor unusedfor a long period oftime.
Referservicing to qualified personnelwhen a solid object or liquid has fallen onto or into the device.
DO NOT attempt to service this device. Refer all servicing to qualified personnel. Opening covers other than the battery cover will void the warranty.
Page 3
CONTENTS OF THIS USER GUIDE
Remote Co ntrol Basics.......................................2
Remote Control Batteries.................................... 2
Remote Control Signals: UHF and IR ................. 3
Install an Attenuator............................................4
Remote Control Modes ....................................... 5
Remote Co ntrol Setup ........................................6
Set Up the Remote Control................................. 6
SettingUptoControlOtherDevices....6
Scan for Device Codes.........................7
Check the Device Codes......................8
Change the Address ........................................... 9
Switch Between TV and Device
Volume Control.................................................. 10
Remote Co ntrol Buttons...................................11
Control the Receiver ..........................................11
Control a TV (or a Second TV).......................... 17
Control a VCR (Second VCR or a DVD Pl ayer) 20
Control a Cable TV Box .................................... 22
Control a Tuner or Amplifier.............................. 24
Device Codes ....................................................2 6
TV Codes ..........................................................26
VCR Codes .......................................................28
Cable TV Box Codes.........................................29
DVD Player Codes............................................ 30
Tuner/Amplifier Codes.......................................30
Troubleshoot the Remote Control ...................31
Limited Warranty...............................................33
If You Need He lp ................................................3 5
Index...................................................................3 6
121716 1
Page 4
REMOTE CONTROL BASICS
This remote controlgives you easy accessto all the features of a DISH Network satellite TV receiver and lets you control PVR featuresof a DISH Network DishPVR satellite receiver. These PVR featureslet you record programming with full digital quality, without a VCR. You can set up the remote to control the satellite TV receiver and up to threeother devices. These devicescan be a TV,a VCR or DVD player, and a third device.
REMOTE CONTROL BATTERIES
The remote control requires AAA batteries. When you replace old batteries, you should replace all of the batteries. Use batteries of thesamekind,for example, alkaline or carbon zinc,and don’t mix batteries of different kinds. Alkaline batteries last longer.
1. Press down on the battery cover’s
top latch and lift the cover off.
2. Take out all of the old batteries.
3. Put the new batteriesi n. M ake sure
you match the plus (“+”) ends with the plus markings on the battery case.
4. Fit the battery cover’sbottom tab
back into the slot at the bottom of the batterycase, and snap the cover back into place.
2 121716
Page 5
REMOTE CONTROL SIGNALS: UHF AND IR
Theremotecontrolusesboth Ultra High Frequency (UHF) radio signalsa nd Infrared (IR) light signalsto control the receiver but uses only IR signals to control other devices.
IRsignals travel only short distances(40 feet or less),
and can’t go through walls or other solid objects. You must point the remote control right at the device you want to control, with no objects to block the signal path.
UHFsignals travel long distances (100 feet or m ore) and can
go through walls and other solid objects.Because UHF signals travel so far, the receivermayrespond to signalsfrom other nearby remote controls.To handle this problem, see Change the Address on page 9. If this doesn’t work, see Install an Attenuator on page 4.
You need to attach the UHF remote antenna to the receiver’s back panel UHF REMOTE ANTENNA input so you can use the UHF capabilitiesof the remote (as shown in the diagram below).
Note: Set the antennastraight up so you can use the remote from as far away as possible.Don’t let the antenna touch anything.
Note: If you don’tattach the antenna,you can still use theremote to control the receiver at short distances.This is because the remote sends both IR and UHF signals to the receiver.
121716 3
Page 6
INSTALL AN ATTENUATOR
Stray UHF signals can block signals from the remote control to the receiver. Toprevent blocks, you can install a 10 dB attenuator (you can buy one from a consumer electronics parts store).
Note: This will help keep out stray UHF signals, but also cut down how far away you can use the remote control.
1. Take the UHF antenna off of the receiver’s back panel
UHF REMOTE ANTENNA
input.
2. Put a 10 dB attenuatoronto the
UHF REMOTE ANTENNA
input.
3. Put t he UHF antenna onto the attenuator.
4 121716
Page 7
REMOTE CONTROL MODES
REGULAR MODES
You can set the remote to four different modes to control the receiver or other devices.
Set up the remote to control a device like a TV or a VCR. See Set Up theRemoteControlon page 6 for what to do.
Note:Theremotecomesalready set up to control the receiver,unless you have changed the address on your receiver.
Use the remote control’s mode buttons, SAT (“satellite” receiver), TV, VCR (for a VCR or a DVD player), and AUX (“auxiliary,” for a cable TV box, a tuner, a second TV, a second VCR, a DVD player,or an audio amplifier)to set the remote to the right mode for the device. To change the mode, press the button for the device you want the remote to control. The mode button stays lit for two seconds to show you’ve set the remote to that mode.
LIMITED MODE
You can program your remote control in limited mode to keep from accidentally changing the channel on your TV or VCR. When you use the remote to control your TV in limited mode, you will only be able to use the POW ER, MUT E,andVOLUME buttons. Also, when you use the remote to control your VCR in limited mode, you will only be able to use the POWER and VCR function buttons. Set Up the Remote Control on page 6 has a step that tells the remote control to go into limitedmode.
Note: Limited mode is not used with cable boxes or amplifiers.
121716 5
Page 8
REMOTE CONTROL SETUP
SET UPTHEREMOTE CONTROL
On the next few pages we tell you how to set up the remote to control a TV, a VCR, or other devices.
When you get the remote it’s already set up to control the receiver, unless you have changed the address on your receiver.However, you must set up the remote to control theTVbeforeyoucanusetheMUTE and VOLUME buttons.To set up the remote control,you can either followthe directionsin Setting Up to Control Other Devices below or Scan for Device Codes on page 7.
SETTING UPTOCONTROL OTHER DEVICES
You can set up the remote to control other devicesusing the device codes listed on page 26. Here’s what to do:
1. Use the device’s buttons or its remote control to turn the device on.
2. Find the brand name of the device in the tables startingon page 26. If the brand isn’t listed,see Scan for Device Codes on page 7.
3. Press and hold the mode button for the device you want the remote to control, for about three seconds. When all the other mode buttons light up, let go of the mode button - that mode button should now be flashing. For example, hold the TV mode button for a TV until all of the other mode buttons light. When you let go, the TV mode light will flash.
4. Only for the AUX mode,usetheNUMBER PAD to enter 0 for a second TV, or 1 for a second VCR, or 2 for a tuner, amplifier, or cable box. For any other mode, skip to step 5.
5. Use the number buttons to enter one of the device codes from the table.
6. Only for limited mode,press1. Note: If you want to use all of the remote control’s featuresin TV mode, reprogram the remote controlfollowing these instructions but skip this step.
6 121716
Page 9
7. Press the POUND (#) button. If you entered the code correctly, the mode button flashes three times.
8. Press the blank POWER button to test if the code works for the device. If it does, the device should turn off.
9. Turn the device back on and try some other buttons to make sure they work. Sometimes, the blank POWER button works when other buttons don’t. If the code works for other buttons, stop here.
10.If the code youentered doesn’t work, do steps3 through 9 again with another device code from the tables.
11.If you cannot find a code that works, try Scan for Device Codes below.
SCAN FOR DEVICE CODES
If the code for your device is not listed in the tables starting on page 26, use this procedure to scan the remote control’s memory for the device code. Here’s what to do:
1. Use the device’s buttons or its remote control to turn the device on.
2. Press and hold the mode button for the device you want the remote to control, for about three seconds. When all the other mode buttons light up, let go of the mode button - t hat mode button should now be flashing. For example, hold the TV m ode button for a TV until all of the other mode buttons light. When you let go, the TV mode light will flash.
3. Only for the AUX mode, use the number buttons to enter 0 for a second TV, 1 for a second VCR, or 2 for a tuner, amplifier, or cable box. Then press the STAR (*) button. For any other mode, skip to step 4.
121716 7
Page 10
4. Press the blank POWER button.
5. Press the UP or DOWN ARROW button until the deviceturns off. You will have to do this repeatedly to scan through all codes. Note: Do not press the ARROW buttons too quickly because you could skip over the code for your device. Note: The mode button for the device will flash rapidlyeight times when you’ve scanned all the codes for that device.
6. If the remote reaches the correct code, the device turns off.When this happens,press the POUND (#) button to store the code in the remote.
7. Press the blank POWER button to turn the device back on.
8. Try some other buttons to make sure they work. Sometimes, the blank POWER button works when other buttons don’t.
CHECK THE DEVICE CODES
You can find out what device code you’ve set for each remote control mode. Here’s what to do:
1. Press and hold the mode button for the device you want the remote to control, for about three seconds. When all the other mode buttons light up, let go of the mode button - t hat mode button should now be flashing. For example, hold the TV m ode button for a TV until all of the other mode buttons light. When you let go, the TV mode light will flash.
2. Press the POUND (#) button twice. The mode button flashesthe number for each digit of the device code, with a pause between the groups of flashes. A quick flash is for zero. For example, if the code is 570, the mode button flashes five times, pauses, flashes seven times, pauses, and flashesonce quickly.
8 121716
Page 11
For AUX mode, the first group of flashes tells you what the
AUX mode controls. A quick flash (zero) before the three-digit code isfora TV; one regularflash is for a VCR; and twoflashes is for a tuner, amplifier, or cable box. For example, if the TV code is570,the AUX mode buttonflashes oncequickly,pauses, flashesfive times, pauses, flashes seventimes, pauses, and flashesonce quickly.
CHANGE THE ADDRESS
Because UHF signals travell ong distances and go through walls, a neighbor’s remote may control your receiver by mistake. To handle this problem, you can change the remote control and receiveraddress.
1. Open the Important System Information screen. Press the receiver’s front panel SYSTEM INFO button. The Important System Information screen shows a Remote Address. Write down this number:
2. Press and hold the SAT mode button about three seconds,until all the mode buttons light up, and then let go of the SAT button. The SAT mode button will blink.
3. Use the number buttons to enter any number from1to16,butnot the one you found in step 1. The SAT mode button goes out after you enter each digit, and then lights up again. Write down the number you entered:
4. Press the POUND (#) button. If you entered the address correctly, the SAT mode button will flash three times.
5. Press the RECORD button.
6. Make sure the Remote Address on the Important System Information screen now is the same as the one you entered in step 3. If it isn’t, the remote can’t control the receiver.
7. To check the remote control address, pressand hold the SAT mode button for three seconds. Then, let go of the SAT button, and press the POUND (#)button twice.TheSAT mode buttonflashes the same number of times as the address you entered in step 3.
121716 9
Page 12
8. Press the SELECT button to close the Important System Information screen.
SWITCH BETWEEN TV AND DEVICE VOLUME CONTROL
When yousetup t he remote to control a TV, the MUTE and VOLUME buttonscontrol the TV volume. However, if you want to use the AUX mode to control a tuner or amplifier and the device has a volume setting,you can set up the remote to control the device’s volume insteadof the TV volume.
To set the remotetocontrolthe device’s volume:
1. Press and hold the AUX mode button for threeseconds,and then let goofit. The AUX mode button will blink.
2. Press the POUND (#) button.
3. Press the plus (+) side of the VOLUME button.
4. Press the 0 number button.
5. Press the POUND (#) button. The AUX mode button flashes three times.
6. Press the SAT mode button.
7. Press the plus (+) and minus (-) sides of the VOLUME button. The device’s volume changes and the AUX mode button lights instead of the TV mode button.
To set the remoteback to control the TV volume:
1. Press and hold the TV mode button for three seconds, and then let go of it. The TV mode button will blink.
2. Press the POUND (#) button.
3. Press the plus (+) side of the VOLUME button.
10 121716
Page 13
4. Press the 0 number button.
5. Press the POUND (#) button. The TV mode button flashes three times.
6. Press the SAT mode button.
7. Press the plus (+) and minus (-) sides of the VOLUME button. The TV’s volume changes and the TV mode button lights instead of the AUX mode button.
REMOTE CONTROL BUTTONS
CONTROL THE RECEIVER

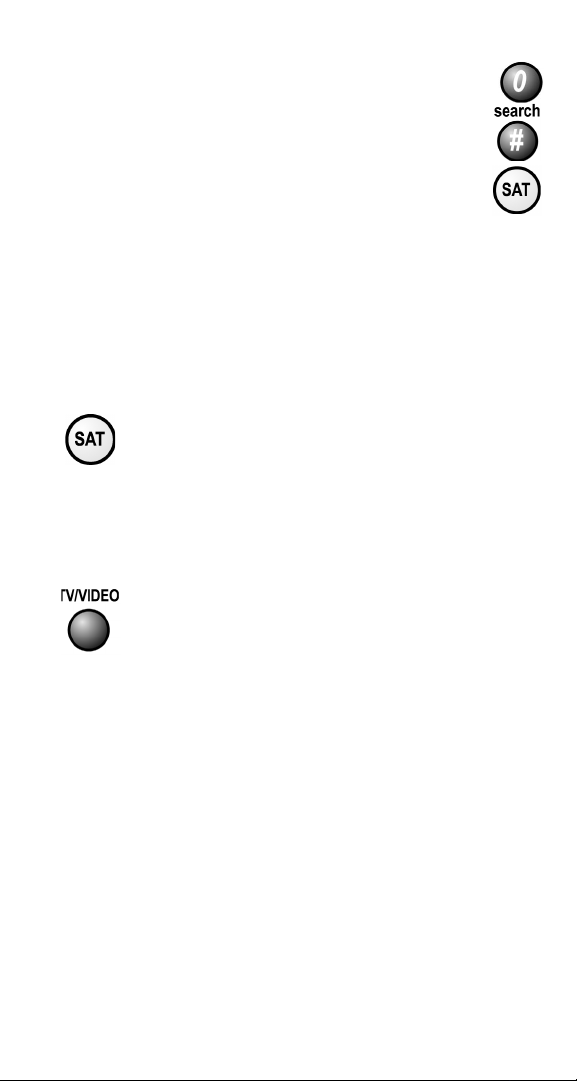

SAT MODE BUTTON
Press this button to set the remote to SAT (“satellite”) mode to control the receiver. The SAT mode button’s back light stays lit for about two seconds to show you’ve set the remote to SATmode. Make sure you
keep the remotein SAT mode to use the buttons described here.
TV/VIDEO BUTTON
Ifyou connectt he receiverwith itsback panel TV ANTENNA/CABLE IN and TV SET OUT ports, use this button to switch the receiver
betweenthe satellitesignal (connectit to the SATELLITE IN port) and anothervideo signal like a cable or broadcast TV antenna input (connect it to the receiver’s TV ANTENNA/CABLE IN input).
Note: If you connect the receiver to other devices with the phono
(RCA) jacks or the S-VIDEO output, you must use t he TV menus to change the input from local broadcastTV to satellite TV.
121716 11
Page 14
P
OWER BUTTONS
Press the blank POWER button to turn the receiver on or off. The POWER light on the receiver’sfront panel turns on to show the
receiveris on, and turns off to show it’s off.
MENU BUTTON
Press this button to open the Main Menu.
PAGE UP AND PAGE DOWN BUTTONS
Press the PAGE UP button or the PAGE DOWN button to scan, page by page, through the Program Guide,aThemes list, a Favorite
List,anEvent Timers list, or a list of channels. Note: An “event”is any satellite program.
GUIDE BUTTON
Press this button to open the Program Guide. When you have the Program Guide open, press this button to change between your Favorite Lists.
12 121716
Page 15
A
RROW BUTTONS
Change channels - Press the UP or DOWN arrow button to
change channels.
Open the Browse Banner -PresstheRIGHT arrow button.
ShowThemes -PresstheLEFT arrow button.
Move aroundwithin the Program Guide,menus,andBr owse
Banner -PresstheUP, DOWN, LEFT,andRIGHT arrow buttons.
SELECT BUTTON
Press this button to select the option you highlight in a menu.
RECALL BUTTON
Press this button to go back to the last receiver channelyou watched. Press it again to switch between the last two receiver channels you watched.
INFO BUT TON
Program information - Press the INFO button for more
information when you watch a program, or when you have the Program Guide, Browse Banner,orThemes list open.
Help - Pressthe INFO button to see help information when a
Helpbutton appears in a menu.
121716 13
Page 16
V

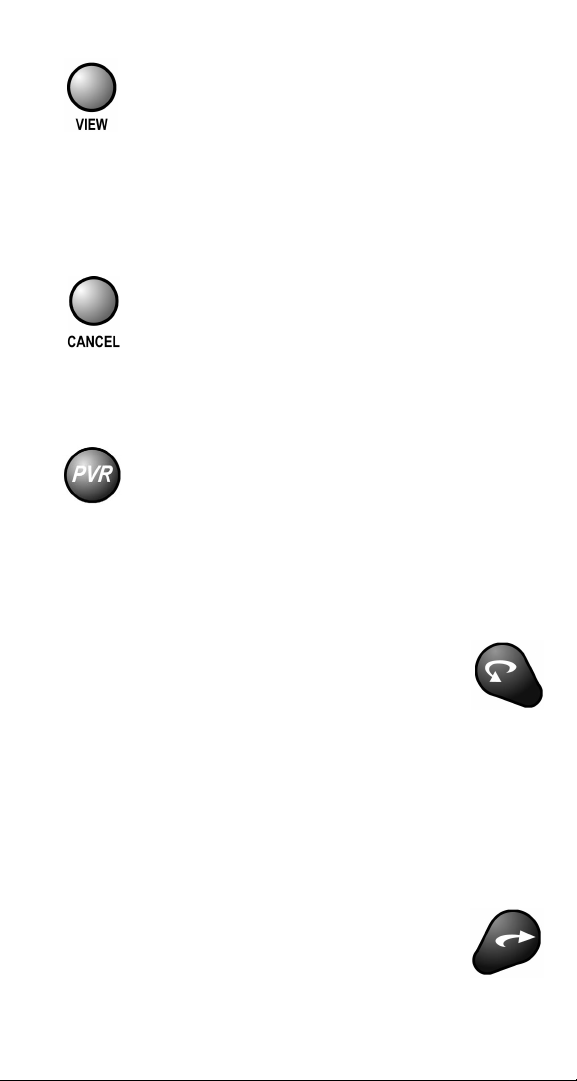

IEW BUTTON
When you watch a program, press this button to briefly display
the Program Banner.
When you use a menu, press this button to cancel
and go back to watch a program.
CANCEL BUTTON
Press this button to cancel and go back to the previous menu or to watch a program.
DISHPVR BUTTONS
Use these buttons to record or play back a program.
Press the PVR buttontoopentheDishPVR
Recorded Events menu.
Press the SKIP BACK button to:
Skip back about ten seconds in a program. Press
thisbuttonagaintoskipbackagain.
Use the frame reverse feature. Press the PAUSE
button and then press the SKIP BACK button to reverse the recording one frame at a time.
Skip back one day at a time in the Electronic ProgramGuide
(EPG). Note:TheSKIP BACKbutton will not skip back the EPG beyond the current date.
Press the SKIP AHEAD button to:
Skip ahead about 30 seconds in a program. Press
this button again to skip ahead again.
14 121716
Page 17
Use the frame advance feature. Press the PAUSE button and
thenpress the SKIP AHEAD buttonto advancethe recording oneframeatatime.
SkipaheadonedayatatimeintheEPG.
Press the BACK button to:
Move back through a program four times as
fast as normal play. Press this button twice to move back at 15 times, three times to move back at 60 times, and four times to move back at 300 times as fast as normal play.
Use the slow motion feature. Press the PAUSE button and
then press the BACK button to reverse the program in slow motion.Press the BACK button once to reverse the program 1/4 thespeedas normal play. Press the BACKbutton twice to reverseat normal speed.
Press the PAUSE button to pause a program.
Press this button again to go back to watching the program.
Press the FWD (“forward”) button to:
Move ahead through a program four times as
fast as normal play. Press this button twice to move ahead at 15 times, three times to move aheadat60times,andfour times to move aheadat300timesasfastasnormalplay.
Use the slow motion feature. Press the PAUSE button and
then press the FWD button to forward the program in slow motion.W hen you press the FWD button once the program advances at 1/15 the speed of normal play. Press the FWD buttontwice to forwardat 1/4 as fast asnormal play. Press the FWDbuttonthreetimestoplaytheprogram.
Press the STOP button to stop recording a program or
to stop playing a recorded program.
Press the PLAY button to watch a program. Also,
press this button to switch from forward or reverse back to watch the program at normalspeed.
121716 15
Page 18
Press the RECORD button to start recording a
program. Note: You also use this button if you change
theremotecontroladdress.Seepage9.
DISH BUTTON
Press the dish button to go to Dish Home for receivers that support Dish Home.
NUMBER BUTTONS
Change the channel - Use the NUMBER buttons to enter a
channelnumber to change the channel.If you have the Program Guideopen, use the NUMBER buttons to jump to the channel listing on the Program Guide.
Scrollthrough the Program Guide by time - When you have
the Program Guide open, enter a number of hours using these buttons,a nd then press the RIGHT or LEFTarrowbuttontoskip the Program Guide forward or backward that many hours. Enter menu options - For an option with a number, you can press the number for that option instead of highlightingand selecting the option.
Enter numbersin a blank - Highlight theplace where you need to
enter the number. Press a number button(s) (or, you can use the UP/DOWN arrow buttons to enter the number).
16 121716
Page 19
Search - Use the lettersabove the NUMBER buttons while in the
Search menu. For example, when looking for the channel and times to watch Rudy Fremmel Presents, you press 7 threetimes for an R, 8 two times for a U, 3 one time for a D,and9 three times for a Y to spell the word “Rudy” (see your receiver’s User Guide for more information).
ZERO BUTTON
Press this button to forward space while using the search functionof your receiver.
STAR (*) BUTTON
Press this button to back space while using the search function of your receiver.
POUND (#) BUTTON
Press this button to display the Search screen. Also, you use this button in several procedures in this Use r Guide.
CONTROL A TV ( OR A SECOND TV)
Only the buttons we t ell you about here control a TV. Some of the buttons we tell you about here may not control your TV. See your TV user’s manual for information about the TV’s features.
You can set up the remote to control a second TV in AUX mode, the same way it controlsthe first TV in TV mode. See Set Up the Remote Control on page 6.
121716 17
Page 20
TV M
ODE BUTTON
You must first set up the remote to control the TV. See Set Up the Remote Controlon page 6. Then press the TV mode button to set the
remote to TV mode. The TV mode button will stay lit for two seconds to show you’ve set the remote to TV mode. M ake sure you keep the remote in TV mode t o use the buttons we tell you about here.
POWER BUTT ONS
Press either POWER button to turn the TV on or off. Note:IfyousetuptheremotetocontroloneTVinTV mode and an
additional TV in AUXmode, pressing the TV POWERbuttoncontrols only the TV you set up in TV mode.
TV/VIDEO BUTTON
If the TV has video input options, use this button to switch the TV video input.
MUTE BUTTON
PressthisbuttontoturntheTVsoundonoroff.
VOLUME BUTTON
Press this button to raise (+) or lower (-) the TV sound volume.
18 121716
Page 21
U
P/DOWN ARROW BUTTONS
Use these buttons to change channels on the TV. Note: These buttons do not change the channels on the TV if the remote control is in limited mode.
SELECT BUTTON
The SELECT button works as the ENTER button for a TV.
RECALL BUTTON
Press this button to go back t o the last TV channel you watched.Press it again to switch between the last two TV channels you watched.
NUMBER BUTTONS
Use these buttons to directly enter a differentchannel. Note: These buttons do not change the channels on the TV if the remote control is in limited mode.
121716 19
Page 22
CONTROL A VCR (OR A SECOND VCR OR A DVD PLAYER)
Only the buttons we t ell you about here control a VCR or DVD. Some of the buttons we tell you about here may not control your VCR. See your VCR’s user’smanual for informationabout the VCR’s features.
You can set up the remote to controla second VCR in AUX mode, the same way it controls the first VCR in VCR mode. See Set Up the Remote Control on page 6.
VCR MODE BUTTON
You must first set up the remote to control the VCR. See Set Up the Remote Controlon page 6. Then press the VCR mode button to set the
remote to VCR mode. The VCR mode button will stay lit for two seconds to show you’ve set the remote to VCR mode.Makesureyou keep the remote in VCR mode to use the buttons we tell you about here.
You must put the remote in VCR mode to set it up to control a DVD player.Later, you must put the remote in VCR mode to use it to control a DVD player
.
TV/VIDEO BUTTON
Use this b utton to switch the VCR between its TV mode and its VCR mode (see your VCR user’s manual for information).
POWER BUTTON
Press the blank POWER button to turn the VCR on or off. Press the TV POW ER button to turn the TV on or off.
20 121716
Page 23
U
P/DOWN ARROW BUTTONS
Use these buttons to change channels on the VCR. Note: If you are using the remote control in Limited Mode, the TV
will not change channels.
VCR BUTTONS
Press the BACK button to rewind a videotape.
Press the PAUSE button to pause a videotape. Press this button or the PLAY button to play the tape.
Press the FWD (“forward”) button
to forward a videotape.
Press the STOP button to stop playing or recording on a videotape.
Press the RECORD button to record on a videotape.
Press the PLAY buttontoplayavideotape.
121716 21
Page 24
CONTROL A CABLE TV BOX
Only the buttons we t ell you about here control a cable TV box. Some of the buttons we tell you about here may not control your cable TV box. See your cable box user’s manual for information about the box’s features.
AUX MODE BUTTON
You must first set up the remote to control the cable TV box. See Set UptheRemoteControlon page 6. Then press the AUX mode button to
set the remote to AUX mode. The AUX mode button will stay lit for two seconds toshow you’ve setthe remote to AUX mode. Make sure to keep the remote in AUX mode to use the buttons we tell you about here.
TV/VIDEO BUTTON
Use this button to switch the cable box between its TV mode and its video mode.
POWER BUTT ON
Press the blank POWER button to turn the cable box on or off. Press the TV POWER button to turn the TV on or off.
MUTE BUTTON
Press this button to turn on or off the sound from the cable box. Note:Programtheremotetocontrolthedevice’svolumebyfollowing the instructions on page 10.
22 121716
Page 25
V
OLUME BUTTON
Pressthisbuttontoraise(+)orlower(-) the sound volume from the cable box. Note:Programtheremotetocontrolthedevice’svolumebyfollowing the instructions on page 10.
UP/DOWN ARROW BUTTON S
Use these buttons to change channels on the cable box.
SELECT BUTTON
Press the SELECT button in place of the ENTER button for the cable box.
RECALL BUTTON
Press this button to go back to the last cable box channel you used. Press it again to switch between the last two cable box channelsyou used.
121716 23
Page 26
UMBER BUTTONS
N
Use these buttons to enter channel numbers.
CONTROL A TUNER OR AMPLIFIER
Only the buttons described here control a tuner or amplifier. Some of the buttons described here may not control your tuner or amplifier. See the device user’s manual for information.
AUX MODE BUTTON
You must first set up the remote to control the device. See Set Up the Remote Control on page 6. Then press the AUX mode button to set the
remote to AUX mode. The AUX mode button will stay lit for two seconds to show you’ve set the remote to AUX mode. Make sure to keep the remote in AUX mode to use the buttons we tell you about here.
POWER BUTTON
Pressthe blank POWER button toturn the tuner or amplifier on or off. Press the TV POWER button to turn the TV on or off.
24 121716
Page 27
M
UTE BUTTON
Press this button to turn on or off the sound. Note:Programtheremotetocontrolthedevice’svolumebyfollowing the instructions on page 10.
VOLUME BUTTON
Pressthisbuttontoraise(+)orlower(-) the sound volume. Note:Programtheremotetocontrolthedevice’svolumebyfollowing the instructions on page 10.
UP/DOWN ARROW BUTTONS
Use these buttons to change channels on the tuner or amplifier.
SELECT BUTTON
This button works as the INPUT SELECT button for the tuner or amplifier.
121716 25
Page 28
DEVICE CODES
These tablescontain the manufacturercodes for programming the remote to control your TV, a VCR, DVD player, cable box, or audio amplifier. Every attempt has been made to include all codes. If your device brand is not listed or if the codes to not work, the remote may not controlyour device. In somecasescodes may operate somebut not all buttons shown in this guide.
TV CODES
TELEVISION CODES
Admiral 514, 521 Akai 532, 570, 573 Alba 613 A-Mark 620 Amstrad 533 Anam 509, 541, 620, 621,
AOC 505, 506, 519, 520, 620,
Archer 620 Audiovox 620 Bauer 611 Baycraft 536 Brockwood 695 Broksonic 562, 691 Candle 506, 522, 523, 525, 536,
Capehart 519, 695 Circuit City 695 Citizen 506, 516, 522, 523, 524,
Colortyme 573, 695 Concerto 523 Contec 527, 528, 541, 591, 691 Craig 536, 541, 691, 694 Crown 526, 536 Curtis Mathes 506, 516, 526, 573, 703,
CXC 541, 691 Daewoo 505,524, 526, 529, 530,
Daytron 526, 695 Dixi 532, 588, 620 Dumont 695
691,698
695, 712
691, 695, 712
525, 526, 691, 712
712, 708
531, 532, 698, 712, 719
TELEVISION CODES
EchoStar 722 Electrohome 526, 573, 709, 713 Elta 532 Emerson 526,527, 528, 533, 534,
Envision 506, 712 Etron 532 Fisher 542,590 Formenti 611 Fortress 573, 605 Fujitsu 534, 694 Funai 534, 541, 691, 694 Futuretech 541, 691, 694 General Electric
(GE)
Genexxa 613 Goldstar 505, 523, 526, 545, 546,
Granada 695, 711 Grand 695 Grandiente 711 Grundig 547 Hallmark 695 Harmon Kardon 561 Hinari 534 Hitachi 523, 526, 548, 549, 550,
Infinity 566 JBL 566 JC Penney 503,505, 506, 516, 526,
535, 536, 537, 538, 539, 540, 541, 573,622, 691, 692, 695, 696, 699, 720,
503, 508, 509, 515, 540, 543, 544, 630, 695, 698, 701,714, 715, 716
573, 588, 693, 712
551, 552, 553, 554, 555, 585, 597, 626, 702, 718
531, 543, 596, 701, 714
26 121716
Page 29
TELEVISION CODES
Jenson 556,573 JVC 557, 558, 559, 560 Kawasho 548, 561, 712 Kenwood 506, 573, 712 Kloss 522,561, 610, 698 KTV 526,539,540,541,691,
Lloyds 695 Lloytron 526 Loewe 588 Logik 518 Luxman 523 LXI 503,563, 566, 590,595,
Magnasonic 573 Magnavox 506, 520, 525, 536, 564,
Marantz 506, 566, 573, 588, 712 Matsui 532, 609 Megatron 695 Memorex 518,532,590,695,720 MGA 504, 505, 506, 571,
Mitsubishi 504, 505, 570, 571, 572,
MTC 505,506,516,523,531,
NAD 502, 617, 695 National 509, 697,698 National Quenties 697 NEC 505,506,507,517,523,
Nikkai 612, 613, 618 Nordmende 551 Normandic 717 Novabeam 561, 698 Nyon 701 Onwa 541, 691 Optonica 605, 607 Orion 694 Osaki 612 Panasonic 508,509, 510, 511,512,
Philco 505, 506, 525, 536, 564,
696, 712
617, 625, 701
565, 566, 567, 568, 569, 573, 575, 610, 710, 712
573,695
597, 623, 695, 705, 707, 712
695, 712
573, 627, 712
566, 574, 685, 686,687,689,697, 698, 700, 706, 714, 716
565, 568, 573, 610, 712
TELEVISION CODES
Philips 566, 588 Pioneer 502, 548,551, 576, 708 Portland 505,526,712 Proscan 503 Proton 513, 519, 526, 536, 585,
Pulsar 501 Quasar 508, 509, 577, 698, 700 Radio Shack 526, 541, 607, 612, 691,
RCA 503,505, 515, 548, 579,
Realistic 590 Saba 551 Saisho 532,533,609 Sampo 506, 519, 698 Samsung 505, 506, 516, 523, 526,
Samwon 620 Sanyo 542, 589, 590, 591, 592,
SBR 588 Schneider 588 Scott 526, 534, 537, 541, 593,
Sears 503, 523, 534, 542, 563,
Seimitsu 695 Sharp 526, 585, 591, 605, 606,
Siemens 591 Signature 518 Silver 573 Solavox 612 Sony 500, 578, 609, 619, 622,
Soundesign 525, 536, 541, 691, 695 Spectricon 520, 620 Squareview 694 SSS 505, 541,573, 691, 712 Supra 523 Supre-Macy 522 Sylvania 506, 525, 536, 564, 565,
624, 695
698
580, 581, 582, 583, 584, 586, 587, 625, 633, 634, 691, 698, 701, 708, 714, 715, 716
532, 588, 612, 695, 704, 712, 721
609
600, 691,696, 701
589, 590, 594, 595, 596, 598, 599, 601, 602, 603, 604, 617, 695, 703
607, 608, 628, 629
690
566, 568, 573, 575, 600, 610, 611, 712
121716 27
Page 30
TELEVISION CODES
Symphonic 632, 692, 694 Tandy 605, 613 Tatung 509, 698 Technics 508 Techwood 523, 573 Teknika 504,505,516,518,522,
Teleav ia 5 51 Telefunken 551 Teletech 532 Tera 513 Thomas 695 Thompson 709 Thomson 551, 616 TMK 523, 573, 695 Toshiba 516,590,596,617,618,
Tosoni c 528 Totevision 526 Toyomenko 695 Universal 543 Vector Research 506 Victor 557 Video Concepts 570, 691 Vidtech 505, 695, 712 Viking 522 Wards 505,506,515,518,534,
Yamaha 505, 506, 712 York 695 Zenith 501,518, 693 Zonda 620
VCR C
ODES
523, 524, 525, 526, 534, 536, 541, 614, 615, 686, 691, 712
631, 688
536, 543, 564, 565, 567, 568, 607, 619, 712, 714, 715
VCR CODES
Aiwa 588, 622, 623, 624 Akai 513, 514, 515, 516, 517,
Alba 546 Amstrad 588 ASA 565
518, 519, 520, 568,
VCR CODES
Audio Dynamics 594, 600 Broksonic 559 Bush 589 Candle 580, 592, 593 Canon 542, 553, 554 Capehart 543, 546 Citizen 591, 592, 593 Craig 591, 608 Croslex 553 CurtisMathes 554, 592, 605 Daewoo 534, 545, 546, 547, 593 Daytron 546 DBX 594, 600 Dumont 549 Dynatech 588 Electrohome 609 Emerson 505, 506, 507, 508, 509,
Finlandia 549 Finlux 549, 565, 588 Fisher 548, 549, 584, 588, 608,
General Electric (GE)
Goldstar 530, 555, 592,612, 613 Goodmans 585, 589 Go Video 557 558, 620 Granada 549, 581 Grundig 565
Harmon Kardon 530, 569 Hinari 589 Hitachi 536, 537, 538, 539, 540,
Instant Replay 553 ITT 518 JC Penney 530, 554, 580, 591, 594,
Jenson 560 JVC 561, 562, 563, 564, 592,
Kenwood 562, 581, 592, 594, 600,
Lloyd 588 Logik 589 Luxor 518
510, 511, 512, 559, 568, 588, 590, 609, 618
610 550, 551, 552, 554, 572,
591, 605
541, 553, 588, 595, 596, 597
600, 601
594, 600, 601
601
28 121716
Page 31
VCR CODES
Magnavox 527, 553, 554, 556, 565,
Marantz 530, 554,565, 585, 592,
MEI 554 Memorex 533, 549, 554, 566, 581,
MGA 567, 568,609 Mitsubishi 562, 567, 568, 569, 570,
MTC 544,580,588 Multitech 588, 589, 591 NAD 573 NEC 530,531, 532, 562, 592,
Olympic 553 Optonica 585 Orion 506,507 Panasonic 521,522,523, 524, 526,
Pentax 537, 592 Perdio 588 Philco 553, 554, 611 Philips 553, 554, 565, 585 Pioneer 553, 562,573, 574, 575,
Portland 546,593 Proscan 553, 605 Pulsar 533 Quartz 581 Quasar 553, 554, 577, 578 Radio Shack 607, 608, 609, 610 RCA 525,526, 527, 528, 529,
Realistic 549, 554, 580, 581, 584,
Ricoh 502 Saisho 506,507 Salora 567, 581 Samsung 517, 534, 579, 580, 591 Sansui 532,544,562, 600, 621 Sanyo 549, 581, 582, 583, 608 SBR 565 Schneider 589 Scott 508, 559, 590
611
594, 600, 601, 603
585, 588, 608
571, 609
594, 599, 600, 601, 602, 603, 604
553, 554, 598, 614, 628
576, 600
537, 553, 591, 605, 606, 615, 630, 631
585, 588
VCR CODES
Sears 548, 549, 581, 584, 608,
Sentra 546
Sharp 585,607, 609, 625
Shintom 589
Sony 500, 501, 502, 503, 504
Sylvania 553, 554, 556, 567, 588,
Symphonic 588, 594
Tandy 588
Tashiko 58 8
Tatung 586, 594, 601
Teac 588,594, 601
Technics 553, 554
Teknika 554, 587, 588
TMK 506
Toshiba 534, 535, 567, 590
Totevision 580, 591
Unitech 580
Vector Reaserch 530, 600
Victor 561, 562, 600
Video Concepts 568,600
Videosonic 591
Wards 527, 554, 580, 585, 588,
Yamaha 530, 592, 594, 600, 601
Zenith 500,501, 533
610,
611
589, 590, 591, 607, 608, 609
CABLE TV BOX CODES
Cable Boxes Codes
Eastern 649
CI/Tocom 640
Jerrold 635, 636
Memorex 637
Oak 646
Panasonic 637,644,645
Paragon 637
Pioneer 642, 643
Regency 649
Scientific America 638, 639. 647, 648, 650
Zenith 641
121716 29
Page 32
DVD P
LAYER CODES
DVD Players Codes
Aiwa 634 Hitachi 632, 635 JVC 636 Konka 637, 638 Magnavox 626 Mitsubishi 629 Panasonic 639 Philips 640, 641, 642 Pioneer 619 RCA 627 Sanyo 643 Sony 617, 644, 645 Toshiba 616, 646, 647 Zenith 648
Note:You must putthe remote control inVCRmodetosetituptocontrolaDVD player. Later, you must putthe remote control in VCR mode to use it to control a DVD player.
TUNER/AMPLIFIER CODES
Tuner/Amplifier Codes
Aiwa 656, 680, 687, 718, 719,
Carver 653,706 Citizen 709 Denon 674 Fisher 653,706 GE 665, 711 Goldstar 677, 690 Harmon Kardon 672 Hitachi 717 JVC 657, 683, 703, 727 Kenwood 676, 691, 728 Luxman 681, 686 LXI 665 Magnavox 705 Marantz 708, 651 Memorex 675, 692 NAD 669,696 Nakamichi 671,694 NEC 716
720, 723, 724, 725, 726
Tuner/Amplifier Codes
Onkyo 660, 662, 678,689, 699,
Optimus 664, 697 Panasonic 652, 707 Pioneer 658, 661, 667, 668, 675,
Proton 654, 705 Quasar 652, 707 RCA 655, 704, 729 Realistic 665,666 Scott 659, 701 Sharp 712, 713, 714, 715 Sherwood 670, 695 Sony 673, 680, 687, 693, 730,
Symphonic 666 Teac 684 Technics 652, 658, 707 Tosh iba 7 10 Victor 657, 703 Yamaha 663, 682, 685,698, 732,
700
679, 688, 692, 702
731
733
30 121716
Page 33
TROUBLESHOOT THE REMOTE CONTROL
What’s
Happening
While you do a remote procedure,the remotecontrol “times out.”
When you press the remotecontrol Power button to turn the receiver on, the receiver’s front panel Power light doesn’t turn on.
What’s Wrong What You Can Do
• Ifyou don’t press any button for 20 seconds in a programming sequence, the remote “timesout.”
• If you hold a button longer than two minutes, the remote control stops transmitting to save battery life.
• Maybe the batteries are weak or dead.
• Maybe youdidn’t plug the receiver power cordinto a power outlet,or maybe there’s a problem with the power.
• Maybe the remote isn’t in SAT mode.
• Maybe the remote and the receiver have different addresses.
Start over again.
• Replace the remote batteries with fresh ones.
• Make sure the receiver power cord is plugged into a power outlet.
• Press SAT to set the remote to SAT mode to control the receiver.
• Make sure the remote and the receiver have the same address. See Change the Address on page 9.
121716 31
Page 34
What’s
Happening
What’s Wrong What You Can Do
When you press abutton on the remote control, the devicedoesn’t do what you expect.
• Maybe you’re trying tocontrol a device and you’re not pointing the remote control rightatit.
• Maybe the remotecontrol is missing batteries, maybe you put the batteries in the remote the wrong way, or maybe the batteries are weak or dead.
• Maybe youdidn’t setthe remoteto the mode for the device you want to control.
• Maybe youdidn’t setupthe remote to control the device.
• UHFsignals from a neighbor’s remote may be blocking signals from your remote.
• Remember, theremote controluses IR signals to control all devices except for the receiver (when using the UHF antenna). IR signals travel only 40 feet or less, and can’t go through walls or other solid objects. You must point the remote control rightatthe device,with no objectsto block the signal path.
• If the batteries are missing or dead, put in fresh AAA-size batteries. If the remote has fresh batteries, check whether you put them in the right way. If you didn’t, take them out and putthemin as described on page 2.
• Press the correct modebutton toset the remote to the mode for the device you want to control.
• Make sure you set up the remote to control all the devices you want to use. See Remote Control Setup on page 6.
• Put a UHF attenuator on the receiver’s UHF Remote Antenna input. This will help keep stray signals from blocking your remote’s signals, but also cut down how far away you can use the remote. Change your receiver’s address (see Change the Address on page 9).
When you press the remotecontrol Mute or Volume button, nothing happens.
• Maybe you have not set up the remote control.
• Maybe you’re trying to control TV volume bu t you set up the remote to control a tuner or amplifier in AUX mode.
• Maybe you’re trying to control tuner or amplifier volume but you setupthe remote to control a TV in AUX mode.
•SeeRemote Control Setup on page 6.
• Set up the remote to control either TV volume or tuner/amplifier volume, whichever you want.
32 121716
Page 35
LIMITED WARRANTY
This Limited Warranty is a legal document. Keep it in a safe place. Remember to keep your Sales Receiptfor warranty service. We will consider anyitemsyoureturnwithoutacopyofthe Proof of Purchase to be out of warranty.
This warranty extends only to the original user of the DISH Network remote control (“you,” “your”) and is limited to the purchase price of the remote control. EchoStar Communications Corporation and its affiliated companies (“we,” “our,” “us”) warrantthis remote control against defects i n materials or workmanship as follows.
For one year from the originaldate of purchase, if we find the remote controlis defective subject to the limits of this warranty, we will replace the remote at no chargefor parts or labor. We warrant any such work done against defects in materials or workmanship for the remaining part of the original warranty period.
This warranty does not cover installation of the DISH Network System; consumer instruction; physical set up or adjustment of any consumerelectronic device;remote control batteries;signal reception problems; loss of use of the equipment; unused programming chargesdue to equipment malfunction; cosmetic damage; damage due to lightning,electrical or telephoneline surges, fire, flood, or other acts of Nature; accident; misuse; abuse; repair or alteration by other than our factory service; negligence; commercial or institutional use; improperor neglected maintenance;equipment sold AS IS or WITH AL L FAULTS; equipment removal or reinstallation; shipping damage if the equipmentwas not packed and shipped in the manner we prescribe; nor equipmentpurchased, serviced,or operated outside the contiguous United States of America.
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY.WE SHALL NOT BE HELD LIAB LE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY ON THIS DEVICE, NOR FOR ANY INCIDENTALOR CONSEQUENTIAL DAMAGE RESULTING FROM THE USE OF, OR INABILITY TO USE, THIS DEVICE. UNDER NO CIRCUMSTANCES SHALL OUR LIABILITY, IF ANY, EXCEED THE PURCHASEPRICE PAID FOR THISDEVICE.EXCEPT TO THE EXTENT PROHIBITED BY APPLIC ABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS DEVICE IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. WE RESERVE THE RIGHT TO REFUSE TO HONOR THIS WARRANTY IF WE DETERMINE ANY OF THE ABOVE E XCEPTIONS TO HAVE CAUSED THIS DEVICE NOT TO HAVE PERFORMED PROPERLY. THIS WARRANTY SHALL BE VOID IF ANY FACTORY­APPLIED IDENTIFICATION MARK,INCLUDINGBUTNOT LIMITED TO
121716 33
Page 36
SERIAL OR CONDITIONAL ACC ES S NUMBERS, HAS BEEN ALTERED OR REMOVED. THIS WARRANTY SHALL ALSO BE VOID IF THE DEVICE HAS BEEN OPENED BY AN UNAUTHORIZED PERSON (with the exception of opening the battery cover).
Thiswarranty givesyou specificlegal rightswhich may varyfrom state to state. Some states do not allow the exclusion or limitations of incidental or consequential damages, or allow limitations on the duration of an implied warranty, so those limitations may not apply to you.
ADVANCE EXCHANGE PROGRAM
The Advance Exchange Program allows you to have replacement equipment shippedimmediatelyto you (dependingupon whereyou live,it could takethree to five business days). Al ong with replacement equipment, you willreceive a prepaid shipping label and instructions on how to return the defective equipment.
The shippingcharge, for receiving replacement equipment and returning the defectiveequipment, is a one timefee based on EchoStar's competitive bulk shipping rates (additional charges may apply outside of the continental US). This fee will be charged to your billing account or your valid credit card.
If you do not ship the defective equipment to EchoStar within ten days after receiving the replacement, your billing account or credit card will be charged the market price of the replacement. If you return the defective equipment after ten days, you will receive a full refund less an administrativefee.
If yourequipment isout of warrantyand can be repaired yourbilling account or credit card will be charged the standardrepair fee for the replacement.If damage to the defective equipmentis found, which E choStar in its sole discretion determines has voided the warranty, or makes the equipment unrepairable, your b illing account or credit card will be charged the market price of the replacement.
POST RECEIPT EXCHANGE PROGRAM
You may chooseto ship the equipment to us at your cost. To provide faster service,upon receipt of your equipment you will be shippeda replacement. Your original equipment will not be available for return.
The equipment you return will be checked to verify whether it is covered under this warranty. If the defective equipment is covered under this warranty, it will be replaced and shipped back to you at no additional cost (additional charges may apply outside of the continental US).
If yourequipment isout of warrantyand can be repaired yourbilling account or credit card will be charged the standardrepair fee for the replacement.If damage to the defective equipmentis found, which E choStar in its sole discretion determines has voided the warranty, or makes the equipment unrepairable, your b illing account or credit card will be charged the market price of the replacement.
34 121716
Page 37
ACCESSORY WARRANTY
An accessory is any DISH Network branded equipment, displayingthe DISH Network logo, excluding the receiver, Smart Card,cables and hookups, and non-mechanical components. A one-year warranty becomes effective upon the activationof theDISH system ordate of purchase,if boughtseparately. A proof of purchase is required to verify the purchasedate. If an accessory has an expired warranty,no exchange will be issued. You may purchasereplacement accessoriesfrom DISH Network or your local retailer.
IF YOU NEED HELP
1. Review this User Guide.
2. See Troubleshoot the Remote starting on page 31.
3. Call the Customer Service Center at 1-800-333-DISH (3474). Have the date of purchase and your customeraccount number ready.
4. A Representative will help you.
5. If the Representativefinds you shouldreturn theremote control, you’llget a telephone number tocall for a Return Authorization (RA) number.Before shipping any equipment to us, you must get a Return Authorization number.
6. Youmust package returnedequipmenttheright way.Follow the instructionsthe Representative gives you.
7. Write the RA number in large, clearly visible characters on the
outside of the shipping box used to return the equipment. To avoid confusion and misunderstandings,we will return shipments without an RA number clearlyvisible on the outside of the box to you at your cost.
8. We will:
Check the remote control, including whether it is covered
under the warranty.
Replace any remote we find is defective with a new or
refurbished remote, if the defective remoteis coveredunder the warranty. We will ship the replacement remote at our expense.
If a defective remote is not covered under the warranty,
we will tell you. We may assess you a flat rate charge for a replacement remote, including shipping and insurance.
121716 35
Page 38
INDEX
A
Address, Change the 9 Amplifier Codes 30 Amplifier, Control an 24 Antenna, Remote Control, Attach the 3 Attenuator, Install an 4
B
Batteries, Remote Control 2 Buttons, Remote Control11
C
Cable TV Box Codes 29 Cable TV Box, Control a 22 Change the Address 9 Check t he Device Codes 8 Customer Service 35
D
Device Codes 26
Amplifier Codes 30 Cable TV Box Codes 29 Tuner and Amplifier Codes 30 Tuner Codes30 TV Codes 26
VCR Codes 28 DeviceCodes,Checkthe 8 Device C odes, Scan for 7 DishPVR 2
DishPVRButtons 14 DVD Player, Controla 20
I
If You Need Help 35 Installan At tenuator 4 IR Signals,Remote Control3
M
Modes, Remote Control 5
R
Receiver, Control the 11 Remote Control Basics 2
DishPVR 2
Remote Control Batteries 2
Remote Control Modes 5
Remote Control Signals - UHF
and IR 3 Remote Control Batteries 2 Remote Control Buttons 11
Amplifier, Control an 24 Cable TV Box, Control a 22 DishPVR Buttons 14 DVD Player, Control a 20 Receiver, Control the 11 Second T V, Control a 17 SecondVCR, Controla 20 TunerorAmplifier,Controla
24
TV, Control a 17
VCR, Control a 20 Remote Control Modes 5 Remote Control Setup 6
Change the Address 9
Check the Device Codes 8
Installan Attenuator 4
Scan for Device Codes 7
Set Up the Remote Control 6
TVand Device Volume Control
10
S
Scan for Device Codes 7 Second T V, Control a 17 SecondVCR, Controla 20 Set Up the Remote Control 6 Setup,Remote Control 6 Switch Between TV and Device Vol­ume Control 10
T
Troubleshoot the Remote Control 31 Tuner Codes 30 TunerorAmplifier,Controla24 TV Codes 26 TV, Control a 17
U
UHF Signals,RemoteControl 3
V
VCR Codes 28 VCR, Control a 20 Volume Control, SwitchBetween TV and Device 10
36 121716
Page 39
Copyright © 2003 EchoStarTechnologies Corporation Englewood, Colorado 80112 All rights reserved.
The information in this Guide may change without notice. We may issue revisions to tell you about such changes. Send any comments or questions to:
EchoStar Technologies Corporation,
Technical Publications,94 Inverness Terrace East,
Englewood,Colorado 80112
Part Number: 121716 Printed in the United Statesof America.
DISH Network is a registeredtrademark of EchoStar Technologies Corporation. For information about DISH Network, visit our website at www.dishnetwork.com.
Page 40
Loading...
