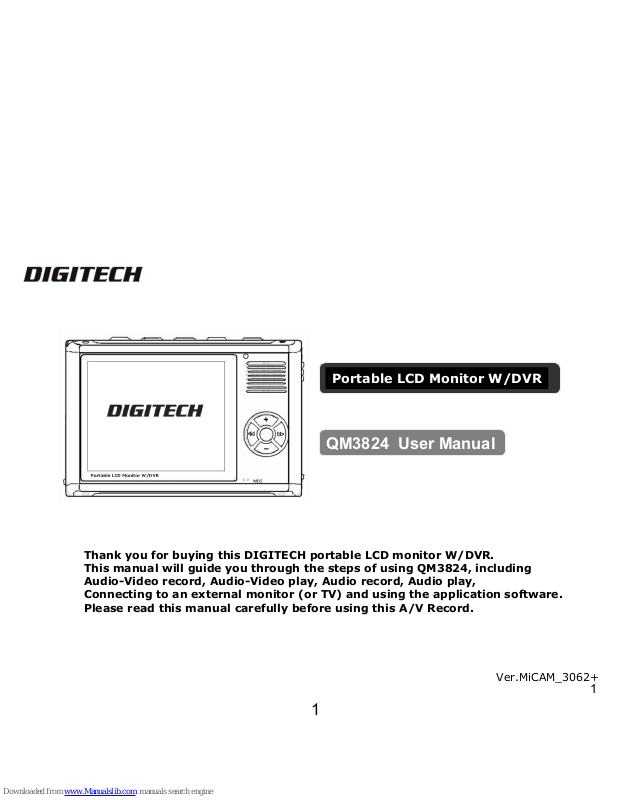

1
Thank you for buying this DIGITECH portable LCD monitor W/DVR.
This manual will guide you through the steps of using QM3824, including
Audio-Video record, Audio-Video play, Audio record, Audio play,
Connecting to an external monitor (or TV) and using the application software.
Please read this manual carefully before using this A/V Record.
Ver.MiCAM_3062+
QM3824 User Manual
1
Portable LCD Monitor W/DVR
2
Instructions
*Using QM3824 in the following order.
Recording
Player
Audio Recording
Audio Player
Tool
System Setup
Record A/V signal (P.8)
Play A/V signal (P.8)
Search recorded file (P.9)
Delete file (P.9)
TV output (P.11)
Record Audio only (P.9)
Play Audio only (P.10)
Search recorded file
Delete file (P.10)
Calendar (P.10)
Memory selection
(Flash or SD card)
(P.7 and 10)
Manage QM3824(P.11)
Language, Sound, Auto
off, Time setting and
Power save mode.
Getting to know your QM3824
Thank you for buying this DIGITECH portable LCD
monitor W/DVR
•Prior to using this recorder, please read the User
Manual thoroughly and keep this manual in
a safe place.
•Specifications are subject to change without prior
notice.
Caution
Caution indicates a potentially hazardous situation
which, if not avoided, may result in a minor or
moderate injury.
•Do not attempt to modify this recorder in any way.
To do so may result in fire, injury, electric shock
or severe damage to you or this recorder.
•Do not leave this recorder in places subject to
extremely high temperatures, such as exposure to
direct sunlight in an airtight vehicle or other places
of extreme temperature variances.
•Charge battery at first time.
Please charger the batter at least +6hr at the first
time.
•Always use the recorder and its accessories in a
well-ventilated area.
2
3
Contents
System Chart…………………………………………………..4
Identification of features …….………………..……….5
Front & Side look….………..………………………..…….5
Top (feature of function key)..….…………. ……...5
Connecting camera to QM3824 ……….…..……...6
Connecting microphone to QM3824 .…….….…..6
Connecting to an external monitor (TV) ……….6
Connecting to a computer .…….….………..…..….6
Connecting to a power charger……..………..…….7
SD memory card …..…….…..………………………..….7
Setting up the Active Memory …..……………..… .7
Recording (AV Record)….…..…..….………..……….8
Player (View recorded files).…………..…………..…8
Edit recorded files .……………………… …….………….9
Audio Recording …..……………………………..…… ….9
Audio Player …….…………..………..….………..………10
Tool ……………….…………………….…………………….….10
System Setup…………………….…………………..….11
Select Video Output (TV) ………..……….…..….11
Product Specifications……… .……….…………….12
Application --- for CCTV installer ……...…. .13
Application --- for spy video record ……......14
Application --- for sports & mobile …..……….14
Application --- for YouTube ………..……….…..14
Application --- for door phone ..…..…..….….14
Application --- for baby & personal DVR ….15
Application --- for pets ……. ..…….……….…...15
Ready……………………………………………….…..…..1 ~3
Application --- record TV program …..…… .15
3
Product Information ……….……….…………….12
Troubleshooting ……….……….……….…………….13
4
System Chart
Please check that you have all the items included in the package before using this product.
The contents may vary depending on different sales regions.
To buy optional equipment, please contact your nearest dealer.
AV cable
Earphone
USB cable
External Monitor
CCTV Camera
PC, Computer
Microphone
SD memory card / MMC
User Manual
<Items Included >
Travel Charger
Protective case
4
BNC cable
5
Identification of features
LCD Monitor Speaker
Joystick buttons
A/V output
Power charger
terminal
Esc
Mode
Power
(Record)
Front & Side look
Feature of function key
1.Power : Power on/off key
2.Mode : No function
3.Esc : Return back key
4.Menu : Sub-menu key
5.Record: Start & confirm key
Lock and hold function key
under operation
SD memory card slot
Hold key
Menu
1 2 3 4 5
Top function key
Reset key
USB connection
terminal
When this Record is halted due to system disorder,
please press the “RESET” key.
Record
5
A/V input
6
Connecting camera to QM3824
AV input terminal
Connecting microphone to QM3824
CCTV Camera
Microphone
AV input terminal
Connecting to a monitor (TV)
AV output terminal
External Monitor
Connecting to a computer
USB terminal
PC, Computer
6
Notice:
Please power on the
DVR before insert USB
cable
7
Connecting to a power charger
Charging terminal
Charging QM3824
Inserting the memory card (SD)
SD card slot
Setting up the Active Memory
When the QM3824 is turned on, the
A/V Recorder will be displayed on the LCD
monitor.
At this time, please use the joystick
buttons << or >> ,
to select “Tool” and
press the “record key”
then use the joystick
to select “memory” and
press “record key”
flash SD
Capacity: 1858MB
Unused: 1814MB
Used: 44MB
Work space
Format
Information
•Default memory was built-in 2GB flash.
•Support Max to 4GB external SD memory
7
8
Recording
When the QM3824 is turned on, the
“A/V Record” will be displayed on
the LCD monitor. You can record directly
by pressing the “record key”
Then QM3824 will start
recording.
Icon will appear on LCD.
When stop recording, just
press the “record key” again.
*The system will create a video file name:
Vid0000.3gp
automatically and store in your active
memory area. (SD or flash)
Player (View recorded files )
Information
Before pressing the “record key”, please
make sure that camera is correctly
connected with QM3824
Please follow the steps below to play back and
check the recorded files in MVRS-1:
1)Use the joystick buttons<< or >>
to select “Video Player”.
2)Press “record key” to check recorded files.
3)Use the joystick buttons “+” or “–” to
select the file you want to play.
(PS: You can have a preview in the thumbnail)
Vidooo1.3gp
File size: 80 M
Vidooo2.3gp
Vidooo3.3gp
Vidooo1.3gp
4)Then press “record key” to view the
recorded image.
*Please also check “Player (View recorded
files”
8
9
Edit recorded files
In “Video Player” mode, after selecting
the file, press “Menu” key
A sub-menu will appear
on the LCD screen
Please use the joystick
buttons to edit recorded
files.
Audio Recording
Please use the joystick buttons
to select “ Audio recording ”.
Then press the “record key” to
start audio recording .
Press “record key” again to
stop recording.
Information
Before pressing the “record key”, please
make sure the microphone is correctly
connected with QM3824
*The system will create an audio file name:
Aud0000.amr
automatically and store the file in your
active memory area. (SD or flash)
*Please also check “Audio Player”
9
*”AudioRec” allow two type input audio source
selection.
----The line in (outside source )
----The Mic (Built-in in the front of QM3824)
10
Audio Player
Please use the joystick buttons<< or >>
to select “Audio Player”, then press
“record key” to check the recorded files.
Use the joystick buttons “+” or “–” to select
the file you want to hear.
Then press “record key” to hear the recorded
sound.
And, if you need to edit the audio files, do the
same steps as indicated for editing video files.
A sub-menu will appear as below:
Tool
QM3824 provides “Calendar”, “Memory”
and “Version” for user’s application.
Please use the joystick buttons<< or >>
to select “Tool”, then press the “record
key”.
Use the joystick buttons “+” or “–” to select
among “Calendar”, “Memory” or “Version”.
•Calendar: show the Date/Month/Year
•Memory: Show the active memory storage
(see P.7)
•Version: Show the version of QM3824
(---- MiCAM_ 3062+----)
10
Volume +
Volume -
ForwardBackward
11
System Setup
In this mode, user can set up basic settings.
MVRS-1 provides:
-Language : - English
- Chinese
-Sound : - Speaker On/Off
-Auto off : Auto power shutdown
- Never
-3 min later
-15 min later
-60 min later
-Power mode: LCD screen protection mode
- Never
- 30 second
- 60 second
- 180 second
Please use the joystick buttons
<< or >> to select “System Setup”, then
press the “record key” to start the basic
system setup.
Select Video Output (TV)
The video output signal from QM3824 can be
displayed on the built-in 2.8” LCD or an
external monitor. (or TV)
How to select video output:
Under “Video Player” , press “Menu” key
and a sub-menu will appear as below:
*User can use the joystick buttons
<< or >> and “+” or “–” to select the
required type of video output.
- LCD output is the default.
- For TV output, please select NTSC or PAL
system.
Information
•To connect QM3824 to an external
monitor, please use the supplied AV cable.
11
12
Product Specifications
Product overview
Resolution VGA (640x480 pixels) @ 30f/s
Display 2.8” TFT LCD
Memory Built-in 2 GB NAND flash
Expansion SD/MMC card slot, Max to 4GB
Video in Composite signal, 1 Vpp at 75 ohms
Video out Composite signal, 1 Vpp at 75 ohms
USB port USB 2.0 (full speed)
Speaker Built-in
TV format NTSC/PAL auto switch
Language English / Traditional Chinese
Audio in Hi-Fi, Line-in, 65dB Max. 600 ohms
Audio out Hi-Fi, Line-out, 1.1Vpp
Support V ASF(MPEG-4),AVI(DVIX,XVID),3GP
Support A MP3/WMA/WAV/AMR/AAC
Power Built-in lithium battery
Dimension 88x58x17mm
S/N ratio 90dB
Product Information
Battery life 4+ hours for video record
1.Video play:Support MPEG-4, Video format
in H.263 code (3gp, AVI, ASF, MP4)
2.Audio play: support MP3/WMA/WAV/AAC
3.Built-in MIC/ Line in.
4.Built-in 2 GB NAND flash
5.Built-in Speak
6.Built-in Lithium battery
7.Built-in 2.8” TFT LCD display
8.Support SD/MMC card (Max to 4 GB)
9.Support video display to external monitor
12
Notice:
When connect QM3824 to PC.
Please power on the QM3824 before
insert USB cable to your PC
13
Troubleshooting
1.Can’t power on:
• Check the battery first.
• Connect the MVRS-1 to the charger
adapter.
• If it is still not working properly, please
press the RESET key.
2.Auto power off after power on:
• Not enough power may cause auto power
off.
• The time set for auto power off may be
too short. Please check your setting time.
3.There was no response when pressing keys:
Please check the “Hold” key to see if it is
locked.
4.Can’t find the recorded files:
Please check the main memory position
whether the files are stored in NAND flash
or SD card.
13
Application
A New Feel, QM3824 Compact A/V Recorder
enables video recording in portable and
various media recording applications.
The portable LCD monitor W/DVR offers VGA
video performance and a new feel of video
recording of today's DVR products for a
competitive low cost. This device is ideal for
video recording applications that require
portability and compactness such as:
(A) Surveillance CCTV installer
14
(B) Concealed & Spy video record
(C) Sports & Mobile video record
MVRS-1
Compact recorder
MMS concealed camera
Spy camera
Bullet camera
(D) YouTube video record
Add interactive commentary
and links to your videos
(E) Door Phone video record
14
15
(F) Baby Monitor video record
(G) Pets Monitor video record
(H) Personal DVR system
(I) TV program Record
15
Loading...
