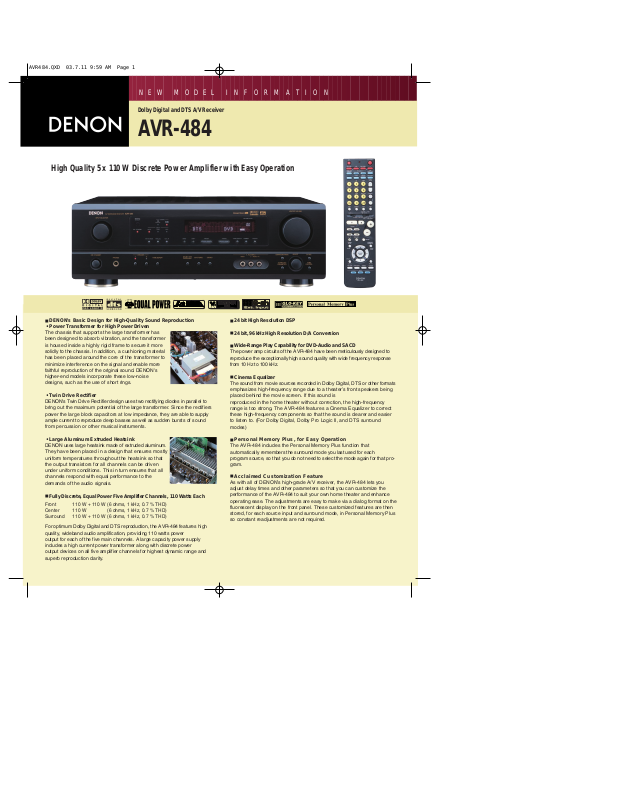

Denon AVR-484 User Manual

NEW MODEL INFORMATION

Dolby Digital and DTS A/V Receiver

AVR-484

High Quality 5 x 110 W Discrete Power Amplifier with Easy Operation

■

DENON's Basic Design for High-Quality Sound Reproduction
Power Transformer for High Power Driven

•

The chassis that supports the large transformer has
been designed to absorb vibration, and the transformer
is housed inside a highly rigid frame to secure it more
solidly to the chassis. In addition, a cushioning material
has been placed around the core of the transformer to
minimize interference on the signal and enable more
faithful reproduction of the original sound. DENON's
higher-end models incorporate these low-noise
designs, such as the use of short rings.

Twin Drive Rectifier

•

DENON's Twin Drive Rectifier design uses two rectifying diodes in parallel to
bring out the maximum potential of the large transformer. Since the rectifiers
power the large block capacitors at low impedance, they are able to supply
ample current to reproduce deep basses as well as sudden bursts of sound
from percussion or other musical instruments.

Large Aluminum Extruded Heatsink

•

DENON uses large heatsink made of extruded aluminum.
They have been placed in a design that ensures mostly
uniform temperatures throughout the heatsink so that
the output transistors for all channels can be driven
under uniform conditions. This in turn ensures that all
channels respond with equal performance to the
demands of the audio signals.

■

Fully Discrete, Equal Power Five Amplifier Channels, 110 Watts Each

Front 110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)
Center 110 W (6 ohms, 1 kHz, 0.7 % THD)
Surround 110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)

For optimum Dolby Digital and DTS reproduction, the AVR-484 features high
quality, wideband audio amplification, providing 110 watts power
output for each of the five main channels. A large capacity power supply
includes a high current power transformer along with discrete power
output devices on all five amplifier channels for highest dynamic range and
superb reproduction clarity.

■

24 bit High Resolution DSP

■

24 bit, 96 kHz High Resolution D/A Conversion

■

Wide-Range Play Capability for DVD-Audio and SACD

The power amp circuits of the AVR-484 have been meticulously designed to
reproduce the exceptionally high sound quality with wide frequency response
from 10 Hz to 100 kHz.

■

Cinema Equalizer

The sound from movie sources recorded in Dolby Digital, DTS or other formats
emphasizes high-frequency range due to a theater’s front speakers being
placed behind the movie screen. If this sound is
reproduced in the home theater without correction, the high-frequency
range is too strong. The AVR-484 features a Cinema Equalizer to correct
these high-frequency components so that the sound is clearer and easier
to listen to. (For Dolby Digital, Dolby Pro Logic II, and DTS surround
modes)

■

Personal Memory Plus, for Easy Operation

The AVR-484 includes the Personal Memory Plus function that
automatically remembers the surround mode you last used for each
program source, so that you do not need to select the mode again for that pro­gram.

■

Acclaimed Customization Feature

As with all of DENON’s high-grade A/V receiver, the AVR-484 lets you
adjust delay times and other parameters so that you can customize the
performance of the AVR-484 to suit your own home theater and enhance
operating ease. The adjustments are easy to make via a dialog format on the
fluorescent display on the front panel. These customized features are then
stored, for each source input and surround mode, in Personal Memory Plus
so constant readjustments are not required.

NEW MODEL INFORMATION

AVR-484

■

Multi-Function Preset Memory Remote Controller with Glow-keys

The supplied system remote controller features a large selection of remote
control codes to operate other components in your home theater system,
including codes for selected DENON models, along with remote control
codes from other manufacturers. The most frequently used buttons are laid
out separately for TV, VCR and DVD, for maximum ease-of-use.

* Remote control codes cannot be used with the products of other

manufacturers and some DENON products.

■

Dolby Pro Logic II Decoder

Enjoy 2-channel stereo recordings in stunning 5.1-channel surround playback.
The Dolby Pro Logic II decoder reproduces dynamic 5.1-channel surround sound
not only from normal 5.1-channel DVD but from 2-channel sources such as
videos and CDs, too. Dolby Pro Logic II uses matrix decoding technology
that has been dramatically improved over Pro Logic.

■

Dolby Digital and DTS Decoders

Equipped with both Dolby Digital and DTS 5.1 channel decoding, the AVR-484
provides thrilling surround sound with the thousands of Dolby Digital and
DTS encoded DVDs, as well as the growing library of DTS 5.1 channel
music recordings available on CD.

■

5 Channel Stereo Mode

DENON's popular 5 Channel Stereo mode transforms your favorite
2-channel sources such as CD, tape, stereo radio and stereo video
sources into exciting surround sound, free of delay effects and unnatural
artifacts, from all five speakers. This 5 Channel Stereo mode was originally
developed by DENON to enhance music lovers' enjoyment of home theater
ambience.

■

Virtual Surround Mode

Surround yourself with sensational 3D soundfield envelopment using just
one pair of speakers. The AVR-484's Virtual Surround mode
provides a dramatic psychoacoustic surround sound effect, using two
speakers with Dolby Digital 5.1 encoded sources.

■

DENON DSP Surround Modes Add Listening Excitement

Put yourself in the middle of your favorite concert hall and music
environments with DENON's DSP acoustic environment simulation modes.
These DSP modes add spacious surround sound enhancements to your
favorite music and video sources, and include these distinctly different
sounding effects:

1. 5 Channel Stereo 5. Video Game

2. Virtual Surround 6. Matrix

3. Rock Arena 7. Mono Movie

4. Jazz Club

■

Front Panel Inputs

■

Front A/B Speaker Terminals

■

High-grade Speaker Terminals (except speakers B)

Specifications

■

Input/Output Terminals For Every A/V System

•

Audio Inputs

7 Analog Inputs ............................ CD, TUNER, DVD/VDP, TV/DBS,

VCR, CDR/TAPE, V.AUX(FRONT)

6 Analog EXT. Input..................... FRONT L/R, CENTER,

SURROUND L/R, SUBWOOFER

1 Digital (Optical) Input ................ OPTICAL X 1

1 Digital (Coaxial) Input................ COAXIAL X 1

•

Audio Outputs

1 Analog PRE OUT Terminals ..... SUBWOOFER

2 Analog REC OUT Terminals

•

Video Inputs

...... VCR, CDR/TAPE

4 Composite Inputs ...................... DVD/VDP, TV/DBS, VCR, V.AUX(FRONT)

3 S-Video Inputs .............................. DVD/VDP, TV/DBS, VCR

•

Video Outputs

2 Composite Outputs ................... VCR, MONITOR

2 S-Video Outputs........................ VCR, MONITOR

■

Power Amplifier Section

Rated output *THD figures are power amp stage values.

Front ...................................... 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Center.................................... 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Surround ............................... 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

■

Preamplifier Section

Input sensitivity/Impedance

CD, DVD/VDP, TV/DBS, VCR, CDR/TAPE,

V.AUX(FRONT).............. 200 mV/47 kohms

Output level/Load impedance

SUBWOOFER................ 1.2 V/10 kohms

CDR/TAPE, VCR............ 200 mV/47 kohms

Frequency response........... 10 Hz - 100 kHz (+1, -3 dB) (Tone Defeat On)

Signal-to-noise ratio............ 98 dB (IHF-A weighted) (Tone Defeat On)

Tone control........................ Treble: ±10 dB at 10 kHz

■

FM Section

Tuning frequency range...... 87.5 - 107.9 MHz

Usable sensitivity................ 1.0 µV (11.2 dBf)

■

AM Section

Tuning frequency range...... 520 - 1710 kHz

Usable sensitivity................ 18 µV

■

General

Power supply ...................... AC 120 V, 60 Hz

Power consumption ............ 3.8 A

Dimensions......................... 434 (W) x 147 (H) x 417 (D) mm

Weight ................................ 10.3 kg, 22.7 lbs

110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)

110 W (6 ohms, 1 kHz, 0.7 % THD)

110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)

Bass: ±10 dB at 100 Hz

17.1” (W) x 5.8” (H) x 1.4” (D)

■

Frequency Synthesis Tuning

• 40-Station AM/FM Random Preset Memory Tuning

• Auto Preset Memory

*Design and specifications are subject to change without notice.
*”Dolby”, “Dolby Digital”, “Pro Logic II”, “Dolby Digital EX” and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
*DTS is registered trademarks of DTS Technology.
