Denon AVR-4520CI User Manual
Basic version
Advanced version
Informations
DVD
AVR-4520CI
INTEGRATED NETWORK AV RECEIVER
Owner’s Manual
SAFETY PRECAUTIONS
Basic version
Advanced version
Informations
DVD
n
IMPORTANT SAFETY
FCC INFORMATION (For US customers)
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
HOT SURFACE. DO NOT TOUCH.
The top surface over the internal heat sink may become hot
Hot
surface
mark
when operating this product continuously.
Do not touch hot areas, especially around the “Hot surface
mark” and the top panel.
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. Batteries shall not be exposed to excessive heat such as sunshine, fire or
the like.
CAUTION:
To completely disconnect this product from the mains, disconnect the plug
from the wall socket outlet.
The mains plug is used to completely interrupt the power supply to the unit
and must be within easy access by the user.
1. COMPLIANCE INFORMATION
Product Name: Integrated Network AV Receiver
Model Number: AVR-4520CI
This product complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this product may not cause harmful
interference, and (2) this product must accept any interference received,
including interference that may cause undesired operation.
Denon Electronics (USA), LLC
(a D&M Holdings Company)
100 Corporate Drive
Mahwah, NJ 07430-2041
Tel. (201) 762 -6665
2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the instructions contained
in this manual, meets FCC requirements. Modification not expressly
approved by DENON may void your authority, granted by the FCC, to use
the product.
3. IMPORTANT
When connecting this product to network hub or router, use only a
shielded STP or ScTP LAN cable which is available at retailer.
Follow all installation instructions. Failure to follow instructions could void
your authority, granted by the FCC, to use the product.
4. NOTE
This product has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This product generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television reception,
which can be determined by turning the product OFF and ON, the user
is encouraged to try to correct the interference by one or more of the
following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connect the productintoan outlet on acircuitdifferent from that to
which the receiver is connected.
•Consultthelocalretailerauthorizedtodistributethistypeofproductor
an experienced radio/TV technician for help.
For Canadian customers:
This Class B digital apparatus complies with Canadian ICES-003.
I
NOTES ON USE
Basic version
Advanced version
Informations
DVD
n
n CAUTIONS ON INSTALLATION
WARNINGS
•Avoid high temperatures.
Allow for sufficient heat dispersion when installed in a rack.
•Handle the power cord carefully.
Hold the plug when unplugging the cord.
•Keep the unit free from moisture, water, and dust.
•Unplug the power cord when not using the unit for long periods of time.
•Do not obstruct the ventilation holes.
•Do not let foreign objects into the unit.
•Do not let insecticides, benzene, and thinner come in contact with the unit.
•Never disassemble or modify the unit in any way.
•Ventilation should not be impeded by covering the ventilation openings
with items, such as newspapers, tablecloths or curtains.
•Naked flame sources such as lighted candles should not be placed on
the unit.
•Observe and follow local regulations regarding battery disposal.
•Do not expose the unit to dripping or splashing fluids.
•Do not place objects filled with liquids, such as vases, on the unit.
•Do not handle the mains cord with wet hands.
•When the switch is in the OFF (STANDBY) position, the equipment is not
completely switched off from MAINS.
•The equipment shall be installed near the power supply so that the power
supply is easily accessible.
•Do not keep the battery in a place exposed to direct sunlight or in places
with extremely high temperatures, such as near a heater.
z
z z
z
Wall
z For proper heat dispersal, do not install this unit in a confined
space, such as a bookcase or similar enclosure.
•More than 12 in. (0.3 m) is recommended.
•Do not place any other equipment on this unit.
II
Getting started
Basic version
Advanced version
Informations
DVD
Thank you for purchasing this DENON product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading them, be sure to keep them for future reference.
Contents
Getting started ·············································································· 1
Accessories ··················································································2
Features ························································································ 2
Cautions on handling ····································································4
Basic version ············································································5
Connections ··················································································· 6
Important information ··································································· 6
Connecting an HDMI-compatible device ······································ 9

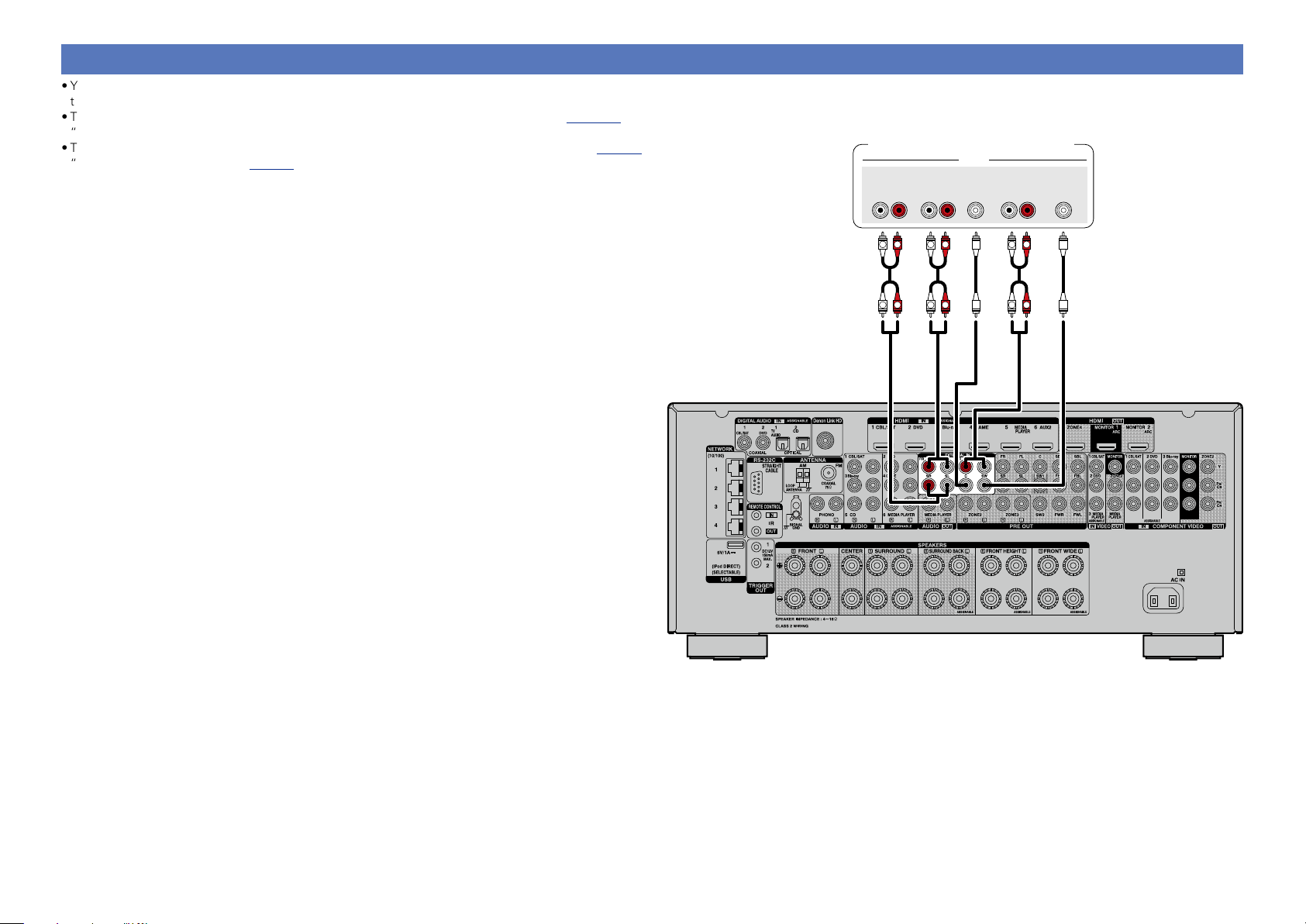

Connecting an HDMI-incompatible device ·································15
Connecting a device with a multi-channel output connector ······ 28
Connecting a external power amplifier ······································· 29
Connecting an external control device ········································30
Connecting to a home network (LAN) ········································ 31
Connecting the power cord ························································ 32
Setup ···························································································· 33

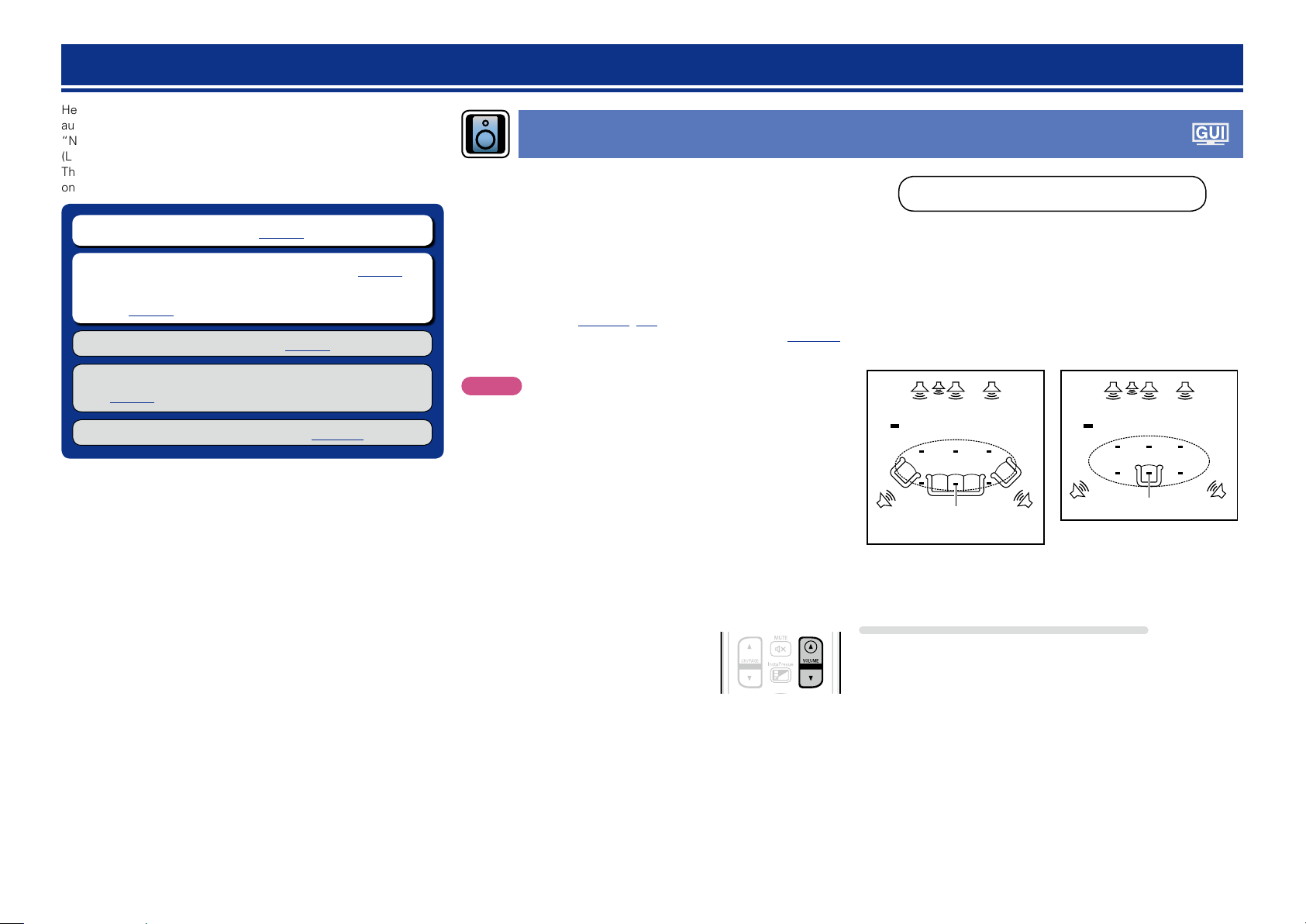

Set up speakers (Audyssey® Setup) ·········································· 33
Making the network settings (Network) ····································· 40
Playback (Basic operation) ························································· 41
Important information ································································· 41
Playing a Blu-ray Disc player/DVD player ···································· 42
Playing a Blu-ray Disc player compatible with Denon Link HD ··· 42
Playing Super Audio CD ······························································ 43
Playing a CD player ····································································· 43
Playing an iPod············································································44
Playing a USB memory device ····················································47
Listening to HDRadio stations ··················································· 50
Network contents ·······································································59
Listening to Internet Radio ·························································59
Playing back files stored on a PC and NAS ································· 62
Using online services ·································································· 66
Convenient functions ·································································· 76
AirPlay function ··········································································· 82
Selecting a listening mode (Sound Mode) ·······························84
Selecting a listening mode··························································84
Advanced version ································································90
Installation/connection/setup of speakers (Advanced) ··········91

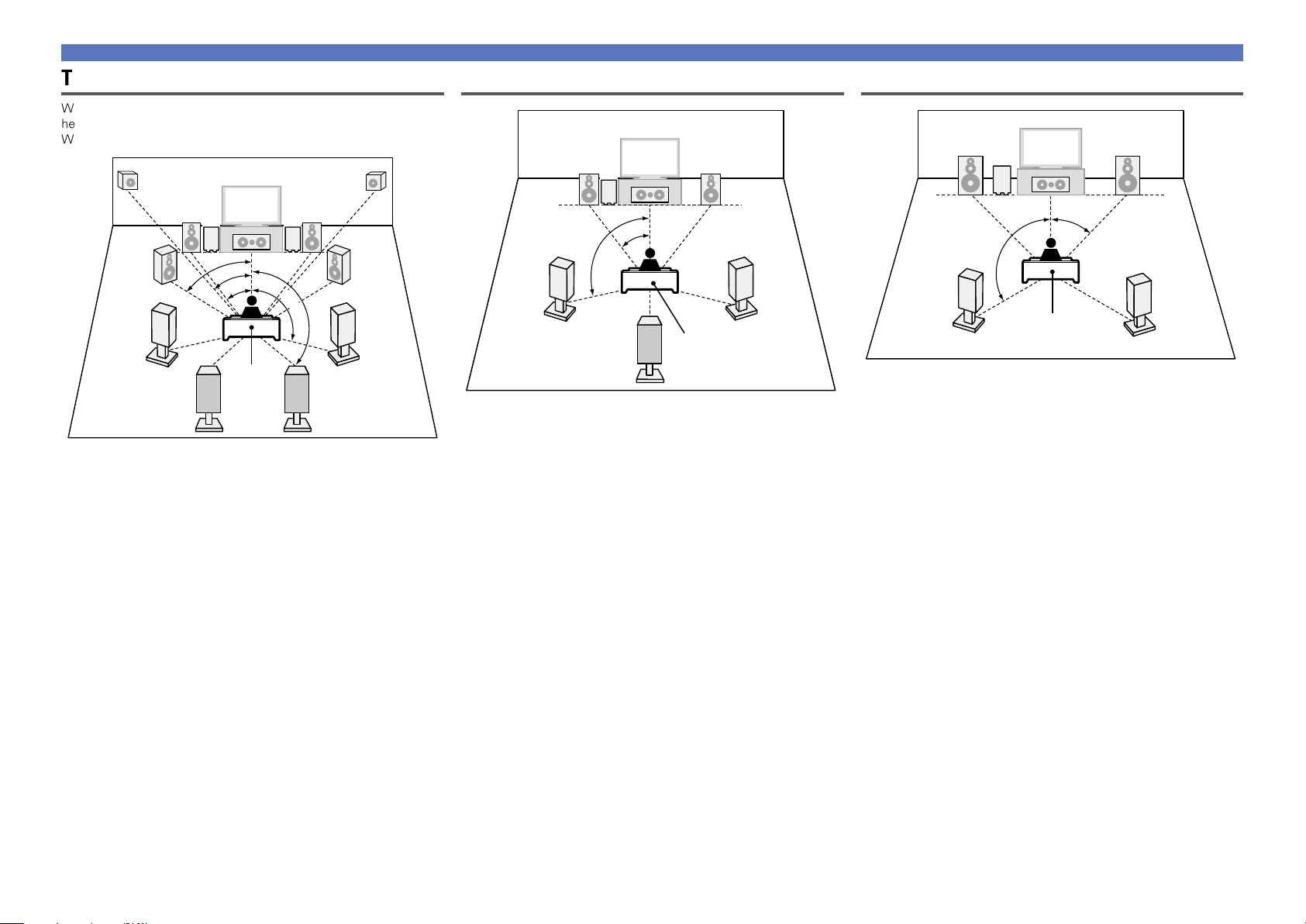

Speaker installation ····································································· 91
Speaker connection ···································································· 93
Set up speakers ·········································································· 99
Playback (Advanced operation) ··············································· 102
HDMI control function ······························································ 102
InstaPrevue function ································································· 104
Sleep timer function ·································································105
Quick select function ································································ 106
REC OUT mode ········································································ 107
Web control function ································································ 108
Various memory functions ························································ 110
Playback in ZONE2/ZONE3/ZONE4 (Separate room) ············ 111
Audio output ············································································· 111
Video output ·············································································112
Playback ···················································································· 113
Sleep timer function ·································································113
How to make detailed settings ················································ 114
Menu map ················································································114
Examples of menu screen displays ·········································· 116
Examples of menu and front display ········································117
Inputting characters ·································································· 118
Audio·························································································120
Video ························································································· 128
Inputs ························································································ 134
Speakers ··················································································· 139
Network ···················································································· 146
General ·····················································································150
Operating external devices with the remote control ············157
Registering preset codes ·························································· 157
Operating external devices ······················································· 160
Operating devices ····································································· 161
Operating learning function ······················································163
Operating macro function ························································· 165
Specifying the zone used with the remote control unit ············ 167
Setting the Remote ID ······························································ 167
Setting the display time length of the remote control unit
display ······················································································· 167
Setting the back light ······························································· 168
Restoring all settings of the remote control unit to default ······ 168
Informations·········································································169
Part names and functions·························································170
Front panel ················································································ 170
Display ······················································································ 172
Rear panel ················································································· 173
Remote control unit ·································································· 174
Other information ·····································································176
Trademark information ······························································176
Relationship between the Amp Assign mode settings and
audio output ·············································································· 177
Surround ··················································································· 184
Relationship between video signals and monitor output ·········· 190
Explanation of terms ································································· 193
Troubleshooting ········································································ 196
Resetting the microprocessor ··················································201
Specifications ············································································202
1
Accessories
Basic version
Advanced version
Informations
v See overleaf
DVD
Check that the following parts are supplied with the product.
q Getting Started ........................................................................ 1
w CD-ROM (Owner’s manual) .................................................... 1
e Safety Instructions .................................................................. 1
r Warranty (for North America model only) ................................ 1
t Service network list ................................................................. 1
y Power cord .............................................................................. 1
u Remote control unit (RC-1165) ................................................ 1
i LR6/AA batteries ..................................................................... 2
o AM loop antenna ..................................................................... 1
Q0 FM indoor antenna .................................................................. 1
Q1 Setup microphone ................................................................... 1
(ACM1HB)
u
oy
Features
Digital video processor up-scales analog video
signals (SD resolution) to 4K
This unit is equipped with the 4K video upscaling function, which
allows for outputting analogue or SD (standard video quality) video
to HDMI at 4K (3840 × 2160 pixels). This enables the unit and a TV
connected with a single HDMI cable and any video source to be
reproduced precisely with HD level of quality.
DENON’s unique high quality playback technology
“Denon Link HD” (vpage42)
By connecting to a DENON Blu-ray Disc player compatible with
Denon Link HD, the sound localization becomes more precise,
reproducing a clear and three-dimensional sound image. Because
this unit makes the integrated circuits operate while sharing the
same clock with the Blu-ray Disc player, the transmitted digital
audio has less jitter. This effect applies to any media audio source
from the Blu-ray Disc player.
With a discrete-circuit configuration, the power
amplifier provides identical quality for all 9
channels (190 W x 9ch)
The unit is equipped with a power amplifier that reproduces highfidelity sound in sound mode with equal quality and power for all
channels, true to the original sound.
The power amplifier circuit adopts a discrete-circuit configuration
that achieves high-quality surround sound reproduction.
Supports Internet Radio, music, and photograph
streaming
Supports AirPlay® (vpage82)
You can enjoy a wide variety of content, including listening to
Internet Radio, playing the audio files stored on your PC, and
displaying on a TV the photographs stored on your PC.
This unit also supports AirPlay that lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
Q0
Q1
Equipped with “Hybrid PLL Jitter Reducer”
capable of reducing jitter and phase noise that
negatively affect sound quality
“Hybrid PLL Jitter Reducer” provided with this unit improves the
sound localization, reproducing a natural sound field.
Equipped with a Multi-Zone Function 4 source, 4
zone output
This unit is equipped with a multi-zone function, so you can enjoy
separate sound sources in four rooms including MAIN ZONE.
Equipped with an HDMI output for ZONE4
This unit is equipped with an HDMI output for ZONE4, which
allows you to enjoy video and audio in a room in ZONE4 as well.
You can enjoy video sources other than those in MAIN ZONE.
Compatible with “Denon Remote App” for
performing basic operations of the unit with an
iPad, iPhonez1 or Android smartphone
“Denon Remote App” is application software that allows you to
perform basic operations with an iPad, iPhone, Android smartphone
or Android tablet such as turning the unit ON/OFF, controlling the
volume, and switching the source.
z1 Download “Denon Remote App” from iTunes® App Store.
The unit needs to be connected to a LAN and the iPhone/iPod
touch needs to be connected to the same network by Wi-Fi
(wireless LAN).
2
Features
Basic version
Advanced version
Informations
DVD
“Setup Assistant”, providing easy-to-follow setup
instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers,
network, etc.
Easy to use, Graphical User Interface
This unit is equipped with an easy to see “Graphical User Interface”
that uses menu displays and levels. The use of level displays
increases operability of the this unit.
HDMI connectors enable connection to various
digital AV devices (input: 7, output: 3)
The unit is equipped with 7 HDMI input connectors for connecting
devices with HDMI connectors, such as a Blu-ray Disc player,
game machine, HD digital camcorder, etc.
Supports HDMI (3D, ARC, Deep Color, “x.v.Color”,
Auto Lip Sync, 4K) and HDMI control function
(vpage9)
In addition to HDMI 3D and ARC (Audio Return Channel) functions,
this unit supports the video pass-through function, which outputs
video to TV without changing the video quality when video signals
of 4K (3840×2160 pixels) are input, and the GUI overlay function,
which overlays the menu screen (GUI) on the 4K video screen.
Simultaneous playback on two HDMI channels
(for MAIN ZONE)
This unit is equipped with two HDMI MONITOR outputs. You can
connect one output to a projector and the other output to a TV for
simultaneous signal outputs.
Direct play for iPod and iPhone via USB
(vpage23)
Music data from an iPod can be played back if you connect the
USB cable supplied with the iPod via the iPod/USB port of this unit,
and also an iPod can be controlled with the remote control unit for
this unit.
Audyssey DSX
This unit is equipped with Audyssey DSX® processor. By
connecting front height speakers to this unit and playing back
through Audyssey DSX®, you can experience a more powerful
playback expression in the height audio range. By connecting front
wide speakers, you can experience a more powerful playback
expression in the wide audio range.
®
DTS Neo:X
This technology enables the playback of 2-channel source audio
or 7.1/5.1 multi-channel source audio through a maximum 11.1
channel speakers, achieving an even broader sound field.
Audyssey LFC™ (Low Frequency Containment)
Audyssey LFC™ solves the problem of low frequency sounds
disturbing people in neighboring rooms or apartments. Audyssey
LFC™ dynamically monitors the audio content and removes the
low frequencies that pass through walls, floors and ceilings. It then
applies psychoacoustic processing to restore the perception of low
bass for listeners in the room. The result is great sound that no
longer disturbs the neighbors.
Discrete subwoofers and Audyssey Sub EQ HT™
The unit has two subwoofer output capability and can adjust the
level and delay for each subwoofer individually.
Audyssey Sub EQ HT makes the integration seamless by first
compensating for any level and delay differences between the two
subwoofers and then applying Audyssey MultEQ® XT 32 to both
subwoofers together.
InstaPrevue Technology
Live picture-in-picture preview of HDMI input connected to an AV
receiver.
MHL (Mobile High-Definition Link) function
You can charge your mobile device that supports MHL by providing
power from this unit while outputting video from that mobile
device. You can also control mobile devices that support MHL
through this unit.
3
Cautions on handling
Basic version
Advanced version
Informations
DVD
•Before turning the power on
Check once again that all connections are correct and that there are
no problems with the connection cables.
•Power is supplied to some of the circuitry even when the unit is
set to the standby mode. When going on vacation or leaving home
for long periods of time, be sure to unplug the power cord from the
power outlet.
•About condensation
If there is a major difference in temperature between the inside of
the unit and the surroundings, condensation (dew) may form on
the operating parts inside the unit, causing the unit not to operate
properly.
If this happens, let the unit sit for an hour or two with the power
turned off and wait until there is little difference in temperature
before using the unit.
•Cautions on using mobile phones
Using a mobile phone near this unit may result in noise. If that
occurs, move the mobile phone away from this unit when it is in use.
•Moving the unit
Turn off the power and unplug the power cord from the power
outlet. Next, disconnect the connection cables to other system units
before moving the unit.
•About care
•Wipe the cabinet and control panel clean with a soft cloth.
•Follow the instructions when using a chemical cleaner.
•Benzene, paint thinner or other organic solvents as well as
insecticide may cause material changes and discoloration if brought
into contact with the unit, and should therefore not be used.
4
Basic version
Basic version
Advanced version
Informations
Basic version
DVD
Basic version
Here, we explain the connections and basic operation methods for this unit.
F Connections vpage6
F Setup vpage33
F Playback (Basic operation) vpage41
F Network contents vpage59
F Selecting a listening mode (Sound Mode) vpage84
5
Connections
Basic version
Advanced version
Informations
Basic version
DVD
Important information
Make connections before using this unit.
To create a home theater that can play back higher quality video and audio by fully utilizing the
capabilities of this unit and your video devices, connect this unit to each of your video devices with
HDMI cables.
n HDMI-compatible device
vpage10 vpage12 vpage12
n HDMI-compatible device
If your video device does not support HDMI connections, use the following connection.
n HDMI-incompatible device
This unit can change the source that is assigned to the DIGITAL AUDIO IN, ANALOG AUDIO IN,
COMPONENT VIDEO IN and VIDEO IN connectors.
For details on assigning a source to connectors, see “Changing the source assigned to connectors”
(vpage15). For the setting method, see “Input Assign” (vpage135).
NOTE
•While signals are being upscaled to 4K, the menu screen is only displayed on a TV that is connected
to this unit via HDMI.
•Do not plug in the power cord until all connections have been completed. However, when the
“Setup Assistant” is running, follow the instructions in the “Setup Assistant” (C page 7) screen
for making connections. (During “Setup Assistant” operation, the input/output connectors do not
conduct current.)
•When running the “Setup Assistant” (C page 7), turn off the power supply of connected devices.
•When making connections, also refer to the operating instructions of the other devices being connected.
•Be sure to connect the left and right channels properly (left with left, right with right).
•Do not bundle power cords together with connection cables. Doing so can result in noise.
vpage12 vpage12 vpage12
vpage12
n HDMI-incompatible device
vpage16 vpage17 vpage18
vpage19 vpage20 vpage21
vpage22 vpage23 vpage25
vpage26 vpage27 vpage31
n Others
vpage93 vpage32
6
Important information
Basic version
Advanced version
Informations
Basic version
DVD
Converting input video signals for output (Video conversion function)
This unit is equipped with three types of video input connectors (HDMI, Component video and video) and three types of video output connectors
(HDMI, Component video and video).
This function automatically converts various formats of video signals input to this unit into the formats used to output the video signals from
this unit to a monitor.
GFlow of video signals for MAIN ZONEH
Video device
Output
HDMI connector
This unit
Input
(IN)
HDMI signal HDMI signal
HDMI connector
Component video
signal
Output
(MONITOR OUT)
Component video
signal
HDMI-compatible TV
Input
HDMI connectorHDMI connector
HDMI-incompatible
TV
Make Settings as Necessary
•If you do not want this unit to convert video signals automatically,
use the following setting item to disable this function.
“Video Conversion” (vpage131)
•If you want to change the resolution of video signals output to
the TV, use the following setting item to do so.
“Resolution” (vpage132)
•The video conversion function supports the NTSC, PAL, SECAM,
NTSC 4.43, PAL-N, PAL-M and PAL-60 formats.
•Resolutions of HDMI-compatible TVs can be checked at “Video” –
“HDMI Monitor 1” or “HDMI Monitor 2” (vpage153).
NOTE
•While signals are being upscaled to 4K, the menu screen is only
displayed on a TV that is connected to this unit via HDMI.
•When a non-standard video signal from a game machine or some
other source is input, the video conversion function might not
operate.
Component video
connectors
Video signal Video signal
Video connector
For example, when an HDMI-compatible TV is connected to this unit with an HDMI cable, input signals other than HDMI video signals are
automatically converted to HDMI signals that are then output from the HDMI connector to the TV. Only one type of video signals is output, so
video signals output from this unit to the TV do not change even when the source for playback is switched to a device that outputs video signals
in a different format, which allows you to continue with playback without the need to switch the video input source on the TV. Furthermore,
the video quality improves because analog video signals such as video and component video signals that are input to this unit are converted to
digital HDMI video signals with a higher resolution for output. When a TV does not support the HDMI connection, make an analog connection
between this unit and the TV for video signals. This unit cannot convert HDMI input signals to analog video signals, so when signals are input
from an HDMI device, use the component video input connector or video input connector. In this case, the component video signals that are
input to this unit are converted to video signals.
Component video
connectors
Video connector Video connector Video connector
Component video
connectors
Component video
connectors
: when 480i/576i signals are input
7
Important information
Basic version
Advanced version
Informations
Basic version
DVD
Video device
Output
HDMI connector
Video device
Output
GFlow of video signals for ZONE4H
This unit
Input
(IN)
HDMI signal HDMI signal
HDMI connector HDMI connectorHDMI connector
Output
(ZONE4 MONITOR OUT)
GFlow of video signals for ZONE2H
This unit
Input
(IN)
Component video
signal
Output
(ZONE2 MONITOR OUT)
Component video
signal
HDMI-compatible TV
Input
HDMI-incompatible
TV
Input
NOTE
•HDMI signals are digital. HDMI signals cannot be converted into
analog signals.
•The HDMI ZONE4 function is only compatible with the HDMI 1 – 6
IN connectors. It is not compatible with the HDMI 7 IN connector.
Component video
connectors
Video connector
Component video
connectors
Video signal Video signal
Video connector Video connector Video connector
Component video
connectors
Component video
connectors
8
Connecting an HDMI-compatible device
Basic version
Advanced version
Informations
Basic version
DVD
You can connect up to ten HDMI-compatible devices (7-inputs/3-outputs) to the unit.
When a TV is connected to the HDMI ZONE4 OUT connector, you can play back a video or audio from the
device connected to the HDMI 1 – 6 IN connector in ZONE4 (vpage111).
If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI
connections. Connections with an HDMI cable offer the following benefits that can not be achieved with
other connection methods.
•High quality playback by transmitting audio and video via digital signals
HDMI connections can transmit high definition video and high quality audio formats adopted by Bluray disc players (Dolby Digital Plus, Dolby TrueHD, dts-HD, dts-HD Master Audio).
HDMI connections also convey information required for playback between devices. The information
is used for copyright protection and TV resolution recognition, the ARC function, the HDMI control
function, etc.
•Transmission of audio and video signals with a single HDMI cable
Previous connections require multiple audio and video cables, but HDMI connections require only a
single HDMI cable to transmit audio and video signals. This allows wires in a home theater system,
which tend to be complicated, to be more organized.
•Mutual control through the HDMI control function (vpage102)
This unit and the HDMI device connected via HDMI can be linked to perform operations such as
power control, volume control, and input source switching.
•Other video and audio functions, such as 3D video playback, Content Type, the ARC function,
are supported (vpage13).
•There is more than one version of HDMI standard. The supported functions and the performance vary
according to the version. This unit complies with the HDMI standard, supporting the ARC and 3D playback
functions. To enjoy these functions, the HDMI device connected to this unit also needs to use the same
version of the standard. For the version of the HDMI standard on the device connected to this unit, see
the device’s manual.
•Some TVs do not support audio input via HDMI connections. For details, see your TV’s manual.
n Before connecting this unit to TV via HDMI connections (vpage10)
n Connecting this unit to a TV via HDMI connections (vpage11)
n Connecting this unit to video devices via HDMI connections (vpage12)
n HDMI function (vpage13)
n Settings related to HDMI connections (vpage14)
9
Before connecting this unit to TV via HDMI connections
Basic version
Advanced version
Informations
Basic version
DVD
There are 2 methods to connect HDMI-compatible TV to this unit.
Use the connection method that suits your TV.
Does the TV to be connected to this unit support the ARC function?
Yes No
Connecting an HDMI-compatible device
n About ARC (Audio Return Channel) function
This function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable.
If a TV without the ARC function is connected via HDMI connections, video signals of the playback
device connected to this unit are transmitted to the TV, but this unit can not play back the audio from
the TV. If you want to enjoy surround audio for TV program, a separate audio cable connection is
required.
In contrast, if a TV with the ARC function is connected via HDMI connections, no audio cable connection
is required. Audio signals from the TV can be input to this unit through the HDMI cable between this
unit and the TV. This function allows you to enjoy surround playback on this unit for the TV.
Connecting this unit to a TV via
HDMI connections (vpage11)
Connecting this unit to a TV via
HDMI connections (vpage11)
+
Connecting a TV (vpage16)
For audio connections, use a method other
than HDMI connections.
When the ARC function is used, connect a device with a “Standard HDMI cable with Ethernet” or “High
Speed HDMI cable with Ethernet” for HDMI.
Refer to the owner’s manual for your TV for details about TV connection and settings.
NOTE
The HDMI ZONE4 OUT connector is not compatible with the ARC function.
GConnection to a TV with the ARC functionH
Audio from the TV
Audio signals from the TV
IN OUT
This unit SpeakersTV
GConnection to a TV without the ARC functionH
Audio from the TV
Audio signals from the TV
IN OUT
Audio signals from the TV
10
Optical cable
INOUT
Connecting an HDMI-compatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting this unit to a TV via HDMI connections
When a TV is connected to the HDMI ZONE4 OUT connector, you can play back a video or audio from the
device connected to the HDMI 1 – 6 IN connector in ZONE4 (vpage111).
Cables used for connections
Audio and video cable (sold separately)
HDMI cable
•This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable.
TV 1
(Primary)
HDMI
IN
(ARC)
TV 2
(Secondary)
HDMI
IN
(ARC)
NOTE
•The HDMI 7 / MHL connector on the front panel does not support the HDMI ZONE4 function.
•The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be
limited by the HDMI audio specifications of the connected device regarding permissible inputs.
•When connecting a TV that does not support the ARC function, an audio cable connection is
required in addition to the HDMI cable. In this case, refer to “Connecting a TV” (vpage16) for
the connection method.
For the ARC function, see “About ARC (Audio Return Channel) function” (vpage10).
Connecting to a device equipped with a DVI-D connector
The DVI-D (Digital Visual Interface) method is also used for video transmission via digital signals. This is
developed mainly for computers, and some AV devices such as projectors are equipped with this interface.
To output HDMI video signals to a DVI-D video input compatible device, use an HDMI/DVI conversion
cable, which converts HDMI video signals to DVI signals.
The DVI-D connector can transmit high quality digital signals, but the copy guard and other issues may
hinder normal operations for some device combinations.
NOTE
•No sound is output when connected to a device equipped with a DVI-D connector. Make audio
connections as described in “Connecting a TV” (vpage16).
•Signals cannot be output to DVI-D devices that do not support HDCP.
•Depending on the combination of devices, the video signals may not be output.
Settings required when using a TV that supports the ARC function
When using a TV that supports the ARC function, make the following settings.
•Set “HDMI Control” (vpage130) to “On”.
•Set “Control Monitor” (vpage130) to match the number of the HDMI MONITOR connector connected
to the TV that supports the ARC function.
NOTE
If the TV that supports the ARC function is connected to both HDMI MONITOR 1 and HDMI MONITOR 2
connectors, you cannot use ARC function at the same time.
•Video signals are not output if the input video signals do not match the monitor’s resolution. In this case,
switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible.
•When this unit and monitor are connected with an HDMI cable, if the monitor is not compatible with
HDMI audio signal playback, only the video signals are output to the monitor. Make audio connections
(vpage16 “Connecting a TV”).
11
Connecting this unit to video devices via HDMI connections
Basic version
Advanced version
Informations
Basic version
v See overleaf
DVD
Cables used for connections
Audio and video cable (sold separately)
HDMI cable
Mobile
(Smartphone
etc.)
MHL
OUT
or
Digital
camcorder
(Primary)
HDMI
OUT
Connecting an HDMI-compatible device
Set-top
box
HDMI
OUT
DVD
player
HDMI
OUT
Blu-ray
Disc
player
HDMI
OUT
Game
console
HDMI
OUT
Media
player
HDMI
OUT
Digital
camcorder
(Secondary)
HDMI
OUT
GRear panelH
MHL cable
GFront panelH
•Connect Mobile (Smartphone etc.) to the HDMI 7 / MHL connector on the front panel.
•When this unit is connected to other devices with HDMI cables, connect this unit and TV also with an
HDMI cable.
•When connecting a device that supports Deep Color or 4K, please use a “High Speed HDMI cable” or
“High Speed HDMI cable with Ethernet”.
•Video signals are not output if the input video signals do not match the monitor’s resolution. In this case,
switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible.
NOTE
•The HDMI 7 / MHL connector on the front panel does not support the HDMI ZONE4 function.
•The HDMI 7 / MHL connector on the front panel does not support the InstaPrevue function.
•The HDMI 7 / MHL connector on the front panel does not support the 4K.
12
n Connecting a player compatible with the Denon Link HD function
Basic version
Advanced version
Informations
Basic version
v See overleaf
DVD
By making a Denon Link HD connection to a player compatible with the Denon Link HD function, you
can enjoy higher quality playback compared with when only the HDMI connector connection is made.
For the playback method, see “Playing a Blu-ray Disc player compatible with Denon Link HD”
(vpage42).
When making this connection, set “Input Assign” – “DIGITAL” (vpage136) to “D.LINK”.
Blu-ray Disc player
Denon
Link HD
HDMI
OUT
Connecting an HDMI-compatible device
HDMI function
This unit supports the following HDMI functions:
n About 3D function
This unit supports input and output of 3D (3 dimensional) video signals of HDMI.
To play back 3D video, you need a TV and player that provide support for the HDMI 3D function and a
pair of 3D glasses.
NOTE
•When playing back 3D video, refer to the instructions provided in the manual of your playback device
together with this manual.
•When playing back 3D video content, the menu screen or status display screen can be superimposed
over the image. However, the menu screen or status display screen cannot be superimposed over
certain 3D video content.
•If 3D video with no 3D information is input, the menu screen and status display on this unit are displayed
over the playback video.
•If 2D video is converted to 3D video on the television, the menu screen and status display on this unit
are not displayed correctly. To view the menu screen and status display on this unit correctly, turn the
television setting that converts 2D video to 3D video off.
n About 4K function
This unit supports input and output of 4K (3840 x 2160 pixels) video signals of HDMI.
When a device supporting 4K is connected, use a cable compatible with “High Speed HDMI cable” or
“High Speed HDMI cable with Ethernet”.
NOTE
The Denon Link HD connector is not an audio signal input connector. Audio signals cannot be played back
only by making a connection with the Denon Link HD connector.
n HDMI pass through function (vpage130)
Signals input to the HDMI input connector are output to the television or other device connected to the
HDMI output connector, even if the power of this unit is in standby.
13
Connecting an HDMI-compatible device
Basic version
Advanced version
Informations
Basic version
DVD
n HDMI control function (vpage102)
This function allows you to operate external devices from the unit and operate the unit from external
devices.
NOTE
•The HDMI control function may not work depending on the device it is connected to and its settings.
•You cannot operate a TV or Blu-ray Disc player/DVD player that is not compatible with the HDMI control
function.
•The HDMI ZONE4 function is compatible with the HDMI control function. To enable the HDMI control for
the ZONE4 HDMI monitor, set “Control Monitor” (vpage130) to “ZONE4”.
n About Content Type
This function was added with the HDMI standard. It automatically makes settings suitable for the videooutput type (content information).
NOTE
To enable the Content Type, set “Video Mode” to “Auto” (vpage131).
n Deep Color (vpage193)
When a device supporting Deep Color is connected, use a cable compatible with “High Speed HDMI
cable” or “High Speed HDMI cable with Ethernet”.
n Auto Lip Sync (vpage129, 193)
n “x.v.Color”, sYCC601 color, Adobe RGB color, Adobe YCC601 color
(vpage193, 195)
n High definition digital audio format
n ARC (Audio Return Channel) (vpage10)
Copyright protection system
In order to play back digital video and audio such as BD-Video or DVD-Video via HDMI connection, both
this unit and TV or the player need to support the copyright protection system known as HDCP (Highbandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of
data encryption and authentication of the connected AV devices. This unit supports HDCP.
•If a device that does not support HDCP is connected, video and audio are not output correctly. Read
the owner’s manual of your television or player for more information.
Settings related to HDMI connections
Set as necessary. For details, see the respective reference pages.
n HDMI Setup (vpage129)
Make settings for HDMI video/audio output.
•Auto Lip Sync •Vertical Stretch •Pass Through Source
•HDMI Audio Out •HDMI Pass Through •Control Monitor
•Video Output •HDMI Control
z Only these items are supported for HDMI ZONE4.
z
•Power Off Control
NOTE
To output audio signals that are input from the HDMI input connector to a TV connected via HDMI, set
“HDMI Audio Out” (vpage129) to “TV”.
Audio signals input via the Analog/Coaxial/Optical input connectors cannot be output from the HDMI
MONITOR output connector.
z
14
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
For high quality video and surround playback, it is recommended to
use an HDMI cable to connect this unit to TV and other video devices
(vpage9 “Connecting an HDMI-compatible device”).
This section describes connections when your device does not
support HDMI connections.
Connection methods for various devices
Cables used for connections
Component video
cable
Video cable (sold separately)
Changing the source assigned to
connectors
This unit can change the source that is assigned to the HDMI IN,
DIGITAL AUDIO IN, COMPONENT VIDEO IN, VIDEO IN and AUDIO
IN connectors.
vpage16 vpage17
vpage18 vpage19
vpage20 vpage21
vpage22
vpage25
vpage23
vpage26
vpage27 vpage31
Video cable
Coaxial digital cable
Optical cable
Audio cable
Ethernet cable
Audio cable (sold separately)
L
R
Cable (sold separately)
Let us take a digital audio connection for Blu-ray Disc players for an
L
R
example. The rear panel digital audio input connectors do not have the
input connector indication for Blu-ray disc players (Blu-ray). However,
DIGITAL AUDIO IN connectors have the “ASSIGNABLE” indication,
which means that you can change the source assigned to these
connectors. You can assign Blu-ray disc players to these connectors
to use them for Blu-ray disc players. Select “Blu-ray” when switching
functions on this unit to play back the source connected to these
connectors.
n How to change the source assigned to
connectors (vpage135)
15
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting a TV
•This section describes how to connect when your TV does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage9).
•To listen to TV audio through this device, use the optical digital connection.
For video connections, see “Converting input video signals for output (Video conversion function)”
(vpage7).
a
TV
OPTICAL
OUT
VIDEO
IN
VIDEOAUDIO
COMPONENT VIDEO
IN
B PR
Y P
or
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “TV AUDIO” in “Input Assign” – “DIGITAL”
(vpage136).
To make connections for connectors indicated by s
Assign a connector to which an audio cable is inserted to “TV AUDIO” in “Input Assign” – “ANALOG”
(vpage136).
s
16
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting a set-top box (Satellite tuner/cable TV)
This section describes how to connect when your satellite tuner or cable TV does not support HDMI
connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage9).
Satellite tuner/Cable TV
VIDEOAUDIO
VIDEO
OUT
a
COAXIAL
OUT
AUDIO
OUT
L
RL
R
or or
R
L
COMPONENT VIDEO
OUT
B PR
Y P
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “CBL/SAT” in “Input Assign” – “DIGITAL”
(vpage136).
17
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting a DVD player
This section describes how to connect when your DVD player does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage9).
a
DVD player
COAXIAL
OUT
AUDIO
OUT
L
RL
R
or or
R
L
COMPONENT VIDEO
Y P
OUT
VIDEOAUDIO
B PR
VIDEO
OUT
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “DVD” in “Input Assign” – “DIGITAL”
(vpage136).
18
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting a Blu-ray Disc player
This section describes how to connect when your Blu-ray disc player does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage9).
Blu-ray Disc player
VIDEOAUDIO
RL
R
R
COMPONENT VIDEO
OUT
B PR
Y P
s
a
AUDIO
OUT
L
L
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “Blu-ray” in “Input Assign” – “DIGITAL”
(vpage136).
To make connections for connectors indicated by s
Assign a connector to which a video cable is inserted to “Blu-ray” in “Input Assign” – “VIDEO”
(vpage136).
When you want to play back HD Audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus, DTS Express) and Multichannel PCM with this unit, use an HDMI connection (vpage 9 “Connecting an HDMI-compatible
device”).
19
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting a game console
This section describes how to connect when your game console does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage9).
Game
console
AUDIO
AUDIO
OUT
RL
R
L
R
L
a
s d
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “GAME” in “Input Assign” – “DIGITAL”
(vpage136).
To make connections for connectors indicated by s
Assign a connector to which a video cable is inserted to “GAME” in “Input Assign” – “VIDEO”
(vpage136).
To make connections for connectors indicated by d
Assign a connector to which a video cable is inserted to “GAME” in “Input Assign” – “COMP”
(vpage136).
20
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting a digital camcorder
This section describes how to connect when your digital camcorder does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage9).
GFront panelH
Digital camcorder
VIDEO
OUT
a
AUDIOVIDEO
AUDIO
OUT
L
L
RL
R
R
s
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “AUX1” in “Input Assign” – “DIGITAL”
(vpage136).
To make connections for connectors indicated by s
Assign a connector to which a video cable is inserted to “AUX1” in “Input Assign” – “COMP”
(vpage136).
GRear panelH
You can enjoy games by connecting a game machine via the AUX1 input connector. In this case, select
the input source to “AUX1”.
NOTE
When a non-standard video signal from a game machine or some other source is input, the video conversion
function (vpage 7) might not operate. In this case, use the monitor output of the same connector
as the input.
21
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting a media player
•This section describes how to connect when your media player does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage9).
•When recording analog audio, use the analog connection.
•See “REC OUT mode” (vpage107) for operating instructions.
a
Media player
AUDIO
OUT
RL
R
L
R
L
VIDEOAUDIO
VIDEO
OUT
AUDIO
IN
L
L
R
R
VIDEOAUDIO
VIDEO
RL
IN
s
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “MEDIA PLAYER” in “Input Assign” – “DIGITAL”
(vpage136).
To make connections for connectors indicated by s
Assign a connector to which a video cable is inserted to “MEDIA PLAYER” in “Input Assign” – “COMP”
(vpage136).
NOTE
To record video signals through this unit, use the video cable for connection between this unit and the
player.
22
Connecting an iPod or USB memory device to the iPod/USB port
Basic version
Advanced version
Informations
Basic version
v See overleaf
DVD
•You can enjoy music stored on an iPod or USB memory device.
•For operating instructions see “Playing an iPod” (vpage 44) or “Playing a USB memory device”
(vpage47).
Connecting an HDMI-incompatible device
Cables used for connections
To connect an iPod to this unit, use the USB cable supplied with the iPod.
iPod
USB memory
device
GFront panelH
DENON does not guarantee that all USB memory devices will operate or receive power. When using a
portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power,
use the AC adapter.
NOTE
•You cannot use the USB ports on the front panel and rear panel simultaneously. Select and connect
the USB port to use (vpage76).
•USB memory devices will not work via a USB hub.
•It is not possible to use this unit by connecting the unit’s iPod/USB port to a PC via a USB cable.
•Do not use an extension cable when connecting a USB memory device. This may cause radio interference
with other devices.
•When connecting an iPhone to this unit, keep the iPhone at least 20 cm away from this unit. If the iPhone
is kept closer to this unit and a telephone call is received by the iPhone, noise may be output from this
device.
•If the iPod is connected using an iPod cable (commercially available) that is longer than 6.6 ft (2 m), sound
may not be played correctly. In this case, use a genuine iPod cable, or a cable that is shorter than 3.3 ft
(1 m).
USB memory
device
or
iPod
or
GRear panelH
23
Supported iPod models
Basic version
Advanced version
Informations
Basic version
DVD
•iPod classic
•iPod nano
•iPod touch
Connecting an HDMI-incompatible device
•iPhone
(as of August 2012)
24
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting a CD player
You can enjoy CD sound.
a
CD player
OPTICAL
OUT
AUDIO
or
AUDIO
OUT
L
L
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “CD” in “Input Assign” – “DIGITAL”
(vpage136).
RL
R
R
When you want to play back HD Audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus, DTS Express), DSD
and Multi-channel PCM with this unit, use an HDMI connection (vpage 9 “Connecting an HDMIcompatible device”).
25
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting a record player
You can enjoy playing records.
•This unit is compatible with record players with an MM cartridge. When you connect to a record player
with an MC cartridge, use a commercially available MC head amp or a step-up transformer.
•If you set this unit’s input source to “PHONO” and increase the volume without connecting the record
player, there may be a “booming” noise from the speakers.
NOTE
The SIGNAL GND terminal of this unit is not a safety ground connection. Connect it to reduce noise when
noise is excessive. Note that depending on the record player, connecting the ground line may have the
reverse effect of increasing noise. In this case, it is not necessary to connect the ground line.
Record player
(MM cartridge)
GND
AUDIO
OUT
R
L
26
Connecting an HDMI-incompatible device
Basic version
Advanced version
Informations
Basic version
DVD
Connecting an HDRadio receiver
•By connecting a HDRadio antenna to this unit, you can receive HDRadio programs.
•HDRadio broadcasting currently is available in the United States and select other countries.
•After connecting the antenna and receiving a broadcast signal (vpage51 “Listening to HD Radio
stations”), fix the antenna with tape in a position where the noise level becomes minimal.
n AM loop antenna assembly
Put the stand section through the bottom of the
1
loop antenna from the rear and bend it forward.
Insert the projecting part into the square hole in
2
the stand.
n Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Loop
antenna
Standing alone
Use the procedure shown above to assemble.
Stand
Square
hole
Projecting
part
AM loop antenna (for HDRadio
broadcasting, supplied)
•To prevent interference, install at least 3.3
ft/1 m away from the antenna connected
to the this unit’s other AM tuner terminal.
w eq
Black White
Direction of broadcasting station
FM outdoor
antenna
75 Ω coaxial
cable
FM indoor antenna
(for HDRadio
broadcasting, supplied)
Nail, tack, etc.
NOTE
•Do not connect two FM antennas simultaneously.
•Even if an external AM antenna is used, do not disconnect the AM loop antenna.
•Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.
•If the signal has noise interference, connect the ground terminal (GND) to reduce noise.
•If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For
details, inquire at the retail store where you purchased the unit.
27
Ground
AM outdoor
antenna
