Denon AVC-3310, AVR-990, AVR-3310CIEU Service Manual

Denon Brand Company, D&M Holdings lnc.

e

s

Ver. 4

●

For purposes of improvement, specifications and design are subject to change without notice.

●

Please use this service manual with referring to the operating instructions without fail.

●

Some illustrations using in this service manual are slightly different from the actual set.

Please refer to the MODIFICATION NOTICE.

SERVICE MANUAL

MODEL JP EU EC E2 E3 E2A E1C EUT

AVR-3310CI

AVR-3310

AVR-990

MODEL JP EU EC E2 E3 E2A E1C EUT

AVC-3310

33

3

AV SURROUND RECEIVER

3

AV SURROUND AMPLIFIER

X0425 V.04 DE/CDM 0909

SAFETY PRECAUTIONS

The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective.

CAUTION

Please heed the points listed below during servicing and inspection.

◎ Heed the cautions!

Spots requiring particular attention when servicing, such as the cabinet, parts, chassis, etc., have cautions indicated on labels or seals. Be sure to heed these cautions and the cautions indicated in the handling instructions.

◎ Caution concerning electric shock!

(1) An AC voltage is impressed on this set, so touching in-

ternal metal parts when the set is energized could cause electric shock. Take care to avoid electric shock, by for example using an isolating transformer and gloves when servicing while the set is energized, unplugging the power cord when replacing parts, etc.

(2)There are high voltage parts inside. Handle with extra

care when the set is energized.

◎ Caution concerning disassembly and

assembly!

Though great care is taken when manufacturing parts from sheet metal, there may in some rare cases be burrs on the edges of parts which could cause injury if fingers are moved across them. Use gloves to protect your hands.

◎ Inspect for safety after servicing!

Check that all screws, parts and wires removed or disconnected for servicing have been put back in their original positions, inspect that no parts around the area that has been serviced have been negatively affected, conduct an insulation check on the external metal connectors and between the blades of the power plug, and otherwise check that safety is ensured.

(Insulation check procedure) Unplug the power cord from the power outlet, disconnect the antenna, plugs, etc., and turn the power switch on. Using a 500V insulation resistance tester, check that the insulation resistance between the terminals of the power plug and the externally exposed metal parts (antenna terminal, headphones terminal, microphone terminal, input terminal, etc.) is 1MΩ or greater. If it is less, the set must be inspected and repaired.

CAUTION

Concerning important safety

parts

◎ Only use designated parts!

The set's parts have specific safety properties (fire resistance, voltage resistance, etc.). For replacement parts, be sure to use parts which have the same properties. In particular, for the important safety parts that are marked z on wiring diagrams and parts lists, be sure to use the designated parts.

◎ Be sure to mount parts and arrange

the wires as they were originally!

For safety reasons, some parts use tape, tubes or other insulating materials, and some parts are mounted away from the surface of printed circuit boards. Care is also taken with the positions of the wires inside and clamps are used to keep wires away from heating and high voltage parts, so be sure to set everything back as it was originally.

Many of the electric and structural parts used in the set have special safety properties. In most cases these properties are difficult to distinguish by sight, and using replacement parts with higher ratings (rated power and withstand voltage) does not necessarily guarantee that safety performance will be preserved. Parts with safety properties are indicated as shown below on the wiring diagrams and parts lists is this service manual. Be sure to replace them with parts with the designated part number.

(1) Schematic diagrams ... Indicated by the z mark. (2) Parts lists ... Indicated by the z mark.

Using parts other than the designated parts could result in electric shock, fires or other dangerous situations.

2

AVR-3310CI/AVR-3310/AVR990/AVC-3310

DIMENSION

344

434

155

15.5

170.5

20.7

244.5

372.8

20.5

414

54.7

AVR-3310CI/AVR-3310/AVR-990/AVC-3310

3

AVR-3310CI/AVR-3310/AVR990/AVC-3310

WIRE ARRANGEMENT

If wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly as they were originally bundled or placed afterward. Otherwise, incorrect arrangement can be a cause of noise generation.

Wire arrangement viewed from the top

Front Panel side

sd

Except AVR-3310CI, AVR-990 model

Back Panel side

4

AVR-3310CI/AVR-3310/AVR990/AVC-3310

CAUTION IN SERVICING

1,2

2,3

Before the Digital P.W.B. are replaced

If you cannot specify the cause of the digital PWB defect, carry out "Initializing" → "Update to latest firmware". The defect may be cleared.

・See the following for the method of initializing the μcom.

Initializing AV SURROUND RECEIVER

AV SURROUND RECEIVER initialization should be performed when the µcom, peripheral parts of µcom, and Digital P.W.B. are replaced.

1. Switch off the unit.

2. Hold the following STANDARD button and DSP SIMULATION button, and switch on the unit.

3. Check that the entire display is flashing with an interval of about 1 second, and release your fingers from the 2 buttons and the microprocessor will be initialized.

Note:・If step 3 does not work, start over from step 1.

・ All user settings will be lost and this factory setting will be recovered when this initialization mode.

So make sure to memorize your setting for restoring after the initialization.

JIG to use for servicing

When you repair the printing board, you can use the following JIG. Please order to Denon Official Service Distributor in your region if necessary.

Extention cable kit 00D SPK- 561 EXTENSION UNIT KIT : 1 Set

00D SPK- 562 TUCP CONN. JOINT KIT : 1 Set

Extention cable for Idling Current

Parts Number for Extension Cables and Quantity of Unit.

Parts Number Parts Name Q'ty / unit Remarks

612050082004D 6P 250mm NH 1 L=250mm 6P NH Cable 612050083007D 8P 250mm NH 1 L=250mm 8P NH Cable

How to use and Adjust Idle Current.

1. The thin and hard plate (ex. Ruler) is fixed with the tape behind the cable.

2. The voltmeter is connected with the other side of the extension cable.

3. Refer to ADJUSTMENT(Idling Current).

5

AVR-3310CI/AVR-3310/AVR990/AVC-3310

DISASSEMBLY

d

• Disassemble in order of the arrow of the figure of following flow.

• In the case of the re-assembling, assemble it in order of the reverse of the following flow.

• In the case of the re-assembling, observe "attention of assembling" it.

s

TOP COVER

DIGITAL UNIT ASSY FRONT PANEL UNIT ASSY

Refer to "DISASSEMBLY

2. DIGITAL UNIT ASSY" Refer to "DISASSEMBLY 1.FRONT PANEL UNIT ASSY"

and "EXPLODED VIEW" 5. REG UNIT" P.SW UNIT

DIGITAL UNIT and "EXPLODED VIEW" (Ref. No. of EXPLODED VIEW : A-8)

(Ref. No. of EXPLODED VIEW : G) REG UNIT FRONT USB UNIT

(Ref. No. of EXPLODED VIEW : B-4) (Ref. No. of EXPLODED VIEW : E-3)

REG CONNECT-1 UNIT MIC UNIT

BACK PANEL UNIT ASSY

Refer to "DISASSEMBLY CONNECT UNIT-2 FRONT IN UNIT

3. BACK PANEL UNIT ASSY" (Ref. No. of EXPLODED VIEW : D-4) (Ref. No. of EXPLODED VIEW : A-10)

(Ref. No. of EXPLODED VIEW : A-15) (Ref. No. of EXPLODED VIEW : A-9)

PTC UNIT VR CONNECT UNIT

d

A.VIDEO UNIT, A.AUDIO UNIT

and RADIATOR UNIT ASSY SPEAKER UNIT

Refer to "DISASSEMBLY Refer to "DISASSEMBLY FUNC CONNECT UNIT

4. A.VIDEO UNIT, A.AUDIO UNIT 6. AMP UNIT" (Ref. No. of EXPLODED VIEW : A-7)

and RADIATOR UNIT ASSY" and "EXPLODED VIEW" FUNC UNIT

and "EXPLODED VIEW" SPEAKER UNIT (Ref. No. of EXPLODED VIEW : A-6)

A.VIDEO UNIT (Ref. No. of EXPLODED VIEW : D-1) FLD UNIT

(Ref. No. of EXPLODED VIEW : E-1) (Ref. No. of EXPLODED VIEW : A-1)

A.AUDIO UNIT

(Ref. No. of EXPLODED VIEW : E-2)

MAIN CPU UNIT Refer to "DISASSEMBLY

(Ref. No. of EXPLODED VIEW : F) 7. AMP CONNECT UNIT"

REMOTE/IPOD UNIT and "EXPLODED VIEW"

(Ref. No. of EXPLODED VIEW : B-5) AMP CONNECT UNIT

232C UNIT (Ref. No. of EXPLODED VIEW : D-2)

(Ref. No. of EXPLODED VIEW : B-6)

REG UNIT

(Ref. No. of EXPLODED VIEW : A-5)

VOLUME UNIT

(Ref. No. of EXPLODED VIEW : A-4)

AMP CONNECT UNIT

Refer to "DISASSEMBLY

P.AMP UNIT

Refer to "DISASSEMBLY

9.P.AMP UNIT"

and "EXPLODED VIEW"

P.AMP UNIT

(Ref. No. of EXPLODED VIEW : C-1〜7)

d

6

AVR-3310CI/AVR-3310/AVR990/AVC-3310

About the photos used for descriptions in the “DISASSEMBLY” section.

• The direction from which the photographs used herein were photographed is indicated at "Direction of photograph: ***" at

the left of the respective photographs.

• Refer to the table below for a description of the direction in which the photos were taken.

• Photographs for which no direction is indicated were taken from above the product.

The viewpoint of each photograph

s

(Photografy direction)

［View from above］

Direction of photograph: C

Direction of photograph: B

Direction of photograph: A

Front side

Direction of photograph: D

Except AVR-3310CI, AVR-990 model

d

1. FRONT PANEL UNIT ASSY

Proceeding : TOP COVER →

(1) Remove the screws.

FRONT PANEL UNIT ASSY

d

View from bottom

(2) Cut the wire clampers then disconnect the connector wires.

CY052

s

Direction of photograph: D

Except EUEC model

cut

CX021

cut

7

AVR-3310CI/AVR-3310/AVR990/AVC-3310

(3) Disconnect the FFC Cables.

Direction of photograph: C

(4) Remove the screws

d

FFC Cable

s

Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.

ٟ



dd

[Attention of assembling]

When mounting the FRONT PANEL ASSY on the CHASSIS, do so with the DOOR open so as to prevent breaking the EARTH PLATE(DOOR).

If the FRONT PANEL ASSY is mounted on the chassis with the DOOR closed, the EARTH PLATE(DOOR) will hit the CHASSIS and break.

DOOR open

EARTH PLATE (DOOR)

Direction of photograph: A

AVR-3310CI/AVR-3310/AVR990/AVC-3310

DOOR

DOOR closed (EARTH PLATE (DOOR) will be broken.)

EARTH PLATE (DOOR)

DOOR

8

2. DIGITAL UNIT ASSY

Proceeding : TOP COVER →

(1) Remove the screws.

ً

Direction of photograph: A

(2) Remove the alminium tape, then cut the wire clampers. Disconnect the connector wire, FFC Cables, and board to

board.

DIGITAL UNIT ASSY

◆

MAIN CPU UNIT

s

Board to board

Alminium Tape

3. BACK PANEL UNIT ASSY

Proceeding : TOP COVER →

Remove the Sheets, then remove the screws.

cut

DIGITAL UNIT ASSY

CX047

CY052

→

BACK PANEL UNIT ASSY

Except EUEC modelFFC CableFFC Cable

DIGTAL UNIT ASSY

cut

FFC Cable

View from bottom

Sheets

9

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Remove the screws.

EUEC model

Direction of photograph: A

ً

s

E2 model

Direction of photograph: A

d

E1C model

Direction of photograph: A

ً

10

AVR-3310CI/AVR-3310/AVR990/AVC-3310

(3) Disconnect the connector wires and FFC Cable, then remove the screws.

s

CX055 CX074

d

Except AVR-3310CI, AVR-990 model

Style pin : Loose

Cord holder : Loose

Style pin : Loose

CX091

(4) Remove the PWB HOLDER. Disconnect the connector wire and FFC Cable.

FFC Cable

Direction of photograph: C

PWB HOLDER

d

CX068

11

AVR-3310CI/AVR-3310/AVR990/AVC-3310

4. A.VIDEO UNIT, AUDIO UNIT and RADIATOR UNIT ASSY

Proceeding : TOP COVER →

→

A.VIDEO UNIT, A.AUDIO UNIT and RADIATOR UNIT ASSY

(1) Disconnect the board to board and FFC Cable.

Except E1C model

Direction of photograph: C

BACK PANEL UNIT ASSY

FFC Cable

→

MAIN CPU UNIT

d

E1C model

DIGITAL UNIT ASSY

d

v

Direction of photograph: C

(2) Disconnect the connector wires.

CY034

MAIN CPU UNIT

CX073CX192

12

AVR-3310CI/AVR-3310/AVR990/AVC-3310

(3) Remove the screws.

EUEC model

Direction of photograph: A

E2 model

s

Direction of photograph: A

5. REG UNIT

Proceeding : TOP COVER →

→

A.VIDEO UNIT, A.AUDIO UNIT and RADIATOR UNIT ASSY

→

REG UNIT

A.VIDEO UNIT

RADIATOR UNIT ASSY

A.VIDEO UNIT

RADIATOR UNIT ASSY

BACK PANEL UNIT ASSY

A.AUDIO UNIT

→

DIGITAL UNIT ASSY

d

(1) Disconnect the board to board and connector wires. Remove the Filament Tape.

Filament Tape

HOTMELT

v

Direction of photograph: A

CX231 CX092

Board to board

13

AVR-3310CI/AVR-3310/AVR990/AVC-3310

(2) Disconnect the connector wires, then remove the screws.

s

Direction of photograph: A

PTC UNIT

6. SPEAKER UNIT

Proceeding : TOP COVER →

→ →→

(1) Disconnect the VH connector and conector.

CX871

ً

s

BACK PANEL UNIT ASSY

A.VIDEO UNIT, A.AUDIO UNIT and RADIATOR UNIT ASSY

REG UNIT SPEAKER UNIT

→

DIGITAL UNIT ASSY

CX872

d

CX874

View from bottom

CX876

7. AMP CONNECT UNIT

Proceeding : TOP COVER →

→

A.VIDEO UNIT, A.AUDIO UNIT and RADIATOR UNIT ASSY

→→ →

REG UNIT SPEAKER UNIT AMP CONNECT UNIT

(1) Disconnect the connector.

CX873

s

BACK PANEL UNIT ASSY

CX875

CX877

CX851CX891

→

DIGITAL UNIT ASSY

d

CX806CX811CX812CX807

Direction of photograph: A

CX803CX805

14

AVR-3310CI/AVR-3310/AVR990/AVC-3310

CX804

8. P.AMP UNIT

s

Proceeding : TOP COVER →

→

A.VIDEO UNIT, A.AUDIO UNIT and RADIATOR UNIT ASSY

→

REG UNIT

→

P.AMP UNIT

(1) Remove the screws.

Direction of photograph: B

BACK PANEL UNIT ASSY

→→

SPEAKER UNIT AMP CONNECT UNIT

→

DIGITAL UNIT ASSY

d

→

15

AVR-3310CI/AVR-3310/AVR990/AVC-3310

SPECIAL MODE

ON/OFF

RETURN

ZONE2

DSP

SIMULATION

STANDARD

STATUS

ENTER

PURE

DIRECT

DIRECT/ STEREO

MENU

CURSOR

f

Special mode setting button

※ Press the ON/OFF button to turn on while pressing both buttons A and B at the same time.

Mode Button A Button B contents

Version display (µcom/DSP Error Display)

Displaying the protection history mode

Initialization mode (Remove settings for Installer Setup.)

Initialization mode (Includes settings for Installer Setup)

Mode for switching tuner frequency step

Mode for preventing remote control acceptance

Panel lock mode

Panel lock mode (Remove Master volume)

Cancellation of panel lock mode

Installer Setup mode

STATUS RETURN

STATUS MENU

STANDARD

CURSOR UP

STANDARD

STATUS ENTER

DSP

SIMULATION

DIRECT/ STEREO

PURE

DIRECT

MENU

SIMULATION

CURSOR

DOWN

DIRECT/

STEREO

ZONE2

CURSOR

LEFT

DSP

Serial No. and firmware versions such as Main, Sub, DSP are displayed in the FL manager. Errors are displayed when they occur. (Refer to 16 page.)

Displaying the protection history (Refer to 18 page.)

Backup data initialization is carried out. (Remove settings for Installer Setup.)

Backup data initialization is carried out. (Includes settings for Installer Setup)

---E2 model only--Change tuner frequency step to FM:200kHz/AM:10kHzSTEP.

Operations using remote control are rejected. (Mode cancellation: Turn off power and execute the same button operations as when performing setup.)

Operations using main unit panel buttons or master volume are rejected.

Operations using main unit panel buttons are rejected.

Panel lock mode is cancelled.

Access Remote Maintenance mode via the internet.Installer Setup is displayed on GUI/Option Menu.

※ Refer to AVR_RemoteMaintenance_.pdf of SDI.

Note:

If " " is displayed on the fluorescent display, the unit is set to the special developer's mode and RS-232C communications are not possible. Press and hold in the "STATUS" and " ▽ " buttons for over 3 seconds with the power turned on to turn the " " display off. RS-232C communications are now enabled.

16

AVR-3310CI/AVR-3310/AVR990/AVC-3310

1. Version display (µcom/DSP Error Display)

A

VR3 3 1 0 E3

S

/N. 0123456789

Ma i n : . Ma i n FBL : .

Sub : .

DSP : .

A

ud i o PLD : .

O

SD Co n f i g :

O

SD PRG :

O

SD DAT :

E

ther FBL

-

E

ther SBL

-

E

ther IMG

-

*

Ethernet MAC

-

*

HDSDK : .

*

HDDSP : C0 0 0 2 . 0 0 0

*

Mu l t EQ P r o APP

...

*

Mu l t EQ P r o I CL

...

1.1. Operation Spec

µcom version display mode:

When the following conditions are satisfied at its starting state, error information is displayed before version information.

Starting method (same as µcom version display):

Press the ON/OFF button to turn on while pressing both buttons STATUS and RETURN at the same time. ("Error information" is displayed after about 10 seconds.) The FL display changes in the order given in item-1.2. each time you press the STATUS button.

1.2. Display Order

Error information(Refer to 1.3. Error display) → qModel destination information wMain-µcom version information/ Main1st Boot Loader eSub µcom rDSP version information tAudio PLD yOSD FPGA Config uOSD Program iOSD Font Data oETHER(DM860) First BootLoafer, HardwareID Q0ETHER(DM860) Second BootLoader, RhapsodyFlag Q1ETHER(DM860) IMAGE Q2ETHER(DM860) MAC ADDRESS information Q3HD RADIO SDK /HD RADIO DSP

Q5MultEQ Pro ICL (Displayed when Audyssey Pro is complete)

No. Display item Display

q

(E2 model only)

Model destination

Cereal No.

Q4MultEQ Pro APP (Displayed when Audyssey Pro is complete)

w

e

r

t

y

u

i

o

Main-µcom

Main 1st Boot Loder

OSD Program

OSD Font Data

DM860 1st Bootloader

Sub-µcom

DSP

Audio PLD

FPGA

- Hard ID

DM860 2nd Bootloader

Q0

Q1

Q2

Q3

Q4

Q5

- Rhapsody Flag

DM860 Image

ETHER MAC ADDRESS

HD RADIO SDK

HD RADIO DSP

MultEQ Pro APP

MultEQ Pro ICL

17

AVR-3310CI/AVR-3310/AVR990/AVC-3310

1.3. Error display

P

ROT EC T H I S TORY

:

NO PROTEC T

P

ROT EC T H I S TORY

:

ASO / DC

P

ROT EC T H I S TORY

:

THERMAL

See the following table for each "Error information" display and its contents (status). Display order is ①②③④⑤ .

Condition State Display

①

Sub-µcom

NG

② DIR NG

③ DSP1 NG

④ EEPROM NG

⑤

Both SUB/DSP

/EEPROM OK

No response from Sub-µcom

No response from DIR

When DSP boot, executing DSP reset makes no change to DSP1 FLAG0 port "H".

No change to DSP FLAG0 port "H" before issuing DSP command.

When DSP data read, executing WRITE="L" makes no change to ACK="H".

When DSP data read, executing REQ="L" makes no change to ACK="L".

When DSP data write, executing WRITE="H" makes no change to ACK="H".

When DSP data write, executing REQ="L" makes no change to ACK="L".

When DSP special code boot, executing DSP reset makes no change to DSP FLAG0 port "H".

No change to DSP FLAG0 port "H" before issuing DSP special read command.

No change to DSP FLAG0 port "H" before DSP version read.

Error appeared in EEPROM checksum.(*** is a block address number.)

"□ＳＵＢ□ □ＥＲＲＯＲ□０１□□"

"□ＤＩＲ□ □ＥＲＲＯＲ□０１□□"

"□ＤＳＰ□□ＥＲＲＯＲ□０１□ □"

"□ＤＳＰ□□ＥＲＲＯＲ□０２□ □"

"□ＤＳＰ□□ＥＲＲＯＲ□０３□ □"

"□ＤＳＰ□□ＥＲＲＯＲ□０４□ □"

"□ＤＳＰ□□ＥＲＲＯＲ□０５□ □"

"□ＤＳＰ□□ＥＲＲＯＲ□０６□ □"

"□ＤＳＰ□□ＥＲＲＯＲ□１１□ □"

"□ＤＳＰ□□ＥＲＲＯＲ□１２□ □"

"□ＤＳＰ□□ＥＲＲＯＲ□１３□ □"

"□ Ｅ2ＰＲＯＭ □ ＥＲＲ＊＊＊□ □"

(No error display, version display only)

2. Displaying the protection history mode

2.1. Operation specifications

ERROR MODE(displaying the protection history) When started up, the error information is displayed.

Starting up:

With the "MENU" and "STATUS" buttons pressed, press the "ON/OFF" button to turn the power on. The error (protection history display) mode is set. Then, press the "STATUS" button to turn on the FL display.

2.2. About the display on the FL display

When the "STATUS" button is pressed after setting the error (protection history display) mode, a history like the one shown below is displayed, depending on the conditions.

(1) Normally (when there has been no protection incident)

(2) For ASO/DC (when the last protection incident was ASO or DC protection)

(3) For THERMAL (when the last protection incident was THERMAL protection)

When the "STATUS" button is pressed again after the above protection history is displayed, the normal display reappears.

18

AVR-3310CI/AVR-3310/AVR990/AVC-3310

2.3. Clearing the protection history

P

ROT EC T H I S TORY

:

THERMAL

P

ROT EC T H I S TORY

CLEAR

P

ROT EC T H I S TORY

:

NO PROTEC T

E

3.1. Operation specification

Change tuner frequency step to FM:200kHz/AM:10kHz STEP.

Starting up:

1.With the "STANDARD" and "DIRECT/STEREO" buttons pressed, press the "ON/OFF" button to turn the power on.

䇭"*Tuner FRQ Set"䇭appears on the display.

*Tuner FRQ Set

䂳

AM9 / FM5 0

䂩

2.Use 䂴䂪 and select "<AM10/FM200>".

*Tuner FRQ Set

䂳

AM1 0 / FM2 0 0

䂩

3.Press the "ENTER" button.

4. Press the "ON/OFF" button to turn the power off.

5. Then, press the "ON/OFF" button to turn the power on.

NOT

: Backup data(Remove settings for Installer Setup) initialization is carried out automatically.

There are two ways to clear the protection history, as described below.

(1) Start up the error (protection history display) mode, display the error, then press and hold in the "ENTER" button for 3

seconds.

Press and hold in the "ENTER" button for 3 seconds

The above is displayed and the protection history is cleared.

(2) Initialize.

※ If you want to save a backup, use the method in 2.3.(1) above.

Warning indication by the STANDBY LED

If the power is turned off when a protection incident has been detected, the STANDBY LED (red) flashes as follows as warning according to the conditions in which the protection incident occurred.

(1) ASO/DC PROTECTION : Flashes in cycles of 0.5 seconds (0.25 seconds lit, 0.25 seconds off) (2) THERMAL PROTECTION : Flashes in cycles of 2 seconds (1 second lit, 1 second off)

3. Mode for switching tuner frequency step ---E2 model only--- f

AVR-3310CI/AVR-3310/AVR990/AVC-3310

19

VERSION UPGRADE PROCEDURE OF FIRMWARE

Modem

Internet

Computer

LAN port/ Ethernet connector

ETHERNET connector

Router

To WAN port

To LAN port

You can update by downloading the latest firmware from the Internet.

1.Update from the Internet

1.1. Connecting to the Network

(1) System Requirement

• Internet Connection by Broadband Circuit

• Modem

• Router

• Ethernet cable (CAT-5 or greater recommended)

(2) Setting

1.2. Check for Update and Update

Check if the latest firmware exists. You can also check approximately how long it will take to complete an update. (1) Press the MENU button on the remote control to display the GUI menu.

(2) Use the cursor buttons to select "Manual Setup" → "Option Setup" → "Firmware Update" → "Update Check". (3) Press the ENTER buttom.

• The latest version of the firmware uploaded to the web is displayed.

• If the latest firmware version is on the web, proceed to (4).

• If the latest firmware is already installed, press the MENU button to close the menu.

(4) Use the cursor buttons to select "Update", then press the ENTER button.

• During update, the power indicator lights red and the GUI screen is shut down. And a rough remaining time is indicated on the display.

• When updating is complete the power indicator lights green and normal status is resumed.

(5) Press the MENU button to close the menu.

--- Cautions on Firmware Update ---

• In order to use these functions, you must have the correct system requirements and settings for a broadband Internet connection.

• Do not turn off the power until updating is completed. Even with a broadband connection to the Internet, approximately about 1 hour is required for the updating procedure to

be completed. Once updating starts, normal operations on the AVR-3310 cannot be performed until updating is completed. Also, setting items of the GUI menu of AVR-3310 or setting items of the image adjustment may be initialized. Make a note of the settings before updating, and set them again after updating.

AVR-3310CI/AVR-3310/AVR990/AVC-3310

20

1.3. About the error code

L

og i n fa i l ed

01

S

erver is busy

02

C

onnec t i on f a i l

03

C

onnec t i on f a i l

04

C

onnec t i on f a i l

05

C

onnec t i on f a i l

06

C

onnec t i on f a i l

07

C

onnec t i on f a i l

08

C

onnec t i on f a i l

09

D

own l o ad f a i l

0A

D

own l o ad f a i l

0B

D

own l o ad f a i l

0C

C

onnec t i on f a i l

0D

M

ain F i r m

***

mi n

U

pda t i ng f a i l 30

See the chart below for error codes, details of faults, and coping strategies when firmware updates are performed through DPMS (Denon Product Management Server).

Error code

01 Log-in to DPMS has failed.

02

03 Connection to DPMS failed.

04

05

06

Details of Error code Display Coping strategies

Line, etc., is busy when logging into DPMS.

Firmware file data was requested but error message was received.

Firmware file data was requested but it timed out.

Firmware file data was requested but error message was received.

Reset and update again. Carry out the update in an environment that has little network load.

Carry out the update in an environment that has little network load.

Check the network connection. Carry out the update in an environment that has little network load.

All firmware file data was

07

requested but it timed out.

Main CPU firmware file data was

08

requested but error message was received.

Main CPU firmware file data was

09

requested but it timed out.

Error (NG) message received when downloading Main CPU firm-

0A

ware.

Error (line congestion) message

0B

received when downloading Main CPU firmware.

Error (connection failure) mes-

0C

sage received when downloading Main CPU firmware.

Data acquisition failed (timed out)

0D

when downloading Main CPU firmware.

Check the network connection. Carry out the update in an environment that has little network load.

Turn the power off then back on. Updating starts automatically. Carry out the update in an environment that has little network load.

Main CPU failed to receive firm-

30

ware for rewriting sent from DM860 (when timed out).

21

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Turn the power off then back on. Updating starts automatically.

Error

M

ain Fi rm

***

mi n

U

pda t i ng f a i l 31

M

ain

***

mi n

U

pda t i ng f a i l 32

Firm

M

ain

***

mi n

E

rase fai l 33

Firm

M

ain

***

mi n

U

pda t i ng f a i l 34

Firm

M

ain

***

mi n

U

pda t eCheckNG 35

L

og i n fa i l ed

36

S

erver is busy

37

C

onnec t i on f a i l

38

C

onnec t i on f a i l

39

D

own l o ad f a i l

3A

D

own l o ad f a i l

3B

D

own l o ad f a i l

3C

C

onnec t i on f a i l

3D

C

onnec t i on f a i l

3E

C

onnec t i on f a i l

3F

code

Details of Error code Display Coping strategies

Main CPU failed to receive firm-

31

ware for rewriting sent from DM860 (when an error )

There was invalid data in the firmware for rewriting sent from

32

DM860 to Main CPU (when a Check Sum error).

The deletion of block data failed

33

before rewriting Main CPU.

The rewriting of block data failed

34

when rewriting Main CPU.

The data verification was invalid

35

after rewriting Main CPU.

Log-in to DPMS has failed when

36

rewriting firmware such as Sub CPU, DSP, FPGA, and PLD.

Line, etc., is busy when logging into DPMS when rewriting firm-

37

ware such as Sub CPU, DSP, FPGA, and PLD.

Turn the power off then back on. Updating starts automatically.

Carry out the update in an environment that has little network load.

Connection to DPMS failed when

38

rewriting firmware such as Sub CPU, DSP, FPGA, and PLD.

Connection to DPMS timed out

39

when rewriting firmware such as Sub CPU, DSP, FPGA, and PLD.

Error (NG) message received

3A

when downloading firmware when rewriting Main CPU.

Error (line congestion) message

3B

received when downloading firmware when rewriting Main CPU.

Error (connection failure) message received when downloading

3C

firmware when rewriting Main CPU.

Data acquisition failed (timed out)

3D

when downloading firmware when rewriting Main CPU.

Error message received regarding

3E

firmware data when rewriting Main CPU.

Check the network connection. Carry out the update in an environment that has little network load.

Turn the power off then back on. Updating starts automatically. Carry out the update in an environment that has little network load.

Check the network connection. Carry out the update in an environment that has little network load.

Firmware file data was requested

3F

but it timed out when rewriting Main CPU.

22

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Check the network connection. Carry out the update in an environment that has little network load.

Error

S

ub

***

mi n

L

og i n fa i l ed 50

S

ub

***

mi n

S

erver is busy51

S

ub

***

mi n

C

onnec t i onFa i l 52

S

ub

***

mi n

C

onnec t i onFa i l 53

S

ub

***

mi n

U

pda t i ng f a i l 54

S

ub

***

mi n

U

pda t i ng f a i l 55

S

ub

***

mi n

D

own l o ad f a i l 5 6

S

ub

***

mi n

S

erver is busy57

S

ub

***

mi n

C

onnec t i onFa i l 58

S

ub

***

mi n

D

own l o ad f a i l 5 9

S

ub

***

mi n

C

onnec t i onFa i l 5A

S

ub

***

mi n

U

pda t i ng f a i l 5B

S

ub

***

mi n

U

pda t i ng f a i l 5C

S

ub

***

mi n

U

pda t i ng f a i l 5D

S

ub

***

mi n

U

pda t i ng f a i l 5E

code

Details of Error code Display Coping strategies

Log-in to DPMS has failed when

50

rewriting firmware such as Sub CPU, DSP, FPGA, and PLD.

Line, etc., is busy when logging into DPMS when rewriting firm-

51

ware such as Sub CPU, DSP, FPGA, and PLD.

Connection to DPMS failed when

52

rewriting firmware such as Sub CPU, DSP, FPGA, and PLD.

Connection to DPMS timed out

53

when rewriting firmware such as Sub CPU, DSP, FPGA, and PLD.

Error message received regarding firmware data after logging in to DPMS when rewriting firmware

54

such as Sub CPU, DSP, FPGA, and PLD.

When rewriting firmware such as Sub CPU, DSP, FPGA, and PLD, request was made for firmware

55

data after logging in to DPMS, but it timed out.

Failure to download firmware after logging in to DPMS when rewriting

56

firmware such as Sub CPU, DSP, FPGA, and PLD.

Firmware download error received (line congestion) after logging in to DPMS when rewriting firmware

57

such as Sub CPU, DSP, FPGA, and PLD.

Firmware download error received (connection failure) after logging in to DPMS when rewriting firmware

58

such as Sub CPU, DSP, FPGA, and PLD.

When rewriting firmware such as Sub CPU, DSP, FPGA, and PLD, request was made for downloading

59

firmware after logging in to DPMS, but it timed out.

Carry out the update in an environment that has little network load.

Check the network connection. Carry out the update in an environment that has little network load.

Turn the power off then back on. Updating starts automatically. Carry out the update in an environment that has little network load.

NACK received when “C” com-

5A

mand sent to Sub CPU, DSP, FPGA, PLD etc.

NACK received when “L” com-

5B

mand sent to Sub CPU, DSP, FPGA, PLD etc.

Sub CPU, DSP, FPGA, PLD etc. failed to receive firmware for

5C

rewriting sent from DM860 (when timed out).

Sub CPU, DSP, FPGA, PLD etc. failed to receive firmware for

5D

rewriting sent from DM860 (when an error).

Invalid data in firmware such as Sub CPU, DSP, FPGA, and PLD

5E

for rewriting sent from DM860 (when a Check Sum error).

Turn the power off then back on. Updating starts automatically.

23

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Error

S

ub

***

mi n

U

pda t i ng f a i l 5F

S

ub

***

mi n

U

pda t i ng f a i l 60

S

ub

***

mi n

U

pda t eCheckNG 61

G

UI Fl ash

***

mi n

U

pda t i ng f a i l 80

***

mi n

U

pda t i ng f a i l 81

G

UI Fl ash

***

mi n

U

pda t i ng f a i l 82

G

UI Fl ash

***

mi n

U

pda t i ng f a i l 83

G

UI Fl ash

***

mi n

U

pda t i ng f a i l 84

G

UI Fl ash

***

mi n

U

pda t i ng f a i l 85

G

UI Fl ash

***

mi n

U

pda t i ng f a i l 86

G

UI Fl ash

E

ther IMG

***

mi n

C

onnec t i onFa i l A0

E

ther IMG

***

mi n

C

onnec t i onFa i l A1

E

ther IMG

***

mi n

L

og i n fa i l ed A2

E

ther IMG

***

mi n

S

erver is busyA3

E

ther IMG

***

mi n

C

onnec t i onFa i l A4

code

5F

Details of Error code Display Coping strategies

Invalid data in firmware such as Sub CPU, DSP, FPGA, and PLD for rewriting sent from DM860 (invalid data received).

Turn the power off then back on. Updating starts automatically.

NACK received when “P” com-

60

mand sent to Sub CPU, DSP, FPGA, PLD etc.

NACK received when “I” command

61

sent to Sub CPU, DSP, FPGA, PLD etc.

Failure to acquire serial flash data

80

and before deleting serial flash.

Failure to delete data before rewrit-

81

ing serial flash.

Failure to receive firmware for

82

serial flash rewriting sent by DM860 (when timed out).

Failure to receive firmware for

83

serial flash rewriting sent by DM860 (when an error).

Failure to receive firmware for

84

serial flash rewriting sent by DM860 (when a Check Sum error).

Turn the power off then back on. Updating starts automatically.

Failure to receive firmware for serial flash rewriting sent by

85

DM860 (when invalid data received).

Failure to rewrite when writing data

86

in serial flash.

Failure to acquire (Application

A0

Mode) IP address before rewriting DM860 (AutoIP).

Failure to acquire (Application

A1

Mode) IP address before rewriting DM860 (when timed out).

Notification of invalid login via DPMS access when rewriting

A2

DM860 related firmware (Application Mode).

Notification of line congestion via DPMS access when rewriting

A3

DM860 related firmware (Application Mode).

Notification of connection failure via DPMS access when rewriting

A4

DM860 related firmware (Application Mode).

Turn the power off then back on. Updating starts automatically.

Check the network connection. Carry out the update in an environment that has little network load.

24

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Error

E

ther IMG

***

mi n

C

onnec t i onFa i l A5

E

ther IMG

***

mi n

U

pda t i ng f a i l A6

E

ther IMG

***

mi n

U

pda t i ng f a i l A7

E

ther IMG

***

mi n

C

onnec t i onFa i l A8

E

ther IMG

***

mi n

C

onnec t i onFa i l A9

E

ther IMG

***

mi n

L

og i n fa i l ed AA

E

ther IMG

***

mi n

S

erver is busyAB

E

ther IMG

***

mi n

C

onnec t i onFa i l AC

E

ther IMG

***

mi n

C

onnec t i onFa i l AD

E

ther IMG

***

mi n

D

own l o ad f a i l AE

E

ther IMG

***

mi n

S

erver is busyAF

E

ther IMG

***

mi n

C

onnec t i onFa i l B0

E

ther IMG

***

mi n

D

own l o ad f a i l B1

E

ther IMG

***

mi n

U

pda t i ng f a i l B2

code

A5

A6

A7

Details of Error code Display Coping strategies

Connection through DPMS access timed out when rewriting DM860 related firmware (Application Mode).

Firmware data error message received after DPMS login when rewriting DM860 related firmware (Application Mode).

When rewriting DM860 related firmware (Application Mode), request was made for firmware data after DPMS login but it timed out.

Check the network connection. Carry out the update in an environment that has little network load.

Turn the power off then back on. Updating starts automatically. Carry out the update in an environment that has little network load.

Failure to acquire (Boot Loader

A8

Mode) IP address before rewriting DM860 (AutoIP).

Failure to acquire (Boot Loader

A9

Mode) IP address before rewriting DM860 (when timed out).

Notification of invalid login via DPMS access when rewriting

AA

DM860 related firmware (Boot Loader Mode).

Notification of line congestion via DPMS access when rewriting

AB

DM860 related firmware (Boot Loader Mode).

Notification of connection failure via DPMS access when rewriting

AC

DM860 related firmware (Boot Loader Mode).

Connection through DPMS access timed out when rewriting DM860

AD

related firmware (Boot Loader Mode).

Firmware download error message received (when download fails)

AE

when rewriting DM860 related firmware (Boot Loader Mode).

Firmware download error message received (line congestion) when

AF

rewriting DM860 related firmware (Boot Loader Mode).

Firmware download error message received (connection failure) when

B0

rewriting DM860 related firmware (Boot Loader Mode).

When rewriting DM860 related firmware (Boot Loader Mode),

B1

request was made for firmware download but it timed out .

Error message received when

B2

rewriting DM860 related firmware.

Check the network connection. Carry out the update in an environment that has little network load.

Turn the power off then back on. Updating starts automatically. Carry out the update in an environment that has little network load.

25

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Device display when firmware updated

M

ain F i r m

***

mi n

U

pda t i ng

S

ub

***

mi n

U

pda t i ng

A

PLD

***

mi n

U

pda t i ng

D

SP

***

mi n

U

pda t i ng

O

SD

***

mi n

U

pda t i ng

E

ther SBL

***

mi n

U

pda t i ng

E

ther IMG

***

mi n

U

pda t i ng

Target of devide when firmware updated.

Target of device Display Error cpde

Main

Sub

Audio PLD

DSP

OSD (FPGA/Program/ Font Data)

DM860 Boot Loader

DM860 Image

30 〜 35

50 〜 61

80 〜 86

A0 〜 B2

26

AVR-3310CI/AVR-3310/AVR990/AVC-3310

ADJUSTMENT

Audio Section

Idling Current (8U-110062, 8U-110063-3)

Required measurement equipment: DC Voltmeter

Preparation

(1) Avoid direct blow from an air conditioner or an electric fan, and adjust the unit at normal room temperature 15°C ~ 30°C

(59°F ~ 86°F).

(2) Presetting

POWER (Power source switch) OFF SPEAKER (Speaker terminal) No load (Do not connect speaker, dummy resistor, etc.)

Adjustment

(1) Remove top cover and set VR101, VR201, VR301, VR401, VR501, VR601, VR701, on 8U-110062 (POWER AMP Unit)

at fully counterclockwise ( ).

(2) Connect DC Voltmeter to test points(8U-110063-3).

• FRONT-Lch: CX660 ③ ④ pin

• FRONT-Rch: CX660 ⑤ ⑥ pin

• CENTER ch: CX660 ① ② pin

• SURROUND-Lch: CX680 ⑤ ⑥ pin

• SURROUND-Rch: CX680 ⑦ ⑧ pin

• SURROUND BACK-Lch: CX680 ① ② pin

• SURROUND BACK-Rch: CX680 ③ ④ pin) (3) Connect power cord to AC Line, and turn power switch "ON". (4) Presetting.

MASTER VOLUME : "---" counterclockwise ( min.) MODE : 7CH STEREO

FUNCTION : CD (5) Allow 2 minutes, and turn VR101 clockwise ( ) to adjust the TEST POINT voltage to 8 mV ± 0.5 mV DC. (6) After 10 minutes from preset, turn VR101 to set the voltage to 8 mV ± 0.5 mV DC. (7) Adjust the Variable Resistors of other channels in the same way. (8) After 5 minutes from (6), turn VR101 to set the voltage to 8 mV ± 0.5 mV DC. (9) Adjust the Variable Resistors of other channels in the same way.

27

AVR-3310CI/AVR-3310/AVR990/AVC-3310

SL ch

FR ch

FL ch

SR ch

CX660

C ch

SBR ch

SBL ch

CX680

Audio Section

DC Voltmeter

VR601 VR101

VR501

VR301

VR401 VR201

VR701

8U-110061-4 POWER SUPPLY Unit

8U-310039 DIGITAL Unit

Adjustment volume is set for 8U-110062-1 〜 7. The test point is at 8U-110063-3.

Insert an adjustment driver / connection terminal from an adjustment aperture of 8U-110061-4(POWER SUPPLY Unit)P.W.B..

28

AVR-3310CI/AVR-3310/AVR990/AVC-3310

SURROUND MODES AND PARAMETERS

Surround Mode

Signals and adjustability in the different modes

Channel output Parameter (default values are shown in parentheses)

Front

L/R

Center

Surround

L/R

Surround

Back L/R

Subwoofer

Front Wide

L/R

Front Height

L/R

D. COMP

z

1

DRC

z

2

LFE

z

3

AFDM

z

1

Surround

Back

Cinema EQ. Mode Room Size Effect Level

PURE DIRECT, DIRECT (2ch)

SA A AD

z

4 AAS(OFF) S (Auto) S (0 dB) AAAAAA

DSD DIRECT

SAAAAA AAAAAAAA A A

DSD MULTI DIRECT

SDDDD A A A AS(0 dB) ASAAAA

MULTI CH DIRECT

SDDDD A A A AS(0 dB) S (ON) SAAAA

STEREO

SA A AD A AS(OFF) S (Auto) S (0 dB) AAAAAA

EXT. IN

SDDDDA AAAAAAAA A A

MULTI CH IN

SDDDDD(NOTE4) D (NOTE4) AAS(0 dB) S (ON) SS(OFF) AAA

WIDE SCREEN

SDDDD D DS(OFF) S (Auto) S (0 dB) ASS(OFF) AAS(ON, 10)

DOLBY PRO LOGIC gz SDDAD A DS(OFF) S (Auto) S (0 dB) AAAS(Height) AA

DOLBY PRO LOGIC gx SDDDD A AS(OFF) S (Auto) AASS(NOTE1) S (Cinema) AA

DOLBY PRO LOGIC g SDDADD(NOTE4) D (NOTE4) S (OFF) S (Auto) AASS(NOTE2) S (Cinema) AA

DTS NEO:6

SDDDDD(NOTE4) D (NOTE4) S (OFF) S (Auto) AASS

(NOTE1) S (Cinema) AA

DOLBY DIGITAL

SDDDDD(NOTE4) D (NOTE3) S (OFF) AS(0 dB) S (ON) SS(OFF) AAA

DOLBY DIGITAL Plus

SDDDDD(NOTE4) D (NOTE3) S (OFF) AS(0 dB) S (ON) SS(OFF) AAA

DOLBY TrueHD

SDDDDD(NOTE4) D (NOTE3) AS(Auto) S (0 dB) S (ON) SS(OFF) AAA

DTS SURROUND

SDDDDD(NOTE4) D (NOTE3) S (OFF) AS(0 dB) S (ON) SS(OFF) AAA

DTS 96/24

SDDDDD(NOTE4) D (NOTE3) S (OFF) AS(0 dB) S (ON) SS(OFF) AAA

DTS-HD

SDDDDD(NOTE4) D (NOTE3) S (OFF) AS(0 dB) S (ON) SS(OFF) AAA

DTS EXPRESS

SDDDDD(NOTE4) D (NOTE3) S (OFF) AS(0 dB) S (ON) SS(OFF)

AAA

neural

SDDDDD(NOTE4) D (NOTE4) AAAASAAAA

7CH STEREO

SDDDD D DS(OFF) S (Auto) S (0 dB) ASAAAA

SUPER STADIUM

SDDDD D DS(OFF) S (Auto) S (0 dB) AS A AS(Medium) S (10)

ROCK ARENA

SDDDD D DS(OFF) S (Auto) S (0 dB) AS A AS(Medium) S (10)

JAZZ CLUB

SDDDD D DS(OFF) S (Auto) S (0 dB) AS A AS(Medium) S (10)

CLASSIC CONCERT

SDDDD D DS(OFF) S (Auto) S (0 dB) AS A AS(Medium) S (10)

MONO MOVIE

SDDDD D DS(OFF) S (Auto) S (0 dB) AS A AS(Medium) S (10)

VIDEO GAME

SDDDD D DS(OFF) S (Auto) S (0 dB) AS A AS(Medium) S (10)

MATRIX

SDDDD D DS(OFF) S (Auto) S (0 dB) ASAAAA

VIRTUAL

SA A AD A AS(OFF) S (Auto) S (0 dB) AAAAAA

S : Signal / Adjustable

A : No signal / Not adjustable

D : Turned on or off by speaker conﬁguration setting

NOTE1 : This parameter is availabe when the “Mode” is set to “Cinema” (

vpage 73).

NOTE2 : This parameter is availabe when the “Mode” is set to “Cinema” or “ProLogic” (

vpage 73).

NOTE3 : This parameter is availabe when the “Front Height” is set to “ON” or “DSX” is set to “ON” (

vpage 74, 76).

NOTE4 : This parameter is availabe when the “DSX” is set to “ON” (

vpage 76).

NOTE:

z

1 : When playing Dolby Digital and DTS signals.

z

2 : When playing Dolby TrueHD signal.

z

3 : When playing Dolby Digital, DTS, DVD-Audio and Super Audio CD.z4 : When the “Subwoofer Mode” is set to “LFE+Main” (vpage 35) only.

Surround Modes and Parameters

29

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Surround Mode

Signals and adjustability in the different modes

Parameter (default values are shown in parentheses)

Delay Time Subwoofer Front Height

PRO LOGIC g/gx MUSIC mode only

NEO:6 MUSIC

mode only

EXT. IN only

Tone Control MultEQ XT Dynamic EQ

Dynamic

Volume

RESTORER DSX

Panorama Dimension Center Width Center Image

Subwoofer

Att.

PURE DIRECT, DIRECT (2ch)

ASAAAAAAAAAAAA

DSD DIRECT

AAAAAAAAAAAAAA

DSD MULTI DIRECT

AAAAAAAAAAAAAA

MULTI CH DIRECT

AAAAAAAAAAAAAA

STEREO

AAAAAAAAS(OFF) S (OFF) SSS A

EXT. IN

AAAAAAASAAAAAA

MULTI CH IN

AASAAAAAS(OFF) S (OFF) SSAS

WIDE SCREEN

AAAAAAAAS(OFF) S (OFF) SSS A

DOLBY PRO LOGIC gz AASAAAAAS(OFF) S (OFF) SSS A

DOLBY PRO LOGIC gx AASS(OFF) S (3) S (3) AAS(OFF) S (OFF) SSS A

DOLBY PRO LOGIC gAASS(OFF) S (3) S (3) AAS(OFF) S (OFF) SSSS

DTS NEO:6

AAAAAAS(0.3) AS(OFF) S (OFF) SSSS

DOLBY DIGITAL

AASAAAAAS(OFF) S (OFF) SSAS

DOLBY DIGITAL Plus

AASAAAAAS(OFF) S (OFF) SSAS

DOLBY TrueHD

AASAAAAAS(OFF) S (OFF) SSAS

DTS SURROUND

AASAAAAAS(OFF) S (OFF) SSAS

DTS 96/24

AASAAAAAS(OFF) S (OFF) SSAS

DTS-HD

AASAAAAAS(OFF) S (OFF) SSAS

DTS EXPRESS

AASAAAAAS(OFF) S (OFF) SSAS

neural

AAAAAAAAS(OFF) S (OFF) SSSS

7CH STEREO

AAAAAAAAS(OFF) S (OFF) SSS A

SUPER STADIUM

AAAAAAAAS(NOTE5) S (OFF) SSS A

ROCK ARENA

AAAAAAAAS(NOTE6) S (OFF) SSS A

JAZZ CLUB

AAAAAAAAS(OFF) S (OFF) SSS A

CLASSIC CONCERT

AAAAAAAAS(OFF) S (OFF) SSS A

MONO MOVIE

AAAAAAAAS(OFF) S (OFF) SSS A

VIDEO GAME

AAAAAAAAS(OFF) S (OFF) SSS A

MATRIX

S (30 ms) AAAAAAAS(OFF) S (OFF) SSS A

VIRTUAL

AAAAAAAAS(OFF) S (OFF) SSS A

S : Signal / Adjustable

A : No signal / Not adjustable

NOTE5 : BASS +6 dB, TREBLE 0 dB

NOTE6 : BASS +6 dB, TREBLE +4 dB

30

AVR-3310CI/AVR-3310/AVR990/AVC-3310

F : Mode selectable in initial status

D : Mode ﬁxed when “AFDM” is “ON”

S : Selectable mode

A : Non-selectable mode

NOTE:

z

1: This mode is not available when the surround back speaker setup is set to “None”.z2: This mode is not available when the surround back speaker setup is set to “1spkr” or “None”.z3: This mode is not available when the front height speaker setup is set to “None”.

Button

Note

Input signals

ANALOG

LINEAR

PCM /

WAV

WMA

(Windows

Media Audio)

/

MP3 / MPEG-4

AAC / FLAC

DTS-HD DTS DOLBY DOLBY DIGITAL MULTI CH PCM Super Audio CD

Surround Mode

DTS-HD

Master

Audio

DTS-HD

High

Resolution

Audio

DTS

EXPRESS

DTS ES

DSCRT

(With Flag)

DTS ES

MTRX

(With Flag)

DTS

(5.1ch)

DTS

96/24

DOLBY

TrueHD

DOLBY

DIGITAL

Plus

DOLBY

DIGITAL

EX (With

Flag)

DOLBY

DIGITAL EX

(With no

Flag)

DOLBY

DIGITAL

(5.1/5/4ch)

DOLBY

DIGITAL

(4/3ch)

DOLBY

DIGITAL

(2ch)

PCM

(multi ch)

PCM

(2ch)

DSD

(multi ch)

DSD

(2ch)

STANDARD

DTS SURROUND

DTS-HD MSTR

AA A F A A A A AAAA A A A AA A A A A

DTS-HD HI RES

AA A A F A A A AAAA A A A AA A A A A

DTS ES DSCRT6.1

z

1

AA A A A AF D A AAAA A A A AA A A A A

DTS ES MTRX6.1

z

1

AA A A A A A F DAAAA A A A AA A A A A

DTS SURROUND

AA A AA A S SFAAA A A AAAAAAA

DTS 96/24

AA A AA A A A AFAA A A AAAAAAA

DTS (–HD) + PLgx CINEMA

z

2

AA A SS S S SSSAAA A AAAAAAA

DTS (–HD) + PLgx MUSIC

z

1

AA A SS S S SSSAAA A AAAAAAA

DTS (–HD) + PLgz HEIGHT

z

3

AA A SS S S SSSAAA A AAAAAAA

DTS EXPRESS

AA A A A F A A AAAA A A A AA A A A A

DTS (–HD) + NEO:6

z

1

AA A SS S A SSSAA A A AAAAAAA

DTS NEO:6 CINEMA

SS S AA A A A AAAA A A AASASAS

DTS NEO:6 MUSIC

SS S AA A A A AAAA A A AASASAS

DOLBY SURROUND

DOLBY TrueHD

AA A AA A A A AAFA A A AAAAAAA

DOLBY DIGITAL+

AA A A A A A A AAAF A A A AA A A A A

DOLBY DIGITAL EX

z

1

AA A AA A A A AAAAS S SSAAAAA

DOLBY (D+) (HD) +EX

z

1

AA A AA A A A AASSA A AAAAAAA

DOLBY DIGITAL

AA A AA A A A AAAAS F FFAAAAA

DOLBY (D) (D+) (HD) +PLgx

CINEMA

z

2

AA A AA A A A AASSF DS SSAAAAA

DOLBY (D) (D+) (HD) +PLgx

MUSIC

z

1

AA A AA A A A AASSS S SSAAAAA

DOLBY (D) (D+) (HD) +PLgz

HEIGHT

z

3

AA A AA A A A AASSS S SSAAAAA

DOLBY PRO LOGIC gz HEIGHT

z

3

SS S AA A A A AAAA A A AASASAS

DOLBY PRO LOGIC gx CINEMA

z

1

SS S AA A A A AAAA A A AASASAS

DOLBY PRO LOGIC gx MUSIC

z

1

SS S AA A A A AAAA A A AASASAS

DOLBY PRO LOGIC gx GAME

z

1

SS S AA A A A AAAA A A AASASAS

DOLBY PRO LOGIC g CINEMA SS S AA A A A AAAA A A AASASAS

DOLBY PRO LOGIC g MUSIC SS S AA A A A AAAA A A AASASAS

DOLBY PRO LOGIC g GAME SS S A A A A A AAAA A A A ASASAS

DOLBY PRO LOGIC

SS S AA A A A AAAA A A AASASAS

neural

SS S A A A A A AAAA A A A AA A S A A

31

AVR-3310CI/AVR-3310/AVR990/AVC-3310

F : Mode selectable in initial status

S : Selectable mode

A : Non-selectable mode

NOTE :

z

1: This mode is not available when the surround back speaker setup is set to “None”.z2: This mode is not available when the surround back speaker setup is set to “1spkr” or “None”.z3: This mode is not available when the front height speaker setup is set to “None”.

Button

Note

Input signals

ANALOG

LINEAR

PCM /

WAV

WMA

(Windows

Media Audio)

/

MP3 / MPEG-4

AAC / FLAC

DTS-HD DTS DOLBY DOLBY DIGITAL MULTI CH PCM Super Audio CD

Surround Mode

DTS-HD

Master

Audio

DTS-HD

High

Resolution

Audio

DTS

EXPRESS

DTS ES

DSCRT

(With Flag)

DTS ES

MTRX

(With Flag)

DTS

(5.1ch)

DTS

96/24

DOLBY

TrueHD

DOLBY

DIGITAL

Plus

DOLBY

DIGITAL

EX (With

Flag)

DOLBY

DIGITAL EX

(With no

Flag)

DOLBY

DIGITAL

(5.1/5/4ch)

DOLBY

DIGITAL

(4/3ch)

DOLBY

DIGITAL

(2ch)

PCM

(multi ch)

PCM

(2ch)

DSD

(multi ch)

DSD

(2ch)

STANDARD

MULTI CH IN

AA A A A A A A AAAA A A A AA F A F A

MULTI IN + PLgx CINEMA

z

2

AA A A A A A A AAAA A A A AA S A S A

MULTI IN + PLgx MUSIC

z

1

AA A A A A A A AAAA A A A AA S A S A

MULTI IN + PLgz HEIGHT

z

3

AA A A A A A A AAAA A A A AA S A S A

MULTI IN + DOLBY EX

z

1

AA A A A A A A AAAA A A A AA S A S A

MULTI CH IN 7.1

z

1

AA A A A A A A AAAA A A A AAFD

(7.1)

AAA

DIRECT

SS S S S S S S SSSS S S S SS A S A S

DSD DIRECT

AA A A A A A A AAAA A A A AA A A A S

DSD MULTI DIRECT

AA A A A A A A AAAA A A A AA A A S A

MULTI CH DIRECT

AA A A A A A A AAAA A A A AA S A S A

M DIRECT + PLgx CINEMA

z

2

AA A A A A A A AAAA A A A AA S A S A

M DIRECT + PLgx MUSIC

z

1

AA A A A A A A AAAA A A A AA S A S A

M DIRECT + PLgz HEIGHT

z

3

AA A A A A A A AAAA A A A AA S A S A

M DIRECT + DOLBY EX

z

1

AA A A A A A A AAAA A A A AA S A S A

M DIRECT 7.1

z

1

AA A A A A A A AAAA A A A AAS

(7.1)

AAA

PURE DIRECT

SS S S S S S S SSSS S S S SS A S A S

DSD PURE DIRECT

AA A A A A A A AAAA A A A AA A A A S

DSD MULTI PURE DIRECT

AA A A A A A A AAAA A A A AA A A S A

MULTI CH PURE DIRECT

AA A A A A A A AAAA A A A AA S A S A

M PURE D + PLgx CINEMA

z

2

AA A A A A A A AAAA A A A AA S A S A

M PURE D + PLgx MUSIC

z

1

AA A A A A A A AAAA A A A AA S A S A

M PURE D + PLgz HEIGHT

z

3

AA A A A A A A AAAA A A A AA S A S A

M PURE D + DOLBY EX

z

1

AA A A A A A A AAAA A A A AA S A S A

M CH PURE DIRECT 7.1

z

1

AA A A A A A A AAAA A A A AAS

(7.1)

AAA

32

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Button

Note

Input signals

ANALOG

LINEAR

PCM /

WAV

WMA

(Windows

Media Audio)

/

MP3 / MPEG-4

AAC / FLAC

DTS-HD DTS DOLBY DOLBY DIGITAL MULTI CH PCM Super Audio CD

Surround Mode

DTS-HD

Master

Audio

DTS-HD

High

Resolution

Audio

DTS

EXPRESS

DTS ES

DSCRT

(With Flag)

DTS ES

MTRX

(With Flag)

DTS

(5.1ch)

DTS

96/24

DOLBY

TrueHD

DOLBY

DIGITAL

Plus

DOLBY

DIGITAL

EX (With

Flag)

DOLBY

DIGITAL EX

(With no

Flag)

DOLBY

DIGITAL

(5.1/5/4ch)

DOLBY

DIGITAL

(4/3ch)

DOLBY

DIGITAL

(2ch)

PCM

(multi ch)

PCM

(2ch)

DSD

(multi ch)

DSD

(2ch)

DSP SIMULATION

7CH STEREO

z

4

SS S S S S S S SSSS S S S SS S S S S

WIDE SCREEN

SS S S S S S S SSSS S S S SS S S S S

SUPER STADIUM

SS S S S S S S SSSS S S S SS S S S S

ROCK ARENA

SS S S S S S S SSSS S S S SS S S S S

JAZZ CLUB

SS S S S S S S SSSS S S S SS S S S S

CLASSIC CONCERT

SS S S S S S S SSSS S S S SS S S S S

MONO MOVIE

SS S S S S S S SSSS S S S SS S S S S

VIDEO GAME

SS S S S S S S SSSS S S S SS S S S S

MATRIX

SS S S S S S S SSSS S S S SS S S S S

VIRTUAL

SS S S S S S S SSSS S S S SS S S S S

STEREO

FF F S S S S S SSSS S S S SF S F S F

NOTE :

z

4 : If the surround back, front wide and front height speaker setup is set to “None”, then “5CH STEREO” is displayed.

33

AVR-3310CI/AVR-3310/AVR990/AVC-3310

TROUBLE SHOOTING

1. POWER

1.1. Power not turn on

Power not turn on

YES

Is the ON/STANDBY indicator on the front panel flashing red?

YES

Is the fuse blown?

YES

Does the power turn on when the POWER switch is turned off then back on?

YES YES YES

Check the primary circuitry parts including the POWER switch (for poor contacts, etc.), and replace any defective parts.

Are there any incomplete connections in the connec-

NO

tors connecting between the various circuit boards?

YES YES

Connect the connectors properly.

NO

Refer to Fuse is blown

Is a DC 5V voltage being supplied from the 8U-110061 board (CW068 pin 1) to the microprocessor?

Check the 8U-210082 board's microprocessor periphery circuitry and replace any defective parts.

Is there a short circuit

NO

between the speaker terminals and the ground?

Check for damage in the power amplifier circuitry parts and replace any defective parts.

Is a DC 5V voltage output when the cord supplying the

NO

power from the 8U-110061 board to the microprocessor (CX068) is unplugged?

Check the circuitry and parts from CW068 on the 8U110061 board to the microprocessor for damage and short-circuits, and replace any defective parts.

Correct the short circuit

NO

between the speaker and the ground.

Check the parts from IC901

NO

to the primary circuitry and replace any defective parts.

1.2. Fuse is blown

YES YES YES

Check for leaks or short circuits in the primary side parts, and replace any defective parts.

YES YES YES

Fuse is blown

Check for short circuits in the rectifier diodes and circuitry of the secondary side rectifying circuits, and replace any defective parts.

After repairing, also replace the fuse.

Check for short circuits in the power stabilizer unit's regulator output terminal and the ground, and replace any defective parts.

34

AVR-3310CI/AVR-3310/AVR990/AVC-3310

2. Analog video

2.1. MONITOR OUT (CVBS) output NG

Checking the video convert ON/OFF settings

Video convert ON Video convert OFF

Input

CVBS

Input

S

AB

Interlace

C

MONITOR OUT (CVBS) output NG

Input

COMPONENT

Interlace

o r

Progressive

no output

※ When checking operation,

select DVD for the function. (COMPONENT1 input)

Input

CVBS

Input

S

Input

COMPONENT

D No output No output

35

AVR-3310CI/AVR-3310/AVR990/AVC-3310

A

Input

CVBS

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input : IC109-13pin

Output : IC109-3pin

OK

To troubleshooting 1.1 Power not

NG

turn on.

NG

Check analog SW settings.

IC109-9,10,11pin : L(0V)

IC109-6pin : L(0V)

OK

Check soldering of IC109.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check input/output of AMP.

Input : IC115-5pin

Output : IC115-7pin

OK

Check output to 8U-310039 DIGITAL UNIT.

Output V : CX111-1pin

OK

Check input of video driver.

Input Y : IC305-2pin Input C : IC305-4pin

OK

Check output of video driver.

Output V : IC305-36pin

OK

Check input/output of analog SW.

Input : IC108-14pin

Output : IC108-13pin

OK

Check soldering of IC115 and

NG

surrounding parts.

NG

Check soldering of CX111.

Check CX151 soldering, or digital unit flaw.

Check soldering of IC305.

Check analog SW settings.

IC108-10pin : H(+5V)

IC108-9pin : L(0V)

OK

Check soldering of IC108.

Check IC301 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

Check input/output of AMP.

Input : IC112-5pin

Output : IC112-7pin

OK

Check cable between main unit and monitor or Check monitor.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Check soldering of IC112.

36

B

Input

S

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin

+5VD : CX141-1pin

OK

Check input/output of analog SW.

Input Y : IC102-13pin Input C : IC106-13pin Output Y : IC102-3pin Output C : IC106-3pin

OK

Check input/output of AMP.

Input Y : IC113-5pin Input C : IC114-5pin

Output Y : IC113-7pin Output C : IC114-7pin

OK

Check output to 8U-310039 DIGITAL

UNIT.

Output Y : CX111-9pin

Output C : CX111-11pin

To troubleshooting 1.1 Power not

NG

turn on.

Check analog SW settings.

NG

IC102-9,10,11pin : L(0V)

IC102-6pin : L(0V)

IC106-9,10,11pin : L(0V)

IC106-6pin : L(0V)

OK

Check soldering of IC102 and IC106.

Check soldering of IC113, IC114 and surrounding parts.

Check soldering of CX111.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

OK

Check input of video driver

Input Y : IC305-2pin Input C : IC305-4pin

OK

Check output of video driver.

Output V : IC305-36pin

OK

Check input/output of analog SW.

Input : IC108-14pin

Output : IC108-13pin

OK

Check input/output of AMP.

Input : IC112-5pin

Output : IC112-7pin

OK

Check cable between main unit and monitor or Check monitor.

Check CX151 soldering, or

NG

DIGITAL UNIT flaw.

NG

Check soldering of IC305.

Check analog SW settings.

IC108-10pin : H(+5V)

IC108-9pin : L(0V)

Check soldering of IC108.

Check soldering of IC112.

OK

Check IC301 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

37

AVR-3310CI/AVR-3310/AVR990/AVC-3310

C

Input

COMPONENT

YES

Check ± 5VA, +5VD and +9VA.

+5VA : CY152-13,14pin

-5VA : CY152-12pin

+5VD : CX141-1pin

+9VA : CY152-15pin

OK

Check input/output of COMPONENT selector.

Input Y : IC501-48pin Input Cb : IC501-2pin

Input Cr : IC501-4pin

Output Y : IC501-27pin Output Cb : IC501-24pin Output Cr : IC501-21pin

OK

Check input/output of AMP.

Input Y : IC503-1pin

Input Cb : IC503-3pin

Input Cr : IC503-5pin

Output Y : IC503-13pin Output Cb : IC503-11pin

Output Cr : IC503-9pin

To troubleshooting 1.1 Power not

NG

turn on.

Check IC501 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check IC503 soldering, or AMP

NG

settings.

IC503-7pin : H(5V)

OK

Check output to 8U-310039 DIGITAL UNIT.

Output Y : CX111-7pin Output Cb : CX111-5pin Output Cr : CX111-3pin

Check input of video driver

Input Y : IC305-2pin Input C : IC305-4pin

OK

Check output of video driver.

Output V : IC305-36pin

OK

Check input/output of analog SW.

Input : IC108-14pin

Output : IC108-13pin

OK

Check soldering of IC503 and surrounding parts.

NG

Check soldering of CX111.

Check CX151 soldering,

or DIGITAL UNIT flaw.

Check soldering of IC305.

Check analog SW settings.

IC108-10pin : H(+5V)

IC108-9pin : L(0V)

Check soldering of IC108.

OK

Check IC301 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

Check input/output of AMP.

Input : IC112-5pin

Output : IC112-7pin

OK

Check cable between main unit and monitor or Check monitor.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Check soldering of IC112.

38

D

Input

CVBS

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input : IC109-13pin

Output : IC109-3pin

OK

To troubleshooting 1.1 Power not

NG

turn on.

NG

Check analog SW settings.

IC109-9,10,11pin : L(0V)

IC109-6pin : L(0V)

OK

Check soldering of IC109.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check input/output of AMP.

Input : IC115-5pin

Output : IC115-7pin

OK

Check input/output of analog SW.

Input : IC108-15pin

Output : IC108-13pin

OK

Check input/output of AMP.

Input : IC112-5pin

Output : IC112-7pin

OK

Check cable between main unit and monitor or Check monitor.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

Check soldering of IC115.

Check analog SW settings.

IC108-10pin : L(0V) IC108-9pin : H(+5V)

OK

Check soldering of IC108.

Check soldering of IC112.

Check soldering of IC301 and

NG

CX141.

39

AVR-3310CI/AVR-3310/AVR990/AVC-3310

2.2. ZONE2 MONITOR OUT (CVBS) Output NG

ZONE2 MONITOR OUT (CVBS) Output NG.

Check ZONE2 is power on.

OK

I n p u t

CVBS

Input

S

I n p u t

COMPONENT

※ When checking operation,

select DVD for the function.

Turn on ZONE2 and check

NG

EFNo output

again.

40

AVR-3310CI/AVR-3310/AVR990/AVC-3310

E

Input

CVBS

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input : IC110-13pin

Output : IC110-3pin

OK

To troubleshooting 1.1 Power not

NG

turn on.

NG

Check analog SW settings.

IC110-9,10,11pin : L(0V)

IC110-6pin : L(0V)

OK

Check soldering of IC110.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check input/output of AMP.

Input : IC115-3pin

Output : IC115-1pin

OK

Check input/output of analog SW.

Input : IC105-12pin

Output : IC105-3pin

OK

Check input/output of AMP.

Input : IC112-3pin

Output : IC112-1pin

OK

Check cable between main unit and monitor or Check monitor.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

Check soldering of IC115.

Check analog SW settings.

IC105-11pin : L(0V)

IC105-10pin : H(+5V)

OK

Check soldering of IC105.

Check soldering of IC112.

Check IC303 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

41

AVR-3310CI/AVR-3310/AVR990/AVC-3310

F

Input

S

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input Y : IC103-13pin Input C : IC107-13pin Output Y : IC103-3pin

Output C : IC107-3pin

OK

Check input/output of AMP.

Input Y : IC113-3pin

Input C : IC114-3pin Output Y : IC113-1pin Output C : IC114-1pin

OK

Check input/output of MIX AMP.

Input Y : IC116-3pin

Input C : IC116-1pin

To troubleshooting 1.1 Power not

NG

turn on.

NG

Check analog SW settings.

IC103-9,10,11pin : L(0V) IC107-9,10,11pin : L(0V)

OK

Check soldering of IC103 and IC107.

Check soldering of IC113, IC114 and surrounding parts.

Check soldering of IC116.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

OK

Check input/output of analog SW.

Input : IC105-14pin

Output : IC105-3pin

OK

Check input/output of AMP.

Input : IC112-3pin

Output : IC112-1pin

OK

Check cable between main unit and monitor or Check monitor.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

Check analog SW settings.

IC105-11pin : L(0V)

IC105-10pin : H(+5V)

OK

Check soldering of IC105.

Check soldering of IC112.

Check IC303 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

42

AVR-3310CI/AVR-3310/AVR990/AVC-3310

2.3. VCR/DVR MONITOR OUT(CVBS) Output NG

VCR/DVR MONITOR OUT(CVBS) Output NG.

I n p u t

CVBS

VCR : G

Input

S

No output No output

DVR : H

※ When checking operation,

select DVD for the function.

I n p u t

COMPONENT

43

AVR-3310CI/AVR-3310/AVR990/AVC-3310

G

Input

CVBS

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input : IC110-13pin

Output : IC110-3pin

OK

To troubleshooting 1.1 Power not

NG

turn on.

NG

Check analog SW settings.

IC110-9,10,11pin : L(0V)

IC110-6pin : L(0V)

OK

Check soldering of IC110.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check input/output of AMP.

Input : IC115-3pin

Output : IC115-1pin

OK

Check input/output of video driver.

Input : IC101-12pin

Output : IC101-24pin

OK

Check cable between main unit and monitor or Check monitor.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

Check soldering of IC115.

Check video driver settings.

IC101-16pin : H(5V)

OK

Check soldering of IC101.

Check IC303 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

44

AVR-3310CI/AVR-3310/AVR990/AVC-3310

H

Input

CVBS

YES

Check ± 5VA +and 5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input : IC110-13pin

Output : IC110-3pin

OK

To troubleshooting 1.1 Power not

NG

turn on.

NG

Check analog SW settings.

IC110-9,10,11pin : L(0V)

IC110-6pin : L(0V)

OK

Check soldering of IC110.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check input/output of AMP.

Input : IC115-3pin

Output : IC115-1pin

OK

Check input/output of video driver.

Input : IC101-3pin

Output :IC101-33pin

OK

Check cable between main unit and monitor or Check monitor.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

Check soldering of IC115.

Check video driver settings.

IC101-7pin : H(5V)

OK

Check soldering of IC101.

Check IC303 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

45

AVR-3310CI/AVR-3310/AVR990/AVC-3310

2.4. MONITOR OUT (S) Output NG

Video convert ON Video convert OFF

Input

CVBS

Input

S

IJ

Interlace

K

MONITOR OUT (S) Output NG

Checking the video convert ON/OFF settings

Input

COMPONENT

Interlace

o r

Progressive

No output

Input

CVBS

No output L No output

※ When checking operation,

select DVD for the function. (COMPONENT1 Input)

Input

S

Input

COMPONENT

46

AVR-3310CI/AVR-3310/AVR990/AVC-3310

I

Input

CVBS

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input : IC109-13pin

Output : IC109-3pin

OK

To troubleshooting 1.1 Power not

NG

turn on.

NG

Check analog SW settings.

IC109-9,10,11pin : L(0V)

IC109-6pi : L(0V)

OK

Check soldering of IC109.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check input/output of AMP.

Input : IC115-5pin

Output : IC115-7pin

OK

Check output to 8U-310039 DIGITAL UNIT.

Output V : CX111-1pin

OK

Check input of video driver.

Input Y : IC305-2pin Input C : IC305-4pin

OK

Check output of video driver.

Output Y : IC305-34pin Output C : IC305-32pin

OK

Check input/output of analog SW.

Input Y : IC104-5pin

Input C : IC104-14pin

Output Y : IC104-3pin

Output C : IC104-13pin

Check soldering of IC115 and

NG

surrounding parts.

NG

Check soldering of CX111.

Check CX151 soldering, or DIGITAL UNIT flaw.

Check soldering of IC305.

Check analog SW settings.

IC104-10pin : H(+5V)

IC104-9pin : L(0V)

OK

Check IC301 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

OK

Check input/output of AMP.

Input Y: IC111-3pin Input C: IC111-5pin

Output Y : IC111-1pin Output C : IC111-7pin

OK

Check cable between main unit and monitor or Check monitor.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Check soldering of IC104.

Check soldering of IC111.

47

J

Input

S

YES

Check ±5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input Y : IC102-13pin Input C : IC106-13pin Output Y : IC102-3pin

Output C : IC106-3pin

OK

Check input/output of AMP.

Input Y : IC113-5pin

Input C : IC114-5pin Output Y : IC113-7pin Output C : IC114-7pin

OK

Check output to 8U-310039 DIGITAL UNIT.

Output Y : CX111-9pin

Output C : CX111-11pin

To troubleshooting 1.1 Power not

NG

turn on.

Check analog SW settings.

NG

IC102-9,10,11pin : L(0V)

IC102-6pin : L(0V)

IC106-9,10,11pin : L(0V)

IC106-6pin : L(0V)

OK

Check soldering of IC102 and IC106.

Check soldering of IC113, IC114 and surrounding parts.

Check soldering of CX111.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

OK

Check input of video driver

Input Y : IC305-2pin

Input C : IC305-4pin

OK

Check output of video driver.

Output Y : IC305-34pin Output C : IC305-32pin

OK

Check input/output of analog SW.

Input Y : IC104-5pin Input C : IC104-14pin

Output Y : IC104-3pin

Output C : IC104-13pin

OK

Check input/output of AMP.

Input Y : IC111-3pin

Input C : IC111-5pin Output Y : IC111-1pin Output C : IC111-7pin

Check CX151 soldering, or DIGITAL

NG

UNIT flaw.

NG

Check soldering of IC305.

Check analog SW settings.

IC104-10pin : H(+5V)

IC104-9pin : L(0V)

OK

Check soldering of IC104.

Check soldering of IC111.

Check IC301 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

OK

Check cable between main unit and monitor or Check monitor.

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

AVR-3310CI/AVR-3310/AVR990/AVC-3310

48

K

Input

COMPONENT

YES

Check ± 5VA, +5VD and +9VA.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

+9VA : CY152-15pin

OK

Check input/output of COMPONENT selector.

Input Y : IC501-48pin Input Cb : IC501-2pin

Input Cr : IC501-4pin

Output Y : IC501-27pin

Output Cb : IC501-24pin

Output Cr : IC501-21pin

OK

Check input/output of AMP.

Input Y : IC503-1pin

Input Cb : IC503-3pin

Input Cr : IC503-5pin

Output Y : IC503-13pin

Output Cb : IC503-11pin

Output Cr : IC503-9pin

OK

To troubleshooting 1.1 Power not

NG

turn on.

Check IC501 and CX141 soldering,

NG

or DIGITAL UNIT flaw.

Check IC503 soldering, or check

NG

AMP settings.

IC503-7pin : H(5V)

OK

Check soldering of IC503 and surrounding parts.

Check output to 8U-310039 DIGITAL UNIT.

Output Y : CX111-7pin

Output Cb : CX111-5pin

Output Cr : CX111-3pin

OK

Check input of video driver

Input Y : IC305-2pin Input C : IC305-4pin

OK

Check output of video driver.

Output Y : IC305-34pin Output C : IC305-32pin

OK

Check input/output of analog SW.

Input Y : IC104-5pin Input C : IC104-14pin Output Y : IC104-3pin

Output C : IC104-13pin

OK

Check input/output of AMP.

Input Y : IC111-3pin

Input C : IC111-5pin Output Y : IC111-1pin Output C : IC111-7pin

OK

Check cable between main unit and monitor or Check monitor .

NG

Check CX151 soldering, or DIGITAL

NG

UNIT flaw.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

Check soldering of CX111.

Check soldering of IC305.

Check analog SW settings.

IC104-10pin : H(+5V)

IC104-9pin : L(0V)

OK

Check soldering of IC104.

Check soldering of IC111.

Check IC301 and CX141 soldering,

NG

or DIGITAL UNIT flaw.

49

AVR-3310CI/AVR-3310/AVR990/AVC-3310

L

Input

S

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input Y : IC102-13pin Input C : IC106-13pin Output Y : IC102-3pin

Output C : IC106-3pin

OK

Check input/output of AMP.

Input Y : IC113-5pin

Input C : IC114-5pin Output Y : IC113-7pin Output C : IC114-7pin

OK

Check input/output of analog SW.

Input Y : IC104-2pin Input C : IC104-15pin Output Y : IC104-3pin

Output C : IC104-13pin

To troubleshooting 1.1 Power not

NG

turn on.

Check analog SW settings.

NG

IC102-9,10,11pin : L(0V)

IC102-6pin : L(0V)

IC106-9,10,11pin : L(0V)

IC106-6pin : L0V)

OK

Check soldering of IC102 and IC106.

Check soldering of IC113, IC114 and surrounding parts.

Check analog SW settings.

IC104-10pin : L(0V) IC104-9pin : H(+5V)

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check IC301 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

OK

Check input/output of AMP.

Input Y : IC111-3pin

Input C : IC111-5pin Output Y : IC111-1pin Output C : IC111-7pin

OK

Check cable between main unit and monitor or Check monitor .

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

OK

Check soldering of IC104.

Check soldering of IC111.

50

AVR-3310CI/AVR-3310/AVR990/AVC-3310

2.5. VCR/DVR MONITOR OUT(S) Output NG

VCR/DVR MONITOR OUT(S) Output NG.

I n p u t

CVBS

No output

Input

S

VCR : M DVR : N

※ When checking operation,

select DVD for the function.

I n p u t

COMPONENT

No output

51

AVR-3310CI/AVR-3310/AVR990/AVC-3310

M

Input

S

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input Y : IC103-13pin Input C : IC107-13pin Output Y : IC103-3pin

Output C : IC107-3pin

OK

Check input/output of AMP.

Input Y : IC113-3pin

Input C : IC114-3pin Output Y : IC113-1pin Output C : IC114-1pin

OK

Check input/output of video driver.

Input Y : IC101-17pin Input C : IC101-15pin

Output Y : IC101-20pin Output C : IC101-22pin

To troubleshooting 1.1 Power not

NG

turn on.

Check analog SW settings.

NG

IC103-9,10,11pin : L(0V)

IC103-6pin : L(0V)

IC107-9,10,11pin : L(0V)

IC107-6pin : L(0V)

OK

Check soldering of IC103 and IC107.

Check soldering of IC113, IC114 and surrounding parts.

Check video driver settings.

IC101-16pin : H(+5V)

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check IC303 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

OK

Check cable between main unit and monitor or Check monitor .

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

OK

Check soldering of IC101.

52

AVR-3310CI/AVR-3310/AVR990/AVC-3310

N

Input

S

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input Y : IC103-13pin Input C : IC107-13pin Output Y : IC103-3pin

Output C : IC107-3pin

OK

Check input/output of AMP.

Input Y : IC113-3pin

Input C : IC114-3pin Output Y : IC113-1pin Output C : IC114-1pin

OK

Check input/output of video driver.

Input Y : IC101-8pin

Input C : IC101-6pin Output Y : IC101-29pin Output C : IC101-31pin

To troubleshooting 1.1 Power not

NG

turn on.

Check analog SW settings.

NG

IC103-9,10,11pin : L(0V)

IC103-6pin : L(0V)

IC107-9,10,11pin : L(0V)

IC107-6pin : L(0V)

OK

Check soldering of IC103 and IC107.

Check soldering of IC113, IC114 and surrounding parts.

Check video driver settings.

IC101-7pin : H(+5V)

Check IC301,IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check IC303 and CX141 solder-

NG

ing, or DIGITAL UNIT flaw.

OK

Check cable between main unit and monitor or Check monitor.

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

OK

Check soldering of IC101.

53

AVR-3310CI/AVR-3310/AVR990/AVC-3310

2.6. COMPONENTOUTOutputNG

Input

CVBS

COMPONENT OUT Output NG.

Checking the video convert ON/OFF settings.

Video convert ON Video convert OFF

Input

S

Input

COMPONENT

Input

CVBS

※ When checking operation,

select DVD for the function. (COMPONENT1 Input)

Input

S

COMPONENT

O P Q No output No output R

Input

54

AVR-3310CI/AVR-3310/AVR990/AVC-3310

O

Input

CVBS

YES

Check ± 5VA, +5VD and +9VA.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

+9VA : CY152-15pin

OK

Check input/output of analog SW.

Input Y : IC109-13pin

Output C : IC109-3pin

OK

To troubleshooting 1.1 Power not

NG

turn on.

NG

Check analog SW settings.

IC109-9,10,11pin : L(0V)

IC109-6pin : L(0V)

OK

Check soldering of IC109.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check input/output of AMP.

Input : IC115-5pin

Output : IC115-7pin

OK

Check output to 8U-310039 DIGITAL UNIT.

Output V : CX111-1pin

OK

Check input of video driver.

Input Y : IC305-15in

Input Cb : IC305-17pin

Input Cr : IC305-13pin

OK

Check output of video driver.

Output Y : IC305-22pin

Output Cb : IC305-20pin

Output Cr : IC305-24pin

OK

Check input/output of COMPONENT selector.

Input Y : IC501-6pin

Input Cb : IC501-8pin

Input Cr : IC501-10pin

Output Y : IC501-34pin

Output Cb : IC501-32pin

Output Cr : IC501-30pin

Check soldering of IC115 and

NG

surrounding parts.

NG

Check soldering of CX111.

Check CX151 soldering, or DIGITAL UNIT flaw.

Check soldering of IC305.

Check soldering of IC501 surrounding parts and CX141, or DIGITAL UNIT flaw.

OK

Check input/output of AMP.

Input Y : IC504-1pin

Input Cb : IC504-3pin

Input Cr : IC504-5pin

Output Y : IC504-13pin

Output Cb : IC504-11pin

Output Cr : IC504-9pin

OK

Check cable between main unit and monitor or Check monitor.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Check AMP settings.

IC504-7pin : H(5V)

OK

Check soldering of IC504.

55

Check CX141 soldering, or DIGI-

NG

TAL UNIT flaw.

P

Input

S

YES

Check ± 5VA, +5VD and +9VA.

+5VA : CY152-13,14pin

-5VA : CY152-12pin

+5VD : CX141-1pin

+9VA : CY152-15pin

OK

Check input/output of analog SW.

Input Y : IC102-13pin Input C : IC106-13pin Output Y : IC102-3pin Output C : IC106-3pin

OK

Check input/output of AMP.

Input Y : IC113-5pin Input C : IC114-5pin

Output Y : IC113-7pin Output C : IC114-7pin

OK

Check output to 8U-310039 DIGITAL

UNIT.

Output Y : CX111-9pin

Output C : CX111-11pin

OK

Check input of video driver.

Input Y : IC305-15in

Input Cb : IC305-17pin Input Cr : IC305-13pin

OK

Check output of video driver.

Output Y : IC305-22pin Output Cb : IC305-20pin Output Cr : IC305-24pin

OK

Check input/output of COMPONENT selector.

Input Y : IC501-6pin

Input Cb : IC501-8pin

Input Cr : IC501-10pin

Output Y : IC501-34pin Output Cb : IC501-32pin Output Cr : IC501-30pin

OK

Check input/output of AMP.

Input Y : IC504-1pin

Input Cb : IC504-3pin

Input Cr : IC504-5pin

Output Y : IC504-13pin Output Cb : IC504-11pin

Output Cr : IC504-9pin

OK

To troubleshooting 1.1 Power not

NG

turn on.

Check analog SW settings.

NG

IC102-9,10,11pin : L(0V)

IC102-6pin : L(0V)

IC106-9,10,11pin : L(0V)

IC106-6pin : L(0V)

OK

Check soldering of IC102 and IC106.

Check soldering of IC113, IC114 and surrounding parts.

Check soldering of CX111.

Check CX151 soldering, or DIGITAL UNIT flaw.

Check soldering of IC305.

Check soldering of IC501 surrounding parts and CX141 Or DIGITAL UNIT flaw.

Check AMP settings.

IC504-7pin : H(5V)

OK

Check soldering of IC504.

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

Check CX141 soldering, or DIGI-

NG

TAL UNIT flaw.

Check cable between main unit and monitor or Check monitor.

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

AVR-3310CI/AVR-3310/AVR990/AVC-3310

56

Q

Input

COMPONENT

YES

Check ± 5VA, +5VD and +9VA.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

+9VA : CY152-15pin

OK

Check input/output of COMPONENT.

selector Input Y : IC501-48pin Input Cb : IC501-2pin

Input Cr : IC501-4pin

Output Y : IC501-27pin Output Cb : IC501-24pin Output Cr : IC501-21pin

OK

Check input/output of AMP.

Input Y : IC503-1pin

Input Cb : IC503-3pin

Input Cr : IC503-5pin

Output Y : IC503-13pin Output Cb : IC503-11pin

Output Cr : IC503-9pin

OK

To troubleshooting 1.1 Power not

NG

turn on.

Check IC501 and CX141

NG

soldering, or DIGITAL UNIT flaw.

NG

Check AMP settings.

IC503-7pin : H(5V)

OK

Check soldering of IC503 and surrounding parts.

Check output to 8U-310039 DIGITAL

UNIT.

Output Y : CX111-7pin Output Cb : CX111-5pin Output Cr : CX111-3pin

OK

Check input of video driver.

Input Y : IC305-15in Input Cb : IC305-17pin Input Cr : IC305-13pin

OK

Check output of video driver.

Output Y : IC305-22pin

Output Cb : IC305-20pin

Output Cr : IC305-24in

OK

Check input/output of COMPONENT selector.

Input Y : IC501-6pin

Input Cb : IC501-8pin

Input Cr : IC501-10pin

Output Y : IC501-34pin Output Cb : IC501-32pin Output Cr : IC501-30pin

OK

Check input/output of AMP.

Input Y : IC504-1pin

Input Cb : IC504-3pin

Input Cr : IC504-5pin

Output Y : IC504-13pin Output Cb : IC504-11pin

Output Cr : IC504-9pin

OK

NG

Check soldering of CX111.

Check CX151 soldering, or DIGITAL UNIT flaw.

Check soldering of IC305.

Check soldering of IC501 surrounding parts and CX141 Or DIGITAL UNIT flaw.

Check AMP settings.

IC504-7pin : H(5V)

OK

Check soldering of IC504.

Check CX141 soldering, or DIGI-

NG

TAL UNIT flaw.

Check Output of cable between main unit and monitor or Check monitor .

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

AVR-3310CI/AVR-3310/AVR990/AVC-3310

57

R

Input

COMPONENT

YES

Check ± 5VA, +5VD and +9VA.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

+9VA : CY152-15pin

OK

Check input/output of COMPONENT selector.

Input Y : IC501-48pin Input Cb : IC501-2pin

Input Cr : IC501-4pin

Output Y : IC501-27pin

Output Cb : IC501-24pin

Output Cr : IC501-21pin

OK

Check input/output of AMP.

Input Y : IC504-1pin

Input Cb : IC504-3pin

Input Cr : IC504-5pin

Output Y : IC504-13pin

Output Cb : IC504-11pin

Output Cr : IC504-9pin

To troubleshooting 1.1 Power not

NG

turn on.

Check IC501 and CX141

NG

soldering, or DIGITAL UNIT flaw.

NG

Check AMP settings.

IC504-7pin : H(5V)

Check CX141 soldering, or DIGI-

NG

TAL UNIT flaw.

OK

Check cable between main unit and monitor or Check monitor.

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

OK

Check soldering of IC504.

58

AVR-3310CI/AVR-3310/AVR990/AVC-3310

2.7. HDMI Output NG

HDMI Output NG.

Checking the video convert ON/OFF settings.

Video convert ON Video convert OFF

Input

CVBS

Input

S

Input

COMPONENT

I n p u t

HDMI

I n p u t

CVBS

Input

S

T U V No output

To troubleshooting 3.HDMI/DVI.

※ When checking operation,

select DVD for the function. (COMPONENT1 Input)

I n p u t

COMPONENT

Input

HDMI

59

AVR-3310CI/AVR-3310/AVR990/AVC-3310

T

Input

CVBS

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input : IC109-13pin

Output : IC109-3pin

To troubleshooting 1.1 Power not

NG

turn on.

NG

Check analog SW settings.

IC109-9,10,11pin : L(0V)

IC109-6pin : L(0V)

OK

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

OK

Check input/output of AMP.

Input : IC115-5pin

Output : IC115-7pin

OK

Check output to 8U-310039 DIGITAL UNIT.

Output V : CX111-1pin

OK

To troubleshooting 3.HDMI/DVI.

Check soldering of IC115 and

NG

surrounding parts.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

Check soldering of IC109.

Check soldering of CX111.

60

AVR-3310CI/AVR-3310/AVR990/AVC-3310

U

Input

S

YES

Check ± 5VA and +5VD.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

OK

Check input/output of analog SW.

Input Y : IC102-13pin Input C : IC106-13pin Output Y : IC102-3pin

Output C : IC106-3pin

To troubleshooting 1.1 Power not

NG

turn on.

Check analog SW settings.

NG

IC102-9,10,11pin : L(0V)

IC102-6pin : L(0V)

IC106-9,10,11pin : L(0V)

IC106-6pin : L(0V)

OK

Check IC301, IC303 and CX141

NG

soldering, or DIGITAL UNIT flaw.

OK

Check input/output of AMP.

Input Y : IC113-5pin

Input C : IC114-5pin Output Y : IC113-7pin Output C : IC114-7pin

OK

Check output to 8U-310039 DIGITAL UNIT.

Output Y : CX111-9pin

Output C : CX111-11pin

OK

To troubleshooting 3.HDMI/DVI.

Check soldering of IC102 and IC106.

Check soldering of IC113, IC114

NG

and surrounding parts.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

Check soldering of CX111.

61

AVR-3310CI/AVR-3310/AVR990/AVC-3310

V

Input

COMPONENT

YES

Check ± 5VA, +5VD and +9VA.

+5VA : CY152-13,14pin

-5VA : CY152-12pin +5VD : CX141-1pin

+9VA : CY152-15pin

OK

Check input/output of COMPONENT selector.

Input Y : IC501-48pin Input Cb : IC501-2pin

Input Cr : IC501-4pin

Output Y : IC501-27pin

Output Cb : IC501-24pin

Output Cr : IC501-21pin

OK

Check input/output of AMP.

Input Y : IC503-1pin

Input Cb : IC503-3pin

Input Cr : IC503-5pin

Output Y : IC503-13pin

Output Cb : IC503-11pin

Output Cr : IC503-9pin

To troubleshooting 1.1 Power not

NG

turn on.

Check IC501 and CX141

NG

soldering, or DIGITAL UNIT flaw.

NG

Check AMP settings.

IC503-7pin : H(5V)

Check IC301 and CX141

NG

soldering, or DIGITAL UNIT flaw.

OK

Check output to 8U-310039 DIGITAL UNIT.

Output Y : CX111-7pin

Output Cb : CX111-5pin

Output Cr : CX111-3pin

OK

To troubleshooting 3.HDMI/DVI.

Check soldering of IC503 and surrounding parts.

NG

※ Unless specified, 8U-210081-1 A.VIDEO UNIT part.

OK

Check soldering of CX111.

62

AVR-3310CI/AVR-3310/AVR990/AVC-3310

3. HDMI/DVI

3.1. No picture or sound is output

No picture or sound is output

Check the HDMI/DVI cable connection

Is the HDMI/DVI cable properly connected?

Are you using an HDMI/DVI selector, repeater or a device for improving picture quality?

Are you using a certified HDMI cable (one with the HDMI stamp)?

Are you using an HDMI/DVI cable less than 5 meters in length?

YES

NO

YES

There may be a problem with

NO

the HDMI/DVI cable. Check the connection.

Disconnect everything and

YES

connect only the HDMI/DVI cable to check.

Use a certified HDMI cable

NO

(one with the HDMI stamp).

Replace the HDMI/DVI cable with one that is less than 5

NO

meters in length (2 meters recommended) to check.

YES

Are the picture and sound output when another HDMI/DVI cable is used?

NO

Checking the DVD player

YES

Is the DVD player's HDMI output setting correct?

YES

When using a DENON DVD player, is the fluorescent display tube's "HDMI" indicator lit? If using a non-DENON DVD player, proceed to "YES".

YES

Are the picture and sound

NO

Is sound output from the set's speaker terminals when the TV's power is turned off or the connection cable between the TV and the set is disconnected?

output when the DVD player's resolution is changed?

NO

The HDMI/DVI cable is

YES

defective.

Check the HDMI output setting,

YES

referring to the DVD player's operating instructions.

Set the DVD player's output

YES

resolution to a resolution with which the TV is compatible.

The DVD player may not be compatible with HDCP

YES

repeaters. Ask the DVD player's manufacturer.

NO

Are the picture and sound output when a different DVD player is used?

NO

YES

The DVD player is defective.

63

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Check the TV

Is the TV HDCP-compatible?

YES

Is the TV compatible with resolutions of 1080P?

YES

Is the TV's input set to HDMI?

YES

Use an HDCP-compatible TV.

NO

PC TVs cannot be used.

If the TV is not compatible with resolutions of 1080P, no picture

NO

will be output, even if the DVD player's resolution is set to 1080P.

Check the TV's input setting,

NO

referring to the TV's operating instructions.

Are the picture and sound output when a different TV is used?

YES

Check the set (AVR-3310CI)

Is the set's input set to HDMI?

YES YES

The set does not recognize the TV.

Is the TV information properly displayed on the "Monitor info." display menu?

YES YES

Does the set's wallpaper image appear on the TV when the HDMI/DVI cable between the DVD player and the set is disconnected?

YES YES

When using a DENON DVD player, is the fluorescent display tube's "HDMI" indicator lit? If using a non-DENON DVD player, proceed to "NO".

Is IC701 pin 30 "H" (3V-5V)?

NO

With the TV connected, check the voltage of the IC on the side on which the TV is connected.

The DVD player does not recognize the connection with the set.

Is the HDMI connector (JK502/ JK503/JK401/JK402/JK403)

NO

pin 19 "H" (5V)? With the DVD player connected, check the voltage of the HDMI connector for the input on the side on which the DVD player is connected.

NO

The TV is defective.

Check the set's input setting,

NO

referring to the set's operating instructions.

The pattern and circuit from

NO

the HDMI connector (JK701) to the IC (IC701) is defective.

Are the picture and sound output from other Monitor Out

NO

terminals (VIDEO out, SVIDEO out or Component out)?

NO

The pattern and circuit from the HDMI connector (JK502/

NO

JK503/JK401/JK402/JK403) to the IC401/IC501 is defective.

The HDMI output circuitry is defective.

YES

(IC701/IC602 and surrounding circuitry)

YES YES

The HDMI input circuitry is defective. (IC401/IC501/IC602 and surrounding circuitry)

AVR-3310CI/AVR-3310/AVR990/AVC-3310

64

4. Power AMP (8U-110062, 8U-110063)

No sound is output The protector operates.

YES

Is the power transistor open or short circuit?

DHCT A3/C3

NO

Is the emitter resistance of the power transistor open?

0.22Ω

NO

Is the base resistance of the power transistor open?

220Ω

NO

Is trimmer potentiometer between the base of the power transistor open?

300Ω

NO

Is the zener diode and diode which are connected with the base of a power transistor short-circuited?

HZS6A-1

1SS133

YES

Replace the power transistor.

YES

Replace the emitter resistance.

YES

Replace the base resistance.

YES

Replace the trimmer potentiometers.

Replace the Zener diode and the

YES

diode.

NO

Is other transistor trouble?

NO

Is other resistance trouble?

Turn on power, check that voltage of the section is normal and that idling electric current is flowing.

YES

Replace the transistor.

YES

Replace the resistance.

65

AVR-3310CI/AVR-3310/AVR990/AVC-3310

5. Analog audio

5.1. 8U-210081

No sound is output

YES

Is the voltage of ± 7V supplied to 8U- 210081 CY073?

YES

Is the audio signal transmitted to 8U210081 CY192?

NO

Is the serial data for electronic volume transmitted to 8U-210081 CW132?

YES

Once more, checking the connection of the connector. When can specify the trouble of the channel and function, check the signal route where it corresponds.

NO

The power supply of ±7V is repaired.

YES

The power amplifier is repaired.

Is the connector correctly connected

NO

with ucom board (8U-210082)?

NO

Connect the connectors properly.

The ucom board (8U-210082) is

YES

repaired.

66

AVR-3310CI/AVR-3310/AVR990/AVC-3310

6. Network/USB

6.1. Cannot connect to network

Checking the environment

Is the LAN cable properly connected?

YES

Check the LAN cable prop-

NO

erly then turn the power back on.

Checking the settings

Are the AVR-3310CI's network settings correct?

YES

Are the router, hub and other peripherals properly connected?

YES

Are the router's settings correct?

YES

Set the IP address and other parameters properly. For a fixed IP setting, check whether the IP address is redundant with that of

NO

other devices, and check whether the subnet mask setting is correct.

NO

Connect properly to peripherals.

Check the router's operating instructions and set properly. Check

NO

whether there are connection restrictions due to the MAC address, etc.

Checking the set (AVR-3310CI)

Is the network module properly connected to CX304?

YES

Is a voltage (5V) output between CX047 1pin and 4pin?

YES

Can you connect with a different network module?

YES

The network module is defective.

NO

Connect the network module properly into CX304 .

NO

The circuit from AC inlet to CX047 is defective.

Is operation normal when the 8U-310039 circuit board is

NO

replaced?

YES NO

The 8U-310039 circuit board is defective.

The 8U-210082 circuit board may be defective.

67

AVR-3310CI/AVR-3310/AVR990/AVC-3310

6.2. USB device is not recognized

Checking the settings

Are the USB port settings correct?

YES

Checking the USB device

Are you using a USB hub?

NO

Is the USB device compatible with the set?

YES

Checking the set (AVR-3310CI)

Is the wire properly connected between CX052 and CY052?

YES

NO

Set the front and rear properly.

YES

You do not use the USB hub.

Only mass storage devices in FAT16 or FAT32 formats or MTP-

NO

compatible devices and iPod (Remove some models) are supported.

NO

Connect the wire properly.

Is a voltage (5V) being supplied between pins 1 and 4 of JK981 on the 8U-210081-3 circuit board (USB connector)?

YES

The network module may be defective.

NO

The TR453 periphery circuitry is defective.

68

AVR-3310CI/AVR-3310/AVR990/AVC-3310

6.3. No picture or sound is output

Checking the set (AVR-3310CI):(If no picture is output)

Is the wire properly connected between CX151 and CY151?

YES

Are video signals output from CY151 pin 13 (Y) and pin 11 (C)?

YES

Check the analog video circuit.

Checking the set (AVR-3310CI):(If no sound is output)

Are S/PDIF signals output from CX304 pin 124?

YES

Check the Digital audio circuit.

NO

Connect the wire properly.

The circuit from CX304 to IC457 or network module is defec-

NO

tive.

NO

The network module is defective.

69

AVR-3310CI/AVR-3310/AVR990/AVC-3310

--MEMO--

70

AVR-3310CI/AVR-3310/AVR990/AVC-3310

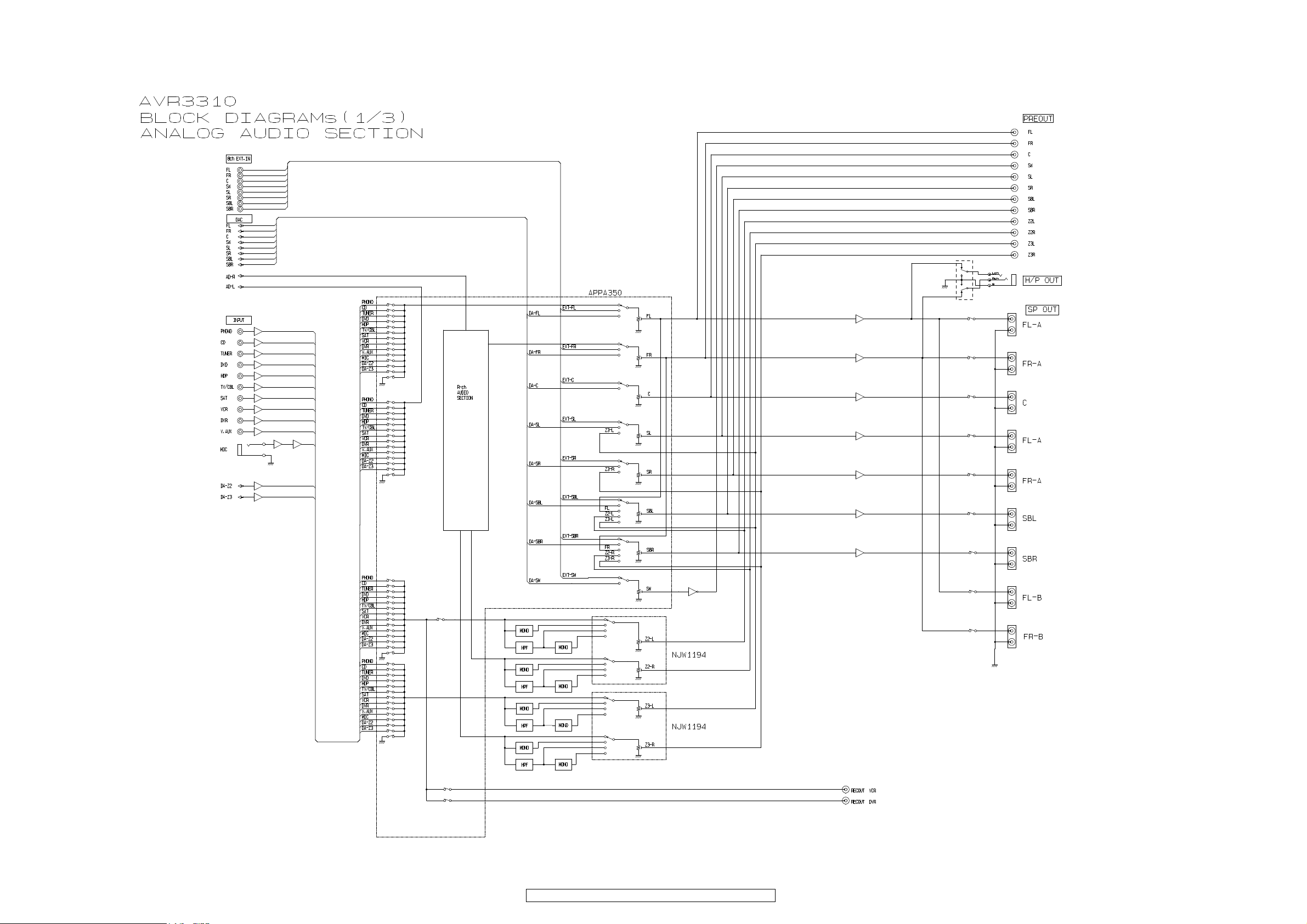

BLOCK DIAGRAMS (1/3)

ANALOG AUDIO BLOCK DIAGRAM

71

AVR-3310CI/AVR-3310/AVR990/AVC-3310

BLOCK DIAGRAMS (2/3)

DIGITAL AUDIO BLOCK DIAGRAM

72

AVR-3310CI/AVR-3310/AVR990/AVC-3310

BLOCK DIAGRAMS (3/3)

VIDEO BLOCK DIAGRAM

73

AVR-3310CI/AVR-3310/AVR990/AVC-3310

LEVEL DIAGRAMS (1/6)

AVR-3310CI

F R O N T c h

L E V E L D I A G R A M

74

AVR-3310CI/AVR-3310/AVR990/AVC-3310

LEVEL DIAGRAMS (2/6)

C E N T E R c h

L E V E L D I A G R A M

AVR-3310CI

75

AVR-3310CI/AVR-3310/AVR990/AVC-3310

LEVEL DIAGRAMS (3/6)

S U B W O O F E R c h

L E V E L D I A G R A M

AVR-3310CI

76

AVR-3310CI/AVR-3310/AVR990/AVC-3310

LEVEL DIAGRAMS (4/6)

S U R R O U N D c h

L E V E L D I A G R A M

AVR-3310CI

77

AVR-3310CI/AVR-3310/AVR990/AVC-3310

LEVEL DIAGRAMS (5/6)

S U R R O U N D B A C K c h

L E V E L D I A G R A M

AVR-3310CI

78

AVR-3310CI/AVR-3310/AVR990/AVC-3310

LEVEL DIAGRAMS (6/6)

Z O N E 2 / 3

L E V E L D I A G R A M

AVR-3310CI

79

AVR-3310CI/AVR-3310/AVR990/AVC-3310

--MEMO--

80

AVR-3310CI/AVR-3310/AVR990/AVC-3310

SEMICONDUCTORS

Only major semiconductors are shown, general semiconductors etc. are omitted to list. The semiconductor which described a detailed drawing in a schematic diagram are omitted to list.

1. IC’s

Note : Abbreviation ahead of IC No. indicates the name of P.W.B., etc.

DI : DIGITAL P.W.B. MA : MAIN CPU P.W.B. AV : A.AUDIO/ VIDEO P.W.B.

R5F64169DFD (MA: IC701)

(Note 1)

VSS

P1_1 / D9 / I IO0_1 / IIO1_1

P1_2 / D10 / IIO0_2 / IIO1_2

P1_3 / D11 / IIO0_3 / IIO1_3

P1_4 / D12 / IIO0_4 / IIO1_4

108

105

107

106

VSS

VCC

AVSS

VREF

(Note 2)

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

123

45678

IIO0_0 / IIO1_0 / D8 / P1_0

AN0_7 / D7 / P0_7 AN0_6 / D6 / P0_6 AN0_5 / D5 / P0_5 AN0_4 / D4 / P0_4

IIO1_3 / RTS8 / CTS8 / WR2 / CS3 / P11_3

IIO0_7 / RTS6 / CTS6 / SS6 / AN15_7 / P15_7

IIO0_5 / RXD6 / SCL6 / STXD6 / AN15_5 /P15_5 IIO0_4 / TXD6 / SDA6 / SRXD6 / AN15_4 / P15_4

IIO0_3 / RTS7 / CTS7 / AN15_3 / P15_3

STXD4 / SCL4 / RXD4 / ADTRG / P9_7 P7_0 / TA0OUT / TXD2 / SDA2 / SRXD2 / IIO1_6 / OUTC2_0 / ISTXD2 / IEOUT / MSDA

WR3 / BC3 / P11_4

IIO1_2 / RXD8 / CS2 / P11_2

IIO1_1/CLK8/ CS1/P11_1

IIO1_0 / TXD8 / CS0 / P11_0

AN0_3 / D3 / P0_3 AN0_2 / D2 / P0_2 AN0_1 / D1 / P0_1 AN0_0 / D0 / P0_0

IIO0_6 / CLK6 / AN15_6 / P15_6

IIO0_2 / RXD7 / AN15_2 / P15_2 IIO0_1 / CLK7 / AN15_1 / P15_1

IIO0_0 / TXD7 / AN15_0 / P15_0

KI3 / AN_7 / P10_7 KI2 / AN_6 / P10_6 KI1 / AN_5 / P10_5 KI0 / AN_4 / P10_4

AN_3 / P10_3 AN_2 / P10_2 AN_1 / P10_1

AN_0 / P10_0

P2_2 / A2 / [A2/D2] / AN2_2

P1_5 / D13 / INT3 / IIO0_5 / IIO1_5

P1_6 / D14 / INT4 / IIO0_6 / IIO1_6

P1_7 / D15 / INT5 / IIO0_7 / IIO1_7

P2_0 / A0 / [A0/D0] / BC0 / [BC0/D0] / AN2_0

P2_1 / A1 / [A1/D1] / BC2 / [BC2/D1] / AN2_1

P2_3 / A3 / [A3/D3] / AN2_3

P2_4 / A4 / [A4/D4] / AN2_4

P2_5 / A5 / [A5/D5] / AN2_5

P2_6 / A6 / [A6/D6] / AN2_6

97

96

99

98

104

103

102

101

959493

100

R32C/116 GROUP

PLQP0144KA-A

(144P6Q-A)

9

1011121314

P12_1 / D17 / CLK6

P2_7 / A7 / [A7/D7] / AN2_7

P3_0 / A8 / [A8/D8] / TA0OUT / UD0A / UD1A

VCC

P12_0 / D16 / TXD6 / SDA6 / SRXD6

P12_2 / D18 / RXD6 / SCL6 / STXD6

92

9190898786858483828180

(Top view)

16

17

20

15

21

18

19

P12_3 / D19 / CTS6 / RTS6 / SS6

P3_3 / A11 / [A11/D11] / TA1IN / V

P3_4 / A12 / [A12/D12] / TA2OUT / W

P12_4 / D20

P3_1 / A9 / [A9/D9] / TA3OUT / UD0B / UD1B

P3_2 / A10 / [A10/D10] / TA1OUT / V

22232425262728

P3_5 / A13 / [A13/D13] / TA2IN / W

P3_6 / A14 / [A14/D14] / TA4OUT / U

29

P3_7 / A15 / [A15/D15] / TA4IN / U

79

303132

P4_2 / A18 / RXD3 / SCL3 / STXD3 / ISRXD2 / IEIN

VCC

P4_0 / A16 / CTS3 / RTS3 / SS3

P4_1 / A17 / CLK3

VSS

P4_3 / A19 / TXD3 / SDA3 / SRXD3 / OUTC2_0 / ISTXD2 / IEOUT

78

77

7675748873

72

P4_4 / CS3 / A20 / CTS6 / RTS6 / SS6

71

P4_5 / CS2 / A21 / CLK6

70

P4_6 / CS1 / A22 / RXD6 / SCL6 / STXD6

69

P4_7 / CS0 / A23 / TXD6 / SDA6 / SRXD6

68

P12_5 / D21

67

P12_6 / D22

66

P12_7 / D23

65

P5_0 / WR0 / WR

64

P5_1 / WR1 / BC1

63

P5_2 / RD

62

R5_3 / CLKOUT / BCLK

61

P13_0 / D24 / OUTC2_4

60

P13_1 / D25 / OUTC2_5

59

VCC

58

P13_2 / D26 / OUTC2_6

57

VSS

56

P13_3 / D27 / OUTC2_3

55

P5_4 / HLDA / CS1 / TXD7

54

P5_5 / HOLD / CLK7

53

P5_6 / ALE / CS2 / R XD7

52

P5_7 / RDY / CS3 / CTS7 / RTS7

51

P13_4 / D28 / OUTC2_0 / ISTXD2 / IEOUT

50

P13_5 / D29 / OUTC2_2 / ISRXD2 / IEIN

49

P13_6 / D30 / OUTC2_1 / ISCLK2

48

P13_7 / D31 / OUTC2_7

47

P6_0 / TB0IN / CTS0 / RTS0 / SS0

46

P6_1 / TB1IN / CLK0

45

P6_2 / TB2IN / RXD0 / SCL0 / STXD0

44

P6_3 / TXD0 / SDA0 / SRXD0

43

P6_4 / CTS1 / RTS1 / SS1 / OUT C2_1 / ISCLK2

42

P6_5 / CLK1

41

VSS

40

P6_6 / RXD1 / SCL1 / STXD1

39

VCC

38

P6_7 / TXD1 / SDA1 / SRXD1AVCC

37

333435

36

XIN

NSD

VDC0

VDC1

P14_3

P14_1

INT7 / P14_5

INT6 / P14_4

INT8 / P14_6

CLK3/TB0IN/P9_0

CLK4 / ANEX0 / P9_5

SRXD4 / SDA4 / TXD4 / ANEX1 / P9_6

SS3 / RTS3 / CTS3 / TB3IN / DA0 / P9_3

SS4 / RTS4 / CTS4 / TB4IN / DA1 / P9_4

IEIN / ISRXD2 / STXD3 / SCL3 / RXD3 / TB1IN / P9_1

IEOUT / ISTXD2 / OUTC2_0 / SRXD3 / SDA3 / TXD3 / TB2IN / P9_2

Notes:

1. Pin names in brackets [ ] represent a functional signal as a whole and should not be considered as two separate pins.

2. The position of pin number 1 varies by product. Refer to the index mark in attached “Package Dimensions”.

VSS

VCC

XOUT

RESET

CNVSS

XCIN / P8_7

XCOUT / P8_6

NMI / P8_5

INT2 / P8_4

INT1 / P8_3

INT0 / P8_2

UD0B / UD1B / IIO1_5 / RTS5 / CTS5 / SS5 / U / TA4IN / P8_1

UD0A / UD1A / RXD5 / SCL5 / STXD5 / U / TA4OUT / P8_0

UD0B / UD1B / IIO1_4 / CLK5 / TA3IN / P7_7

UD0A / UD1A / IIO1_3 / RTS8 / CTS8 / TXD5 / SDA5 / SRXD5 / TA3OUT / P7_6

IIO1_2 / RXD8 / W / TA2IN / P7_5

CLK2/V/TA1OUT/P7_2

IIO1_1 / CLK8 / W / TA2OUT / P7_4

IIO1_0/TXD8/SS2/RTS2/CTS2/V/TA1IN/P7_3

MSCL / IEIN / ISRXD2 / OUTC2_2 / IIO1_7 / STXD2 / SCL2 / RXD2 / TA0IN/ TB5IN / P7_1

81

AVR-3310CI/AVR-3310/AVR990/AVC-3310

R5F64169DFD Terminal

Pin Pin Name Synbol I/O Type Pullup LvCnv STBY stop Function

1

P96/TXD4 NC O C - - O/L O/L

2

P95/(CLK4) NC O C - - O/L O/L

3

P94/(CTS4) TU STB O C - 3/5 O/L O/L PLL control pin(LC72131 & LC72720)

4

P93/(CTS3) D.OSD MIFO_BUSY I - - - O/L O/L D.OSD CPU control pin

5

P92/TXD3 HDRADIO MOHI O C - - O/L O/L HD RADIO control

6

P91/RXD3 HDRADIO MIHO I - - - O/L O/L HD RADIO control

7

P90/(CLK3) E POWER O C - - O/L O/L ETHER POWER control pin

8

P146/INT8 POWER KEY I - M3VPu - I I POWER KEY(WAIT MODE cancel interrupt port)

9

P145/INT7 (B.DOWN2) I - M3VPu - I I Not used(Power down detect (Power down : L))

10

P144/INT6 PROTECTION

11

P143 CPU POWER O C - - O/L O/L MAIN CPU POWER control pin (POWER ON: H)(ETHER=ON or CEC

12

VDC0 VDC0 - - - - - - Smoothing capacitor connection pin

13

P141(INPUT ONLY)

14

VDC1 VDC1 - - - - - - Smoothing capacitor connection pin

15

NSD NSD - - M3VPu - - - Emulator communication pin

16

CNVss CNVSS - - Pd - - - Single-chip / Micro-processor mode switching (Normal single-chip: L,

17

P87/(XCIN) E RESET O C Pd - O/L O/L ETHERNET RESET control pin

18

P86/(XCOUT) 232C POWER/REMOTE

19

RESET RESET - - M3VPu - - - Reset input (reset: L)

20

XOUT X2 - - - - - - Clock output

21

VSS VSS - - - - - - GND

22

XIN X1 - - - - - - Clock input

23

VCC VCC1 - - - - - - +3V

24

P85/NMI NMI I - M3V - I I Not used(Fixed to H)

25

P84/INT2 REMOTE DET I - (3Vin) - I I ROOM TO ROOM signal detect pin(detected: H)

26

P83/INT1 B.DOWN I - (3Vin) - I I Power down detect (Power down : L)

27

P82/INT0 REMOCON I - 3VIn/Pd - I I Remote control signal input

28

P81 FL CE1 O C - (3/5) O/L O/L FL display unit control pin

29

P80/RXD5 iPod RXD MIIO I N (5VIn) - O/L O/L IPOD communication control pin

30

P77/CLK5 TU/RDS CLK 0 C SW5VPu 3/5 O/L O/L PLL & RDS control pin (LC72131 & LC72720)

31

P76/TXD5 iPod TXD MOII O C (5VIn) 3/5 O/L O/L IPOD communication control pin

32

P75/RXD8 (SIRIUS MI)/RDS DOUT I N 5VIn - O/L O/L SIRIUS control pin/RDS data inputpin(LC72720)

33

P74/CLK8 EXP DATA O C - (3/5) O/L O/L Extended EXP control pin

34

P73/TXD8 (SIRIUS MO)/RDS CE O C SW5VPu 3/5 O/L O/L SIRIUS control pin/RDS control pin(LC72720)

35

P72/CLK2 D.OSD CPU CLK O C - - O/L O/L D.OSD CPU control pin

36

P71/RXD2/ (MSCL)

37

P70/TXD2/ (MSDA)

38

P67/TXD1 TXD MO232I O C - (3/5) O/L O/L Data transfer pin to outside (AMX)/MITSUBISHI writer rewrite

39

VCC VCC1 - - - - - - +3V

40

P66/RXD1 RXD MI232O I - - - I O/L Date receive pin from outside(AMX)/MITSUBISHI writer rewrite

41

VSS VSS - - - - - - GND

42

P65/CLK1/ SCLK(L)

43

P64/BUSY TU DOUT I N (5VIn) - O/L O/L TUNER PLLdata inputpin (LC72131)

44

P63/TXD0 E_TXDMOEI O C - - O/L O/L ETHERNET comm. control pin

45

P62/RXD0 E_RXDMIEO I - - - I O/L ETHERNET comm. control pin

46

P61/CLK0 FL CLK O C - - O/L O/L FL display unit control pin

47

P60/CTS0 FL DATA O C - - O/L O/L FL display unit control pin

48

P137 ACK SIMO O C - - O/L O/L

49

P136/ISCLK2 CLKMO O C - - O/L O/L

50

P135/ISRXD2 SOMI I - - - I O/L

51

P134/ISTXD2 MOSI O C - - O/L O/L

52

P57/(RDY) NC O C M3VPu - I I

53

P56/(ALE) NC O C - - O/L O/L

54

P55/(HOLD)/ EPM

55

P54/(HLDA) NC O C - - O/L O/L

56

P133 MUTE POWER O C - - O/L O/L MUTE +B control pin

57

VSS VSS - - - - - - GND

58

P132 D.OSD MOFI_BUSY O C - O/L O/L D.OSD CPU control pin

(ASO/DC)

REQ SOMI I - - - I O/L

PWR

D.OSD CPU RX I - - - O/L O/L D.OSD CPU control pin

D.OSD CPU TX O C - - O/L O/L D.OSD CPU control pin

EXP CLK O C - - O/L O/L Extended EXP control pin

FRASH EPM I C M3VPu - I I Rewrite boot program start : L input set

I - (3Vin) - I I PROTECTION detect pin(ASO/DC)

ON:STANDBY: H )

μ

MAIN-SUB

Rewrite boot program star: H input set)

O C - - O/L O/L 232C POWER control pin(ON: H)/REMOTE POWER

MAIN-SUB MAIN-SUB MAIN-SUB MAIN-SUB

com communication control output pin

μ

com comm. control output pin

μ

com comm. control output pin

μ

com comm. control output pin

μ

com comm. control output pin

82

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Pin Pin Name Synbol I/O Type Pullup LvCnv STBY stop Function

59

VCC VCC2 - - - - - - +3V

60

P131 NC O C - - O/L O/L

61

P130 NC O C - - O/L O/L

62

P53/(BCLK) NC O C - - O/L O/L

63

P52/(RD) NC O C - - O/L O/L

64

P51/(WR1)/ (BC1)

65

P50/(WR0)/ (WR)/CE

66

P127 VSEL A I - SW3VPu - I I Master Volume rotation detect input (Rotary encoder)

67

P126 VSEL B I - SW3VPu - I I Master Volume rotation detect input (Rotary encoder)

68

P125 PROTECTION

69

P47/CS0/(A23) NC O C - - O/L O/L

70

P46/(CS1)/ (A22)

71

P45/(CS2)/ (A21)

72

P44/(CS3)/ (A20)

73

P43/(A19) PRE SBR MUTE O C - - O/L O/L PRE OUT MUTE control

74

VCC VCC - - - - - - +3V

75

P42/(A18) THERMAL ON I - SW3VPu - O/L O/L Thermal detect pin(HIGH B RL control)

76

VSS VSS - - - - - - GND

77

P41/(A17) THERMAL OFF I - SW3VPu - O/L O/L Thermal detect pin(HIGH B RL control)

78

P40/(A16) FAN DET I - - - O/L O/L

79

P37/(A15) iPod DOCK DET I - SW3VPu - O/L O/L MINI JACK connected detection pin for DOCK connection (connected:H)

80

P36/(A14) NC O C - - O/L O/L

81

P35/(A13) NC O C - - O/L O/L

82

P34/(A12) TUNED I - SW3VPu - O/L O/L TUNER turned detect (Detected : L)

83

P33/(A11) 232C CONTROL O C - - O/L O/L 232C control pin

84

P32/(A10) PRE Z3 MUTE O C - - O/L O/L Z3 PRE OUT MUTE control

85

P31/(A9) PRE Z2 MUTE O C - - O/L O/L Z2 PRE OUT MUTE control

86

P124 EXP STB O C - - O/L O/L Extended EXP control pin

87

P123 EXP OE O C Pd - O/L O/L Extended EXP control pin

88

P122/(RXD6) EEPROM SCL I/O C - O/L I EEPROM control pin

89

P121/(CLK6) EEPROM SDA I/O C - O/L I EEPROM control pin

90

P120/(TXD6) TU/RDS DIN O C SW5VPu - O/L O/L PLL & RDS control pin (LC72131 & LC72720)

91

VCC VCC - - - - - - +3V

92

P30/(A8) PRE SW MUTE O C - - O/L O/L PRE OUT MUTE control

93

VSS VSS - - - - - - GND

94

P27/(A7) PRE SBL MUTE O C - - O/L O/L PRE OUT MUTE control

95

P26/(A6) PRE S MUTE O C - - O/L O/L PRE OUT MUTE control

96

P25/(A5) PRE C MUTE O C - - O/L O/L PRE OUT MUTE control

97

P24/(A4) PRE F MUTE O C - - O/L O/L PRE OUT MUTE control

98

P23/(A3) SCPU POWER O C - - O/L O/L SUB CPU POWER ON/OFF switching (H : ON)

99

P22/(A2) D5V POWER O C - - O/L O/L DIGITAL 5V power control pin

100

P21/(A1) STEREO I - SW3VPu - O/L O/L TUNER FM stereo receive : L

101

P20/(A0) SIRIUS RESET/RDS

102

P17/(D15) FL RST O C - - O/L O/L FL display unit control pin

103

P16/(D14) MAIN POWER O C - - O/L O/L ETHERNET control pin

104

P15/(D13) T.MUTE O C - - O/L O/L TUNER MUTE control (MUTE:L)

105

P14/(D12) HD POWER O C - - O/L O/L HDRADIO POWER control pin

106

P13/(D11) RST SUB O C - - O/L O/L

107

P12/(D10) D.OSD CPU RST O C - - O/L O/L D.OSD CPU control pin

108

P11/(D9) NC O C - - O/L O/L

109

P10/(D8) NC O C - - O/L O/L

110

P07/(D7) TRIGGER 2 O C - - O/L O/L TRIGGER OUT control pin

111

P06/(D6) TRIGGER 1 O C - - O/L O/L TRIGGER OUT control pin

112

P05/(D5) NC O C - - O/L O/L

113

P04/(D4) HDRADIO RESET O C - - O/L O/L HDRADIO control pin

114

P114 ISEL A I - SW3VPu - I I Input Selector rotation detect input (Rotary encoder)

115

P113 ISEL B I - SW3VPu - I I Input Selector rotation detect input (Rotary encoder)

116

P112/(RXD8) VOL STB1/VOL STB2 O C - (3/5) O/L O/L FUNCTION/VOLUME control(NJW1199)(NJW1194)

117

P111/ VOL CLK O C - (3/5) O/L O/L FUNCTION/VOLUME control(NJW1199)(NJW1194)

118

P110/(TXD8) VOL DATA O C - (3/5) O/L O/L FUNCTION/VOLUME control(NJW1199)(NJW1194)

119

P03/(D3) HD AUDIO LED O C - - O/L O/L HD AUDIO LED control pin

120

P02/(D2) GRNLED O C - - O/L O/L POWER/STANDBY LED control pin(ON:H)

NC O C - - O/L O/L

FRASH CE I C Pd - O/L O/L Rewrite boot program start : H input set

(THERMAL)

NC O C - - O/L O/L

DYNAMIC EQ LED RED O C - - O/L O/L Dynamic EQ RED LED control pin

DYNAMIC EQ LED GRN O C - - O/L O/L Dynamic EQ RED LED control pin

RESET

I - - - O/L O/L PROTECTION detect pin(THERMAL)

O C - - O/L O/L SIRIUS control pin/RDS control pin(LC72720)

SUB-

μ

com reset output

83

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Pin Pin Name Synbol I/O Type Pullup LvCnv STBY stop Function

121

P01/(D1) A+B LIMIT O C - - O/L O/L A+B LIMIT control (SURROUND SPEAKER A+B:H)

122

P00/(D0) LIMIT O C - - O/L O/L LIMIT control(7ch ST or EXT.IN: H)or(LIMIT DET=45sec"L": H)

123

P157 (iPod Det_HD) I - - - O/L O/L Not used(ipod Det from HD Radio)

124

P156 E SPI REQ I - Pd - O/L O/L ETHERNET comm. control pin

125

P155/RXD6 NC O C - - O/L O/L

126

P154/TXD6 NC O C - - O/L O/L

127

P153 E SPI CS O C - - O/L O/L ETHERNET comm. control pin

128

P152/RXD7 E SPI MIEO I - Pd - O/L O/L ETHERNET comm. control pin

129

P151/CLK7 E SPI CLK O C Pd - O/L O/L ETHERNET comm. control pin

130

VSS VSS - - - - - - GND

131

P150/TXD7 E SPI MOEI O C Pd - O/L O/L ETHERNET comm. control pin

132

VCC VCC - - - - - - +3V

133

P107/(AN7)/ (KI3)

134

P106/AN6/KI2 KEY3 I - M3VPu - I I Button input3

135

P105/AN5/KI1 KEY2 I - M3VPu - I I Button input2

136

P104/AN4/KI0 KEY1 I - M3VPu - I I Button input1

137

P103/AN3 SUB UPDATE O C - - O/L O/L SUB UPDATE mode control(DPMS/DENON WRITER) (MAIN: L/ SIB: H)

138

P102/AN2 MIC DET/H/P DET/X2

139

P101/(AN1) REDLED O C - - O/H O/L POWER/STANDBY LED control pin(ON: H)

140

AVSS AVSS - - - - - - Analog GND

141

P100/AN0 MODE I - M3VPu - I I Destination switching input

142

VREF VREF - - - - - - Ref. power supply input +3V

143

AVCC AVCC - - - - - - Analog Power supply +3V

144

P97/RXD4 NC O C - - O/L O/L

D.OSD WRITE O C - - O/L O/L D.OSD rewrite control pin

PROT/LIMIT

I - SW3VPu - O/L O/L MIC detect pin/Headphone/voltage-doubler detect pin/LIMIT judge signal

detect input (A/D detect )

84

AVR-3310CI/AVR-3310/AVR990/AVC-3310

R5F3650TNFB (DI: IC901)

R5F3650TNFB Terminal Function

Op

Pin Pin Name Symbol I/O Type Det

1

P94 VPLD DATA O C - - - Z O/L O/L Z VIDEO PLD control pin

2

P93 DIR CE O C - - - Z O/L O/L Z DIR control pin (LC89058W-VF4A)

3

P92/SOUT3 DIR DIN O C - - - Z O/L O/L Z DIR control pin (LC89058W-VF4A)

4

P91/SIN3 DIR DOUT I - Lv - Eu Z - - Z DIR control pin (LC89058W-VF4A)

5

P90/CLK3 DIR CLK O C - - - Z O/L O/L Z DIR control pin (LC89058W-VF4A)

6

BYTE BYTE - - - - - - - - - GND(Ext. data bus bit width switching, 16bit : L)

7

CNVCS CNVSS - - - - Ed47k - - - - Single-chip / Micro-processor mode switching (Normal

8

P87 OSR2 O C - - Eu Z O/H O/L Z A/D control pin

9

P86 DIR CE4 O C - - - Z O/L O/L Z DIR control pin (LC89058W-VF4A)

10

RESET SUBRESET I - Lv - Eu L - - Z Reset input

11

XOUT X1 O - - - - - - - - Oscillator connection

12

VSS VSS - - - - - - - - - GND

13

XIN X2 I - - - - - - - - Oscillator connection

14

VCC VCC - - - - - - - - +3.3V

15

P85/NMI/(CEC) NMI/(CEC_IN) I - - - - - - - - Fixed to H

16

P84/INT2 CEC_IN I -

17

P83/INT1 ACK SIMO I -

E

↓

&L

E

↓

&L

Pu/Pd

Res

PURE D

(Int.)

(Ext.)

- Eu Z - - Z CEC-D signal input pin

-EdZ - - Z

CEC STBY

P.OFF

single-chip : L, Rewrite boot program start : H input set)

MAIN-SUB μcom comm. control input pin

Function

85

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Op

Pin Pin Name Symbol I/O Type Det

18

P82/INT0 SUB BDOWN I -

19

P81 IP RST O C - - - Z O/H O/H Z IP CONV(ABT2010) reset

20

P80/(RXD5) VZ2INH O C - - - Z O/L O/L Z Video input switching(Z2 INPUT INH selection)

21

P77/(CLK5) /TDO I - - - - Z O/L O/L Z /PLDrewrite control (JTAG)

22

P76/(TXD5) A PLD CS /TMS/

23

P75 A PLD DATA/TDI O C - - - Z O/L O/L Z A PLD control pin /PLDrewrite control (JTAG)

24

P74 A PLD CLK/

25

P73/CTS2 ANALOG VIDEO

26

P72/CLK2 DIGITAL POWER O C - - Ed Z Z - Z DIGITAL power ON/OFF control (H: ON)

27

P71/RXD2/ SCLMM

28

P70/TXD2/ SDAMM

29

P67/TXD1 TXD O C - - Eu Z - - Z Data transfer output to outside

30

P66/RXD1 RXD I - Lv - Eu Z - - Z Data receive input from outside

31

P65/CLK1 FGAIN O C - - Ed Z - O/L Z FGAIN control pin

32

P64/CTS1 CFSEL0 I - Lv - - Z - - Z COMPONENT HD OUT Filter switching

33

P63/TXD0 SOMI O C - - - Z - - Z

34

P62/RXD0 SIMO I - - - Ed Z - - Z

35

P61/CLK0 CLK SIMO I - - - Ed Z - - Z

36

P60/CTS0 REQ SOMI O C - - Ed Z - - Z

37

P57 1TMDS SW RST O C - - - Z O/H - Z HDMI SWITCHER ADV3002 Reset pin

38

P56 HPD2 O C - - - Z O/L - Z HD DET control pin

39

P55/EPM ADC RST/EPM O C - - Ed Z - - Z AD(PCM1804) control pin /Rewrite boot start : L input

40

P54 CEC_OUT O C - - - Z O/L - Z CEC-D signal output pin

41

P53 MONI DIS O C - - Z O/L O/L Z COMPONENT MONITOR OUT output control pin

42

P52 DVR INH O C - - - Z O/L O/L Z DVR OUT output INH control(L:MUTE)

43

P51 VCR INH O C - - - Z O/L O/L Z VCR OUT output INH control(L:MUTE)

44

P50/CE /CE O - - - Eu Z O/L - Z pin/ rewrite boot program start : H input set

45

P47/(TXD7)/ SDA7

46

P46/(RXD7)/ SCL7

47

P45/(CLK7) HPD1 O C - - Ed Z O/L - Z HD DET control pin

48

P44 Z2 MONIA O C - - Ed Z O/L O/L Z ZONE2 MONITOR OUT select

49

P43 HDMI A.SEL O C - - Ed Z O/L O/L Z HDMI AUDIO control (H: FDSP route, L: FHDMI Rx Å®

50

P42 Z2SSIG.DET I - Lv - Ed Z I I Z ZONE2 S signal detect input (Connected: H)

51

P41 CEC PWR O C - - Ed Z O/L O/H Z H:CEC STANDBY Power ON

52

P40 Z1 SMONIA O C - - Z O/L O/L Z Z1 S MONITOR select

53

P37 HDMIR_RST O C - - Eu Z O/H - Z HDMI RECEIVER(ADV7840) reset

54

P36 1TX RST O C - - Eu Z O/H - Z HDMI TRANSMITTER1 (ADV7510) reset

55

P35 Z1 SMONIB O C - - Ed Z O/L O/L Z Z1 SMONITOR select

56

P34 Z1 SSIGDET I - - - Eu Z - - Z S signal detect input (Connected: H)

57

P33 VZ1INH O C - - Ed Z O/L - Z Video input switching(Z1 INPUT INH select)

58

P32 DAC MDI O C - - - Z O/L O/L Z DAC control pin (AK4358)

59

P31 DAC MC O C - - - Z O/L O/L Z DAC control pin (AK4358)

60

VCC VCC - - - - - - - - - +3.3V

61

P30 DAC MS O C - - - Z O/L O/L Z DAC control pin (AK4358)

62

VSS VSS - - - - - - - - - GND

63

P27 DAC RST O C - - - Z O/H O/L Z DAC control pin (AK4358)

64

P26 DIG VIDEO

65

P25/INT7 OSD CPU

66

P24/INT6 1TX INT I - Lv - . Z - - Z HDMI OUT1 signal detect input (HDMI TRANS1

67

P23 NC O C - - - Z O/L O/L Z NC

68

P22 VEXP STB O C - - - Z O/L O/L Z VIDEO expander control pin output(BU4094BCFV)

69

P21 VEXP OE O C - - Ed Z O/L O/L Z VIDEO expander control pin output(BU4094BCFV)

70

P20 VEXP CLK O C - - - Z O/L O/L Z VIDEO expander control CLK output(BU4094BCFV)

71

P17/INT5 ADVINT1 I -

72

P16/INT4 ADVINT2 I -

"D/M"

MTCK

POWER

HSCL(400k) I/O N - - Eu Z O/L O/L O/L VIDEO I2C- IP CONV(ABT2010)/

HSDA(400k) I/O N - - Eu Z O/L O/L O/L VIDEO I2C- IP CONV(ABT2010)/

VSDA I/O C - - Eu Z O/L - O/L ENCODER ADV7340 I2C/COMPONENT SELECT

VSCL I/O C - - Eu Z O/L - O/L ENCODER ADV7340 I2C/COMPONENT SELECT

POWER

BUSYSI

O C - - Eu Z O/L - O/L A PLD control pin /PLD rewrite (JTAG)/DENON

O C - - - Z O/L O/L Z A PLD control pin /PLDrewrite control (JTAG)

O C - - - Z O/L O/L Z VIDEO power ON/OFF control (H: ON)

OC - - - Z O/L

I - Lv - - Z - - Z OSD CPU control pin

↓

&L

E

↓

&L

E

↓

&L

Pu/Pd

Res

PURE D

(Int.)

(Ext.)

Eu Z - - Z Power down detect (Power down: L)

- - Z - - Z HDMI RECEIVER(ADV7840)INT1 output

- - Z - - Z HDMI RECEIVER(ADV7840)INT2 output

CEC STBY

MODE1=O/H MODE2=O/L

P.OFF

WRITER/For MITSUBISHI rewrite distinction (DW="L")

HDMI_RECEIVER(ADV7840)/HDMI TRANSMITTER1 (ADV7510)

MAIN-SUB MAIN-SUB MAIN-SUB MAIN-SUB

set

IC(NJW1321FP1)

Tx through)

Z

DIGITAL VIDEO power control pin

ADV7510)

μ μ μ μ

Function

com comm. control pin com comm. control pin com comm. control pin com comm. control pin

86

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Op

Pin Pin Name Symbol I/O Type Det

73

P15/INT3 ADVINT3 I -

74

P14 Z2 MONIB O C - - Eu Z O/L O/L Z ZONE2 MONITOR OUT select

75

P13/TXD6 DSP MOSI O C - - Eu Z O/L O/L Z DSP control pin (ADSP-21367-333)

76

P12/RXD6 DSP MISO I - - - Eu Z - - Z DSP control pin (ADSP-21367-333)

77

P11/CLK6 DSPICLK O C - - Eu Z O/L O/L Z DSP control pin (ADSP-21367-333)

78

P10 Z1VSIG.DET I - Lv - Eu Z - - Z VIDEO IN signal detect input (Detected : H)

79

P07 PLD WRITE O C - - - Z O/L O/L Z PLD JTAGLINE ON/OFF control

80

P06 VPLD CE O C - - Ed Z O/L

81

P05 HPD3 O C - - - Z O/L - Z HD DET control pin

82

P04 HPD4 O C - - - Z O/L - Z HD DET control pin

83

P03 HPD5 O C - - - Z O/L - Z HD DET control pin

84

P02 DIR RST3 I - Lv - Z - - Z DIR control pin (LC89058W-VF4A)

85

P01 DIR RST2 O C - - Z O/L O/L O/L DIR control pin (LC89058W-VF4A)

86

P00 DIR RST1 O C - - - Z O/L O/L O/L DIR control pin (LC89058W-VF4A)

87

P107/(AN7) DSP RST O C - - - Z O/L O/L Z DSP2(ADSP-21367-333) reset output pin(Reset:L)

88

P106/(AN6) O C - - - Z O/L O/L Z

89

P105/(AN5) DSP ROMRST O C - - Ed Z O/L O/L Z DSP memory reset(reset: L)

90

P104/(AN4) COMPS DET I - Lv - Eu Z - - Z COMPONENT IN signal detect input

91

P103/(AN3) DSP FLAG0 I - Lv - Ed Z - - Z DSP control pin (ADSP-21367-333)

92

P102/(AN2) DSPICS O C - Eu Z O/L O/L Z DSP control pin (ADSP-21367-333)

93

P101/(AN1) O C - Eu Z O/L O/L Z

94

AVS S AVS S - - - - - - - - - AD G N D

95

P100/(AN0) VPLD CLK O C - - - Z O/L O/L Z VIDEO PLD control pin

96

VREF VREF - - - - - - - - - AD ref. +3.3V

97

AVC C AV CC - - - - - - - - - A D +3. 3V

98

P97/(SIN4) O C - - - Z O/L - Z

99

P96/(SOUT4) OSD CPU

100

P95/(CLK4) VEXP DIN O C - - - Z O/L O/L Z VIDEO expander control DATA output(BU4094BCFV)

BUSYSO

O C - - - Z O/L O/L Z OSD CPU control pin

↓

&L

E

Pu/Pd

Res

PURE D

(Int.)

(Ext.)

- - Z - - Z HDMI RECEIVER(ADV7840)INT3 output

CEC STBY

MODE1=O/H MODE2=O/L

P.OFF

Z

VIDEO PLD control pin

Function

87

AVR-3310CI/AVR-3310/AVR990/AVC-3310

ADV7510BSTZ-225 (DI: IC701)

DE

HSYNC

D0D1D2

GND

9998979695949392919089888786858483828180797877

PIN 1 INDI CATOR

DD

HPD

GND

AVAV

R_EXT

VSYNC

DSD3

DSD_CLK

SPDIF

MCLK

SCLK

LRCLK

PLV

DV

DSD0

DSD1

DSD2

DSD4

DSD5

DV

PV PV

GND

100

1

DD

2

3

4

5

6

7

8

9

10

11

12

I2S0

13

I2S1

14

I2S2

15

I2S3

16

17

18

GND

19

DD

GND

20

21

DD

22

GND

23

GND

24

DD

25

26272829303132333435363738394041424344454647484950

DD

BGV

ADV7510BSTZ-225 Terminal Function

GND

D3D4D5

TXC-

D7

D8

D6

D9

D10

D13

D11

ADV7510

TOP VIEW

(Not to Scale)

DD

GND

TX0-

TX0+

TXC+

AVAV

DD

TX1-

TX1+

AVAV

PD/AD

D15

D12

D14

D16

INT

GND

TX2-

GND

TX2+

DD

CLK

DVDDDV

D17

76

GND

75

D18

74

73

D19

72

D20

71

D21

70

D22

69

D23

68

D24

67

D25

66

D26

65

D27

D28

64

D29

63

D30

62

61

D31

60

D32

59

D33

58

D34

D35

57

56

SDA

SCL

55

54

DDCSDA

53

DDCSCL

52

NC

51

GND

DD

DV

MV

CEC_IO

CEC_CLK

S/PDIF

2

I

S[3:0]

DSD[5:0]

MCLK

LRCLK

SCLK

DSD_CLK

D[35:0]

VSYNC

HSYNC

CLK

HPD

INT

SDA

SCL

CEC Controller/

Buffer

HDCP

Audio

Data

Capture

Video

Data

Capture

DE

I2C

Slave

4:2:2

4:4:4

&

Color

Space

Converter

Registers

&

Config.

Logic

HDCP &

EDID

Micro-

controller

HDCP

Keys

HDCP

Encryption

TMDS

Outputs

I2C

Master

ADV7510

CEC

Tx0

Tx1

Tx2

TxC

DDCSDA

DDCSCL

88

AVR-3310CI/AVR-3310/AVR990/AVC-3310

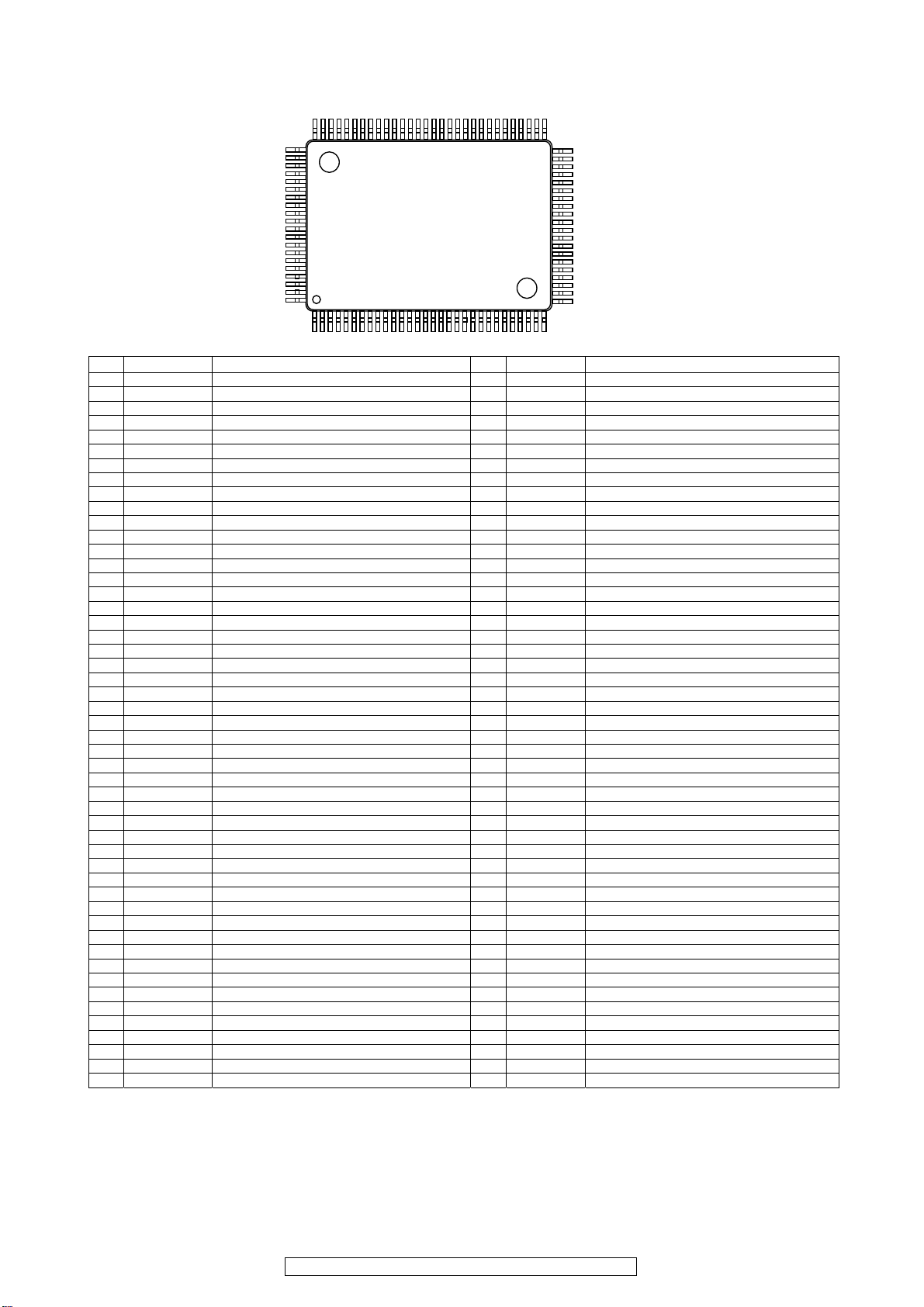

APPA350 (NJW1299) (AV : IC616)

80

51

81

100

1

No. No.

PIN NAME PIN NAME

1 ROUT 2 COUT 3LSOUT 4RSOUT 5LBOUT 6RBOUT 7SWOUT

8 N.C. 58 REC_B1L

9 N.C. 59 REC_A4R

10 N.C. 60 REC_A4L

11 N.C. 61 REC_A3R 12 V+ 13 L1IN 63 REC_A2R 14 V15 R1IN 65 REC_A1R 16 ADR 66 REC_A1L 17 L2IN 67 VDDOUT 18 DCCAP_L 68 DATA 19 R2IN 69 CLOCK 20 DCCAP_R 70 LATCH 21 L3IN 71 MUTE 22 DCCAP_C 72 ROUT_ADC 23 R3IN 73 LOUT_ADC 24 DCCAP_LS 74 GND 25 L4IN 75 LBDIN 26 DCCAP_RS 76 RBDIN 27 R4IN 77 LSCIN 28 DCCAP_LB 78 RSCIN 29 L5IN 79 LBCIN 30 DCCAP_RB 80 RBCIN 31 R5IN 81 GND 32 DCCAP_SW 82 LAIN 33 L6IN 83 RAIN 34 L14IN 84 CAIN 35 R6IN 85 LSAIN 36 R14IN 86 RSAIN 37 L7IN 87 LBAIN 38 GND 39 R7IN 89 SWAIN 40 GND 90 GND 41 L8IN 91 LBIN 42 GND 92 RBIN 43 R8IN 93 CBIN 44 GND 94 LSBIN 45 L9IN 95 RSBIN 46 GND 96 LBBIN 47 R9IN 97 RBBIN 48 L12IN 98 SWBIN 49 L10IN 99 GND 50 R12IN 100 LOUT

Rch output Cch output LSch output RSch output LBch output RBch output SW

ch output

Non Non Non Non + Power-supply voltage Input selector Lch Input 1

- Power-supply voltage Input selector Rch Input 1 Terminal for address selection Input selector Lch Input 2

ICapacitor for volume control switching noise removal Lch Input selector Rch Input 2 ICapacitor for volume control switching noise removal Rch Input selector Lch Input 3 ICapacitor for volume control switching noise removal Cch Input selector Rch Input 3

ICapacitor for volume control switching noise removal LSch Input selector Lch Input 4 ICapacitor for volume control switching noise removal RSch Input selector Rch Input 4 ICapacitor for volume control switching noise removal LBch Input selector Lch Input 5 ICapacitor for volume control switching noise removal RBch Input selector Rch Input 5 ICapacitor for volume control switching noise removal SWch Input selector Lch Input 6 Input selector Lch Input 14

Input selector Rch Input 6 Input selector Rch Input 14 Input selector Lch Input 7

GND terminal Input selector Rch Input 7 GND terminal Input selector Lch Input 8 GND terminal

Input selector Rch Input 8 GND terminal

Input selector Lch Input 9

GND terminal

Input selector Rch Input 9

Input selector Lch Input 12 Input selector Lch Input 10

Input selector Rch Input 12

Function Function

51 R10IN 52 L13IN 53 L11IN 54 R13IN 55 R11IN 56 GND 57 REC_B1R

62 REC_A3L

64 REC_A2L

88 RBAIN

30

50

31

Input selector Rch Input 10 Input selector Lch Input 13 Input selector Lch Input 11 Input selector Rch Input 13

Input selector Rch Input 11 GND terminal

Input selector Rch REC output B1

Input selector Lch REC output B1 Input selector Rch REC output A4

Input selector Lch REC output A4 Input selector Rch REC output A3

Input selector Lch REC output A3 Input selector Rch REC output A2

Input selector Lch REC output A2 Input selector Rch REC output A1

Input selector Lch REC output A1

Logic power supply output terminal IC control data input IC control clock input IC control latch input External mute control Rch output for ADC

Lch output for ADC GND terminal

Multichannel LBch input D Multichannel RBch input D Multichannel LSch input C Multichannel RSch input C

Multichannel LBch input C Multichannel RBch input C GND terminal Multichannel Lch input A Multichannel Rch input A Multichannel Cch input A Multichannel LSch input A

Multichannel RSch input A Multichannel LBch input A

Multichannel RBch input A Multichannel SWch input A GND terminal

Multichannel Lch input B Multichannel Rch input B

Multichannel Cch input B Multichannel LSch input B

Multichannel RSch input B Multichannel LBch input B

Multichannel RBch input B Multichannel SWch input B GND terminal Lch output

89

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Functional Block Diagram

StereoLin

StereoRin

REC A

Input SelectorInput Selector

REC B

Multi-

Multi-R in

Multi-Li n

Lout for ADC

Rout for ADC

Input Selector Gain : 0 / -3 / -6 / -9 / -12dB /Mute

Cin

MultiLSin

MultiRSin

MultiLBin

MultiRBin

MultiSWin

Main Volume : +31.5 to -95dB / 0.5dBstep

Lout

Rout

Cout

LSout

RSout

LBout

RBout

SWout

Control Logic

ADR

MUTE

Data Clock Latch

REC A

REC B

90

AVR-3310CI/AVR-3310/AVR990/AVC-3310

ADV3002BSTZ (DI : IC401)

80 P5V_A

79 P5V_B

78 P5V_C

77 P5V_D

76 DDC_SDA_A

75 DDC _SCL_A

74 DDC _SDA_B

73 DDC _SCL_B

1IN_B_CLK-

2IN_B_CLK+

3HPD_B

4IN_B _DATA0-

5IN_B _DATA0+

6HPD_A

7IN_B _DATA1-

8IN_B _DATA1+

9AV CC

10IN_B_DATA2-

11IN_B _DATA2+

12SEL0

13IN_A_CLK-

14IN_A_CLK+

15SEL1

16IN_A_DATA0-

17IN_A _DATA0+

18AV CC

19IN_A_DATA1-

20IN_A _DATA1+

21

PIN 1 INDIC ATOR

23IN_A _DATA2+

22IN_A_DATA2-

TOP VIEW

(Not to Scale)

24TX_EN

27I2C_SCL

25OUT_ DATA2+

26OU T_DATA2-

28OUT_ DATA1+

70 DDC _SDA_D

72 DDC _SDA_C

71 DDC _SCL_C

ADV3002

31OUT_ DATA0+

29OU T_DATA1-

30AVE E

69 DDC _SCL_D

32

66 CEC_IN

68 DDC _SDA_COM

67 DDC _SCL_COM

65 CEC_OUT

35OU T_C LK-

33AV CC

36RESETB

34OUT_ CL K+

62 EDID_SDA

63 EDID_ENABLE

64 AMUXVCC

37IN _D_CL K-

61 EDID_SCL

IN_C _DATA2+

60

IN_C _DATA2-

59

HPD_C

58

IN_C _DATA1+

57

IN_C _DATA1-

56

HPD_D

55

IN_C _DATA0+

54

IN_C _DATA0-

53

AVC C

52

IN_C _CLK+

51

IN_C _CLK-

50

I2C_ AD DR 0

49

IN_D _DATA2+

48

IN_D _DATA2-

47

AVE E

46

IN_D _DATA1+

45

IN_D _DATA1-

44

AVC C

43

IN_D _DATA0+

42

IN_D _DATA0-

41

38IN_D_CLK+

39I2C_ADDR1

40I2C _SDA

Functional Block Diagram

AVE E

OUT_ DATA0-

91

AVR-3310CI/AVR-3310/AVR990/AVC-3310

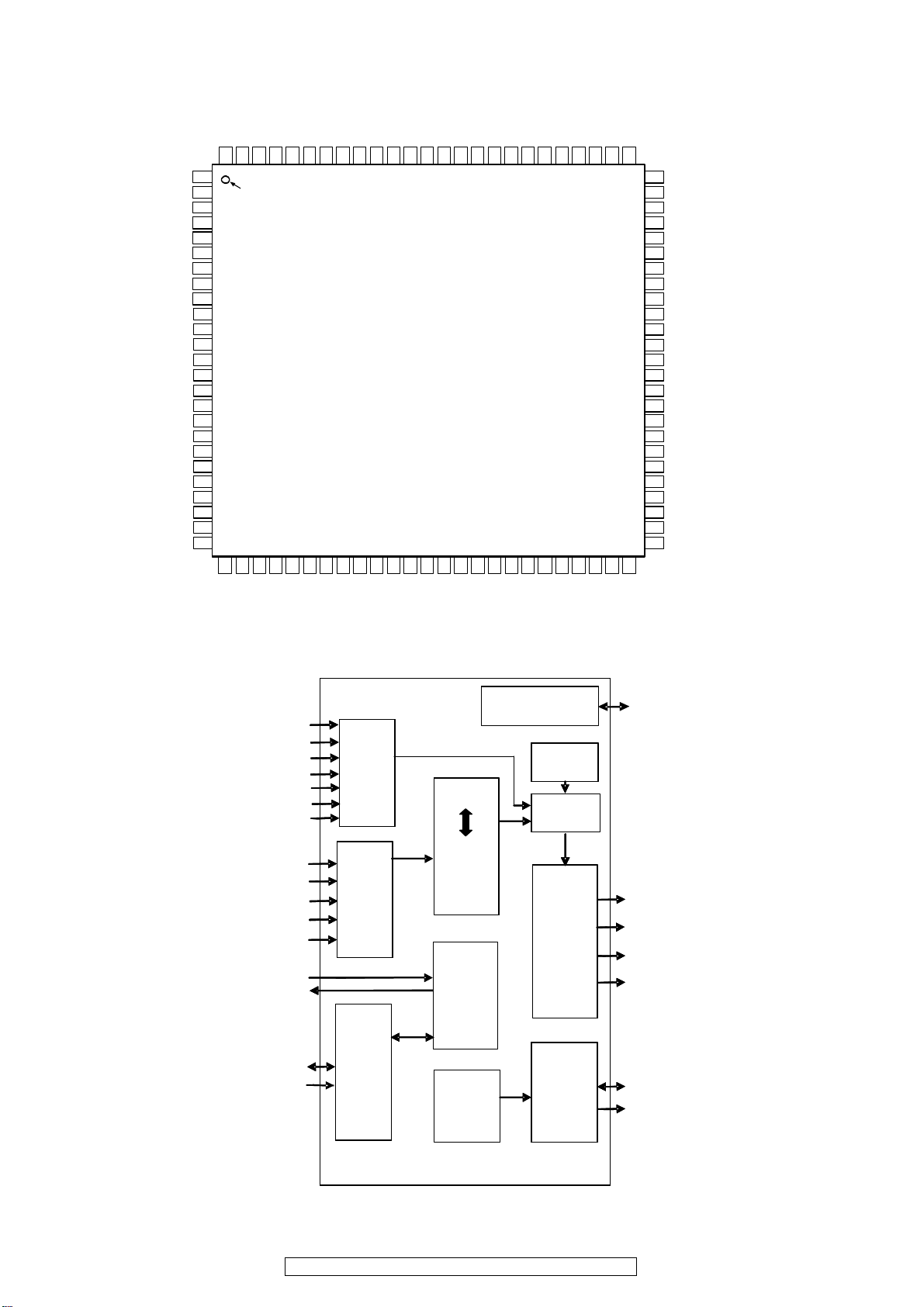

ADV7340BSTZ-3 (DI : IC952)

HSYNC

GND

9998979695949392919089888786858483828180797877

100

1

DV

VSYNC

DSD0

DSD1

DSD2

DSD3

DSD4

DSD5

DSD_CLK

SPDIF

MCLK

I2S0

I2S1

I2S2

I2S3

SCLK

LRCLK

DV

PLV

PV PV

GND

DD

10

11

12

13

14

15

16

17

18

19

DD

20

21

DD

22

23

24

DD

25

PIN 1

2

IN DI CAT OR

3

4

5

6

7

8

9

26272829303132333435363738394041424344454647484950

DD

GND

R_EXT

BGV

Functional Block Diagram

AVAV

DE

DD

D0D1D2

HPD

GND

D3D4D5

TXC-

D7

D8

D6

D9

D10

D13

D11

D12

D14

CLK

D15

D16

ADV7510

TOP VI EW

(Not t o Scal e)

DD

TXC+

AVAV

GND

TX0-

TX0+

PD/AD

DD

TX1-

TX1+

AVAV

GND

TX2-

TX2+

DD

INT

GND

MV

D17

CEC_IO

DVDDDV

76

DD

DV

DD

GND

75

D18

74

73

D19

72

D20

71

D21

70

D22

69

D23

68

D24

67

D25

66

D26

65

D27

D28

64

D29

63

D30

62

61

D31

60

D32

59

D33

58

D34

D35

57

56

SDA

SCL

55

54

DDCSDA

53

DDCSCL

52

NC

51

GND

CEC_CLK

S/PDIF

2

I

S[3:0]

DSD[5:0]

MCLK

LRCLK

SCLK

DSD_CLK

D[35:0]

VSYNC

HSYNC

DE

CLK

HPD

INT

SDA

SCL

Audio

Data

Capture

Video

Data

Capture

I2C

Slave

4:2:2

4:4:4

&

Color

Space

Converter

Registers

&

Config.

Logic

HDCP &

EDID

Micro-

controller

CEC Controller/

Buffer

HDCP

Keys

HDCP

Encryption

TMDS

Outputs

I2C

Master

CEC

Tx0

Tx1

Tx2

TxC

DDCSDA

DDCSCL

ADV7510

92

AVR-3310CI/AVR-3310/AVR990/AVC-3310

ADSP21367KSWZ2A1165 (DI : IC204)

208 157

1

PIN 1 INDICATOR

TOP VIEW

(PINS DOWN)

156

52

ADSP21367KSWZ2A1164 Terminal Function

Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal

1 VDD 53 VDD 105 VDD 157 VDD

2 DATA28 54 GND 106 GND 158 VDD

3 DATA27 55 IOVDD 107 IOVDD 159 GND

4 GND 56 ADDR0 108 SDCAS

5 IOVDD 57 ADDR2 109 SDRAS

6 DATA26 58 ADDR1 110 SDCKE 162 VDD

7 DATA25 59 ADDR4 111 SDWE

8 DATA24 60 ADDR3 112 WR

9 DATA23 61 ADDR5 113 SDA10 165 TCK

10 GND 62 GND 114 GND 166 GND

11 VDD 63 VDD 115 IOVDD 167 VDD

12 DATA22 64 GND 116 SDCLK0 168 TMS

13 DATA21 65 IOVDD 117 GND 169 CLK_C FG0

14 DATA20 66 ADDR6 118 VDD 170 BOOTCFG0

15 IOVDD 67 ADDR7 119 RD

16 GND 68 ADDR8 120 ACK 172 EMU

17 DATA19 69 ADDR9 121 FLAG3 173 BOOTCFG1

18 DATA18 70 ADDR10 122 FLAG2 174 TDO

19 VDD 71 GND 123 FLAG1 175 DAI4

20 GND 72 VDD 124 FLAG0 176 DAI2

21 DATA17 73 GND 125 DAI20 177 DAI3

22 VDD 74 IOVDD 126 GND 178 DAI1

23 GND 75 ADDR11 127 VDD 179 IOVDD

24 VDD 76 ADDR12 128 GND 180 GND

25 GND 77 ADDR13 129 IOVDD 181 VDD

26 DATA16 78 GND 130 DAI19 182 GND

27 DATA15 79 VDD 131 DAI18 183 DPI14

28 DATA14 80 AVSS 132 DAI17 184 DPI13

29 DATA13 81 AVDD 133 DAI16 185 DPI12

30 DATA12 82 GND 134 DAI15 186 DPI11

31 IOVDD 83 CLKIN 135 DAI14 187 DPI10

32 GND 84 XTAL2 136 DAI13 188 DPI9

33 VDD 85 IOVDD 137 DAI12 189 DPI8

34 GND 86 GND 138 VDD 190 DPI7

35 DATA11 87 VDD 139 IOVDD 191 IOVDD

36 DATA10 88 ADDR14 140 GND 192 GND

37 DATA9 89 GND 141 VDD 193 VDD

38 DATA8 90 IOVDD 142 GND 194 GND

39 DATA7 91 ADDR15 143 DAI11 195 DPI6

40 DATA6 92 ADDR16 144 DAI10 196 DPI5

41 IOVDD 93 ADDR17 145 DAI8 197 DPI4

42 GND 94 ADDR18 146 DAI9 198 DPI3

43 VDD 95 GND 147 DAI6 199 DPI1

44 DATA4 96 IOVDD 148 DAI7 200 DPI2

45 DATA5 97 ADDR19 1 49 DAI5 201 CLKOUT

46 DATA2 98 ADDR20 1 50 IOVDD 202 RES E T

47 DATA3 99 ADDR21 1 51 GND 203 IOVDD

48 DATA0 100 ADDR23 152 VDD 204 GND

49 DATA1 101 ADDR22 153 GND 205 DATA30

50 IOVDD 102 MS1

51 GND 103 MS0

52 VDD 104 VDD 156 VDD 208 VDD

105

10453

160 VDD

161 VDD

163 TDI

164 TRST

171 CLK_CFG1

154 VDD 206 DATA31

155 GND 207 DATA29

93

AVR-3310CI/AVR-3310/AVR990/AVC-3310

LC89058W-E (DI : IC101, IC104, IC105)

A

               

XMODE

DGND

DV

GPIO0

GPIO1

GPIO2

GPIO3

RXOUT2

  

Functional Block Diagram

GPIO0

GPIO1

GPIO2

GPIO3

RXOUT2

RXOUT1

RX0

RX1

RX2

RX3

RX4

RX5

RX6

LPF

XIN

XOUT

XMCK

RERR

36

37

DO

38

DI

39

CE

40

CL

41

42

43

DD

44

45

46

47

48

21

RXOUT1

MOUT

32

Fs calculator

44

45

46

47

48

1

2

3

4

5

8

9

10

13

29

28

27

Input

Selector

Oscillation

Amplifier

UDIO

INT35CKST

34

33 32 31

LC89058W-E

43 65 87 109 1211

* RX2

* RX0

* RX1

MOUT

DGND

* RX3

DGND

Demodulation

&

Lock detect

PLL

DD

XIN

DV

30

29

DD

* RX4

DV

INT AUDIO

35 33

Microcontroller

I/F

Cbit, Pc

Clock

Selector

34

CKST

OUT

28 27

* RX5

XMCK

26

* RX6

Selector

Clock

Divider

DD

DGND

DV

25

24

SDIN

23

SLRCK

22

SBCK

21

RDATA

20

RLRCK

19

DV

DD

18

DGND

17

RBCK

16

RMCK

15

GND

14

V

DD

13

LPF

DD

DV

DGND

* : Pull-down resistor internal

41

XMODE

40

CL

39

CE

38

DI

37

DO

36

RERR

24

Data

SDIN

RDATA

21

16

RMCK

RBCK

17

20

RLRCK

22

SBCK

23

SLRCK

94

AVR-3310CI/AVR-3310/AVR990/AVC-3310

LC89057W-VF4A (DI : IC102, IC103)

EMPHA/UO33AUDIO/VO35INT40CL39CE38DI

32

XMODE 41

RX OUT

RX0 RX1 RX2 RX3

RX4 RX5/VI RX6/UI

TMCK/PIO0 TBCK/PIO1

TLRCK/PIO2

TDA TA/PIO3

TX O/PIOEN

LPF

1

2 3 4 5 8 9

10

13

44 45 46 47

48

Input

Selector

Modulation

or

Parallel P ort

29

XIN

C bit, U bit

Demodulation

&

Lock Detect

PLL

28

XOUT

Microcontroller

Clock

Selector

27

XMCK34CKST

I/F

Data

Selector

I/N

37

36

21

24

16 17 20 22 23

DO

RERR

RDATA

SDIN

RMCK RBCK RLRCK SBCK SLRCK

LC89057W-VF4A Terminal Function

No.

1 RXOUT O Input bi-phase select data output ter minal

2 RX0 I TTL compatib le digital data input ter minal

3 RX1 I Coaxial compatib le amp b uilt-in digital data input ter minal

4 RX2 I TTL compatib le digital data input ter minal

5 RX3 I TTL compatib le digital data input ter minal

6 DGND

7 DVDD

8 RX4 I TTL compatib le digital data input ter minal

9 RX5/VI I TTL compatib le digital data/V alidity ag input ter minal for modulation

10 RX6/UI I TTL compatib le digital data/User data input ter minal f or modulation

11 DVDD

12 DGND

13 LPF O PLL loop lter connecting ter minal

14 AVDD

15 AGND

16 RMCK O RMCK cloc k output ter minal (256fs , 512fs , XIN, VCO)

17 RBCK O/I RBCK cloc k in/output terminal (64fs)

18 DGND

19 DVDD

20 RLRCK O/I RLRCK cloc k in/output terminal (fs)

21 RD ATA O Ser ial audio data output ter minal

22 SBCK O SBCK cloc k output ter minal (32fs , 64fs , 128fs)

23 SLRCK O SLRCK cloc k output ter minal (fs/2, fs , 2fs)

24 SDIN I Ser ial audio data input ter minal

25 DGND

26 DVDD

27 XMCK O Osc. amp output ter minal

Pin Name

I/O

-

Digital GND

-

Digital power

-

Digital power for PLL

-

Digital GND f or PLL

-

Analog po wer for PLL

-

Analog GND f or PLL

-

Digital GND

-

Digital power

-

Digital GND

-

Digital power

Function

36 RERR1RX OUT

35 INT2RX0

34 CKST3RX1

33 AUDIO/VO4RX2

32 EMPHA/UO5RX3

31 DGND6DGND

TOP VIEW

30 DVDD7DVDD

29 XIN8RX4

28 XOUT9RX5/VI

27 XMCK10RX6/UI

26 DVDD11DVDD

25 DGND12DGND

24 SDIN37DO 23 SLRCK38DI 22 SBCK39CE 21 RDA TA40CL 20 RLRCK41XMODE 19 DVDD42DGND 18 DGND43DVDD 17 RBCK44TMCK/PIO0 16 RMCK45TBCK/PIO1 15 AGND46TLRCK/PIO2 14 AVDD47TDA TA/PIO3 13 LPF48TX O/PIOEN

95

AVR-3310CI/AVR-3310/AVR990/AVC-3310

No.

28 XOUT O X tal osc. connecting output ter minal

29 XIN I X tal osc. connection, e xter nal cloc k input ter minal (24.576MHz or 12.288MHz)

30 DVDD Digital power

31 DGND Digital GND

32 EMPHA/UO I/O Emphasis inf ormation/U-data output/Chip address setting ter minal

33 AUDIO/V O I/O Non-PCM detect/V -ag output/ Chip address setting ter minal

34 CKST I/O Cloc k switch transition per iod output/Demodulation master or sla ve function switching terminal

35 INT I/O Interrupt output for tcom (Interr upt factor selectab le)/Modulation or gener al I/O s witching terminal

36 RERR O PLL loc k error , data error ag output

37 DO O tcom I/F , read out data output ter minal (3-state)

38 DI I tcom I/F, wr ite data input ter minal

39 CE I tcom I/F, chip enab le input ter minal

40 CL I tcom I/F , cloc k input ter minal

41 XMODE I System reset input ter minal

42 DGND Digital GND

43 DVDD Digital power

44 TMCK/PIO0 I/O 256fs system cloc k input f or modulation/Gener al I/O in/output ter minal

45 TBCK/PIO1 I/O 64fs bit cloc k input f or modulation/Gener al I/O in/output ter minal

46 TLRCK/PIO2 I/O fs cloc k input for modulation/Gener al I/O in/output ter minal

47 TDATA/PIO3 I/O Ser ial audio data input f or modulation/Gener al I/O in/output ter minal

48 TXO/PIOEN O/I Modulation data output/ Gener al I/O enab le input ter minal

* For latch-up countermeasure, perform each power supply ON/OFF in the same timing.

Pin Name I/O

-

Function

BU9450KV-E2 (DI : IC106)

36

37

:/&6# $7-8

48

1PIN

25

24

13

121

Lot No.

96

AVR-3310CI/AVR-3310/AVR990/AVC-3310

BU9450KV-E2 Terminal Function

97

AVR-3310CI/AVR-3310/AVR990/AVC-3310

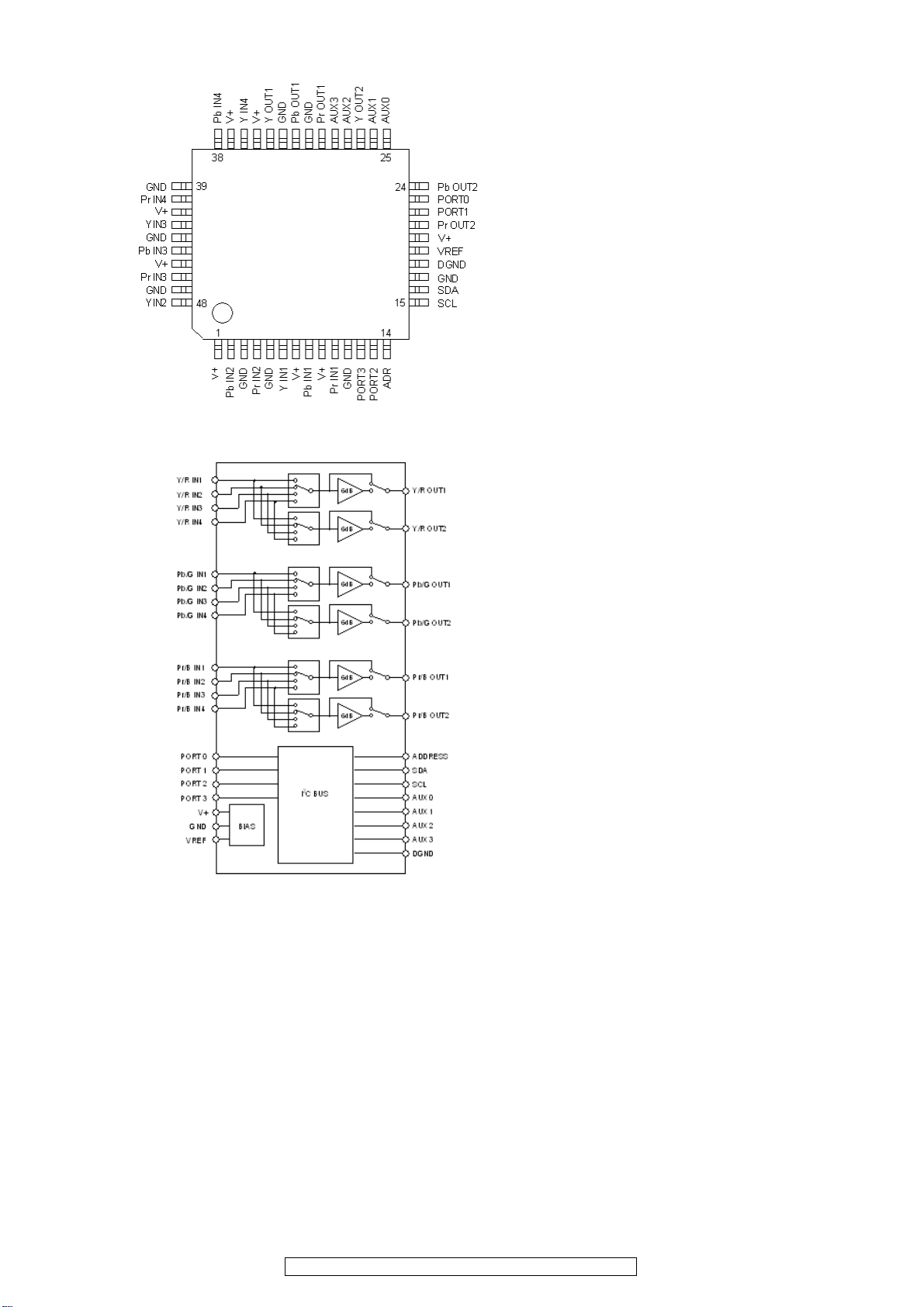

NJW1321FP1 (AV : IC501)

Functional Block Diagram

98

AVR-3310CI/AVR-3310/AVR990/AVC-3310

SAA7121H (DI : IC457)

andbook, full pagewidth

44 TTX

TTXRQ

43

SDA

42

SCL

41

RESET

40

DDD3

V

39

SSD3

V

38

XCLK

37

DDA4

V

36

XTALI

35

XTALO

34

SP

AP

LLC

V

SSD1

V

DDD1

RCV1

RCV2

MP7

MP6

MP5

Functional Block Diagram

ndbook, full pagewidth

RESET SDA SCL

SA

1res.

2

3

4

5

15

MP1

SAA7120 SAA7121

16

17

MP0

DDD2

V

RCV1

18

SSD2

V

RCV2

19

RTCI

TTXRQ

20

res.

XCLK

21

SA

XTALO

XTALI

22

res.

6

7

8

9

10

11

12

13

14

MP4

MP3

MP2

33

32

31

30

29

28

27

26

25

24

23

MBH790

LLC

V

SSA2

V

SSA1

V

DDA3

CVBS

res.

V

DDA2

Y

res.

V

DDA1

C

res.

V

DDA1,

V

DDA2

V

DDA3

,

V

DDA4

MP7

MP0

TTX

40 42 41 21

I2C-BUS

INTERFACE

2

I

C-bus

control

I2C-bus

control

6, 17, 39

,

Y

CbCr

9 to 16

to

44

V

SSD1,

V

SSD2

V

SSD3

MANAGER

5, 18, 38

,

DATA

V

DDD1,

V

DDD2

V

DDD3

1, 20, 22, 23, 26, 29

res.

SAA7120 SAA7121

ENCODER

I2C-bus

control

Y

C

7

clock

and timing

INTERFACE

219 3

SPRTCI AP

SYNC

CLOCK

OUTPUT

2

C-bus

I

control

I2C-bus

control

35 4

25, 28, 31

D

368433734

30

CVBS

27

Y

32, 33

MBH787

24

C

V

SSA1

V

SSA2

A

99

AVR-3310CI/AVR-3310/AVR990/AVC-3310

AD8195ACPZ (AV : IC451)

40 S CL_IN

39 S DA_IN

38 CE C_IN

37 AVEE

36 VREF_IN

35 S CL_OUT

34 S DA_OUT

31 CE C_OUT

32 AMUXVCC

33 VREF_OUT

Functional Block Diagram

PE_EN

PARALLEL

VTTI

1IN0

PIN 1

2IP0

INDICAT OR

3IN1

4IP1

5VTTI

6IN2

7IP2

8IN3

9IP3

10AVCC

11ON0

NOTES

1. THE AD8195 LFCSP HAS AN EXPOSED PAD O N THE UNDERSIDE O F THE PACKAGE THAT AIDS IN HEAT DISSIPATIO N. THE PAD MUST BE ELECTRICALLY CONNECTED TO T HE AVEE SUPPLY PL ANE IN ORDER TO MEET THERMAL SPECIFICATIONS.

TX_EN

COMP

(Not to Scale)

12OP0

13VTTO

AD8195

TOP VIEW

14ON1

15OP1

16AVCC

17ON2

19ON3

18OP2

30 AVCC

29 PE_EN

28 TX_EN

27 AVEE

26 AVCC

25 AVCC

24 AVEE

23 AVCC

22 AVCC

21 COMP

20OP3

AVCC

CONTROL

LOGIC

AD8195

AMUXVCC

AVEE

VTTO

07049-003

PE

4

+

–

OP[3:0]

ON[3:0]

IP[3:0]

IN[3:0]

4

+

4

–

EQ

BUFFER

HIGH SPEED BUFFERED

VREF_IN VREF_OUT

SCL_IN

SDA_IN

22

SCL_OUT SDA_OUT

CEC_IN CEC_OUT

LOW SPEED BUFFERED

BIDIRECTIONAL

Figure 1.

07049-001

100

AVR-3310CI/AVR-3310/AVR990/AVC-3310

Denon AVC-3310, AVR-990, AVR-3310CIEU Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

DIMENSION

WIRE ARRANGEMENT

CAUTION IN SERVICING

DISASSEMBLY

SPECIAL MODE

VERSION UPGRADE PROCEDURE OF FIRMWARE

ADJUSTMENT

SURROUND MODES AND PARAMETERS

TROUBLE SHOOTING

1. POWER

2. Analog video

3. HDMI/DVI

4. Power AMP (8U-110062, 8U-110063)

5. Analog audio

6. Network/USB

SEMICONDUCTORS

1. IC’s
