dbx PMC16 User Manual

PMC

Personal Monitor Controller

Owner’s Manual

ELECTROMAGNETIC COMPATIBILITY

This device complies with part 15 of the FCC Rules and the Product Specifications noted on the Declaration of Conformity. Operation is subject to the following two conditions:

These symbols are internationally accepted symbols that warn of potential hazards with electrical products. The lightning flash means that there are dangerous voltages present within the unit. The exclamation point indicates that it is necessary for the user to refer to the owner’s manual.

These symbols warn that there are no user serviceable parts inside the unit. Do not open the unit. Do not attempt to service the unit yourself. Refer all servicing to qualified personnel. Opening the chassis for any reason will void the manufacturer’s warranty. Do no get the unit wet. If liquid is spilled on the unit, shut it off immediately and take it to a dealer for service.

Disconnect the unit during storms to prevent damage.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private household in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

• this device may not cause harmful interference, and

• this device must accept any interference received, including interference that may cause undesired operation.

Operation of this unit within significant electromagnetic fields should be avoided.

• use only shielded interconnecting cables.

Warning

For your protection, read the following:

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Do not use this apparatus near water.

5. Clean only with dry cloth.

6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

9. Unplug this apparatus during lightning storms or when unused for long periods of time.

10. No user serviceable parts inside. Refer all servicing to

qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

11. WARNING: To reduce the risk of fire or electric

shock, do not expose this apparatus to rain or moisture.

12. Refer to labels on the unit, including bottom cover, or

other markings and pertinent information.

DECLARATION OF CONFORMITY

Manufacturer’s Name: dbx Manufacturer’s Address: 8760 S. Sandy Parkway Sandy, Utah 84070, USA

declares that the product:

Product name: dbx PMC16 Product option: all (requires Class II power adapter that conforms to the requirements of EN60065, EN60742, or equivalent.)

conforms to the following Product Specifications:

Safety: IEC 60065 -01+Amd 1 EMC: EN 55022:2006 EN 55024:1998 FCC Part 15

Supplementary Information:

The product herewith complies with the requirements of the: Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC. RoHS Directive 2002/95/EC WEEE Directive 2002/96/EC EC Regulation 278/2009

With regard to Directive 2005/32/EC and EC Regulation 1275/2008 of 17 December 2008, this product is designed, produced, and classified as Professional Audio Equipment and thus is exempt from this Directive.

Roger Johnsen Director, Engineering Signal Processing 8760 S. Sandy Parkway Sandy, Utah 84070, USA Date: August 29, 2012

European Contact: Your local dbx Sales and Service Office or

Harman Signal Processing 8760 South Sandy Parkway Sandy, Utah 84070 USA Ph: (801) 566-8800 Fax: (801) 568-7583

Support/Service contact

If you require technical support, contact dbx Technical Support. Be prepared to accurately describe the problem. Know the serial number of your device–this is printed on a sticker attached to the chassis. If you have not already taken the time to ﬁll out your warranty registration card and send it in, please do so now. You may also register online at www.dbxpro.com.

Before you return a product to the factory for service, we recommend you refer to the manual. Make sure you have correctly followed installation steps and operation procedures. For further technical assistance or service, please contact our Technical Support Department at (801) 568-7660 or visit www.dbxpro.com. If you need to return a product to the factory for service, YOU MUST FIRST

CONTACT TECHNICAL SUPPORT TO OBTAIN A RETURN AUTHORIZATION NUMBER.

NO RETURNED PRODUCTS WILL BE ACCEPTED AT THE FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER.

Please refer to the Warranty information on the following page, which extends to the ﬁrst end-user. After expiration of the warranty, a reasonable charge will be made for parts, labor, and packing if you choose to use the factory service facility. In all cases, you are responsible for transportation charges to the factory. dbx will pay return shipping if the unit is still under warranty.

Use the original packing material if it is available. Mark the package with the name of the shipper and with these words in red: DELICATE INSTRUMENT, FRAGILE! Insure the package properly. Ship prepaid, NOT COLLECT. DO NOT SHIP PARCEL POST.

Warranty

1. The warranty registration card that accompanies this product must be mailed within 30 days after purchase date to validate this warranty. You can also register online at www.dbxpro.com. Proof-ofpurchase is considered to be the responsibility of the consumer. A copy of the original purchase receipt must be provided for any warranty service.

2. dbx warrants this product, when purchased new from an authorized U.S. dbx dealer and used solely within the U.S., to be free from defects in materials and workmanship under normal use and service. This warranty is valid to the original purchaser only and is non-transferable.

3. dbx liability under this warranty is limited to repairing or, at our discretion, replacing defective materials that show evidence of defect, provided the product is returned to dbx WITH RETURN AUTHORIZATION from the factory, where all parts and labor will be covered up to a period of two years. A Return Authorization number must ﬁrst be obtained from dbx. The company shall not be liable for any consequential damage as a result of the product’s use in any circuit or assembly.

4. dbx reserves the right to make changes in design or make additions to or improvements upon this product without incurring any obligation to install the same additions or improvements on products previously manufactured.

5. The foregoing is in lieu of all other warranties, expressed or implied, and dbx neither assumes nor authorizes any person to assume on its behalf any obligation or liability in connection with the sale of this product. In no event shall dbx or its dealers be liable for special or consequential damages or from any delay in the performance of this warranty due to causes beyond their control.

table of contentS

INTRODUCTION ............................................................. 1

PHILOSOPHY ................................................................ 2

FEATURES ..................................................................... 4

PACKAGE CONTENTS ...................................................... 5

QUICK START ................................................................ 6

PANEL DESCRIPTIONS .................................................... 8

Top Panel ................................................................ 8

Rear/Side Panels .....................................................11

MIC STAND MOUNTING INSTRUCTIONS ........................... 13

MAKING CONNECTIONS–CABLING .................................. 14

Power ....................................................................14

Analog Outputs .......................................................14

Headphone Outputs .................................................14

BLU link.................................................................15

APPLICATIONS ............................................................ 16

Personal Monitoring w/dbx TR1616 ............................16

Personal Monitoring w/BSS Audio Soundweb London

System ..................................................................18

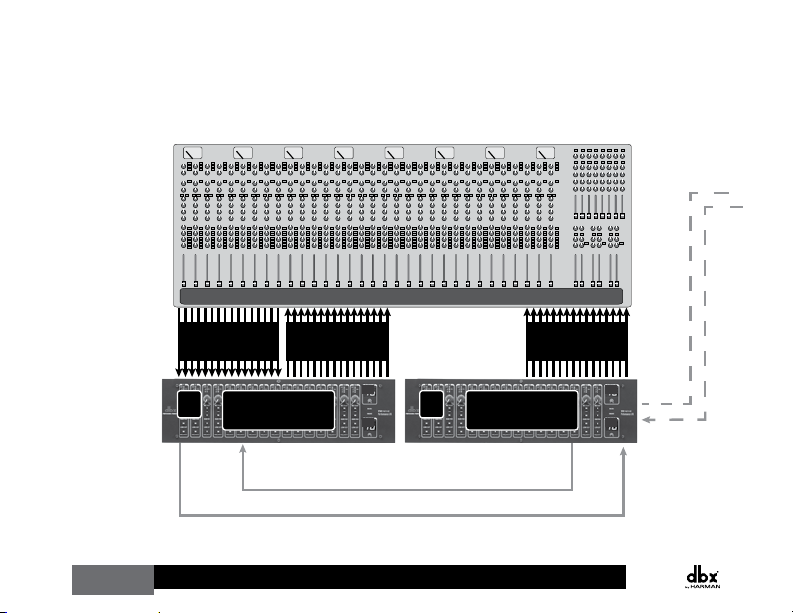

16 x 16 Digital Snake w/Personal Monitoring ...............20

32 x 32 Digital Snake w/Personal Monitoring ...............22

THE LCD DISPLAY ........................................................ 24

Introduction To The Meters Page ...............................24

SETUP MODE–THE SETUP WIZARD & SETUP MENUS .......... 26

Setup Mode Introduction ..........................................26

The Setup Wizard ....................................................27

Setup Wizard Options ...............................................28

The Setup Menus .....................................................30

Setup Menu Options ................................................31

toc

LIVE MODE–THE PMC16 MONITOR MIXER ....................... 36

Live Mode Introduction ............................................36

Using Multi-Select ...................................................39

Using Groups ..........................................................40

Adjusting Channel Levels ..........................................41

Adjusting Channel Pans ............................................42

Adjusting Effect Sends .............................................43

Using The Solo Function ...........................................44

Using The Mute Function ..........................................45

Using The Clear Function ..........................................46

Using The Global Trim Function .................................47

THE TOP PANEL KNOBS ................................................ 48

REVERB ..................................................................48

LOW ......................................................................48

HIGH .....................................................................48

MASTER .................................................................48

PRESETS ..................................................................... 49

Storing & Recalling Presets .......................................50

FACTORY RESET ........................................................... 52

FIRMWARE UPDATES .................................................... 53

BLOCK DIAGRAM ......................................................... 54

DIMENSIONS ............................................................... 56

SPECIFICATIONS .......................................................... 57

PMC

Owner’s Manual

introduction

Thank you for choosing the dbx© PMC16 personal monitor controller. The PMC16 is a digital remote control providing a cost effective and powerful personal monitoring solution. Whether using headphones, in-ear monitors, powered monitors, or traditional wedge monitors, the PMC16 allows performing musicians to control their own personalized stage monitor mix with ease.

Using BLU link, the PMC16 is capable of receiving up to 16 channels of high-end digital audio via CAT5e cable. The PMC16 comprises a 16 channel monitor mixer section with full control of levels, panning, effect send levels, muting, and soloing.

The PMC16’s output processing section includes: stereo width control, wedge monitor compensation, high and low master EQ, master level control, and dbx limiting. Built-in

Lexicon

With a Setup Wizard for ease of conﬁguration, full 16 channel monitor mixer level metering, channel grouping, 16 preset locations for future recall of conﬁgurations and mixes, and an intuitive yet powerful user interface, PMC16 gives you the power to dial in YOUR mix exactly as YOU want it, in real time.

courtesy reverb rounds out the all-star processing power of the PMC16.

PMC

Owner’s Manual

philoSophy

The PMC16 is a digital remote control consisting of a monitor mixer, a reverb effect processor, and a global processing and output section. This creates an audio chain akin to a traditional live sound monitoring system and puts it in the hands of the on-stage musician, allowing each on-stage musician to tailor their own personalized mix and allow the system engineer to focus on the front of house mix.

The PMC16 has two modes of operation: Setup Mode and Live Mode. Setup Mode refers to the Setup Wizard and Setup Menus which are visible when the WIZARD button is pressed. This mode is used by the system engineer to initially create the “conﬁguration” and set global options. Live Mode is the mode which refers to normal operation and consists of all parameters pertaining to the “mix”. When the on-stage musician is editing their mix, they are doing so in Live Mode. Live Mode consists of four pages, they are: the Meters page, the Levels page, the Pan page, and the Effects page. Using these four pages allows each musician to create their own unique mix by adjusting each instrument’s gain, placement in the stereo ﬁeld, and front to back spacial placement, using reverb. Channel muting and soloing are available to help each musician focus on channels which require attention or channels which should be eliminated from the mix.

The PMC16’s Setup Wizard assists the system engineer during setup and allows for quick, easy conﬁguration of the PMC16. The PMC16’s Live Mode of operation was designed to provide a fast, intuitive navigational experience, so musicians new to the PMC16 can start using the system immediately.

PMC

Owner’s Manual

The PMC16 receives audio via the BLU link audio over Ethernet protocol. When assigning BLU link audio channels to the PMC16, each PMC16 input channel can be assigned any available BLU link channel on the network. This allows the system engineer to send any BLU link audio channels on the network to any PMC16, so each musician receives the channels of audio they require to create their mix.

The output processing in the PMC16 was designed to provide the best listening experience possible. Stereo width control allows the system engineer to optimize the outputs for wedge monitors, headphones, or in-ear monitoring. Stereo width is completely variable, allowing for normal stereo operation, full mono collapse of the stereo image for mono wedge monitors, hyper-stereo for use with headphones or stereo in-ear monitors, or anything in between. Lexicon® courtesy reverb is provided to help the mix really come to life!

The PMC16 was designed to provide all the outputs necessary for almost any application. Two XLR outputs are available for connecting to ampliﬁers and powered wedge monitors. Two 1/4” outputs allow for connection to any balanced or unbalanced line level device, such as in-ear transmitters or recording devices. The 1/4” and 1/8” headphone outputs ensure you won’t be stuck with headphones that aren’t compatible.

The on-board USB, DSC, and Ethernet ports allow the PMC16 to be built upon and exciting new features to be added in the future, ensuring the PMC16 is prepared for what lies ahead.

PMC

Owner’s Manual

featureS

• 16 Channel Monitor Mixer With Level, Pan, Mute, Solo, & Reverb Send Control

• 16 Preset Locations For Mix & Conﬁguration Recall

• LCD Display With 16 Channel Metering

• Lexicon

• dbx PeakStopPlus™ Limiting

• Global High & Low EQ

• Global Master Level Control

• Global Stereo Width Control

• BLU link High Bandwidth, Fault Tolerant Digital Audio Bus

• XLR & 1/4” Stereo Or Mono Outputs

• 1/8” & 1/4” Headphone Outputs

• Setup Wizard

• Supports 48 kHz & 96 kHz Sampling Rates

• Channel Linking, Grouping, & Multi-Select Capabilities

• Supports Up To 60 PMC16s On A Single BLU link Ring

• Built-In Sturdy Mic Stand Mount

Courtesy Reverb

PMC

Owner’s Manual

package contentS

The PMC16 was packaged with extreme care. Please take a moment to ensure the items listed below were received and that no damage to contents has occurred.

• PMC16 Personal Monitor Controller

• Power Supply

• Manual

PMC

Owner’s Manual

Quick Start

Conﬁguration

1. Mount the PMC16 to a mic stand, if desired.

2. If connecting to a wedge monitor, turn off the power to the ampliﬁer or powered

monitor.

3. Ensure the PMC16’s <MASTER> level control is turned all the way down (fully

counterclockwise).

4. Using the appropriate output connector, connect the PMC16 to the desired

monitoring device (i.e. headphones, in-ear monitor transmitter, ampliﬁer, or powered wedge monitor).

5. Connect the BLU link output of the sending BLU link device to the PMC16’s BLU

LINK IN port.

6. Connect the BLU LINK OUT port of the PMC16 to the next BLU link device in the

ring.

7. Connect the included power supply to the PMC16’s power input jack and the other

end to an available AC outlet.

8. Run the PMC16’s Setup Wizard by pressing the <WIZARD> button. Ensure “Setup” Wizard” is selected on the display then press the <DATA> encoder to begin the Wizard. Select the “RUN ALL SETUP ITEMS” option and press the <DATA> encoder.

9. Follow the on-screen instructions and select the appropriate options for your system conﬁguration.

PMC

Owner’s Manual

10. When prompted, store the conﬁguration to a preset. Follow the on-screen

instructions to name the preset and select a location in which to store the preset.

11. Once the Wizard is complete, press the <PRESET> button to return to Live mode.

12. Apply power to your ampliﬁer or powered monitor.

13. Send signal to the PMC16 (signal presence can be veriﬁed on the PMC16’s LCD

display which displays all input level meters on the Meters page).

14. Slowly raise the PMC16’s <MASTER> level control to the initial desired listening

level.

Operation

15. Use the mute and solo functions to help create your mix, bringing channels into

focus using SOLO or eliminating channels from the mix using MUTE.

16. Adjust channel levels by using the <LEVELS> button, <CHANNEL SELECT> buttons, and the <DATA> encoder.

17. Adjust channel pans by using the <PAN> button, <CHANNEL SELECT> buttons, and the <DATA> encoder.

18. Turn the <REVERB> control to adjust how much overall reverb you would like in the mix. If you would like to further adjust each channel’s reverb effect send level, press the <EFFECTS> button and use the <CHANNEL SELECT> buttons for selecting channels. Turn the <DATA> encoder to edit the selected effect send level(s).

19. If desired, save the mix to a preset by pressing the <PRESET> button and following the on-screen instructions.

PMC

Owner’s Manual

panel deScriptionS

Top Panel

1. LCD Display

This LCD display shows input metering, menus, pages, and parameters and is used during conﬁguration and operation.

2. DATA Encoder

The DATA encoder is used for navigating menus, on-screen option selection, and parameter editing.

1 2 3 4 5 6 7 8

PMC

Owner’s Manual

10 11

3. BACK Button

This button navigates back one page when navigating menus. This button also navigates back to the Meters page when pressed multiple times (depending upon how deep you are nested within a menu).

4. Function Buttons

• WIZARD Button–Pressing this button allows access to the PMC16 Setup Wizard

and Setup Menus for initially conﬁguring the PMC16.

• GROUP Button–Toggles the Group function on and off.

• PRESET Button–Pressing this button allows for the storing or recalling of a

preset.

• LEVEL Button–Enters the Level page for adjusting each channel’s level.

• PAN Button–Enters the Pan page for adjusting each channel’s pan setting.

• EFFECTS Button–Enters the Effects page for adjusting each channel’s effect

send level.

5. REVERB Knob

This control allows for quick adjustment of the reverb’s return level, which adjusts the overall reverb level.

6. LOW Knob

This control allows for quick adjustment of the low band shelving ﬁlter. This control affects all outputs and is used to control the low-end frequencies of the mix.

PMC

Owner’s Manual

7. HIGH Knob

This control allows for quick adjustment of the high band shelving ﬁlter. This control affects all outputs and is used to control the high-end frequencies of the mix.

8. MASTER Knob

This control allows for quick adjustment of the master output level. This control affects all outputs and is pre-limiter.

9. Master Level Meter

This 4-segment LED meter displays the output signal level. The four LEDs represent

-30 dBu, 0 dBu, +10 dBu, and +17 dBu (3 dB below the clip point).

10. Channel Monitor Buttons

• CLEAR Button–Used to quickly clear all muted or soloed channels.

• SOLO Button–Used to solo channels or channel groups.

• MUTE Button–Used to mute channels or channel groups.

11. Scribble Strip Use a non-permanent marker on this strip to label each channel.

12. Channel Select Buttons (1-16) Allows for the selection of channels or channel groups for editing levels, pans, effect sends, mutes, or solos. Dual LEDs on each button indicate channel selection (top LED=green), solo state (bottom LED=amber), and mute state (bottom LED=red).

PMC

Owner’s Manual

Rear/Side Panels

213 54 6 7 8

1. Power Supply Input Jack

Used for providing power to the PMC16. Connect only the included power supply to this jack.

2. Power Cord Clip

This clip holds the power cord, preventing the power plug from accidental removal.

3. BLU LINK IN/OUT Ports

These BLU link ports allow you to connect to any BLU link compatible device and allow for the daisy chaining of multiple PMC16 remotes.

4. ETHERNET Port

This port allows for future expansion of the PMC16’s feature set.

PMC

Owner’s Manual

5. DSC Input Port

This port allows for future expansion of the PMC16’s feature set.

6. USB Port

This Mini USB port is used for updating the PMC16’s ﬁrmware.

7. 1/4” Outputs

Connect these balanced outputs to any balanced or unbalanced line level device, such as an in-ear transmitter or recording device.

8. XLR Outputs

Connect these balanced outputs to an ampliﬁer or powered wedge monitor.

9. 1/4” Headphone Output

Connect this output to headphones which have a 1/4” headphone plug.

10. 1/8” Headphone Output Connect this output to headphones which have a 1/8” mini headphone plug.

PMC

Owner’s Manual

Mic Stand Mounting inStructionS

To install the PMC16 to a mic stand:

1. Align the mounting hole on the bottom of the PMC16’s chassis to the threads

on the top of the mic stand.

2. Carefully turn the PMC16 clockwise to begin threading the PMC16 to the mic

stand, ensuring the threads are properly aligned. Be careful not to crossthread the threads or overtighten.

Note: The threaded mounting hole in the bottom of the PMC16 chassis is compatible

with 5/8” (1.6 cm) mic stand mounts.

PMC

Owner’s Manual

Making connectionS–cabling

Power

Use only the included power supply for supplying power to the PMC16. A power supply with the incorrect speciﬁcations may cause damage to the device. See “Speciﬁcations” for further information on this power supply.

Analog Outputs

The 1/4” and XLR analog outputs provide balanced audio connections. If connecting to unbalanced equipment, use the 1/4” outputs. The wiring conventions of these connectors are shown to the right.

Note:

The 1/4” and XLR output jacks can be used simultaneously as long as the

1/4” XLR

Tip

Ring

Sleeve

Hot

Cold

Ground

Pin 1

Pin 2

Pin 3

Ground

Hot

Cold

combined parallel load equals 400 Ω or greater.

Headphone Outputs

The 1/8” and 1/4” headphone outputs each have an impedance of 50 Ω. It is recommended that headphones connected to these jacks have an impedance rating of 50 Ω or greater.

Note: The 1/8” and 1/4” headphone jacks are paralleled. Both connections can be used

simultaneously as long as the combined parallel load equals 50 Ω or greater.

PMC

Owner’s Manual

+ 44 hidden pages
