Page 1
DESCRIPTION
■ 3.3V and 5V power supply options
■ 510ps propagation delay
■ 3.0GHz toggle frequency
■ High bandwidth output transistions
■ Internal 75KΩ input pull-down resistors
■ Available in 8-pin SOIC package
The SY10/100EL32V are integrated ÷2 dividers. The
differential clock inputs and the VBB allow a differential,
single-ended or AC-coupled interface to the device. If
used, the VBB output should be bypassed to ground with
a 0.01µF capacitor. Also note that the VBB is designed to
be used as an input bias on the EL32V only; the VBB
output has limited current sink and source capability.
The reset pin is asynchronous and is asserted on the
rising edge. Upon power-on, the internal flip-flop will attain
a random state; the reset allows for the synchronization
of multiple EL32Vs in a system.
FEATURES
PIN CONFIGURATION/BLOCK DIAGRAM
PIN NAMES
5V/3.3V ÷ 2 DIVIDER
SOIC
TOP VIEW
Pin Function
CLK Clock Inputs
Reset Asynchronous Reset
VBB Reference Voltage Output
Q Data Outputs
1
2
3
4
5
6
7
8
Reset
V
CC
Q
V
EE
CLK
V
BB
Q
R
CLK
÷ 2
Rev.: C Amendment: /0
Issue Date: August, 1998
ClockWorks™
SY10EL32V
SY100EL32V
1
Page 2
2
ClockWorks™
SY10EL32V
SY100EL32V
Micrel
T
A = –40°CTA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit
f
MAX Maximum Toggle 2.2 3.0 — 2.6 3.0 — 2.6 3.0 — 2.6 3.0 — GHz
Frequency
t
PLH Prop Delay to Output D 360 500 640 410 500 590 420 510 600 450 540 630 ps
tPHL Reset to Q 390 540 690 440 540 640 440 540 640 450 550 650
VPP Minimum Input Swing
(2)
150 — — 150 — — 150 — — 150 — — mV
VCMR Common Mode Range
(3)
–1.3 — –0.4 –1.4 — –0.4 –1.4 — –0.4 –1.4 — –0.4 V
t
r Output Rise/Fall Times Q 100 225 350 100 225 350 100 225 350 100 225 350 ps
tf (20% to 80%)
AC ELECTRICAL CHARACTERISTICS
(1)
NOTES:
1. Parametric values specified at: 10/100EL32V Series: -3.0V to -5.5V.
2. Minimum input swing for which AC parameters are guaranteed. The device has a DC gain of ≈40.
3. The CMR range is referenced to the most positive side of the differential input signal. Normal operation is obtained if the HIGH level falls within the specified
range and the peak-to-peak voltage lies between VPP min. and 1V. The lower end of the CMR range varies 1:1 with VEE. The numbers in the spec table
assume a nominal VEE = –3.3V. Note for PECL operation, the VCMR (min) will be fixed at 3.3V – |VCMR (min)|.
DC ELECTRICAL CHARACTERISTICS
(1)
TA = –40°CTA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit
I
EE Power Supply mA
Current 10EL — 25 30 — 25 30 — 25 30 — 25 30
100EL — 25 30 — 25 30 — 25 30 — 29 35
V
BB Output Reference V
Voltage 10EL –1.43 — –1.30 –1.38 — –1.27 –1.35 — –1.25 –1.31 — –1.19
100EL –1.38 — –1.26 –1.38 — –1.26 –1.38 — –1.26 –1.38 — –1.26
I
IH Input HIGH Current — — 150 — — 150 — — 150 — — 150 µA
VEE = VEE (Min.) to VEE (Max.); VCC = GND
VEE = VEE (Min.) to VEE (Max.); VCC = GND
NOTE:
1. Parametric values specified at: 10/100EL32V Series: -3.0V to -5.5V.
PRODUCT ORDERING CODE
Ordering Package Operating VEE Range
Code Type Range (V)
SY10EL32VZC Z8-1 Commercial -3.0 to -5.5
SY10EL32VZCTR Z8-1 Commercial -3.0 to -5.5
SY100EL32VZC Z8-1 Commercial -3.0 to -5.5
SY100EL32VZCTR Z8-1 Commercial -3.0 to -5.5
Page 3
3
ClockWorks™
SY10EL32V
SY100EL32V
Micrel

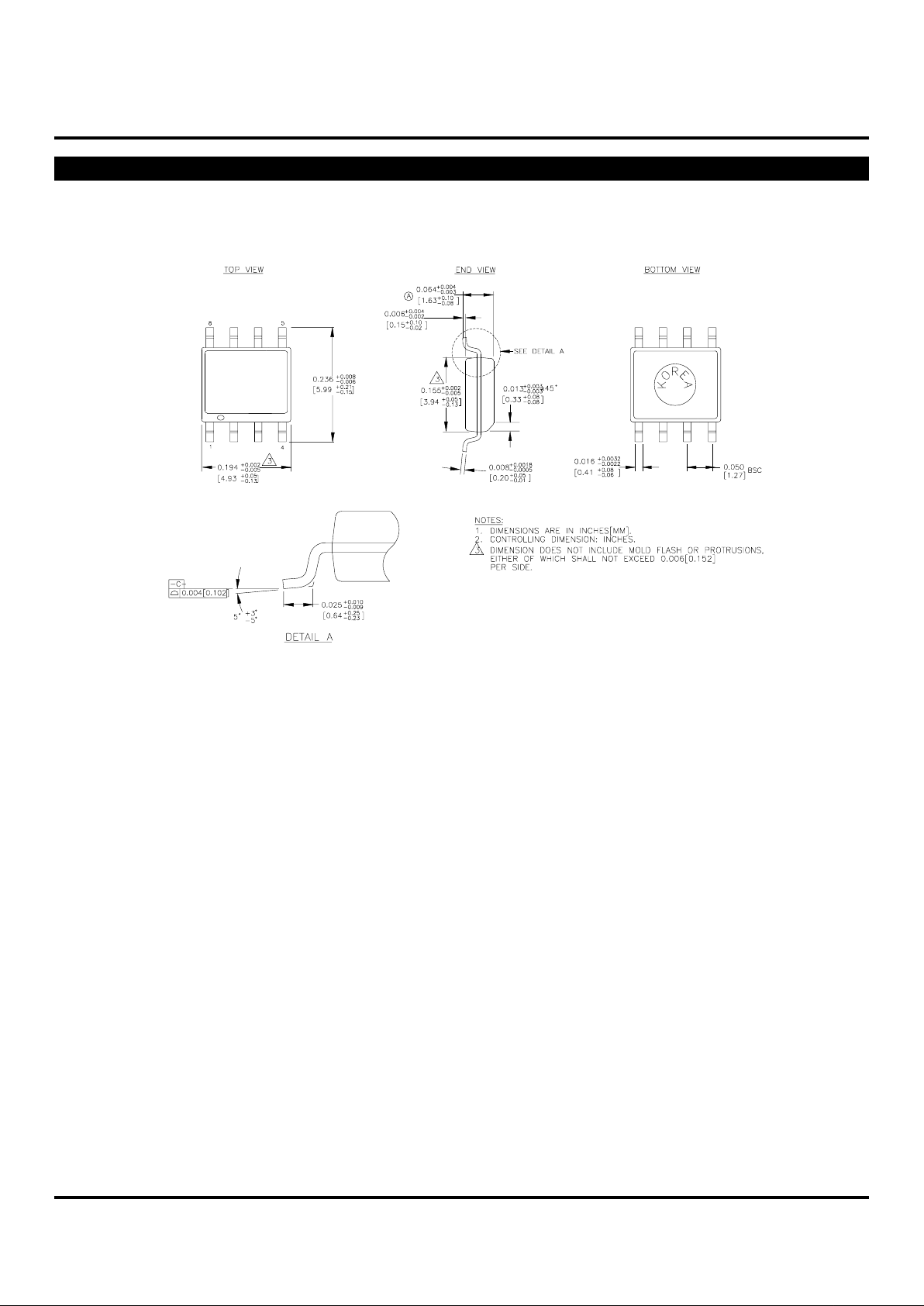

8 LEAD SOIC .150" WIDE (Z8-1)
Rev. 03
Page 4
4
ClockWorks™
SY10EL32V
SY100EL32V
Micrel
MICREL-SYNERGY 3250 SCOTT BOULEVARD SANTA CLARA CA 95054 USA
TEL + 1 (408) 980-9191 FAX + 1 (408) 914-7878 WEB http://www.micrel.com
This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or
other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel Inc.
© 2000 Micrel Incorporated
