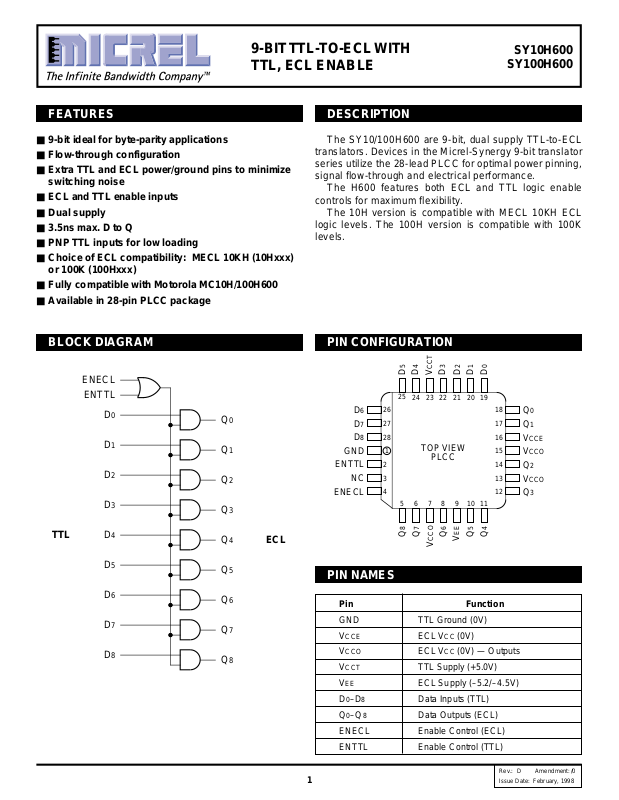

9-BIT TTL-TO-ECL WITH
TTL, ECL ENABLE
SY10H600
SY100H600
FEATURES
■ 9-bit ideal for byte-parity applications
■ Flow-through configuration
■ Extra TTL and ECL power/ground pins to minimize
switching noise
■ ECL and TTL enable inputs
■ Dual supply
■ 3.5ns max. D to Q
■ PNP TTL inputs for low loading
■ Choice of ECL compatibility: MECL 10KH (10Hxxx)
or 100K (100Hxxx)
■ Fully compatible with Motorola MC10H/100H600
■ Available in 28-pin PLCC package
BLOCK DIAGRAM
ENECL
ENTTL
D
0
D
1
D
2
D
3
Q
0
Q
1
Q
2
Q
3
DESCRIPTION
The SY10/100H600 are 9-bit, dual supply TTL-to-ECL
translators. Devices in the Micrel-Synergy 9-bit translator
series utilize the 28-lead PLCC for optimal power pinning,
signal flow-through and electrical performance.
The H600 features both ECL and TTL logic enable
controls for maximum flexibility.
The 10H version is compatible with MECL 10KH ECL
logic levels. The 100H version is compatible with 100K
levels.
PIN CONFIGURATION
D1
D0
18
17
16
15
14
13
12
0
Q
Q1
VCCE
VCCO
Q2
VCCO
Q3
D6
D7
D8
GND
ENTTL
NC
ENECL
D4
VCCTD3D2
D5
25
24 23 22 21 20 19
26
27
28
1
2
3
4
TOP VIEW
PLCC
567891011
TTL
Q8
Q7
Q6
Q5
D
4
D
5
D
6
D
7
D
8
Q
4
Q
5
Q
6
Q
7
Q
8
ECL
VCCO
PIN NAMES
Pin Function
GND TTL Ground (0V)
VCCE ECL VCC (0V)
VCCO ECL VCC (0V) — Outputs
VCCT TTL Supply (+5.0V)
VEE ECL Supply (–5.2/–4.5V)
D0–D8 Data Inputs (TTL)
Q0–Q8 Data Outputs (ECL)
ENECL Enable Control (ECL)
ENTTL Enable Control (TTL)
1
VEE
Q4
Rev.: D Amendment: /0
Issue Date: February, 1998
Page 2
SY10H600
Micrel
SY100H600
LOGIC DIAGRAMTRUTH TABLE
ENECL ENTTL D Q
HXH H
HXL L
XHH H
XHL L
LLX L
LOGIC DIAGRAMDC ELECTRICAL CHARACTERISTICS
VCCT = 5.0V ± 10%; VEE = –4.75V to –5.5V (10H Version); VEE = –4.2V to –5.5V (100H Version)
TA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
EE Power Supply Current, mA —
I
ECL 10H — 125 — 125 — 125
100H — 122 — 123 — 132
CCH Power Supply Current, — 48 — 48 — 48 mA —
I
ICCL TTL — 50 — 50 — 50
LOGIC DIAGRAMAC ELECTRICAL CHARACTERISTICS
VCCT = 5.0V ± 10%; VEE = –4.75V to –5.5V (10H Version); VEE = –4.2V to –5.5V (100H Version)
TA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
PLH Propagation Delay to Output ns 50Ω to –2.0V
t
tPHL D 1.4 3.0 1.5 3.2 1.7 3.5
ENECL/ENTTL 1.8 3.7 1.9 3.9 2.0 4.1
r Output Rise/Fall Time 0.5 1.5 0.5 1.5 0.5 1.5 ns 50Ω to –2.0V
t
tf 20% to 80%, 80% to 20%
LOGIC DIAGRAMPRODUCT ORDERING CODE
Ordering Package Operating
Code Type Range
SY10H600JC J28-1 Commercial
SY10H600JCTR J28-1 Commercial
SY100H600JC J28-1 Commercial
SY100H600JCTR J28-1 Commercial
2
Page 3
Micrel

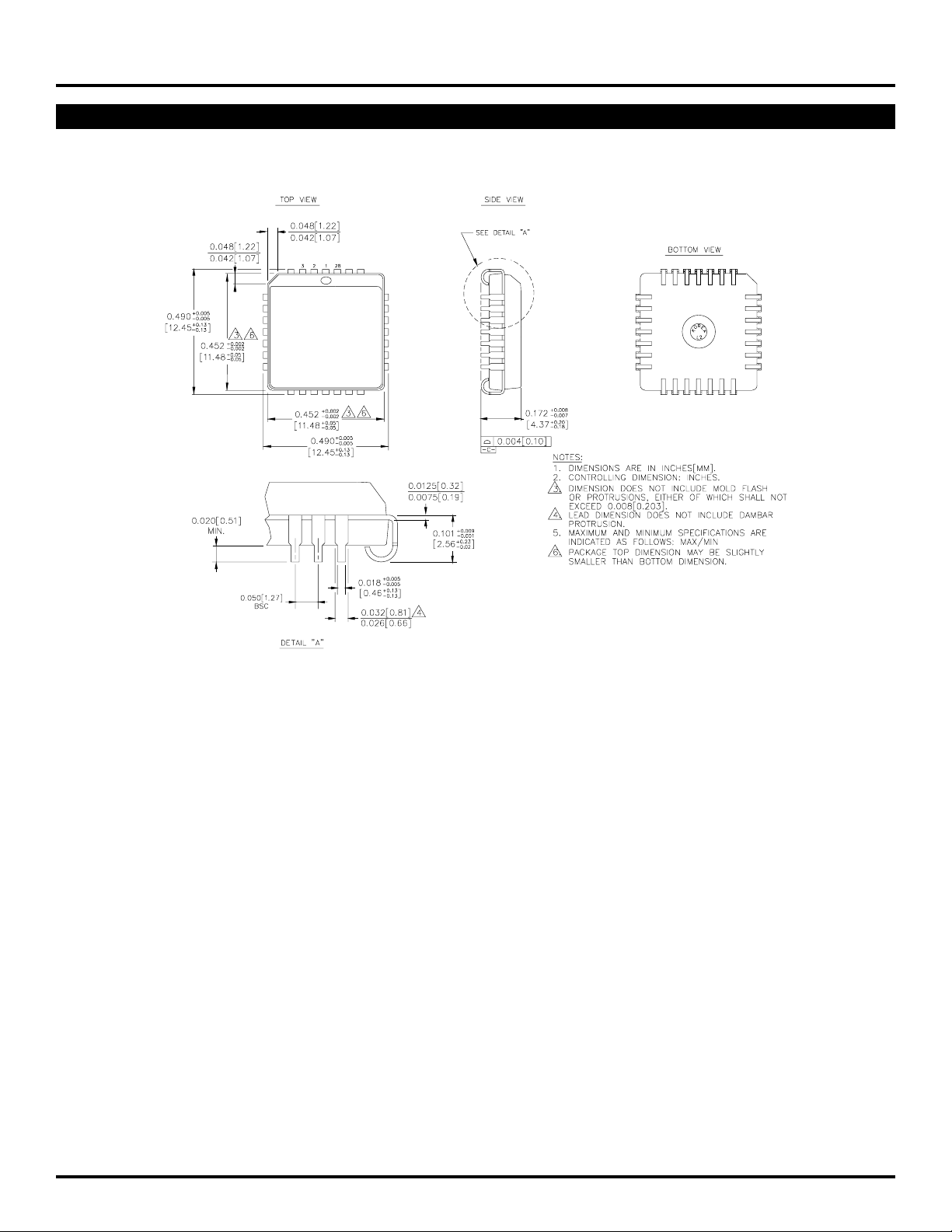

28 LEAD PLCC (J28-1)
SY10H600
SY100H600
Rev. 03
3
Page 4
Micrel
SY10H600
SY100H600
