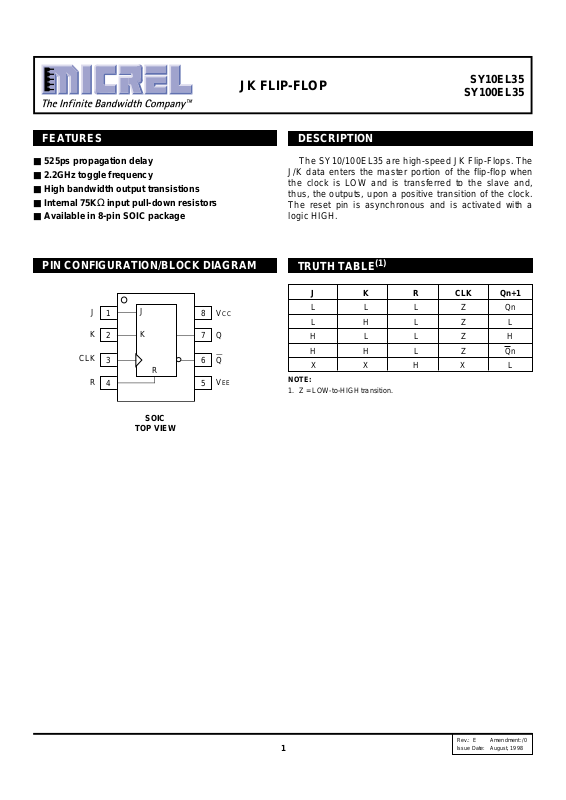

Page 1
DESCRIPTIONFEATURES
JK FLIP-FLOP

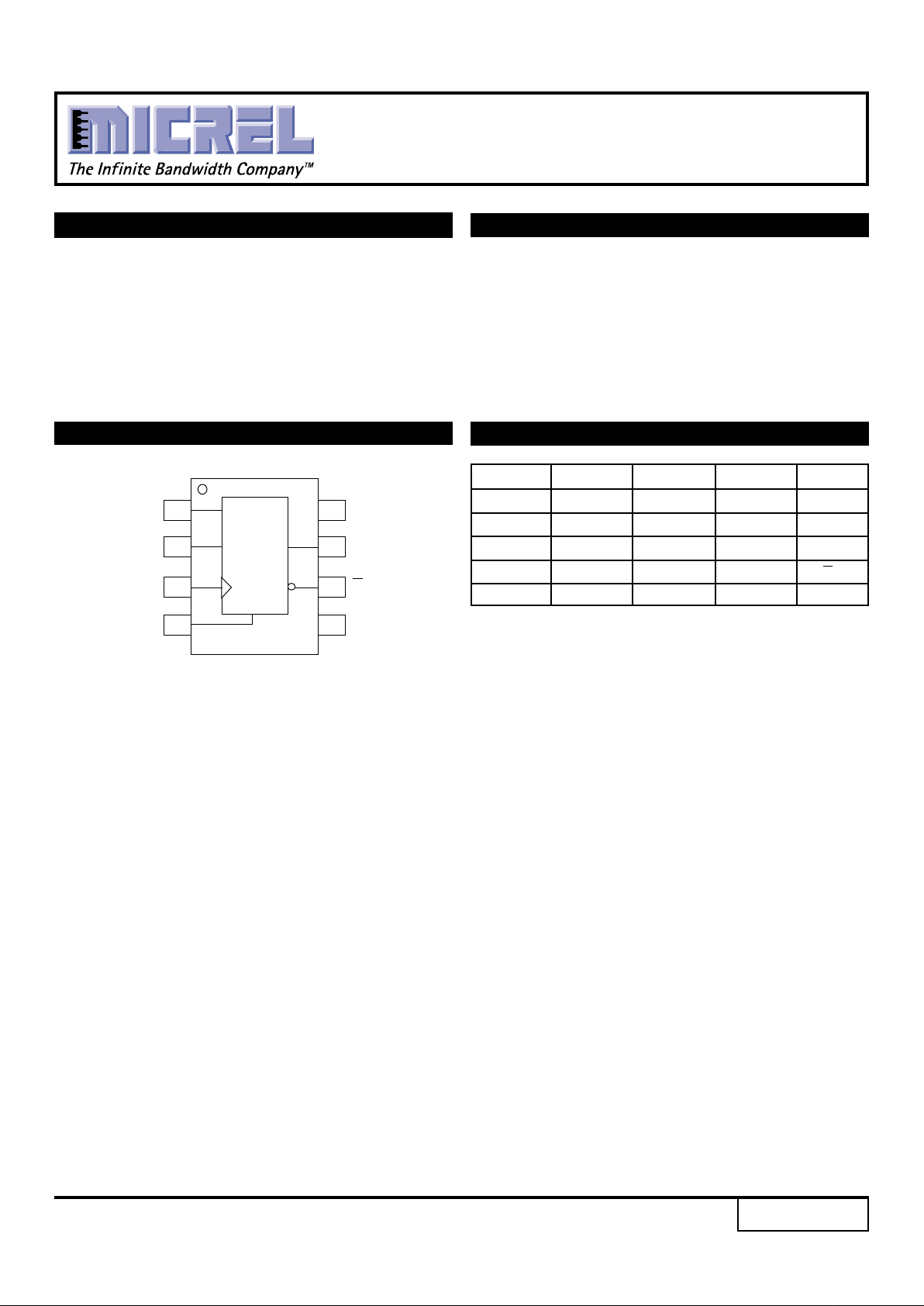

PIN CONFIGURATION/BLOCK DIAGRAM
J K R CLK Qn+1
LLLZQn
LHLZL
HLLZH
HHLZQn
XXHXL
NOTE:
1. Z = LOW-to-HIGH transition.
SOIC
TOP VIEW
1
2
3
45
6
7
8JVCC
Q
V
EE
K
R
Q
R
CLK
J
K
Rev.: E Amendment: /0
Issue Date: August, 1998
SY10EL35
SY100EL35
TRUTH TABLE
(1)
■ 525ps propagation delay
■ 2.2GHz toggle frequency
■ High bandwidth output transistions
■ Internal 75KΩ input pull-down resistors
■ Available in 8-pin SOIC package
The SY10/100EL35 are high-speed JK Flip-Flops. The
J/K data enters the master portion of the flip-flop when
the clock is LOW and is transferred to the slave and,
thus, the outputs, upon a positive transition of the clock.
The reset pin is asynchronous and is activated with a
logic HIGH.
1
Page 2
2
SY10EL35
SY100EL35
Micrel
T
A = –40°CTA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit
f
MAX Maximum Toggle 1.4 2.0 — 1.8 2.2 — 1.8 2.2 — 1.8 2.2 — GHz
Frequency
t
PLH Propagation Delay CLK 290 515 — 340 515 690 350 525 700 395 570 745 ps
tPHL to Output MR 225 450 — 275 450 625 275 450 625 350 525 700
tS Set-up Time 150 0 — 150 0 — 150 0 — 150 0 — ps
tH Hold Time 250 100 — 250 100 — 250 100 — 250 100 — ps
tRR Reset Recovery 400 200 — 400 200 — 400 200 — 400 200 — ps
t
PW Minimum Pulse Width 400 — — 400 — — 400 — — 400 — — ps
CLK, Reset
t
r Output Rise/Fall Times Q 100 225 350 100 225 350 100 225 350 100 225 350 ps
tf (20% to 80%)
AC ELECTRICAL CHARACTERISTICS
VEE = VEE (Min.) to VEE (Max.); VCC = GND
PRODUCT ORDERING CODE
DC ELECTRICAL CHARACTERISTICS
TA = –40°CTA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit
I
EE Power Supply Current mA
10EL — 27 32 — 27 32 — 27 32 — 27 32
100EL — 27 32 — 27 32 — 27 32 — 32 37
V
EE Power Supply Voltage V
10EL — –5.2 — –4.75 –5.2 –5.5 –4.75 –5.2 –5.5 –4.75 –5.2 –5.5
100EL — –4.5 — –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5
I
IH Input HIGH Current — — 150 — — 150 — — 150 — — 150 µA
VEE = VEE (Min.) to VEE (Max.); VCC = GND
Ordering Package Operating
Code Type Range
SY10EL35ZC Z8-1 Commercial
SY10EL35ZCTR Z8-1 Commercial
SY100EL35ZC Z8-1 Commercial
SY100EL35ZCTR Z8-1 Commercial
Page 3
3
SY10EL35
SY100EL35
Micrel

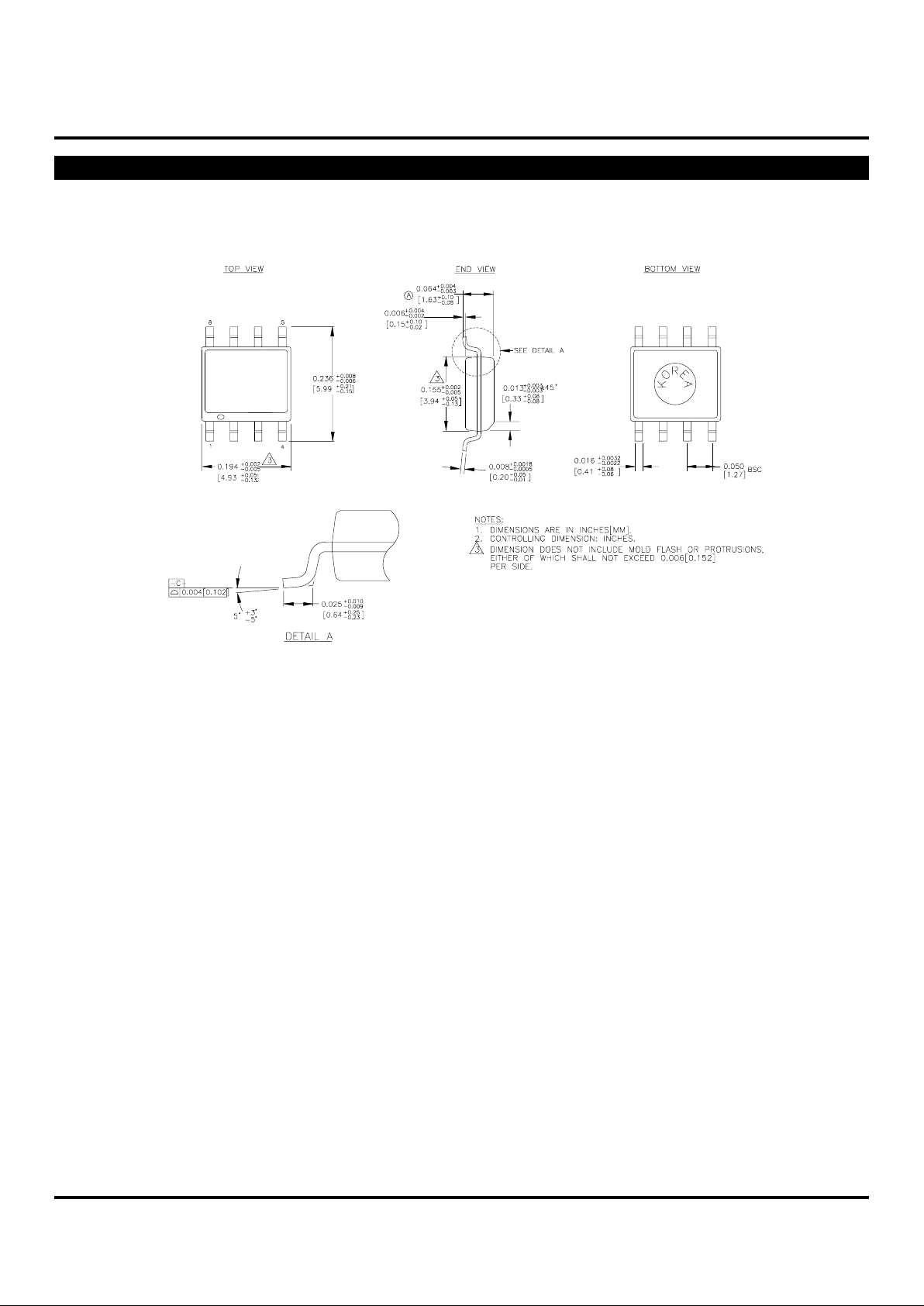

8 LEAD SOIC .150" WIDE (Z8-1)
Rev. 03
Page 4
4
SY10EL35
SY100EL35
Micrel
MICREL-SYNERGY 3250 SCOTT BOULEVARD SANTA CLARA CA 95054 USA
TEL + 1 (408) 980-9191 FAX + 1 (408) 914-7878 WEB http://www.micrel.com
This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or
other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel Inc.
© 2000 Micrel Incorporated
