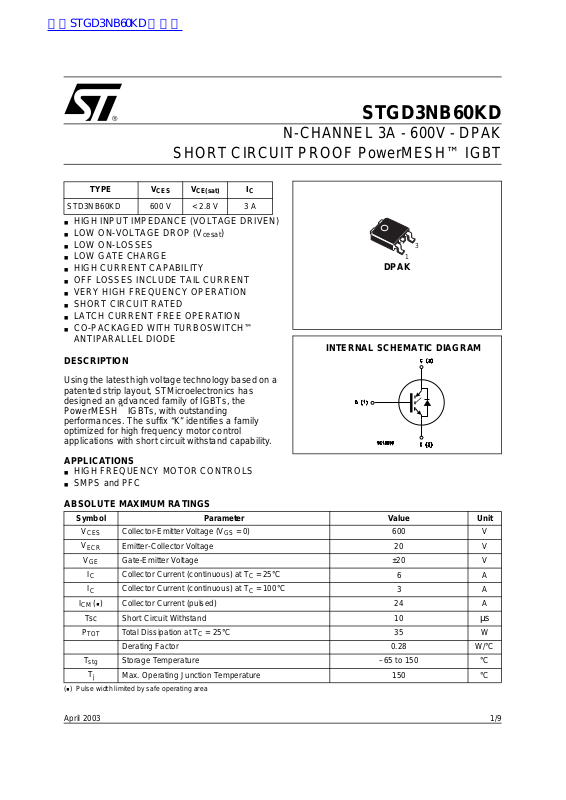

SHORT CIRCUIT PROOF PowerMESH™ IGBT

STGD3NB60KD

N-CHANNEL 3A - 600V - DPAK

TYPE V

CES

V

CE(sat)

I

C

STD3NB60KD 600 V < 2.8 V3A

■ HIGH INPUTIMPEDANCE(VOLTAGE DRIVEN)

■ LOW ON-VOLTAGE DROP (V

■ LOW ON-LOSSES

■ LOW GATE CHARGE

■ HIGH CURRENT CAPABILITY

■ OFF LOSSES INCLUDE TAIL CURRENT

■ VERY HIGH FREQUENCY OPERATION

■ SHORT CIRCUIT RATED

■ LATCH CURRENT FREE OPERA TION

■ CO-PACKAGED WITH TURBOSWITCH™

cesat

)

ANTIPARALLEL DIODE

DESCRIPTION

Using the latest h igh voltage technology based on a
patented strip layout, STMicroelectronics has
designed an advanced family of IGBTs, the
PowerMESH

™

IGBTs, with outstanding
performances. The suffix “K” identifies a fam ily
optimized for high frequency motor cont rol
applications with short circuit withstand capability.

APPLICATIONS

■ HIGH FREQUENCY MOTOR CONTROLS

■ SMPS and PFC

3

1

DPAK

INTERNAL SCHEMATIC DIAGRAM

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

CES

V

ECR

V

GE

I

C

I

C

I

CM

Tsc Short Circuit Withstand 10

P

TOT

T

stg

T

j

() Pulse width limited by safe operating area

Collector-Emitter Voltage (VGS=0)

600 V
Emitter-Collector Voltage 20 V
Gate-Emitter Voltage ±20 V
Collector Current (continuous) at TC=25°C
Collector Current (continuous) at TC=100°C

()

Collector Current (pulsed) 24 A

Total Dissipation at TC= 25°C

6A
3A

35 W
Derating Factor 0.28 W/°C
Storage Temperature –65 to 150 °C
Max. Operating Junction Temperature 150 °C

µs

1/9April 2003

STGD3NB60KD

THERMAL DATA

Rthj-case Thermal Resistance Junction-case Max 3.57 °C/W
Rthj-amb Thermal Resistance Junction-ambient Max 100 °C/W

Rthc-h Thermal Resistance Case-heatsink Typ 0.5 °C/W

ELECTRICAL CHARACTERISTICS (T

= 25 °C UNLESS O THERWISE SPECIFIED)

CASE

OFF

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

BR(CES)

Collectro-Emitter Breakdown

IC= 250 µA, VGE= 0 600 V

Voltage

I

CES

I

GES

Collector cut-off

=0)

(V

GE

Gate-Emitter Leakage
Current (V

CE

=0)

V

= Max Rating, TC=25°C

CE

VCE= Max Rating, TC= 125 °C
V

=±20V,VCE= 0 ±100 nA

GE

10 µA

100 µA

ON (1)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

GE(th)

V

CE(sat)

Gate Threshold Voltage
Collector-Emitter Saturation

Voltage

V

CE=VGE,IC

VGE=15V,IC=3A
VGE=15V,IC= 3 A, Tj =125°C

= 250µA

57V

2.4 2.8 V

1.9 V

DYNAMIC

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

g

fs

C

ies

C

oes

C

res

Q

g

Q

ge

Q

gc

Forward Transconductance
Input Capacitance

Output Capacitance
Reverse Transfer
Capacitance

Total Gate Charge
Gate-Emitter Charge
Gate-Collector Charge

tscw Short Circuit Withstand Time V

=25V,IC=3 A

CE

=25V,f=1MHz,VGE= 0 235

V

CE

1.3 2.4 S

VCE= 480V,IC=3A,
V

=15V

GE

= 0.5 BVces , VGE=15V,

ce

10 µs

Tj = 125°C , RG=10Ω

33

6.6

21

6

7.6

27

pF
pF
pF

nC
nC
nC

SWITCHING ON

Symbol Parameter Test Conditions Min. Typ. Max. Unit

t

d(on)

t

(di/dt)

r

Turn-on Delay Time
Rise Time

Turn-on Current Slope VCC= 480 V, IC=7ARG=10Ω

on

Eon Turn-on Switching Losses 37 µJ

2/9

VCC=480V,IC=3A
RG=10Ω,VGE=15V

V

= 15 V,Tj = 125°C

GE

16
30

400 A/µs

ns
ns

STGD3NB60KD

ELECTRICAL CHARACTERISTICS (CONTINUED)

SWITCHING OFF

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

t

c

tr(V

off

td(

off

t

f

E

(**)

off

E

ts

t

c

t

r(Voff

td(

off

t

f

E

(**)

off

E

ts

Note: 1. Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %.

2. Pulse width limited by max. junction temperature.

(**)Losses include Also the Tail (Jedec Standardization)

Cross-over Time

)

Off Voltage Rise Time 36 ns

)

Delay Time 53 ns
Fall Time 70 ns
Turn-off Switching Loss 33
Total Switching Loss 65
Cross-over Time

)

Off Voltage Rise Time 82 ns

)

Delay Time 58 ns
Fall Time 110 ns
Turn-off Switching Loss 88
Total Switching Loss 125

= 480 V, IC=3 A,

cc

=10Ω,VGE=15V

R

GE

V

= 480 V, IC=3A,

cc

RGE=10Ω,VGE=15V

Tj = 125 °C

90 ns

180 ns

µJ
µJ

µJ
µJ

COLLECTOR-EMITTER DIODE

Symbol Parameter Test Conditions Min. Typ. Max. Unit

I

f

I

fm

V

f

t

rr

Q

rr

I

rrm

Forward Current
Forward Current pulsed

Forward On-Voltage If= 1.5 A

If= 1.5 A, Tj = 125 °C

= 1.5 A ,VR= 200 V,

Reverse Recovery Time
Reverse Recovery Charge

I

f

Tj = 125°C, di/dt = 100 A/µs

Reverse Recovery Current

1.6

1.3
90

100

2.7

1
8

2

Thermal Impedance

A
A

V
V

ns

nC

A

3/9

STGD3NB60KD

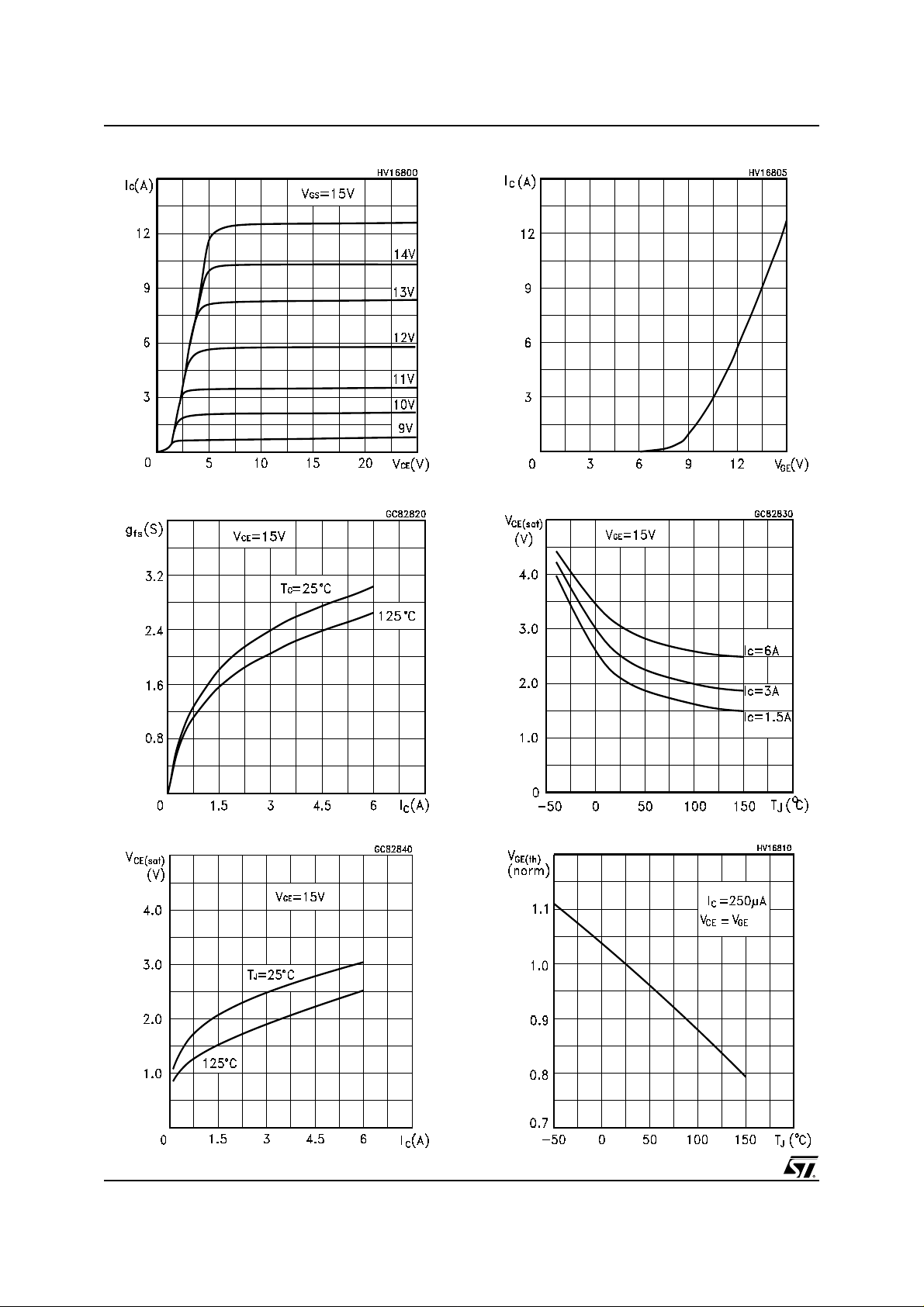

Output Characteristics

Transfer Characteristics

Collector-Emitter On Voltage vs Temp eratureTransconductance

Collector-Emitter On Voltage vs Collettor Cu rrent

4/9

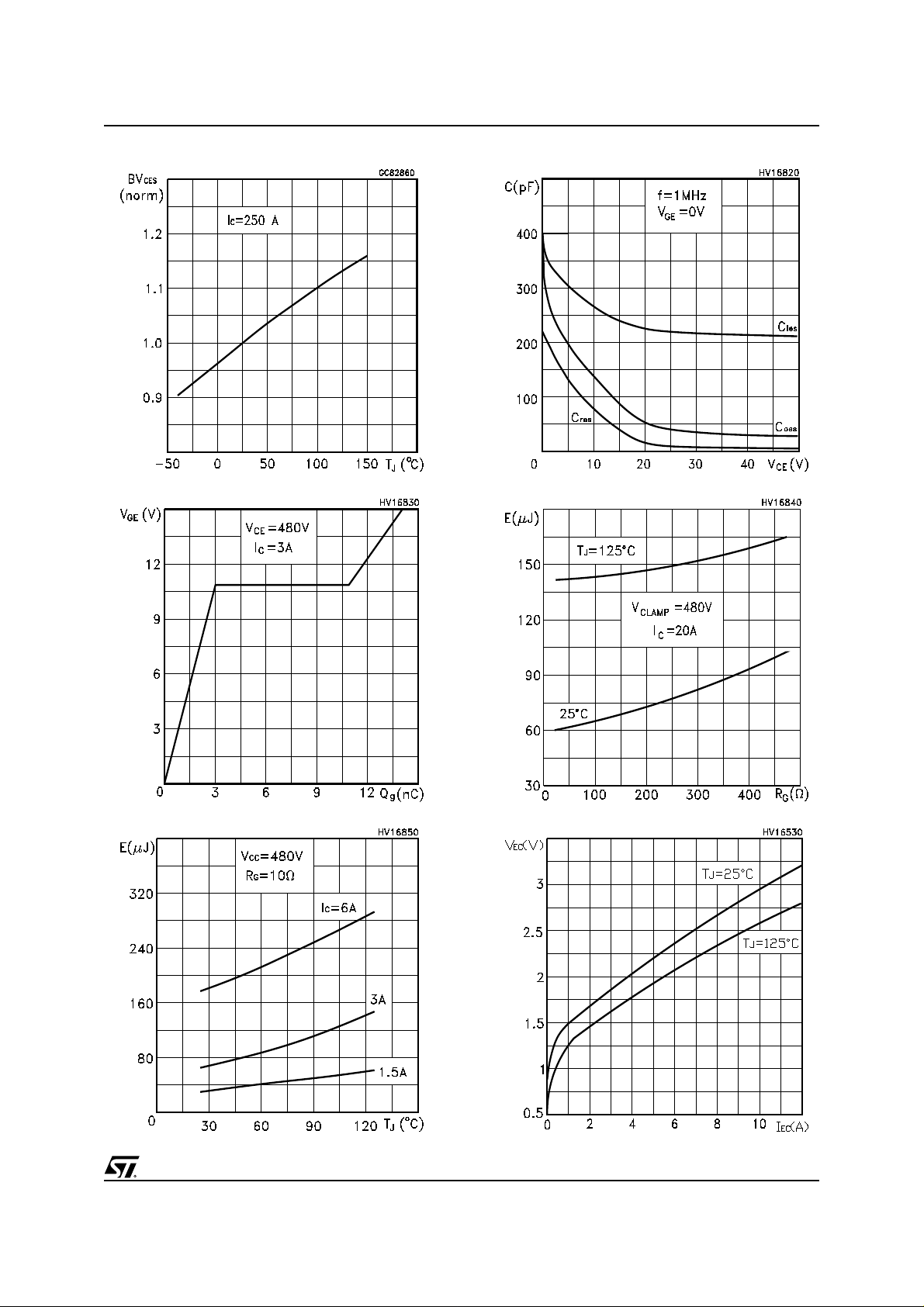

Gate Threshold vs Temperature

STGD3NB60KD

Normalized Breakdown Voltage vs Temperature

Capacitance Variations

Total Switching Losses vs Gate ResistanceGate Charge vs Gate-Emitter Voltage

Total Switching Lo sses vs Temperature

Emitter-collector Diode Characteristics

5/9

STGD3NB60KD

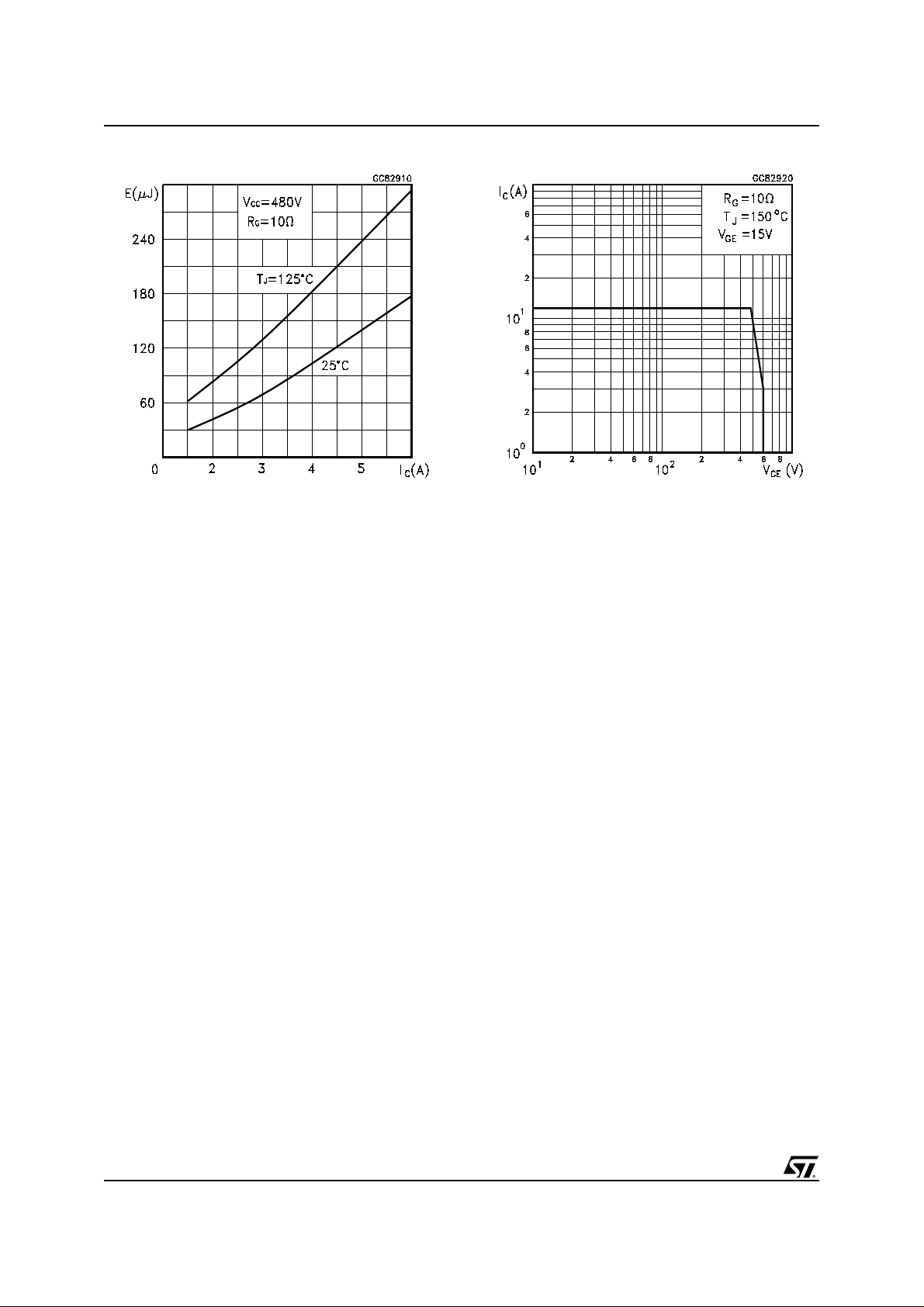

Total Switching Losses vs Collector Cu rrent

Switching Off Safe Operating Area

6/9

STGD3NB60KD

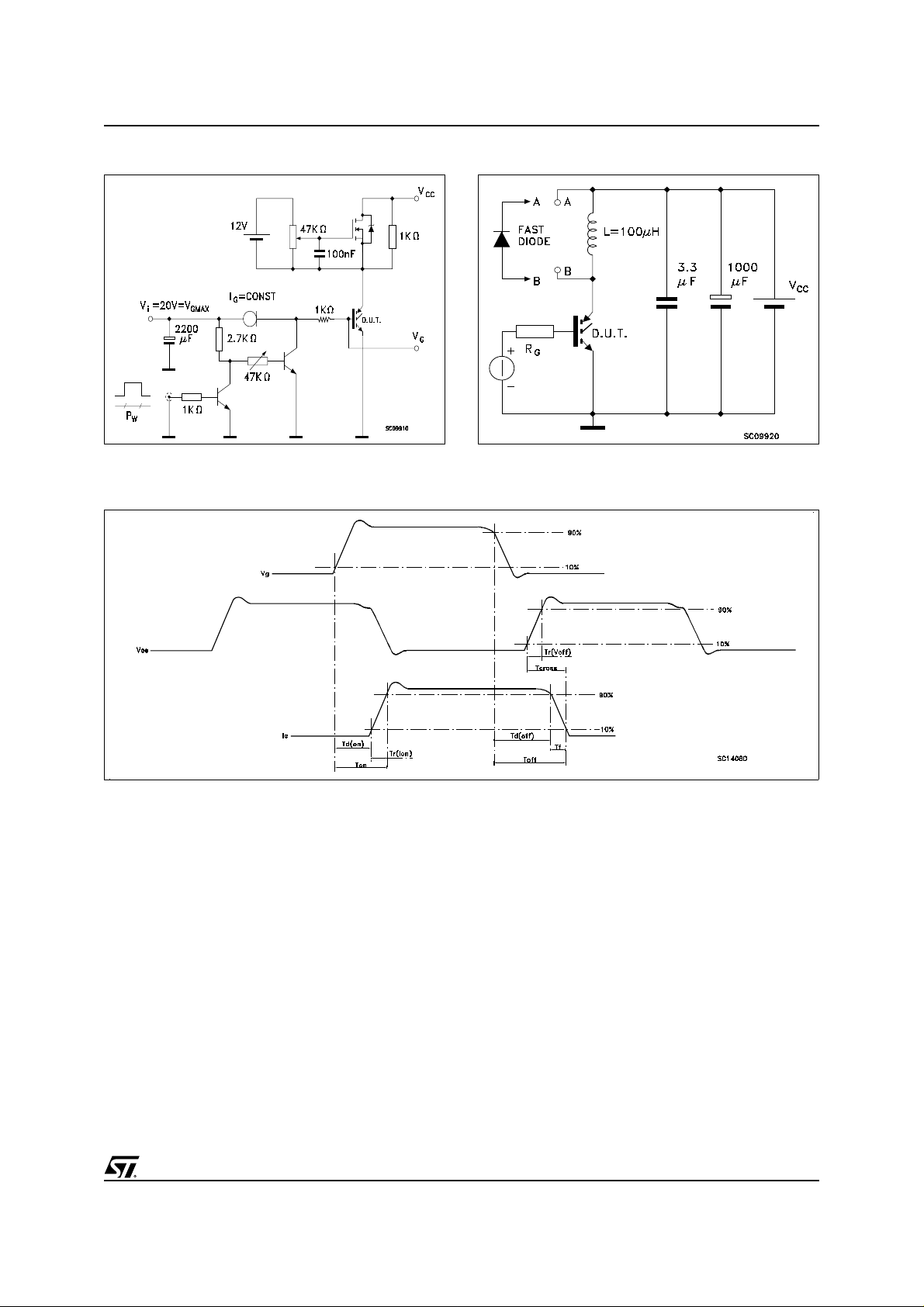

Fig. 2: Test Circuit For Induct ive Load SwitchingFig. 1: Gate Charge test Circuit

7/9

STGD3NB60KD

TO-252 (DPAK) MECHANICAL DATA

DIM.

A 2.20 2.40 0.087 0.094
A1 0.90 1.10 0.035 0.043
A2 0.03 0.23 0.001 0.009

B 0.64 0.90 0.025 0.035
B2 5.20 5.40 0.204 0.213

C 0.45 0.60 0.018 0.024
C2 0.48 0.60 0.019 0.024

D 6.00 6.20 0.236 0.244

E 6.40 6.60 0.252 0.260

G 4.40 4.60 0.173 0.181

H 9.35 10.10 0.368 0.398
L2 0.8 0.031
L4 0.60 1.00 0.024 0.039
V2 0

MIN. TYP. MAX. MIN. TYP. MAX.

o

mm inch

o

8

o

0

o

0

8/9

P032P_B

STGD3NB60KD
