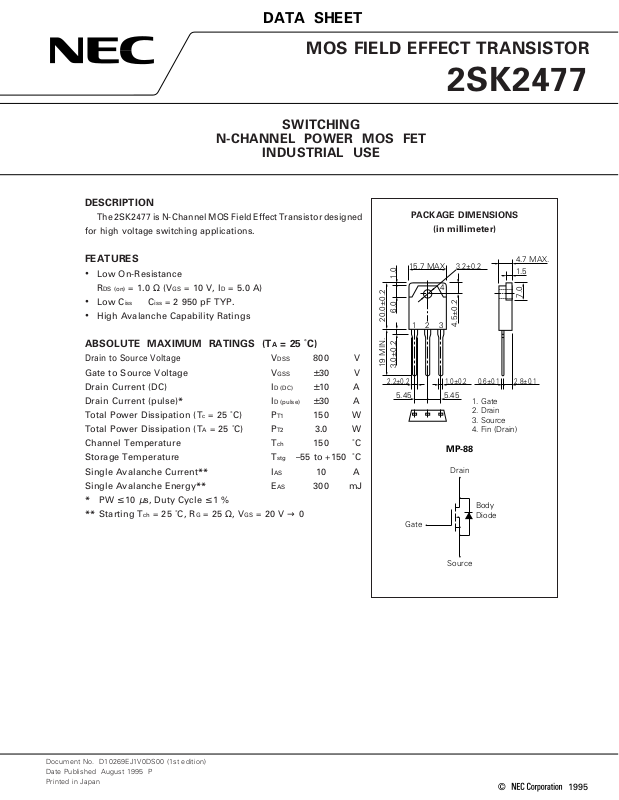

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
SWITCHING
N-CHANNEL POWER MOS FET
INDUSTRIAL USE
DESCRIPTION
The 2SK2477 is N-Channel MOS Field Effect Transistor designed
for high voltage switching applications.
2SK2477
PACKAGE DIMENSIONS
(in millimeter)
FEATURES
• Low On-Resistance
RDS (on) = 1.0 Ω (VGS = 10 V, ID = 5.0 A)
• Low Ciss Ciss = 2 950 pF TYP.
• High Avalanche Capability Ratings
ABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C)
Drain to Source Voltage
Gate to Source Voltage VGSS ±30 V
Drain Current (DC) I
Drain Current (pulse)* ID (pulse) ±30 A
Total Power Dissipation (Tc = 25 ˚C) PT1 150 W
Total Power Dissipation (TA = 25 ˚C) PT2 3.0 W
Channel Temperature T
Storage Temperature Tstg –55 to +150 ˚C
Single Avalanche Current** IAS 10 A
Single Avalanche Energy** E
* PW ≤ 10 µs, Duty Cycle ≤ 1 %
** Starting Tch = 25 ˚C, RG = 25 Ω, VGS = 20 V → 0
VDSS 800 V
D (DC) ±10 A
ch 150 ˚C
AS 300 mJ
15.7 MAX.
1.06.0
123
19 MIN. 20.0±0.2
3.0±0.2
5.45 5.45
Gate
4
1.0±0.2
MP-88
Drain
3.2±0.2
4.5±0.2
1. Gate
2. Drain
3. Source
4. Fin (Drain)
Body
Diode
4.7 MAX.
1.5
7.0
2.8±0.10.6±0.12.2±0.2
Document No. D10269EJ1V0DS00 (1st edition)
Date Published August 1995 P
Printed in Japan
Source
©
1995
ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)
2SK2477
CHARACTERISTIC SYMBOL MIN. TYP. MAX. TEST CONDITIONS
Drain to Source On-Resistance RDS (on) 0.65 1.0 VGS = 10 V, ID = 5.0 A
Gate to Source Cutoff Voltage VGS (off) 2.5 3.5 VDS = 10 V, ID = 1 mA
Forward Transfer Admittance | yfs | 3.5 VDS = 20 V, ID = 5.0 A
Drain Leakage Current IDSS 100 VDS = VDSS, VGS = 0
Gate to Source Leakage Current IGSS ±100 VGS = ±30 V, VDS = 0
Input Capacitance Ciss 2 950 VDS = 10 V
Output Capacitance Coss 440 VGS = 0
Reverse Transfer Capacitance Crss 80 f = 1 MHz
Turn-On Delay Time td (on) 35 ID = 5.0 A
Rise Time tr 30 VGS = 10 V
Turn-Off Delay Time td (off) 160 VDD = 150 V
Fall Time tf 32 R
Total Gate Charge QG 90 ID = 10 A
Gate to Source Charge QGS 16 VDD = 450 V
Gate to Drain Charge QGD 40 VGS = 10 V
Body Diode Forward Voltage VF (S-D) 1.0 IF = 10 A, VGS = 0
Reverse Recovery Time trr 890 IF = 10 A, VGS = 0
Reverse Recovery Charge Qrr 6.7 di/dt = 50 A/µs
UNIT
Ω
V
S
µ
A
nA
pF
pF
pF
ns
ns
ns
ns
nC
nC
nC
V
ns
µ
C
= 10 Ω
G
Test Circuit 1 Avalanche Capability
D.U.T.
R
G = 25 Ω
PG
VGS = 20 - 0 V
50 Ω
BVDSS
IAS
ID
VDS
VDD
Starting Tch
Test Circuit 3 Gate Charge
D.U.T.
G = 2 mA
I
PG.
50
Ω
L
V
RL
VDD
Test Circuit 2 Switching Time
D.U.T.
L
R
DD
PG.
RG
G = 10 Ω
R
VDD
VGS
0
t
t = 1 us
Duty Cycle ≤ 1 %
VGS
Wave Form
ID
Wave Form
VGS
10 %
0
ID
90 %
10 %
0
td (on) tr td (off) tf
ton toff
90 %
GS (on)
V
90 %
ID
10 %
The application circuits and their parameters are for references only and are not intended for use in actual design-in's.
2
TYPICAL CHARACTERISTICS (TA = 25 ˚C)
g
2SK2477
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
100
80
60
40
20
dT - Percentage of Rated Power - %
0
20 40 60 80 100 120 140 160
T
C - Case Temperature - ˚C
FORWARD BIAS SAFE OPERATING AREA
100
ID(pulse)
= 10 V)
GS
10
Limited (at V
DS(on)
R
ID(DC)
Power Dissipation Limited
10 ms
100 ms
PW = 10 s
µ
1 ms
TOTAL POWER DISSIPATION vs.
CASE TEMPERATURE
210
180
150
120
90
60
30
PT - Total Power Dissipation - W
0
20
40 60 80 100 120 140 160
T
C - Case Temperature - ˚C
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
VGS = 20 V
10 V
20
8 V
6 V
Pulsed
1
ID - Drain Current - A
TC = 25 ˚C
Single Pulse
1
1
10 100 1000
V
DS - Drain to Source Voltage - V
FORWARD TRANSFER CHARACTERISTICS
100
TA = –25 ˚C
25 ˚C
10
75 ˚C
125 ˚C
1.0
ID - Drain Current - A
0.1
0
510 15
GS - Gate to Source Volta
V
e - V
Pulsed
VDS = 10 V
10
ID - Drain Current - A
0
10
V
DS - Drain to Source Voltage - V
20
30
40
3
p
1 000
2SK2477
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
100
10
1
0.1
0.01
rth(t) - Transient Thermal Resistance - ˚C/W
0.001
100
µµ
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
100
TA = – 25 ˚C
10
25 ˚C
75 ˚C
125 ˚C
1 m 10 m 100 m 1 10 100 1 000 10
VDS = 10 V
Pulsed
PW - Pulse Width - s
Rth(ch-a) = 41.7(˚C/W)
Rth(ch-c) = 0.83(˚C/W)
Single Pulse
T
C = 25 ˚C
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
Pulsed
1.0
ID = 10 A
5 A
2 A
1.0
0.1
| yfs | - Forward Transfer Admittance - S
0.1
1.0
I
D - Drain Current - A
DRAIN TO SOURCE ON-STATE
RESISTANCE vs. DRAIN CURRENT
1.0
0.5
0
RDS(on) - Drain to Source On-State Resistance - Ω
1.0
10 100
ID - Drain Current - A
10 100
Pulsed
VGS = 10 V
0.5
0
RDS(on) - Drain to Source On-State Resistance - Ω
10
V
GS - Gate to Source Voltage - V
GATE TO SOURCE CUTOFF VOLTAGE vs.
CHANNEL TEMPERATURE
4
3
2
1
0
VGS(off) - Gate to Source Cutoff Voltage - V
–50
0 50 100 150
ch - Channel Tem
T
20 30
VDS = 10 V
I
D = 1 mA
erature - ˚C
4
2SK2477
g
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
2.0
1.0
0
–50
RDS(on) - Drain to Source On-State Resistance - Ω
0
ch - Channel Temperature - ˚C
T
50
100 150
CAPACITANCE vs. DRAIN TO
SOURCE VOLTAGE
10 000
1 000
GS = 10 V
V
I
D = 5 A
VGS = 0
f = 1 MHz
Ciss
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
100
10
VGS = 10 V
1
0.1
ISD - Diode Forward Current - A
0
0.5
V
SD - Source to Drain Voltage - V
SWITCHING CHARACTERISTICS
1 000
100
VGS = 0 V
1.0
Pulsed
1.5
tr
td(off)
tf
td(on)
100
Ciss, Coss, Crss - Capacitance - pF
10
1
10 100 1 000
V
DS - Drain to Source Voltage - V
REVERSE RECOVERY TIME vs.
DRAIN CURRENT
10 000
1 000
100
trr - Reverse Recovery time - ns
10
0.1
1.0 10 100
I
D - Drain Current - A
Coss
Crss
di/dt = 50 A/ s
GS = 0
V
µ
10
td(on), tr, td(off), tf - Switching Time - ns
1.0
0.1
1.0 10 100
I
D - Drain Current - A
DYNAMIC INPUT/OUTPUT CHARACTERISTICS
800
600
VDD = 450 V
300 V
150 V
400
200
VDS - Drain to Source Voltage - V
0
30 60 90
g - Gate Char
Q
e - nC
DD = 150 V
V
VGS = 10 V
RG = 10 Ω
ID = 10 A
16
14
12
10
8
6
4
2
VGS - Gate to Source Voltage - V
0
5
2SK2477
SINGLE AVALANCHE CURRENT vs.
INDUCTIVE LOAD
100
10
IAS = 10A
1.0
VDD = 150 V
VGS = 20 V → 0
IAS - Single Avalanche Current - A
RG = 25 Ω
10
µµ
100 1 m 10 m
L - Inductive Load - H
E
AS
= 300 mJ
SINGLE AVALANCHE ENERGY
DERATING FACTOR
160
140
120
100
80
60
40
Energy Derating Factor - %
20
0
50 75 100 125 150
25
Starting T
ch - Starting Channel Temperature - ˚C
VDD = 150 V
G
= 25
Ω
R
V
GS
= 20 V → 0
I
AS
≤ 10 A
6
2SK2477
REFERENCE
Document Name Document No.
NEC semiconductor device reliability/quality control system. TEI-1202
Quality grade on NEC semiconductor devices. IEI-1209
Semiconductor device mounting technology manual. IEI-1207
Semiconductor device package manual. IEI-1213
Guide to quality assurance for semiconductor devices. MEI-1202
Semiconductor selection guide. MF-1134
Power MOS FET features and application switching power supply. TEA-1034
Application circuits using Power MOS FET. TEA-1035
Safe operating area of Power MOS FET. TEA-1037
7
