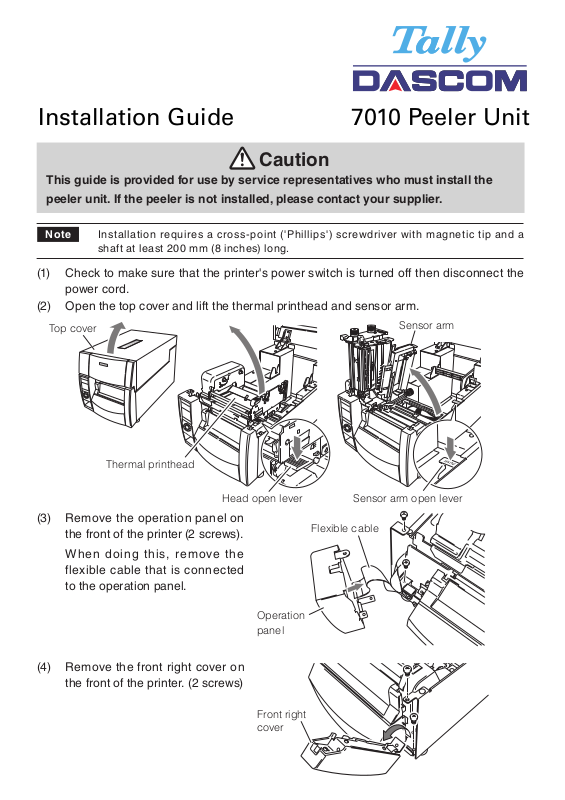

Installation Guide 7010 Peeler Unit

Caution

This guide is provided for use by service representatives who must install the

peeler unit. If the peeler is not installed, please contact your supplier.

Note Installation requires a cross-point ('Phillips') screwdriver with magnetic tip and a

shaft at least 200 mm (8 inches) long.

(1) Check to make sure that the printer's power switch is turned off then disconnect the

power cord.

(2) Open the top cover and lift the thermal printhead and sensor arm.

Top cov er

Thermal printhead

Sensor arm

Head open lever

(3) Remove the operation panel on

the front of the printer (2 screws).

When doing this, remove the

flexible cable that is connected
to the operation panel.

(4) Remove the front right cover on

the front of the printer. (2 screws)

Sensor arm open lever

Flexible cable

Operation
panel

Front right
cover

(5) Remove the front center cover. (2 screws)

Front center cover

(6) Remove the plastic cover from the front center cover that you have removed.
(2 screws)

Note The plastic cover that you have removed is needed if the peeler unit is

de-installed, so store it carefully.

Plastic cover

(7) Attach the peel guide plate to the front center cover taking care not to over-tighten

the screws as they are threaded in plastic. (2 screws)

Peel guide plate
