Tally Dascom DT-210/230

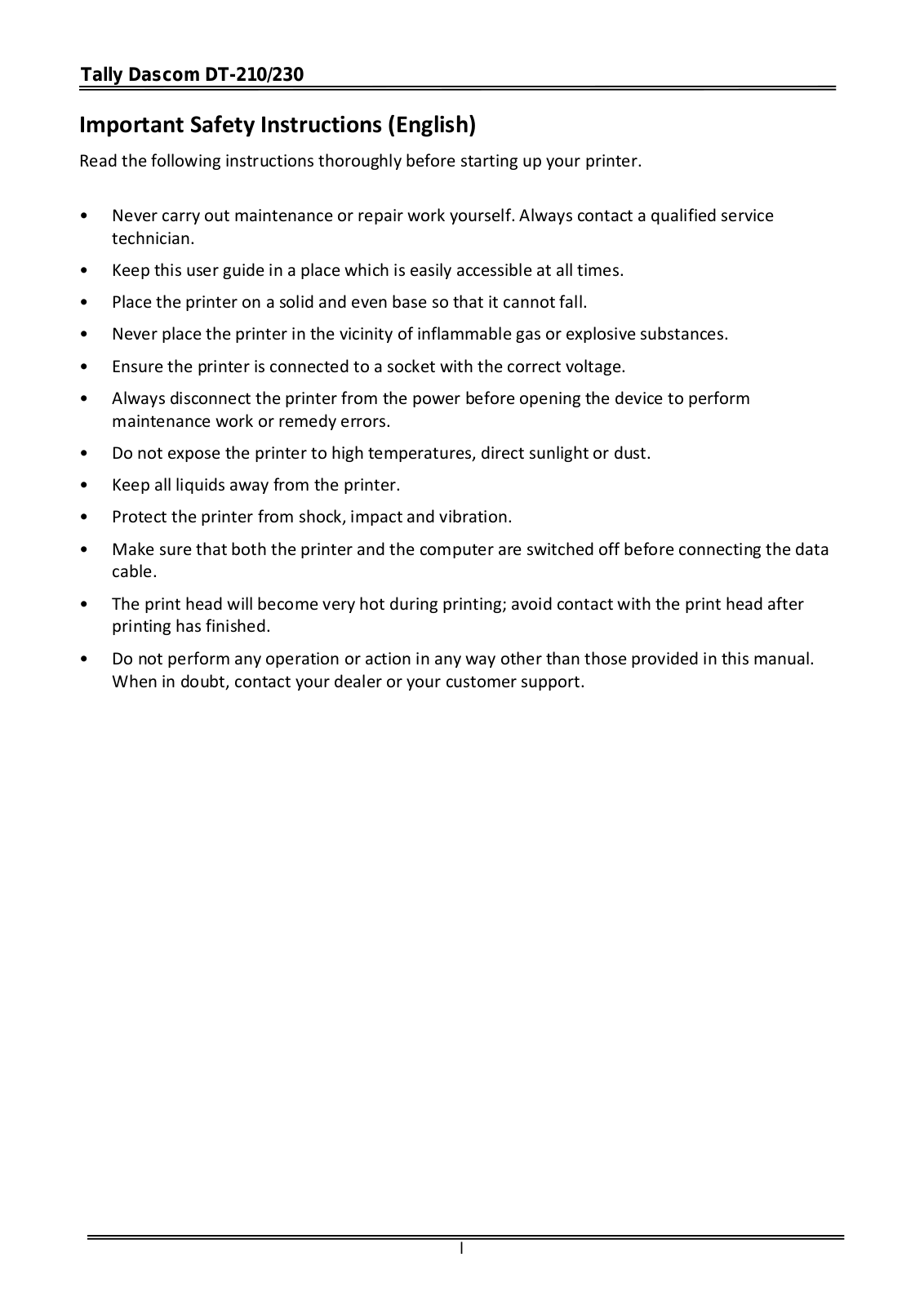

Important Safety Instructions (English)

Read the following instructions thoroughly before starting up your printer.

•Never carry out maintenance or repair work yourself. Always contact a qualified service technician.

•Keep this user guide in a place which is easily accessible at all times.

•Place the printer on a solid and even base so that it cannot fall.

•Never place the printer in the vicinity of inflammable gas or explosive substances.

•Ensure the printer is connected to a socket with the correct voltage.

•Always disconnect the printer from the power before opening the device to perform maintenance work or remedy errors.

•Do not expose the printer to high temperatures, direct sunlight or dust.

•Keep all liquids away from the printer.

•Protect the printer from shock, impact and vibration.

•Make sure that both the printer and the computer are switched off before connecting the data cable.

•The print head will become very hot during printing; avoid contact with the print head after printing has finished.

•Do not perform any operation or action in any way other than those provided in this manual. When in doubt, contact your dealer or your customer support.

Tally Dascom DT-210/230

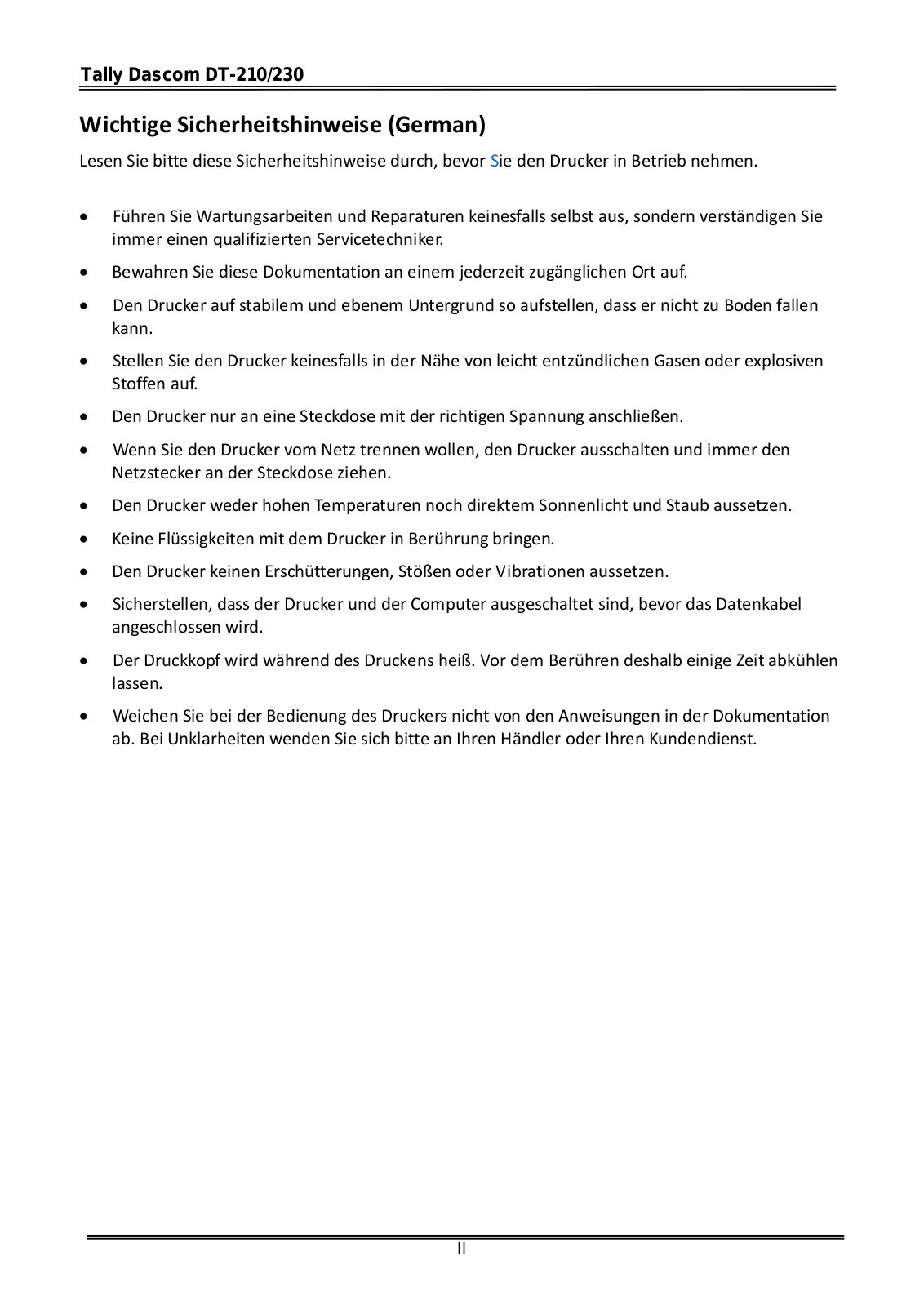

Wichtige Sicherheitshinweise (German)

Lesen Sie bitte diese Sicherheitshinweise durch, bevor Sie den Drucker in Betrieb nehmen.

Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie immer einen qualifizierten Servicetechniker.

Bewahren Sie diese Dokumentation an einem jederzeit zugänglichen Ort auf.

Den Drucker auf stabilem und ebenem Untergrund so aufstellen, dass er nicht zu Boden fallen kann.

Stellen Sie den Drucker keinesfalls in der Nähe von leicht entzündlichen Gasen oder explosiven Stoffen auf.

Den Drucker nur an eine Steckdose mit der richtigen Spannung anschließen.

Wenn Sie den Drucker vom Netz trennen wollen, den Drucker ausschalten und immer den Netzstecker an der Steckdose ziehen.

Den Drucker weder hohen Temperaturen noch direktem Sonnenlicht und Staub aussetzen.

Keine Flüssigkeiten mit dem Drucker in Berührung bringen.

Den Drucker keinen Erschütterungen, Stößen oder Vibrationen aussetzen.

Sicherstellen, dass der Drucker und der Computer ausgeschaltet sind, bevor das Datenkabel angeschlossen wird.

Der Druckkopf wird während des Druckens heiß. Vor dem Berühren deshalb einige Zeit abkühlen lassen.

Weichen Sie bei der Bedienung des Druckers nicht von den Anweisungen in der Dokumentation ab. Bei Unklarheiten wenden Sie sich bitte an Ihren Händler oder Ihren Kundendienst.

Tally Dascom DT-210/230

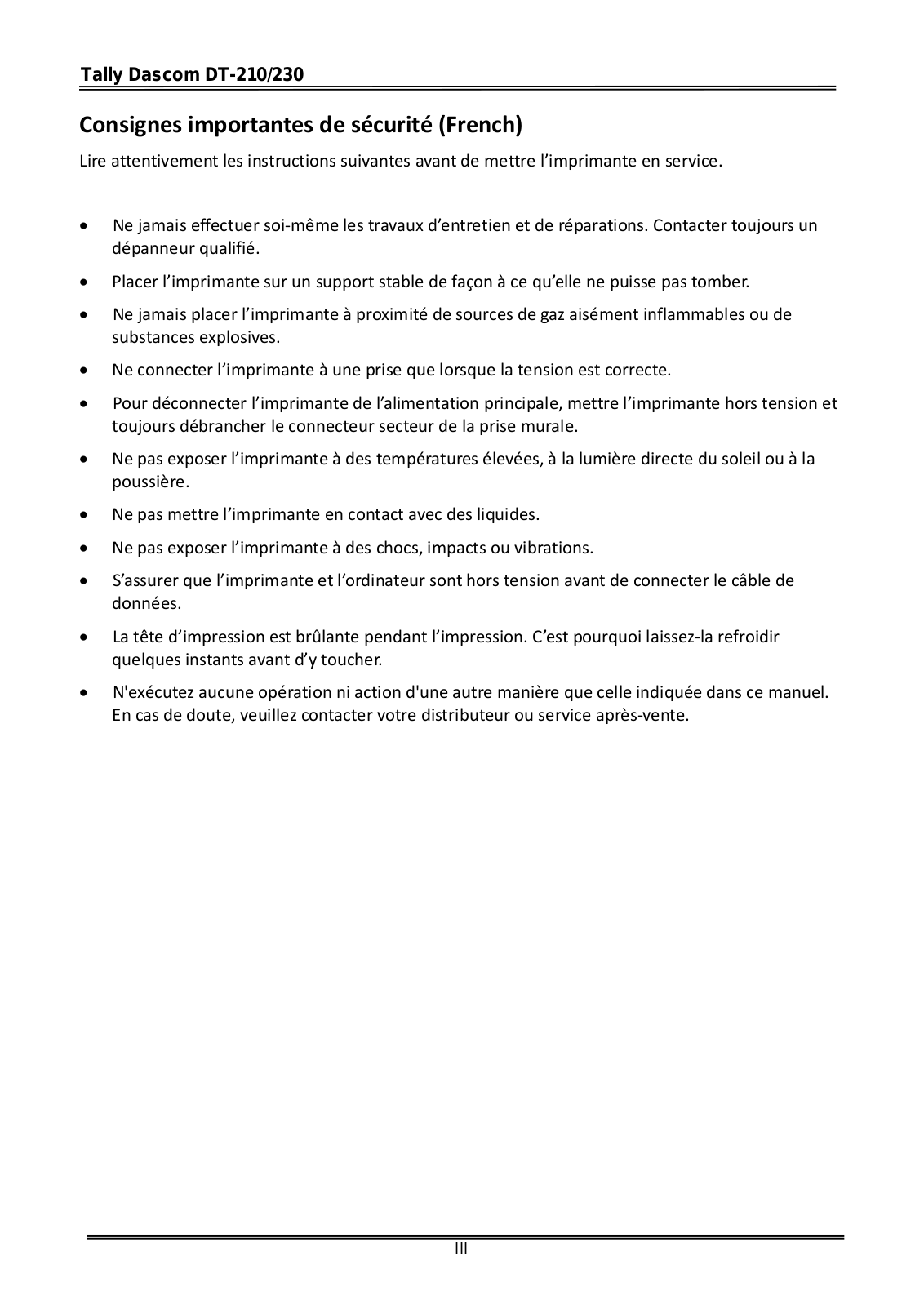

Consignes importantes de sécurité (French)

Lire attentivement les instructions suivantes avant de mettre l’imprimante en service.

Ne jamais effectuer soi même les travaux d’entretien et de réparations. Contacter toujours un dépanneur qualifié.

Placer l’imprimante sur un support stable de façon à ce qu’elle ne puisse pas tomber.

Ne jamais placer l’imprimante à proximité de sources de gaz aisément inflammables ou de substances explosives.

Ne connecter l’imprimante à une prise que lorsque la tension est correcte.

Pour déconnecter l’imprimante de l’alimentation principale, mettre l’imprimante hors tension et toujours débrancher le connecteur secteur de la prise murale.

Ne pas exposer l’imprimante à des températures élevées, à la lumière directe du soleil ou à la poussière.

Ne pas mettre l’imprimante en contact avec des liquides.

Ne pas exposer l’imprimante à des chocs, impacts ou vibrations.

S’assurer que l’imprimante et l’ordinateur sont hors tension avant de connecter le câble de données.

La tête d’impression est brûlante pendant l’impression. C’est pourquoi laissez la refroidir quelques instants avant d’y toucher.

N'exécutez aucune opération ni action d'une autre manière que celle indiquée dans ce manuel. En cas de doute, veuillez contacter votre distributeur ou service après vente.

III

Tally Dascom DT-210/230

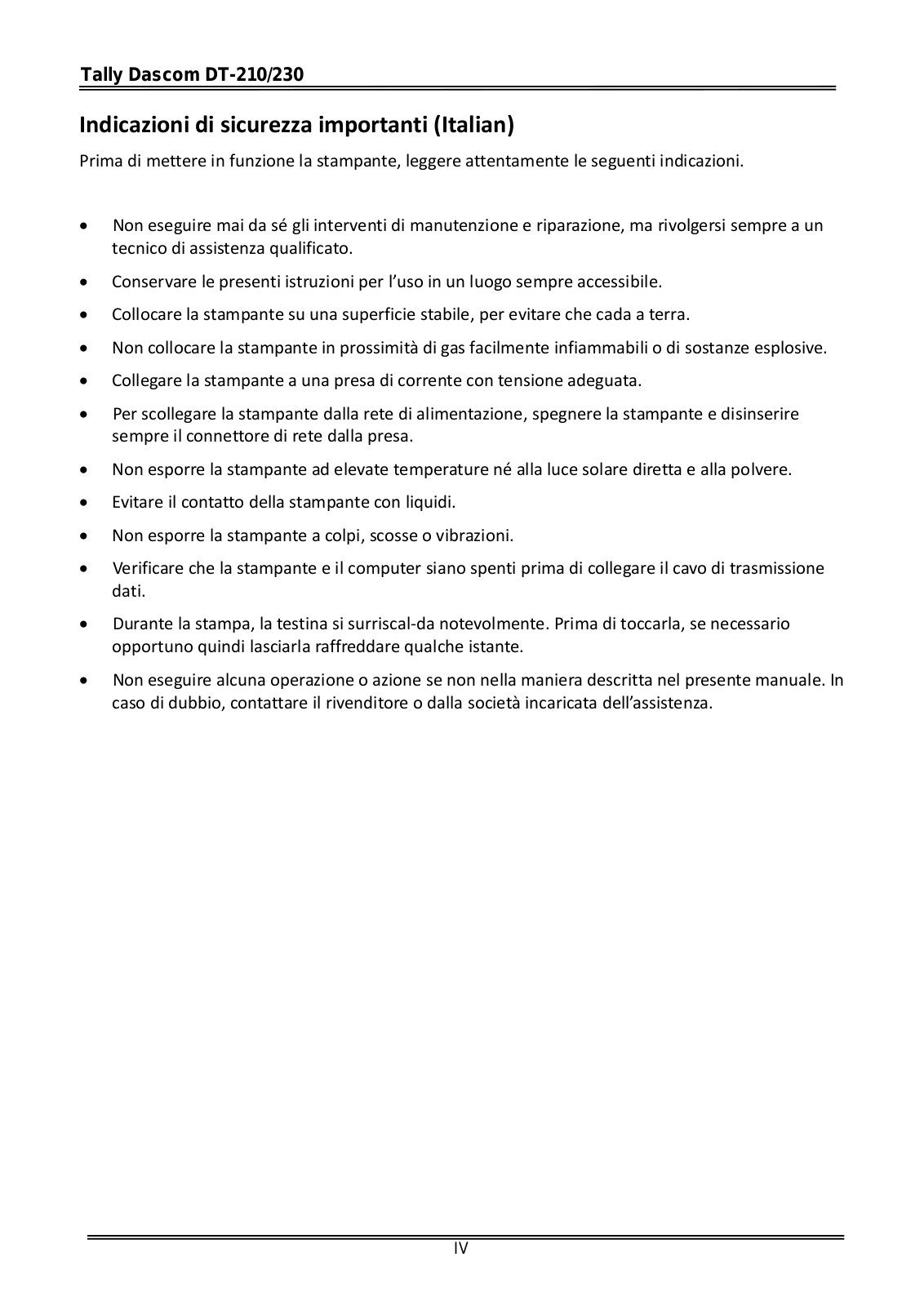

Indicazioni di sicurezza importanti (Italian)

Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni.

Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un tecnico di assistenza qualificato.

Conservare le presenti istruzioni per l’uso in un luogo sempre accessibile.

Collocare la stampante su una superficie stabile, per evitare che cada a terra.

Non collocare la stampante in prossimità di gas facilmente infiammabili o di sostanze esplosive.

Collegare la stampante a una presa di corrente con tensione adeguata.

Per scollegare la stampante dalla rete di alimentazione, spegnere la stampante e disinserire sempre il connettore di rete dalla presa.

Non esporre la stampante ad elevate temperature né alla luce solare diretta e alla polvere.

Evitare il contatto della stampante con liquidi.

Non esporre la stampante a colpi, scosse o vibrazioni.

Verificare che la stampante e il computer siano spenti prima di collegare il cavo di trasmissione dati.

Durante la stampa, la testina si surriscal da notevolmente. Prima di toccarla, se necessario opportuno quindi lasciarla raffreddare qualche istante.

Non eseguire alcuna operazione o azione se non nella maniera descritta nel presente manuale. In caso di dubbio, contattare il rivenditore o dalla società incaricata dell’assistenza.

Tally Dascom DT-210/230

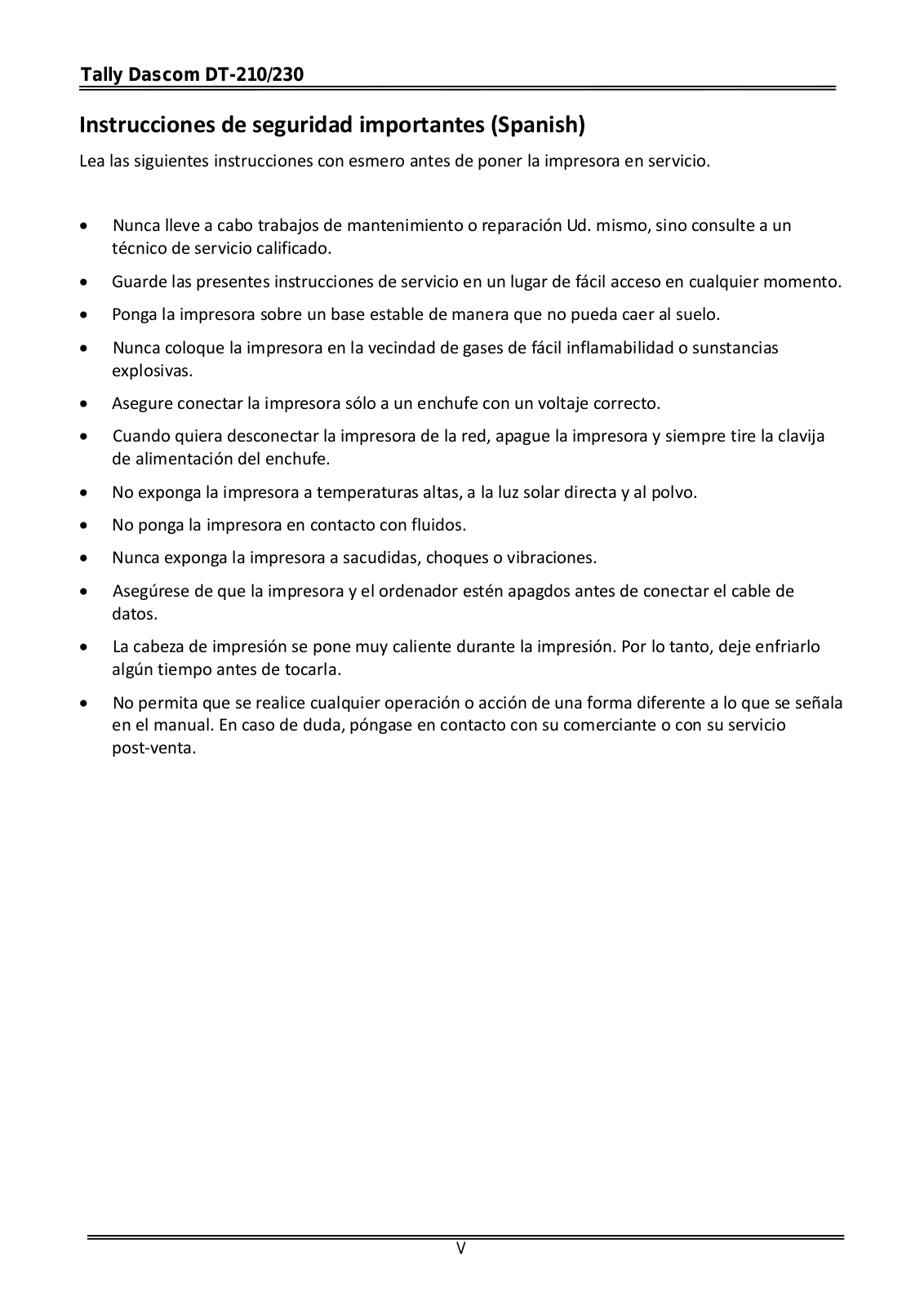

Instrucciones de seguridad importantes (Spanish)

Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio.

Nunca lleve a cabo trabajos de mantenimiento o reparación Ud. mismo, sino consulte a un técnico de servicio calificado.

Guarde las presentes instrucciones de servicio en un lugar de fácil acceso en cualquier momento.

Ponga la impresora sobre un base estable de manera que no pueda caer al suelo.

Nunca coloque la impresora en la vecindad de gases de fácil inflamabilidad o sunstancias explosivas.

Asegure conectar la impresora sólo a un enchufe con un voltaje correcto.

Cuando quiera desconectar la impresora de la red, apague la impresora y siempre tire la clavija de alimentación del enchufe.

No exponga la impresora a temperaturas altas, a la luz solar directa y al polvo.

No ponga la impresora en contacto con fluidos.

Nunca exponga la impresora a sacudidas, choques o vibraciones.

Asegúrese de que la impresora y el ordenador estén apagdos antes de conectar el cable de datos.

La cabeza de impresión se pone muy caliente durante la impresión. Por lo tanto, deje enfriarlo algún tiempo antes de tocarla.

No permita que se realice cualquier operación o acción de una forma diferente a lo que se señala en el manual. En caso de duda, póngase en contacto con su comerciante o con su servicio post venta.

Tally Dascom DT-210/230

Правила по технике безопасности. (Russian)

Прочитайте, пожалуйста, инструкцию по технике безопасности перед включением в работу принтера.

Не выполняйте технические работы и ремонт техники самостоятельно, но сообщайте о неисправностях квалифицированным сервисным техникам.

Данная инструкция должна быть всегда доступна каждому пользователю.

Установите принтер на ровном и стабильном месте так, чтобы он не смог упасть на пол.

Ни в коем случае не ставьте принтер вблизи легко воспламеняющихся газов и взрывчатых веществ.

Включайте принтер в розетку только с соответствующим напряжением.

Если Вы хотите отключить принтер от напряжения, сначала выключите принтер сам и затем выньте штекер из розетки.

Берегите принтер от нагревания, от попадания на него прямых солнечных лучей и пыли.

Не допускайте попадания жидкости на принтер.

Нельзя подвергать принтер тряске, ударам и вибрации.

Убедитесь, что принтер и компьютер выключены, только после этого соедините принтер с компьютером.

Печатающая головка нагревается во время работы принтера. Поэтому подождите какое то время, прежде чем дотронуться до нее.

Пользуйтесь принтером так, как это написано в документации. Если у Вас возникают неясности, обращайтесь с вопросами к Вашим продавцам или в сервисный центр.

Tally Dascom DT-210/230

Instruções Importantes sobre Segurança (Portuguese)

Leia as instruções de segurança antes de usar a impressora.

Consulte sempre um técnico qualificado para executar uma reparação .

Coloque a impressora sobre uma base sólida e nivelada, para que ela não sofra quedas.

Jamais instale a impressora nas proximidades de lugares onde haja gás inflamável ou substâncias explosivas.

Assegure se de conectar a impressora à tomada elétrica com a voltagem apro priada.

Quando desligar a impressora da rede, desligue sempre a impressora e retire o cabo da tomada.

Não exponha a impressora a temperaturas altas ou luz solar direta.

Não aproxime substâncias líquidas da impressora.

Proteja a impressora de choques, impactos e vibrações.

Desligue a impressora e o computador antes de conectar o cabo da rede.

A cabeça da impressora pode ficar muito quente . Portanto, espere algum tempo antes de tocá la.

Não faça nenhuma operação ou ação além das recomendadas neste manual. Em caso de dúvida, contate seu revendedor ou companhia de serviço.

VII

Tally Dascom DT-210/230

Önemli Güvenlik Talimatları (Turkish)

Lütfen, yazıcıyı işletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun.

Bakım ve tamir çalışmalarını kesinlikle ve hiçbir surette kendi başınıza yapmayın; her zaman kalifiye bir uzman servis teknisyenine haber verin.

Yazıcıyı, üzerinden yere düşmesi mümkün olmayacak sabit ve düz bir zemine yerleştirin.

Yazıcıyı kesinlikle ve hiçbir surette kolayca yanabilecek gaz veya patlayıcı maddeler içeren nesnelerin yakınına koymayın.

Yazıcı akım kablosunu sadece doğru gerilime sahip bir prize takın.

Yazıcıyı şebeke ağından ayırmak istediğinizde, yazıcıyı kapatın ve ağ fişini her zaman prizden çıkartın.

Yazıcıyı ne yüksek ısılı ne de doğrudan güneş ışığına ve toza mâruz kalan mekânlarda bulundurun.

Yazıcı hiçbir sıvı maddeyle temasta olmamalıdır.

Yazıcı hiçbir sarsıntıya, darbeye veya titreşime mâruz kalmamalıdır.

Veri kablosu bağlanmadan önce hem yazıcının hem de bilgisayarın kapalı olduklarından emin olmalısınız.

Yazıcının başı basma esnasında yüksek ısıya ulaşıyor. Bu yüzden lütfen dokunmadan önce kısa süre soğumasını bekleyin.

Yazıcının işletimi ve kullanımında bu dokümantasyondaki talimatların hiç dışına çıkmayın. Sorunlu görünen hususlarda lütfen imâlatçınıza veya müşteri hizmetleri servisinize başvurun.

VIII

Tally Dascom DT-210/230

TRADEMARK ACKNOWLEDGEMENTS

“IBM” is a trademark of International Business Machines Corporation. “EPSON” is a trademark of Epson America Incorporated.

“DEC” is a trademark of Digital Equipment Corporation.

“Centronics” is a trademark of Centronics Data Computer Corporation. “DOS” is a trademark of Microsoft Corporation.

“SAP” is a trademark of SAP AG.

“Windows”, “Windows 7”,”Windows 8”, “Windows 95”, “Windows 98“, “Windows NT”, “Windows 2000”, “Windows 2003/2008/2013 Server”, “Windows XP” and “Windows Vista” are trademarks of Microsoft Corporation.

All other product names and company names appearing in this manual are the registered trademarks or trademarks of the individual companies.

Tally Dascom DT-210/230

TABLE OF CONTENTS


1 PRINTER INSTALLATION GUIDE.....................................................................................................................			1
1.1	Unpacking the printer ....................................................................................................................................		1
1.2	Placing the printer..........................................................................................................................................		2
1.3	Printer components .......................................................................................................................................		3
1.4	Connecting the interfaces ..............................................................................................................................		4

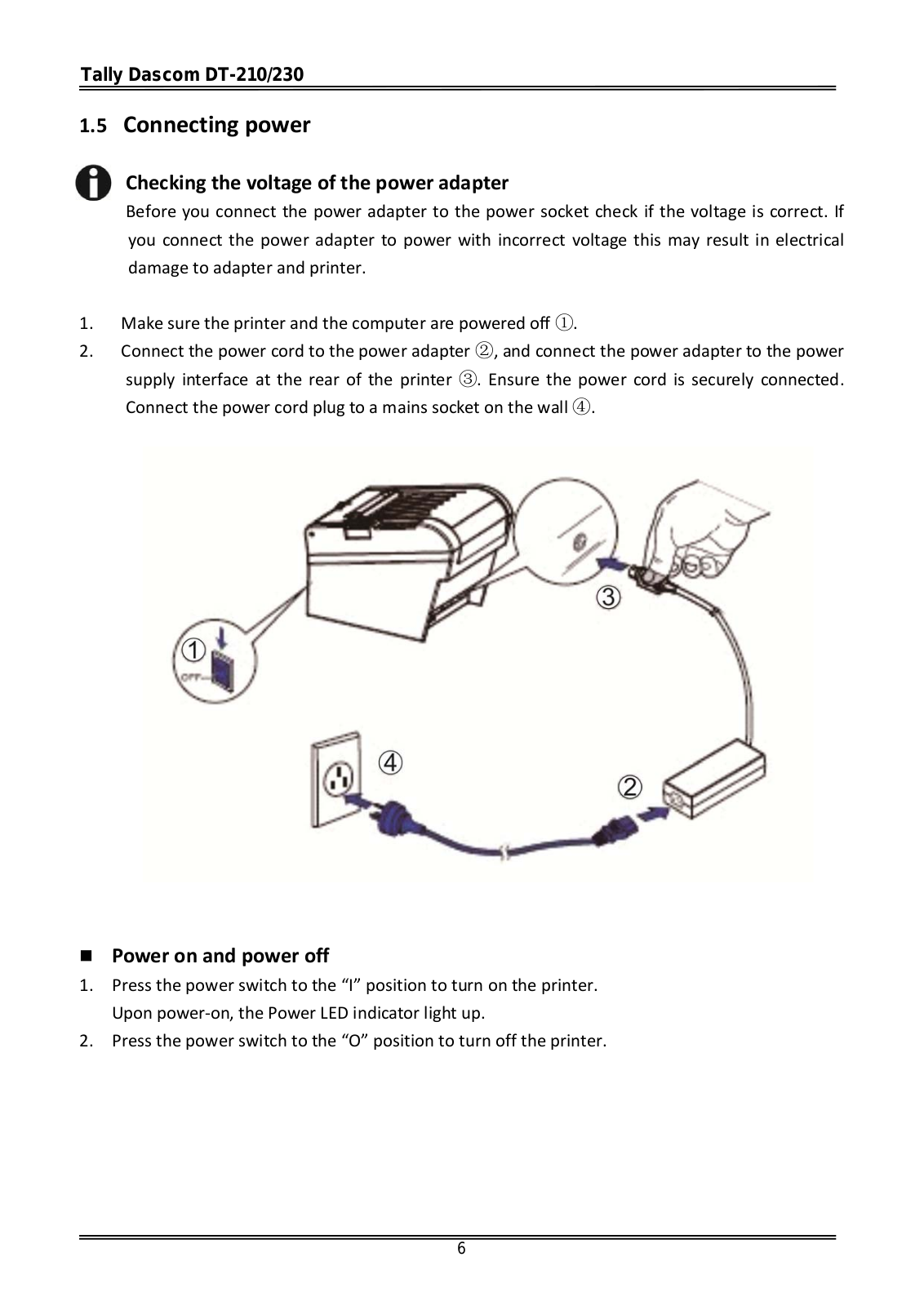

1.5	Connecting power..........................................................................................................................................		6
1.6	Adjusting the near end sensor .......................................................................................................................		7

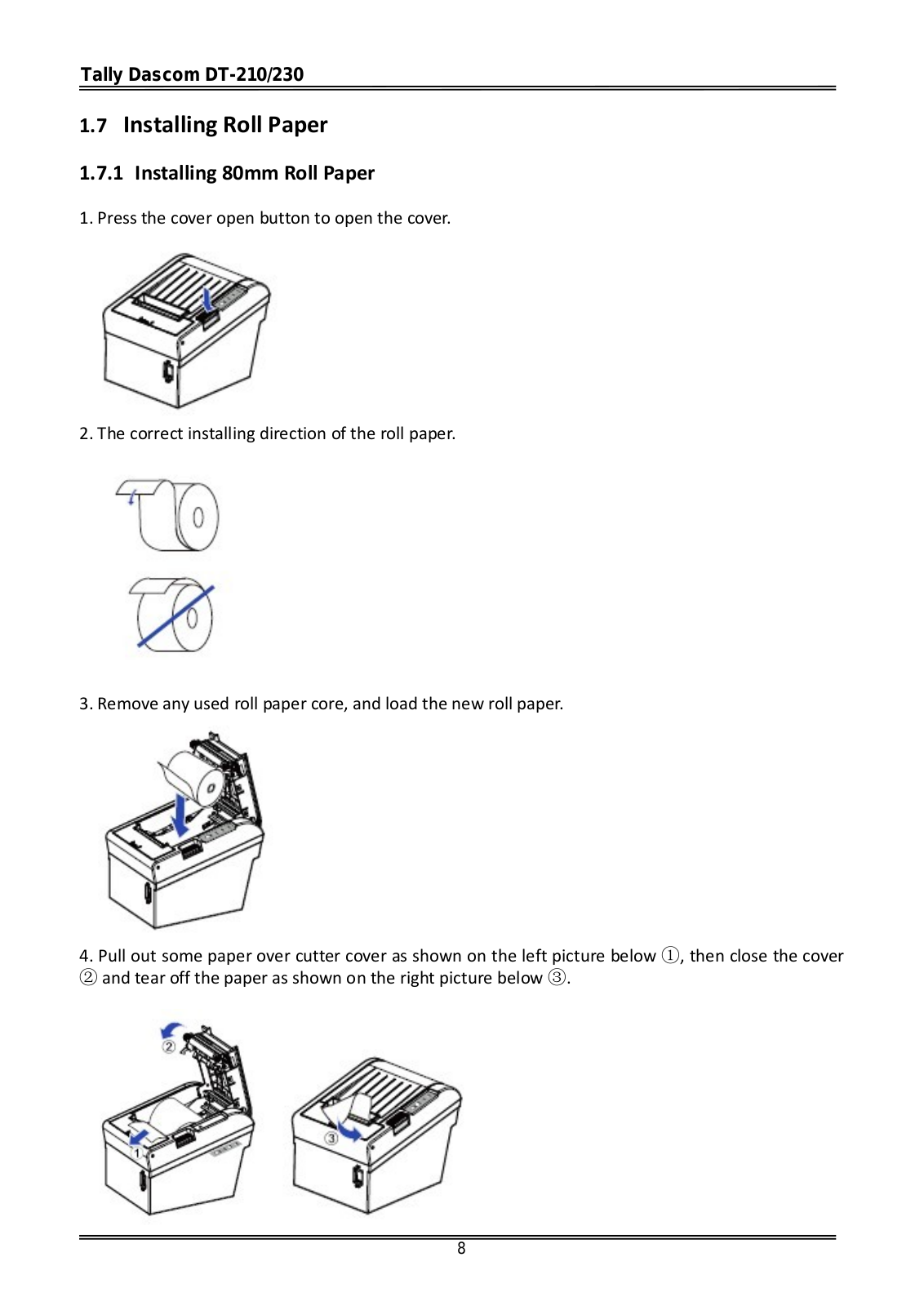

1.7	Installing Roll Paper........................................................................................................................................		8
1.7.1 Installing 80mm Roll Paper ........................................................................................................................			8
1.7.2 Installing 58mm Roll Paper ........................................................................................................................			9
1.8	Installing the accessory and optional kits ....................................................................................................		10
1.9	Installing the printer driver ..........................................................................................................................		11
2 CONTROL PANEL OPERATION .......................................................................................................................			18
3 SETTING DIP SWITCHES................................................................................................................................			19
4 TROUBLESHOOTING.....................................................................................................................................			22
4.1	Processing LED and printing error................................................................................................................		22
4.2	Removing jammed paper.............................................................................................................................		23
4.3	Cleaning thermal print head ........................................................................................................................		24
5 SPECIFICATIONS ...........................................................................................................................................			25
5.1	Printer specification .....................................................................................................................................		25
5.2	Interfaces ......................................................................................................................................................		27
5.2.1		USB interface.............................................................................................................................................	27
5.2.2		Cash Drawer interface...............................................................................................................................	27
5.2.3		Serial interface .........................................................................................................................................	28
5.2.4		Parallel interface ......................................................................................................................................	28
5.2.5		Ethernet interface ....................................................................................................................................	30
5.2.6		Wi Fi interface .........................................................................................................................................	30
5.3	Power adapter..............................................................................................................................................		30
5.4	Paper specification.......................................................................................................................................		31
6 CHARACTER CODE PAGES.............................................................................................................................			33
7 PRINTING CONTROL COMMAND SETS..........................................................................................................			48
FCC STATEMENT..............................................................................................................................................			52
DASCOM REPRESENTATIVES............................................................................................................................			53

Tally Dascom DT-210/230

1 Printer Installation Guide

1.1 Unpacking the printer

Open the packaging, lift the printer out of the cardboard box and remove the remaining packaging material. Check the printer for any visible transport damage and missing items. If you find any transport damage or any accessories are missing, please contact your dealer for assistance.

Please keep the packaging material for future transportation.

The shipping list varies with different customized order requirements.

Tally Dascom DT-210/230

1.2 Placing the printer

Place the printer on a solid, flat, stable surface; ensure that the printer is positioned in such a way that it cannot move, and that there is easy access to the control panel and roll paper holder. Also ensure that there is enough space for sufficient ventilation and for the printed output.

When selecting the printer location, observe the following additional instructions:

Never place the printer near to any flammable gas or explosive substances.

Do not expose the printer to direct sunlight. If you cannot avoid placing the printer near a window, protect it from the sunlight with a curtain.

When connecting a computer to the printer, make sure the maximum recommended cable length is not exceeded.

Ensure sufficient distance between the printer and any heating devices or radiators.

Avoid exposing the printer to extreme temperature or air humidity fluctuations. Avoid exposure to dusty environments.

It is recommended the printer is installed in a position which reduces noise exposure to the work place during printing.

Tally Dascom DT-210/230

1.3 Printer components

Printer components and functions are shown as below:

Component	Function

Printer Cover	Open the cover when loading roll paper.

Control Panel	Shows printer status.

Power Switch	To power printer ON or OFF.

Cutter Cover	To protect the auto cutter and to clear paper jam at cutter.

Cover Open Button	Press down to open the Printer Cover

Tally Dascom DT-210/230

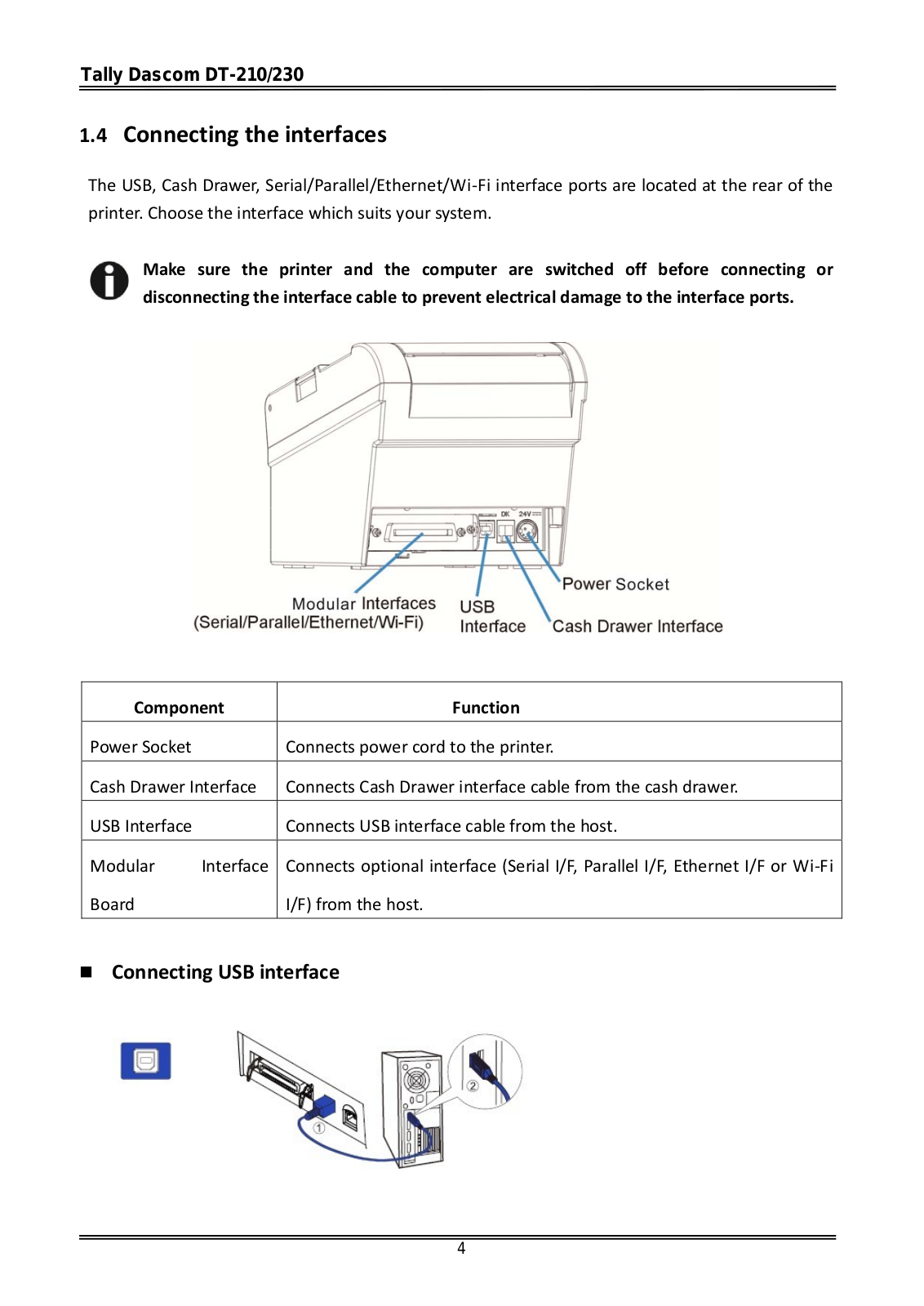

1.4 Connecting the interfaces

The USB, Cash Drawer, Serial/Parallel/Ethernet/Wi Fi interface ports are located at the rear of the printer. Choose the interface which suits your system.

Make sure the printer and the computer are switched off before connecting or disconnecting the interface cable to prevent electrical damage to the interface ports.

Component		Function

Power Socket		Connects power cord to the printer.

Cash Drawer Interface		Connects Cash Drawer interface cable from the cash drawer.

USB Interface		Connects USB interface cable from the host.

Modular	Interface	Connects optional interface (Serial I/F, Parallel I/F, Ethernet I/F or Wi Fi
Board		I/F) from the host.

 Connecting USB interface

Tally Dascom DT-210/230

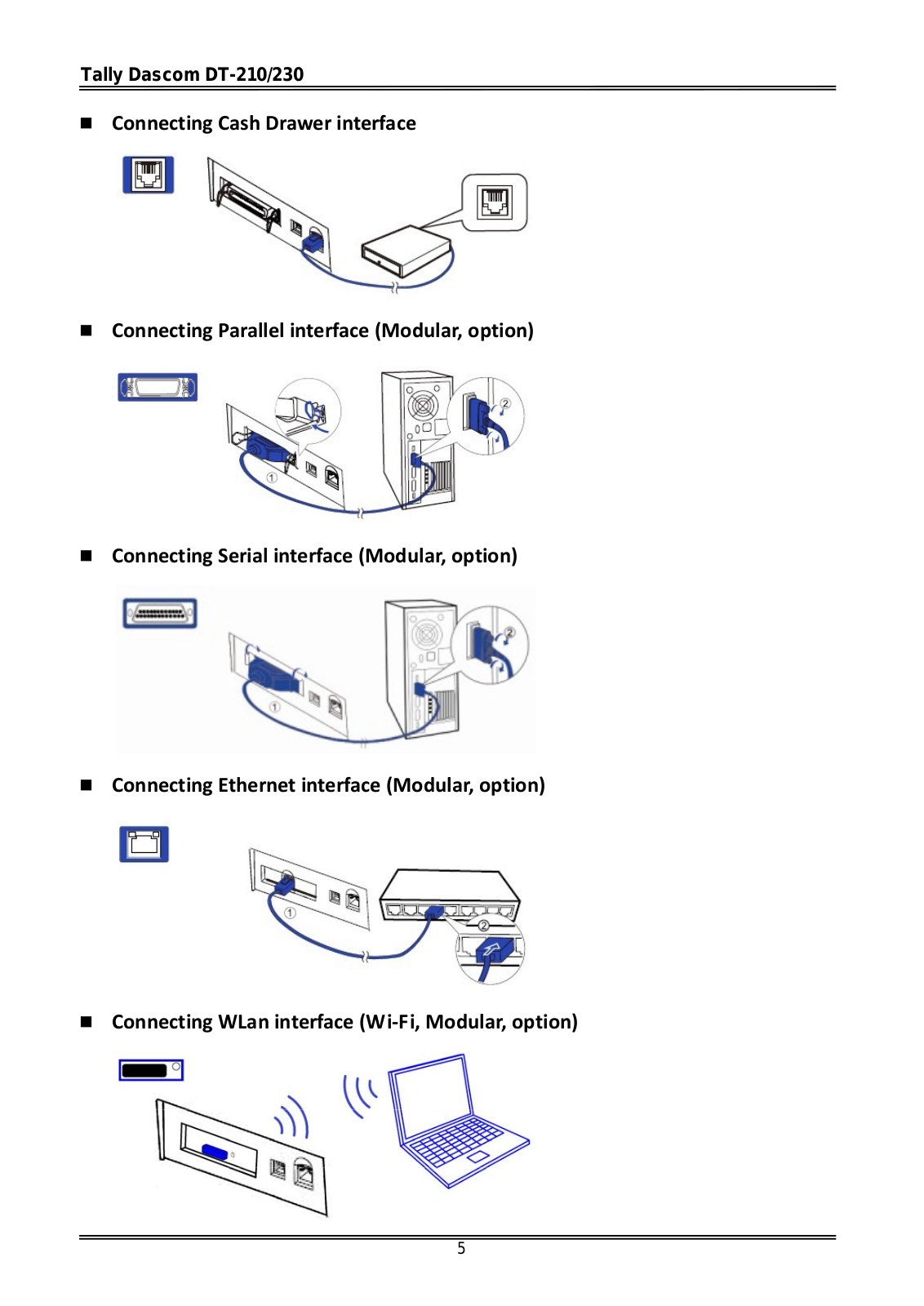

Connecting Cash Drawer interface

Connecting Parallel interface (Modular, option)

Connecting Serial interface (Modular, option)

Connecting Ethernet interface (Modular, option)

Connecting WLan interface (Wi Fi, Modular, option)

Tally Dascom DT-210/230

1.5 Connecting power

Checking the voltage of the power adapter

Before you connect the power adapter to the power socket check if the voltage is correct. If you connect the power adapter to power with incorrect voltage this may result in electrical damage to adapter and printer.

1.Make sure the printer and the computer are powered off .

2.Connect the power cord to the power adapter , and connect the power adapter to the power supply interface at the rear of the printer . Ensure the power cord is securely connected. Connect the power cord plug to a mains socket on the wall .

 Power on and power off

1.Press the power switch to the “I” position to turn on the printer. Upon power on, the Power LED indicator light up.

2.Press the power switch to the “O” position to turn off the printer.

Tally Dascom DT-210/230

1.6 Adjusting paper near end sensor

Open the printer cover. You will see a black lever inside as shown below.

The printer has a paper near end sensor that provides notice that the paper roll is nearly exhausted. When the paper is running low, the paper LED is lit red.

If you find that there is not enough paper remaining on the roll when the near end sensor is triggered, you can change the near end sensor setting.

Adjustments:

The paper near end lever is continuously adjustable from “1” to “6”.

1.	Minimum paper remains until paper end.	(Paper roll diameter about 26mm)
2.	Paper remains until paper end.	(Paper roll diameter about 27mm)
3.	Paper remains until paper end.	(Paper roll diameter about 28mm)
4.	Paper remains until paper end.	(Paper roll diameter about 30mm)
5.	Paper remains until paper end.	(Paper roll diameter about 32mm)
6.	Maximum paper remains until paper end.	(Paper roll diameter about 33mm)

Tally Dascom DT-210/230

1.7 Installing Roll Paper

1.7.1 Installing 80mm Roll Paper

1. Press the cover open button to open the cover.

2. The correct installing direction of the roll paper.

3. Remove any used roll paper core, and load the new roll paper.

4. Pull out some paper over cutter cover as shown on the left picture below , then close the coverand tear off the paper as shown on the right picture below .

Tally Dascom DT-210/230

1.7.2 Installing 58mm Roll Paper

If you want to install 58mm roll paper, open the printer cover, you will see a roll paper guide on the right side of the paper holder.

Please do not move the roll paper guide from right to left directly to avoid breaking the separator.

1.Hold the roll paper guide and carefully pull it out in the direction of arrow.

2.Move roll paper guide from right side to the specified position near the middle of paper holder, and carefully insert it into the specified position.

3.Then you can install the 58 roll paper as 80mm roll paper installation above.

Roll Paper Guide

+ 44 hidden pages
