Daewoo DF-5500(S/P), DFX-6502(S/P), DF-6500(S/P), DFX-5502(S/P) Service Manual

DVDR + VCR Combi

OCT. 2006

DF-5500(S/P) DF-6500(S/P) DFX-5502(S/P) DFX-6502(S/P)

DFX6502001

SPECIFICATIONS...............................................................................................................2

TROUBLE SHOOTING....................................................................................................................3

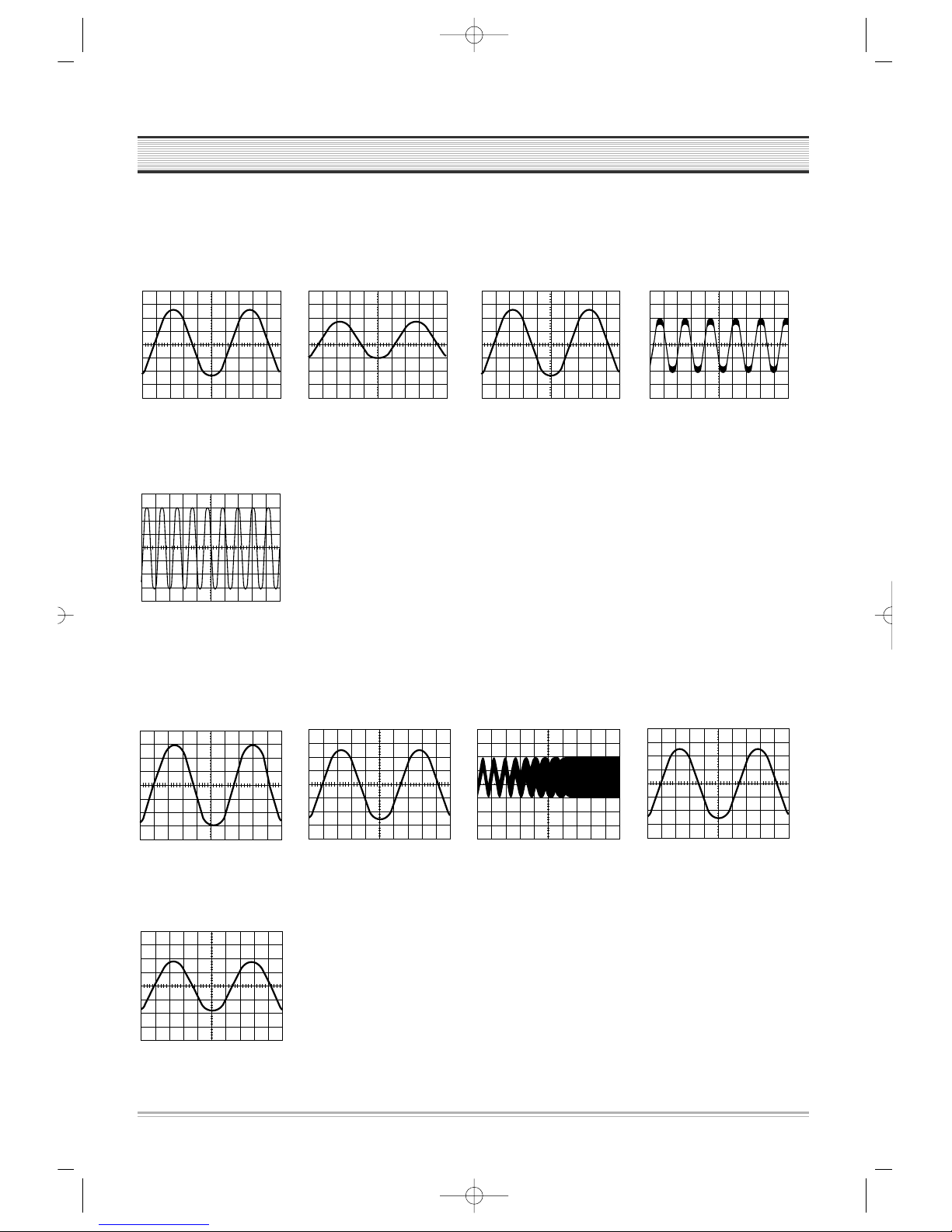

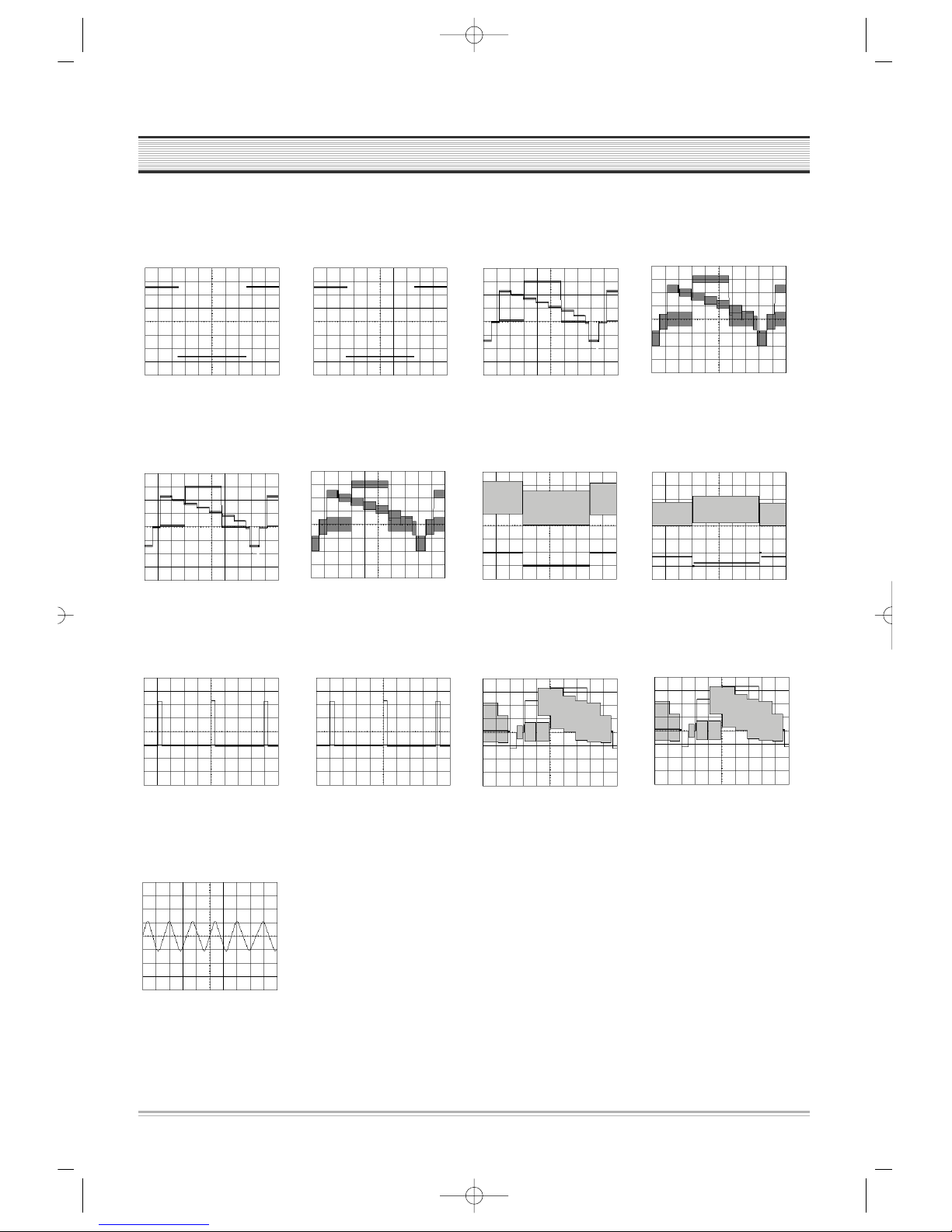

WAVEFORMS................................................................................................................................24

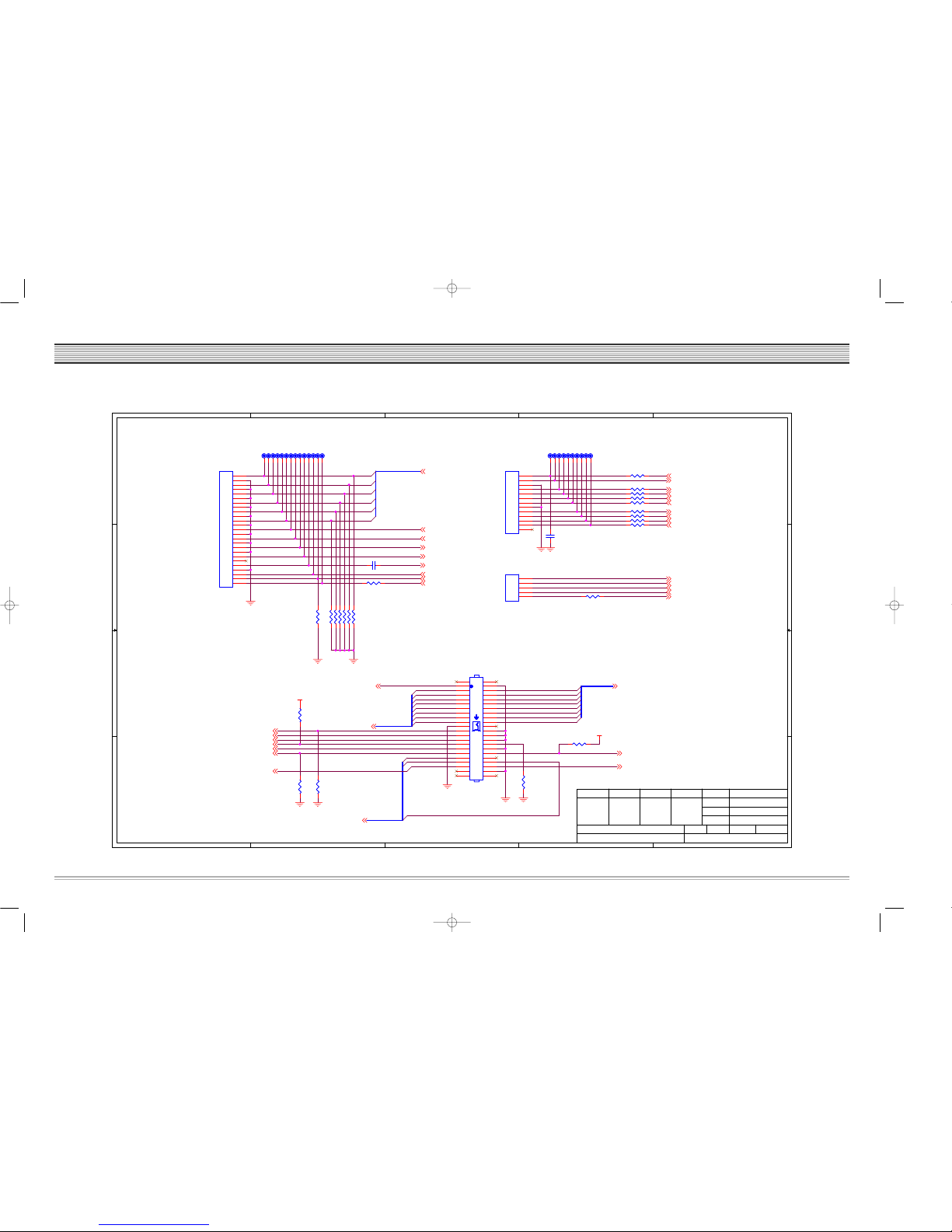

CIRCUIT DIAGRAM.......................................................................................................................27

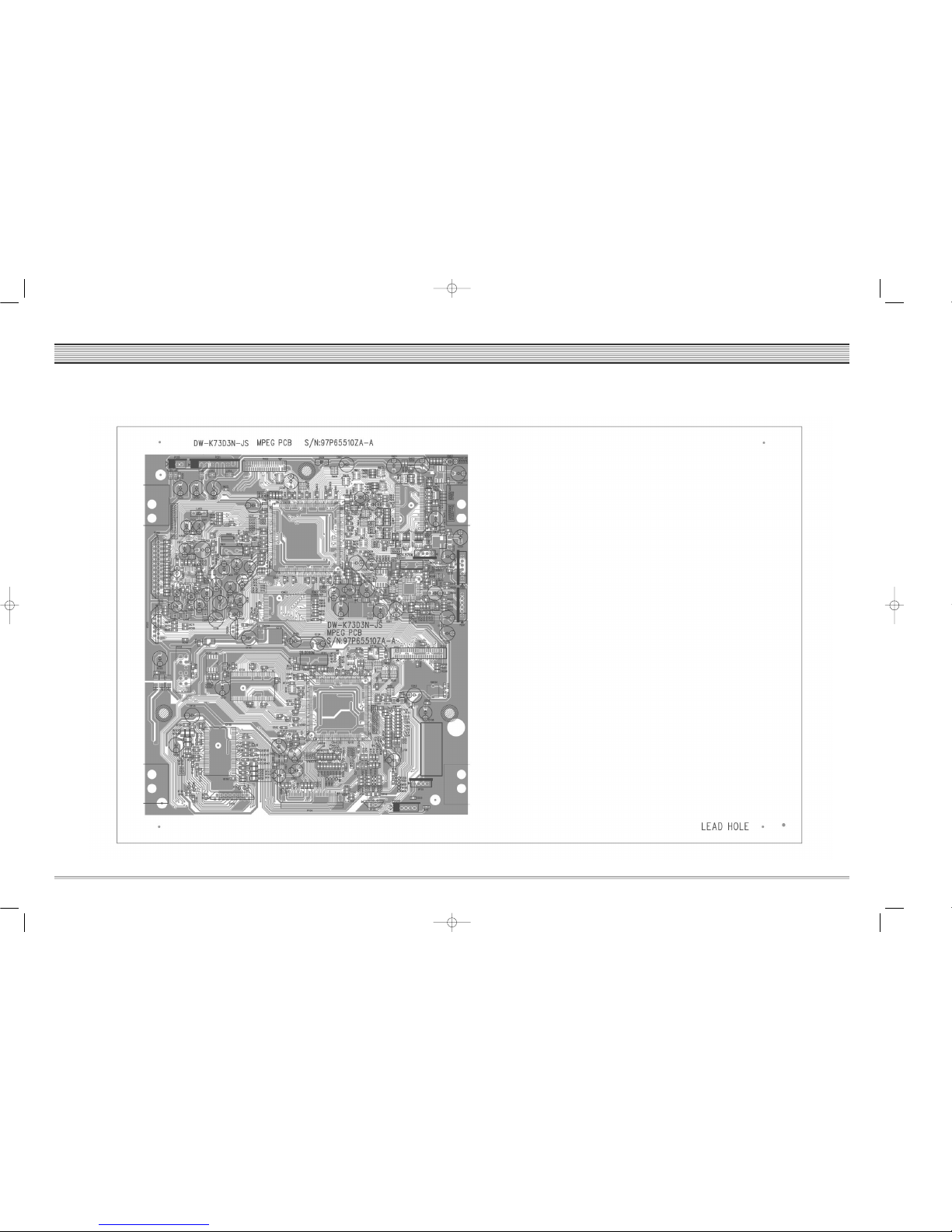

PCB CIRCUIT BOARD..................................................................................................................43

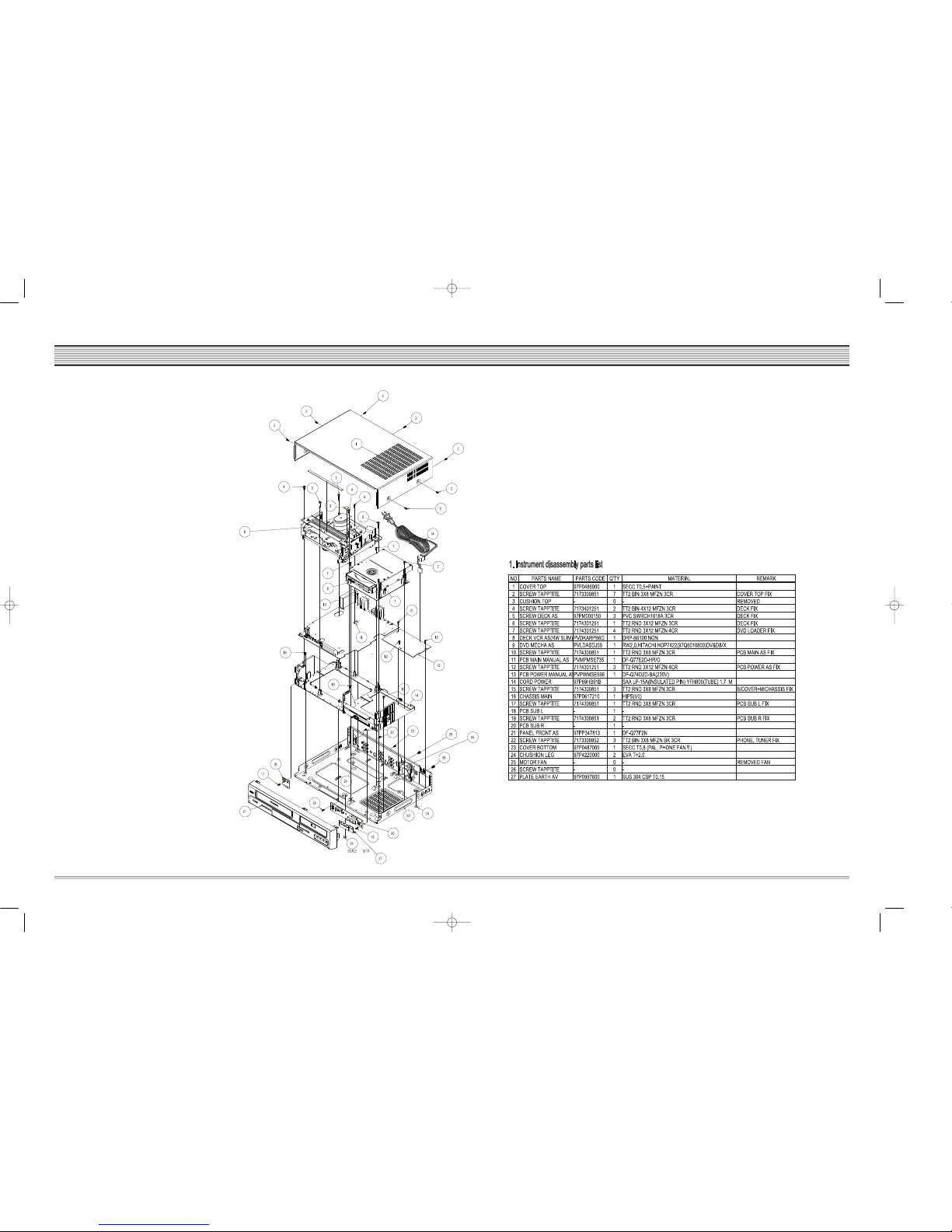

INSTRUMENT DISASSEMBLY.....................................................................................................46

ELECTRICAL PARTSLIST............................................................................................................47

CONTENTS

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 1 mac001 1200DPI 80LPI

SPECIFICATIONS

General

Power requirements 200–240V~, 50/60 Hz

Power consumption 26W

Dimensions (approx.) 430 x 92 x 312 mm (w x h x d)

Mass (approx.) 4.96 kg

Operating temperature 41°F to 95°F (5°C to 35°C)

Operating humidity 5% to 90%

Signal system PAL Colour

Recording

Recording formats DVD Video Recording, DVD-VIDEO

Recordable discs DVD+R, DVD+RW, DVD-R, DVD-RW

Recordable time [DVD] Approx. 1 hour (HQ mode), 2 hours (SP mode), 4 hours (EP mode), 8 hours (SEP mode)

[VCR] SP: 3 hours (E-180), LP: 6 hours (E-180)

Video recording format

Sampling frequency 27MHz

Compression format MPEG 2

Audio recording format

Sampling frequency 48kHz

Compression format MPEG1 Layer2

VCR Specifications

Head system 4 Head Video, 2 Head Hi-Fi helical scan azimuth system

Timer 24-hour display type

Tape speed SP: 23.39 mm/sec, LP: 11.70 mm/sec

Tape width 12.7 mm

Rewind time less than 150 seconds (E-180)

Antenna 75 ohms (VHF/UHF)

Channel coverage VHF: 2-12, 13-20, 74-80 / UHF: 21-69 / CATV: 1-41

Frequency range 20Hz to 20kHz

Video S/N Over 43 dB (Standard recording) Audio S/N Over 65 dB (Hi-Fi), Over 40 dB (Mono)

Resolution Over 240 lines (Standard recording)

DVD Specifications

Laser system Semiconductor laser, wavelength 650 nm

Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz

Video S/N More than 60 dB

Audio S/N More than 90 dB

Dynamic range More than 90 dB

Resolution Over 500 lines (HQ Recording)

Inputs/RF Output

RF In Antenna or CATV input 75 Ω

Video In 1.0 Vp-p, unbalanced

Audio In -8.8 dBm

DV In 4 pin (i.LINK/IEEE 1394 standard)

RF Output CH. 52(Australlia;CH.36)

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 2 mac001 1200DPI 80LPI

TROUBLESHOOTING

1. No output voltage of POWER CIRCUIT

get input, DC 200~240 Valtage

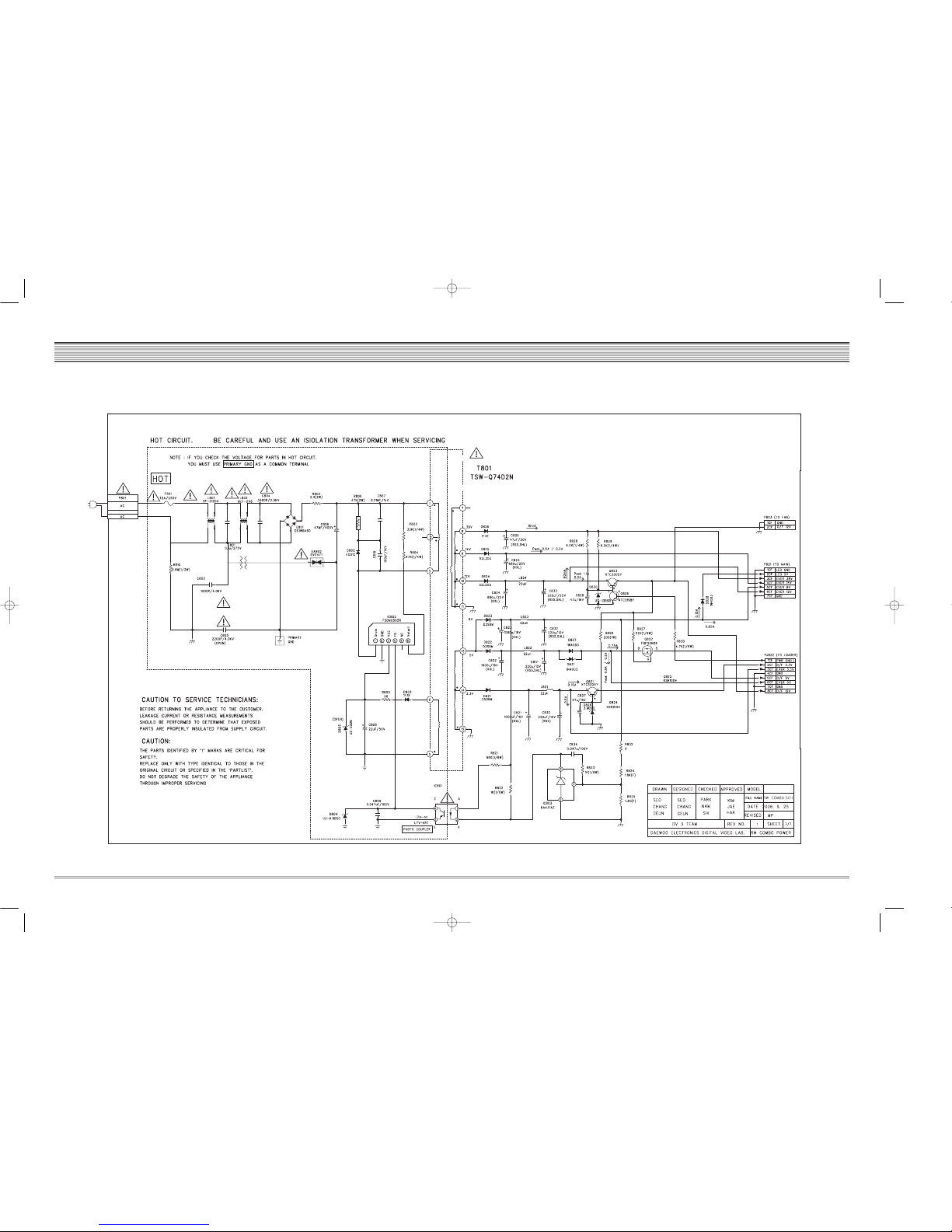

1. POWER CIRCUIT

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 3 mac001 1200DPI 80LPI

TROUBLESHOOTING

2. SYSTEM CIRCUIT

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 4 mac001 1200DPI 80LPI

TROUBLESHOOTING

P303 Check REMOCON_IN (Pin2)

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 5 mac001 1200DPI 80LPI

TROUBLESHOOTING

B. Digital Board(Mpeg)

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 6 mac001 1200DPI 80LPI

TROUBLESHOOTING

Noise appears on the

playback screen.

Is noise diminished by tracking

adjustment.

Noise band is trembled up and

down?

Re-adjust PATH.

Is the height of CTL HEAD normal?

No dust?

Is there problem in CTL Input circuit

and amplifier.

YES

Is there CTL pulse at IC501

pin#97?

Check IC501.

Noise appears on the screen even

though changing tape.

Re-adjust the height of AC HEAD.

Remove the dust.

Check C510,R545~R547

IC 501 pin #94, 95, 97.

Re-adjust PATH.

C-1. Bad playback quality (1)

YES

Noise appears on the Full

playback screen.

Are SW pulse and HA SW normal?

Recheck step B-1

(Bad playback quallty (1)).

Check HEAD AMP connector

and HEAD.

YES

ENVE Wave at P502 pin #4?

Check VIDEO circuit.

Are there SW, HA SW pulse at

IC501 pin #16, 18?

Check PCB Pattern.

Check IC501.

C-2. Bad playback quality (2)

YES

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 7 mac001 1200DPI 80LPI

TROUBLESHOOTING

No broadcasting signal

received

Is the output at IC501 pin#

61(CLK), 60 (DATA) normal?

Is SIF,Video output at TMI(RF101)

pin#16,19 normal?

Check IC 501.

Check P302

YES

Is Video Signal input at IC501

pin#56?

Is there Video output at P302

pin#5?

Check TMI (RF101) Block.

Check Video Buffer Q670

D. No broadcasting signal received

YES

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 8 mac001 1200DPI 80LPI

TROUBLESHOOTING

Cassette tape isn’t inserted.

Is 5V voltage obtained at Loading

parts IC501 pin#63?

Is 14V voltage obtained at

Capstan Motor P501 pin#2?

Check at EVER 14V

Check D825

Connect Capstan and Loading Motor. Check connector and Capstan Motor.

YES

Is 13V voltage obtained at Each

parts of Loading Motor?

Replace Loading Motor.

Check D825 and POWER circuit.

E. No CASSETTE Loading

YES

F. AUTO STOP in Playback mode

VCR stops automatically in

playback mode.

Check R544,C516 and P501

pin#11.

Check S501, S502 REEL Sensor.

Is D.PG/FG pulse at IC501

pin#90 normal ?

Is C. FG pulse at IC501 pin#87

normal ?

Is there REEL Pulse at IC501

pin#79, 80?

Check and replace IC501.

YES

Check C.FG(R543,C517) and

P501 pin#1.

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 9 mac001 1200DPI 80LPI

TROUBLESHOOTING

G. DRUM Motor stops

H. CAPSTAN doesn’t rotate

CAPSTAN doesn’t rotate.

Is EVER 14V voltage obtained

at P501 pin#2?

YES

Is Capstan PWM fit to

IC501 pin#77?

Is 3.2V voltage obtained

at P501 pin#5?

Is 2.7V voltage obtained

at P501 pin#9?

Check P501 Connector and

Capstan Motor.

Check EVER 14V

(D825).

Check Capstan FG

(IC 501 pin# 87).

Check

R541,R540,R539,R538,C518

Check R537,R536,C521

DRUM Motor stops.

Is 14V voltage obtained at P501

pin#8?

YES

Is DRUM PWM fit to IC 501

pin#76?

Is 2.6V voltage obtained at

P501 pin#12?

Check Capstan Motor and

DRUM Motor.

Check EVER 14V

(D825).

Check DRUM PG/FG

(IC 501 pin# 90).

Check R534,R535,C519,C520.

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 10 mac001 1200DPI 80LPI

TROUBLESHOOTING

3. VIDEO circuit

A. EE screen doesn’t appear

EE MODE Picture NG

Is Video signal input at

IC301 pin#48,50,52,54?

Is 5V supplied at

pin#42,55,72,91of IC301?

Is C.S, DATA, CLOCK signal input pin#67,68,69 of IC301?

Check IF and SCART JACK.

Check POWER circuit.

Check IC501 pin #58,71,72

YES

Is signal output from pin#65 of

IC301?

YES

Check IC301

pin#62 Q-V Sync.

Is signal input into pin#21

of P302?

YES

Check PCB Pattern.

Is signal output from pin#5

of P302?

YES

Check MPEG circuit.

Is signal output at IC301

pin#61?

YES

Check PCB Pattern.

Is signal input at IC301

pin#56?

Check RF Output.

Check PCB Pattern & LINE

out.

YES

Check IC301.

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 11 mac001 1200DPI 80LPI

TROUBLESHOOTING

B. Playback picture doesn’t appear

1) No VCR Playback Picture

YES

Is Y SIGNAL output at IC301

pin#46?

Is VIDEO SIGNAL output at IC301

pin#65?

Check and Replace IC301.

PB video signal missing.

Is Envelope output from IC301

pin#79?

Same as EE MODE check.

Is 5V supplied at IC301 pin#91?

Is SW Pulse input at IC301

pin#70?

Is 5V obtained at IC301 pin#24,

42,55,72,91?

Check POWER 5V.

Check IC501 pin#18.

Clean head or Replace head.

Check POWER 5V.

Check PATTERN

YES

Does X301(4.43MHz)

oscillate?

Is Y SIGNAL input at IC301

pin#43?

Check PATTERN

YES

Replace X301.

Check and replace IC301.

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 12 mac001 1200DPI 80LPI

TROUBLESHOOTING

2)No DVD Playback Picture

Check RC54,(Digital board) Check R385, R386,R387,R400,R404(Analog board)

2) No DVD Playback Picture

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 13 mac001 1200DPI 80LPI

TROUBLESHOOTING

Is +5V supplied at IC301 pin#91?

YES

Is VIDEO SW Pulse input at IC301

pin#70?

Is REC signal output from IC301

pin#94,95,89,90?

SP MODE: 89,90 Pin

LP MODE: 94,95Pin

Check video HEAD and Connector.

Is signal input into IC301

pin# 48,50,52,54,56?

Check POWER circuit.

Check IC501 pin#18.

Record video signal poor.

Check EE MODE.

YES

Is luminance and color signal

output from IC301 pin#78?

Replace IC301.

YES

C. No Recording

1) VCR Part

YES

Is IC301 pin#80 REC(H) HIGH?

Check IC501 pin#1.

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 14 mac001 1200DPI 80LPI

TROUBLESHOOTING

DVD is not recording

Check RC54.(Digital board) Check R385, R386, R387, R400, R404(Analog board)

2) DVD Part

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 15 mac001 1200DPI 80LPI

TROUBLESHOOTING

4. AUDIO (Hi-Fi MODEL)

No sound in RF E-E mode

Is Audio signal output at IC602 pin

#3, 13?

A. No sound in E-E mode

a. RF E-E

Is Audio signal output at IC251

pin#16,17?

Are CLK and DATA obtained at

IC251 pin#42,43?

Is 5V obtained at IC251 pin#40?

Replace IC251.

YES

Is 12V obtained at IC251 pin#34?

YES

Check POWER circuit.

YES

Is 5V obtained at IC051 pin#1?

Check Power circuit.

Is there SIF signal at IC051 pin#2

in RF mode?

Check RF101.

YES

Is there SIF signal out at IC051

pin#30, 31?

Check IC051.

YES

Check Digital board(No sound in

E-E mode)

Check Output JACK.

YES

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 16 mac001 1200DPI 80LPI

TROUBLESHOOTING

b. AV1 E-E

No sound in AV1 E-E mode.

Check Input AV1 JACK

Is Audio signal at IC251 pin#6, 7?

Is Audio signal output at IC602 pin

#3, 13?

Is Audio signal output at IC251

pin#16,17?

Are CLK and DATA obtained at

IC251 pin#42,43?

Is 5V obtained at IC251 pin#40?

Replace IC251.

YES

Is 12V obtained at IC251 pin#34?

YES

Check POWER circuit.

YES

Check Output JACK.

YES

Check Digital board(No sound in

E-E mode)

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 17 mac001 1200DPI 80LPI

TROUBLESHOOTING

c. AV2 E-E

No sound in AV2 E-E mode.

Check Input AV2 JACK

Is Audio signal at IC251 pin#8, 9?

Is Audio signal output at IC602

pin #3, 13?

Is Audio signal output at IC251

pin#19, 20?

Are CLK and DATA obtained at

IC251 pin#42,43?

Is 5V obtained at IC251 pin#40?

Replace IC251.

YES

Is 12V obtained at IC251 pin#34?

YES

Check POWER circuit.

YES

Check Output JACK.

YES

Check Digital board(No sound in

E-E mode)

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 18 mac001 1200DPI 80LPI

TROUBLESHOOTING

d. FRONT E-E

No sound in FRONT E-E

mode.

Check Input FRONT JACK

Is Audio signal at IC251

pin#10,11?

Is Audio signal output at IC602 pin

#3, 13?

Is Audio signal output at IC251

pin#19, 20?

Are CLK and DATA obtained at

IC251 pin#42,43?

Is 5V obtained at IC251 pin#40?

Replace IC251.

YES

Is 12V obtained at IC251 pin#34?

YES

Check POWER circuit.

YES

Check Output JACK.

YES

Check Digital board(No sound in

E-E mode)

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 19 mac001 1200DPI 80LPI

TROUBLESHOOTING

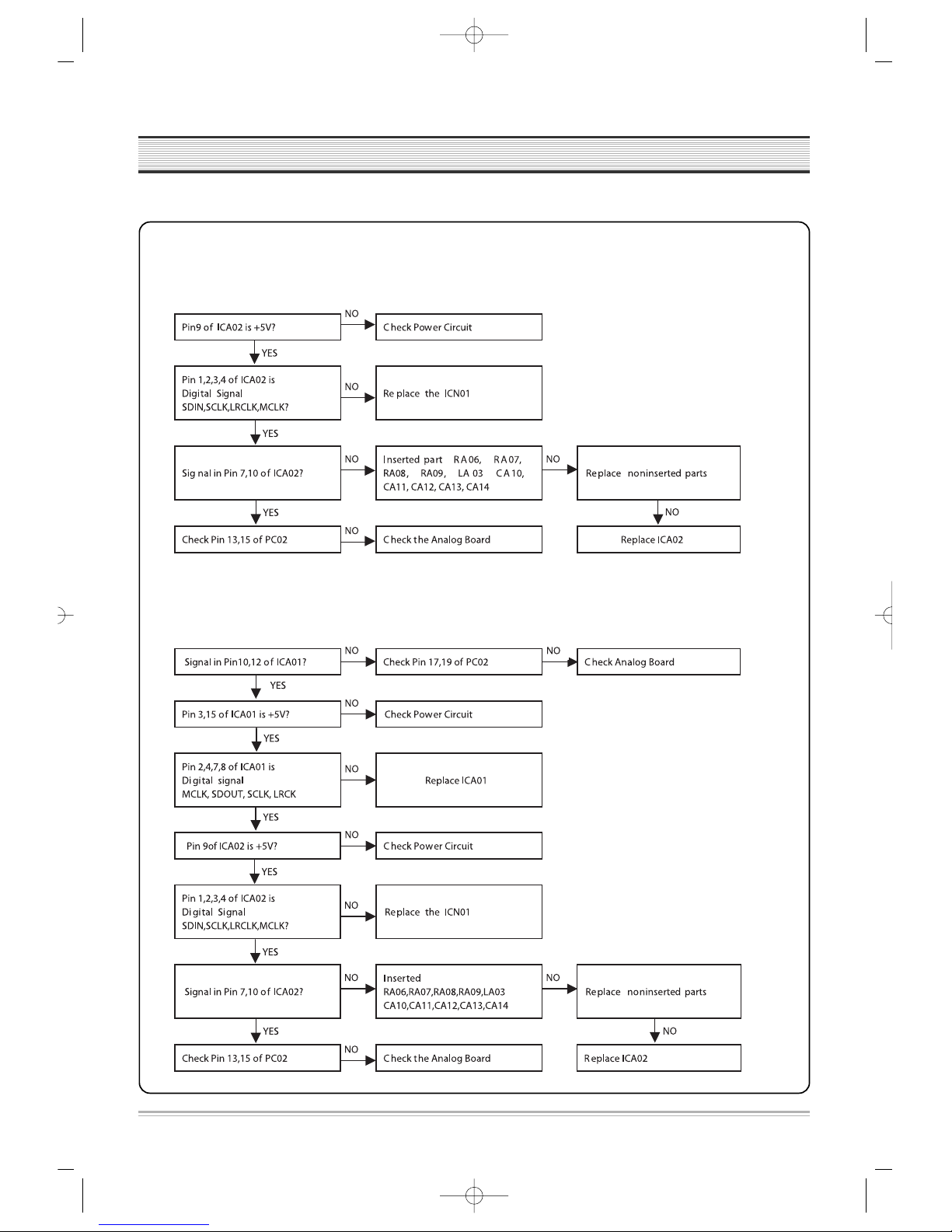

e. No sound in DVD Play mode and No VCR Sound(Digital Board)

f. No Sound in E-E Mode(Digital Board)

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 20 mac001 1200DPI 80LPI

TROUBLESHOOTING

g. No NORMAL AUDIO playback in record/playback mode(Check in REC mode)

No Normal Audio playback in

record/playback mode

Are there Audio signal at IC251

pin#2~11?

Is there recording signal at

IC251 pin#21?

Check Input SCART JACK.

Check Input Front JACK.

Check ICD02(DVD)

Check signal flow circuit.

YES

Signal at IC251 pin#21 is transferred to

IC301 pin#13,15,17?

Collect signal at C222 is about

70Vp-p at 70KHz?

Check IC251.

YES

Check Q203.

Check P201 pin#2, 4, 8 and A/C

HEAD.

YES

REC (H) BASE voltage at Q206

is 5V?

Check IC501 pin#45.

YES

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 21 mac001 1200DPI 80LPI

TROUBLESHOOTING

h. No Hi-Fi Playback audio(PLAY MODE)

Check A.SW at IC501

pin#19.

Is Audio signal at IC251 pin#41?

Is Audio signal output at IC602 pin

#3, 13?

Is Audio signal output at IC251

pin#16,17?

Are CLK and DATA obtained at

IC251 pin#42,43?

Is 5V obtained at IC251 pin#40?

Replace IC251.

YES

Is 12V obtained at IC251 pin#34?

YES

Check POWER circuit.

YES

Check Output JACK.

YES

Check Digital board(No sound in

E-E mode)

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 22 mac001 1200DPI 80LPI

TROUBLESHOOTING

i. No Hi-Fi playback in record/playback mode (REC MODE)

Are there Audio signal

at IC251 pin#2~11?

Is FM OSC signal at IC251

pin#36?

Check input SCART JACK.

Check input front jack.

Check ICD02(DVD).

Replace DRUM.

YES

Is FM OSC signal at P401 pin#2?

Replace IC251

YES

HEAD CLEANING.

YES

j. No NORMAL AUDIO playback (PLAY MODE)

Is Playback Audio signal at

IC301 pin#11?

Replace IC251.

YES

Is there Playback Normal Audio

signal at IC251 pin #16,17?

Check A/C HEAD and IC301

YES

Check Output JACK.

YES

Is there normal Audio signal at

IC251 pin#17, 18?

Check power circuit.

Voltage at IC251 pin#34 is 12V?

Voltage at IC251 pin#40 and at

IC301 pin#18 is 5V?

k. No Sound in JK101 COAXIAL Jack.

Pin #25 of P302 is Digital

signal SPDIF?

Check JK102 and PCB pattern.

Check Digital board.

YES

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 23 mac001 1200DPI 80LPI

WAVEFORMS

1. VIDEO

(IC301-70) 5Vp-p

1V/2msec/cm REC

(IC301-70)5Vp-p 1V/2msec/cm PLAY

(IC301-46) 520mVp-p 200mV/5usec/cm REC

(IC301-46) 520mVp-p

200mV/5usec/cm PLAY

(IC301-43) 520mVp-p

100mV/5usec REC

(IC301-43) 520mVp-p

100mV/5usec PLAY

(IC301-21) 600mVp-p 200mV/2msec/cm

PLAY(SP) VIDEO SW TRIG

(IC301-21) 350mVp-p 200mV/2msec/cm

PLAY(EP) VIDEO SW TRIG

(IC301-67) 4.6Vp-p 2V/10usec/cm REC/PLAY

(IC301-67) 4.6Vp-p

2V/10usec/cm PICTURE SEARCH

(IC301-65) 2.2Vp-p 500mV/5usec/cm REC

(IC301-65) 2.2Vp-p

500mV/5usec/cm PLAY

(IC301-28) 450mVp-p

200mV/0.1usec/cm

DF-5500/DFX-5502 SVC 2006.10.14 10:7 AM ˘ ` 24 mac001 1200DPI 80LPI

2. AUDIO 2-1 AUDIO(Normal)

2-2 AUDIO(Hi-Fi)

(IC301-15) 100mVp-p

20mV/0.5msec/cm REC

(

(IC301-11) 1.5Vp-p

0.5V/0.5msec/cm REC

)

(IC301-100) 2.3Vp-p

0.5V/0.5msec/cm REC

(IC301-8) 120mVp-p 50mV/0.5msec/cm PLAY

(P202-1) 75Vp-p 10V/20µsec/cm REC

(IC251-2) 80mVp-p 20mV/0.5msec EE/REC/PLAY

(IC251-24) 200mVp-p

50mV/0.5msec EE/REC

(IC251-34) 1.4Vp-p

0.5V/1msec REC

(IC251-32) 200mVp-p 50mV/0.5msec EE/REC

(IC251-16) 1.4Vp-p

0.5V/0.5msec EE/REC

DF-5500/DFX-5502 SVC 2006.10.14 10:7 AM ˘ ` 25 mac001 1200DPI 80LPI

WAVEFORMS

3. SERVO/SYSCON

(IC501-18) 5Vp-p 2V/5msec/cm REC/PLAY

(IC501-77) 5Vp-p 2V/5µsec/cm REC/PLAY

(IC501-76) 5Vp-p 2V/5µsec/cm REC/PLAY

“

(IC501-94) 3Vp-p

1V/5msec/cm REC

‘

(IC501-97) 4.4Vp-p

1V/5msec/cm PLAY

(IC501-90)25Vp-p&5Vp-p

1V/5msec/cm REC/PLAY

(IC501-87) 2.5Vp-p 1V/0.2msec/cm REC/PLAY

(IC501-38) 2.6Vp-p

0.5V/0.1µsec/cm REC/PLAY

DF-5500/DFX-5502 SVC 2006.10.14 10:7 AM ˘ ` 26 mac001 1200DPI 80LPI

CIRCUIT DIAGRAM

1. SERVO & SYSCON SCHEMATIC DIAGRAM(VE2.0 PAL RW COMBO)

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` ac mac001 1200DPI 80LPI

CIRCUIT DIAGRAM

2. AV IC SCHEMATIC DIAGRAM(VE2.0 PAL RW COMBO)

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` ae mac001 1200DPI 80LPI

CIRCUIT DIAGRAM

3. Hi-Fi & SW & IN OUT CIRCUIT SCHEMATIC DIAGRAM(VE2.0 PAL RW COMBO)

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` ag mac001 1200DPI 80LPI

4. ADC/DAC/VIDEO AMP. IC SCHEMATIC DIAGRAM(VE2.0 PAL RW COMBO)

CIRCUIT DIAGRAM

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` ai mac001 1200DPI 80LPI

CIRCUIT DIAGRAM

5. FRONT PART SCHEMATIC DIAGRAM(VE2.0 PAL RW COMBO)

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` ak mac001 1200DPI 80LPI

CIRCUIT DIAGRAM

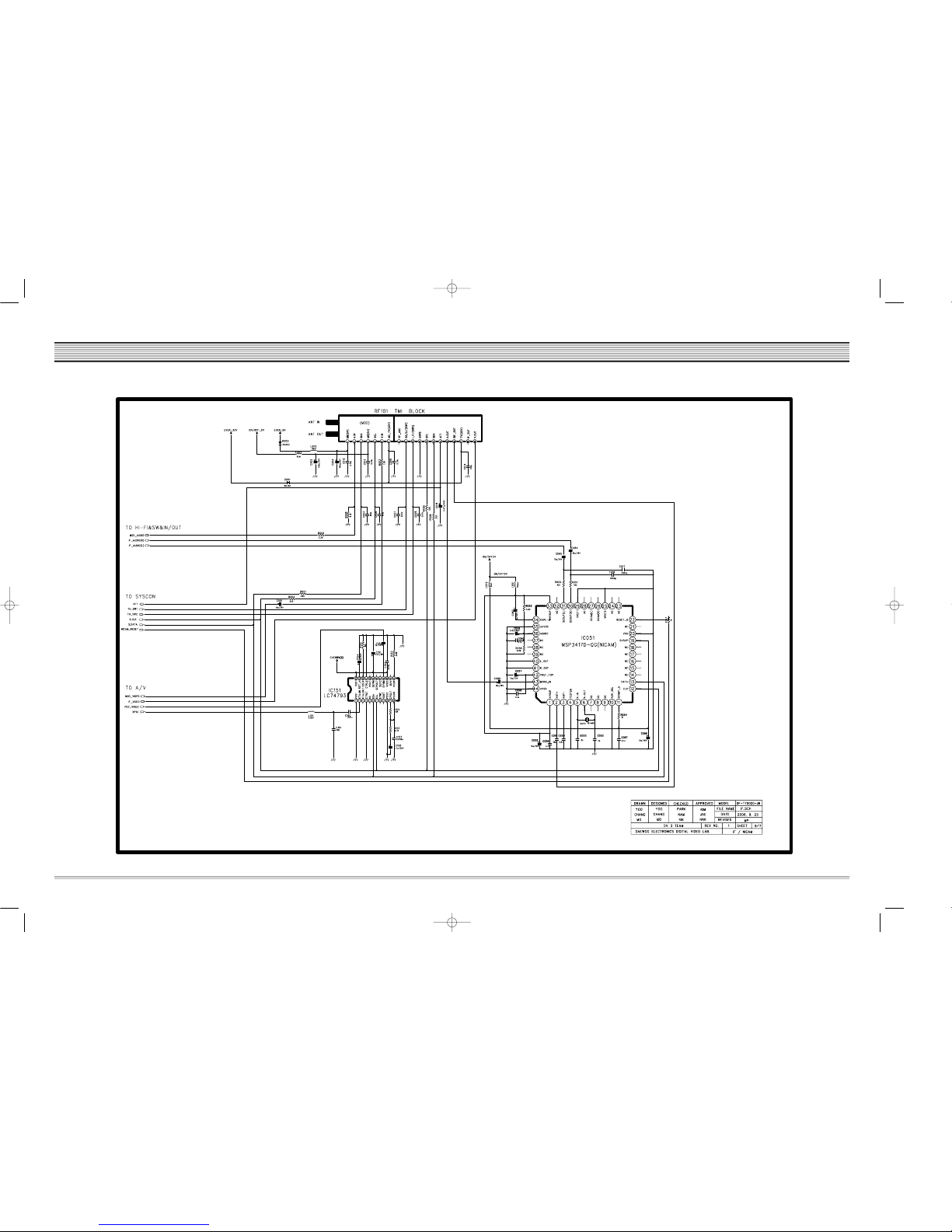

6. TUNER, NICAM SCHEMATIC DIAGRAM(VE2.0 PAL RW COMBO)

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` am mac001 1200DPI 80LPI

CIRCUIT DIAGRAM

7. POWER SUPPLY SCHEMATIC DIAGRAM( VE2.0 PAL RW COMBO)

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` ao mac001 1200DPI 80LPI

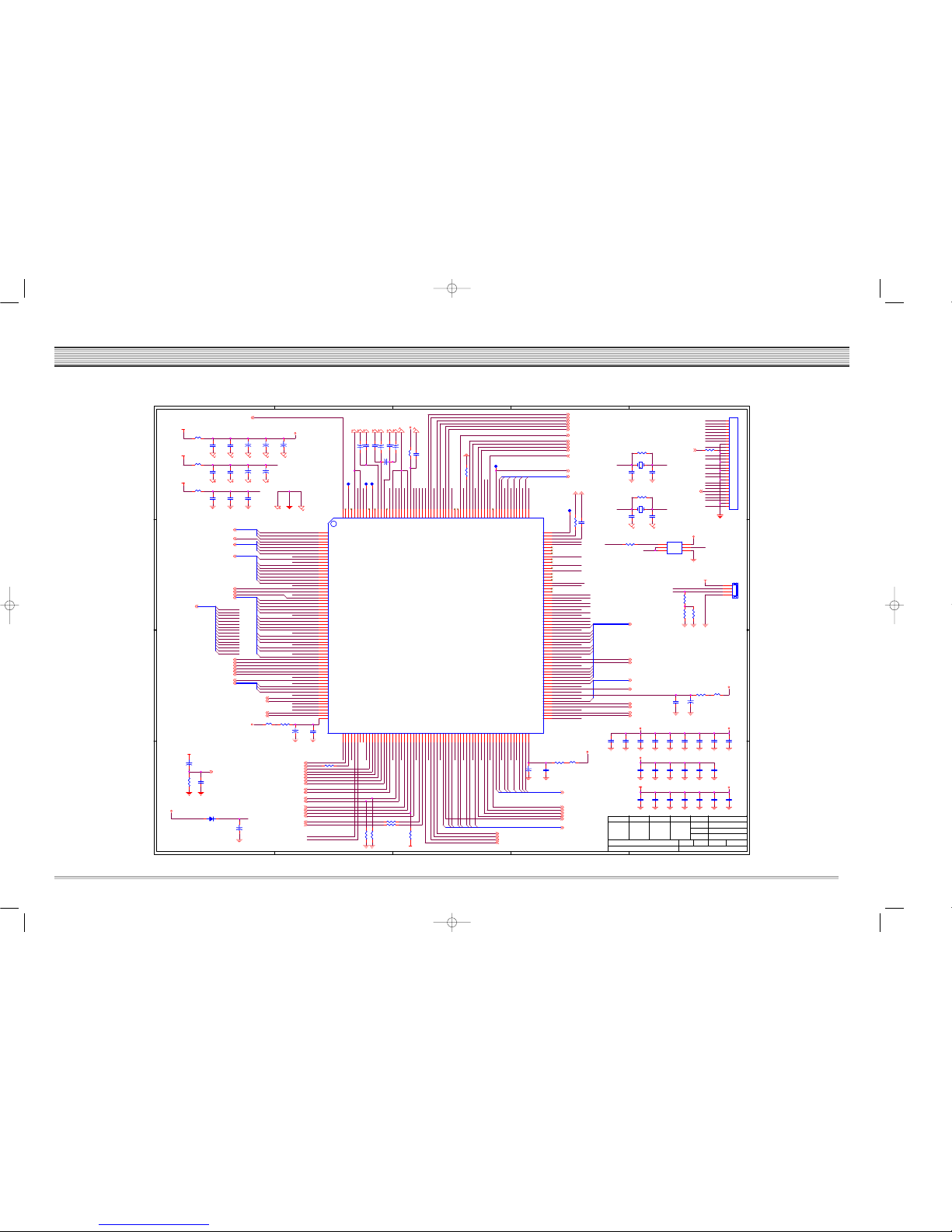

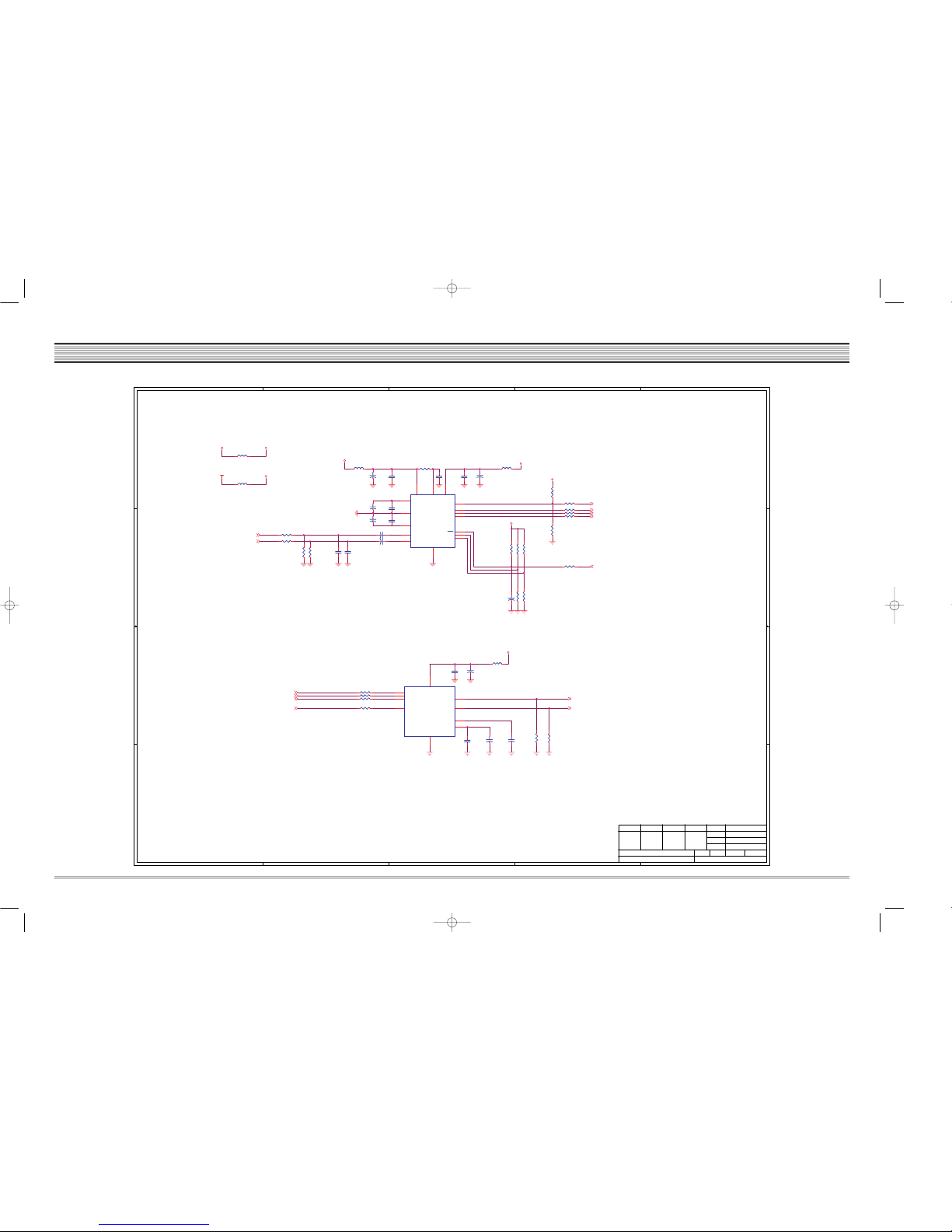

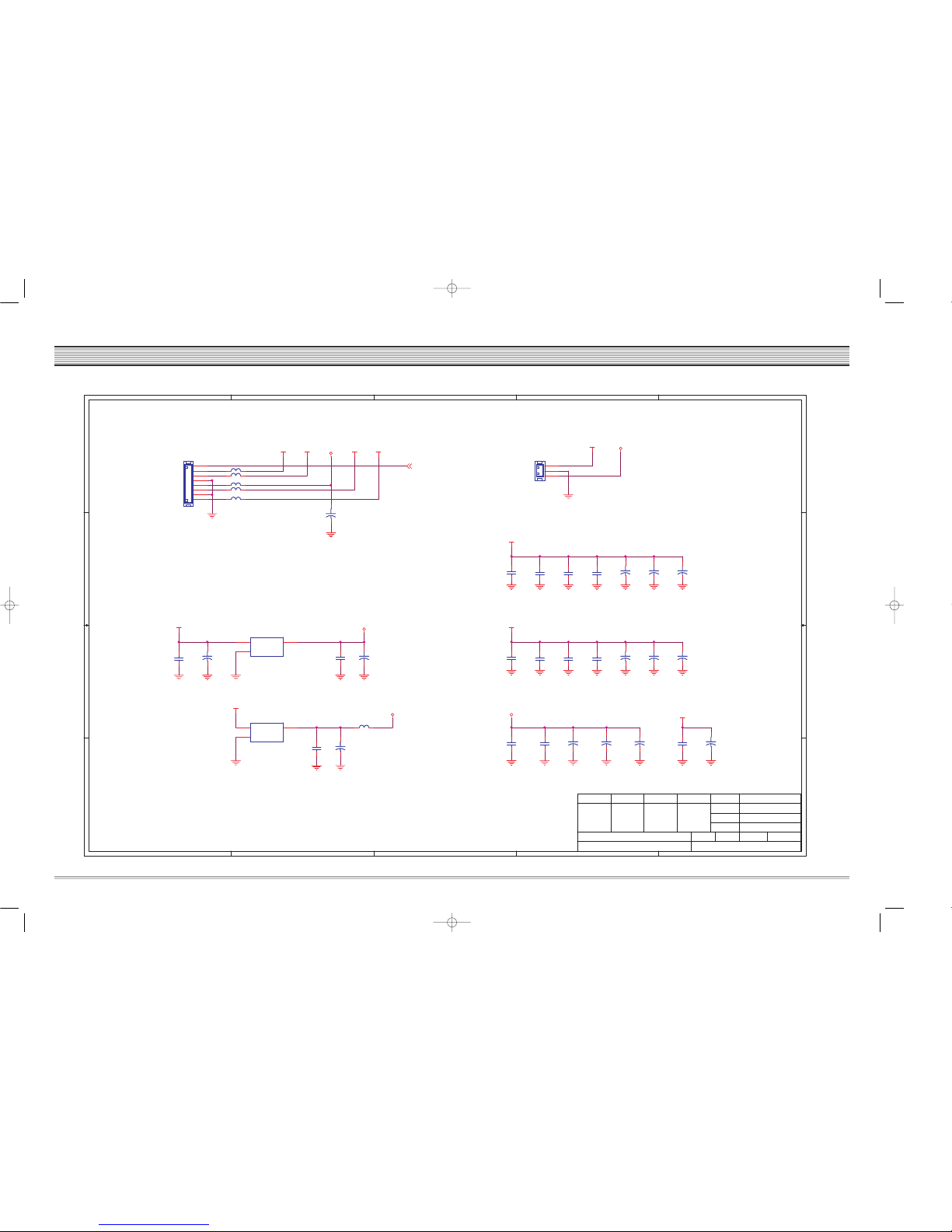

CIRCUIT DIAGRAM

4 4

3 3

2 2

1 1

+5V_STBY

+12V_O/F

+3V3_STBY

+3V3_O/F

+5V_O/F

SDV25

+3V3_STBY

+1V8_STBY +1V8_STBY

+12V_O/F

+5V_STBY

+12V_O/F+3V3_O/F

VCC

+3V3_STBY +5V_STBY

+3V3_STBY

+3V3_O/F

VCC

POWER_ON(L)_DVD [ 2 ]

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

A1 : POWER

1 9

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

A1 : POWER

1 9

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

A1 : POWER

1 9

HDMI power connector

Monday, September 25, 2006

CC26

0.1uF

CC26

0.1uF

CC30

220uF/6.3V

CC30

220uF/6.3V

CC31

0.1uF

CC31

0.1uF

CC28 220uF/6.3V

ADJ/GND

OUT2IN

ICC03

AAC1117-1.8

TO-252-3/SMD

ICC03

AAC1117-1.8

TO-252-3/SMD

CC24 220uF/6.3V

CC32

100uF/16v

CC32

100uF/16v

CC21

0.1uF

CC21

0.1uF

CC17

220uF/6.3V

CC17

220uF/6.3V

LC01 FB/2012LC01 FB/2012

CC07

220uF/6.3V

CC07

220uF/6.3V

CC19

0.1uF

CC19

0.1uF

CC15

0.1uF

CC15

0.1uF

CC08

0.1uF

CC08

0.1uF

CC23 220uF/6.3V

CC22

0.1uF

CC22

0.1uF

PC05

3x1

PC05

3x1

CC29 220uF/6.3V

PC01

8x1 W/HOUSING

CN1MP08

PC01

8x1 W/HOUSING

CN1MP08

CC06

0.1uF

CC06

0.1uF

LC03 FB/2012LC03 FB/2012

CC18

220uF/6.3V

CC18

220uF/6.3V

LC04 FB/2012LC04 FB/2012

CC14

0.1uF

CC14

0.1uF

LC06 FB/2012LC06 FB/2012

ADJ/GND

OUT2IN

ICC02

AAC1117-2.5

SOT223/SMD

ICC02

AAC1117-2.5

SOT223/SMD

CC16

220uF/6.3V

CC16

220uF/6.3V

CC11

22uF/16V

CC11

22uF/16V

CC33

220uF/6.3v

CC33

220uF/6.3v

CC09

47uF/16v

CC09

47uF/16v

CC13

0.1uF

CC13

0.1uF

CC12

0.1uF

CC12

0.1uF

LC05 FB/2012LC05 FB/2012

LC02 FB/2012LC02 FB/2012

CC27

0.1uF

CC27

0.1uF

CC10

0.1uF

CC10

0.1uF

CC20

0.1uF

CC20

0.1uF

CC25 220uF/6.3V

DF-5500/DFX-5502 SVC 2006.10.16 2:44 PM ˘ ` aq mac001 1200DPI 80LPI

CIRCUIT DIAGRAM

4 4

3 3

2 2

1 1

A_DQS1

S-CS

RST

SDA

SDATA-OUT

SCL

VCLK

SCL

USBM1

PHY_CTL11

VDATA-IN

PHY_LREQ1

VCLK

PHY_CTL01

RST

SDA

VSTB

PHY_SCLK

USBP1

VREFP

A_DQS1

PIDERST#

A_CKE

A_CLK#

A_DQ6

A_DQ2

A_DQ1

APDA[0..2]

F_D[0..7]

POWER_ON(L)_DVD

S-CLK

D33V

VREFN

SDV25

A_RA7

A_RA9

A_RA5

A_RA1

AV33V3

VRST#

USBP1

A_RA3

A_RA0

DVSS

A_BA0

SDV25

A_RA12

18V

A_RA2

A_RA11

DVSS

A_RA10

DVSS

APDIOR#

F_D4

DVSS

APDA1

F_D3

F_D6

APCS1#

F_OE#

APDMARQ

USBM1

DVSS

18V

APINTRQ

F_CE#

DVSS

F_D2

APDA2

APIORDY

PHY_LPS

D33V

APCS0#

18V

F_D1

F_D7

APDA0

D33V

APDIOW#

DVSS

F_D0

D33V

APIOCS16#

F_D5

PIDERST#

APDMACK#

SDV25

A_DQ15

A_DQ8

PHY_LREQ1

A_DQM0

SDV25

PHY_SCLK

A_DQ5

DVSS

D33V

DVSS

A_DQ12

DVSS

PSCAN(H)

DVSS

A_DQ7

DVSS

DV_RST#

A_DQ9

A_DQ0

A_DQ3

A_DQ13

SDV25

A_DQ10

PHY_CTL11

DVSS

A_DQ14

DVSS

PHY_D1

A_BA[0..1]

A_DQ4

DVSS

PHY_D0

A_DQ11

PHY_CTL01

18V

ARCLK ARBCK

IR1

VGND

S-CS

S-CLK

SDATA-IN

ASDAT0

ACLK

ALRCK

ABCK

RTCXO

VDDAUX

VSTB

A_CLK

RTCXI

DVSS

AUDIO_MUTE(H)

AVDD3A

SDV25

ALRCK

18V

D33V

VGND

DVSS

POWER_ON(L)_DVD

MCIN

DVSS

XTO

ASPDIF

ABCK

XTALI

AVDD3A

DVSS

AV33V1

A_RA4

ASDAT1

ASDAT0

DVSS

ACLK

DVSS

VCM

AV33V1

AVDD3A

DVSS

ASDAT2

F_WR#

A_RA6

RxD1

TxD1

18V

A_CS# A_RAS#

18V

D33V

A_DQS0

VY0

VY1

VY2

18V

VDATA-OUT

ASPDIF

A_RA[0..12]

AV33V3

DVSS

D33V

18V

AVPWR

Y[1..6]

ARLRCK

ARSDAT

SDV25

SDATA-OUT

VDATA-IN

ARSDAT

ARBCK

VREF

ARCLK

ARLRCK

DVSS

A_BA1

SDV25

18V

DVSS

SDV25

A_DQM1

A_WE#

A_CAS#

IR1

SDATA-IN

A_RA8

A_DQ[0..15]

AVDD3A

AV33V1

DVSS

D33V

SDV25

18V

AV33V3AV33V3

A_DQM1 A_DQM0

RESET#

AUDIO_MUTE(H)

A_DQ[0..15]

SDV25 VDDAUX

F_A16

F_A8 APDD8

F_A4 APDD4

APDD2F_A2

F_A12 APDD12

APDD1F_A1

APDD11F_A11

F_A20

F_A18

F_A15 APDD15

APDD6F_A6

F_A22

F_A[0..22]

F_A17

F_A9 APDD9

F_A[0..22]

F_A19

APDD0F_A0

APDD14F_A14

APDD3F_A3

APDD5F_A5

F_A7 APDD7

F_A21

APDD13F_A13

F_A10 APDD10 APDD4 APDD5

APDD3

APDD1

APDD12

APDD2

APDD8 APDD9

APDD13

APDD0

APDD10

APDD14

APDD11

APDD15

APDD7

APDD6

APDD[0..15]

HSYNC#

VSYNC#

5V_SCL 5V_SDA

A_DQ20

A_DQ19

A_DQ23

A_DQ18

A_DQ22

A_DQ17 A_DQ16

A_DQ21

A_DQM3

A_DQ17

A_DQ20

ALRCK

A_DQ18

VSYNC#

HSYNC#

5V_SDA

A_DQ21

ACLK

ASDAT1

A_DQ16

ABCK

ASPDIF

SCL

A_DQ23

A_DQ19

A_DQM3

A_DQ22

ASDAT2

ASDAT0

SDA

5V_SCL

PHY_LKON

XTALIXTALO

RxD1

DVSS

TxD1

XTALOXTO

XTALIXTALI

RTCXORTCXI

D33V

18V

D33V

+3V3_STBY

D33V

SDV25

+1V8_STBY 18V

+3V3_STBY

SDV25

AV33V1

+3V3_STBY

AV33V1

F_A[0..22][ 3,4,9 ]

VDATA-IN[ 4 ]

RESET#[ 4,5 ]

VDATA-OUT[ 4 ]

SDA[ 3 ]

PHY_CTL01[ 5 ]

PHY_CTL11[ 5 ]

PHY_LREQ1[ 5 ]

PHY_SCLK[ 5 ]

IR[ 4 ]

VSTB[ 4 ]

PHY_D0[ 5 ]

USBM1[ 5 ]

USBP1[ 5 ]

SCL[ 3 ]

VCLK[ 4 ]

S-CLK [ 4 ]

POWER_ON(L)_DVD [ 1 ]

A_CKE [ 3 ]

S-CS [ 4 ]

PIDERST#[ 4,9 ]

A_CLK# [ 3 ]

A_DQS1 [ 3 ]

SDATA-IN [ 4 ]

SDATA-OUT [ 4 ]

VY0[ 4 ]

APCS1#[ 4,9 ]

APCS0#[ 4,9 ]

ASPDIF [ 4 ]

PHY_LPS[ 5 ]

F_OE#[ 3 ] F_CE#[ 3 ]

APDA[0..2][ 4,9 ]

APDIOR#[ 4,9 ] APIORDY[ 4,9 ]

APINTRQ[ 4,9 ]

APDIOW#[ 4,9 ]

APDMACK#[ 4,9 ]

APDMARQ[ 4,9 ]

ARCLK [ 6 ] ARBCK [ 6 ]

A_DQ[0..15] [ 3 ]

ALRCK [ 6 ]

ABCK [ 6 ]

ASDAT0 [ 6 ]

ACLK [ 6 ]

A_DQ[0..15] [ 3 ]

A_CLK [ 3 ]

A_BA[0..1] [ 3 ]

A_RA[0..12] [ 3 ]

AUDIO_MUTE(H) [ 4 ]

APIOCS16#[ 4,9 ]

Y[1..6] [ 4 ]

F_WR#[ 3 ]

A_RAS# [ 3 ]

A_CS# [ 3 ]

F_A[0..22][ 3,4,9 ]

ARLRCK [ 6 ]

ARSDAT [ 6 ]

A_WE# [ 3 ]

A_CAS# [ 3 ]

F_D[0..7][ 3 ]

A_DQS0 [ 3 ]

A_DQM1 [ 3 ] A_DQM0 [ 3 ]

VREF [ 3 ]

PSCAN(H)[ 4 ]

PHY_D1[ 5 ]

VRST# [ 6 ]

RESET_MT1818[ 9 ]

DV_RST# [ 5 ]

APDD[0..15][ 3,4,9 ]

ASDAT0[ 6 ]

PHY_LKON[ 5 ]

VRST#[ 6 ]

RESET# [ 4,5 ]

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm W.K.Ihm

A2. MT8105DE

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm W.K.Ihm

A2. MT8105DE

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm W.K.Ihm

A2. MT8105DE

RESET circuit

CN25 220uF/6.3V

RN22 10KRN22 10K

RN06 4.7RN06 4.7

CN37

0.1uF

CN37

0.1uF

CN28 10uF/16v

RN3051RN30 51

CN29 10uF/16v

APDD11

RESET#92TDO

DVSS3

124

DQ10

125

DQ9

126

DQ8

127

192

DQ15

117

PHYD667DVDD368PHYD569PHYD470PHYD371PHYD272DVDD18

APDD12

APDD1

APINTRQ

DVDD3

APDIOW#

LINKON

AVSS

ASCS0#

DVSS18

225

DVDD3

222

ARBCK

223

ARMCLK

224

DVDD18

228

ARLRCK

226

ARSDATA

227

VDDAUX

232

SPLRCK

220

SPBCK

217

DQ14

118

AVSS

193

DQM1

114

DVDD3

119

DQ13

120

DQ12

121

DVSS18

122

AVSS

129

RWE#

130

CAS#

131

DVDD3

132

RAS#

133

RCS#

134

BA0

135

DVDD18

136

AVDD18

137

DVSS3

140

AVSS18

138

BA1

141

RA1

144

RA2

145

RA3

146

DVDD3

147

RCLKB

148

DVSS3

150

RCLK

149

RA12

151

DVSS18

154

RA8

155

RA7

156

RA6

157

PHYD1

DQ1

101

DVSS3

106

DQ2

102

VSTB

DQ7

110

DQS0

111

DQM0

113

DVDD3

112

TMS

LCDRD86TDI97DQ5

107

DVDD385USBP83LREQ79VCLK89TRST#98DQ6

108

DVDD18

109

USBM84DVSS382VDATA88SDA80PHYC077PHYC176PHYD7

DQ4

105

SCL

RA4

160

FD3

FD0

FD7

FD5

XTALO

237

FD2

FD1

DVSS3

FD6

FA21

APDD13

AGND_VFE

251

AGND_VAD

250

AVDD_VAD

249

RTCXI

231

VREFP

242

246

247

EXTTVD1

245

VCM

244

EXTTVD0

241

DQS1

116

APCS0#

APDA2

APDA0

APDD7

DVSS18

FCE#

APRESET#

DVDD18

APDD0

APDD10

APDD4

DVSS3

DVDD3

FA22

FA19

FA18

FOE#

AVDD_DLL

240

AGND_DLL

239

XTALI

238

DVDD_AFE

235

DGND_AFE

236

DVDD18

ASCS1#

APCS1#

FA16

EXTTVD3

255

VY1

254

AVDD_VFE

252

AVSS3

234

EXTTVD2

253

RTCXO

230

DQ21

168

DQS2

172

DQM3

175

DQS3

176

DQ31

177

DQ16

161

Y4/G

200

AVDD3

199

Y3/CVBS

198

DQ25

186

DQ26

185

DVSS3

184

DQ27

183

DQ28

182

DVDD3

179

DQ30

178

AOSDATA3

206

AOSDATA4

205

204

Y5/B

202

AVSS

201

AVDD3

195

Y1/C

194

VREF

190

DQ19

165

DVSS3

164

DQ18

163

DVSS18

211

AOLRCK

210

DQ17

162

DVSS3

215

AOBLK

212

AOMCLK

213

MCIN

214

DQ23

171

AOSDATA0

209

VY0

256

FA20

FWR#

FA17

DVDD18

FD4

DVDD3

APDD6

APDD9

APDD8

APDD5

APDD3

APDD2

DVSS3

APDD15

APDMARQ

DVDD3

169

DVDD3

103

SCLK

APDD14

APDA1

APIOCS16#

APIORDY

APDMACK#

RTCK94CKE

100

PHYD0

DQ3

104

VSSAUX

229

AVDD3

233

VY2

248

VREFN

243

DVDD18

219

SPDIF

216

SPSDATA

218

191

DQ29

180

DQM2

173

DVDD18

166

RA11

152

RA5

158

RVREF

139

RA10

142

DVSS3

115

LPS

DVSS18

SPMCLK

221

DQ20

167

APDIOR#

DVSS18

DQ24

187

AVDD3

189

Y2/Y

196

AOSDATA2

207

Y6/R

203

DQ11

123

AVDD3

IR91TCK95DQ0

AVDD3

128

DVSS3

174

DQ22

170

DVSS18

181

DVDD3

159

RA0

143

DVDD3

188

AOSDATA1

208

RA9

153

AVSS

197

MT8105 B

ICN01

MT8105 B

LQFP256/SMD

MT8105 B

ICN01

MT8105 B

LQFP256/SMD

TP01TP01

CN35

0.1uF

CN35

0.1uF

CN36

0.1uF

CN36

0.1uF

RN08 2.2K 1%RN08 2.2K 1%

CN16 10uF/16v+CN16 10uF/16v

RN02 15K/NC

CN22

0.1uF

CN22

0.1uF

CN50

0.1uF

CN50

0.1uF

RN01

4.7

RN01

4.7

CN32

0.1uF

CN32

0.1uF

CN57

0.1uF

CN57

0.1uF

RN32NCRN32 NC

CN07 0.1uFCN07 0.1uF

CN47

0.1uF

CN47

0.1uF

RN04 10RN04 10

CN10

10uF/16v

CN10

10uF/16v

CN17 20pF

XN02

C32.768KHz

XN02

C32.768KHz

CN12 0.1uFCN12 0.1uF

GND

A23Y2

VCC

ICM05

NC7WZ04/NC

ICM05

NC7WZ04/NC

CN40

0.1uF

CN40

0.1uF

CN14 0.1uFCN14 0.1uF

CN03 10uF/16v

CN31

0.1uF

CN31

0.1uF

CN18 20pF

CN04

0.1uF

CN04

0.1uF

CN49

0.1uF

CN49

0.1uF

RN31 0 / 2012

CN19 30p

RA17 10KRA17 10K

LN02

FB/2012

LN02

FB/2012

CN43

0.1uF

CN43

0.1uF

RN25 0/NCRN25 0/NC

CN46

0.1uF

CN46

0.1uF

CN33 100uF/16v

CN48

0.1uF

CN48

0.1uF

CN30

0.1uF

CN30

0.1uF

XN01 C27MHz

DN01 1N4148DN01 1N4148

CN20 30p

CN11 10uF/16v+CN11 10uF/16v

CN34

0.1uF

CN34

0.1uF

CN38

0.1uF

CN38

0.1uF

LN03 FB/2012

RN07 4.7RN07 4.7

CN15 0.1uFCN15 0.1uF

LN01

FB/2012

LN01

FB/2012

RN09 100K 1%RN09 100K 1%

CN42

0.1uF

CN42

0.1uF

CN58

0.1uF

CN58

0.1uF

1 2 3 4

PN01

4x1 W/HOUSING

CN1MP04(2.0)

PN01

4x1 W/HOUSING

CN1MP04(2.0)

CN26

0.1uF

CN26

0.1uF

CN05

0.1uF

CN05

0.1uF

TP11TP11

CN21

0.1uF

CN21

0.1uF

CN59

0.1uF

CN59

0.1uF

CN51

0.1uF

CN51

0.1uF

LN05 FB/2012

TP02TP02

CN06 10uF/16v

TP10TP10

CN45

0.1uF

CN45

0.1uF

TP09TP09

CN39

0.1uF

CN39

0.1uF

RN33 0RN33 0

CN44

0.1uF

CN44

0.1uF

RN03 15K/NC

RN11 0RN11 0

CN09 1uFCN09 1uF

CN53

0.1uF

CN53

0.1uF

CN13 10uF/16v+CN13 10uF/16v

CN02

0.1uF

CN02

0.1uF

LN04 FB/2012LN04 FB/2012

CN24 10uF/16v

RN05RRN05 R

LN07 FB/2012

CN23 10uF/16v

CN41

0.1uF

CN41

0.1uF

LN06 FB/2012

RN23 10K

CN52

0.1uF

CN52

0.1uF

RN10 3.3MRN10 3.3M

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

PN02

CON30/NC

PN02

CON30/NC

CN01 10uF/16v

CN56 10uF/16v

CN27

0.1uF

CN27

0.1uF

DF-5500/DFX-5502 SVC 2006.10.16 2:44 PM ˘ ` as mac001 1200DPI 80LPI

CIRCUIT DIAGRAM

4 4

3 3

2 2

1 1

D_DQS0

D_DQM0

D_CS#

D_CAS#

D_WE#

D_BA1

D_BA0

D_DQM1

D_DQS1

D_CKE

D_CLK

D_CLK#

D_RA3

D_RA2

D_RA1

D_RA0 D_RA7

D_RA6 D_RA5 D_RA4

D_RA12

D_RA9 D_RA8

D_RA11

D_RA10

D_DQ3

D_DQ2

D_DQ0

D_DQ1

D_DQ7

D_DQ6

D_DQ5

D_DQ11

D_DQ10 D_DQ9

D_DQ8

D_DQ15

D_DQ14 D_DQ13

D_DQ12

SDV25

D_RAS#

D_DQ4

SDV25

VREF

A_RA[0..12]

A_RA7

A_RA5

A_RA4

A_RA6

A_RA12

A_RA9

A_RA8

A_RA11

D_RA8

D_RA5 D_RA6

D_RA12

D_RA4

D_RA10

D_RA11

D_RA9

D_RA7

A_RA10

A_RA2 A_RA1 A_RA0

A_RA3

D_RA1 D_RA0

D_RA2

D_RA3

D_DQ[0..15]

D_DQ12

D_DQ14

D_DQ13

D_DQ3

D_DQ1 D_DQ0

D_DQ2

D_DQ7

D_DQ5

D_DQ6

D_DQ4

D_DQ11

A_DQ[0..15]

D_DQ9 D_DQ10

D_DQ8

D_DQ15

A_DQ11

A_DQ9 A_DQ10

A_DQ7

A_DQ4

A_DQ6 A_DQ5

A_DQ3

A_DQ0

A_DQ2

A_DQ14

A_DQ12

A_DQ15

A_DQ13

A_DQ8

A_DQ1A_DQ1

D_DQ[0..15]

D_RA[0..12]

A_RA[0..12]

A_DQ[0..15]

D_WE#

D_CAS#

D_RA12

D_RA8

D_RA9

D_RA11

D_DQ11

D_DQ10

D_DQ9

D_DQ8

D_DQ7

D_DQ6

D_DQ5

D_DQ4

D_DQ14

D_DQ13

D_DQ15

D_DQ12

D_DQ3

D_DQ2

D_DQ1

D_DQ0

D_DQM1

D_DQM0

D_RA4

D_RA7 D_RA6 D_RA5

D_RA10

D_RAS# D_BA0 D_BA1

D_DQS0

D_DQS1

D_RA3

D_RA0 D_RA1 D_RA2

D_DQ[0..15]

A_BA[0..1]

D_CLK#A_CLK#

A_CS#

A_WE#

A_RAS# A_CAS#

D_CS# D_RAS#

D_WE#

D_CAS#

A_DQS1

D_DQM1

D_DQS1

A_DQM1

D_DQS0

D_BA1 D_BA0

D_CLK

D_DQM0

A_CLK

D_CKE

A_DQS0

A_CKE

A_DQM0

A_BA1 A_BA0

D1V25

A_CLK A_CLK#

SDV25

D1V25

SCL SDA

D1V25

VREF

F_A19

F_A20

F_A16

F_A22

F_A[0..22]

F_A[0..22] F_D[0..7]

F_D7

F_D5

F_A10

F_A8 F_A9

F_A7

F_A17

F_D6

F_A5 F_A6

F_D4

F_A13

F_D2

F_A12

F_D0

F_A14

F_A18

F_A21

F_D1

F_CE#

F_A15

F_A0

F_A2 F_A3

F_D3F_A4

F_A1

F_OE#

F_A11

FL33V

D1V25 D1V25

SDV25

+3V3_STBY +3V3_STBY

SDV25D1V25

FL33V

FL33V+3V3_STBY

A_RA[0..12][ 2 ]

A_DQ[0..15]

[ 2 ]

A_BA[0..1]

[ 2 ]

A_CS#

[ 2 ]

A_RAS#

[ 2 ]

A_CAS#

[ 2 ]

A_WE#

[ 2 ]

A_DQS0

[ 2 ]

A_DQS1

[ 2 ]

A_DQM1

[ 2 ]

A_DQM0

[ 2 ]

A_CKE

[ 2 ]

A_CLK

[ 2 ]

A_CLK#

[ 2 ] SCL [ 2 ]

SDA

[ 2 ]

VREF

[ 2 ]

F_A[0..22]

[ 2,4,9 ] F_D[0..7] [ 2 ]

F_CE#

[ 2 ]

F_OE#

[ 2 ]

F_WR#

[ 2 ]

F_A[0..22] [ 2,4,9 ]

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm M.K.Lee

A3. DDRAM & FLASH & EEPROM

3 9

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm M.K.Lee

A3. DDRAM & FLASH & EEPROM

3 9

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm M.K.Lee

A3. DDRAM & FLASH & EEPROM

3 9

TSOP 48 pin

Monday, September 25, 2006

RM32 75RM32 75

RM36

10K

RM36

10K

CM26

0.1uF

CM26

0.1uF

CM62

1000pF

CM62

1000pF

CM33

0.1uF

CM33

0.1uF

RM12 33RM12 33

RM08 33RM08 33

RM4110KRM4110K

RM33 75RM33 75

CM02

0.1uF

CM02

0.1uF

CM41

0.1uF

CM41

0.1uF

RM39

10K

RM39

10K

CM29

0.1uF

CM29

0.1uF

CM37

0.1uF

CM37

0.1uF

CM01 0.1uFCM01 0.1uF

CM19

0.1uF

CM19

0.1uF

CM45

0.1uF

CM45

0.1uF

RM17 33RM17 33

RM35 10KRM35 10K

CM60

0.1uF

CM60

0.1uF

CM51

220uF/6.3V

CM51

220uF/6.3V

CM25

0.1uF

CM25

0.1uF

1 2

3 4

5 6

7 8

RM25

75x4

RM25

75x4

CM39

0.1uF

CM39

0.1uF

1 2

3 4

5 6

7 8

RM22

75x4

RM22

75x4

CM20

0.1uF

CM20

0.1uF

RM28 75RM28 75

CM42

0.1uF

CM42

0.1uF

GND4SDA

SCL

VCC

ICM04

EEPROM 24C16

SOP8/SMD

ICM04

EEPROM 24C16

SOP8/SMD

CM11

0.1uF

CM11

0.1uF

RM29 75RM29 75

CM34

0.1uF

CM34

0.1uF

RM11 33RM11 33

1 2

3 4

5 6

7 8

RM07

33x4

RM07

33x4

LM01

FB/2012

LM01

FB/2012

RM14 33RM14 33

CM06

220uF/6.3V

CM06

220uF/6.3V

CM22

0.1uF

CM22

0.1uF

CM46

220uF/6.3V

CM46

220uF/6.3V

CM12

0.1uF

CM12

0.1uF

CM38

0.1uF

CM38

0.1uF

RM15 33RM15 33

CM32

0.1uF

CM32

0.1uF

CM56

0.1uF

CM56

0.1uF

CM48

0.1uF

CM48

0.1uF

TP34TP34

1 2

3 4

5 6

7 8

RM24

75x4

RM24

75x4

CM23

0.1uF

CM23

0.1uF

GND

VSENSE

VREF4VDDQ

AVIN

PVIN

VTT

ICM02

IC LP2995 DDR Termination SOP8

ICM02

IC LP2995 DDR Termination SOP8

RM19

100/NC

RM19

100/NC

CM43

0.1uF

CM43

0.1uF

1 2

3 4

5 6

7 8

RM27

75x4

RM27

75x4

1 2

3 4

5 6

7 8

RM04

33x4

RM04

33x4

CM09

0.1uF

CM09

0.1uF

RM40 10K

CM58

1000pF

CM58

1000pF

CM50

0.1uF

CM50

0.1uF

CM10

0.1uF

CM10

0.1uF

CM16

0.1uF

CM16

0.1uF

CM40

0.1uF

CM40

0.1uF

1 2

3 4

5 6

7 8

RM20

75x4

RM20

75x4

CM52

0.1uF

CM52

0.1uF

CM08

0.1uF

CM08

0.1uF

CM07

220uF/6.3V

CM07

220uF/6.3V

CM55

0.1uF

CM55

0.1uF

CM49

0.1uF

CM49

0.1uF

CM63

10uF/16V

CM63

10uF/16V

RM16 33RM16 33

CM18

0.1uF

CM18

0.1uF

CM47

220uF/6.3V

CM47

220uF/6.3V

1 2

3 4

5 6

7 8

RM03

33x4

RM03

33x4

CM28

0.1uF

CM28

0.1uF

1 2

3 4

5 6

7 8

RM23

75x4

RM23

75x4

CM59

0.1uF

CM59

0.1uF

CM14

0.1uF

CM14

0.1uF

CM17

0.1uF

CM17

0.1uF

CM24 220uF/6.3V

CM44

0.1uF

CM44

0.1uF

CM30

0.1uF

CM30

0.1uF

RM18 33RM18 33

1 2

3 4

5 6

7 8

RM21

75x4

RM21

75x4

CM54

0.1uF

CM54

0.1uF

A19

BYTE

A18

A20

D11

D12

D13

D14

D15

VCC

GND127WE

RY/BY

D10

GND2

A10

A12

A11

A13

A14

A15

A16

A1717NC

RESET

WP/ACC

ICM03

29LV320D

ICM03

29LV320D

1 2

3 4

5 6

7 8

RM02

33x4

RM02

33x4

CM15

0.1uF

CM15

0.1uF

CM21

0.1uF

CM21

0.1uF

1 2

3 4

5 6

7 8

RM05

33x4

RM05

33x4

1 2

3 4

5 6

7 8

RM26

75x4

RM26

75x4

CM27

0.1uF

CM27

0.1uF

CM13

0.1uF

CM13

0.1uF

RM10 33RM10 33

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDDQ

LDQS

VDD

DNU

LDM

CAS

RAS

BA0

BA1

A10/AP

VDD

VSS

DQ15

VSSQ

DQ14

DQ13

VDDQ

DQ12

DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

VSSQ

UDQS

VREF

VSS

UDM

CKE

A12

A11

VSS

16M x 16

DDR

ICM01

HY5DU281622T 16Mx16

16M x 16

DDR

ICM01

HY5DU281622T 16Mx16

CM36

0.1uF

CM36

0.1uF

CM57

0.01uF

CM57

0.01uF

CM61

0.01uF

CM61

0.01uF

RM31 75RM31 75

RM37

10K

RM37

10K

CM03

0.1uF

CM03

0.1uF

CM31

0.1uF

CM31

0.1uF

RM30 75RM30 75

1 2

3 4

5 6

7 8

RM01

33x4

RM01

33x4

RM1333RM1333

RM38 10KRM38 10K

CM35

0.1uF

CM35

0.1uF

CM53

0.1uF

CM53

0.1uF

1 2

3 4

5 6

7 8

RM09

33x4

RM09

33x4

1 2

3 4

5 6

7 8

RM06

33x4

RM06

33x4

DF-5500/DFX-5502 SVC 2006.10.16 2:44 PM ˘ ` au mac001 1200DPI 80LPI

CIRCUIT DIAGRAM

4 4

3 3

2 2

1 1

APIOCS16#

APDD[0..15]

APDIOW#

PIDERST#

APDD2 APDD1

APDD3

APDMARQ

APINTRQ

APDIOR#

APDA1 APDA0

APDD5

APDD6

APDA2

APDMACK#

APCS1#

APDD0

APDD7

APDD4

IDE28

APDD[0..15]

APDD15

APDD14

APDD13

APDD12

APDD11

APDD10

APDA[0..2]

APDD9

APDD8

APCS0#

APIORDY

COAXOUT

S-C

Y[1..6]

VY0

ASPDIF

S-Y

CVBS

CVBSIN

+3V3_STBY

APDMARQ[ 2,9 ]

APCS0#[ 2,9 ]

APIORDY[ 2,9 ]

APIOCS16# [ 2,9 ]

APCS1# [ 2,9 ]

APDMACK#[ 2,9 ]

APDD[0..15] [ 2,3,9 ]

APDD[0..15][ 2,3,9 ]

PIDERST#[ 2,9 ]

APINTRQ[ 2,9 ]

APDA[0..2][ 2,9 ]

APDIOW#[ 2,9 ] APDIOR#[ 2,9 ]

VCLK [ 2 ]

S-CLK [ 2 ]

AUDIO_OUT(R) [ 6 ]

IR [ 2 ]

Y[1..6] [ 2 ]

VY0 [ 2 ]

VSTB [ 2 ]

S-CS [ 2 ]

AUDIO_IN(L) [ 6 ]

SDATA-IN [ 2 ]

ASPDIF [ 2 ]

AUDIO_MUTE(H) [ 2 ]

VDATA-IN [ 2 ]

AUDIO_IN(R)

[ 6 ]

PSCAN(H) [ 2 ]

VDATA-OUT [ 2 ]

SDATA-OUT [ 2 ]

AUDIO_OUT(L) [ 6 ]

RESET# [ 2,5 ]

IR [ 2 ]

VCLK [ 2 ] VSTB [ 2 ]

VDATA-IN [ 2 ] VDATA-OUT [ 2 ]

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm M.K.Lee

A4. CONNECTOR & IDE

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm M.K.Lee

A4. CONNECTOR & IDE

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm M.K.Lee

A4. CONNECTOR & IDE

Combo : RC54 = 300 ohm, Others = 150 ohm Standalone : open

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

PC02

CONN

PC02

CONN

RC56 NCRC56 NC

RC68 100RC68 100

TP62TP62

RC53 NCRC53 NC

1 2 3 4 5

PC03A

CONN

PC03A

CONN

TP63TP63

RC71 100RC71 100

TP66TP66

TP70TP70

TP41TP41

TP64TP64

TP45TP45

RC99 100RC99 100

TP48TP48

TP65TP65

RC64 100RC64 100

TP42TP42

RC66 100RC66 100

RC57 100RC57 100

1 2 3

35 36 37 38

4 5 6 7 8 9 10

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

39 40

41 42

43 44

LOCK

PC04

CONN IDE/NC

SJP2X20-.5MM

LOCK

PC04

CONN IDE/NC

SJP2X20-.5MM

TP43TP43

TP68TP68

TP71TP71

RC69 100RC69 100

RC63 10KRC63 10K

TP49TP49

RC61 1KRC61 1K

TP50TP50

RC72 1KRC72 1K

TP46TP46

RC59 10K

TP67TP67

CC51 47nFCC51 47nF

TP44TP44

TP69TP69

RC67 100RC67 100

TP57TP57

RC62 10K

CF76

0.1uF/NC

CF76

0.1uF/NC

RC52 NCRC52 NC

1 2 3 4 5 6 7 8 9 10 11 12 13

PC03

CONN

PC03

CONN

RC70 100RC70 100

TP58TP58

RC58

4.7K

RC58

4.7K

RC60

5.6k

RC60

5.6k

TP47TP47

TP59TP59

RC55 NCRC55 NC

TP60TP60

RC51 NCRC51 NC

RC65 100RC65 100

RC54 NCRC54 NC

DF-5500/DFX-5502 SVC 2006.10.16 2:44 PM ˘ ` aw mac001 1200DPI 80LPI

CIRCUIT DIAGRAM

4 4

3 3

2 2

1 1

33LK

33PHY

+3V3_O/F

33LK

PHY_LPS

PHY_LREQ1

IXO

TPA0TPB0+

PHY_D0

TPB0-

PC2

PHY_CTL01

33PHY

ISO

TPBIAS0

PHY_CTL11

PC0

PHY_LKON

PHY_D1

IXI

TPA0+

PC1

USBP1 USBM1

RESET#

IXOIXI

PHY_SCLK

TPB0-

TPA0+ TPA0TPB0+

+3V3_O/F

33LK

33PHY

33LK

+3V3_O/F

33PHY

+3V3_O/F

PHY_D0[ 2 ]

PHY_SCLK

[ 2 ]

PHY_CTL11

[ 2 ]

PHY_CTL01

[ 2 ]

PHY_LPS

[ 2 ]

PHY_LREQ1

[ 2 ]

USBM1

[ 2 ]

USBP1

[ 2 ]

PHY_D1

[ 2 ]

RESET#

[ 2,4 ]

DV_RST#

[ 2 ]

PHY_LKON[ 2 ]

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm M.K.Lee

A5. DV1394 & USB

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm M.K.Lee

A5. DV1394 & USB

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm M.K.Lee

A5. DV1394 & USB

EMI

RD16 : 80 ohm RD17 : 100 ohm RD18 : 100 ohm

Monday, September 25, 2006

CD14

0.01uF

CD14

0.01uF

RD07 RRD07 R

RD09

56 1%

RD09 56 1%

CD13 1000P

CD03 30P

RD170RD17

RD180RD18

CD07 1000P

RD05 6.34KRD05 6.34K

CD17

220uF/6.3V

CD17

220uF/6.3V

PD01

6 Pin connector

PD01

6 Pin connector

CD15

0.1uF

CD15

0.1uF

CD02

0.1uF

CD02

0.1uF

CD11 1000P

RD11 56 1%

CD05

0.1uF

CD05

0.1uF

CD20NCCD20

RD08

56 1%

RD08

56 1%

RN21 0/NCRN21 0/NCRD125KRD12

RD16 0RD16 0

LD01FBLD01

RD20 NCRD20 NC

SYSCLK

CTL0

CTL1

LPS13DGND14C/LKON15PC016PC117PC218ISO19CPS20DVDD21TESTM22SE23SM

AGND

AVDD

AGND

TPBIAS

TPA+

TPA-

TPB+

TPB-

AGND

AVDD

LREQ

DGND47DGND

DVDD45DVDD

PLLGND

PLLVDD

FILTER139FILTER0

RESET

ICD01

IC TSB41AB1

ICD01

IC TSB41AB1

CD09

0.1uF

CD09

0.1uF

1 2

3 4

5 6

7 8

RD13

10Kx4

RD13

10Kx4

RD02 1KRD02 1K

CD01

0.1uF/NC

CD01

0.1uF/NC

LD02FBLD02

CD08

0.1uF

CD08

0.1uF

RD03 1KRD03 1K

XD01

24.576MHZ

XD01

24.576MHZ

RD15 10KRD15 10K

CD12 1000P

CD18 1uF

CD16

0.1uF

CD16

0.1uF

RD04 1KRD04 1K

PD02

6 Pin connector/NC

PD02

6 Pin connector/NC

CD04

30P

CD04

30P

CD06

1000P

CD06

1000P

RD14 10KRD14 10K

RD10

56 1%

RD10

56 1%

CD10

220uF/6.3V

CD10

220uF/6.3V

RD0110KRD0110K

CD19

220pF

CD19

220pF

RD06

10K/NC

RD06

10K/NC

DF-5500/DFX-5502 SVC 2006.10.16 2:44 PM ˘ ` ay mac001 1200DPI 80LPI

CIRCUIT SCHEMATICS

D D

C C

B B

A A

ADC_VCC

VCC

ADC_VCC

+3V3_O/F ADC_VCC

ADC_VCCVCC

AUDIO_OUT(L) [ 4 ]

AUDIO_OUT(R) [ 4 ]

AUDIO_IN(R)[ 4 ]

AUDIO_IN(L)[ 4 ]

ASDAT0[ 2 ]

ALRCK[ 2 ]

ABCK[ 2 ]

ACLK[ 2 ]

ARSDAT [ 2 ]

ARCLK [ 2 ] ARLRCK [ 2 ] ARBCK [ 2 ]

VRST# [ 2 ]

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.S.Kim

A6. AUDIO ADC & DAC

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.S.Kim

A6. AUDIO ADC & DAC

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.S.Kim

A6. AUDIO ADC & DAC

AUDIO DAC

AUDIO ADC

CA05 220uF/6.3V

CA15 10uF/16V/NC+CA15 10uF/16V/NC

RA24 4.7KRA24 4.7K

RA02 10K

CA09

0.1uF

CA09

0.1uF

RA08 22RA08 22

CA13 47uF/16V

RA07 22RA07 22

RA05 4.7K/NCRA05 4.7K/NC

CA12

0.1uF

CA12

0.1uF

RA09 22RA09 22

RA21 100RA21 100

CA10

0.1uF

CA10

0.1uF

CA06 1uF/50V

RA20 100RA20 100

CA04

0.1uF

CA04

0.1uF

CA22 1800pF

RA23 4.7KRA23 4.7K

RA10 10K/NC

CA02

0.1uF

CA02

0.1uF

LA05 FB/2012

LA03 100uH

CA01 1uF/50V

CA07

0.1uF

CA07

0.1uF

CA21 1800pF

RA04 4.7K/NCRA04 4.7K/NC

RA06 22RA06 22

RA14

4.7K

RA14

4.7K

RA03 4.7K/NCRA03 4.7K/NC

MCLK

SCLK

SDOUT

LRCK

AINR

AINL

FILT+

RST

GND

REF_GND

ICA01

CS5340

ICA01

CS5340

CA11 47uF/16V

LA01 FB/2012

LA04NCLA04 NC

RA13 1.2KRA13 1.2K

LA02 FB/2012

RA12

4.7K

RA12

4.7K

CA03

0.1uF

CA03

0.1uF

RA01

5.1

RA01

5.1

RA25NCRA25 NC

RA11 1.2KRA11 1.2K

AOUTL

AGND

MCLK

AOUTR

SCLK

SDIN

LRCK

FILT+

ICA02

CS4344

ICA02

CS4344

RA18 100RA18 100

CA16 10uF/16V+CA16 10uF/16V

CA17 10uF/16V+CA17 10uF/16V

RA22 10KRA22 10K

CA14 10uF/16V

RA26NCRA26 NC

RA19 100RA19 100

CA08 47uF/16V

DF-5500/DFX-5502 SVC 2006.10.16 2:44 PM ˘ ` ba mac001 1200DPI 80LPI

CIRCUIT SCHEMATICS

4 4

3 3

2 2

1 1

RA6

SRAS#

RA2

SDQMH

SDQML

SRWE#

RA4

RD6

DQMH

RD13

RA8

RAS#

RA7

RD5

RD9

RCLK

SRCKE

RD8

RA3

BA0

RD1

RD0

RD4

RA1

SCAS#

RD10

RWE# DQML

RA5

RD11

CAS#

RD14

SRCLK

RCS#

RD7

RD3

RA0

RCKE

RA9 RA10

SRCS#

RD12

RD15

RD2

SFCS# SFDI SFWR# SFCLK

SFDO

D3.3V SD3.3V

D3.3V

SD3.3V

D D D D D D D

D3.3V

D1.8V

AVCC

+3V3_O/F

DVCC

A1.8V

A3.3V

D3.3V

D1.8V

+12V_O/F

MVCC

VCC

D3.3V

M12V

D3.3V

RAS#[ 9 ]

RA1[ 9 ]

RA4[ 9 ] RA5[ 9 ]

RA3[ 9 ]

RA2[ 9 ]

CAS#[ 9 ]

RA7[ 9 ]

RA9[ 9 ]

RA6[ 9 ]

BA0[ 9 ]

RWE#[ 9 ]

RCKE[ 9 ]

RCLK[ 9 ]

RA0[ 9 ]

DQML[ 9 ]

DQMH[ 9 ]

RA10[ 9 ]

RCS#[ 9 ]

RA8[ 9 ]

RD0 [ 9 ] RD1 [ 9 ] RD2 [ 9 ] RD3 [ 9 ] RD4 [ 9 ] RD5 [ 9 ] RD6 [ 9 ] RD7 [ 9 ] RD8 [ 9 ] RD9 [ 9 ] RD10 [ 9 ] RD11 [ 9 ] RD12 [ 9 ] RD13 [ 9 ] RD14 [ 9 ] RD15 [ 9 ]

SFDI[ 9 ]

SFCS#[ 9 ]

SFCLK [ 9 ] SFDO [ 9 ]

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

B1. POWER & SDRAM

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

B1. POWER & SDRAM

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

B1. POWER & SDRAM

SST25VF080

GND SHIELDING

Monday, September 25, 2006

LF03 FB/2012LF03 FB/2012

RF26NCRF26 NC

NO2NO2

NC1NC1

LF05

FB/2012

LF05

FB/2012

CF02 220uF/6.3V

CF07 220uF/6.3V

CF27

0.1uF

CF27

0.1uF

LF20 FB/2012

LF01 FB/2012LF01 FB/2012

RF22 33RF22 33

CF01

0.1uF

CF01

0.1uF

12 34 56 78

RF20

22x4

RF20

22x4

NO1NO1

CF08 47uF/16v

NO6NO6

LF04 FB/2012LF04 FB/2012

CF04 220uF/6.3V

NC2NC2

NO7NO7

NC3NC3

LF02 FB/2012LF02 FB/2012

NO5NO5

CF09

0.1uF

CF09

0.1uF

CF25

0.1uF

CF25

0.1uF

CF20NCCF20 NC

CF10 47uF/16v

CF06

0.1uF

CF06

0.1uF

RF23 33RF23 33

CF28

0.1uF

CF28

0.1uF

CE#

WP#

VSS4SI

SCK

HOLD#

VDD

ICF04

ST/M25P80/NC

ICF04

ST/M25P80/NC

LF06

FB/2012

LF06

FB/2012

CF26

0.1uF

CF26

0.1uF

RF21 33RF21 33

ADJ/GND

OUT2IN

ICF10

AAC1117-1.8

SOT223/SMD

ICF10

AAC1117-1.8

SOT223/SMD

CF24

0.1uF

CF24

0.1uF

RF24 22RF24 22

CF21 47uF/16v

RF25NCRF25 NC

CF23

0.1uF

CF23

0.1uF

CF22

0.1uF

CF22

0.1uF

CF05 47uF/16v

CF03

0.1uF

CF03

0.1uF

VCC

DQ0

DQ1

VSSQ

DQ2

DQ3

VCCQ

DQ4

DQ5

VSSQ

DQ6

DQ7

VCCQ

DQML

CAS

RAS

BA/A11

A10

VCC

VSS

CKE

CLK

DQMH

VCCQ

DQ8

DQ9

VSSQ

DQ10

DQ11

VCCQ

DQ12

DQ13

VSSQ

DQ14

DQ15

VSS

ICF02

SDRAM 1MX2

TSOP(II)-50/SMD

ICF02

SDRAM 1MX2

TSOP(II)-50/SMD

NO4NO4

DF-5500/DFX-5502 SVC 2006.10.16 2:44 PM ˘ ` bc mac001 1200DPI 80LPI

CIRCUIT SCHEMATICS

D D

C C

B B

A A

FR-

A-

FMSO2

V14REF

TR-

HV-

FR+

LOAD-

PWMOUT

HW+

TILT-

B+

TRAYPWM

FOSO

DMSO

LOAD+

HV+

TR+

A+

HU-

SRV1

B-

MUTE1

MUTE2

FMSO

SRV2

TILT+

HU+

HW-

TRSO

A+A+

HB+

HU+

HU-

HW+

HV+ HV-

A-A-

B+B+

B- B-

HW-

LIMIT#

LOADLOAD+

M12V

MVCC

M M

M12V

V14REF

MVCC

M MM M

D DD

TRSO[ 9 ]

TRAYPWM [ 9 ]

FR- [ 9 ]

TR+ [ 9 ] TR- [ 9 ]

FG [ 9 ]

MUTE1 [ 9 ]

TILT- [ 9 ]

FMSO2 [ 9 ]

FR+ [ 9 ]

PWMOUT [ 9 ]

FOSO[ 9 ]

MUTE2 [ 9 ]

FMSO [ 9 ]DMSO[ 9 ]

TILT+ [ 9 ]

LIMIT# [ 9 ]

TRAYOUT# [ 9 ]

TRAYIN# [ 9 ]

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

B2. MOTOR DRIVER

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

B2. MOTOR DRIVER

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

B2. MOTOR DRIVER

Motor Driver BD7956FS

Monday, September 25, 2006

CF54

0.01uF

CF54

0.01uF

W1W1

A+1A+1

RF34 1/2012RF34 1/2012 RF35 1/2012RF35 1/2012

CF34

0.1uF

CF34

0.1uF

CF42

0.1uF

CF42

0.1uF

RF30 27KRF30 27K

B+1B+1

V1V1

RF46 100RF46 100

CF37

0.1uF

CF37

0.1uF

RF37 100RF37 100

CF53

0.01uF

CF53

0.01uF

CF49 NCCF49 NC

CF31 0.01uFCF31 0.01uF

RF38 27KRF38 27K

CF32

0.1uF

CF32

0.1uF

RF44 10K/NC

CF38

0.1uF

CF38

0.1uF

CF46

0.1uF

CF46

0.1uF

CF50NCCF50 NC

1 2 3 4 5

PF02

5x1 W/HOUSING

CN5FA05(2.0MM)

PF02

5x1 W/HOUSING

CN5FA05(2.0MM)

RF40 2.2/2012RF40 2.2/2012

CF52NCCF52 NC

U4U4

RF48 1KRF48 1K

CF39 220uF/16V

RF36 1/2012RF36 1/2012

CF56

0.01uF

CF56

0.01uF

RF39 27KRF39 27K

CF44

0.1uF

CF44

0.1uF

LOD-

LOD+

VCC

ACTIN1

ACTIN2

TJMON

SPVM_S

PGND1

PGND2

SPVm1

fin

PGND3

SPVm2

SPRNF

HU+

HU-

HV+

HV-

HW+

HW-

SPIN

DGND

ACO1+

ACO1-

ACO2+

ACO2-

ACO3+

ACO3-

AVm

ACIN3

LDIN

AGND

SPCNF

fin

SLO1+

SLO1-

SLO2+

SLO2-

SLGND

CTL2

CTL1

SLRNF2

SLRNF1

SLVdd

SLIN2

SLIN1

DVcc

ICF08

BD7956FS

ICF08

BD7956FS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

BOTTOM

PF05

HEADER 17 SMD1.0 BOTTOM

CN5FA17(2.0MM)

BOTTOM

PF05

HEADER 17 SMD1.0 BOTTOM

CN5FA17(2.0MM)

RF45 10K/NC

RF43 2.2/2012RF43 2.2/2012

CF36

0.1uF

CF36

0.1uF

RF31 27KRF31 27K

CF51NCCF51 NC

CF45

0.1uF

CF45

0.1uF

RF32 1/2012RF32 1/2012

CF35

0.1uF

CF35

0.1uF

CF30

0.1uF

CF30

0.1uF

CF55

0.01uF

CF55

0.01uF

RF33 1/2012RF33 1/2012

CF40

0.1uF

CF40

0.1uF

B-1B-1

RF41 2.2/2012RF41 2.2/2012

CF41

0.1uF

CF41

0.1uF

RF47 10K/NC

RF42 2.2/2012RF42 2.2/2012

CF48 NCCF48 NC

CF47 NCCF47 NC

CF33

0.1uF

CF33

0.1uF

A-1A-1

CF43 220uF/6.3V

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` be mac001 1200DPI 80LPI

CIRCUIT SCHEMATICS

4 4

3 3

2 2

1 1

FOSO FOO

TROTRSO FMO2FMSO2 FMOFMSO DMO PWMO TYPWM

DMSO PWMOUT TRAYPWMTRAYPWM

APDD7 APDD8 APDD6 APDD9

APDD12 APDD2 APDD13 APDD1 APDD14 APDD0 APDD15

APDA2 APCS0#

HD0

HD1

HD2

HD6

HD7 HD8

HD9

HD12

HD13

HD14

HD15

PIDERST#HRST#

DMARQ APDMARQ

APDIOR# APDMACK#

APDA1 IORDY APIORDY INTRQ IOCS16# APIOCS16#

DIOW# DIOR# DMACK# HA1

HA2

HA0

CS1FX# CS3FX# DASP#

18XTALI

SFCS#

SFCLK SFDI

SFDO

RXD TXD

RAS#

DQMH

RCS#

RA7

RA10

RD9

RD12

RD11

RD5

RA3

RA6

RD15

RA9

RD3

RA2

RD4

RCLK RCKE

RD10

RD0

RA4

RA1

RA0

RD2

RD14

BA0

RD13

CAS#

RD8

RD7

RA8

RD1

DQML

RD6

RWE#

FOSO

TRAYPWM

TRSO

MUTE2

DMSO

MUTE1

TILT+

FR+

TR-

FR-

FMSO2

TR+

FMSO

PWMOUT

APDD3

APDD10

HD4 HD11

APDD5HD5

HD10

APDD4

APDD11

HD3

LVDS3N

BA0

CAS#

DMACK#

HA1

INTRQ

SFCLK

MPX3

VWDC1O

RD12

HD0

RA0

RD10

RA9

TRAYOUT#

PLAY#

RXD

RA2

TRINA

GAINSW

DQML

RD4

RD15

RD14

CS3FX#

RSTI

TYPWM

RCS#

CS1FX#

18XTALO

HD4

HD7

FMO

TRO

IDACLP1

VWDC2O

18XTALO

LEDR

LIMIT#

SFCS#

SFDO

PWMO

LVDS4P

VRDCO

RCLK

HD15

TXD

GIO0

INB

LVDS1N

RD3

RD2

RD13

RA8

HA2

PRST

TMPP

INC

AGC1C

LVDS2P

LVDS3P

PDIAG#

RA3

LPFOP

TRIND

LVDS1P

TRAYIN#

EJECT#

DMO

RCKE

DQMH

RA6

HD5

SELJP2

SELJP1

MPX2

MPX1

RD7

RD1

RD0

RD9

DMARQ

18XTALI

HD1

TRINC

FPDO+

18SCL

RD11

18SDA

HRST#

FOO

RA10

RWE#

RA7

DIOR#

IORDY

SFDI

RA1

GIO1

VDAC0

AGC2C

RD6

LEDG

CFREQ

TRINB

RAS#

RD8

RA4

OSCEN

HA0

FMO2

RD5

DIOW#

IOCS16#

DASP#

VDAC1

IND

INA

AGC3C

LVDS2N

RA7

RA9

RA8

LVDS4N

FPDO-

HD8

HD6

HD9

HD10

HD11

HD12

HD13

HD14

HD2

HD3

MCDT0

MCDT1

MCDT2

MCDT3

MUTE2

MUTE1

SEL

MPX1 MPX2 MPX3

AGC3C

TRSO

FOSO

FMSO2

FMSO

AGC2C

AGC1C

LPFOP

IDACLP2

DMSO PWMOUT

MCDT3 MCDT2 MCDT1 MCDT0

RFO+

RFO-

RFO+

ING

INE

INH

INF

V14REF

VHAVC

VFVREF

18SDA

RFO-

TILT-

RA5

IIN3

IIN2

IINR

FPDO+

IND

RFO-

INC

RFO+

INB

INA

FPDO-

GAINSW

OSCEN

FR+

TMP

TMPP

APDIOW#

APINTRQ

APDA0

APCS1#

TRINC TRIND

TRINB

TRINA

18SCL

RXD

SELJP1

SELJP2

TXD

LEDG LEDR

PLAY# EJECT#

VDAC0 VDAC1

APCS1#

APDIOR#

APDD[0..15]

APINTRQ

PIDERST#

APCS0#

APIORDY

APDA[0..2]

APDMACK#

APDMARQ

APIOCS16#

APDIOW#

TRAYIN# TRAYOUT#

ADGO

LIMIT#

18WP

LVDS1P

IND

RFO-

FR-

LVDS3N

IIN3

FPDO-

IINRIINR

GAINSW

TMPTMP

INB

LVDS4P

IIN3IIN3

VWDC1O

TR-

VRDCO

ING

OSCEN

IIN2

SEL

LVDS2N

IIN2IIN2

LVDS2P

VDAC1

INC

LVDS1N

LVDS4N

VHAVC

FPDO+

VRDCO

ENA

FR+

INE

IIN4

IINR

INH

TR+

CFREQ

LVDS3P

GIO1

TILT-

VWDC2O

RFO+

TILT+

INF

INA

PDIAG#PDIAG#PDIAG#PDIAG#

RSTI

DEVSEL

PRST

18WP

ENA

D3.3V

A3.3V

D3.3V

D1.8V

D3.3V

D1.8V

A3.3V

D3.3V

D1.8VD1.8V

D3.3V

A3.3V

V14REF

VHAVC

D3.3V

A3.3V A1.8V

V14REF

A3.3V

D1.8V

D3.3V

VCC

D3.3V

A3.3V

LDD5V

OPU5V

AVCC

A3.3V

OPU5V

OPU3V

D D

AVCC

A A

D D D D D D

D3.3V

D D D D D

D1.8V

VFVREF

D D

A3.3V

+3V3_O/F+3V3_O/F

D D

A A

AVCC

D3.3V

AAAAA

SFDI[ 7 ]

SFCLK[ 7 ]

SFCS#[ 7 ]

RD7[ 7 ]

RA6[ 7 ]

RA4[ 7 ]

RCKE[ 7 ]

RAS#[ 7 ]

RD3[ 7 ]

RD1[ 7 ]

RD14[ 7 ]

RA2[ 7 ]

CAS#[ 7 ]

RA1[ 7 ]

RD13[ 7 ]

RWE#[ 7 ]

RD4[ 7 ]

RA3[ 7 ]

RD9[ 7 ]

RD5[ 7 ]

RA7[ 7 ]

RCS#[ 7 ]

BA0[ 7 ]

DQMH[ 7 ]

RD12[ 7 ]

DQML[ 7 ]

RA8[ 7 ]

RD6[ 7 ]

RA9[ 7 ]

RD2[ 7 ]

RD10[ 7 ] RD11[ 7 ]

RD8[ 7 ]

RD0[ 7 ]

RD15[ 7 ]

RA0[ 7 ]

RCLK[ 7 ]

RA10[ 7 ]

TR+[ 8 ]

FMSO2[ 8 ]

PWMOUT[ 8 ]

TR-[ 8 ]

TRAYPWM[ 8 ]

FOSO[ 8 ]

MUTE2[ 8 ]

TILT+[ 8 ]

FMSO[ 8 ]

DMSO[ 8 ]

FG[ 8 ]

FR+[ 8 ]

TRSO[ 8 ]

FR-[ 8 ]

MUTE1[ 8 ]

TILT-[ 8 ]

RA5[ 7 ]

SFDO[ 7 ]

APDMARQ [ 2,4 ]

APDMACK# [ 2,4 ]

APIOCS16# [ 2,4 ]

APDIOR# [ 2,4 ]

APDA[0..2] [ 2,4 ]

APCS1# [ 2,4 ]

APDIOW# [ 2,4 ]

APIORDY [ 2,4 ]

APCS0# [ 2,4 ]

APDD[0..15] [ 2,3,4 ]

APINTRQ [ 2,4 ]

PIDERST# [ 2,4 ]

TRAYIN#[ 8 ]

TRAYOUT#[ 8 ]

LIMIT# [ 8 ]

RESET_MT1818[ 2 ]

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

B3. MT1888E

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

B3. MT1888E

DRAWN DESIGNED CHECKED APPROVED MODEL

FILE NAME

DATE

REVISED

REV NO. SHEET

DW-Q73D3N-JS

1.2

DAEWOO ELECTRONICS Digital Video Lab.

DW-Q73D3N-JS.dsn

4 Team

M.K.Lee H.W.JungW.K.Ihm Y.H.Cho

B3. MT1888E

FPD+

LDD_VDD_5V

WEN2

ENA

F+J

LDD_VDD_5V

WENRB

H+L

E+I

LDD_GND

FPD-PDIC_GND

FPD-

OSC-LV1,2

SEL1

FPD_VCC_3.3V

LDD_GND

RF+

SONY KWS-275

FCS-

WEN4B

WEN4

FCS+

SONY KWS-270A PUH

GND SHIELDING

RS56 0RS56 0

CS65

0.1uF

CS65

0.1uF

1 2

3 4

5 6

7 8

RS27 82x4

CS03 1000pFCS03 1000pF

CS63

0.1uF

CS63

0.1uF

TP3TP3

RS49 NCRS49 NC

RS03 24KRS03 24K

CS19 0.033uFCS19 0.033uF

CS71

2.2uF

CS71

2.2uF

CS75NCCS75 NC

CS10

0.1uF

CS10

0.1uF

IND1IND1

TOP

PF04

HEADER 50 SMD0.5 TOP

H50S/P0.5/A

TOP

PF04

HEADER 50 SMD0.5 TOP

H50S/P0.5/A

ADGO1ADGO1

CS21

0.1uF

CS21

0.1uF

RS48 0RS48 0

RS01 0RS01 0

CS55

0.1uF

CS55

0.1uF

FG/1FG/1

CS62

0.1uF

CS62

0.1uF

CS64

0.1uF

CS64

0.1uF

CS68

0.1uF

CS68

0.1uF

CS24

0.01uF

CS24

0.01uF

CS77 10uF/16V

XF01 C25MHz

INB1INB1

CS02 1000pFCS02 1000pF

LVDSVDD_33

LVDS1P/GO

LVDS1N/GO

LVDS2P/GO

LVDS2N/GO

LVDS3P/GO

LVDS3N/GO

LVDS4P/GO

LVDS4N/GO

LVDSGND

GAINSW

DRCOLP

TELP

DFCTLP

AVDD1_33

SHPC

SHBC

AGND1

AGC1C

AGC2C

AGC3C

VRDC

VWDC1

AVDD2_33

FPDO_DVD

FPDO_CD

AGND2

INA

INB

INC

IND

TRINA

TRINB

TRINC

TRIND

RFIP

RFIN

RFSUBLP

FOIN/WRFSUM

FOIP/RRFSUM

AVDD3_33

INE

INF

ING

INH

AGND3

COSP

COSN

CEQP

CEQN

EQBIAS

V14

VFVREF

HAVC

VWDC1O/SRF256VWDC2O/SRF357VDAC0/WTGT58VDAC1/TGCHG59MPXOUT1/AU_MUT60MPXOUT2/EEPROM261AVDD4_3362MPXOUT3/EEPROM163AUX164AGND465PRVDD_1866PRGND67PLLVDD_3368LPFOP69LPFIN70LPFIP71LPFON72IDACLP173IDACLP274PLLGND75FOO76TRO77FMO78FMO2/PHTIN79DMO80TRAYPWM81PWMOUT82DVDD33I83FG84GIO0/PUHS185GIO1/PUHS2/SDATA86GIO2/MUTE187GIO3/MUTE288DVSSI89PRST90DVDD18I91HRST#92HD793DVSSO94HD895HD696HD997HD598HD1099HD4

100

HD11

101

DVDD33O

102

HD3

103

HD12

104

HD2

105

HD13

106

HD1

107

HD14

108

RA1

162

RA2

161

RA3

160

RSTI

159

IPLLVDD_33

158

XTAL25MI

157

XTAL25MO

156

DRGND

155

DVDDR_18

154

AGND

153

PVDD_18

152

SDWPRO

151

TXVDD_18

150

MCCLK

149

MSCLK

148

MSCD

147

MCCMD

146

MCDT3

145

MCDT2

144

MCDT1

143

MCDT0

142

RXVDD_18

141

DACVDD_33

140

139

DACVREF

138

137

DACVSS

136

ADGO

135

UP3_1/UTXD

134

UP3_0/URXD

133

SFDI

132

SFCLK

131

DEVSEL

130

SFDO

129

DVSSO

128

SFCS#

127

DASP#

126

CS3FX#

125

CS1FX#

124

HA2

123

HA0

122

DVDD33O

121

PDIAG#

120

IOCS16#

119

INTRQ

118

IORDY

117

HA1

116

DMACK#

115

DIOR#

114

DIOW#

113

DMARQ

112

DVSSO

111

HD15

110

HD0

109

DVDD33I

216

CFREQ/SCLK/GO

215

OSCEN/SLAT/GO

214

LIMIT#

213

PLAY#

212

EJECT#

211

TRAYIN#

210

DVDD18I

209

TRAYOUT#

208

LED1/SPDATA

207

LED2/SPCLK

206

DVDD33O

205

RA4

204

RA5

203

DVSSO

202

RA6

201

RA7

200

RA8

199

RA9

198

RA11

197

RD8

196

RD9

195

RD10

194

RD11

193

DVDD33O

192

RD12

191

RD13

190

RD14

189

RD15

188

DVSSO

187

DQMH

186

CLK

185

CKE

184

RD0

183

RD1

182

RD2

181

RD3

180

DVSSI

179

RD4

178

RD5

177

RD6

176

DVDD18I

175

RD7

174

DQML

173

RWE#

172

CAS#

171

DVDD33O

170

RAS#

169

RCS#

168

BA0

167

DVSSO

166

BA1

165

RA10

164

RA0

163

VRDCO

MT1888E

LQFP216/SMD

MT1888E IDE

ICF01

MT1888E

LQFP216/SMD

MT1888E IDE

ICF01

RS581KRS58 1K

RS38 NCRS38 NC

RS57 10K

LS01 FB/2012LS01 FB/2012

RS51 0RS51 0

CS16 3300pFCS16 3300pF

RS07 10KRS07 10K

LS03 FB/2012LS03 FB/2012

1 2

3 4

5 6

7 8

RS19 33x4

VSS4SDA

SCL

VCC

ICF07

24C08/NC

ICF07

24C08/NC

RS36RRS36 R

CS57

0.1uF

CS57

0.1uF

CS11 0.047uFCS11 0.047uF

AGC2C/1AGC2C/1

M2M2

IIN1IIN1

RFO-1RFO-1

CS38 22pF

RS26 10KRS26 10K

RS44 0RS44 0

RS15 10K/NC

RS35 10KRS35 10K

CS09 0.01uFCS09 0.01uF

V14REF1V14REF1

CFREQ1CFREQ1

RS13 10KRS13 10K

RS32 4.7RS32 4.7

CS27 150pFCS27 150pF

M4M4

RS22 22RS22 22

RS40 10KRS40 10K

RS25 22RS25 22

2 3 4 5 6 7 8 9 10

11 12

JPF03

DIP6X2/P2.54/FC

6x2

JPF03

DIP6X2/P2.54/FC

6x2

TP4TP4

CS12

0.1uF

CS12

0.1uF

IIN2IIN2

CS36

0.1uF

CS36

0.1uF

CS53

0.1uF

CS53

0.1uF

CS32 0.01uFCS32 0.01uF M3M3

RS34 NCRS34 NC

CS46

0.1uF

CS46

0.1uF

CS41

0.01uF

CS41

0.01uF

CS26

0.1uF

CS26

0.1uF

GAINSW1GAINSW1

RS04 NCRS04 NC

RS301KRS30 1K

CS67

0.1uF

CS67

0.1uF

CS49

0.1uF

CS49

0.1uF

TRSO/1TRSO/1

CS33 0.1uFCS33 0.1uF

CS58

0.1uF

CS58

0.1uF

CS22

0.1uF

CS22

0.1uF

VHAVC1VHAVC1

RS41 0RS41 0

1 2

3 4

5 6

7 8

RS20 33x4

CS52

0.1uF

CS52

0.1uF

CS05 0.015uFCS05 0.015uF

CS37 22pF

1 2

3 4

5 6

7 8

RS21 33x4

QS01 2SA1037AK

RS29 100KRS29 100K

IINR1IINR1

CS76

0.047uF

CS76

0.047uF

RS17 82RS17 82

CS54

0.1uF

CS54

0.1uF

FMSO2/1FMSO2/1

CS29 2200pFCS29 2200pF

CS61

0.1uF

CS61

0.1uF

RS43 0RS43 0

CS51

0.1uF

CS51

0.1uF

M1M1

CS50

0.1uF

CS50

0.1uF

LPFOP/1LPFOP/1

LS02 FB/2012LS02 FB/2012

CS42 10uF/16V/NC

RS02 0RS02 0

INC1INC1

CS28 150pFCS28 150pF

CS04

0.1uF

CS04

0.1uF

RS45 0RS45 0

CS47

2.2uF

CS47

2.2uF

CS48

0.1uF

CS48

0.1uF

RS09 10KRS09 10K

TRINC1TRINC1

RS06 4.7RS06 4.7

CS74NCCS74 NC

CS70

0.1uF

CS70

0.1uF

RS39 10KRS39 10K

1 2

3 4

5 6

7 8

RS23 82x4

VFVREF1VFVREF1

CS07 0.015uFCS07 0.015uF

AGC1C/1AGC1C/1

CS06 0.015uFCS06 0.015uF

CS25

0.01uF

CS25

0.01uF

FPDO-1FPDO-1

M0M0

RS59

4.7K

RS59

4.7K

AGC3C/1AGC3C/1

FPDO+1FPDO+1

CS69

2.2uF

CS69

2.2uF

RS14 NCRS14 NC

FOSO/1FOSO/1

RS37 NCRS37 NC

CS43

0.1uF/NC

CS43

0.1uF/NC

CS66 220uF/6.3V

RS47 0RS47 0

RS54 10K

RS52 100RS52 100

CS18 0.1uFCS18 0.1uF

RS24 22RS24 22

RS28 0RS28 0

CS40

2.2uF

CS40

2.2uF

TRINB1TRINB1

CS34

0.1uF

CS34

0.1uF

CS44

0.1uF

CS44

0.1uF

1 2 3 4

R.A.

PF01

4x1 W/HOUSING R.A.

CN1MP04(2.0)

R.A.

PF01

4x1 W/HOUSING R.A.

CN1MP04(2.0)

CS17 0.015uFCS17 0.015uF

CS45

2.2uF

CS45

2.2uF

MPX3/1MPX3/1

INA1INA1

CS72

0.1uF

CS72

0.1uF

CS59

0.1uF

CS59

0.1uF

TRINA1TRINA1

CS01

0.1uF

CS01

0.1uF

RS42 10KRS42 10K

CS30 2200pFCS30 2200pF

DMSO/1DMSO/1

RS08 10KRS08 10K

RS10 10KRS10 10K

RS31

2.4K

RS31

2.4K

CS73

2.2uF

CS73

2.2uF

TP2TP2

RS55 0/NCRS55 0/NC

CS60

0.1uF

CS60

0.1uF

CS23

2.2uF

CS23

2.2uF

FMSO/1FMSO/1

CS20

0.1uF

CS20

0.1uF

TRIND1TRIND1

MPX1/1MPX1/1

CS08 0.1uFCS08 0.1uF

CS14 1uFCS14 1uF

CS13 1uFCS13 1uF

TP1TP1

RS53 NCRS53 NC

OSCEN1OSCEN1

CS39

0.1uF

CS39

0.1uF

CS15 0.1uFCS15 0.1uF

MPX2/1MPX2/1

RS12 110KRS12 110K

RS11 10KRS11 10K

RS46 0RS46 0

RS05 0RS05 0

CS35

0.1uF

CS35

0.1uF

RS16 10K

RS50 0RS50 0

PWOUT/1PWOUT/1

CS31 0.1uFCS31 0.1uF

CS56

0.1uF

CS56

0.1uF

RS33 NCRS33 NC

1 2

3 4

5 6

7 8

RS18 33x4

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` bg mac001 1200DPI 80LPI

PCB CIRCUIT BOARD

1. MAIN (Analog board) PCB

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` bi mac001 1200DPI 80LPI

2. POWER PCB

PCB CIRCUIT BOARD

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` bk mac001 1200DPI 80LPI

PCB CIRCUIT BOARD

3. Mpeg(Digital board)PCB

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` bm mac001 1200DPI 80LPI

INSTRUMENT DISASSEMBLY

DF-5500/DFX-5502 SVC 2006.10.14 9:59 AM ˘ ` bo mac001 1200DPI 80LPI

ELECTRICAL PARTSLIST

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

01 PVACPSD340 ACCESSORY AS F342DY(BT:AAA)4 DP01 97P95600D0 MANUAL OWNERS EC MODEL DP02 97P881RP10 CABLE RF PAL 1.0M DP03 97P0424100 COVER ACCESSORY LD-PE T0.05 DP04 486A716202 BATTERY AAA 1.5V(SUPERGARD) 02 PVPKCPN770 PACKING AS DF-Q74D2N-JS(CL,TP:0.55) CP01 97P4935500 PAD FRONT BACK EPS(FOAM 55) CP02 97P4809200 POLY BAG FOR SET 800X650XTO.5 PE-FOAM CP03 97P5054520 BOX CARTON 486X450X161 SW-4(CL) CP04 47P4502208 LABEL SERIAL A PAPER (52X12X1EA) CP05 6520010020 STAPPLE M20 CP05A 2TP00045CL OPP TAPE W45 03 PVMCASE723 CHASSIS MAIN AS DF-T75D2D-JB A001 97P0617200 CHASSIS MAIN HIPS(HB) A002 97P93617D1 LABEL SPEC 62X47 PAPER+COATED A003 97P0997303 PLATE AV BACK PET T=0.2 A005 97P0487004 COVER BOTTOM SECC T0.8 (PAL, SCART FAN„ «) A0051 97P4220000 CUSHION LEG EVA T=2.0 A0052 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR A0053 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR A040 97P0486900 COVER TOP SECC T0.5+PAINT A041 7173300851 SCREW TAPPTITE TT2 BIN 3X8 MFZN 3CR AJ01A 7173300852 SCREW TAPPTITE TT2 BIN 3X8 MFZN BK 3CR AP01A 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR AZ01A 7174301251 SCREW TAPPTITE TT2 RND 3X12 MFZN 3CR D100 97P1RA2FB0 REMOCON HANDSET AS VR-FA2FB0 GY3401A AAA DP09 97P51006R0 DISC DVD+RW DVD+RW 4X 4.7GB PAPER M01 97PP347603 PANEL FORNT AS DF-Q75(DV) B001 97P0347601 PANEL FRONT HI-PS(HB,DV) B002 97P1636200 WINDOW FRONT PMMA B004 97P13A0600 KNOB POWER ABS B004A 97P13A0700 KNOB REC ABS B004B 97P13A0800 KNOB PLAY ABS B004C 97P13A0900 KNOB CH ABS B004D 97P13A1100 KNOB COPY ABS B008 97P1829600 DOOR F/L HIPS B008A 97P3033600 SPRING F/L DOOR SWPB 5088N B008B 97P1513900 BADGE DAEWOO DE

188¥ µ¥µ • ”–⁄ + ﬂ–⁄ ”æ·˜ ˘ ˆ,40M/M(T0.2)

B009 97P1829700 DOOR DVD ABS B009A 97P3044000 SPRING DOOR DVD SWPB B009B 97P1513400 BADGE RW PC T1.0 M021 7173401251 SCREW TAPPTITE TT2 BIN 4X12 MFZN 3CR M022 7174301251 SCREW TAPPTITE TT2 RND 3X12 MFZN 3CR M023 97PM000150 SCREW DECK AS PVC SWRCH1018A 3CR M1000 PVDKARPB6G DECK VCR AS(RW‰‰‚†) DRP-B6100 NON ‰‰‚† A0100 97SA332200 MAIN BASE AS T4.5-MECHA B0100 97S1405500 BASE MAIN SECC T1.2 B0110 97S3507200 POST REEL TABLE SUS420J2 B0130 97S3507400 POST GUIDE SUS303 B0140 97S3507500 POST PINCH LEVER SWRC MFNI B0150 97S3508800 POST T BRAKE SWRC MFZN 3CR B0160 97S5703100 STOPPER POLE BASE SUS303 B0170 97S4001100 BUSH TENSION LEVER POM(N109) NATURAL B0171 97S5703600 STOPPER CAP M/T POM(F20-03) NATURAL B0180 97S0905000 PLATE LOADING GEAR PBT(DY4410GF) NATURAL B0190 7051301751 SCREW MACHINE PAN 3X17 MFZN 3CR A0101 97S3118700 SCREW TAPTITE TT2 BIN-P 2.6X7 MFZN 3CR ROHS A011 97P93B2102 LABEL CD(DECK) PAPER(13X56) ALL MODEL A0200 97SA316500 S SLANT POLE AS T-MECHA B0200 97S1405800 BASE S POLE PPS R4 B0210 97S3513200 POLE SLANT SUS303 B0220 97SA414000 GUIDE ROLLER AS VW-31H, MASTER A0300 97SA316600 T SLANT POLE AS T-MECHA B0300 97S1406200 BASE T POLE PPS R4 B0310 97S3513200 POLE SLANT SUS303 B0320 97SA414000 GUIDE ROLLER AS VW-31H, MASTER

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

A0400 97S8104500 MOTOR CAPSTAN DMVCMC10WS A0600 97SA320500 AC HEAD AS T-MECHA B0600 97S0904500 PLATE AC HEAD SECC T1.6 B0610 97SA326800 HEAD A/C HVMXA1101A(ALPS) B0620 97S3009400 SPRING AC HEAD SWPB D1.0 B0630 7005301051 SCREW MACHINE FLT 3X10 MFZN 3CR A0601 7003300551 SCREW MACHINE BIN 3X5 MFZN 3CR A1000 97SA316800 L LOADING AS T-MECHA B0800 97S2616600 LEVER L LOADING SECC T1.0 B0810 97S2616700 LEVER L LOADING SUB SECC T1.0 B0820 97S3401300 RIVET LOADING LEVER SWRC MFZN 3CR B0830 97S2704700 GEAR L LOADING POM(F20-03) NATURAL B0840 97S3007900 SPRING LOADING GEAR SWPB D0.6 A1100 97SA316900 R LOADING AS T-MECHA B0900 97S2616800 LEVER R LOADING SECC T1.0 B0910 97S2617000 LEVER R LOADING SUB SECC T1.0 B0920 97S3401300 RIVET LOADING LEVER SWRC MFZN 3CR B0930 97S2704800 GEAR R LOADING POM(F20-03) BLUE B0940 97S3007900 SPRING LOADING GEAR SWPB D0.6 A1200 97S2709510 RACK LOADING SECC T1.2 A1201 7008301951 SCREW MACHINE WAS 3X19 MFZN 3CR A1400 97S0904310 PLATE CONNECT-H SECC T1.0 A1500 97SA319410 REEL BRKT TOTAL AS T2-MECHA B1300 97SA416800 REEL BRKT AS T-MECHA C1300 97S2401700 BRKT REEL GEAR SECC T1.2 C1301 97S3507600 POST REEL GEAR SUS420 J2 B1310 97SA416910 REEL GEAR AS T2-MECHA C1310 97S3701600 PULLEY REEL POM(F20-03) NATURAL C1311 97S4105000 FELT REEL B-BUFF D14.5X25.5XT0.5 C1312 97SA526810 REEL BASE SUB AS T2-MECHA D1313 97S1407000 BASE REEL POM(DURACON AW-01)NATURAL D1314 97S0905300 PLATE REEL SUS304 T0.5(1/2H) D1315 97S3008110 SPRING REEL GEAR SUS304 WPB D0.6 C1313 97S3008000 SPRING CLUTCH SUS304 WPB D0.6 C1316 97SA523410 REEL GEAR SUB AS T2-MECHA D1310 97S2710300 GEAR REEL-H POM(F20-33)BLUE D1311 97S2909600 WHEEL CLUTCH POM(F20-03) NATURAL C1317 97S2302800 HOLDER REEL GEAR POM(DURACON AW-01)NATURAL B1320 97S3103400 POLYWASHER D2.5XD8.0XT0.5 B1330 97S2624410 LEVER CLUTCH-H SUS304 T0.5(1/2H) A1501 7174300651 SCREW TAPPTITE TT2 RND 3X6 MFZN 3CR A1700 97S5500400 BELT REEL CR68 A1800 97S2623200 LEVER RELAY SECC T1.2 A1900 97S2709600 RACK FL PP GLASS30%(5203G6,GH530P) A2000 97S2708200 GEAR CAM DERLIN 100 A2100 97SA317150 PINCH LEVER TOT AS T-MECHA B1900 97SA414950 PINCH LEVER AS T-MECHA C1900 97S2617510 LEVER PINCH SECC T1.6 C1901 97SB401700 PINCH SHAFT AS K-MECHA D1710 97S4006800 PINCH SHAFT BUSH C3604 => C3604BD D1720 97S3500950 PINCH ROLLER SHAFT KOS-92 B1910 97SA481050 PINCH ROLLER AS D15(DAEJIN D2.6*D7*T4.5) C0622 97SA518250 PINCH ROLLER SUB AS NBR60+A2011 D0623 97S2811750 PINCH ROLLER SLEEVE A2011 C0624 97S5300850 PINCH ROLLER BEARING MEIJI(D2.5*D7*T4.5) C0626 97S4005800 BUSH PINCH ROLLER GR-20 B1920 97S0448450 PINCH ROLLER CAP F20-03 BLACK B1930 97S3008200 SPRING PINCH LEVER SWC D1.6 B1940 97S3908500 POLY SLIDER D2.6*D5*T0.13 A2200 97SA908000 LC BRKT AS T5-MECHA ROHS B2000 97S2401600 BRKT LC POM(F20-03) NATURAL B2010 97SA415050 LC MOTOR AS T5-MECHA C2010 97S8106300 MOTOR LOADING MDB2B90 C2011 97S2709700 WORM DURANEX 2002 NATURAL B2015 97S3602600 SHAFT WORM SUS303 B2030 97S2709800 WORM WHEEL POM(F25-03H)NATURAL

✔ Caution:In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts

information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 47 mac001 1200DPI 80LPI

ELECTRICAL PARTSLIST

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

B2040 97P885X264 CONN AS A/C HEAD(6P)8H-6H 135MM B2050 97P62Y27D3 CONN FPC FCZ 125GTA-0316 FPC 3P B2060 97P65306LA PCB L/C PHENOL T1.6 A2201 7174300651 SCREW TAPPTITE TT2 RND 3X6 MFZN 3CR A2400 97SA317310 IDLER PLATE TOT AS T2-MECHA B2200 97S0903700 PLATE IDLER SECC T0.5 B2210 97S4105100 FELT IDLER B-BUFF D5XD14.5X1.0 B2220 97S2710400 GEAR IDLER-H NYLON12-1724KH(BLUE) B2230 97S3008310 SPRING IDLER SUS304 WPB D0.4 B2240 97SA425800 IDLER POST AS T-MECHA C2240 97S3508900 POST IDLER SWRC MFNI C2241 97S3103500 WASHER IDLER POST SWRC MFNI B2250 97S3901200 POLY SLIDER D2.6XD8XT0.5 A2401 97S3108200 POLYWASHER D2.6XD6.0XT0.5 A2600 97S2909400 TABLE REEL POM(F20-03) BLACK A2700 97SA317200 TENSION LVR TOT AS T-MECHA B2600 97SA415600 TENSION LEVER AS T-MECHA C0602 97S3602300 SHAFT TENSION LEVER SWRC MFZN 3CR C2600 97S2624100 LEVER TENSION SECC T1.2 C2601 97S3508400 POLE TENSION SUS303 B2610 97SA415300 BAND BRAKE AS T-MECHA C2610 97S4300600 BAND BRAKE FILM T0.188+B-BUFF T0.5 C2612 97S2303100 HLD BAND BRAKE A POM(F20-03) BLACK C2613 97S2303200 HLD BAND BRAKE B POM(F20-03) BLACK B2620 97S0400700 CAP BAND BRAKE POM(F20-03) NATURAL B2630 97S3008400 SPG TENSION LEVER SWPB D0.35 A2800 97SA317400 S BRAKE AS T-MECHA B2700 97S2621400 LEVER S BRAKE PBT(DY4410GF) NATURAL B2710 97S3008500 SPRING S BRAKE SUS304 WPB D0.45 A2900 97SA317510 T BRAKE AS T2-MECHA B2800 97S2625110 LEVER T BRAKE PBT(DY4410GF) NATURAL B2810 97S4105410 FELT T BRAKE B-BUFF(3X12.5XT1.0) B2820 97S3010220 SPG T BRAKE SUS304 WPB D0.4 A3000 97S8023700 HEAD FE HVFHP0042A A3001 7174301051 SCREW TAPPTITE TT2 RND 3X10 MFZN 3CR AD001 97S2912400 DRUM PAL 6CH VDDWPH6A AD002 7003300551 SCREW MACHINE BIN 3X5 MFZN 3CR AF001 97SA261081 F/L AS T-MECHA(SLIM) 3CR A5000 97S2401460 BRKT FL L SECC T1.0 A5100 97S2401560 BRKT FL R SECC T1.0 A5200 97SA317710 CST HOLDER AS(VE) T-MECHA B3400 97SA415410 CST HOLDER SUB AS(VE) T-MECHA C3400 97S0903810 PLATE CST HOLDER(VE) SECC T1.0 C3410 97S3007800 SPRING CST UPPER SUS301 T0.25(3/4H) C3420 97S3507900 POST CST HLD SWRC MFZN 3CR C3430 97S3508000 POST CST HLD SUB SWRC MFZN 3CR B3430 97S2621700 LEVER SAFETY R SUS304 T0.5 B3440 97S2621800 LEVER RELEASE POM(F20-03) NATURAL B3450 97S3009000 SPRING RELEASE LVR SUS304 WPB D0.25 A5300 97SA317860 F/L LEVER AS T-MECHA(SLIM) B3500 97S2622060 LEVER FL L POM(F20-33) B3520 97S2622260 LEVER FL R POM(F20-33) B3540 97S3508100 POST F/L LEVER R SWRC MFZN 3CR B3550 97S3602100 SHAFT F/L LEVER SUM32 MFZN 3CR A5400 97S0903910 PLATE TOP SECC T1.0 A5401 7274300651 SCREW TAPPTITE TT3 RND 3X6 MFZN 3CR A5600 97S2622760 LEVER DOOR OPENER POM(F20-33) AF002 7174300651 SCREW TAPPTITE TT2 RND 3X6 MFZN 3CR AN002 2291131304 GREASE DELUXE 5221G(NAM-YOUNG) M200 PVLDASDJ00 DVD MECHA AS

RW2.0,HITACHI HOP7422(97Q6010800)DV&DIVX ﬂ

AA01 97P93E5300 LABEL PGM 13X25 FD3000001FJ-060725 M200 97LA0069D- DECK TOTAL DVDR AS DDM-8012 NA01 97LA10930S MAIN CHASSIS AS DVD RW 2.0 (CHINA SHINWA) NA03 97LA209700 MAIN CHASSIS SUB AS DDM-8000 NA05 97LA108700 MOTOR LOAD AS DDM-4000 NB05 97L8105100 MOTOR LOAD BCZ3B01

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

NB06 97L3701300 PULLEY MOTOR POM NA05A 7003173051 SCREW MACHINE BIN 1.7*3 MFZN 3CR NA08 97L2708100 GEAR LOAD POM NA09 97L2707000 GEAR TRCAM POM NA10 97L2708200 GEAR PULLEY POM NA11 97L5505400 BELT MOTOR DY-66 NB01 97L0604700 CHASSIS MAIN ABS/PBT NA07 97LA209800 JUNCTION PCB AS DDM-8000 NB07 97L6503700 PCB JUNCTION FR1 T1.6 NB08 97L0S05100 SW LIMIT MXS01170MLBO(MIC) NB09 97P88F003S CABLE FFC 1.0 S1 5P 60MM NB13 97L2305300 HOLDER D/U ABS NA10A 7178201051 SCREW TAPPTITE TT2 WAS(PI10) 2X10 MFZN 3CR NA15 97L0907300 TRAY DVD ABS/PBT NA18A 7173260851 SCREW TAPPTITE TT2 BIN 2.6X8 MFZN 3CR NA20 2291131307 GREASE NICHIMOLY DM-523 NA21 2291131308 GREASE NICHIMOLY G-02030X-3 NA22 97LA111000 TOP PLATE AS DDM-8111 NB02 97L0907500 PLATE CLAMP SECC T0.5 NB03 97L5402300 MAGNET CLAMP ND-FE-B NB04 97L0604900 BASE CLAMP POM NB22 97L0907400 PLATE TOP SECC T0.8 NB12 97LA210600 TRAVERSE SUB AS DDM-8111 NC12 97L3608600 SHAFT SUB SUS 420J2 NC13 97L0604800 BASE D/U SECC T1.2 NC14 97L2305500 BASE MOTOR ABS NC15 97L8106400 MOTOR SPINDLE DMBSPC69A NC15A 7001204551 SCREW MACHINE M2X0.25PX4.5 MFZN 3CR NC16 97L8106500 MOTOR FEEDING SPS-15RF-291KP NC17 97L3009300 SPRING SKEW SUS 301 CSP(3/4H) NC17A 7271204551 SCREW TAPPTITE TT3 CAMERA 2X4.5(PI 5) MFZN 3CR NC18 7271207551 SCREW TAPPTITE TT3 CAMERA 2X7.5(PI 5) MFZN 3CR NB12A 97L2603300 DAMPER D/U BUTHIL(LB-30) NB15 97L3608500 SHAFT MAIN SUS 420J2 NB16 97L3009300 SPRING SKEW SUS 301 CSP(3/4H) NB16A 7271204551 SCREW TAPPTITE TT3 CAMERA 2X4.5(PI 5) MFZN 3CR NB17 97L2707200 RACK FEEDING(H) POM NB18 97L3009100 SPRING RACK SUS 304 WPB NB18A 7273160651 SCREW TAPPTITE TT3 BIN 1.6X6 (PI 4) MFZN 3CR NB21 2291131309 GREASE KANTO KASEI KG-144BKY ND19 97L8000700 PICK UP HOP-7422TL PF04A 97P88F213S CABLE FFC 0.5 K 45P 200MM(6X4-10X4) AU NA18A 7173260851 SCREW TAPPTITE TT2 BIN 2.6X8 MFZN 3CR Z004 97QD022300 PCB DVDR RW2.0, DRL-2122(DIVX,DV) AG02 2193011610 SOLDER WIRE LFC-107(1.0MM) PC01 97P885X247 CONN AS 8H-8S 130MM PC02 97P62G08ER CONN FFC GF102-25S-TS 25P ST PC03 97P62G08ED CONN FFC GF102-13S-TS 13P ST PD01 97P62A23B6 CONN WAFER 440054-6 ST PLUG 6P PF02 97P62G08E5 CONN FFC GF102-05S-TS 05P ST PF05 97P62G08EH CONN FFC GF102-17S-TS 17P ST XD01 5XJ24R57AE CRYSTAL QUARTZ HC-49/S 24.576000MHZ 30PP XN01 5XJ27R00AC CRYSTAL QUARTZ HC-49/S 27.000MHZ 15PF 20PPM XN02 5XZR03276G CRYSTAL QUARTZ SO-26 32.768000KHZ 10PPM Z0041 97PB226200 PCB MPEG CHIP TOP AS RW2.0,DRL-2122(DIVX,DV) AMA1 2193220007 SOLDER CREAM RMA9154 63SN/37PB,#325 CA02 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CA03 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CA04 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CA07 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CA09 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CA10 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CA12 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CA21 HCBK182KBA C CHIP CERA X7R 50V 1800PF K 1608 CA22 HCBK182KBA C CHIP CERA X7R 50V 1800PF K 1608 CC06 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 48 mac001 1200DPI 80LPI

ELECTRICAL PARTSLIST

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

CC08 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC10 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC12 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC13 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC14 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC15 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC19 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC20 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC21 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC22 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC26 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC27 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC31 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CC51 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608 CD02 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CD03 HCQK300JBA C CHIP CERA 50V CH 30PF J 1608 CD04 HCQK300JBA C CHIP CERA 50V CH 30PF J 1608 CD05 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CD06 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD07 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD08 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CD09 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CD11 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD12 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD13 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD14 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CD15 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CD16 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CD18 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608 CD19 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608 CF01 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF03 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF06 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF09 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF22 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF23 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF24 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF25 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF26 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF27 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF28 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF30 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF31 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CF32 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF33 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF34 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF35 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF36 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF37 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF38 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF40 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF41 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF42 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF44 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF45 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF46 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CF53 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CF54 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CF55 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CF56 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CM01 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM02 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM03 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM08 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM09 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM10 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM11 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

CM12 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM13 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM14 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM15 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM16 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM17 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM18 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM19 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM20 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM21 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM22 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM23 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM25 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM26 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM27 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM28 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM29 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM30 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM31 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM32 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM33 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM34 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM35 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM36 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM37 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM38 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM39 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM40 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM41 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM42 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM43 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM44 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM45 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM48 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM49 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM50 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM52 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM53 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM54 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM55 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM56 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM57 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CM58 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CM59 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM60 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CM61 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CM62 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CN02 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN04 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN05 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN07 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN09 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608 CN12 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN14 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN15 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN17 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608 CN18 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608 CN19 HCQK300JBA C CHIP CERA 50V CH 30PF J 1608 CN20 HCQK300JBA C CHIP CERA 50V CH 30PF J 1608 CN21 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN22 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN26 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN27 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN30 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN31 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN32 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN34 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 49 mac001 1200DPI 80LPI

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

CN35 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN36 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN37 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN38 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN39 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN40 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN41 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN42 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN43 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN44 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN45 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN46 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN47 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN48 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN49 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN50 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN51 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN52 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN53 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN57 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN58 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CN59 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS01 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS02 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CS03 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CS04 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS05 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608 CS06 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608 CS07 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608 CS08 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS09 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CS10 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS11 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608 CS12 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS13 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608 CS14 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608 CS15 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS16 HCBK332KBA C CHIP CERA 50V X7R 3300PF K 1608 CS17 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608 CS18 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS19 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 CS20 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS21 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS22 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS23 HCFD225ZBB C CHIP CERA 10V Y5V 2.2MF Z 1608 CS24 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CS25 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CS26 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS27 HCQK680JBA C CHIP CERA 50V CH 68PF J 1608 CS28 HCQK680JBA C CHIP CERA 50V CH 68PF J 1608 CS29 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 CS30 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 CS31 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS32 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CS33 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS34 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS35 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS36 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS37 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 CS38 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 CS39 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS40 HCFD225ZBB C CHIP CERA 10V Y5V 2.2MF Z 1608 CS41 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CS44 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS45 HCFD225ZBB C CHIP CERA 10V Y5V 2.2MF Z 1608 CS46 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS47 HCFD225ZBB C CHIP CERA 10V Y5V 2.2MF Z 1608

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

CS48 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS49 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608 CS50 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS51 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS52 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS53 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS54 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608 CS55 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS56 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS57 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS58 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS59 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS60 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS61 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608 CS62 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS63 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS64 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS65 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS67 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS68 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS69 HCFD225ZBB C CHIP CERA 10V Y5V 2.2MF Z 1608 CS72 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS73 HCFD225ZBB C CHIP CERA 10V Y5V 2.2MF Z 1608 CS76 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CS79 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 CS81 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 DN01 DRLS4148-B DIODE CHIP RLS4148TE-11 3415 ICA01 1CS5340CZD IC CHIP AUDIO ADC CS5340-CZZR LEAD FREE 16PIN TSSOP ICA02 1CS4344CZD IC CHIP AUDIO DAC CS4344-CZZR LEAD FREE 10PIN TSSOP ICC02 1AP117E25C IC CHIP REGULATOR AP1117E25A 2.5V SOT-223 ICC03 1AP117D18D IC CHIP REGULATOR AP1117D18A 1.8V 2% TO-252 ICD01 1TSB41AB1E IC CHIP 1EEE1394 TSB41AB1PHPR 48PIN PQFP TYPE REEL ICF01 1MT1888E-Q IC CHIP FRONTEND

MT1888E FRONTEND ONE CHIP(DSP+RF) 216PIN TRAY

ICF02 1ADS4616AQ 16M(1X16) SDRAM ADS4616A4A-6 16M 166MHZ 50PIN TSOP TRAY ICF08 1BD7956FSG IC CHIP MOTOR DRIVER BD7956FS-E2 7CH HSSOP-A54 REEL ICF10 1AP117D18D IC CHIP REGULATOR AP1117D18A 1.8V 2% TO-252 ICM01 1HYB25D25E IC CHIP DDRSDRAM

HYB25DC256160CE-6 256MB(16MX6) 333M 66PIN TSOP-11

ICM02 1G2995F1UC IC CHIP DDR REGUATOR G2995F1U AV1N=PV1N=2.5V SOP-8L ICM03 1ES29LV32Q IC CHIP FLASH

ES29LV320DT-80RTG1 32M 48PIN TSOP TRAY

ICM04 14CAT2416J IC CHIP EEPROM CAT24WC16J(16K SOP) ICN01 1MT8105DEQ IC CHIP MPEG CODEC MT8105DE WITH DIVX LQFP 256 PIN TRAY LA01 HRFT000-CA R CHIP 1/10 0 OHM 2012 LA02 HRFT000-CA R CHIP 1/10 0 OHM 2012 LA04 HRFT000-CA R CHIP 1/10 0 OHM 2012 LC01 HRFT000-CA R CHIP 1/10 0 OHM 2012 LC02 HRFT000-CA R CHIP 1/10 0 OHM 2012 LC03 HRFT000-CA R CHIP 1/10 0 OHM 2012 LC04 HRFT000-CA R CHIP 1/10 0 OHM 2012 LC05 HRFT000-CA R CHIP 1/10 0 OHM 2012 LC06 HRFT000-CA R CHIP 1/10 0 OHM 2012 LD01 HRFT000-CA R CHIP 1/10 0 OHM 2012 LD02 HRFT000-CA R CHIP 1/10 0 OHM 2012 LF01 HRF8000-EA R CHIP 1/8 0 OHM 3216 LF02 HRF8000-EA R CHIP 1/8 0 OHM 3216 LF03 HRF8000-EA R CHIP 1/8 0 OHM 3216 LF04 HRF8000-EA R CHIP 1/8 0 OHM 3216 LF05 HRFT000-CA R CHIP 1/10 0 OHM 2012 LF06 HRFT000-CA R CHIP 1/10 0 OHM 2012 LF20 HRFT000-CA R CHIP 1/10 0 OHM 2012 LM01 HRFT000-CA R CHIP 1/10 0 OHM 2012 LN01 HRFT000-CA R CHIP 1/10 0 OHM 2012 LN02 HRFT000-CA R CHIP 1/10 0 OHM 2012 LN03 HRFT000-CA R CHIP 1/10 0 OHM 2012 LN04 HRFT000-CA R CHIP 1/10 0 OHM 2012 LN05 HRFT000-CA R CHIP 1/10 0 OHM 2012 LN06 HRFT000-CA R CHIP 1/10 0 OHM 2012 LN07 HRFT000-CA R CHIP 1/10 0 OHM 2012

ELECTRICAL PARTSLIST

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 50 mac001 1200DPI 80LPI

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

LS01 HRFT000-CA R CHIP 1/10 0 OHM 2012 LS02 HRFT000-CA R CHIP 1/10 0 OHM 2012 PF04 97P62M1445 CONN FFC SMD 54104-4596 RA-T 0.5 45P RA01 HRFT519JCA R CHIP 1/10 5.1 OHM J 2012 RA02 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RA06 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 RA07 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 RA08 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 RA09 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 RA11 HRFS122JBA R CHIP 1/16 1.2K OHM J 1608 RA12 HRFS202JBA R CHIP 1/16 2K OHM J 1608 RA13 HRFS122JBA R CHIP 1/16 1.2K OHM J 1608 RA14 HRFS202JBA R CHIP 1/16 2K OHM J 1608 RA17 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RA18 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RA19 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RA20 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RA21 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RA22 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RA23 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 RA24 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 RC54 HRFS301JBA R CHIP 1/16 300 OHM J 1608 RC57 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RC58 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 RC59 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RC60 HRFS562JBA R CHIP 1/16 5.6K OHM J 1608 RC61 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RC62 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RC63 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RC64 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RC65 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RC66 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RC67 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RC68 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RC69 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RC70 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RC71 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RC72 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RD01 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RD02 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RD03 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RD04 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RD05 HRT6341FBA R CHIP 1/10 6.34K OHM F 1608 RD08 HRFS560JBA R CHIP 1/16 56 OHM J 1608 RD09 HRFS560JBA R CHIP 1/16 56 OHM J 1608 RD10 HRFS560JBA R CHIP 1/16 56 OHM J 1608 RD11 HRFS560JBA R CHIP 1/16 56 OHM J 1608 RD12 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608 RD13 HRTS8E103J R CHIP ARRAY 1/16 8P 10K OHM J 3216 RD14 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RD15 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RD16 HRFS121JBA R CHIP 1/16 120 OHM J 1608 RD17 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RD18 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RF20 HRTS8E220J R CHIP ARRAY 1/16 8P 22 OHM J 3216 RF21 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RF22 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RF23 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RF24 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 RF30 HRFS273JBA R CHIP 1/16 27K OHM J 1608 RF31 HRFS273JBA R CHIP 1/16 27K OHM J 1608 RF32 HRFT109JCA R CHIP 1/10 1 OHM J 2012 RF33 HRFT109JCA R CHIP 1/10 1 OHM J 2012 RF34 HRFT109JCA R CHIP 1/10 1 OHM J 2012 RF35 HRFT109JCA R CHIP 1/10 1 OHM J 2012 RF36 HRFT109JCA R CHIP 1/10 1 OHM J 2012 RF37 HRFS101JBA R CHIP 1/16 100 OHM J 1608

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

RF38 HRFS273JBA R CHIP 1/16 27K OHM J 1608 RF39 HRFS273JBA R CHIP 1/16 27K OHM J 1608 RF40 HRFT229JCA R CHIP 1/10 2.2 OHM J 2012 RF41 HRFT229JCA R CHIP 1/10 2.2 OHM J 2012 RF42 HRFT229JCA R CHIP 1/10 2.2 OHM J 2012 RF43 HRFT229JCA R CHIP 1/10 2.2 OHM J 2012 RF46 HRFS101JBA R CHIP 1/16 100 OHM J 1608 RF48 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RM01 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RM02 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RM03 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RM04 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RM05 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RM06 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RM07 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RM08 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RM09 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RM10 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RM11 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RM12 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RM13 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RM14 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RM15 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RM16 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RM17 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RM18 HRFS330JBA R CHIP 1/16 33 OHM J 1608 RM20 HRTS8E750J R CHIP ARRAY 1/16 75 OHM J 8PIN 3216 RM21 HRTS8E750J R CHIP ARRAY 1/16 75 OHM J 8PIN 3216 RM22 HRTS8E750J R CHIP ARRAY 1/16 75 OHM J 8PIN 3216 RM23 HRTS8E750J R CHIP ARRAY 1/16 75 OHM J 8PIN 3216 RM24 HRTS8E750J R CHIP ARRAY 1/16 75 OHM J 8PIN 3216 RM25 HRTS8E750J R CHIP ARRAY 1/16 75 OHM J 8PIN 3216 RM26 HRTS8E750J R CHIP ARRAY 1/16 75 OHM J 8PIN 3216 RM27 HRTS8E750J R CHIP ARRAY 1/16 75 OHM J 8PIN 3216 RM28 HRFS750JBA R CHIP 1/16 75 OHM J 1608 RM29 HRFS750JBA R CHIP 1/16 75 OHM J 1608 RM30 HRFS750JBA R CHIP 1/16 75 OHM J 1608 RM31 HRFS750JBA R CHIP 1/16 75 OHM J 1608 RM32 HRFS750JBA R CHIP 1/16 75 OHM J 1608 RM33 HRFS750JBA R CHIP 1/16 75 OHM J 1608 RM35 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RM36 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RM37 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RM38 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RM39 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RM40 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RM41 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RN01 HRFS479JBA R CHIP 1/16 4.7 OHM J 1608 RN04 HRFS100JBA R CHIP 1/16W 10 OHM J 1608 RN06 HRFS479JBA R CHIP 1/16 4.7 OHM J 1608 RN07 HRFS479JBA R CHIP 1/16 4.7 OHM J 1608 RN08 HRFS222FBA R CHIP 1/16 2.2K F 1608 RN09 HRFS104JBA R CHIP 1/16 100K OHM J 1608 RN10 HRFS335JBA R CHIP 1/16 3.3M OHM J 1608 RN11 HRFS000-BA R CHIP 1/16 0 OHM 1608 RN22 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RN23 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RN25 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RN30 HRFS510JBA R CHIP 1/16 51 OHM J 1608 RN33 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS01 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS02 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS03 HRFS243JBA R CHIP 1/16 24K OHM J 1608 RS05 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS06 HRFS479JBA R CHIP 1/16 4.7 OHM J 1608 RS07 HRFS513JBA R CHIP 1/16 51K OHM J 1608 RS08 HRFS513JBA R CHIP 1/16 51K OHM J 1608

ELECTRICAL PARTSLIST

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 51 mac001 1200DPI 80LPI

ELECTRICAL PARTSLIST

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

RS09 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RS10 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RS11 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RS12 HRFS754JBA R CHIP 1/16 750K OHM J 1608 RS13 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RS17 HRFS820JBA R CHIP 1/16 82 OHM J 1608 RS18 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RS19 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RS20 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RS21 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM J 3216 RS22 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 RS23 HRTS8E820J R CHIP ARRAY 1/16 8P 82 OHM 3216 RS24 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 RS25 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 RS26 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RS27 HRTS8E820J R CHIP ARRAY 1/16 8P 82 OHM 3216 RS28 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS29 HRFS104JBA R CHIP 1/16 100K OHM J 1608 RS30 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RS31 HRFS242JBA R CHIP 1/16 2.4K OHM J 1608 RS32 HRFS479JBA R CHIP 1/16 4.7 OHM J 1608 RS35 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RS39 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RS40 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RS41 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS42 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RS43 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS44 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS47 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS50 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 RS51 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608 RS52 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RS53 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS54 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RS55 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS56 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS60 HRFS000-BA R CHIP 1/16 0 OHM 1608 RS61 HRFS000-BA R CHIP 1/16 0 OHM 1608 UG01 97P65510ZA PCB MPEG DW-K73D3N-JS XF01 5XJ25R00SD CRYSTAL QUARTZ SMD HC-49/S-S 25.0000MHZ 20PF 25PPM Z0042 97PB226300 PCB MPEG RADIAL AS RW2.0,DRL-2122(DIVX,DV) CA01 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP CA05 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CA06 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP CA08 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CA11 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CA13 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CA14 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CA16 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CA17 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CC07 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CC09 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CC11 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) CC16 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CC17 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CC18 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CC23 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CC24 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CC25 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CC28 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CC29 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CC30 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CC32 CEXE1C101E C ELECTRO 16V RM 100MF 5X11 CC33 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CD10 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CD17 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CF02 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

CF04 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CF05 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CF07 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CF08 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CF10 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CF21 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CF39 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP CF43 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CM06 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CM07 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CM24 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CM46 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CM47 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CM51 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CM63 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN01 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN03 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN06 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN10 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN11 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN13 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN16 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN23 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN24 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN25 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CN28 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN29 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CN33 CEXF1C331V C ELECTRO 16V RSS 330MF (8X11.5) TP CN56 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CS66 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7 CS78 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CS80 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 LA03 5CPX101J2T COIL PEAKING 100UH(BRN-BRN) P706A 97P885X244 CONN AS 6H-6H 220MM SHIELD PW01 97P69DB90B CORD POWER EU KKP-419C YFH800 1.7M Z001 PVMPMSE699 PCB MAIN MANUAL AS DF-K75D2D-JB AM01 2193100802 SOLDER WIRE LFC5-W3.0(SN-0.5CU-0.01P) AM02 2193011610 SOLDER WIRE LFC-107(1.0MM) AM03 2291050305 FLUX LIQUID RF-800KN AM04 2291050306 FLUX THINNER RF-800ADD AM05 2291140501 WAX COVER AM06 97P93B2101 LABEL CD(PCB) PAPER(13X25) ALL MODEL E003 97P0997600 PLATE EARTH AV SUS 304 CSP T0.15 G701 DEB83D1N LED DISPLAY EB83D1N-F425-2SRVYWB H701 10RC356VF4 IC UNIT R/RECE1VER ORC-356VF4(38KHZ) JK102 97P6318540 JACK PIN YPJ611D 6P ANG TYPE JK105 97P6318010 JACK PIN(S-VHS) DUAE-9812 JK601 97P6313300 JACK DOUBLE SCART DSAM-0302 2 LAYER JK701 97P6316800 JACK PIN DPSE-9966 JK702 97P62S09F4 CONN WAFER RV-ST4D-F16N-D16 4P(1394 ST-DIP) M401 97P0478200 CASE SHI PREAMP ET T0.4 P201 97P62Y1318 CONN WAFER DVW250 PLUG 2.5MM 8P P202 97P62K03B2 CONN WAFER SCB-700 2P RECEP P302 97P62G08ER CONN FFC GF102-25S-TS 25P ST P302A 97P88F005S CABLE FFC 1.0 K 25P 60MM P303 97P62G08ED CONN FFC GF102-13S-TS 13P ST P303A 97P88F004S CABLE FFC 1.0K 13P 60MM P401 97P62G06DA CONN FFC GF120-10S-TS 10P ST P501 97P62J012C CONN B/B JE612 PLUG 2.0 12P P502 97P6269000 CONN WAFER 00-8283-0612-00000 P701 97P885X245 CONN AS 12H-12S, 180MM P702 97P62Y302C CONN WAFER YDW200-12 ST PLUG 12P P703 97P62M05A6 CONN B/B 35238 RECEP 2.5MM 6P P704 97P62M06A6 CONN B/B 35337 PLUG 2.5MM 6P P706 97P62A24B6 CONN WAFER 440055-6 RA PLUG 6P PJ821 97P885X246 CONN AS 7H-7S 70MM RF101 97P7621900 TUNER 3 IN 1 LG TMI-GKIQ5

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 52 mac001 1200DPI 80LPI

ELECTRICAL PARTSLIST

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

S501 97P0S02500 SENSOR REEL RPI-303N S502 97P0S02500 SENSOR REEL RPI-303N SW501 5S10104200 SW MODE MMS01010ZMB0 SW510 5SD0101100 SW DETE MXS00921MPC0 SW707 5S50101034 SW TACT JTP1288A T201 560202L692 COIL OSC DEO-006 X051 5XJ18R4LAE CRYSTAL QUARTZ HC-49/S 18.43200MHZ 30PP X501 5XJ17R7LAD CRYSTAL QUARTZ HC-49/S 17.73447MHZ 25PPM Z0011 PVMPJ1E699 MAIN CHIP MOUNT BT AS DF-K75D2D-JB C003 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 C006 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 C007 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C009 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C015 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 C017 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608 C018 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608 C028 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C052 HCQK209CBA C CHIP CERA 50V CH 2PF C 1608 C053 HCQK209CBA C CHIP CERA 50V CH 2PF C 1608 C054 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C056 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C058 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C060 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C067 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C153 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C157 HCBK563KBA C CHIP CERA 50V X7R 0.056MF K 1608 C161 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 C202 HCBK122KBA C CHIP CERA 50V X7R 1200PF K 1608 C203 HCBK122KBA C CHIP CERA 50V X7R 1200PF K 1608 C206 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C212 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C251 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C252 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C253 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C254 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C255 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C256 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C257 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C258 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C259 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C260 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C269 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C271 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608 C277 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608 C281 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C282 HCBK122KBA C CHIP CERA 50V X7R 1200PF K 1608 C286 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C301 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608 C303 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C306 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C307 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608 C308 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C310 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608 C311 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C312 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608 C314 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C315 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C316 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608 C318 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608 C319 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608 C325 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C328 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C330 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 C333 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C335 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 C339 HCQK131JBA C CHIP CERA 50V CH 130PF J 1608 C340 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

C341 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C342 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C344 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608 C391 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608 C396 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608 C397 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608 C398 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608 C404 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C505 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C506 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C510 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 C511 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C514 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 C515 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C516 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 C517 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 C519 HCBK272KBA C CHIP CERA 50V X7R 2700PF K 1608 C520 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C521 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C527 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C529 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 C531 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 C532 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 C537 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C596 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C597 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C598 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C599 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C5A1 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C613 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 C614 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 C615 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 C616 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C625 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 C626 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 C627 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 C628 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608 C630 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 C631 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 C632 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608 C633 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608 C636 HRFS000-BA R CHIP 1/16 0 OHM 1608 C640 HCQK201JBA C CHIP CERA 50V CH 200PF J 1608 C640A HCQK201JBA C CHIP CERA 50V CH 200PF J 1608 C702 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 C915 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608 C916 HCQK300JBA C CHIP CERA 50V CH 30PF J 1608 C917 HCQK300JBA C CHIP CERA 50V CH 30PF J 1608 C918 HCQK300JBA C CHIP CERA 50V CH 30PF J 1608 CD03 HCBK391KBA C CHIP CERA 50V X7R 390PF K 1608 CD04 HCBK391KBA C CHIP CERA 50V X7R 390PF K 1608 CD123 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608 CD126 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608 CD128 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CD129 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608 CD130 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608 IC051 1MSP3407G3 IC A2 MSP3407G-V3 IC151 1LC74793 IC CHIP VPS LC74793JM IC251 1TDA9605H- IC HI-FI TDA9605H IC301 1LA71750M- IC CHIP A/V 1 LA71750M IC501 168KT902TS IC MICOM M3776AMCH-1EOGP IC502 14CAT2416J IC CHIP EEPROM CAT24WC16J(16K SOP) IC601 1HEF4052BD IC CHIP SW HEF4052B IC602 1HEF4052BD IC CHIP SW HEF4052B IC701 1PT6961 - IC CHIP DRIVER P76961 32P.M SOP ICD02 1KA4558D IC OP AMP KA4558D(8 SOP) L607 HLX1210001 BEAD CHIP TB201209Z121

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 53 mac001 1200DPI 80LPI

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

L608 HLX1210001 BEAD CHIP TB201209Z121 Q006 T2SC2412KB TR CHIP 2SC2412K-T146-BR Q007 T2SC2412KB TR CHIP 2SC2412K-T146-BR Q207 T2SA1037KB TR CHIP 2SA1037AKT146-R Q208 T2SC2412KB TR CHIP 2SC2412K-T146-BR Q224 TKSR2104-B TR CHIP KSR2104 Q225 T2SC2412KB TR CHIP 2SC2412K-T146-BR Q302 T2SC2412KB TR CHIP 2SC2412K-T146-BR Q303 T2SA1037KB TR CHIP 2SA1037AKT146-R Q304 T2SC2412KB TR CHIP 2SC2412K-T146-BR Q306 T2SC2412KB TR CHIP 2SC2412K-T146-BR Q311 T2SC2412KB TR CHIP 2SC2412K-T146-BR Q333 T2SA1037KB TR CHIP 2SA1037AKT146-R Q602 TKSR1104-B TR CHIP KSR1104 Q861 T2SC2412KB TR CHIP 2SC2412K-T146-BR R007 HRFS225JBA R CHIP 1/16 2.2M OHM J 1608 R008 HRFS912JBA R CHIP 1/16 9.1K OHM J 1608 R022 HRFS225JBA R CHIP 1/16 2.2M OHM J 1608 R023 HRFS153JBA R CHIP 1/16 15K OHM J 1608 R055 HRFS562JBA R CHIP 1/16 5.6K OHM J 1608 R056 HRFS562JBA R CHIP 1/16 5.6K OHM J 1608 R088 HRFS153JBA R CHIP 1/16 15K OHM J 1608 R098 HRFS133JBA R CHIP 1/16 13K OHM J 1608 R099 HRFS133JBA R CHIP 1/16 13K OHM J 1608 R108 HRFS750JBA R CHIP 1/16 75 OHM J 1608 R127 HRFS103JBA R CHIP 1/16 10K OHM J 1608 R152 HRFS103JBA R CHIP 1/16 10K OHM J 1608 R155 HRFS272JBA R CHIP 1/16 2.7K OHM J 1608 R202 HRFS334JBA R CHIP 1/16 330K OHM J 1608 R204 HRFS133JBA R CHIP 1/16 13K OHM J 1608 R205 HRFS752JBA R CHIP 1/16 7.5K OHM J 1608 R206 HRFS273JBA R CHIP 1/16 27K OHM J 1608 R215 HRFS911JBA R CHIP 1/16 910 OHM J 1608 R216 HRFS103JBA R CHIP 1/16 10K OHM J 1608 R217 HRFS223JBA R CHIP 1/16 22K OHM J 1608 R218 HRFS222JBA R CHIP 1/16 2.2K OHM J 1608 R222 HRFS561JBA R CHIP 1/16 560 OHM J 1608 R225 HRFS229JBA R CHIP 1/16 2.2 OHM J 1608 R226 HRFS229JBA R CHIP 1/16 2.2 OHM J 1608 R232 HRFS183JBA R CHIP 1/16 18K OHM J 1608 R266 HRFS333JBA R CHIP 1/16 33K OHM J 1608 R269 HRFS272JBA R CHIP 1/16 2.7K OHM J 1608 R270 HRFS333JBA R CHIP 1/16 33K OHM J 1608 R301 HRFS122JBA R CHIP 1/16 1.2K OHM J 1608 R308 HRFS102JBA R CHIP 1/16 1K OHM J 1608 R309 HRFS155JBA R CHIP 1/16 1.5M OHM J 1608 R310 HRFS155JBA R CHIP 1/16 1.5M OHM J 1608 R318 HRFS102JBA R CHIP 1/16 1K OHM J 1608 R319 HRFS105JBA R CHIP 1/16 1M OHM J 1608 R320 HRFS471JBA R CHIP 1/16 470 OHM J 1608 R321 HRFS102JBA R CHIP 1/16 1K OHM J 1608 R326 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 R327 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608 R328 HRFS104JBA R CHIP 1/16 100K OHM J 1608 R337A HRFS103JBA R CHIP 1/16 10K OHM J 1608 R347 HRFS101JBA R CHIP 1/16 100 OHM J 1608 R349 HRFS102JBA R CHIP 1/16 1K OHM J 1608 R350 HRFS221JBA R CHIP 1/16 220 OHM J 1608 R476 HRFS750JBA R CHIP 1/16 75 OHM J 1608 R501 HRFS000-BA R CHIP 1/16 0 OHM 1608 R527 HRFS273JBA R CHIP 1/16 27K OHM J 1608 R529 HRFS201JBA R CHIP 1/16 200 OHM J 1608 R530 HRFS244JBA R CHIP 1/16W 240K OHM J 1608 R531 HRFS244JBA R CHIP 1/16W 240K OHM J 1608 R532 HRFS244JBA R CHIP 1/16W 240K OHM J 1608 R533 HRFS244JBA R CHIP 1/16W 240K OHM J 1608 R538 HRFS912JBA R CHIP 1/16 9.1K OHM J 1608

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

R547 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608 R611 HRFS750JBA R CHIP 1/16 75 OHM J 1608 R621 HRFS103JBA R CHIP 1/16 10K OHM J 1608 R621A HRFS103JBA R CHIP 1/16 10K OHM J 1608 R622 HRFS474JBA R CHIP 1/16 470K OHM J 1608 R623 HRFS474JBA R CHIP 1/16 470K OHM J 1608 R624 HRFS474JBA R CHIP 1/16 470K OHM J 1608 R625 HRFS474JBA R CHIP 1/16 470K OHM J 1608 R627 HRFS474JBA R CHIP 1/16 470K OHM J 1608 R629 HRFS474JBA R CHIP 1/16 470K OHM J 1608 R635 HRFS203JBA R CHIP 1/16 20K OHM J 1608 R636 HRFS203JBA R CHIP 1/16 20K OHM J 1608 R653 HRFS103JBA R CHIP 1/16 10K OHM J 1608 R745 HRFS203JBA R CHIP 1/16 20K OHM J 1608 R861 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 R862 HRFS202JBA R CHIP 1/16 2K OHM J 1608 R925 HRFS102JBA R CHIP 1/16 1K OHM J 1608 R929 HRFS203JBA R CHIP 1/16 20K OHM J 1608 R941 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RD10 HRFS681JBA R CHIP 1/16 680 OHM J 1608 RD11 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RD35 HRFS681JBA R CHIP 1/16 680 OHM J 1608 RD65 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RJ001 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ002 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ003 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ004 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ005 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ006 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ007 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ008 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ009 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ011 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ012 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ013 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ014 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ015 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ017 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ018 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ019 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ020 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ021 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ022 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ023 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ024 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ025 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ037 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ074 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ185 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ222 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ231 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ241 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ301 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ304 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ305 HRF8000-EA R CHIP 1/8 0 OHM 3216 RJ701 HRFS000-BA R CHIP 1/16 0 OHM 1608 RJ801 HRFS000-BA R CHIP 1/16 0 OHM 1608 RP01 HRFS000-BA R CHIP 1/16 0 OHM 1608 RP10 HRFS102JBA R CHIP 1/16 1K OHM J 1608 Z0012 PVMPJRE699 PCB MAIN RADIAL AS DF-K75D2D-JB C001 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C002 CEXF1A101A C ELECTRO 10V RSM 100MF 6X7 C004 CEXF1A101A C ELECTRO 10V RSM 100MF 6X7 C016 CEXF1H478A C ELECTRO 50V RSM 0.47MF 4X7 C025 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C026 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C027 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP

ELECTRICAL PARTSLIST

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 54 mac001 1200DPI 80LPI

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

C029 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C055 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C057 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C059 CEXF1H339A C ELECTRO 50V RSM 3.3MF 4X7 C063 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP C064 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C065 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C066 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C068 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C151 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C152 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP C154 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP C158 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C201 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C204 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) C205 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C208 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C210 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) C213 CEXF1H478A C ELECTRO 50V RSM 0.47MF 4X7 C214 CEXF1C330A C ELECTRO 16V RSM 33MF (5X7) TP C219 CMXM2A243J C MYLAR 100V 0.024MF J (TP) C222 CMXM2A333J C MYLAR 100V 0.033MF J (TP) C223 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C225 CMXM2A333J C MYLAR 100V 0.033MF J (TP) C227 CEXE1A470N C ELECTRO 10V RBD 47MF 5X11 C228 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C261 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C262 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C263 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C264 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C270 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C272 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C273 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C274 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP C275 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C276 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C278 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C279 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C283 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C292 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C302 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP C304 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP C305 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C309 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP C313 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP C320 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C322 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C327 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C331 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP C332 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C334 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C336 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C338 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP C351 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C353 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C389 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C402 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP C403 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C504 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C512 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C513 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C524 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C530 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C5A4 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C618 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP C620 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP C635 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

C637 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C641 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C642 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C643 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C644 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C647 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C648 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C649 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C650 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C670 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C703 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C731 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C857 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP C862 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C901 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP C902 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA C903 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA C904 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP C905 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP C906 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP C907 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP C908 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP C909 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP C910 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP C911 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP CD01 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) CD02 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) CD121 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) CD124 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) CD127 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP IC503 1K1A7042AP IC RESET KIA7042AP L001 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L002 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L003 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L004 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L051 5CPX101J2T COIL PEAKING 100UH(BRN-BRN) L052 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L101 5CPX101J2T COIL PEAKING 100UH(BRN-BRN) L152 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L201 5CPX101J2T COIL PEAKING 100UH(BRN-BRN) L203 5CPX101J2T COIL PEAKING 100UH(BRN-BRN) L250 5CPX101J2T COIL PEAKING 100UH(BRN-BRN) L251 5CPX101J2T COIL PEAKING 100UH(BRN-BRN) L301 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L302 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L303 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L304 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L331 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L401 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L501 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L601 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L603 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) L703 5CPX680J2T COIL PEAKING 68UH(BLU-BLK) L901 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) Q112 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q203 TZTC3202Y- TR KTC3202Y (2SC5342NYATPF) Q204 TZTC3198Y- TRANSISTOR KTC3198Y-(2SC5343NYATPF) Q205 TZTC3198Y- TRANSISTOR KTC3198Y-(2SC5343NYATPF) Q206 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q670 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q671 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q853 TZTC3205Y- TR KTC3205Y (2236Y) Q856 TZTC3198Y- TRANSISTOR KTC3198Y-(2SC5343NYATPF) Q901 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q902 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q903 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q904 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF)

ELECTRICAL PARTSLIST

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 55 mac001 1200DPI 80LPI

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

Q905 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q906 TZTC3198Y- TRANSISTOR KTC3198Y-(2SC5343NYATPF) Q907 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q908 TZTC3205Y- TR KTC3205Y (2236Y) Q909 TZTC3198Y- TRANSISTOR KTC3198Y-(2SC5343NYATPF) Q910 TZTC3198Y- TRANSISTOR KTC3198Y-(2SC5343NYATPF) Q911 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q931 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q932 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) Q933 TZTA1266Y- TR KTA1266Y- (2SA1980NYATPF) SW701 5S50101Z90 SW TACT THVV502GDA SW702 5S50101Z90 SW TACT THVV502GDA SW703 5S50101Z90 SW TACT THVV502GDA SW704 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO SW705 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO SW706 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO SW708 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO SW711 5S50101Z90 SW TACT THVV502GDA SW712 5S50101Z90 SW TACT THVV502GDA SW753 5S50101Z90 SW TACT THVV502GDA SW754 5S50101Z90 SW TACT THVV502GDA SW755 5S50101Z90 SW TACT THVV502GDA SW756 5S50101Z90 SW TACT THVV502GDA X301 5XE4R433TB CRYSTAL QUARTZ HC-49/U 4.433619MHZ 15PPM (FORMING) Z0013 PVMPJAE699 PCB MAIN AXIAL AS DF-K75D2D-JB AM31 2TM14006LB TAPE MASKING 3M #232 6.0X2000M AM31A 2TM110620R TAPE MASKING SI-600N RED AM31B 2TM1106200 TAPE MASKING SI-600N C005 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C008 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C012 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C013 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C014 CCZB1H101K C CERA 50V B 100PF K (AXIAL) C051 CZSL1H390J C CERA 50V SL 39PF J (AXIAL) C160 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C207 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608) C220 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C284 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608) C321 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608) C323 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608) C324 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608) C326 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608) C329 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608) C337 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C352 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C401 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608) C509 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C518 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C528 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) C710 CCZB1H102K C CERA 50V B 1000PF K (AXIAL) C713 CCZB1H102K C CERA 50V B 1000PF K (AXIAL) D003 DZN4003- DIODE IN4003 D004 DZN4003- DIODE IN4003 D005 DZN4003- DIODE IN4003 D012 DZN4148- DIODE 1N4148 AUTO 52MM D013 DZN4148- DIODE 1N4148 AUTO 52MM D015 DZN4148- DIODE 1N4148 AUTO 52MM D301 DZN4148- DIODE 1N4148 AUTO 52MM D523 DZN4003- DIODE IN4003 D525 DZN4004- DIODE 1N4004(AUTO) D526 DZN4004- DIODE 1N4004(AUTO) D601 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V) D602 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V) D603 DZN4148- DIODE 1N4148 AUTO 52MM D604 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V) D605 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V) D606 DZN4148- DIODE 1N4148 AUTO 52MM

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

D630 DZN4148- DIODE 1N4148 AUTO 52MM D708 DZN4148- DIODE 1N4148 AUTO 52MM D710 DZN4148- DIODE 1N4148 AUTO 52MM D711 DZN4148- DIODE 1N4148 AUTO 52MM D712 DZN4148- DIODE 1N4148 AUTO 52MM D713 DZN4148- DIODE 1N4148 AUTO 52MM D715 DZN4148- DIODE 1N4148 AUTO 52MM D716 DZN4148- DIODE 1N4148 AUTO 52MM D721 DZUZ5R1BSB DIODE ZENER UZ-5.1BSB(4.97-5.18V) D722 DZUZ5R1BSB DIODE ZENER UZ-5.1BSB(4.97-5.18V) D723 DZUZ5R1BSB DIODE ZENER UZ-5.1BSB(4.97-5.18V) D850 DZUZ33BSB- DIODE ZENER UZ-33BSB(30.32-31.38V) D852 DZUZ5R1BSB DIODE ZENER UZ-5.1BSB(4.97-5.18V) D854 DZN4148- DIODE 1N4148 AUTO 52MM D861 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V) D904 DZN4148- DIODE 1N4148 AUTO 52MM D905 DZN4148- DIODE 1N4148 AUTO 52MM D906 DZN4148- DIODE 1N4148 AUTO 52MM D915 DZN4148- DIODE 1N4148 AUTO 52MM D931 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V) D932 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V) D933 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V) D934 DZN4148- DIODE 1N4148 AUTO 52MM JP041 85801060TA WIRE COPPER 0.6X52MM TAPING JP051 85801060TA WIRE COPPER 0.6X52MM TAPING JP075 85801060TA WIRE COPPER 0.6X52MM TAPING JP107 85801060TA WIRE COPPER 0.6X52MM TAPING JP152 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J JP153 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J JP172 85801060TA WIRE COPPER 0.6X52MM TAPING JP181 85801060TA WIRE COPPER 0.6X52MM TAPING JP187 85801060TA WIRE COPPER 0.6X52MM TAPING JP192 85801060TA WIRE COPPER 0.6X52MM TAPING JP214 85801060TA WIRE COPPER 0.6X52MM TAPING JP218 85801060TA WIRE COPPER 0.6X52MM TAPING JP249 85801060TA WIRE COPPER 0.6X52MM TAPING L151 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM) L340 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM) L341 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM) L342 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM) L602 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM) L604 RD-AZ301J- R CARBON FILM 1/6 300 OHM J L605 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM) L606 RD-AZ301J- R CARBON FILM 1/6 300 OHM J L701 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM) L702 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM) R001 RD-AZ221J- R CARBON FILM 1/6 220 OHM J R002 RD-AZ221J- R CARBON FILM 1/6 220 OHM J R003 RD-AZ751J- R CARBON FILM 1/6 750 OHM J R005 RD-AZ221J- R CARBON FILM 1/6 220 OHM J R006 RD-AZ221J- R CARBON FILM 1/6 220 OHM J R009 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J R014 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R051 RD-AZ751J- R CARBON FILM 1/6 750 OHM J R052 RD-AZ751J- R CARBON FILM 1/6 750 OHM J R054 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R147 RD-AZ153J- R CARBON FILM 1/6 15K OHM J R153 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J R154 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R168 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R201 RD-AZ273J- R CARBON FILM 1/6 27K OHM J R203 RD-AZ181J- R CARBON FILM 1/6 180 OHM J R207 RD-AZ513J- R CARBON FILM 1/6 51K OHM J R208 RD-AZ362J- R CARBON FILM 1/6 3.6K OHM J R209 RD-AZ123J- R CARBON FILM 1/6 12K OHM J R214 RD-AZ511J- R CARBON FILM 1/6 510 OHM J R219 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

ELECTRICAL PARTSLIST

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 56 mac001 1200DPI 80LPI

ELECTRICAL PARTSLIST

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

R223 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J R224 RD-AZ470J- R CARBON FILM 1/6 47 OHM J R229 RD-AZ202J- R CARBON FILM 1/6 2K OHM J R230 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R231 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R255 RD-AZ333J- R CARBON FILM 1/6 33K OHM J R264 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R267 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J R268 RN-AZ3902F R METAL FILM 1/6 39K OHM F R271 RD-AZ470J- R CARBON FILM 1/6 47 OHM J R276 RD-AZ183J- R CARBON FILM 1/6 18K OHM J R277 RD-AZ511J- R CARBON FILM 1/6 510 OHM J R278 RD-AZ511J- R CARBON FILM 1/6 510 OHM J R302 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J R305A RD-AZ474J- R CARBON FILM 1/6 470K OHM J R306 RD-AZ434J- R CARBON FILM 1/6 430K OHM J R307 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J R312 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J R313 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J R314 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R315 RD-AZ183J- R CARBON FILM 1/6 18K OHM J R316 RD-AZ183J- R CARBON FILM 1/6 18K OHM J R317 RD-AZ221J- R CARBON FILM 1/6 220 OHM J R322 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J R323 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J R325 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J R329 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R330 RD-AZ223J- R CARBON FILM 1/6 22K OHM J R331 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R333 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R337 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R351 RD-AZ301J- R CARBON FILM 1/6 300 OHM J R356 RD-AZ221J- R CARBON FILM 1/6 220 OHM J R370 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R385 RD-AZ301J- R CARBON FILM 1/6 300 OHM J R386 RD-AZ301J- R CARBON FILM 1/6 300 OHM J R387 RD-AZ301J- R CARBON FILM 1/6 300 OHM J R388 RD-AZ474J- R CARBON FILM 1/6 470K OHM J R399 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R400 RD-AZ301J- R CARBON FILM 1/6 300 OHM J R401 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R402 RD-AZ393J- R CARBON FILM 1/6 39K OHM J R403 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R404 RD-AZ301J- R CARBON FILM 1/6 300 OHM J R405 RD-AZ301J- R CARBON FILM 1/6 300 OHM J R423 RD-AZ153J- R CARBON FILM 1/6 15K OHM J R424 RD-AZ201J- R CARBON FILM 1/6 200 OHM J R475 RD-AZ121J- R CARBON FILM 1/6 120 OHM J R505 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R506 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R509 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R510 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R511 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R512 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R513 RD-AZ331J- R CARBON FILM 1/6 330 OHM J R514 RD-AZ331J- R CARBON FILM 1/6 330 OHM J R520 RD-AZ561J- R CARBON FILM 1/6 560 OHM J R521 RD-AZ561J- R CARBON FILM 1/6 560 OHM J R523 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R525 85801060TA WIRE COPPER 0.6X52MM TAPING R526 RD-AZ273J- R CARBON FILM 1/6 27K OHM J R528 RD-AZ201J- R CARBON FILM 1/6 200 OHM J R534 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R535 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R536 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R537 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R539 RD-AZ431J- R CARBON FILM 1/6 430 OHM J

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

R540 RN-AZ103F- R METAL FILM 1/6 10K OHM F R541 RN-AZ103F- R METAL FILM 1/6 10K OHM F R543 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R544 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R545 RD-AZ121J- R CARBON FILM 1/6 120 OHM J R546 RD-AZ121J- R CARBON FILM 1/6 120 OHM J R549 RD-AZ474J- R CARBON FILM 1/6 470K OHM J R601 RD-AZ153J- R CARBON FILM 1/6 15K OHM J R602 RD-AZ391J- R CARBON FILM 1/6 390 OHM J R604 RD-AZ512J- R CARBON FILM 1/6 5.1K OHM J R605 RD-AZ512J- R CARBON FILM 1/6 5.1K OHM J R607 RD-AZ512J- R CARBON FILM 1/6 5.1K OHM J R608 RD-AZ512J- R CARBON FILM 1/6 5.1K OHM J R610 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R612 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R614 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R615 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R618 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM) R619 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM) R630 RD-AZ474J- R CARBON FILM 1/6 470K OHM J R637 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R638 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R670 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R671 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R677 RD-AZ221J- R CARBON FILM 1/6 220 OHM J R678 RD-AZ221J- R CARBON FILM 1/6 220 OHM J R680 RD-AZ301J- R CARBON FILM 1/6 300 OHM J R681 RD-AZ301J- R CARBON FILM 1/6 300 OHM J R701 RD-AZ513J- R CARBON FILM 1/6 51K OHM J R702 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R720 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R850 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J R853 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R856 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J R863 RD-4Z103J- R CARBON FILM 1/4 10K OHM J R901 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R902 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R903 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R904 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R905 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R906 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R907 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R908 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R909 RD-AZ302J- R CARBON FILM 1/6 3K OHM J R910 RD-AZ302J- R CARBON FILM 1/6 3K OHM J R911 RD-AZ302J- R CARBON FILM 1/6 3K OHM J R912 RD-AZ202J- R CARBON FILM 1/6 2K OHM J R913 RD-AZ221J- R CARBON FILM 1/6 220 OHM J R915 RD-AZ221J- R CARBON FILM 1/6 220 OHM J R916 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R917 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R918 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R919 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R920 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R921 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R922 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R923 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R924 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R926 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R927 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R928 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R930 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R931 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R932 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R933 RD-4Z751J- R CARBON FILM 1/4 750 OHM J R934 RD-AZ622J- R CARBON FILM 1/6 6.2K OHM J RD01 RD-AZ333J- R CARBON FILM 1/6 33K OHM J

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 57 mac001 1200DPI 80LPI

ELECTRICAL PARTSLIST

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

RD12 RD-AZ113J- R CARBON FILM 1/6 11K OHM J RD13 RD-AZ223J- R CARBON FILM 1/6 22K OHM J RD14 RD-AZ471J- R CARBON FILM 1/6 470 OHM J RD20 RD-AZ223J- R CARBON FILM 1/6 22K OHM J RD21 RD-AZ471J- R CARBON FILM 1/6 470 OHM J RD25 RD-AZ104J- R CARBON FILM 1/6 100K OHM J RD33 RD-AZ103J- R CARBON FILM 1/6 10K OHM J RD34 RD-AZ113J- R CARBON FILM 1/6 11K OHM J RD62 RD-AZ750J- R CARBON FILM 1/6 75 OHM J RD66 RD-AZ104J- R CARBON FILM 1/6 100K OHM J RD69 RD-AZ103J- R CARBON FILM 1/6 10K OHM J RP04 85801060TA WIRE COPPER 0.6X52MM TAPING RP07 85801060TA WIRE COPPER 0.6X52MM TAPING U001 97P65476MA PCB MAIN 330X246X1.6T Z0014 PVMPJVE596 PCB MAIN JUMP ONLY AS DF-Q74D2D-BA(476MA) JP002 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP003 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP004 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP005 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP006 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP007 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP008 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP009 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP010 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP011 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP012 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP013 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP014 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP015 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP016 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP017 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP018 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP019 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP020 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP021 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP025 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP026 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP027 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP028 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP029 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP030 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP031 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP032 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP033 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP034 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP035 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP036 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP038 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP039 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP040 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP042 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP043 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP044 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP045 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP046 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP047 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP048 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP049 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP050 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP052 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP053 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP054 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP055 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP056 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP057 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP058 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP059 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

JP060 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP061 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP062 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP063 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP064 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP065 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP066 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP067 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP068 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP069 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP070 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP072 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP076 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP077 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP078 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP079 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP080 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP081 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP082 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP083 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP087 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP088 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP089 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP090 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP092 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP095 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP096 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP097 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP098 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP099 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP100 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP101 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP102 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP103 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP104 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP105 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP106 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP108 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP109 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP110 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP111 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP112 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP113 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP114 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP115 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP116 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP117 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP118 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP119 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP120 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP121 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP122 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP123 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP124 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP125 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP126 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP127 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP128 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP129 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP130 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP131 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP132 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP133 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP134 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP135 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP136 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP137 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 58 mac001 1200DPI 80LPI

ELECTRICAL PARTSLIST

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

JP138 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP139 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP140 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP141 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP142 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP143 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP144 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP145 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP146 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP147 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP148 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP149 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP150 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP151 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP154 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP155 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP156 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP157 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP158 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP159 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP160 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP161 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP162 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP163 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP164 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP165 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP166 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP167 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP168 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP169 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP170 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP171 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP173 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP174 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP175 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP176 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP177 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP178 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP179 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP180 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP182 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP184 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP186 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP188 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP189 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP190 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP191 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP193 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP195 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP196 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP197 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP198 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP199 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP200 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP201 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP202 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP203 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP204 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP205 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP206 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP207 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP208 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP209 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP210 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP211 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP212 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP213 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

JP216 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP217 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP219 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP221 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP223 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP224 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP225 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP226 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP227 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP228 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP229 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP232 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP233 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP234 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP236 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP237 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP238 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP239 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP242 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP243 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP244 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP245 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP246 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP247 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP248 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP300 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP301 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP302 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP303 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP304 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP305 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP315 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP317 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP334 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP651 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP703 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP704 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP710 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP712 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING Z008 PVPWMSE723 PCB POWER MANUAL AS DF-T75D2D-JB(2.0) AP01 2193100802 SOLDER WIRE LFC5-W3.0(SN-0.5CU-0.01P) AP02 2193011610 SOLDER WIRE LFC-107(1.0MM) AP03 2291050305 FLUX LIQUID RF-800KN AP04 2291050306 FLUX THINNER RF-800ADD AP05 2291140501 WAX COVER C801 CL2EE3104M C LINE ACROSS AC 275V 0.1MF M PCX2 335M C802 CH1TFE102M C CERA AC 4.0KV 1000PF M AD AC250V C803 CH1TFE102M C CERA AC 4.0KV 1000PF M AD AC250V C804 CH1CEE332M C CERA AC 2.5KV 3300PF M DE AC250V C806 CEXF2G470V C ELECTRO 400V RSS 47MF 16X25 C821 CEXK1C102L C ELECTRO 16V RDF(KXL) 1000UF 10X20 C822 CEXK1C102L C ELECTRO 16V RDF(KXL) 1000UF 10X20 C823 CEXK1C102L C ELECTRO 16V RDF(KXL) 1000UF 10X20 C824 CEXK1C681L C ELECTRO 16V 680UF KXL C825 CEXK1C681L C ELECTRO 16V 680UF KXL D801 DS1WBA60 DIODE BRIDGE S1WBA60 D821 DSR506 DIODE SCHOTTKY SR506 DO-201AD 60V 5A D822 DSR306 DIODE SCHOTTKY SR306 D823 DSR306 DIODE SCHOTTKY SR306 D824 DS2L20UF DIODE S2L20U 4004 P15 D825 DS2L20UF DIODE S2L20U 4004 P15 IC801 1LTV817MDW IC PHOTO COUPLER LVT-817M-DW IC802 1FS0565BLP IC POWER SW

FSDM0565RBLWDTU 70KHZ TO-220F-7L(F/M)

L801 5PLFSF212A FILTER LINE SF-2120A L802 5PLFBLF216 FILTER LINE BLF-2116 P801 97P62Y02X2 CONN WAFER YFW800 STR 10MM 2P P821 97P62Y17A7 CONN WAFER YW025-07 ST PLUG 2.5MM

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 59 mac001 1200DPI 80LPI

ELECTRICAL PARTSLIST

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

P822 97P62Y17A8 CONN WAFER YW025-08 ST PLUG 2.5MM R802 RW02B229J- R WIRE WOUND 2W 2.2 OHM J R806 RS02F473JS R M-OXIDE FILM 2W 47K OHM J SMALL R826 RS01Z201JS R M-OXIDE FILM 1W 200 OHM J SMALL T801 57M8282470 TRANS SMPS TSW-Q74D2N Z8012 PVPWJRE596 PCB POWER RADIAL AS DF-Q74D2D-BA(230V) C807 CMXL2G103K C MYLAR 400V MEU 0.01MF K C808 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP C809 CMXM2A183J C MYLAR 100V 0.018MF J (TP) C810 CBXB3A101K C CERA SEMI 1KV RR 100PF K C826 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C827 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C828 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C830 CEXF1A221V C ELECTRO 10V RSS 220MF C831 CEXF1A221V C ELECTRO 10V RSS 220MF C832 CEXF1A221V C ELECTRO 10V RSS 220MF C833 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP C834 CMXM2A473J C MYLAR 100V 0.047MF J (TP) F801 5FWPS2022L FUSE WIDE TL 250V 2A CASE IC803 1KA431AZ IC REGULATOR KA431AZ 1% TO-92 L821 56C220K686 COIL CHOKE 22UH K 27.5X0.4D L822 56C220K686 COIL CHOKE 22UH K 27.5X0.4D L823 56C220K686 COIL CHOKE 22UH K 27.5X0.4D L824 56C220K686 COIL CHOKE 22UH K 27.5X0.4D Q821 TZTC3205Y- TR KTC3205Y (2236Y) Q822 TZTC3205Y- TR KTC3205Y (2236Y) Q823 TZTC3205Y- TR KTC3205Y (2236Y) Q826 TZTC3198Y- TRANSISTOR KTC3198Y-(2SC5343NYATPF) Z8013 PVPWJAE723 POWER AXIAL AUTO AS DF-T75D2D-JB(2.0) AP31 2TM14006LB TAPE MASKING 3M #232 6.0X2000M AP31A 2TM110620R TAPE MASKING SI-600N RED AP31B 2TM1106200 TAPE MASKING SI-600N D802 DHER108S DIODE HER108S A-405 TYPE D803 DZF1T4 DIODE FR F1T4 400V 1A 1.2VF R-1 D804 DZUZ6R8BSC DIODE ZENER UZ-6.8BSC(6.70-6.97) D826 DZF1T4 DIODE FR F1T4 400V 1A 1.2VF R-1

LOC PARTS CODE PARTS NAME PARTS DESCRIPTION

D827 DZN4003- DIODE IN4003 D828 DZN4003- DIODE IN4003 D829 DZUZ3R9BSB DIODE ZENER UZ-3.9BSB(3.92-4.14) D830 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V) D831 DZN4003- DIODE IN4003 D832 DZUZ6R2BSC DIODE ZENER UZ-6.2BSC(6.16-6.40) JP801 85801060TA WIRE COPPER 0.6X52MM TAPING JP802 85801060TA WIRE COPPER 0.6X52MM TAPING JP803 85801060TA WIRE COPPER 0.6X52MM TAPING JP821 85801060TA WIRE COPPER 0.6X52MM TAPING JP822 85801060TA WIRE COPPER 0.6X52MM TAPING JP823 85801060TA WIRE COPPER 0.6X52MM TAPING JP825 85801060TA WIRE COPPER 0.6X52MM TAPING JP829 85801060TA WIRE COPPER 0.6X52MM TAPING JP830 85801060TA WIRE COPPER 0.6X52MM TAPING JP831 85801060TA WIRE COPPER 0.6X52MM TAPING JP832 85801060TA WIRE COPPER 0.6X52MM TAPING JP833 85801060TA WIRE COPPER 0.6X52MM TAPING JP834 85801060TA WIRE COPPER 0.6X52MM TAPING JP835 85801060TA WIRE COPPER 0.6X52MM TAPING R803 RD-4Z333J- R CARBON FILM 1/4 33K OHM J R804 RD-4Z473J- R CARBON FILM 1/4 47K OHM J R805 RD-AZ560J- R CARBON FILM 1/6 56 OHM J R810 RC-2Z565KP R CARBON COMP 1/2 5.6M OHM K R821 RD-AZ681J- R CARBON FILM 1/6 680 OHM J R822 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R823 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R824 RN-AZ182F- R METAL FILM 1/6 1.8K OHM F R825 RN-AZ132F- R METAL FILM 1/6 1.3K OHM F R827 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R828 RD-4Z622J- R CARBON FILM 1/4 6.2K OHM J R829 RD-4Z622J- R CARBON FILM 1/4 6.2K OHM J R830 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R832 85801060TA WIRE COPPER 0.6X52MM TAPING U800 97P65471PA PCB POWER 324X199X1.6T/4

DF-5500/DFX-5502 SVC 2006.10.14 10:6 AM ˘ ` 60 mac001 1200DPI 80LPI

Daewoo DF-5500(S/P), DFX-6502(S/P), DF-6500(S/P), DFX-5502(S/P) Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
