GT-2550
OPERATOR’S MANUAL
SERIES 2500
TRACTOR
Model Number
GT 2550
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning:
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com]
PRINTED IN U.S.A.
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
FORM NO. 769-01478
(10/04)
KOHLER CO.
FEDERAL AND CALIFORNIA EMISSION CONTROL SYSTEMS
LIMITED WARRANTY
SMALL OFF-ROAD EQUIPMENT ENGINES
The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), and Kohler Co. are pleased to explain the Federal and
California Emission Control Systems Warranty on your small off-road equipment engine (herein engine). For California, engines produced in 1995 and
later must be designed, built and equipped to meet the state’s stringent anti-smog standards. In other states, 1997 and later model year engines must
be designed, built and equipped, to meet the U.S. EPA regulations for small non-road engines. The engine must be free from defects in materials and
workmanship which cause it to fail to conform with U.S. EPA standards for the first two years of engine use from the date of sale to the ultimate purchaser. Kohler Co. must warrant the emission control system on the engine for the period of time listed above, provided there has been no abuse,
neglect or improper maintenance.
The emission control system may include parts such as the carburetor or fuel injection system, the ignition system, and catalytic converter. Also included
are the hoses, belts and connectors and other emission related assemblies.
Where a warrantable condition exists, Kohler Co. will repair the engine at no cost, including diagnosis (if the diagnostic work is performed at an authorized dealer), parts and labor.
MANUFACTURER’S WARRANTY COVERAGE
Engines produced in 1995 or later are warranted for two years in California. In other states, 1997 and later model year engines are warranted for two
years. if any emission related part on the engine is defective, the part will be repaired or replaced by Kohler Co. free of charge.
OWNER’S WARRANTY RESPONSIBILITIES
(a) The engine owner is responsible for the performance of the required maintenance listed in the owner’s manual. Kohler Co. recommends that you
retain all receipts covering maintenance on the engine. But Kohler Co. cannot deny warranty solely for the lack of receipts or for your failure to
assure that all scheduled maintenance was performed.
(b) Be aware, however, that Kohler Co. may deny warranty coverage if the engine or a part has failed due to abuse, neglect, improper maintenance or
unapproved modifications.
(c) For warranty repairs, the engine must be presented to a Kohler Co. service center as soon as a problem exists. Call 1-800-544-2444, or access
our web site at: www.kohlerengines.com, for the names of the nearest service centers. The warranty repairs should be completed in a reasonable
amount of time, not to exceed 30 days.
If you have any questions regarding warranty rights and responsibilities, you should contact Kohler Co. at 1-920-457-4441 and ask for an Engine Service
representative.
COVERAGE
Kohler Co. warrants to the ultimate purchaser and each subsequent purchaser that the engine will be designed, built and equipped, at the time of sale,
to meet all applicable regulations. Kohler Co. also warrants to the initial purchaser and each subsequent purchaser, that the engine is free from defects
in material and workmanship which cause the engine to fail to conform with applicable regulations for a period of two years.
Engines produced in 1995 or later are warranted for to years in California. For 1997 and later model years, EPA requires manufacturers to warrant
engines for two years in all other states. These warranty periods will be begin on the date the engine is purchased by the initial purchaser. If any emission related part on the engine is defective, the part will be replaced by Kohler Co. at no cost to the owner. Kohler Co. is liable for damages to other
engine components caused by the failure of a warranted part still under warranty.
Kohler Co. shall remedy warranty defects at any authorized Kohler Co. engine dealer or warranty station. Warranty repair work done at an authorized
dealer or warranty station shall be free of charge to the owner if such work determines that a warranted part is defective.
Listed below are the parts covered by the Federal and California Emission Control Systems Warranty. Some parts listed below may require scheduled
maintenance and are warranted up to the first scheduled replacement point for that part. The warranted parts are:
• Carburetor assembly • Ignition module(s) with high tension lead
• Throttle body (EFI Systems) • Spark advance module (if equipped)
• Catalytic muffler (if equipped) • Oxygen, speed, throttle position, and temperature sensors (if equipped)
• Fuel metering valve (if equipped) • Electronic control unit (if equipped)
• Crankcase breather • Fuel injectors (EFI Systems)
• Fuel pressure regulator (EFI Systems) • Air filter, fuel filter, and spark plugs (only to first scheduled replacement point)
LIMITATIONS
This Emission Control System Warranty shall not cover any of the following:
(a) repair or replacement required because of misuse or neglect, improper maintenance, repairs improperly performed or replacement not conforming
to Kohler Co. specifications that adversely affect performance and/or durability and alterations or modifications not recommended or approved in
writing by Kohler Co.,
(b) replacement of parts and other services and adjustments necessary for required maintenance at and after the first scheduled replacement point,
(c) consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.,
(d) diagnosis and inspection fees that do not result in eligible warranty service being performed, and
(e) any add-on or modified part, or malfunction of authorized parts due to the use of add-on or modified parts.
MAINTENANCE AND REPAIRS REQUIREMENTS
The owner is responsible for the proper use and maintenance of the engine. Kohler Co. recommends that all receipts and records covering the performance of regular maintenance be retained in case questions arise. If the engine is resold during the warranty period, the maintenance records should
be transferred to each subsequent owner. Kohler Co. reserves the right to deny warranty coverage if the engine has not been properly maintained; however, Kohler Co. may not deny warranty repairs solely because of the lack of repair maintenance or failure to keep maintenance records.
Normal maintenance, replacement or repair of emission control devices and systems may be performed by any repair establishment or individual; however, warranty repair must be performed by a Kohler authorized service center. Any replacement part or service that is equivalent in performance
and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of the engine manufacturer.
2
CONTENTS
Section Page
Emission Control Systems Warranty ... 2
Tractor Preparation .............................. 3
Safe Operation Practices ..................... 4
Product Graphics ................................. 7
To The Owner .................................... 8
Calling Service Information.................. 8
Recording Model & Serial Number ...... 8
I Controls and Indicators ........................ 9
II Operation ............................................. 14
III Adjustments ......................................... 19
IV Maintenance ........................................ 24
V Mower Deck ......................................... 33
TRACTOR PREPARATION
Section Page
VI Off-Season Storage ............................. 45
VII Mowing................................................. 46
Optional Equipment and Accessories . 47
Maintenance Chart............................... 48
Trouble Shooting.................................. 49
Lubrication Table ............................... 51
Lubrication Guides .............................. 52
Slope Gauge ........................................ 55
Specifications....................................... 57
Warranty — Commercial Use .............. 58
Warranty — Residential Use................ 59
Maintenance Parts Chart .................... 60
After removing the top of the shipping crate, cut the tie
strap securing the mower deck to the side panel of the
crate. Using a hoist, or with the help of an assistant,
carefully lift the mower deck out of the shipping crate.
Cut the tie strap securing the PTO belt and remove the
belt from the deck
Remove the deck wash system nozzle adapter and the
oil drain tube from the manual bag and store for future
use.
CONNECT THE BATTERY
WARNING
Battery posts, terminals and related accessories
contain lead and lead compounds. Wash hands
after handling.
The tractor is shipped with an activated sealed battery,
with the positive battery cable factory connected. The
negative cable must be connected.
Note: Make sure the ignition switch is in the "OFF" position before attaching the battery cable.
1. Pull the protective cap off the negative terminal of
the battery, and remove the hex cap screw and nut
from the free end of the negative battery cable.
2. Connect the negative battery cable (heavy black)
and ground wire (green) to negative terminal
(NEG) of the battery using the hex cap screw and
nut. Slide the black terminal cover over the
negative terminal of the battery.
3
WARNING
• The engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known
to the State of California to cause cancer, birth defects or other reproductive harm.
• This unit is equipped with an internal combustion engine and should not be used on or near any unimproved
forest-covered, brush-covered, or grass-covered land unless the engine’s exhaust system is equipped with a
spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained
in effective working order by the operator.
• In the State of California, the above is required by law (Section 4442 of the California Public Resources Code).
Other States may have similar laws. Federal laws apply to federal lands. A spark arrester muffler is available
at your nearest engine authorized service center.
IMPORTANT
THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH, IF NOT FOLLOWED,
COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF AND
OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING
TO OPERATE YOUR UNIT. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT
IN PERSONAL INJURY. WHEN YOU SEE THIS SYMBOL— HEED ITS WARNING.
Your lawn mower was built to be operated according to the rules for safe operation
in this manual. As with any type of power equipment, carelessness or error on the
DANGER
I. I. GENERAL OPERATION
1. Read, understand and follow all instructions in the
manual and on the machine before starting. Keep
this manual in a safe place for future and regular
reference.
2. Only allow responsible individuals familiar with
the instructions to operate the machine. Know the
controls and how to stop the machine quickly.
3. Do not put hands or feet under the cutting deck or
near rotating parts.
4. Clear the area of objects such as rocks, toys,
wire, etc. which could be picked up and thrown by
the blades. A small object may have been
overlooked and could be accidentally thrown by
the mower in any direction and cause injury to
you or a bystander. To help avoid a thrown
objects injury, keep children, animals, bystanders
and helpers at least 75 feet from the mower while
it is in operation. Always wear safety glasses with
side shields or safety goggles during operation or
while performing an adjustment or repair, to
protect eyes from foreign objects. Stop the blades
when crossing gravel drives, walks or roads.
5. Be sure the area is clear of other people before
mowing. Stop machine if anyone enters the area.
part of the operator can result in injury. This lawn mower is capable of amputating
hands and feet or throwing objects. Failure to observe the following safety
instructions could result in serious injury or death.
SAFE OPERATION PRACTICES
6. Never carry passengers.
7. Disengage the blades before shifting into reverse
and backing up. Always look down and behind
before and while backing.
8. Be aware of the mower and attachment discharge
direction and do not point it at anyone. Do not
operate the mower without either the entire grass
catcher or the chute guard in place.
9. Slow down before turning. Operate the machine
smoothly. Avoid erratic operation and excessive
speed.
10. Never leave a running machine unattended.
Always turn off the blades, place the transmission
in neutral, set the parking brake, stop the engine
and remove key before dismounting.
11. Turn off blades when not mowing.
12. Stop the engine and wait until the blades come to
a complete stop before (a) removing the grass
catcher or unclogging chute, or (b) making any
repairs, adjusting or removing any grass or debris.
13. Mow only in daylight or good artificial light.
14. Do not operate the machine while under the
influence of alcohol or drugs.
4
15. Watch for traffic when operating near or crossing
roadways.
16. Use extra care when loading or unloading the
machine into a trailer or truck. This unit should not
be driven up or down a ramp onto a trailer or truck
under power, because the unit could tip over
causing serious personal injury. The unit must be
pushed manually on a ramp to load or unload
properly.
17. Never make a cutting height adjustment while the
engine is running if the operator must dismount to
do so.
18. Wear sturdy, rough-soled work shoes and closefitting slacks and shirts. Do not wear loose fitting
clothes or jewelry. They can be caught in moving
parts. Never operate a unit in bare feet, sandals
or sneakers.
19. Check overhead clearance carefully before
driving under power lines, wires, bridges or low
hanging tree branches, before entering or leaving
buildings, or in any other situation where the
operator may be struck or pulled from the unit,
which could result in serious injury.
20. Disengage all attachment clutches, thoroughly
depress the brake pedal and shift into neutral
before attempting to start the engine.
21. Your mower is designed to cut normal residential
grass of a height no more than 10”. Do not
attempt to mow through unusually tall, dry grass
(e.g. pasture) or piles of dry leaves. Debris may
build up on the mower deck or contact the engine
exhaust presenting a potential fire hazard.
22. Use only accessories approved for this machine
by Cub Cadet. Read, understand and follow all
instructions provided with the approved
accessory.
II. SLOPE OPERATION
Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. All slopes require extra caution. If you cannot
back up the slope or if you feel uneasy on it, do not
mow it.
For your safety, use the slope gauge included as part
of this manual to measure slopes before operating this
unit on a sloped or hilly area. If the slope is greater than
15° as shown on the slope gauge, do not operate this
unit on that area or serious injury could result.
DO:
Mow up and down slopes, not across. Exercise extreme caution when changing directions on slopes.
Remove obstacles such as rocks, limbs, etc.
Watch for holes, ruts or bumps. Uneven terrain could
overturn the machine. Tall grass can hide obstacles.
Use slow speed. Choose a low enough gear so that
you will not have to stop or shift while on the slope. Always keep the machine in gear when going down
slopes to take advantage of engine braking action.
Follow the manufacturer’s recommendations for wheel
weights or counterweights to improve stability.
Use extra care with grass catchers or other attachments. These can change the stability of the machine.
Keep all movement on the slopes slow and gradual.
Do not make sudden changes in speed or direction.
Rapid engagement or braking could cause the front of
the machine to lift and rapidly flip over backwards,
which could cause serious injury.
Avoid starting or stopping on a slope. If the tires lose
traction, disengage the blades and proceed slowly
straight down the slope.
DO NOT:
Do not turn on slopes unless necessary; then, turn
slowly and gradually downhill, if possible.
Do not mow near drop-offs, ditches or embankments.
The mower could suddenly turn over if a wheel is over
the edge of a cliff or ditch, or if an edge caves in.
Do not mow on wet grass. Reduced traction could
cause sliding.
Do not try to stabilize the machine by putting your foot
on the ground.
Do not use the grass catcher on steep slopes.
Do not tow heavy pull behind attachments (e.g. loaded
dump cart, lawn roller) on slopes greater than 5 degrees. When going downhill, the extra weight may
cause you to loose control and possibly overturn the
tractor.
III. CHILDREN
Tragic accidents can occur if the operator is not alert
to the presence of children. Children are often
attracted to the machine and the mowing activity.
They do not understand the dangers. Never assume
that children will remain where you last saw them.
1. Keep children out of the mowing area and in
watchful care of an adult other than the operator.
2. Be alert and turn the machine off if children enter
the area.
3. Before and when backing up, look behind and
down for small children.
4. Never carry children, even with the blades off.
Children may fall off and be seriously injured or
may interfere with safe machine operation.
5. Use extreme care when approaching blind
corners, doorways, shrubs, trees or other objects
that may block your vision of a child who may run
into the machine.
5
6. To avoid back-over accidents, always disengage
the cutting blades before shifting in reverse. The
"Reverse Caution Mode" should not be used
when children or others are around.
7. Keep children away from hot or running engines.
They can suffer burns from a hot muffler.
8. Remove the key when the machine is left unattended to prevent unauthorized operation.
Never allow children under 14 years old to operate the
machine. Children 14 years and over should only operate the machine under close parental supervision and
proper instruction.
IV. SERVICE
1. Use extreme care in handling gasoline and other
fuels. They are extremely flammable and the
vapors are explosive.
a. Use only an approved container.
b. Never remove fuel cap or add fuel with the en-
gine running. Allow the engine to cool at least
two minutes before refueling.
c. Replace the fuel cap securely and wipe off any
spilled fuel before starting the engine as it may
cause a fire or explosion.
d. Extinguish all cigarettes, cigars, pipes and oth-
er sources of ignition.
e. Never refuel the machine indoors because fuel
vapors will accumulate in the area.
f. Never store the fuel container or machine
inside where there is an open flame or spark,
such as a gas hot water heater, space heater
or furnace.
2. Never run a machine inside a closed area.
3. To reduce fire hazard, keep the machine free of
grass, leaves or other debris build-up. Clean up
oil or fuel spillage. Allow the machine to cool at
least 5 minutes before storing.
4. Before cleaning, repairing or inspecting, make
certain the blade and all moving parts have
stopped. Disconnect the spark plug wire, and
keep the wire away from the spark plug to prevent
accidental starting.
5. Check the blade and engine mounting bolts at frequent intervals for proper tightness. Also visually
inspect blades for damage (e.g., excessive wear,
bent, cracked). Replace with blades which meet
original equipment specifications.
6. Keep all nuts, bolts and screws tight to be sure
the equipment is in safe working condition.
7. Never tamper with safety devices. Check their
proper operation regularly. Use all guards as
instructed in this manual.
8. After striking a foreign object, stop the engine,
remove the wire from the spark plug and
thoroughly inspect the mower for any damage.
Repair the damage before restarting and
operating the mower.
9. Grass catcher components are subject to wear,
damage and deterioration, which could expose
moving parts or allow objects to be thrown. For
your safety protection, frequently check the
components and replace with manufacturer’s
recommended parts when necessary.
10. Mower blades are sharp and can cut. Wrap the
blades or wear gloves, and use extra caution
when servicing blades.
11. Check brake operation frequently. Adjust and
service as required.
12. Muffler, engine and belt guards become hot
during operation and can cause a burn. Allow to
cool down before touching.
13. Do not change the engine governor settings or
overspeed the engine. Excessive engine speeds
are dangerous.
14. Observe proper disposal laws and regulations.
Improper disposal of fluids and materials can
harm the environment and the ecology.
a. Prior to disposal, contact your local
Environmental Protection Agency to
determine the proper method for disposing of
the waste. Recycling centers are established
to properly dispose of materials in an
environmentally safe fashion.
b. Use proper containers when draining fluids.
Do not use food or beverage containers that
may mislead someone into drinking from
them. Properly dispose of the containers immediately following the draining of fluids.
c. DO NOT pour oil or other fluids into the
ground, down a drain or into a stream, pond,
lake, or other body of water. Observe Environmental Protection Agency regulations when
disposing of oil, fuel, coolant, brake fluid, filters, batteries, tires and other harmful waste.
15. We do not recommend the use of a pressure
washer or garden hose to clean your unit. They
may cause damage to electrical components;
spindles; pulleys; bearings; or the engine. The
use of water will result in shortened life and
reduce serviceability.
WARNING - YOUR RESPONSIBILITY: Restrict the use of this power machine to persons who
read, understand and follow the warnings and instructions in this manual and on the machine.
6
PRODUCT GRAPHICS
Keep product safety graphics (decals) clean. Replace
any safety graphic that is damaged, destroyed, miss-
DANGER
ROTATING BLADES CAUSE
SERIOUS INJURY OR DEATH
•
DO NOT MOW WHEN CHILDEREN OR
OTHERS ARE AROUND.
•
NEVER CARRY CHILDREN EVEN
WITH BLADE(S) OFF.
•
LOOK DOWN AND BEHIND BEFORE
AND WHILE BACKING.
•
MOWING IN REVERSE IS NOT
RECOMMENDED.
OPERATING MODES
NORMAL MOWING
YOU MUST DISENGAGE BLADES/PTO, (POWER TAKE OFF)
BEFORE TRAVELING IN REVERSE.
REVERSE CAUTION MODE
1.
TURN KEY TO REVERSE CAUTION MODE POSITION .
2.
DEPRESS REVERSE PUSH BUTTON. (RED INDICATOR LIGHT "ON")
WHEN RED LIGHT IS "ON" MACHINE CAN BE OPERATED
IN REVERSE WITH MOWER BLADES ENGAGED.
IMPORTANT: MOWING IN RE VERSE IS NOT RECOMMENDED.
.
AFTER RESUMING FORWARD OPERATION, RETURN
3
KEY TO "NORMAL MOWIN G" POSITION.
NOTE: IN BOTH MODES, WHEN OPERATOR LEAVES SEAT,
ENGINE WILL STOP UNLESS PARKING BR AKE IS SET AND
BLADES ARE DISENGAGED.
KEY SWITCH/MODULE GRAPHIC–
LOCATED ON DASH PANEL
DANGER GRAPHIC - REVERSE
CAUTION MODE – LOCATED ON
LEFT SIDE OF RUNNING BOARD
ing, painted over or can no longer be read. Replacement safety graphics are available through your
dealer.
STARTING INSTRUCTIONS
1.
BE FAMILIAR WITH CONTROLS BEFORE
STARTING ENGINE AND OPERATING.
2.
SET CHOKE, MOVE THROTTLE TO MID
POSITION AND DEPRESS BRAKE PEDAL.
3.
TURN KEY TO THE START POSITION.
4.
AFTER ENGINE STARTS OPEN CHOKE.
STOPPING INSTRUCTIONS
1.
DISENGAGE PTO AND SET PARKING BRAKE
2.
MOVE THROTTLE CONTROL TO MID
POSITION AND TURN KEY OFF.
WARNING
!
•
AVOID SERIOUS INJURY OR DEATH.
•
READ OPERATORS MANUAL AND ALL
WARNING LABELS BEFORE USING
MACHINE.
•
GO UP AND DOWN SLOPES, NOT ACROSS.
•
AVOID SUDDEN TURNS.
DO NOT OPERATE UNIT WHERE IT COULD
•
SLIP OR TIP.
•
IF MACHINE STOPS GOING UPHILL, STOP
PTO AND BACK DOWN HILL SLOWLY.
•
DO NOT MOW WHEN CHILDREN OR
OTHERS ARE AROUND.
•
NEVER CARRY CHILDREN.
•
LOOK DOWN AND BEHIND BEFORE AND
WHILE BACKING.
•
KEEP SAFETY DEVICES [GUARDS, SHIELDS,
AND SWITCHES] IN PLACE AND WORKING.
•
REMOVE OBJECTS THAT COULD BE
THROWN BY THE BLADES.
•
KNOW LOCATION AND FUNCTION OF ALL
CONTROLS.
•
BE SURE THE BLADES AND THE ENGINE
ARE STOPPED BEFORE PLACING HANDS
OR FEET NEAR BLADES.
•
BEFORE LEAVING OPERATOR'S
POSITION, DISENGAGE PTO, ENGAGE
BRAKE LOCK, SHUT OFF ENGINE AND
REMOVE KEY.
TO REDUCE THE RISK OF INJURY, DO NOT
OPERATE
GRASS CATCHER IS IN ITS PROPER PLACE.
IF
UNLESS DISCHARGE COVER OR
DAMAGED, REPLACE IMMEDIATELY.
HANDS AND FEET SAFETY GRAPHIC–
LOCATED ON DEFLECTOR CHUTE
KEEP HANDS AND FEET AWAY FROM
ROTATING PARTS
REMOVE OBJECTS THAT CAN BE
THROWN BY THE BLADE IN ANY
DIRECTION. WEAR SAFETY GLAS SES.
DO NOT MOW WHEN CHILDREN OR
OTHERS ARE AOUND. NEVER CARRY
CHILDREN
USE EXTRA CAUTION ON SLOPES. DO
NOT MOW SLOPES GREATER THAN 15°.
MOW UP AND DOWN, NOT ACROSS
READ OPERATOR'S MANUAL. KEEP SAFETY DEVICES WORKING.
AVOID SUDDEN TURNS, USE LOW GEAR
.
.
.
.
SAFETY GRAPHIC – LOCATED ON
LEFT SIDE OF MOWER DECK
GENERAL SAFETY INSTRUCTIONS
WARNING – LOCATED ON RIGHT
SIDE OF RUNNING BOARD
SAFETY GRAPHIC – LOCATED
ON LEFT SIDE OF DECK
DEFLECTOR and SAFETY GRAPHIC –
LOCATED ON RIGHT SIDE OF DECK
7
TO THE OWNER
This Operator’s Manual is an important part of your new tractor. The information contained in this manual has been
prepared in detail to help you better understand the features, correct operation, adjustments, and maintenance of
your tractor. The performance and dependability of this tractor rely greatly on the manner in which it is operated and
maintained. Therefore, it is recommended that all operators of the tractor carefully read this manual and fully understand its operation. Also keep the manual available for reference to ensure proper operation, and that maintenance
procedures are performed as scheduled to assure the tractor’s optimal mechanical condition.
NOTE: All references to LEFT, RIGHT, FRONT, and REAR, unless specifically stated otherwise, indicate that rela-
tive position on the tractor when facing forward while seated in the operator’s seat.
CAUTION: DO NOT tow your hydrostatic tractor. Towing may damage the transmission. Place the tractor on a
LEVEL SURFACE before pulling the transmission release lever to the disengaged position.
Your local authorized Cub Cadet dealer is interested in the performance you receive from your tractor, and with the
maintenance needed to ensure the satisfactory operation of your tractor. The dealer has trained service personnel
familiar with the latest servicing information, is equipped with the latest tools, and has a complete line of genuine
Cub Cadet service parts which assure proper fit and high quality.
CALLING SERVICE INFORMATION
The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, and
specifications.
If you have difficulties with the tractor and/or equipment; have any questions regarding the operation or maintenance
of this equipment; or desire additional information not found in this manual, contact your nearest authorized Cub
Cadet dealer. If you need assistance in locating a dealer in your area, contact the Customer Dealer Referral Line by
calling:
1-877-282-8684
Or you may contact Cub Cadet via the internet by logging on to our Web Site at:
www.cubcadet.com
To obtain top performance and assure economical operation, the tractor should be inspected by your authorized
dealer periodically or at least once a year, depending on its hours of use. Before calling your dealer, make sure that
you have your model number(s) and manufacturing date available for the dealer.
RECORDING MODEL AND SERIAL NUMBER INFORMATION
Product identification plates are provided for major components of your tractor. The numbers on these plates are
important if your tractor should require dealer service, or if you need additional information on your tractor. Prior to
using your tractor for the first time, record the numbers from the identification plates in the appropriate spaces provided below.
The chassis model plate, showing the factory model number and Mfg. Date (See Figure 1) can be found either on
the underside of the seat mounting base or on the right frame rail near the right front tire.
The engine serial number decal (See Figure 2) is located on the engine blower housing.
Hood Model Factory Model No. Mfg. Date
Delivery Date Engine Model/Spec. No. Engine Serial No.
XXXXXXXXXXX XXXXXXXXXX
Model Number Mfg. Date
CUB CADET LLC
www.cubcadet.com
DEALER LOCATOR PHONE NUMBER:
P. O. BOX
CLEVELAND, OH 44136
Figure 1 Figure 2
361131
877-282-8684
8
SECTION I. CONTROLS AND INDICATORS
Your Cub Cadet Tractor has been safety engineered.
This section gives a brief description of the function
and location of the various controls and indicators.
B
A
F
E
C
H
G
Thoroughly acquaint yourself with all the controls and
indicators before attempting to start or operate the
tractor.
I
D
J
K
N
L
O
A. Indicator Panel/Hour Meter
B. Hour Meter /Battery Display
C. Power Take-Off (PTO) Control Switch
D. Key Switch Module
E. Throttle Control Lever
F. Choke Control
G. Brake Pedal Lock
H. Cruise Control Lever
I. Brake Pedal
P
M
J. Forward Control Pedal
K. Reverse Control Pedal
L. Lift Handle
M. Lift Height Indicator
N. Seat Adjustment Lever
O. 12V Power Outlet
P. Transmission Release Lever
Q. Fuses (Not Shown)
R. Safety Interlock Switches (Not Shown)
Figure 3
9
A. INDICATOR PANEL/HOUR METER
The hour meter/indicator uses indicator lights to display the status of various functions of the tractor and
also records the accumulated hours of operation.
Battery
Indicator
PTO
Engaged
Indicator
Oil
Pressure
Indicator
Hour
Meter
Parking Brake
Engaged
Indicator
Figure 4
Indicator Panel Features
Battery Indicator (Refer to Figure 4)
• Illuminates and the battery voltage is displayed
briefly when the ignition switch it turned to an on
position.
• Illuminates to indicate the battery voltage has
dropped below 11.5 (+0.5/-1.0) DC volts. The battery voltage is also displayed on the hour meter.
If this indicator and display come on during operation, check the battery and charging system for
possible causes and/or contact your Cub Cadet
dealer.
Oil Pressure Indicator (Refer to Figure 4)
• This warning lamp indicates low engine oil pressure. If this indicator illuminates, stop the tractor
immediately and check the engine oil level. If the
oil level is within the operating range, but the light
remains on, contact your Cub Cadet dealer.
NOTE: The oil pressure indicator may illuminate
when the key switch is turned to an on position,
but should turn off when the engine is started.
PTO Engaged Indicator (Refer to Figure 4)
• This indicator illuminates when the key switch is
turned to the "START" position while the PTO
switch is pulled upward in the "ENGAGED"
position. Check this indicator if the engine will not
crank with the key switch in the "START" position.
If necessary, move the PTO switch to the
"DISENGAGED" position.
Brake Engaged Indicator (Refer to Figure 4)
• This indicator illuminates when the key switch is
turned to the "START" position and the brake
pedal is not fully depressed. Check this indicator
if the engine will not crank with the key switch in
the "START" position. If necessary, fully depress
the brake pedal.
B. HOUR METER/BATTERY DISPLAY
The hour meter shows the hours (tenths of an hour-
right most digit) that the tractor has been operated.
• The hour meter is activated when the key switch
is turned to either the “NORMAL MOWING” or the
"REVERSE CAUTION MODE" switch positions. A
record of the actual hours of operation should be
kept to assure maintenance procedures are completed according to the schedule in this manual.
• When the key switch is turned to an on position,
the battery indicator light briefly illuminates and
the battery voltage is briefly displayed. The display then changes to the accumulated hours.
C. POWER TAKE–OFF (PTO) CONTROL SWITCH
The power take-off (PTO) switch operates the front
electric PTO clutch. Pull the switch knob upward to engage, or push downward to disengage the PTO clutch.
D. KEY SWITCH MODULE
The key switch module consist of a four position key
switch, the “Reverse Push Button”, and a red indicator light. See Figure 5.
KEY SWITCH MODULE
INDICATOR
LIGHT
KEY IN START
POSITION
KEY IN NORMAL
MOWING MODE
KEY IN REVERSE
CAUTION MODE
Figure 5
The four key positions of key switch module (Refer to
Figure 5) and their functions are as follows:
• STOP — Stops the tractor engine and shuts
down the tractor’s electrical circuits.
• REVERSE CAUTION MODE — This position
allows the machine to be operated in reverse with
the blades (PTO) engaged.
• NORMAL MOWING — The normal operating
position. All safety interlock circuits are activated
and the blades (PTO) will disengage when the
tractor is driven in the reverse direction.
REVERSE
PUSH
BUTTON
KEY IN STOP
POSITION
10
• START — Energizes the starter motor to crank
and start the tractor engine. Release the key as
soon as the engine starts and the key will return
to “NORMAL MOWING” position.
WARNING
To prevent accidental starting and/or battery
discharge, remove the key from the key switch
when the tractor is not in use.
REVERSE PUSH BUTTON — The orange/triangular
button at the top/right corner of the key switch module
activates the system which allows the tractor’s blades
(PTO) to remain engaged when the tractor is driven in
the reverse direction. The key must be turned to the
“REVERSE CAUTION MODE” and the operator must
be in the tractor seat prior to depressing the button to
activate the system.
The RED INDICATOR LIGHT at the top/left corner of
the key switch module comes “ON” to alert the
operator that the key has been turned to the “Reverse
Caution Mode” position, the “Reverse Push Button”
has been depressed, and that the blades will remain
engaged when the machine is driven in reverse.
IMPORTANT: Mowing in reverse is not recommended.
E. THROTTLE CONTROL LEVER
This lever controls the speed of the engine. When
set in a given position, the control cable will maintain
a uniform engine speed.
NOTE: When using PTO operated equipment, best
performance is achieved with the throttle lever in the
“FAST” position.
The brake lock lever, located in the center of the
dash panel below the steering wheel, is identified
with the symbol. Always engage the brake
pedal lock when dismounting the tractor. To engage
the brake pedal lock, depress the brake pedal and
push down on the brake pedal lock lever. Hold the
lever down while releasing the brake pedal. The lever should lock in the down position.
H. CRUISE CONTROL LEVER
The cruise control lever, located in the center of the
dash panel below the steering wheel, is identified with
the symbol. This lever can be used to maintain a desired “foot free” forward speed in areas
where constant speed changes are not required. Refer to Section II- OPERATION for instructions on how
to use this feature.
I. BRAKE PEDAL
The brake pedal is located at the front of the right running board above the forward control pedal. Press
down to stop the tractor and disengage the cruise control. The brake pedal must be fully depressed to activate the safety interlock switch when starting the
tractor.
J. FORWARD CONTROL PEDAL
The forward control pedal is located at the front of the
right running board below the brake pedal. Slowly
press down on the pedal to start moving forward. The
forward ground speed of the tractor is directly affected
by the distance the pedal is depressed.
K. REVERSE CONTROL PEDAL
P
This symbol shows slow position.
This symbol shows fast position.
F. CHOKE CONTROL
The choke control is operated manually. Pull the
knob out to choke the engine; push the knob in to
open the choke.
G. BRAKE PEDAL LOCK
WARNING
The hydrostatic transmission will not hold the
tractor on a hill. Normal internal leakage in the
transmission will allow the tractor to roll downhill. To avoid an accident and/or possible injury, engage the brake pedal lock.
WARNING
Always look down and behind before and while
backing. Do not operate the tractor when children or others are around. Stop the tractor immediately if someone enters the area.
The reverse control pedal is located in the right front
running board rearward of the brake and forward control pedals. Press the pedal downward to move in reverse.
L. LIFT HANDLE
The lift handle is located in the left fender and is used
to raise and lower equipment used with the tractor. The
equipment can be set in any of six positions by depressing the top button on the handle, moving the handle to the desired position, then releasing the button. It
may be necessary to push or pull slightly on the handle
to depress the button. Lift assist springs reduce the effort needed to lift attachments. To adjust assist spring
tension refer to ADJUSTMENTS in Section III.
11
M. LIFT HEIGHT INDICATOR
The lift height indicator is located in the left fender and
indicates the height of the deck attachment when installed.
N. SEAT ADJUSTMENT LEVER
The seat adjustment lever (See Figure 6) is used to
move the seat forward or rearward into one of five positions. See ADJUSTING THE SEAT in Section III.
12V POWER
OUTLET
Q. SAFETY INTERLOCK SWITCHES
This tractor is equipped with a safety interlock system
for the protection of the operator. If the interlock system should ever malfunction, do not operate the tractor. Contact your authorized Cub Cadet Dealer. The
safety interlock system prevents the engine from
cranking or starting unless the brake pedal is fully depressed, and the PTO switch is in the “OFF” position.
The safety interlock system will automatically shut off
the engine if the operator leaves the seat before engaging the brake lock.
The safety interlock system will automatically shut off
the engine if the operator leaves the seat with the PTO
in the “RUN” position, regardless of whether the brake
lock is engaged. The PTO switch must be moved to the
“OFF” position to restart the engine.
With key switch in “NORMAL MOWING” position:
The safety interlock system will automatically shut off
the PTO if the reverse control pedal is depressed with
the PTO in the “RUN” position. To re-engage the PTO,
release the reverse control pedal, move the PTO
switch to the “OFF” position, then again pull the switch
to the “RUN” position.
Figure 6
O. 12V POWER OUTLET
The 12V power outlet ( see Figure 6) is located on the
front/right surface of the fender, below the seat. It is
used for the convenience of plugging in accessories
that require a power source with a maximum load of 5
amps at 12 volts.
O. TRANSMISSION RELEASE LEVER
The transmission release lever is located at the back of
the tractor in the rear drawbar. When engaged, this lever opens a hydrostatic pump bypass valve, which allows the tractor to be pushed short distances by hand.
To engage the release lever, lift and pull the lever rearward through the keyhole until the flange on the rod is
outside the drawbar. Lower the lever into the slot and
release. To disengage the release lever, pull back on
the lever, lift out of the slot and release.
P. FUSES
The two fuses are located under the hood behind the
dash panel. Fuses are installed to protect the tractor’s
electrical circuitry and components from damage
caused by excessive amperage.
FUEL TANK
The fuel tank is located under the rear fender. The filler
cap is in the center/rear of the fender (See Figure 7).
Figure 7
12
HOOD AND SIDE PANELS
The tractor hood is arranged to swing up and forward
for easy access to the engine compartment (See Figure 8). Whenever engine maintenance is required, the
side panels can be removed.
WARNING
If the engine has been recently run, the engine,
muffler and surrounding metal surfaces will be
hot and can cause burns to the skin. Allow the
tractor to cool and use caution when removing
the side panels.
To remove either the right or left side panel, refer to
Figure 8 and proceed as follows:
1. Engage the brake lock and raise the hood.
2. Loosen, but do not remove, the rear wing nut and
upper front wing nut.
3. Grasp the side panel just behind the grille and pull
outward to release the side panel from the
tapered bushings on the grille.
4. Slide the side panel forward and out of the groove
in the dash panel.
To install either the right or left side panel, refer to Figure 8 and proceed as follows:
1. Slide the rear of panel into the groove in the dash
panel.
2. Position the notch of the rear side panel tab on
the threads of the bulkhead rod, between the
bulkhead and wing nut.
3. Press the slots of the front side panel flange onto
the tapered retainers, between the retainers and
the grille.
4. Tighten the rear and upper front wing nuts and
close the hood.
REAR WING NUT
SIDE PANEL
GROOVE IN
DASH PANEL
REAR TAB
ON PANEL
UPPER FRONT
WING NUT
GRASP
RETAINER WITH
TAPERED GUIDE
GRILLE
GRASP
Figure 8
13
SECTION II. OPERATION
WARNING
RECEIVE INSTRUCTION - Read the
operator’s manual. Learn to operate this
machine SAFELY. Don’t risk INJURY or
DEATH.
1. Before starting the engine or beginning operation, be familiar with the controls. The
operator must be seated, the PTO switch in
the “OFF” position and the brake pedal fully
depressed.
2. Keep all shields in place. Keep away from
moving parts.
3. NO RIDERS! Keep all people a safe distance away. Look down and behind to
both sides before and while backing up.
4. DO NOT direct the mower discharge at
people.
5. Avoid slopes. Tractors can roll over.
6. Before leaving the operator’s seat: Shut
off the PTO, engage the brake pedal lock,
shut off the engine and remove the ignition
key. Wait for all movement to stop before
servicing or cleaning.
7. Do not fill the fuel tank when the engine is
running or while the engine is hot. Tighten
the fuel cap securely.
BEFORE OPERATING YOUR TRACTOR
1. Before you operate the tractor, study this manual
carefully. It has been prepared to help you operate
and maintain your tractor with utmost efficiency.
2. Familiarize yourself with the operations of all the
instruments and controls.
3. This engine is certified to operate on unleaded
gasoline. For best results, fill the fuel tank with
only clean, fresh, unleaded gasoline with a pump
sticker octane rating of 87 or higher. In countries
using the Research method, it should be 90
octane minimum.
Unleaded gasoline is recommended because it
leaves less combustion chamber deposits and reduces harmful exhaust emissions. Leaded gasoline is not recommended and must not be used
where exhaust emissions are regulated.
Gasohol (up to 10% ethyl alcohol, 90% unleaded
gasoline by volume) is an approved fuel. Other
gasoline/alcohol blends are not approved.
Methyl Tertiary Butyl Ether (MTBE) and unleaded
gasoline blends (up to a maximum of 15% MTBE
by volume) are approved fuels. Other gasoline/
ether blends are not approved.
4. Check the engine and transmission oil levels.

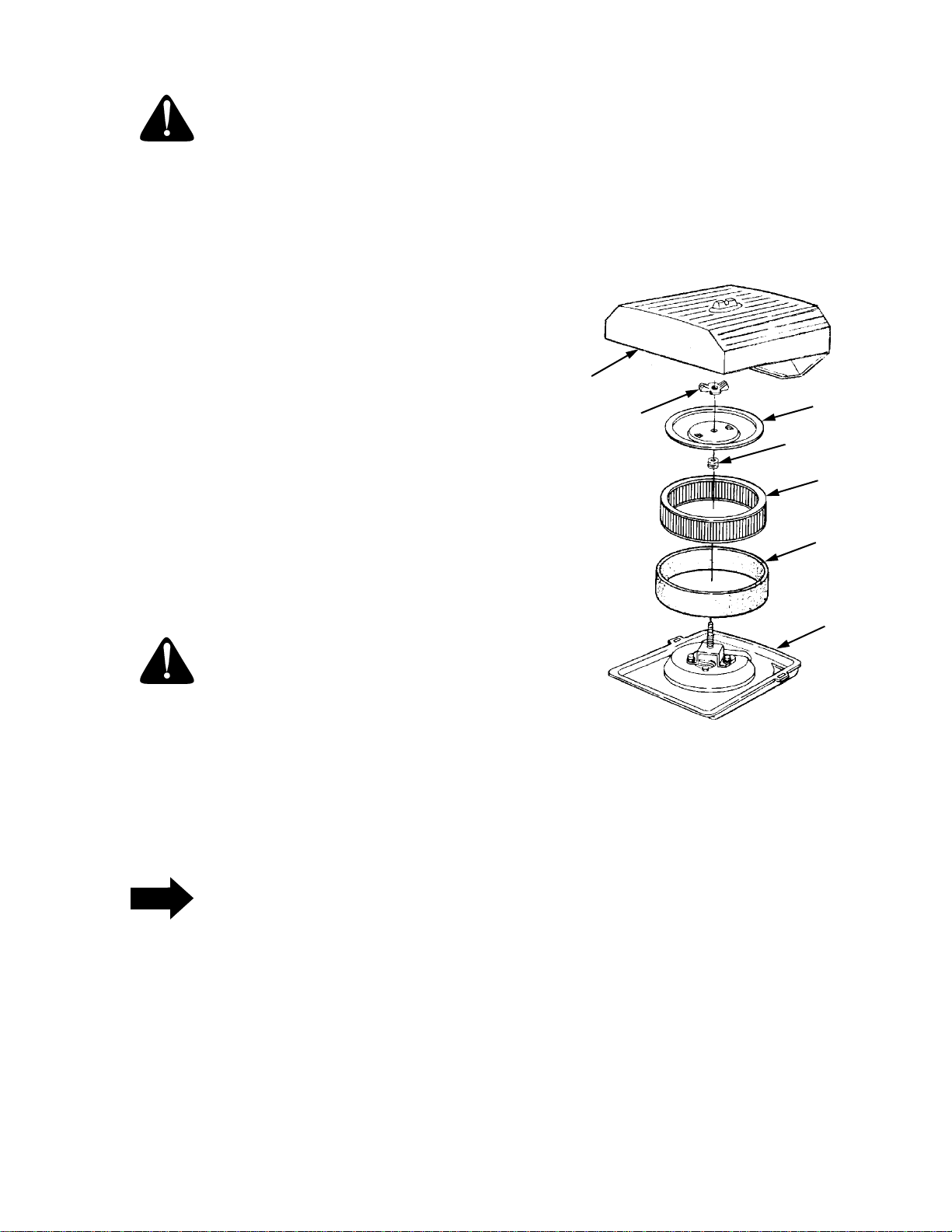

5. Clean the air cleaner element if necessary.
6. Check the tire inflation pressures.
7. Adjust the seat for operator’s maximum comfort,
visibility, and for maintaining complete control of
the tractor.
8. Remove the side panels and clean any
accumulated grass and debris from the engine air
inlet screen. Also clean the dash air intake
screen, grille and side panels to ensure adequate
cooling.
9. Refer to the various sections of the Owner’s
Manual for additional information.
SAFETY INTERLOCK SYSTEM
WARNING
This unit is equipped with a safety inerlock
system designed for the protection of the
operator. Do not operate the tractor if any part
of the interlock system is malfunctioning.
Periodically check the functions of the interlock
system for proper operation as described
below:
• The safety interlock system prevents the en-
gine from cranking or starting unless the brake
pedal is fully depressed and the PTO clutch engagement switch is in the “OFF” position.
• The safety interlock system will automatically
shut off the engine if the operator leaves the
seat before engaging the brake pedal lock.
• The safety interlock system will automatically
shut off the engine if the operator leaves the
seat with the PTO engaged, regardless of
whether the brake pedal lock is engaged.
• With key switch in “NORMAL MOWING”
position: The safety interlock system will
automatically disengage the PTO if the reverse
control pedal is pressed down with the PTO in
the “RUN” position. To re-engage the PTO,
release the reverse control pedal, push the
PTO switch down to the “OFF” position, and
then pull the PTO switch upward to engage the
PTO.
14
STARTING THE ENGINE
WARNING
For personal safety, the operator must be sitting
in the tractor seat when starting the engine.
Never try to start the engine while standing on
the ground.
1. Operator must be sitting in the tractor seat.
2. Pull choke control knob to full choke position.
Less choking may be necessary due to variations
in temperature, grade of fuel, etc. Little or no
choking will be needed when the engine is warm.
3. Place the throttle midway between the “SLOW”
and “FAST” position.
4. Place the PTO switch in the “OFF” position.
5. Fully depress the brake pedal.
6. Turn the ignition key clockwise to the “START”
position and release it as soon as the engine
starts; however, do not crank the engine
continuously for more than 10 seconds at a time.
If the engine does not start within this time, turn
the key “OFF” and wait a minute to allow the
engine’s starter motor to cool, then try again.
7. After the engine starts, slowly release the brake
pedal. As the engine warms up, gradually push
the choke control knob all the way in. Do not use
the choke to enrich the fuel mixture, except as
necessary to start the engine.
COLD WEATHER STARTING
5. Turn the ingnition key to the “START” position and
hold until the engine starts; however, do not crank
the engine continuously for more than 10
seconds at a time. Once the engine starts, gradually
adjust the choke as needed to keep the engine
running until warmed up, then push the choke control
all the way in.
6. If the engine fails to start after several attempts,
the engine may become flooded. If this happens,
wait a minute to allow the starter motor to cool.
Move the throttle control to the “SLOW” position,
push the choke in all the way and momentarily
crank the engine to help clear the cylinders. With
the throttle control in the “SLOW” position and the
choke all the way in, turn the ignition key to the
“START” position while slowly pulling the choke
out to a position that will allow the engine to start.
Gradually adjust the choke as needed to keep the
engine running until warmed up, then push the choke
control all the way in.
STOPPING THE ENGINE
CAUTION
Remove the key from the ignition switch to
prevent accidental starting or battery discharge
if the equipment is left unattended.
Place the PTO switch in the “OFF” position. Move the
throttle control lever between the “MID” and “FAST”
positions. Wait a moment to allow the engine speed to
stabilize, then turn the ignition key to the “STOP” position. Remove the key from the ignition switch.
WARNING
Engine exhaust gases are dangerous. Do not
run the engine in a confined area such as a
storage building any longer than is necessary.
Immediately move the tractor outdoors. For
personal safety, the operator must be sitting in
the tractor seat before starting the tractor.
When starting the engine at temperatures near or below freezing, ensure the correct viscosity motor oil is
used in the engine and the battery is fully charged.
Start the engine as follows:
1. Pull the choke all the way out to full choke position.
2. Move the throttle control lever to midway between
the “SLOW” and “FAST” position.
3. Place the PTO switch in the “OFF” position.
4. Fully depress the brake pedal.
TRACTOR BREAK-IN PROCEDURE
CAUTION
Never operate a new engine immediately
under full load. Break it in carefully as shown
in the table below.
Engine Throttle
Period
1st hour X None
2nd hour
3rd through
12th hour
15
Control Lever
Position Load
1/2 3/4 Full
X
X
Light drawbar load
X
Mowing with tractor
at slow groundspeed
Medium drawbar
load
X
Normal mowing
or
or
DRIVING THE TRACTOR
b. Lightly push the cruise control lever downward
as far as possible and hold in this position.
CAUTION
Avoid sudden starts, excessive speed and
sudden stops.
WARNING
Do not leave the seat of the tractor without
disengaging the PTO and engaging the brake
pedal lock. If leaving the tractor unattended,
turn the ignition key off and remove the key.
NOTE
When using PTO driven equipment, best
performance is achieved with the throttle lever
in the “FAST” position.
1. Depress the brake pedal to release the brake pedal lock and let the pedal up. Move the throttle lever
to the position where the engine operates best for
the load to be handled (usually full throttle).
2. Driving with forward or reverse pedals.
c. While continuing to hold the cruise lever down,
lift your foot from the forward control pedal
(you should feel the cruise latch engage).
d. If properly engaged, the cruise lever and for-
ward control pedal should lock in the down position, and the tractor will maintain the same
forward speed.
e. Disengage the cruise control using one of the
following methods:
• Depress the brake pedal to disengage the
cruise control and stop the tractor.
• Lightly depress the forward control pedal.
• Lift the cruise control lever upward.
NOTE
Although not recommended, depressing the
reverse pedal will also disengage the cruise
control.
f. To change to the reverse direction when oper-
ating with cruise control, depress the brake
pedal to disengage the cruise control and stop
the tractor; then depress the reverse control
pedal.
CAUTION
Do not use the forward or reverse control
pedals to change the direction of travel when
the tractor is in motion. Use the brake pedal to
bring the tractor to a stop before depressing
either the forward or reverse control pedal.
a. To move forward, slowly depress the forward
control pedal until the desired speed is
achieved.
b. To move in reverse, check that the area be-
hind is clear then fully depress the reverse
control pedal. Always look down and behind
before and while backing up.
3. Using the cruise control lever.
NOTE
The cruise control feature can only be operated
in the forward direction.
a. Slowly depress the forward control pedal until
the desired speed is achieved.
DRIVING ON SLOPES
Refer to the SLOPE GAUGE on page 55 to help determine slopes where you may not operate safely.
WARNING
Do not mow on inclines with a slope in excess
of 15 degrees (a rise of approximately 2-1/2 feet
every 10 feet). The tractor could overturn and
cause serious injury.
WARNING
Operate the tractor up and down slopes, never
across slopes. Always drive up or down the face
of a slope. Do not drive so that the tractor may
tip over sideways .
Before operating the tractor on any slope, walk the
slope to look for possible hazards such as rocks.
mounds, ruts, stumps or other surface irregularities
which could cause the tractor to overturn.
16
Back the tractor with implement up the steepest portion
of each slope you intend to work. If the tractor cannot
negotiate the slope in reverse, the slope is too steep to
be worked.
Avoid turns when driving on a slope. If a turn must be
made, turn down the slope. Turning up a slope greatly
increases the chance of a roll over.
Avoid stopping when driving up a slope. If it is necessary to stop while driving up a slope, start up smoothly
and carefully to reduce the possibility of flipping the
tractor over backward.
STOPPING THE TRACTOR
CAUTION
Always engage the brake pedal lock, push the
PTO switch to the “OFF” position, lower the
equipment and shut off the engine before
dismounting.
Fully depress the brake pedal to bring the tractor to a
complete stop (and disengage the cruise control), engage the brake pedal lock, disengage the PTO, turn
the ignition switch to “STOP’” and remove the key from
the switch before dismounting.
OPERATING THE POWER TAKE-OFF (PTO) CLUTCH
IMPORTANT: NEVER engage the PTO clutch while its
driven equipment is under load (e.g., mower deck lowered in grass, snowthrower lowered in deep snow, tiller
lowered in soil). Premature wear and eventual failure
of the PTO clutch and drive belts will result.
Operate the PTO clutch as follows:
1. Move the throttle control lever to approximately the
mid throttle position.
2. Pull the PTO switch to the “RUN” position.
3. Advance the throttle lever to the operating speed
(full engine speed).
4. The operator must remain in the tractor seat at all
times. If the operator should leave the seat
without turning off the power take-off switch, the
tractor’s engine will shut off.
5. With key switch in “NORMAL MOWING”
position ONLY: The PTO clutch cannot be
operated when the tractor is driven in the reverse
direction. In the “NORMAL MOWING” position,
the PTO clutch will automatically disengage when
the reverse pedal is depressed. To re-engage the
PTO clutch, release the reverse control pedal,
move the PTO switch to the “OFF” position, then
again pull the switch to the “RUN” position.
PTO CLUTCH BREAK-IN (Before initial use ONLY)
Before operating the new clutch under load (mowing
grass, etc.), perform the following break-in procedure:
1. Start and run the engine a few minutes to warm up.
2. With the mowing deck installed and the engine
running at approximately 50% throttle, engage
and disengage the clutch at ten second intervals
(ten seconds ON-ten seconds OFF) five times.
The engine choke may have to be pulled out
slightly to accomplish this.
3. Increase the engine speed to 75% throttle and
again engage and disengage the PTO clutch at
ten second intervals five times.
4. Disengage the PTO and stop the engine.
USING THE DRAWBAR
Drawbar type equipment must be hitched to the tractor
only at the hitch hole in the drawbar (See Figure 9).
HITCH
HOLE
DRAWBAR
Figure 9
17
USING THE “REVERSE CAUTION MODE” KEY
POSITION
The “REVERSE CAUTION MODE” position of the key
switch module allows the machine to be operated in reverse with the blades (PTO) engaged.
IMPORTANT:
Mowing in reverse is not recommended.
WARNING
Use extreme caution while operating the tractor
in the “REVERSE CAUTION MODE”. Always
look down and behind before and while
backing. Do not operate the tractor when
children or others are around. Stop the tractor
immediately if someone enters the area.
To use the “Reverse Caution Mode”:
IMPORTANT: The operator MUST be seated in the
tractor seat.
1. Start the engine as previously instructed in this
Operator’s Manual.
2. Turn the key from the “NORMAL MOWING”
(Green) position to the “REVERSE CAUTION
MODE” (Yellow) position of the key switch
module. Refer to Figure 10.
3. Depress the “REVERSE PUSH BUTTON”
(Orange/Triangular Button) at the top/right corner
of the key switch module. The red indicator light
at the top/left corner of the key switch module will
be “ON” while activated. Refer to Figure 10.
4. Once activated (indicator light “ON”), the tractor
can be driven in reverse with the cutting blades
(PTO) engaged.
5. Always look down and behind before and while
backing to make sure no children are around.
6. After resuming forward motion, return the key to
the “NORMAL MOWING” position.
IMPORTANT: The REVERSE CAUTION MODE will
remain activated until:
• The key switch is turned to either the NORMAL
MOWING or STOP position.
• The operator leaves the seat. Follow the previous
instructions to re-activate.
Step 4 - Indicator Light
comes “ON” to alert
operator of activation
Step 2 - Turn Key to
Reverse Caution
Mode postition
KEY SWITCH MODULE
Step 3 - Depress Reverse
Push Button to activate
Turn
Key
Step 1 - Start engine, release
key, key returns to Normal
Mowing postition
Figure 10
18
Loading...
