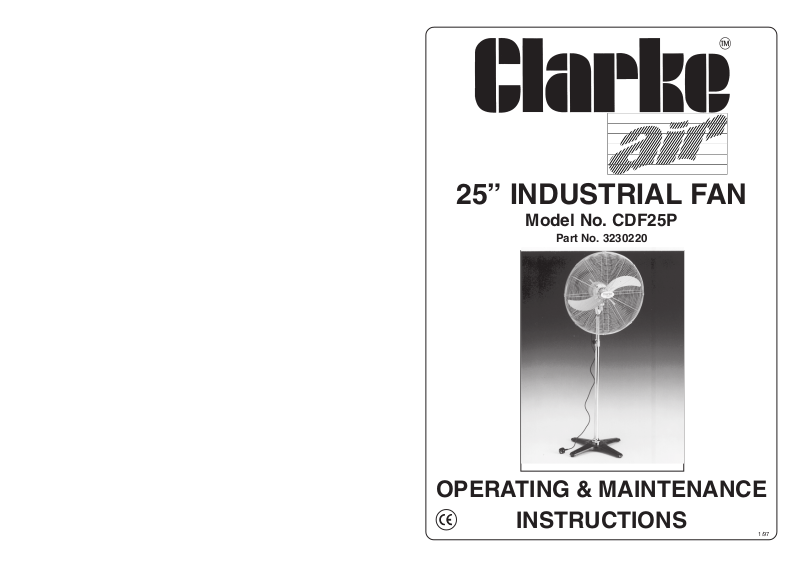

25” INDUSTRIAL FAN
Model No. CDF25P
Part No. 3230220
OPERATING & MAINTENANCE
INSTRUCTIONS
1/97
PARTS DIAGRAM
6
SPECIFICATIONS
Motor 230V 50Hz 1Ph
Power Rating 220 Watts
Max. Current 1.5 Amps
Fuse Rating 5 Amps
Height Max. Approx.1,930mm
Height Min. 1,550mm
Air Flow 8,120 cf/m
Part No. 3230220
Thank you for purchasing this Clarke Industrial Pedestal Fan. Before attempting to
operate the unit, please read this instruction manual, and follow all directions carefully.
By doing so you will ensure its’ safe operation, and look forward to long and trouble
tree service from your Fan.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase. This
guarantee is invalid if the product is found to have been abused or tampered with in any
way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned
to us without prior permission. This guarantee does not effect your statutory rights.
PARTS LIST
No. Description Qty Part No. No. Description Qty Part No.
1 Front Guard 1 CDF2501 11 Coupling 1 CDF2511
2 Rear Guard 1 CDF2502 12 Plastic Knob 1 CDF2512
3 Blade Set Screw 1 CDF2503 13 Outer Tube 1 CDF2513
4 Blade 1 CDF2504 14 Cover Ring 1 CDF2514
5 Motor 1 CDF2505A 15 Cast Coupling 1 CDF2515
Motor Housing 1 CDF2605B 16 Cast Iron Base 1 CDF2616
6 Swivel Bush 1 CDF2506 17 Shaft 1 CDF2517
7 Female Support 1 CDF2507 18 Vertical Spindle 1 CDF2518
8 Set Screw 1 CDF2508 19 Gear Shaft 1 CDF2519
9 Male Support 1 CDF2509 20 Spur Gear 1 CDF2520
10 Inner Tube 1 CDF2510 21 Washer 2 CDF2521
SPARE PARTS & SERVICING
Please contact your nearest dealer, or
CLARKE International, on one of the following numbers.
PARTS - 0181 558 6696 SERVICE - 0181 556 4443
PARTS & SERVICE FAX - 0181 558 3622
Please note that the details and specifications contained herein, are correct at the time of going to print. However,
CLARKE International reserve the right to change specifications at any time without prior notice.
5
SAFETY PRECAUTIONS
Before using your fan it is in your own interest to read and pay attention to the following
safety rules:
1. Locate the fan on a level surface for stability, conveniently located to an electrical
supply.
2. Position the fan out of reach of children.
3. Do not insert anything into the guard grill.
4. If moving the fan to a new location, First switch OFF and unplug from the mains
supply.
5. Never lean across the fan as there is a danger of loose clothing or jewellery entering
the guard and becoming tangled in the fan blade.
ELECTRICAL CONNECTIONS
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an
approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
WARNING! THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in the mains lead are coloured in accordance with the following
code Green & Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the flexible lead of this appliance may not correspond with the coloured
markings identifying terminals in your plug proceed as follows:
Connect the GREEN & YELLOW cord to plug terminal marked with a letter “E” or
Earth symbol “ “ or coloured GREEN or GREEN & YELLOW.
Connect the BROWN cord to plug terminal marked with a letter “L” or coloured RED.
Connect the BLUE cord to plug terminal marked with a letter “N” or coloured BLACK.
If this appliance is fitted with a plug which is moulded onto the electric cable (i.e. nonrewirable) please note:
1. The plug must be thrown away if it is cut from the electric cable. There is a danger
of electric shock if it is subsequently inserted into a socket outlet.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse carrier, ensure that the correct
replacement is used (as indicated by marking or colour code).
4. Replacement fuse covers are obtained from your local dealer or electrical stockists.
5. The fuse in the plug must be replaced with one of the same rating (5 amps)
and this replacement must be ASTA approved to BS1362.
ASSEMBLY (Ref Fig.1)
Fig. 1
1. Attach the main column (outer tube), to the base, using
the 4 screws provided. Then slide the cover over the
column to cover the screws.
2. Attach the extension column (inner tube) to the motor
assembly, ensuring the cable clip is facing the rear, and
tighten the securing set screw, ensuring the lock washer
is in place up against the head of the screw. Insert the
cable into the cable clip, leaving a little slack, and nip up
the cable clamp screw.
3. Lift the motor assembly, and insert the extension column
into the main column, and secure at some convenient
height, using the plastic extension securing knob.
4. Remove the four screws on the front (shaft end) of the
motor assembly, and place the rear fan guard in place,
securing it with the same screws, ensuring the small hole
in the guard rim is at 6 o’clock. .
5. Attach the fan to the shaft, securing it firmly with the set
screw provided in the side of the fan hub.
6. Hang the front fan cover on to the rear cover, and insert
the screw through the holes at 6 o’clock in both guard
rims, and tighten the nut.
NOTE: It is a requirement that this securing screw is fitted,
permanently .
OPERATION
A. Fan Speed
The fan is provided with a 3 position switch for speed control, mounted on the rear of
the motor housing.
B. Sweep
The degree of sweep may be adjusted by slackening off the securing screw, which
secures the motor to the curved link, connecting the front motor pivot to the drive shaft
at the rear of the motor.
Slacken off the securing screw by turning its’ knurled knob, noting that as the screw is
‘upside down’, viewed from above, it must be screwed in a clockwise direction to
undo. Do not remove the screw.
Pivot the motor assembly to a position to obtain the desired degree of sweep, and retighten the securing screw.
C. Tilt
Slacken off the set screw which secures the head to the column, and tilt the head to
the desired angle, before tightening the set screw once again.
D. Raising and Lowering the Head
TAKING THE FULL WEIGHT OF THE HEAD, undo the Extension Securing knob at
the coupling, and raise or lower the head as required. Re-tighten the adjuster knob
IMPORTANT
All adjustments should be carried out with the fan switched OFF,
and the fan blade stationary
MAINTENANCE
1. Always disconnect the fan from the mains supply before attempting any cleaning
operation.
2. The fan blade may be washed in warm water using a little mild detergent, or
alternatively, it may be wiped with a damp cloth.
3. Remove the fan guards completely from the motor assembly before cleaning. This
is to avoid the possibility of water entering the motor housing. The motor housing
may be wiped with a damp cloth.
3. Ensure the unit is completely dry before re-assembling and connecting to the mains
supply.
DO NOT IMMERSE IN WATER DO NOT USE HARSH ABRASIVE CLEANERS.
3
