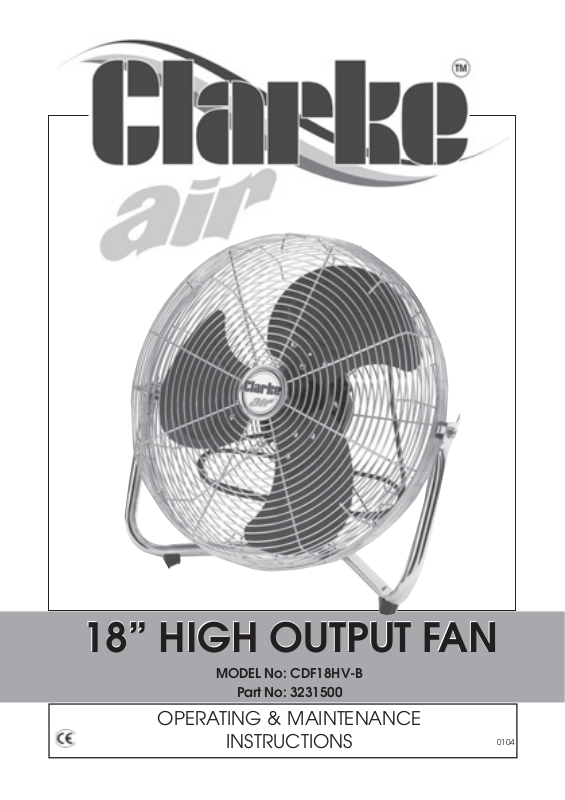

Page 1
18” HIGH OUTPUT FAN
18” HIGH OUTPUT FAN
MODEL No: CDF18HV-B
Part No: 3231500
OPERATING & MAINTENANCE
INSTRUCTIONS
0104
Page 2
Please read these instructions carefully before operating the tool
Thank you for purchasing this CLARKE 18” High Output Fan.
Before using the product, please read this manual thoroughly and carefully follow
all instructions given. This is for your own safety and that of others around you, and
is also to help you achieve long and trouble free service from your new fan.
CLARKE GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period
of 12 months from the date of purchase. Please keep your receipt as proof
of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product
can be returned to us without prior permission.
This guarantee does not affect your statutory rights.
PARTS & SERVICE TEL: 020 8988 7400
or e-mail as follows:
PARTS: [email protected]
SERVICE: [email protected]
Please note that the details and specifications contained herein are correct at the time of going to
print. However CLARKE International reserve the right to change specifications at any time without
prior notice. Always consult the machines data plate
-2-
Page 3
Specifications
This lightweight portable 230v fan is ideal for effective air movement in a wide range of
domestic and commercial applications. Constructed entirely from steel, it has a three speed
control, strong tilt stand and easy to carry handle.
Model: .................................................................................... CDF18HV-B
Part No: .................................................................................. 3231500
Voltage: ..................................................................................230vac
Wattage: ................................................................................232w
Speeds: ...................................................................................3
Dimensions (LWH): ................................................................. 590x270x565mm
Weight: ................................................................................... 6.75Kg
List of Contents
1 x Fan Assembly
Your CDF18HV-B requires no assembly and comes fully assembled complete with 13 amp
plug fitted.
Operation
Ensure the fan is standing on a flat level surface, adjust to the desired angle and direction
etc, plug in to a suitable electric supply, (see page 4) and switch on.
Adjust the fan speed to suit.
Cleaning
Ensure the fan is switched off, and isolated from the main electrical supply by
removing the plug from the socket.
Do not use any harmful cleaning agents for cleaning.
Only use a clean soft dampened cloth, wipe dry after cleaning.
DO NOT bend the blades.
The motor bearings are permanently sealed and do not require any additional
lubrication.
Safety Precautions
DO NOT use in dusty environments.
DO NOT use in environments with high fumes from chemicals etc.
DO NOT use as an extractor fan.
DO NOT use in areas of high humidity/water vapour, i.e. bathrooms etc.
DO NOT connect fan to ducting system.
-3-

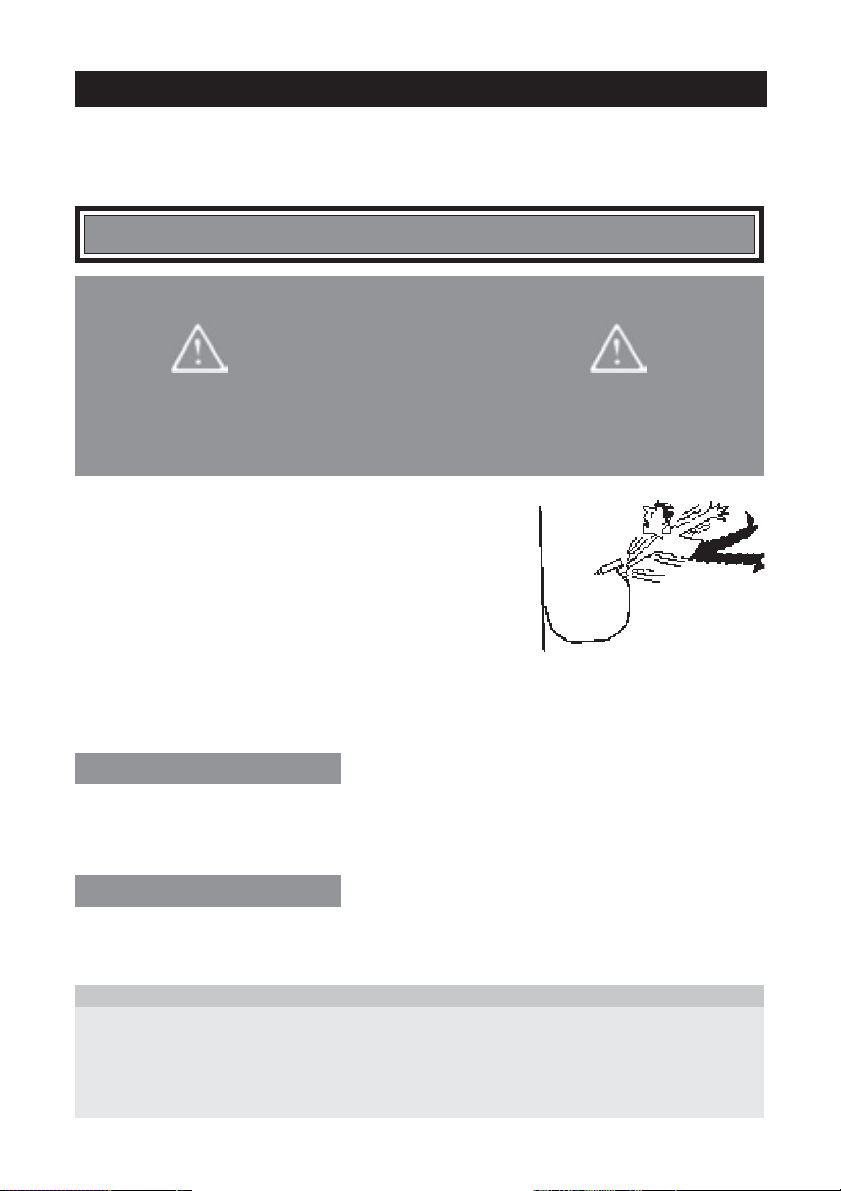

Page 4
Electrical Connections
This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for
connection to a standard, domestic electrical supply. Should the plug need changing at
any time, ensure that a plug of identical specification is used.
WARNING ! THIS APPLIANCE MUST BE EARTHED
This machine must be wired up in accordance with the following colour code:
BLUE - NEUTRAL
BROWN - LIVE
GREEN/YELLOW - EARTH
Connect the BLUE coloured cord to the plug terminal marked “N”
Connect the BROWN coloured cord to the plug terminal marked “L”
Connect the GREEN/YELLOW coloured cord to the plug terminal marked “E”
If this appliance is fitted with a plug which is moulded on to
the electric cable (i.e. non-rewireable) please note:
1. The plug must be thrown away if it is cut from the
electric cable. There is a danger of electric shock if it
is subsequently inserted into a socket outlet.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse carrier, ensure that the correct
replacement is used (as indicated by marking or colour code).
4. Replacement fuse covers can be obtained from your local dealer or most electrical
stockists.
Fuse Rating
The fuse in the plug must be replaced with one of the same rating (13 amps) and this
replacement must be approved to BS1362.
If in doubt, consult a qualified electrician. Do not attempt any electrical repairs yourself.
Cable Extension
Always use an approved cable extension suitable for the power rating of this tool (see
specifications), the conductor size should also be at least the same size as that on the
machine, or larger. When using a cable reel, always unwind the cable completely.
IMPORTANT:
If a cable extension is needed, it is essential to comply with the following data.
Voltage Extension length Cable section
230v Up to 20m 2.5mm
230v From 20 to 50m 4mm
-4-
2
2
Page 5

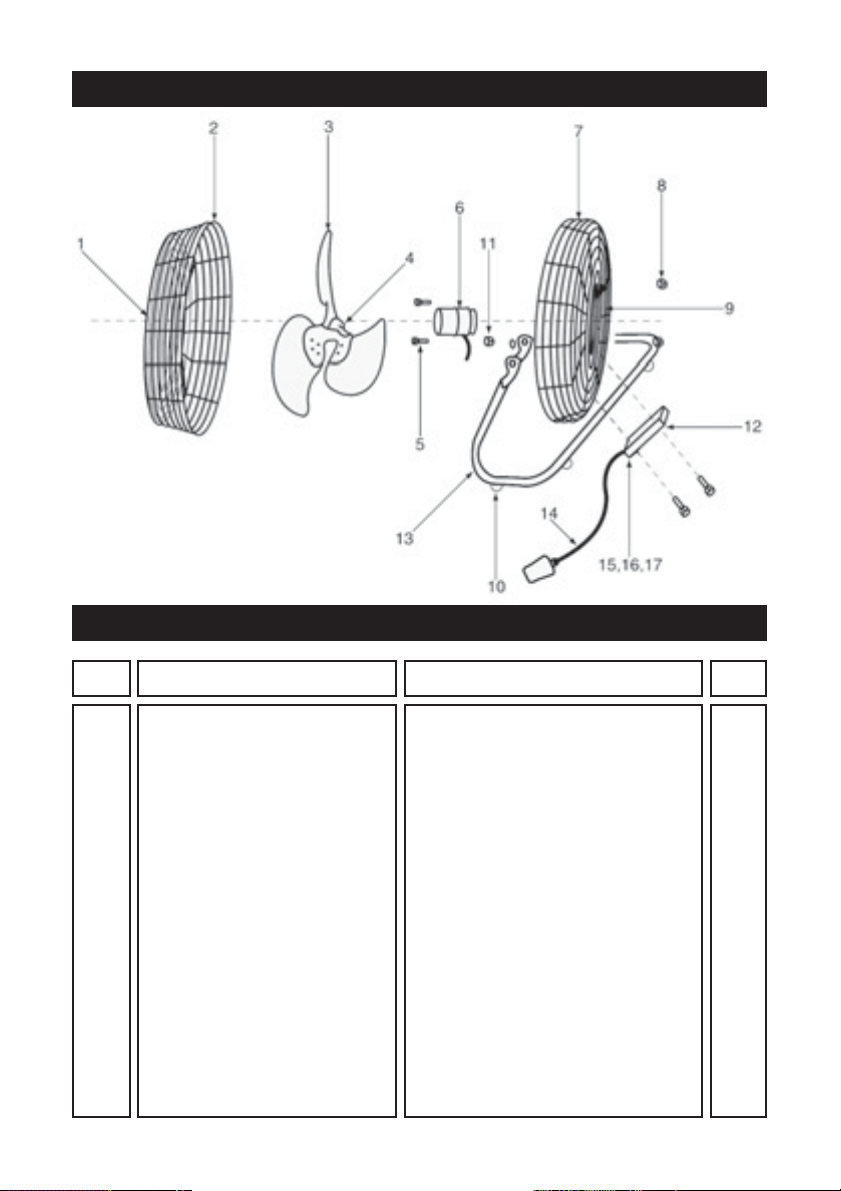

Parts Diag
Parts List
Item Part Number Description Qty
1 OT18001 Screw 2
2 OT18002 Front Grill 1
3 OT18003 Fan Blade 1
4 OT18004 Screw 1
5 OT18005 Screw 4
6 OT18006 Motor 1
7 OT18007 Rear Grill 1
8 OT18008 Nut 4
9 OT18009 Screw 2
10 OT18010 Foot 2
11 OT18011 Nut 2
12 OT18012 Knob 1
13 OT18013 Stand 1
14 OT18014 Power Cord 1
15 OT18015 Switch Box 1
16 OT18016 Capacitor 1
17 OT18017 Switch 1
-5-
