Clarion CZ401 User Manual

Owner's manual & Installation manual
Mode d'emploi et manuel d'installation
Manual de instrucciones y de instalación
CD/USB/MP3/WMA RECEIVER
LECTEUR CD/USB/MP3/WMA
RECEPTOR CD/USB/MP3/WMA
English
Contents
Thank you for purchasing this Clarion product.
• Please fully read this owner’s manual before operating this equipment.
• Check the contents of the enclosed warranty card and store it in a safe place with this manual.
1. FEATURES ........................................................................................................................3
Expanding Systems ...........................................................................................................3
2. PRECAUTIONS .................................................................................................................4
Front Panel / Generalities ..................................................................................................5
USB Port ...........................................................................................................................5
Remove the DCP ..............................................................................................................6
Attach the DCP ..................................................................................................................6
Storing the DCP in the DCP Case .....................................................................................6
3. CONTROLS .......................................................................................................................7
Operational Panel ..............................................................................................................7
Names of Buttons .............................................................................................................. 7
Remote Control (RCX001) ................................................................................................8
Notes of remote control using ...........................................................................................8
4. CAUTIONS ON HANDLING ..............................................................................................9
Handling Discs ..................................................................................................................9
5. OPERATIONS ..................................................................................................................10
Basic Operations .............................................................................................................10
System Setup ..................................................................................................................11
Audio Setup ..................................................................................................................... 12
HD Radio Operations ......................................................................................................13
Satellite Radio Mode .......................................................................................................14
iTunes® Tagging ..............................................................................................................15
CD/MP3/WMA Operations ..............................................................................................16
USB Operations ..............................................................................................................18
iPod & iPhone Operations ...............................................................................................19
AUX Operations ..............................................................................................................20
6. TROUBLE SHOOTING ....................................................................................................21
7. ERROR DISPLAYS..........................................................................................................22
8. SPECIFICATIONS ...........................................................................................................23
9. INSTALLATION / WIRE CONNECTION GUIDE .............................................................24
English
English
1. FEATURES
• Built-inHDRadio™TunerwithiTunes® Tagging
• CompatiblewithiPod
®
/iPhone® via USB
• 4V/6chRCA Output withHPF/LPFand BEAT-EQwith 3 BandParametric Equalizer
This HD Radio receiver enables:
Expanding Systems
Expandingaudiofeatures
4ChannelAmplier
iPod/iPhone (ConnectviaCCA-748)
PortablePlayer
SIRIUSConnect™ VehicleTuner (SC-C1)tobeconnected
Note:
The items listed outside of the frames are the commercial products generally sold.
CCA-748 and CCA-755: Sold by separately.
(ConnectviaAUXINJack)
USBMemory (ConnectviaCCA-755)
2. PRECAUTIONS
65 mm
531-1629kHz 87.5-108MHz
CHINA
PN:127070006890TX-1062K-A
051 722 877
This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from MSLGP.
65 mm
65 mm
531-1629kHz 87.5-108MHz
PN:127070006867TX-1062K-B
This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from MSLGP.
65 mm
WARNING
For your safety, the driver should not operate the controls while driving. Also, while driving, keep the volume to a level at which external sounds can be heard.
English
1. When the inside of the car is very cold and
the player is used soon after switching
on the heater, moisture may form on the disc or the optical parts of the player and
proper playback may not be possible. If moisture forms on the disc, wipe it off with a soft cloth. If moisture forms on
the optical parts of the player, do not
use the player for about one hour. The condensation will disappear naturally allowing normal operation.
2. Driving on extremely bumpy roads which cause severe vibration may cause the
sound to skip.
3. This unit uses a precision mechanism.
Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts.
4. This equipment ha s been tested a nd found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, users, and can radiate radio frequency energy and,
if not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio reception,
wh ic h can be determin ed by turning the equipment off and on, the user is
encouraged to consult the dealer or an experienced radio technician for help.
5. “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has
been designed to connect specifically to
iPod, or iPhone, respectively, and has
been certified by the developer to meet
Apple performance standards.
Apple is not responsible for the operation
of this device or its compliance with safety
and regulatory standards. Please note
that the use of this accessory with iPod or iPhone may affect wireless performance.
iPhone and iPod are trademarks of Apple
Inc., registered in the U.S. and other countries.
6. SIRIUS,the SIRIUS Dog logo and related marks are trademarks of SIRIUS XM Radio,Inc.
7. HD Radio Technology manufactured under
license from iBiquity Digital Corporation.
U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos
are proprietary trademarks of iBiquity
Digital Corp.
530-1710kHz 87.5-107.9MHz
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS DEVICE COMPLIES WITH DHHS RULES 21 CFR CHAPTER I SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE.
This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from MSLGP.
CLARION CO.,LTD. 7-2,SHINTOSHIN,CHUO-KU,SAITAMA-SHI,SAITAMA-KEN,JAPAN
HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos are proprietary trademarks of iBiquity Digital Corp.
MANUFACTURED:
URF
CHINA
PN:127070006889TX-1059B-A
INFORMATION FOR USERS:
Changes or modifications to this product
unapproved by the manufacturer will void the warranty and will violate FCC approval.
Front Panel / Generalities
English
For a longer service life, be sure to read the following cautions.
• Do not allow any liquids on the set from drinks, umbrellas, etc. Doing so may
damage the internal circuitry.
• Do not disassemble or modify the set in any way. Doing so may result in damage.
• Do not let cigarettes burn the display.
Doing so may damage or deform the
body.
• If a problem should occur, have the set
inspected at your store of purchase.
• The remote control unit may not work if
the remote control sensor is exposed to direct sunlight.
Cleaning the body
• Use a soft, dry cloth and gently wipe off
the dirt.
• For tough dirt, apply some neutral detergent diluted in water to a soft cloth, wipe off the dirt gently, then wipe again with a dry cloth.
• Do not use benzene, thinner, car cleaner, etc., as these substances may damage the body or cause the paint to peel. Also, leaving rubber or plastic products in contact with the body for long periods of
time may cause stains.
USB Port
• The USB memory stick may stick out when inserted, so it may cause danger
during driving.
When connect USB memory stick to the
main unit, please use a USB extension
cable (CCA-755).
• T h e US B m emor y s tick s m ust b e recognized as “USB mass storage class“ to work properly. Some models may not
operate correctly.
 Whenthe memorizeddataislostor
damaged byanychance,Clarionshall notbeliableforanydamage.
When using an USB memory stick, we
recommend that you backup your data st ored on it before using a per sonal
computer etc.
• Data les may be broken when using USB memory sticks in the following situation:
When disconnecting the USB memory
st ick or tur ning the powe r off duri ng
reading data.
When affected static electricity or electric
noise.
Connect/disconnect the USB memory stick
when it is not accessed.
• Connecting with the computer is not
covered.
Remove the DCP
The control panel can be detached to prevent
theft. When detaching the control panel, keep it in the safety place and prevent scratches. W e r ec om me nd t a k i n g t h e D CP
(DETACHABLE CONTROL PANEL) with you when leaving the car.
1. Press the [SRC /
off the power.
2. Deeply push in [OPEN] button to unlock the DCP.
3. Hold the side popped out, remove the DCP.
] button (1 sec.) to turn
Attach the DCP
1. Hold the DCP and ensure that the panel
faces towards you. Set the right side of the DCP into the DCP bracket.
2. Press the left side of the DCP until it locks.
English
Storing the DCP in the DCP Case
Hold the DCP, as shown in the gure below,
and put it into the supplied DCP case.
DCP
DCP case
Note:
If the DCP is dirty, wipe off the dirt with a soft,
dry cloth only.
CAUTION
• The DCP can easily be damaged by shocks. After removing it, be carefully not to drop it or subject it to strong shocks.
• Once the [OPEN] button is pressed and DCP is unlocked, car vibrations can cause
the DCP to fall
• The connector for the mai n unit and
DCP is extremely important. Be careful
not to damage it by pressing on it with ngernails, screwdrivers, etc.
English
3. CONTROLS
Operational Panel
DiscSlot
[VOLUME] [1~6]
[,]
[OPEN]
[MENU]
[BAND]
[SRC/ ]
[PS/AS]
[SOUND]
Names of Buttons
[SRC / ]Button
• Power / Toggle the audio source
[BAND]Button
• Select tuner band
SIRIUS mode – Select tuner band/Select
category (Long press)
[MENU]Button
MP3/WMA mode – Search function.
CD mode – No function.
HD RADIO mode – SUB channels select.
SIRIUS mode – Direct search
AUX mode – No function.
]Button
[
• Press to eject disc.
[
, ]Buttons
• Previous / Next track
• Search (long press)
[Open]Button
• Unlock the front panel.
[PS/AS]Button
• Scan play / Preset scan
• Auto memory store (long press)
USBConnector
[ ]
AUXJack
[D]
[SOUND]Button
• Sound effect setting
[VOLUME]Knob
• Adjust volume level / Conrm (press)
[TAG]Button
HD RADIO mode – iTunes Tagging (When displayed ”DIGITAL” indicator and ”TAG”
indicator on display at Radio-mode.)
• Another mode – No function.
[1~6]Buttons
• [1] Button: Scan play / Preset station 1.
• [2] Button: Repeat play / Preset station 2.
• [3] Button: Random play / Preset station 3.
• [4] Button: Play / Pause / Top play (long
• [5] Button: Previous folder / Preset station 5.
10 tracks down (long press)
• [6] Button: Next folder / Preset station 6.
10 tracks up (long press)
[D]Button
• Display switch
• System setup (long press)
press) / Preset station 4.
Remote Control (RCX001)
English
[SRC /
]Button
• Toggle the audio source
• Power on / Power off (long press)
[ , ]Buttons
• Preset station up/down
• Previous/next track
• Search (long press)
[SCN/PS/AS]Button
• Scan play / Preset scan
• Auto memory store (long press)
[BAND/TOP]Button
MP3/WMA mode – Top play (long press)
CD mode – Top play (long press)
HD RADIO mode – Select tuner band
SIRIUS mode – Select tuner band/
Select category (long press)
[ , ]Buttons
• Volume up / down
]Button
[
• Play / Pause
[TAG]Button
HD RADIO mode – iTunes Tagging (When displayed ”DIGITAL” indicator
and ”TAG” indicator on display at Radio-
mode.)
• Another mode – No function.
[DISP]Button
• Display switch
[RDM]Button
• Random play
[RPT]Button
• Repeat play
[MUTE]Button
Mute the volume
[,]
[MUTE]
[SCN/
PS/AS]
[BAND/TOP]
[,]
[ ]
[TAG]
[DISP]
[RDM]
[RPT]
Notes of remote control using
1. Aim the remote control at the remote sensor
on the unit.
2. Remove the battery from the remote control
or insert a battery insulator if the battery has not been used for a month or longer.
3. DO NOT store the remote control under
direct sunlight or in high temperature environment, or it may not function properly.
4. Use “b utto n sha ped ” lit hiu m bat ter y
“CR2025” (3V) only.
5. DO NOT subj ec t batter y to recharge,
disassemble, heat or dispose in re or water.
6. Ins er t th e batt ery in proper dir ection
according to the (+) and (-) polarities.
7. Store the battery in a place where children
cannot reach to avoid the risk of accident.
Inserting the Battery
1. Slide remote control unit’s rear cover in the direction shown.
2. Insert battery (CR2025) into insertion guides with printed side (+) up.
3. Press battery into compartment as shown.
4. Replace and slide cover until it clicks into place.
Insertion guide
English
4. CAUTIONS ON HANDLING
Handling Discs
Handling
• New discs may have some roughness
around the edges. If such discs are used,
the player may not work or the sound may skip. Use a ball-point pen or the like to
remove any roughness from the edge of the disc.
Ball-point pen
Roughness
• Never stick labels on the surface of the disc or mark the surface with a pencil or pen.
• Never play a disc with any cellophane tape or other glue on it or with peeling off marks.
If you try to play such a disc, you may not
be able to get it back out of the player or it
may damage the player.
• Do not use discs that have large scratches,
are misshapen, cracked, etc. Use of such discs may cause misoperation or damage.
• To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the
edges.
• Do not use commercially available disc protection sheets or discs equipped with stabilizers, etc. These may damage the disc or cause breakdown of the internal
mechanism.
Storage
• Do not expose discs to direct sunlight or
any heat source.
• Do not expose discs to excess humidity or
dust.
• Do not expose discs to direct heat from
heaters.
Cleaning
• To remove ngermarks and dust, use a soft cloth and wipe in a straight line from the
center of the disc to the circumference.
• Do not use any solvents, such as commercially available cleaners, anti-static
spray, or thinner to clean discs.
• After using special disc cleaner, let the disc dry off well before playing it.
On Discs
• Never turn off the power and remove the unit from the car with a disc loaded.
CAUTION
Foryoursafety,thedrivershouldnotinsert orejectadiscwhiledriving.
5. OPERATIONS
Basic Operations
English
Note:
• Refer to the diagrams in “3. CONTROLS” when reading this chapter.
CAUTION
Whentheunitisturnedon,startingand stoppingtheenginewithitsvolume raisedtothemaximumlevelmayharm yourhearings. Becarefulaboutadjustingthevolume.
Power on / off Notes:
• Start the engine before using this unit.
• Be careful about using this unit for a long
time without running the engine. If you drain the car’s battery too far, you may not be able to start the engine and this can reduce the service life of the battery.
1. Start the engine. The power button / knob
illumination on the unit will light up.
Engine ON
2. Press the [SRC /
panel or the remote control to turn on the
power under standby mode. The unit goes back to the last status after power on.
3. Press and hold the [SRC / ] button on
the front panel or the remote control to
turn off the power.
position
] button on the front
Mute
Press the [MUTE] button on the remote control to mute the volume from the unit.
Volume adjustment
Turn the [VOLUME] knob on the front panel or press the [ remote control.
The adjustable range of volume is 0 to 40.
] or [ ] button on the
CAUTION
Whiledriving,keepthevolumelevelat whichexternalsoundscanbeheard.
Playing source selection
Press [SRC / ] button on the front panel or remote control repeatedly to choose desired playing source.
Notes:
Playing source selection means selecting work mode, such as DISC mode, HD RADIO mode, AUX mode, etc.
Display system time
Press the [D] button on the front panel or [DISP] button on the remote control to switch the display information, system time and playing source.
RESET Note:
* When the [RESET] button is pressed, frequencies of radio stations, titles, etc.
stored in memory are cleared.
Note:
Doing the operation above again or adjusting volume will release muting.
RESET
10
System Setup
English
At all mode, press and hold [D] bu tton to enter system setup. Press [ ] or [
] button to select options, rotate the
[VOLUME] knob to adjust.
CLOCK
Press the [VOLUME] knob to enter clock setting mode, rotate the [VOLUME] knob to set clock, press [ select hour or minute, press and hold the [VOLUME] knob to conrm.
PASSWORD(SIRIUSmode)
Press the [VOLUME] knob to enter old password, rotate the knob to select a digit, press [ ] or [ ] button to move the cursor. Long press the knob to conrm after input all 4 digit. Then input a new 4-digit number as above. (Original password: 0000)
LOCK(SIRIUSmode)
Press the [VOLUME] knob to lock current station, rotate the knob to select a digit, press [ ] or [ ] button to move the cursor. Long press the knob to conrm after input all 4 digit password.
UNLOCK(SIRIUSmode)
Press the [VOLUME] knob to unlock all locked stations, rotate the knob to select a digit, press [ ] or [ ] button to move the cursor. Long press the knob to confirm after input all 4 digit password.
UNSKIP(SIRIUSmode)
Press and hold the [VOLUME] knob to unskip all channels.
AUXSENS(AUXmode)
Rotate the [VOLUME] knob to choose AUX Input sensitivity LOW, MID or HIGH at AUX mode.
SCRNSVR:ON/OFF
Rotate the [VOLUME] knob to choose SCRN SVR (screen saver) ON or OFF.
SCROLL:ON/OFF
For track information that is longer than the
display panel: When SCROLL is ON, the LCD will display
] or [ ] button to
ID3 TAG information cyclely, e.g: TRACK­> FOLDER- >FIL E->AL BUM- >TIT LE­>ARTIST->TRACK->... When SCROLL is OFF, the LCD will display
one of the ID3 TAG information, the default
is TRACK, but user can adjust it to other ID3 TAG information by press [DISP] button.
S-CTRL(IPODmode):ON/OFF
Rotate the [VOLUME] knob to choose S-CTRL (Simple Control) ON or OFF. * Refer to P19.
TEL-SW
Rotate the [VOLUME] knob to choose MUTE, ON or OFF.
MUTE:
The sound from this unit is muted during telephone calls.
OFF:
This unit continues normal operation even
when the cellular phone is used.
ON:
You can listen to your telephone calls from the speakers connected to this unit. * When listening to your calls on your car
speakers, you can adjust the volume by turning the [VOLUME] knob.
SW PHASE
Rotate the [VOLUME] knob to choose SUB- WOOFER phase REVERSE or NOMAL.
DIMMER:ON/OFF
Rotate the [V OLUME] knob to ch oose DIMMER ON or OFF.
ON: LCD dimmer is active when small light
of vehicle is turned ON.
OFF: LCD always maximum brightness
regardless of the vehicle small light.
BEEP:ON/OFF
Rotate the [VOLUME] knob to choose button beep sound ON or OFF.
12/24H
Rotate the [VOLUME] knob to choose time format: 12 or 24 hour.
11
Audio Setup
Press the [SOUND] button to enter sound effect setting mode. First press shows current EQ. Rotate the [VOLUME] knob to changes BEAT EQ in this order: OFF -> B-BOOST -> IMPACT -> EXCITE ->
CUSTOM Rotate the [VOLUME] knob to changes
CUSTOM, and press the [VOLUME] knob, the press [
it including: BAS-G -> BAS-F -> BAS-Q
-> MID-G -> MID-F -> MID-Q -> TRE-G -> TRE-F, rotate the [VOLUME] knob to select a
value.
BAS-G / MID-G / TRE-G: (-7)- (+7) BAS-F: 50/100/200 BAS-Q: 0.7/1/1.4/2 MID-F: 500/1K/2K MID-Q: 0.7/1/1.4/2 TRE-F: 5k/10k/15k TRE-Q: 0.7/1/1.4/2
] or [ ] button to select
English
Press the [SOUND] button, then press [ or [
including: BALANCE -> FADER -> M-B EX -> LPF(low pass lter) -> S-W VOL (Subwoofer Volume), rotate the [VOLUME] knob to select a value. BALANCE: LEFT 1-7->CENTER->RIGHT 1-7 FADER: FRONT 1-7->CENTER->REAR 1-7 M-BEX: ON/OFF LPF: THROUGH/60/90/120 HPF: THROUGH/60/90/120 SUBW VOL: (-6)-(+6)
] button to select USER preset
]
12
HD Radio Operations
English
About HD Radio™ Technology
HD Radio Technology allows CD-quality digital broadcasting of your local AM and FM radio stations. HD Radio broadcasts
can include multiple channels on the same
frequency, which is called multicasting. With
multicasting, you can receive up to eight
additional multicast channels: HD1~HD8. You will receive HD Radio digital broadcasts automatically when tuned to a station that
offers HD Radio Technology.
NOTE: Not all FM or AM stations offer HD Radio (digital) broadcasting. You can receive both analog and digital stations with the unit.
Accessing radio mode
Press the [SRC / ] button on the front panel or remote control to switch to the HD RADIO source, and HD icon will illuminate.
Select a band
Press the [BAND] button to change between three FM and one AM bands. Each band
stores up to six preset stations.
Tuning
-SeekTuning
Press and hold the [ ] or [ ] button to seek the next/previous station automatically.
-ManualTuning
Press the [ ] or [ ] button to move the radio frequency number up or down one step.
HD Radio multicast channels
To tune to an HD Radio multicast channel, tune to the main signal and then press the [MENU] button on the panel. PTY and SUB
CH are displayed. Select PTY or SUB CH by rotate [VOLUME] knob and push to conrm.
• Select PTY type from the category list by
rotate [VOLUME] knob and push.
• Select SUB CH by rotate [VOLUME] knob
and push.
• Multi channel is available when a digital
signal is detected, the DIGITAL icon will illuminate. If the digital signal becomes unavailable, the unit will revert to Analog
reception.
Preset stations
Up to six stations on each band can be stored as presets, which can then be instantly recalled by pressing the associated preset button. To store a station, turn the radio on and select the desired band and station. Press and hold the desired preset button (numbered one through six on the face of the radio or remote control) for more than two seconds. When stored, the preset number will appear in the display. The station is now stored and can be recalled by pressing the corresponding preset button. Repeat for the remaining five presets on the current band and for presets on the other four bands.
NOTE: Multicast stations can be stored as presets, but the unit must be in Digital or Auto reception mode to receive them.
Preset scan
Press the [PS/AS] button to scan and play all preset stations for 10 seconds each. Press [PS/AS] again to stop scanning and play the current station.
Note:
Be careful not to press and hold the [PS/AS]
button for 1 second or longer, otherwise the
auto store function is engaged and the unit starts storing stations.
Automatic store (AS)
Press and hold the [PS/AS] button (1 sec.) to select six strong stations and store them
in the FM3 or AM band using the Auto Store
feature. After entering the stations into
memory, the unit will automatically stop at each station for ve seconds, allowing you to preview each selection. When using the Auto Store feature, the new stations replace any
stations already stored in preset memory.
Note:
You can stop the Auto Store function at any
time by pressing the [PS/AS] button again.
13
Satellite Radio Mode
English
Listeners can subscribe to SIRIUS® Radio on the Web by visiting www.sirius.com, or by calling (888) 539-SIRIUS. Customers
should have their SIRIUS ID ready (SIRIUS
ID is located on the SC-C1: SIRIUS Connect
Vehicle Tuner, solid separately). Customers
can listen to music samples by tuning to
channel 184.
Accessing satellite radio mode
Press the [SRC / ] button on the front panel or remote control to switch to the SAT
source.
Displaying the Identication (ID) Code
Before you listen to satellite radio, you must
subscribe to the service using your radio’s identification number. To display the radio
ID, use the [ channel “0”. The screen displays the radio ID
where the channel name is usually displayed.
] tuning button to tune to
Check SC-C1 SIRIUS Connect Vehicle TUNER
If SIRIUS tuner is not connected, “NO TUNER” will appear on the LCD.
Select a band
Press the [BAND] button to change between three SAT bands (SR1, SR2 and SR3). Each band stores up to six preset stations.
Select a station
Press the [ ] or [ ] tuning button to tune to another station.
Preset mode
Six numbered preset buttons store and recall stations for each band.
Storing a station
1. Select a band (if needed), then select a
station.
2. Press and hold a preset button (numbers 1-6) on the front panel.
3. T he pre se t numb er and st a tio n is
displayed and highlighted.
Recalling a station
1. Select a band (if needed).
2. Press a front panel preset button (numbers 1-6) to select the corresponding stored
station.
Category and Channel search
To access Category and Channel Search mode, press the [BAND] button more than 1 second on the front panel.
1. Rotate the [VOLUME] knob on the panel to select the desired category.
2. Press the [ the channel name.
] or [ ] button to select
Direct search
To access Direct Search mode, press the [MENU] button on the front panel.
1. Rotate the rotary knob on the panel to
select the desired direct, and press the
knob to conrm the selection.
2. Rotate the [VOLUME] knob on the panel to select the direct number, and press the knob to conrm the selection.
PASSWORD
Refer to System Setup page 11.
LOCK
Refer to System Setup page 11.
UNLOCK
Refer to System Setup page 11.
Preset scan
Short press the [PS/AS] button to start category scanning. Long press [PS/AS] (1 sec.) to start preset station scanning for 10 seconds each.
UNSKIP
Refer to System Setup page 11.
14
iTunes® Tagging
English
The unit offers iTunes® Tagging, which
allows the user to "Tag" songs playing on HD
Radio™ stations for purchase later through iTunes. When press [TAG] button, the unit stores the title and artist song information that
can then be transferred to your iPod when connected to the unit. A list titled "Tagged" will appear in iTunes, allowing you the option
to purchase your tagged songs.
iPod compatibility
For detailed information on the playable iPod models, see our home page: www.clarion.
com
Note:
• iPhones can also be connected to this
system and “iPod” appearing in this
manual should be referred to as “iPod/
iPhone”.
• T hi s system will not opera te or ma y operate imprope rly with unsupported
versions.
Tagging music
To begin tagging music, tune to an HD Radio
station. The DIGITAL icon at the display must
be illuminated, indicating a digital station is being received. TAG icon lights up when
Tagging function is ready. Press the [TAG]
button on the unit. The tagging function is
highly depends on the receptions of the radio
station. If the channel reception is insufcient, it will effect the operation of the tagging
function. “StoredTag ##of 64” will appear in the display. The song information is saved to the unit memory until an iPod is connected. You
can tag up to 64 songs before the tags must be transferred to an iPod or deleted. When
the Tag memory reaches capacity (64 tags)
the bottom of the screen displays “Memory Full”.
TagMessage Reason
STORED TAG ## OF 64
SENDING TAG ## Tag data is sending to iPod MEMORY FULL Tag storage is full
Table5:TAGMessages
If the Tag data is ready, and [TAG] button is pressed
TAG DATA IS NOT AVAILABLE
IPOD FULL iPod memory is full TAG NOT SUPPORT When connect and press
Tag data is not available
[TAG] bu tt on, the iP od without Tagging function
Note:
Tags saved to your iPod can be managed using the iTunes software, available at www.
apple.com/itunes.
Downloading tags to your iPod
To download tags to your iPod, plug an
iPod into the unit. All existing tags are automatically transferred to the iPod and
deleted from the head unit’s memory. If an iPod is connected when a song is tagged, the Tag will be immediately transferred to the
iPod.
Note:
When transferring Tags to an iPod, the unit must remain in HD RADIO mode. To purchase tagged songs, you must sync your iPod to iTunes and then click the “Tagged”
list on the left side of the iTunes software screen. Click the “view” button for purchasing
information.
Note:
1. How to enter the iTunes tagging function?
TAG” and “DIGITAL” light up when
Tagging function is ready, press [TAG]
button to start iTunes Tagging.
2. What is seen on the radio’s display to let me know I have tagged the tune?
Press [TAG] button to show “STORED
TAG##OF64”. After connect to a iPod,
the display shows “SENDINGTAG##”.
If no connection, the display will show
STORED TAG ##OF 64”. You could save 64 Tag into memory in total. When you connect to a iPod, Tag information
will be saved in the iPod, and the data in memory will be cleared.
3. Then how do I get the tagged tune from my iPod to the computer?
If you have install iTunes, connect your
iPod to your computer and buy songs
online.
15
CD/MP3/WMA Operations
English
This unit can play back MP3/WMA
les
Notes:
If you play a WMA file with active DRM (Digital Rights Management), no audio is output.
TodisableDRM (DigitalRightsManagement)
When using Windows Media Player 9/10/11, click on Tool -> Options -> Copy music tab,
then under Copy settings, unclick the Check
box for Copy protect music. Then, reconstruct les. Personally constructed WMA les are used at your own responsibility.
Precautions when creating MP3/
WMA le
Usablesamplingratesandbitrates
1. MP3: Sampling rate 8 kHz-48 kHz, Bit rate 8 kbps-320 kbps / VBR
2. WMA: Bit rate 8 kbps-320 kbps
Fileextensions
1. Always add a le extension “.MP3”, “.WMA”
to MP3, WMA file by using single byte letters. If you add a le extension other than specied or forget to add the le extension, the le cannot be played.
2. Files without MP3/WMA data will not play.
The files will be played soundlessly if you attempt to play files without MP3/WMA
data.
* When VBR les are played, the play time
display may differ the play location.
* When MP3/WMA files are played, a little
no sound part is caused between tunes.
Logicalformat(Filesystem)
1. When writing MP3/WMA le on a CD-R disc
or CD-RW disc, please select “ISO9660
level 1, 2 or Joliet or Romeo” or Apple ISO
as the writing software format. Normal play may not be possible if the disc is recorded
on another format.
2. The folder name and file name can be
displayed as the title during MP3/WMA play
but the title must be within 32 single byte alphabetical letters and numerals (including
an extension).
3. Do not afx a name to a le inside a folder
having the same name.
Folderstructure
A disc with a folder having more than 8 hierarchical levels will be impossible.
Numberoflesorfolders
1. Up to 999 files can be recognized per
folder.
Up to 3000 les can be played.
2. Tracks are played in the order that they
were recorded onto a disc. (Tracks may not always be played in the order displayed
on the PC.)
3. Some noise may occur depending on
the type of encoder software used while
recording.
Eject function
Just pressing the [ ] button, ejects the disc even if the power to the unit was not turned
on.
Notes:
• I f yo u for ce a CD in to be for e au to
reloading, this can damage the CD.
• If a CD (12 cm) is left ejected for 15
seconds, the CD is automatically reloaded (Auto reload).
Listening to a disc already loaded in the unit
Press the [SRC / ] button to select the CD/ MP3/WMA mode. When the unit enters the CD/MP3/WMA mode, play starts automatically.
Loading a CD
Insert a CD into the center of the CD
SLOT with label facing up. The CD plays
automatically after loading.
Notes:
• Never insert foreign objects into the CD
SLOT.
• If the CD is not inserted easily, there may be another CD in the mechanism or the unit may require service.
or
• Discs without the CD-ROMs cannot be played by this unit.
• Some CD-R/CD-RW discs may not be usable.
mark and
TEXT
16
CD/MP3/WMA Operations
English
Pausing play
1. Press the [ 4 ] button on the front panel or the [ ] button on the remote control to pause play.
PAUSE” appears in the display.
2. Press the above button again to resume CD
play.
Displaying CD titles
This unit can display title data for MP3/WMA disc. When SCROLL is OFF, each time you press the [D] button to change the title display.
MP3/WMAdisc
FILE --> FOLDER --> TITLE --> ARTIST --> ALBUM -->FILE -->
Notes:
• If MP3/WMA disc is not input TAG, “NO TITLE” appears in the display.
• Only ASCII characters can be displayed
in Tags.
Selecting a track
Track-up
1. Press the [
beginning of the next track.
2. Each time you press the [ ] button, the track advances to the beginning of the
next track.
3. For MP3/WMA disc, press and hold the [6] button (1 sec.) to move ahead to +10 tracks.
Track-down
1. Press the [ ] button to move back to the beginning of the current track.
2. Press the [ ] button twice to move back to the beginning of the previous track.
3. For MP3/WMA disc, press and hold the [5]
button (1 sec.) to move back to -10 tracks.
] button to move to the
Fast-forward/Fast-reverse
Fast-forward
Press and hold the [ ] button .
Fast-reverse
Press and hold the [ ] button . * For MP3/WMA discs, it takes some time
until the start of searching and between
tracks. In addition, some error may occur in the play time.
Folder select
This function allows you to select a folder
containing MP3/WMA files and start playing
from the rst track in the folder.
1. Press the [ 5 ] or [ 6 ] button. Press the [ 6 ] button to move the next
folder. Press the [ 5 ] button to move the previous folder.
2. To select a track, press the [ ] or [ ]
button.
Search Function
1. Press the [MENU] button to enter FOLD SCH mode. Press the [VOLUME] button to enter the folder list search mode.
2. Turn the [VOLUME]knob to select a folder.
3. Press the [VOLUME] button to enter the
le list search mode. And then the track list
appears in the display.
4. Turn the [VOLUME]knob to select a track.
5. Press the [VOLUME]knob to play.
* When play b ack MP3 / WMA file, t his
function is performed in the current folder.
Top function
The top function resets the CD player to the
rst track of the disc. Press and hold the [ 4 ] button (1 sec.) to play the rst track (track No. 1) on the disc.
* In case of MP3/WMA, the rst track of the
current folder will be played.
Other various play functions
Scanplay
This function allows you to locate and play the rst 10 seconds of all the tracks recorded on a
disc. Press the [ 1 ] button to perform scan play.
Repeatplay
This function allows you to play the current track repeatedly or play a track currently being
played in the MP3/WMA folder repeatedly.
CD:
1. Press the [ 2 ] button once or more until RPT ON” appears on the LCD to perform repeat play.
2. Press [ 2 ] button repeatedly until “RPT OFF” appears on the LCD to cancel repeat
playback.
17
CD/MP3/WMA Operations
English
MP3/WMA:
1. Press the [ 2 ] button once or more until
T RK RPT” appears on the dis play to perform repeat play, and “RPT” segment lights on.
2. For MP3/WMA files, press [ 2 ] but ton
repeatedly until “FOLD RPT” appears on the display for folder repeat play.
USB Operations
1. Open the cover of the USB connector to the
right. Insert a USB cable (CCA-755) into
the USB connector. Insert a USB device
into the USB cable.
When connecting a USB device, the unit
will read the les automatically.
2. To remove the USB device, you should rst select another source or turn off the power,,
in order to avoid damaging the USB device. Then take off the USB device. Close the cover to the left.
3. Operation is same as MP3/WMA operation.
3. Press [ 2 ] button repeatedly until “RPT OFF
appears on the display to cancel repeat playback, and “RPT” segment goes o.
Randomplay
This function allows you to play all tracks
recorded on a disc in a random order. Press the [ 3 ] button to perform random play.
CCA-755
18
iPod & iPhone Operations
English
Connect an iPod or iPhone to the USB
connector via CCA-748 cable. When connecting a device, the unit will read the les automatically. The track information display on the screen once playback start.
MENU
In the S-CTRL OFF mode, press [MENU] button,rotate the [VOLUME] knob select
MUSIC” or “VIDEO”. Select “MUSIC”, press the [VOLUME ]
knob, then rotate the [VOLUME] knob to show PLAY LISTS / ARTISTS / ALBUMS /
GENRES / SONGS / COMPOSERS, press and rotate the [VOLUME]knob to select a desired option, then press the [VOLUME]
knob to conrm.
Select “VIDEO”, press the [VOLUME] knob, then rotate the [VOLUME] knob to show MOVIES / MUSIC / VIDEO / TV SGIWS / VIDEO PODCASTS / RENTALS, press and rotate the [VOLUME]knob to select a desired option, then press the [VOLUME]
knob to conrm.
NOTES:
• In case of VIDEO Playback, CCA-748 cable and monitor (sold separately) are required.
• VIDEO MENU item is different by the
model of connected iPod and language setting.
Repeat play
This function allows you to play the current
track repeatedly or play all tracks in your iPod/iPhone repeatedly.
1. Press the [ 2 ] button once or more until RPT ON” appears on the LCD to perform repeat play.
2. Press [ 2 ] button repeatedly until “RPT OFF” appears on the LCD to cancel repeat
playback.
Random play
This function allows you to play all tracks
recorded on a disc in a random order.
1. Press [ 3 ] button repeatedly until “ALBUM
RDM” appears on the LCD for album random
play.
2. Press the [ 3 ] button once or more until SONG RDM” appears on the LCD to
to monitor
CCA-748
perform random play.
3. Press [ 3 ] button repeatedly until “RDM OFF” appears on the LCD to cancel
random playback.
Setting iPod simple control mode
Use this function if you wish to operate
through your iPod connected to this unit via
the USB cable.
* The factory default setting is “ OFF “.
1. Press and hold [ D ] button to enter system setup.
2. Press [
S-CTRL“.
3. Rotate the [VOLUME] knob to select
ON “ or “ OFF “ .
ON: Operations are made through your
iPod.
OFF: Opera tions cann ot be made
through your iPod.
Notes:
• When performing iPod operations using
simple control mode, make the operations
slo wly. If re pet itive op erati ons are performed too quickly, unforeseen errors
may occur.
• When performing iPod operations using
simple control mode, please do not operate the iPod and the unit at the same
time, otherwise there may be unexpected
event happened.
• Some iPod models do not support this
function. Consult your nearest Clarion
dealer or website to conrm which models
do not support this function.
] or [ ] button to select
19
iPod & iPhone Operations
English
iPod menu alphabet search
This function searches the subfolders for desired alphabetical letters.
1. Press the [MENU] button to select the iPod menu mode.
2. Press the [VOLUME] knob to switc h
between categories.
MUSIC: PLAYLIST, ARTISTS, ALBUMS,
GENRES, SONGS, COMPOSERS
VIDEO: MOVIES, MUSIC VIDEOS, TV
AUX Operations
Press [SRC / ] button on the panel or remote control to select “AUX”.
AUX is just for audio content with 3.5mm Jack connector plugged into audio-in socket
on the front panel.
AUX Input sensitivity setting
1. Press and hold the [D] button (1 sec.).
2. Turn the [VOLUME] knob to select “AUX SENS”.
3. If the output level of connected external audio player is “HIGH”, rotate [VOLUME] knob and choose “LOW”. And if the output level is “LOW”, choose “HIGH”.
SHOWS VIDEO
PODCASTS, RENTALS
3. Press the [VOLUME] knob. (The contents of the category are displayed.)
4. Press and hold the [ D ] button (1 sec.).
5. Rotate the [VOLUME] knob to select the desired letter to search.
6. Press the [ D ] button again to next perform search.
20
English
6. TROUBLE SHOOTING
GENERAL
Problem Cause Measure
Unit can not power on.
Unit can not power on.
Nothing happens
when buttons are
pressed.
Display is not accurate.
Remote control does not work.
No/low audio output
Poor sound quality or distortion
Tel-Mute malfunction MUTE wire is grounded. Check the MUTE wiring and correct.
Unit resets itself when
engine is o.
Unit fuse blown. Replace with new fuse of correct rating.
Car battery fuse blown. Replace with new fuse of correct rating.
Turn o the power and remove the DCP. Press the [RESET] button with a thin rod.
The microprocessor has
malfunctioned due to noise, etc.
Battery depleted. Change the battery. Battery installed incorrectly. Install the battery correctly. Improper audio output connection. Check wiring and correct. Volume set too low. Increase volume level. Speakers damaged. Replace speakers.
Heavily biased volume balance.
Speaker wiring is in contact with
metal part of car.
Non-standard disc used. Use a standard disc. Speaker power rating does not
match unit.
Wrong connections. Check wiring and correct. Speaker is shorted. Check wiring and correct.
Incorrect connection between ACC and Battery.
Note:
When the [RESET] button is pressed, turn o the ACC power.*
* When the [RESET] button is pressed, frequencies of radio stations, titles, etc. stored in memory are cleared.
Adjust the channel balance to center
position.
Insulate all speaker wiring connections.
Replace speakers.
Check wiring and correct.
DISC Player
Problem Cause Measure
Disc cannot be
loaded.
Sound skips or is noisy.
Sound is bad when power is rst turned on.
21
Another disc is already loaded. Eject the disc before loading the new one.
There is an object installed inside the
unit. Compact disc is dirty. Clean the compact disc with a soft cloth.
Compact disc is heavily scratched or
warped.
Condensation may form on the internal
lens when the car is parked in a humid
place.
Remove the object inside the unit.
Replace with a compact disc with no
scratches.
Let dry for about 1 hour with power on.
USB Devices
Problem Cause Measure
USB device cannot
be inserted.
The USB device has been inserted with wrong direction.
The USB connector is broken. Replace with a new USB device.
Reversing the connection direction of the USB device, try it again.
English
USB device is not
recognized.
No sound heard
with the display “No File” shown.
Sound skips or is noisy.
The USB device is damaged. Disconnect the USB device and reconnect. If Connectors are loose.
No MP3/WMA le is stored in
the USB device.
MP3/WMA les are not encoded
properly.
the device is still not recognized, try replacing with a different USB device.
Store these les properly in the USB device.
Use MP3/WMA les encoded properly.
7. ERROR DISPLAYS
If an error occurs, one of the following displays is displayed. Take the measures described below to solve the problem.
Display Cause Measure
ERROR 3
ERROR 5 This is a failure of deck’s mechanism. Consult your store of purchase.
If an error display other than the ones described above appears, press the [RESET] button. If the problem persists, turn off the power and consult your store of purchase.
Disc is inserted incorrectly. Eject the disc then reload it properly. The disc format is not supported. Try another disc.
* When the [RESET] button is pressed, frequencies of radio stations, titles, etc. stored in
memory are cleared.
22
English

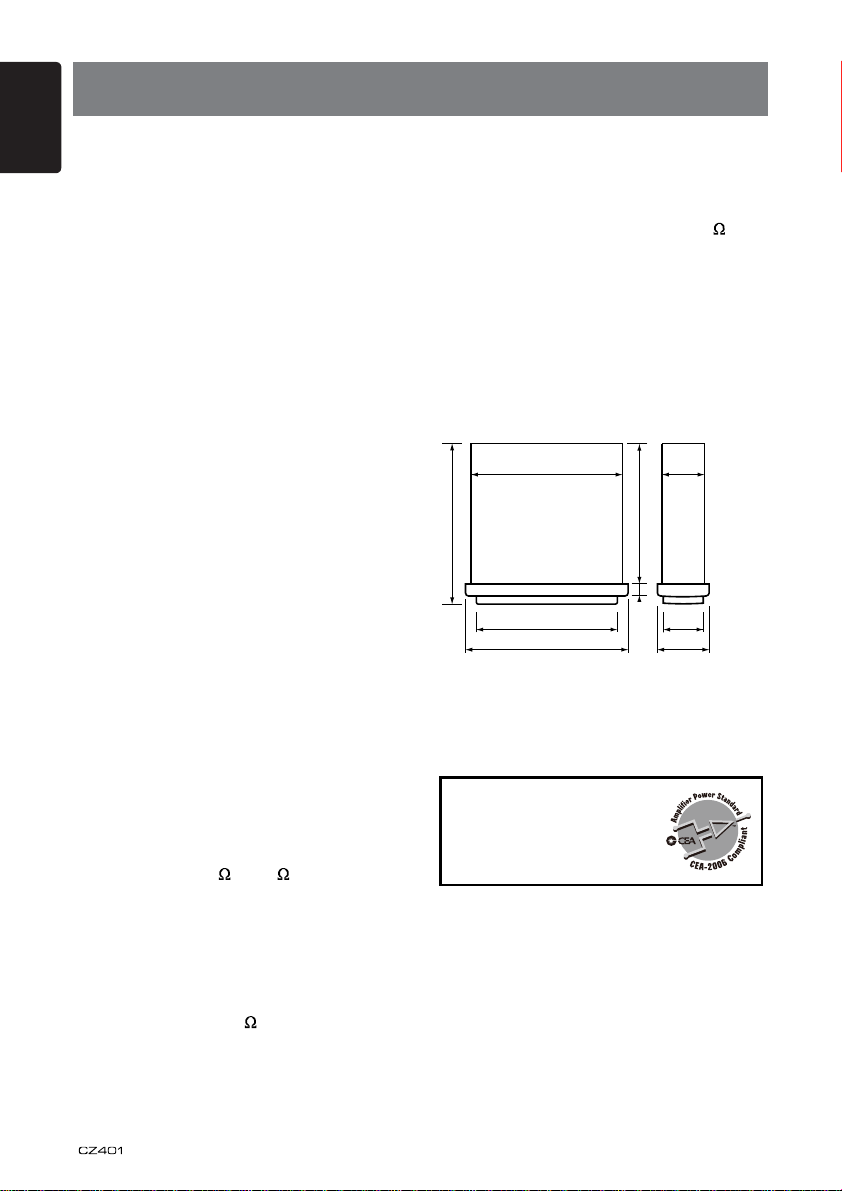

8. SPECIFICATIONS
FM Tuner
Frequency range: 87.5-107.9MHz Usable sensitivity: 8dBμ Frequency response: 30Hz-15kHz Stereo separation: 30dB(1kHz) Signal/noise ratio: >55dB
AM Tuner
Frequency range: 530-1710kHz Usable sensitivity (S/N=20dB): 30dBμ
CD Player
System: Disc digital audio system Frequency response: 20Hz-20kHz Signal/noise ratio: >80dB Total harmonic distortion: Less than 0.1% (1kHz) Channel separation: >60dB
MP3/WMA mode
MP3 sampling rate: 8 kHz to 48 kHz MP3 bit rate: 8 kbps to 320 kbps / VBR WMA bit rate: 8 kbps to 320 kbps Logical format: ISO9660 level 1,2 Joliet or Romeo le system
USB
Specication: USB 1.0/2.0 Playable audio format: MP3(.mp3): MPEG 1/2/Audio Layer-3 WMA(.wma): Ver 7/8/9.1/9.2
Audio Amplier
Maximum power output:
200W (50W x 4) Speaker impedance: 4 (4 to 8 allowable)
General
Power supply voltage:
14.4VDC (10.8 to 15.6V allowable),
negative ground
Pre-Amp output voltage:
4.0V (CD play mode: 1kHz, 0dB, 10k load,
volume max.)
Fuse: 15A Dimensions of the Main Unit:
188mm Width × 58mm Height × 190mm Depth
7-2/5(width) × 2-7/25(Height) × 7-12/25(Depth) Weight of the Main Unit: 2.87lb. (1.30kg) Dimensions of the Remote Control unit:
43mm Width × 11mm Height × 113mm Depth
1-2/3(Width) × 2/5(Height) × 4-2/5(Depth) Weight of the Remote Control Unit:
1.16oz. (36g) (including battery)
7” 178mm
7-12/25” 190mm
6-2/3” 170mm
7-2/5”
188mm
Notes:
• Specifications and design are subject to change without notice fo r further
improvement.
PowerOutput:
18W x 4 Channels RMS
(4Ω@14.4V≤1% THD+N)
SignaltoNoiseRatio:
80 dBA (reference: 1 W into 4 Ω)
6-2/5” 163mm
m
1/2” 14 m
2” 50mm
1-4/5” 46mm 2-7/25” 58mm
Input
Audio input sensitivity: High: 320mV (at 1V output) Mid: 650mV (at 1V output) Low: 1.3V (at 1V output)
(input impedance 10 k or greater)
Aux-in level: ≤2V
23
9. INSTALLATION / WIRE CONNECTION GUIDE
CONTENTS
1) Before Starting ......................................................................24
2) Package Contents ................................................................. 24
3) General Cautions ..................................................................24
4) Cautions on Installation ......................................................... 25
5) Installing the Source Unit ......................................................25
6) Removing the Source Unit ....................................................27
7) Wiring and Connections ........................................................28
8) Connecting the Accessories .................................................. 29
1) Before Starting
1. This set is exclusively for use in cars with a
negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “terminal”
before starting. This is to prevent short circuits
during installation. (Figure 1)
Figure1
2) Package Contents
English
Car battery
Source unit ..........................................1
Front panel ..........................................1
Trim ring ..............................................1
Mounting bracket ................................. 1
Screws M5x6 mm ................................ 4
L-key ....................................................2
3) General Cautions
1. Do not open the case. There are no
user serviceable parts inside. If you
drop anything into the unit during installation, consult your dealer or an
authorized Clarion service center.
Wire connector ....................................1
Remote control unit (with battery)........1
DCP case ............................................1
Owner’s manual...................................1
Warranty card ...................................... 1
Special screw (Front panel lock) .........1
2. Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt, apply a little cold or warm water to a soft cloth and wipe off the dirt gently.
24
4) Cautions on Installation
English
1. Prepare all articles necessary for
installing the source unit before
starting.
2. Install the unit within 30° of the horizontal plane. (Figure 2)
3. If you have to do any work on the car
your car dealer beforehand.
4. Use the enclosed screws for
installation.
Using other screws can cause
damage.
(Figure 3)
body, such as drilling holes, consult
Chassis Chassis
Damage
Max 30˚
Max. 6 mm (M5 screw)
Figure2 Figure3
5) Installing the Source Unit
1. Place the mounting bracket into the instrument panel, use a screwdriver to bend each stopper of the mounting bracket inward, then secure the stopper.
2. Wire as shown in Section 7) .
3. Insert the source unit into the mounting bracket until it locks.
4. Take care of the top and bottom of the trim ring and mount it so that all the hooks
are locked.
Notes:
1. Some car models require special mounting kits for proper installation.
Consult your Clarion dealer for details.
2. Fasten the front stopper securely to prevent the source unit from coming loose.
•Consoleopeningdimensions
7-3/16"
(182 mm)
Hole
25
2-1/8"
53 mm
Notes of installation
1. Before installation, please make sure proper connections are conducted and the unit operates normally. Improper connection may result in damage to the unit.
2. Use only accessories designed and manufactured for this unit and other
unauthorized accessories may result in
damage to the unit.
3. Before installation, please fasten all power cables.
4. DO NOT install the unit in the place where
close to hot area to prevent damage to electrical components such as the laser head.
5. Install the unit horizontally. Installing the
unit more than 30 degree vertically may
result in worse performance.
6. To prevent electric spark, connect the
positive pole rst and then the negative
pole.
7. DO NOT block the cooling fan exit to ensure sufcient heating dissipation of this
unit, or it may result in damage to this unit.
Unit installation
Method A
1. Insert mounting bracket into dash board, choose appropriate mounting tab according to the gap width, bending the mounting tab outwards with a screwdriver to x the mounting bracket in place.
2. Slide the unit into the bracket until you hear
a click sound.
English
Dashboard
Mounting Bracket
Screwdriver
26

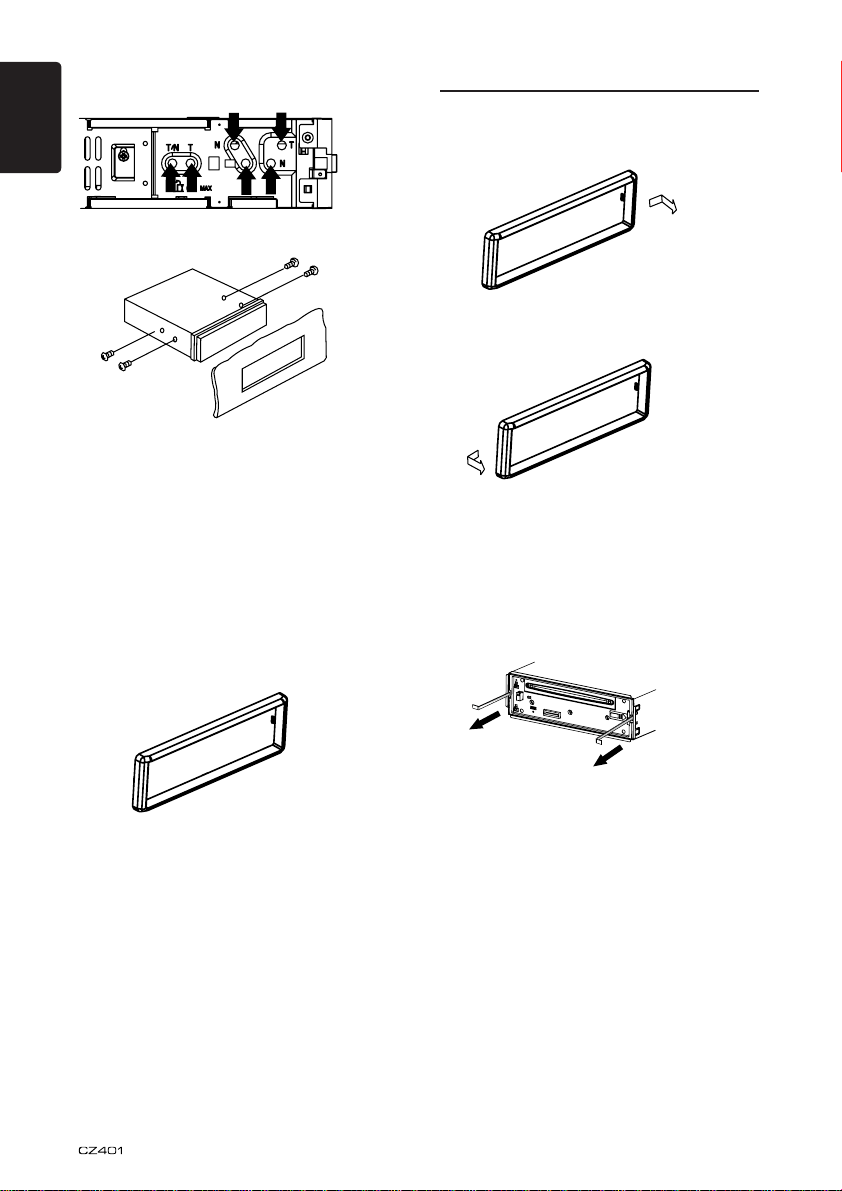

Method B
English
6) Removing the Source Unit
Disassemble trim ring
1. Push the trim ring to right and pull out the right part.
M5x6
2. Push the trim ring to left and pull out the left part.
Mounting Frame
Dashboard
1. Insert this unit directly to the opening of
the dashboard.
2. Place M5×6 cylindrical screw through the
holes of the mounting frame located inside the opening to holes of the unit and fasten
the screws to left & right.
Trim ring installation
Attach the trim ring around the front panel.
Disassemble the unit
1. Switch off the power.
2. Remove the panel.
3. Remove the trim ring.
4. Insert the removal keys straight back until
they lock, then pull the unit out.
5. Disconnect all the wires.
27
7) Wiring and Connections
Rear audio
output terminal
Front audio
output terminal
Left
Right
Left
Right
4 Channel Amplier
White
Red
White
Red
Black
Gray
SUB OUT 1
Purple
Purple
SUB OUT 2
Black
SWC
English
Subwoofer output 1
Subwoofer output 2
Steering wheel
control terminal
Refer to next page
Black
Black
SIRIUS
Antenna
SIRIUS Connect™
Vehicle Tuner (SC-C1)
28
English
Front Right
Front Left
Rear Right
Rear Left
Gray
Gray/Black White
White/Black Purple
Purple/Black Green
Green/Black
16-Pin Connector Extension Lead
(attached to the source unit)
Brown wire (Phone mute lead)
Connect to cellular phone mute lead.
Yellow wire (Memory back-up lead)
Red wire (Power lead)
Connect directly to battery
Accessory
12V
4-Speaker system
2-Speaker system
Front Right
Front Left
Not used.
Insulate each wire
or
Gray
Gray/Black White
White/Black Purple
Purple/Black Green
Green/Black
Blue/White wire (Amplier turn-on lead)
Connect to remote turn-on lead of amplier
Black wire (Ground lead)
Connect to vehicle chassis ground
Orange/White wire (Illumination lead)
Connect it to the car power supply terminal
for illumination
Blue wire (Auto antenna lead)
Connect it to the car power supply terminal
for antenna
8) ConnectingtheAccessories
•Connectingtotheexternalamplier
External ampliers can be connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
29
ClarionCo.,Ltd.
All Rights Reserved. Copyright © 2010: Clarion Co., Ltd.
Printed in China / Imprimé en Chine / Impreso en China
PN: 127075002854
Loading...
