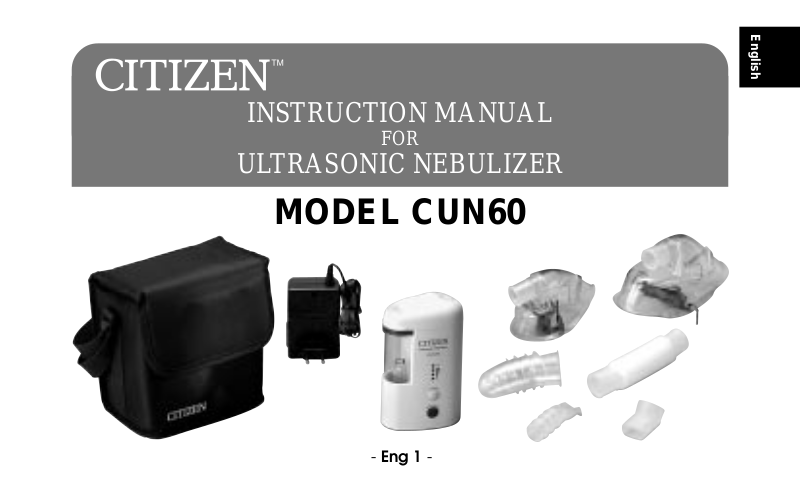

Citizen CUN60 User Manual
INSTRUCTION MANUAL
FOR
ULTRASONIC NEBULIZER
English
Español
Português
MODEL CUN60
- Eng 1 -
Deutch Français
FEATURES
★ Handy design - with built-in detachable battery pack; compact and light-
weight.
★ Easy to use - uses water as ultrasonic conducting medium, no gel re-
quired.
★ Silent operation - thanks to the ultrasonic vibration technology.
★ 3-speed nebulization rate control - provides optimal treat-ment for all
kinds of medication with different density.
★ Built-in timer - automatically shuts off after 10-minute use.
★ Electromagnetic compatibility - complies with EN60601-1-2 requirement
as specified in EC directive 89/336/EEC.
- Eng 2 -
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS CAREFULLY BEFORE USE
English
Español
PREPARATION
★ Use the equipment only for its intended use as de-
scribed in this manual. Do not use attachments not
recommended by the manufacturer.
★ Use the equipment with medications only under the
instruction of your physician.
★ Do not use the equipment if it has any damaged parts,
or it has fallen into water. Return the product to a service center for examination and repair.
★ Always unplug this product before filling and after use.
★ To use the equipment for the first time, or after stor-
ing it for an extended period, be sure to clean and
sterilize all necessary parts as described on page 8.
★ Do not handle the power cord with wet hands or im-
merse the AC adapter. An electrical shock may result.
★ The medication cup, mouth nozzle and air filter should
be checked before each use. Replace with a new one
if they are dirty or worn out.
★ Do not fill medication cup over 8 ml or the nebuliza-
tion will be very weak.
OPERATION
★ Close supervision is required when this equipment is
used by children or invalids.
★ Stop using the equipment immediately if any abnor-
mality occurs.
★ Keep your eyes away from the output of medication
mist.
★ Do not use the equipment where flammable gas is
being used.
★ Never operate the equipment with empty water tank
or medication cup.
★ Do not use solutions other than water for the tank. It
may damage the transducer. Change the water after
each use.
★ Do not tilt or shake when operation.
- Eng 3 -
Português
Deutch Français
★ Never open the clear cover during operation. It may
cause a severe injury.
★ Do not use the equipment for more than 30 minutes.
Do not reuse within 30 minutes.
★ Some medications may not have good atomization.
Check with the physician or manufacturer of medication.
CLEANING
★ Never immerse the equipment in water. It may dam-
age the unit.
★ Clean all necessary parts after each use, as described
on page 8.
STORAGE
★ Do not store the unit under direct sunlight, high tem-
perature or humidity.
★ Keep the unit out of reach of small children.
★ Always keep the unit unplugged while not in use.
Manufacturer:
Name: Vega Technologies Inc.
Address: 11F-13, 100 Chang-Chan Road,
Taipei, Taiwan
- Eng 4 -
Mouth nozzle
Top cover
Medication cup
PARTS DESCRIPTION
Water reservoir
Filter cover
Air filter
Fan
indication lamp
Nebulization rate
Indication lamps
ON/OFF button
Nebulization rate
control button
- Eng 5 -
Low-battery
Main body
Rechargeable
Battery pack
English
Español
Português
Deutch Français
