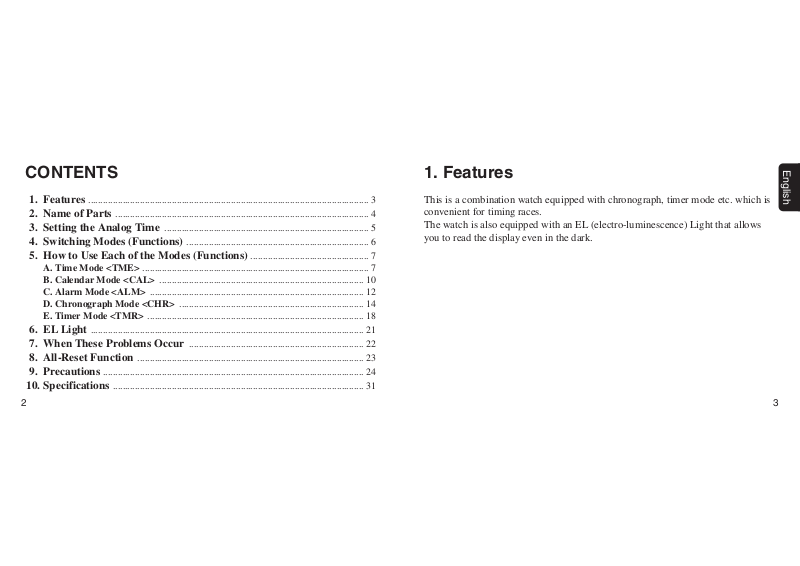

1. Features
This is a combination watch equipped with chronograph, timer mode etc. which is
convenient for timing races.
The watch is also equipped with an EL (electro-luminescence) Light that allows
you to read the display even in the dark.
CONTENTS
1. Features .................................................................................................................. 3
2. Name of Parts ....................................................................................................... 4
3. Setting the Analog Time ................................................................................... 5
4. Switching Modes (Functions) .......................................................................... 6
5. How to Use Each of the Modes (Functions) ................................................ 7
A. Time Mode <TME> ............................................................................................ 7
B. Calendar Mode <CAL> ................................................................................... 10
C. Alarm Mode <ALM> ....................................................................................... 12
D. Chronograph Mode <CHR> ........................................................................... 14
E. Timer Mode <TMR> ........................................................................................ 18
6. EL Light ............................................................................................................... 21
7. When These Problems Occur ....................................................................... 22
8. All-Reset Function ............................................................................................ 23
9. Precautions .......................................................................................................... 24
10. Specifications ...................................................................................................... 31
English
4 5
3. Setting the Analog Time
(1) Pull out the crown and second hand stops.
(2) Turn the crown and set hands to the
correct time.
(3) Push the crown back in to restart the
watch.
☆ To set the watch to the correct
time
Stop second hand at “0”. Move minute hand a
few minutes ahead of the correct time, then
move it back to the correct time. Push the
crown back synchronizing with the time tone
or time casting.

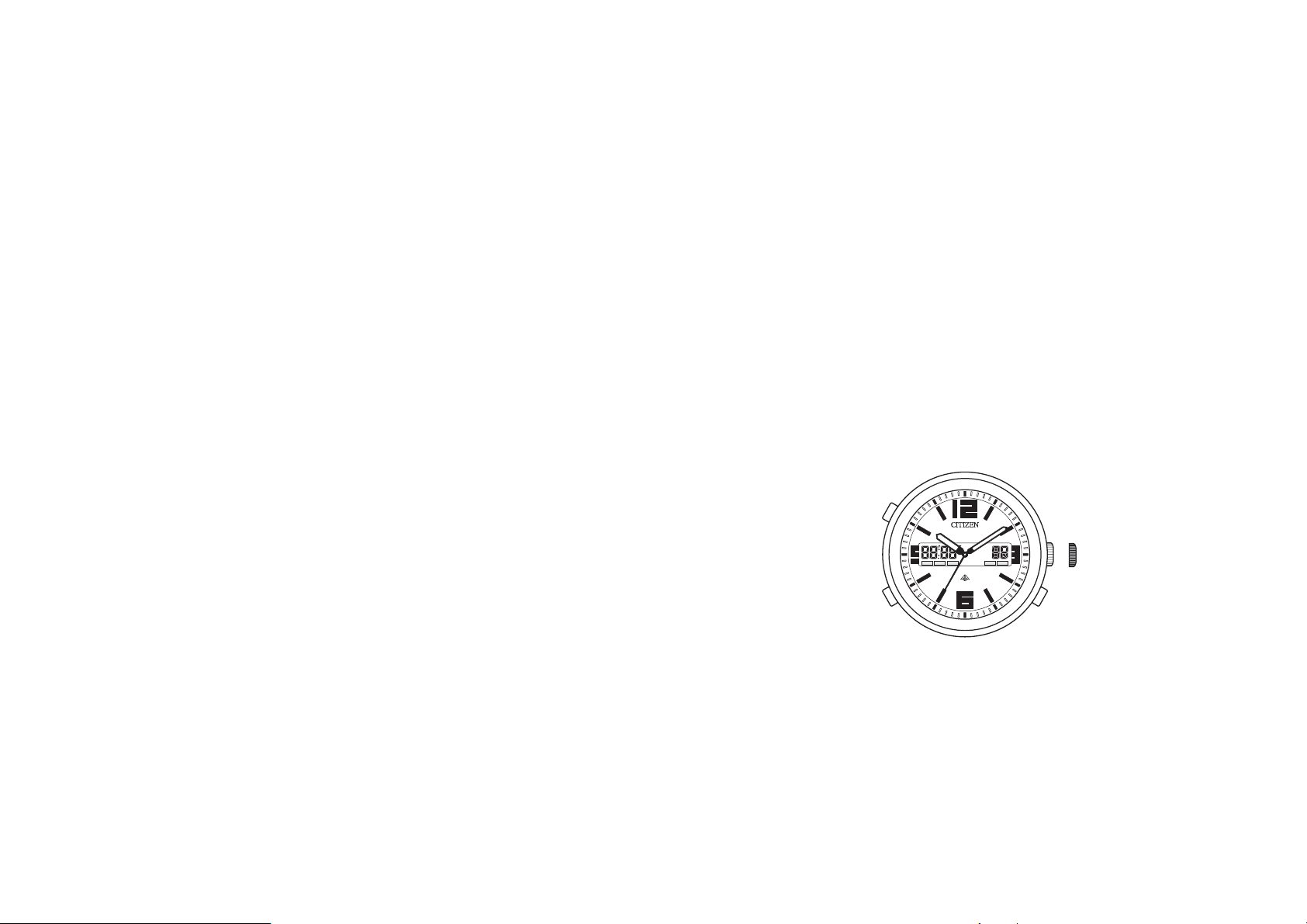

Analog and digital displays can be set to different times to use as a dual time
watch.
Normal position
Crown
Position for time
adjustment
2. Name of Parts
* The illustrations shown in this manual may differ from the actual watch you
have purchased.
60
55
50
45
30
35
40
25
20
15
10
05
SELECT
SPLIT
RESET
MODE
W.R.
10bar
LIGHT
START
STOP
SET
AM
S.T.
TME
Hour hand
Button (M)
Mode display
Button (B)
Second hand
Minute hand
Digital display
Crown
Button (A)
60
55
50
MODE
45
TME
SELECT
40
SPLIT
RESET
35
05
10
AM
S.T.
W.R.
10bar
30
15
LIGHT
START
STOP
20
SET
25
6 7
5.
How to Use Each of the Modes (Functions)
A. Time Mode <TME>
EL Light is illuminated when button (A) is pressed (or while being pressed) in
Normal Time Mode.
<To Set for Summertime>
(1) Press button (B) for more than 2 seconds in
Normal Time Display. “S.T., ON/OF”
flashes and summertime will be adjusted.
(2) Press button (A) to set for summertime.
Display changes to “ON” or “OF” each
time button (A) is pressed.
* “S.T.” is on display when summertime is set
“ON”. The watch shows the time one hour
added to the regular time when summertime
is released.
60
Hours
Seconds
Minutes
(A)
Summertime Mark (S.T.)
[Normal Time Display]
(M)
(B)
4. Switching Modes (Functions)
In addition to the Time mode, this watch has 4 functions of Calendar, Alarm,
Chronograph and Timer.
Each press of the button (M) switches the mode. See Mode indicator to check the
present mode.
<Auto-Return>
Display will return automatically to the time mode <TME> if left in Alarm mode
for more than 2 minutes without any operation.
TME
Time Mode
ALM
Alarm Mode
CHR
Chronograph Mode
TMR
Timer Mode
CAL
Calendar Mode
(M) (M)
(M)
(M)(M)
05
10
AM
S.T.
10bar
W.R.
30
15
LIGHT
START
STOP
20
SET
25
55
50
MODE
45
TME
SELECT
40
SPLIT
RESET
35
8 9
• Summertime ON/OF is changed each time button (A) is pressed.
• Press button (A) to return to “00” seconds and start for adjustment of seconds.
• 12/24-hour display is changed each time button (A) is pressed.
(4) Press button (M) to return to the Normal Time Display.
* Be sure to set AM/PM mark correctly when using 12-hour display system.
* Auto-return to Normal Time Display will activate when the watch is left in
adjustment mode (including summertime adjustment) for approximately 2
minutes.
* If button (M) is pressed in adjustment mode, the display will immediately
return to Normal Time Display.
<To Adjust Time>
(1) Press button (B) for more than 2 seconds in Normal Time Display. “S.T.,
ON/OF” flashes and summertime will be adjusted.
(2) Each time button (B) is pressed in adjustment mode, flashing digits change in
order as shown below. Make flashing where adjustment is needed.
<Button mark>
(B) : Press button (B) once
《B》
: Press button (B) for 2 seconds or more
(3) Press button (A) to adjust flashing digits. (Press and hold button (A) for rapid
advancement.)
Normal Time
Display
Seconds
MinutesHours
Summertime
ON/OF
《B》
(B)
(B)(B)
(B) (B)
12/24-Hour
Display
10 11
(3) Press button (A) to adjust flashing digits. (Press and hold button (A) for rapid
advancement.)
(4) Press the button (M) to return to the normal calendar display.
* Year can be set from 1996 to 2099. (displayed only at the time of
adjustment)
* Auto-return to Normal Calendar Display will activate when the watch is left
in adjustment mode for approximately 2 minutes.
* Day of the week is automatically set with adjustment of Year, Month and
Date.
* When the calendar is set to a non-existent date (e.g., February 30), the
display will automatically show the first day of the next month when
returned to the normal calendar display.
* Month-end adjustments are not necessary as Calendar is programmed to be
set automatically.
* If button (M) is pressed in adjustment mode, display will immediately return
to Normal Calendar Display.
B. Calendar Mode <CAL>
EL Light is illuminated when button (A) is pressed (or while being pressed) in
Calendar Mode.
<To Set Calendar>
(1) Press button (B) in Normal Calendar Display
for 2 seconds or more. “Month” display starts
flashing and adjustment can be made.
(2) Each time button (B) is pressed in adjustment
mode, flashing digits change in order as shown
below. Make flashing where adjustment is
needed.
60
DayDate
(A)
Month
[Normal Calendar Display]
(M)
(B)
Normal Calendar
Display
Date
Month
《B》
(B) (B)
(B)
Year
55
50
MODE
45
CAL
SELECT
40
SPLIT
RESET
35
05
10
S.T.
W.R.
10bar
30
15
LIGHT
START
STOP
20
SET
25
12 13
<To Switch Alarm ON/OFF>
Press button (A) in Alarm Mode to switch the alarm between ON and OF (off).
(“ON” display: Alarm set, “OF”: Alarm released)
<Sounding Length of Alarm and How to Stop the Alarm Sound>
Alarm buzzer will sound for about 20 seconds. Press any button to stop alarm
sound.
<Sound Monitor>
Alarm will sound while button (A) is kept pressing in Alarm Mode.
(A)
ALM
C. Alarm Mode <ALM>
<To Set Alarm>
(1) Press button (B) in Alarm Display for 2
seconds or more. “Hour” starts flashing
and adjustment can be made.
(2) Each time button (B) is pressed in
adjustment mode, flashing digits change in
order as shown below.
(3) Press button (A) to set the time you want to sound the alarm. (Press and hold
button (A) for rapid advancement.)
ON/OF (Off)
Munites
Hours
[Normal Alarm Display (ON)]
(M)
(B)
Normal Alarm
Display
Minutes
Hours
《B》
(B) (B)
(B)
60
55
50
45
30
35
40
25
2
0
15
10
05
SELECT
SPLIT
RESET
MODE
W.R.
10bar
LIGHT
START
STOP
SET
AM
ALM
(A)
Alarm ON Display Alarm OF (off) Display
AM
AM
ALM
[Chronograph Reset Display]
Inside paretheses are shown at the time of measurement after 60 minutes

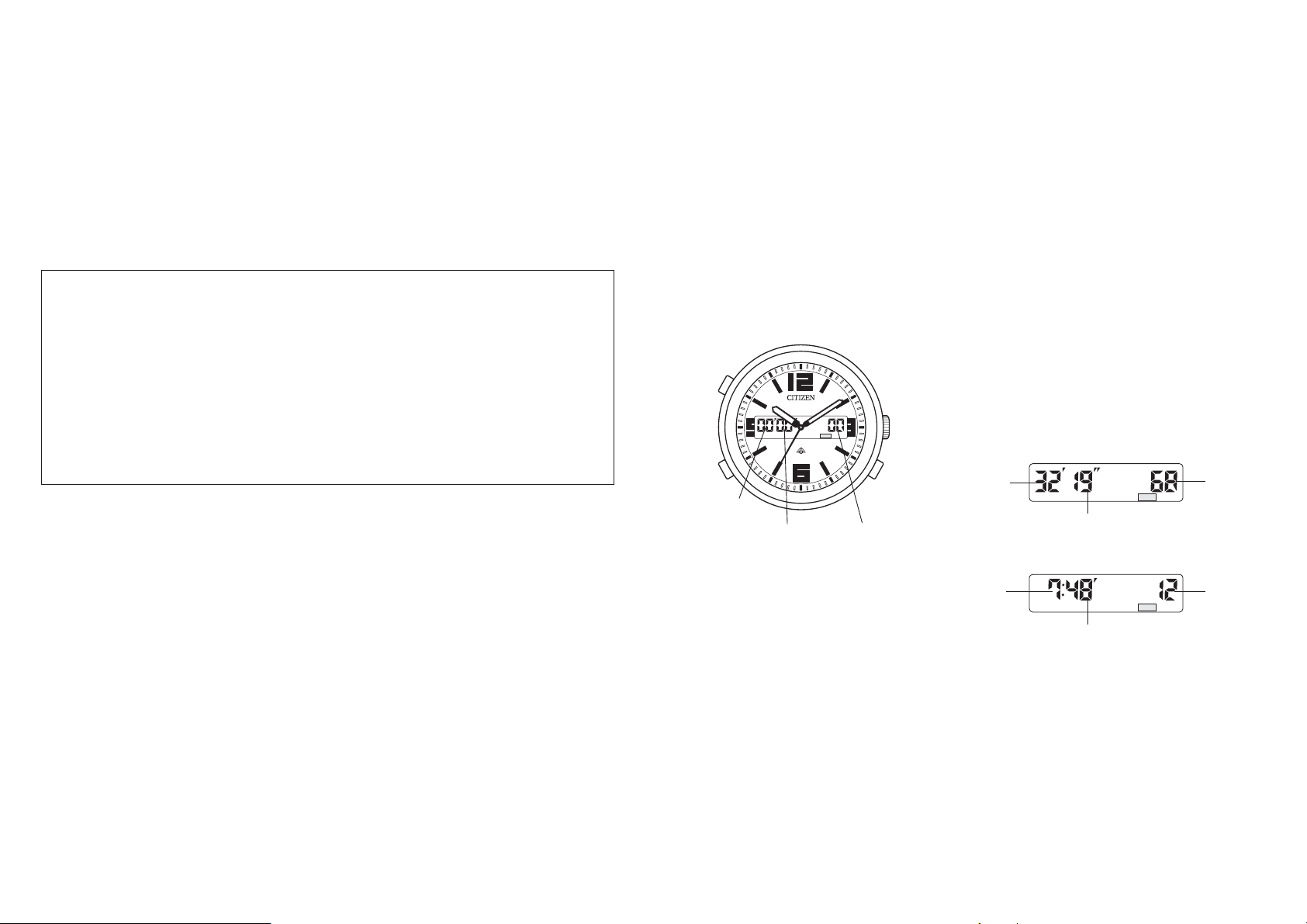

<Display of Time Measurement>
Chronograph shows “Minutes, Seconds and
1/100 second” up to 59 minutes 59 seconds
99 and will change to “Hours, Minutes and
Seconds” after 60 minutes.
14 15
D. Chronograph Mode <CHR>
This chronograph measures up to 23 hours 59 minutes 59 seconds in units of 1/100
second. On reaching 24 hours of elapsed time, it resets to “00 minutes 00 seconds
00” and stops. It can also measure split times (intermediate elapsed time).
60
55
50
45
30
35
40
25
2
0
15
10
05
SELECT
SPLIT
RESET
MODE
W.R.
10bar
LIGHT
START
STOP
SET
CHR
1/100 second
(second)
Seconds
(minute)
(A)
Minutes
(hour)
(M)
(B)
Minute
Second
1/100
second
CHR
[Up to 59 minutes 59 seconds 99]
* If Time Mode is set to 12-hour display system, alarm time also becomes 12-
hour display system. Pay attention to AM/PM and set correctly.
* Alarm time does not change when summertime is set in Time Mode.
* Auto-return to Normal Alarm Display will activate when the watch is left in
adjustment mode for approximately 2 minutes.
* The watch automatically returns to the normal time mode when the alarm
state continues for 2 minutes when in the alarm mode.
* If button (M) is pressed in adjustment mode, display will immediately return
to Normal Alarm Display.
Hour
Minute
Second
[After 60 minutes]
CHR
16 17
<Switching the Mode During Chronograph Measuring>
Even if button (M) is pressed and the mode is switched while Chronograph is
running, the measurement will continue. When you return to the Chronograph
Mode, the measured time is again displayed. However, if Chronograph counting
has exceeded 24 hours, the watch will return to Chronograph Reset Display.

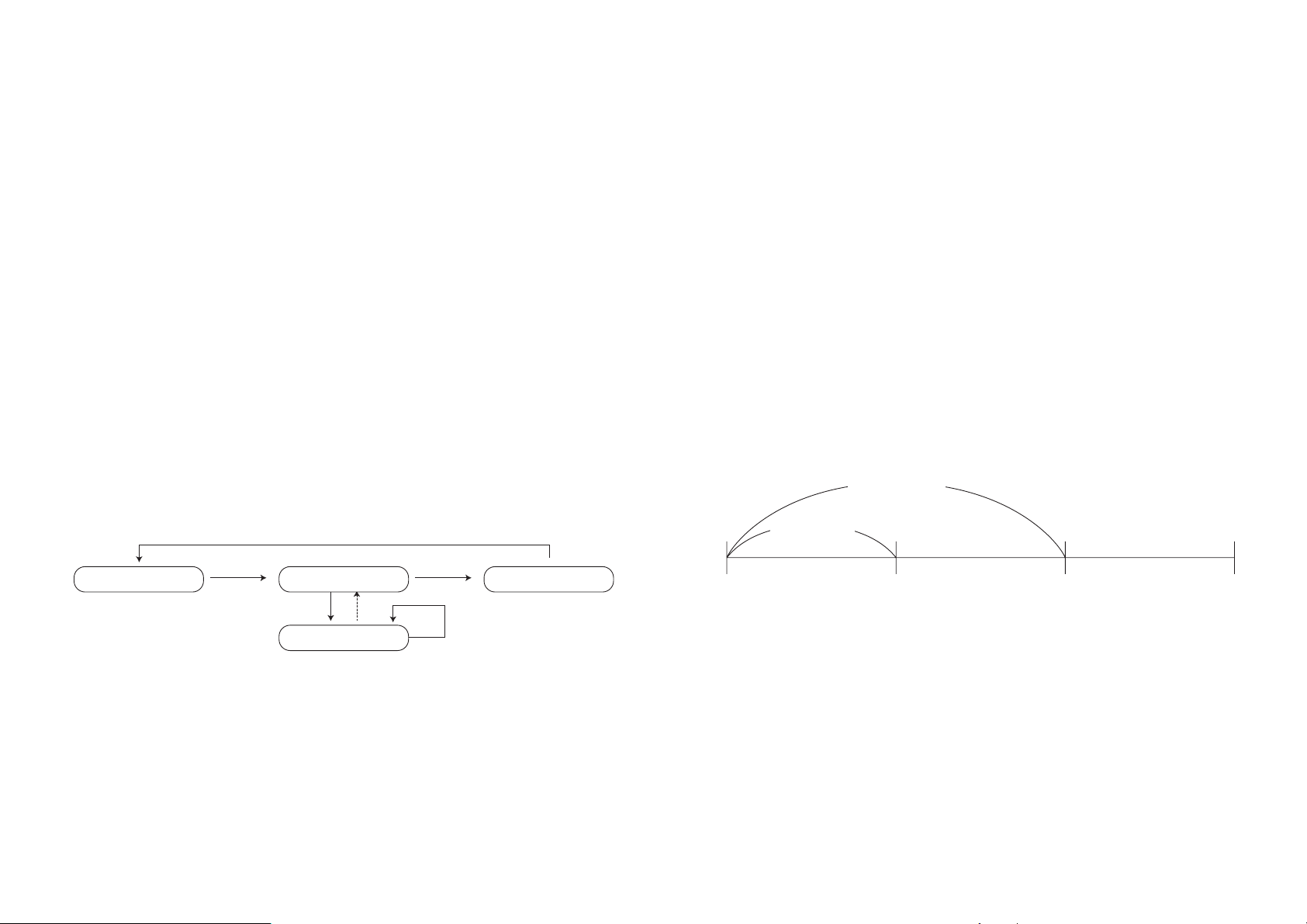

What is Split Time:
Intermediate elapsed time from the start.
Start Goal
Split Time
Split Time
<Accumulative Time Measurement>
(1) Start/Stop can be repeated for any number of times by pressing button (A).
• EL Light will turn “ON” for 4 seconds when counting is stopped by pressing
button (A).
(2) Press button (B) when counting is stopped to reset Chronograph.
<Split Time Measurement>
(1) Start/Stop can be repeated for any number of times by pressing button (A).
• EL Light will turn “ON” for 4 seconds when counting is stopped by pressing
button (A).
(2) Press button (B) while Chronograph is counting. Split Time will appear for 10
seconds.
• “SPLIT” will flash while Split Time is being displayed.
• EL Light will turn “ON” for 4 seconds when button (B) is pressed.
(3) Press button (B) when counting is stopped to reset Chronograph.
*1: After 10 seconds, automatically
returns to the measuring display.
RESET STOPMEASURE
(A) (A)
(B)
(B)
(B)
SPLIT TIME
*1
18 19
<To Use Timer>
(1) Press button (A). Timer starts countdown from set time.
(2) Press button (A) to stop Timer while Timer is running. Press button (A) to
restart Timer when Timer is stopped.
* The EL light will turn ON when button (B) is pressed while the timer is
running.
(3) Press button (B) while the timer is stopped to return to the initial set time.
SET TIME TIME UPRUNNING
(A)
STOP
(A)
(B)
To automatically return to the set time
E. Timer Mode <TMR>
Timer can be set up to 60 minutes in unit of one minute. Buzzer will sound for 5
seconds when countdown is up and display will return to initial set time.
<To Set Timer>
Press button (B) in Timer Set Display when set
time is flashing. Set time digits decrease by
one minute, so display the time you want to
set. Press and hold button (B) for rapid
advancement.
Set time
(minutes)
Remaining time
(minutes, seconds)
[Timer Set Display]
(M)
(B)
60
55
50
45
30
35
40
25
2
0
15
10
05
SELECT
SPLIT
RESET
MODE
W.R.
10bar
LIGHT
START
STOP
SET
TMR
(A)
20 21
6. EL Light
<What is EL>
It is called electro-luminescence. It is a scientific phenomenon which becomes
illuminant when voltage is applied to it. This watch utilizes a luminiferous method
by making EL substance a panel.
<How to Light the Illumination>
The EL illumination comes on in the following situations.
(1) When button (A) is pressed (or kept pressing) in Normal Time Display or
Normal Calendar Display.
(2) When operating to display split time or stop in the Chronograph counting.
(3) When button (B) is pressed (or kept pressing) while Timer is running.
<Switching the Mode During Timer Running>
Even if button (M) is pressed and the mode is changed while Timer is running, the
timer countdown will continue. When you return to the Timer Mode, the
countdown time is again displayed. However, the watch will return to the initial
set time when the set time of the timer has finished counting down.
8. All-Reset Function
(1) Pull the crown out.
(2) Press the three buttons (A), (B) and (M) simultaneously. (While pressed, there
will be no display.)
(3) Release the buttons. (All the display segments will appear.)
(4) Push the crown in. (At this point, a monitor sound is heard.)
This completes the all-reset operation. Set each mode correctly before using the
watch.
60
55
50
45
30
35
40
25
20
15
10
05
SELECT
SPLIT
RESET
MODE
W.R.
10bar
LIGHT
START
STOP
SET
AM PM
S.T.
SPLIT
CHRALMCALTME TMR
22 23
Crown
(A)
(M)
(B)
7. When These Problems Occur
<The Watch Shows Abnormal Display>
When the battery life is close to expiring, the display or functions may become
abnormal. When these problems occur, replace the battery as soon as possible. In
rare cases, a strong impact etc. may cause the display or functions to become
abnormal (no display, alarm sounds incessantly etc.). In this case, perform the allreset operation by referring to “8. All-Reset Function”.
<Following Battery Replacement>
After the battery has been replaced, perform the all-reset operation by referring to
“8. All-Reset Function”.
24 25
NO NO NO NO
OK NO NO NO
OK OK NO NO
Moderate exposure to
water (washing, kitchen
work, swimming, etc.)
Marine sports
(skin diving)
Scuba diving
(with air tank)
Operation of the
crown or button with
moisture visible
Examples of use
OK
OK
OK
Minor exposure to water
(washing face, rain, etc.)
Indication
WATER RESIST or
no indication
WATER
RESIST(ANT)
Water-resistant to 3
atmospheres
WR 50 or WATER
RESIST 50
WATER
RESIST(ANT) 5 bar or
WATER RESIST(ANT)
Water-resistant to 5
atmospheres
WR 100/200 or
WATER RESIST 100/200
WATER RESIST(ANT)
10bar/20 bar or
WATER RESIST(ANT)
Water-resistant to
10 / 20 atmospheres
Dial Case (Case back)
Specification
For correct use within the design limits of the watch, confirm the level of waterresistance of your watch, as indicated on the dial and case, and consult the table.
9. Precautions
WARNING: Water-resistance performance
There are several types of water-resistant watches, as
shown in the following table.
The unit "bar" is roughly equal to 1 atmosphere.
* WATER RESIST(ANT) xx bar may also be indicated
as W.R. xx bar.
26 27
• Water-resistance for daily use (to 3 atmospheres): This type of watch is waterresistant to minor exposure to water. For example, you may wear the watch
while washing your face; however, it is not designed for use underwater.
• Upgraded water-resistance for daily use (to 5 atmospheres): This type of watch
is water-resistant to moderate exposure to water. You may wear the watch while
swimming; however, it is not designed for use while skin diving.
• Upgraded water-resistance for daily use (to 10/20 atmospheres): This type of
watch may be used for skin diving; however, it is not designed for scuba or
saturated diving using helium gas.
CAUTION
• Be sure to use the watch with the crown pressed in (normal position). If your
watch has a screw-type crown, be sure to tighten the crown completely.
• Do NOT operate the crown or button with wet fingers or when the watch is wet.
Water may enter the watch and compromise water-resistance.
• If the watch is used in seawater, rinse with fresh water afterward and wipe with
a dry cloth.
• If moisture has entered the watch, or if the inside of the crystal is fogged up and
does not become clear within a day, immediately take the watch to your dealer
or Citizen Service Center for repair. Leaving the watch in such a state will allow
corrosion to form inside.
• If seawater enters the watch, place the watch in a box or plastic bag and
immediately take it in for repair. Otherwise, pressure inside the watch will
increase, and parts (crystal, crown, buttons, etc.) may come off.
CAUTION: Keep your watch clean.
• Leaving dust and dirt deposited between the case and crown may result in
difficulty in pulling the crown out. Rotate the crown while in its normal position,
from time to time, to loosen dust and dirt and then brush it off.
• Dust and dirt tend to be deposited in gaps in the back of the case or band.
Deposited dust and dirt may cause corrosion and soil your clothing. Clean the
watch occasionally.
28 29
Cleaning the Watch
• Use a soft cloth to wipe off dirt, perspiration and water from the case and
crystal.
• Use a soft, dry cloth to wipe off perspiration and dirt from the leather band.
• To clean a metal, plastic, or rubber watchband, wash away dirt with mild soap
and water. Use a soft brush to remove dust and dirt jammed in the gaps in the
metal band. If your watch is not water-resistant, take it to your dealer.
NOTE: Avoid using solvents (thinner, benzine, etc.), as they may damage the finish.
WARNING: Handling of the battery
• Keep the battery out of the reach of small children. If a child swallows the
battery, contact a physician immediately.
CAUTION: Replacing the battery
• For replacement of the battery, take your watch to your dealer or Citizen Service
Center.
• Replace the battery as soon as possible if the service life of the battery has
expired. Leaving a depleted battery in the watch may result in leakage, which
can damage the watch severely.
CAUTION: Operating environment
• Use the watch within the operating-temperature range specified in the
instruction manual.
Using the watch where temperatures are outside the specified range, may result
in deterioration of functions or even stoppage of the watch.
• Do NOT use the watch in places where it is exposed to high temperature, such
as in a sauna.
Doing so may result in a skin burn.
• Do NOT leave the watch in a place where it is exposed to high temperature,
such as the glove compartment or dash-board of a car.
Doing so may result in deterioration of the watch, such as deformation of plastic
parts.
• Do NOT place the watch close to a magnet.
Timekeeping will become inaccurate if you place the watch close to magnetic
health equipment such as a magnetic necklace or a magnetic latch of a
refrigerator door or handbag clasp or the earphone of a mobile phone. If this has
occurred, move the watch away from the magnet and reset the time.
31
10. Specifications
1. Caliber No.: C45*
2. Type: Combination (Analog + Digital) quarts watch
3. Accuracy: within ± 20 seconds/month at normal temperature
(+5°C~+35°C/41°F~95°F)
4. Operating Temperature Range: 0°C~+55°C (32°F~131°F)
5. Display Functions:
• Time: Hours, Minutes and Seconds
• Calendar: Month, Date and Day
• Alarm: Hours, Minutes
• Chronograph: 24-hour measurement (in 1/100 seconds unit)
Split Time measurement
• Timer: 60-minute countdown (in 1 minute unit)
6. Additional Function: • EL Light
• Summertime switch function
7. Battery: Battery No. 280-44. Battery Code: SR927W
30
• Do NOT place the watch close to household appliances that generate static
electricity.
Timekeeping may become inaccurate if the watch is exposed to strong static
electricity, such as is emitted from a TV screen.
• Do NOT subject the watch to a strong shock such as dropping it onto a hard
floor.
• Avoid using the watch in an environment where it may be exposed to chemicals
or corrosive gases.
If solvents, such as thinner and benzine, or substances containing such solvents
come in contact with the watch, discoloration, melting, cracking, etc. may result.
If the watch comes in contact with mercury used in thermometers, the case,
band or other parts may become discolored.
32
8: Battery Life: Approx. 2 years (based on assumed use of 20-seconds alarm
sound/day, 5-seconds timer time-up sound/day, 3-seconds El light
function/day)
* A new battery should be able to support stable accuracy for
approximately 2 years when used under normal circumstances
(conditions described before). However, battery life will differ
with the conditions of use of the alarm, chronograph, El light
etc.
* These specifications are subject to change for product improvement without
prior notice.
Loading...
