Instructions for use
Contents
1- GENERAL 3
1.1 - GENERAL SAFETY RECOMMENDATIONS 3
1.1.1 - STANDARD SAFETY DEVICES 3
1.2 - FIELD OF APPLICATION 3
1.3 - OVERALL DIMENSIONS (Standard Protection) 3
1.4 - SPECIFICATION 4
2 - HANDLING AND HOISTING 4
3 - COMMISSIONING 5
3.1 - ANCHORING 5
3.2 - ELECTRICAL CONNECTION 5
3.3 - ADAPTER MOUNTING 5
3.4 - GUARD MOUNTING AND ADJUSTMENT 5
3.5 - SPACER WD 5
4 - CONTROLS AND COMPONENTS 6
4.1 - BRAKE PEDAL 6
4.2 - DISTANCE AND DIAMETER GAUGE 6
4.3 - WIDTH GAUGE (Option) 6
4.4 - AUTOMATIC WHEEL POSITIONING 6
4.5 - KEYBOARD 6
5 - INDICATIONS AND USE OF THE WHEEL BALANCER 7
5.1 - INITIAL SCREEN 7
5.1.1 - SCREEN-SAVE SCREEN 7
5.2 - MENU ACCESS DIAGRAM 8
5.3 - PRESETTING OF WHEEL DIMENSIONS 9
5.3.1 - AUTOMATIC PRESETTING 9
5.3.2 - TO CALL MEMORIZED MEASUREMENTS 10
5.3.3 - MANUAL PRESETTING 11
5.4 - USER CONTROL 13
5.4.1 - USER MEMORIZATION 13
5.4.2 - TO CALL USER 13
5.5 - RESULT OF MEASUREMENT 14
5.5.1 - INDICATION OF EXACT CORRECTION WEIGHT POSITION 15
5.5.2 - “SPLIT” CONTROL 16
5.5.3 - UNBALANCE OPTIMIZATION 17
5.5.4 - ALU AND STATIC MODES 17
5.5.5 - TO CANCEL STATIC UNBALANCE 18
5.6 - ECCENTRICITY MEASUREMENT (OPTIONAL) 19
6 - SETUP 20
6.1 - LANGUAGE 20
6.2 - UNIT OF UNBALANCE MEASUREMENT 20
6.3 - UNBALANCE DISPLAY THRESHOLD 20
6.4 - UNBALANCE DISPLAY PITCH 20
6.5 - SPIN WITH GUARD CLOSED 20
6.6 - SCREEN-SAVER TIME 20
6.7 - VISUAL ECCENTRICITY CHECK 20
6.8 - ACUSTIC SIGNAL 20
I
I 0559 - 1
GB
CAUTION
7 - SPECIAL CALIBRATIONS AND FUNCTIONS 21
7.1 - ENABLING OF WIDTH MEASUREMENT (Option) 21
7.2 - PRESETTING THE CUSTOMER AND USER NAME 21
7.3 - ENABLING OF ECCENTRICITY MEASUREMENT 21
7.4 - CALIBRATIONS 21
7.4.1 - GAUGE CALIBRATION 21
7.4.2 - WHEEL BALANCER CALIBRATION 21
7.4.3 - AMBIENT TEMPERATURE 21
7.4.4 - SELF-DIAGNOSTIC WHEEL BALANCING MACHINE 22
7.4.4.1 - TO CHECK THE ENCODER 22
7.5 - CONTROL OF SERIAL OUTPUT RS232C (OPTION) 22
8 - ERRORS 23
9 - ROUTINE MAINTENANCE 24
9.1 - SCHEDULED MAINTENANCE 24
9.2 - TO REPLACE THE FUSES 24
I 0559 - 2
GB
4
4
1
6
5
5
1- General
1.1 - General safety recommendations
- The balancing machine should only be used by duly authorized and trained personnel.
- The balancing machine should not be used for purposes other than those described in the instruction
manual.
- Under no way should the balancing machine be modifi ed except for those modifi cations made explicitly by
the manufacturer.
- Never remove the safety devices. Any work on the machine should only be carried out by duly authorized
specialist personnel.
- Do not use strong jets of compressed air for cleaning.
- Use alcohol to clean plastic panels or shelves (AVOID LIQUIDS CONTAINING SOLVENTS).
- Before starting the wheel balancing cycle, make sure that the wheel is securely locked on the adapter.
- The machine operator should not wear clothes with fl apping edges. Make sure that unauthorized personnel
do not approach the balancing machine during the work cycle.
- Avoid placing counterweights or other objects in the base which could impair the correct operation of the
balancing machine.
1.1.1 - Standard safety devices
- STOP push button for stopping the wheel under emergency conditions.
- The safety guard of high impact plastic is with shape and size designed to prevent risk of counterweights
from fl ying out in any direction except towards the fl oor.
- A microswitch prevents starting the machine if the guard is not lowered and stops the wheel whenever the
guard is raised.
1.2 - Field of application
The machine is designed for balancing car or motorcycle wheels weighing less than 75 kg. It can be operated within
a temperature range of 0° to + 45°C.
It can measure the geometric radial run-out of the wheels (optional).
1.3 - Overall dimensions (standard protection)
1
1122334
1133884
5
5
6
1
I 0559 - 3
GB
1.4 - Specifi cation
Single phase power supply ....................................... 115 - 230 V 50-60 Hz
Protection class ........................................................ IP 54
Max. power consumption .......................................... 1,1 Kw
Monitor ..................................................................... SVGA 15”
Balancing speed approx. ........................................... 180 min
Cycle time for average wheel (14 Kg) ..................... 6 seconds
Balancing accuracy ................................................... 0,5 grammi
Position resolution ..................................................... ± 1.4 °
Average noise level ................................................... < 70 dB(A)
Distance rim - machine .............................................. 0 - 250 mm (400 mm can be preset)
Larghezza cerchione impostabile ............................. 1.5” ÷ 20” or 40 ÷ 510 mm
Diameter setting range .............................................. 10” ÷ 26” or 265 ÷ 665 mm
Total wheel diameter within guard ............................. 870 mm (standard) - 1067 (42”)
Total wheel width within guard ................................... 430 mm (standard) - 500 (42”)
-1
2 - Handling and hoisting
2 3
I 0559 - 4
GB
NB: DO NOT HOIST THE MACHINE USING DIFFERENT GRIPS.
3 - Commissioning
3.1 - Anchoring
The machine can be operated on any fl at non-resilient fl oor.
Make sure that the machine rests solely on the three support points provided (fi g.3).
It is advisable to secure the system to the ground using the specifi c feet (see Figure 3) in the event of continual use
with wheels weighing over 35 Kg.
3.2 - Electrical connection
The machine is supplied with a single phase mains cable plus earth (ground).
The supply voltage (and mains frequency) is given on the machine nameplate. It may NOT be changed.
Connection to the mains should always be made by expert personnel.
The machine should not be started up without proper earth (ground) connection.
Connection to the mains should be through a slow acting safety switch rated at 4A (230V) or 10A (115V) .
3.3 - Adapter mounting
The balancing machine is supplied complete with cone adapter for fastening wheels with central bore.
Other optional adapters can be mounted:
a) Back-off screw B and remove threaded end-piece A.
b) Fit the new adapter.
4
A
B
3.4 - Guard mounting and adjustment
a) Fasten the components to the base as illustrated in specifi c exploded view.
b) The position of the wheel guard when closed can be adjusted with relative screw accessible at the back. Correct
position is the one which keeps the tube exactly horizontal with wheel guard closed.
c) Check that the microswitch is held down when the guard is closed.
d) Adjust the angular position of microswitch control.
3.5 - Spacer WD
5
Sp r i n g
DC
WD
Co ne
When balancing very wide wheels (9”), there is not
enough space to turn the distance gauge. To withdraw
the wheel from the machine side, fi t spacer WD on the
adapter body and secure it with the standard issue
nuts. When centring the wheel with the cone on the
inside, fi t the DC spacer to obtain spring thrust.
I 0559 - 5
GB
4 - Controls and components
4.1 - Brake pedal
This pedal allows the operator to hold the wheel when fi tting the counterweights. It must not be actuated during the
measuring cycle.
6
4.2 - Automatic distance and diameter gauge
This gauge allows measurement of the distance of the wheel from the machine and the wheel diameter at the point of
application of the counterweight.
It also allows correct positioning of the counterweights on the inside by using the specifi c function (see
OF EXACT CORRECTION WEIGHT POSITION) which allows reading, on the monitor, the position used for the measure-
ment within the rim (For calibration, see
The gauge can only be used with the counterweight pincers mounted.
GAUGE CALIBRATION).
4.3 - Automatic width gauge (optional)
Width gauging is through a SONAR device which measures the distance of the wheel without mechanical contact,
merely by closing the guard and each time a valid measurement has been made with gauge
TER GAUGE.
DISTANCE AND DIAME-
INDICATION
4.4 - Automatic wheel positioning
At the end of the spin, the wheel is positioned according to the unbalance on the outside or else according to the
static unbalance (when selected).
Accuracy is +/-20 degrees.

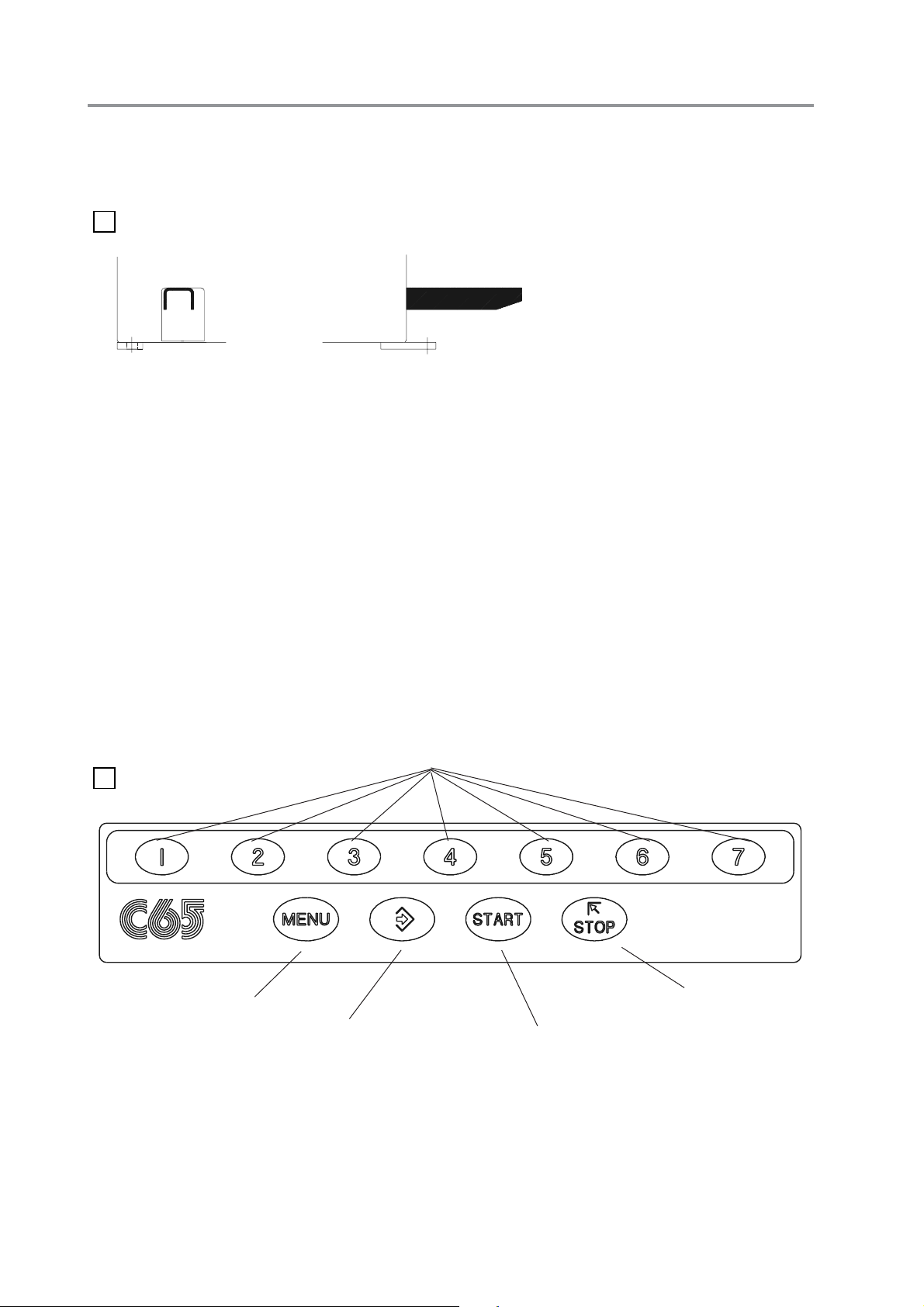

4.5 - Keyboard
FUNCTION KEYS: they directly select corresponding function
7
Selection of special functions
Confi rm
Starts measuring cycle
Stops measuring cycle
N.B. - Press the buttons with the fi ngers only: never use the counterweight pincers or other pointed objects.
- When the beep signal is enabled (see section
accompanied by a “beep”.
I 0559 - 6
GB
ACUSTIC SIGNAL), pressing of any push button is
5 - Indications and use of the wheel balancer
The monitor shows several information and suggests various alternative ways of use to the operator.
This is through various “screens”.
5.1 - Initial screen
Static
Buttons enabled
: main functions screen (see
2
Dimensions gauge: when extracted, the Dimensions screen is selected (see PRESETTING OF WHEEL DIMENSIONS).
If the machine remains on the initial screen for a certain amount of time without being used, the system is automatically switched to a screen-save. Striking of any key, movement of the wheel of distance + diameter gauge will cause
automatic switching from the screen-save menu to the initial screen.
5.1.1 - Screen-save screen
N.B.: Name of the wheel balancer’s owner. Can be preset via the monitor (see section
AND USER NAME
: type of correction (see ALU AND STATIC MODES)
: balancing spin (see RESULT OF MEASUREMENT)
).
MENU ACCESS DIAGRAM)
PRESETTING THE CUSTOMER
I 0559 - 7
GB
3
5
7
5.2 - Menu access diagram
N.B. - The symbol indicates the presence of a further menu.
- To return to the previous menu, press button
- To return to the initial screen, press button
A
User control
Set-up machine parameters
Language
Unbalance measuring unit
Unbalance threshold
Visualization step
Start by wheel guard lowering
Screensave time
More
Abort
English
B
C
Load user
Save user
Optimization
Dimensions
Set-up
Special functions
Abort
5
3
PASSWORD : + + +
ONLY FOR SPECIALIST PERSONAL
7
H
Set-up machine parameters
Visual eccentricity check
Acustic signal
Previous
Abort
F
selections
user control
E
D
Special functions
Width measure
Eccentricity measureament
Owner address
Users name
Calibrations
Abort
I 0559 - 8
GB
Calibrations
Distance
Diameter
Width
Abort
