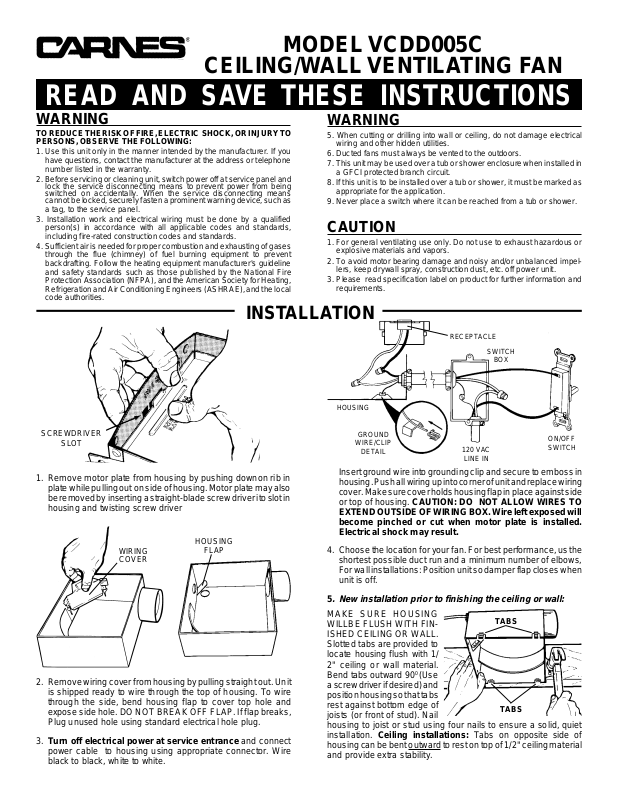

Carnes VCDD005C Installation Manual
MODEL VCDD005C
CEILING/W ALL VENTILA TING F AN
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you
have questions, contact the manufacturer at the address or telephone
number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and
lock the service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as
a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent
backdrafting. Follow the heating equipment manufacturer's guideline
and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local
code authorities.
INSTALLATION
WARNING
5. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. This unit may be used over a tub or shower enclosure when installed in
a GFCI protected branch circuit.
8. If this unit is to be installed over a tub or shower, it must be marked as
appropriate for the application.
9. Never place a switch where it can be reached from a tub or shower.
CA UTION
1. For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. Please read specification label on product for further information and
requirements.
RECEPTACLE
SWITCH
BOX
HOUSING
SCREWDRIVER
SLOT
1. Remove motor plate from housing by pushing downon rib in
plate while pulling out on side of housing. Motor plate may also
be removed by inserting a straight-blade screw driver ito slot in
housing and twisting screw driver
HOUSING
WIRING
COVER
2. Remove wiring cover from housing by pulling straight out. Unit
is shipped ready to wire through the top of housing. To wire
through the side, bend housing flap to cover top hole and
expose side hole. DO NOT BREAK OFF FLAP. If flap breaks,
Plug unused hole using standard electrical hole plug.
3. Turn off electrical power at service entrance and connect
power cable to housing using appropriate connector. Wire
black to black, white to white.
FLAP
GROUND
WIRE/CLIP
DETAIL
Insert ground wire into grounding clip and secure to emboss in
housing. Push all wiring up into corner of unit and replace wiring
cover. Make sure cover holds housing flap in place against side
or top of housing. CAUTION: DO NOT ALLOW WIRES TO
EXTEND OUTSIDE OF WIRING BOX. Wire left exposed will
become pinched or cut when motor plate is installed.
Electrical shock may result.
4. Choose the location for your fan. For best performance, us the
shortest possible duct run and a minimum number of elbows,
For wall installations: Position unit so damper flap closes when
unit is off.
. New installation prior to finishing the ceiling or wall:
5
MAKE SURE HOUSING
WILLBE FLUSH WITH FINISHED CEILING OR WALL.
Slotted tabs are provided to
locate housing flush with 1/
2" ceiling or wall material.
Bend tabs outward 90
a screw driver if desired) and
position housing so that tabs
rest against bottom edge of
joists (or front of stud). Nail
housing to joist or stud using four nails to ensure a solid, quiet
installation. Ceiling installations: Tabs on opposite side of
housing can be bent
and provide extra stability.
0
(Use
outward to rest on top of 1/2" ceiling material
120 VAC
LINE IN
TABS
TABS
ON/OFF
SWITCH
5.
Replacement installation:
Position housing so that it is
centered in existing opening.
MAKE SURE HOUSING IS
FLUSH WITH FINISHED
CEILING OR WALL. After
making electrical and duct-
➜
➜
➜
work connections (see steps
4, 5 and 6), nail housing in place. Drive nails through the
housing where indicated by arrows.
. New installation in an existing ceiling or wall:
5
From above ceiling or behind wall,
position housing against stud or joist. Trace outline of housing on
ceiling or wall material. Set housing aside and cut opening. Place
housing in opening such that its BOTTOM EDGE IS FLUSH WITH
FINISHED CEILING OR WALL. 1/2" ceiling or wall material: Bend
outward 900 (use a screwdriver if desired) to rest on top of
tabs
ceiling or wall material and provide extra stability. Nail in place
using four nails to ensure a solid, quiet installation.
6.Install 3" round duct onto damper/duct connector. If rigid
ductwork is used, its seam should be positioned at top of
damper/duct connector. Tape the joint and extend ducting to a
wall cap or roof cap. Make sure the damper operates freely.
Ceiling or wall can now be finished.
7.Replace the motor plate removed in Step 1. Insert two motor
plate tabs into slots in housing and then pivot motor plate up
until the third tab on plate snaps into matching slot in housing.
Make sure tabs hold motor plate securely in place. Plug in
motor.
8.Squeeze grille springs together and insert springs into slots in
motor plate. Push grille up against ceiling or wall.
1
Company, Inc.
2
448 S. Main Street
Verona, WIsconsin 53593
SERVICE PARTS
8
4
7
3
Always order replacement parts by "PART NUMBER" - not "KEY NO."
9
5
KEY PART
NO. NUMBER DESCRIPTION
1 97011723 Grille Assembly (Includes Key Nos 1 & 2)
2 99140187 Grille Spring (2 Required)
3 99080254 Motor
4 98006791 Motor Plate
5 99110655 Blower Wheel
7 99260428 Nut #6-32 (2 Required)
8 97008632 Damper/Duct Connector
9 99270748 Receptacle
10 98006773 Wiring Cover
11 99390015 Ground Clip
12 97008319 Housing Assembly
10
11
12
