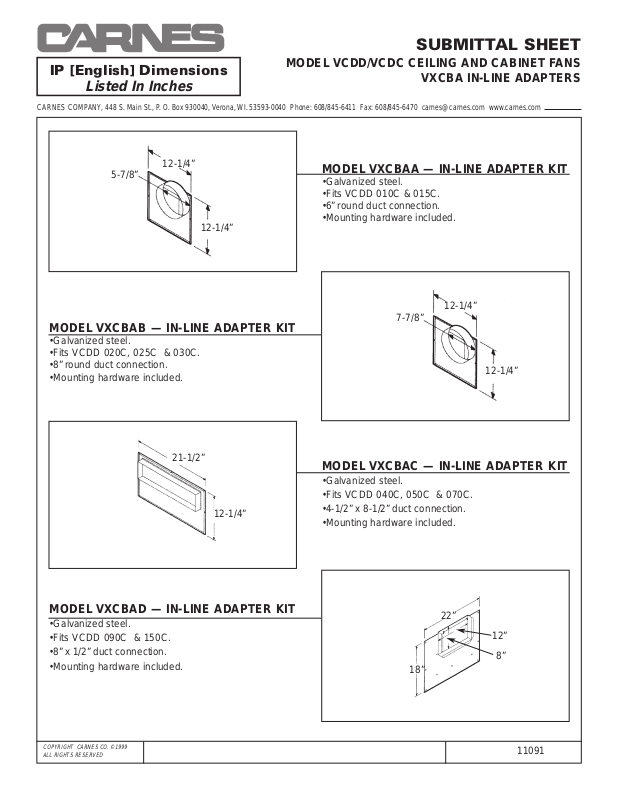

SUBMITTAL SHEET
MODEL VCDD/VCDC CEILING AND CABINET FANS
VXCBA IN-LINE ADAPTERS
IP [English] Dimensions
Listed In Inches
COPYRIGHT CARNES CO.© 1999
ALL RIGHTS RESERVED
11091
MODEL VXCBAB — IN-LINE ADAPTER KIT
•Galvanized steel.
•Fits VCDD 020C, 025C & 030C.
•8” round duct connection.
•Mounting hardware included.
12-1/4”
12-1/4”
12-1/4”
5-7/8”
7-7/8”
12-1/4”
MODEL VXCBAC — IN-LINE ADAPTER KIT
•Galvanized steel.
•Fits VCDD 040C, 050C & 070C.
•4-1/2” x 8-1/2” duct connection.
•Mounting hardware included.
MODEL VXCBAD — IN-LINE ADAPTER KIT
•Galvanized steel.
•Fits VCDD 090C & 150C.
•8” x 1/2” duct connection.
•Mounting hardware included.
12-1/4”
18”
8”
12”
22”
21-1/2”
MODEL VXCBAA — IN-LINE ADAPTER KIT
•Galvanized steel.
•Fits VCDD 010C & 015C.
•6” round duct connection.
•Mounting hardware included.
