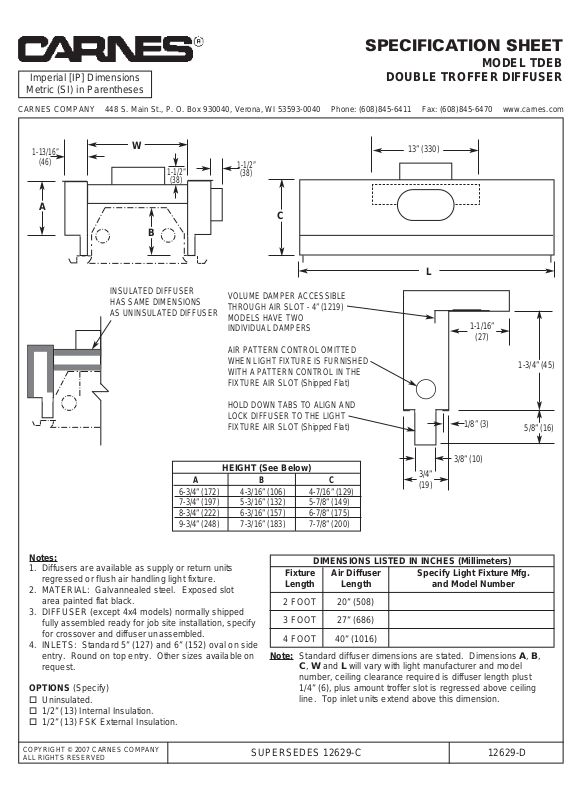

SPECIFICATION SHEET

MODEL TDEB

DOUBLE TROFFER DIFFUSER

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 12629-C 12629-D

13” (330)

Notes:

1. Diffusers are available as supply or return units
regressed or flush air handling light fixture.

2. MATERIAL: Galvannealed steel. Exposed slot
area painted flat black.

3. DIFFUSER (except 4x4 models) normally shipped
fully assembled ready for job site installation, specify
for crossover and diffuser unassembled.

4. INLETS: Standard 5” (127) and 6” (152) oval on side
entry. Round on top entry. Other sizes available on
request.

OPTIONS (Specify)

 Uninsulated.
 1/2” (13) Internal Insulation.
 1/2” (13) FSK External Insulation.

DIMENSIONS LISTED IN INCHES (Millimeters)

Fixture Air Diffuser Specify Light Fixture Mfg.
Length Length and Model Number

2 FOOT 20” (508)
3 FOOT 27” (686)
4 FOOT 40” (1016)

Note: Standard diffuser dimensions are stated. Dimensions A, B,

C, W and L will vary with light manufacturer and model

number, ceiling clearance required is diffuser length plust
1/4” (6), plus amount troffer slot is regressed above ceiling
line. Top inlet units extend above this dimension.

L

C

B

W

1-13/16”

(46)

1-1/2”

(38)

1-1/2”

(38)

A

INSULATED DIFFUSER
HAS SAME DIMENSIONS
AS UNINSULATED DIFFUSER

VOLUME DAMPER ACCESSIBLE
THROUGH AIR SLOT - 4” (1219)
MODELS HAVE TWO
INDIVIDUAL DAMPERS

AIR PATTERN CONTROL OMITTED
WHEN LIGHT FIXTURE IS FURNISHED
WITH A PATTERN CONTROL IN THE
FIXTURE AIR SLOT (Shipped Flat)

HOLD DOWN TABS TO ALIGN AND
LOCK DIFFUSER TO THE LIGHT
FIXTURE AIR SLOT (Shipped Flat)

1-3/4” (45)

1-1/16”

(27)

5/8” (16)

1/8” (3)

3/8” (10)

3/4”
(19)

HEIGHT (See Below)

AB C

6-3/4” (172) 4-3/16” (106) 4-7/16” (129)
7-3/4” (197) 5-3/16” (132) 5-7/8” (149)
8-3/4” (222) 6-3/16” (157) 6-7/8” (175)
9-3/4” (248) 7-3/16” (183) 7-7/8” (200)

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com
