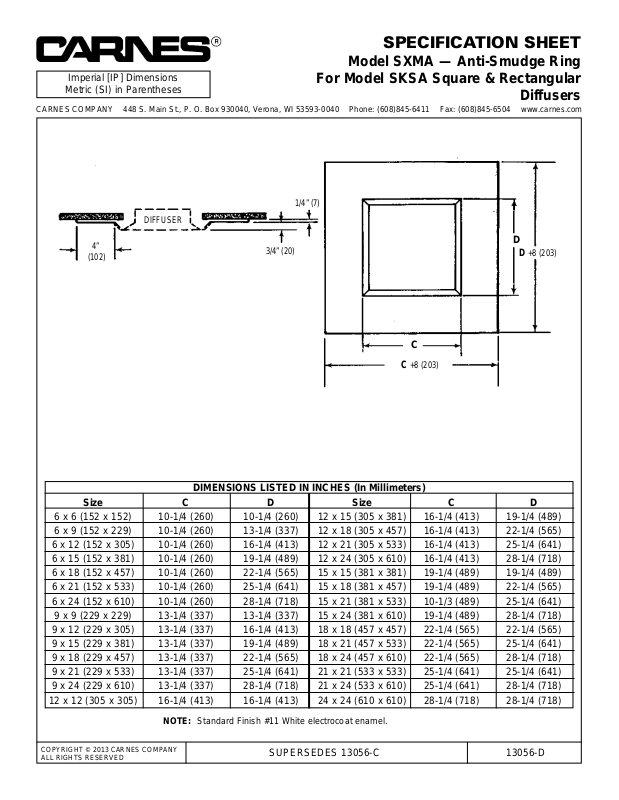

SPECIFICATION SHEET
Model SXMA — Anti-Smudge Ring
For Model SKSA Square & Rectangular
Diffusers
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 13056-C 13056-D
DIFFUSER
1/4” (7)
3/4” (20)
4”
(102)
D
+8 (203)
C
+8 (203)
C
D
NOTE: Standard Finish #11 White electrocoat enamel.
DIMENSIONS LISTED IN INCHES (In Millimeters)
Size C D Size C D
6 x 6 (152 x 152) 10-1/4 (260) 10-1/4 (260) 12 x 15 (305 x 381) 16-1/4 (413) 19-1/4 (489)
6 x 9 (152 x 229) 10-1/4 (260) 13-1/4 (337) 12 x 18 (305 x 457) 16-1/4 (413) 22-1/4 (565)
6 x 12 (152 x 305) 10-1/4 (260) 16-1/4 (413) 12 x 21 (305 x 533) 16-1/4 (413) 25-1/4 (641)
6 x 15 (152 x 381) 10-1/4 (260) 19-1/4 (489) 12 x 24 (305 x 610) 16-1/4 (413) 28-1/4 (718)
6 x 18 (152 x 457) 10-1/4 (260) 22-1/4 (565) 15 x 15 (381 x 381) 19-1/4 (489) 19-1/4 (489)
6 x 21 (152 x 533) 10-1/4 (260) 25-1/4 (641) 15 x 18 (381 x 457) 19-1/4 (489) 22-1/4 (565)
6 x 24 (152 x 610) 10-1/4 (260) 28-1/4 (718) 15 x 21 (381 x 533) 10-1/3 (489) 25-1/4 (641)
9 x 9 (229 x 229) 13-1/4 (337) 13-1/4 (337) 15 x 24 (381 x 610) 19-1/4 (489) 28-1/4 (718)
9 x 12 (229 x 305) 13-1/4 (337) 16-1/4 (413) 18 x 18 (457 x 457) 22-1/4 (565) 22-1/4 (565)
9 x 15 (229 x 381) 13-1/4 (337) 19-1/4 (489) 18 x 21 (457 x 533) 22-1/4 (565) 25-1/4 (641)
9 x 18 (229 x 457) 13-1/4 (337) 22-1/4 (565) 18 x 24 (457 x 610) 22-1/4 (565) 28-1/4 (718)
9 x 21 (229 x 533) 13-1/4 (337) 25-1/4 (641) 21 x 21 (533 x 533) 25-1/4 (641) 25-1/4 (641)
9 x 24 (229 x 610) 13-1/4 (337) 28-1/4 (718) 21 x 24 (533 x 610) 25-1/4 (641) 28-1/4 (718)
12 x 12 (305 x 305) 16-1/4 (413) 16-1/4 (413) 24 x 24 (610 x 610) 28-1/4 (718) 28-1/4 (718)
Imperial [IP] Dimensions
Metric (SI) in Parentheses
