CANON s330 Simplified Manual

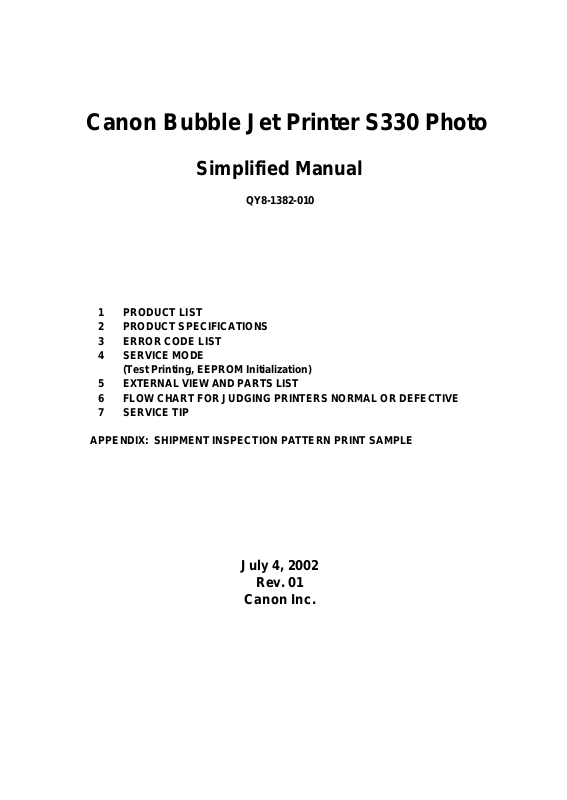

Canon Bubble Jet Printer S330 Photo
Simplified Manual
QY8-1382-010
1 PRODUCT LIST
2 PRODUCT SPECIFICATIONS
3 ERROR CODE LIST
4 SERVICE MODE
(Test Printing, EEPROM Initialization)
5 EXTERNAL VIEW AND PARTS LIST
6 FLOW CHART FOR JUDGING PRINTERS NORMAL OR DEFECTIVE
7 SERVICE TIP
APPENDIX: SHIPMENT INSPECTION PATTERN PRINT SAMPLE
July 4, 2002
Rev. 01
Canon Inc.
1. PRODUCT LIST
1.1 Printer main units
Product Name Sales Territory Remarks
Canon Bubble Jet Printer
S 330
S330 Photo
S330 Photo
S330 Photo
S330 Photo
Canon Bubble Jet Printer JPN
BJ S330
Product Code
7611A001AA/BA
7611A002AA/BA
7611A003AA/BA
7611A004AA/BA
7611A005BB
7611A006BB
7611A007BB
7611A008AA/BA
7611A009AA/BA
7611A010AA/BA
7611A011BB
7611A013AA/BA
7611A014AA/BA
7611A015AA/BA
7611A016AA/BA
7611A012AA/BA
1.2 Consumables
Product Name Remarks
Canon Ink Cartridge JPN
BCI-24BK EUR
Canon Ink Cartridge JPN
BCI-24CL EUR
Canon Ink Cartridge JPN
BCI-24BK TwinPack EUR
Canon Ink Cartridge JPN
BCI-24CL TwinPack EUR
Product Code
6881A001AA
6881A002AA
6881A003AA
6881A004AA
6882A001AA
6882A002AA
6882A003AA
6882A004AA
6881A008AA
6881A009AA
6881A010AA
6881A011AA
6882A008AA
6882A009AA
6882A010AA
6882A011AA
USA
CANADA
LATIN(LV)
LATIN(HV)
EUR
GER
FRN
ASIA(HV)
AUST
KRN
GB
TWN
HK
CHN
AR
USA/CAN
ASIA/AUST
USA/CAN
ASIA/AUST
USA/CAN
ASIA/AUST
USA/CAN
ASIA/AUST
1.3 Changes from BJ S300 / S300
1. Borderless printing
2. Quiet mode Set via printer driver
3. Low acoustic noise level Low noise during paper pick-up operation
4. Improved through-put speed Bk: HS 14ppm / HQ 10.5ppm Color: HS 10ppm / HQ 4.7ppm
5. High quality printing Optimization of dot placement
6. USB2.0 Approved at full speed
7. Detection of remaining ink amount Default ON
Note: For externals, the shape and color of the access cover have been changed, and for internals, for borderless
printing, partial changes such as the platen have been made.
2. Product Specifications
Electrical Appliance and Material Control Law
2.1 Specifications
Paper feeding method ASF
Resolution 2400 dpi X 1200 dpi
Print speed Standard Color 4.7ppm (Color throughput pattern)
Monochrome 10.5ppm (Monochrome throughput pattern)
HS Color 10ppm (Color throughput pattern)
Monochrome 14ppm (Monochrome throughput pattern)
Printing direction
Printing type Borderless printing
Printing width 203.2mm (8 inch)
Interface USB for FS
ASF capacity Plain paper Max. 10mm or less (64 to 105 g/m2 paper)
High resolution paper Max. 80 sheets or less
Glossy photo paper Max. 10 sheets
Photo paper Max. 1 sheet
Super photo paper Max. 10 sheets
Matte photo paper Max. 10 sheets
Glossy film Max. 1 sheet
Transparency Max. 30 sheets or less
Banner paper Max. 1 sheet
T-shirt transfer Max. 1 sheet
Glossy card Max. 20 sheets
Glossy photo card Max. 20 sheets
Postcard Max. 40 sheets
Postcard for inkjet printers Max. 40 sheets
Photo card Max. 20 sheets
Envelope (COM#10, DL-size) Max. 10 sheets
Envelope (European size 4 and 6) Max. 10 sheets
Detection
functions
Operating sound 45 dB (FINE Mode)
Environmental
conditions
Power supply Voltage/frequency AC100V/120V 50/60Hz
External
dimension
Weight 3.4Kg (not including print head)
Certification
Paper out Available
Print head installed Available
Ink out Available
Remaining amount of ink Available
Waste ink amount Available
Cover open Available
Operation Temperature 5oC to 35oC (41oF to 95oF)
Standby Temperature 0oC to 35oC (32oF to 95oF)
Power consumption 30W
Standby 2W
Paper feed and delivery trays installed 390(W) X 248(D) X 185(H)
Paper feed and delivery trays not installed 390(W) X 553(D) X 301(H)
Electromagnetic radiance VCCI ClassB
Electrical safety
Bi-directional (automatically adjusted according to print
data, print mode, and print head)
Humidity 10% to 90%RH (no condensation)
Humidity 5% to 90%RH (no condensation)
2.2 Product Life
Product life is whichever comes first
5 years, or
5,000 pages of color printing, or
10,000 pages of monochrome printing.
