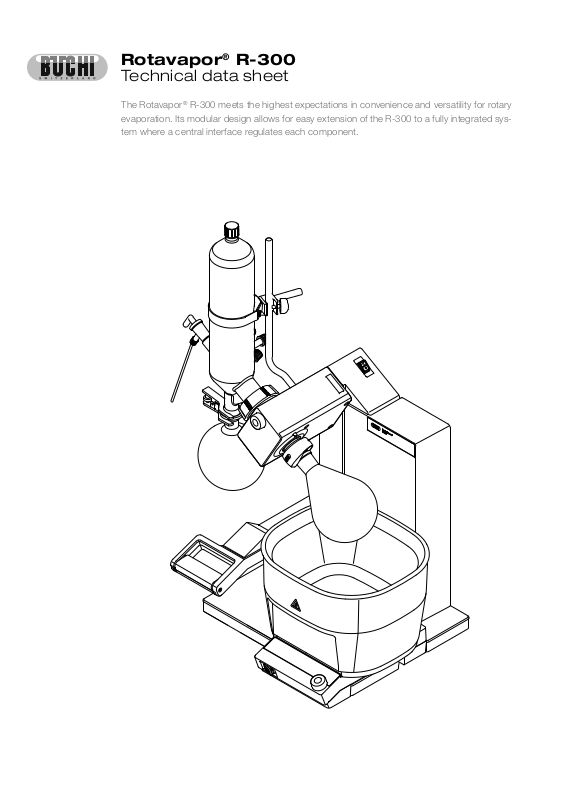

Rotavapor® R-300
Technical data sheet
The Rotavapor® R-300 meets the highest expectations in convenience and versatility for rotary
evaporation. Its modular design allows for easy extension of the R-300 to a fully integrated system where a central interface regulates each component.
Overview of Rotavapor® R-300 stand-alone and systems
System
Rotavapor® R-300
Rotavapor® R-300 / R-300 Hand Lift** 1 1
Heating Bath B-301 / B-305** * 1
Interface I-300 / I-300 Pro (incl. VacuBox)** * 1
Vacuum Pump V-300 - 1
Recirculating Chiller F-305 / F-308** - *
* optional, according to order code
** according to order code
“Rotavapor® Dynamic”
Rotavapor® R-300
The Rotavapor® R-300 represents high reliability and convenience in laboratory rotary evaporation applications.
The Rotavapor® R-300 is available with either an electronic or manual lift, and can optionally include the Heating Bath B-301 or B-305 and, a glass assembly of your choice and the Interface I-300 or I-300 Pro.
All accessories and connections are included for out of the box usage.
2
Order code
Choose the configuration according to your needs:
Rotavapor® R-300
1 3 01 R 0
Lift System
1 Manual lift
2 Electronic lift
Heating Bath
0 Without
1 B-301: 20 – 95 °C (water),
max. flask size: 1 L
5 B-305: 20 – 220 °C, max. flask size: 5 L
Standard Joint
0 Without (w/o evaporating flask, w/o vapor duct)
1 SJ 29/32 (incl. evaporating flask, vapor duct)
2 SJ 24/40 (incl. evaporating flask, vapor duct)
Glass Assembly
N Without (w/o receiving flask)
1)
V Vertical (incl. receiving flask)
A Diagonal (incl. receiving flask)
C Cold trap (incl. receiving flask)
S Vertical reflux (incl. receiving flask)
Protective Coating
0 Without
1 Safety coating (P+G)
1)
2)
Interface
0 Without
1 Without, with Woulff bottle
2 I-300, with Woulff bottle (incl. VacuBox)
3 I-300 Pro, with Woulff bottle (incl. VacuBox)
4 I-300, with valve unit (incl. VacuBox)
5 I-300 Pro, with valve unit (incl. VacuBox)
Voltage
1 220 – 240 V
2 100 – 120 V
1)
If glass assembly E, CR or BY is required, for Glass Assembly select “N”, for Standard Joint select either “1” or “2” and for Protective
Coating select “0” (vapor duct and evaporating flask are included). Glass assembly E, CR or BY need to be ordered separately.
2)
”Safety coating (P+G)” applies to condenser and receiving flask
3
Scope of delivery of Rotavapor® R-300
All configurations are delivered ready to use and are complete of:
Components Rotavapor® R-300
Rotavapor® R-300 / R-300 Hand Lift** 1
Heating Bath B-301 / B-305** *
Glass assembly** *
Vapor duct (with Combi-Clip) **
Vacuum seal (WD26) 1
Evaporating flask (1 liter) **
Receiving flask (1 liter) **
Flyer “List of solvents” 1
Set of required cooling hoses **
Power cable (1 for heating bath, 1 for Rotavapor®) **
Interface I-300 / I-300 Pro** *
VacuBox *
* optional, according to order code
** according to order code
4
System “Rotavapor® Dynamic”
The rotary evaporator R-300 system meets the highest expectations in convenience and versatility. It is
bundled with the Vacuum Pump V-300, controlled by the Interface I-300 / I-300 Pro and can include the
Recirculating Chiller F-305 / F-308. The interface is the central control unit for all process parameters. Rotation
speed, heating-, cooling-, vapor-temperature and pressure are perfectly synchronized to optimize the
distillation process while increasing efficiency and convenience. All the “Rotavapor® Dynamic” systems are P+G
coated. All accessories and connections are included for out of the box usage.
Choose the configuration according to your needs:
11 S
3 0R 0
Lift System
1 Manual lift
2 Electronic
Heating Bath
1 B-301: 20 – 95 °C (water),
max. flask size: 1 L
5 B-305: 20 – 220 °C, max. flask size: 5 L
Standard Joint
1 SJ 29/32 (incl. evaporating flask, vapor duct)
2 SJ 24/40 (incl. evaporating flask, vapor duct)
Glass Assembly
V Vertical (condenser and receiving flask are P+G coated)
C Cold trap (condenser and receiving flask are P+G-LT
coated)
3)
Interface
S I-300, with Woulff bottle (incl. VacuBox)
P I-300 Pro, with Woulff bottle (incl. VacuBox)
Recirculating Chiller
0 Without
1 F-305: cooling capacity 550 W at 15 °C (-10 – 25 °C)
2 F-308: cooling capacity 900 W at 15 °C (-10 – 25 °C)
Voltage
1 220 – 240 V
2 100 – 120 V
3)
When ordering the glass assembly C, a recirculating chiller is not needed
5
Scope of delivery of “System Rotavapor® Dynamic”
All configurations are delivered ready to use and are complete of:
Components “System Rotavapor® Dynamic”
Rotavapor® R-300 / R-300 Hand Lift** 1
Heating Bath B-301 / B-305** 1
Glass assembly 1
Vapor duct (with Combi-Clip) 1
Vacuum seal (WD26) 1
Evaporating flask (1 liter) 1
Receiving flask (1 liter) 1
Flyer “List of solvents” 1
Set of required cooling and vacuum hoses 1
Set of required power cables 1
Interface I-300 / I-300 Pro** 1
VacuBox 1
Vacuum Pump V-300 1
Recirculating Chiller F-305 / F-308** *
* optional, according to order code
** according to order code
