BTC PCD3510 Quick Guide

封

語言- 英法德義西

面

PCD 3500 / PCD 3510

Camera Quick Guide

Version 1.1

PCD3500/ 3510

Camera Quick Guide

3100560140 v.1.1

封面內頁

The information in this document is subject to change without notice and does not represent a commitment
on the part of the vendor.

No warranty of representation, either expressed or implied, is made with respect to the quality, accuracy or
fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to
the content of this document and/or the products associated with it at any time without obligation to notify
any person or organisation of such changes.

In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages
arising out of the use or inability to use this product or documentation, even if advised of the possibility of
such damages.

Copyright © 2003.. All rights reserved

IBM, PC/AT and PS/2 are registered trademarks of International Business Machines Corporation.

Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation in the United
States of America and/or other countries.

All other trademarks are trademarks of their respective holders.

g

y

Congratulations on purchasing your new digital & PC camera (Optional). This

camera is an all-in-one pocket size digital and USB PC camera. You can take
digital pictures at once. Alternatively you can also hang up the camera to a
computer and use it as a PC camera for videoconferencing or capturing video
clips.

Getting to Know the Camera- PCD 3500

Snapshot button

Batter

USB connection

Flash light

Strap holder

compartment

Flash light indicator

Viewfinder

Viewfinder

Lens

Microphone

Timer light

En

lish

Speaker

Display panel

Stand Receptacle

Mode button

1

Getting to Know the Camera- PCD 3510

Snapshot button

USB connection

Strap holder

Battery compartment

Flash light

Flash light indicator

Viewfinder Microphone

Speaker

Display panel

Viewfinder

Lens

Mode button

Timer light

Stand Receptacle

2

g

System Requirements



MicrosoftWindows98, WindowsME, Windows2000 or WindowsXP
operating system

Software Installation

Please note that you have to install the software BEFORE you connect the
camera into the USB port of your computer.

Step 1: Install Ulead Photo Express 4.0 SE

1. Insert the software CD into the CD-ROM drive of your computer.

2. Follow the on screen instruction to install the software. The software will
install automatically.

"

Note: If the software does not setup automatically, go to the Taskbar and

click Start, then click on Run and browse the SETUP.EXE
and click OK to install.

3. When all setup procedures are finished, the operating system does not
need to restart. The software is loaded when you see the software icon
shows on the screen.

Important: For more information on how to use the software, please refer

to the folder named “Manual” in the CD.

in the software CD

En

lish

Step 2 : Install Digital Camera Driver-CamMaestro

In order to take great advantage of the camera, please note that you have to
install the driver named “CamMaestro” AFTER
application software in step 1.

1. Follow the on screen instruction to install the software. The software will
install automatically.

"

Note: If the software does not setup automatically, go to the Taskbar and

click Start, then click on Run and browse the SETUP.EXE

directory of the software CD and click OK to install.

2. When all setup procedures are finished, the operating system needs to
restart.

you have installed the camera

in the \Driver

3

Uninstallation

To Remove Camera Application Software:

Step 1:

Step 2:

Step 3:

Step 4: Select “Ulead Photo Express 4.0 SE” and click on the remove icon.

Step 5: Click "Yes" to confirm you want to uninstall.

Click "Start" menu (on the left-bottom taskbar).

Move cursor to "Programs" in "Start" menu and select “Control Panel”.

Click on “Add/Remove Programs” in the Control Panel.

To Remove Camera Driver:

Step 1:

Step 2:

Step 3:

Step 4: Select “CamMaestro” and click on the remove icon.

Step 5: Click "Yes" to confirm you want to uninstall.

Click "Start" menu (on the left-bottom taskbar).

Move cursor to "Programs" in “Start” menu and select “Control Panel”.

Click on “Add/Remove Programs” in the Control Panel.

4

g

Getting Start

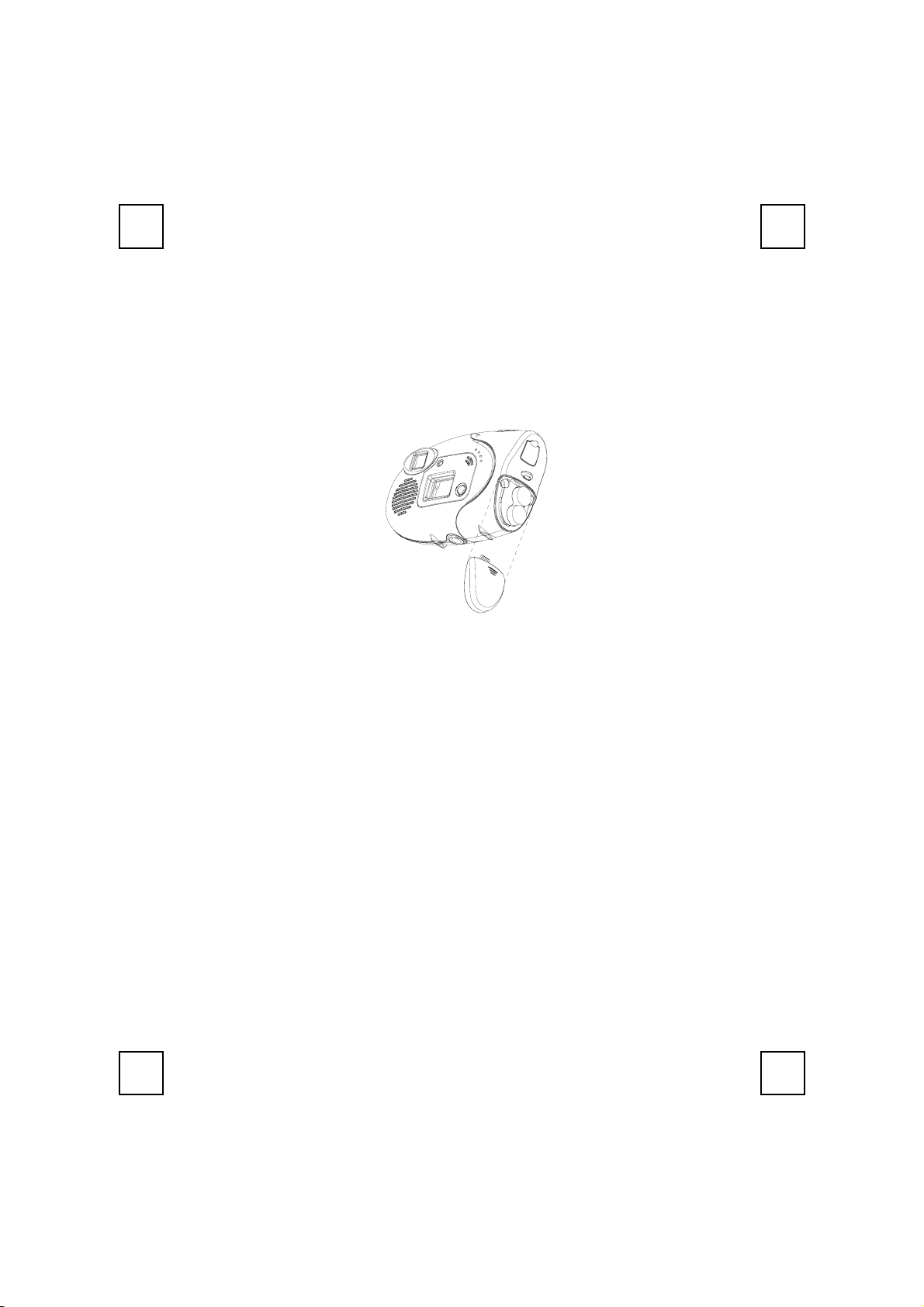

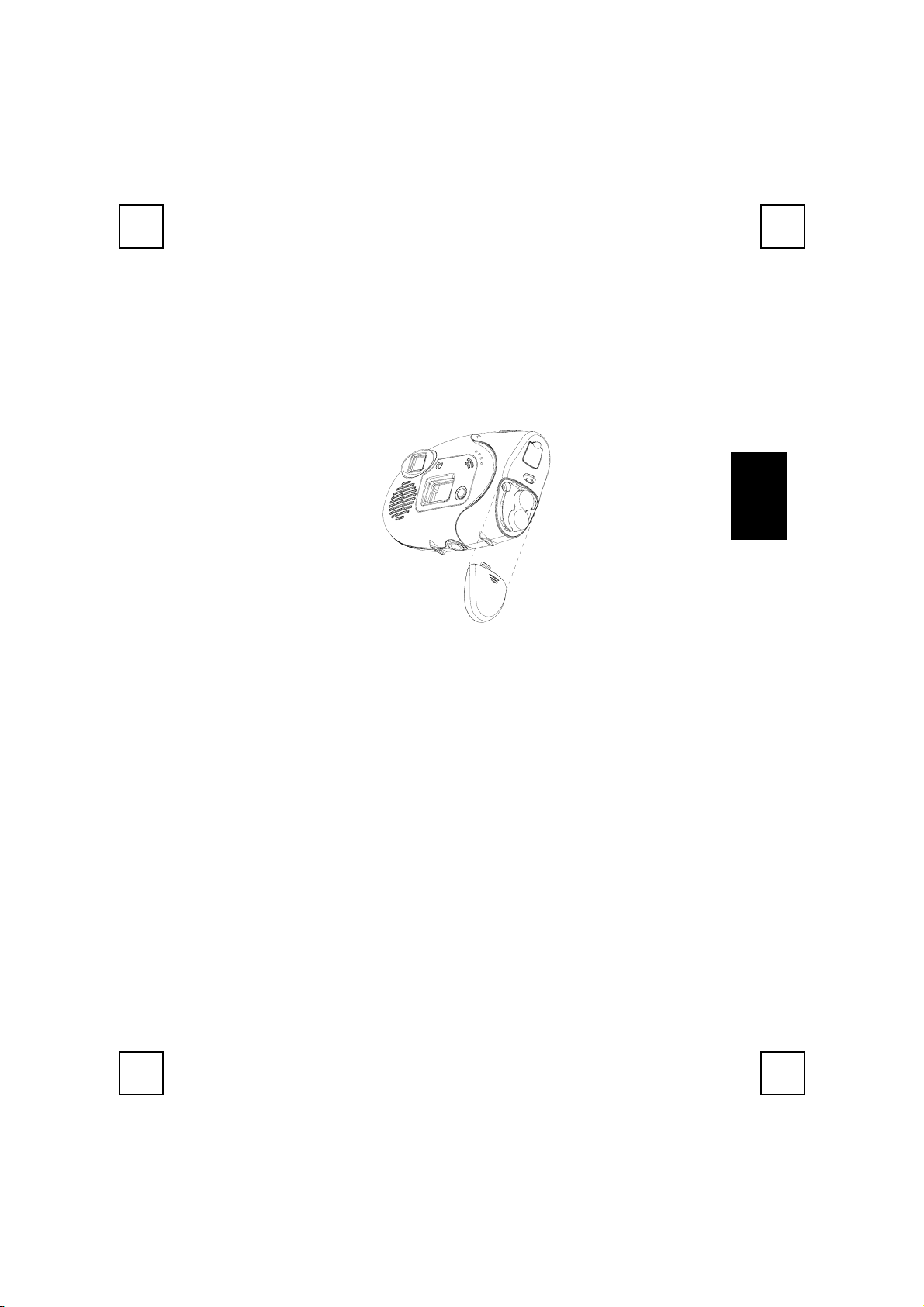

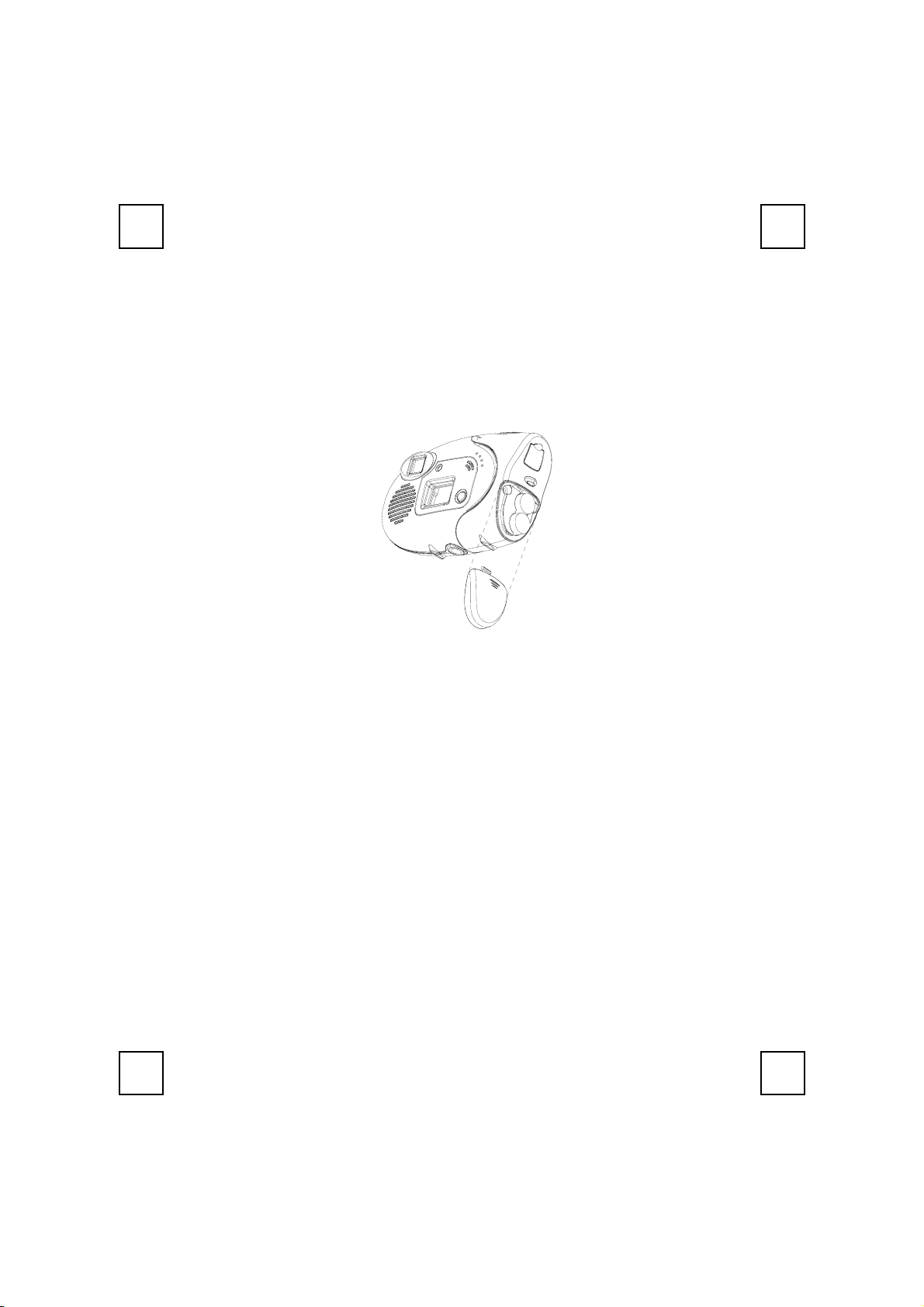

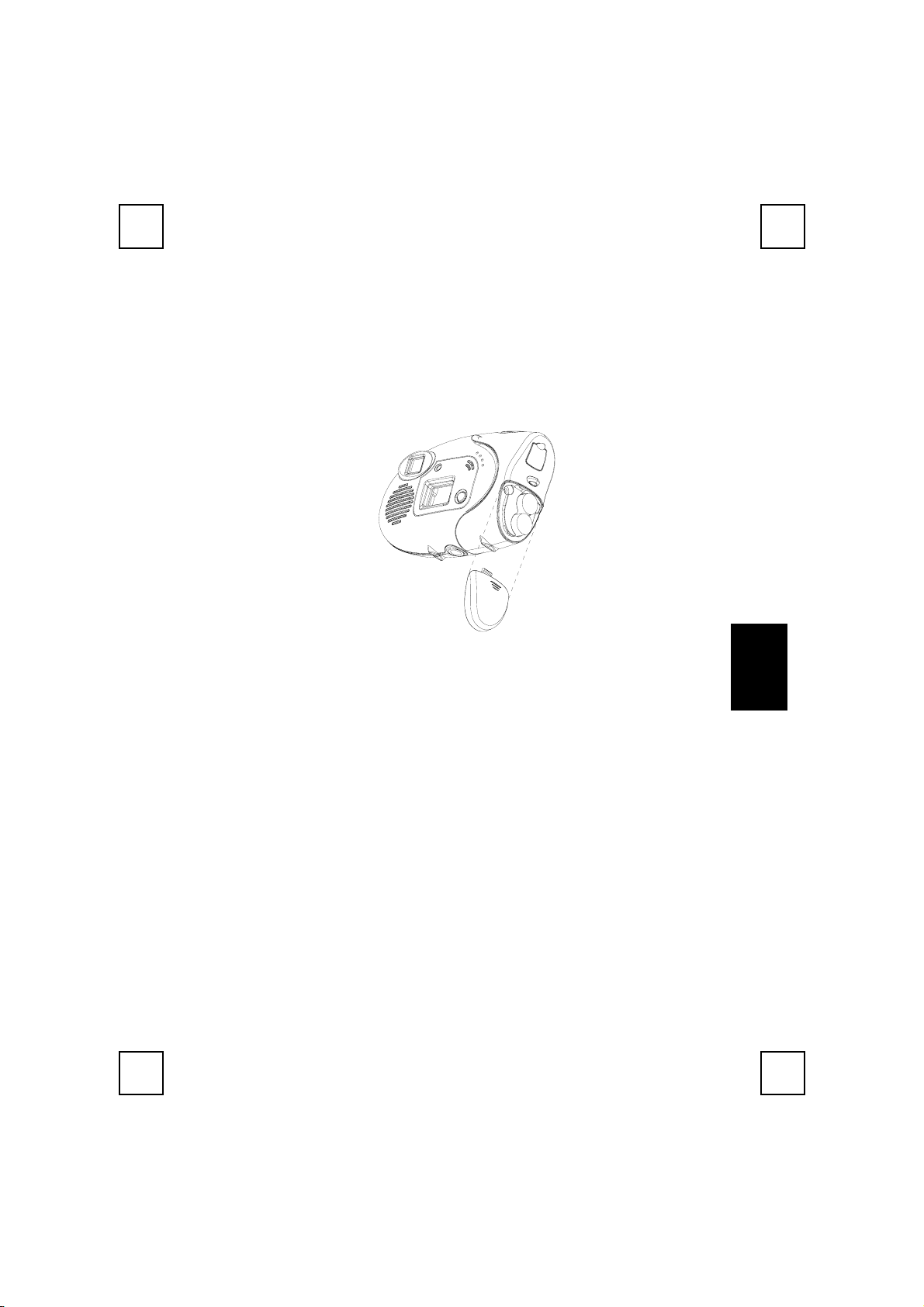

Insert or Change the Battery

Slide the compartment cover open and change the 2 pcs of AAA alkaline
batteries. After inserting the batteries, you can immediately take the great
advantage of the camera.

"

Make sure to power OFF the camera before you change the batteries.

Connect to PC

If you want the digital camera works as a PC camera, you just simply have to use
the USB connection cable that enclosed in the package to connect the camera to
you PC.

En

lish

Camera Buttons

Mode Button

Snapshot Press Snapshot button once to take one image.

Press on the mode button to switch through High resolution
or Low resolution mode.

How to Take Pictures

Change modes

Take snapshots

Press on the mode button to cycle through High resolution
or Low resolution mode.

Press Snapshot button once to take a shot. Press and hold
Snapshot button to take video stream movie shots.

5

Camera Display Panel

Here is the list of all the icons that appear on the Camera Display Panel and
functions.

26 Image number for VGA.
OF Power on or power off status.
FA/Fo Flash strobe ON/ OFF.

Voice recording for the image when you take a picture in this mode.

AA

Ar Voice recording. The function works as a tape recorder.
Ap Audio play. After taking a voice recording, you can play it in this mode.

Ct

AI

St Self-shot.
Dp Delete the last image.
Da Delete the last audio you took.
Dc Delete the last video (AVI file) you took.
CA Delete all pictures in the camera memory.

Lr/Hr

CP/nP Compression mode and non-compression mode.
F5/F6 50Hz and 60Hz

Lo

Open the file you took by using the software enclosed, you can also
hear the voice description.

Continuous shot. You can take a series pictures on VGA mode by
pressing on the snapshot button.

Video recording, AVI file. You can use this function to take a video by
holding the snapshot button.

Low resolution or high resolution, QVGA and VGA.
For Low resolution mode, you can take pictures for 105 images. (max.)
For High resolution, you can take 26 images.

Battery Low. Please download your pictures in memory first and then
change the batteries as soon as possible.

Note: The best distance for voice recording is within 10 cm.

6

ç

Fran

ais

PCD 3500/ PCD 3510

Guide d'Utilisation Rapide

de votre appareil photo numérique

Version 1.1

(Français)

7

y

p

Félicitations pour votre achat de ce nouvel appareil photo numérique & caméra
PC (Optionnel). Cet appareil photo est un appareil photo numérique au format de
poche et caméra PC USB tout-en-un. Vous pouvez prendre des images
numériques immédiatement. Vous pouvez également connecter votre appareil
photo à un ordinateur et l'utiliser comme une caméra PC de visioconférence ou
capturer des clips vidéo.

Faire connaissance avec votre appareil photo­PCD 3500

Snapshot button

Batter

compartment

USB connection

Strap holder

Flash light indicator

Viewfinder

Speaker

Flash light

Display panel

Stand Rece

Viewfinder

Lens

Microphone

Mode button

tacle

Timer light

8
