BTC BDV 316E User Manual
16X DVD-ROM DRIVE
316E
User’s Manual
C L AS S 1 L AS E R P R O D U C T
AP P AR E I L A L AS E R D E C L AS S E 1
L AS E R K L AS S E 1
L U O K AN 1 L AS E R L AI TE
P R O D U I T L AS E R
C AT E G O R I E 1
DANGER INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM VORSICHT INSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM
STRAHL AUSSETSEN
ATTENTION RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D’OUVERTURE. EVITER TOUTE EXPOSITION AUX RAYONS.
Copyright Statement
It is a criminal offence, under applicable copyright laws, to make unauthorised copies of copyright-protected material, including computer programs, films, broadcasts and sound recordings. This equipment should not be used for such purposes.
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.This device may not cause harmful interference, and
2.This device must accept any interference received, including interference that may cause undesired operation.
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the receiver
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
•Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FOR EUROPE
“The drive is in conformity with the EMC directive and low-voltage directive.”
Table of Contents
INTRODUCTION |
1 |
SYSTEM REQUIREMENTS |
2 |
PACKAGE CONTENTS |
2 |
INSTALLATION |
3 |

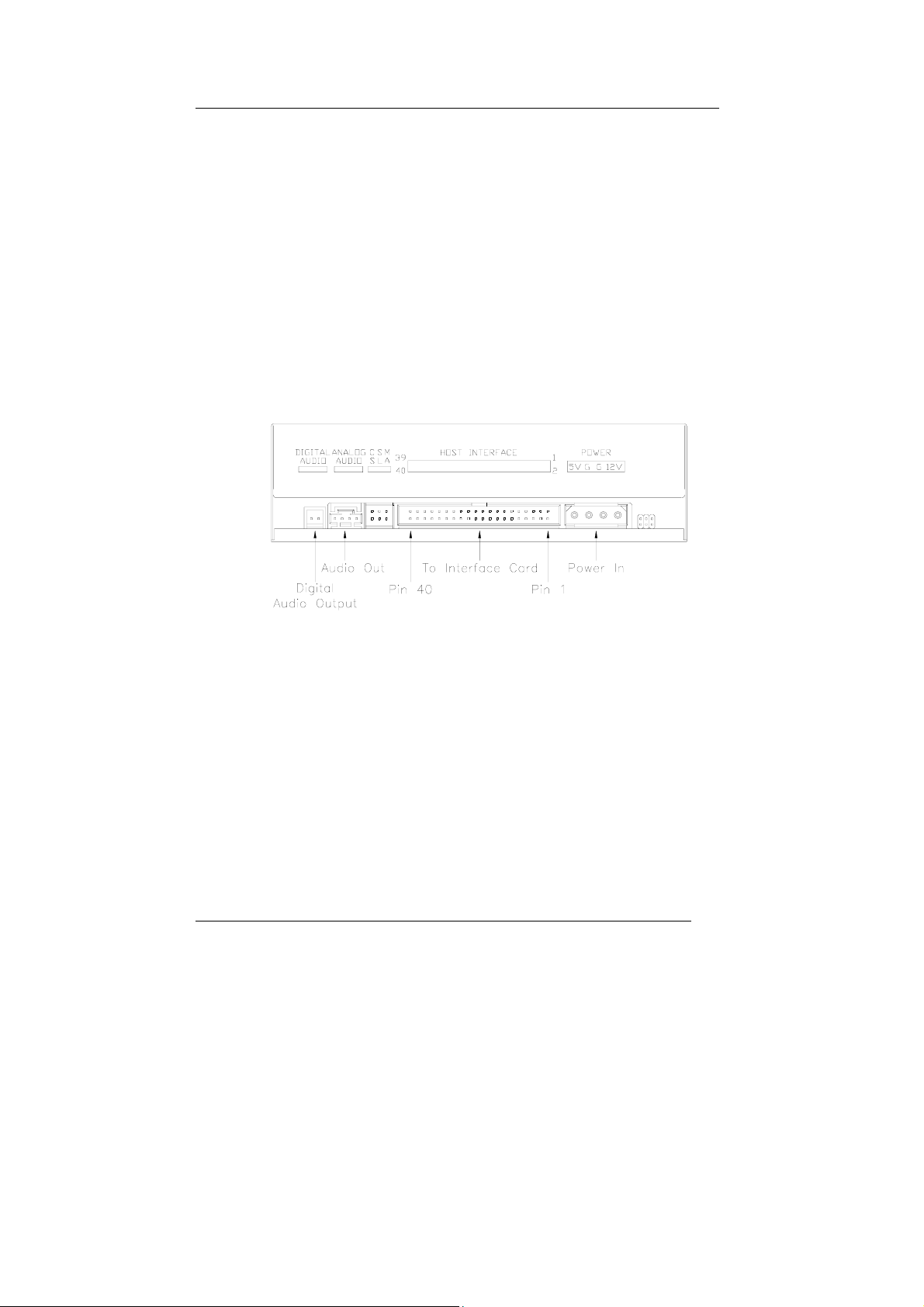

HOST INTERFACE CONNECTIONS |
3 |
HARDWARE INSTALLATION |
4 |
DRIVER INSTALLATION |
5 |
For Windows Environment |
5 |
SOFTWARE INSTALLATION |
5 |
DVD REGION CODING |
6 |
Region Playback Control Management |
6 |
Region Codes |
6 |
DVD Video Decoder for PC Systems |
7 |
About This DVD-ROM Drive |
7 |
OPERATION & CONNECTION |
8 |
FRONT PANEL |
8 |

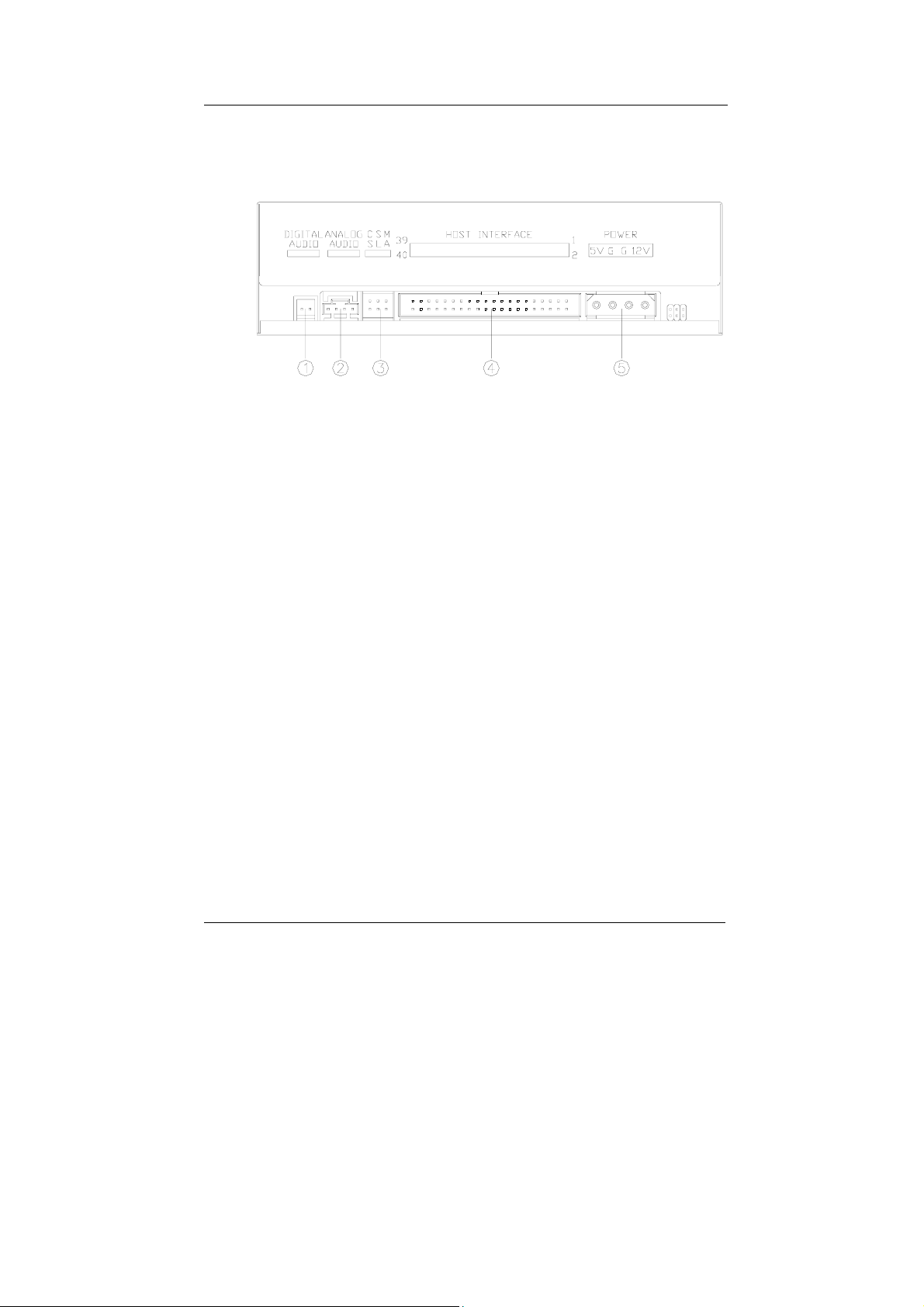

REAR VIEW |
9 |
TECHNICAL DATA |
10 |
16X DVD-ROM DRIVE
INTRODUCTION
Welcome to a multimedia world of DVD technology! This high-performance DVD-ROM drive of ATAPI interface plays DVD titles at maximum 16X DVD-ROM speed and plays CD-ROMs at maximum 48X speed. With the bundled software, you can enjoy the wide range of educational and entertaining CD/DVD titles with theater quality.
DVD stands for Digital Versatile Disc which has high-density capacity of storing 4.7 gigabytes of data on single side and up to 17GB on double side and dual layer. Other than that, a DVD is MPEG-2 compressed video compatible and has Dolby Digital Surround Sound audio (known as AC-3) capabilities. That is, the combination of DVD titles, your stereo setup and this DVD-ROM drive package will bring you fascinating sound and visual effect.
Here are some important features:
♦5.25" half-height internal drive
♦Quick access time
♦High data transfer rate (CAV* technology)
♦Smooth DVD playback
♦Efficient power saving feature
♦Superior error recovery
♦Excellent compatibility of media formats
♦Horizontal & Vertical operation
♦Good vibration resistance & low noise
*CAV: Constant Angular Velocity
1
