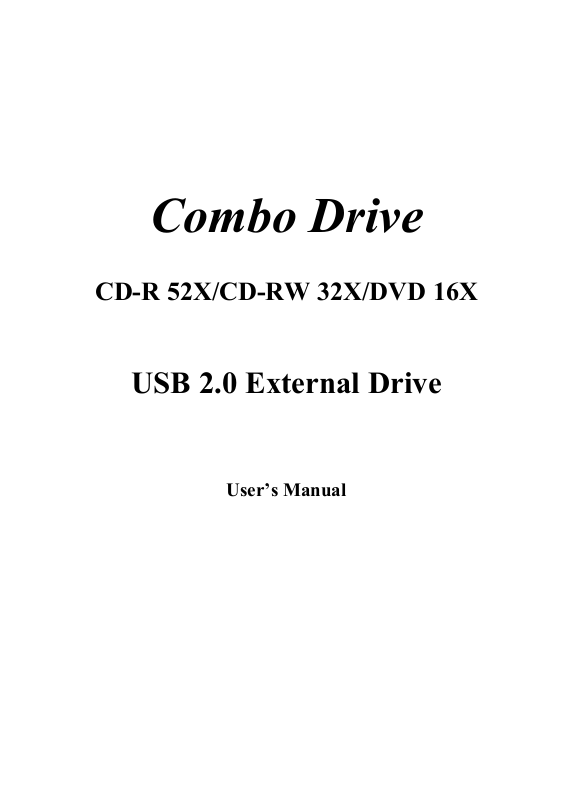

BTC BCO5232UI User Manual

Combo Drive

CD-R 52X/CD-RW 32X/DVD 16X

USB 2.0 External Drive

User’s Manual

CAUTION

CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.

AVOID DIRECT EXPOSURE TO BEAM.

VORSICHT

KLASSE 3B SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN GEOFFNET.

NICHT IN DEN STRAHL SEHEN.

ATTENTION

RADIATION DU FAISCEAU LASER VISIBLES ET INVISIBLES DE CLASSE 3B

EN CAS D'OUVERTURE.

EVITER TOUTE EXPOSITION AUX RAYONS.

It is a criminal offence, under applicable copyright laws, to make

unauthorised copies of copyright-protected material, including computer

programs, films, broadcasts and sound recordings. This equipment should

not be used for such purposes.

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that

may cause undesired operation.

CLASS 1 LASER PRODUCT

APPAREIL A LASER DE CLASSE 1

LASER KLASSE 1

LUOKAN 1 LASERLAITE

PRODUIT LASER

CATEGORIE 1

FCC Warning Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

FOR EUROPE

“The drive is in conformity with the EMC directive and low-voltage

directive.”

Table of Contents

INTRODUCTION 1

FEATURES 1

ABOUT USB 2

SYSTEM REQUIREMENTS 2

PACKAGE CONTENTS 3

INSTALLATION 4

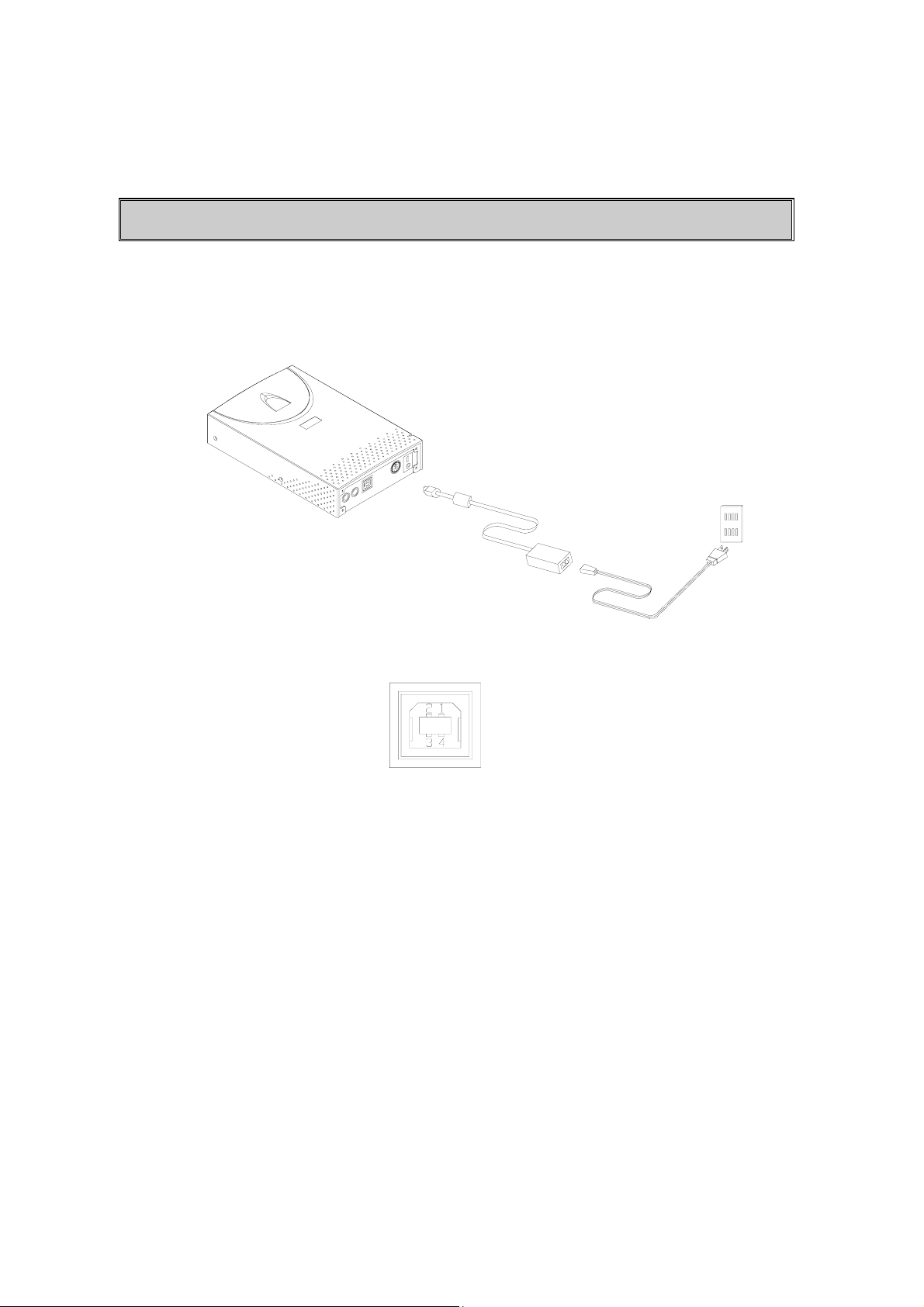

HARDWARE INSTALLATION 4

DRIVER INSTALLATION 5

SOFTWARE DESCRIPTION 5

DVD REGION CODING 6

OPERATION & CONNECTION 8

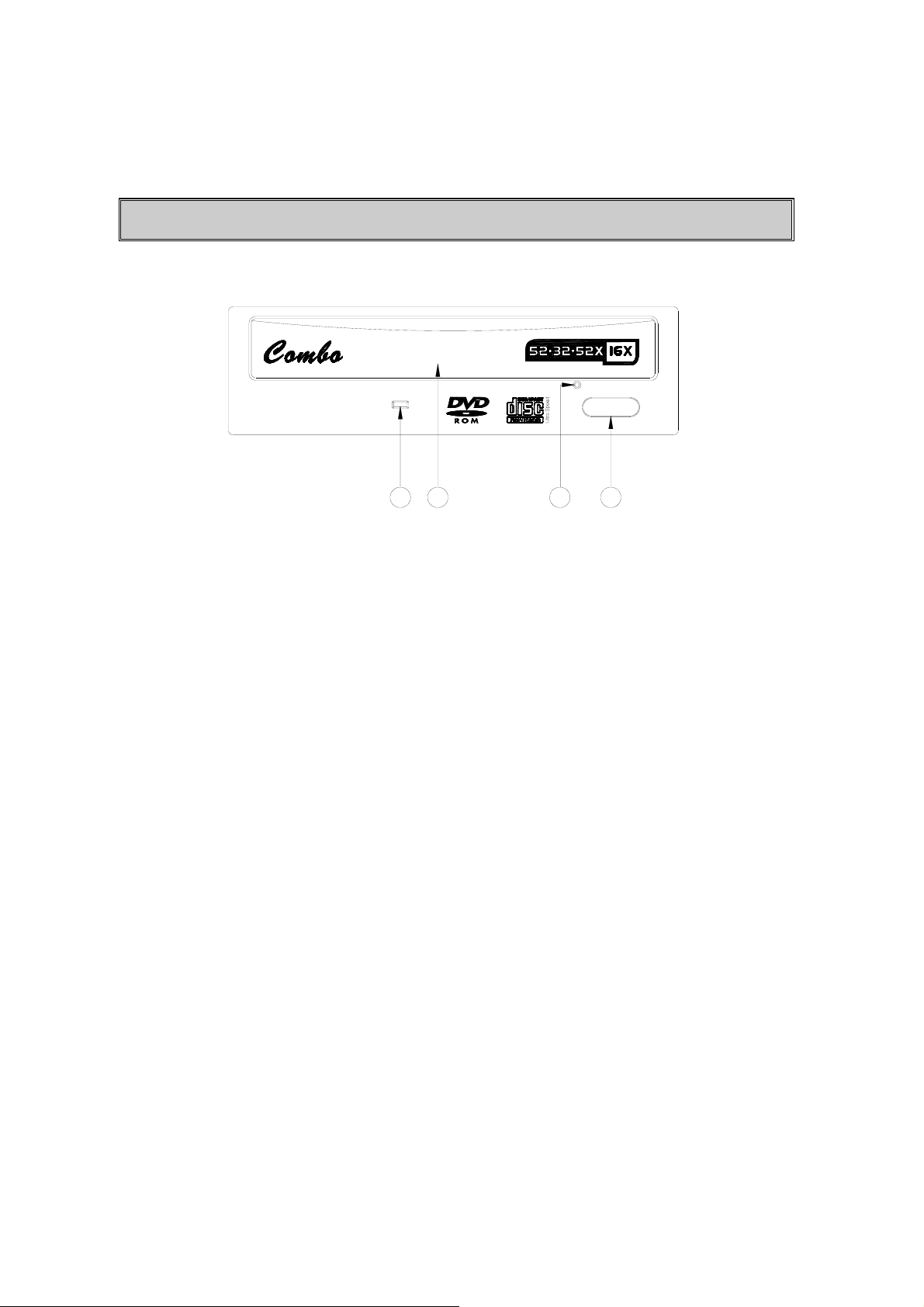

FRONT PANEL 8

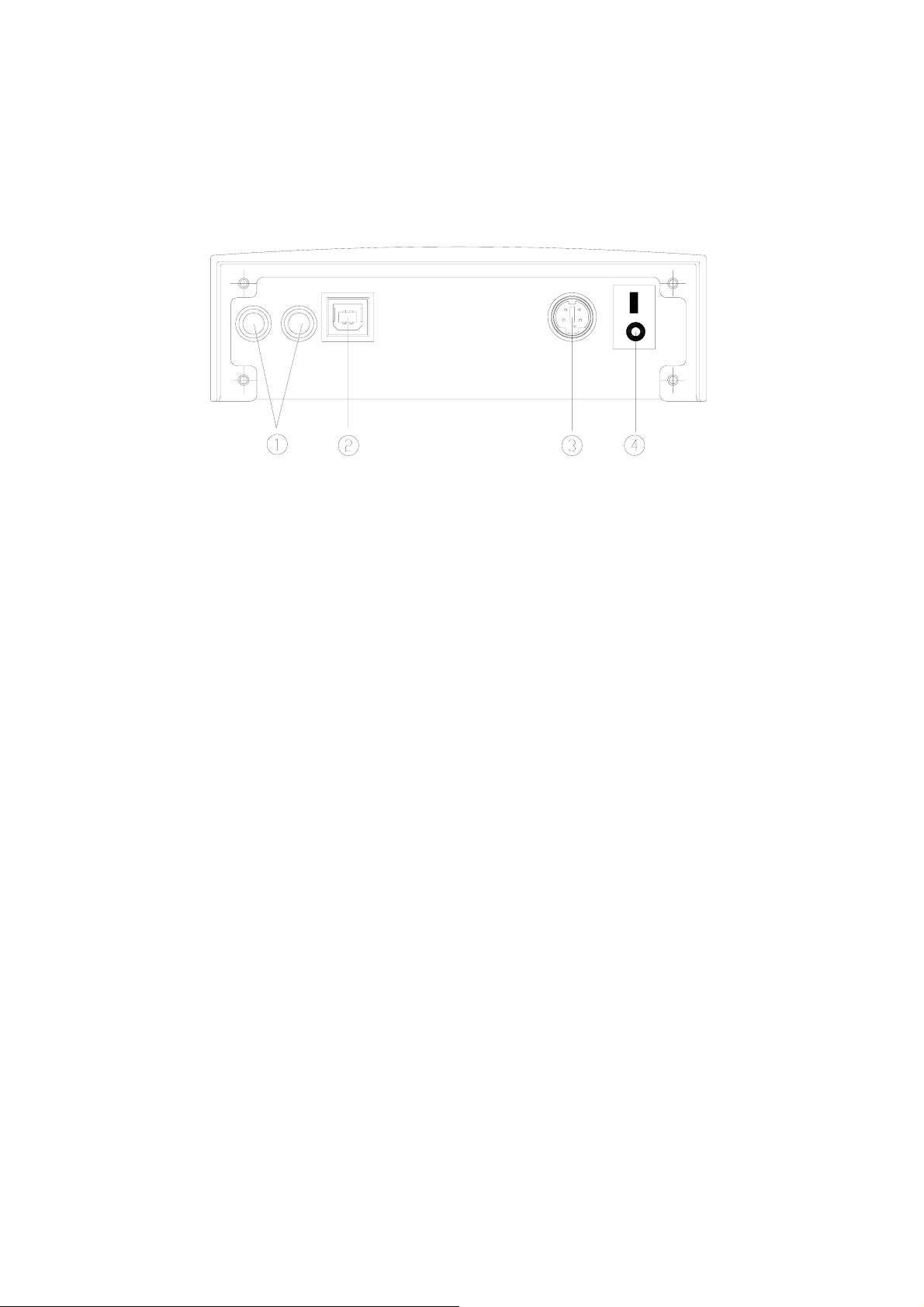

REAR VIEW 9

TECHNICAL DATA 10

TROUBLESHOOTING 12

INTRODUCTION

Features

Welcome to a multimedia world of CD-ReWritable technology and DVD-

ROM capabilities. This high-performance combo drive combines CD-RW

and DVD-ROM in one single drive which frees up precious bay space and

presents you abundant function. It reads CDs of all types at maximum 52X

speed, and DVD-ROMs at 16X speed maximum. For the writing ability, it

writes to CD-Rs at up to 52X speed, and to CD-RWs at up to 32X speed.

With the bundled software, you can enjoy the fun of creating customized

audio and data CDs and the fascinating DVD entertainment of high

resolution.

Here are some important features of this Combo Drive:

♦ USB 2.0 interface, easy to connect to USB 2.0 port in PC.

♦ 8X, 16X, 24X, 32X, 40X, 48X and 52X writing speed on CD-R media

♦ 4X, 10X, 12X, 16X, 24X and 32X writing speed on CD-RW media

♦ Adopts Buffer Underrun Prevention technology (MTKSuperLink)

♦ Supports writing modes of TAO, DAO, SAO and packet writing

♦ Large internal buffer: 2MB

♦ Supports MultiRead function

♦ Serves as RPC-2 DVD-ROM Drive

♦ Smooth DVD playback

♦ Low power consumption

About USB

USB (Universal Serial Bus), a means of attaching devices to your computer,

is basically a standardized intelligent serial connection which provides an

expandable, hot-pluggable*

interface. Devices suitable for USB range from

simple items like mice and keyboards to more complicated devices like

printers, MP3 players, and storage devices. One other benefit of USB is

plug and play. That is, when you plug the USB device in, it is automatically

detected, drivers installed and then ready for operation.

USB 2.0 supports data transfer at up to 480Mbps for high-speed devices. It

is backward compatible with USB1.1*

software and peripherals. If your

computer doesn’t have a built-in USB 2.0 port, you need to install a USB

2.0 PCI host card in your pc for the drive to run at USB 2.O speed.

Otherwise, this drive will run at standard USB speed.

You can connect and disconnect devices while the computer is running.

USB 1.1 can transfer data at rates up to 12Mb/s.

System Requirements

For IBM compatible PCs, the system requirements recommended are as

follows:

♦ Pentium II, Celeron 400MHz or above with at least 64MB of memory

♦ Sufficient hard disk space (minimum 200MB for installation, 1GB or

more is recommended.)

♦ Operating system: Microsoft Windows 98SE/ME/2000/XP

♦ USB 2.0 PCI host card (If there’s no USB 2.0 built-in port on board.)

) We recommend that you use motherboards with built-in USB 2.0 connectors. If

USB 2.0 host card is used, the reading speed of DVD might be influenced.
