BTC BCO 5216IM User Manual

Combo Drive

CD-R 52X/CD-RW 24X/DVD 16X

User’s Manual

CLASS 1 LASER PRODUCT

APPAREIL A LASER DE CLASSE 1

LASER KLASSE 1

LUOKAN 1 LASERLAITE

PRODUIT LASER

CATEGORIE 1

DANGER INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT

EXPOSURE TO BEAM

VORSICHT INSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET

NICHT DEM STRAHL AUSSETSEN

ATTENTION RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D’OUVERTURE.

EVITER TOUTE EXPOSITION AUX RAYONS.

Copyright Statement

It is a criminal offence, under applicable copyright laws, to make
unauthorised copies of copyright-protected material, including computer
programs, films, broadcasts and sound recordings. This equipment should
not be used for such purposes.

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may
cause undesired operation.

FCC Warning Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

FOR EUROPE

“The drive is in conformity with the EMC directive and low-voltage directive.”

Table of Contents

INTRODUCTION 1

FEATURES 1
SYSTEM REQUIREMENTS 2
PACKAGE CONTENTS 2

INSTALLATION 3

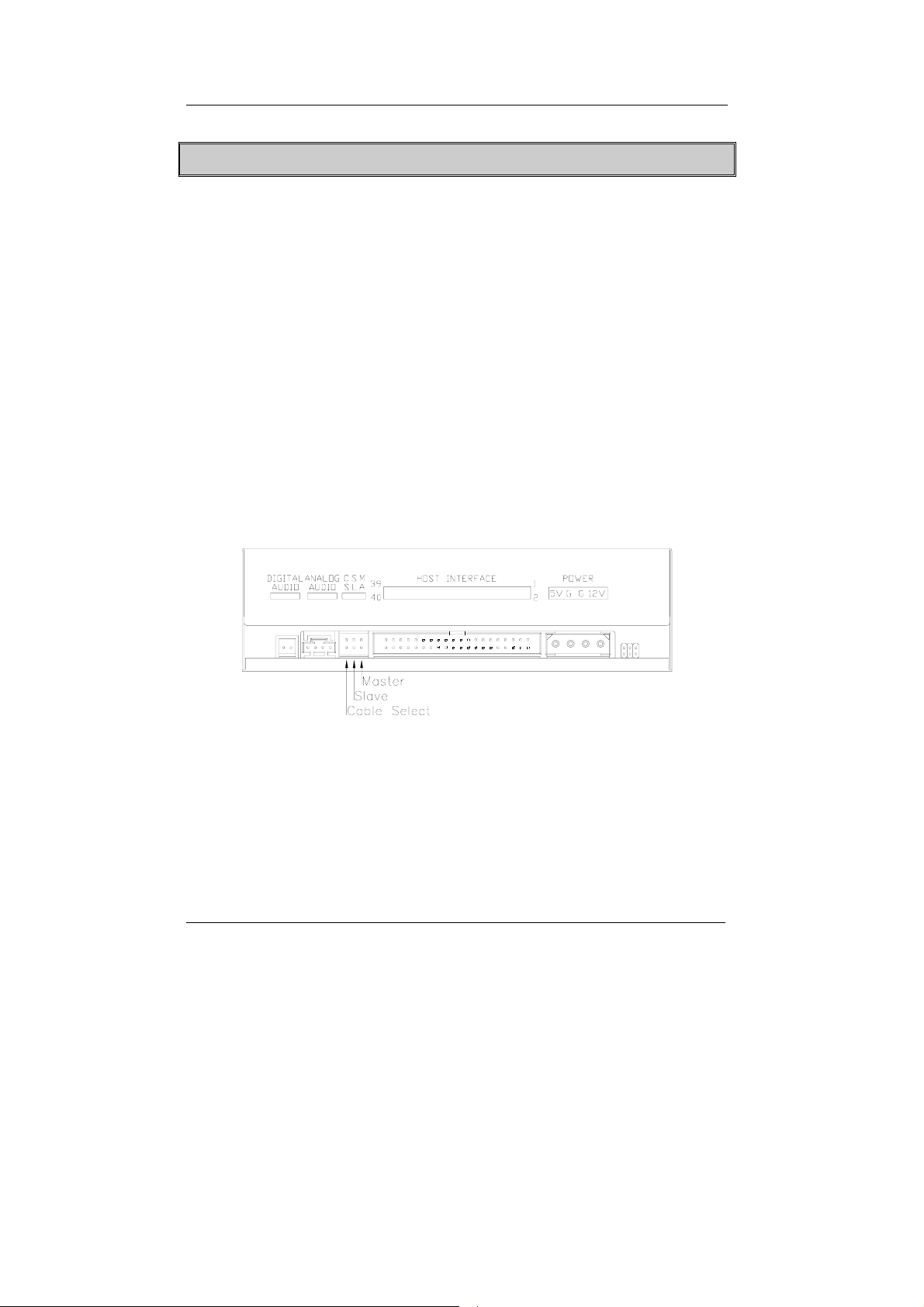

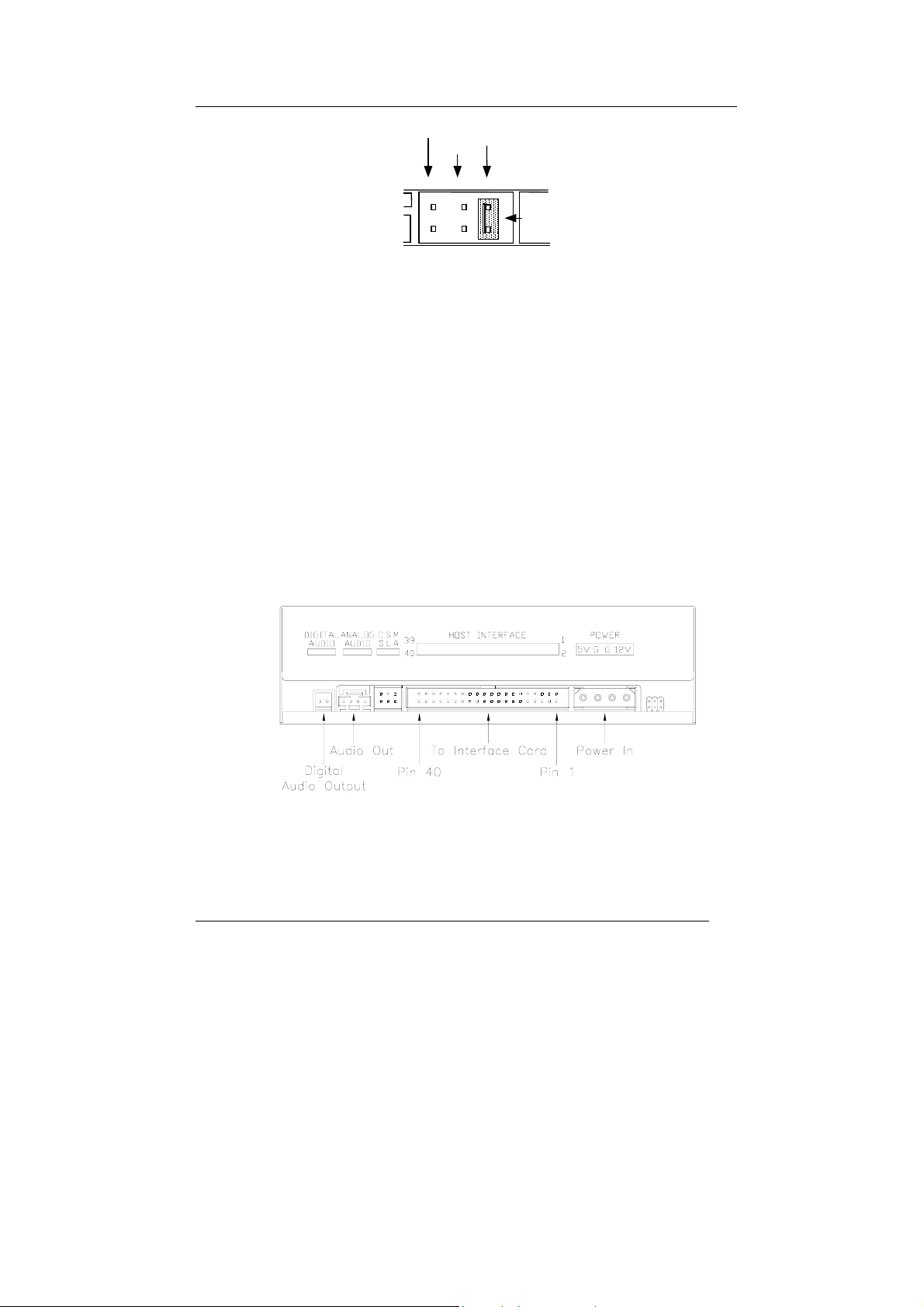

HOST INTERFACE CONNECTIONS 3

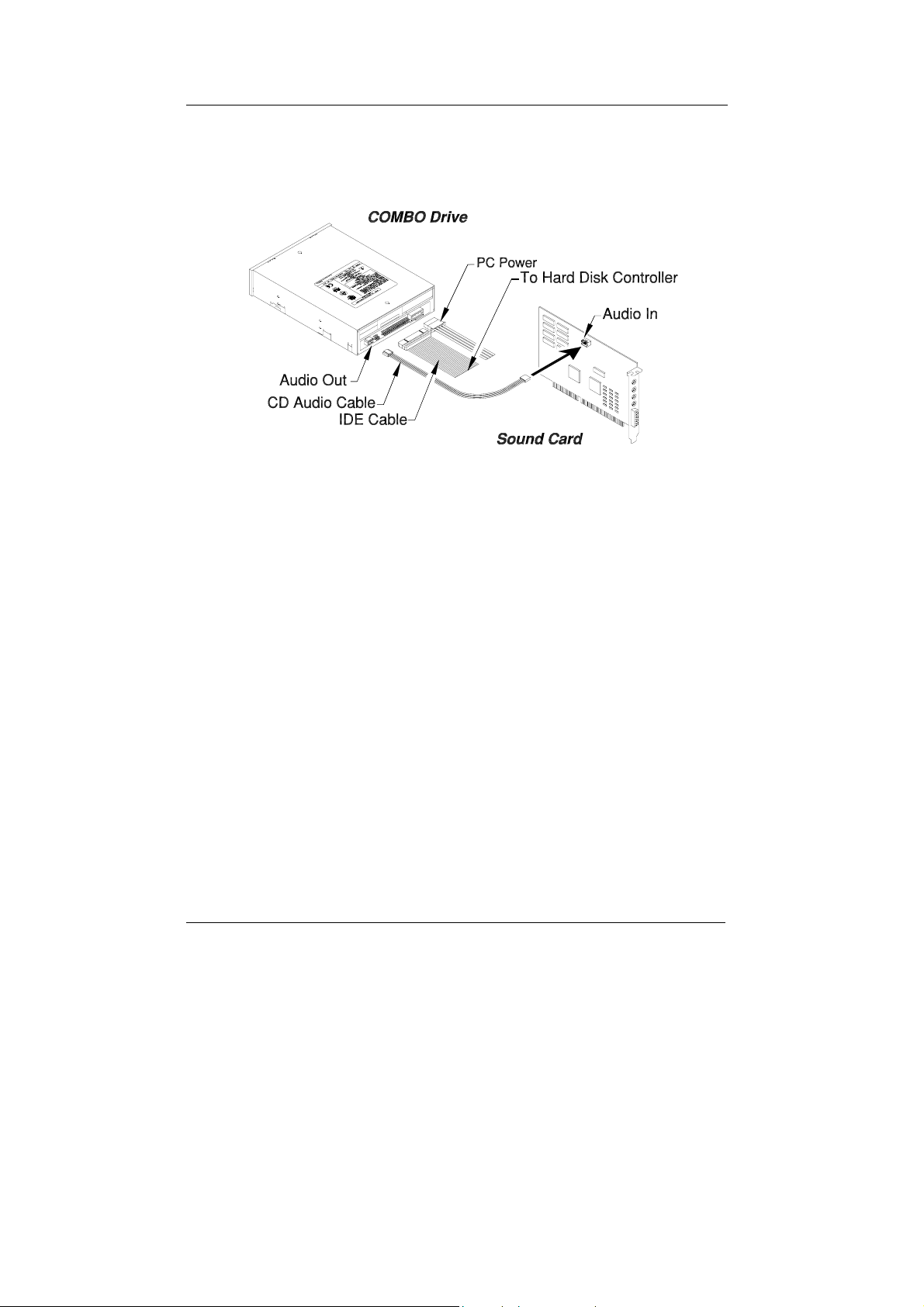

HARDWARE INSTALLATION 4
DRIVER INSTALLATION 5
FOR WINDOWS ENVIRONMENT 5
SOFTWARE DESCRIPTION 6
DVD REGION CODING 6

OPERATION & CONNECTION 8

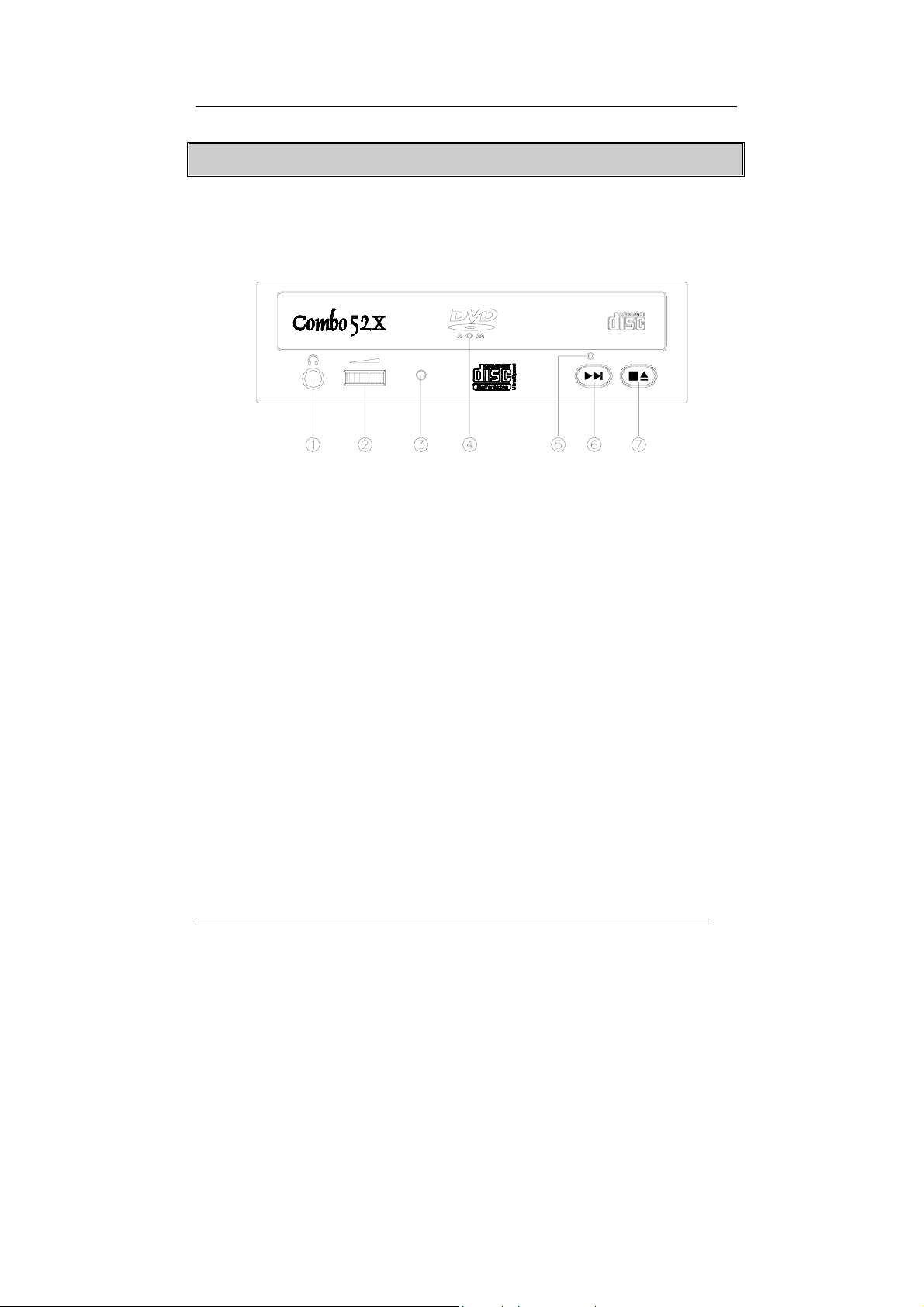

FRONT PANEL 8

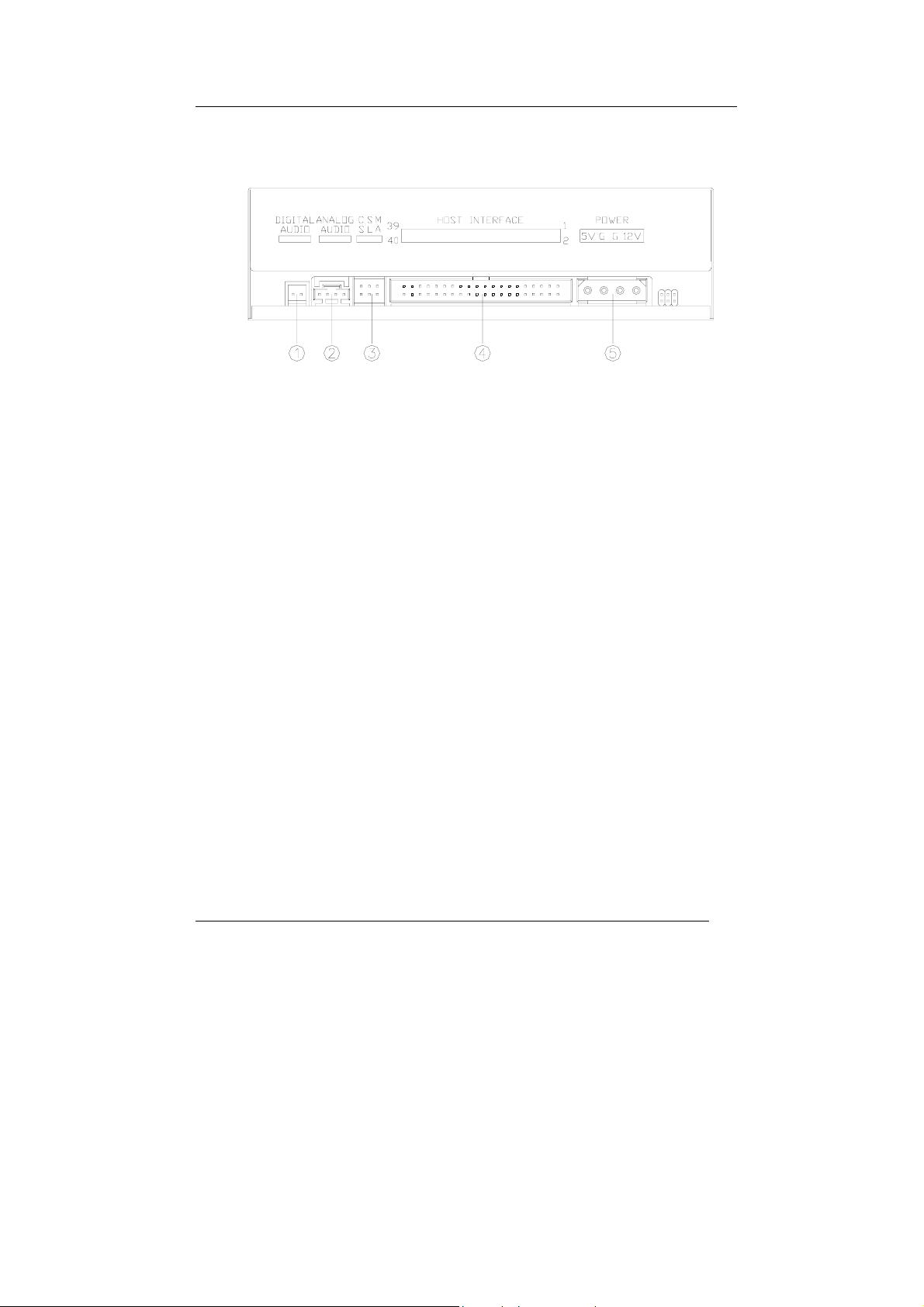

REAR VIEW 10

TECHNICAL DATA 11

TROUBLESHOOTING 13

COMBO DRIVE

INTRODUCTION

Features

Welcome to a multimedia world of CD-ReWritable technology and DVD-ROM
capabilities. This high-performance combo drive combines CD-RW and DVD­ROM in one single drive which frees up precious bay space and presents you
abundant function. It reads CDs of all types at maximum 52X speed, and
DVD-ROMs at 16X speed maximum. For the writing ability, it writes to CD-Rs
at up to 52X speed, and to CD-RWs at up to 24X speed.
software, you can enjoy the fun of creating customized audio and data CDs
and the fascinating DVD entertainment of high resolution.

Here are some important features of this Combo Drive:

♦ EIDE/ATAPI Interface for easy installation

♦ 8X, 16X, 24X, 32X, 40X, 48X and 52X writing speed on CD-R

media

. With the bundled

♦ 4X, 10X, 12X, 16X and 24X writing speed on CD-RW media

♦ Adopts Buffer Underrun Prevention technology (MTKSuperLink)

♦ Supports writing modes of TAO, DAO, SAO and packet writing

♦ Large internal buffer: 2MB

♦ Supports MultiRead function

♦ Serves as RPC-2 DVD-ROM Drive

♦ Smooth DVD playback

♦ Low power consumption

1

COMBO DRIVE

System Requirements

For IBM compatible PCs, the system requirements recommended are
as follows:

♦ PC sufficient to run Windows 98/Me/2000/XP

♦ Pentium II, Celeron 400MHz & above with at least 64MB of

memory

♦ Fast and sufficient hard disk space (minimum 200MB for

installation, 1GB or more is recommended.)

♦ IDE host interface supporting ATAPI MMC command

♦ Microsoft Windows 98/Me/2000/XP

Package Contents

The package contains the following items:

♦ Combo drive

♦ Audio cable

♦ Application software disc

♦ A bag of screws

2
