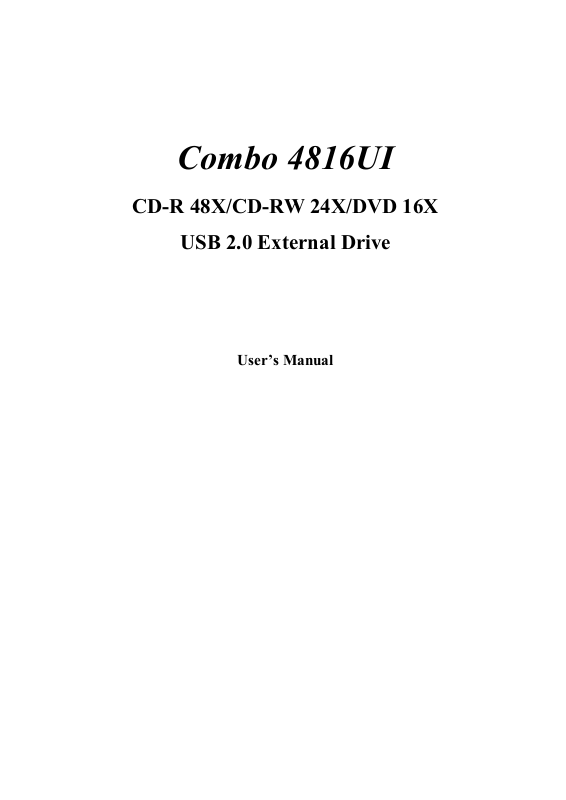

BTC BCO4816UI User Manual

Combo 4816UI

CD-R 48X/CD-RW 24X/DVD 16X

USB 2.0 External Drive

User’s Manual

CLASS 1 LASER PRODUCT

APPAREIL A LASER DE CLASSE 1

LASER KLASSE 1

LUOKAN 1 LASERLAITE

PRODUIT LASER

CATEGORIE 1

DANGER INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT

EXPOSURE TO BEAM

VORSICHT INSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET

NICHT DEM STRAHL AUSSETSEN

ATTENTION RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D’OUVERTURE.

EVITER TOUTE EXPOSITION AUX RAYONS.

Copyright Statement

It is a criminal offence, under applicable copyright laws, to make
unauthorised copies of copyright-protected material, including computer
programs, films, broadcasts and sound recordings. This equipment should
not be used for such purposes.

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may
cause undesired operation.

FCC Warning Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

FOR EUROPE

“The drive is in conformity with the EMC directive and low-voltage directive.”

Table of Contents

INTRODUCTION 1

FEATURES 1
ABOUT USB 2
SYSTEM REQUIREMENTS 2
PACKAGE CONTENTS 3

INSTALLATION 4

HARDWARE INSTALLATION 4
DRIVER INSTALLATION 5
SOFTWARE 5
DVD REGION CODING 6

OPERATION & CONNECTION 8

FRONT PANEL 8
REAR VIEW 10

TECHNICAL DATA 11

TROUBLESHOOTING 13

Combo 4816UI, USB 2.0 External Drive

INTRODUCTION

Features

Thank you for the purchase of Combo 4816UI, a high-performance drive of
USB 2.0 interface and welcome to a multimedia world of CD-ReWritable
technology and DVD-ROM capabilities.

Combo 4816UI combines CD-RW and DVD-ROM in one single external drive,
which frees up precious bay space and presents you abundant function with
convenient connection. It reads CDs of all types at maximum 48X speed, and
DVD-ROMs at maximum 16X speed. For the writing ability, it writes to CD-Rs
at up to 48X speed, and to CD-RWs at up to 24X speed. With the bundled
software, you can enjoy the fun of creating customized audio and data CDs
and the fascinating DVD entertainment of high resolution.

Here are some important features of this Combo Drive:

♦ 8X, 16X, 24X, 32X, 40X and 48X writing speed on CD-R media

♦ 4X, 10X, 12X, 16X and 24X writing speed on CD-RW media

♦ Adopts Buffer Underrun Prevention technology -- MTKSuperLink

♦ Supports writing modes of TAO, DAO, SAO and packet writing

♦ Large internal buffer: 2MB

♦ Supports MultiRead function

♦ Serves as RPC-2 DVD-ROM Drive

♦ Smooth DVD playback

♦ USB 2.0 interface, easy to connect USB 2.0 port in PC

1

Combo 4816UI, USB 2.0 External Drive

About USB

USB (Universal Serial Bus), a means of attaching devices to your
computer, is basically a standardized intelligent serial connection which
provides an expandable, hot-pluggable*
USB range from simple items like mice and keyboards to more
complicated devices like printers, MP3 players, and storage devices. One
other benefit of USB is plug and play. That is, when you plug the USB
device in, it is automatically detected, drivers installed and then ready for
operation.

1

interface. Devices suitable for

USB 2.0 supports data transfer at up to 480Mbps for high-speed devices.
It is backward compatible with USB1.1*

2

software and peripherals. If your

computer doesn’t have a built-in USB 2.0 port, you need to install a USB

2.0 PCI host card in your pc for the CD-RW drive to run at USB 2.O speed.
Otherwise, this CD-RW drive will run at standard USB speed.

1

*

You can connect and disconnect devices while the computer is running.

2

USB 1.1 can transfer data at rates up to 12Mb/s.

*

System Requirements

For IBM compatible PCs, the system requirements recommended are as
follows:

♦ Pentium II, Celeron 400MHz & above with at least 64MB of memory

♦ Sufficient hard disk space (minimum 200MB for installation, 1GB or

more is recommended.)

♦ Operating system: Microsoft Windows 98SE/ME/2000/XP

♦ USB 2.0 PCI host card (If there’s no USB 2.0 built-in port on board.)

 We recommend that you use motherboards with built-in USB 2.0

connectors. If USB 2.0 host card is used, the reading speed of
DVD might be influenced.

2
