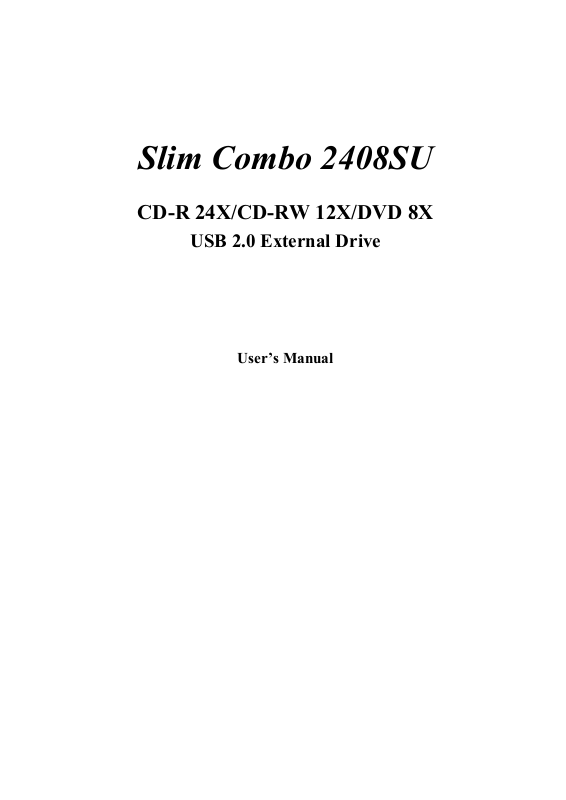

BTC BCO 2408SU User Manual

Slim Combo 2408SU

CD-R 24X/CD-RW 12X/DVD 8X

USB 2.0 External Drive

User’s Manual

C L AS S 1 L AS E R P R O D U C T

AP P AR E I L A L AS E R D E C L AS S E 1

L AS E R K L AS S E 1

L U O K AN 1 L AS E R L AI T E

P R O D U I T L AS E R

C AT E G O R I E 1

DANGER INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM

VORSICHT INSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN

ATTENTION RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D’OUVERTURE. EVITER TOUTE EXPOSITION AUX RAYONS.

Copyright Statement

It is a criminal offence, under applicable copyright laws, to make unauthorised copies of copyright-protected material, including computer programs, films, broadcasts and sound recordings. This equipment should not be used for such purposes.

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1.This device may not cause harmful interference, and

2.This device must accept any interference received, including interference that may cause undesired operation.

FCC Warning Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and the receiver

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

•Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FOR EUROPE

“The drive is in conformity with the EMC directive and low-voltage directive.”

Table of Contents

INTRODUCTION	1
FEATURES	1
ABOUT USB	2
SYSTEM REQUIREMENTS	2
PACKAGE CONTENTS	3

INSTALLATION	4
HARDWARE INSTALLATION	4
DRIVER INSTALLATION	5
SOFTWARE	5
DVD REGION CODING	6

OPERATION & CONNECTION	8
FRONT PANEL	8

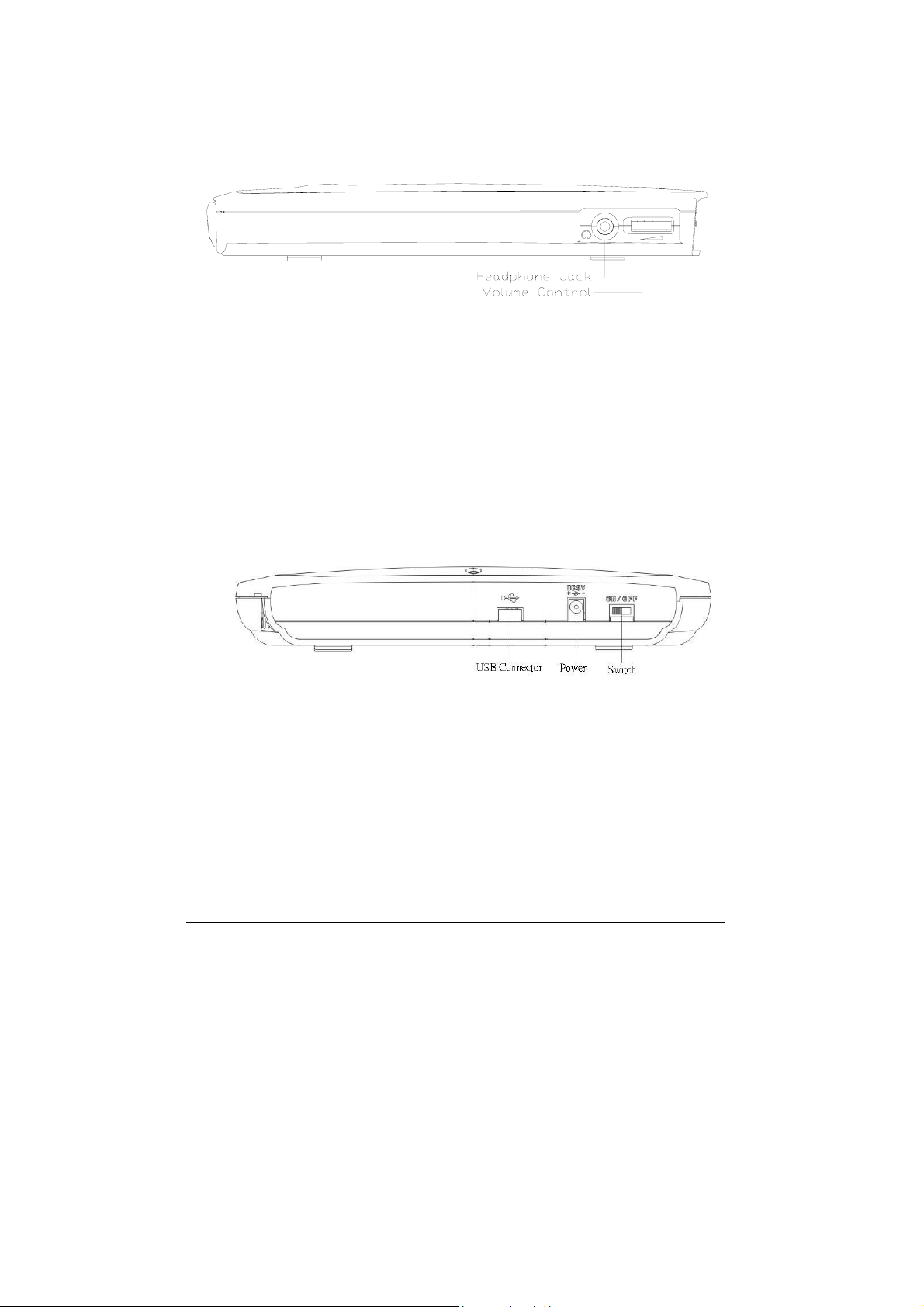

SIDE VIEW	9

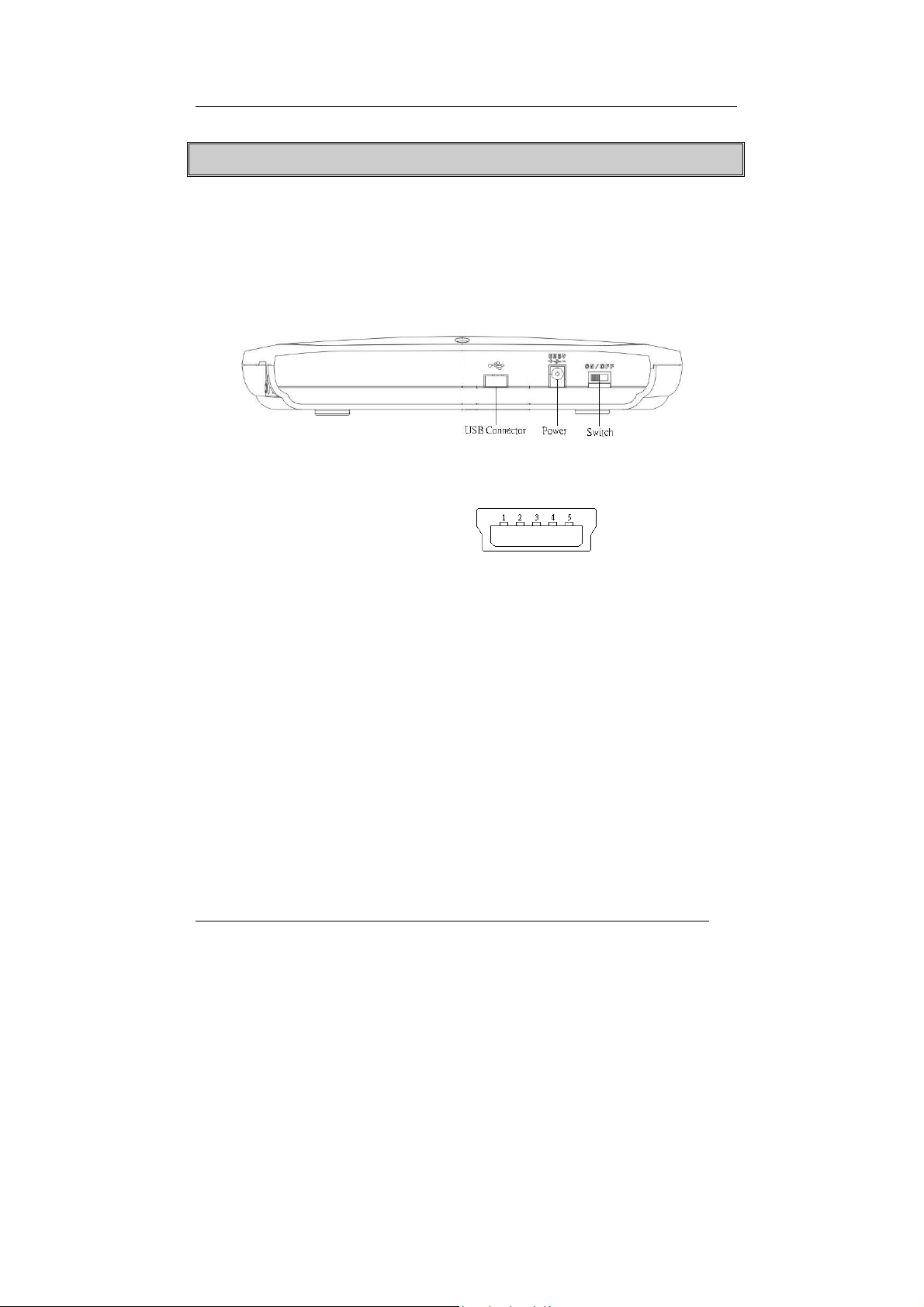

REAR VIEW	9
TECHNICAL DATA	10
TROUBLESHOOTING	12

Combo 2408SU, USB 2.0 External Drive

INTRODUCTION

Features

Thank you for the purchase of Combo 2408SU, a high-performance slim drive of USB 2.0 interface for both notebook and desktop PC.

Combo 2408SU combines CD-RW and DVD-ROM in one single external drive, which frees up precious bay space and presents you abundant function with convenient connection. It reads CDs of all types at maximum 24X speed, and DVD-ROMs at maximum 8X speed. For the writing ability, it writes to CDRs at up to 24X speed, and to CD-RWs at up to 12X speed. With the bundled software, you can enjoy the fun of creating customized audio and data CDs and the fascinating DVD entertainment of high resolution.

Here are some important features of this Combo Drive:

♦Slim type for moving office use

♦8X, 16X and 24X writing speed on CD-R media

♦4X, 8X, 10X, and 12X writing speed on CD-RW media

♦Adopts “MTKSuperLink” to prevent Buffer Underrun

♦Supports writing modes of TAO, DAO, SAO and packet writing

♦Large internal buffer: 2MB

♦Supports MultiRead function

♦Serves as RPC-2 DVD-ROM Drive

♦Smooth DVD playback

♦USB 2.0 interface, easy to connect USB 2.0 port in Notebook or PC

1

Combo 2408SU, USB 2.0 External Drive

About USB

USB (Universal Serial Bus), a means of attaching devices to your computer, is basically a standardized intelligent serial connection which provides an expandable, hot-pluggable*1 interface. Devices suitable for USB range from simple items like mice and keyboards to more complicated devices like printers, MP3 players, and storage devices. One other benefit of USB is plug and play. That is, when you plug the USB device in, it is automatically detected, drivers installed and then ready for operation.

USB 2.0 supports data transfer at up to 480Mbps for high-speed devices. It is backward compatible with USB1.1*2 software and peripherals. If your computer doesn’t have a built-in USB 2.0 port, you need to install a USB 2.0 PCI host card in your pc for the CD-RW drive to run at USB 2.O speed. Otherwise, this CD-RW drive will run at standard USB speed.

*1 You can connect and disconnect devices while the computer is running. *2 USB 1.1 can transfer data at rates up to 12Mb/s.

System Requirements

For IBM compatible PCs, the system requirements recommended are as follows:

♦Pentium II, Celeron 400MHz & above with at least 64MB of memory

♦Sufficient hard disk space (minimum 200MB for installation, 1GB or more is recommended.)

♦Operating system: Microsoft Windows 98SE/ME/2000/XP

♦USB 2.0 PCI host card (If there’s no USB 2.0 built-in port on board in your PC.)

We recommend that you use motherboards with built-in USB 2.0 connectors. If USB 2.0 host card is used, the reading speed of DVD might be influenced.

2
