BTC 9118 User Manual

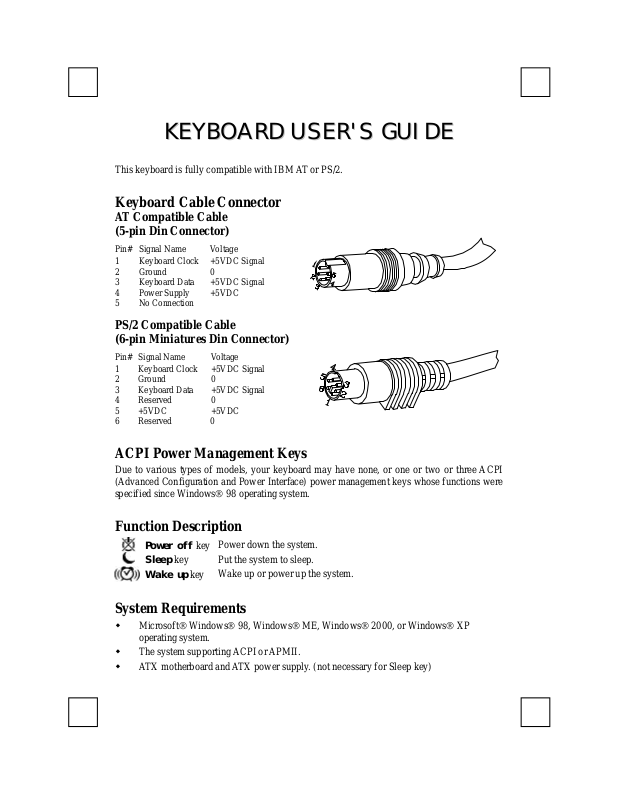

KKEEYYBBOOAARRDD UUSSEERR''SS GGUUIIDDEE

This keyboard is fully compatible with IBM AT or PS/2.

Keyboard Cable Connector

AT Compatible Cable
(5-pin Din Connector)

Pin# Signal Name Voltage
1 Keyboard Clock +5VDC Signal

2 Ground 0
3 Keyboard Data +5VDC Signal
4 Power Supply +5VDC
5 No Connection

PS/2 Compatible Cable
(6-pin Miniatures Din Connector)

Pin# Signal Name Voltage
1 Keyboard Clock +5VDC Signal

2 Ground 0
3 Keyboard Data +5VDC Signal
4 Reserved 0
5 +5VDC +5VDC
6 Reserved 0

ACPI Power Management Keys

Due to various types of models, your keyboard may have none, or one or two or thr ee ACPI
(Advanced Configuration and Power Interface) power management keys whose functions were
specified since Windows 98 operating system.

Function Description

Power off key
Sleep key
Wake up key

Power down the system.
Put the system to sleep.
Wake up or power up the system.

System Requirements

 Microsoft Windows 98, Windows ME, Windows 2000, or Windows XP

operating system.

 The system supporting ACPI or APMII.
 ATX motherboard and ATX power supply. (not necessary for Sleep key)

FCC GUIDELINES

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

 Reorient or relocate the receiving antenna
 Increase the separation between the equipment and receiver
 Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

 Consult the dealer or an experienced radio/TV technician for help.
 Use only shielded cables to connect I/O devices to this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference. (2) This device must accept any
interference received, including interference that may cause undesired operation.

Information to User:

 Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment. Shielded interface
cable, if any, must be used in order to comply with emission limits.

The Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulation.

Cet appareil numerique de la class B respecte toutes les exigences du Règlement sur le materiel
brouilleur du Canada.

IBM AT and PS/2 are registered trademarks of International Business Machines Corporation.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United
States and/or other countries.
All other trademarks are trademarks of their respective holders.

3100504464

Version 1.1

April 2002

Printed in China
