Brother MFC-9460CDN, MFC-9560CDW, MFC-9970CDW Network Guide

Multi-Protocol On-board Ethernet Multi-function Print Server and Wireless Ethernet Multi-function Print Server

NETWORK USER’S GUIDE

This Network User's Guide provides useful information of wired and wireless network settings, security settings and Internet fax settings using your Brother machine. You can also find supported protocol information and detailed troubleshooting tips.

To find basic information about network and advanced network features of your Brother machine, see the Network Glossary.

To download the latest manual, please visit the Brother Solutions Center at (http://solutions.brother.com/) the latest drivers and utilities for your machine, read FAQs and troubleshooting tips or learn about special printing solutions from the Brother Solutions Center.

. You can also download

Version B

ENG

Definitions of notes

IMPORTANT

Note

We use the following icons throughout this User’s Guide:

IMPORTANT may result in damage to property or loss of product functionality.

Notes tell you how you should respond to a situation that may arise or give tips about how the operation works with other features.

indicates a potentially hazardous situation which, if not avoided,

IMPORTANT NOTE

 This product is approved for use in the country of purchase only. Do not use this product outside the

country of purchase as it may violate the wireless telecommunication and power regulations of that country.

 Windows

Edition and Windows

 Windows Server

x64 Edition.

 Windows Server

R2.

 Windows Vista

 Windows

XP in this document represents Windows®XP Professional, Windows®XP Professional x64

XP Home Edition.

2003 in this document represents Windows Server® 2003 and Windows Server® 2003

2008 in this document represents Windows Server® 2008 and Windows Server® 2008

in this document represents all editions of Windows Vista®.

7 in this document represents all editions of Windows®7.

 Please go to the Brother Solutions Center at http://solutions.brother.com/

model page to download the other manuals.

 Not all models are available in all countries.

and click Manuals on your

1 Introduction 1

Network features........................................................................................................................................1

Other Network features .......................................................................................................................2

2 Changing your machine’s network settings 4

How to change your machine’s network settings (IP address, Subnet mask and Gateway).....................4

Using the control panel........................................................................................................................4

Using the BRAdmin Light utility ...........................................................................................................4

Other Management Utilities .......................................................................................................................7

Web Based Management (web browser) ............................................................................................7

BRAdmin Professional 3 utility (Windows Web BRAdmin (Windows BRPrint Auditor (Windows

).................................................................................................................8

)................................................................................................................8

3 Configuring your machine for a wireless network

(For MFC-9560CDW and MFC-9970CDW) 9

Overview....................................................................................................................................................9

Step by step chart for wireless network configuration ............................................................................10

For Infrastructure mode.....................................................................................................................10

For Ad-hoc mode...............................................................................................................................11

Confirm your network environment..........................................................................................................12

Connected to a computer with a WLAN access point/router in the network (Infrastructure mode) ...12 Connected to a wireless capable computer without a WLAN access point/router in the network

(Ad-hoc mode)...............................................................................................................................12

Confirm your wireless network setup method..........................................................................................13

Configuration using WPS or AOSS™ from the control panel menu to configure your machine

for a wireless network (Automatic Wireless mode) (Infrastructure mode only)

(Recommended)............................................................................................................................13

Configuration using the machine’s control panel Setup Wizard to configure your machine for a

wireless network ............................................................................................................................13

Configuration using the Brother installer application on the CD-ROM to configure your machine

for a wireless network....................................................................................................................14

Configuration using the PIN Method of Wi-Fi Protected Setup to configure your machine

for a wireless network (Infrastructure mode only)..........................................................................16

Configuring your machine for a wireless network

(For Infrastructure mode and Ad-hoc mode) ........................................................................................17

Using WPS or AOSS™ from the control panel menu to configure your machine

for a wireless network (Automatic Wireless mode)........................................................................17

Using the Setup Wizard from the control panel .................................................................................17

Configuring your machine when the SSID is not broadcast ..............................................................18

Configuring your machine for an enterprise wireless network...........................................................23

Using the Brother installer application on the CD-ROM to configure your machine

for a wireless network....................................................................................................................30

Using the PIN Method of Wi-Fi Protected Setup ...............................................................................31

) ........................................................................................7

4 Wireless configuration using the Brother installer application

(For MFC-9560CDW and MFC-9970CDW) 35

Before configuring the wireless settings..................................................................................................35

Configure the wireless settings................................................................................................................35

5 Control panel setup 40

Network menu..........................................................................................................................................40

TCP/IP...............................................................................................................................................40

Ethernet (wired network only)............................................................................................................43

Status (For DCP-9055CDN, DCP-9270CDN, MFC-9460CDN and MFC-9465CDN)/

Wired Status (For MFC-9560CDW and MFC-9970CDW) .............................................................43

Setup Wizard (wireless network only) ...............................................................................................43

WPS or AOSS™ (wireless network only)..........................................................................................43

WPS w/PIN Code (wireless network only).........................................................................................43

WLAN Status (wireless network only) ...............................................................................................43

MAC Address ....................................................................................................................................44

Set to Default (For MFC-9560CDW and MFC-9970CDW)................................................................44

Wired Enable (For MFC-9560CDW and MFC-9970CDW) ................................................................44

WLAN Enable (For MFC-9560CDW and MFC-9970CDW) ...............................................................44

E-mail / IFAX (MFC-9970CDW and DCP-9270CDN (E-mail only))...................................................44

Fax to Server (For MFC-9970CDW)..................................................................................................48

How to set a new default for Scan to FTP .........................................................................................50

How to set a new default for Scan to Network...................................................................................50

Reset the network settings to the factory default.....................................................................................51

Printing the Network Configuration List ...................................................................................................52

Printing the WLAN report (For MFC-9560CDW and MFC-9970CDW) ....................................................53

Function table and default factory settings ..............................................................................................54

DCP-9055CDN, MFC-9460CDN and MFC-9465CDN ......................................................................54

MFC-9560CDW.................................................................................................................................57

DCP-9270CDN ..................................................................................................................................62

MFC-9970CDW.................................................................................................................................65

6 Web Based Management 71

Overview..................................................................................................................................................71

How to configure the machine settings using Web Based Management (web browser).........................72

Password information ..............................................................................................................................73

Secure Function Lock 2.0 ........................................................................................................................74

How to configure the Secure Function Lock 2.0 settings using Web Based Management

(web browser)................................................................................................................................75

Synchronize with SNTP server................................................................................................................77

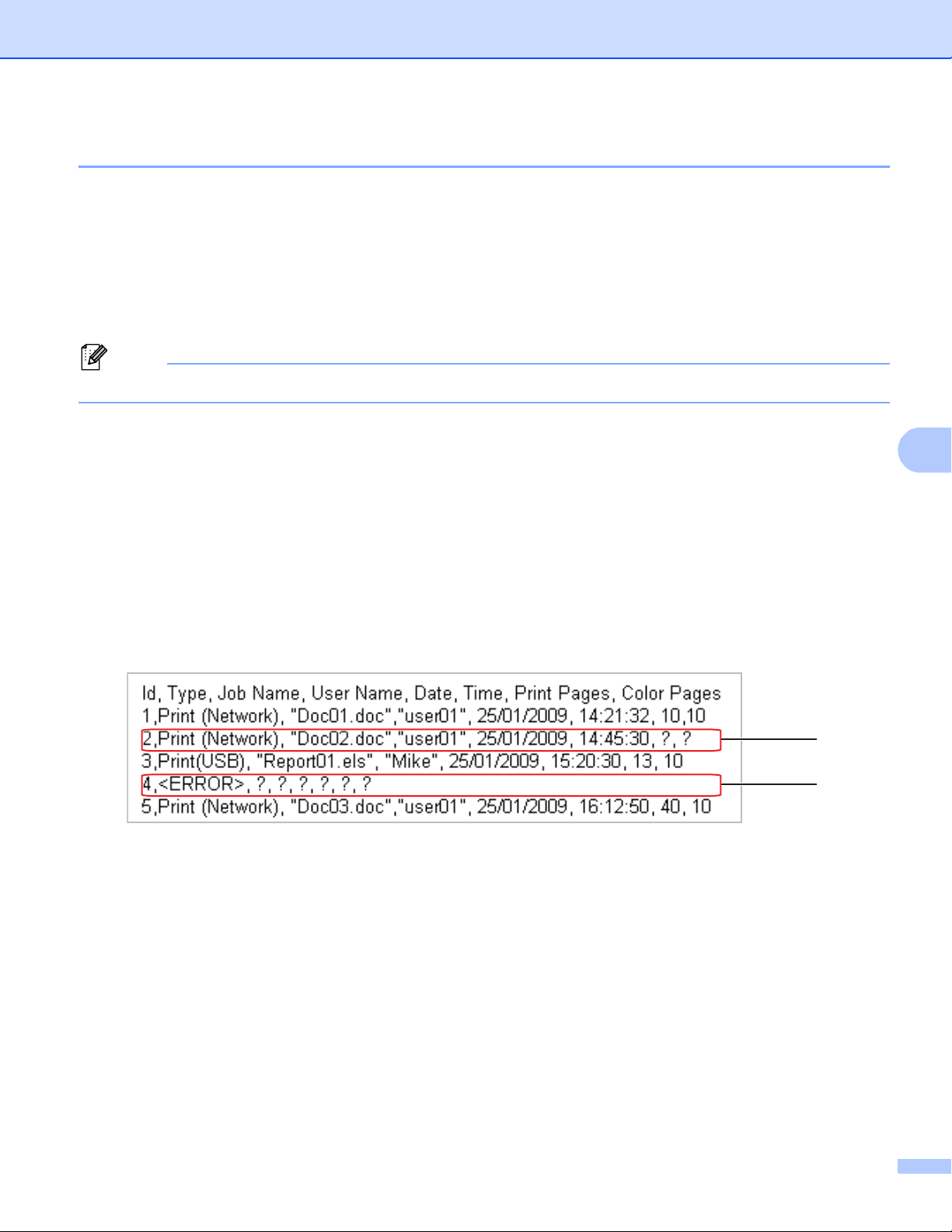

Store Print Log to Network.......................................................................................................................79

How to configure the Store Print Log to Network settings using Web Based Management

(web browser)................................................................................................................................79

Error Detection Setting ......................................................................................................................81

Understanding Error Messages.........................................................................................................82

Using Store Print Log to Network with Secure Function Lock 2.0.....................................................83

Changing the Scan to FTP configuration using a web browser...............................................................83

Changing the Scan to Network configuration using a web browser ........................................................85

Changing the LDAP configuration using a web browser (For DCP-9270CDN and MFC-9970CDW) .....86

iii

7 LDAP operation

(For DCP-9270CDN and MFC-9970CDW) 87

Overview..................................................................................................................................................87

Changing the LDAP configuration using a Browser ..........................................................................87

LDAP operation using the control panel ............................................................................................87

8 Internet fax (For MFC-9970CDW) 89

Internet fax Overview...............................................................................................................................89

Important information on Internet fax.................................................................................................90

How to Internet fax...................................................................................................................................91

Sending an Internet fax .....................................................................................................................91

Receiving E-mail or Internet fax ........................................................................................................92

Additional Internet Fax options ................................................................................................................94

Forwarding received E-mail and fax messages.................................................................................94

Relay broadcasting............................................................................................................................94

TX Verification Mail............................................................................................................................96

Error mail...........................................................................................................................................97

9 Security features 98

Overview..................................................................................................................................................98

Managing your network machine securely using SSL/TLS .....................................................................99

Secure Management using Web Based Management (web browser) ..............................................99

Printing documents securely using SSL/TLS.........................................................................................101

Sending or Receiving an E-mail securely ..............................................................................................102

Configuration using Web Based Management (web browser) ........................................................102

Sending an E-mail with user authentication ....................................................................................102

Sending or Receiving an E-mail securely using SSL/TLS...............................................................103

Using IEEE 802.1x authentication .........................................................................................................104

IEEE 802.1x authentication configuration using Web Based Management (web browser).............104

Secure Management using BRAdmin Professional 3 (Windows

To use the BRAdmin Professional 3 utility securely, you need to follow the points below ..............106

Using Certificates for device security.....................................................................................................107

Configure certificate using Web Based Management .....................................................................108

Creating and installing a certificate..................................................................................................109

Import and export the certificate and private key.............................................................................115

Managing multiple certificates ...............................................................................................................116

Import and export a CA certificate ...................................................................................................117

)........................................................106

10 Troubleshooting 118

Overview................................................................................................................................................118

Identifying your problem ..................................................................................................................118

A Appendix A 125

Supported protocols and security features ............................................................................................125

BIndex 126

Note

Introduction 1

Network features 1

Your Brother machine can be shared on a 10/100 MB wired or IEEE 802.11b/g wireless Ethernet network using the internal network print server. The print server supports various functions and methods of connection depending on the operating system you are running on a network supporting TCP/IP. The following chart shows what network features and connections are supported by each operating system.

Although the Brother machine can be used in both a wired and wireless network, only one connection method can be used at a time.

Operating Systems

Printing rrr

Scanning

See Software User's Guide.

PC Fax Send

See Software User's Guide.

PC Fax Receive

See Software User's Guide.

BRAdmin Light

See page 4.

BRAdmin Professional 3

See page 7.

Web BRAdmin

See page 8.

Web Based Management (web browser)

See page 71.

Remote Setup

See Software User's Guide.

Status Monitor

See Software User's Guide.

Driver Deployment Wizard rr

Windows® 2000/XP

Windows Vista

Windows®7

rrr

Windows Server® 2003/2008

Mac OS X 10.4.11 -

10.6.x

Introduction

Operating Systems

Vertical Pairing

See Network Glossary.

Not available for DCP models.

BRAdmin Professional 3 and Web BRAdmin are available as a download from http://solutions.brother.com/.

Windows®7 only.

Windows® 2000/XP

Windows Vista

Windows®7

Windows Server® 2003/2008

Mac OS X 10.4.11 -

10.6.x

Other Network features 1

LDAP 1

The LDAP protocol allows you to search for information such as fax numbers and E-mail addresses from your server. (See LDAP operation (For DCP-9270CDN and MFC-9970CDW) on page 87.)

Internet fax (MFC-9970CDW: standard, MFC-9460CDN, MFC-9465CDN and MFC-9560CDW: available as a download) 1

Internet fax (IFAX) allows you to send and receive fax documents using the Internet as the transport mechanism. (See Internet fax (For MFC-9970CDW) on page 89.)

(For MFC-9460CDN, MFC-9465CDN and MFC-9560CDW)

In order to use this function, please download the necessary firmware from the “Downloads” page for your model on the Brother Solutions Center at http://solutions.brother.com/

. Before using this function, you have to configure the necessary machine settings by using the machine’s control panel. For details, please refer to the user’s guide for Internet fax on the web site listed above.

Security 1

Your Brother machine employs some of the latest network security and encryption protocols available. (See Security features on page 98.)

Fax to Server (MFC-9970CDW: standard, MFC-9460CDN, MFC-9465CDN and MFC-9560CDW: available as a download) 1

The Fax to Server feature allows the machine to scan a document and send it over the network to a separate fax server. (See Fax to Server (For MFC-9970CDW) on page 48.)

(For MFC-9460CDN, MFC-9465CDN and MFC-9560CDW)

In order to use this function, please download the necessary firmware from the “Downloads” page for your model on the Brother Solutions Center at http://solutions.brother.com/ to configure the necessary machine settings by using the machine’s control panel. For details, please refer to the user’s guide for Internet fax on the web site listed above.

. Before using this function, you have

Introduction

Secure Function Lock 2.0 1

Secure Function Lock 2.0 increases security by restricting the use of functions. (See Secure Function Lock 2.0 on page 74.)

Store Print Log to Network 1

The Store Print Log to Network feature allows you to save the print log file from your Brother machine to a network server using CIFS. (See Store Print Log to Network on page 79.)

Changing your machine’s network

settings

How to change your machine’s network settings (IP address, Subnet mask and Gateway)

Using the control panel 2

You can configure your machine for a network using the control panel Network menu. (See Control panel setup on page 40.)

Using the BRAdmin Light utility 2

The BRAdmin Light utility is designed for initial setup of Brother network connected devices. It also can search for Brother products in a TCP/IP environment, view the status and configure basic network settings, such as IP address.

Installing BRAdmin Light 2

 Windows®

a Please make sure that your machine is ON. b Turn on your computer. Close any applications running before configuration. c Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically. If

the model name screen appears, choose your machine. If the language screen appears, choose your language.

d The CD-ROM main menu will appear. Click Network Utilities. e Click BRAdmin Light and follow the on-screen instructions.

 Macintosh

The BRAdmin Light software will be installed automatically when you install the printer driver. If you have already installed the printer driver, you do not have to install BRAdmin Light again.

Changing your machine’s network settings

Note

Setting the IP address, Subnet Mask and Gateway using BRAdmin Light 2

• You can download Brother's latest BRAdmin Light utility from http://solutions.brother.com/.

• If you require more advanced machine management, use the latest version of BRAdmin Professional 3 utility that is available as a download from http://solutions.brother.com/

Windows

users.

. This utility is only available for

• If you are using a firewall function of anti-spyware or antivirus applications, temporarily disable them. Once you are sure that you can print, re-enable the application.

• Node name: The Node name appears in the current BRAdmin Light window. The default node name of the print server in the machine is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

• The default password for Brother print servers is “access”.

a Start the BRAdmin Light utility.

 Windows

Click Start / All Programs1 / Brother / BRAdmin Light / BRAdmin Light.

Programs for Windows®2000 users

 Macintosh

Double-click Macintosh HD (Startup Disk) / Library / Printers / Brother / Utilities / BRAdmin Light.jar file.

b BRAdmin Light will search for new devices automatically.

Changing your machine’s network settings

Note

c Double-click the unconfigured device.

Windows

Macintosh

• If the print server is set to its factory default settings (if you do not use a DHCP/BOOTP/RARP server), the device will appear as Unconfigured in the BRAdmin Light utility screen.

• You can find the Node Name and MAC Address (Ethernet Address) by printing the Network Configuration List. (See Printing the Network Configuration List on page 52 for information on how to print the Network Configuration List on your print server.) You can also find the Node Name and MAC Address from the control panel. (See Chapter 5: Control panel setup.)

d Choose STATIC from Boot Method (BOOT Method). Enter the IP Address, Subnet Mask and

Gateway (if needed) of your print server.

Windows

Macintosh

e Click OK. f With the correctly programmed IP address, you will see the Brother print server in the device list.

Changing your machine’s network settings

Note

Other Management Utilities 2

Your Brother machine has the following management utilities other than the BRAdmin Light utility. You can change your network settings using these utilities.

Web Based Management (web browser) 2

A standard web browser can be used to change your print server settings using the HTTP (Hyper Text Transfer Protocol). (See How to configure the machine settings using Web Based Management (web browser) on page 72.)

BRAdmin Professional 3 utility (Windows®) 2

BRAdmin Professional 3 is a utility for more advanced management of network connected Brother devices. This utility can search for Brother products on your network and view the device status from an easy to read Explorer style window that changes color identifying the status of each device. You can configure network

and device settings along with the ability to update device firmware from a Windows BRAdmin Professional 3 can also log activity of Brother devices on your network and export the log data in an HTML, CSV, TXT or SQL format.

computer on your LAN.

For users who want to monitor locally connected machines, install the Print Auditor Client software on the client PC. This utility allows you to monitor machines that are connected to a client PC via the USB or parallel interface from BRAdmin Professional 3.

For more information and to download the software, visit us at http://solutions.brother.com/

• Please use the latest version of the BRAdmin Professional 3 utility that is available as a download from

http://solutions.brother.com/

• If you are using a firewall function of anti-spyware or antivirus applications, temporarily disable them. Once you are sure that you can print, configure the software settings following the instructions.

• Node name: The Node name for each Brother device on the network appears in BRAdmin Professional 3. The default Node name is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

. This utility is only available for Windows® users.

Changing your machine’s network settings

Web BRAdmin (Windows®) 2

Web BRAdmin is a utility for managing network connected Brother devices. This utility can search for Brother products on your network, view the status and configure the network settings.

Unlike BRAdmin Professional 3, which is designed for Windows that can be accessed from any client PC with a web browser that supports JRE (Java Runtime Environment).

By installing the Web BRAdmin server utility on a computer running IIS Web BRAdmin server using a web browser, which then communicates with the device itself.

only, Web BRAdmin is a server based utility

, administrators can connect to the

For more information and to download the software, visit us at http://solutions.brother.com/

Internet Information Server 4.0 or Internet Information Services 5.0/5.1/6.0/7.0

BRPrint Auditor (Windows®) 2

The BRPrint Auditor software brings the monitoring power of Brother network management tools to locally connected machines. This utility allows a client computer to collect usage and status information from a Brother machine connected via the parallel or USB interface. The BRPrint Auditor can then pass this information to another computer on the network running BRAdmin Professional 3 or Web BRAdmin 1.45 or greater. This allows the administrator to check items such as page counts, toner and drum status and the firmware version. In addition to reporting to Brother network management applications this utility can E-mail the usage and status information directly to a predefined E-mail address in a CSV or XML file format (SMTP Mail support required). The BRPrint Auditor utility also supports E-mail notification for reporting warning and error conditions.

Note

Configuring your machine for a wireless

network (For MFC-9560CDW and MFC-9970CDW)

Overview 3

To connect your machine to your wireless network, we recommend you to follow the steps in the Quick Setup Guide using WPS or AOSS™ from the control panel menu. By using this method, you can easily connect your

machine to your wireless network.

Please read this chapter for additional methods on how to configure the wireless network settings. For information on TCP/IP settings, see How to change your machine’s network settings (IP address, Subnet mask and Gateway) on page 4.

• To achieve optimum results with normal everyday document printing, place the Brother machine as close to the WLAN access point/router as possible with minimal obstructions. Large objects and walls between the two devices as well as interference from other electronic devices can affect the data transfer speed of your documents.

Due to these factors, wireless may not be the best method of connection for all types of documents and applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you may want to consider choosing wired Ethernet for a faster data transfer, or USB for the fastest throughput speed.

• Although the Brother machine can be used in both a wired and wireless network, only one connection method can be used at a time.

• Before configuring wireless settings, you will need to know your Network name: (SSID, ESSID) and Network Key. If you are using an enterprise wireless network you also need to know the User ID and Password.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Step by step chart for wireless network configuration 3

For Infrastructure mode 3

a Confirm your network environment. See page 12.

 Infrastructure mode

Connected to a computer with a WLAN access point/router

 Ad-hoc mode See page 11

Connected to a wireless capable computer without a WLAN access point/router

b Confirm your wireless network setup method. See page 13.

Using the

WPS/AOSS™

control panel menu

(Automatic Wireless

mode)

(Recommended)

Using the Setup

Wizard

from the

control panel

Using WPS/AOSS™, a USB1 or

Using the Brother

installer application

network cable

Using the PIN

Method of Wi-Fi

Protected Setup

c Configure your machine for a wireless network. See page 17.

See the Quick Setup

Guide

Supporting IEEE 802.1x

Wireless configuration and installing the printer driver have been completed.

See the Quick Setup

Guide

See page 35 See page 31

Installing drivers and software (See the Quick Setup Guide)

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

For Ad-hoc mode 3

a Confirm your network environment. See page 12.

 Ad-hoc mode

Connected to a wireless capable computer without a WLAN access point/router

 Infrastructure mode See page 10

Connected to a computer with a WLAN access point/router

b Confirm your wireless network setup method. See page 13.

Using the Setup Wizard from the control panel

(Recommended)

c Configure your machine for a wireless network. See page 17.

See page 17 See page 35

Installing drivers and software (See the Quick Setup Guide)

Using the Brother installer

application

Wireless configuration and installing the printer driver have been completed.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Note

Confirm your network environment 3

Connected to a computer with a WLAN access point/router in the network (Infrastructure mode) 3

1 WLAN access point/Router

If your computer supports Intel® MWT (My WiFi Technology), you can use your computer as a Wi-Fi Protected Setup supported access point.

2 Wireless network machine (your machine)

3 Wireless capable computer connected to the WLAN access point/router

4 Wired computer which is not wireless capable connected to the WLAN access point/router with a

network cable

Connected to a wireless capable computer without a WLAN access point/router in the network (Ad-hoc mode) 3

This type of network does not have a central WLAN access point/router. Each wireless client communicates directly with each other. When the Brother wireless machine (your machine) is part of this network, it receives all print jobs directly from the computer sending the print data.

1 Wireless network machine (your machine)

2 Wireless capable computer

We do not guarantee the wireless network connection with Windows Server® products in Ad-hoc mode.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Confirm your wireless network setup method 3

There are four methods to configure your wireless network machine. Use WPS/AOSS™ from the control panel menu (recommended), Setup Wizard from the control panel, the Brother installer application on the CD-ROM or the PIN Method of Wi-Fi Protected Setup. The setup process will be different depending on your network environment.

Configuration using WPS or AOSS™ from the control panel menu to configure your machine for a wireless network (Automatic Wireless mode) (Infrastructure mode only) (Recommended) 3

We recommend that you use WPS or AOSS™ from the control panel menu to configure your wireless

network settings if your WLAN access point/router (A) supports either Wi-Fi Protected Setup (PBC AOSS™.

) or

Push Button Configuration

Configuration using the machine’s control panel Setup Wizard to configure your machine for a wireless network 3

You can use the machine’s control panel to configure your wireless network settings. By using the control panel Setup Wizard function, you can easily connect your Brother machine to your wireless network. You

must know your wireless network settings before you proceed with this installation.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Configuration using the Brother installer application on the CD-ROM to configure your machine for a wireless network 3

You can also use the Brother installer application on the CD-ROM we have provided with the machine. You will be guided by the on-screen instructions until you are able to use your Brother wireless network machine.

You must know your wireless network settings before you proceed with this installation.

Configuration using the Automatic Wireless mode 3

If your WLAN access point/router (A) supports either Wi-Fi Protected Setup (PBC1) or AOSS™, you can configure the machine easily without knowing your wireless network settings using the Brother installer application.

Push Button Configuration

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Configuration temporarily using a USB or network cable 3

You can temporarily use a USB cable or network cable when you configure your Brother machine in this method.

 You can remotely configure the machine from a computer that is also on the network using a USB cable

(A)

You can configure the wireless settings of the machine using a USB cable temporarily connected to a wired or wireless computer.

 If there is an Ethernet Hub or Router on the same network as the WLAN access point (A), you can

temporarily connect the Hub or Router to the machine using a network cable (B). You can then remotely configure the machine from a computer on the network.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Configuration using the PIN Method of Wi-Fi Protected Setup to configure your machine for a wireless network (Infrastructure mode only) 3

If your WLAN access point/router (A) supports Wi-Fi Protected Setup, you can also configure using the PIN Method of Wi-Fi Protected Setup.

 Connection when the WLAN access point/router (A) doubles as a Registrar

 Connection when another device (C), such as a computer is used as a Registrar1.

The Registrar is a device that manages the wireless LAN.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

IMPORTANT

Configuring your machine for a wireless network (For Infrastructure mode and Ad-hoc mode) 3

• If you are going to connect your Brother machine to your network, we recommend that you contact your system administrator prior to installation. You must know your wireless network settings before you

proceed with this installation.

• If you have previously configured the wireless settings of the machine, you must reset the network LAN settings before you can configure the wireless settings again. Press Menu, 7, 0 for Network Reset, press 1 for Reset and then choose 1 for Yes to accept the change. For Touchscreen models, press MENU, Network, a or b to display Network Reset then press Network Reset, and choose Yes and then press and hold Yes again for 2 seconds to confirm the change. The machine will restart automatically.

Using WPS or AOSS™ from the control panel menu to configure your machine for a wireless network (Automatic Wireless mode) 3

If your WLAN access point/router supports either Wi-Fi Protected Setup (PBC1) or AOSS™, you can configure the machine easily without knowing your wireless network settings. Your Brother machine has the WPS/AOSS™ menu on the control panel. See the Quick Setup Guide for more information.

Push Button Configuration

Using the Setup Wizard from the control panel 3

You can configure your Brother machine by using the Setup Wizard function. This is located in the Network menu on the machine’s control panel.

 If you are configuring your machine for a smaller wireless network, such as your home environment:

• To configure your machine for an existing wireless network using the SSID and Network Key (if required), see the Quick Setup Guide.

• If your WLAN access point/router is set to not broadcast the SSID name, see Configuring your machine when the SSID is not broadcast on page 18.

 If you are configuring your machine for an IEEE 802.1x supported wireless network, see Configuring your

machine for an enterprise wireless network on page 23.

 If you are configuring your machine using Wi-Fi Protected Setup (PIN Method), see Using the PIN Method

of Wi-Fi Protected Setup on page 31.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Note

Configuring your machine when the SSID is not broadcast 3

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration.

Check and record the current wireless network settings.

Network name: (SSID, ESSID)

Communication Mode Authentication method Encryption mode Network key

Infrastructure Open system NONE —

WEP

Shared key WEP

WPA/WPA2-PSK AES

TKIP

Ad-hoc Open system NONE —

WEP

TKIP is supported for WPA-PSK only.

For example: 3

Network name: (SSID, ESSID)

HELLO

Communication Mode Authentication method Encryption mode Network key

Infrastructure WPA2-PSK AES 12345678

If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

b Press Menu. c Press a or b to choose Network.

Press OK.

d Press a or b to choose WLAN.

Press OK.

e Press a or b to choose Setup Wizard.

Press OK.

f When WLAN Enable ? is displayed, press a or b to choose 1.On and press OK to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs.

Choose <New SSID> using a or b. Press OK.

h Enter the SSID name. (For information how to enter text, see the Quick Setup Guide.)

Press OK.

i Using a or b, choose Ad-hoc or Infrastructure when instructed.

Press OK. Do one of the following: If you chose Ad-hoc, go to step k. If you chose Infrastructure, go to step j.

j Choose the Authentication method using a or b, and press OK.

Do one of the following: If you chose Open System, go to step k. If you chose Shared Key, go to step l. If you chose WPA/WPA2-PSK, go to step m.

k Choose the Encryption type None or WEP using a or b, and press OK.

Do one of the following: If you chose None, go to step o. If you chose WEP, go to step l.

l Enter the WEP key you wrote down in step a . Press OK. Go to step o. (For information how to enter

text, see the Quick Setup Guide.)

m Choose the Encryption type, TKIP or AES using a or b. Press OK. Go to step n.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

n Enter the WPA key you wrote down in step a and press OK. Go to step o. (For information how to enter

text, see the Quick Setup Guide.)

o To apply the settings, choose Yes. To cancel, choose No.

Do one of the following: If you chose Yes, go to step p. If you chose No, go back to step g.

p The machine starts to connect to the wireless device you have chosen. q If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to Troubleshooting in the Quick Setup Guide.

(Windows®)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Install MFL-Pro Suite from the CD-ROM menu.

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Note

For Touchscreen models 3

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration. Check and record the current wireless network settings.

Network name: (SSID, ESSID)

Communication Mode Authentication method Encryption mode Network key

Infrastructure Open system NONE

WEP —

Shared key WEP

WPA/WPA2-PSK AES

TKIP

Ad-hoc Open system NONE

WEP —

TKIP is supported for WPA-PSK only.

For example: 3

Network name: (SSID, ESSID)

HELLO

Communication Mode Authentication method Encryption mode Network key

Infrastructure WPA2-PSK AES 12345678

If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

b Press MENU. c Press Network. d Press WLAN. e Press Setup Wizard. f When WLAN Enable? is displayed, press On to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs. Choose <New SSID>

using a or b.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

h Enter the SSID name. (For information how to enter text, see the Quick Setup Guide.)

Press OK.

i Press Ad-hoc or Infrastructure when instructed.

Do one of the following: If you chose Ad-hoc, go to step k. If you chose Infrastructure, go to step j.

j Choose and press the Authentication method.

Do one of the following: If you chose Open System, go to step k. If you chose Shared Key, go to step l. If you chose WPA/WPA2-PSK, go to step m.

k Choose and press the Encryption type None or WEP.

Do one of the following: If you chose None, go to step o. If you chose WEP, go to step l.

l Enter the WEP key you wrote down in step a. Press OK. Go to step o. (For information how to enter

text, see the Quick Setup Guide.)

m Choose and press the Encryption type, TKIP or AES. Go to step n. n Enter the WPA key you wrote down in step a and press OK. Go to step o. (For information how to enter

text, see the Quick Setup Guide.)

o To apply the settings, press Yes. To cancel, press No.

Do one of the following: If you chose Yes, go to step p. If you chose No, go back to step g.

p The machine starts to connect to the wireless device you have chosen. q If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to Troubleshooting in the Quick Setup Guide.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Configuring your machine for an enterprise wireless network 3

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration.

Check and record the current wireless network settings.

Network name: (SSID, ESSID)

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure LEAP CKIP

EAP-FAST/NONE AES

TKIP

EAP-FAST/MS-CHAPv2 AES

TKIP

EAP-FAST/GTC AES

TKIP

PEAP/MS-CHAPv2 AES

TKIP

PEAP/GTC AES

TKIP

EAP-TTLS/CHAP AES

TKIP

EAP-TTLS/MS-CHAP AES

TKIP

EAP-TTLS/MS-CHAPv2 AES

TKIP

EAP-TTLS/PAP AES

TKIP

EAP-TLS AES —

TKIP —

For example:

Network name: (SSID, ESSID)

HELLO

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure EAP-FAST/MS-CHAPv2 AES Brother 12345678

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Note

• If you configure your machine using EAP-TLS Authentication, you must install the Client Certificate before you start configuration. If you have installed more than one certificate, we recommend you write down the certificate name you want to use. For installing the certificate, see Using Certificates for device security on page 107.

• If you verify your machine using the Common Name of the Server Certificate, we recommend you write down the Common Name before you start configuration. Contact your network administrator about the Common Name of the Server Certificate.

b Press Menu. c Press a or b to choose Network.

Press OK.

d Press a or b to choose WLAN.

Press OK.

e Press a or b to choose Setup Wizard.

Press OK.

f When WLAN Enable ? is displayed, press a or b to choose 1.On and press OK to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs.

You should see the SSID you wrote down earlier. If the machine finds more than one network use a or b key to choose your network, then press OK. Go to step k.

If your access point is set to not broadcast the SSID, you will have to manually add the SSID name. Go to step h.

h Choose <New SSID> using a or b.

Press OK. Go to step i.

i Enter the SSID name. (For information how to enter text, see the Quick Setup Guide.)

Press OK. Go to step j.

j Using a or b, choose Infrastructure when instructed.

Press OK.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Note

k Choose the Authentication method using a or b, and press OK.

Do one of the following: If you chose LEAP, go to step q. If you chose EAP-FAST, go to step l. If you chose PEAP, go to step l. If you chose EAP-TTLS, go to step l. If you chose EAP-TLS, go to step m.

l Choose the Inner Authentication method NONE, CHAP, MS-CHAP, MS-CHAPv2, GTC or PAP using a or b,

and press OK. Go to step m.

Depending on your Authentication method, the Inner Authentication method selections differ.

m Choose encryption type TKIP or AES using a or b, and press OK.

Do one of the following: If your Authentication method is EAP-TLS, go to step n. For other Authentication methods, go to step o.

n The machine will display a list of available Client Certificates. Choose the certificate and go to step o. o Choose the verification method No Verification, CA or CA + Server ID using a or b, and press

OK. Do one of the following: If you chose CA + Server ID, go to step p. For other selections, go to step q.

If you have not imported a CA certificate in your machine, the machine will display No Verification. To import a CA certificate, see Using Certificates for device security on page 107.

p Enter the server ID. (For information how to enter text, see the Quick Setup Guide.) Go to step q.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

q Enter the user ID you wrote down in step a. Press OK. (For information how to enter text, see the Quick

Setup Guide.)

Do one of the following: If your Authentication method is EAP-TLS, go to step s. For other Authentication methods, go to step r.

r Enter the Password you wrote down in step a. Press OK. Go to step s. s To apply the settings, choose Yes. To cancel, choose No.

Do one of the following: If you chose Yes, go to step t. If you chose No, go back to step g.

t The machine starts to connect to the wireless network you have chosen. u If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to Troubleshooting in the Quick Setup Guide.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

For Touchscreen models 3

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration.

Check and record the current wireless network settings.

Network name: (SSID, ESSID)

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure LEAP CKIP

EAP-FAST/NONE AES

TKIP

EAP-FAST/MS-CHAPv2 AES

TKIP

EAP-FAST/GTC AES

TKIP

PEAP/MS-CHAPv2 AES

TKIP

PEAP/GTC AES

TKIP

EAP-TTLS/CHAP AES

TKIP

EAP-TTLS/MS-CHAP AES

TKIP

EAP-TTLS/MS-CHAPv2 AES

TKIP

EAP-TTLS/PAP AES

TKIP

EAP-TLS AES —

TKIP —

For example:

Network name: (SSID, ESSID)

HELLO

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure EAP-FAST/MS-CHAPv2 AES Brother 12345678

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Note

b Press MENU. c Press Network. d Press WLAN. e Press Setup Wizard. f When WLAN Enable? is displayed, press On to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs.

You should see the SSID you wrote down earlier. If the machine finds more than one network use a or b key to choose your network. Go to step k.

If your access point is set to not broadcast the SSID, you will have to manually add the SSID name. Go to step h.

h Choose <New SSID> using a or b.

Go to step i.

i Enter the SSID name. (For information how to enter text, see the Quick Setup Guide.)

Press OK. Go to step j.

j Choose Infrastructure when instructed.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Note

k Choose the Authentication method using a or b.

l Choose the Inner Authentication method None, CHAP, MS-CHAP, MS-CHAPv2, GTC or PAP using a or b.

Go to step m.

Depending on your Authentication method, the Inner Authentication method selections differ.

m Choose encryption type TKIP or AES using a or b.

Do one of the following: If your Authentication method is EAP-TLS, go to step n. For other Authentication methods, go to step o.

n The machine will display a list of available Client Certificates. Choose the certificate and go to step o. o Choose the verification method No Verification, CA or CA + Server ID using a or b.

Do one of the following: If you chose CA + Server ID, go to step p. For other selections, go to step q.

If you have not imported a CA certificate in your machine, the machine will display No Verification. To import a CA certificate, see Using Certificates for device security on page 107.

p Enter the server ID. (For information how to enter text, see the Quick Setup Guide.) Go to step q. q Enter the user ID you wrote down in step a. Press OK. (For information how to enter text, see the Quick

Setup Guide.) Do one of the following: If your Authentication method is EAP-TLS, go to step s. For other Authentication methods, go to step r.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

r Enter the Password you wrote down in step a. Press OK. Go to step s. s To apply the settings, choose Yes. To cancel, choose No.

Do one of the following: If you chose Yes, go to step t. If you chose No, go back to step g.

t The machine starts to connect to the wireless network you have chosen. u If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to Troubleshooting in the Quick Setup Guide.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Using the Brother installer application on the CD-ROM to configure your machine for a wireless network 3

For installation, see Wireless configuration using the Brother installer application (For MFC-9560CDW and MFC-9970CDW) on page 35.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Note

Using the PIN Method of Wi-Fi Protected Setup 3

If your WLAN access point/router supports Wi-Fi Protected Setup (PIN Method), you can configure the machine easily. The PIN (Personal Identification Number) Method is one of the connection methods

developed by the Wi-Fi Alliance

. By inputting a PIN which is created by an Enrollee (your machine) to the Registrar (a device that manages the wireless LAN), you can setup the WLAN network and security settings. See the user’s guide supplied with your WLAN access point/router for instructions on how to access the Wi-Fi Protected Setup mode.

Routers or access points that support Wi-Fi Protected Setup have a symbol as shown below.

a Press Menu, 7, 2, 4 for WPS w/PIN Code. b The LCD will show an 8 digit PIN and the machine starts searching for a WLAN access point/router for

5 minutes.

c Using a computer that is on the network, type “http://access point’s IP address/” into your

browser. (Where “access point’s IP address” is the IP address of the device that is used as the Registrar1) Go to the WPS (Wi-Fi Protected Setup) setting page and input the PIN which the LCD shows in step b to the Registrar and follow the on-screen instructions.

The Registrar is normally the WLAN access point/router.

The setting page is different, depending on the brand of WLAN access point/router. See the instruction supplied with your WLAN access point/router.

Windows Vista®/Windows®7 3

If you are using your computer as a Registrar, follow these steps:

• To use a Windows Vista® or Windows®7 computer as a Registrar, you need to register it to your network in advance. See the instruction supplied with your WLAN access point/router.

• If you use Windows following the on-screen instructions. If you want to install the full driver and software package, follow the steps in Quick Setup Guide for installation.

7 as a Registrar, you can install the printer driver after the wireless configuration by

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

1 (Windows Vista

)

Click the button and then Network.

(Windows

Click the button and then Devices and Printers.

2 (Windows Vista

)

Click Add a wireless device.

(Windows

Click Add a device.

3 Choose your machine and click Next.

4 Input the PIN which the LCD shows in step b and then click Next.

5 Choose your network that you want to connect to, and then click Next.

6 Click Close.

d If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to Troubleshooting in the Quick Setup Guide.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

Note

For Touchscreen models 3

a Press MENU. b Press Network. c Press WLAN. d Press a or b to display WPSw/PINCode, and then press WPS w/PIN Code. e The LCD will show an 8 digit PIN and the machine starts searching for an access point for 5 minutes. f Using a computer that is on the network, type “http://access points IP address/” into your

browser. (Where “access point’s IP address” is the IP address of the device that is used as the

Registrar shows in e to the Registrar and follow the on-screen instructions.

The Registrar is normally the WLAN access point / router.

The setting page is different, depending on the brand of access point / router. See the instruction manual supplied with your access point / router.

.) Go to the WPS (Wi-Fi Protected Setup) setting page and input the PIN which the LCD

Windows Vista®/Windows®7 3

If you are using your computer as a Registrar, follow these steps:

• To use a Windows Vista® or Windows®7 computer as a Registrar, you need to register it to your network in advance. See the instruction manual that came with your WLAN access point / router.

• If you use Windows

7 as a Registrar, you can install the printer driver after the wireless configuration by following the on-screen instructions. If you want to install the full driver and software package, follow the steps in Quick Setup Guide for installation.

Configuring your machine for a wireless network (For MFC-9560CDW and MFC-9970CDW)

1 (Windows Vista®)

Click the button and then Network.

(Windows®7)

Click the button, and then Devices and Printers.

2 (Windows Vista

)

Click Add a wireless device.

(Windows

Click Add a device.

3 Choose your machine and click Next.

4 Input the PIN which the LCD shows in step e and then click Next.

5 Choose your network that you want to connect to, and then click Next.

6 Click Close.

g If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to Troubleshooting in the Quick Setup Guide.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

IMPORTANT

Wireless configuration using the Brother

installer application (For MFC-9560CDW and MFC-9970CDW)

Before configuring the wireless settings 4

• The following instructions will install your Brother machine in a network environment using the Brother installer application found on the CD-ROM we have provided with the machine.

• You can also setup your Brother machine using WPS or AOSS™ from the control panel which we recommend. You can find instructions in the supplied Quick Setup Guide.

• If you are using the Windows temporarily disable them. Once you are sure that you can print please re-enable your firewall.

Firewall or a firewall function of anti-spyware or antivirus applications,

• You need to temporarily use a USB cable or an Ethernet (LAN) cable during configuration.

• You must know your wireless network settings before you proceed with this installation.

Make sure you take notes on all the current settings such as SSID, authentication and encryption of your wireless network environment. If you do not know them, contact your network administrator or the manufacturer of your WLAN access point/router.

Configure the wireless settings 4

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration. Check and record the current wireless network settings.

For a personal wireless network configuration

If you are configuring your machine for a smaller wireless network, such as your home environment, record your SSID and the Network key.

Network name (SSID, ESSID) Network Key

For example:

Network name (SSID, ESSID) Network Key

HELLO 12345678

Wireless configuration using the Brother installer application (For MFC-9560CDW and MFC-9970CDW)

For an enterprise wireless network configuration 4

If you are configuring your machine for an IEEE 802.1x supported wireless network, record your Authentication method, Encryption method, User ID and Password.

Network name: (SSID, ESSID)

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure LEAP CKIP

EAP-FAST/NONE AES

TKIP

EAP-FAST/MS-CHAPv2 AES

TKIP

EAP-FAST/GTC AES

TKIP

PEAP/MS-CHAPv2 AES

TKIP

PEAP/GTC AES

TKIP

EAP-TTLS/CHAP AES

TKIP

EAP-TTLS/MS-CHAP AES

TKIP

EAP-TTLS/MS-CHAPv2 AES

TKIP

EAP-TTLS/PAP AES

TKIP

EAP-TLS AES —

TKIP —

For example:

Network name: (SSID, ESSID)

HELLO

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure EAP-FAST/MS-CHAPv2 AES Brother 12345678

Wireless configuration using the Brother installer application (For MFC-9560CDW and MFC-9970CDW)

Note

b Put the supplied CD-ROM into your CD-ROM drive.

(Windows

1 The opening screen will appear automatically.

If the model name screen appears, choose your machine. If the language screen appears, choose your language.

2 The CD-ROM main menu will appear. Click Initial Installation.

) 4

• If the window does not appear, use Windows® Explorer to run the Start.exe program from the root folder of the Brother CD-ROM.

• When the User Account Control screen appears,

(Windows Vista

(Windows

) click Allow.

7) click Yes.

3 Click Wireless LAN Setup Wizard.

Wireless configuration using the Brother installer application (For MFC-9560CDW and MFC-9970CDW)

Note

(Macintosh) 4

1 Double-click the MFL-Pro Suite icon on your desktop.

2 Double-click the Utilities icon.

3 Double-click the Wireless Device Setup Wizard.

c Choose Yes, my Access Point supports WPS or AOSS and I want to use them. or No and then click

Next. When you choose No, you have the ability to configure the wireless setting in four different ways.

 Using a USB cable temporarily

 Using an Ethernet (LAN) cable temporarily

 Configuring through the control panel manually

 Using Ad-hoc mode

For Ad-hoc setup users:

• If a message to restart your computer appears after the wireless settings have been changed, restart

your computer and then go back to step b.

• You can temporarily change the wireless settings on your computer.

(Windows Vista

and Windows®7)

1 Click the button and then Control Panel.

2 Click Network and Internet and then the Network and Sharing Center icon.

3 Click Connect to a network.

4 You can see the SSID of the wireless machine on the list. Choose SETUP and then click Connect.

5 (For Windows Vista

Click Connect Anyway and then Close.

6 (Windows Vista

Click View status of Wireless Network Connection (SETUP).

7 (Windows

Click Wireless Network Connection (SETUP).

only )

)

8 Click Details.... and confirm the Network Connection Details screen. It may take a few minutes

to change from 0.0.0.0 to the 169.254.x.x IP address to be shown on screen (where x.x. are numbers between 1 and 254).

Wireless configuration using the Brother installer application (For MFC-9560CDW and MFC-9970CDW)

(Windows®XP SP2 or greater)

1 Click Start and then Control Panel.

2 Click the Network and Internet Connections icon.

3 Click the Network Connections icon.

4 Choose and right-click Wireless Network Connection. Click View Available Wireless

Networks.

5 You can see the SSID of the wireless printer in the list. Choose SETUP and click Connect.

6 Check the Wireless Network Connection status. It may take a few minutes to change from

0.0.0.0 to the 169.254.x.x IP address to be shown on screen (where x.x. are numbers between 1 and 254).

(Macintosh)

1 Click the AirPort status icon in the menu bar.

2 Select SETUP from the pop-up menu.

3 Your wireless network is connected successfully.

d Follow the screen instructions to configure the wireless settings.

Note

Control panel setup 5

Network menu 5

The Network menu selections of the control panel allow you to set up the Brother machine for your network configuration. (For more information on how to use the control panel, see the Basic User's Guide.) Press Menu or MENU, then press a or b to choose Network. Proceed to the menu selection you wish to configure. (For additional information on the menu, see Function table and default factory settings on page 54.)

Please note that the machine is supplied with the BRAdmin Light utility, Web Based Management or Remote

Setup Management Utilities on page 7.)

TCP/IP 5

If you connect the machine with a network cable to your network, use the Wired LAN menu selections. If you connect the machine to a wireless Ethernet network, use the WLAN menu selections.

applications, which also can be used to configure many aspects of the network. (See Other

Not available for DCP models.

Boot Method 5

This selection controls how the machine obtains an IP address.

Auto mode

In this mode, the machine will scan the network for a DHCP server. If it can find one, and if the DHCP server is configured to allocate an IP address to the machine, then the IP address supplied by the DHCP server will be used. If no DHCP server is available, then the machine will scan for a BOOTP server. If a BOOTP server is available, and it is configured correctly, the machine will take its IP address from the BOOTP server. If a BOOTP server is not available, the machine will scan for a RARP server. If a RARP server also does not answer, the IP Address is set using the APIPA protocol. After the machine is initially powered ON, it may take a few minutes for the machine to scan the network for a server.

Static mode

In this mode the machine’s IP address must be manually assigned. Once entered the IP address is locked to the assigned address.

If you do not want your print server configured via DHCP, BOOTP or RARP, you must set the Boot Method to Static so that the print server has a static IP address. This will prevent the print server from trying to obtain an IP address from any of these systems. To change the Boot Method, use the machine’s control panel, BRAdmin Light utility, Web Based Management or Remote Setup.

Control panel setup

IP Address 5

This field displays the current IP address of the machine. If you have chosen a Boot Method of Static, enter the IP address that you wish to assign to the machine (check with your network administrator for the IP address to use). If you have chosen a method other than Static, the machine will attempt to determine its IP address using the DHCP or BOOTP protocols. The default IP address of your machine will probably be incompatible with the IP address numbering scheme of your network. We recommend that you contact your network administrator for an IP address for the network the unit will be connected on.

Subnet Mask 5

This field displays the current subnet mask used by the machine. If you are not using DHCP or BOOTP to obtain the subnet mask, enter the desired subnet mask. Check with your network administrator for the subnet mask to use.

Gateway 5

This field displays the current gateway or router address used by the machine. If you are not using DHCP or BOOTP to obtain the gateway or router address, enter the address you wish to assign. If you do not have a gateway or router, leave this field blank. Check with your network administrator if you are unsure.

Node Name 5

You can register the machine name on the Network. This name is often referred to as a NetBIOS name; it will be the name that is registered by the WINS server on your network. Brother recommends the name “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

WINS Config 5

This selection controls how the machine obtains the IP address of the WINS server.

Auto 5

Automatically uses a DHCP request to determine the IP addresses for the primary and secondary WINS servers. You must set the BOOT Method to Auto for this feature to work.

Static

Uses a specified IP address for the primary and secondary WINS servers.

WINS Server 5

Primary WINS Server IP Address 5

This field specifies the IP address of the primary WINS (Windows® Internet Name Service) server. If set to a

non-zero value, the machine will contact this server to register its name with the Windows Service.

Internet Name

Control panel setup

Note

Secondary WINS Server IP Address 5

This field specifies the IP address of the secondary WINS server. It is used as a backup to the Primary WINS server address. If the Primary server is unavailable, the machine still can register itself with a secondary

server. If set to a non-zero value, the machine will contact this server to register its name with the Windows

Internet Name Service. If you have a primary WINS server, but no secondary WINS server, simply leave this field blank.

DNS Server 5

Primary DNS Server IP Address 5

This field specifies the IP address of the primary DNS (Domain Name System) server.

Secondary DNS Server IP Address

This field specifies the IP address of the secondary DNS server. It is used as a backup to the Primary DNS server address. If the Primary server is unavailable, the machine will contact the Secondary DNS server. If you have a primary DNS server, but no secondary DNS server, simply leave this field blank.

APIPA 5

The setting of On will cause the print server to automatically allocate a Link-Local IP address in the range (169.254.1.0 - 169.254.254.255) when the print server cannot obtain an IP address through the Boot Method you have set. (See Boot Method on page 40.) Choosing Off means the IP address does not change, when the print server cannot obtain an IP address through the Boot Method you have set.

IPv6 5

This machine is compatible with IPv6, the next generation Internet protocol. If you want to use the IPv6 protocol, choose On. The default setting for IPv6 is Off. For more information on the IPv6 protocol, visit http://solutions.brother.com/

• If you set IPv6 to On, turn off the power switch and then turn it back on to enable this protocol.

• After you choose IPv6 On, this setting will be applied to both the wired and wireless LAN interface.

Control panel setup

Note

Ethernet (wired network only) 5

Ethernet link mode. Auto allows the print server to operate in 100BASE-TX full or half duplex, or in 10BASE-T full or half duplex mode by auto negotiation.

If you set this value incorrectly, you may not be able to communicate with your print server.

Status (For DCP-9055CDN, DCP-9270CDN, MFC-9460CDN and MFC-9465CDN)/Wired Status (For MFC-9560CDW and MFC-9970CDW) 5

This field displays the current wired network status.

Setup Wizard (wireless network only) 5

The Setup Wizard guides you through the wireless network configuration. (For more information, see the Quick Setup Guide or Using the Setup Wizard from the control panel on page 17.)

WPS or AOSS™ (wireless network only) 5

If your WLAN access point/router supports either Wi-Fi Protected Setup (PBC1) or AOSS™ (Automatic Wireless mode), you can configure the machine easily without a computer. (For more information, see the

Quick Setup Guide or Using WPS or AOSS™ from the control panel menu to configure your machine for a wireless network (Automatic Wireless mode) on page 17.)

Push Button Configuration

WPS w/PIN Code (wireless network only) 5

If your WLAN access point/router supports Wi-Fi Protected Setup (PIN Method), you can configure the machine easily without a computer. (For more information, see Using the PIN Method of Wi-Fi Protected Setup on page 31.)

WLAN Status (wireless network only) 5

Status 5

This field displays the current wireless network status.

Signal 5

This field displays the current wireless network signal strength.

Control panel setup

Note

SSID 5

This field displays the current wireless network SSID. The display shows up to 32 characters of the SSID name.

Comm.Mode 5

This field displays the current wireless network communication mode.

MAC Address 5

The MAC address is a unique number assigned for the machine's network interface. You can check your machine's MAC address from the control panel.

Set to Default (For MFC-9560CDW and MFC-9970CDW) 5

The Set to Default allows you to reset each wired or wireless settings to the factory default. If you want to reset both wired and wireless settings, see Reset the network settings to the factory default on page 51.

Wired Enable (For MFC-9560CDW and MFC-9970CDW) 5

If you want to use the wired network connection, set Wired Enable to On.

WLAN Enable (For MFC-9560CDW and MFC-9970CDW) 5

If you want to use the wireless network connection, set WLAN Enable to On.

If a network cable is connected to your machine, set Wired Enable to Off.

E-mail / IFAX (MFC-9970CDW and DCP-9270CDN (E-mail only)) 5

This menu has five selections: Mail Address, Setup Server, Setup Mail RX, Setup Mail TX and Setup Relay. As this section requires you to enter a lot of text characters, you may find that it is more

convenient to use Web Based Management and your favorite web browser to configure these settings. (see Web Based Management on page 71) These settings must be configured for the IFAX feature to work. (For more details about Internet fax, see Internet fax (For MFC-9970CDW) on page 89.)

You can also access the character you want by repeatedly pressing the appropriate number key using the machine’s control panel. (For information how to enter text, see the Basic User's Guide.)

Mail Address 5

You can set your machine’s E-mail address.

Control panel setup

Note

Setup Server 5

SMTP

 SMTP Server

This field displays the node name or IP address of an SMTP mail server (outgoing E-mail server) on your network.

(Ex, “mailhost.brothermail.net” or “192.000.000.001”)

 SMTP Port

This field displays the SMTP port number (for outgoing E-mails) on your network.

 Auth. for SMTP

You can specify the security method for E-mail notification. (For details on the security methods for E-mail notification, see Sending or Receiving an E-mail securely on page 102.)

 SMTP SSL/TLS

You can choose the encryption method between the machine and the SMTP server.

 Verify Cert.

You can enable or disable to use the security certificate between the machine and the SMTP server.

POP3

 POP3 Server

This field displays the node name or IP address of the POP3 server (incoming E-mail server) used by the Brother machine. This address is necessary for the Internet fax features to function correctly.

(Ex, “mailhost.brothermail.net” or “192.000.000.001”)

 POP3 Port

This field displays the POP3 port number (for incoming E-mails) used by the Brother machine.

 Mailbox Name

You can specify a mailbox name on the POP3 server where the Internet print jobs are to be retrieved.

 Mailbox Pwd

You can specify the password for the POP3 server account where the Internet print jobs are to be retrieved.

To set for no password, enter a single space.

 POP3 SSL/TLS

You can choose the encryption method between the machine and the POP3 server.

 Verify Cert.

You can enable or disable to use the security certificate between the machine and the POP3 server.

 APOP

You can enable or disable the APOP (Authenticated Post Office Protocol).

Control panel setup

Setup Mail RX (For MFC-9970CDW) 5

Auto Polling

When set to On, the machine automatically checks the POP3 server for new messages.

Poll Frequency

Sets the interval for checking for new messages on the POP3 server (default is 10 minutes).

Header

This selection allows the contents of the mail header to be printed when the received message is printed.

Del Error Mail

When set to On, the machine automatically deletes error mails that the machine cannot receive from the POP3 server.

Notification

The notification feature allows a confirmation of receipt message to be transmitted to the sending station when the Internet Fax has been received.

This feature only works on Internet Fax machines that support the “MDN” specification.

Setup Mail TX 5

Sender Subject

This field displays the subject that is attached to the Internet fax data being sent from the Brother machine to a computer (default is “Scan to E-mail Server Job” for DCP-9270CDN and “Internet Fax Job” for MFC-9970CDW).

Size Limit

Some E-mail servers do not allow you to send large E-mail documents (the System Administrator will often place a limit on the maximum E-mail size). With this function enabled, the machine will display OutofMemory when trying to send E-mail documents over 1 Mbyte in size. The document will not be sent and an error report will be printed. The document you are sending should be separated into smaller documents that will be accepted by the mail server. (For your information, a 42 page document based on the ITU-T Test Chart #1 test chart is approximately 1 Mbyte in size.)

Control panel setup

Note

Notification

The notification feature allows a confirmation of receipt message to be transmitted to the sending station when the Internet Fax has been received.

This feature only works on Internet Fax machines that support the “MDN” specification.

Setup Relay (For MFC-9970CDW) 5

Relay Broadcast

This function allows the machine to receive a document over the Internet, and then relay it to other fax machines through conventional analog landlines.

Relay Domain

You can register the Domain Names (Max. 10) that are allowed to request a Relay Broadcast.

Relay Report

A Relay Broadcast Report can be printed at the machine that will act as a Relay Station for all Relay Broadcasts.

Its primary function is to print reports of any relayed broadcasts that have been sent through the machine. Please note: In order to use this function, you must assign the relay domain in the “Trusted Domains” section of the Relay function settings.

For more information on Relay Broadcast, see Relay broadcasting on page 94.

Control panel setup

Note

Fax to Server (For MFC-9970CDW) 5

The Fax to Server feature allows the machine to scan a document and send it over the network to a separate fax server. The document will then be sent from the server as fax data to the destination fax number over standard phone lines. When the Fax to Server feature is set to On all automatic fax transmissions from the machine will be sent to the fax server for fax transmission. You can continue to send a fax directly from the machine using the manual fax feature.

To send a document to the fax server the correct syntax for that server must be used. The destination fax number must be sent with a prefix and a suffix that match the parameters used by the fax server. In most cases the syntax for the prefix is “fax=” and the syntax for the suffix would be the domain name of the fax server E-mail gateway. The suffix must also include the “@” symbol at the beginning of the suffix. The prefix and the suffix information must be stored in the machine before you can use the fax to server function. Destination fax numbers can be saved in the One Touch or Speed Dial locations or entered using the dial pad (up to 20 digit numbers). For example if you wanted to send a document to a destination fax number of 123-555-0001 the following syntax would be used.

Your fax server application must support an E-mail gateway.

Control panel setup

Note

Setting Fax to Server to On 5

You can store the prefix/suffix address for the fax server in the machine.

a Press MENU. b Press Network. c Press a or b to choose FaxtoServer. d Press to choose On. e Press to choose Prefix. f Enter the prefix using the dial pad. g Press OK. h Press to choose Suffix. i Enter the suffix using the dial pad. j Press OK. k Press Stop/Exit.

• You can enter the prefix and suffix address using up to a total of 40 characters.

• For information how to enter text, see the Basic User's Guide.

How to operate Fax to Server 5

a Place the document in the ADF or on the scanner glass. b Enter the fax number. c (For US) Press Black Start or Color Start.

(For UK) Press Mono Start or Colour Start. The machine will send the message over a TCP/IP network to the fax server.

Control panel setup

How to set a new default for Scan to FTP 5

You can choose the default color and file type for the Scan to FTP function. (For how to operate Scan to FTP, see Network Scanning in the Software User's Guide.)

How to set a new default for Scan to Network 5

You can choose the default color and file type for the Scan to Network function to scan a document directly to a server supporting CIFS on your local network or on the Internet. (For the CIFS protocol, see the Network Glossary.) (For how to operate Scan to Network, see Network Scanning in the Software User's Guide.)

Control panel setup

Note

Reset the network settings to the factory default 5

You can reset the print server back to its default factory settings (resetting all information such as the password and IP address information).

• This function resets all wired and wireless network settings to the factory default.

• You can also reset the print server back to its factory default settings using the BRAdmin applications or Web Based Management. (For more information, see Other Management Utilities on page 7.)

a Press Menu. b Press a or b to choose Network.

Press OK.

c Press a or b to choose Network Reset.

Press OK.

d Press 1 to choose Reset. e Press 1 to choose Yes for reboot. f The machine will re-start.

For Touchscreen models

a Press MENU. b Press Network. c Press a or b to display Network Reset and then press Network Reset. d Press Yes. e Press Yes for 2 seconds to confirm.

Control panel setup

Note

Printing the Network Configuration List 5

Node name: The Node name appears on the Network Configuration List. The default node name is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

The Network Configuration List prints a report listing all the current network configuration including the network print server settings.

a Press Menu. b (For MFC models) Press a or b to choose Print Reports.

(For DCP models) Press a or b to choose Machine Info.. Press OK.

c Press a or b to choose Network Config.

Press OK.

d (For US) Press Black Start or Color Start.

(For UK) Press Mono Start or Colour Start.

For Touchscreen models

a Press MENU. b Press a or b to display Print Reports and then press Print Reports. c Press Network Config. d (For US) Press Black Start or Color Start.

(For UK) Press Mono Start or Colour Start.

If the IP Address on the Network Configuration List shows 0.0.0.0, wait for one minute and try again.

Control panel setup

Printing the WLAN report (For MFC-9560CDW and MFC-9970CDW) 5

The WLAN Report prints your machine's wireless status report. If the wireless connection failed, check the error code on the printed report and refer to Troubleshooting in the Quick Setup Guide.

a Press Menu. b Press a or b to choose Print Reports.

Press OK.

c Press a or b to choose WLAN Report.

Press OK.

d (For US) Press Black Start or Color Start.

(For UK) Press Mono Start or Colour Start.

For Touchscreen models

a Press MENU. b Press a or b to display Print Reports and then press Print Reports. c Press a or b to choose WLAN Report. d (For US) Press Black Start or Color Start.

(For UK) Press Mono Start or Colour Start.

Control panel setup

Function table and default factory settings 5

DCP-9055CDN, MFC-9460CDN and MFC-9465CDN 5

The factory settings are shown in Bold with an asterisk.

Main menu Submenu Menu selections Options

4.Network

(DCP-9055CDN)

1.TCP/IP 1.Boot Method Auto*

Static

7.Network

(MFC-9460CDN and MFC-9465CDN)

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how many times the machine tries to obtain the IP address.)

2.IP Address [000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

3.Subnet Mask [000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

4.Gateway [000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

5.Node Name BRNxxxxxxxxxxxx

(up to 32 characters)

6.WINS Config Auto*

Static

7.WINS Server Primary

Secondary

8.DNS Server Primary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

9.APIPA On*

Off

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Control panel setup

Main menu Submenu Menu selections Options

4.Network

1.TCP/IP

0.IPv6 On

(DCP-9055CDN)

7.Network

(MFC-9460CDN and MFC-9465CDN)

(continued)

2.Ethernet — Auto*

3.Status — Active 100B-FD

4.MAC Address

5.Scan To FTP

——

— Color 100 dpi*

Off*

100B-FD

100B-HD

10B-FD

10B-HD

Active 100B-HD

Active 10B-FD

Active 10B-HD

Inactive

Color 200 dpi

Color 300 dpi

Color 600 dpi

Gray 100 dpi

Gray 200 dpi

(If you choose Color option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

Gray 300 dpi

B&W 200 dpi

B&W 200x100 dpi

XPS

(If you choose Gray option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose B&W option)

PDF*

PDF/A

Secure PDF

Signed PDF

TIFF

Control panel setup

Main menu Submenu Menu selections Options

4.Network

6.ScanTo Network

— Color 100 dpi*

(If you choose Color option)

(DCP-9055CDN)

7.Network

(MFC-9460CDN and MFC-9465CDN)

(continued)

Color 200 dpi

Color 300 dpi

Color 600 dpi

Gray 100 dpi

Gray 200 dpi

Gray 300 dpi

B&W 200 dpi

B&W 200x100 dpi

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose Gray option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose B&W option)

PDF*

PDF/A

Secure PDF

Signed PDF

TIFF

0.Network Reset

— 1.Reset

— 2.Exit

On connection to the network, the machine will automatically set the IP address and Subnet Mask to values appropriate for your network.

Control panel setup

MFC-9560CDW 5

Main menu Submenu Menu selections Options

7.Network

1.Wired LAN

1.TCP/IP 1.Boot Method Auto*

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how

many times the machine tries to obtain the IP address.)

2.IP Address

3.Subnet Mask

4.Gateway

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

5.Node Name BRNxxxxxxxxxxxx

(up to 32 characters)

6.WINS Config Auto*

Static

7.WINS Server Primary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

8.DNS Server Primary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

9.APIPA On*

Off

0.IPv6 On

Off*

Control panel setup

Main menu Submenu Menu selections Options

7.Network

1.Wired LAN

2.Ethernet — Auto*

(continued)

100B-FD

100B-HD

10B-FD

10B-HD

3.Wired Status

— Active 100B-FD

Active 100B-HD

Active 10B-FD

Active 10B-HD

Inactive

Wired OFF

4.MAC Address ——

5.Set to Default

— 1.Reset

2.Exit

6.Wired Enable

— On*

Off

2.WLAN 1.TCP/IP 1.Boot Method Auto*

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how

many times the machine tries to obtain the IP address.)

2.IP Address

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

3.Subnet Mask

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

4.Gateway

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

5.Node Name BRWxxxxxxxxxxxx

(up to 32 characters)

6.WINS Config Auto

Static

Control panel setup

Main menu Submenu Menu selections Options

7.Network

2.WLAN

1.TCP/IP

7.WINS Server Primary

(continued)

8.DNS Server Primary

9.APIPA On*

0.IPv6 On

2.Setup Wizard

3.WPS/AOSS 1.On

1.On

2.Off

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Off

Off*

—

2.Off

4.WPS w/PIN Code

5.WLAN Status 1.Status Active(11b)

6.MAC Address ——

1.On

2.Off

2.Signal Strong

3.SSID —

4.Comm. Mode Ad-hoc

—

Active(11g)

Wired LAN Active

WLAN OFF

AOSS Active

Connection Fail

Medium

Weak

None

Infrastructure

Control panel setup

Main menu Submenu Menu selections Options

7.Network

2.WLAN

7.Set to Default

— 1.Reset

(continued)

3.Scan To FTP

2.Exit

8.WLAN Enable — 1.On

2.Off

— Color 100 dpi*

Color 200 dpi

Color 300 dpi

Color 600 dpi

Gray 100 dpi

Gray 200 dpi

Gray 300 dpi

B&W 200 dpi

B&W 200x100 dpi

(If you choose Color option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose Gray option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose B&W option)

PDF*

PDF/A

Secure PDF

Signed PDF

TIFF

Control panel setup

Main menu Submenu Menu selections Options

7.Network

4.ScanTo Network

— Color 100 dpi*

(If you choose Color option)

(continued)

Color 200 dpi

Color 300 dpi

Color 600 dpi

Gray 100 dpi

Gray 200 dpi

Gray 300 dpi

B&W 200 dpi

B&W 200x100 dpi

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose Gray option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose B&W option)

PDF*

PDF/A

Secure PDF

Signed PDF

TIFF

0.Network Reset

— 1.Reset

— 2.Exit

On connection to the network, the machine will automatically set the IP address and Subnet Mask to values appropriate for your network.

Control panel setup

DCP-9270CDN 5

The factory settings are shown in Bold with an asterisk.

Main menu Submenu Menu selections Options

Network Wired LAN TCP/IP

Boot Method

IP Address

Subnet Mask

Gateway

Auto*

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how many times the machine tries to obtain the IP address.)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Node Name BRNxxxxxxxxxxxx

(up to 32 characters)

WINS Config

WINS Server

DNS Server Primary

APIPA On*

IPv6 On

Auto*

Static

Primary

Secondary

Off

Off*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Control panel setup

Main menu Submenu Menu selections Options

Network

Wired LAN

Ethernet — Auto*

(continued)

E-Mail

Wired Status

MAC Address

Set to Default

Wired Enable

Mail Address

Setup Server

100B-FD

100B-HD

10B-FD

10B-HD

— Active 100B-FD

Active 100B-HD

Active 10B-FD

Active 10B-HD

InActive

Wired OFF

——

— Yes

— On*

Off

Name (up to 60 characters)

SMTP SMTP Server Name (Up to 64 characters)

IP Address

[000-255].[000-255].[000-255].[000-255]

SMTP Port 00025*

[00001-65535]

Auth. for SMTP

SMTP SSL/TLS None*

Verify SMTPCert.

None*

SMTP-AUTH

POP bef.SMTP

SSL

TLS

Off*

Control panel setup

Main menu Submenu Menu selections Options

Network

E-Mail

Setup Server

POP3 POP3 Server Name (Up to 64 characters)

(continued)

Setup Mail TX

IP Address

[000-255].[000-255].[000-255].[000-255]

POP3 Port 00110*

[00001-65535]

Mailbox Name (Up to 60 characters)

Mailbox Pwd (Up to 32 characters)

POP3 SSL/TLS None*

SSL

TLS

Verify POP3Cert.

Off*

APOP On

Off*

Sender Subject

— Scan to E-mail Server J

ob*

(Up to 40 characters)

Size Limit — On

Off*

Notification

— On

Off*

Network Reset

——— Yes

On connection to the network, the machine will automatically set the IP address and Subnet Mask to values appropriate for your network.

Control panel setup

MFC-9970CDW 5

The factory settings are shown in Bold with an asterisk.

Main Menu Submenu Menu Selections Options

Network Wired LAN TCP/IP

Boot Method

IP Address

Subnet Mask

Gateway

Auto*

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how

many times the machine tries to obtain the IP address.)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Node Name BRNxxxxxxxxxxxx

(up to 32 characters)

WINS Config

WINS Server

Auto*

Static

(Primary)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

(Secondary)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Control panel setup

Main Menu Submenu Menu Selections Options

Network

Wired LAN

TCP/IP

DNS Server (Primary)

(continued)

APIPA On*

IPv6 On

Ethernet — Auto*

Wired Status — Active 100B-FD

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

(Secondary)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Off

Off*

100B-FD

100B-HD

10B-FD

10B-HD

Active 100B-HD

Active 10B-FD

Active 10B-HD

MAC Address ——

Set to Default — Yes

Wired Enable — On*

WLAN TCP/IP

Boot Method

InActive

Wired OFF

Off

Auto*

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how

many times the machine tries to obtain the IP address.)

Control panel setup

Main Menu Submenu Menu Selections Options

Network

(continued)

WLAN

(continued)

TCP/IP

(continued)

IP Address

Subnet Mask

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Gateway

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Node Name BRWxxxxxxxxxxxx

(up to 32 characters)

WINS Config

Auto*

Static

WINS Server

(Primary)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

(Secondary)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

DNS Server (Primary)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

(Secondary)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

APIPA On*

Off

IPv6 On

Off*

Setup Wizard ——

WPS/AOSS ——

WPS w/PIN Code ——

Control panel setup

Main Menu Submenu Menu Selections Options

Network

WLAN

WLAN Status Status Active(11b)

(continued)

E-mail/IFAX

Active(11g)

Wired LAN Active

WLAN Off

AOSS Active

Connection Fail

Signal Strong

Medium

Weak

None

SSID —

Comm. Mode Ad-hoc

Infrastructure

MAC Address ——

Set to Default — Yes

WLAN Enable — On

Off*

Mail Address — Name (Up to 60 characters)

Setup Server

SMTP

SMTP Server

Name (Up to 64 characters)

IP Address

[000-255].[000-255].[000-255].[000-255]

SMTP Port 00025*

[00001-65535]

Auth. for SMTP

SMTP SSL/TLS

Verify SMTPCert.

None*

SMTP-AUTH

POP bef.SMTP

None*

SSL

TLS

Off*

Control panel setup

Main Menu Submenu Menu Selections Options

Network

E-mail/IFAX

Setup Server

POP3

POP3 Server

Name (Up to 64 characters)

(continued)

Setup Mail RX

IP Address

[000-255].[000-255].[000-255].[000-255]

POP3 Port 00110*

[00001-65535]

Mailbox Name

Mailbox Pwd

POP3 SSL/TLS

Verify POP3Cert.

APOP On

Auto Polling

Header — All

— On*

Poll Frequency

(When

Auto Polling

is set to

(Up to 60 characters)

(Up to 32 characters)

None*

SSL

TLS

Off*

Off

10 minutes*

(01 minute to 60 minutes)

Del Error Mail

Notification

Subject+From+To

None*

— On*

Off

— On

MDN

Off*

Control panel setup

Main Menu Submenu Menu Selections Options

Network

E-mail/IFAX

Setup Mail TX

Sender Subject

— Internet Fax Job*

(continued)

(Up to 40 characters)

Size Limit — On

Off*

Notification

— On

Off*

Setup Relay

Rly Broadcast

— On

Off*

Relay Domain

— RelayXX:

Relay(01 - 10)

Relay Report

— On

Off*

Fax to Server

———On

Off*

Network Reset

———Yes

On connection to the network, the machine will automatically set the IP address and Subnet Mask to values appropriate for your network.

Note

Web Based Management 6

Overview 6

A standard Web Browser can be used to manage your machine using the HTTP (Hyper Text Transfer Protocol). You can get the following information from a machine on your network using a web browser.

 Machine status information

 Change Fax configuration items, such as General Setup, Address Book settings and Remote Fax

 Change network settings such as TCP/IP information

 Configure Secure Function Lock 2.0

 Configure Store Print Log to Network

 Configure Scan to FTP

 Configure Scan to Network

 Configure LDAP

 Software version information of the machine and print server

 Change network and machine configuration details

We recommend Microsoft® Internet Explorer®6.0 (or greater) or Firefox 3.0 (or greater) for Windows® and Safari 3.0 (or greater) for Macintosh. Please also make sure that JavaScript and Cookies are always enabled in whichever browser you use. If a different web browser is used, make sure it is compatible with HTTP 1.0 and HTTP 1.1.

You must use the TCP/IP protocol on your network and have a valid IP address programmed into the print server and your computer.

Web Based Management

Note

How to configure the machine settings using Web Based Management (web browser) 6

A standard web browser can be used to change your print server settings using the HTTP (Hyper Text Transfer Protocol).

We recommend to use HTTPS protocol for your Internet security when configuring the settings using Web Based Management. To enable the HTTPS protocol, see Managing your network machine securely using SSL/TLS on page 99.

a Start your web browser. b Type “http://machine’s IP address/” into your browser (where “machine’s IP address” is

the machine’s IP address).

 For example:

http://192.168.1.2/

• If you are using a Domain Name System or enable a NetBIOS name, you can enter another name such as “Shared_Printer” instead of the IP address.

• For example:

http://Shared_Printer/

If you enable a NetBIOS name, you can also use the node name.

• For example:

http://brnxxxxxxxxxxxx/

The NetBIOS name can be seen in the Network Configuration List. (To learn how to print the Network Configuration List, see Printing the Network Configuration List on page 52.)

• For Macintosh users, you can have easy access to the Web Based Management System by clicking the machine icon on the Status Monitor screen. For more information, see the Software User's Guide.

c Click Network Configuration.

Web Based Management

Note

d Enter a user name and a password. The default User Name is “admin” and the default password is

“access”.

e Click OK. f You can now change the print server settings.

If you have changed the protocol settings, restart the machine after clicking Submit to activate the configuration.

Password information 6

Web Based Management offers two levels of password access. Users are able to access to the

General Setup, Fax Settings, I-Fax Settings (For MFC-9970CDW), E-mail Settings (For DCP-9270CDN), Copy Settings, Printer Settings and USB Direct I/F. The default user name for User is “user” (case

sensitive) and the default password is “access”.

Administrators are able to access all settings. The login name for the Administrator is “admin” (case sensitive) and the default password is “access”.

Web Based Management

Secure Function Lock 2.0 6

Secure Function Lock 2.0 from Brother helps you to save money and increase security by restricting the functions available on your Brother machine.

Secure Function Lock allows you to configure passwords for selected users, granting them access to some, or all, of these functions, or limiting them to a page limit. This means that only authorized people can use them.

You can configure and change the following Secure Function Lock 2.0 settings using BRAdmin Professional 3 or Web Based Management.

 PC Print

 USB Direct Print

 Copy

 Color Print

 Page Limit

 Fax TX

 Fax RX

 Scan

 Page Counter

If you register the PC user login names, you can restrict PC print without the user entering a password. For more detail, see Restricting PC print by PC user login name on page 76.

Supported models only.

Web Based Management

Note

How to configure the Secure Function Lock 2.0 settings using Web Based Management (web browser) 6

Basic configuration 6

a Click Administrator Settings on the machine’s web page, and then click Secure Function Lock. b Choose On from Function Lock.

To configure Secure Function Lock through the embedded web server, you have to enter the Administrator Password (four digit number). If the settings have been configured previously using the Panel menu and you want to change the settings, you must fill in the blank in the Administrator Password box first.

c Enter an up to 15 digit alphanumeric group name or user name in the ID Number/Name box and then

enter a four-digit password in the PIN box.

d Uncheck the functions that you want to restrict in the Print box or the Others box. If you want to configure

the maximum page count, check the On box in Page Limit, and then enter the number in the Max. box. Then click Submit.

e If you want to restrict the PC printing by PC user login name, click PC Print Restriction by Login Name

and configure the settings. (See Restricting PC print by PC user login name on page 76.)

Scanning when using Secure Function Lock 2.0 6

The Secure Function Lock 2.0 feature allows the administrator to restrict which users are allowed to scan. When the scan feature is set to off for the public user setting, only users who have scan selected in the check box will be able to scan. To push scan from the control panel of the machine users must enter their PIN to access the scan mode. To pull scan from their computer, restricted users must also enter their PIN on the control panel of the machine before they can scan from their computer. If the PIN is not entered at the machines control panel the user will get an error message on their computer when they attempt to pull scan.

Web Based Management

Note

Restricting PC print by PC user login name 6

By configuring this setting, the machine can authenticate by PC user login name to allow a print job from a registered computer.

a Click PC Print Restriction by Login Name. The PC Print Restriction by Login Name screen will

appear.

b Choose On from PC Print Restriction. c Choose the ID Number you set in the ID Number/Name in step c in Basic configuration from the

ID Number pull-down list for each Login Name and then enter the PC user login name in the Login Name box.

d Click Submit.

• If you want to restrict PC print per group, choose the same ID Number for each PC login name you want in the group.

• If you are using the PC login name feature you must also make sure that the Use PC Login Name box in the printer driver is checked. For more information about the printer driver, see the Software User's Guide.

• The Secure Function Lock feature does not support the BR-Script driver for printing.

Setting up public mode 6

You can set up the public mode to restrict what functions are available for public users. Public users do not need to enter a password to access the features made available through this setting.

a Uncheck the check box for the function that you want to restrict in the Public Mode box. b Click Submit.

Other features 6

You can set up the following features in Secure Function Lock 2.0:

 All Counter Reset

You can reset the page counter by clicking All Counter Reset.

 Export to CSV file

You can export the current page counter including ID Number/Name information as a CSV file.

 Last Counter Record

The machine retains the page count after the counter has been reset.

 Counter Auto Reset Settings

You can automatically reset the page counters by configuring the time interval based on Daily, Weekly or Monthly settings during the machine is turned on.

Web Based Management

Note

Synchronize with SNTP server 6

SNTP is the protocol used to synchronize the time used by the machine for Authentication with the SNTP time server (this time is not the time displayed on the LCD of the machine). You can synchronize the time used by the machine on a regular basis with the Coordinated Universal Time (UTC) provided by the SNTP time server.

This function is not available in some countries.

a Click Network Configuration, and then click Configure Protocol. b Select the SNTP check box to activate the setting. c Click Advanced Setting.

 Status

Displays whether the SNTP server settings are enabled or disabled.

 SNTP Server Method

Choose AUTO or STATIC.

• AUTO

If you have a DHCP server in your network, the SNTP server will automatically obtain the address from that server.

• STATIC

Enter the address you want to use.

 Primary SNTP Server Address, Secondary SNTP Server Address

Enter the server address (up to 64 characters).

 Primary SNTP Server Port, Secondary SNTP Server Port

Enter the Port number (1 to 65535).

Web Based Management

Note

 Synchronizing Interval

Enter the interval of hours which you want to synchronize to the server (1 to 168 hours).

• You must configure Date&Time to synchronize the time used by the machine with the SNTP time server. Click Configure Date&Time and then configure Date&Time on the General Setup screen. You can also configure the Date & Time from the machine’s control panel.

• Choose the Synchronize with SNTP server check box. You also need to verify your time zone settings correctly. Choose the time difference between your location and UTC from the Time Zone pull-down list. For example, the time zone for Eastern Time in the USA and Canada is UTC-05:00.

 Synchronization Status

You can confirm the latest synchronization status.

d Click Submit to apply the settings.

Web Based Management

Note

Store Print Log to Network 6

The Store Print Log to Network feature allows you to save the print log file from your Brother machine to a

network server using CIFS

number of printed pages and color pages

CIFS is the Common Internet File System protocol that runs over TCP/IP allowing computers on a network to share files over an intranet or the Internet.

Supported models only.

The following print functions are recorded in the print log:

 Print jobs from your computer

 USB Direct Print (Supported models only)

 Copy

 Received Fax (Supported models only)

• The Store Print Log to Network feature supports Kerberos Authentication and NTLMv2 Authentication.

You must configure the SNTP protocol (network time server), or you must set the date, time and time zone correctly on the control panel for Authentication. (For information about setting SNTP, see Synchronize

with SNTP server on page 77. For information about setting the date, time and time zone, see the Quick Setup Guide.)

. You can record the ID, type of print job, job name, user name, date, time, the

for every print job.

• You can set the file type to Text or CSV when storing a file to the server.

How to configure the Store Print Log to Network settings using Web Based Management (web browser) 6

a Click Administrator Settings on the machine’s web page, and then click Store Print Log to Network. b Choose On from Print Log. c You can configure the following settings using a web browser.

 Host Address

The Host Address is the Host name of the CIFS server. Enter the Host Address (for example: example.com) (up to 64 characters) or the IP address (for example: 192.168.56.189).

 Store Directory

Enter the destination folder where your log will be stored on the CIFS server (for example: brother\abc) (up to 60 characters).

 File Name

Enter the file name you want to use for the print log up to 15 characters.

 File Type

Choose the file type for the print log Text or CSV.

Web Based Management

Note

 Auth. Method

Choose the authentication method required for access to the CIFS server Auto, Kerberos

NTLMv2

Kerberos is an authentication protocol which allows devices or individuals to securely prove their identity to network servers using a single sign-on.

NTLMv2 is the default authentication method used by Windows to log into servers.

For Kerberos and NTLMv2 Authentication you must also configure the Date&Time settings or the SNTP protocol (network time server).

You can configure the Date&Time and the SNTP settings using Web Based Management.

You can also configure the Date&Time settings from the machine’s control panel.

• Auto: If you choose Auto, the machine will initially search for a Kerberos server. If the Kerberos

server is not detected, NTLMv2 will be used for the authentication method.

• Kerberos: Choose Kerberos, to use Kerberos authentication only.

• NTLMv2: Choose NTLMv2, to use NTLMv2 authentication only.

 Username

Enter the Username for the authentication up to 96 characters.

If the username is part of a domain, please input the username in one of the following styles: user@domain or domain\user.

 Password

Enter the password for the authentication up to 32 characters.

 Kerberos Server Address (if needed)

Enter the KDC Host Address (for example: example.com) (up to 64 characters) or the IP address (for example: 192.168.56.189).

d In the Connection Status, you can confirm the last log status. For more information, see Understanding

Error Messages on page 82.

e Click Submit to apply your settings.

Web Based Management

Note

Error Detection Setting 6

You can choose what action is taken when the print log cannot be stored to the server due to a network error.

a Choose Cancel Print or Ignore Log & Print in the Error Detection Setting of Store Print Log to

Network.

 Cancel Print

If you choose Cancel Print, the print jobs are canceled when the print log cannot be stored to the server.

Even if you choose Cancel Print, your machine will print a received fax.

 Ignore Log & Print

If you choose Ignore Log & Print, the machine prints the document even if the print log cannot be stored to the server.

When the store print log function has recovered, the print log is recorded as follows:

• If the log cannot be stored at the end of printing, the print log except the number of printed pages and color pages will be recorded. (1)

• If the Print Log cannot be stored at the beginning and the end of printing, the print log of the job will not be recorded. When the function has recovered, the occurrence of an error is shown in the log. (2)

Example of the print log:

b Click Submit to apply your settings.

(1)

(2)

Web Based Management

Note

Understanding Error Messages 6

You can confirm the error status on the LCD of your machine or Connection Status in Web Based Management.

 Server Timeout

This message will appear when you cannot connect to the server. Make sure that:

• Your server address is correct.

• Your server is connected to the network.

• The machine is connected to the network.

 Authentication Error

The message will appear when your Authentication Setting is not correct. Make sure that:

•Username

If the username is part of a domain, please input the username in one of the following styles: user@domain or domain\user.

• Confirm the time of the log file sever matches the time from the SNTP server, or the Date&Time

settings.

and Password in Authentication Setting is correct.

• Confirm the SNTP time server settings are configured correctly so the time matches the time used for

authentication by Kerberos or NTLMv2. If there is no SNTP server make sure the Date&Time and Time Zone settings are set correctly using Web Based Management or the control panel so the machine matches the time being used by the server providing the authentication.

 File Access Error

This message will appear when you cannot access the destination folder. Make sure that:

• Directory name is correct.

• Directory is write-enabled.

• File is not locked.

 Wrong Date&Time

This message will appear when your machine does not obtain the time from the SNTP time server. Make sure that:

• Confirm the settings to access the SNTP time correctly using Web Based Management.

• If no SNTP server is being used, confirm the Date & Time set on the control panel matches the time used by the server providing the authentication.

If you choose the Cancel Print option in Web Based Management the Log Access Error message will remain on the LCD for about 60 seconds.

Web Based Management

Using Store Print Log to Network with Secure Function Lock 2.0 6

When Secure Function Lock 2.0 is active the names of the registered users for copy, Fax RX and USB Direct Print (if available) functions will be recorded in the Store Print Log to Network report.

Example of the print Log with Secure Function Lock 2.0 users:

Changing the Scan to FTP configuration using a web browser6

Scan to FTP allows you to scan a document directly to an FTP server on your local network or on the Internet.

See Network Scanning in the Software User's Guide for more details on Scan to FTP.

a Click Administrator Settings on the MFC-XXXX (or DCP-XXXX) web page, and then click

FTP/Network Scan Settings.

b You can choose what profile numbers (1 to 10) to use for Scan to FTP settings.

You can also store two user defined file names that can be used for creating an FTP Server Profile in addition to the seven present file names in Create a User Defined File Name. A maximum of 15 characters can be entered in each of the two fields. After setting, click Submit.

Web Based Management

Note

c Click FTP/Network Scan Profile on Administrator Settings page.

Now you can configure and change the following Scan to FTP settings using a web browser.

 Profile Name (Up to 15 characters)

 Host Address (FTP server address)

 Username

 Password

 Store Directory

 File Name

 Quality

 File Type

 Glass Scan Size

 File Size

 Passive Mode

 Port Number

For DCP-9270CDN and MFC-9970CDW

You can set Passive Mode to Off or On depending on your FTP server and network firewall configuration. By default this setting is On, you can also change the port number used to access the FTP server. The default for this setting is port 21. In most cases these two settings can remain as default.

Scan to FTP is available when FTP server profiles are configured using Web Based Management.

Web Based Management

Note

Changing the Scan to Network configuration using a web browser 6

Scan to Network allows you to scan documents directly to a shared folder on a CIFS server located on your local network or the Internet. (For more information on the CIFS protocol, see the Network Glossary.) To enable the CIFS protocol, check the box for CIFS on Configure Protocol from the Network Configuration page.

See Network Scanning in the Software User's Guide for more details on Scan to Network.

Scan to Network supports Kerberos Authentication and NTLMv2 Authentication.

with SNTP server on page 77. For information about setting the date, time and time zone, see the Quick Setup Guide.)

a Click Administrator Settings on the MFC-XXXX (or DCP-XXXX) web page, and then click

FTP/Network Scan Settings.

b You can choose what profile numbers (1 to 10) to use for Scan to Network settings.

You can also store two user defined file names that can be used for creating a Scan to Network Profile in addition to the seven present file names in Create a User Defined File Name. A maximum of 15 characters can be entered in each of the two fields. After setting, click Submit.

c Click FTP/Network Scan Profile on Administrator Settings page.

Now you can configure and change the following Scan to Network settings using a web browser.

 Profile Name (Up to 15 characters)

 Host Address

 Store Directory

 File Name

 Quality

 File Type

 Glass Scan Size

 File Size

 Use PIN for authentication

 PIN Code

 Auth. Method

 Username

 Password

Web Based Management

Note

 Kerberos Server Address

For DCP-9270CDN and MFC-9970CDW

Scan to Network is available when Network server profiles are configured using Web Based Management.

Changing the LDAP configuration using a web browser (For DCP-9270CDN and MFC-9970CDW)

You can configure and change the LDAP settings using a web browser. Click Network Configuration on the MFC-XXXX or DCP-XXXX web page, and then click Configure Protocol. Make sure that the check box for LDAP is on and then click Advanced Settings.

 Status Enable/Disable

 LDAP Server Address

 Port (The default port number is 389.)

 Timeout for LDAP

 Authentication

 Username

 Password

 Kerberos Server Address

 Search Root

 Attribute of Name (Search Key)

 Attribute of E-mail

 Attribute of Fax Number

After setting, make sure that the Status is OK on the Test Result page.

• If the LDAP server supports Kerberos Authentication, we recommend to choose Kerberos for the

Authentication setting. It provides strong authentication between the LDAP server and your machine.

You must configure the SNTP protocol (network time server), or you must set the date, time and time zone correctly on the control panel for Kerberos Authentication. (For information about setting SNTP, see Synchronize with SNTP server on page 77. For information about setting the date, time and time zone, see the Quick Setup Guide.)

• For the details of each item, see the Help Text in the Web Based Management.

Note

LDAP operation

(For DCP-9270CDN and MFC-9970CDW)

Overview 7

The LDAP protocol allows you to search for information such as fax numbers and E-mail addresses from your server. When you use Fax, I-Fax or Scan to E-mail server features, you can use the LDAP search to find fax numbers or E-mail addresses.

Changing the LDAP configuration using a Browser 7

You can configure and change LDAP settings using a web browser. (For more information, see Changing the LDAP configuration using a web browser (For DCP-9270CDN and MFC-9970CDW) on page 86.)

LDAP operation using the control panel 7

After you configure LDAP settings, you can use the LDAP search to find fax numbers or E-mail addresses for the following features.

 Fax sending

 I-Fax sending

(See the Basic User's Guide for sending operations)

(See Internet fax (For MFC-9970CDW) on page 89 for sending operations)

 Scan to E-mail server (See the Software User's Guide for sending operations)

For MFC-9970CDW

When you are ready to enter a fax number or E-mail address, follow the steps below:

a Press to search. b Enter initial characters for your search by using the buttons on the LCD.

• You can enter up to 15 characters.

• For information how to enter text, see the Basic User's Guide.

c Press OK.

The LDAP search result will be shown on the LCD with before the local address book search

result (For MFC-9970CDW). If there is no match on the server and the local address book (For MFC-9970CDW), the LCD will show Results cannot be found. for about 60 seconds.

d Press a or b to scroll until you find the name you are looking for.

To confirm the details of the name, press Detail.

LDAP operation (For DCP-9270CDN and MFC-9970CDW)

Note

e If the result includes more than one fax number or E-mail address, the machine will prompt you to press

a or b to choose either a fax number or an E-mail address. Do one of the following: For fax and I-Fax sending operations, go to step f. For Scan to E-mail server sending operations, go to step g.

f Press Send a fax. g (For US) Load your document and press Black Start or Color Start.

(For UK) Load your document and press Mono Start or Colour Start.

• The LDAP function of this machine supports LDAPv3.

• You need to use Kerberos Authentication or Simple Authentication to communicate with your LDAP server.

• SSL/TLS is not supported.

• For more information, visit us at http://solutions.brother.com/

Note

Internet fax (For MFC-9970CDW) 8

Internet fax Overview 8

Internet faxing (IFAX) allows you to send and receive fax documents using the Internet as the transport mechanism. Documents are transmitted in E-mail messages as attached TIFF-F files. This means that computers are also able to receive and send documents, providing that the computer has as an application that can generate and view TIFF-F files, you can use any TIFF-F viewer application. Any documents sent via the machine will automatically be converted into a TIFF-F format. If you wish to send and receive messages to and from your machine, your mail application on the computer must be able to support the MIME format.

1 Sender

2 Internet

3 Receiver

4 E-mail server

You can send/receive I-Fax documents in Letter or A4 and in Black & White only.

Internet fax (For MFC-9970CDW)

 Forwarding received E-mail and fax messages

You can forward received E-mail or standard fax messages to another E-mail address or fax machine. For more information see Forwarding received E-mail and fax messages on page 94.

 Relay broadcast

If you want to fax the document long distance (such as abroad), the "relay broadcast" function allows you to save the communication fee. This function allows the Brother machine to receive the document over the Internet, and then relay it to other fax machines through conventional telephone lines. For more information see Relay broadcasting on page 94.

1 Internet

2 Telephone line

3 E-mail server

Important information on Internet fax 8

Internet fax communication on a LAN system is basically the same as communication via E-mail; however, it is different from fax communication using standard phone lines. The following is important information for using Internet fax:

 Factors such as the receiver’s location, structure of the LAN system, and how busy the circuit (such as the

Internet) is, may cause the system to take a long time to send back an error mail. (normally 20 sec. to 30 sec.).

 In the case of transmission through the Internet, due to its low level of security, we recommend that you

use standard phone lines to send confidential documents.

 If the receiver’s mail system is not compatible with the MIME format, you cannot transmit a document to

the receiver. Depending on the receiver’s server, there may be some cases in which the error mail will not be sent back.

 If the size of a document’s image data is too large, there is a possibility of unsuccessful transmission.

 You cannot change the font or character size of Internet mail that you received.

Internet fax (For MFC-9970CDW)

Note

How to Internet fax 8

Before using Internet fax you must configure your Brother machine to communicate with your network and mail server. You must ensure the following items are configured on your machine. You can configure these items from the control panel, Web Based Management, Remote setup or BRAdmin Professional 3. If you are unsure of any of these items, please contact your systems administrator.

 IP address (If you are already using your machine on your network, the machine’s IP address has been

configured correctly.)

 E-mail address

 SMTP, POP3 server address/port/Authentication method/Encryption method/Server Certificate

Verification

 mailbox name and password

Sending an Internet fax 8

Before sending an Internet fax 8

To send an Internet fax, you can configure the following items from the control panel, Web Based Management or Remote Setup.

 Sender Subject (if needed)

 Size Limit (if needed)

 Notification (if needed) (For more information, see TX Verification Mail on page 96.)

How to send an Internet fax 8

Sending an Internet fax is the same as sending a normal fax (For more information, see Sending a fax in the Basic User's Guide). If you have already programmed the addresses of the destination Internet fax machines

as One Touch or Speed-Dial locations, you can send the Internet fax by loading the document into the machine. If you want to change the resolution, press Fax Resolution to set the preferred resolution, choose a Speed Dial or One Touch number, press Black Start/Mono Start (S.Fine is not supported for Internet fax).

• If you wish to manually enter the Internet fax address, load the document into the machine and press

. Press to choose numbers, characters or special characters. Enter the address and

then press Black Start/Mono Start.

For more information to manually enter the Internet fax address, see the Quick Setup Guide.

• You can register the E-mail address information from Web Based Management or Remote Setup.

Internet fax (For MFC-9970CDW)

Note

After the document is scanned, it is transmitted to the recipient Internet fax machine automatically via your SMTP server. You can cancel the send operation by pressing the Stop/Exit key during scanning. After the transmission is finished, the machine will return to standby mode.

Some E-mail servers do not allow you to send large E-mail documents (the System Administrator will often place a limit on the maximum E-mail size). With this function enabled, the machine will display Out of Memory when trying to send E-mail documents over 1 Mbyte in size. The document will not be sent and an error report will be printed. The document you are sending should be separated into smaller documents that will be accepted by the mail server. (For your information, a 42 page document based on the ITU-T Test Chart #1 test chart is approximately 1 Mbyte in size.)

Receiving E-mail or Internet fax 8

Before receiving an Internet fax 8

To receive an Internet fax, you should configure the following items from the control panel, Web Based Management or Remote Setup:

 Auto Polling (if needed)

 Poll Frequency (if needed)

 Header (if needed)

 Delete Error Mail (if needed)

 Notification (if needed) (For more information, see TX Verification Mail on page 96.)

How to receive an Internet fax 8

There are 2 ways you can receive E-mail messages:

 POP3 receiving at regular intervals

 POP3 receiving (manually initiated)

Using POP3 receiving the machine must poll the E-mail server to receive the data. This polling can occur at set intervals (for example, you can configure the machine to poll the E-mail server at 10 minute intervals) or you can manually poll the server by pressing the 1 + Black Start/Mono Start or Color Start/Colour Start keys.

If your machine starts to receive E-mail data, the LCD panel will reflect this activity. For example, you will see

Receiving on the LCD panel followed by XXE-mail(s). If you press the 1 + Black Start/Mono Start or Color Start/Colour Start keys to manually poll the E-mail server for E-mail data and there are no mail

documents waiting to be printed, the machine will display No Mail on the LCD panel for two seconds.

Internet fax (For MFC-9970CDW)

Note

• If your machine is out of paper when receiving data, the received data will be held in the machine’s memory. This data will be printed automatically after paper is re-inserted into the machine.

• If the received mail is not in a plain text format or an attached file is not in the TIFF-F format, the following error message will be printed: “ATTACHED FILE FORMAT NOT SUPPORTED. FILE

NAME:XXXXXX.doc” If the received mail is too large, the following error message will be printed: “E-MAIL FILE TOO LARGE.”. If Delete POP Receive Error Mail is ON (default) then the error mail is automatically

deleted from the E-mail server.

Receiving an Internet fax to your computer 8

When a computer receives an Internet fax document, the document is attached to a mail message that informs the computer that it has received a document from an Internet fax. This is notified in the subject field of the received mail message.

If the computer to which you wish to send a document is not running Windows®2000/XP, Windows

Server owner that they must install some software that can view TIFF-F files.

2003/2008, Windows Vista® or Windows®7 operating system, please inform the computer’s

Internet fax (For MFC-9970CDW)

Additional Internet Fax options 8

Forwarding received E-mail and fax messages 8

You can forward received E-mail or standard fax messages to another E-mail address or fax machine. Received messages can be forwarded via E-mail to a computer or Internet fax. They can also be forwarded via standard phone lines to another machine.

The setting can be enabled using a web browser or through the control panel of the machine. The steps for configuring fax forward can be found in the Advanced User's Guide.

Please see the Advanced User's Guide to check that this feature is supported.

Relay broadcasting 8

This function allows the Brother machine to receive a document over the Internet, and then relay it to other fax machines through conventional telephone lines.

Before relaying broadcast 8

To relay broadcast, you must configure the following items from the control panel, Web Based Management or Remote Setup:

 Relay Broadcast

You must enable the relay broadcast.

 Relay Domain

You must configure your machine’s domain name on the machine that will broadcast the document to the conventional fax machine. If you wish to use your machine as a relay broadcast device, you must specify the domain name that you trust at the machine, in other words, the portion of the name after the “@” sign. Use care in selecting a trusted domain since any user on a trusted domain will be able to send a relay broadcast.

You can register up to 10 domain names.

 Relay Report

Internet fax (For MFC-9970CDW)

UKFAX@brother.co.uk(fax#123456789)

E-mail address

Fax Phone Number

The word "fax#" must be included with the phone number inside the parenthesis.

Relay broadcast from a machine 8

FAX@brother.com UKFAX@brother.co.uk 123456789

UKFAX@brother.co.uk(fax#123456789)

1 Internet

In this example, your machine has an E-mail address of FAX@brother.com, you wish to send a document from this machine to another machine in England with an E-mail address of UKFAX@brother.co.uk, this machine will then forward the document to a standard fax machine using a conventional telephone line. If your E-mail address is FAX@brother.com, you must configure a trusted domain name of brother.com on the machine in England that will broadcast the document to the conventional fax machine. If you do not enter the domain name information, then the machine in the middle (the machine that will broadcast the document) will not trust any Internet jobs that it receives from the machine in the @brother.com domain.

After the trusted domain is set you can send the document from your machine [e.g. FAX@brother.com] by entering the E-mail address of the machine [e.g. UKFAX@brother.co.uk] that will forward the document followed by the phone number of the fax that will receive the document. The following is an example of how to enter the E-mail address and phone number.

Sending to multiple phone numbers: 8

If you want to have the document relayed to more than one standard fax machine the address can be entered using the following method:

a Press (FAX). b Load your document. c Press d or c to display Broadcasting.

Press Broadcasting.

d Enter the phone number of the first Fax machine UKFAX@brother.co.uk(fax#123).

Brother MFC-9460CDN, MFC-9560CDW, MFC-9970CDW Network Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Definitions of notes

IMPORTANT NOTE

Table of Contents

Introduction 1

Network features 1

Other Network features 1

LDAP 1

Internet fax (MFC-9970CDW: standard, MFC-9460CDN, MFC-9465CDN and MFC-9560CDW: available as a download) 1

Security 1

Fax to Server (MFC-9970CDW: standard, MFC-9460CDN, MFC-9465CDN and MFC-9560CDW: available as a download) 1

Secure Function Lock 2.0 1

Store Print Log to Network 1

How to change your machine’s network settings (IP address, Subnet mask and Gateway)

Using the control panel 2

Using the BRAdmin Light utility 2

Installing BRAdmin Light 2

Setting the IP address, Subnet Mask and Gateway using BRAdmin Light 2

Other Management Utilities 2

Web Based Management (web browser) 2

BRAdmin Professional 3 utility (Windows®) 2

Web BRAdmin (Windows®) 2

BRPrint Auditor (Windows®) 2

Overview 3

Step by step chart for wireless network configuration 3

For Infrastructure mode 3

For Ad-hoc mode 3
