Page 1
UP TO
PPM COLOUR
8
8
UP TO
PPM MONO
31
31
UP TO
SHEET PAPER
CAPACITY
250
250
DPI PRINT
RESOLUTION
2,400
2,400
UP TO
UP TO
SHEET ADF
35
35
NETWORK
READY

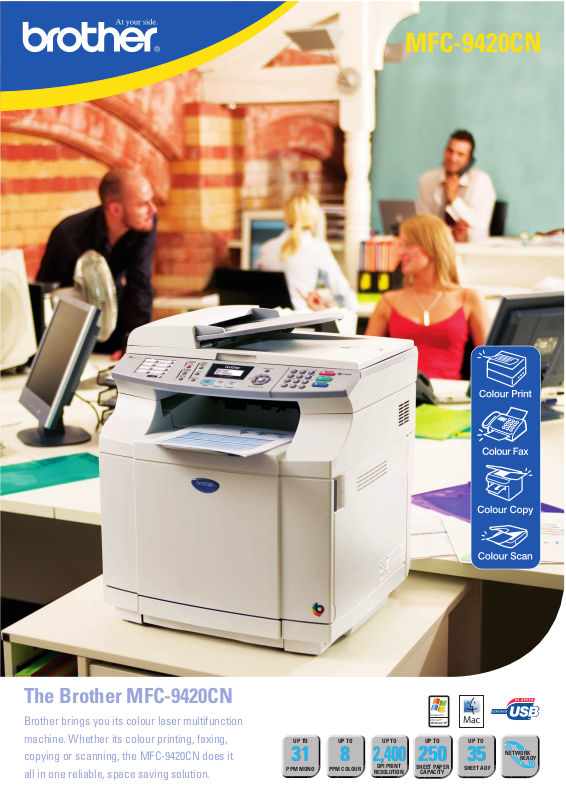

MFC-9420CN
The Brother MFC-9420CN
Brother brings you its colour laser multifunction
machine. Whether its colour printing, faxing,
copying or scanning, the MFC-9420CN does it
all in one reliable, space saving solution.
Page 2
Professional colour printing
The ideal choice for small and medium
sized businesses, this all-in-one will
maximise productivity and office
efficiency by handling the many
demands from multiple users.
Whether printing a simple text document
or a complex colour presentation, the
MFC-9420CN brings high quality printing to your workgroup.
Your workgroup will benefit from the 250 sheet paper tray and,
should demand increase, you can expand paper capacity to up to
780 sheets with an optional 530 sheet paper tray
Q
Up to 31ppm mono, up to 8ppm colour
Q
Up to 600 x 600dpi resolution (2,400dpi class)
Q
64MB standard memory (expandable to up to 576MB)
Q
Up to 250 sheet paper capacity
Q
PCL®6 & BR-Script 3 (PostScript®3 Language Emulation)
Q
Memory Security
The MFC-9420CN
from Brother
Professional print, fax,
copy and scan functions
all in one machine and
all in colour.
Simple colour copying
Create professional colour or black and
white copies at the touch of a button.
As with faxing, you can copy from a
variety of media thanks to the provision
of both an automatic document feeder
and a flatbed.
Reduce paper usage and costs by
copying 2 or 4 pages onto one A4 sheet –
simply select this option from the LCD menu. Colour copying made
easy and accessible for all your workgroup.
Q
Up to 99 multi-copies
Q
Stack and sort functions
Q
2 in 1 and 4 in 1 copying
Q
Poster printing
Super G3 colour faxing
Send and receive colour or mono fax
messages with the impressive
performance that you’ve come to expect
from a laser machine.
One-touch and speed dial locations make
communication with your most frequently
used numbers quick and simple.
The automatic document feeder is ideal when sending multiple
pages, whilst the flatbed enables you to fax from bound documents.
Q
33.6kbps modem speed
Q
16 one-touch dials
Q
200 speed dials
Q
Up to 35 sheet automatic document feeder
Q
Flatbed design
Q
Up to 400 page transmit/receive memory
*ITU-T #1 chart with MMR coding, standard resolution
Quality colour scanning
High quality results are guaranteed
thanks to a scan resolution of up to
9,600dpi. This all-in-one comes
complete with the very latest scanning
software, giving you a range of options
including Scan-to-email, OCR, image,
or file.
Another benefit is that you can utilize
the scanner function whilst operating in another mode, for
example; whilst receiving a fax or printing another document.
Q
Up to 9,600dpi interpolated resolution
Q
48 bit colour depth
Q
TWAIN / WIA compliant
Q
Includes ScanSoft®PaperPort®for Windows®and NewSoft
®
Presto!®PageManager®for Macintosh®software
Page 3
Advanced network features
This multifunction comes complete with a built-in network facility,
enabling your workgroup to share the printing, PC-faxing and
scanning features.
The MFC-9420CN supports the popular
TCP/IP protocol used by Windows
®
and
Macintosh
®
operating systems for
connecting computers on a network or
the Internet. Hi-Speed USB 2.0 and
Parallel ports are also provided as
standard, meaning connecting to this
machine couldn’t be easier.
Q
Integrated 10/100 Base-TX
Q
BRAdmin Professional Management
software included
Quality consumables
As with all Brother colour laser machines, the MFC-9420CN
comes with four individual colour toner cartridges. Thanks to
the front loading system, these cartridges are simple to install
and replace. Using genuine Brother
supplies will always ensure optimum
performance of your machine.
Toner Reference
Q
TN-04BK black toner
†
- up to 10,000 A4 pages
Q
TN-04C/M/Y: colour toners
†
- up to 6,600 A4 pages
(MFC-9420CN is supplied with a 5,000†page Black toner
and a 3,000†page toner for each Colour)
†
Standard yield @ 5% coverage
Page 4
Technical Specifications MFC-9420CN
General
Print Engine Laser
Memory Capacity 64MB standard / 576MB maximum
Memory BackUp Yes (Up to 60 hours for standard memory)
Simultaneous Operation (Print/Copy) (Print/Scan)
Automatic Document Feeder Up to 35 sheets
Paper Capacity Up to 250 sheets (Up to 780 sheets maximum)
Output Paper Capacity Up to 250 sheets
LCD Size 16 characters x 2 lines
Paper Handling Size LTR/EXE/A4/A5/B5
Colour Printer
Speed (ppm) Up to 31ppm - monochrome / Up to 8ppm - colour
Resolution 600 x 600 dpi, 2,400 dpi class
First Print Out Time Less than 15 secs (mono) / Less than 21 secs (colour)
Standard Print Language Windows
®
GDI
Emulation PCL
®
6 & BR-Script 3 (PostScript® 3 Language Emulation)
Secure Print Yes
Colour Copy
Speed Up to 31cpm - monochrome / Up to 8cpm - colour
Resolution (dpi) 600 x 600 dpi
First Copy Out Time Mono 20 secs / Colour 30 secs (from ready mode)
Multi Copy (Stack / Sort) Stacks & Sorts output copies as desired (Up to 99)
Reduction /Enlargement Ratio 25% - 400% in 1% increments
N in 1 Compress 2 or 4 pages on to a single A4 sheet
Poster Enlarge image to poster size
Colour Scanner
Resolution (Optical) From Glass: Up to 1,200 x 2,400 dpi (colour & mono)
From ADF : Up to 1,200 x 600 dpi (colour & mono)
Resolution (Interpolated) Up to 9,600 dpi
Grey Scale 256 shades of grey
Color Depth (Int. / Ext.) 48 bit / 24 bit
Scan Type Scan to e-mail / OCR / image / file
Interface (s)
USB Hi-Speed USB 2.0 connection as standard
Parallel IEEE1284 Parallel cable port
Network This model is supplied with a built-in 10/100 Base-TX network
interface as standard
External TAD Interface Yes
Colour Fax
Modem Speed 33.6kbps Super G3
Data Compression MH / MR / MMR / JPEG
Fax/Tel Switch Automatic recognition of fax and telephone reception
Super Fine Enables quality transmission and reception of very small print or
line drawings (TX & RX)
Dual Access Scan a fax for transmission whilst receiving a fax
One-Touch Dial 16 (8 x 2) locations for one-touch auto dialling of pre-stored numbers
Speed Dial 200 locations for two-touch auto dialling of pre-stored numbers
Group Dial Up to 8 groups
Automatic Redial Automatic redial if the recipient fax is busy
Distinctive Ring Detection Yes - UK & Denmark only
Delayed Timer Yes (Up to 50)
Transmit/receive memory Up to 400 pages (ITU-T Test Chart, Standard Resolution, MMR)
ECM Where machines share ECM, it resends the page(s) of a document
(Error Correction Mode) where an error has occurred
Broadcasting Locations Send the same fax message to up to 266 locations
Auto Reduction Automatically reduces a received fax to fit on to a single sheet
of A4
PC-Fax Yes (Send & Receive)
Remote Access Allows the user to remotely access their machine by using
another touch tone fax
Fax Retrieval Allows the user to retrieve fax messages using another touch
tone phone
Fax Forwarding Sends a fax received in memory to another pre-programmed
fax number
Supplies
Toner Cartridge Black TN-04BK : Up to 10,000 A4 pages @ 5% coverage
Toner Cartridge Cyan, TN-04C,M,Y : Up to 6,600 A4 pages @ 5% coverage
Magenta, Yellow
Weights and Dimensions
Dimensions (WxDxH) / 575mm x 595mm x 760mm / Approx. 42.0kg
Weight w/Carton
Dimensions (WxDxH) / 482mm x 437mm x 534mm / 34.5kg
Weight w/o Carton
Power Consumption
Sleep 80w or less
Standby 200w or less
Peak 1300w or less
For more information regarding Systems Requirements, please visit http://solutions.brother.com
Contact:
The professional choice for
your workgroup
The ideal choice for small and medium sized
businesses, the MFC-9420CN will maximise
productivity and office efficiency by handling
the many demands from multiple users.
This all-in-one comes with a built-in 10/100
Base-TX Ethernet, making it simple for your
workgroup to print, fax, copy and scan across
the network.
High Quality Colour Printing and Faxing
Whether printing a simple text document
or a complex colour presentation, the
MFC-9420CN brings high quality printing to
your workgroup. You can also send and
receive colour or mono fax messages at
impressive speeds, thanks to the Super
G3 fax modem.
Simple Colour Copying and Scanning
The MFC-9420CN comes with both an
automatic document feeder and a flatbed,
allowing you to fax, copy and scan from a
variety of document types. Backlit function
keys also enable you to easily identify and
switch between these functions. For your
convenience, Brother also includes the
very latest scanning software.
Features that make the difference
As workgroup demands increase, so too can
your memory and paper capacity. Memory
is fully upgradeable to 576MB, whilst paper
capacity can increase to up to 780 sheets with
an additional lower tray. As with all Brother
colour laser machines, the MFC-9420CN
comes with four individual colour toner
cartridges, meaning you only replace a single
toner once it is empty, keeping costs low.
Q
Up to 31ppm mono, 8ppm colour
Q
Up to 600 x 600dpi printing resolution
(2,400 dpi class)
Q
Network ready
Q
33.6k bps Super G3 modem speed
Q
64MB standard memory
(expandable to up to 576MB)
Q
Up to 250 sheet paper capacity
Q
Flatbed design
Q
200 speed dials, 16 one-touch dials
Brother MFC-9420CN
Brother UK Ltd.
Shepley Street, Audenshaw, Manchester, M34 5JD
Tel: 0870 830 4000 (National Rate Call) Fax: 0870 830 4031
Web-site: www.brother.co.uk
Your calls to us may be monitered or recorded for traning purposes. Specification correct at time of going
to print. Brother is a registered trademark of Brother Industries Ltd. Brand product names registered
trademarks or trademarks of their respective companies.
