Brother MFC-8480DN, MFC-8680DN Quick Setup Guide

Quick Setup Guide

Start Here

MFC-8480DN MFC-8680DN
Before you can use the machine, read this Quick Setup Guide for the correct setup and installation. To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/
.
IMPORTANT
DO NOT connect the interface cable yet.

Unpack the machine and check the components

Drum Unit Assembly
(including Standard Toner Cartridge for MFC-8480DN,
High-Yield Toner Cartridge for MFC-8680DN)
AC Power Cord
Quick Setup Guide User’s Guide CD-ROMS
Accessory Order Form Product Registration Sheet
(USA only)
USB Interface Cable
(MFC-8680DN only)
(Windows (Macintosh)
Telephone Line Cord
®
)
WARNING
Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep these bags away from babies and children.
USA/CAN Version 0
1
Note
• The components included in the box may differ depending on your country.
• Save all packing materials and the box in case for any reason you must ship your machine.
• The interface cable is not a standard accessory for all models. Buy the appropriate interface cable for the interface you want to use (USB, Parallel or Network). The MFC-8680DN includes a USB 2.0 interface cable as a standard accessory.
USB cable
• Please make sure you use a USB 2.0 cable (Type A/B) that is no longer than 6 feet (2 meters).
• DO NOT connect the interface cable at this time. Connecting the interface cable is done during MFL-Pro installation process.
• When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB port on a keyboard or non-powered USB hub.
Parallel cable
DO NOT use a parallel interface cable that is longer than 6 feet (2 meters). Use a shielded interface cable that is IEEE 1284-compliant.
Network cable
Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.
Symbols used in this guide
WARNING
CAUTION
IMPORTANT
Note
User’s Guide Software User’s Guide Network User’s Guide
WARNINGS tell you what to do to prevent possible personal injury.
CAUTIONS specify procedures you must follow or avoid to prevent possible minor injuries.
IMPORTANT describe procedures you must follow or avoid to prevent possible machine problems or machine damage, or damage to other objects.
Electrical Hazard icons alert you to a possible electrical shock.
Hot Surface icons warn you not to touch machine parts that are hot.
Notes tell you how you should respond to a situation that may arise or give tips about how the current operation works with other features.
Indicates reference to the printed User’s Guide, the Software User’s Guide or the Network User’s Guide. The Software User’s Guide and Network User’s Guide are located on the supplied CD-ROM.
2
CAUTION
CAUTION
When you move the machine, grasp the side handholds that are under the scanner. DO NOT carry the machine by holding it at the bottom.
Note
Keep a minimum gap around the machine as shown in the illustration.
11.8 in. (300 mm)
7.87 in. (200 mm)
19.68 in. (500 mm)
5.12 in. (130 mm)
3
Install the drum unit and
IMPORTANT
DO NOT connect the interface cable yet.
toner cartridge assembly
a Remove the protective tape and film covering
the scanner glass.
b Press the front cover release button and open
the front cover a.
d Gently shake it from side to side several times
to distribute the toner evenly inside the assembly.
e Put the drum unit assembly into the machine
until it clicks into place.
1
c Unpack the drum unit and toner cartridge
assembly.
f Close the front cover of the machine.
4
Load paper in the paper
tray
a Pull the paper tray completely out of the
machine.
b While pressing the blue paper-guide release
lever a, slide the paper guides to fit the paper size you are loading in the tray. Make sure that the guides are firmly in the slots.
c Fan the stack of paper well to avoid paper jams
and misfeeds.
d Put paper in the tray, and make sure that the
paper is below the maximum paper mark a. The side to be printed on must be face down.
1
1
Note
For Legal or Folio size paper, press the release button a in the bottom of the paper tray and then pull out the back of the paper tray. (Legal or Folio size paper are not available in some regions.)
IMPORTANT
Make sure the paper guides touch the sides of the paper so it will feed properly.
e Put the paper tray firmly back in the machine.
Make sure that it is completely inserted into the machine.
f Unfold the support flap a to prevent paper
from sliding off the face-down output tray.
1
1
1
5

Release the scanner lock

a Push the lever a in the direction shown to
unlock the scanner.
(The gray scanner lock lever is located at the back left side, under the document cover b.)
1
c Connect the telephone line cord. Connect one
end of the telephone line cord to the jack on the machine marked LINE and the other end to a modular wall jack.
2
IMPORTANT
The telephone line cord MUST be connected to the jack on the machine marked LINE.
Connect the power cord
IMPORTANT
DO NOT connect the interface cable yet.
and telephone line
a Make sure that the machine power switch is off.
Connect the AC power cord to the machine.
b Plug the AC power cord into an AC outlet. Turn
the power switch on.
WARNING
The machine must be grounded using a 3-prong plug.
Since the machine is grounded through the power outlet, you can protect yourself from potentially hazardous electrical conditions on the telephone network by keeping the power cord connected to your machine when you connect it to a telephone line. Similarly, you can protect yourself when you want to move your machine by disconnecting the telephone line first and then the power cord.
Note
If Scanner Locked appears on the LCD, immediately release the scanner lock and press
Stop/Exit. (See Release the scanner lock on page 6.)
6
Note
1
If you are sharing one telephone line with an external telephone, connect it as shown below.
Before you connect the external telephone, remove the protective cap a from the EXT. jack on the machine.
Choose your language
(If needed)
a Press Menu. b Press 0.
1
2
1
1 Extension telephone 2 External telephone
Note
If you are sharing one telephone line with an external telephone answering machine, connect it as shown below.
Before you connect the external telephone answering machine, remove the protective cap a from the EXT. jack on the machine.
c Press 0.
d Press or to choose your language.
Press OK.
e Press Stop/Exit.
1
Set the receive mode to External TAD if you have an external answering machine. See Choose the correct Receive
Mode on page 8. For additional details, see Connecting an external TAD (telephone answering device) in Chapter 7 of the User’s Guide.
7

Choose the correct Receive Mode

The correct Receive Mode is determined by the external devices and telephone subscriber services (Voice Mail, Distinctive Ring, etc.) you have (or will be using) on the same line as the Brother machine.
Will you be using a Distinctive Ring number for receiving faxes?
Brother uses the term “Distinctive Ring” but telephone companies may have other names for this service such as Custom Ringing, RingMaster, Personalized Ring, Teen Ring, Ident-A-Call, and Smart Ring. See Distinctive Ring in Chapter 7 of the User’s Guide for instruction on setting up your machine using this feature.
Will you be using Voice Mail on the same telephone line as your Brother machine?
If you have Voice Mail on the same telephone line as your Brother machine, there is a strong possibility that Voice Mail and the Brother machine will conflict with each other when receiving incoming calls. See Voice Mail in Chapter 7 of the User’s Guide for instructions on setting up your machine using this service.
Will you be using a Telephone Answering Device on the same telephone line as your Brother machine?
Your external telephone answering device (TAD) will automatically answer every call. Voice messages are stored on the external TAD and fax messages are printed. Choose External TAD as your receive mode. See the instructions below.
Will you be using your Brother machine on a dedicated fax line?
Your machine automatically answers every call as a fax. Choose Fax Only as your receive mode. See the instructions below.
Will you be using your Brother machine on the same line as your telephone?
Do you want to receive voice calls and faxes automatically?
The Fax/Tel receive mode is used when sharing the Brother machine and your telephone on the same line. Choose Fax/Tel as your receive mode. See the instructions below. Important Note: You cannot receive voice messages on either Voice Mail or an answering machine when choosing the Fax/Tel mode.
Do you expect to receive very few faxes?
Choose Manual as your receive mode. You control the phone line and must answer every call yourself. See the instructions below.
For details, see Using receive modes in Chapter 6 of the User’s Guide.
a Press Menu. b Press 0. c Press 1.
d Press or to choose the receive mode.
Press OK.
e Press Stop/Exit.
8
Set the LCD contrast
If you are having difficulty reading the LCD, try changing the contrast setting.
(If needed)
a Press Menu.
e Enter the two digits for the month on the dial
pad, and then press OK.
02.Date&Time XX/XX/2009
Month:03
Enter & OK Key
b Press 1. c Press 7.
d Press to increase the contrast.
—OR—
Press to decrease the contrast.
Press OK.
e Press Stop/Exit.

Set the date and time

The machine displays the time, and if you set up the station ID the date and time will be added to each fax you send.
a Press Menu. b Press 0.
(e.g. Enter 0, 3 for March.)
f Enter the two digits for the day on the dial pad,
and then press OK.
02.Date&Time 03/XX/2009
Day:25
Enter & OK Key
(e.g. Enter 2, 5.)
g Enter the time in 24-hour format on the dial
pad, and then press OK.
02.Date&Time 03/25/2009
Time:15:25
Enter & OK Key
(e.g. Enter 1 5, 2 5 for 3:25 P.M.)
c Press 2. d Enter the last two digits of the year on the dial
pad, and then press OK.
02.Date&Time
Year:2009
Enter & OK Key
(e.g. Enter 0, 9 for 2009.)
h Press Stop/Exit.
9

Set your Station ID

10
You should store your name and fax number to be printed on all fax pages that you send.
a Press Menu. b Press 0. c Press 3. d Enter your fax number (up to 20 digits) on the
dial pad, and then press OK.
03.Station ID
Fax:_
Enter & OK Key
e Enter your telephone number (up to 20 digits)
on the dial pad, and then press OK. (If your telephone number and fax number are the same, enter the same number again.)
03.Station ID Fax:XXXXXXXXXXX
Tel:_
Enter & OK Key
Press
key
2 ABC2A
3 DEF 3D
4 GH I 4G
5 JKL5J
6 MNO 6M
7 PQRS 7
8 TUV8T
9 WXY Z 9
One time
For more details, see Entering Text in the User’s Guide.
Two
times
Three times
Four
times
Five
times
g Press Stop/Exit.
Note
If you make a mistake and want to start again, press Stop/Exit and go back to step a.
(USA only) The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or electronic device to send any message via a telephone fax machine unless such messages clearly contain, in a margin at the top or bottom of each transmitted page, or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity or other individual sending the message and the telephone number of the sending machines or such business, other entity or individual. To program this information into your machine, see Set the date and
time on page 9 and Set your Station ID on page 10.
f Use the dial pad to enter your name (up to 20
characters), and then press OK.
03.Station ID Fax:XXXXXXXXXXX Tel:XXXXXXXXXXX Name:_
Enter & OK Key
Note
• See the following chart for entering your name.
• If you need to enter a character that is on the
same key as the last character, press to move the cursor to the right.
• If you entered a letter incorrectly and want to
change it, press or to move the cursor to the incorrect character, press Clear/Back.
10

Fax Transmission Report

Dial Prefix

11
Your Brother machine is equipped with a Transmission Verification Report that can be used as confirmation that you sent a fax. This report lists the name or fax number of the receiving party, the date, time, and duration of the transmission, the number of pages transmitted, and whether or not the transmission was successful. If you want to use the Fax Transmission Report feature see Chapter 11 Printing Reports in the User’s Guide.
Set tone or pulse dialing
12
Your machine comes set for Tone dialing service. If you have Pulse dialing service (rotary), you need to change the dialing mode.
a Press Menu. b Press 0. c Press 4.
mode (Canada only)
13
The dial prefix setting will automatically dial a predefined number before every fax number you dial. For example: If your phone system requires a 9 to dial an outside number this setting will automatically dial 9 for every fax you send.
a Press Menu. b Press 0. c Press 5 (For Canada, press 6). d Enter the prefix number (up to 5 digits) on the
dial pad, and then press OK.
Note
• You can use the number 0 to 9, #, l and !. (Press Hook to display “!”.) You cannot use ! with any other numbers or characters. If your telephone system requires a timed break recall (hookflash), press Hook to enter the break.
• If the pulse dialing mode is on, # and available to use. (Canada only)
l
are not
d Press or to choose Pulse (or
Tone).
Press OK.
e Press Stop/Exit.
e Press Stop/Exit.
Automatic Daylight
14
You can set the machine to change automatically for daylight savings time. It will reset itself forward one hour in the Spring and backward one hour in the Fall.
Savings Time
a Press Menu. b Press 1. c Press 4.
d Press or to choose On (or Off).
Press OK.
e Press Stop/Exit.
11
Send in the Product Registration and Test
15
You can also register your product online using the On-Line Registration link from the installation CD-ROM or visit http://www.brother.com/registration/
Sheet (USA only)
.
a Fill out the Product Registration and Test
Sheet.
b Put the sheet face up in the ADF (Automatic
Document Feeder) or face down on the scanner glass.
c Make sure (Fax) is illuminated in Blue. d Enter the toll-free fax number: 1-877-268-9575.
e Press Start.
Note
You will receive a confirmation fax of your Product Registration.
12

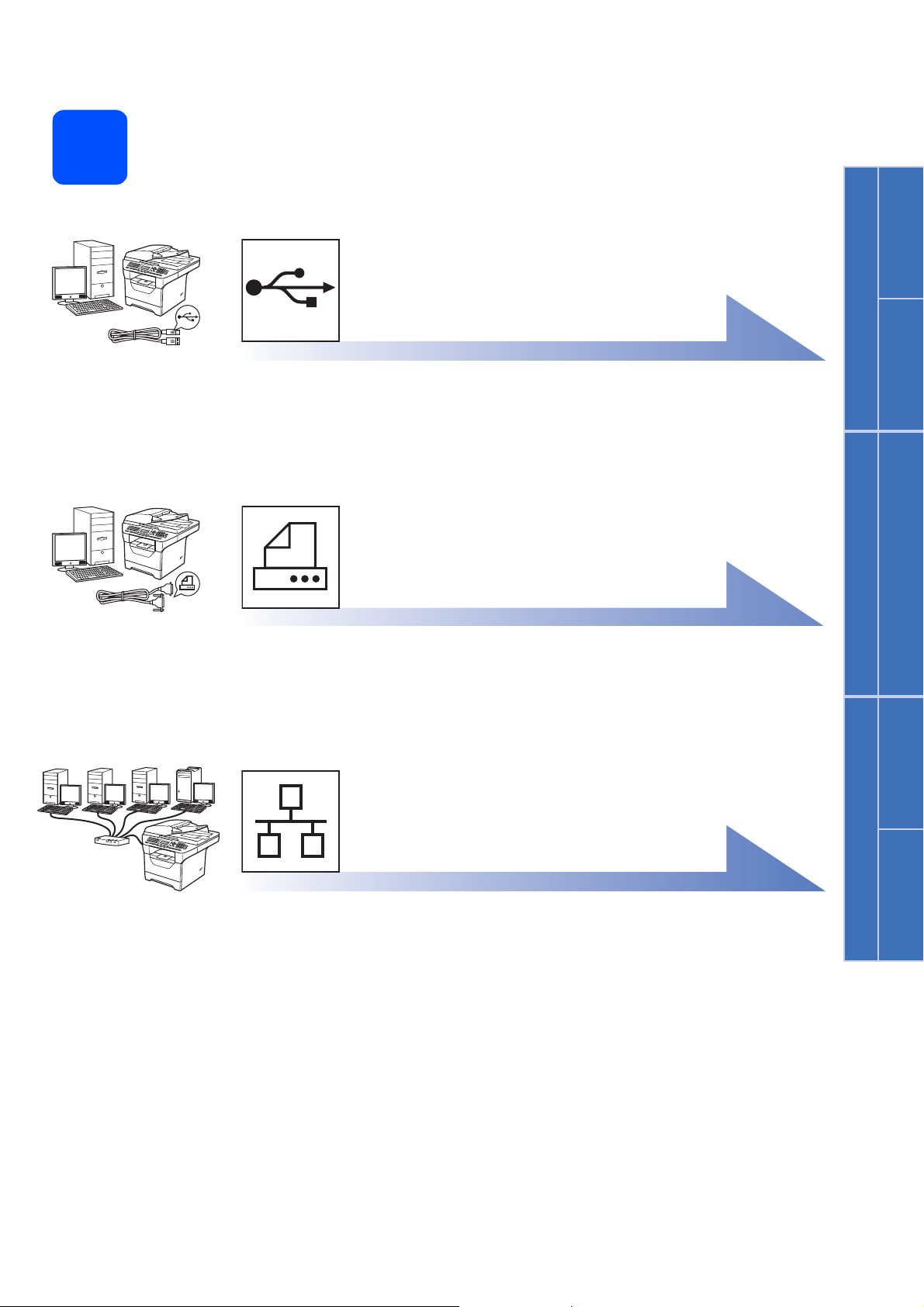

Choose your connection type

16
For USB Interface Users
Windows®, go to page 14 Macintosh, go to page 18
For Parallel interface cable
Windows®, go to page 20
Windows
®
USB
Macintosh
Windows
Parallel
®
For Wired Network
Windows®, go to page 24 Macintosh, go to page 28
For Windows Server® 2003/2008, see the Network User’s Guide on the CD-ROM.
Windows
Wired Network
®
Macintosh
13
USB
For USB Interface Users
®
(Windows Windows Vista
2000 Professional/XP/XP Professional x64 Edition/
®
)
Windows
®

Before you install

17
a Make sure that your computer is ON and you
are logged on with Administrator rights.
IMPORTANT
• DO NOT connect the USB cable yet.
• If there are any programs running, close them.
• Make sure a USB Flash memory device is not inserted into the machine.
• The screen may differ depending on the operating system.
• The supplied CD-ROM includes ScanSoft™ PaperPort™ 11SE. This software supports
Windows greater), XP Professional x64 Edition and
Windows Vista
Windows MFL-Pro Suite.
b Turn off and unplug the machine from the AC
outlet and disconnect it from your computer, if you already connected an interface cable.
®
2000 (SP4 or greater), XP (SP2 or
®
. Update to the latest
®
Service Pack before installing

Install MFL-Pro Suite

18
a Put the supplied CD-ROM into your CD-ROM
drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.
Note
If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click Start.exe.
b The CD-ROM main menu will appear. Click
Initial Installation.
14
c Click Install MFL-Pro Suite.
USB
Windows
®
Note
• If the installation does not continue automatically, open the main menu again by ejecting and then reinserting the CD-ROM or double-click the Start.exe program from the root folder, and continue from step c to install MFL-Pro Suite.
• For Windows Vista
User Account Control screen appears, click Allow.
®
, when the
d When the ScanSoft™ PaperPort™ 11SE
License Agreement window appears, click Yes if you agree to the Software License Agreement.
g Choose Local Connection, and then click
Next. The installation continues.
Note
If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom Install and then follow the on-screen instructions. When the
Select Features screen appears, check PS Printer Driver, and then continue following
the on-screen instructions.
h If you do not want to monitor the machine
status and error notification from your computer, uncheck Enable Status Monitor and then click Next.
Windows
®
USB
Macintosh
e The installation of ScanSoft™ PaperPort™
11SE will automatically start and is followed by the installation of MFL-Pro Suite.
f When the Brother MFL-Pro Suite Software
License Agreement window appears, click Yes if you agree to the Software License Agreement.
Note
For Windows Vista®, when this screen appears, click the check box and click Install to complete the installation correctly.
i When this screen appears, go to the next step.
15
USB
Windows
®

Connect the USB cable

19
IMPORTANT
• DO NOT connect the machine to a USB port on a keyboard or a non-powered USB hub.
• Connect the machine directly to your computer.
a Remove the label covering the USB interface
connector.
b Connect the USB cable to the USB connector
on the machine marked with the symbol. Then connect the cable to your computer.

Connect the power cord

20
a Plug the AC power cord into an AC outlet. Turn
the power switch on.
The installation will continue automatically.
The installation screens appear one after another.
IMPORTANT
DO NOT cancel any of the screens during the installation. It may take a few seconds for all screens to appear.
b When the On-Line Registration screen is
displayed, make your selection and follow the on-screen instructions. Once you have completed the registration process, close your web browser to return to this window. Then click Next.
16
USB

Finish and restart

Windows
®
21
a Click Finish to restart your computer.
After restarting the computer, you must be logged on with Administrator rights.
Note
If an error message appears during the software installation, run the Installation Diagnostics located in Start/All Programs/Brother /MFC-XXXX (where MFC-XXXX is your model name).
b If this screen appears, choose the firmware
update setting and click OK.
Windows
®
USB
Macintosh
Note
Internet access is required for the firmware upgrade.
The installation is now
Finish
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the most suitable driver when printing from the applications that use the XML Paper Specification documents. Please download the latest driver by accessing the Brother Solutions Center at http://solutions.brother.com/
complete.
.
17
USB

For USB Interface Users (Mac OS X 10.3.9 or greater)

Macintosh

Before you install

17
a Make sure your machine is connected to the
power and your Macintosh is ON. You must be logged on with Administrator rights.
IMPORTANT
Make sure a USB Flash memory device is not inserted into the machine.

Connect the USB cable

18
IMPORTANT
• DO NOT connect the machine to a USB port on a keyboard or a non-powered USB hub.
• Connect the machine directly to your Macintosh.
b Connect the USB cable to the USB connector
on the machine marked with the symbol. Then connect the cable to your computer.

Install MFL-Pro Suite

19
a Put the supplied CD-ROM into your CD-ROM
drive.
a Remove the label covering the USB interface
connector.
b Double-click Start Here OSX to install.
Please wait, it will take a few seconds for the software to install. After the installation, click
Restart to finish installing the software.
Note
Please see the Software User’s Guide on the CD-ROM if you want to install the PS driver. (Brother’s BR-Script Driver)
18
USB
c The Brother software will search for the Brother
device. During this time the following screen will appear.

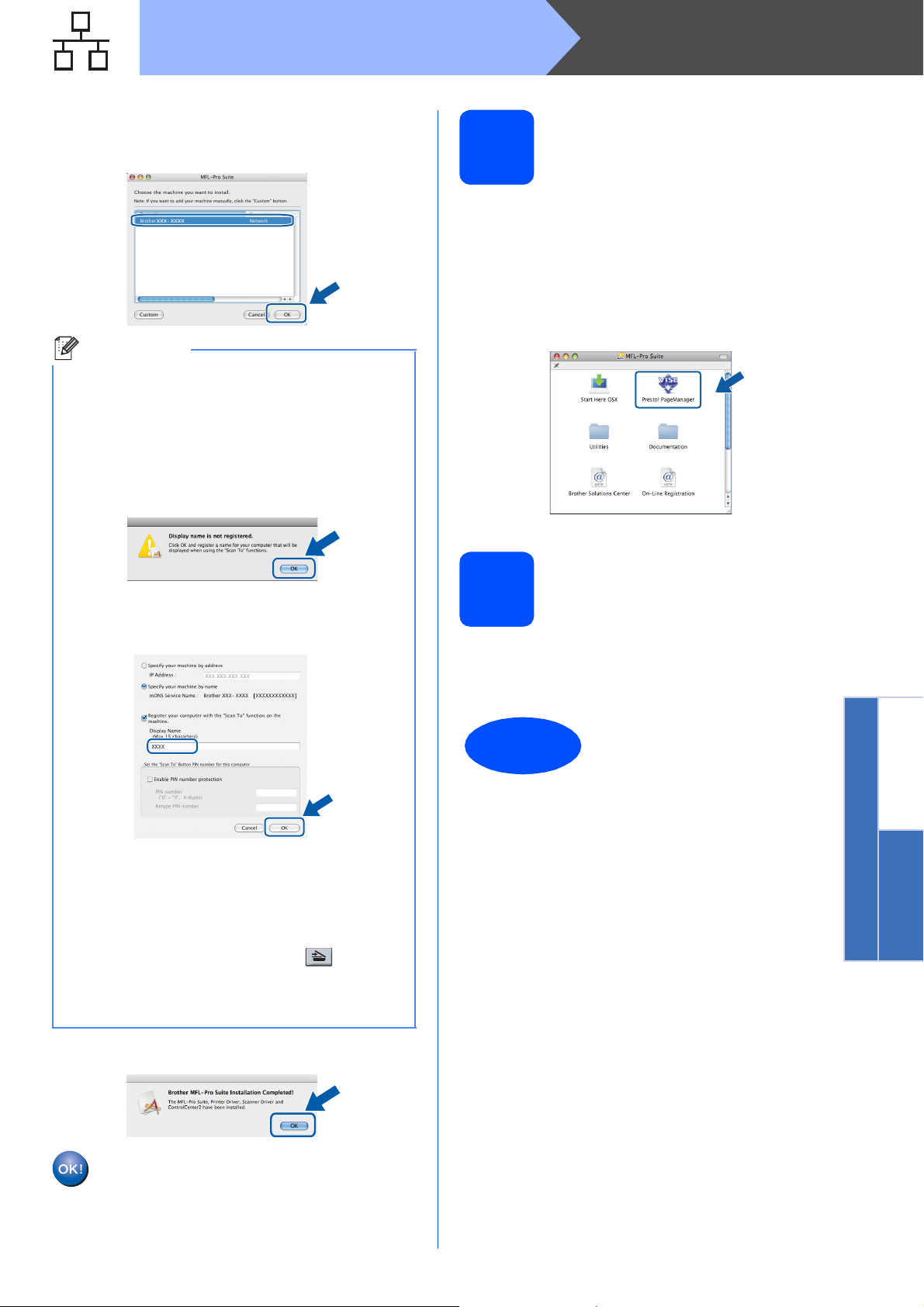

d Choose the machine from the list, and then
click OK.
Macintosh
Install
20
When Presto! PageManager is installed OCR capability is added to Brother ControlCenter2. You can easily scan, share and organize photos and documents using Presto! PageManager.
a Double-click Presto! PageManager and follow
Presto! PageManager
the on-screen instructions.
Windows
®
USB
Macintosh
e When this screen appears, click OK.
The installation of MFL-Pro Suite is now complete. Go to step 20 on page 19.
Finish
The installation is now complete.
19
Parallel
For Parallel Interface Users
®
(Windows
2000 Professional/XP/XP Professional x64 Edition)
Windows
®

Before you install

17
a Make sure that your computer is ON and you
are logged on with Administrator rights.
IMPORTANT
• DO NOT connect the Parallel cable yet.
• If there are any programs running, close them.
• Make sure a USB Flash memory device is not inserted into the machine.
• The screen may differ depending on the operating system.
• The supplied CD-ROM includes ScanSoft™ PaperPort™ 11SE. This software supports
Windows greater) and XP Professional x64 Edition.
Update to the latest Windows before installing MFL-Pro Suite.
b Turn off and unplug the machine from the AC
outlet and disconnect it from your computer, if you already connected an interface cable.
®
2000 (SP4 or greater), XP (SP2 or
®
Service Pack

Install MFL-Pro Suite

18
a Put the supplied CD-ROM into your CD-ROM
drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.
Note
If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click Start.exe.
b The CD-ROM main menu will appear. Click
Initial Installation.
20
c Click Install MFL-Pro Suite.
Parallel
Windows
®
Note
If the installation does not continue automatically, open the main menu again by ejecting and then reinserting the CD-ROM or double-click the Start.exe program from the root folder, and continue from c to install MFL-Pro Suite.
d When the ScanSoft™ PaperPort™ 11SE
License Agreement window appears, click Yes if you agree to the Software License Agreement.
e The installation of ScanSoft™ PaperPort™
11SE will automatically start and is followed by the installation of MFL-Pro Suite.
g Choose Local Connection, and then click
Next. The installation continues.
Note
If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom Install and then follow the on-screen instructions. When the
Select Features screen appears, check PS Printer Driver, and then continue following
the on-screen instructions.
h If you do not want to monitor the machine
status and error notification from your computer, uncheck Enable Status Monitor and then click Next.
Windows
Parallel
f When the Brother MFL-Pro Suite Software
License Agreement window appears, click Yes if you agree to the Software License Agreement.
®
i When this screen appears, go to the next step.
21
Parallel
Windows
®
Connect the Parallel
19
IMPORTANT
Connect the machine directly to your computer.
cable
a Connect the Parallel interface cable to your
computer, and then connect it to the machine.
b Do one of the following:
For Windows
click Next.
Note
If this screen appears, click OK.
For Windows
Edition users, wait for a while since the installation of the Brother drivers will automatically start. The screens appear one after another.
®
2000 Professional users,
®
XP/XP Professional x64

Connect the power cord

20
a Plug the AC power cord into an AC outlet. Turn
the power switch on.
The installation will continue automatically.
The installation screens appear one after another.
IMPORTANT
DO NOT cancel any of the screens during the installation. It may take a few seconds for all screens to appear.
c When the On-Line Registration screen is
displayed, make your selection and follow the on-screen instructions. Once you have completed the registration process, close your web browser to return to this window. Then click Next.
22
Parallel

Finish and restart

21
a Click Finish to restart your computer.
After restarting the computer, you must be logged on with Administrator rights.
Note
If an error message appears during the software installation, run the Installation Diagnostics located in Start/All Programs/Brother /MFC-XXXX LPT (where MFC-XXXX is your model name).
Windows
®
Windows
Parallel
b If this screen appears, choose the firmware
update setting and click OK.
Note
Internet access is required for the firmware upgrade.
The installation is now
Finish
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the most suitable driver when printing from the applications that use the XML Paper Specification documents. Please download the latest driver by accessing the Brother Solutions Center at http://solutions.brother.com/
complete.
.
®
23
Wired Network
For Wired Network Interface Users
®
(Windows Windows Vista
2000 Professional/XP/XP Professional x64 Edition/
®
)
Windows
®

Before you install

17
a Make sure that your computer is ON and you
are logged on with Administrator rights.
IMPORTANT
• If there are any programs running, close them.
• Make sure a USB Flash memory device is not inserted into the machine.
• The screens may differ depending on the operating system.
• The supplied CD-ROM includes ScanSoft™ PaperPort™ 11SE. This software supports
Windows greater), XP Professional x64 Edition and
Windows Vista
Windows MFL-Pro Suite.
®
2000 (SP4 or greater), XP (SP2 or
®
. Update to the latest
®
Service Pack before installing
Connect the network
18
cable

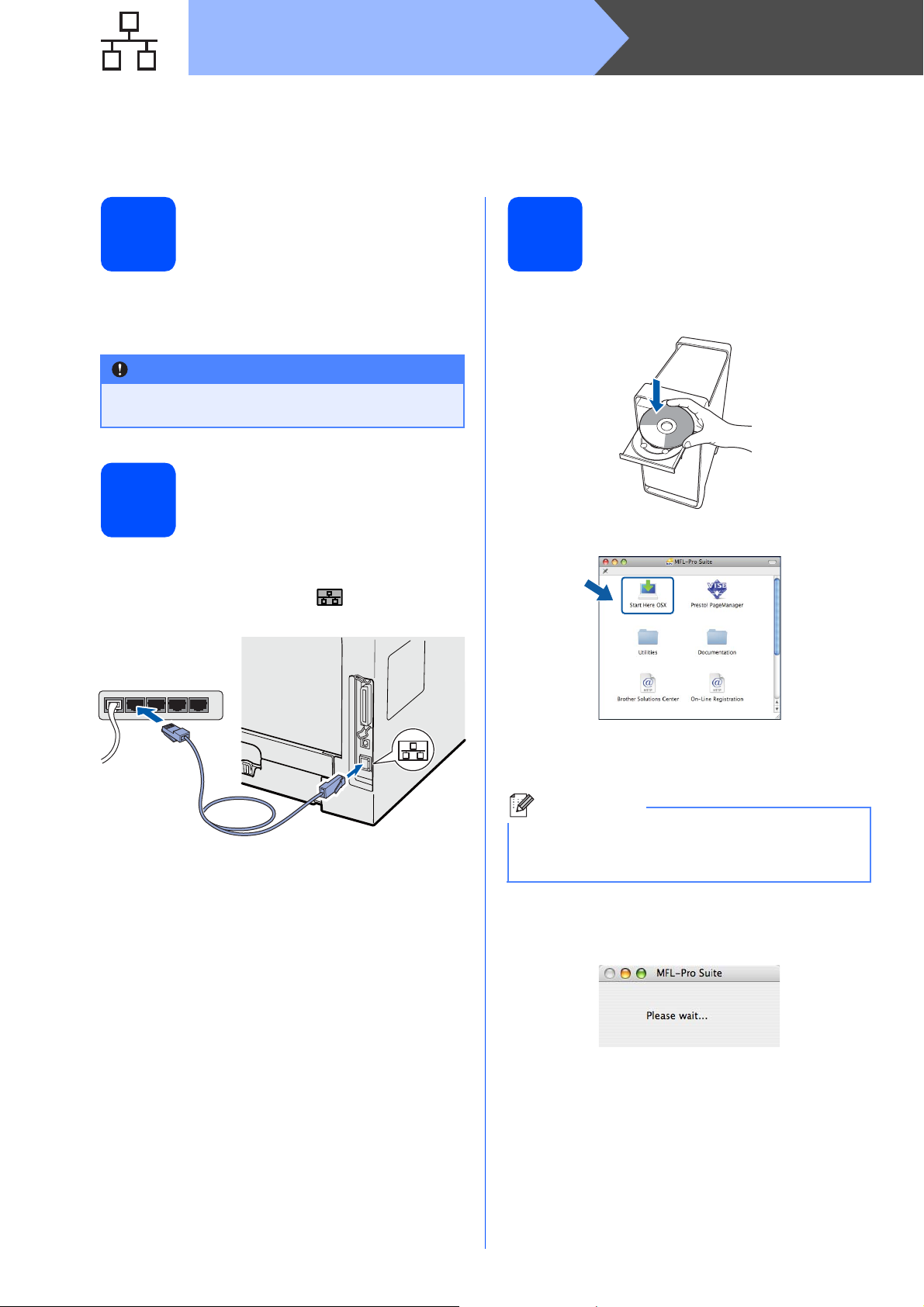

a Connect the network interface cable to the LAN
connector marked with a symbol and then connect it to a free port on your hub.

Connect the power cord

19
IMPORTANT
Disable all personal firewall
software (other than Windows Firewall), anti-spyware or antivirus applications for the duration of the installation.
b Unplug the machine from the AC outlet.
®
a Plug the AC power cord into an AC outlet. Turn
the power switch on.
24
Wired Network
Windows
®

Install MFL-Pro Suite

20
a Put the supplied CD-ROM into your CD-ROM
drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.
Note
If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click Start.exe.
b The CD-ROM main menu will appear. Click
Initial Installation.
Note
• If the installation does not continue automatically, open the main menu again by ejecting and then reinserting the CD-ROM or double-click the Start.exe program from the root folder, and continue from c to install MFL-Pro Suite.
• For Windows Vista
User Account Control screen appears, click Allow.
®
, when the
d When the ScanSoft™ PaperPort™ 11SE
License Agreement window appears, click Yes if you agree to the Software License Agreement.
c Click Install MFL-Pro Suite.
e The installation of ScanSoft™ PaperPort™
11SE will automatically start and is followed by the installation of MFL-Pro Suite.
f When the Brother MFL-Pro Suite Software
License Agreement window appears, click Yes if you agree to the Software License Agreement.
Windows
Wired Network
®
Macintosh
25
Wired Network
Windows
®
g Choose Network Connection, and then click
Next.
Note
If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom Install and then follow the on-screen instructions. When the
Select Features screen appears, check PS Printer Driver, and then continue following
the on-screen instructions.
h For Windows
Edition/Windows Vista screen appears, choose Change the Firewall
port settings to enable network connection and continue with the installation. (Recommended) and click Next.
®
XP SP2/XP Professional x64
®
users, when this
Note
• You can find your machine’s IP address and the node name by printing out the Network Configuration List. See Print the Network Configuration List on page 32.
• If your machine is not found over the network, following screen will appear.
Confirm your network setting by following the on-screen instructions.
• If the machine is not yet configured for use on your network, the following screen appears.
If you are not using the Windows the User’s Guide for your software for information on how to add the following network ports.
For network scanning, add UDP port 54925.For network PC-Fax receiving, add UDP port
54926.
If you still have trouble with your network
connection, add UDP port 137.
®
Firewall, see
i If the machine is configured for your network,
choose the machine from the list, and then click Next.

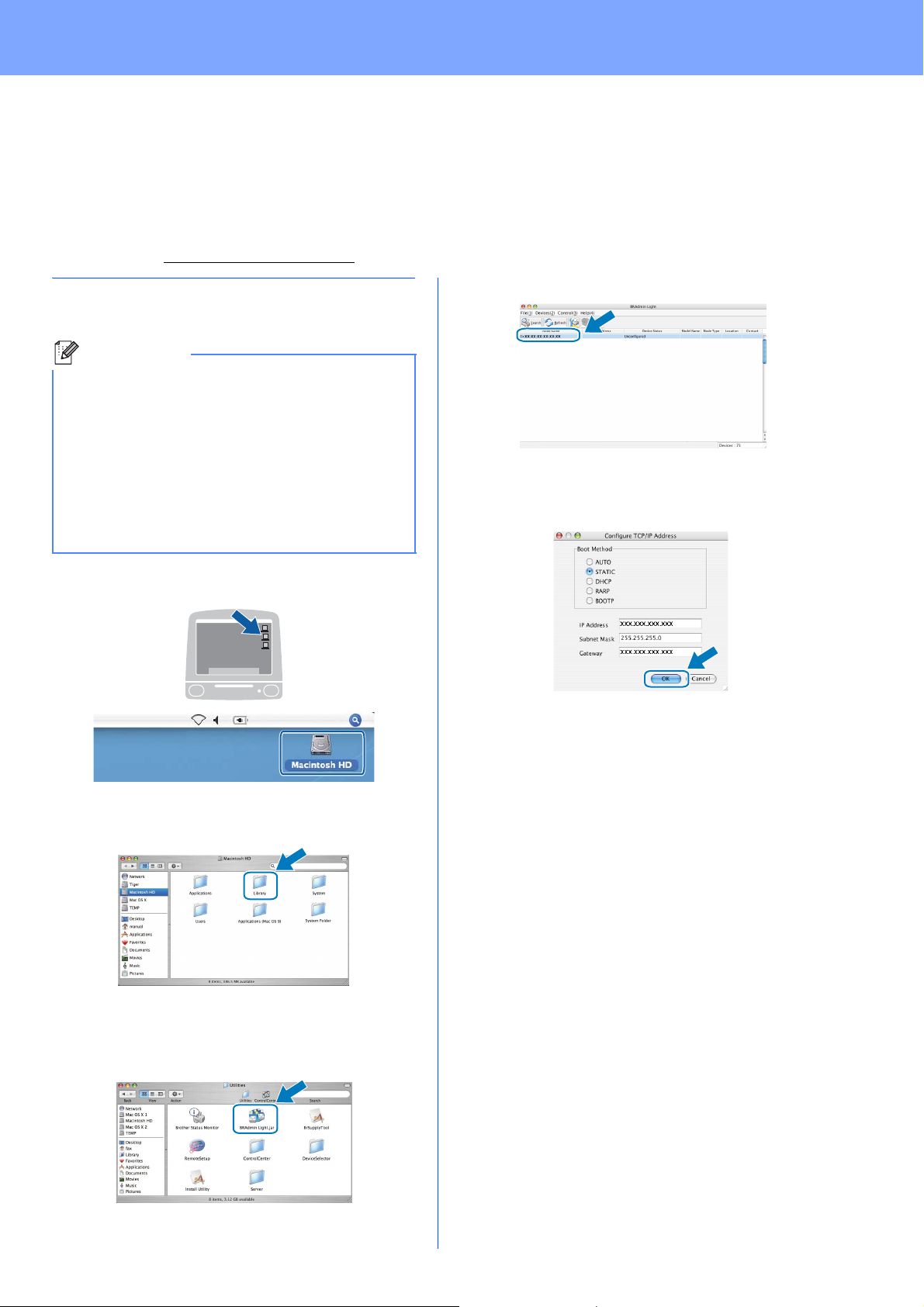

Click OK and then Configure IP Address. Enter an IP address for your machine that is suitable for your network by following the on-screen instructions.
j If you do not want to monitor the machine
status and error notification from your computer, uncheck Enable Status Monitor and then click Next.
k The installation of the Brother drivers will
automatically start. The installation screens appear one after another.
IMPORTANT
DO NOT cancel any of the screens during the installation. It may take a few seconds for all screens to appear.
26
Wired Network
Windows
®
Note
For Windows Vista®, when this screen appears, click the check box and click Install to complete the installation correctly.
l When the On-Line Registration screen is
displayed, make your selection and follow the on-screen instructions. Once you have completed the registration process, close your web browser to return to this window. Then click Next.
b If this screen appears, choose the firmware
update setting and click OK.
Note
Internet access is required for the firmware upgrade.
Install MFL-Pro Suite on additional computers
22
(If needed)

Finish and restart

21
a Click Finish to restart your computer. After
restarting the computer, you must be logged on with Administrator rights.
Note
If an error message appears during the software installation, run the Installation Diagnostics located in Start/All Programs/Brother/ MFC-XXXX LAN (where MFC-XXXX is your model name).
If you want to use your machine with multiple computers on the network, install MFL-Pro Suite on each computer. Go to step 20 on page 25.
Note
The MFL-Pro Suite Software License permits installation on up to 5 network computers. If you want to install MFL-Pro Suite on additional computers, you can purchase additional NL-5 (five user) license agreements from your authorized Brother dealer or contact Brother customer service.
The installation is now
Finish
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the most suitable driver when printing from the applications that use the XML Paper Specification documents. Please download the latest driver by accessing the Brother Solutions Center at http://solutions.brother.com/
complete.
.
Windows
Wired Network
®
Macintosh
27
Wired Network

For Wired Network Interface Users (Mac OS X 10.3.9 or greater)

Macintosh

Before you install

17
a Make sure your machine is connected to the
power and your Macintosh is ON. You must be logged on with Administrator rights.
IMPORTANT
Make sure a USB Flash memory device is not inserted into the machine.
Connect the network
18
a Connect the network interface cable to the LAN
cable
connector marked with a symbol and then connect it to a free port on your hub.

Install MFL-Pro Suite

19
a Put the supplied CD-ROM into your CD-ROM
drive.
b Double-click Start Here OSX to install.
Please wait, it will take a few seconds for the software to install. After the installation, click
Restart to finish installing the software.
Note
Please see the Network User’s Guide on the CD-ROM if you want to install the PS driver. (Brother’s BR-Script Driver)
c The Brother software will search for the Brother
device. During this time the following screen will appear.
28
Wired Network
d If the machine is configured for your network,
choose the machine from the list, and then click
OK.
Note
• You can find your machine’s IP address and the node name by printing out the Network Configuration List. See Print the Network Configuration List on page 32.
• If your machine is not found over the network, confirm your network setting.
• If this screen appears click OK.
Macintosh
Install
20
When Presto! PageManager is installed OCR capability is added to Brother ControlCenter2. You can easily scan, share and organize photos and documents using Presto! PageManager.
a Double-click Presto! PageManager and follow
Presto! PageManager
the on-screen instructions.
• Enter a name for your Macintosh in Display Name up to 15 characters long and click OK. Go to e.
• If you want to use the machine’s Scan key to scan over the network, you must check the
Register your computer with the “Scan To” function on the machine box.
• The name you enter will appear on the
machine’s LCD when you press and choose a scan option. (For more information, see Network Scanning in the Software User’s Guide on the CD-ROM.)
Install MFL-Pro Suite on additional computers
21
If you want to use your machine with multiple computers on the network, install MFL-Pro Suite on each computer. Go to step 19 on page 28.
Finish
(If needed)
The installation is now complete.
Windows
Wired Network
®
Macintosh
e When this screen appears, click OK.
The installation of MFL-Pro Suite is now complete. Go to step 20 on page 29.
29

For Network Users

BRAdmin Light utility (For Windows® users)

BRAdmin Light is a utility for initial setup of Brother network connected devices. It also can search for Brother products on your network, view the status and configure basic network settings, such as IP address. For more information on BRAdmin Light, visit us at http://solutions.brother.com/
Note
If you require more advanced printer management, use the latest Brother BRAdmin Professional utility version that is available as a download from http://solutions.brother.com/
.
.

Install the BRAdmin Light configuration utility

a Click Network Utilities on the menu screen.
b Click BRAdmin Light and follow the on-screen
instructions.

Set your IP address, Subnet Mask and Gateway using BRAdmin Light

Note
If you have a DHCP/BOOTP/RARP server in your network, you do not have to do the following operation. The machine will automatically obtain its own IP address.
a Start BRAdmin Light. It will search for new
devices automatically.
b Double-click the unconfigured device.
30
Note
The default password for the machine is ‘access’. You can use BRAdmin Light to change this password.
c Choose STATIC for the Boot Method. Enter
the IP Address, Subnet Mask and Gateway, and then click OK.
d The address information will be saved to the
machine.
For Network Users

BRAdmin Light utility (For Mac OS X users)

BRAdmin Light is a utility for initial setup of Brother network connected devices. It also can search for Brother products on your network, view the status and configure basic network settings, such as IP address from a computer running Mac OS X 10.3.9 or greater. The BRAdmin Light software will be installed automatically when you install the printer driver. If you have already installed the printer driver, you do not have to install BRAdmin Light again. For more information on BRAdmin Light, visit us at http://solutions.brother.com/
.

Set your IP address, Subnet Mask and Gateway using BRAdmin Light

Note
• If you have a DHCP/BOOTP/RARP server in your network, you do not have to do the following operation. The machine will automatically obtain its own IP address.
• Make sure that version 1.4.2 or greater of Java client software is installed on your computer.
• The default password for the machine is ‘access’. You can use BRAdmin Light to change this password.
a Double-click Macintosh HD on your desktop.
d Double-click the unconfigured device.
e Choose STATIC for Boot Method. Enter the
IP Address, Subnet Mask and Gateway, and then click OK.
f The address information will be saved to the
machine.
b Choose Library, Printers, Brother and then
Utilities.
c Double-click the file BRAdmin Light.jar and
run the software. BRAdmin Light will then search for new devices automatically.
31
For Network Users

Web Based Management (web browser)

The Brother print server is equipped with a web server that allows you to monitor its status or change some of its configuration settings, using HTTP (Hyper Text Transfer Protocol).
Note
• The User Name is ‘admin’ and the default password is ‘access’. You can use a web browser to change this password.
• We recommend Microsoft
®
6.0
(or higher) or Firefox 1.0 (or higher) for Windows Please also make sure that JavaScript and cookies are always enabled in whichever browser you use. To use a web browser, you will need to know the IP address of the print server. The IP address of the print server is listed on the Network Configuration List.
®
and Safari 1.3 for Macintosh.
®
Internet Explorer
a Open your browser. b Type http:// printer_ip_address /into your
browser (Where “printer_ip_address” is the IP address of the printer or the print server name).
You can find the IP address of the machine on the Network Configuration List. See Print the Network Configuration List on page 32.
For example http://192.168.1.2/

Print the Network Configuration List

You can print the Network Configuration List to confirm the current network settings. To print the Network Configuration List:
a Make sure that the front cover is closed and the
AC power cord is plugged in.
b Turn on the machine and wait until the machine
is in the Ready state.
c Press Menu, 6, 6. d Press Start.
The machine will print the current network settings.

Restore the network settings to factory default

To restore all network settings of the internal Print/Scan server to factory default, please follow the steps below.
a Make sure the machine is not operating, then
disconnect all the cables from the machine (except the power cord).
b Press Menu, 7, 0.
See Chapter 11 of the Network User’s Guide.
c Press 1 to choose Reset. d Press 1 to choose Yes. e The machine will restart, re-connect cables
once this is complete.
32

Options and Consumables

Options

Lower Tray Unit SO-DIMM Memory
LT-5300
Second lower paper tray unit can hold up to 250 sheets of paper. When the tray is installed, the machine expands total input capacity up to 550 sheets.
For more details about the optional Lower Tray Unit and compatible SO-DIMM Memory please see the User’s Guide or visit http://solutions.brother.com/
.
You can expand the memory by installing a (144-pin SO-DIMM) memory module.

Replacement consumables

When the time comes to replace consumable items, an error message will be indicated on the LCD. For more information about the consumables for your machine, visit http://www.brother.com/original/ Brother re-seller.
Toner cartridge Drum unit
TN-620/TN-650 DR-620
or contact your local
33
Trademarks
The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. Multi-Function Link is a registered trademark of Brother International Corporation. Windows Vista is either a registered trademark or a trademark of Microsoft Corporation in the United States and other countries. Microsoft, Windows and Windows Server and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and/or other countries. Apple, Macintosh, Safari and TrueType are trademarks of Apple Inc., registered in the United States and other countries. Nuance, the Nuance logo, PaperPort and ScanSoft are trademarks or registered trademarks of Nuance Communications, Inc. or its affiliates in the United States and/or other countries. Each company whose software title is mentioned in this manual has a Software License Agreement specific to its proprietary programs.
All other trademarks are the property of their respective owners.
Compilation and Publication
Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice. Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.
Copyright and License
©2009 Brother Industries, Ltd. This product includes software developed by the following vendors: ©1983-1998 PACIFIC SOFTWORKS, INC. This product includes the “KASAGO TCP/IP” software developed by ELMIC WESCOM, Inc. ©2009 Devicescape Software, Inc.
Loading...
