Brother MFC-820CW Quick Setup Guide

MFC-820CW

Before you can use the machine, you must set up the hardware and install the software. Please read this ‘Quick Setup Guide’ for the correct setup procedure and installation instructions.

Quick Setup Guide

STEP 1

Setting Up the Machine

STEP 2

Installing the Driver & Software

Setup is Complete!

Keep this ‘Quick Setup Guide’, the User’s Guide and the supplied CD-ROM in a convenient place for quick and easy reference at all times.

Version B

To use the machine safely

Warning

Warnings tell you what to do to prevent possible personal injury.

Note

Notes tell you how you should respond to a situation that may arise or give tips about how the current operation works with other features.

Caution

Cautions specify procedures you must follow or avoid to prevent possible damage to the machine or other objects.

User’s Guide, Software User’s Guide or

Network User’s Guide

Indicates reference to the User’s Guide, Software User’s Guide or Network User’s Guide which is on the CD-ROM we have supplied.

Improper Setup

Improper Setup icons alert you to devices and operations that are not compatible with the machine.

Getting Started

Carton components

Carton components may vary from one country to another. Save all packing materials and the carton in case for any reason you must ship your machine.

CD-ROMs

®

User’s Guide

Power Cord

Quick Setup Guide

For Windows

For Macintosh

Telephone Line Cord

Black (LC900 BK)

Magenta (LC900M)

Yellow (LC900Y)

Cyan (LC900C)

Ink Cartridges

An interface cable is not a standard accessory. Buy the proper interface cable for the interface you want to use (USB or network).

USB cable

 Please make sure you use a USB 2.0 cable that is no longer than 6 feet long (2 metres).  Your MFC has a USB interface that is compatible with the USB 2.0 specification.  DO NOT connect the interface cable at this time.

Connecting the interface cable is done during the software installation process.

Network cable

 Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet

Network.

2

Control panel

1 Dial Pad

2 Fax and telephone keys

3 Ink Management key

4 Mode keys

5 Navigation keys

13 4562

978

10.10.2006 Fax

20:45

Memory

04

6Start keys

7 Stop/Exit key

8 Power Save key

9 LCD (Liquid Crystal Display)

Getting Started

For the details of the control panel, see Control panel overview in Chapter 1 of the User’s Guide.

3

STEP 1

Setting Up the Machine

1 Removing the protective

parts

1 Remove the protective tape, then, starting from

the left hand side, carefully remove the scanner glass protection sheet.

Improper Setup

DO NOT connect the USB cable. Connecting the USB cable is done during the software installation process.

2 Loading paper

You can load up to 100 sheets of 80 g/m2 (20 lb) paper. For details, see About paper in Chapter 2 of the User’s Guide.

1 Pull the paper tray completely out of the

machine and remove the output paper tray (1).

11

2 Press and slide the paper guide (1) to fit the

paper width.

11

3 Pull out the paper support (1) and unfold the

paper support flap (2).

1

2

Note

Use the paper support flap for Letter, Legal and A4 paper.

4

4 Fan the stack of paper well to avoid paper jams

and misfeeds.

5 Gently put the paper into the paper tray print

side down and top edge first. Check that the paper is flat in the tray and below the maximum paper mark (1).

1

Setting Up the Machine

3 Installing the phone line and

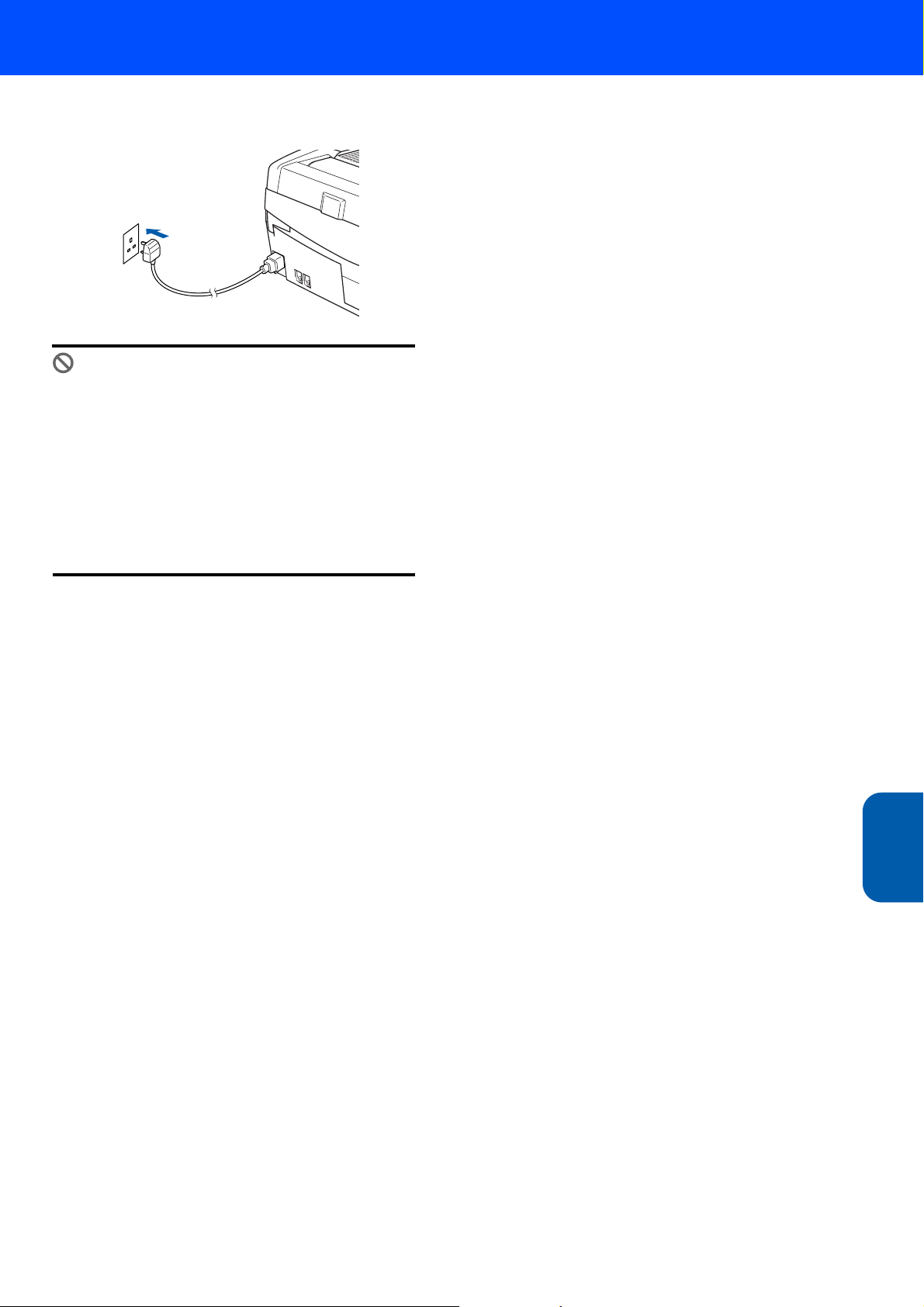

1 Connect the power cord.

power cord

Note

• Make sure the paper side guides touch the sides of the paper.

• Be careful that you do not push the paper in too far; it may lift at the back of the tray and cause paper feed problems.

6 Put the output paper tray back on and push the

paper tray firmly back into the machine.

2 Connect the telephone line cord. Connect one

end of the telephone line cord to the socket on the machine marked LINE and the other end to a modular wall socket.

Improper Setup

DO NOT connect the USB cable. Connecting the USB cable is done during the software installation process.

Warning

• The machine must be fitted with an earthed plug.

• Since the machine is grounded through the power outlet, you can protect yourself from potentially hazardous electrical conditions on the telephone network by keeping the power cord connected to your machine when you connect it to a telephone line. Similarly, you can protect yourself when you want to move your machine by disconnecting the telephone line first and then the power cord.

5

STEP 1

Setting Up the Machine

Note

If you are sharing one phone line with an external telephone, connect it as shown below.

1 Extension telephone 2 External telephone

Note

If you are sharing one phone line with an external telephone answering machine, connect it as shown below.

4 Installing the ink cartridges

Warning

1

2

If ink gets in your eyes, wash them out with water at once, and if irritation occurs consult a doctor.

1 The LCD shows:

No Cartridge Black Yellow Cyan Magenta

Note

Make sure that the power is turned on.

2 Lift the scanner cover (1) from the right-hand

side of the machine until it locks securely into the open position.

1

Set the receive mode to ‘External TAD’ if you have an external answering machine. For details, see Connecting an external device to your machine in Chapter 7 of the User’s Guide.

3 Remove the yellow protective parts (1).

1

Note

Do not throw away the yellow protective parts. You will need them if you transport the machine.

6

Setting Up the Machine

OK

4 Take out the ink cartridge.

5 Carefully remove the protective yellow cap (1).

11

6 Press firmly down on the ink cartridge until the

hook snaps over it, taking care to match the slot colour (1) with the cartridge colour (2), as shown in the diagram below.

2

1

Improper Setup

DO NOT touch the area shown in the illustration below.

Note

If the protective yellow cap comes off when you open the bag, the cartridge will not be damaged.

Keep the ink cartridge in an upright position when you put it into the slot.

OK

7 Lift the scanner cover to release the lock.

Gently push the scanner cover support down and close the scanner cover.

OK

Note

If the LCD still shows Black, Yellow, Cyan or Magenta after you install the ink cartridges, check

that the ink cartridges are installed properly.

7

STEP 1

Setting Up the Machine

The machine will clean the ink tube system for use for the first time. This process will occur only once, the first time ink cartridges are installed. The cleaning process will last approximately four minutes. The LCD shows:

5 Print quality check

1 After the cleaning cycle is finished, the LCD

shows:

Cleaning

iiiii

Preparing System Approx 4 Minutes

Caution

• DO NOT take out ink cartridges if you do not need to replace them. If you do so, it may reduce the ink quantity and the machine will not know the quantity of ink left in the cartridge.

• DO NOT shake the ink cartridges. If ink stains your skin or clothing, wash with soap or detergent at once.

• DO NOT repeatedly insert and remove the cartridges. If you do so, ink may seep out of the cartridge.

• If you mix the colours by installing an ink cartridge in the wrong position, clean the print head several times after correcting the cartridge installation. (See Cleaning the print head in Appendix B of the User’s Guide.)

• Once you open an ink cartridge, install it in the machine and use it up within six months of installation. Use unopened ink cartridges by the expiration date written on the cartridge package.

• DO NOT dismantle or tamper with the ink cartridge, this can cause the ink to leak out of the cartridge.

• Brother multifunction machines are designed to work with ink of a particular specification and will work to a level of optimum performance when used with genuine Brother branded ink cartridges. Brother cannot guarantee this optimum performance if ink or ink cartridges of other specifications are used. Brother does not therefore recommend the use of cartridges other than genuine Brother branded cartridges with this machine or the refilling of empty cartridges with ink from other sources. If damage is caused to the print head or other parts of this machine as a result of using incompatible products with this machine, any repairs required as a result may not be covered by the warranty.

Set Paper and Press

2 Make sure the paper is loaded in the paper

tray. Press Colour Start. The machine starts printing the Print Quality Check Sheet (only during initial ink cartridge installation).

3 Check the quality of the four colour blocks on

the sheet. (black/ cyan/ yellow/ magenta)

1. Check the quality of the f our-color blocks for med by the short lines.

2. If all the short lines are clear and visible, the qu ality is acceptable. the quality is acceptabl e. Select (Yes). If you can see missing short lines, select (No) to begin the co lor cleaning process and follow the prompts on the LCD.

Improper Setup

Avoid touching the printed surface of the paper immediately after printing, the surface may not be completely dry and may stain your fingers.

4 The LCD shows:

Is Quality OK?

Yes iPress 1 No iPress 2

Print Quality Check

8

5 Do one of the following:

 If all lines are clear and visible, press 1

(Yes) on the dial pad to finish the quality check.

 If you can see missing short lines, press 2

(No) on the dial pad and go to step 6.

OK Poor

6 The LCD asks you if the print quality is OK for

black and colour. Press 1 (Yes) or 2 (No) on the dial pad.

Black OK?

Setting Up the Machine

6 Setting the date and time

The machine displays the date and time, and prints it on every fax sent, if the station ID has been setup.

1 Press Menu. 2 Press a or b to choose Initial Setup.

Press OK.

3 Press a or b to choose Date/Time.

Press OK.

4 Enter the last two digits of the year on the dial

pad, and then press OK.

Year:20 06

Yes iPress 1 No iPress 2

Color OK?

Yes iPress 1 No iPress 2

After pressing 1 (Yes) or 2 (No) for both black and colour, the LCD shows:

Start Cleaning?

Yes iPress 1 No iPress 2

7 Press 1 (Yes), the machine will then start

cleaning the colours.

8 After cleaning is finished, press Colour Start.

The machine starts printing the Print Quality Check Sheet again and goes back to step 3.

(e.g. Enter 0 6 for 2006.)

5 Enter the two digits for the month on the dial

pad, and then press OK.

Month: 03

(e.g. Enter 0 3 for March.)

6 Enter the two digits for the day on the dial pad,

and then press OK.

Day: 01

(e.g. Enter 0 1 for the first of the month.)

7 Enter the time in 24-hour format on the dial

pad, and then press OK.

Time: 15:25

(e.g. Enter 1 5, 2 5 for 3:25 P.M.)

8 Press Stop/Exit.

9

STEP 1

Setting Up the Machine

7 Setting your station ID

You should store your name and fax number to be printed on all fax pages that you send.

1 Press Menu. 2 Press a or b to choose Initial Setup.

Press OK.

3 Press a or b to choose Station ID.

Press OK.

4 Enter your fax number (up to 20 digits) on the

dial pad, and then press OK.

Station ID Fax: _

5 Enter your name (up to 20 characters) using

the dial pad, and then press OK.

Station ID Name: _

8 Setting tone or pulse dialling

mode

1 Press Menu. 2 Press a or b to choose Initial Setup.

Press OK.

3 Press a or b to choose Tone/Pulse.

Press OK.

4 Press a or b to choose Pulse (or Tone).

Press OK.

5 Press Stop/Exit.

Note

See the following chart for entering your name. If you need to enter a character that is on the same key as the last character, press c to move the cursor to the right.

Press

key

One time Two

times

2 ABC2

3 DEF 3

4 GH I 4

5 JKL5

6 MNO 6

7 PQRS

8 TUV8

9 WXY Z

Three times

Four

times

6 Press Stop/Exit.

Note

If you want to repeat input, press Stop/Exit to start from step 1.

10

For details, see Entering Text in Appendix C of the User’s Guide.

Setting Up the Machine

9 Setting the phone line type

If you are connecting the machine to a line that features PBX or ISDN to send and receive faxes, it is also necessary to change the phone line type accordingly by completing the following steps.

1 Press Menu. 2 Press a or b to choose Initial Setup.

Press OK.

3 Press a or b to choose Phone Line Set.

Press OK.

4 Press a or b to choose PBX, ISDN (or

Normal).

Press OK.

5 Press Stop/Exit.

PBX and TRANSFER

The machine is initially set to Normal, which lets the machine connect to a standard PSTN (Public Switched Telephone Network) line. However, many offices use a central telephone system or Private Automatic Branch Exchange (PBX). Your machine can be connected to most types of PABX. The machine’s recall feature supports timed break recall only (TBR). TBR will work with most PABX systems allowing you to gain access to an outside line or send calls to another extension. The feature works when the Tel/R key is pressed.

Note

You can program a Tel/R key press as part of a number stored in a Speed-Dial location. When programming the Speed-Dial number, press Tel/R first (the LCD shows ‘!’), then enter the telephone number. If you do this, you do not need to press Tel/R each time before you dial using a Speed-Dial location. (See Storing numbers for easy dialling on the User’s Guide.)

10 Choosing a Receive Mode

There are four possible receive modes: Fax Only, Fax/Tel, Manual and External TAD.

Are you connecting an external telephone or external telephone answering device to your machine?

Yes

Are you using the voice message function of your external telephone answering device?

No

Do you want your machine to answer every call?

Yes

Do you use your machine for faxes only?

Fax Only

Yes

Your machine automatically answers every call as a fax.

No

Yes

Fax/Tel

Your machine controls the line and automatically answers every call. If the call is not a fax, the phone will ring for you to pick up the call.

Manual

You control the phone line and must answer every call yourself.

External TAD

Your external telephone answering device (TAD) automatically answers every call. Voice messages are stored on the external TAD. Fax messages are printed.

No

1 Press Menu. 2 Press a or b to choose Initial Setup.

Press OK.

3 Press a or b to choose Receive Mode.

Press OK.

4 Press a or b to choose the mode.

Press OK.

5 Press Stop/Exit.

For details, see Receiving a Fax in Chapter 6 of the User’s Guide.

Now go to

Go to Supplied CD-ROM ‘MFL-Pro Suite’ on the next page to install the drivers.

11

Supplied CD-ROM ‘MFL-Pro Suite’

Windows

®

Install MFL-Pro Suite

You can install the MFL-Pro Suite software and multifunction drivers.

Install Optional Applications

You can install additional MFL-Pro Suite software utilities.

Documentation

View the User’s Guide and other documents in PDF format (Viewer included). The User’s Guide on the CD-ROM includes the Software and Network User’s Guides for features available when connected to a computer (e.g. Printing, Scanning and wireless networking details).

On-Line Registration

Macintosh

®

Start Here OS 9.1-9.2

You can install the printer driver, scanner driver and

Presto!

®

PageManager® for Mac OS® 9.1-9.2.

Start Here OSX

You can install the MFL-Pro Suite that includes the printer driver, scanner driver and the Brother

ControlCenter2 for Mac OS

can also install Presto!

®

10.2.4 or greater. You

®

PageManager® to add OCR capability to the Brother ControlCenter2 and easily scan, share and organize photos and documents.

Readme.html

You can get important information and troubleshooting tips.

You will be pointed to the Brother Product Registration Web page for quick registration of your machine.

Brother Solutions Center

You can access the Brother Solutions Center which is a Web site offering information about your Brother product including FAQs, User’s Guides, driver updates and tips for using your machine.

Repair MFL-Pro Suite (USB only)

If an error occurred during the installation of the MFL-Pro Suite, use this selection to automatically repair and re-install the MFL-Pro Suite.

Note

MFL-Pro Suite includes Printer Driver, Scanner Driver, Brother ControlCenter2, ScanSoft ScanSoft PaperPort application for viewing scanned documents. ScanSoft PaperPort

®

OmniPage® and True Type® fonts.

®

9.0SE is a document management

®

OmniPage®, which is integrated into

®

9.0SE, is an OCR application that converts an image into text and puts it into your default word processor.

®

PaperPort® 9.0SE,

Documentation

View the User’s Guide and other documents in PDF format. The User’s Guide on the CD-ROM includes the Software and Network User’s Guides for features available when connected to a computer (e.g. Printing, Scanning and wireless networking details).

Brother Solutions Center

You can access the Brother Solutions Center which is a Web site offering information about your Brother product including FAQs, User’s Guides, driver updates and tips for using your machine.

On-Line Registration

You will be pointed to the Brother Product Registration Web Page for quick registration of your machine.

12

STEP 2

Follow the instructions on this page for your operating system and interface. For the latest drivers and documentations and to find the best solution for your problem or question, access the Brother Solutions Center directly from the driver or visit http://solutions.brother.com

Installing the Driver & Software

.

Windows

For USB Interface Users (For Windows

For Wired Network Interface Users (For Windows

For Wireless Network Users (For Windows

For other setup methods supported, see the Network User’s Guide on the CD-ROM for installation details.

Macintosh

For USB Interface Users ................................................................................................ 24

®

98/98SE/Me/2000 Professional/XP)..................................................... 14

®

98/98SE/Me/2000 Professional/XP)..................................................... 17

®

98/98SE/Me/2000 Professional/XP in infrastructure mode) ............. 20

®

 For Mac OS® X 10.2.4 or greater......................................................................................................... 24

 For Mac OS

®

9.1 to 9.2 ........................................................................................................................ 27

For Wired Network Interface Users .............................................................................. 29

 For Mac OS® X 10.2.4 or greater......................................................................................................... 29

 For Mac OS

®

9.1 to 9.2 ........................................................................................................................ 32

For Wireless Network Users .......................................................................................... 34

 For Mac OS® X 10.2.4 or greater in infrastructure mode ................................................................. 34

For other setup methods supported, see the Network User’s Guide on the CD-ROM for installation details.

Windows® XP Professional x64 Edition:

Visit the Brother Solutions Center (http://solutions.brother.com for driver downloads and installation steps.

The screens for Windows® in this Quick Setup Guide are based on Windows® XP. The screens for Mac OS

®

in this Quick Setup Guide are based on Mac OS® X 10.3.

)

13

STEP 2

®

USB

Windows

• Please close any applications running before

• Make sure there are no media cards put into the

1 Disconnect the machine from the power socket

2 Turn on your PC.

3 Put the supplied CD-ROM into your CD-ROM

Installing the Driver & Software

For USB Interface Users (For Windows

Important

Make sure that you have finished the instructions from Step 1 Setting Up the Machine on page 4- 11.

Note

installing MFL-Pro Suite.

media drive of the machine.

and from your computer, if you already connected an interface cable.

(For Windows must be logged on with Administrator rights.)

drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.

®

2000 Professional/XP, you

®

98/98SE/Me/2000 Professional/XP)

Windows

• If you are using Windows and have not installed service pack 3 (SP3) or greater:

To access the PhotoCapture Center™ features from your computer you may have to install a

Windows

The Windows MFL-Pro Suite installer. To install the update, follow the steps below:

1Click OK to start installation of the Windows

2 When instructed, click OK to restart your

3 After the computer restarts, the installation of

If the installation does not continue automatically, open the main menu again by ejecting and then reinserting the CD-ROM disc or double-click the setup.exe program from the root folder, and continue from Step 4 to install the MFL-Pro Suite.

®

2000 update first.

®

2000 update is included with the

updates.

computer.

MFL-Pro Suite will automatically continue.

®

2000 Professional

5 Choose Local Connection, and then click

Next. The installation continues.

®

4 The CD-ROM main menu will appear. Click

Install MFL-Pro Suite.

Note

• If this window does not appear, use Windows®

Explorer to run the setup.exe program from the root folder of the Brother CD-ROM.

14

6 After reading and accepting the ScanSoft

PaperPort Yes.

7 The installation of PaperPort

automatically start and is followed by the installation of MFL-Pro Suite.

®

9.0SE License Agreement, click

®

9.0SE will

®

Installing the Driver & Software

8 When the Brother MFL-Pro Suite Software

License Agreement window appears, click Yes if you agree to the Software License Agreement.

Windows

Improper Setup

• DO NOT connect the machine to a USB port on a keyboard or a non-powered USB hub. Brother recommends that you connect the machine directly to your computer.

• Make sure that the cable does not restrict the cover from closing, or an error may occur.

13 Lift the scanner cover to release the lock.

Gently push the scanner cover support down and close the scanner cover.

®

USB

Windows

9 When this screen appears, go to the next step.

10 Lift the scanner cover to its open position.

11 Connect the USB cable to the USB socket

marked with a symbol. You will find the USB socket above and to the left of the ink cartridge slots, as shown below.

14 Turn on the machine by plugging in the power

cord.

It will take a few seconds for the installation screens to appear. The installation of the Brother drivers will automatically start. The installation screens appear one after another. Please wait, it will

take a few seconds for all screens to appear.

Improper Setup

DO NOT try to cancel any of the screens during this installation.

15 When the on-line Registration screen is

displayed, make your selection and follow the on-screen instructions.

12 Carefully guide the USB cable into the trench

as shown below, following the trench around and toward the back of the machine.

15

STEP 2

Installing the Driver & Software

Windows

®

16 Click Finish to restart your computer.

(After restarting the computer, for Windows

®

2000 Professional/XP, you must be logged on with Administrator rights.)

®

USB

Windows

Note

After restarting the computer, the Installation Diagnostics will run automatically. If the installation is unsuccessful, the installation results window will be shown. If the Diagnostics shows a failure, please follow the on-screen instruction or read on-line help and FAQ’s in Start/All Programs/ Brother/MFL-Pro Suite MFC-XXXX.

The MFL-Pro Suite has been installed and the installation is now complete.

Note

MFL-Pro Suite includes Printer Driver, Scanner Driver,

Brother ControlCenter2, ScanSoft

ScanSoft PaperPort application for viewing scanned documents. ScanSoft PaperPort

®

OmniPage® and True Type® fonts.

®

9.0SE is a document management

®

OmniPage®, which is integrated into

®

9.0SE, is an OCR application that converts an image into text and puts it into your default word processor.

®

PaperPort® 9.0SE,

16

Installing the Driver & Software

Windows

®

For Wired Network Interface Users (For Windows

®

98/98SE/Me/2000 Professional/XP)

Important

Make sure that you have finished the instructions from Step 1 Setting Up the Machine on page 4- 11.

1 Disconnect the machine from the power

socket.

2 Lift the scanner cover to its open position.

3 Connect the network cable to the LAN socket

marked with a symbol. You will find the LAN socket above and to the left of the ink cartridge slots, as shown below.

4 Carefully guide the network cable into the

trench as shown below, following the trench around and toward the back of the machine. Then, connect the cable to your network.

6 Turn on the machine by plugging in the power

cord.

Improper Setup

If you have setup wireless networking on your machine before and you setup the wired network, you should check that the machine’s Network I/F is Wired LAN. The wireless network interface will be inactive with this setting. On your machine, press Menu. Press a or b to choose LAN and press OK. Press a or b to choose Network I/F and press OK. Press a or b to choose Wired LAN and press OK. Press 1 for Yes to accept the change. The machine will restart automatically.

7 Turn on your computer.

(For Windows must be logged on with Administrator rights.) Close any applications running before installing the MFL-Pro Suite.

®

2000 Professional/XP, you

®

Wired

Network

Windows

Improper Setup

Make sure that the cable does not restrict the cover from closing, or an error may occur.

Note

In case of using both USB and LAN cables, guide both cables into the trench with one on top of the other.

5 Lift the scanner cover to release the lock.

Gently push the scanner cover support down and close the scanner cover.

Note

Before installation, if you are using personal firewall software, disable it. Once you are sure that you can print after the installation, restart your personal firewall software.

8 Put the supplied CD-ROM into your CD-ROM

drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.

17

STEP 2

Installing the Driver & Software

Windows

®

9 The CD-ROM main menu will appear. Click

Install MFL-Pro Suite.

®

Wired

Network

Windows

Note

• If this window does not appear, use Windows®

Explorer to run the setup.exe program from the root folder of the Brother CD-ROM.

• If you see the following screen, click OK to install

the Windows installed your PC may restart. Then the installation will automatically continue.

®

updates. After the updates are

13 When the Brother MFL-Pro Suite Software

License Agreement window appears, click Yes if you agree to the Software License Agreement.

14 The installation of the Brother drivers will

automatically start. The installation screens appear one after another, please wait for a while.

Improper Setup

DO NOT try to cancel any of the screens during this installation.

15 If the machine is configured for your network,

choose the machine from the list, and then click

If the installation does not continue automatically, open the main menu again by ejecting then reinserting the CD-ROM disc or double-click the setup.exe program from the root folder, and continue from Step 9 to install the MFL-Pro Suite.

Next.

10 Choose Wired Network Connection, and

then click Next.

11 After reading and accepting the ScanSoft

PaperPort Yes.

12 The installation of PaperPort

automatically start and is followed by the installation of MFL-Pro Suite.

®

9.0SE License Agreement, click

®

9.0SE will

Note

This window will not appear if there is only one of this Brother model connected on the network, it will be chosen automatically.

16 If the machine is not yet configured for use on

®

your network, the following screen appears.

Click OK. The Configure IP Address window will appear. Enter the proper IP address information for your network by following the on-screen instructions.

18

Installing the Driver & Software

17 When the Brother and ScanSoft on-line

Registration screen is displayed, make your selection and follow the on-screen instructions.

18 Click Finish to restart your computer.

®

(For Windows must be logged on with Administrator rights.)

2000 Professional/XP, you

Windows

®

Wired

Network

Windows

Note

After restarting the computer, the Installation Diagnostics will run automatically. If the installation is unsuccessful, the installation results window will be shown. If the Diagnostics shows a failure, please follow the on-screen instruction or read on-line help and FAQ’s in Start/All Programs/ Brother/MFL-Pro Suite MFC-XXXX.

The MFL-Pro Suite has been installed and the installation is now complete.

Note

MFL-Pro Suite includes Network Printer Driver, Network Scanner Driver, Brother ControlCenter2,

ScanSoft

and True Type PaperPort application for viewing scanned documents. ScanSoft PaperPort an image into text and puts it into your default word processor.

®

PaperPort® 9.0SE, ScanSoft® OmniPage®

®

fonts.

®

9.0SE is a document management

®

OmniPage®, which is integrated into

®

9.0SE, is an OCR application that converts

19

STEP 2

Installing the Driver & Software

Windows

For Wireless Network Users (For Windows® 98/98SE/Me/2000 Professional/XP in infrastructure mode)

®

Windows

Network

Wireless

Important

Make sure that you have finished the instructions from Step 1 Setting Up the Machine on page 4 - 11.

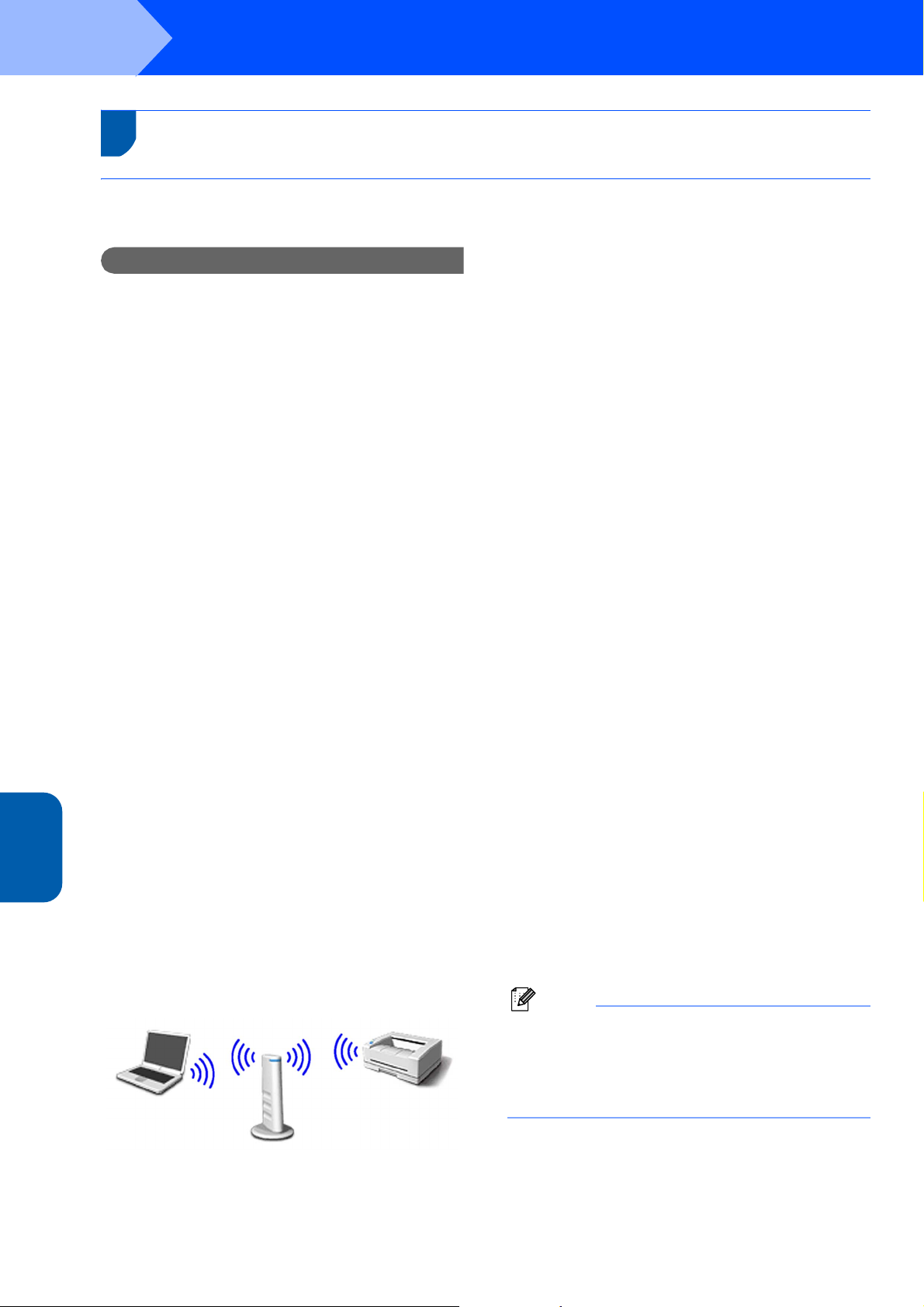

These instructions will install your Brother machine in a typical small office or home wireless network environment in infrastructure mode, using a wireless router or access point that uses DHCP to assign IP addresses. If you want to setup your machine in any other wireless environment you can find instructions in the Network User’s Guide on the CD-ROM. You can view the Network User’s Guide by following the instructions below. 1 Turn on your PC. Insert the Brother CD-ROM

labeled Windows

2 If the model name screen appears, click your

model name.

3 If the language screen appears, click your

language. The CD-ROM main menu will appear.

4 Click Documentation. 5 Click the User’s Guide. 6 Click the Network User’s Guide.

Note

If the window does not appear, use Windows® Explorer to run the setup.exe program from the root directory of the Brother CD-ROM.

To achieve optimum results with normal every day document printing, place the Brother machine as close to the network access point (router) as possible with minimal obstructions. Large objects and walls between the two devices as well as interference from other electronic devices can affect the data transfer speed of your documents.

First you must configure the wireless network settings of your machine to communicate with your network access point (router). After the machine is configured to communicate with your access point computers on your network will have access to the machine. To use the machine from these computers, you will need to install the MFL-Pro Suite Software. The following steps will guide you through the configuration and installation process.

®

into your CD-ROM drive.

1 Write down the wireless network settings of

your access point or wireless router.

SSID (Service Set ID or Network name)

_________________________

WEP Key (if needed)

________________________

WPA-PSK (TKIP) (if needed)

_________________________

The WEP key is for 64bit encrypted networks or 128 bit encrypted networks and can contain both numbers and letters. If you do not know this information you should see the documentation provided with your access point or wireless router. This key is a 64-bit or 128-bit value that must be entered in an ASCII or HEXADECIMAL format.

For example:

64 bit ASCII: Uses 5 text characters.e.g. “Hello”

(this is case sensitive)

64 bit Hexadecimal:

128 bit ASCII: Uses 13 text characters.e.g.

128 bit Hexadecimal:

WPA-PSK enables a Protected Access Preshared key that allows the Brother wireless machine to associate with access points using TKIP encryption. WPA-PSK uses a Pre-Shared Key that is more than 7 and less than 64 characters in length.

Note

• Your machine supports WEP and WPAPSK(TKIP). WPA-PSK(AES) is not supported.

• Most access points and routers can store more than one key, but they will only use one at any time for authentication and encryption.

See Chapter 3 of the Network User’s Guide for more details.

Uses 10 digits of hexadecimal data.e.g. “71f2234aba”

“Wirelesscomms” (this is case sensitive)

Uses 26 digits of hexadecimal data.e.g. “71f2234ab56cd709e5412aa3ba”

20

Installing the Driver & Software

Windows

®

2 Turn on the machine by plugging in the power

cord.

Improper Setup

If you have previously configured the wireless settings of the machine you must reset the network (LAN) settings before you can configure the wireless settings again. On your machine, press Menu. Press a or b for LAN and press OK. Press a or b for Factory Reset and press OK. Press 1 twice for Yes to accept the change. The machine will restart automatically.

3 On your machine, press Menu.

Press a or b to choose LAN and press OK. Press a or b to choose Network I/F and press OK. Press a or b to choose WLAN and press OK. Press 1 for Yes to accept the change. If Accepted is displayed, press Stop/Exit. The wired network interface will become inactive with this setting.

It will take about a minute for the LAN menu on the LCD to become available again.

4 When the LAN menu becomes available, press

Menu. Press a or b to choose LAN and press OK. Press a or b to choose Setup WLAN and press OK. Press a or b to choose Setup Wizard and press OK. This will start the wireless setup wizard.

6 Use the a, b and OK keys to choose one of

the options below: If your network is configured for Authentication and Encryption you must match the settings used for your network.

No Authentication or Encryption: Choose Open System, press OK then choose None for Encryption Type? and press OK. Then press 1 Yes to apply your settings. Go to step 9.

No Authentication with WEP Encryption: Choose Open System, press OK then use the

a or b to choose WEP for the Encryption Type? and press OK. Go to

step 7.

Authentication with WEP Encryption: Choose Shared Key, press OK. Go to step 7.

Authentication with WPA-PSK (TKIP) Encryption: Choose WPA-PSK, press OK. Go

to step 8.

7 Choose the appropriate key number and press

OK. Enter the WEP key you wrote down in step

1 using the dial pad. You can use the d and c keys to move the cursor. For example, to enter the letter a, press the 2 key on the dial pad once. To enter the number 3, press the 3 key on the dial pad seven times. The letters appear in this order: lower case, upper case, numbers and then special letters.

Press OK when you have entered all the characters, then press 1 Yes to apply your settings. Go to step 9.

8 Enter the WPA-PSK (TKIP) key you wrote

down in step 1 using the dial pad. You can use the d and c keys to move the cursor. For example, to enter the letter a, press the 2 key on the dial pad once. To enter the number 3, press the 3 key on your dial pad seven times.

Press OK when you have entered all the characters, then press 1 Yes to apply your settings. Go to step 9.

®

Windows

Network

Wireless

5 The machine will search for your network and

display a list of available SSIDs. You should see the SSID you wrote down earlier. If the machine finds more than one network use the a or b keys to choose your network, then press OK.

9 Your machine will now try to connect to your

wireless network using the information you have entered. If successful, Connected will appear briefly on the LCD.

If your machine does not successfully connect to your network, you should repeat steps 3 to 8 to make sure you have entered the correct information.

21

STEP 2

Installing the Driver & Software

Windows

®

Windows

Network

Wireless

10 Disconnect and then reconnect the power cord

to turn the machine OFF and back ON. This will allow the machine to automatically acquire the correct TCP/IP address information from your access point (router) if DHCP is enabled (DHCP is normally enabled as default for most access point routers).

If your access point does not have DHCP enabled you will need to manually configure the IP address, subnet mask and gateway of the machine to suit your network. See the Network User’s Guide for details.

Wireless setup is now complete. A four level indicator on the bottom of your machine’s LCD starts to show the wireless signal strength of your access point or router. To install the MFL-Pro Suite Software, continue to step 11.

11 Turn on your computer.

Close any applications running before installing the MFL-Pro Suite.

• If you see the following screen, click OK to install

the Windows installed your PC may restart. Then the installation will automatically continue.

If the installation does not continue automatically, open the main menu again by ejecting then reinserting the CD-ROM disc or double-click the setup.exe program from the root folder, and continue from Step 13 to install the MFL-Pro Suite.

®

updates. After the updates are

14 Choose Wireless Network Connection, and

then click Next.

Note

Before installation, if you are using personal firewall software, disable it. Once you are sure that you can print after the installation, restart your personal firewall software.

12 Put the supplied CD-ROM into your CD-ROM

drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.

13 The CD-ROM main menu will appear. Click

Install MFL-Pro Suite.

15 Choose Driver Install Only, and then click

Next.

16 After reading and accepting the ScanSoft

PaperPort Yes.

®

9.0SE License Agreement, click

®

Note

• If this window does not appear, use Windows®

Explorer to run the setup.exe program from the root folder of the Brother CD-ROM.

22

17 The installation of PaperPort

automatically start and is followed by the installation of MFL-Pro Suite.

®

9.0SE will

Installing the Driver & Software

Windows

®

18 When the Brother MFL-Pro Suite Software

License Agreement window appears, click Yes if you agree to the Software License Agreement.

19 The installation of the Brother drivers will

automatically start. The installation screens appear one after another, please wait for a while.

Improper Setup

• DO NOT try to cancel any of the screens during this installation.

• If your wireless settings fail, an error message will appear during the installation of MFL-Pro Suite and the installation will be terminated. If you encounter this failure, please go to step 1 and setup the wireless connection again.

20 Choose the machine from the list, and then

click Next.

22 Click Finish to restart your computer.

(For Windows must be logged on with Administrator rights.)

Note

After restarting the computer, the Installation Diagnostics will run automatically. If the installation is unsuccessful, the installation results window will be shown. If the Diagnostics shows a failure please follow the on-screen instruction or read on-line help and FAQ’s in Start/All Programs/ Brother/MFL-Pro Suite MFC-XXXX.

The MFL-Pro Suite has been installed and the installation is now complete.

Note

MFL-Pro Suite includes Network Printer Driver, Network Scanner Driver, Brother ControlCenter2,

ScanSoft

and True Type PaperPort application for viewing scanned documents. ScanSoft PaperPort an image into text and puts it into your default word processor.

®

PaperPort® 9.0SE, ScanSoft® OmniPage®

®

OmniPage®, which is integrated into

®

2000 Professional/XP, you

®

fonts.

9.0SE is a document management

9.0SE, is an OCR application that converts

®

Windows

Network

Wireless

Note

This window will not appear if there is only one of this Brother model connected on the network as it will be chosen automatically.

21 When the Brother and ScanSoft on-line

Registration screen is displayed, make your selection and follow the on-screen instructions.

23

STEP 2

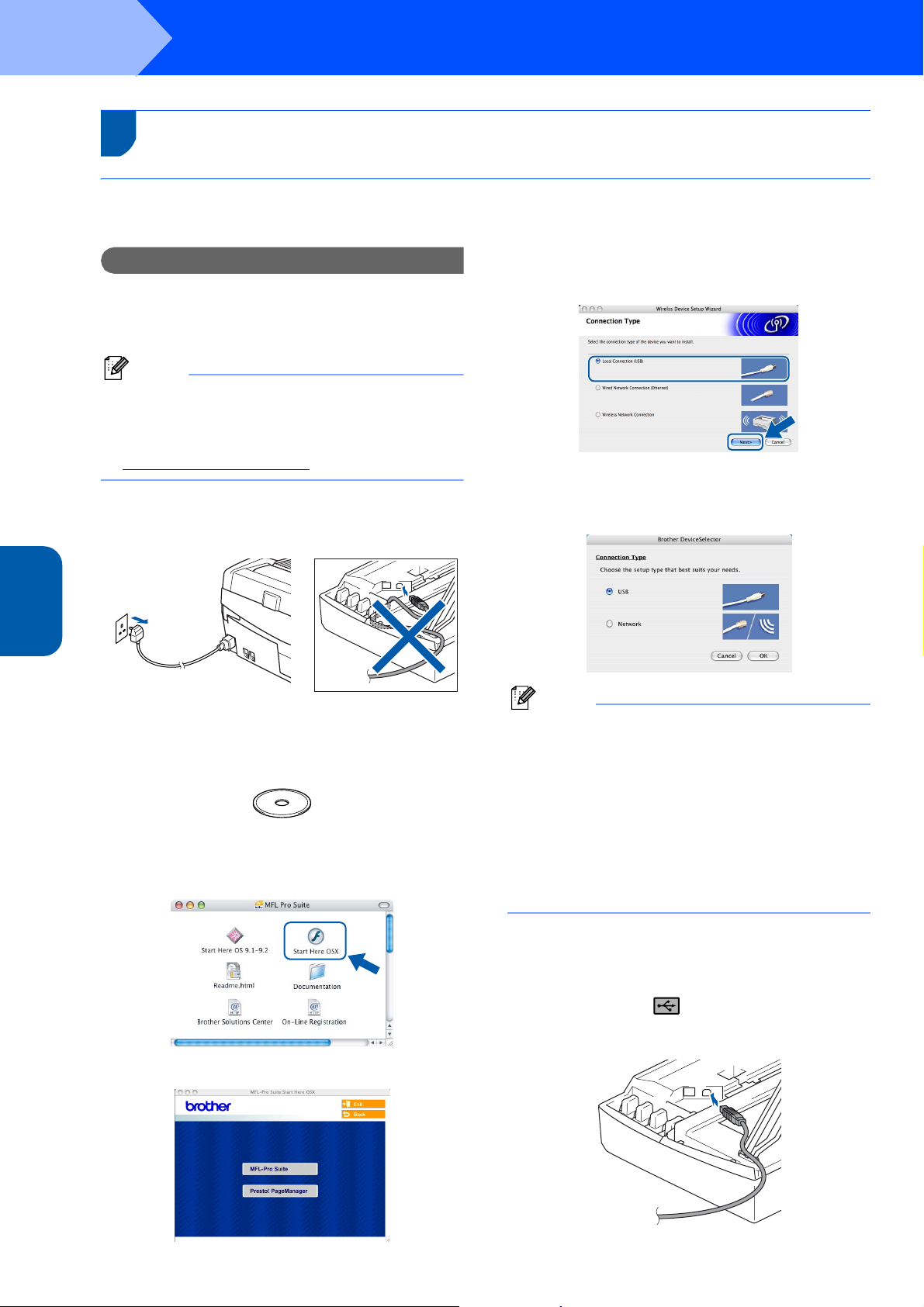

For Mac OS® X 10.2.4 or greater

Installing the Driver & Software

For USB Interface Users

Macintosh

®

Important

Make sure that you have finished the instructions from Step 1 Setting Up the Machine on page 4 - 11.

6 Choose Local Connection, and then click

Next. Follow the on-screen instructions, and

restart your Macintosh

®

.

Note

For Mac OS® X 10.2.0 to 10.2.3 users, upgrade to

Mac OS

information for Mac OS http://solutions.brother.com

1 Disconnect the machine from the power socket

®

USB

Macintosh

2 Turn on your Macintosh 3 Put the supplied CD-ROM into your CD-ROM

4 Double-click the Start Here OSX icon to install

®

X 10.2.4 or greater. (For the latest

®

X, visit

)

and from your computer, if you already connected an interface cable.

®

.

drive.

the drivers and MFL-Pro Suite. If the language screen appears, choose your language.

7 After the DeviceSelector window appears

connect the USB interface cable to your Macintosh and then to the machine.

Note

The DeviceSelector window will not appear if you have connected a USB interface cable to the

machine before restarting your Macintosh you are overwriting a previously installed version of the Brother Software. If you encounter this problem continue with the installation but skip 13. You should choose your Brother machine from the Model pop-up menu in the main screen of ControlCenter2. For details, see chapter 10 in the Software User’s Guide on CD-ROM.

®

or if

8 Lift the scanner cover to its open position.

5 Click MFL-Pro Suite to install.

24

9 Connect the USB cable to the USB socket

marked with a symbol. You will find the USB socket above and to the left of the ink cartridge slots, as shown below.

Installing the Driver & Software

Macintosh

®

10 Carefully guide the USB cable into the trench

as shown below, following the trench around and toward the back of the machine.

Improper Setup

• DO NOT connect the machine to a USB port on a keyboard or a non-powered USB hub. Brother recommends that you connect the machine directly to your computer.

• Make sure that the cable does not restrict the cover from closing, or an error may occur.

11 Lift the scanner cover to release the lock.

Gently push the scanner cover support down and close the scanner cover.

12 Turn on the machine by plugging in the power

cord.

15 Double-click the Utilities folder.

16 Double-click the Printer Setup Utility icon.

Note

For Mac® OS X 10.2.x users, open Print Center icon.

17 Click Add.

®

USB

Macintosh

13 Choose USB and then click OK.

14 Click GO, then Applications.

18 Choose USB. (For Mac

users)

®

OS X 10.2.4 to 10.3

Note

For Mac® OS X 10.4 users, go to step 19.

25

STEP 2

19 Choose MFC-XXXX (where XXXX is your

20 Click Printer Setup Utility, then

Installing the Driver & Software

model name), and then click Add.

Quit Printer Setup Utility.

Macintosh

®

USB

Macintosh

21 To install Presto!

The MFL-Pro Suite, Brother printer driver, scanner driver and Brother ControlCenter2 have been installed and the installation is now complete.

®

PageManager®, click the

Presto! PageManager icon and follow the on-screen instructions.

Note

When Presto!®PageManager® is installed OCR capability is added to the Brother ControlCenter2. You can easily scan, share and organize photos

and documents using Presto!

®

PageManager®.

26

Presto!® PageManager® has been installed and the installation is now complete.

Installing the Driver & Software

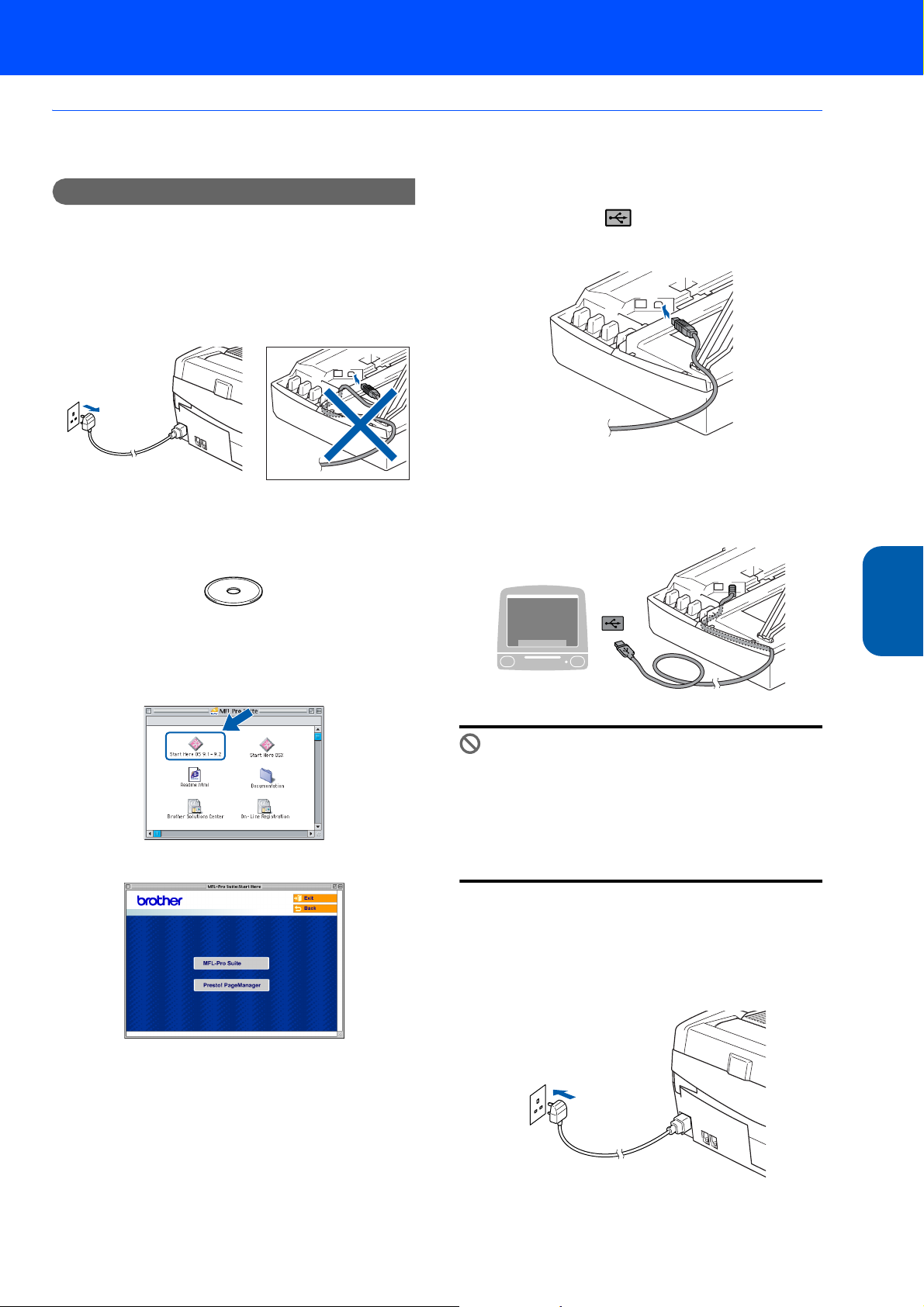

For Mac OS® 9.1 to 9.2

Macintosh

®

Important

Make sure that you have finished the instructions from Step 1 Setting Up the Machine on page 4 - 11.

1 Disconnect the machine from the power socket

and from your computer, if you already connected an interface cable.

2 Turn on your Macintosh

®

.

3 Put the supplied CD-ROM into your CD-ROM

drive.

4 Double-click the Start Here OS 9.1-9.2 icon to

install the printer and scanner drivers. If the language screen appears, choose your language.

8 Connect the USB cable to the USB socket

marked with a symbol. You will find the USB socket above and to the left of the ink cartridge slots, as shown below.

9 Carefully guide the USB cable into the trench

as shown below, following the trench around and toward the back of the machine.

Then, connect it to your Macintosh

®

.

®

USB

Macintosh

5 Click MFL-Pro Suite to install.

6 Follow the on-screen instruction, and restart

your Macintosh

®

.

7 Lift the scanner cover to its open position.

Improper Setup

• DO NOT connect the machine to a USB port on a keyboard or a non-powered USB hub. Brother recommends that you connect the machine directly to your computer.

• Make sure that the cable does not restrict the cover from closing, or an error may occur.

10 Lift the scanner cover to release the lock.

Gently push the scanner cover support down and close the scanner cover.

11 Turn on the machine by plugging in the power

cord.

27

STEP 2

Installing the Driver & Software

Macintosh

®

12 From the Apple

®

menu, click Chooser.

13 Click the Brother Ink icon.

On the right side of the Chooser, choose the machine to which you want to print. Close the Chooser.

®

USB

Macintosh

The Brother printer driver and scanner driver have been installed.

Note

ControlCenter2 is not supported in Mac OS® 9.x.

14 To install Presto!

®

PageManager®, click the

Presto! PageManager icon and follow the on-screen instructions.

Note

You can easily scan, share and organize photos

and documents using Presto!

®

PageManager®.

28

Presto!® PageManager® has been installed and the installation is now complete.

Installing the Driver & Software

For Wired Network Interface Users

For Mac OS® X 10.2.4 or greater

Macintosh

®

Important

Make sure that you have finished the instructions from Step 1 Setting Up the Machine on page 4 - 11.

1 Disconnect the machine from the power

socket.

2 Turn on your Macintosh

®

.

3 Put the supplied CD-ROM into your CD-ROM

drive.

4 Double-click the Start Here OSX icon to install

the printer and scanner drivers. If the language screen appears, choose your language.

5 Click MFL-Pro Suite to install.

6 Choose Wired Network Connection, and

then click Next. Follow the on-screen instructions, and restart your Macintosh

7

After the DeviceSelector window appears, connect the network interface cable to your machine and then to the network as described below.

Note

The DeviceSelector window will not appear if you have connected a USB interface cable to the

machine before restarting your Macintosh you are overwriting a previously installed version of the Brother Software. If you encounter this problem continue but skip steps 13 to 16. You should choose your Brother machine from the Model pop-up menu in the main screen of ControlCenter2. For details, see Chapter 10 in the Software User’s Guide on the CD-ROM.

®

or if

.

8 Lift the scanner cover to its open position.

9 Connect the network cable to the LAN socket

®

Wired

Network

Macintosh

marked with a symbol. You will find the LAN socket above and to the left of the ink cartridge slots, as shown below.

29

STEP 2

Installing the Driver & Software

Macintosh

®

10 Carefully guide the network cable to the trench

as shown below, following the trench around and toward the back of the machine. Then, connect the cable to your network.

Improper Setup

Make sure that the cable does not restrict the cover from closing, or an error may occur.

Note

In case of using both USB and LAN cables, guide both cables into the trench with one on top of the other.

11 Lift the scanner cover to release the lock.

Gently push the scanner cover support down and close the scanner cover.

13 Choose Network and then click OK.

14 If you want to use the machine’s Scan key to

scan over the network you must check the

Register your computer with the “Scan To” functions at the machine box. You must also

enter a name for your Macintosh Name. The name you enter will appear on the machine’s LCD when you press the Scan key and choose a scan option. You can enter any name up to 15 characters long. (For more information on network scanning, see Chapter 11 of the Software User’s Guide on the CD-ROM.)

®

in Display

12 Turn on the machine by plugging in the power

cord.

®

Wired

Network

Macintosh

Improper Setup

If you have setup wireless networking on your machine before and you setup the wired network, you should check that the machine’s Network I/F is Wired LAN. The wireless network interface will be inactive with this setting. On your machine, press Menu. Press a or b to choose LAN and press OK. Press a or b to choose Network I/F and press OK. Press a or b to choose Wired LAN and press OK. Press 1 for Yes to accept the change. The machine will restart automatically.

15 Click Browse.

16 Choose your model name, and then click OK.

17 Click Go, then Applications.

30

Installing the Driver & Software

Macintosh

®

18 Double-click the Utilities folder.

19 Double-click the Printer Setup Utility icon.

22 Choose Brother MFC-XXXX (where XXXX is

your model name), and then click Add.

23 Click Printer Setup Utility, then

Quit Printer Setup Utility.

Note

For Mac® OS X 10.2.x users, open Print Center icon.

20 Click Add.

21 Make the selection shown below. (For Mac

OS X 10.2.4 to 10.3 users)

Note

For Mac® OS X 10.4 users, go to step 22.

The MFL-Pro Suite, Printer Driver, Scanner Driver and ControlCenter2 have been installed.

For more information about connecting the

machine to a Macintosh

®

network, see

®

Chapter 6 of the Network User’s Guide on the CD-ROM.

24 To install Presto!

®

PageManager®, click the

Wired

Network

Macintosh

Presto! PageManager icon and follow the

®

on-screen instructions.

Note

When Presto!®PageManager® is installed OCR capability is added to the Brother ControlCenter2. You can also easily scan, share, and organize photos and documents using

Presto!

®

PageManager®.

Presto!®PageManager® has been installed and the installation is now complete.

31

STEP 2

For Mac OS® 9.1 to 9.2

Installing the Driver & Software

Macintosh

®

Important

Make sure that you have finished the instructions from Step 1 Setting Up the Machine on page 4 - 11.

1 Disconnect the machine from the power

socket.

2 Turn on your Macintosh

®

.

3 Put the supplied CD-ROM into your CD-ROM

drive.

8 Connect the network cable to the LAN socket

marked with a symbol. You will find the LAN socket above and to the left of the ink cartridge slots, as shown below.

9 Carefully guide the network cable into the

trench as shown below, following the trench around and toward the back of the machine. Then, connect the cable to your network.

4 Double-click the Start Here OS 9.1-9.2 icon to

install the printer and scanner drivers. If the

®

Wired

Network

Macintosh

language screen appears, choose your language.

Improper Setup

Make sure that the cable does not restrict the cover from closing, or an error may occur.

Note

In case of using both USB and LAN cables, route

5 Click MFL-Pro Suite to install.

both cables into the trench with one on top of the other.

10 Lift the scanner cover to release the lock.

Gently push the scanner cover support down and close the scanner cover.

11 Turn on the machine by plugging in the power

cord.

6 Follow the on-screen instruction, and restart

your Macintosh

®

.

7 Lift the scanner cover to its open position.

32

Installing the Driver & Software

Macintosh

®

Improper Setup

If you have setup wireless networking on your machine before and you setup the wired network, you should check that the machine’s Network I/F is Wired LAN. The wireless network interface will be inactive with this setting. On your machine, press Menu. Press a or b to choose LAN and press OK. Press a or b to choose Network I/F and press OK. Press a or b to choose Wired LAN and press OK. Press 1 for Yes to accept the change. The machine will restart automatically.

12 From the Apple

®

menu, click Chooser.

14 To install Presto!

®

PageManager®, click the

Presto! PageManager icon and follow the on-screen instructions.

Note

You can easily scan, share, and organize photos

and documents using Presto!

Presto!®PageManager® has been installed and the installation is now complete.

®

PageManager®.

13 Click the Brother Ink (IP) icon, and then

choose BRN_xxxxxx (where xxxxxx are the last six digits of the Ethernet address). Close the Chooser.

For more information about connecting the

machine to a Macintosh Chapter 6 of the Network User’s Guide on the CD-ROM.

The MFL-Pro Suite, Printer Driver and Scanner Driver have been installed.

®

network, see

®

Wired

Network

Macintosh

Note

ControlCenter2 is not supported in Mac OS® 9.x.

33

STEP 2

For Mac OS® X 10.2.4 or greater in infrastructure mode

Installing the Driver & Software

For Wireless Network Users

Macintosh

®

Important

Make sure that you have finished the instructions from Step 1 Setting Up the Machine on page 4 - 11.

These instructions will install your Brother machine in a typical small office or home wireless network environment in infrastructure mode, using a wireless router or access point that uses DHCP to assign IP addresses. If you want to setup your machine in any other wireless environment you can find instructions in the Network User’s Guide on the CD-ROM. You can view the Network User’s Guide by following the instructions below.

1 Turn on your Macintosh

CD-ROM labeled Macintosh drive.

2 Double-click the Documentation icon. 3 Double-click your language folder. 4 Double-click the Network User’s Guide

BH3eWLAN_UkEngNet.pdf.

To achieve optimum results with normal every day document printing, place the Brother machine as close to the network access point (router) as possible with minimal obstructions. Large objects and walls between the two devices as well as interference from

®

Network

Wireless

Macintosh

other electronic devices can affect the data transfer speed of your documents.

First you must configure the wireless network settings of your machine to communicate with your network access point (router). After the machine is configured to communicate with your access point computers on your network will have access to the machine. To use the machine from these computers, you will need to install the MFL-Pro Suite Software. The following steps will guide you through the configuration and installation process.

®

. Insert the Brother

®

into your CD-ROM

1 Write down the wireless network settings of

your access point or wireless router.

SSID (Service Set ID or Network name)

_________________________

WEP Key (if needed)

_________________________

WPA-PSK (TKIP) (if needed)

_________________________

The WEP key is for 64bit encrypted networks or 128 bit encrypted networks and can contain both numbers and letters. If you do not know this information you should see the documentation provided with your access point or wireless router. This key is a 64-bit or 128-bit value that must be entered in an ASCII or HEXADECIMAL format.

For example:

64 bit ASCII: Uses 5 text characters.e.g. “Hello”

(this is case sensitive)

64 bit Hexadecimal:

128 bit ASCII: Uses 13 text characters.e.g.

128 bit Hexadecimal:

WPA-PSK enables a Protected Access Preshared key that allows the Brother wireless machine to associate with access points using TKIP encryption. WPA-PSK uses a Pre-Shared Key that is more than 7 and less than 64 characters in length.

Note

• Your machine supports WEP and WPAPSK(TKIP). WPA-PSK(AES) is not supported.

• Most access points and routers can store more than one key, but they will only use one at any time for authentication and encryption.

See Chapter 3 of the Network User’s Guide for more details.

Uses 10 digits of hexadecimal data.e.g. “71f2234aba”

“Wirelesscomms” (this is case sensitive)

Uses 26 digits of hexadecimal data.e.g. “71f2234ab56cd709e5412aa3ba”

34

Installing the Driver & Software

Macintosh

®

2 Turn on the machine by plugging in the power

cord.

Improper Setup

If you have previously configured the wireless settings of the machine you must reset the network (LAN) settings before you can configure the wireless settings again. On your machine, press Menu. Press a or b for LAN and press OK. Press a or b for Factory Reset and press OK. Press 1 twice for Yes to accept the change. The machine will restart automatically.

3 On your machine, press Menu.

Press a or b to choose LAN and press OK. Press a or b to choose Network I/F and press OK. Press a or b to choose WLAN and press OK. Press 1 for Yes to accept the change. If Accepted is displayed, press Stop/Exit. The wired network interface will become inactive with this setting.

It will take about a minute for the LAN menu on the LCD to become available again.

4 When the LAN menu becomes available, press

Menu. Press a or b to choose LAN and press OK. Press a or b to choose Setup WLAN and press OK. Press a or b to choose Setup Wizard and press OK. This will start the wireless setup wizard.

5 The machine will search for your network and

display a list of available SSIDs. You should see the SSID you wrote down earlier. If the machine finds more than one network use the a or b keys to choose your network, then press OK.

6 Use the a, b and OK keys to choose one of

the options below: If your network is configured for Authentication and Encryption you must match the settings used for your network.

No Authentication or Encryption: Choose Open System, press OK then choose None for Encryption Type? and press OK. Then press 1 Yes to apply your settings. Go to step

9.

No Authentication with WEP Encryption: Choose Open System, press OK then use the

a or b to choose WEP for the Encryption Type? and press OK. Go to

step 7.

Authentication with WEP Encryption: Choose Shared Key, press OK. Go to step 7.

Authentication with WPA-PSK (TKIP) Encryption: Choose WPA-PSK, press OK. Go

to step 8.

7 Choose the appropriate key number and press

OK. Enter the WEP key you wrote down in step

1 using the dial pad. You can use the d and c keys to move the cursor. For example, to enter the letter a, press the 2 key on the dial pad once. To enter the number 3, press the 3 key on the dial pad seven times. The letters appear in this order: lower case, upper case, numbers and then special letters.

Press OK when you have entered all the characters, then press 1 Yes to apply your settings. Go to step 9.

8 Enter the WPA-PSK (TKIP) key you wrote

down in step 1 using the dial pad. You can use the d and c keys to move the cursor. For example, to enter the letter a, press the 2 key on the dial pad once. To enter the number 3, press the 3 key on your dial pad seven times.

Press OK when you have entered all the characters, then press 1 Yes to apply your settings. Go to step 9.

9 Your machine will now try to connect to your

wireless network using the information you have entered. If successful, Connected will appear briefly on the LCD.

If your machine does not successfully connect to your network, you should repeat steps 3 to 8 to make sure you have entered the correct information.

®

Network

Wireless

Macintosh

35

STEP 2

Installing the Driver & Software

Macintosh

®

10 Disconnect and then reconnect the power cord

to turn the machine OFF and back ON. This will allow the machine to automatically acquire the correct TCP/IP address information from your access point (router) if DHCP is enabled (DHCP is normally enabled as default for most access point routers).

If your access point does not have DHCP enabled you will need to manually configure the IP address, subnet mask and gateway of the machine to suit your network. See the Network User’s Guide for details.

Wireless setup is now complete. A four level indicator on the bottom of your machine’s LCD starts to show the wireless signal strength of your access point or router. To install the MFL-Pro Suite Software, continue to step 11.

11 Turn on your Macintosh

®

.

12 Put the supplied CD-ROM into your CD-ROM

drive.

15 Choose Wireless Network Connection, and

then click Next.

16 Choose Driver Install only, and then click

Next.

17 Follow the on-screen instructions and restart

your Macintosh

®

.

18 When the DeviceSelector window appears

13 Double-click the Start Here OSX icon to install

the printers and scanner drivers. If the language screen appears, choose your language.

®

Network

Wireless

Macintosh

14 Click MFL-Pro Suite to install.

choose Network and then click OK. The DeviceSelector window will not appear if you have also connected a USB interface cable to the machine before restarting your Macintosh or if you are overwriting a previously installed version of the Brother Software. If you encounter this problem continue but skip steps 19 through 21. After the software installation is completed you should choose your Brother machine from the Model pop-up menu in the main screen of ControlCenter2. For details, see Chapter 10 in the Software User’s Guide on the CD-ROM.

36

Installing the Driver & Software

Macintosh

®

19 If you want to use the machine’s Scan key to

scan over the network you must check the

Register your computer with the “Scan To” functions at the machine box. You must also

enter a name for your Macintosh Name. The name you enter will appear on the machine’s LCD when you press the Scan key and choose a scan option. You can enter any name up to 15 characters long. (For more information on network scanning, see Chapter 11 of the Software User’s Guide on the CD-ROM.)

20 Click Browse.

®

in Display

23 Double-click the Utilities folder.

24 Double-click the Printer Setup Utility icon.

21 Choose your model name, and then click OK.

22 Click Go, then Applications.

Note

For Mac® OS X 10.2.x users, open Print Center.

25 Click Add.

26 Make the selection shown below. (For Mac

OS X 10.2.4 to 10.3 users)

®

Network

Wireless

Macintosh

Note

For Mac® OS X 10.4 users, go to step 27.

37

STEP 2

Installing the Driver & Software

Macintosh

®

27 Choose Brother MFC-XXXX (where XXXX is

your model name), and then click Add.

See Chapter 6 of the Network User’s Guide on the CD-ROM.

28 Click Printer Setup Utility, then

Quit Printer Setup Utility.

29 To install Presto!

®

PageManager®, click the

Presto! PageManager icon and follow the on-screen instructions.

Note

When Presto!®PageManager® is installed OCR capability is added to the Brother ControlCenter2. You can also easily scan, share, and organize photos and documents using

Presto!

®

PageManager®.

Presto!® PageManager® has been installed and the installation is now complete.

The MFL-Pro Suite, Printer Driver, Scanner Driver and ControlCenter2 have been installed.

For more information about connecting the

machine to a Macintosh

®

network, see

Chapter 6 of the Network User’s Guide on the

®

Network

Wireless

Macintosh

CD-ROM.

38

For Network Users

This section explains how you can configure network settings using the BRAdmin Professional utility or how to set the machine’s network settings to wireless LAN or wired LAN.

Installing the BRAdmin Professional configuration utility

The BRAdmin Professional utility for Windows® is designed to manage your Brother network connected devices such as network-ready Multifunction devices and/or network-ready printers in a Local Area Network (LAN) environment.

For Macintosh Solutions Center (http://solutions.brother.com

download BRAdmin Light for Macintosh BRAdmin Professional can also be used to manage devices from other manufacturers whose products support SNMP (Simple Network Management Protocol). For more information on BRAdmin Professional and BRAdmin Light, visit http://solutions.brother.com

For Windows® users

®

users, please visit the Brother

®

.

) to

1 Put the supplied CD-ROM into your CD-ROM

drive. The opening screen will appear automatically. Follow the on-screen instructions.

Setting your IP address, Subnet Mask and Gateway using BRAdmin Professional

®

(For Windows

1

Start BRAdmin Professional, and choose

users)

TCP/IP

2 Click Devices, then Search Active Devices.

BRAdmin searches for new devices automatically.

.

2 Click Install Optional Applications on the

main menu screen.

3 Click BRAdmin Professional and follow the

on-screen instructions.

3 Double-click the new device.

4 Enter the IP Address, Subnet Mask and

Gateway, and then click OK.

5 The address information will be saved to the

machine.

Note

You can use the BRAdmin Professional utility to set a password. (See the Network User’s Guide on the CD-ROM.)

39

For Network Users

How to set the machine’s

To connect your Brother machine to a wireless or wired network you must configure the machine from the machine’s control panel for the network type you are using.

For wireless LAN

On your machine, press Menu. Press a or b to choose LAN and press OK. Press a or b to choose Network I/F and press OK. Press a or b to choose WLAN and press OK. Press 1 for Yes to accept the change. The wired network interface will become inactive with this setting.

network settings to wireless LAN or wired LAN

It will take about a minute for the LAN menu on the LCD to become available again.

For wired LAN

On your machine, press Menu. Press a or b to choose LAN and press OK. Press a or b to choose Network I/F and press OK. Press a or b to choose Wired LAN and press OK. Press 1 for Yes to accept the change. The wireless network interface will become inactive with this setting.

It will take about a minute for the LAN menu on the LCD to become available again.

40

Consumables

Replacement consumables

When the time comes to replace ink cartridges, an error message will be indicated on the LCD. For more information about the ink cartridges for your machine, visit http://solutions.brother.com Brother re-seller.

Ink cartridge

Black Magenta Yellow Cyan

LC900BK LC900M LC900Y LC900C

or contact your local

41

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. Multi-Function Link is a registered trademark of Brother International Corporation. Windows and Microsoft are registered trademarks of Microsoft in the U.S. and other countries. Macintosh and True Type are registered trademarks of Apple Computer, Inc. PaperPort and OmniPage are registered trademarks of ScanSoft, Inc. Presto! PageManager is a registered trademark of NewSoft Technology Corporation. BROADCOM, SecureEasySetup, and the SecureEasySetup logo are trademarks or registered trademarks of Broadcom Corporation in the United States and/or other countries. Each company whose software title is mentioned in this manual has a Software License Agreement specific to its proprietary programs.

All other brand and product names mentioned in this manual are trademarks or registered trademarks of their respective companies.

Compilation and Publication

Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice. Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication. This product is designed for use in a Professional Environment.

UK/IRE/GEN

Brother MFC-820CW Quick Setup Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Getting Started

Carton components

Control panel

2 Loading paper

4 Installing the ink cartridges

5 Print quality check

6 Setting the date and time

7 Setting your station ID

9 Setting the phone line type

10 Choosing a Receive Mode

Supplied CD-ROM ‘MFL-Pro Suite’

For Wireless Network Users (For Windows® 98/98SE/Me/2000 Professional/XP in infrastructure mode)

For Mac OS® X 10.2.4 or greater

For USB Interface Users

For Mac OS® 9.1 to 9.2

For Wired Network Interface Users

For Mac OS® X 10.2.4 or greater

For Mac OS® 9.1 to 9.2

For Mac OS® X 10.2.4 or greater in infrastructure mode

For Wireless Network Users

For Network Users

Installing the BRAdmin Professional configuration utility

Consumables

Replacement consumables

Ink cartridge
