Brother GT-341, GT-381, GT-361 User Manual
GT-3 Series
Please read this manual before using the printer.
Please keep this manual within easy reach for quick reference.
GARMENT PRINTER
BASIC OPERATION MANUAL
GT Series US support homepage http://www.brother-usa.com/Garmentprinters/
MEMO
Note based on California law (USA) on the use and handling of Perchlorate
This product contains a CR Coin Lithium Battery which contains
Perchlorate Material – special handling may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate.
GT-3 Series
Thank you very much for buying a BROTHER printer. Before using your new printer, please read the safety instructions below
and the explanations given in the instruction manual.
SAFETY INSTRUCTIONS
[1] Safety indications and their meanings
This instruction manual and the indications and symbols that are used on the printer itself are provided in order to ensure safe
operation of this printer and to prevent accidents and injury to yourself or other people. The meanings of these indications and
symbols are given below.
Indications
DANGER
WARNING
CAUTION
Symbols
This symbol ( ) indicates something that you should be careful of. The picture inside the triangle
· · · · ·
· · · · ·
· · · · ·
[2] Notes on safety
indicates the nature of the caution that must be taken.
(For example, the symbol at left means “beware of injury”.)
This symbol ( ) indicates something that you must not do.
This symbol ( ) indicates something that you must do. The picture inside the circle indicates the
nature of the thing that must be done.
(For example, the symbol at left means “you must make the ground connection”.)
The instructions which follow this term indicate situations where failure to follow the
instructions will result in death or serious injury.
The instructions which follow this term indicate situations where failure to follow the
instructions could result in death or serious injury.
The instructions which follow this term indicate situations where failure to follow the
instructions may result in minor or moderate injury.
DANGER
Wait at least 5 minutes after turning off the power switch and disconnecting the power cord from the wall outlet
before opening the right side cover. Do not touch the high-voltage area in the control box as high voltage can result
in severe injury.
WARNING
Basic precautions
To prevent accidents and problems, do not modify
the machine yourself.
Brother will not be held responsible for any accidents
or problems resulting from modifications made to the
machine.
Do not handle the power cord with wet hands,
otherwise it may cause electric shocks.
GT-3 Series
i
WARNING
Installation
Do not set up the printer in a dusty environment. If
dust collects inside the printer, it may cause fire or
electric shocks or problems with correct operation.
Be sure to connect the ground. If the ground
connection is not secure, you run a high risk of
receiving a serious electric shock, and problems with
correct operation may also occur.
Do not bend the cords excessively or fasten them
too hard with staples or anything similar to secure
cords, otherwise there is the danger that fire or
electric shocks could occur.
Printing
If a foreign object gets inside the printer, immediately
turn off the power switch and disconnect the power
cord, and arrange for a service call to resolve.
If you continue to use the printer while there is a
foreign object inside, it may result in fire or electric
shocks or problems with correct operation.
Do not allow the printer to come into contact with
liquids, otherwise it may cause fire or electric shocks
or problems with correct operation.
If any liquid gets inside the printer, immediately turn
off the power switch and disconnect the power cord.
Contact Brother to arrange a service call to resolve.
Do not use the printer when smoke or a bad odor
coming from the printer, otherwise it may cause fire
or electric shocks or problems with correct
operation.
Immediately turn off the power switch and
disconnect the power cord, and arrange for a
service call to resolve.
Environmental requirements
Use the printer in an area which is free from
sources of strong electrical noise such as electrical
line noise or static electric noise.
Sources of strong electrical noise may cause
problems with correct operation.
Any fluctuations in the power supply voltage should
be within ±10% of the rated voltage for the printer.
Voltage fluctuations which are greater than this
may cause problems with correct operation.
The power supply capacity should be greater than
the requirements for the printer’s power
consumption.
Insufficient power supply capacity may cause
problems with correct operation.
CAUTION
The ambient temperature should be within the
range of 18°C to 30°C during use.
Temperatures which are lower or higher than this
may cause problems with correct operation.
The relative humidity should be within the range of
35% to 85% during use, and no dew formation
should occur in any devices.
Excessively dry or humid environments and dew
formation may cause problems with correct
operation.
Use the printer in a place which is adequately
ventilated.
A slight odor is generated when the printed articles
are being fixed by heat.
In the event of an electrical storm, turn off the
power and disconnect the power cord from the wall
outlet.
Lightning may cause problems with correct
operation.
ii
GT-3 Series
CAUTION
Installation
Setting up and moving of the printer should only be
carried out by a qualified technician.
The printer machine weighs approximately 111 kg
(245 lb). Transporting and setting up of the printer
should be held in proper way.
The machine may fall down and cause injury.
The printer must be used on a suitable stable
surface, otherwise it may tip over or fall down and
cause injury.
Furthermore, the table that supports the printer
should be at least 137 cm (53.9 inch) in width and
104.5 cm (41.1 inch) in depth, and should be able to
bear a weight of 150 kg (330 lb) or more.
This printer should only be used by operators who
are appropriately trained in its operation.
Ensure there is adequate space left for safe working.
The Platen moves forward while operating and it
may be injured.
Do not handle the platen while printing. If your hand
gets caught between the platen or the T-shirt tray
and the covers, it may be injured.
Printing
Do not set up the printer in a place where it will be
affected by vibration. It may become unbalanced
and fall down, which cause injury or damage to the
printer.
Do not connect the power cord until setup is
complete, otherwise the printer may operate if the
power switch is turned on by mistake, which could
result in injury.
Do not climb onto the printer or place heavy objects
on top of it, otherwise it may become unbalanced
and tip over or fall down and cause injury.
Do not move the Platen by hand.
The Printer may be mechanically and electrically
damaged.
Do not put your hands inside the covers while the
printer’s power is turned on, otherwise your hands
may touch against moving parts and this may result
in injury.
When a problem occurs with the operation of the
printer, contact the place of purchase or a qualified
technician.
Wait at least 1 minute after turning off the power
switch before opening the front cover.
Do not touch the head heat sink as it may be HOT
and may cause a burn.
Be careful not to get your fingers caught when
closing the front cover, otherwise it may result in
injury to your fingers.
Do not move the Platen by hand.
The Printer may be mechanically and electrically
damaged.
Do not disassemble the ink cartridge.
Maintenance
Take care not to let the liquids: Ink, Wash Liquid,
Maintenance Solution, Pretreatment or waste liquid
come into contact with your eyes or onto your skin,
otherwise inflammation can result. In case of contact
with eyes, do not rub but immediately rinse the eyes
with water.
Furthermore, do not drink the liquids: Ink, Wash
Liquid, Maintenance Solution, Pretreatment or waste
liquid under any circumstances, as they can cause
vomiting and diarrhea.
Keep the liquids out of the reach of children.
Be sure to wear protective goggles and gloves when
handling the grease, so that they do not get into
your eyes or onto your skin. If the grease get into
your eyes or onto your skin, inflammation can result.
Furthermore, do not drink or eat the grease. They
may cause diarrhea or vomiting.
Keep the grease out of the reach of children.
When replacing parts and installing optional
accessories, be sure to use only genuine Brother
parts.
Brother will not be held responsible for any
accidents or problems resulting from the use of
non-genuine parts.
GT-3 Series
iii
[3] Warning labels
The following warning labels appear on the printer.
Please follow the instructions on the labels at all times when using the printer. If the labels have been removed or are
difficult to read, please contact your nearest Brother dealer.
1
2
3
5
7
6
9
10
11
12
4
Watch your fingers, or you may be
injured.
High temperature warning display
Be sure to connect the ground. If
the ground connection is not
secure, you run a high risk of
receiving a serious electric shock,
and problems with correct
operation may also occur.
8
iv
GT-3 Series
q
Grease
Wash Li
uid
Waste Ink Tank
Ink Cartridge
Pretreatment
(20kg)
Maintenance Solution
(5kg)
0085Y
GT-3 Series
v
CONTENTS
1. Read This First..............................................................................................................................................................1
1-1. Precautions............................................................................................................................................................1
1-2. Unpacking Your Printer .........................................................................................................................................5
1-3. Required Condition................................................................................................................................................5
1-3-1. Environment...................................................................................................................................................5
1-3-2. Electrical Requirements.................................................................................................................................6
1-3-3. Software Information......................................................................................................................................6
1-3-4. Other Requirements......................................................................................................................................6
1-3-5. Consumable Requirements and Options....................................................................................................7
2. Identifying Your Printer’s Parts......................................................................................................................................8
2-1. Front ....................................................................................................................................................................... 8

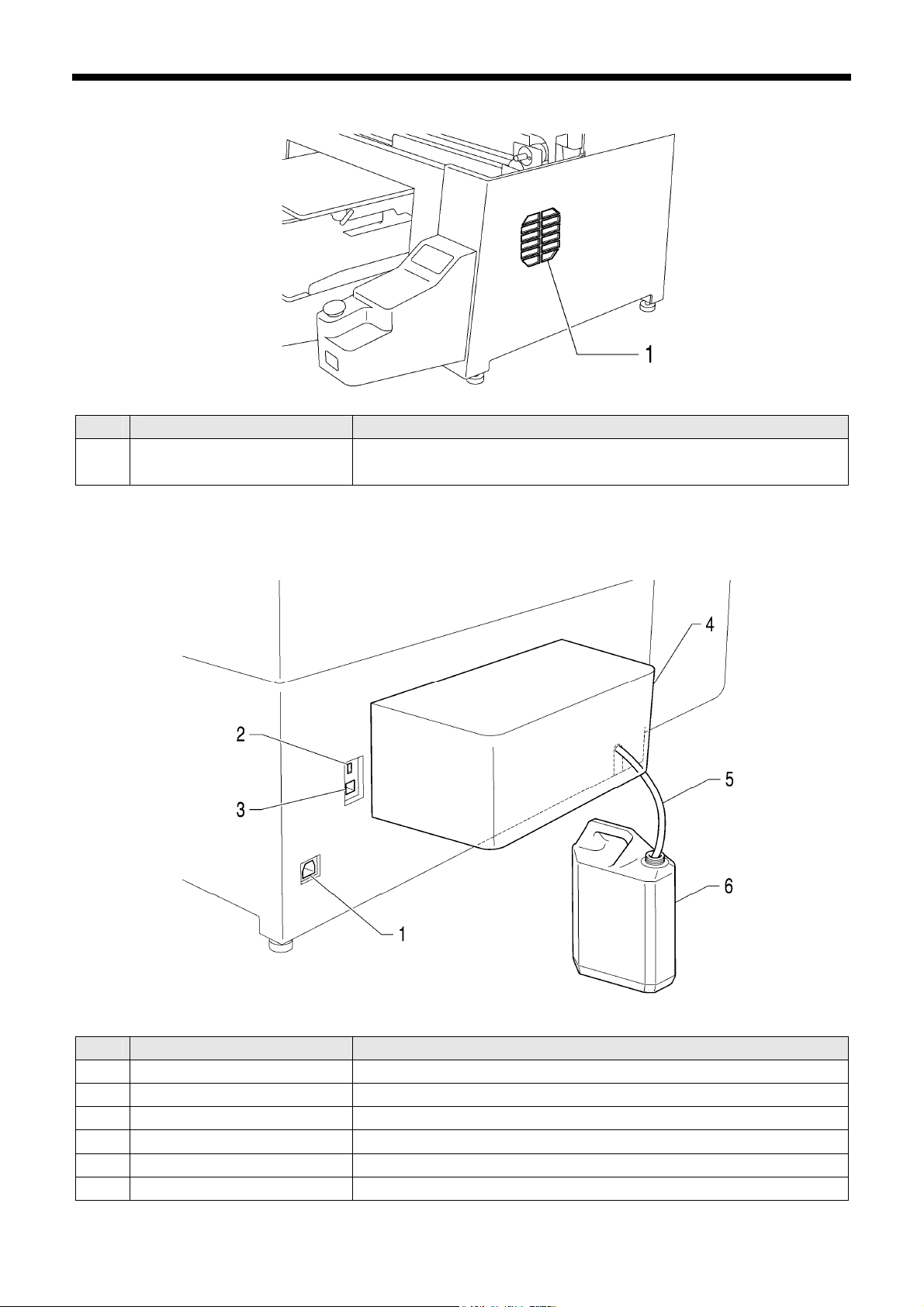

2-2. Right ....................................................................................................................................................................... 9
2-3. Rear........................................................................................................................................................................9

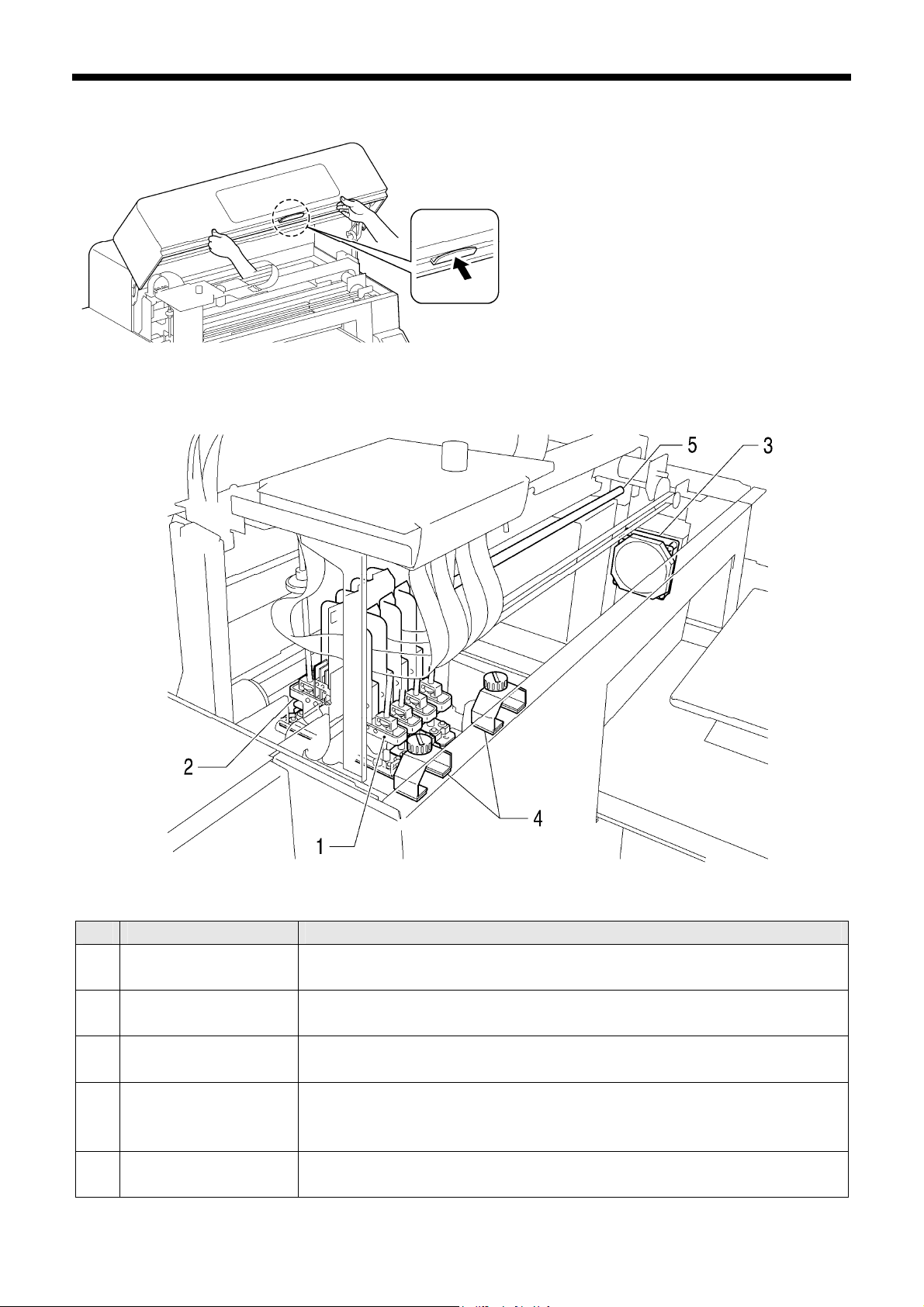

2-4. Inside of the Front Cover.......................................................................................................................................10

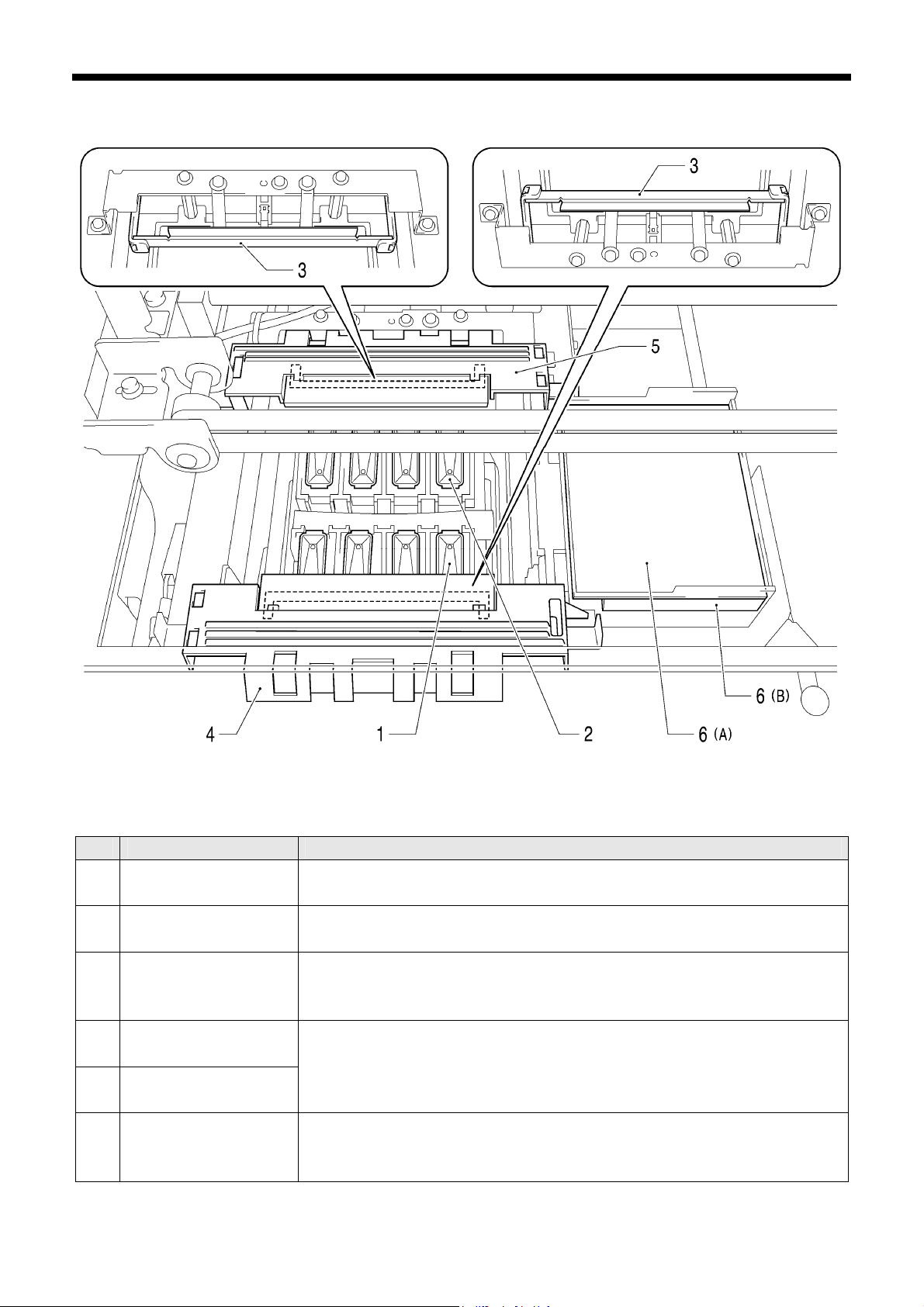

2-5. Upper part of the Maintenance Unit.....................................................................................................................11

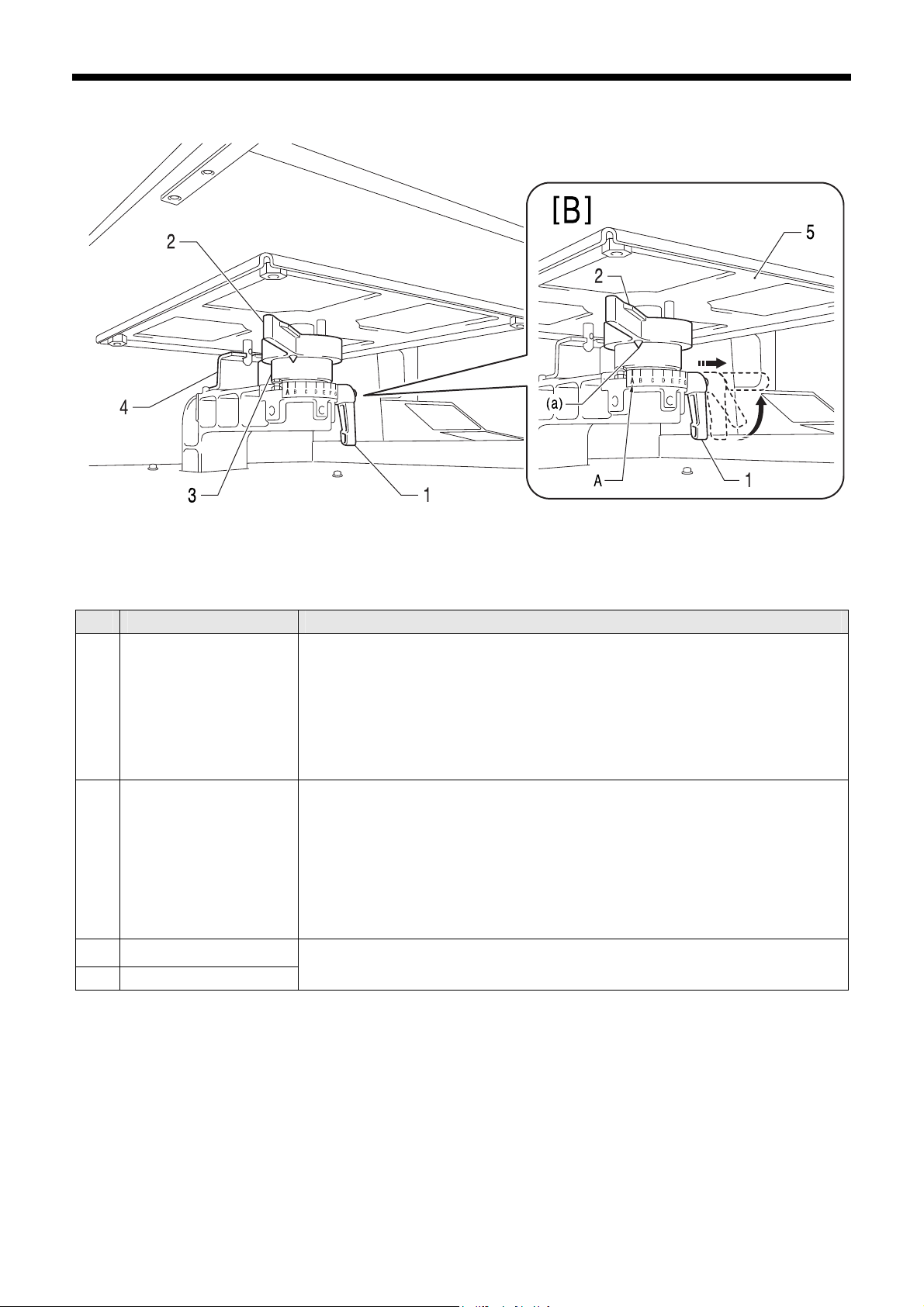

2-6. Under the Platen....................................................................................................................................................12

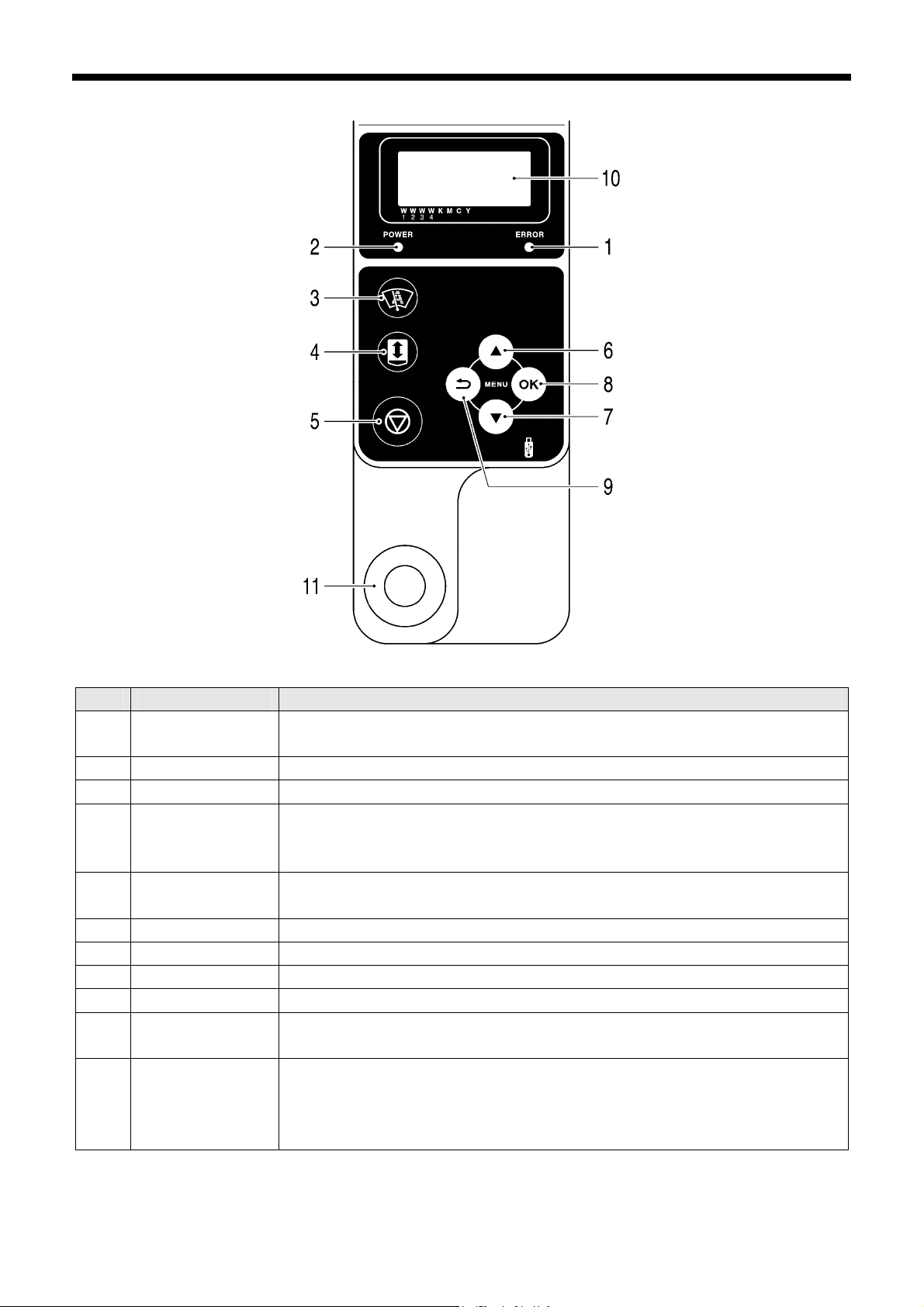

2-7. Control Panel.........................................................................................................................................................13

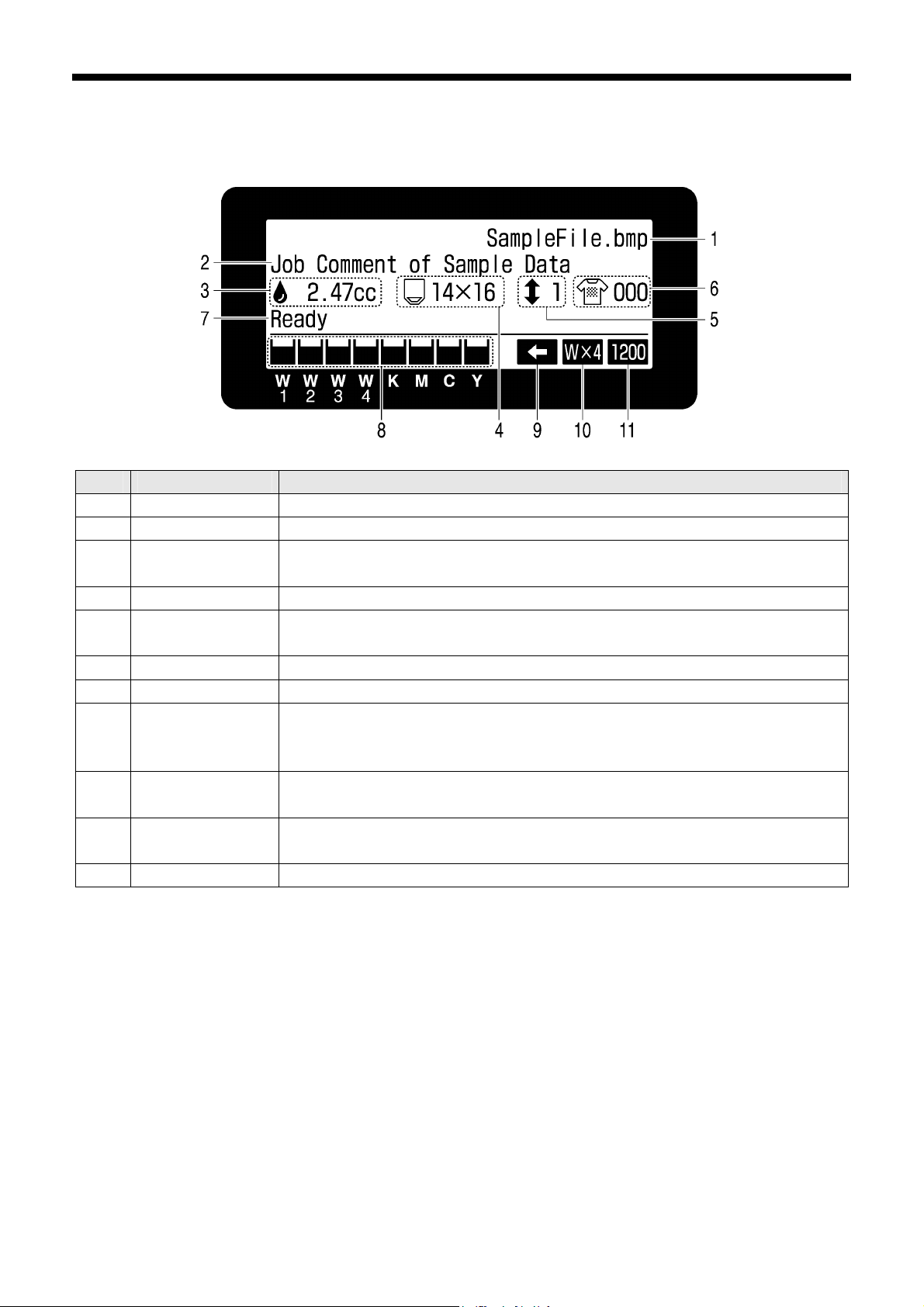

2-7-1. Display............................................................................................................................................................14
2-7-2. Menu List........................................................................................................................................................15
3. Getting Started...............................................................................................................................................................17
3-1. Placing Your Printer...............................................................................................................................................18
3-2. Turning On/Off Your Printer...................................................................................................................................19
3-2-1. Turning On Your Printer.................................................................................................................................19
3-2-2. Turning Off Your Printer.................................................................................................................................20
3-3. Preparing Your PC.................................................................................................................................................21
3-3-1. When you already have GT-541/GT-782 .................................................................................................... 21
3-3-2. PC preparation: For Windows XP (32 bit)....................................................................................................21
3-3-3. Connection with USB 2.0 Cable: for Windows XP......................................................................................22

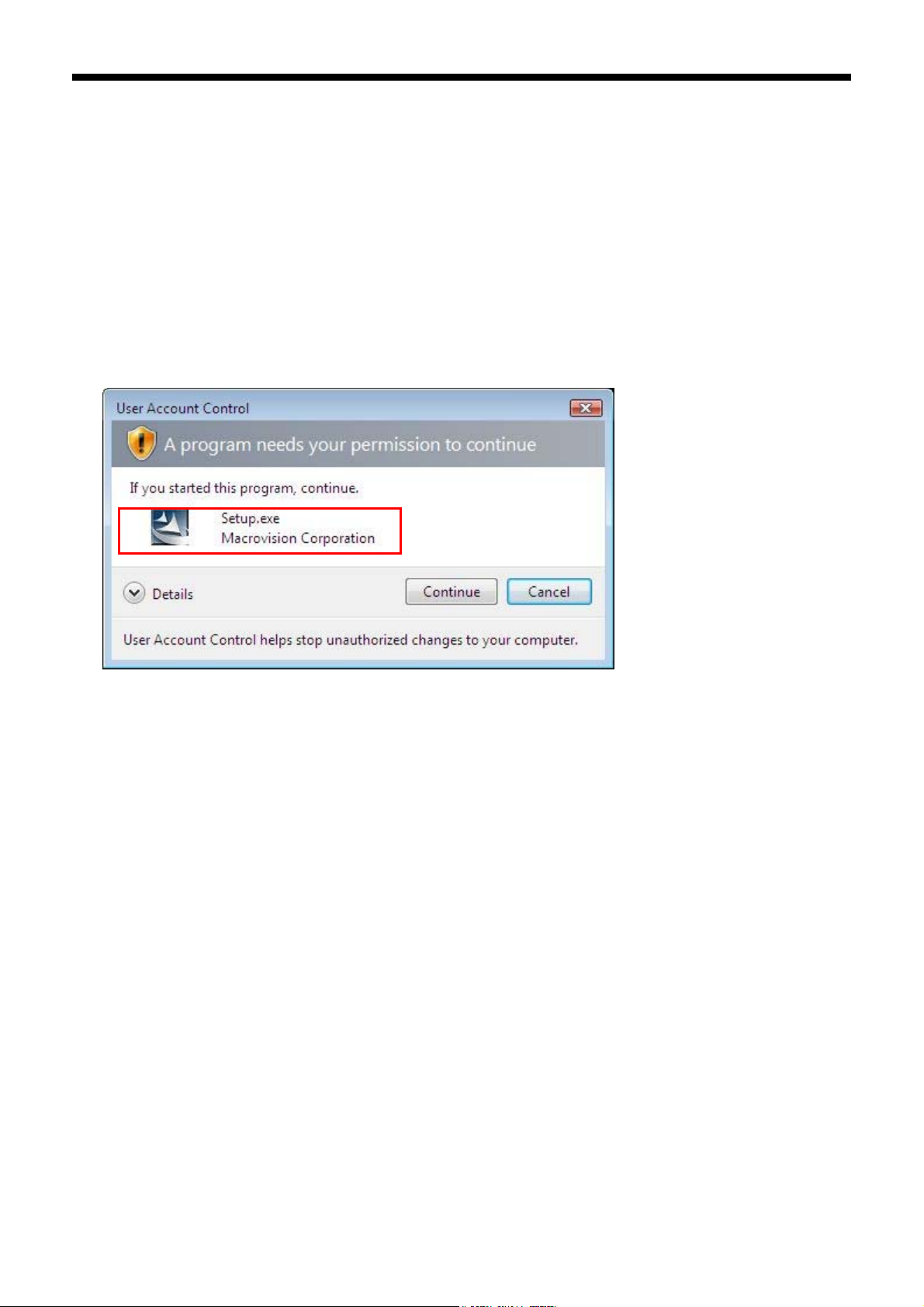

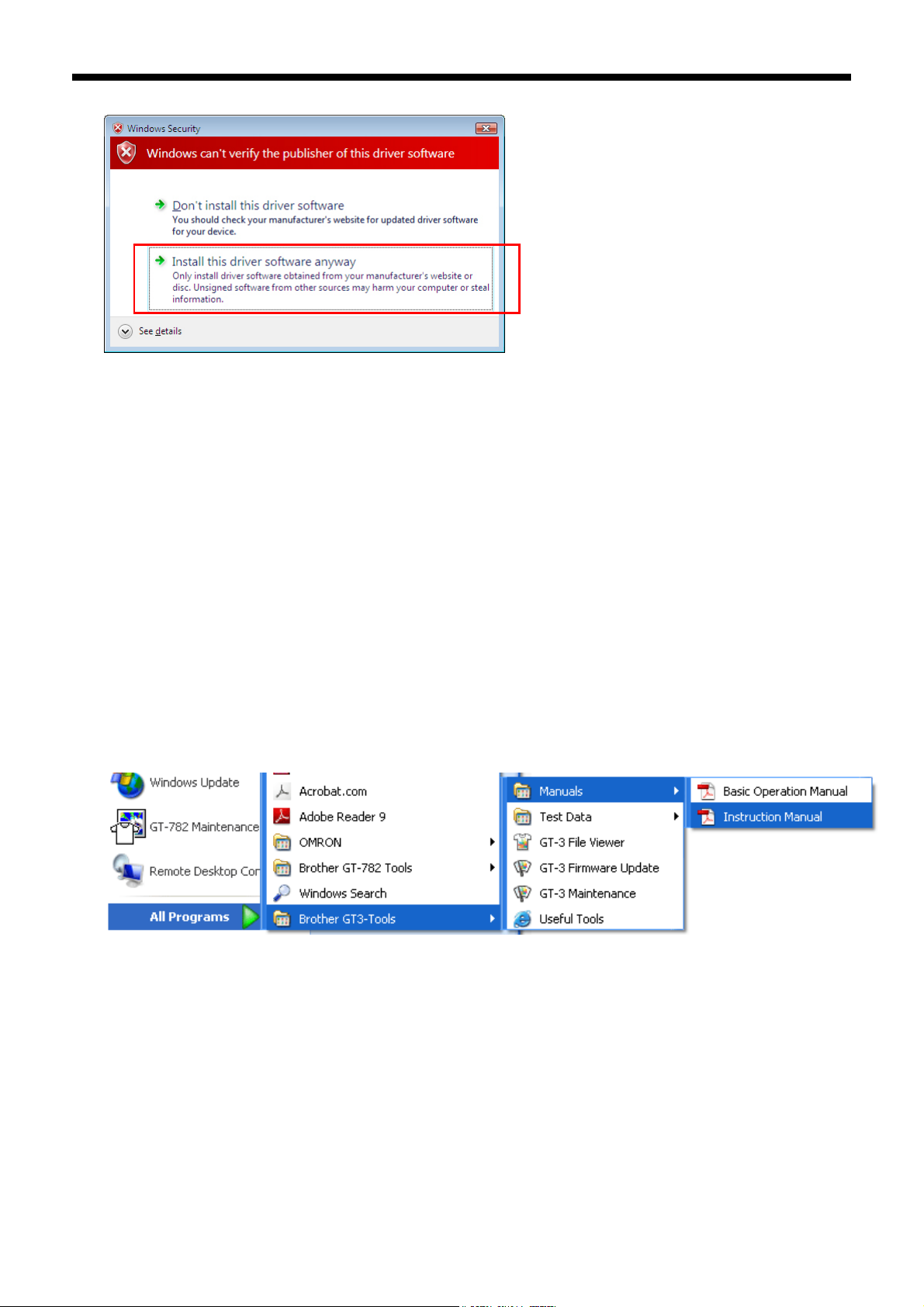

3-3-4. Installation of PC for Windows Vista / Windows 7 (32 bit / 64 bit)...............................................................24
3-3-5. Connection with USB 2.0 Cable: for Windows Vista / Windows 7.............................................................25
3-3-6. Opening the installed manuals .....................................................................................................................25
3-3-7. Opening the Useful Tools ..............................................................................................................................26
3-3-8. How to use Firmware Update Tools............................................................................................................. 27
3-4. Setting Up Your Printer..........................................................................................................................................28
3-4-1. Adjusting the Display Contrast ......................................................................................................................28
3-4-2. Adjusting the Speaker Volume......................................................................................................................28
3-4-3. Temperature...................................................................................................................................................28
3-4-4. Language .......................................................................................................................................................28
4. Printing Directly from Applications................................................................................................................................29
4-1. Basic Printing Procedure ......................................................................................................................................30
5. Maintenance..................................................................................................................................................................31
5-1. Replacing Consumables ......................................................................................................................................32
5-1-1. Replacing the Ink Cartridge...........................................................................................................................32
5-1-2. Replacing the Wiper Cleaner and Cleaning the Caps / Wipers .................................................................34
5-1-3. Replacing Flushing Plate Sponge and Flushing Plate Felt.........................................................................37
5-1-4. Replacing the Fan Filter ................................................................................................................................37
5-1-5. Replacing the Roller Felts .............................................................................................................................39
5-1-6. Cleaning the inside of the printer and restart................................................................................................39
5-1-7. Cleaning the Encoder Strip ...........................................................................................................................40
GT-3 Series
5-2. Regular Maintenance............................................................................................................................................43
5-2-1. Daily Cleaning White for replacing dull White Ink (Once a day, before printing) ....................................... 43
5-2-2. White Tube Cleaning (once a week) ............................................................................................................43
5-2-3. Waste Ink Disposal........................................................................................................................................45
GT-3 Series
1. Read This First
1. Read This First
1-1. Precautions
Please observe the following precautions before using your printer.
z GT-3 represents the common specifications of GT-381, GT-361 and GT-341 models. The individual specifications
are described with each model name.
z Please advise the following to your customers who buy your printed materials:
z Printed colors may transfer when a printed surface rubs on a white or light-colored synthetic leather made of
PVC (polyvinyl chloride). When printing CMYK-only garments, the CMYK ink may transfer to the White-only
printed garment when they rub against each other. In those cases, clean the stains with a soft cloth or
toothbrush with a household cleaner or alcohol.
z Wash away the pretreatment halo marks.
z The printer is designed to be used within the temperature and humidity levels below. Less humidity may cause ink
clogging in Print Head nozzles and higher temperature may cause splashy print result. Use the printer within the
range of our recommendation for the best print result.
Keeping your printer
Temperature Humidity
32 °F to 104 °F
(0 °C to 40 °C)
(no condensation)
20 % to 85 %
Operating your printer
For the best print result
z Do not pull out Ink Cartridge(s) during the operation; it may result in poor print quality or cause damage to your
printer.
z Do not turn off your printer, or open the Front Cover during the operation; otherwise the printer may be damaged or
spoil the print job.
z Be careful in handling a printed T-shirt that has not yet fixed by heat. Ink is difficult to wash from stained clothes.
z Clean the Caps and Wipers, replace the Wiper Cleaners, Fan Filter, Roller Felts (4), Flushing Plate Sponge (top)
and Flushing Plate Felt (bottom) according to our maintenance schedule to maintain good print quality. Those
Maintenance Parts are packed together in White, Cyan and Magenta (except 180 cc) ink Cartons. Replace them
when you open the new ink cartridge or you see the warning indicated on the display. Print quality may be
damaged by insufficient cleaning, e.g. dirty printed materials, mis-firing.
z Never use alcohol when you clean Head Caps and Wiper Blade; it will cause damage to the Print Heads. Use
Wash Liquid when you clean around the Print Heads.
z Install the Ink Cartridges in the correct positions as shown. Confirm both the colors of labels on your printer and the
Ink Cartridges.
z The printer indicates empty status "Empty XXXX (color)" when the ink cartridge is used up. Replace with a new Ink
Cartridge. Make a new Ink Cartridge available when the icon on the Operation Panel starts blinking. A small amount
of ink remains to avoid damage to your printer.
50 °F to 95 °F
(10 °C to 35 °C)
64 °F to 86 °F
(18 °C to 30 °C)
35 % to 85 %
(no condensation)
z New consumables should be stored away from direct sunlight until they are required. Use up the Ink Cartridges,
Pretreatment and Maintenance Solution before the expired date, and CMYK inks should be used up within six
months after opening the new one.
1
GT-3 Series
1. Read This First
z Never refill ink, never reconstruct ink cartridges; ink may cohere inside the cartridge bag, tube or even Print Head
and may cause serious damage to your printer. W e assume no responsibility for any problem caused by using
them. Only genuine new ink cartridges should be used.
z The ink cartridges should always be installed; otherwise the needles may stopped up with ink and your printer may
be damaged.
z Tubes and Print Heads for White must be cleaned with Maintenance Solution once a week by the menu Tube
Cleaning. The Warning "Clean Tube W*" is indicated on the display of the Control Panel af ter a week passes since
the last Tube Cleaning.
z If the printer is unused for a period of time there is a possibility that Print Heads and Maintenance Unit may become
clogged as ink dries. To avoid this, we recommend that the printer should be turned on at least once a week and
press the Head Cleaning Button to clean the Print Head. If you are planning not to use your printer for more than
two weeks, follow “6-2-5. Required Maintenance for the Long Storage" in the Instruction Manual to keep printer in
good condition.

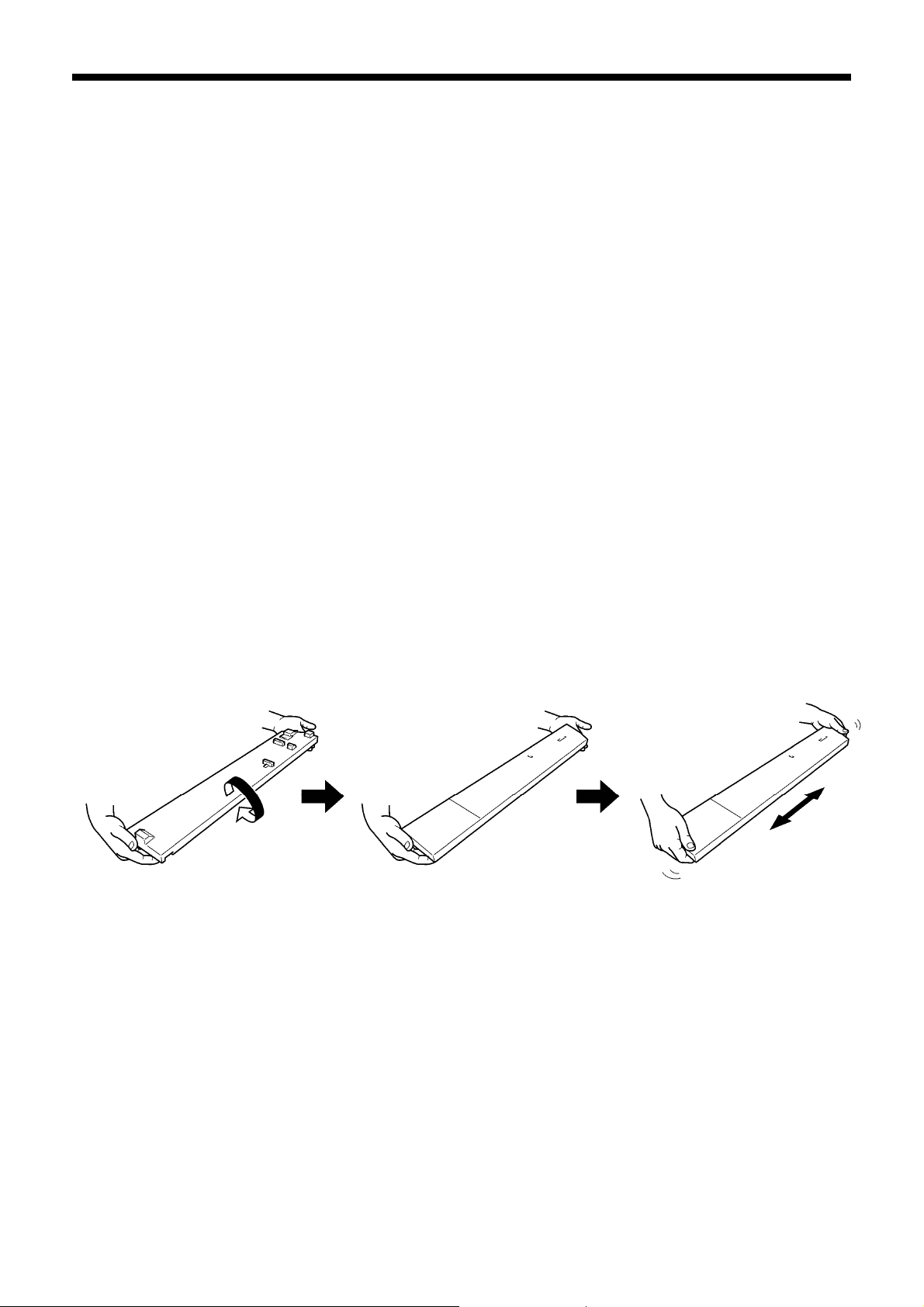

z Shake the White Ink Cartridges once a day before you start printing (30 seconds to 1 minute for each, 1-2 minutes
for new one). Hold the cartridge upside down
to agitate the pigment in the bottom and shake it horizontally .
z If CMYK inks are printed on a Pretreatment applied T -shirt, ink may wash off. Do not apply Pretreatment when you
print without using White ink.
z The clearance between the Clearance Sensor and the surface of the Print Heads should be app. 2 mm. If the
clearance is wider, the ink mist will spread inside the printer and the printing material, and may damage the sensors
inside. If you print with wider clearance (more than 2 mm) then check the inside of the printer and keep it clean by
referring to "5-1-6. Cleaning the inside of the printer and restart" and "5-1-7. Cleaning the Encoder S trip".
z Pretreatment mist may spread out when you use a spray and/or pretreatment applicator. V entilate your room in
operation. Wear a face mask or goggles as necessary .
z Pre-treatment on some T -shirts may be seen after applied and cured, wash lightly with water to remove mark.
Some dyes may be decolorized by Pretreatment; we recommend you test the garment before printing.
z Dispose the used waste ink, pretreatment, maintenance solution (all water-based) or other wastes in accordance
with your local regulations. Or make contact to your dealer.
z The pretreated area may turn yellow when you apply Pretreatment on a white or light-colored garment. Keep the
pretreated garment away from the sunlight and wash the printed T-shirt soon.
<Note> Only for the use in the United States
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
GT-3 Series
2
1. Read This First
<Note>
Product names used in this manual are, in general, trademarks or registered trademarks of their respective developer or
manufacture. However, in this manual, the ® marks or
TM
marks are not used.
Brother logo is registered trademark of Brother Industries, Ltd.
Microsoft and Windows are either registered trademarks of Microsoft Corporation in the United States and/or other countries.
Corel, CorelDRAW and Paint Shop Pro are registered trademarks of Corel Corporation.
Adobe, Adobe Photoshop, Adobe Illustrator and Adobe Photoshop Elements are either registered trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
Other product and company names mentioned herein may be the trademarks or registered trademarks of their respective
owners.
Screen shots used in this document are in accordance with the guidelines of Microsoft Corporation.
3
GT-3 Series
<Software>
This unit uses software.
Agree with the license agreement to use the software.
Software License Agreement
The customer may download and use this software after agreeing with the various terms stipulated in the
Software License Agreement (herein referred to as the "Agreement").
This software cannot be used if the customer disagrees with this agreement.
1. Ownership
The ownership of this software and any reproductions belongs to Brother Industries (herein referred to as
"Company") or its supplier, Wind River KK. This agreement does not transfer this company's software
copyright to the customer.
2. License Agreement
2-1. This company hereby grants the customer non-exclusive rights to use this software.
2-2. The customer may not conduct the following.
(1) Modify this software in whole or in part
(2) Duplicate this software for purposes other for backup purposes
(3) Reverse engineering, reverse assemble, or reverse compile this software
(4) Rent or lease this software
(5) Leave a computer in a public location where this software can be downloaded
1. Read This First
3. No Warranty
Except for the expressed and implied warranties set forth herein, this company disclaim all other warranties.
This company cannot ensure that this software is not defective, not compatible with specific applications,
and the use of this software does not infringe upon third party rights.
4. Restriction of Liability
This company shall not be held responsible for any damage, directly or indirectly, caused by problems or
any related problems with this software.
5. Third Party Beneficiary
Wind River KK. and its suppliers (herein collectively referred to as "supplier") are third party beneficiaries of
this software in this Agreement and may have enforceable rights of the various terms in this Agreement.
6. License Termination
If the customer violates the conditions stipulated in this Agreement, this company may terminate this
Agreement without prior notice.
7. Governing Law
This Agreement shall conform to and be interpreted according to Japanese Law.
8. Separate Terms
Regarding the use of this software by customers not under this Agreement, this company or the supplier of
this software shall provide the customer with separate terms (herein referred to as "separate terms"). If the
customer agrees to these
separate terms, these terms shall take priority over any terms not covered or infringing upon the provisions
within the License Agreement.
Agree to abide by the aforementioned terms.
GT-3 Series
4
1. Read This First
1-2. Unpacking Your Printer
<Note>
Your printer must be unpacked by a Brother representative or a Brother authorized shipping company.
After unpacking, check that the following parts are included.
Contact Brother Customer Service Hot Line if any of these is missing.
z GT-3 Printer
z Install CD
z AC cord
z Nozzle Cleaning Kit: 2 for GT-381 and GT-361, 1 for GT-341
z Print Heads: 8 for GT-381, 6 for GT-361, 4 for GT-341
z One Waste Ink Tank
z One Encoder Cleaner
z One Maintenance Cartridge for GT-381, GT-361
z One Tube Cleaning Bottle for GT-381, GT-361
z Flushing Plate (including Flushing Plate Felt and Flushing Plate Sponge)
z Print Head Protection Film: 8 for GT-381, 6 for GT-361, 4 for GT-341
z Basic Operation Manual
z "How to uncrate" Manual
<Note>
Filter Cartridges (8 for GT-381, 6 for GT-361, 4 for GT-341)are installed in both Ink Cartridge Slots. Keep them since they
should be used for maintenance & transport operations.
1-3. Required Condition
Please use your printer under the conditions described in this section.
1-3-1. Environment
Temperature Humidity
Keeping your printer
Operating your printer
For the best print result
If your room is dry, we recommend using a humidifier to avoid Print Heads from clogging with dried ink.
32 °F to 104 °F
(0 °C to 40 °C)
50 °F to 95 °F
(10 °C to 35 °C)
64 °F to 86 °F
(18 °C to 30 °C)
20 % to 85 %
(no condensation)
35 % to 85 %
(no condensation)
5
GT-3 Series
1-3-2. Electrical Requirements
Power:
Single-phase 100-240 V, 50/60 Hz
Power Consumptions:
0.4 A (average)
1-3-3. Software Information
Supported OS:
Latest Windows XP (32 bit), Windows Vista (32 bit / 64 bit), Windows 7 (32 bit / 64 bit)
Supported Interface:
USB 2.0
Minimum System Requirements:
256 MB RAM (512 MB or more is recommended),
128 MB free disk space (256 MB or more is recommended),
1 GHz CPU (2 GHz or more is recommended.)
Recommended Applications for precise output:
Adobe Photoshop, Adobe Photoshop Elements, Paint Shop Photo Pro (for BMP editing)
Adobe Illustrator, CorelDRAW (for Vector Data editing)
1-3-4. Other Requirements
When purchasing optional tools and devices, choose one that meets the following requirements.
1. Read This First
USB cable:
USB 2.0-compliant device cable (A/B)
<Note>
Using other USB 2.0-compliant device cable may result in improper connection.
USB flash memory:
Capacity under 32 GB,
Heat Press:
Must be able to handle the area of Platen 14 x 16 (355.6 mm x 406.4 mm) and maintain heat production of 356 °F (180 °C)
for 35 seconds. Pretreatment must be cured with the heat press instead of oven to keep the surface flat and smooth.
<Note>
When you print with White ink, we recommend using oven instead of heat press. (320°F (160 °C), 3 and half minutes with the
tunnel 2.4 meter long as a rough indication)
Separator sheet:
When you cure Pretreatment and ink, be sure to use this to make the surface smooth and flat. When you cure printed ink, use
this for separation.
FAT 32 formatted,
GT-3 Series
6
1. Read This First
Urethane mat (continuous foam):
When you cure Pretreatment, use this to release the hot air quickly.
T-shirt:
Made with 100 % cotton, 50 % cotton and 50 % polyester (light-colored are recommended)
<Note>
z Pretreatment on some T-shirts may be seen after applied and cured. In that case, wash lightly with water to remove mark.
Some dyes may be decolorized by Pretreatment, especially "dye migration" will occur on Polyester garment. Be sure to
test before your production.
z Some manufacturing brands may not work as good as 100% cotton garment.
You need to test prior to your production, especially when you print on something new and unknown materials.
1-3-5. Consumable Requirements and Options
For ordering new or replacement items please use the codes below.
Consumables Parts Code
Black Ink Cartridge 180 cc
380 cc
Magenta Ink Cartridge 180 cc
380 cc
Cyan Ink Cartridge 180 cc
380 cc
Yellow Ink Cartridge 180 cc
380 cc
White Ink Cartridge 380 cc x 2
GC-30K18
GC-30K38
GC-30M18
GC-30M38
GC-30C18
GC-30C38
GC-30Y18
GC-30Y38
GC-30W38
Maintenance Solution (5 kg) GC-50S5K
Pretreatment 20 kg GC-51P2L
Wash Liquid SA6248
Maintenance Cleaning Kit
Nozzle Cleaning Kit
Platen Sheet PLTN 14x16
Platen Sheet S PLTN 10x12
Platen Sheet SS PLTN 7x8
Print Head
Pretreatment Roller
Capping Cartridge W
Wiper Cleaner
Grease
Waste Ink Tank
Maintenance Cartridge W
Maintenance Cartridge (Color)
Filter Cartridge W
Filter Cartridge (Color)
SB3168
SB3082
SB3035
SA6401
SA8211
SB3184
SB1290
SB3047
SB3101
SB3229
SB2582
SB3264
SB3265
SB2512
SB2508
7
GT-3 Series
2. Identifying Your Printer’s Parts
2. Identifying Your Printer’s Parts
2-1. Front
0043Y
No. Name Description
1 Platen Holds the T-shirt to be printed.
2 Platen Sheet Prevents a T-shirt from slipping so that an image is printed on your desired position.
3 T-shirt Tray Keeps parts of T-shirt hanging from the Platen (e.g. sleeves) on this T-shirt Tray.
4 Front Cover Open this to work on the inside of your printer, after you turn OFF the printer. (If you
open the Front Cover while operating, the power automatically turns off.)
5 Stop Lever Unlocks the lock of the Front Cover. Keep pushing it to release the lock when you
close the Front Cover.
6 Control Panel Indicates the status of the printer. Use this to operate your printer.
See “2-7. Control Panel” for the details.
7 Power Switch Turns on/off your printer.
8 Shoulder Bar Adjusts the T-shirt position.
9 USB flash drive Slot Inserts USB flash drive.
10 Ink Cartridge Slots Load the Ink Cartridges of the appropriate color: from the left side W1, W2, W3, W4,
Black(K), Magenta (M), Cyan (C), Yellow (Y).
11 Ink Cartridge Storage Stores the new Ink Cartridges.
12 Guard Bar Keeps the loading space of the Platens.
13 Clearance Sensor
(Obstruction Sensor)
14 Model Plate Indicates the serial number of the product.
Cancels an operation for safety, if it detects obstructions on the Platen. When you
lower the platen for printing thicker materials, use Platen Button on the Control Panel
and check the movement if the material does not hit the flap of the Clearance Sensor.
The sensor will not work when the clearance between the print head and the material
is too wide (the platen is too low). Confirm the platen height by referring "4-5. Placing
the T-shirt on the Platen" in the Instruction Manual.
GT-3 Series
8
Loading...
