FACSIMILE EQUIPMENT
PARTS REFERENCE LIST
MODEL: MFC9660 / FAX8360P
FAX8370
(For Germany / United Kingdom / France /
Norway / Belgium / Netherlands /
Switzerland / Ireland / Finland / Denmark /
Austria / Spain / Italy / South Africa /
Sweden )
(For Australia / New Zealand / Asia / China )
© Copyright Brother 2002
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.
NOTES FOR USING THIS PARTS REFERENCE LIST
RECOMMEND
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
Note: No orders without Parts Code or Tool No. can be accepted.
[Example]
(1) (2) (3)
REF.NO. CODE Q' TY DESCRIPTION
REMARKS
2. Parts change will be informed by the technical information.
COUNTRIES
GERMANY ---- GER
UNITED KINGDOM ---- UK
FRANCE ---- FRA
NORWAY ---- NOR
BELGIUM ---- BEL
NETHERLANDS ---- NLD
SWITZERLAND ---- CHE
IRELAND ---- IRE
FINLAND ---- FIN
DENMARK ---- DEN
AUSTRIA ---- AUS
SPAIN ---- SPA
ITALY ---- ITA
SOUTH AFRICA ---- ZAF
SWEDEN ---- SWE
AUSTRALIA ---- ARL
ASIA ---- ASA
CHINA ---- CHN
LIST1 (MAIN FRAME)
6
5
K
6
T
6
5
R
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LE1744001 1 MAIN MOTOR ASSY
2 08732061
3 LJ5701001 1 SOLENOID ASSY
4 00030041
5 UL8984001 1 FRONT COVER LIN
6 LJ5704001 1 TONER SENSOR (LED) PCB
7 08732061
8 LE1166001 1 THERMISTOR FILM
9 LG2423001 1 THERMISTOR ASSY
10 LJ4745001 1 FAN MOTOR UNI
11 UL9104001 1 TONER SENSOR (RECEIVER) PCB
12 UG6217001 1 PAPER EJECTION SENSOR PCB
13 08732061
14 LJ7403001 4 RUBBER FOOT
15 LJ8031001 1 2ND CASSETTE RELAY PCB
08541121
16
17 LJ5703001 1 SOLENOID RELEASE SPRING
18 UL8972001 1 P/R CLUTCH LEVER
19 UL8971001 1 F/R CLUTCH LEVE
20 UL8982001 1 DEVELOP JOINT
21 UL8983001 1 JOINT SPRING
22
UL8959001 1 FRICTION SPRING
4 TAPTITE, CUP S M3X6
1 SCREW, BIND M3X4
6 TAPTITE, CUP S M3X6
23 TAPTITE, CUP S M3X6
5 SCREW, BIND B TITE M4X12
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
LIST2 (DOCUMENT SCANNER)
Y
0
0
5
R
(SP)
R
R
R
6
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LE1164001 1 DOCUMENT SCANNER ASS
1-1 LE1072001 2 DOCUMENT SEPARATION ROLLER ZLM
1-2 UL563200
1-3 UF436900
1-4 UF9009001 2 PRESSER ROLLER
1-5 UU7032001 2 PRESSER ROLLER LEAF SPRING
1-6 08731081
1-7 UU2006001 1 DOCUMENT TAKE-IN ROLLER SHAFT ASSY, WHITE
1-8 UU2008001 1 SEPARATION ROLLER SHAFT ASSY, BLACK
2 UU2027001 1 SCANNER MOTO
3 0A43006051 SCREW, PAN (WASHER) M3X6
4 UU2028001 2 CIS SPRING
5 LE7949001 1 CIS UNIT
6 UU2029001 1 DOCUMENT FEED ROLLE
7 LE1196001 2 DOCUMENT FEED ROLLER GEA
8 UL62440022 PINCH ROLLE
9 UU2009001 2 PINCH ROLLER SPRING
10 UU2031001 1 EJECTION ROLLER
11 08731101
2 DOCUMENT SEPARATION ROLLER GEAR 43
1 PRESSURE ROLLER SHAFT
2 TAPTITE, CUP B M3X8
2 TAPTITE, CUP B M3X10
√
√
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
LIST3 (LASER UNIT)
(SP)
5
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LJ5828001 1 LASER UNIT ASSY
2 08732161
3 TAPTITE, CUP S M3X16
√
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
LIST4 (PAPER TRANSPORT)
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 UL9059001 1 JOINT
2 UL9060001 1 PAPER FEED ROLLER ASSY
3 UL9062001 1 PAWLED BUSHING
4 UL9066001 1 PAPER PICK-UP ROLLER ASSY
5 UL9062001 1 PAWLED BUSHING
6 UL9069001 1 CONDUCTIVE BUSHING
7 LJ4499001 1 ELECTRODE SPRING
8 LJ4843001 1 OUTER CHUTE 1 (SP)
9 LJ5591001 1 PLANET GEAR ASSY (SP)
10 UL9070001 1 GEAR 21
11 UL8985001 1 GEAR 59
12 LJ5705001 1 GEAR 21 PRESSURE PLATE
13 LJ5838001 1
14 UL9049001 1
15 UL9050001 1
16 UL9051001 1
17 UU2042001 1
18 UL9053001 2 TRANSFER ARM ADD
19 UL9052001 2 TRANSFER SPRING ADD
PLANET GEAR ASSY B (SP)
MANUAL INSERTION SENSOR ACTUATOR
REGISTRATION SENSOR ACTUATOR
REGISTRATION SENSOR SPRING
CASSETTE SENSOR ACTUATOR
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
LIST5 (PAPER TRAY)
(SP)
(
)
)
(
)
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LE1162001 1 PAPER TRAY ASSY, LEGAL, MFC9660 FOR
1 LJ4181001 1 PAPER TRAY ASSY, MFC9660 FOR ARL/NZ/ASA,
1-1 UL9078001 1 SIDE GUIDE L, BLUE
1-2 UL9079001 1 SIDE GUIDE R, BLUE(6155
U73515001 2 SCREW, CUP B M2.6X5
1-3
1-4 UL9083001 1 PAPER REAR GUIDE, BLUE
1-5 UL9084001 1 SEPARATION PAD SUPPORT ASSY
1-6 UL9090001 1 SEPARATION PAD SPRING
GER/UK/FRA/NOR/BEL/NLD/CHE/IRE/FIN/DEN/AUS/SPA/ITA/ZAF/SW
E (SP)
FAX8360P, FAX8370
6155
6155
√
√
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370

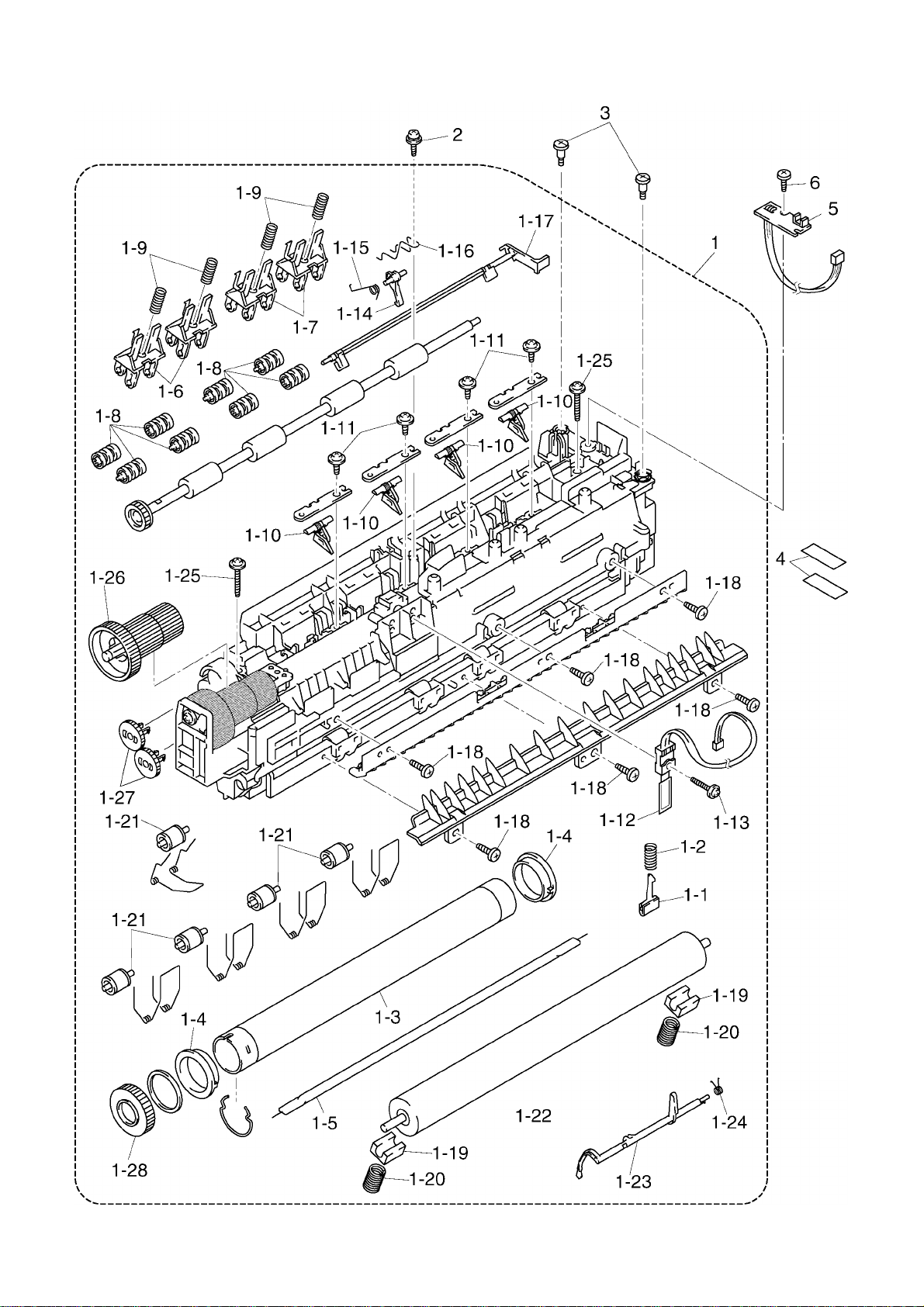

LIST6 (HEAT FIXING UNIT)
(SP)
V
R
5
6
A
R
5
5
5
5
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LJ7162001 1 FIXING UNIT, 230V
√
1-1 LJ5682001 1 CLEANER ASSY
UH3635001 1 CLEANER SPRING 30
1-2
1-3 LJ5684001 1 HEAT ROLLER 25
1-4 UL8908001 2 HR BEARING 25
1-5 LJ5695001 1 HALOGEN LAMP, 230
LJ5276001 2 EJECT PINCH ROLLER HOLDER L
1-6
LJ5277001 2 EJECT PINCH ROLLER HOLDER
1-7
1-8 LJ5278001 8 EJECT PINCH ROLLER
1-9 LJ5279001 4 EJECT PINCH SPRING
1-10 LJ7877001 4 PICK OFF FINGER ASSY C CHG
1-11 08731061
4 TAPTITE, CUP B M3X6
1-12 LJ5686001 1 THERMISTOR ASSY
1-13 08531121
1 SCREW, BIND B TITE 3X12
1-14 LJ5734001 1 EJECT ACTUATOR 2
1-15 LJ5732001 1 EJECT ACTUATOR SPRING 2
1-16 LJ5736001 1
CTUATOR HOLDE
1-17 LJ5735001 1 EJECT ACTUATOR 3
08531101
1-18
UL8916001 2 PR BEARING
1-19
LJ5690001 2 PR SPRING
1-20
6 SCREW, BIND B TITE 3X10
1-21 LJ5268001 5 CLEANER PINCH ROLLER ASSY
1-22 LJ5287001 1 PRESSURE ROLLER 25
UL8920001 1 PAPER EJECT ACTUATOR
1-23
UL8921001 1 EJECT ACTUATOR SPRING
1-24
08731201
1-25
UL8923001 1 FU DRIVER GEAR
1-26
2 TAPTITE, CUP B M3X20
1-27 LM2047001 2 IDLE GEAR 13 chg
1-28 UL8910001 1 HR GEAR 34 add
2 08732081
1 TAPTITE, CUP S M3X8
3 LJ4740001 2 SHOULDER SCREW
4 LJ4432001 2 TAPE 32X12
5 LJ8841001 1 JAM SENSOR PCB ASSY
6 08531101
1 SCREW, BIND B TITE 3X10
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
LIST7 (COVER)
(
)
(
)
3
)
)
)
(
)
-
-
-
(
)
)
(
)
A
)
)
)
)
8
)
)
0
8
8
6
-
6
5
0
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LJ5751001 1 MAIN COVER ASSY, GRAY
2 UL9122001 4 PINCH ROLLER ASSY
3 UL9125001 4 PINCH ROLLER SPRING
4 LJ5763001 1 OUTER CHUTE, GRAY
5 UL9127001 1 CHUTE SPRING L
6 UL9128001 1 CHUTE SPRING R
7 UU210200
7 LE8478001 1 FRONT COVER ASSY, FAX8370, GRAY(1495
7-1 UU2094001 1 FRONT SUB COVER, GRAY(1495
7-2 0873108151 TAPTITE, CUP B M3X8
8 UL9140001 1 PAPER SUB TRAY, GRAY
9 ---
10 --11 --12 UU2045001 1 SWITCH COVER, GRAY
13 UU2002001 1 REAR COVER, GRAY(1495
14 0A54010063 SCREW, PAN (S/P WASHER) M4X10
15 UU2003001 1 TOP COVER, GRAY
16 UL9142001 1 EXIT ROLLER ASSY
17 LJ4125001 1
18 LE1242001 1ANTI-STATIC BRUSH (SHORT
19 UF61140081 DOCUMENT GUIDE, L, EXCEPT FOR FAX8370, GRAY(1495
19 UF61140091 DOCUMENT GUIDE, L, FOR FAX8370, CLEAR PURPLE(6342
20 UF611500
20 UF61150091 DOCUMENT GUIDE, R, FOR FAX8370, CLEAR PURPLE(6342
21 UF441700
22 UF4418001 1 SPRING, COMPRESSION
23 UF5034001 1 TAPTITE, B 3X6
24 LG2210001 1 SPEAKER UNIT
25 UU2048001 1 HANDSET HOLDER ASSY, FAX8370 add
26 UF816600
27 LE1023001 1 DUMMY COVER, EXCEPT FOR FAX8370
28 UG5030001 1 HOOK PCB ASSY, FAX8370 add
29 UF816700
30 08731101
31 --32
08532081
33
08732101
34
UF9823001 2 SHOULDER SCREW
35
UF574500
36
LE8190001 1 SUB BACK COVER, FAX8360P CHG
1 FRONT COVER ASSY, EXCEPT FOR FAX8370, GRAY(1495
NOT USED
NOT USED
NOT USED
NTI-STATIC BRUSH (LONG
1 DOCUMENT GUIDE, R, EXCEPT FOR FAX8370, GRAY(1495
1 GUIDE GEAR
1 LOWER HANDSET HOLDER, FAX8370 add
1ACTUATOR HOOK, FAX8370 add
2 TAPTITE, CUP B M3X10
NOT USED
5 TAPTITE, BIND S M3X8
2 TAPTITE, CUP S M3X10
1 MJ COVER FOR GER/UK/FRA/BEL/FIN/DEN/AUS/ITA/ZAF/SWE
1495
1495
1495
1495
1495
add
add
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
LIST8 (CONTROL PANEL)
(
)
)
)
6
0
)
)
)
)
)
)
)
0
(SP)
A
R
R
5
2
√
√
√
√
√
√
R
√
√
√
√
√
√
√
√
√
A
)
)
A
A
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LE7308001 1 CONTROL PANEL ASSY, MFC9660
1 LE8071001 1 CONTROL PANEL ASSY, FAX8360P/FAX8370
1-1 UU2004001 1 CONTROL PANEL, GRAY
1-2 UF81760084 KEY, ONE TOUCH, GRAY(1495
1-3 UF45760081 KEY, SHIFT, GRAY(1495
1-4 UF91180063 KEY, FUNCTION, GRAY(1495), MFC9660
1-4 UF911800
1-5 UF558101
1-6 UF43930071 KEY, TEN, GRAY(1495
1-7 UU70990081 KEY, VOLUME, GRAY(1495
1-8 UU71000081 KEY, COPY AREA, GRAY(1495
1-9 UF81740091 KEY, COPY, GREEN(5159
1-10 UF81730041 KEY, STOP, PINK(2205
1-11 UF81720061 KEY, START, PURPLE(6255
1-12 LG2212001 1 CONTROL PANEL PCB ASSY
1-13 UG455200
1-14 LE1155001 1 FPC KEY
1-15 UU2005001 1 PANEL REAR COVER
1-16 UU2051001 1 DOCUMENT NIP PIECE SPRING
1-17 UU2052001 1 DOCUMENT NIP PIECE
1-18 UU2053001 1
1-19 UU2054001 1 SPILLING PLATE, B
1-20 UU2055001 1 SEPARATION RUBBER
1-21 UU2056001 1 SPRING PLATE, A
1-22 UF5034001 1 TAPTITE, B 3X6
1-23 UU2057001 1 DOCUMENT PRESSURE SPRING
1-24 LE6342001 1 DOCUMENT PRESSURE BAR ASSY
1-25 UU2061001 1 DOCUMENT FRONT SENSOR ACTUATO
1-26 UU2062001 1 DOCUMENT REAR SENSOR ACTUATO
1-27 LE7305001 1ANTI-STATIC BRUSH
1-28 08731081
2 UU206300
3 LE7319001 1 PANEL SHEET, MFC9660 FOR GER/AUS
3 LE8173001 1 PANEL SHEET, FAX8360P FOR GER/AUS
3 LE7329001 1 PANEL SHEET, MFC9660 FOR UK/BEL/NLD/CHE/IRE/ZAF
3 LE8177001 1 PANEL SHEET, FAX8360P FOR UK/BEL/NLD/CHE/IRE/ZAF/GNR
3 LE7333001 1 PANEL SHEET, MFC9660 FOR FRA
3 LE8181001 1 PANEL SHEET, FAX8360P FOR FRA
3 LE7691001 1 PANEL SHEET, MFC9660 FOR NO
3 LE8209001 1 PANEL SHEET, FAX8360P FOR NOR
3 LE7692001 1 PANEL SHEET, MFC9660 FOR FIN
3 LE7693001 1 PANEL SHEET, MFC9660 FOR DEN
3 LE7694001 1 PANEL SHEET, MFC9660 FOR SPA
3 LE8219001 1 PANEL SHEET, FAX8360P FOR SPA
3 LE7695001 1 PANEL SHEET, MFC9660 FOR ITA
3 LE7696001 1 PANEL SHEET, MFC9660 FOR SWE
3 LE8222001 1 PANEL SHEET, FAX8360P FOR SWE
3 LE7856001 1 PANEL SHEET, MFC9660 FOR ARL/NZ/ASA
3 LE8231001 1 PANEL SHEET, FAX8360P FOR ARL/NZ/ASA
3 LE8450001 1 PANEL SHEET, FAX8370
4 UU2067001 1
4 LE1509001 1ADDRESS LABEL, MFC9660 FOR ZAF, GRAY(1495
5 LE1706001 2 HOLE SHIELD FILM
6 LE7304001 3
2 KEY, FUNCTION, GRAY(1495), FAX8360P/FAX8370
1 KEY, FUNCTION91, GRAY(1495
1 LCD
DF SPRING
2 TAPTITE, CUP B M3X8
1 LCD SHEET
DDRESS LABEL, EXCEPT FOR MFC9660 ZAF, GRAY(1495
NTI-STATIC SUB BRUSH
1495
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
add
DD
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
LIST9 (PCB ASSY)
2
2
A
(SP)
6
5
6
5
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LG4034001 1 MAIN PCB ASSY, MFC9660
1 LG3928001 1 MAIN PCB ASSY, FAX8360P
1 LG4039001 1 MAIN PCB ASSY, FAX8370
2 LG2295061 1 NCU PCB ASSY FOR
2 LG281900
2 LG282100
2 LG2820070 1 NCU PCB ASSY, FAX8370
3 LG4016001 1 LOW VOLTAGE POWER SUPPLY PCB ASSY, 230V EXCEPT FOR
3 LG4023001 1 LOW VOLTAGE POWER SUPPLY PCB ASSY, 230V
4 LJ5831001 1 HIGH-VOLTAGE POWER SUPPLY ASSY
5 LG3256001 1 ENGINE PCB ASSY
6 08732061
7 08432081
8 0A535060
9 08541121
10 LG3623001 1 BATTERY
11 LG3624001 1 BATTERY HARNESS
GER/UK/FRA/NOR/BEL/NLD/CHE/IRE/FIN/DEN/AUS/SPA/
ITA/ZAF/SWE/GNR
1 NCU PCB ASSY FOR ARL/NZ
1 NCU PCB ASSY FOR ASA
SA/CHN
FOR ASA/CHN
5 TAPTITE, CUP S M3X6
2 SCREW, FLAT S M3X8
1 SCREW, PAN(WASHER)M3.5X6
4 SCREW, BIND B TITE M4X12
√
√
√
√
√
√
√
√
√
√
√
add
add
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
LIST10 (ACCESSORIES)
0
√
√
√
A
√
A
√
√
√
R
√
√
0
√
√
√
8
)
)
√
√
√
√
A
(10)
(10)
(10)
(11)
(11)
(11)
(11)
(11)
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 UF685701
2 LG2358001 1 AC CORD ASSY, EUR VDE FOR
1 HANDSET ASSY, FAX8370 add
√√
GER/FRA/NOR/BEL/NLD/FIN/AUS/SPA/ITA/SWE/GNR
2 LG2359001 1AC CORD ASSY, EUR BS FOR UK/IRE
2 LG2360001 1AC CORD ASSY, EUR SEV FOR CHE
2 LG2361001 1AC CORD ASSY, EUR DEMCO, FOR DEN
2 LG2162001 1AC CORD ASSY, SAA FOR ARL/NZ
2 LG3661001 1
C CORD ASSY, SAF FOR ZAF
2 LG2085001 1AC CORD ASSY, VDE FOR ASA
2 LG2086001 1
C CORD ASSY, BS, FOR ASA
2 LJ9353001 1 AC CORD ASSY LF FOR CHN
√
√
√
√
√
√
√
√
CHG
3 UG3625001 1 TELEPHONE LINE CORD FOR GER
3 UG3626001 1 TELEPHONE LINE CORD FOR UK/ZAF
3 UG3627001 1 TELEPHONE LINE CORD FOR FRA
3 UG3629001 1 TELEPHONE LINE CORD FOR NO
3 UG1575001 1 TELEPHONE LINE CORD FOR BEL
3 LG3077001 1 TELEPHONE LINE CORD FOR NLD/IRE/SPA/ASA/ARL/GNR/CHN,
FAX8360P FOR NZ
3 UG346900
1 TELEPHONE LINE CORD FOR CHE
3 UG3632001 1 TELEPHONE LINE CORD FOR FIN
3 UG3633001 1 TELEPHONE LINE CORD FOR FIN
3 UG4205001 1 TELEPHONE LINE CORD FOR AUS
3 UG3634001 1 TELEPHONE LINE CORD FOR ITA
3 UG3635001 1 TELEPHONE LINE CORD FOR SWE
3 UG3290001 1 TELEPHONE LINE CORD FOR NZ, FAX8360P FOR ARL
4 UU208000
1 DOCUMENT SUPPORT, CLEAR PURPLE(6342
5 UU20690081 DOCUMENT TRAY, CLEAR PURPLE(6342
6 UF72040081 HANDSET CURLED CORD LL ASSY, FAX8370 add
7 LE7320001 1 CD-ROM ASSY, MFC9660 FOR GER/UK/FRA/CHE/IRE/AUS/ZAF
7 LE7860001 1 CD-ROM ASSY, MFC9660 FOR NOR/DEN/SWE
7 LE7857001 1 CD-ROM ASSY, MFC9660 FOR SPA/ITA
7 LE7960001 1 CD-ROM ASSY, MFC9660 FOR BEL/NLD/FIN
7 LE8155001 1 CD-ROM ASSY, MFC9660 FOR ARL/NZ/AS
8 UG4558001 1 I/F CABLE, MFC9660 FOR GER/UK/IRE/AUS/ARL/NZ/ASA
9 LE7699001
1 FERRITE CORE BAG ASSY FOR ARL/ASA del
LG3622001 1 TELEPHONE PLUG FOR NLD
LG3509001 1 TELEPHONE PLUG FOR ARL, FAX8360P FOR NZ
UG15730001 TELEPHONE PLUG FOR BEL
LE8773001 1 CD-ROM ASSY XP, MFC9660 FOR GER/UK/FRA/CHE/IRE/AUS/ZAF add
LE8775001 1 CD-ROM ASSY XP, MFC9660 FOR NOR/DEN/SWE add
LE8776001 1 CD-ROM ASSY XP, MFC9660 FOR BEL/NLD/FIN add
LE8774001 1 CD-ROM ASSY XP, MFC9660 FOR SPA/ITA add
LE8917001 1 CD-ROM ASSY , FOR FAX8370 add
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
LIST11 (PRINTED MATERIAL)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
(
))
)
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
(1) LE7324001 1 OWNER'S MANUAL ASSY, MFC9660 FOR GER/AUS
(1) LE8174001 1 OWNER'S MANUAL ASSY, FAX8360P FOR GER/AUS
(1) LE7330001 1 OWNER'S MANUAL ASSY, MFC9660 FOR UK
(1) LE8178001 1 OWNER'S MANUAL ASSY, FAX8360P FOR UK
(1) LE7334001 1 OWNER'S MANUAL ASSY, MFC9660 FOR FRA
(1) LE8182001 1 OWNER'S MANUAL ASSY, FAX8360P FOR FRA
(1) LE7902001 1 OWNER'S MANUAL ASSY, MFC9660 FOR NOR
(1) LE8210001 1 OWNER'S MANUAL ASSY, FAX8360P FOR NOR
(1) LE7922001 1 OWNER'S MANUAL ASSY, MFC9660 FOR BEL
(1) LE8212001 1 OWNER'S MANUAL ASSY, FAX8360P FOR BEL
(1) LE7905001 1 OWNER'S MANUAL ASSY, MFC9660 FOR NLD
(1) LE8216001 1 OWNER'S MANUAL ASSY, FAX8360P FOR NLD
(1) LE7907001 1 OWNER'S MANUAL ASSY, MFC9660 FOR CHE
(1) LE8217001 1 OWNER'S MANUAL ASSY, FAX8360P FOR CHE
(1) LE7909001 1 OWNER'S MANUAL ASSY, MFC9660 FOR IRE
(1) LE8229001 1 OWNER'S MANUAL ASSY, FAX8360P FOR IRE
(1) LE7912001 1 OWNER'S MANUAL ASSY, MFC9660 FOR FIN
(1) LE7913001 1 OWNER'S MANUAL ASSY, MFC9660 FOR DEN
(1) LE7917001 1 OWNER'S MANUAL ASSY, MFC9660 FOR SPA
(1) LE8228001 1 OWNER'S MANUAL ASSY, FAX8360P FOR SPA
(1) LE7919001 1 OWNER'S MANUAL ASSY, MFC9660 FOR ITA
(1) LE8925001 1 OWNER'S MANUAL ASSY, MFC9660 FOR ZAF
(1) LE8225001 1 OWNER'S MANUAL ASSY, FAX8360P FOR ZAF/GNR
(1) LE7920001 1 OWNER'S MANUAL ASSY, MFC9660 FOR SWE
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET,
2 WARRANTY CARDS
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, 2 WARRANTY CARDS
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET, WARRANTY CARD
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, WARRANTY CARD
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET
(INCLUDING 2 OWNER'S MANUALS(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET
(INCLUDING 2 OWNER'S MANUALS(1-1), PAN EURO WARRANTY
LEAFLET
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET
(INCLUDING 2 OWNER'S MANUALS(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET
(INCLUDING 2 OWNER'S MANUALS(1-1), PAN EURO WARRANTY
LEAFLET
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET
(INCLUDING OWNER'S MANUAL(1-1), LICENSE AGREEMENT
SHEET
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET, WARRANTY CARD
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, WARRANTY CARD
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET
(INCLUDING OWNER'S MANUAL(1-1), LICENSE AGREEMENT
SHEET
INCLUDING OWNER'S MANUAL(1-1
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, LICENSE AGREEMENT SHEET, WARRANTY CARD
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√
√√
√√
ADD
ORDER
TO BIUK
√
MFC9660, FAX8360P, FAX8370
LIST11 (PRINTED MATERIAL)
)
(
)
)
)
)
(
))
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
√
(
(
(
(
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
(1) LE8223001 1 OWNER'S MANUAL ASSY, FAX8360P FOR SWE
(1) LE8553001 1 USER'S GUIDE ASSY, MFC9660 FOR ARL
(1) LE8554001 1 USER'S GUIDE ASSY, MFC9660 FOR NZ
LE8237001 1 OWNER'S MANUAL ASSY, FAX8360P FOR ARL/NZ
(1)
(1) LE8555001 1 USER'S GUIDE ASSY, MFC9660 FOR ASA
(1) LE8232001 1 OWNER'S MANUAL ASSY, FAX8360P FOR ARL/NZ/ASA
(1) LE8480001 1 USER'S GUIDE ASSY, FAX8370
1-1)LE73250031 OWNER'S MANUAL, MFC9660 FOR GER
1-1)LE81750031 OWNER'S MANUAL, FAX8360P FOR GER/AUS
1-1)LE73310041 OWNER'S MANUAL, MFC9660 FOR UK/IRE/ZAF
1-1)LE81790041 OWNER'S MANUAL, FAX8360P FOR UK/IRE/ZAF/GNR
1-1)LE73310051 OWNER'S MANUAL, MFC9660 FOR FRA
1-1)LE81790051 OWNER'S MANUAL, FAX8360P FOR FRA
1-1)LE73310071 OWNER'S MANUAL, MFC9660 FOR NOR
1-1)LE81790071 OWNER'S MANUAL, FAX8360P FOR NOR
1-1)LE73310081 OWNER'S MANUAL, MFC9660 FOR BEL/NLD <DUTCH>
1-1)LE81790081 OWNER'S MANUAL, FAX8360P FOR BEL/NLD <DUTCH>
1-1)LE77880081 OWNER'S MANUAL, MFC9660 FOR BEL/CHE <FRENCH>
1-1)LE82130081 OWNER'S MANUAL, FAX8360P FOR BEL/CHE <FRENCH>
1-1)LE73310101 OWNER'S MANUAL, MFC9660 FOR CHE <GERMAN>
1-1)LE81790101 OWNER'S MANUAL, FAX8360P FOR CHE <GERMAN>
1-1)LE7331012 1 OWNER'S MANUAL, MFC9660 FOR FIN
1-1)LE73310131 OWNER'S MANUAL, MFC9660 FOR DEN
1-1)LE73310151 OWNER'S MANUAL, MFC9660 FOR SPA
1-1)LE81790151 OWNER'S MANUAL, FAX8360P FOR SPA
1-1)LE73310161 OWNER'S MANUAL, MFC9660 FOR ITA
1-1)LE73310261 OWNER'S MANUAL, MFC9660 FOR SWE
1-1)LE81790261 OWNER'S MANUAL, FAX8360P FOR SWE
1-1)LE8519001 1 USER'S GUIDE, MFC9660 FOR ARL/NZ/ASA
1-1)LE8233001 1 OWNER'S MANUAL, FAX8360P FOR ARL/NZ/ASA
1-1)LE8461001 1 USER'S GUIDE, FAX8370 add
1-1)LE8919001 1 PRINTER SET UP GUIDE, FAX8370 add
(INCLUDING OWNER'S MANUAL(1-1), PAN EURO WARRANTY
LEAFLET, WARRANTY CARD
INCLUDING USER'S GUIDE(1-1), LICENSE GUIDE
(INCLUDING USER'S GUIDE(1-1), WARRANTY CARD,
LICENSE GUIDE
(INCLUDING OWNER'S MANUAL(1-1), WARRANTY CARD
(INCLUDING USER'S GUIDE(1-1), LICENSE GUIDE,
QUICK REFERENCE GUIDE
INCLUDING OWNER'S MANUAL(1-1
(INCLUDING USER'S GUIDE(1-1), WARRANTY CARD)
√√
√
√
√
√
√
√
add
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
LIST12 (CARTON)
(1)
A
(1)
(1)
(2)
(2)
(3)
(4)
L
(5)
(6)
√
√
√
√
A
√
√
R
√
√
>
√
√
√
√
>
√
√
√
√
A
√
√
A
√
√
√
√
(8)
g
g
g
g
g
g
g
g
g
g
A
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
(1) LE7313001 1 CARTON, BROTHER, MFC9660 FOR
(1) LE8170001 1 CARTON, BROTHER, FAX8360P FOR
LE8114001 1 CARTON, BROTHER, MFC9660 FOR ARL/NZ/AS
LE8234001 1 CARTON, BROTHER, FAX8360P FOR ARL/NZ/ASA 1
LE8482001 1 CARTON, BROTHER, FAX8370 1
LE1292001 1 POLYSTYRENE FORM ASSY EXCEPT FOR FAX8370
UE3119001 1 POLYSTYRENE FORM ASSY, FAX8370 add
UE1688001 1 PE BAG 1000X1000H
UE3122001 1 CARTON FOR MANUA
UU0456001 1 PROTECTION PAPER
LJ5557001 1 PROCESS BAG 400X480
(7) LE7328001 1 START CARD, MFC9660 FOR GER/AUS
(7) LE8176001 1 START CARD, FAX8360P FOR GER/AUS
(7) LE7332001 1 START CARD, MFC9660 FOR UK/IRE/ZAF
(7) LE8180001 1 START CARD, FAX8360P FOR UK/IRE/ZAF
(7) LE7335001 1 START CARD, MFC9660 FOR FR
(7) LE8183001 1 START CARD, FAX8360P FOR FRA
(7) LE7778001 1 START CARD, MFC9660 FOR NO
(7) LE8211001 1 START CARD, FAX8360P FOR NOR
(7) LE7779001 1 START CARD, MFC9660 FOR BEL/NLD <DUTCH
(7) LE8214001 1 START CARD, FAX8360P FOR BEL/NLD <DUTCH>
(7) LE7782001 1 START CARD, MFC9660 FOR BEL/CHE <FRENCH>
(7) LE8215001 1 START CARD, FAX8360P FOR BEL/CHE <FRENCH>
(7) LE7781001 1 START CARD, MFC9660 FOR CHE <GERMAN
(7) LE8218001 1 START CARD, FAX8360P FOR CHE <GERMAN>
(7) LE7783001 1 START CARD, MFC9660 FOR FIN
(7) LE7784001 1 START CARD, MFC9660 FOR DEN
(7) LE7785001 1 START CARD, MFC9660 FOR SP
(7) LE8220001 1 START CARD, FAX8360P FOR SPA
(7) LE7786001 1 START CARD, MFC9660 FOR IT
(7) LE7787001 1 START CARD, MFC9660 FOR SWE
(7) LE8224001 1 START CARD, FAX8360P FOR SWE
(7) LE7854001 1 START CARD, MFC9660 FOR ARL/NZ/ASA
(7) LE8235001 1 START CARD, FAX8360P FOR ARL/NZ/ASA
(7) LE8226001 1 START CARD, FAX8360P FOR GNR
(7) LE8921001 1 START CARD, FAX8370
LE8254001 1
(8) LE8252001 1 QUICK SET UP GUIDE XP, MFC9660 FOR UK/IRE/ZAF
(8) LE8253001 1 QUICK SET UP GUIDE XP, MFC9660 FOR FRA/BEL/CHE <FRENCH>
(8) LE8258001 1 QUICK SET UP GUIDE XP, MFC9660 FOR NOR
(8) LE8255001 1 QUICK SET UP GUIDE XP, MFC9660 FOR BEL/NLD <DUTCH>
(8) LE8261001 1 QUICK SET UP GUIDE XP, MFC9660 FOR FIN
(8) LE8260001 1 QUICK SET UP GUIDE XP, MFC9660 FOR DEN
(8) LE8257001 1 QUICK SET UP GUIDE XP, MFC9660 FOR SPA
(8) LE8256001 1 QUICK SET UP GUIDE XP, MFC9660 FOR ITA
(8) LE8259001 1 QUICK SET UP GUIDE XP, MFC9660 FOR SWE
(9) LE8923001 1 USB BLIND SEAL, FAX8370
GER/UK/FRA/NOR/BEL/NLD/CHE/FIN/DEN/SPA/ITA/ZAF/SWE
GER/UK/FRA/NOR/BEL/NLD/CHE/IRE/AUS/SPA/ZAF/SWE/GNR
QUICK SET UP GUIDE XP, MFC9660 FOR GER/CHE/AUS <GERMAN>
1
1
1
CHG
ch
ch
ch
ch
ch
ch
ch
ch
ch
ch
DD
ORDER
TO BIUK
MFC9660, FAX8360P, FAX8370
8X5599
PL-FAX021
Ver. S-1
Loading...
