USER’S GUIDE

DCP-8060 DCP-8065DN

If you need to call Customer Service

Please complete the following information for future reference:

Model Number: DCP-8060 and DCP-8065DN

(Circle your model number)

Serial Number:

Date of Purchase:

Place of Purchase:

The serial number is on the back of the unit. Retain this User’s Guide with your sales receipt as a permanent record of your purchase, in the event of theft, fire or warranty service.

http://www.brother.com/registration

By registering your product with Brother, you will be recorded as the original owner of the product. Your registration with Brother:

 may serve as confirmation of the purchase date of your product

should you lose your receipt;

 may support an insurance claim by you in the event of product loss

covered by insurance; and,

 will help us notify you of enhancements to your product and special

offers.

The most convenient and efficient way to register your new product is online at http://www.brother.com/registration

Brother numbers

IMPORTANT

For technical help, you must call the country where you bought the machine. Calls must be made from within that country.

Register your product

By registering your product with Brother International Corporation, you will be recorded as the original owner of the product. Your registration with Brother:

 may serve as confirmation of the purchase date of your product should you lose your receipt;  may support an insurance claim by you in the event of product loss covered by insurance; and,  will help us notify you of enhancements to your product and special offers.

Please complete and fax the Brother Warranty Registration And Test Sheet or, for your convenience and most efficient way to register your new product, register on-line at

http://www.brother.com/registration

FAQs (frequently asked questions)

The Brother Solutions Center is our one-stop resource for all your Fax Machine/Multi-Function Center needs. You can download the latest software and utilities and read FAQs and troubleshooting tips to learn how to get the most from your Brother product.

http://solutions.brother.com

Note

You can check here for Brother driver updates.

For Customer Service

In USA: 1-800-284-4329 (voice)

1-901-379-1215 (fax) 1-800-284-3238 (TTY service for the hearing-impaired)

In Canada: 1-877-BROTHER (voice)

(514) 685-4898 (fax)

Service Center Locator (USA only)

For the location of a Brother authorized service center, call 1-800-284-4357.

Service Center Locations (Canada only)

For the location of a Brother authorized service center, call 1-877-BROTHER.

Brother fax back system (USA only)

Brother has installed an easy-to-use fax back system, so you can get instant answers to common technical questions and product information for all Brother products. This system is available 24 hours a day, 7 days a week. You can use the system to receive faxed instructions and an Index of fax back subjects.

In USA only: 1-800-521-2846

Ordering accessories and supplies

For best quality results use only genuine Brother accessories, which are available at most Brother retailers. If you cannot find the accessory you need and you have a Visa, MasterCard, Discover, or American Express credit card, you can order accessories directly from Brother. (In the USA, you can visit us online for a complete selection of the Brother accessories and supplies that are available for purchase.)

In USA: 1-888-879-3232 (voice)

1-800-947-1445 (fax)

http://www.brothermall.com

In Canada: 1–877–BROTHER (voice)

Description Item

Toner Cartridge TN-550 (Standard, Prints approx. 3,500 pages)

TN-580 (High yield, Prints approx. 7,000 pages) Drum Unit DR-520 IEEE-1284 Bi-directional Cable F2A046-10 Paper Tray #2 (Option) LT-5300 User’s Guide LP2049001 (English for USA and Canada)

LP2049002 (French for Canada) Quick Setup Guide LP2053001 (English for USA and Canada)

LP2053002 (French for Canada)

Notice - Disclaimer of Warranties

(USA and Canada)

BROTHER’S LICENSOR(S), AND THEIR DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS (COLLECTIVELY BROTHER’S LICENSOR) MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE SOFTWARE. BROTHER’S LICENSOR(S) DOES NOT WARRANT, GUARANTEE OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS OR OTHERWISE. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES IN THE USA AND SOME PROVINCES IN CANADA. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.

IN NO EVENT WILL BROTHER’S LICENSOR(S) BE LIABLE TO YOU FOR ANY CONSEQUENTIAL, INCIDENTAL OR INDIRECT DAMAGES (INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE EVEN IF BROTHER’S LICENSOR HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES IN THE USA AND SOME PROVINCES IN CANADA DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. IN ANY EVENT BROTHER’S LICENSOR’S LIABILITY TO YOU FOR ACTUAL DAMAGES FROM ANY CAUSE WHATSOEVER, AND REGARDLESS OF THE FORM OF THE ACTION (WHETHER IN CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY OR OTHERWISE), WILL BE LIMITED TO $50.

Compilation and Publication Notice

Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

iii

Brother® Three-Year Limited Warranty and Exchange Service

For DCP-8060 and DCP-8065DN

(USA only)

Who is covered:

 This limited warranty ("warranty") is given

only to the original end-use/retail purchaser (referred to in this warranty as "Original Purchaser") of the accompanying product, consumables and accessories (collectively referred to in this warranty as "this Product").

 If you purchased a product from someone

other than an authorized Brother reseller in the United States or if the product was used (including but not limited to floor models or refurbished product), prior to your purchase you are not the Original Purchaser and the product that you purchased is not covered by this warranty.

What is covered:

 This Product includes a Machine and

Consumable and Accessory Items. Consumable and Accessory Items include but are not limited to toner, drums, print heads and ink cartridges.

 Except as otherwise provided herein,

Brother warrants that the Machine and the accompanying Consumable and Accessory Items will be free from defects in materials and workmanship, when used under normal conditions.

 This warranty applies only to products

purchased and used in the United States. For products purchased in, but used outside, the United States, this warranty covers only warranty service within the United States (and does not include shipping outside the United States).

What is the length of the Warranty Period(s):

 Machines have a two-stage warranty: 2

years from the original purchase date and an additional warranty up to 3 years from the original purchase date.

 Accompanying Consumable and

Accessories Items have a one-stage warranty: 90 days from the original purchase date or the rated life of the Consumable Item, whichever occurs first.

What is NOT covered:

This warranty does not cover: 1 Physical damage to this Product; 2 Damage caused by improper installation,

improper or abnormal use, misuse, neglect or accident (including but not limited to transporting this Product without the proper preparation and/or packaging);

3 Damage caused by another device or

software used with this Product (including but not limited to damage resulting from use of non Brother®-brand parts and Consumable and Accessory Items);

4 Consumable and Accessory Items that

expired in accordance with a rated life; and,

5 Problems arising from other than defects in

materials or workmanship.

6 Normal Periodic Maintenance Items, such

as Paper Feeding Kit, Fuser and Laser Units.

This warranty is VOID if this Product has been altered or modified in any way (including but not limited to attempted warranty repair without authorization from Brother and/or alteration/removal of the serial number).

What to do if you think your Product is eligible for warranty service:

Report your issue to either our Customer Service Hotline at 1-800-284-4329 Brother Authorized Service Center within the applicable warranty period. Supply Brother or the Brother Authorized Service Center with a copy of your dated bill of sale showing that this Product was purchased within the U.S. For the name of local Brother Authorized Service Center(s), call 1-800-521-2846 or visit our web site at www.brother.com.

What Brother will ask you to do:

After contacting Brother or a Brother Authorized Service Center, you may be required to deliver (by hand if you prefer) or send the Product properly packaged, freight prepaid, to the Authorized Service Center together with a photocopy of your bill of sale.

You are responsible for the cost of shipping, packing product, and insurance (if you desire). You are also responsible for loss or damage to this Product in shipping.

or a

Brother® Th

ree-Year Limited Warranty and Exchange Service

For DCP-8060 and DCP-8065DN

(USA only)

What Brother will do:

First 2 Years If the problem reported concerning your

Machine and/or accompanying Consumable and Accessory Item(s) is covered by this warranty and problem with your Machine to Brother or an Authorized Service Center within 2 years from the original purchase date or (ii) you first reported the problem with the accompanying Consumable and Accessory Items to Brother or an Authorized Service Center within the earlier of 90 days from the original purchase date or the rated life of the item, Brother or its Authorized Service Center will repair or replace the Machine and/or accompanying Consumable and Accessory Item(s) at no charge to you for parts or labor. The decision as to whether to repair or replace the Machine and/or accompanying Consumable and Accessory Item(s) is made by Brother in its sole discretion. Brother reserves the right to supply a refurbished or remanufactured replacement Machine and/or accompanying Consumable and Accessory Item(s) and use refurbished parts provided such replacement products conform to the manufacturer's specifications for new product/parts. The repaired or replacement Machine and/or accompanying Consumable and Accessory Item(s) will be returned to you freight prepaid or made available for you to pick up at a conveniently located Authorized Service Center.

2 Years to 3 Years: If the problem reported concerning your

Machine is covered by this warranty and first reported the problem after 2 years, but before 3 years from the original purchase date, Brother or its Authorized Service Center will repair the Machine at no charge to you for parts or labor. Brother reserves the right to use refurbished parts provided such refurbished parts conform to the manufacturer's specifications for new product/parts. The repaired Machine will be returned to you freight prepaid or made available for you to pick up at a conveniently located Authorized Service Center.

If the Machine and/or accompanying Consumable and Accessory Item(s) are not covered by this warranty (either stage), you will be charged for shipping the Machine and/or accompanying Consumable and Accessory Item(s) back to you.

if (i) you first reported the

if you

The foregoing are your sole (i.e., only) and exclusive remedies under this warranty.

What happens when Brother elects to replace your Machine:

When a replacement Machine is authorized by Brother, and you have delivered the Machine to an Authorized Service Center, the Authorized Service Center will provide you with a replacement Machine after receiving one from Brother. If you are dealing directly with Brother, Brother will send to you a replacement Machine with the understanding that you will, after receipt of the replacement Machine, supply the required proof of purchase information, together with the Machine that Brother agreed to replace. You are then expected to pack the Machine that Brother agreed to replace in the package from the replacement Machine and return it to Brother using the shipping bill supplied by Brother in accordance with the instructions provided by Brother. Since you will be in possession of two machines, Brother will require that you provide a valid major credit card number. Brother will issue a hold against the credit card account number that you provide until Brother receives your original Product and determines that your original Product is entitled to warranty coverage. Your credit card will be charged up to the cost of a new Product only if: (i) you do not return your original Product to Brother within five (5) business days; (ii) the problems of your original Product are not covered by the warranty; (iii) the proper packaging instructions are not followed and has caused damage to the product; or (iv) the warranty period on your original Product has expired or has not been sufficiently validated with a copy of the proof of purchase (bill of sale). The replacement Machine you receive (even if refurbished or remanufactured) will be covered by the balance of the warranty period remaining on the original Product, plus an additional thirty (30) days. You will keep the replacement Machine that is sent to you and your original Machine shall become the property of Brother. Retain your original

Accessory Items and a copy of the return shipping bill, signed by the courier.

Brother® Th

ree-Year Limited Warranty and Exchange Service

For DCP-8060 and DCP-8065DN

(USA only)

Limitations:

Brother is not responsible for damage to or loss of any equipment, media, programs or data related to the use of this Product. Except for that repair or replacement as described above, Brother shall not be liable for any direct, indirect, incidental or consequential damages or specific relief. Because some states do not allow the exclusion or limitation of consequential or incidental damages, the above limitation may not apply to you.

THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL, WHETHER EXPRESSED BY AFFIRMATION, PROMISE, DESCRIPTION, DRAWING, MODEL OR SAMPLE. ANY AND ALL WARRANTIES OTHER THAN THIS ONE, WHETHER EXPRESS OR IMPLIED, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED.

 This Warranty is the only warranty that

Brother is giving for this Product. It is the

final expression and the exclusive and only statement of Brother's obligations to you. It

replaces all other agreements and understandings that you may have with Brother or its representatives.

 This warranty gives you certain rights and

you may also have other rights that may vary from state to state.

 This Warranty (and Brother's obligation to

you) may not be changed in any way unless you and Brother sign the same piece of paper in which we (1) refer to this Product and your bill of sale date, (2) describe the change to this warranty and (3) agree to make that change.

Important: We recommend that you keep all original packing materials, in the event that you ship this Product.

BROTHER MULTIFUNCTION CENTER/FACSIMILE MACHINE

LIMITED WARRANTY

(Canada only)

Pursuant to this limited warranty of 1 year from the date of purchase for labour and parts, Brother International Corporation (Canada) Ltd. (“Brother”), or its Authorized Service Centers, will repair this MFC/Facsimile machine free of charge if defective in material or workmanship. This Limited Warranty does not include cleaning, consumables (including, without limitation, print cartridges, print head, toner and drum) or damage caused by accident, neglect, misuse or improper installation or operation, any damage caused from service, maintenance, modifications, or tampering by anyone other than a Brother Authorized Service Representative, or from the use of supplies or consumable items that are non-Brother products. Operation of the MFC/Facsimile machine in excess of the specifications or with the Serial Number or Rating Label removed shall be deemed abuse and all repairs thereafter shall be the sole liability of the end-user/purchaser. In order to obtain warranty service, the MFC/Facsimile machine must be delivered or shipped freight prepaid by the end user/purchaser to a “Brother” Authorized Service Center, together with your Proof of Purchase in the form of a Sales Receipt.

For laser products: Failure to remove the Toner Cartridge (and Toner Drum Unit on applicable models) during shipping will cause severe damage to the MFC/Facsimile and will VOID the Warranty. (Refer to your User’s Guide for proper packaging.)

For ink-jet products: Do not remove the ink cartridges during shipping. Damage to your print head resulting from packing without the ink cartridges will VOID your warranty. (Refer to your User’s Guide for proper packaging.)

BROTHER DISCLAIMS ALL OTHER WARRANTIES EXPRESSED OR IMPLIED INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, EXCEPT TO THE EXTENT THAT ANY WARRANTIES IMPLIED BY LAW CANNOT BE VALIDLY WAIVED.

No oral or written information, advice or representation provided by Brother, its Authorized Service Centers, Distributors, Dealers, Agents or employees, shall create another warranty or modify this warranty. This warranty states Brother’s entire liability and your exclusive remedy against Brother for any failure of the MFC/Facsimile machine to operate properly.

Neither Brother nor anyone else involved in the development, production, or delivery of this MFC/Facsimile machine shall be liable for any indirect, incidental, special, consequential, exemplary, or punitive damages, including lost profits, arising from the use of or inability to use the product, even if advised by the end user/purchaser of the possibility of such damages. Since some Provinces do not allow the above limitation of liability, such limitation may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from Providence to Providence.

Warranty Service is available at Brother Authorized Service Centers throughout Canada. For Technical Support or for the name and location of your nearest Authorized Service Center call 1–877–BROTHER.

Internet support: support@brother.ca or browse Brother’s Web Site: www.brother.com

Brother International Corporation (Canada) Ltd. 1 Rue Hôtel de Ville

Dollard-Des-Ormeaux, QC H9B 3H6

vii

Section I General

1 General information

Using the documentation .......................................................................................2

Symbols and conventions used in the documentation ....................................2

Accessing the complete User’s Guide ...................................................................3

Viewing documentation ...................................................................................3

Accessing Brother Support (For Windows

Control panel overview ..........................................................................................6

Status LED indications ....................................................................................8

2 Loading documents and paper

Loading documents .............................................................................................10

Using the ADF ...............................................................................................10

Using the scanner glass ................................................................................11

Acceptable paper and other media......................................................................11

Recommended media ...................................................................................11

Handling and using media .............................................................................12

Loading paper and other media...........................................................................14

Loading paper................................................................................................14

Loading envelopes and other media .............................................................15

Printable Area................................................................................................16

) .........................................................5

3 General setup

Paper settings......................................................................................................17

Paper Type ....................................................................................................17

Paper Size .....................................................................................................17

Tray use in Copy mode .................................................................................18

Tray use in Print mode ..................................................................................18

Volume Settings...................................................................................................19

Beeper volume ..............................................................................................19

Ecology features..................................................................................................19

Toner save.....................................................................................................19

Sleep time......................................................................................................19

Turning off the scanner lamp.........................................................................20

LCD Contrast.......................................................................................................20

User Settings List ........................................................................................20

4 Security features

Security................................................................................................................21

Secure Function Lock....................................................................................21

viii

Section II Copy

5 Making copies

How to copy.........................................................................................................26

Making a single copy.....................................................................................26

Making multiple copies ..................................................................................26

Stop copying..................................................................................................26

Copy options........................................................................................................26

Changing copy quality ...................................................................................27

Changing text copy resolution .......................................................................27

Enlarging or reducing the image copied ........................................................28

Making N in 1 copies or a poster ...................................................................29

Duplex (2-sided) copying (DCP-8065DN only)..............................................31

Sorting copies using the ADF........................................................................33

Adjusting contrast..........................................................................................33

Tray Select ....................................................................................................34

Out of Memory message .....................................................................................34

Section III Software

6 Software and Network features

Software and Network features ...........................................................................36

Section IV Appendixes

A Safety and Legal

Choosing a location.............................................................................................38

To use the machine safely...................................................................................39

Important Information...........................................................................................42

Federal Communications Commission (FCC)

Declaration of Conformity (USA only)........................................................42

Industry Canada Compliance Statement (Canada only) ..............................43

Disconnect device .........................................................................................43

LAN connection ............................................................................................43

International ENERGY STAR

Laser safety ...................................................................................................44

FDA regulations.............................................................................................44

Important safety instructions..........................................................................45

Trademarks ...................................................................................................47

BOptions

Options ................................................................................................................48

Optional Paper Tray (LT-5300)............................................................................49

Memory Board.....................................................................................................49

DIMM types ...................................................................................................49

Installing extra memory .................................................................................50

Compliance Statement ................................43

C Troubleshooting and routine maintenance

Troubleshooting ...................................................................................................51

If you are having difficulty with your machine................................................51

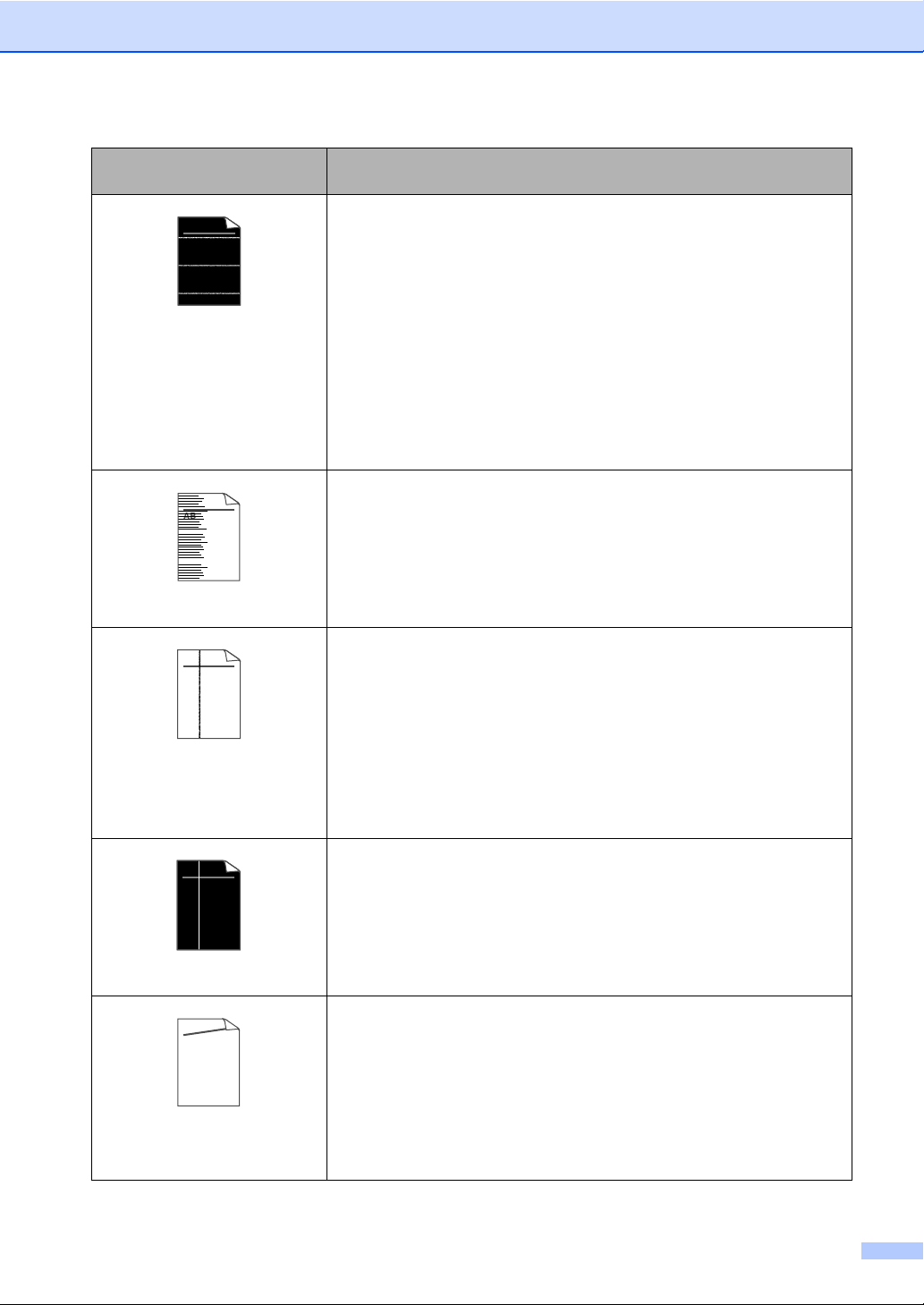

Improving the print quality .............................................................................55

Error messages ...................................................................................................59

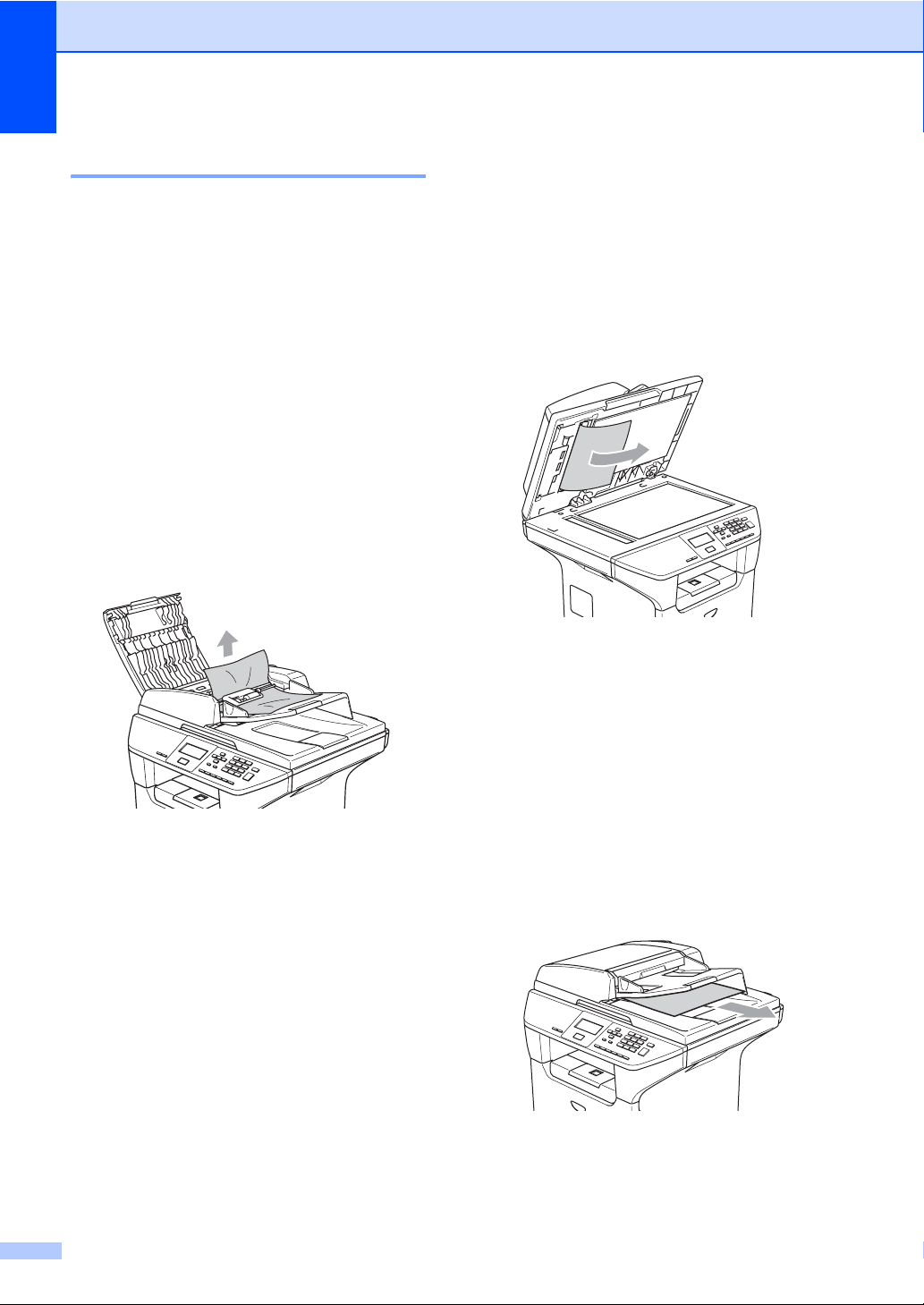

Document jams..............................................................................................62

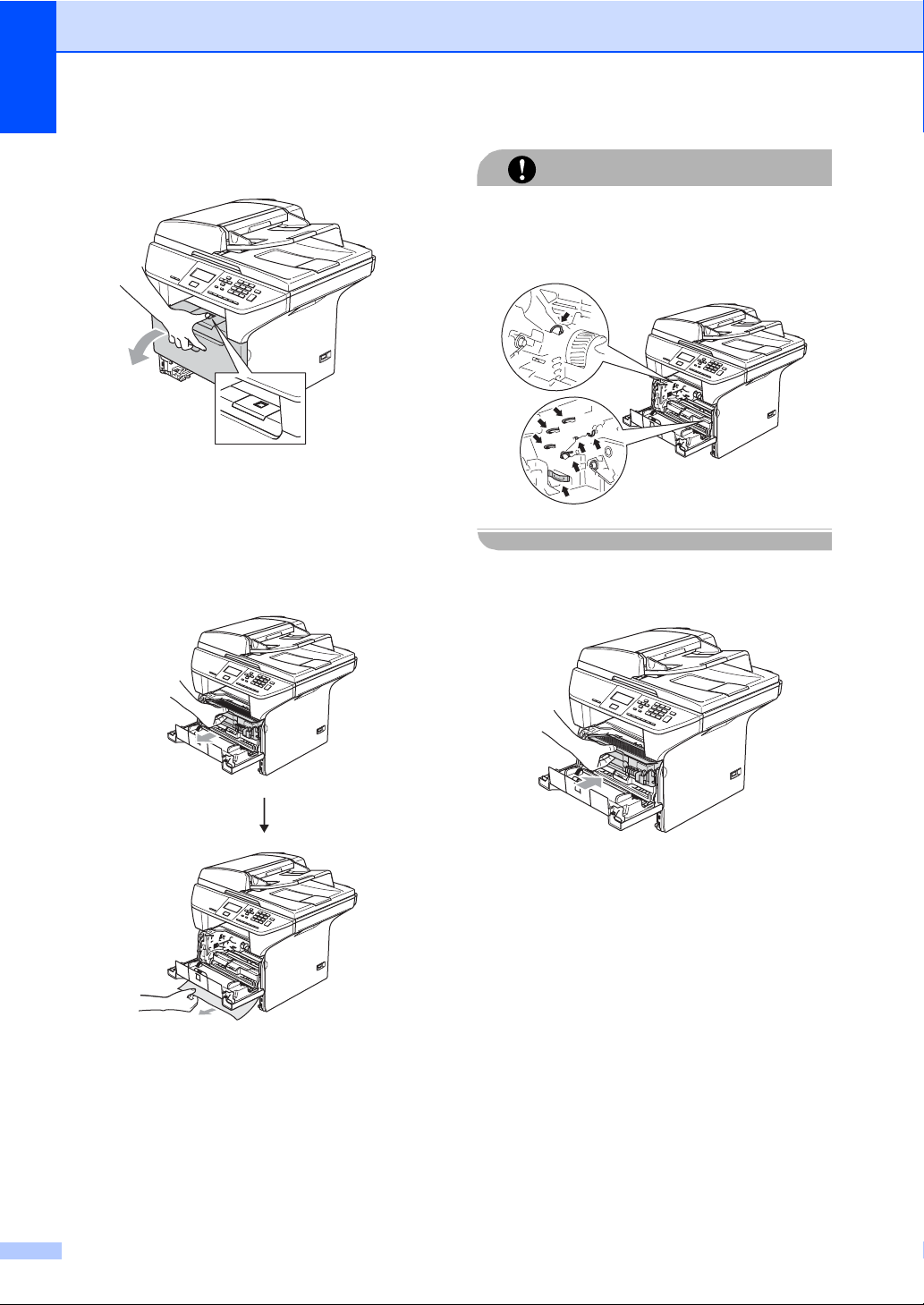

Paper jams ....................................................................................................63

Routine maintenance...........................................................................................68

Cleaning the outside of the machine .............................................................68

Cleaning the scanner glass ...........................................................................69

Cleaning the laser scanner window...............................................................70

Cleaning the corona wire...............................................................................71

Cleaning the drum unit ..................................................................................72

Replacing the toner cartridge (TN-550/TN-580) ............................................73

Replacing the toner cartridge ........................................................................74

Replacing the drum unit (DR-520).................................................................76

Replacing periodic maintenance parts.................................................................78

Packing and shipping the machine ......................................................................79

Machine Information ............................................................................................80

Checking the serial number...........................................................................80

Checking the page counters..........................................................................80

Checking remaining life of parts ....................................................................80

D Menu and Features

On-screen programming ......................................................................................81

Menu table.....................................................................................................81

Memory storage.............................................................................................81

Menu keys ...........................................................................................................81

Menu Table..........................................................................................................83

Entering Text .......................................................................................................89

E Specifications

General................................................................................................................91

Print media...........................................................................................................92

Copy ....................................................................................................................93

Scan.....................................................................................................................94

Print .....................................................................................................................95

Interfaces .............................................................................................................95

Computer requirements.......................................................................................96

Consumable items ...............................................................................................97

Ethernet wired network (DCP-8065DN only).......................................................98

F Glossary

Glossary...............................................................................................................99

GIndex

Index ..................................................................................................................100

Section I

General I

General information 2 Loading documents and paper 10 General setup 17 Security features 21

General information 1

Using the documentation 1

Thank you for buying a Brother machine! Reading the documentation will help you make the most of your machine.

Symbols and conventions used in the documentation 1

The following symbols and conventions are used throughout the documentation.

Bold Bold style indentifies keys on

the machine control panel or computer screen.

Italics Italicized style emphasizes an

important point or refers you to a related topic.

Courier New

Courier New font identifies the messages shown on the LCD of the machine.

Warning icons tell you what to do to avoid the risk of injury.

Electrical Hazard icons alert you to a possible electrical shock.

Hot Surface icons warn you not to touch MFC parts that are hot.

Caution icons tell you about procedures you must follow to prevent damaging the machine.

Incorrect setup icons alert you to devices and operations that are not compatible with the machine.

Note icons give useful tips.

General information

Accessing the complete User’s Guide 1

The printed User’s Guide does not contain all the information about your machine. The advanced features of the Printer, Network and Scanner are explained in the complete User’s Guide that you can find on the CD-ROM.

Viewing documentation 1

Viewing documentation (Windows®) 1

To view the documentation, from the Start menu, point to Brother, MFL Pro Suite from the program group, and then click User’s Guide.

If you have not installed the software, you can find the documentation by following the instructions below:

a Turn on your PC. Insert the Brother

CD-ROM labeled Windows CD-ROM drive.

b If the language selection screen

appears, click your language.

into your

d Click Documentation. e Click the documentation you want to

read:

 Setup Guide: Setup and software

installation instructions.

 User's Guide (3 manuals): User’s

Guide for stand-alone operations, Network User’s Guide, and Software User’s Guide.

 PaperPort User's Guide: Document

management software.

How to find Scanning instructions 1

There are several ways you can scan documents. You can find the instructions as follows:

Software User's Guide: 1

 Scanning a document using the TWAIN

driver in Chapter 2

 Scanning a document using the WIA

driver (For Windows in Chapter 2

 Using ControlCenter2 in Chapter 3  Network Scanning (For models with

built-in network support) in Chapter 4

XP only)

c If the model name screen appears, click

your model name.The CD-ROM main menu will appear.

If this window does not appear, use

Windows setup.exe program from the root directory of the Brother CD-ROM.

Explorer to find and run the

PaperPort® User's Guide 1

 Instructions for scanning directly from

ScanSoft

PaperPort

Chapter 1

Viewing Documentation (Macintosh®) 1

a Turn on your Macintosh

Brother CD-ROM labeled Macintosh into your CD-ROM drive. The following window will appear.

. Insert the

b Double-click the Documentation icon. c If the language selection screen

appears, double-click your language.

d Double-click the documentation you

want to read:

 Setup Guide: Setup and Software

installation instructions.

 User's Guides (3 manuals): User’s

Guide for stand-alone operations, Network User’s Guide, and Software User’s Guide.

How to find Scanning instructions 1

There are several ways you can scan documents. You can find the instructions as follows:

Software User's Guide: 1

 Scanning from a Macintosh® in Chapter 8

(For Mac OS or greater)

 Using ControlCenter2 in Chapter 9

(For Mac OS

 Network Scanning in Chapter 10

(For Mac OS

9.1-9.2/Mac OS® X 10.2.4

X 10.2.4 or greater)

Presto!® PageManager® User's Guide 1

 Instructions for scanning directly from

Presto!

PageManager

Accessing Brother

General information

Support

(For Windows

You can find all the contacts you will need, such as Web support (Brother Solutions Center), Customer Service and Brother Authorized Service Centers on page i and on the Brother CD-ROM.

 Click Brother Support on the main menu.

The following screen will appear:

 To access our web site

(www.brother.com Brother Home Page.

 To view all Brother Numbers, including

Customer Service numbers for the USA and Canada, click Support Information.

) click

) 1

 To access the USA Brother online

shopping mall (www.brothermall.com additional product and service information, click Brother Mall.com.

 For the latest news and product support

information (http://solutions.brother.com/

Brother Solutions Center. To return to the main page, click Back. Or, if you have finished, click Exit.

), click

) for

Chapter 1

Control panel overview 1

DCP-8060 and DCP-8065DN have similar control keys.

1 Status LED (light emitting diode)

The LED will flash and change color depending on the machine’s status.

2 LCD (liquid crystal display)

Displays messages to help you use your machine.

3 Menu keys:

Accesses the main menu.

Clear/Back

Deletes entered data or lets you exit the menu.

Selects a setting. d or c

Scrolls backwards or forwards through menu selections.

a or b Scrolls through the menus and options.

4 Dial pad

Used to enter text.

5Stop/Exit

Stops an operation or exits from a menu.

6Start

Starts copying or scanning.

7 Copy keys

Duplex (DCP-8065DN only)

You can choose Duplex to copy on both sides of the paper.

Contrast/Quality (DCP-8065DN only) Lets you change the quality or contrast for

the next copy. Contrast (DCP-8060 only)

Lets you change the contrast for the next copy.

Quality (DCP-8060 only) Lets you change the quality for the next

copy.

Enlarge/Reduce

Reduces or enlarges copies.

Tray Select

Lets you change which tray will be used for the next copy.

Sort

Sorts multiple copies using the ADF.

N in 1

You can choose N in 1 to copy 2 or 4 pages onto one page.

General information

8 Scan

Puts the machine in Scan mode.

(For details about scanning, see Software

User’s Guide on the CD-ROM.)

9 Print keys

Secure

Prints data saved in memory when you enter your four-digit password. (For details about using the Secure key, see the Software User’s Guide on the CD-ROM.)

Job Cancel

Press this key to cancel a print job and clear the machine’s memory.

8 76

Chapter 1

Status LED indications 1

The Status LED (light emitting diode) will flash and change color depending on the machine’s status.

The LED indications shown in the table below are used in the illustrations in this chapter.

LED LED Status

LED is off.

Green

Yellow

Red

LED Machine Status Description

Sleep Mode The power switch is off or the machine is in Sleep mode.

Warming Up The machine is warming up for printing.

Green

Ready The machine is ready to print.

Green

Receiving Data The machine is either receiving data from the computer,

processing data in memory, or printing data.

Yellow

Data Remaining in

Print data remains in the machine memory.

Memory

LED is on.

LED is blinking.

Yellow

General information

Service error Follow the steps below.

1. Turn off the power switch.

Red

2. Wait a few seconds, and then turn it back on and try to print again.

If you cannot clear the error and you see the same service call indication after turning the machine back on, please call Brother

Customer Service. (See Brother numbers on page i.) Cover open The front cover or fuser cover is open. Close the cover. Toner Life End Replace the toner cartridge with a new one.

Red

Paper error Put paper in the tray or clear the paper jam. Check the LCD

message. Scan lock Check that the scanner lock lever is released. Others Check the LCD message. Out of memory Memory is full.

Note

When the power switch is off or the machine is in Sleep mode, the LED is off.

Loading documents and paper 2

Loading documents 2

All scan and copy operations can be performed from the ADF or the scanner glass.

Using the ADF 2

You can use the ADF (automatic document feeder) to scan or copy sheets of paper. The ADF feeds each sheet one at a time.

When loading the ADF, make sure that documents written with ink are completely dry.

Single-Sided Document

Documents must be from 5.8 to 8.5 inches (148.0 to 215.9 mm) wide and from 5.8 to 14 inches (148.0 to 355.6 mm) long, and of a

standard weight (20 lb (80 g/m

2-Sided Document (DCP-8065DN only)

)).

a Unfold the ADF document output

support flap (1).

b Fan the pages well. c Place your documents face up, top edge

first in the ADF until you feel them touch the feed roller.

d Adjust the paper guides to fit the width of

your documents.

When you load a 2-sided document, the document must be from 5.8 to 8.5 inches (148.0 to 215.9 mm) wide and from 5.8 to

11.7 inches (148.0 to 297.0 mm) long. For information on the capacity of the ADF

see Specifications on page 91.

To avoid damaging your machine while using the ADF, do not pull on the document while it is feeding.

To scan non-standard documents see Using the scanner glass on page 11.

CAUTION

Loading documents and paper

Using the scanner glass 2

You can use the scanner glass to scan or copy the pages of a book or single sheets of paper. Documents can be up to 8.5 inches wide and up to 14 inches long (215.9 mm wide to 355.6 mm long).

To use the scanner glass, the ADF must be empty.

a Lift the document cover.

Acceptable paper and other media 2

Print quality may vary according to the type of paper you are using.

You can use the following types of media: plain paper, transparencies, labels or envelopes.

For best results, follow the steps below:

 Use paper made for plain paper copying.  Use paper that is 20 to 24 lb (75 to

90 g/m

 Use labels or transparencies which are

designed for use in laser printers.

 When using transparencies remove each

sheet immediately to prevent smudging or paper jams.

 Avoid touching the printed surface of the

paper immediately after printing.

 Use long grain paper with a neutral Ph

value, and a moisture content of approx. 5%.

b Using the document guidelines on the

left, center the document face down on the scanner glass.

c Close the document cover.

If the document is a book or is thick, do not slam the cover or press on it.

CAUTION

Recommended media 2

To get the best print quality, we suggest using the following paper.

Paper Type Item

Plain paper Xerox 4200DP 20 lb

Hammermill Laser Paper 24 lb

(Xerox Premier 80g/m (Xerox Business 80 g/m

(M-real DATACOPY 80 g/m Recycled paper (Xerox Recycled Supreme) Transparency 3M CG 3300 Labels Avery laser label #5160

(Avery laser label L7163)

)

Chapter 2

Handling and using media 2

 Store paper in its original packaging and

keep it sealed. Keep the paper flat and away from moisture, direct sunlight and heat.

 Avoid touching either side of

transparencies, as this can decrease the print quality.

 Only use transparencies recommended

for laser printing.

 Only use sharply creased envelopes.

Improper Setup

Do not use any of the following paper, as they will cause paper feed problems:

damaged, coated, curled, wrinkled, highly textured, irregularly shaped, or paper that has previously been printed on by a printer.



1 0.08 in. (4 mm) or longer

Loading documents and paper

Paper capacity of the paper tray 2

Paper size Paper types No. of sheets

Paper Tray (Tray #1)

Multi-purpose tray (MP tray)

Paper Tray (Tray #2)

Folio size is 8 in. × 13 in.

A4, Letter, Legal, Executive, A5, A6, B5,

B6 and Folio

Width: 2.75 to 8.5 in. (69.9 to 215.9 mm)

Length: 4.57 to 16.0 in. (116.0 to 406.4 mm)

A4, Letter, Legal, Executive, A5, B5, B6

and Folio

Plain paper, Recycled paper and Bond paper

up to 250 [20 lb (80

)]

g/m Transparency up to 10 Plain paper, Recycled

paper, Bond paper,

up to 50 [20 lb (80

g/m

)]

Envelope and Labels Transparency up to 10 Plain paper, Recycled

paper and Bond paper

up to 250 [20 lb (80

g/m

)]

Chapter 2

Loading paper and other media 2

When printing on plain paper 16 to 28 lb (60 to 105 g/m

paper tray. For printing on other types of media use the

MP tray (Multi-purpose tray).

Loading paper 2

a Unfold the output paper tray support

b Pull the paper tray completely out of the

) or laser transparencies use the

flap.

machine.

d Fan the stack of paper well to avoid

paper feeding problems.

e Insert the paper into the paper tray with

the top edge of the paper first and the print side down. Make sure that the paper is flat in the tray and below the maximum paper mark (1).

(1)

c While pressing the blue paper-guide

release lever (1), slide the paper guides to fit the paper size. Make sure that the guides are firmly in the slots. For legal size paper, press the lever (2) located at the back of the tray and pull out of the back of the open tray. Move the tray lock button (3) to the lock position.

(1)

(2)

(3)

(1)

f Push the paper tray firmly back into the

machine.

Loading documents and paper

Loading envelopes and other media 2

Use the MP tray when printing envelopes, labels, and thick paper.

a Open the MP tray and lower it gently.

b Pull out the MP tray support.

Loading Envelopes 2

Before loading, press the corners and sides of the envelopes to make them as flat as possible.

Do not use the following types of envelopes, as they will cause paper feed problems:

Glue 2

CAUTION

• That are of a baggy construction.

• That are embossed (have raised writing on them).

• That have clasps or staples.

• That are pre-printed on the inside.

Rounded flap

Double flap

Triangular flap

c Insert the media into the MP tray with

the top edge first and the printing side face up.

Chapter 2

Printable Area 2

Printable Area for copies 2

The printable area of your machine begins at approximately 0.12 in. (3 mm) from the top and bottom and 0.09 in. (2.3 mm) from both sides of the paper.

1 0.12 in. (3 mm) 2 0.09 in. (2.3 mm)

Note

This printable area shown above is for a single copy using Letter size paper. The printable area changes with the paper size.

Printable Area when printing from a computer 2

When using the default driver the printable area is smaller than the paper size, as shown below.

Portrait

1 0.16 in. (4.23 mm) 2 0.25 in. (6.35 mm)

Landscape

1 0.16 in. (4.23 mm) 2 0.2 in. (5.08 mm)

Note

The printable area shown above is for Letter size paper. The printable area changes with the paper size.

General setup 3

Paper settings 3

Paper Type 3

Set up the machine for the type of paper you are using. This will give you the best print quality.

a Choose one of the options below:

 To set the paper type for the MP

Tray press Menu, 1, 1, 1.

 To set the paper type for Tray#1

press Menu, 1, 1, 2.

 To set the paper type for Tray#2

press Menu, 1, 1, 3 if you installed the optional tray.

11.Paper Type

1.MP Tray

a Plain b Thick

Select

b Press a or b to select Thin, Plain,

Thick, Thicker, Transparency or Recycled Paper. Press OK.

c Press Stop/Exit.

Note

• Transparency is not available for the optional Tray #2.

• You can choose Transparency only if A4, Letter, Legal or Folio size was chosen as the paper size.

ab & OK

Paper Size 3

You can use nine sizes of paper for printing copies: A4, Letter, Legal, Executive, A5, A6,

B5, B6 and Folio (8”×13”).

When you change the size of paper in the tray, you will also need to change the setting for paper size at the same time so your machine can fit the document on the page.

a Choose one of the options below:

 To set the paper size for the MP

Tray press Menu, 1, 2, 1.

 To set the paper size for Tray#1

press Menu, 1, 2, 2.

 To set the paper size for Tray#2

press Menu, 1, 2, 3 if you installed the optional tray.

12.Paper Size

1.MP Tray

a Letter b Legal

Select ab & OK

b Press a or b to select A4, Letter,

Legal, Executive, A5, A6, B5, B6, Folio or Any.

Press OK.

c Press Stop/Exit.

Note

• Any (size) appears only when you select the MP tray (Menu, 1, 2, 1).

• If you select Any for the MP Tray Paper Size: You must choose MP Only for the Tray Use setting. You cannot use the Any Paper Size selection for the MP tray when making N in 1 copies. You must choose one of the other available Paper Size selections for the MP tray.

• A6 size is not available for the optional Tray #2.

Chapter 3

Tray use in Copy mode 3

You can change the priority tray that the machine will use for printing copies.

When you select Tray#1 Only, MP Only or

Tray#2 Only

, the machine loads the paper only from that tray. If the selected tray is out of paper, No Paper will appear on the LCD. Insert the paper in the empty tray.

To change the tray setting follow the instructions below:

a Press Menu, 1, 5, 1.

15.Tray Use

1.Copy

a MP>T1 b T1>MP

Select

b Press a or b to select Tray#1 Only,

Tray#2 Only MP>T1>T2

ab & OK

, MP Only,

or T1>T2 1>MP.

Press OK.

Tray#2 Only or T2 appears only if the optional tray is installed.

c Press Stop/Exit.

Note

• When loading the documents from the ADF and MP>T1>T2 or T1>T2>MP is selected, the machine looks for the tray with the most suitable paper and pulls paper from that tray. If no tray has suitable paper, the machine pulls paper from the higher priority tray.

Tray use in Print mode 3

You can change the default tray the machine will use for printing from your computer.

a Press Menu, 1, 5, 2.

15.Tray Use

2.Print

a MP>T1 b T1>MP

Select

b Press a or b to select Tray#1 Only,

Tray#2 Only MP>T1>T2

Press OK.

Note

• The setting in the printer driver will take priority over the setting made on the control panel.

• If the control panel is set to Tray#1 Only, Tray#2 Only, MP Only or MP>T1>T2 and you choose ‘Auto Select’ in the printer driver, the tray use will be MP>T1>T2. If the control panel is set to T1>T2>MP and you choose ‘Auto Select’ in the printer driver, the tray use will remain T1>T2>MP.

ab & OK

, MP Only,

or T1>T2 1>MP.

Tray#2 Only or T2 appears only if the optional tray is installed.

• When using the scanner glass, your document is copied from the higher priority tray even if more suitable paper is in another paper tray.

General setup

Volume Settings 3

Beeper volume 3

When the beeper is on, the machine will beep when you press a key and make a mistake. You can select a ring volume level from a range of settings, from High to Off.

a Press Menu, 1, 3.

13.

Beeper

a Low

Med

b High

Select

ab & OK

b Press a or b to select Off, Low, Med or

High. Press OK.

c Press Stop/Exit.

Ecology features 3

Toner save 3

You can save toner using this feature. When you set toner save to On, print appears lighter. The default setting is Off.

a Press Menu, 1, 4, 1.

14.Ecology

1.Toner Save

b Off

Select

b Press a or b to choose On (or Off).

Press OK.

ab & OK

Sleep time 3

Setting the sleep time reduces power consumption by turning off the fuser while the machine is idle.

You can choose how long the machine must be idle (from 00 to 99 minutes) before it goes into sleep mode. When the machine receives computer data or makes a copy, the timer will be reset. The default setting is 05 minutes.

While the machine is in sleep mode the LCD will display Sleep. When printing or copying in sleep mode, there will be a short delay while the fuser warms up.

a Press Menu, 1, 4, 2.

14.Ecology

2.Sleep Time

Sleep Time:05Min

Enter & OK Key

b Enter the length of time the machine is

idle before entering sleep mode (00 to 99). Press OK.

c Press Stop/Exit.

To turn off sleep mode, press Secure and Job Cancel at the same time in b. Press a or b to select Off (or On). Press OK.

Note

When you turn off sleep mode, the setting will take effect the next time the machine copies, prints or is turned off and on.

c Press Stop/Exit.

Note

We do not recommend Toner Save for printing Photo or Gray Scale images.

Chapter 3

Turning off the scanner lamp 3

The scanner lamp stays on for 16 hours before automatically switching off to preserve the life of the lamp and reduce power consumption.

To turn the scanner lamp off manually press the d and c keys simultaneously. The scanner lamp will remain turned off until the next time you use the scanning feature.

Note

Turning the lamp off regularly will reduce the lamp’s life.

LCD Contrast 3

You can change the contrast to make the LCD look lighter or darker.

a Press Menu, 1, 6.

16.LCD Contrast

Select d c & OK

nnonn

b Press c to make the LCD darker.

O, press d to make the LCD lighter. Press OK.

c Press Stop/Exit.

User Settings List

You can print a list of the settings you programmed.

a Press Menu, 1, 8.

18.User Settings

Press Start

b Press Start.

Security features 4

Security 4

Secure Function Lock 4

Secure Function Lock lets you restrict Public access to certain operations (Copy, Scan and PCprint). This feature also prevents users from changing the Default settings of the machine by limiting access to the Menu settings.

Disabling at least one function is required to turn on Secure Function Lock for the Public user.

Access to restricted operations can be enabled by creating a restricted user. Restricted users must select the stored name and enter a password to use the machine.

Make a careful note of your password. If you forget it, please call Brother Customer Service.

Note

• You can set up to 25 individual users and one Public user.

Setting the password for the administrator 4

The password you set in these steps is for the administrator. This password is used to set up restricted users and to turn Secure Function Lock on or off. See Setting up

restricted users on page 22 and Turning Secure Function Lock on on page 23.

a Press Menu, 1, 7.

17.Function Lock

New Passwd:xxxx Enter & OK Key

b Enter a four-digit number for the

password. Press OK.

c Re-enter the password when the LCD

shows Verify:. Press OK.

d Press Stop/Exit.

• When you set up a Public user, you can restrict one or more of the machine’s functions to all users who do not have a password.

• Only administrators can set limitations and make changes for each user.

• When PCprint is disabled, computer print jobs will be lost without notification.

Chapter 4

Setting up the Public user 4

You can set up the Public user. Public users do not need to enter a password.

Note

You must disable at least one function.

a Press Menu, 1, 7.

17.Function Lock

a Lock OffiOn

Set Password

b Setup User

Select

ab & OK

b Press a or b to select Setup User.

Press OK.

c Enter the administrator password.

Press OK.

17.Function Lock Setup User

a Public b User01

Select

ab & OK

d Press a or b to select Public.

Press OK.

Setting up restricted users 4

You can set up users with restrictions and a password.

a Press Menu, 1, 7.

17.Function Lock

a Lock OffiOn

Set Password

b Setup User

Select

ab & OK

b Press a or b to select Setup User.

Press OK.

c Enter the administrator password.

Press OK.

17.Function Lock Setup User

a Public b User01

Select ab & OK

d Press a or b to select User01.

Press OK.

e Use the dial pad to enter the user name.

(See Entering Text on page 89.) Press OK.

e Press a or b to select Enable or

Disable for Copy. Press OK.

After you have set Copy, repeat this step for Scan and PCprint

You can set PCprint for only the Public user.

. Press OK.

f Press Stop/Exit.

f Enter a four-digit password for the user.

Press OK.

g Press a or b to select Enable or

Disable for Copy. Press OK.

After you have set Copy, repeat this step for Scan. Press OK.

h Repeat d to g for entering each

additional user and password.

i Press Stop/Exit.

Security features

Turning Secure Function Lock on/off 4

If you enter the wrong password when following the instructions below, the LCD will show Wrong Password. Re-enter the correct password.

Turning Secure Function Lock on 4

a Press Menu, 1, 7.

17.Function Lock

a Lock OffiOn

Set Password

b Setup User

Select ab & OK

b Press a or b to select Lock OffiOn.

Press OK.

c Enter your four-digit administrator

password. Press OK.

Turning Secure Function Lock off 4

a Press Menu, 1, 7.

17.Function Lock

a Lock OniOff b Set Password

Select ab & OK

Switching Users 4

This setting allows a restricted user to log on the machine when Secure Function Lock is turned on.

Note

After a restricted user has finished using the machine, it will return to the Public setting in one minute.

a Press Menu, 1, 7.

17.Function Lock

a Lock OniOff b Change User

Select

ab & OK

b Press a or b to select Change User.

Press OK.

c Press a or b select the registered

name of the user to be logged on. Press OK.

d Enter your four-digit password.

Press OK.

b Press a or b to select Lock OniOff.

Press OK.

c Enter your four-digit administrator

password. Press OK.

Chapter 4

Section II

Copy II

Making copies 26

Making copies 5

How to copy 5

Making a single copy 5

a Load your document. b Press Start.

Making multiple copies 5

a Load your document. b Use the dial pad to enter the number of

copies (up to 99).

c Press Start.

Note

To sort your copies, press Sort. (See

Sorting copies using the ADF on page 33.)

Stop copying 5

Copy options 5

When you want to quickly change the copy settings temporarily for the next copy, use the Copy keys. You can use different combinations.

(DCP-8060)

(DCP-8065DN)

The machine returns to its default settings one minute after copying.

To stop copying, press Stop/Exit.

Making copies

Changing copy quality 5

You can select from a range of quality settings. The default setting is Auto.

 Auto

Auto is the recommended mode for ordinary printouts. Suitable for documents that contain both text and photographs.

 Text

Suitable for documents containing only text.

 Photo

Suitable for copying photographs.

To temporarily change the quality setting, follow the steps below:

a Load your document. b Use the dial pad to enter the number of

copies (up to 99).

c (DCP-8060)

Press Quality. (DCP-8065DN) Press Contrast/Quality. Press a or b to choose Quality. Press OK.

Changing text copy resolution 5

You can change the text copy resolution to 1200x600dpi if you have selected Text from the Quality or Contrast/Quality options, and make a copy with 100% ratio using the scanner glass. To change the text copy resolution, follow the steps below:

a Put your document on the scanner

glass.

b Press Menu, 2, 2.

22.FB Txt Quality

a 1200x600dpi b 600dpi

Select

ab & OK

c Press a or b to choose the text copy

resolution. Press OK.

d Press Stop/Exit.

d Press d or c to choose Auto, Text or

Photo.

Press OK.

e Press Start.

To change the default setting, follow the steps below:

a Press Menu, 2, 1.

21.Quality

a Auto

Text

b Photo

Select

ab & OK

b Press a or b to choose the copy

quality. Press OK.

c Press Stop/Exit.

Chapter 5

Enlarging or reducing the image copied 5

You can select the following enlargement or reduction ratios:

Press

Enlarge/Reduce

100%*

104% EXEiLTR

141% A5iA4

200%

Auto

Custom(25–400%)

50%

70% A4iA5

78% LGLiLTR

83% LGLiA4

85% LTRiEXE

91% Full Page

94% A4iLTR

97% LTRiA4

e Choose one of the options below:

 Press a or b to select the

enlargement or reduction ratio you want. Press OK.

 Press a or b to select Custom (25–

400%). Press OK. Use the dial pad

to enter an enlargement or reduction ratio from 25% to 400%. (For example, press 5 3 to enter 53%.) Press OK.

f Press Start.

Note

• The Auto setting is available only when loading from the ADF.

• Page Layout Options 2 in 1(P), 2 in 1(L), 4 in 1(P), 4 in 1(L) or Poster are not available with Enlarge/Reduce. (P) means Portrait and (L) means Landscape.

Custom(25–400%) allows you to enter a ratio from 25% to 400%.

Auto sets the machine to calculate the reduction ratio that best fits the size of paper.

To enlarge or reduce the next copy follow the steps below:

a Load your document. b Use the dial pad to enter the number of

copies (up to 99).

c Press Enlarge/Reduce. d Press Enlarge/Reduce or c.

Making copies

Making N in 1 copies or a poster 5

You can reduce the number of pages for copies by using the N in 1 copy feature. This allows you to copy two or four pages onto one page, which lets you save paper.

You can also make a poster. When you use the poster feature your machine divides your document into sections, then enlarges the sections so you can assemble them into a poster. If you want to print a poster, use the scanner glass.

Important 5

 Please make sure the paper size is set to

Letter, A4, Legal or Folio.

 (P) means Portrait and (L) means

Landscape.

 You can not use the Enlarge/Reduce

setting with the N in 1 and poster features.

 You can only make one poster copy at a

time.

If you are using the scanner glass:

f After the machine scans the page,

press 1 to scan the next page.

Flatbed Copy: Next Page?

a 1.Yes b 2.No

Select

ab & OK

g Place the next page on the scanner

glass. Press OK. Repeat f and g for each page of the layout.

h After all the pages have been scanned,

press 2 in f to finish.

a Load your document. b Use the dial pad to enter the number of

copies (up to 99).

c Press N in 1. d Press a or b to select 2in1(P),

2in1(L), 4in1(P), 4in1(L), Poster (3 x 3) or Off (1 in 1). Press OK.

e Press Start to scan the page.

If you are making a poster or placed the document in the ADF, the machine scans the pages and starts printing.

Chapter 5

If you are copying from the ADF: 5

Insert your document face up in the direction shown below:

 2 in 1 (P)

 2 in 1 (L)

 4 in 1 (P)

 4 in 1 (L)

If you are copying from the scanner glass: 5

Insert your document face down in the direction shown below:

 2 in 1 (P)

 2 in 1 (L)

 4 in 1 (P)

 4 in 1 (L)

 Poster (3x3)

You can make a poster size copy of a photograph.

Making copies

Duplex (2-sided) copying (DCP-8065DN only) 5

If you want to use the duplex copy feature, load your document in the ADF.

Duplex Copy 5

 1 sided i 2 sided

Portrait

Landscape

 2 sided i 2 sided

Portrait

Landscape

a Load your document. b Use the dial pad to enter the number of

copies (up to 99).

c Press Duplex and a or b to select

1sided i 2sided, 2sided i 2sided or 2sided i 1sided.

Duplex

a1sided i 2sided

2sided

b2sided i 1sided

i 2sided

Select ab & OK

Press OK.

d Press Start to scan the document.

Note

Duplex copy using a 2-sided legal size document is not available from the ADF.

If you are using the scanner glass:

Landscape

e After the machine scans the page,

press 1 to scan the next page.

Flatbed Copy: Next Page?

a 1.Yes b 2.No

Select

ab & OK

f Place the next page on the scanner

 2 sided i 1 sided

Portrait

glass. Press OK. Repeat e and f for each page of the layout.

g After all the pages have been scanned,

press 2 in e to finish.

Chapter 5

Advanced Duplex Copy 5

 Advanced 2 sided i 1 sided

Portrait

Landscape

 Advanced 1 sided i 2 sided

Portrait

Landscape

a Load your document. b Use the dial pad to enter the number of

copies (up to 99).

c Press Duplex and a or b to select

Advanced.

Duplex

a1sided i 2sided

2sided

b2sided i 1sided

Select

i 2sided

ab & OK

Press OK.

d Press a or b to select

2sided i 1sided or 1sided i 2sided. Press OK.

Duplex Advanced

a2sided i 1sided b1sided i 2sided

Select

ab & OK

e Press Start to scan the document.

Note

Duplex copy using a 2-sided legal size document is not available from the ADF.

If you are using the scanner glass:

f After the machine scans the page,

press 1 to scan the next page.

Flatbed Copy: Next Page?

a 1.Yes b 2.No

Select

ab & OK

g Place the next page on the scanner

glass. Press OK. Repeat f and g for each page of the layout.

h After all the pages have been scanned,

press 2 in f to finish.

Making copies

Sorting copies using the ADF5

You can sort multiple copies. Pages will be stacked in the order 1 2 3, 1 2 3, 1 2 3, and so on.

a Load your document. b Use the dial pad to enter the number of

copies (up to 99).

c Press Sort. d Press Start.

Adjusting contrast 5

Contrast 5

Adjust the contrast to help an image look sharper and more vivid.

To temporarily change the contrast setting, follow the steps below:

a Load your document. b Use the dial pad to enter the number of

copies (up to 99).

c (DCP-8060)

Press Contrast.

(DCP-8065DN) Press Contrast/Quality. Press a or b to choose Contrast. Press OK.

Contrast:-nnonn+ c Quality :Auto Enlg/Red:100% Tray :MP>T1 Select d c & OK

d Press d or c to increase or decrease

the contrast.

e Press Start.

To change the default setting follow the steps below:

a Press Menu, 2, 3.

23.Contrast

Select d c & OK

nnonn+

b Press d or c to change the contrast.

Press OK.

c Press Stop/Exit.

Chapter 5

Tray Select 5

You can change the tray use only for the next copy.

a Load your document. b Use the dial pad to enter the number of

copies (up to 99).

c Press Tray Select.

Contrast:-nnonn+ Quality :Auto Enlg/Red:100% Tray :MP>T1 Select d c & OK

d Press d or c to select the tray usage.

Press OK.

e Press Start.

Press Tray Select MP>T1 or M>T1>T2

T1>MP or T1>T2>M #1(XXX)* #2(XXX)* MP(XXX)*

Out of Memory message 5

If the memory becomes full while you are making copies, the LCD message will guide you through the next step.

If you get an Out of Memory message while scanning a subsequent page, you will have the option to press Start to copy the pages scanned so far, or to press Stop/Exit to cancel the operation.

If you run out of memory, you can add it. See Memory Board on page 49.

* XXX is the paper size you set in Menu, 1, 2.

Note

• T2 and Tray #2 appear only if the optional paper tray is installed.

• To change the Tray select setting, see Tray use in Copy mode on page 18.

Section III

Software III

Software and Network features 36

The User’s Guide on the CD-ROM includes the Software User’s Guide and Network User’s Guide for features available when connected to a computer (for example, Printing and Scanning).

 Printing

(For Windows Software User’s Guide on the CD-ROM.)

(For Macintosh Software User’s Guide on the CD-ROM.)

 Scanning

(For Windows Software User’s Guide on the CD-ROM.)

(For Macintosh Software User’s Guide on the CD-ROM.)

 ControlCenter2

(For Windows Software User’s Guide on the CD-ROM.)

(For Macintosh Software User’s Guide on the CD-ROM.)

Software and Network features 6

, see Chapter 1 in the

, see Chapter 7 in the

, see Chapter 2 in the

, see Chapter 8 in the

, see Chapter 3 in the

, see Chapter 9 in the

 Network Printing (DCP-8065DN only)

(See the Network User’s Guide on the CD-ROM.)

 Network Scanning (DCP-8065DN only)

(For Windows Software User’s Guide on the CD-ROM.)

(For Macintosh Software User’s Guide on the CD-ROM.)

, see Chapter 4 in the

, see Chapter 10 in the

Note

See Accessing the complete User’s Guide on page 3

Section IV

Appendixes IV

Safety and Legal 38 Options 48 Troubleshooting and routine maintenance 51 Menu and Features 81 Specifications 91 Glossary 99

Safety and Legal A

Choosing a location A

Place your machine on a flat, stable surface that is free of vibration and shocks. Put the machine near a standard, grounded AC power outlet. Choose a location where the temperature remains between 50°F and 90.5°F (10°C and 32.5°C) and the humidity is between 20% to 80% (without condensation).

CAUTION

Avoid placing your machine in a high-traffic area.

Do not place the machine near heaters, air conditioners, refrigerators, water, chemicals or devices that contain magnets or generate magnetic fields.

Do not expose the machine to direct sunlight, excessive heat, open flames, salty or corrosive gasses, moisture, or dust.

Do not connect your machine to an AC power outlet controlled by wall switches or automatic timers.

Disruption of power can wipe out information in the machine’s memory.

Do not connect your machine to an AC power outlet on the same circuit as large appliances or other equipment that might disrupt the power supply.

Avoid interference sources, such as speakers or the base units of cordless phones.

Do not put objects on top of the machine.

DO NOT use flammable substances near the machine. Doing this might cause a fire or electrical shock.

Safety and Legal

To use the machine safely A

Please keep these instructions for later reference and read them before attempting any maintenance.

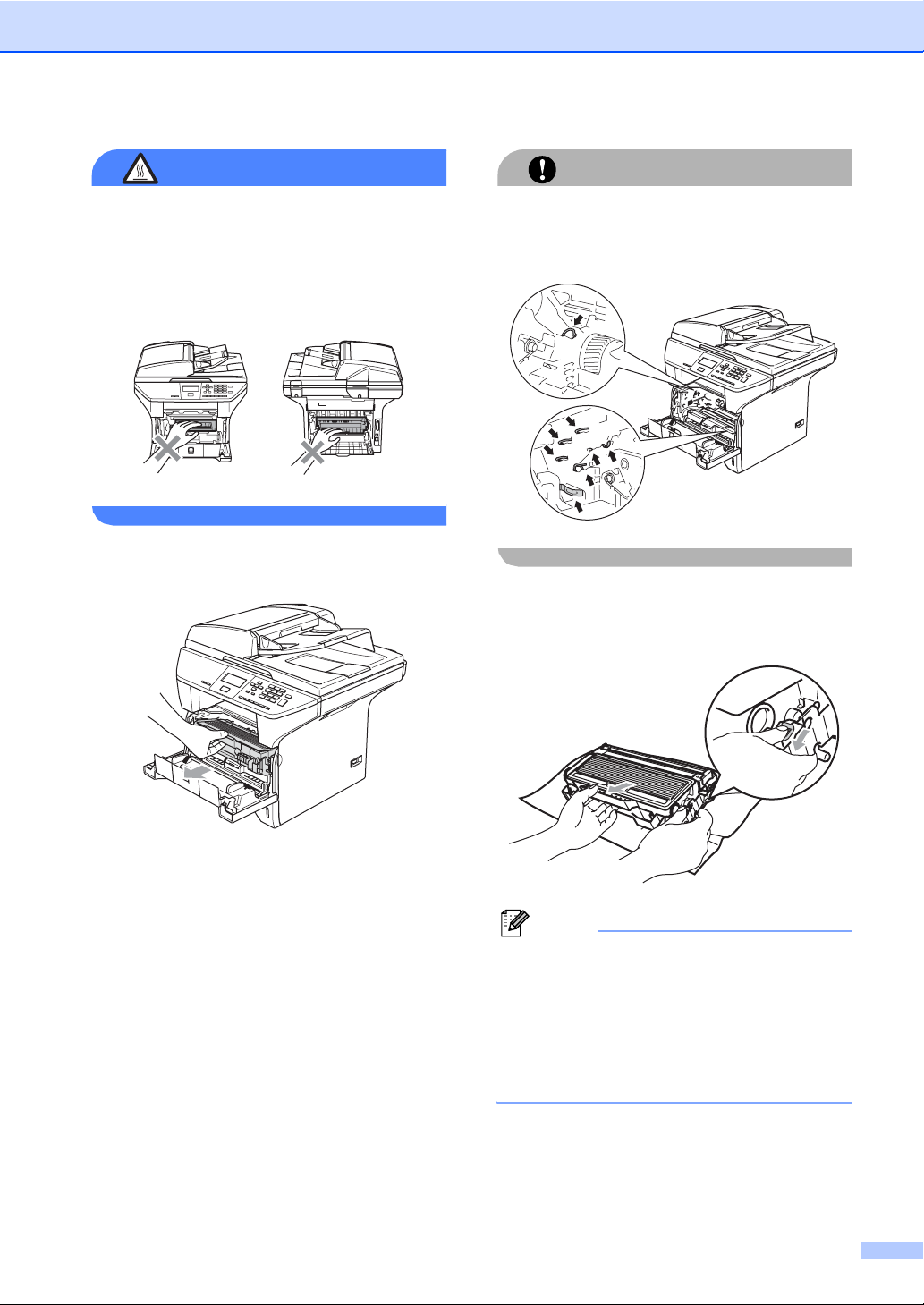

WARNING

There are high voltage electrodes inside the machine. Before you clean the inside of the machine, make sure you have unplugged the power cord from the AC power outlet.

Do not handle the plug with wet hands. Doing this might cause an electrical shock.

After you have just used the machine, some internal parts of the machine will be extremely hot. When you open the front or back cover of the machine, DO NOT touch the shaded parts shown in the illustration.

The fuser unit is marked with a caution label. Please do not remove or damage the label.

To prevent injuries, be careful not to put your hands on the edge of the machine under the document cover.

To prevent injuries, be careful not to put your fingers in the area shown in the illustrations.

DO NOT use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner dust to ignite inside the vacuum cleaner, potentially starting a fire. Please carefully clean the toner dust with a dry, lint-free cloth and dispose of it according to local regulations.

When you move the machine, grasp the side hand holds that are under the scanner. DO NOT carry the machine by holding it at the bottom.

This product must be installed near an AC power outlet that is easily accessible. In case of an emergency, you must disconnect the power cord from the AC power outlet to shut off the power completely.

To reduce the risk of shock or fire, use only a No. 26 AWG or larger telecommunication line cord.

Safety and Legal

CAUTION

Lightning and power surges can damage this product! We recommend that you use a quality surge protection device on the AC power line or unplug the cord during a lightning storm.

WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to people, including the following:

1 Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink,

washing machine, or in a wet basement or near a swimming pool.

2 Avoid using this product during an electrical storm. There may be a remote risk of electric

shock from lightning. 3 Do not use this product to report a gas leak in the vicinity of the leak. 4 Use only the power cord provided with the machine. SAVE THESE INSTRUCTIONS

Important Information A

Federal Communications Commission (FCC) Declaration of Conformity (USA only) A

Responsible Party: Brother International Corporation

100 Somerset Corporate Boulevard Bridgewater, NJ 08807–0911 USA TEL: (908) 704–1700

declares, that the products Product Name: DCP-8060, DCP-8065DN comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Call the dealer or an experienced radio/TV technician for help.

Important A

Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user’s authority to operate the equipment.

Important — about the interface cable A

A shielded interface cable should be used to ensure compliance with the limits for a Class B digital device.

Safety and Legal

Industry Canada Compliance Statement (Canada only) A

This Class B digital apparatus complies with Canadian ICES–003. Cet appareil numérique de la classe B est conforme à la norme NMB–003 du Canada.

Disconnect device A

This product must be installed near an electrical jack that is easily accessible. In case of emergencies, you must disconnect the power cord from the electrical jack to shut off power completely.

LAN connection A

CAUTION

Do not connect this product to a LAN connection that is subject to over-voltages.

International ENERGY STAR® Compliance Statement A

The purpose of the International ENERGY STAR® Program is to promote the development and popularization of energy-efficient office equipment.

As an ENERGY STAR the ENERGY STAR

Partner, Brother Industries, Ltd. has determined that this product meets

guidelines for energy efficiency.

Laser safety A

This equipment is certified as a Class 1 laser product under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. This means that the equipment does not produce hazardous laser radiation.

Since radiation emitted inside the equipment is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation.

FDA regulations A

U.S. Food and Drug Administration (FDA) has implemented regulations for laser products manufactured on and after August 2, 1976. Compliance is mandatory for products marketed in the United States. The following label on the back of the machine indicates compliance with the FDA regulations and must be attached to laser products marketed in the United States.

Manufactured:

BROTHER CORP. (ASIA) LTD.

BROTHER BUJI NAN LING FACTORY Gold Garden Industry, Nan Ling Village, Buji, Rong Gang, Shenzhen, China. This product complies with FDA performance standards for laser products except for deviations

pursuant to Laser Notice No. 50, dated July 26, 2001.

WARNING

Use of controls, adjustments or performance of procedures other than those specified in this manual may result in hazardous invisible radiation exposure.

Internal laser radiation Max. Radiation Power 5 mW Wave Length 770 – 810 nm Laser Class Class 3B

Safety and Legal

Important safety instructions A

1 Read all of these instructions. 2 Save them for later reference. 3 Follow all warnings and instructions marked on the product. 4 Unplug this product from the wall outlet before cleaning inside of the machine. Do not use liquid

or aerosol cleaners. Use a damp cloth for cleaning.

5 Do not place this product on an unstable cart, stand, or table. The product may fall, causing

serious damage to the product.

6 Slots and openings in the cabinet at the back or bottom are provided for ventilation. To ensure

reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heater. This product should never be placed in a built-in installation unless proper ventilation is provided.

7 This product should be connected to an AC power source within the range indicated on the

rating label. Do NOT connect it to a DC power source. If you are not sure, contact a qualified electrician.

8 This product is equipped with a 3-wire grounded plug. This plug will only fit into a grounded

power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, call your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounded

plug. 9 Use only the power cord supplied with this machine. 10 Do not allow anything to rest on the power cord. Do not place this product where people can

walk on the cord. 11 If an extension cord is used with this product, make sure that the total ampere ratings on the

products plugged into the extension cord do not exceed the extension cord ampere rating.

Also, make sure that the total of all products plugged into the AC power outlet does not exceed

15 amperes (US only). 12 Do not place anything in front of the machine that will block printed pages. 13 Wait until pages have exited the machine before picking them up. 14 Never push objects of any kind into this product through cabinet slots, since they may touch

dangerous voltage points or short out parts resulting in the risk of fire or electric shock. Never

spill liquid of any kind on the product. Do not attempt to service this product yourself because

opening or removing covers may expose you to dangerous voltage points and other risks and

may void your warranty. Refer all servicing to a Brother Authorized Service Center. For the

location of your nearest Brother Authorized Service Center, please call

In USA: 1-800-284-4357

In Canada: 1-877-BROTHER.

(See Brother numbers on page i.)

15 Unplug this product from the AC power outlet and refer all servicing to Brother Authorized

Service Personnel under the following conditions:

 When the power cord is damaged or frayed.  If liquid has been spilled into the product.  If the product has been exposed to rain or water.  If the product does not operate normally when the operating instructions are followed.

Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

 If the product has been dropped or the cabinet has been damaged.  If the product exhibits a distinct change in performance, indicating a need for service.

16 To protect your product against power surges, we recommend the use of a power protection

device (Surge Protector).

17 To reduce the risk of fire, electric shock and injury to people, note the following:

 Do not use this product near appliances that use water, a swimming pool or in a wet

basement.

 Do not use the machine during an electrical storm (there is the remote possibility of an

electrical shock).

Safety and Legal

Trademarks A

The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. Multi-Function Link is a registered trademark of Brother International Corporation. Windows and Microsoft are registered trademarks of Microsoft in the U.S. and other countries. Macintosh and TrueType are registered trademarks of Apple Computer, Inc. PaperPort is a registered trademark of ScanSoft, Inc. Presto! PageManager is a registered trademark of NewSoft Technology Corporation. BROADCOM, SecureEasySetup and the SecureEasySetup logo are trademarks or registered

trademarks of Broadcom Corporation in the United States and/or other countries. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun

Microsystems, Inc. in the United States and other countries. Each company whose software title is mentioned in this manual has a Software License

Agreement specific to its proprietary programs.

All other brand and product names mentioned in this User’s Guide, the Software User’s Guide, and the Network User’s Guide are registered trademarks of their respective companies.

Options B

This machine has the following optional accessories. You can increase the capabilities of the machine with these items.

Lower tray unit DIMM memory

LT-5300

Options

Optional Paper Tray (LT-5300) B

An optional lower tray can be installed, and it can hold up to 250 sheets of 20 lb (80 g/m

paper. When an optional tray is installed, the

machine can hold up to 550 sheets of plain paper.

For setup, see the User’s Guide that we have supplied with the lower tray unit.

Memory Board B

This machine has 32 MB of standard memory and one slot for optional memory expansion. You can expand the memory up to 544 MB by installing dual in-line memory modules (DIMMs). When you add the optional memory, it increases the performance for both copier and printer operations.

DIMM types B

You can install the following DIMM:

 128 MB Buffalo Technology

)

VN133-D128 / VN133-X128

 256 MB Buffalo Technology

VN133-D256

 512 MB Buffalo Technology

VN133-D512

 64 MB TechWorks 12165-0004  128 MB TechWorks 12462-0001  256 MB TechWorks 12485-0001  512 MB TechWorks 12475-0001

Note

• For more information, visit the Buffalo Technology site at http://www.buffalotech.com

• For more information, visit the Techworks web site at http://www.techworks.com

In general, the DIMM must have the following specifications:

Type: 144 pin and 64 bit output CAS latency: 2 Clock frequency: 100 MHz or more Capacity: 64, 128, 256 or 512 MB Height: 1.25 in. (31.75 mm)

Dram Type: SDRAM 2 Bank SDRAM can be used.

Note

• There might be some DIMMs that will not work with the machine.

• For more information, call Brother Customer Service.

Installing extra memory B

a Turn off the machine’s power switch. b Disconnect the interface cable from the

machine, and then unplug the power cord from the AC power outlet.

Note

Be sure to turn off the machine’s power switch before you install or remove the DIMM.

c Remove the DIMM cover and interface

access cover.

e Hold the DIMM by the edges and align

the notches in the DIMM with the protrusions in the slot. Insert the DIMM diagonally (1), then tilt it toward the interface board until it clicks into place (2).

f Put the interface access cover and the

DIMM cover back on.

g Plug the machine’s power cord back into

the AC power outlet first, and then connect the interface cable.

d Unpack the DIMM and hold it by its

edges.

To prevent damage to the machine from static electricity, DO NOT touch the memory chips or the board surface.

CAUTION

h Turn on the machine’s power switch.

Troubleshooting and routine

maintenance

Troubleshooting C

IMPORTANT

For technical help, you must call the country where you bought the machine. Calls must be made from within that country.

If you are having difficulty with your machine C

If you think there is a problem with the way your faxes look, make a copy first. If the copy looks good, the problem is probably not your machine. Check the chart below and follow the troubleshooting tips. You can solve most problems by yourself.

If you need additional help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips.

Visit us at http://solutions.brother.com

Copy Quality Difficulties

Difficulties Suggestions

Vertical streaks appear in copies. Either the scanner or the primary corona wire for printing is dirty. Clean them both.

(See Cleaning the scanner glass on page 69 and Cleaning the corona wire on page 71.)

Printing Difficulties

Difficulties Suggestions

Poor print quality See Improving the print quality on page 55. Vertical black lines on copies or

printouts

No printout.  Check that the machine is plugged in and the power switch is turned on.

Your machine’s primary corona wire for printing may be dirty. Clean your primary corona wire. (See Cleaning the corona wire on page 71.)

If the problem continues, call Brother Customer Service at 1-800-284-4329 (in USA) or 1-877-BROTHER (in Canada).

 Check that the toner cartridge and drum unit are installed properly. (See

Replacing the drum unit (D R-520) on page 76.)

 Check the interface cable connection on both the machine and your computer.

(See the Quick Setup Guide.)

 Check that the correct printer driver has been installed and chosen.

 Check to see if the LCD is showing an error message. (See Error messages

on page 59.)

 The machine is online. On your PC, click Start, then Settings, and then

Printers and Faxes. Right-click ‘Brother DCP-XXXX (where XXXX is your

model name)’. Make sure that ‘Use Printer Offline’ is unchecked.

Printing Difficulties (Continued)

Difficulties Suggestions

The machine prints unexpectedly or it prints garbage.

The machine prints the first couple of pages correctly, then some pages have text missing.

The machine cannot print full pages of a document.

Out of Memory message appears.

The headers or footers appear when the document displays on the screen but they do not show up when it is printed.

The machine does not print on both sides of the paper even though the printer driver setting is Duplex. (DCP-8065DN only)

The machine is not printing or has stopped printing and the machine’s status LED is yellow.

 Turn off the machine’s power switch and then turn it on again. If the error

message continues leave the machine for several minutes and then try it again.

 Check the settings in your application to make sure it is set up to work with

your machine.

 If you are using the parallel port connection, check that the port is BRMFC and

not LPT1.

 Check the settings in your application to make sure that it is set up to work with

your machine.

 Your computer is not recognizing the machine’s input buffer’s full signal. Make

sure that you connected the interface cable correctly. (See the Quick Setup Guide.)

 Reduce the printing resolution. (See Advanced tab in the Software User’s

Guide on the CD-ROM.)

 Reduce the complexity of your document and try again. Reduce the graphic

quality or the number of font sizes within your application.

 Add more memory. See Installing extra memory on page 50.

There is an unprintable area on the top and bottom of the page. Adjust the top and bottom margins in your document to allow for this.

Check the paper size setting in the printer driver. You need to select either A4, Letter, Legal or Folio.

Press Job Cancel. As the machine cancels the job and clears it from the memory it may produce an incomplete printout. Try to print again.

Scanning Difficulties

Difficulties Suggestions

TWAIN errors appear while scanning.

Make sure that the Brother TWAIN driver is chosen as the primary source. In PaperPort

, click File, Scan and choose the Brother TWAIN driver.

Software Difficulties

Difficulties Suggestions

Cannot install software or print. Run the Repair MFL-Pro Suite program on the CD-ROM. This program will repair

and reinstall the software.

Cannot perform ‘2 in 1’ or ‘4 in 1’ printing.

The machine does not print from Adobe Illustrator.

When using ATM fonts, some characters are missing or wrong characters are printed in their place.

Check that the paper size setting in the application and in the printer driver are the same.

Try to reduce the print resolution. (See Advanced tab in the Software User’s Guide on the CD-ROM.)

If you are using Windows Right-click Brother DCP-XXXX (where XXXX is your model name) and click

Properties. Click Spool Setting on the Details tab. Choose RAW from Spool Data Format.

98/98SE/Me, click Start, Settings, and then Printers.

Software Difficulties (Continued)

Difficulties Suggestions

‘Unable to write to LPT1’, ‘LPT1 already in use’ or ‘MFC is Busy’ error message appears.

Make sure that the machine is on (plugged into the AC power outlet and the power switch turned on) and that it is connected directly to the computer using the IEEE-1284 bi-directional parallel cable. The cable must not go through another peripheral device (such as a Zip Drive, External CD-ROM Drive, or Switch box).

Make sure that the LCD does not show an error message. Make sure no other device drivers, which also communicate through the parallel

port, are running automatically when you turn on the computer (such as, drivers for Zip Drives, External CD-ROM Drive, etc.) Suggested areas to check: (Load=, Run=command lines in the win.ini file or the Setup Group)

Check with your computer manufacturer to confirm that the computer’s parallel port settings in the BIOS are set to support a bi-directional machine; i.e. (Parallel Port Mode – ECP)

Paper Handling Difficulties

Difficulties Suggestions

The machine does not load paper.

The LCD shows No Paper or a Paper Jam message.

The machine does not feed paper from the MP tray.

Need to know how to load envelopes.

Need to know which paper is good to use.

There is a paper jam. See Paper jams on page 63.

 If there is no paper, load a new stack of paper into the paper tray.

 If there is paper in the paper tray, make sure it is straight. If the paper is curled,

you should straighten it. Sometimes it is helpful to remove the paper, turn the stack over and put it back into the paper tray.

 Reduce the amount of paper in the paper tray, and then try again.

 Check that the MP tray mode is not chosen in the printer driver.

 If the LCD shows Paper Jam message and you still have a problem, see

Paper jams on page 63.

 Fan the paper well and put it back in the tray firmly.

 Make sure that MP tray mode is chosen in the printer driver.

You can load envelopes from the MP tray. Your application must be set up to print the envelope size you are using. This is usually done in the Page Setup or Document Setup menu of your application. See your application’s manual for more information.

You can use plain paper, recycled paper, envelopes, transparencies and labels that are made for laser machines. (For details, see Acceptable paper and other media on page 11.)

Troubleshooting and routine maintenance

Print Quality Difficulties

Difficulties Suggestions

Printed pages are curled.  Low quality thin or thick paper or not printing on the recommended side of

paper could cause this problem. Try turning over the stack of paper in the paper tray.

 Make sure that you choose the Paper Type that suits the media type you are

using. (See Acceptable paper and other media on page 11.)

Printed pages are smeared. The Paper Type setting may be incorrect for the type of print media you are using,

or the print media may be too thick or have a rough surface. (See Acceptable

paper and other media on page 11 and Basic tab in the Software User’s Guide on the CD-ROM.)

Print Quality Difficulties (Continued)

Difficulties Suggestions

Printouts are too light.  If this problem occurs when making copies turn Toner Save mode to off in the

machine menu setting. (See Toner save on page 19.)

 Set Toner Save mode to off in the Advanced tab in the printer driver. (See

Advanced tab in the Software User’s Guide on the CD-ROM.)

Network Difficulties (DCP–8065DN only)

Difficulties Suggestions

Cannot print over a wired Network.  Make sure your machine is powered on and is on-line and in Ready mode.

The network scanning feature does not work.

Your computer cannot find your machine.

Print the Network Configuration list to see your current Network settings. Reconnect the LAN cable to the hub to verify that the cable and network connections are good. If possible, try connecting the machine to a different port on your hub using a different cable. If the connections are good, the upper LED of the back panel of the machine will be green.

 If you are using a wireless connection or are having Network problems see

the Network User's Guide on the CD-ROM for more information.

(For Windows

only) The firewall setting on your PC may be rejecting the necessary network connection. Follow the steps below to configure the firewall. If you are using any other than the firewalls mentioned below, see the instructions for that software or contact the software manufacturer.

<Windows

XP SP2>

1. Click the Start button, ‘Settings’, ‘Control Panel’ and then ‘Windows Firewall’. Make sure that Windows Firewall on the ‘Basic’ tab is set to on.

2. Click the ‘Exceptions’ tab and ‘Add port’ button.

3. Enter any name, port number (54295 for network scanning), select ‘UPD’

and click ‘OK’.

4. Make sure that the new setting is added and is checked, and then click ‘OK’.

For Windows

<For Windows

XP SP1, please visit the Brother Solutions Center.

users> The firewall setting on your PC may be rejecting the necessary network connection. For details, see the instruction above.

<For Macintosh

users> Re-select your machine in the DeviceSelector application located in Macintosh HD/Library/Printers/Brother/Utilities or from the Model pop-up menu of ControlCenter2.

Troubleshooting and routine maintenance

d 3

Improving the print quality C

Examples of poor print quality

ABCDEFGH

abcdefghijk

ABCD abcde

c 2

01234

Faint

ABCDEFGH abcdefghijk

ABCD abcde 01234

Gray background

Ghost

ABCDEFGH abcdefghijk

ABCD abcde 01234

Toner specks

Recommendation

 Check the machine’s environment. Conditions such as humidity, high

temperatures, and so on, may cause this print fault. (See

location

on page 38.)

Choosing a

 If the whole page is too light, Toner Save mode may be on. Turn off Toner

Save mode in the machine’s menu settings or in the printer Properties of the driver. (See

Toner save on page 19 or Advanced tab in the Software User’s

Guide on the CD-ROM.)

If this problem occurs when making copies, turn off Toner Save mode in the machine’s menu setting. (See

Toner save on page 19.)

 Clean the scanner window and the primary corona wire of the drum unit. (See

Cleaning the laser scanner window on page 70 and Cleaning the corona wire

drum unit. (See

 Put in a new toner cartridge. (See

550/TN-580)

 Make sure that you use paper that meets our specifications. (See

on page 71.) If the print quality has not improved, put in a new

Replacing the drum unit (DR-520) on page 76.)

Replacing the toner cartridge (TN-

on page 73.)

Acceptable paper and other media on page 11.)

 Check the machine’s environment. Conditions such as high temperatures and

high humidity can increase the amount of background shading. (See

Choosing a location on page 38.)

Install a new toner cartridge. (See

550/TN-580)

on page 73.)

 Clean the primary corona wire and the drum unit. (See

wire

on page 71 and Cleaning the drum unit on page 72.) If the print quality

has not improved, put in a new drum unit. (See

(DR-520)

on page 76.)

 Make sure that you use paper that meets our specifications. Rough-surfaced

paper or thick paper may cause this problem.

 Make sure that you choose the proper media type in the printer driver or in the

machine’s Paper Type menu setting. (See

media

on page 11 and Basic tab in the Software User’s Guide on the

CD-ROM.)

 Put in a new drum unit. (See

76.)

 Make sure that you use paper that meets our specifications. Rough-surfaced

paper may cause the problem. (See on page 11.)

 Clean the primary corona wire and the drum unit. (See

wire

on page 71 and Cleaning the drum unit on page 72.) If the print quality

has not improved, put in a new drum unit. (See

(DR-520)

on page 76.)

Replacing the toner cartridge (TN-

Cleaning the corona

Replacing the drum unit

Acceptable paper and other

Replacing the drum unit (DR-520) on page

Acceptable paper and other media

Cleaning the corona

Replacing the drum unit

Examples of poor print quality

Hollow print

All black

White Spots on black text and graphics at 3.7 in. (94

mm) intervals

Recommendation

 Make sure that you use paper that meets our specifications. (See

Acceptable paper and other media on page 11.)

 Choose Thick paper mode in the printer driver or in the machine’s Paper

Type menu setting, or use thinner paper than you are currently using. (See

Paper Type on page 17 and Basic tab in the Software User’s Guide on the

CD-ROM.)

 Check the machine’s environment. Conditions such as high humidity can

cause hollow print. (See

 Clean the primary corona wire on the drum unit. (See

wire

on page 71.) If the print quality has not improved, put in a new drum unit.

(See

Replacing the drum unit (DR-520) on page 76.)

Choosing a location on page 38.)

Cleaning the corona

 Clean the primary corona wire on the drum unit. (See Cleaning the corona

wire

on page 71.) If the print quality has not improved, put in a new drum unit.

(See

Replacing the drum unit (DR-520) on page 76.)

 The drum unit may be damaged. Put in a new drum unit. (See

drum unit (DR-520)

on page 76.)

Replacing the

Dust, paper powder, glue, and so on may stick to the surface of the photosensitive drum (OPC) and cause black or white spots to appear on printed documents.

Make a few copies of a blank, white sheet of paper. If you still see the spots on printed documents after making multiple copies, clean

the drum unit (see

Cleaning the drum unit on page 72).

If the print quality still has not improved you need to install a new drum. (See

Replacing the drum unit (DR-520) on page 76.)

Black Spots at 3.7 in. (94 mm)

intervals

ABCDEFGH abcdefghijk

ABCD abcde 01234

Black toner marks across the

page

 Make sure that you use paper that meets our specifications. (See

Acceptable paper and other media on page 11.)

 If you use label sheets for laser printers, the glue from the sheets may

sometimes stick to the OPC drum surface. Clean the drum unit. (See

Cleaning the drum unit on page 72.)

 Do not use paper that has clips or staples because they will scratch the

surface of the drum.

 If the unpacked drum unit is in direct sunlight or room light, the unit may be

damaged.

 The drum unit may be damaged. Put in a new drum unit. (See

drum unit (DR-520)

on page 76.)

Replacing the

Troubleshooting and routine maintenance

Examples of poor print quality

ABCDEFGH abcdefghijk

ABCD abcde 01234

White lines across the page

ABCDEFGH abcdefghijk

ABCD abcde 01234

Lines across the page

ABCDEFGH abcdefghijk

ABCD abcde 01234

Black lines down the page

Printed pages have toner

stains or stripes down the page.

ABCDEFGH abcdefghijk

ABCD abcde 01234

Recommendation

 Make sure that you use paper that meets our specifications. A rough surfaced

paper or thick print media can cause the problem. (See

and other media

on page 11.)

Acceptable paper

 Make sure that you choose the proper media type in the printer driver or in the

machine’s Paper Type menu setting. (See

media

on page 11 and Basic tab in the Software User’s Guide on the

Acceptable paper and other

CD-ROM.)

 The problem may disappear by itself. Print multiple pages to clear this

problem, especially if the machine has not been used for a long time.

 Clean the scanner window with a soft cloth. (See

scanner window

on page 70.)

 The drum unit may be damaged. Put in a new drum unit. (See

drum unit (DR-520)

on page 76.)

Cleaning the laser

Replacing the

 Clean the inside of the machine and the primary corona wire in the drum unit.

(See

Cleaning the corona wire on page 71.)

 Clean the scanner window with a soft cloth. (See

scanner window

on page 70.)

 The drum unit may be damaged. Put in a new drum unit. (See

drum unit (DR-520)

on page 76.)

Cleaning the laser

Replacing the

 Clean the primary corona wire of the drum unit. (See Cleaning the corona

wire

on page 71.)

 Make sure the primary corona wire’s blue tab is at the home position (a).

 The drum unit may be damaged. Put in a new drum unit. (See

drum unit (DR-520)

on page 76.)

Replacing the

 The toner cartridge may be damaged. Put in a new toner cartridge. (See

Replacing the toner cartridge (TN-550/TN-580) on page 73.)

 The fuser unit may be smudged. Call Brother Customer Service at

1-800-284-4329 (in USA) or 1-877-BROTHER (in Canada).

 Clean the laser scanner window with a soft cloth. (See Cleaning the laser

scanner window

 The toner cartridge may be damaged. Put in a new toner cartridge.

(See

Replacing the toner cartridge (TN-550/TN-580) on page 73.)

on page 70.)

White lines down the page

ABCDEFGH abcdefghijk

ABCD abcde 01234

Page skewed

 Make sure the paper or other print media is loaded properly in the paper tray

and that the guides are not too tight or too loose against the paper stack.

 Set the paper guides correctly.

 If you are using the MP tray, see

Loading envelopes and other media on

page 15.

 The paper tray may be too full.

 Check the paper type and quality. (See

media

on page 11.)

Acceptable paper and other

Examples of poor print quality

Curled or wave

B DEFGH

abc efghijk

ACD

bcde

134

Wrinkles or creases

Recommendation

 Check the paper type and quality. High temperatures and high humidity will

cause paper to curl.

 If you do not use the machine often, the paper may have been in the paper

tray too long. Turn over the stack of paper in the paper tray. Also, fan the paper stack and then rotate the paper 180° in the paper tray.

 Make sure that paper is loaded properly.

 Check the paper type and quality. (See

media

on page 11.)

 Turn over the stack of paper in the tray or rotate the paper 180° in the input

tray.

Acceptable paper and other

Troubleshooting and routine maintenance

Error messages C

As with any sophisticated office product, errors may occur. If this happens, your machine will identify the error and display an error message. The most common error messages are shown below.

Error Message Cause Action

Check Paper Size

Cooling Down

Wait for a while

Cover is Open The front cover is not closed

Doc. Cover Open

Document Jam The document was not inserted or

Paper is not the correct size. Load the correct size of paper and then set the

Paper Size (Menu, 1, 2). (See Paper Size on page 17.) Then, set the Tray Use for copying and printing (Menu, 1, 5, 1 or Menu, 1, 5, 2). (See Tray use in Copy mode on page 18 and Tray use in Print mode on page 18.)

The temperature of the drum unit or toner cartridge is too hot. The machine will pause its current print job and go into cooling down mode. During the cooling down mode, you will hear the cooling fan running while the LCD shows Cooling Down, and Wait for a while.

completely. The fuser cover is not closed

completely.

The document cover is not closed completely.

fed properly, or the document scanned from the ADF was too long.

Make sure that you can hear the fan in the machine spinning and that the exhaust outlet isn't blocked by something.

If the fan is spinning, remove any obstacles that surround the exhaust outlet, and then leave the machine turned on but do not use it for several minutes.

If the fan is not spinning follow the suggestions below.

Turn off the machine's power switch and then turn it on again. If the error message continues leave the machine for several minutes and then try it again.

Close the front cover of the machine.

Open the back cover, and then open the fuser cover. Remove jammed paper if there is any, and then close the fuser cover and the back cover.

Remove the document from the scanner glass, and then close the document cover.

Remove the document form the ADF, remove the document on the scanner glass, and then close the document cover.

See Document jams on page 62 or Using the ADF on page 10.

Error Message Cause Action

Drum Near End The drum unit is near the end of its

life.

The drum counter was not reset when a new drum was installed.

Duplex Disabled

(DCP-8065DN only)

Dust on Drum The primary corona wire on the

Fuser Error The temperature of fuser unit does

No Paper

No Tray The paper tray is not completely

Out of Memory The machine’s memory is full. Copy operation in progress

Paper Jam Back

Paper Jam Duplex

Paper Jam Inside

Paper Jam MPTray

The duplex tray is not installed properly.

drum unit needs to be cleaned.

not rise at a specified temperature within specified time.

The fuser unit is too hot. The machine is out of paper or

paper is not properly loaded in the paper tray.

closed.

The paper is jammed in the back of the machine.

The paper is jammed in the duplex tray.

The paper is jammed inside the machine.

The paper is jammed in the MP tray of the machine.

Use the drum unit until you have a print quality problem; then replace the drum unit with a new one.

See Replacing the drum unit (DR-520) on page 76

1. Open the front cover, and then press Clear/Back.

2. Press 1 to reset.

Remove the duplex tray and install it again.

Clean the primary corona wire on the drum unit. (See Cleaning the corona wire on page 71.)

Turn the power switch off, wait a few seconds, and then turn it on again. Leave the machine for 15 minutes with the power on.

Do one of the following:

 Refill the paper in the paper tray or MP tray.

 Remove the paper and load it again.

Close the paper tray properly.

Do one of the following:

 Press Start to copy the scanned pages.  Press Stop/Exit and wait until the other

operations in progress finish, and then try again.

Printing operation in process

Do one of the following:

 Reduce print resolution. (See Advanced tab

in the Software User’s Guide on the CD-ROM.)

 Clear the data from the memory by pressing

Job cancel.

(See Paper jams on page 63.)

Troubleshooting and routine maintenance

Error Message Cause Action

Paper Jam Tray1 Paper Jam Tray2

Replace Fuser It is time to replace the fuser unit. Call Brother Customer Service to replace the

Replace Laser It is time to replace the laser unit. Call Brother Customer Service to replace the

Replace PF Kit1

Replace PF Kit2

Replace PF KitMP

Scanner Locked

Toner Error The toner cartridge and drum unit

Toner Life End

Toner Low If the LCD shows Toner Low, you

Too Many Trays

Unable to Init.

(Initialize)

Unable to Print

Unable to Scan

The paper is jammed in the paper tray of the machine.

It is time to replace the paper feeding kit for Tray 1.

It is time to replace the paper feeding kit for Tray 2.

It is time to replace the paper feeding kit for the MP tray.

The scanner lock is locked. Open the document cover, then release the

assembly is not installed properly. The toner cartridge and drum unit

assembly is not installed properly, or the toner cartridge is used up and printing is not possible.

can still print; however, the machine is telling you that the toner cartridge is near the end of its life and the toner will soon run out.

More than one optional tray is installed.

The machine has a mechanical problem.

Document is too long for duplex scanning.

(See Paper jams on page 63.)

fuser unit.

laser unit. Call Brother Customer Service to replace the

PF Kit 1. Call Brother Customer Service to replace the

PF Kit 2. Call Brother Customer Service to replace the

PF Kit MP.

scanner lock lever, and press Stop/Exit. Reinstall the toner cartridge.

Do one of the following:

 Re-install the toner cartridge and drum unit

assembly.

 Replace the toner cartridge with a new one.

(See Replacing the toner cartridge (TN550/TN-580) on page 73.)

Order a new toner cartridge now.

The maximum number of optional trays is one. Remove any additional trays.

Turn off the machine’s power switch and then turn it on again. If the error message continues leave the machine for several minutes before you try to print, copy or scan again.

Turn off the machine's power switch and then turn it on again. If the error message continues leave the machine for several minutes and then try it again.

Press Stop/Exit. Use a suitable size of paper for duplex scanning. See Scan on page 94.

Document jams C

If the document is jammed, follow the steps below.

Document is jammed under the document cover C

a Take out any paper from the ADF that is

not jammed.

Document is jammed in the top of the ADF unit C

The document may get jammed if it is not inserted or fed properly, or if it is too long. Follow the steps below to clear a document jam.

a Take out any paper from the ADF that is

not jammed.

b Open the ADF cover. c Pull the jammed document out to the

left.

b Lift the document cover. c Pull the jammed document out to the

right.

d Close the document cover. e Press Stop/Exit.

Document is jammed at the output tray C

d Close the ADF cover. e Press Stop/Exit.

a Take out any paper from the ADF that is

not jammed.

b Pull the jammed document out to the

right.

c Press Stop/Exit.

Troubleshooting and routine maintenance

Document is jammed in the duplex slot (DCP-8065DN only) C

a Take out any paper from the ADF that is

not jammed.

b Pull the jammed document out to the

right.

c Press Stop/Exit.

Paper jams C

To clear paper jams, please follow the steps in this section.

Paper is jammed inside the machine C

HOT SURFACE

a Pull the paper tray completely out of the

machine.

b Use both hands to slowly pull out the

jammed paper.

c Press the cover release lever to open

the front cover.

d Slowly take out the drum unit and toner

cartridge assembly. The jammed paper may be pulled out with the toner cartridge and drum unit assembly, or this may release the paper so you can pull it out of the paper tray opening.

CAUTION

To prevent damage to the machine from static electricity, DO NOT touch the electrodes shown in the illustration.

e Put the drum unit and toner cartridge

assembly back in the machine.

f Close the front cover. g Put the paper tray firmly back in the

machine.

Troubleshooting and routine maintenance

Paper is jammed at the back of the machine C

a Press the cover release lever to open

the front cover.

b Take out the drum unit and toner

cartridge assembly.

d Pull the tabs at the left and right hand

sides toward you to open the fuser cover (1).

e Using both hands, gently pull the

jammed paper out of the fuser unit.

c Open the back cover.

f Close the back cover.

g Put the drum unit and toner cartridge

assembly back in the machine.

h Close the front cover.

Paper is jammed in the duplex tray (DCP-8065DN only) C

a Pull the duplex tray completely out of the

machine.

b Pull the jammed paper out of the

machine or the duplex tray.

c Put the duplex tray back in the machine.

Troubleshooting and routine maintenance

Paper is jammed inside the drum unit and toner cartridge assembly C

a Press the cover release lever to open

the front cover.

b Take out the drum unit and toner

cartridge assembly.

d Put the toner cartridge back into the

drum unit until you hear it lock into place. If you put it in properly, the lock lever will lift automatically.

e Put the drum unit and toner cartridge

assembly back in the machine.

c Hold down the lock lever on the right and

take the toner cartridge out of the drum unit.

Take out the jammed paper if there is any inside the drum unit.

f Close the front cover.

Routine maintenance C

Clean the outside of the machine as follows: C

CAUTION

The drum unit contains toner, so handle it carefully. If toner scatters on your hands or clothes, wipe or wash it off with cold water at once.

Cleaning the outside of the machine C

Use neutral detergents. Cleaning with volatile liquids such as thinner or benzine will damage the outside surface of the machine.

DO NOT use cleaning materials that contain ammonia.

DO NOT use isopropyl alcohol to remove dirt from the control panel. It may crack the panel.

CAUTION

a Pull the paper tray completely out of the

machine.

b Wipe the outside of the machine with a

soft cloth to remove dust.

c Remove anything that is stuck inside the

paper tray.

Troubleshooting and routine maintenance

d Wipe the inside of the paper tray with a

soft cloth to remove dust.

e Re-load the paper and put the paper tray

firmly back in the machine.

Cleaning the scanner glass C

a Turn off the machine’s power switch. b Lift the document cover (1).

Clean the white plastic surface (2) and scanner glass (3) underneath it with isopropyl alcohol on a soft lint-free cloth.

c In the ADF unit, clean the white plastic

bar (1) and the scanner glass strip (2) under it with isopropyl alcohol on a lintfree cloth.

Cleaning the laser scanner window C

DO NOT use isopropyl alcohol to clean the laser scanner window.

DO NOT touch the laser scanner window with your fingers.

CAUTION

a Turn off the machine’s power switch.

Unplug the power cord from the AC power outlet.

b Open the front cover and take out the

drum unit and toner cartridge assembly.

CAUTION

To prevent damage to the machine from static electricity, DO NOT touch the electrodes shown in the illustration.

c Gently clean the laser scanner window

(1) by wiping it with a clean soft, dry lintfree cloth. Do not use isopropyl alcohol.

HOT SURFACE

After you have just used the machine, some internal parts of the machine will be extremely hot. When you open the front cover of the machine, DO NOT touch the shaded parts shown in the illustration.

Troubleshooting and routine maintenance

d Put the drum unit and toner cartridge

assembly back into the machine.

e Close the front cover. f Plug the machine’s power cord back into

the AC power outlet. Turn on the machine’s power switch.

Cleaning the corona wire C

We recommend that you put the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.

a Open the front cover and take out the

drum unit and toner cartridge assembly.

b Clean the primary corona wire inside the

drum unit by gently sliding the blue tab from right to left and left to right several times.

c Return the blue tab and snap it into the

home position (b).

Cleaning the drum unit C

If you do not return the blue tab to the home position (b) your printed pages may have vertical black stripes on them.

CAUTION

d Put the drum unit and toner cartridge

assembly back in the machine.

e Close the front cover.

a Take out the drum unit and toner

cartridge assembly, and then take out the toner cartridge from the drum unit.

b Put the print sample in front of the drum

unit, and find the exact position of the poor print.

c Turn the white gear on the drum as you

check the surface of the OPC drum (1).

Troubleshooting and routine maintenance

d When you find the substance on the

drum surface that matches the print sample, gently dab the surface of the OPC drum with a cotton swab that is lightly dampened with isopropyl alcohol.

The OPC drum is photosensitive so do not touch it with your fingers.

Do not use a scrubbing or wiping motion because this might damage the drum.

DO NOT clean the surface of the OPC drum with a sharp object, such as a ballpoint pen, because this might cause permanent damage to the drum unit.

CAUTION

Replacing the toner cartridge (TN-550/TN-580) C

The TN-580 toner cartridge can print approximately 7,000 pages using a high yield toner cartridge. When the toner cartridge is running low, the LCD shows Toner Low. The machine is supplied with a standard TN-550 toner cartridge that must be replaced after approximately 3,500 pages. Actual page count will vary depending on your average type of document (i.e., standard letter, detailed graphics).

Note

It is a good idea to keep a new toner cartridge ready for use when you see the Toner Low warning.

Discard the used toner cartridge according to local regulations, keeping it separate from domestic waste. Be sure to seal up the toner cartridge tightly so that toner powder does not spill out of the cartridge. If you have questions, call your local waste disposal office.

We recommend that you clean the machine and corona wire of the drum unit when you replace the toner cartridge. (See Cleaning the

laser scanner window on page 70 and Cleaning the corona wire on page 71.)

Replacing the toner cartridge C

HOT SURFACE

CAUTION

To prevent damage to the machine from static electricity, DO NOT touch the electrodes shown in the illustration.

a Open the front cover and take out the

drum unit and toner cartridge assembly.

b Hold down the lock lever on the right and

take the toner cartridge out of the drum unit.

DO NOT put a toner cartridge into a fire. It could explode, resulting in injuries.

WARNING

Troubleshooting and routine maintenance

CAUTION

Put the drum unit on a drop cloth or large piece of disposable paper to avoid spilling and scattering the toner.

Handle the toner cartridge carefully. If toner scatters on your hands or clothes, wipe or wash it off with cold water at once.

CAUTION

Brother strongly recommends that you do not refill the toner cartridge provided with your machine. We also strongly recommend that you continue to use only Genuine Brother Brand replacement toner cartridges (TN-550/TN-580). Use or attempted use of potentially incompatible toner and/or cartridges in the Brother machine may cause damage to the machine and/or may result in unsatisfactory print quality. Our warranty coverage does not apply to any problem that is caused by the use of unauthorized third party toner and/or cartridges. To protect your investment and obtain premium performance from the Brother machine, we strongly recommend the use of Genuine Brother Supplies.

Wait to unpack the toner cartridge until immediately before you put it in the machine. If a toner cartridge is left unpacked for a long time, the toner life will be shortened.

c Unpack the new toner cartridge. Put the

used toner cartridge into the aluminum bag and discard it according to local regulations.

d Gently rock the toner cartridge from side

to side five or six times to spread the toner evenly inside the cartridge.

e Pull off the protective cover.

f Put the new toner cartridge firmly into

the drum unit until you hear it lock into place. If you put it in properly, the lock lever will lift automatically.

DO NOT touch the shaded parts shown in the illustrations to prevent any degradation to the print quality.

g Clean the primary corona wire inside the

drum unit by gently sliding the blue tab from left to right and right to left several times. Be sure to return the blue tab to the home position (b).

h Put the drum unit and toner cartridge

assembly back in the machine.

i Close the front cover.

Replacing the drum unit (DR-520) C

The machine uses a drum unit to create print images on paper. If the LCD shows Drum Near End, the drum unit is near the end of its life and it is time to buy a new one.

Even if the LCD shows Drum Near End, you may be able to continue printing without having to replace the drum unit for a while. However, if there is a noticeable deterioration in the output print quality (even before Drum Near End appears), then the drum unit should be replaced. You should clean the machine when you replace the drum unit. (See Cleaning the laser scanner window on page 70.)

While removing the drum unit, handle it carefully because it may contain toner. If toner scatters on your hands or clothes, wipe or wash it off with cold water at once.

CAUTION

Note

The drum unit is a consumable item, and it is necessary to replace it periodically. There are many factors that determine the actual drum life, such as temperature, humidity, type of paper and how much toner you use for the number of pages per print job. The estimated drum life is approximately 25,000 pages. The actual number of pages your drum will print may be significantly less than these estimates. Because we have no control over the many factors that determine the actual drum life, we cannot guarantee a minimum number of pages that will be printed by your drum.

Troubleshooting and routine maintenance

HOT SURFACE

a Open the front cover and take out the

drum unit and toner cartridge assembly.

CAUTION

To prevent damage to the printer from static electricity, DO NOT touch the electrodes shown in the illustration.

b Hold down the lock lever on the right and

take the toner cartridge out of the drum unit.

Note

Discard the used drum unit according to local regulations, keeping it separate from domestic waste. Be sure to seal up the drum unit tightly so that toner powder does not spill out of the unit. If you have questions, call your local waste disposal office.

CAUTION

Wait to unpack a new drum unit until immediately before installing it. Put the old drum unit into the plastic bag.

c Unpack the new drum unit. d Put the toner cartridge firmly into the

new drum unit until you hear it lock into place. If you put it in properly, the lock lever will lift automatically.

e Put the drum unit and toner cartridge

assembly back in the machine. Do not close the front cover.

Replacing periodic maintenance parts C

The periodic maintenance parts will need to be replaced regularly to maintain the print quality. The parts listed below will have to be replaced after printing approximately 100,000 pages. Please call Brother Customer Service when the following messages appear on the LCD.

LCD message Description

Replace PF KitMP

Replace PF Kit1

Replace PF Kit2

Replace Fuser Replace fuser unit. Replace Laser Replace laser unit.

Replace paper feeding kit for MP tray.

Replace paper feeding kit for Tray 1.

Replace paper feeding kit for Tray 2.

f Press Clear/Back.

Replace Drum?

a 1.Yes b

2.No

Select

ab & OK

To confirm you are installing a new drum, press 1.

g When the LCD shows Accepted, close

the front cover.

If toner scatters on your hands or clothes, wipe or wash it off with cold water at once.

CAUTION

Troubleshooting and routine maintenance

Packing and shipping the machine C

When you transport the machine, use the packing materials that came with your machine. If you do not pack the machine properly, you could void your warranty. The machine should be adequately insured with the carrier.

a Turn off the machine’s power switch. b Unplug all the cables and AC power

cord from the machine.

c Push the Scanner Lock Lever down to

lock the scanner. This lever is located on the left of the scanner glass.

h Wrap the machine in the plastic bag and

put it in the original carton with the original packing material.

i Pack the drum unit and toner cartridge

assembly, AC power cord and printed materials in the original carton as shown below.

Damage caused to your machine by failure to lock the scanner before packing and shipping may void your warranty.

CAUTION

d Open the front cover. e Take out the drum unit and toner

cartridge assembly. Leave the toner cartridge installed in the drum unit.

f Put the drum unit and toner cartridge

assembly into the plastic bag and seal the bag.

g Close the front cover.

Note

If you are returning your machine to Brother as part of the Exchange Service, pack only the machine. Keep all separate parts and printed materials to use with your ‘Exchange’ machine.

j Close the carton and tape it shut.

Machine Information C

Checking remaining life of parts C

Checking the serial number C

You can see the machine’s serial number on the LCD.

a (DCP-8060) Press Menu, 4, 1.

(DCP-8065DN) Press Menu, 5, 1.

51.Serial No.

XXXXXXXXX

b Press Stop/Exit.

Checking the page counters C

You can see the machine’s page counters for copies, printed pages, reports and lists or a summary total.

a (DCP-8060) Press Menu, 4, 2.

(DCP-8065DN) Press Menu, 5, 2. The LCD shows number of pages for Total and Copy.

52.Page Counter

a Total :XXXXXX b

Copy :XXXXXX

You can view the remaining life of maintenance parts on the LCD.

a (DCP–8060) Press Menu, 4, 3.

(DCP–8065DN) Press Menu, 5, 3.

53.Parts Life

1.Drum

2.Fuser

3.Laser

Select ab & OK

b Press a or b to select 1.Drum,

2.Fuser, 3.Laser, 4.PF Kit MP,

5.PF Kit 1 or 6.PF Kit 2.

Press OK.

53.Parts Life

1.Drum

Remaining:100%

Note

The life check of a part will be accurate only if you have reset that part’s life counter when you installed a new part. It will not be accurate if you have reset that part’s life counter during the life of a used part.

b Press a or b to see Print or List.

52.Page Counter

a Print :XXXXXX b

List :XXXXXX

c Press Stop/Exit.

Menu and Features D

On-screen programming

Your machine has been designed to be easy to use. The LCD provides on-screen programming using the menu keys.

We have created step by step on-screen instructions to help you program your machine. Simply follow the steps as they guide you through the menu selections and programming options.

Menu table D

You can program your machine without the User’s Guide by using the Menu table on page 83. These pages list the menu selections and options.

Press Menu followed by the menu numbers to program your machine.

For example, to set Beeper volume to Low.

a Press Menu, 1, 3. b Press a or b to choose Low. c Press OK.

Memory storage D

Menu keys D

Access the menu.

Go to the next menu level. Accept an option.

Exit the menu by pressing repeatedly.

Go back to the previous menu level.

Scroll through the current menu level.

Go back to the previous menu level or forward to the next menu level.

Exit the menu.

Your menu settings are stored permanently, and in the event of a power failure will not be lost. Temporary settings (for example, Contrast) will be lost.

To access the menu mode:

a Press Menu. b Choose an option.

 Press 1 for General Setup menu.  Press 2 for Copy menu.  Press 3 for Printer menu.

(DCP-8060)

 Press 4 for Machine Info menu.

(DCP-8065DN)

 Press 4 for LAN menu.  Press 5 for Machine Info menu.

You can scroll more quickly through each menu level by pressing a or b for the direction you want.

c Press OK when the option you want is

highlighted on the LCD. The LCD will then show the next menu level.

d Press a or b to scroll to your next menu

selection.

e Press OK.

When you have finished setting an option, the LCD shows Accepted.

Menu and Features

Menu Table D

The factory settings are shown in Bold with an asterisk.

Choose & OK Choose & OK to accept to exit

Main Menu Submenu Menu Selections Options Descriptions Page

1.General Setup

1.Paper Type 1.MP Tray Thin

Plain*

Thick

Thicker

Transparency

Recycled Paper

2.Tray#1 Thin

Plain*

Thick

Thicker

Transparency

Recycled Paper

3.Tray#2

(This menu only appears if you have the optional tray #2)

Thin

Plain*

Thick

Thicker

Recycled Paper

Sets the type of paper in the MP tray.

Sets the type of paper in the paper tray.

Sets the type of paper in the optional paper tray #2.

Main Menu Submenu Menu Selections Options Descriptions Page

1.General Setup

(Continued)

2.Paper Size 1.MP Tray A4

Letter*

Legal

Executive

Folio

Any

2.Tray#1 A4

Letter*

Legal

Executive

Folio

3.Tray#2

(This menu only appears if you have the optional tray #2)

3.Beeper — Off

4.Ecology 1.Toner Save On

2.Sleep Time (0-99)

Letter*

Legal

Executive

Folio

Low

Med*

High

Off*

05 Min*

Sets the size of the paper in the MP tray.

Sets the size of the paper in the paper tray.

Sets the size of the paper in the optional paper tray #2.

Adjusts the volume level of the beeper.

Increases the page yield of the toner cartridge.

Conserves power. 19

Menu and Features

Main Menu Submenu Menu Selections Options Descriptions Page

1.General Setup

(Continued)

5.Tray Use 1.Copy Tray#1 Only

Tray#2 Only

MP Only

MP>T1>T2*

T1>T2>MP

(Tray#2 or T2 appears only if you installed the optional paper tray.)

2.Print Tray#1 Only

Tray#2 Only

MP Only

MP>T1>T2*

T1>T2>MP

(Tray#2 or T2 appears only if you installed the optional paper tray.)

6.LCD Contrast

7.Function Lock

8.User Settings

0.Local Language

(Canada only)

— -nnnno+

-nnnon+

-nnonn+*

-nonnn+

-onnnn+

— — Can restrict selected

— — You can print a list of your

— English*

Français

Selects the tray that will be used for Copy mode.

Selects the tray that will be used for PCprint.

Adjusts the contrast of the LCD.

machine operation for up to 25 individual users and all other non-authorized Public users.

settings. Allows you to change the

LCD language for your country.

See Quick Setup

Guide.

Main Menu Submenu Menu Selections Options Descriptions Page

2.Copy 1.Quality — Auto*


Text

2.FB Txt Quality

3.Contrast — -nnnno+

3.Printer 1.Emulation — Auto (EPSON)*

2.Print Options

3.Reset Printer

— 1200×600dpi

600dpi*

-nnnon+

-nnonn+*

-nonnn+

-onnnn+

Auto (IBM)

HP LaserJet

BR-Script 3

Epson FX-850

IBM Proprinter

1.Internal Font — Prints a list of the

2.Configuration — Prints a list of the

— 1.Reset

2.Exit

You can choose the Copy resolution for your type of document.

You can change to the higher Copy resolution when you make a text copy with 100% ratio using the scanner glass.

Adjusts the contrast for copies.

Chooses the emulation mode.

machine’s internal fonts.

machine’s printer settings. Returns the PCL setting to

the default settings.

See Software User’s Guide on the CD-ROM.

Menu and Features

Main Menu Submenu Menu Selections Options Descriptions Page

4.LAN

(DCP

–

8065DN)

1.TCP/IP 1.BOOT Method Auto*

Static

RARP

BOOTP

DHCP

2.IP Address [000-255]. [000-255]. [000-255]. [000-255]

3.Subnet Mask [000-255]. [000-255]. [000-255]. [000-255]

4.Gateway [000-255]. [000-255]. [000-255]. [000-255]

5.Node Name BRN_XXXXXX

6.WINS Config Auto*

Static

7.WINS Server (Primary)

000.000.000.000

(Secondary)

000.000.000.000

8.DNS Server (Primary)

000.000.000.000

(Secondary)

000.000.000.000

9.APIPA On*

Off

0.IPv6 On

Off*

2.Ethernet — Auto*

100B-FD

100B-HD

10B-FD

10B-HD

Chooses the BOOT method that best suits your needs.

Enter the IP address.

Enter the Subnet mask.

Enter the Gateway address.

Enter the Node name.

Chooses the WINS configuration mode.

Specifies the IP address of the primary or secondary WINS server.

Specifies the IP address of the primary or secondary DNS server.

Automatically allocates the IP address from the link-local address range.

Chooses the Ethernet link mode.

See Network User’s Guide on the CD-ROM.

Main Menu Submenu Menu Selections Options Descriptions Page

4.LAN

(DCP

–

8065DN)

(Continued)

3.Scan to FTP

0.Factory Reset

1.Color PDF*

JPEG

2.B/W PDF*

TIFF

1.Reset 1.Yes

2.No

Chooses the file format to send the scanned data.

Restores all network settings to factory default.

2.Exit —

4.Machine Info.

(DCP–8060)

5.Machine Info.

(DCP

–

8065DN)

1.Serial No. ——

2.Page Counter

— Total

Copy

List

3.Parts Life 1.Drum

—

2.Fuser

3.Laser

4.PF Kit MP

You can check the serial number of your machine.

You can check the number of total pages the machine has printed during its life.

You can check the percentage of a machine part’s life that remains available.

PF Kit 2 appears only when the optional LT-5300 tray is installed.

5.PF Kit 1

6.PF Kit 2

See Network User’s Guide on the C D-ROM.

Brother DCP-8060, DCP 8065DN User Manual 2
