BMW K 1200 R 3rd 2006 Owner's manual

Page 1
Rider's Manual
K 1200 R
BMW Motorrad
The Ultimate Riding
Machine
Page 2
Motorcycle data/dealership details
Motorcycle data
Model
Colour code
Date of first registration
Registration number
Dealership details
Person to contact in Service depart­ment
Ms/Mr
Phone number
Dealership address/phone number (company stamp)
Page 3

Welcome to BMW

We congratulate you on your choice of a motorcycle from BMW and welcome you to the community of BMW riders. Familiarise yourself with your new motorcycle so that you can ride it safely and confid­ently in all traffic situations. Please read this Rider's Manual carefully before starting to use your new BMW motorcycle. It contains important information on how to operate the controls and how to make the best possible use of all your BMW's technical features. In addition, it contains inform­ation on maintenance and care to help you maintain your motorcycle's reliability and safety, as well as its value. If you have questions con­cerning your motorcycle, your
authorised BMW Motorrad dealer will gladly provide ad­vice and assistance.
We hope that you will enjoy riding your BMW and that all your journeys will be pleasant and safe.
BMW Motorrad.
Page 4

Table of Contents

You can also consult the in­dex at the end of this Rider's Manual if you want to find a particular topic or item of in­formation.
1 General instructions . . . 5
Overview . . ............... 6
Abbreviations and
symbols . . ................ 6
Equipment ............... 7
Technical data ........... 7
Currency .. ............... 7
2 General views . . . . . .... 9
General view, left side . . . 11 General view, right
side..................... 13
Underneath the seat . . . . . 15
Handlebar fitting, left . . . . . 16
Handlebar fitting, right . . . 17
Instrument cluster . . .. . . . 18
Headlight . .............. 19
3 Status indicators . . . . . 21
Multifunction display . . . . . 22
Warning and telltale
lights . . . . . .............. 22
ABS warning light
OE
..... 22
Function indicators . . . . . . 22
Warnings, general . . . . . . . 23
Warnings issued by the tyre pressure monitoring system (RDC) ABS warnings
OE
......... 31
OE
......... 35
4 Operation . . . .......... 39
Ignition switch and
steering lock . . .......... 40
Electronic immobiliser
(EWS) . . . .. .............. 41
Hazard warning
flashers . . . .............. 42
Odometer and
tripmeters . .............. 43
Clock . . . . . .............. 44
Tyre pressure control
OE
RDC
.................. 46
OE
On-board computer
... 46 Emergency off switch (kill
switch) . . . . .............. 50
Grip heating
OE
........... 50
Clutch . . . . .............. 51
Brakes . . . . .............. 51
Lights . . . . . .............. 52
Headlight . .............. 53
Turn indicators .......... 53
Seat . . . . . . .............. 54
Helmet holder . .......... 56
Luggage loops .......... 57
Mirrors . . . . .............. 57
Spring preload .......... 58
Shock absorbers . . . . . . . . 59
Electronic Suspension Adjustment ESA
OE
....... 60
Tyres . . . . . .............. 62
5 Riding . . .............. 63
Safety instructions . . . . . . . 64
Checklist . . .............. 66
Starting . . . .............. 66
Running in .............. 68
Page 5
Parking your
motorcycle . . .. .......... 69
Refuelling . . . . . .......... 71
Tyre pressure control
OE
RDC
.................. 72
Brake system, general . .. 73 Brake system with BMW Motorrad Integral
OE
ABS
.................. 74
6 Accessories .......... 79
General instructions . . . . . 80
Power socket . .......... 80
Luggage . . . . . . .......... 81
OA
Case
................. 81
7 Maintenance . . . . . . . . . 85
General instructions . . . . . 86
Toolkit . ................. 86
Engine oil . . . . . .......... 87
Brake system, general . .. 89
Brake pads. . . . .......... 90
Brake fluid . .. . .......... 91
Clutch . ................. 94
Tyres . . ................. 95
Rims . .. ................. 95
Wheels. ................. 95
Front-wheel stand . ..... 104
Rear-wheel stand . . ..... 105
Bulbs . . ................ 107
Jump start . . . . ......... 114
Battery . ................ 115
8 Care . ................ 121
Care products . ......... 122
Washing motorcycle . . . . 122
Cleaning easily damaged
components. . . ......... 123
Paint care . . .. . ......... 124
Protective wax
coating ................ 124
Laying up the
motorcycle . . .. ......... 124
Restoring motorcycle to
use .................... 125
9 Technical data . . ..... 127
Troubleshooting
chart . . . ................ 128
Threaded fasteners ..... 129
Engine . ................ 130
Riding specifications . . . . 133
Clutch . ................ 133
Transmission . . ......... 133
Final drive . . . . . ......... 135
Running gear . . ......... 135
Brakes . ................ 136
Wheels and tyres . . ..... 136
Electrics . . . . . . ......... 137
Frame. . ................ 139
Dimensions . . . ......... 139
Weights ................ 140
10 Service . . . . ......... 141
BMW Motorrad
service . ................ 142
BMW Motorrad service
quality . ................ 142
BMW Motorrad Service Card - On-the-spot breakdown
assistance . . . . ......... 143
BMW Motorrad service
network ................ 143
Maintenance work . ..... 143
Maintenance
schedules . . . . . ......... 144
Confirmation of
maintenance work . ..... 145
Page 6
Confirmation of
service . . . . ............. 150
Page 7
General instructions
Overview. . . . . . . . . . . . . . . . . . . . . . . . 6
Abbreviations and symbols . . . . . . 6
Equipment . . . . . .. . . . . . . . . . . . . . . . 7
Technical data . .. . . . . . . . . . . . . . . . 7
Currency . . . . . . . . . . . . . . . . . . . . . . . . 7
1
5
z
General instructions
Page 8

Overview

1
Chapter 2 of this Rider's Manual will provide you with
6
an initial overview of your motorcycle. All maintenance and servicing work on the motorcycle is documented in Chapter 10. This record of the maintenance work you have had performed on your motorcycle is a precondition for generous treatment of goodwill claims. When the time comes to sell your BMW, please remem­ber to hand over this Rider's Manual; it is an important part
z
General instructions
of the motorcycle.

Abbreviations and symbols

Indicates warnings that
you must comply with for reasons of your safety and the safety of others, and to pro-
tect your motorcycle against damage.
Specific instructions on
how to operate, control, adjust or look after items of equipment on the motorcycle.
Indicates the end of an item of information.
Instruction.
Result of an activity.
Reference to a page with more detailed in­formation.
Indicates the end of a passage relating to specific accessories or items of equipment.
Tightening torque.
Item of technical data.
OE Optional extra
Your motorcycle was assembled complete with all the BMW optional extras you ordered.
OA Optional accessory
You can obtain option­al accessories through your authorised BMW Motorrad dealer; op­tional accessories have to be retrofitted to the motorcycle.
Electronic immobiliser
EWS
(Elektronische Weg­fahrsicherung).
Page 9
ESA Electronic Suspension
Adjustment Electronic Suspension Adjustment.
DWA
Anti-theft alarm (Diebs­tahlwarnanlage)
Anti-lock brake system
ABS
Tyre pressure control
RDC
(ReifenDruck-Control)

Equipment

When you ordered your BMW motorcycle, you chose vari­ous items of custom equip­ment. This Rider's Manual describes optional extras (OE) offered by BMW and selec­ted optional accessories (OA). This explains why the manual may also contain descriptions of equipment which you have not ordered. Please note, too, that your motorcycle might
not be exactly as illustrated in this manual on account of country-specific differences. If your BMW was supplied with equipment not described in this Rider's Manual, you will find these features described in separate manuals.

Technical data

All dimensions, weights and power ratings stated in the Rider's Manual are quoted to the standards and comply with the tolerance require­ments of the Deutsche Institut für Normung e.V. (DIN). Ver­sions for individual countries may differ.

Currency

The high safety and quality standards of BMW motor­cycles are maintained by con­stant development work on designs, equipment and ac-
cessories. Because of this, your motorcycle may differ from the information supplied in the Rider's Manual. Nor can errors and omissions be entirely ruled out. We hope you will appreciate that no claims can be entertained on the basis of the data, illustra­tions or descriptions in this manual.
1
7
z
General instructions
Page 10
1
8
z
General instructions
Page 11
General views
General view, left side . . . . . . . . . 11
General view, right side . . . . . . . . 13
Underneath the seat . . . . . . . . . . . 15
Handlebar fitting, left . . . . . . . . . . 16
Handlebar fitting, right . . . . . . . . . 17
Instrument cluster . . . . . . . . . . . . . 18
Headlight . . . . . . . . . . . . . . . . . . . . . 19
2
9
z
General views
Page 12
2
10
z
General views
Page 13

General view, left side

1 Clutch-fluid reservoir
( 94)
2 Adjuster, spring preload,
rear ( 58)
3 Seat lock, beneath rear
light ( 54)
4 Adjuster, rear shock ab-
sorber ( 59)
5 Power socket ( 80)
2
11
z
General views
Page 14
2
12
z
General views
Page 15

General view, right side

1 Indicator for engine oil
level ( 87)
2 Filler neck, fuel ( 71) 3 Battery compartment
( 118)
4 Brake-fluid reservoir,
front ( 91)
5 Type plate 6 Vehicle identification
number
7 Brake-fluid reservoir, rear
( 93)
2
13
z
General views
Page 16
2
14
z
General views
Page 17

Underneath the seat

1 Filler neck, engine oil
( 88)
2 Toolkit ( 86) 3 Helmet holder ( 56)
2
15
z
General views
Page 18

Handlebar fitting, left

2
1 INFO button for odomet-
16
z
er ( 43), INFO button for on-board computer ( 46)
2 Pushbutton, ESA
( 60)
3 Pushbutton, horn 4 Pushbutton, left flashing
turn indicators ( 53), Pushbutton, hazard warning flashers ( 42)
5 Switch, high-beam head-
light and headlight flash-
General views
er ( 52)
OE
OE
Page 19

Handlebar fitting, right

1 Emergency off switch (kill
switch) ( 50)
2 Pushbutton, starter
( 66)
3 Grip heating switch
( 50)
4 Pushbutton, right flashing
turn indicators ( 54), Pushbutton, hazard warning flashers ( 42)
5 Cancel button, flashing
turn indicators ( 54), Pushbutton, cancel hazard warning flashers ( 43)
OE
2
17
z
General views
Page 20

Instrument cluster

2
1 Speedometer 2 Rev. counter
18
3 Warning and telltale
lights ( 22)
4 Multifunction display
( 22)
5 Telltale light, anti-theft
alarm (OE) and sensor for instrument lighting
6 Control, odometer
( 43)
z
General views
The instrument-cluster lighting has automatic
day and night switchover.
Page 21

Headlight

1 High-beam headlights 2 Low-beam headlight 3 Parking light
2
19
z
General views
Page 22
2
20
z
General views
Page 23
Status indicators
Multifunction display. . . . . . . . . . . 22
Warning and telltale lights . . . . . . 22
ABS warning light
Function indicators . . . . . . . . . . . . 22
Warnings, general . . . . . . . . . . . . . 23
Warnings issued by the tyre pressure monitoring system
OE
(RDC)
ABS warnings
....................... 31
OE
........... 22
OE
............... 35
3
21
z
Status indicators
Page 24

Multifunction display

3
22
1 Clock ( 44), Panel for
RDC status indicators ( 46), Panel for oil-level information
2 Panel for warnings
z
Status indicators
( 23)
3 Panel for the on-board
computer's status indic-
OE
ators
4 Gear indicator ( 22) 5 Coolant temperature
readout ( 23)
6 Panel for ESA status in-
dicators
( 46)
OE
OE
( 49)
( 60)
7 Odometer reading
( 43)
8 Fuel gauge ( 22)

Warning and telltale lights

OE
1 Telltale light, left turn in-
dicator
2 Telltale light, high-beam
headlight
3 Warning light, general 4 Telltale light, neutral 5 Warning light, ABS (OE) 6 Telltale light, right turn
indicator
ABS warning light
The way in which the ABS warning light indicates status can differ in some countries.
Possible national variant.
OE

Function indicators

Fuel capacity
The horizontal bars be-
low the fuel-pump sym­bol indicate the remaining quantity of fuel.
Gear
Shows which gear is en-
gaged. If no gear is engaged, the gear indicator shows N and the 'neutral' telltale light also lights up.
Page 25
Coolant temperature
The horizontal bars
below the temperature symbol indicate the coolant temperature.

Warnings, general

Mode of presentation
General warnings are dis­played by means of warn­ing lights or by messages and symbols in the multifunc­tion display. In some cases, they are accompanied by the 'General' warning light show­ing red or yellow. If two or more warnings occur at the same time, all the appropri­ate telltale lights and warning symbols appear. Warnings in plain-text form alternate.
3
23
z
Status indicators
Page 26
Warnings, overview
3
Mode of presentation Meaning
24
z
Status indicators
Lights up yellow The EWS! warn-
Lights up yellow The
Lights up red Temperature
Lights up yellow Appears on the
Flashes red Appears on the
ing appears on the display.
FUEL!
warning flashes.
reading flashes
display
display
Shows accom­panied by the
CHECK OIL
warning
Lights up red Appears on the
Lights up yellow The
display
LAMPR!
warning appears on the display.
Electronic immobiliser active ( 26)
Fuel down to reserve ( 26)
Coolant temperature too high ( 26)
Engine electronics ( 27)
Insufficient engine oil pressure ( 27)
Engine-oil level too low ( 28)
Insufficient battery charge current ( 28)
Rear light bulb defective ( 29)
Page 27
Mode of presentation Meaning
The LAMPF! warning appears on the display.
Lights up yellow The
warning appears on the display.
Appears on the display
The warning appears on the display.
Lights up yellow The
ing appears on the display.
LAMPS!
DWALO!
DWA! warn-
Front light bulb defective ( 29)
Bulbs defective ( 29)
Ice warning ( 30)
Battery of anti-theft alarm (OE) weak ( 30)
Anti-theft alarm battery flat (OE) ( 30)
3
25
z
Status indicators
Page 28
Electronic immobiliser active
3
26
z
Status indicators
General warning light lights up yellow.
The
EWS! warning appears
on the display. The key being used is not au­thorised for starting, or com­munication between key and engine electronics is disrup­ted.
Remove all other vehicle keys from the same ring as the ignition key. Use the reserve key. Have the defective key re­placed, preferably by an authorised BMW Motorrad dealer.
Fuel down to reserve
General warning light lights up yellow.
The
FUEL! warning flashes.
Lack of fuel can result
in the engine misfiring and cutting out unexpectedly. Misfiring can damage the catalytic converter; a hazard­ous situation can result if the engine cuts out unexpectedly. Do not run the fuel tank dry.

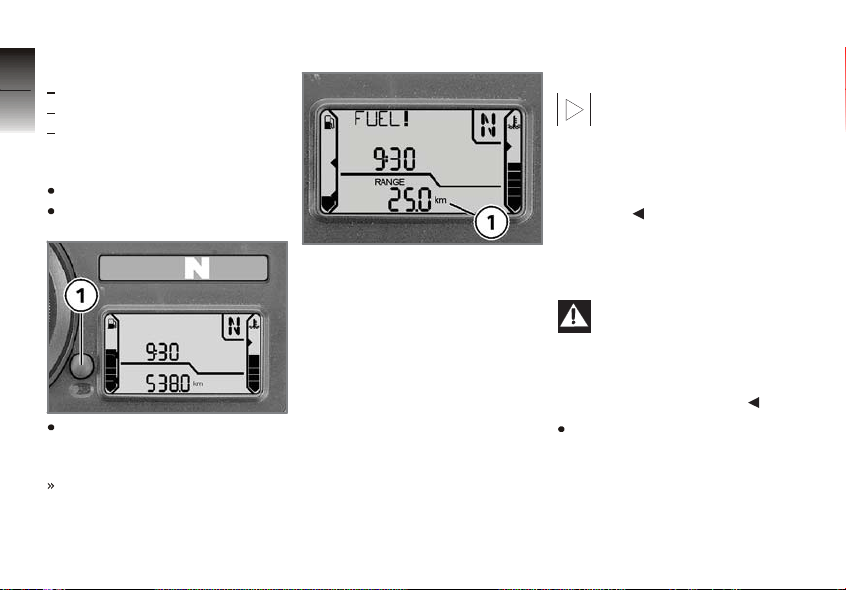

The estimated residual
range appears on the display.
The fuel tank contains no more than the reserve quant­ity of fuel.
Reserve fuel
4l
Refuelling ( 71)
Coolant temperature too high
General warning light lights up red.
The temperature reading flashes.
Continuing to ride when
the engine is overheated could result in engine dam­age. You must comply with the in­structions below.
The coolant temperature is too high.
If possible, ride in the part­load range to cool down the engine. In traffic jams, switch off the engine, but leave the igni­tion switched on so that the radiator fan continues to op­erate. If the coolant temperature is frequently too high, have
Page 29
the fault rectified as soon as possible by a special­ist workshop, preferably an authorised BMW Motorrad dealer.
Engine electronics
General warning light lights up yellow.
Engine electronics sym­bol appears on the dis-
play.
The engine is running
in emergency operating mode. Engine power might be reduced and this can cause hazardous situations, particularly if you attempt to overtake other road users. Engine power level might be lower than normal: adapt your style of riding accordingly.
The engine electronics control unit has diagnosed a fault. In exceptional cases, the engine stops and refuses to start. Otherwise, the engine runs in emergency operating mode.
You can continue to ride, but bear in mind that the usual engine power might not be available. Have the fault rectified as quickly as possible by a specialist workshop, prefer­ably an authorised BMW Motorrad dealer.
Insufficient engine oil pressure
General warning light flashes red.
Engine oil pressure sym­bol appears on the dis-
play.
The oil pressure in the lube­oil system is too low. Stop
immediately and switch off the engine if the warning light shows.
The insufficient oil
pressure warning does not fulfil the function of an oil gauge. The only way of checking whether the oil level is correct is to check the oil level indicator.
A low oil level is one reason why a warning indicating in­sufficient oil pressure is is­sued.
Checking engine oil level ( 87)
If the oil level is too low:
Top up the engine oil ( 88)
If the warning indicating in­sufficient engine oil level is issued and a check indicates that the engine oil level is cor­rect:
3
27
z
Status indicators
Page 30
Other engine problems
3
28
z
Status indicators
besides a low oil level can cause the insufficient en­gine oil pressure warning to be issued. Continuing to ride in these cases can cause en­gine damage. If this warning is issued even though the engine oil level is correct: do not continue to ride.
Do not continue your jour­ney. Have the fault rectified as quickly as possible by a specialist workshop, prefer­ably an authorised BMW Motorrad dealer.
Engine-oil level too low
Symbol for oil level
shows, accompanied by the
CHECK OIL warning.
The electronic oil-level sensor has registered an excessively low oil level.
Checking the oil sight glass is the only way of ascertaining the exact engine-oil level. The next time you stop for fuel:
Checking engine oil level ( 87)
If the oil level is too low:
Top up the engine oil ( 88)
The oil sensor might be defective if the "Check oil level" message appears even though a check of the oil sight glass shows that the oil level is correct.
Seek the advice of a spe­cialist workshop, preferably an authorised BMW Motor­rad dealer.
Insufficient battery charge current
General warning light lights up red.
Battery charge current symbol is displayed.
A discharged battery can
cause the engine to die suddenly, and this could res­ult in a dangerous situation in traffic. Have faults rectified as soon as possible.
If the battery is not char-
ging, continuing to ride can cause it to discharge completely, in which case it will suffer irreparable damage. If possible, do not continue your journey.
Battery is not being charged.
You can continue to ride until the battery is discharged. Bear in mind, however, that the engine could cut out suddenly and that the battery could discharge until completely flat, in which case it might
Page 31
have suffered irreparable damage. Have the fault rectified as quickly as possible by a specialist workshop, prefer­ably an authorised BMW Motorrad dealer.
Rear light bulb defective
General warning light lights up yellow.
The
LAMPR! warning ap-
pears on the display.
A defective bulb places
your safety at risk be­cause it is easier for other users to oversee you and your motorcycle. Replace defective bulbs as soon as possible; always carry a complete set of spare bulbs if possible.
Rear light or brake light bulb defective.
Replacing brake light and rear light bulb ( 111)
Front light bulb defective
The
LAMPF! warning ap-
pears on the display.
A defective bulb places
your safety at risk be­cause it is easier for other users to oversee you and your motorcycle. Replace defective bulbs as soon as possible; always carry a complete set of spare bulbs if possible.
Low-beam headlight, high­beam headlight, side-light or turn-indicator bulb defective.
Replacing low-beam and high-beam headlight bulb ( 107) Replacing parking-light bulb ( 109)
Replacing turn indicator bulbs, front and rear ( 113)
Bulbs defective
General warning light lights up yellow.
The
LAMPS! warning ap-
pears on the display.
A defective bulb places
your safety at risk be­cause it is easier for other users to oversee you and your motorcycle. Replace defective bulbs as soon as possible; always carry a complete set of spare bulbs if possible.
A combination of the bulb de­fects described above has occurred.
See the fault descriptions above.
3
29
z
Status indicators
Page 32
Ice warning
3
30
z
Status indicators
Ice warning symbol ap­pears on the display.
The air temperature measured at the motorcycle is lower than 3 °C.
The ice warning does
not mean that there is no risk of black ice forming at measured temperatures above 3 °C. Always take extra care and think well ahead when tem­peratures are low; remember that the danger of black ice is particularly high on bridges and where the road is in the shade.
Ride carefully and think well ahead.
Battery of anti-theft alarm (OE) weak
The
DWALO! warning ap-
pears on the display.
This error message
appears only briefly after the pre-ride check completes.
The integral battery in the anti-theft alarm has lost a sig­nificant proportion of its ori­ginal capacity. There is no assurance of how long the anti-theft alarm can remain operational if the motorcycle's battery is disconnected.
Seek the advice of a spe­cialist workshop, preferably an authorised BMW Motor­rad dealer.
Anti-theft alarm battery flat (OE)
General warning light
lights up yellow.
The
DWA! warning appears
on the display.
The integral battery in the anti-theft alarm has lost its entire original capacity. There is no assurance that the anti­theft alarm will be operational if the motorcycle's battery is disconnected.
Seek the advice of a spe­cialist workshop, preferably an authorised BMW Motor­rad dealer.
Page 33

Warnings issued by the tyre pressure monitoring system (RDC)

Display mode for RDC warnings

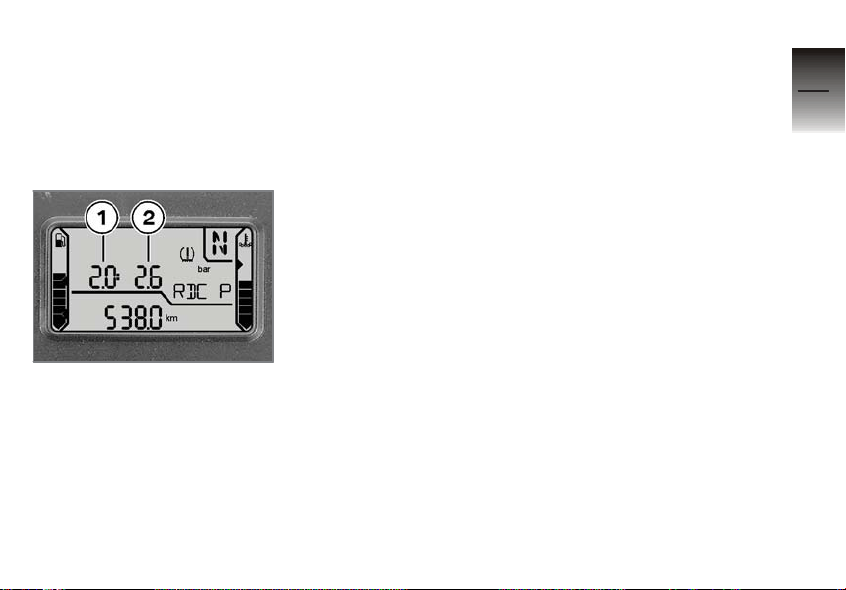

The tyre pressure for the front wheel 1 and the tyre pres­sure for the rear wheel 2 ap­pear in the panel for the clock or the on-board computer, accompanied by the letters
OE
RDC. The critical tyre pres-
sure flashes.
If the critical value is close to the limit of the permissible tol­erance range, the reading is accompanied by the 'Gen­eral' warning light showing yellow. If the tyre pressure re­gistered by the sensor is out­side the permissible tolerance range, the 'General' warning light flashes red.
3
31
z
Status indicators
Page 34
Warnings, overview
3
Mode of presentation Meaning
32
Lights up yellow The critical tyre
pressure flashes
Flashes red The critical tyre
pressure flashes
-- or -- -- ap-
pears on the dis­play.
Lights up yellow
Lights up yellow Indicated by the
z
Status indicators
Indicated by or -- --
letters
RDC! ap-
pearing on the display.
--
Tyre pressure close to limit of per­mitted tolerance ( 33)
Tyre pressure outside permitted tol­erance ( 33)
Signal transmission disrupted ( 34)
Sensor defective or system error ( 34)
Tyre-pressure sensor battery weak ( 35)
Page 35
Tyre pressure close to limit of permitted tolerance
General warning light lights up yellow.
The critical tyre pressure flashes.
Measured tyre pressure is close to the limit of permitted tolerance.
Correct the tyre pressure as stated on the inside cover of the Rider's Manual.
The tyre-pressures listed
on the inside cover are temperature-compensated; the reference tyre temperat­ure for these readings is al­ways 20 °C. The procedure for correctly tyre pressures when the tyres are not at this reference temperature is as follows: Calculate the difference between the specified value stated in the Rider's Manual
and the reading shown by the RDC system. Use the public air line at a petrol station or motorway service area to adjust the tyre pressure by this amount.
Tyre pressure outside permitted tolerance
General warning light flashes red.
The critical tyre pressure flashes.
Measured tyre pressure is outside permitted tolerance.
Check the tyre for damage and to ascertain wheth­er the motorcycle can be ridden with the tyre in its
present condition. If the motorcycle can be rid­den with the tyre in its present condition:
Incorrect tyre pressures
impair the motorcycle's handling characteristics. If tyre pressure is incorrect it is essential to adapt your style of riding accordingly.
Correct the tyre pressure at the earliest possible oppor­tunity. Have the tyre checked for damage by a specialist workshop, preferably an authorised BMW Motorrad
dealer. If you are unsure whether the motorcycle can be ridden with the tyre in its present condi­tion:
Do not continue your jour-
ney.
Notify the breakdown ser-
vice.
Have the tyre checked for
damage by a specialist
workshop, preferably an
3
33
z
Status indicators
Page 36
authorised BMW Motorrad dealer.
3
34
Signal transmission disrupted
-- or -- -- appears on the
display. The motorcycle has not yet accelerated past the threshold of approximately 30 km/h. The RDC sensors do not start transmitting signals until the motorcycle reaches a speed above this threshold ( 72).
Increase speed above this
z
Status indicators
threshold observe the RDC readings. Assume that a permanent fault has not oc­curred unless the 'General' warning light comes on to accompany the symptoms. Under these circumstances: Have the fault rectified by a specialist workshop, prefer-
ably an authorised BMW Motorrad dealer.
Wireless communication with the RDC sensors has been disrupted. Possible causes include radio-communication systems operating in the vi­cinity and interfering with the link between the RDC control unit and the sensors.
Move to another location and observe the RDC read­ings. Assume that a per­manent fault has not oc­curred unless the 'General' warning light comes on to accompany the symptoms. Under these circumstances: Have the fault rectified by a specialist workshop, prefer­ably an authorised BMW Motorrad dealer.
Sensor defective or system
error
General warning light lights up yellow.
Indicated by
.
--
Motorcycle is fitted with
tyres not equipped with RDC
sensors.
Fit wheels and tyres equipped with RDC sensors.
One or two RDC sensors
have failed.
Have the fault rectified by a specialist workshop, prefer­ably an authorised BMW Motorrad dealer.
A system error has occurred.
Have the fault rectified by a specialist workshop, prefer­ably an authorised BMW Motorrad dealer.
-- or --
Page 37
Tyre-pressure sensor battery weak
General warning light lights up yellow.
Indicated by the letters
RDC! appearing on the
display.
This error message
appears only briefly after the pre-ride check completes.
The integral battery in the tyre-pressure sensor has lost a significant proportion of its original capacity. There is no assurance of how long the tyre pressure control system can remain operational.
Seek the advice of a spe­cialist workshop, preferably an authorised BMW Motor­rad dealer.
ABS warnings
Mode of presentation
ABS warnings are indic-
ated by the ABS warning light. The warning light can show continuously or flash. The way in which the ABS warning light indicates status can differ in some countries.
Possible national variant.
OE
3
35
z
Status indicators
Page 38
Warnings, overview
3
Mode of presentation Meaning
36
z
Status indicators
Flashes
Lights up
Self-diagnosis not completed ( 37)
ABS fault ( 37)
Page 39
Self-diagnosis not completed
ABS warning light flashes.
The ABS function is not avail­able, because self-diagnosis did not complete. The mo­torcycle has to move forward a few metres for the wheel sensors to be tested.
Pull away slowly. Bear in mind that the ABS function is not available until self­diagnosis has completed.
ABS fault
ABS warning light ON.
The ABS control unit has de­tected a fault. The ABS func­tion is not available.
You can continue to ride. Bear in mind that the ABS function is not available. Bear in mind the more de-
tailed information on situ­ations that can lead to an ABS fault ( 76). Have the fault rectified as quickly as possible by a specialist workshop, prefer­ably an authorised BMW Motorrad dealer.
3
37
z
Status indicators
Page 40
3
38
z
Status indicators
Page 41
Operation
Ignition switch and steering
lock . . . . . . . . . . . . .. . . . . . . . . . . . . . 40
Electronic immobiliser (EWS) . . . 41
Hazard warning flashers . . . . . . . 42
Odometer and tripmeters . . . . . . 43
Clock . . . . . . . . . . . . . . . . . . . . . . . . . 44
Tyre pressure control RDC
On-board computer
OE
OE
......... 46
.. 46
Emergency off switch (kill
switch) .. . . . . . . . . . . . . . . . . . . . . . . 50
Grip heating
OE
................ 50
Clutch . . . . . . . . . . . . . . . . . . . . . . . . 51
Brakes . . . . . . . . . . . . . . . . . . . . . .. . 51
Lights . . . . . . . . . . . . . . . . . . . . . . .. . 52
Headlight . . . . . . . . . . . . . . . . . . . . . 53
Turn indicators . . . . . . . . . . . . . . . . 53
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Helmet holder . . . . . . . . . . . . . . . . . 56
Luggage loops . . . . . . . . . . . . . . . . 57
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . 57
Spring preload . . . . . . . . . . . . . . . . 58
Shock absorbers . . . . . . . . . . . . . . 59
Electronic Suspension Adjustment ESA
OE
............ 60
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . 62
4
39
z
Operation
Page 42
Ignition switch and
4
steering lock
40
Keys
You receive one master key and one spare key. Please consult the information on the electronic immobiliser (EWS) if a key is lost or mis­laid ( 41).
Ignition switch and steer-
z
Operation
ing lock, tank filler cap lock and seat lock are all op­erated with the same key. If you wish you can arrange to have the cases available as optional accessories fitted with locks that can be opened with this key as well.

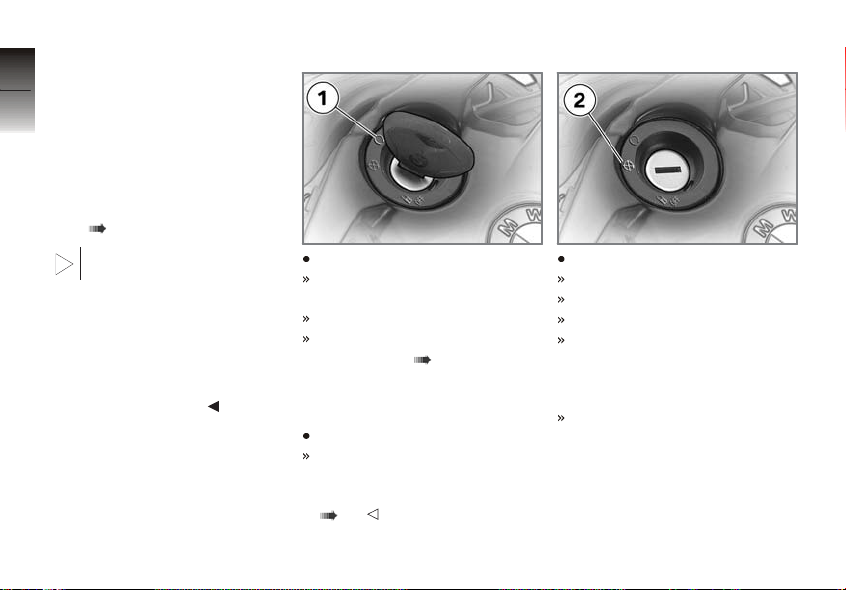

Switch on the ignition
Turn the key to position 1. Side lights and all function circuits switched on. Engine can be started. Pre-ride check is performed. ( 67)
with OE BMW Motorrad Integral ABS:
Turn the key to position 1. ABS self-diagnosis is performed in addition to the checks outlined above. ( 68)
Switch off the ignition
Turn the key to position 2. Lights switched off. Handlebars not locked. Key can be removed. Electrically powered ac­cessories remain opera­tional for a limited period of time. The battery can be recharged via the on-board socket.
Page 43

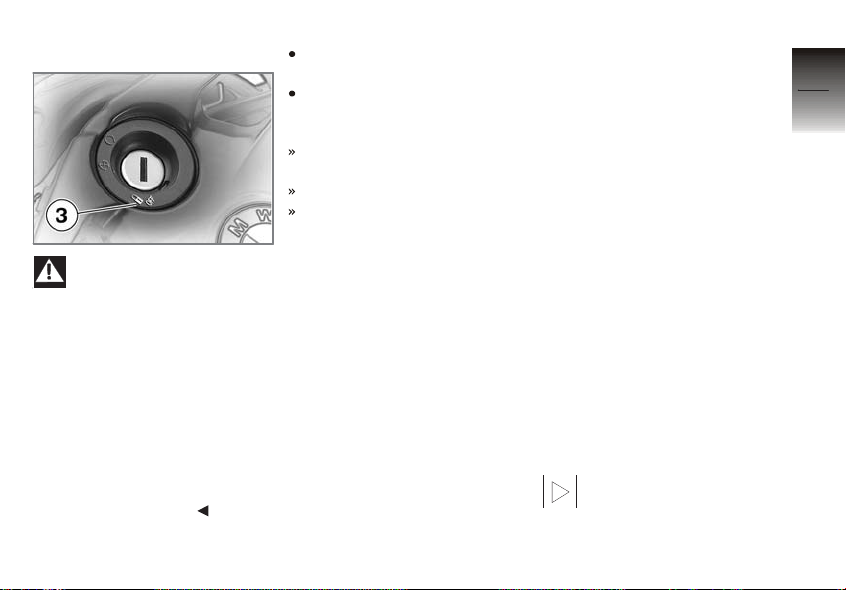

Lock the handlebars
If the motorcycle is on
the side stand, the sur­face of the ground will de­termine whether it is better to turn the handlebars to the left or right. However, the mo­torcycle is more stable on a level surface with the handle­bars turned to the left than with the handlebars turned to the right. On level ground, always turn the handlebars to the left to set the steering lock.
Turn the handlebars to the full left or right lock position. Turn the key to position 3, while moving the handlebars slightly. Ignition, lights and all func­tion circuits switched off. Handlebars locked. Key can be removed.

Electronic immobiliser (EWS)

Protection against theft
The electronic immobiliser helps protect your BMW mo­torcycle from theft, and this enhanced security is at your disposal without any need for you to set parameters or ac­tivate additional systems. The engine of a motorcycle fitted with this electronic immobil­iser can be started only with the keys that belong to the vehicle. You can also have
your authorised BMW Mo­torrad dealer bar individual keys, for example if a partic­ular key goes missing. The engine cannot be started with a key that has been barred.
In-key electronics
An electronic component is integrated into each of your keys. The motorcycle's elec­tronics exchange certain con­tinuously changing signals with the electronics in the key; these signals are spe­cific to your motorcycle and they are transmitted via the ring aerial in the ignition lock. The ignition is not enabled for starting until the key has been recognised as "authorised" for your motorcycle.
A spare key attached
to the same ring as the ignition key used to start the engine could "irritate" the
4
41
z
Operation
Page 44
electronics, in which case the enabling signal for starting is
4
not issued. The
42
appears in the multifunction display. Always keep the spare key separately from the ignition key.
EWS warning
Replacement and extra keys
You can obtain replacement/
z
Operation
extra keys only through an authorised BMW Motorrad dealer. The keys are part of an integrated security sys­tem, so the dealer is under an obligation to check the le­gitimacy of all applications for replacement/extra keys. If you want to have a lost key barred, you have to bring with you all the other keys that belong to the motorcycle. A key that has been barred can
subsequently be cleared and reactivated for use.

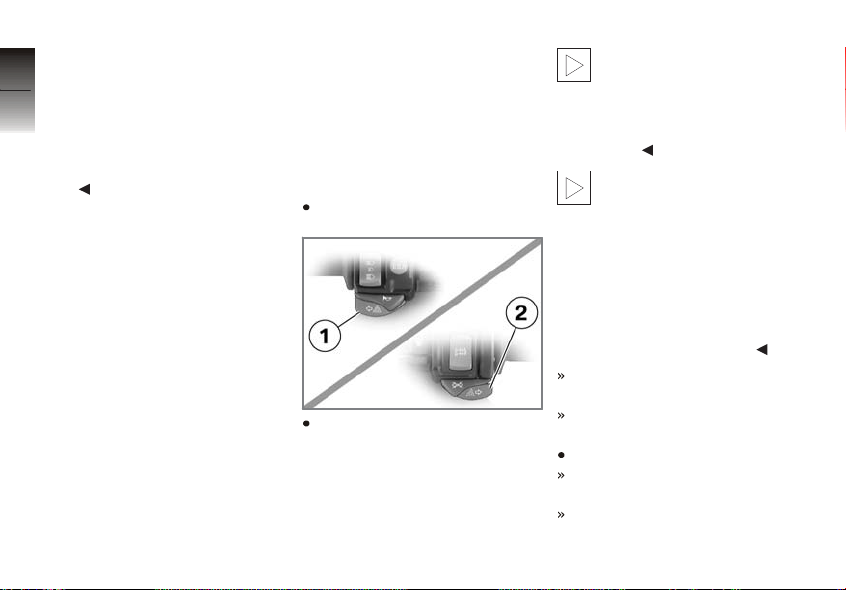

Hazard warning flashers

Switch on the hazard warning flashers
Switch on the ignition.
Simultaneously press but­ton 1 for left turn indicators and button 2 for right turn indicators.
The hazard warning
flashers place a strain on the battery. Do not use the hazard warning flashers for longer than absolutely necessary.
If you press a turn-in-
dicator button with the ignition switched on, the turn­indicator function is activated instead of the hazard warning flashers, and remains active until you release the button. The hazard warning flashers recommence flashing as soon as the button is released.
Hazard warning flashers in operation. Left/right turn indicator tell­tale lights flash. Switch off the ignition. The hazard warning flashers continue to operate. Left/right turn indicator tell­tale lights off.
Page 45
Switch off the hazard warning flashers

Odometer and tripmeters

Operating odometer
reappears on the multifunc­tion display.
4
43
Press cancel button 1. Hazard warning flashers switched off.
If the motorcycle is not equipped with on-board computer and RDC, you have the alternative of using INFO button 1 to operate the odometer as described here.

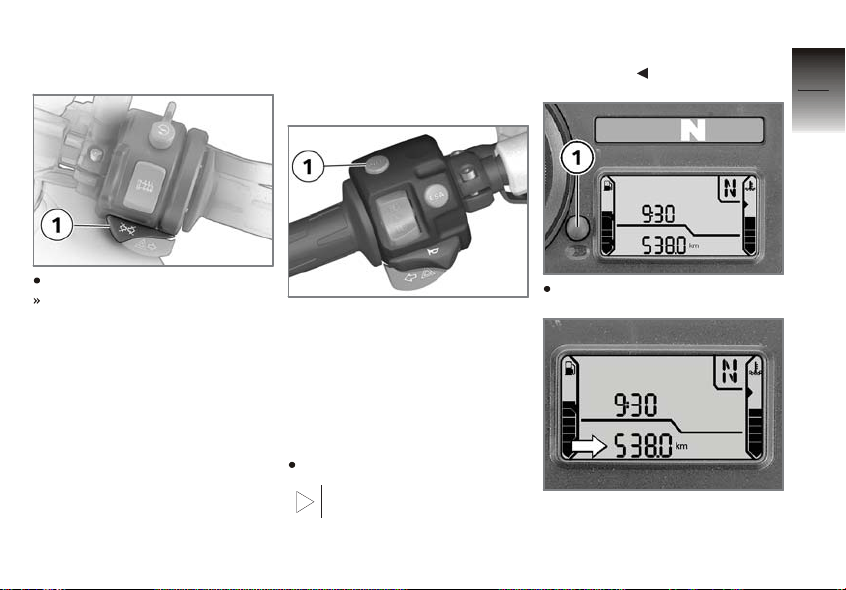

Selecting readings
Switch on the ignition.
When you switch on the
ignition, the odometer reading shown when the igni­tion was switched off always
Press button 1 once briefly.
The odometer's display field starts with the current value
z
Operation
Page 46
and cycles through the follow­ing sequence:
4
Total distance covered
44
Tripmeter 1 (Trip I) Tripmeter 2 (Trip II)
Resetting tripmeter
Switch on the ignition. Select the desired tripmeter.
Residual range
ded to the fuel already in the tank.
The residual range is
only an approximate reading. Consequently, BMW Motorrad recommends that you should not try to use the full residual range before refuelling.
z
Operation
Press and hold down button 1 until the reading changes. The tripmeter is reset to zero.
The residual-range readout 1 indicates how far you can ride with the fuel remaining in the tank. On a motorcycle not equipped with an on-board computer, this reading is not displayed until fuel level has dropped to reserve. This dis­tance is calculated on the basis of fuel level and average consumption. When you refuel, the increase in fuel level is not registered unless several litres are ad-

Clock

Set the clock
Attempting to set the
clock while riding the motorcycle can lead to ac­cidents. Set the clock only when the motorcycle is stationary.

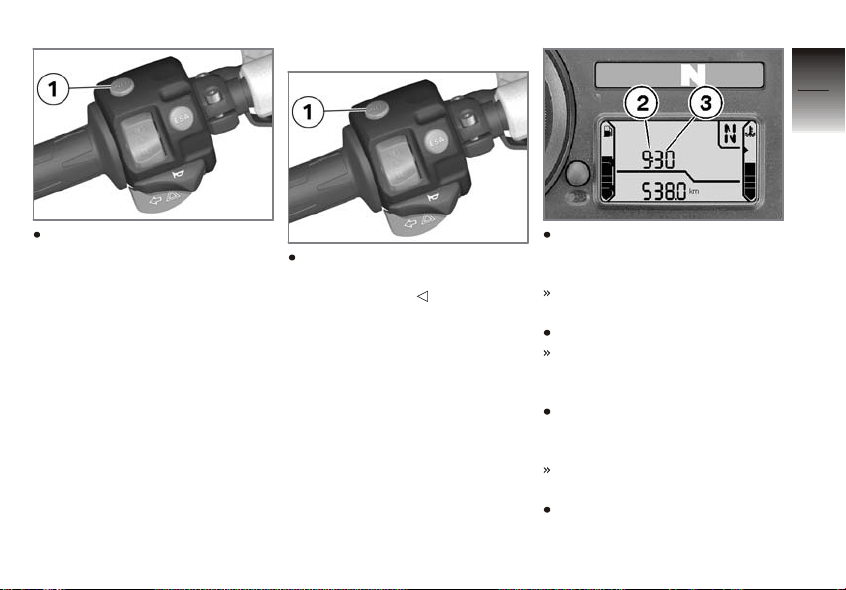

Switch on the ignition.
Page 47
with OE On-board computer:
4
45
Repeatedly press INFO but­ton 1 until the total distance covered reading appears on the display.
Repeatedly press INFO but­ton 1 until the clock appears on the display.
Press and hold down the INFO button until the read­ing changes. Hours reading 2 starts to flash. Press the INFO button. The hour increments by one each time you press the button. Press and hold down the INFO button until the read­ing changes. Minutes reading 3 starts to flash. Press the INFO button.
z
Operation
Page 48
The minute increments by one each time you press the
4
button.
46
Press and hold down the INFO button until the read­ing changes. The reading stops flashing. The time is now set.

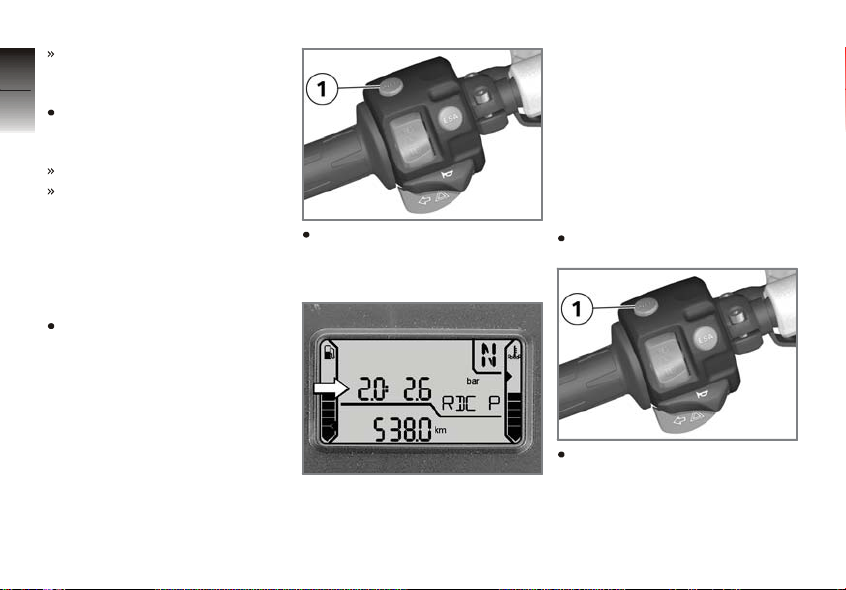

Tyre pressure control
OE
RDC
Viewing tyre-pressure
z
Operation
readings
Switch on the ignition.
Repeatedly press INFO but­ton 1 until the tyre pres­sures appear in the display.
The tyre-pressure readings alternate with the clock. The front tyre pressure is on the left; the reading on the right is
the rear tyre pressure. If your motorcycle is fitted with an on-board computer, the tyre pressures are displayed as an additional set of readings by the on-board computer.
On-board computer
OE
Selecting readings
Switch on the ignition.
Press INFO button 1 once at each step.
Page 49
The on-board computer's dis­play field starts with the cur­rent value and cycles through the following sequence:

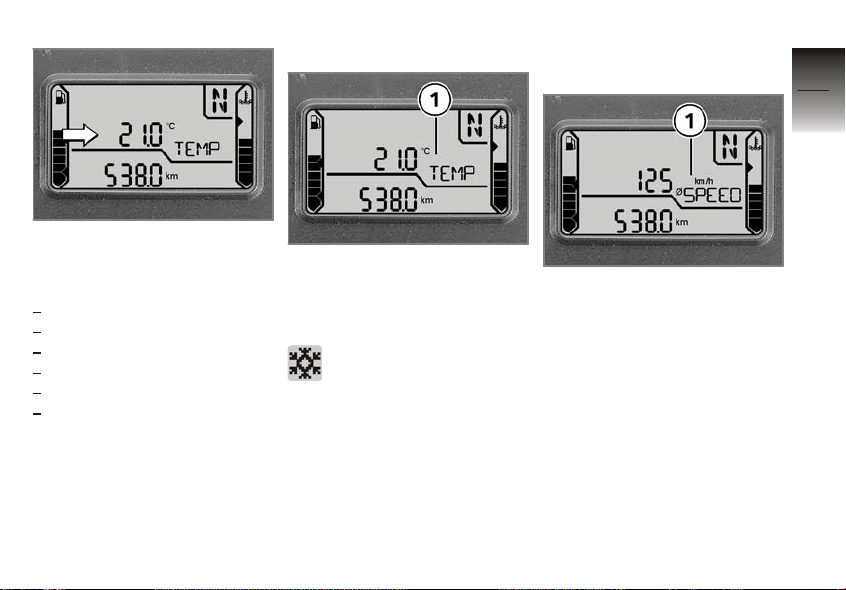

Ambient temperature Average speed Average consumption Range Oil level Tyre pressures (OE)
Ambient temperature
Ambient-temperature dis­play 1 is active only when the engine is running; at other times the display shows
An ice warning appears
if the ambient-temper­ature reading drops below 3 °C. The display automat­ically switches from any oth­er mode to the temperature reading when the temperature drops below this threshold for the first time. The reading flashes until you select some other display mode.
---.
Calculating average speed
Average speed 1 is calculated on basis of the time elapsed since the last RESET. Times during which the engine was stopped are excluded from the calculation.
4
47
z
Operation
Page 50
Resetting average speed
4
48
Repeatedly press INFO button 1 until the average
z
Operation
speed appears in the display. Press and hold down the INFO button until the read­ing changes ("RESET"). The display shows "--- km/h".

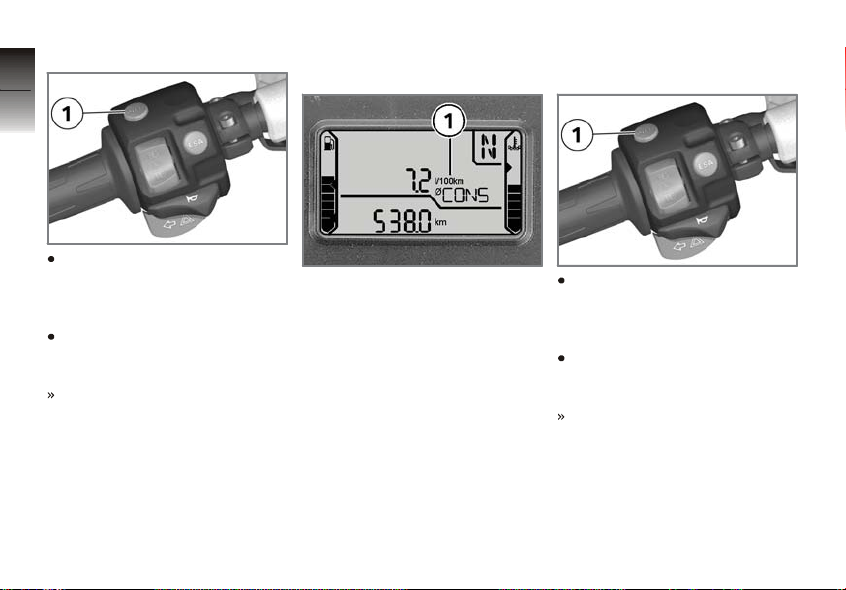

Calculating average consumption
Average consumption 1 is calculated by dividing the dis­tance covered since the last RESET by the corresponding amount of fuel used.
Reset average consumption
Repeatedly press INFO but­ton 1 until the average fuel consumption appears in the display. Press and hold down the INFO button until the read­ing changes ("RESET"). The display shows "--.- l/100 km".
Page 51

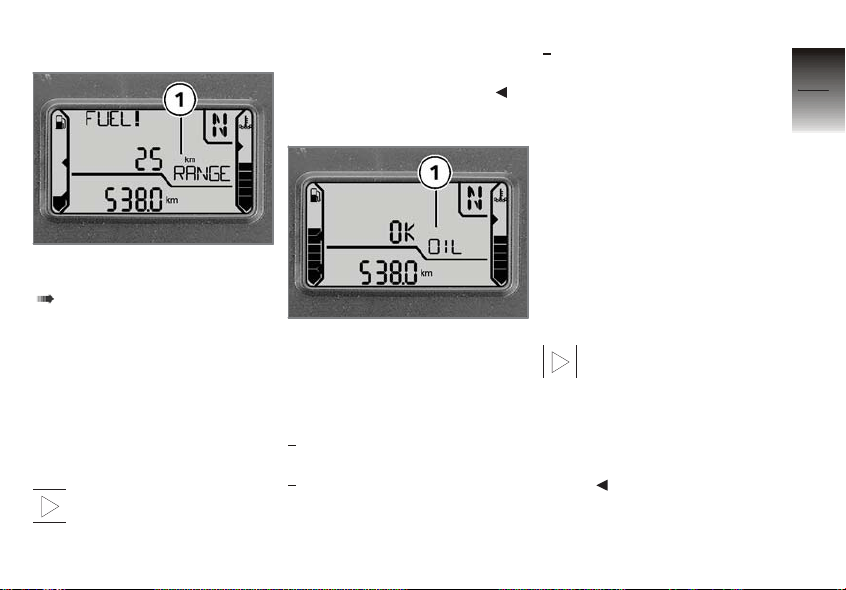

Range
The description of the residual-range function ( 44) also covers the residual-range readout. You can also view range 1 before the fuel level drops to reserve. A special average­consumption figure is used to calculate range; this figure is not necessarily the same as the value you can call up for viewing on the display.
The calculated range is only an approximate
reading. Consequently, BMW
Motorrad recommends that you should not try to use the full range before refuelling.
Oil level
Oil-level indicator 1 gives you an indication of the engine oil level.
The preconditions for the oil level check are as follows:
Engine idling (for at least 10 seconds). Engine at operating temper­ature.
Side stand retracted.
The readings mean:
OK: Oil level is correct.
CHECK: Check the oil level.
---: Oil level cannot be
measured (conditions as stated above not satisfied).
The most recently measured level is displayed for 5 seconds when you next switch on the ignition.
The oil sensor might be
defective if the "Check oil level" message reappears even though the oil level in the oil sight glass is correct. In this case, consult your authorised BMW Motorrad dealer.
4
49
z
Operation
Page 52
Emergency off switch
4
(kill switch)
50
z
Operation
1 Emergency off switch (kill
switch).
Operating the kill switch
when riding can cause the rear wheel to lock and thus cause a fall. Do not operate the kill switch when riding.
The emergency off switch is a kill switch for switching off the engine quickly and easily.
A Normal operating posi-
tion (run)
B Engine switched off.
You cannot start the engine unless the kill
switch is in the run position.

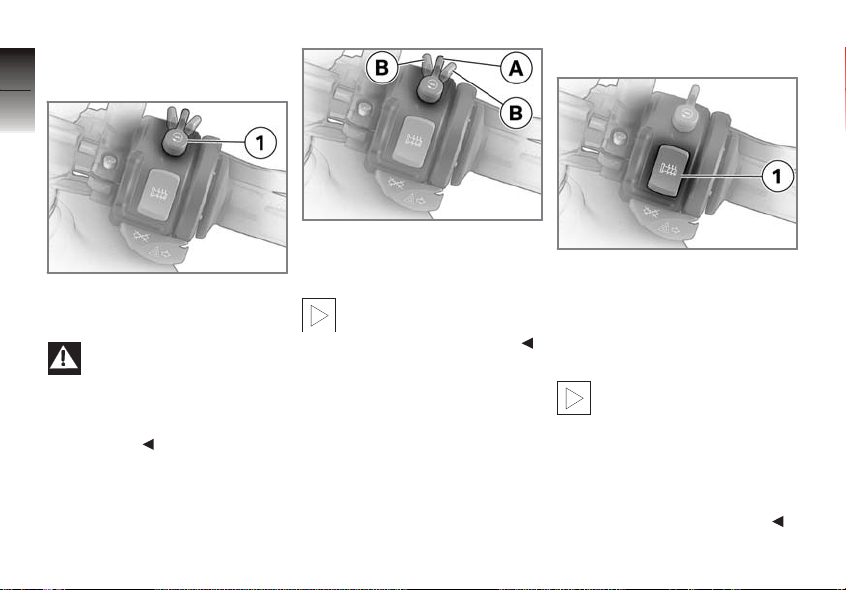

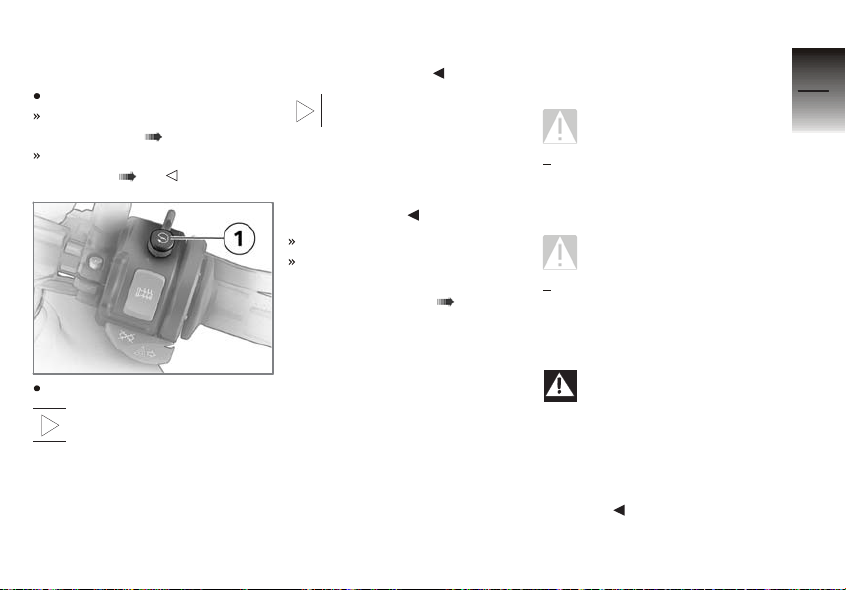

Grip heating

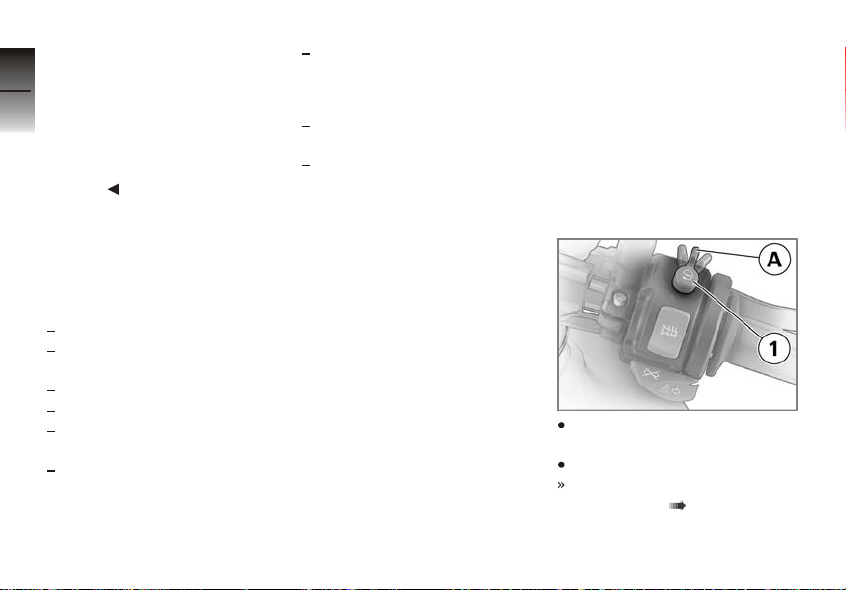

1 Grip heating switch
The handlebar grips have two-stage heating. Grip heating can be activated only when the engine is running.
The increase in power
consumption caused by the grip heating can drain the battery if you are riding at low engine speeds. If the charge level is low, grip heating is switched off to ensure the battery's starting capability.
OE
Page 53
2 Heating off. 3 50 % heat output (one
dot visible).
4 100 % heat output (three
dots visible)

Clutch

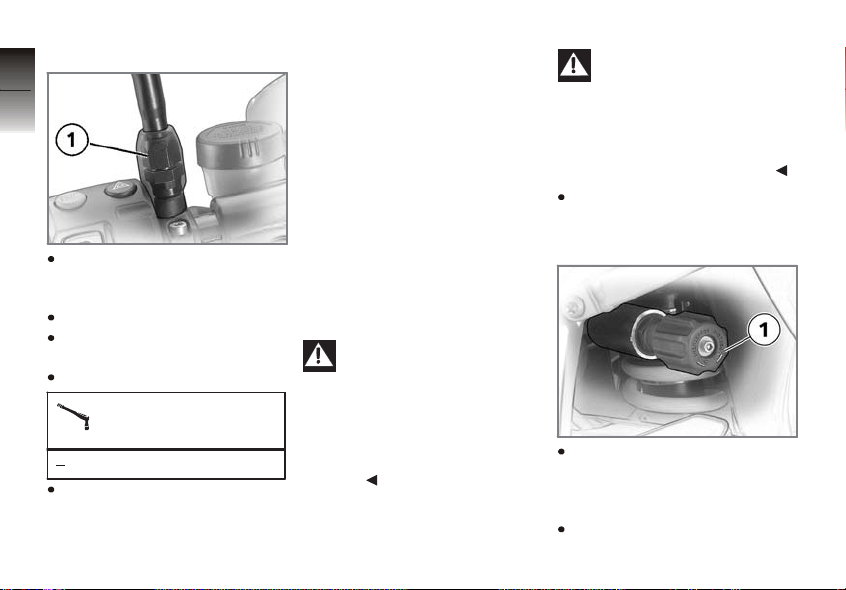

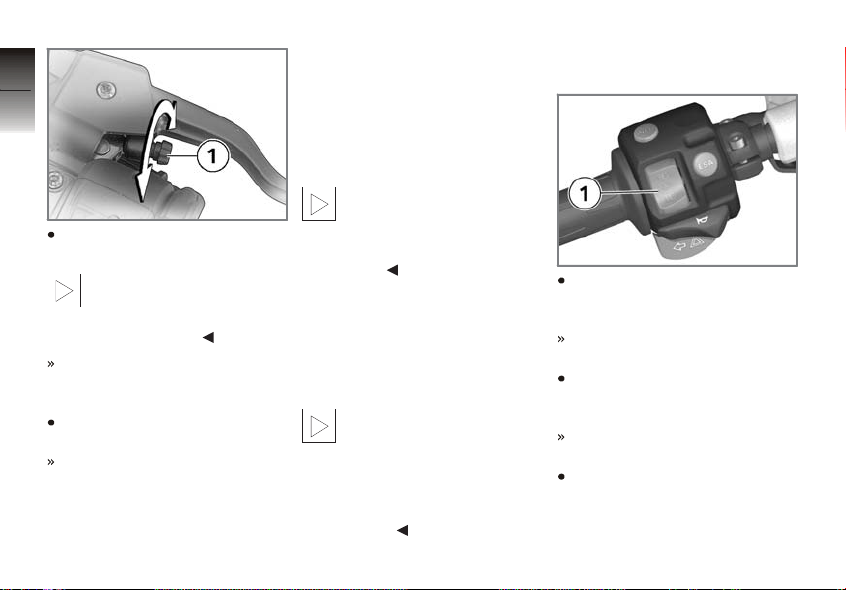

Adjusting the clutch lever
If the position of the
clutch fluid reservoir is changed, air can enter the clutch system. Do not twist the handlebar fitting or the handlebars.
Attempting to adjust the
clutch lever while riding the motorcycle can lead to accidents. Do not attempt to adjust the clutch lever unless the motor­cycle is at a standstill.
Turn adjusting screw 1 clockwise.
The adjusting screw is
indexed and is easier to turn if you push the clutch lever forward.
Span between handlebar grip and clutch lever in­creases.
Turn adjusting screw 1 counter-clockwise. Span between handlebar grip and clutch lever de­creases.

Brakes

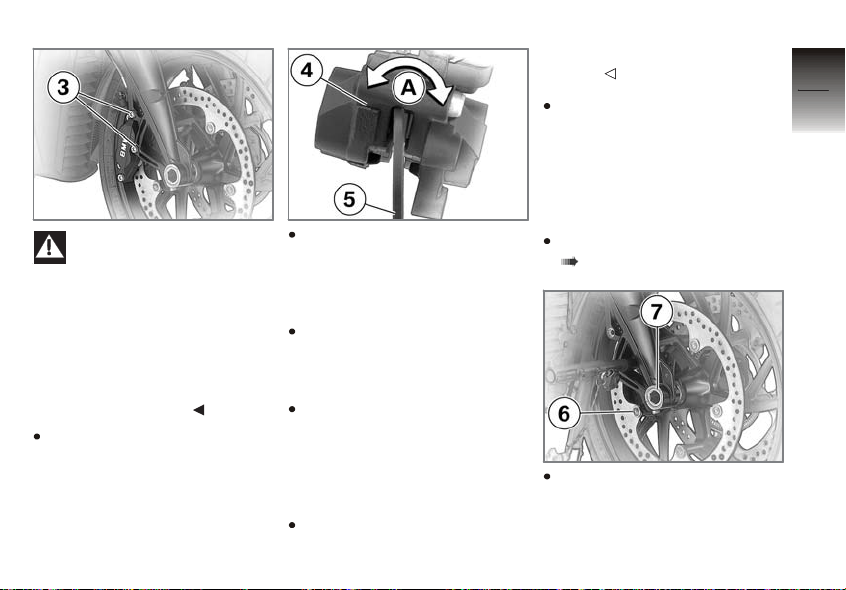

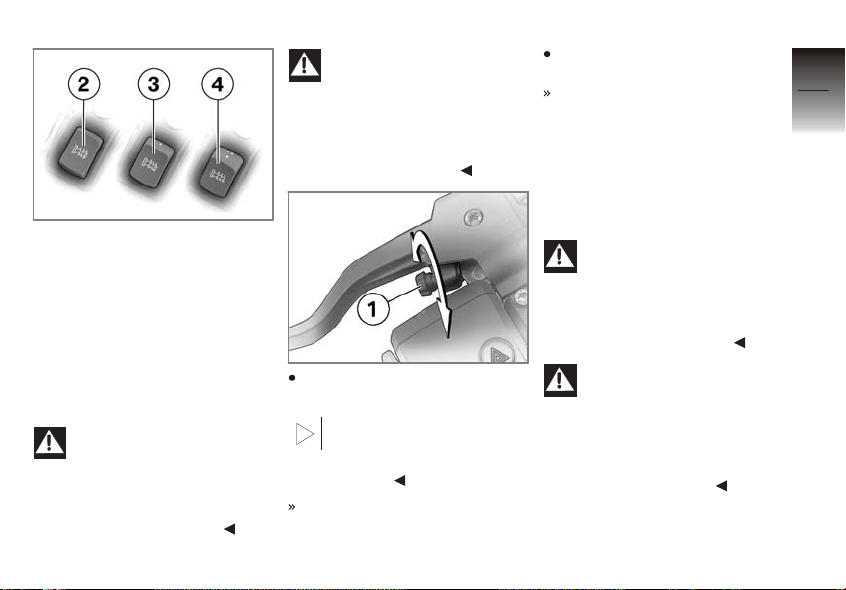

Adjusting the handbrake lever
Changing the position of
the brake-fluid reservoir can allow air to penetrate the brake system. Do not twist the handlebar fitting or the handlebars.
Attempting to adjust the
brake lever while riding the motorcycle can lead to accidents. Do not attempt to adjust the brake lever unless the motor­cycle is at a standstill.
4
51
z
Operation
Page 54
4
52
Turn adjusting screw 1 clockwise.
z
Operation
The adjusting screw is
indexed and is easier to turn if you push the hand­brake lever forward.
Span between handlebar grip and handbrake lever increases. Turn adjusting screw 1 counter-clockwise. Span between handlebar grip and handlebar lever de­creases.

Lights

Switching on the side lights
The side lights switch on automatically when the ignition is switched on.
The side lights place a
strain on the battery. Do not switch the ignition on for longer than absolutely necessary.
Switching on the low­beam headlight
The low-beam headlight switches on automatically when you start the engine.
When the engine is not
running you can switch on the lights by switching on the ignition and either switch­ing on the high-beam head­light or operating the head­light flasher.
Switch on the high-beam headlight
Press the top part of switch 1 for the high-beam headlight. High-beam headlight switched on. Move switch 1 for the high­beam headlight to the centre position. High-beam headlight switched off. Press the bottom part of switch 1 for the high-beam headlight.
Page 55
The high-beam headlight is switched on until you re­lease the button (headlight flasher).
Switching on parking lights
Switch off the ignition.
You can switch on the
parking lights only imme­diately after switching off the ignition.

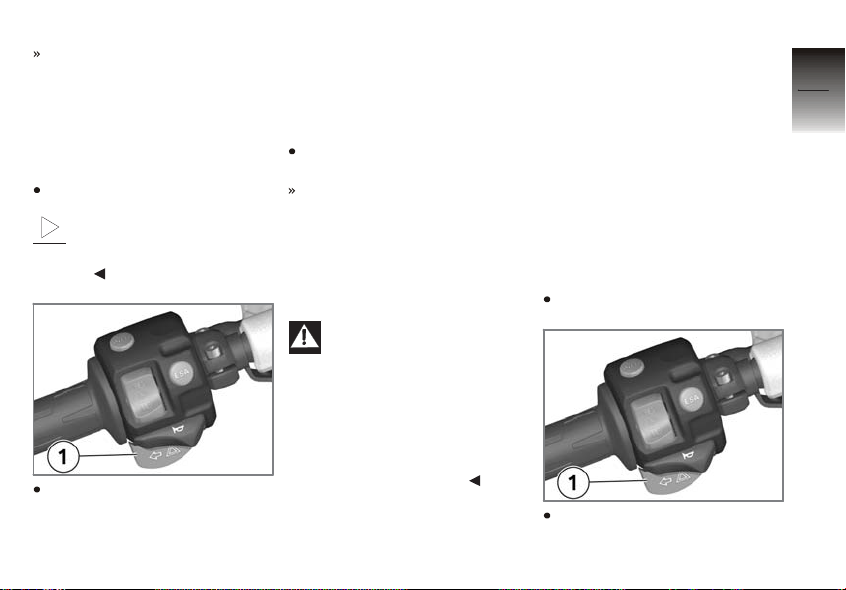

Press and hold down switch 1 for the left turn
indicators until the parking lights are ON.
Switching off parking lights
Switch the ignition on and then off again. Parking lights switched off.

Headlight

Adjusting headlight for driving on left/driving on right
Commercially available
adhesive tape will dam­age the plastic lens of the light. Consult a specialist work­shop, preferably an author­ised BMW Motorrad dealer, in order to avoid damaging the plastic lens of the light.
If the motorcycle is ridden in a country where the oppos­ite rule of the road applies, its
asymmetric low-beam head­light will tend to dazzle on­coming traffic. Have the headlight set accordingly by a specialist workshop, preferably an authorised BMW Motorrad dealer.

Turn indicators

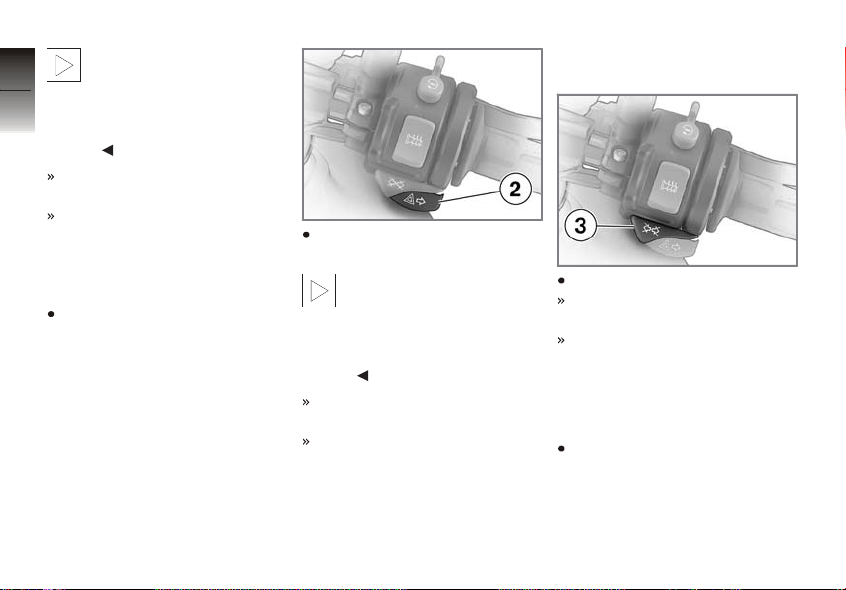

Switching on left flashing turn indicators
Switch on the ignition.
Press left-hand turn indicat­or button 1.
4
53
z
Operation
Page 56
The turn indicators are
4
54
z
Operation
cancelled automatically after you have ridden for ap­proximately 10 seconds, or covered a distance of about 200 m.
Left-hand turn indicators switched on. Telltale light for left-hand turn indicators flashes.
Switch on the right flashing turn indicators
Switch on the ignition.
Press right-hand turn indic­ator button 2.
The turn indicators are
cancelled automatically after you have ridden for ap­proximately 10 seconds, or covered a distance of about 200 m.
Right-hand turn indicators switched on. Telltale light for right-hand turn indicator flashes.
Cancel the turn indicators
Press cancel button 3. Flashing turn indicators switched off. Turn indicator telltale light is off.

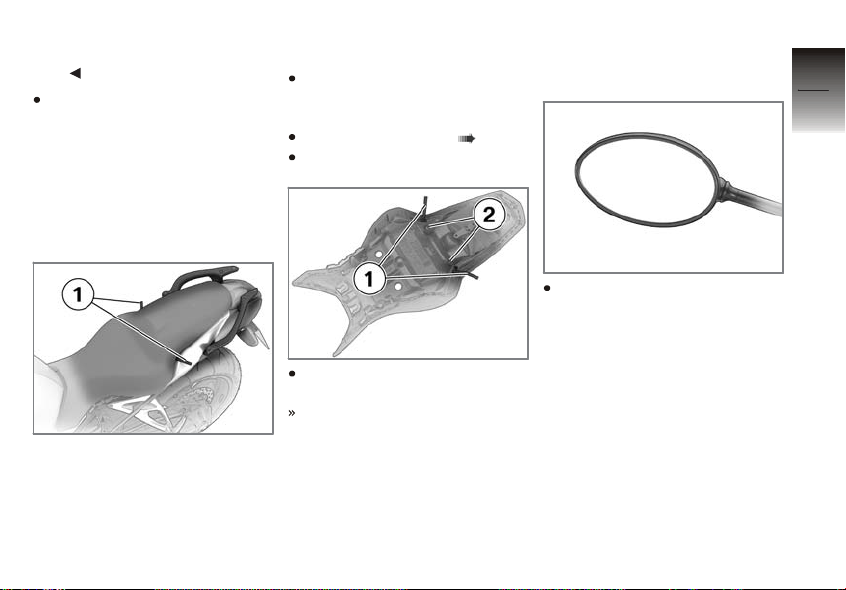

Seat

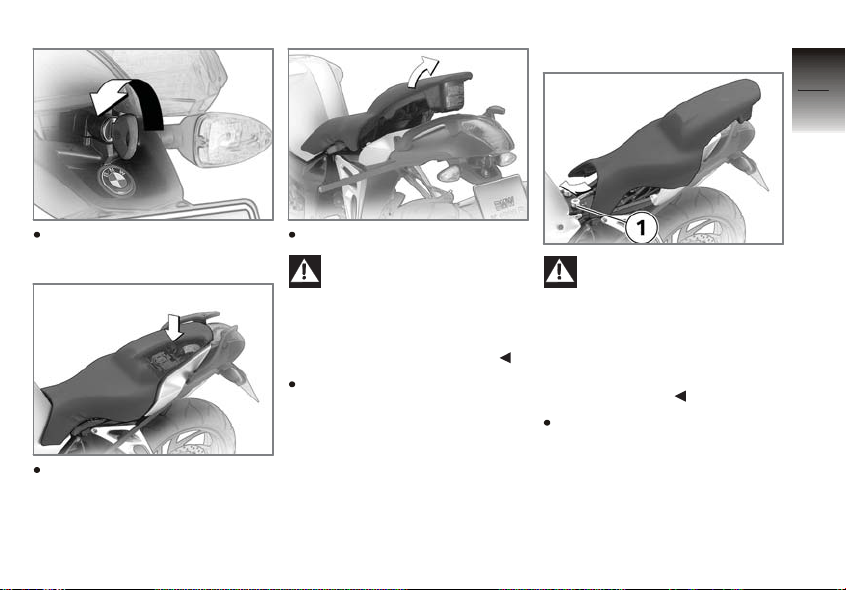

Removing the seat
Make sure the ground is level and firm and place the motorcycle on its stand.
Page 57
Installing the seat
4
55
Turn the key counter-clock­wise in the seat lock.
Press the seat down at the same time.

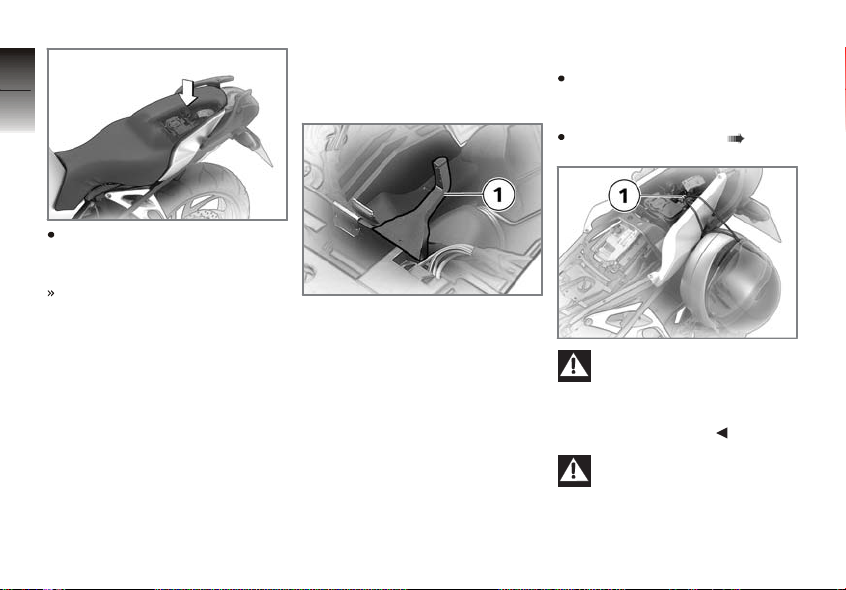

Lift the rear of the seat.
The seat can be dam-
aged at the edges if it is placed on a rough surface. Lay the seat upholstered side down on a smooth, clean sur­face, such as the fuel tank.
Release the key and pull the seat back out of its holder.
If too much pressure is
applied in the forward direction, there is a danger that the motorcycle will be pushed off its stand. Always make sure that the motorcycle is stable and firmly supported.
Push the seat forward into holders 1.
z
Operation
Page 58
4
56
Push down firmly on the seat, applying pressure to the point above the latch.
z
Operation
The seat engages with an audible click.

Helmet holder

Helmet holder underneath seat
Helmet holder 1 is underneath the seat. A motorcycle helmet with chin strap can be attached to the helmet holder. If cases are fitted or if the chin strap is too short, a steel cable can be used to secure the motor­cycle helmet.
Using helmet holder
Make sure the ground is level and firm and place the motorcycle on its stand. Removing the seat ( 54)
The helmet catch can
scratch the panelling. Make sure the lock is out of the way when you hook the helmet into position.
On the right-hand side
of the motorcycle, the helmet could be damaged by heat from the end silencer. Attach the helmet on the left-
Page 59
hand side of the motorcycle only.
Use the wire rope available as an optional extra to se­cure the helmet to helmet holder 1.

Luggage loops

Luggage loops underneath seat
Loops 1 for attaching luggage straps are located on the un­derside of the seat.
Using luggage loops
Make sure the ground is level and firm and place the motorcycle on its stand. Removing the seat ( 54) Turn the seat upside down.
Pull loops 1 out of hold­ers 2. You can hook luggage straps into the loops.

Mirrors

Adjust the mirrors
Move the mirror to the de­sired position by pressing it lightly close to the edge.
4
57
z
Operation
Page 60
Adjusting mirror arm
4
58
Push the protective cap up over the threaded fastener
z
Operation
on the mirror arm. Slacken union nut 1. Turn the mirror arm to the appropriate position. Retighten the union nut.
Mirror to clamping piece
18 Nm
Pull the protective cap over the threaded fastener.

Spring preload

Spring preload and weight
It is essential to set spring preload to suit the load carried by the motorcycle. Increase spring preload when the motorcycle is heavily loaded and reduce spring preload accordingly when the motorcycle is lightly loaded.
Adjusting spring preload for rear wheel
Your motorcycle's hand-
ling will suffer if you do not match the spring-preload and damping-characteristic settings. Adjust the damping characteristic to suit spring preload.
Adjusting spring preload
while the motorcycle is being ridden can lead to acci­dents. Do not attempt to adjust spring preload unless the motorcycle is at a standstill.
Make sure the ground is level and firm and place the motorcycle on its stand.
If you want to increase spring preload, turn knob 1 in the direction indicated by the HIGH arrow. If you want to reduce spring preload, turn knob 1 in the
Page 61
direction indicated by the LOW arrow.
One click corresponds
to a half turn of the knob. The range of adjustment com­prises 15 turns.
Spring preload, basic setting
Turn the knob as far as it will go in the direction indicated by the LOW ar­row and then turn it back 15 clicks in the direction indicated by the HIGH ar­row. (full load of fuel, with rider 85 kg)

Shock absorbers

Shock-absorber settings and spring preload
Damping must be adapted to suit spring preload. An in­crease in spring preload re­quires firmer damping, a re­duction in spring preload re­quires softer damping.

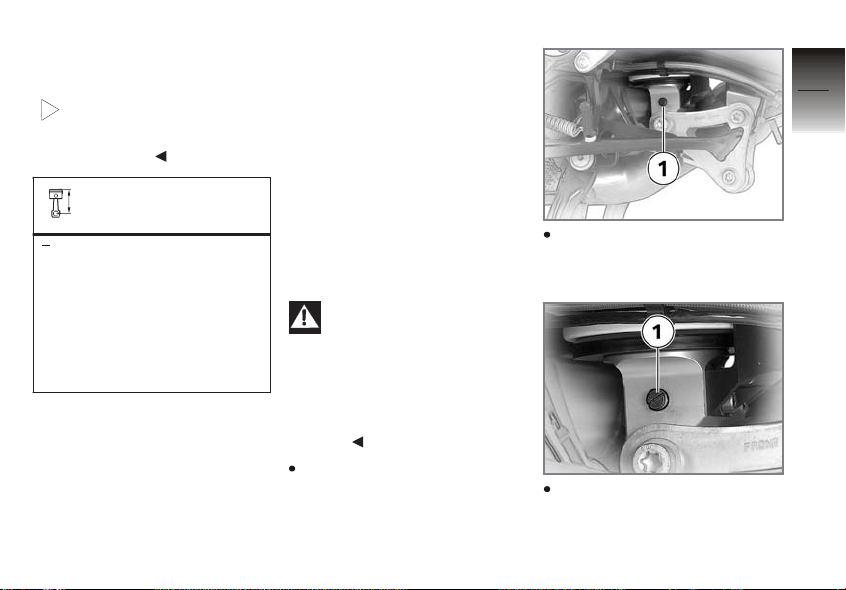

Adjusting rear shock absorber
Your motorcycle's hand-
ling will suffer if you do not match the spring-preload and damping-characteristic settings. Adjust the damping characteristic to suit spring preload.
Make sure the ground is level and firm and place the motorcycle on its stand.
Adjust the rear shock ab­sorber, using a screwdriver to turn adjusting screw 1.
If you want a harder damp­ing characteristic, use a screwdriver to turn the ad­justing screw in the direc-
4
59
z
Operation
Page 62
tion indicated by the H ar­row.
4
If you want a softer damping
60
characteristic, use a screw­driver to turn the adjusting screw in the direction in­dicted by the S arrow.
The adjusting screw can be turned through three
and a half turns.
Electronic Suspension Adjustment ESA
Settings
OE
tifunction display, and spring preload in panel 2. The odometer readings are not shown while the ESA readout is active.
Call up settings
Switch on the ignition.
z
Operation
Turn the adjusting screw as far as it will go in the direction indicated by the H arrow and then turn it back one and a half turns in the direction indicated by the S arrow. (One-up 85 kg)
Rear suspension damping, basic setting
Electronic Suspension Ad­justment ESA provides a con­venient way of adapting the motorcycle to different condi­tions. Three spring preload settings can be combined with three damping charac­teristics to fine-tune the mo­torcycle's suspension to the load it carries and the surface over which you want to ride. The damping characteristic is shown in panel 1 of the mul-
Press button 1. The current setting is dis­played. The reading remains visible for a few seconds before disappearing automatically.
Page 63
Adjust suspension damping
Switch on the ignition.
You can adjust the
damping characteristic while the motorcycle is on the move.
Press button 1. The current setting is dis­played. Press button 1 once briefly.
The display field starts at the current status and cycles through the following sequence:
COMF Comfortable damping
characteristic
NORM Normal damping
characteristic
SPORT Sporty damping
characteristic
The setting shown on the display is automatically accepted as the damping characteristic if you allow a certain length of time to pass without pressing button 1. During the setting procedure, the display flashes.
Adjust spring preload
Start the engine.
You cannot adjust spring preload while the motor-
cycle is on the move.
Press button 1. The current setting is dis­played. Press and hold down button 1 until the reading
changes. The display field starts at the current status and cycles through the following sequence:
One-up
One-up with luggage
4
61
z
Operation
Page 64
Two-up (with luggage)
4
The setting shown on the
62
display is automatically accepted as the spring preload if you allow a certain length of time to pass without pressing button 1. During the setting procedure, the display flashes.
z
Operation

Tyres

Check the tyre pressures
Incorrect tyre pressures
impair the motorcycle's handling characteristics and can lead to accidents. Always check that the tyre pressures are correct.
At high road speeds, tyre
valves have a tendency to open as a result of centrifu­gal force. In order to avoid a sudden
loss of tyre pressure, fit a metal valve cap with rubber sealing ring to the rear tyre and make sure that the cap is screwed on firmly.
Incorrect tyre pressure
reduces the operating life of the tyres. Always check that the tyre pressures are correct.
Check that tyre pressures are correct as per the data below.
Tyre pressure, front
2.5 bar (One-up, tyre cold)
2.5 bar (Two-up and/or with luggage, tyre cold)
Tyre pressure, rear
2.9 bar (One-up, tyre cold)
2.9 bar (Two-up and/or with luggage, tyre cold)
If tyre pressure is too low:
Correct the tyre pressures.
Page 65
Riding
Safety instructions . . . . . . . . . . . . . 64
Checklist . . . . . . . . . . . . . . . . . . . . . . 66
Starting . . . . . . . . . . . . . . . . . . . . . . . 66
Running in . . . . . . . . . . . . . . . . . . . . 68
Parking your motorcycle . . . . . . . 69
Refuelling . . . . . . . . . . . . . . . . . . . . . 71
Tyre pressure control RDC
Brake system, general . . . . . . . . . 73
Brake system with BMW Motorrad Integral ABS
OE
OE
....... 74
.. 72
5
63
z
Riding
Page 66

Safety instructions

5
Rider's equipment
64
Do not ride without the cor­rect clothing. Always wear:
Helmet Motorcycling jacket and trousers Gloves Boots
z
Riding
This applies even to short journeys, and to every sea­son of the year. Your author­ised BMW Motorrad dealer will be glad to advise you on the correct clothing for every purpose.
Speed
If you ride at high speed, al­ways bear in mind that vari­ous boundary conditions can adversely affect the handling of your motorcycle:
Settings of the spring-strut and shock-absorber system Imbalanced load Loose clothing Insufficient tyre pressure Poor tyre tread Etc.
Correct loading
Overloading and imbal-
anced loads can ad­versely affect the motorcycle's handling. Do not exceed the permiss­ible gross weight and be sure to comply with the instruc­tions on loading.
Alcohol and drugs
Even small amounts of
alcohol or drugs will ad­versely affect your percep­tion and your ability to as­sess situations and make de­cisions, and slow down your
reflexes. Medication can ex­acerbate these effects. Do not ride your motorcycle after consuming alcohol, drugs and/or medication.
Risk of poisoning
Exhaust fumes contain car­bon monoxide, which is col­ourless and odourless but highly toxic.
Inhaling the exhaust
fumes therefore represents a health hazard and can even cause loss of consciousness with fatal consequences. Do not inhale exhaust fumes. Do not run the engine in an enclosed space.
Page 67
High voltage
Touching live parts of
the ignition system with the engine running can cause electric shock. Do not touch parts of the igni­tion system when the engine is running.
Catalytic converter
If misfiring causes unburned fuel to enter the catalytic con­verter, there is a danger of overheating and damage. For this reason, observe the following points:
Do not run the fuel tank dry. Do not attempt to start or run the engine with a spark­plug cap disconnected. Stop the engine immediately if it misfires. Use only unleaded fuel. Comply with all specified maintenance intervals.
Unburned fuel will des-
troy the catalytic con­verter. Note the points listed for protection of the catalytic converter.
Risk of fire
Temperatures at the exhaust are high.
Flammable materials
(e.g. hay, leaves, grass, clothing and luggage, etc.) could ignite if allowed to come into contact with the hot exhaust pipe. Do not permit flammable ma­terials to come into contact with the hot exhaust system.
Cooling would be
inadequate if the engine were allowed to idle for a lengthy period with the motorcycle at a standstill: overheating would result.
In extreme cases, the motorcycle could catch fire. Do not allow the engine to idle unnecessarily. Ride away immediately after starting the engine.
Tampering with the control unit of the electronic engine­management system
Tampering with the con-
trol unit of the electronic engine-management system can damage the motorcycle and cause accidents. Do not tamper with the control unit of the electronic engine-management system.
Tampering with the con-
trol unit of the electronic engine-management system can result in mechanical loads that the motorcycle's com-
5
65
z
Riding
Page 68
ponents are not designed to withstand. Damage caused in
5
this way is not covered by the
66
warranty. Do not tamper with the control unit of the electronic engine-management system.

Checklist

z
Riding
Use the following checklist to check important functions, settings and wear limits be­fore you ride off.
Brakes Brake-fluid levels, front and rear Clutch Clutch fluid level Shock absorber setting and spring preload Tyre-tread depth and tyre pressures
Cases correctly installed and luggage secured
At regular intervals:
Engine oil level (every refuel­ling stop) Brake-pad wear (every third refuelling stop)

Starting

Side stand
You cannot start the motor­cycle with the side stand ex­tended and a gear engaged. The engine will switch itself off if you start it with the gearbox in neutral and then engage a gear before retracting the side stand.
Gearbox
You can start the engine when the gearbox is in neutral or if you pull the clutch with a gear engaged. Do not pull the clutch until after you have
switched on the ignition, as otherwise the engine will refuse to start. When the gearbox is in neutral, the green neutral telltale light is on and the gear indicator in the multifunction display shows N.
Start the engine
Kill switch 1 in run posi­tion A. Switch on the ignition. Pre-ride check is performed. ( 67)
Page 69
with OE BMW Motorrad Integral ABS:
Switch on the ignition. Pre-ride check is performed. ( 67) ABS self-diagnosis is per­formed. ( 68)
Press starter button 1.
If ambient temperatures
are very low, you might find it necessary to open the throttle slightly when starting the engine. At ambient tem­peratures below 0 °C, disen-
gage the clutch after switch­ing on the ignition.
The start attempt is
automatically interrupted if battery voltage is too low. Recharge the battery before you start the engine, or use jump leads and a donor battery to start.
The engine starts. Consult the troubleshooting chart below if the engine refuses to start. ( 128)
Pre-ride check
The instrument cluster runs a test of the 'General' warn­ing light when the ignition is switched on. The warn­ing light shows first red and then yellow, so that you can check that it is in working or­der. This pre-ride check is in­dicated by the word appearing in the display. The
CHECK!
test is aborted if you start the engine before it completes.
Phase 1
General warning light lights up red.
The
CHECK! reminder ap-
pears on the display.
Phase 2
General warning light lights up yellow.
The
CHECK! reminder ap-
pears on the display. If the 'General' warning light is not displayed:
Some malfunctions can-
not be indicated if the 'General' warning light cannot be displayed. Check that the 'General' warning light comes on, and that it lights up yellow and then red.
5
67
z
Riding
Page 70
Have the fault rectified as quickly as possible by a
5
specialist workshop, prefer-
68
ably an authorised BMW Motorrad dealer.
ABS self-diagnosis
BMW Motorrad Integral ABS performs self-diagnosis to en­sure its operability. Self-dia­gnosis is performed automat-
z
Riding
ically when you switch on the ignition. The motorcycle has to move forward at a speed above 5 km/h for the wheel sensors to be tested.
Phase 1
Test of the diagnosis-com­patible system components with the motorcycle at a standstill.
ABS warning light flashes.
OE
Possible national variant of the ABS warning light.
Phase 2
Test of the wheel sensors as the motorcycle pulls away from rest.
ABS warning light flashes.
Possible national variant of the ABS warning light.
ABS self-diagnosis completed
The ABS warning light goes
out. If an indicator showing an ABS fault appears when ABS self-diagnosis completes:
You can continue to ride.
Bear in mind that neither
the ABS function nor the
integral braking function is
available.
Have the fault rectified as quickly as possible by a specialist workshop, prefer­ably an authorised BMW Motorrad dealer.

Running in

The first 1000 km
While running in the mo­torcycle, vary the throttle opening and engine-speed range frequently. Try to do most of your rid­ing during this initial period on twisting, fairly hilly roads, avoiding high-speed main roads and highways if pos­sible.
Exceeding the specified
engine speeds while run­ning in will lead to increased engine wear. Keep to the specified engine speeds for running in.
Page 71
Do not exceed the rpm lim­its recommended for run­ning in.
Running-in speeds
<7000 min
No full-load acceleration. Avoid low engine speeds at full load. Do not omit the first inspec­tion after 500 - 1200 km.
-1
Brake pads
New brake pads must "bed down" and therefore do not achieve their optimum friction levels during the first 500 km. You can compensate for this initial reduction in braking ef­ficiency by exerting greater pressure on the levers.
New brake pads can ex­tend stopping distance
by a significant margin.
Apply the brakes in good time.
Tyres
New tyres have a smooth surface. This must be roughened by riding in a restrained manner at various heel angles until the tyres are run in. This running in procedure is essential if the tyres are to achieve maximum grip.
Tyres do not have their
full grip when new and there is a risk of accidents at extreme angles of heel. Avoid extreme angles of heel.

Parking your motorcycle

Place the motorcycle on side stand
If the ground is soft or
uneven, there is no guar­antee that the motorcycle will rest firmly on the stand. Always check that the ground under the stand is level and firm.
Switch off the engine. Pull the handbrake lever. Hold the motorcycle upright and balanced. Use your left foot to extend the side stand fully.
The side stand is de-
signed to support only the weight of the motorcycle. Do not lean or sit on the mo­torcycle with the side stand extended.
5
69
z
Riding
Page 72
Slowly lean the motorcycle to the side until its weight
5
is taken by the stand and
70
dismount to the left.
If the motorcycle is on
the side stand, the sur­face of the ground will de­termine whether it is better to turn the handlebars to the left or right. However, the mo-
z
Riding
torcycle is more stable on a level surface with the handle­bars turned to the left than with the handlebars turned to the right. On level ground, always turn the handlebars to the left to set the steering lock.
Turn the handlebars to full left or right lock. Check that the motorcycle is standing firmly.
On a gradient, the mo-
torcycle should always face uphill; select 1st gear.
Lock the steering lock.
Remove the motorcycle from side stand
Unlock the steering lock. From the left, grip the handlebars with both hands. Pull the handbrake lever. Swing your right leg over the seat and lift the motor­cycle to the upright position. Hold the motorcycle upright and balanced.
An extended side stand
can catch on the ground when the motorcycle is mov­ing and lead to a fall. Retract the side stand before moving the motorcycle.
Sit on the motorcycle and use your left foot to retract the side stand.
Place the motorcycle on centre stand
If the ground is soft or
uneven, there is no guar­antee that the motorcycle will rest firmly on the stand. Always check that the ground under the stand is level and firm.
Switch off the engine. Dismount and keep your left hand on the left handlebar grip. With your right hand, grip the rear grab handle or the rear frame. Place your right foot on the pin of the centre stand, and press the stand down un­til its curved feet touch the ground. Place your full body weight on the centre stand and at the same time pull the mo­torcycle to the rear.
OA
Page 73
Excessive movements
could cause the centre stand to retract, and the mo­torcycle would topple in con­sequence. Do not lean or sit on the mo­torcycle with the centre stand extended.
Check that the motorcycle is standing firmly. Lock the steering lock.
Remove the motorcycle from centre stand
Unlock the steering lock. Place your left hand on the left handlebar grip. With your right hand, grip the rear grab handle or the rear frame. Push the motorcycle for­ward off the centre stand. Check that the centre stand has fully retracted.
OA

Refuelling

Fuel is highly flammable.
A naked flame close to the fuel tank can cause a fire or explosion. Do not smoke. Never bring a naked flame near the fuel tank.
Fuel expands when hot.
Fuel escaping from an overfilled tank could make its way onto the rear tyre. This could cause a fall. Do not fill the tank past the bottom edge of the filler neck.
Fuel attacks plastics,
which become dull or unsightly. Wipe off plastic parts immedi­ately if they come into contact with fuel.
Leaded fuel will destroy the catalytic converter.
Use only unleaded fuel.
Make sure the ground is level and firm and place the motorcycle on its stand.

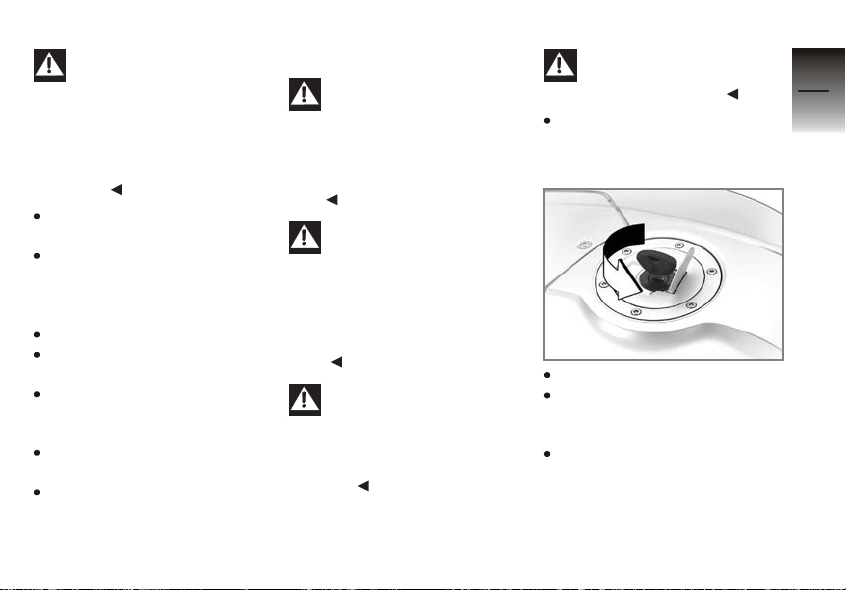

Open the protective cap. Open the fuel tank cap with the ignition key by turning it counter-clockwise. Refuel with fuel of the grade stated below; do not fill the tank past the bottom edge of the filler neck.
5
71
z
Riding
Page 74
5
72
z
Riding
Recommended fuel grade
98 ROZ/RON (Premium plus unleaded)
95 ROZ/RON (Premium unleaded (fuel grade, usable with power- and consumption-related re­strictions))
Usable fuel capacity
19 l
Reserve fuel
4l
Press the filler cap down firmly to close. Remove the key and close the protective cap.
Tyre pressure control
OE
RDC
Function
A sensor integrated into each tyre measures the air tem­perature and the air pressure inside the tyre and transmits this information to the control unit. Each sensor has a centrifugal-force tripswitch that does not enable transmission of the measured values until the motorcycle has accelerated to about 30 km/h. The display shows
-- for each tyre until the tyre-
pressure signal is received for the first time. The sensors continue to transmit the measured-value signals for approximately 15 minutes after the motorcycle comes to a stop.
The control unit can administrate four sensors, so two different sets of wheels with RDC sensors can be alternated on the motorcycle. An error message is issued if wheels without sensors are fitted to a motorcycle equipped with an RDC control unit.
Temperature compensation
The tyre-pressure readings shown by the multifunction display are temperature-com­pensated; the reference tyre temperature for these read­ings is always 20 °C. The air lines available to the public in petrol stations and motorway service areas almost invari­ably show temperature-de­pendent tyre pressures, so in most instances these gauge readings will not tally with the
Page 75
readings shown by the multi­function display.
Tyre-pressure ranges
The RDC control unit differ­entiates between three air­pressure ranges, all of which are parameterised for the mo­torcycle:
Air pressure within permit­ted tolerance. Air pressure close to limit of permitted tolerance. Air pressure outside permit­ted tolerance.

Brake system, general

Descending mountain passes
There is a danger of the
brakes fading if you use only the rear brakes when descending mountain passes. Under extreme conditions, the
brakes could overheat and suffer severe damage. Use both front and rear brakes, and make use of the engine's braking effect as well.
Wet brakes
After the motorcycle has
been washed, ridden through water or ridden in the rain, the brake discs and pads might be wet and the brakes might not take effect immediately. Apply the brakes in good time until the brakes have dried out.
Salt on brakes
The brakes may fail to
take effect immediately if the motorcycle was ridden on salt-covered roads and the brakes were not applied for some time.
Apply the brakes in good time until the salt layer on the brake discs and brake pads has been removed.
Oil or grease on brakes
Oil and grease on the
brake discs and pads considerably diminish braking efficiency. Especially after repair and maintenance work, make sure that the brake discs and brake pads are free of oil and grease.
Dirt or mud on brakes
When riding on loose
surfaces or muddy roads, the brakes may fail to take effect immediately because of dirt or moisture on the discs or brake pads. Apply brakes in good time until the brakes have been cleaned.
5
73
z
Riding
Page 76
Brake system with
5
BMW Motorrad Integral ABS
74
Partially integral brakes
Your motorcycle is equipped with partially integral brakes. Both front and rear brakes are applied when you pull the handbrake lever. The foot-
z
Riding
brake lever acts only on the rear brake. When actively intervening in the braking process, the BMW Motorrad Integral ABS adapts braking-force distri­bution between front and rear brakes to suit the load on the motorcycle.
The integral braking
function makes it very difficult to spin the rear wheel by opening the throttle with the front brake applied to keep the motorcycle stationary (burn-
OE
out). Attempted burn-outs can result in damage to the rear brake and the clutch. Do not attempt burn-outs.
How does ABS work?
The amount of braking force that can be transferred to the road depends on factors hat include the coefficient of friction of the road surface. Loose stones, ice and snow or a wet road all have much lower coefficients of friction than a clean, dry asphalt sur­face. The lower the coeffi­cient of friction, the longer the braking distance. If the rider increases braking pressure to the extent that braking force exceeds the maximum transferrable limit, the wheels start to lock and the motorcycle loses its dir­ectional stability; a fall is im­minent. Before this situation
can occur, ABS intervenes and adapts braking pressure to the maximum transferrable braking force, so the wheels continue to turn and direc­tional stability is maintained irrespective of the condition of the road surface.
What are the effects of surface irregularities?
Humps and surface irregu­larities can cause the wheels to lose contact temporarily with the road surface; if this happens the braking force that can be transmitted to the road can drop to zero. If the brakes are applied un­der these circumstances the ABS has to reduce braking force to ensure that direc­tional stability is maintained when the wheels regain con­tact with the road surface. At this instant the BMW Mo-
Page 77
torrad Integral ABS must as­sume an extremely low coef­ficient of friction, so that the wheels will continue to rotate under all imaginable circum­stances, because this is the precondition for ensuring dir­ectional stability. As soon as is registers the actual circum­stances, the system reacts instantly and adjusts braking force accordingly to achieve optimum braking.
What feedback does the rider receive from the BMW Motorrad Integral ABS?
If the ABS system has to re­duce braking force on ac­count of the circumstances described above, vibration is perceptible through the hand­brake lever. When the handbrake lever is pulled, brake pressure is also
built up at the rear wheel by the integral function. If the brake pedal is depressed after the handbrake lever is pulled, the brake pressure built up beforehand is per­ceptible as counter-pres­sure sooner than is the case when the brake pedal is de­pressed either before or at the same time as the brake lever is pulled.
How can stopping distance be minimised?
Each time the brakes are applied, a load distribution shift takes place with the load shifting forward from the rear to the front wheel. The sharper the motorcycle decelerates, the more load is shifted to the front wheel. The higher the wheel load, the more braking force can be
transmitted without the wheel locking. To optimise stopping dis­tance, apply the front brakes rapidly and keep on increas­ing the force you apply to the brake lever. This makes the best possible use of the dy­namic increase in load at the front wheel. Remember to pull the clutch at the same time. In the "panic braking situations" that are trained so frequently braking force is ap­plied as rapidly as possible and with the rider's full force applied to the brake levers; under these circumstances the dynamic shift in load dis­tribution cannot keep pace with the increase in decel­eration and the tyres cannot transmit the full braking force to the surface of the road. ABS has to intervene to keep the front wheel from locking;
5
75
z
Riding
Page 78
this increases stopping dis­tance.
5
76
Rear wheel lift
Even under severe braking, a high level of tyre grip can mean that the front wheel does not lock up until very late, if at all. Consequently, ABS does not intervene until very late, if at all. Under these
z
Riding
circumstances the rear wheel can lift off the ground, and the outcome can be a highsiding situation in which the motor­cycle can flip over.
Severe braking can
cause the rear wheel to lift off the ground. When you brake, bear in mind that ABS control cannot be relied on in all circumstances to prevent the rear wheel from lifting clear of the ground.
What is the design baseline for BMW Motorrad Integral ABS?
Within the limits imposed by physics, the BMW Motorrad Integral ABS ensures direc­tional stability on any surface. The system is not optimised for special requirements that apply under extreme compet­itive situations off-road or on the track.
Special situations
The speeds of the front and rear wheels are compared as one means of detecting a wheel's incipient tendency to lock. If the system registers implausible values for a lengthy period the ABS function is deactivated for safety reasons and an ABS fault message is issued. Self­diagnosis has to complete
before fault messages can be issued. In addition to problems with the BMW Motorrad Integ­ral ABS, exceptional riding conditions can lead to a fault message being issued.
Exceptional riding conditions:
Heating up with the motor­cycle on the centre stand or an auxiliary stand, en­gine idling or with a gear engaged. Rear wheel locked by the engine brake for a lengthy period, for example while descending off-road.
If a fault message is issued on account of exceptional riding conditions as outlined above, you can reactivate the ABS function by switching the igni­tion off and on again.
Page 79
What significance devolves on regular maintenance?
Invariably, a technical
system cannot perform beyond the abilities dictated by its level of maintenance. In order to ensure that the BMW Motorrad Integral ABS is always maintained in optimum condition, it is essential for you to comply strictly with the specified inspection intervals.
Reserves for safety
The potentially shorter braking distances which BMW Mo­torrad Integral ABS permits must not be used as an ex­cuse for careless riding. ABS is primarily a means of ensur­ing a safety margin in genuine emergencies.
Take care when cornering. When you apply the brakes on a corner, the motorcycle's weight and momentum take over and even BMW Motor­rad Integral ABS is unable to counteract their effects.
5
77
z
Riding
Page 80
5
78
z
Riding
Page 81
Accessories
General instructions . . . . . .. . . . . 80
Power socket . . . . . . . . . . . . . . . . . 80
Luggage . . . . . . . . . . . . . . . . . . . . . . 81
OA
Case
....................... 81
6
79
z
Accessories
Page 82

General instructions

6
BMW Motorrad recommends the use of parts and ac-
80
cessories for your motorcycle that are approved by BMW for this purpose. Genuine BMW parts and ac­cessories and other products which BMW has approved can be obtained from your authorised BMW Motorrad dealer, together with expert advice on their installation
z
Accessories
and use. These parts and products have been tested by BMW for safety, function and suitability. BMW accepts product liability for them. Conversely, BMW is unable to accept any liability whatso­ever for parts and accessor­ies which it has not approved.
BMW Motorrad cannot
assess each non-BMW product to determine whether it can be used on or in con­nection with BMW motor­cycles without constituting a safety hazard. Country­specific official authorisa­tion does not suffice as as­surance. Tests conducted by these instances cannot make provision for all operat­ing conditions experienced by BMW motorcycles and, con­sequently, they are not suffi­cient in some circumstances. Use only parts and accessor­ies approved by BMW for your motorcycle.
Whenever you are planning modifications, comply with all the legal requirements. Make sure that the motorcycle does not infringe national road­vehicle construction and use regulations.

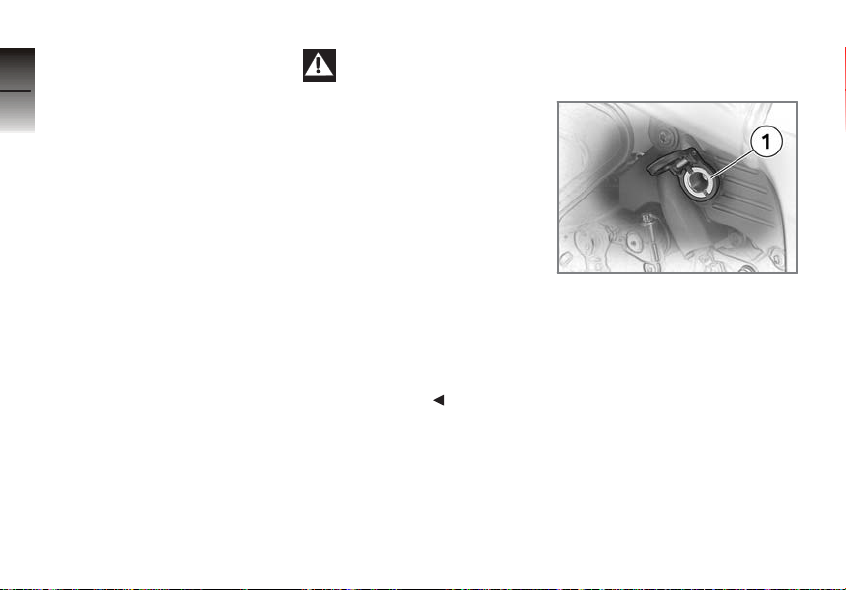

Power socket

Ratings
The supply to standard sock­et 1 and the extra socket (OA) is cut off automatically if bat­tery voltage is low or the load exceeds the maximum for the two sockets.
Operating electrical accessories
You can start using electrical accessories only when the ig­nition is switched on. The ac­cessory remains operational if the ignition is subsequently
Page 83
switched off. In order to en­sure that the drain on the on­board power supply system is minimised, the supply to the power socket is cut off ap­proximately 15 minutes after the ignition is switched off, and it is also temporarily in­terrupted during the start pro­cedure.
Cable routing
The cables from the power socket to the auxiliary device must be routed in such a way that they:
Do not impede the rider Do not restrict or obstruct the steering angle and handling characteristics Cannot be trapped
Incorrectly routed cables
can impede the rider. Route the cables as described above.

Luggage

Correct loading
Overloading and imbal-
anced loads can ad­versely affect the motorcycle's handling. Do not exceed the permiss­ible gross weight and be sure to comply with the instruc­tions on loading.
The maximum speed recom­mended for riding with loaded cases is 180 km/h.
Set spring preload, damping characteristic and tyre pres­sures to suit total weight. Ensure that the case volumes on the left and right are equal. Make sure that the weight is uniformly distributed between right and left.
Pack heavy items at the bottom and toward the in­board side. Max. load in each case (left and right): 8 kg. Max. load in tank rucksack 5 kg.
OA
Case
Release levers
Each case has two levers, one on each side of the lock. The grey lever marked OPEN is for opening and closing the case. The black lever marked RE­LEASE is for removing and attaching the case.
6
81
z
Accessories
Page 84

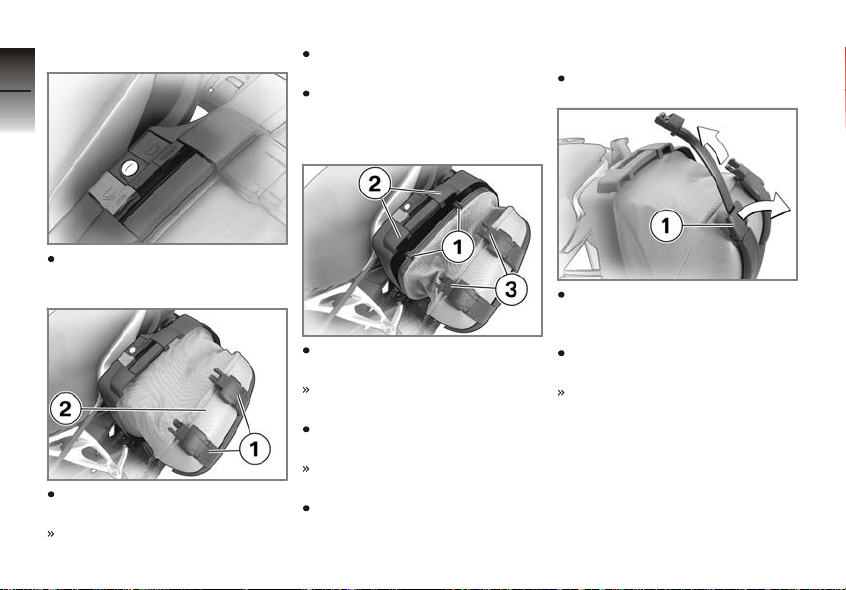

Opening cases
6
82
Turn the lock barrel in the
OPEN direction.
z
Accessories
Pull the grey release lever (OPEN) up. Lock straps 1 open.
Pull the grey release lever (OPEN) up again. Pull case lid 2 out of the re­tainer.
Close the case
Press catches 1 of the case lid into retainers 2. The catches engage with an audible click. Press catches 3 on the lock straps into retainers 2. The catches engage with an audible click. Check that the catches are locked securely into place.
Adjust the case volume
Close the case lid.
Turn the lock strap buckles 1 of the lock straps out. Pull the lock straps up and out. This expands the case to maximum volume.
Page 85
Removing case
6
83
Close the lock straps. Press the lock straps against the case body. The case volume adapts to the contents.
Turn the lock barrel in the RELEASE direction. Pull the black release lever (RELEASE) up.
Pull the case out of the top holder. Lift the case out of the bot­tom holder.
z
Accessories
Page 86
Install the case
6
84
Turn the lock barrel in the RELEASE direction.
z
Accessories
Pull the black release lever (RELEASE) up. Press the case into top holder 3. Push the black release lever (RELEASE) down. The case is locked into place. Lock the case. Check that it is correctly en­gaged.
Secure attachment
tom bracket on the case can be moved up or down for this purpose.
Adapt the case
Open the case.
Remove screws 1. Adjust the height of the holder. Tighten screws 1.
Hook the case into bottom holder 2.
If a case wobbles or is difficult to fit, it has to be adapted to the gap between the upper and lower mounting. The bot-
Page 87
Maintenance
General instructions . . . . . .. . . . . 86
Toolkit . . . . . . . . . . . . . . . . . . . . . . . . 86
Engine oil . . . . . . . . . . . . . . . . . . . . . 87
Brake system, general . . . . . . . . . 89
Brake pads. . . . . . . . . . . . . . . . . . . . 90
Brake fluid . . . . . . . . . . . . . . . . . . . . 91
Clutch . . . . . . . . . . . . . . . . . . . . . . . . 94
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . 95
Rims . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Wheels . . . . . . . . . . . . . . . . . . . . . . . 95
Front-wheel stand . . . . . . . . . . . . 104
Rear-wheel stand . . . . . . . . . . . . 105
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . 107
Jump start . . . . . . . . . . . . . . . . . . . 114
Battery . . . . . . . . . . . . . . . . . . . . . . . 115
7
85
z
Maintenance
Page 88

General instructions

7
The 'Maintenance' chapter describes work involving the
86
replacement of wear parts that can be performed with minimum effort. Special tightening torques are listed as applicable. If you are interested in inform­ation on more extensive work, we recommend the repair manual on CD-ROM which applies to your particular mo­torcycle. You can obtain a
z
Maintenance
copy from your authorised BMW Motorrad dealer.
Some of the work calls for special tools and a thorough knowledge of motorcycles. If you are in doubt consult a specialist workshop, prefer­ably your authorised BMW Motorrad dealer.

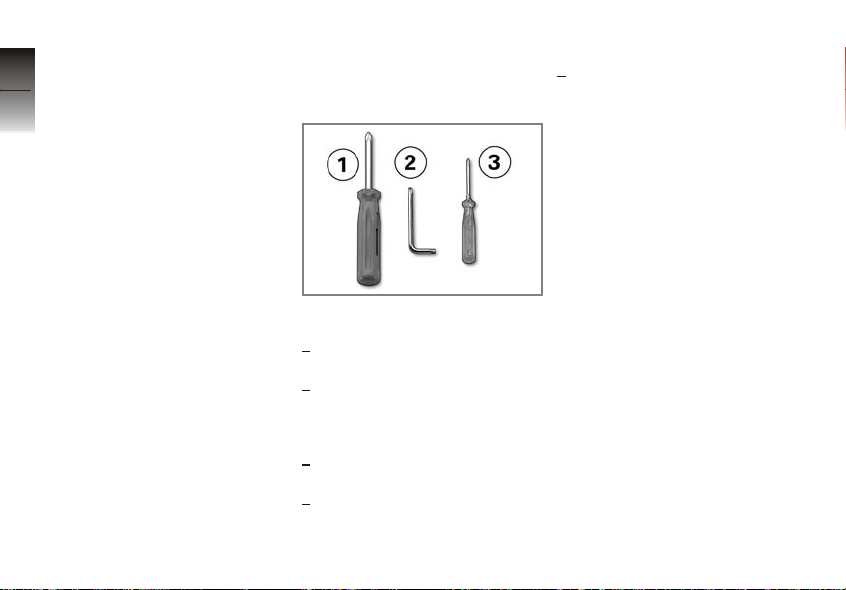

Toolkit

Standard on-board toolkit
1 Screwdriver with reversible blade
Removing and installing turn indicator glass Disconnecting leads from battery terminals
2 Torx wrench, T25
Removing and installing body panels Removing and installing bat­tery retainer
3 Screwdriver, small
Removing and installing turn indicator glass
On-board toolkit service kit
Your authorised BMW Mo­torrad dealer can provide the on-board toolkit service kit that you will need if you are considering undertaking more extensive work. You will find information on undertaking work of this nature in the Repair Manual on the CD-ROM also obtainable from your authorised BMW Motorrad dealer.
Page 89

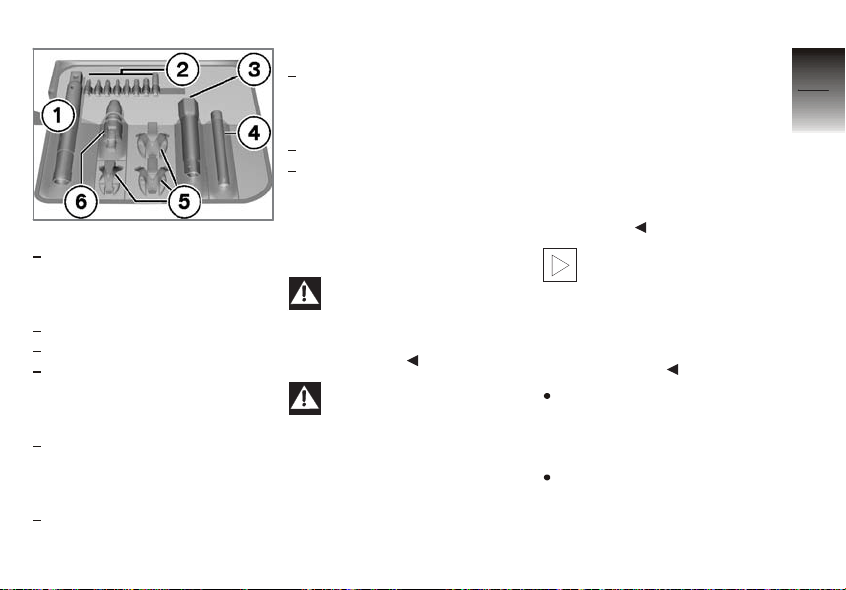

1 extending tool holder
Adapters to accommodate all tools
2 1/4" bits
5x Torx bits 2x cross-head bits 1x plain screwdriver bit
3 3/8" adapter for socket­head screws, w/f 22
Removing and installing front wheel
4 Electric torch
LED bulb
5 Set of spanners
3x open-ended spanners, various sizes
6 Bit adapter
Adapter for 1/4" bits 9x12 mm and 3/8" swivel adapters

Engine oil

Checking engine oil level
The engine can seize if
the oil level is low, and this can lead to accidents. Always make sure that the oil level is correct.
Oil can collect in the
sump if the motorcycle is out of use for an extended period of time; this oil has to be pumped into the oil tank before the level is read. The engine oil must be at oper­ating temperature to do this. Checking the oil level with the
engine cold or after no more than a short ride will lead to misinterpretation; this in turn, means that the engine will be operated with the incorrect quantity of oil. In order to ensure that the en­gine oil level is read correctly, check the oil level only after a lengthy trip.
The oil level varies with
the temperature of the oil. The higher the temperat­ure the higher the oil level in the oil tank. Check the engine oil level immediately after a lengthy journey.
Make sure the engine is at operating temperature and hold the motorcycle upright.
with OA Centre stand:
Check that the engine is at operating temperature, make sure the ground is level and firm and place
7
87
z
Maintenance
Page 90
the motorcycle on its centre stand.
7
88
Allow the engine to idle for one minute. Switch off the ignition.
z
Maintenance

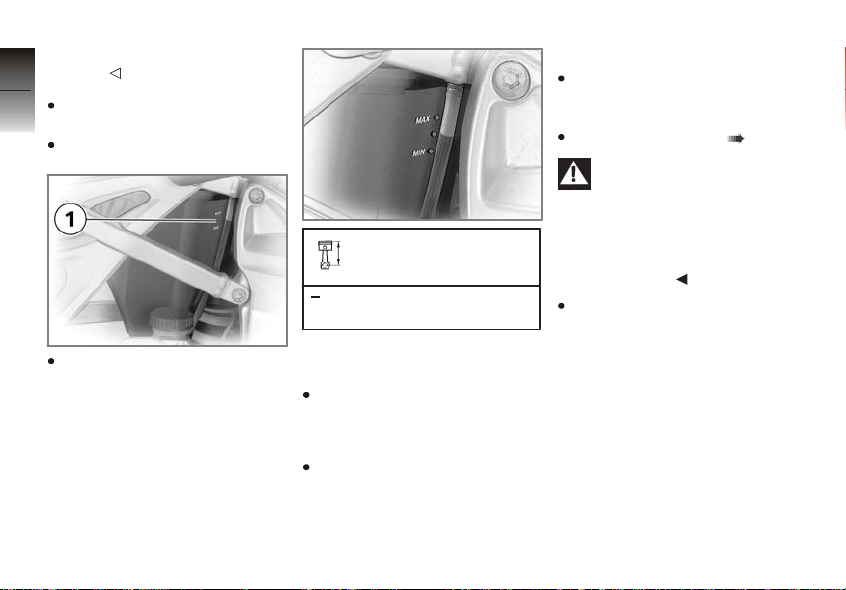

Check the oil level in oil­level indicator 1.
Engine oil, specified level
Between MIN and MAX marks
If the oil level is below the MIN mark:
Top up the engine oil.
If the oil level is above the MAX mark:
Drain off the engine oil.
Top up the engine oil
Make sure the ground is level and firm and place the motorcycle on its stand. Removing the seat ( 54)
Damage to the engine
can result if it is oper­ated without enough oil, but the same also applies if the oil level is too high. Always make sure that the oil level is correct.
Wipe the area around the filler neck clean.
Page 91

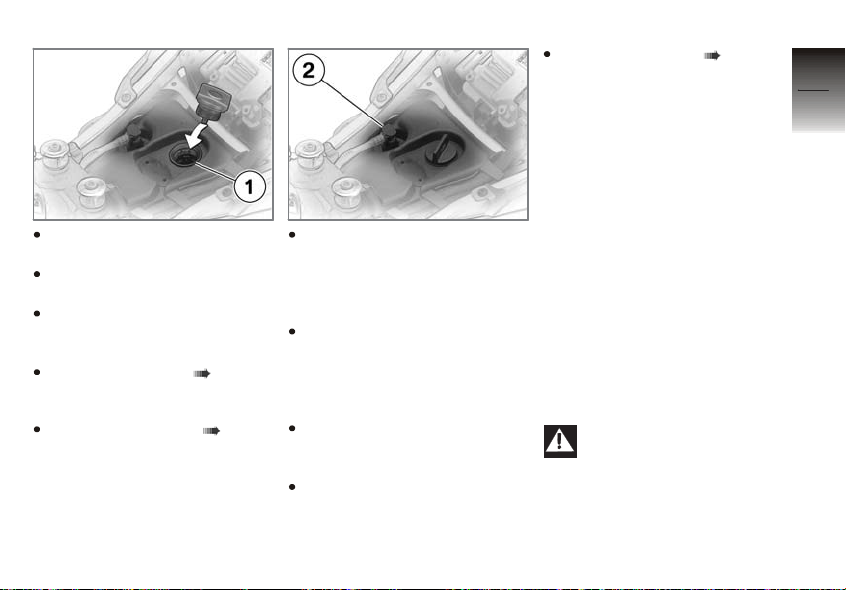

Remove oil filler cap 1 by turning it counter-clockwise. Top up the engine oil to the specified level. Install cap of oil filler neck 1 and turn it clockwise to close. Installing the seat ( 55)
Draining engine oil
Removing the seat ( 54)
Squeeze the retainer of transparent tube 2 together on left and right and pull the tube up and out of the oil tank. Pull the transparent tube down out of the frame and drain the engine oil into a suitable container until the level is to specification. Insert the transparent tube into the oil tank and engage the retainer. Store or dispose of the ex­cess engine oil in an envir­onmentally compatible man­ner.
Installing the seat ( 55)

Brake system, general

Reliability
A fully functional brake sys­tem is a basic requirement for the road safety of your motor­cycle. Do not ride the motorcycle if you have any doubts about the dependability of the brake system. Under these circumstances have the brake system checked by a specialist workshop, preferably an authorised BMW Motorrad dealer.
Incorrect working prac-
tices endanger the reli­ability of the brakes. Have all work on the brake system performed by a spe­cialist workshop, preferably
7
89
z
Maintenance
Page 92
an authorised BMW Motorrad dealer.
7
90
Check operation of the brakes
Pull the handbrake lever. The pressure point must be clearly perceptible. Press the footbrake lever. The pressure point must be clearly perceptible.

Brake pads

z
Maintenance

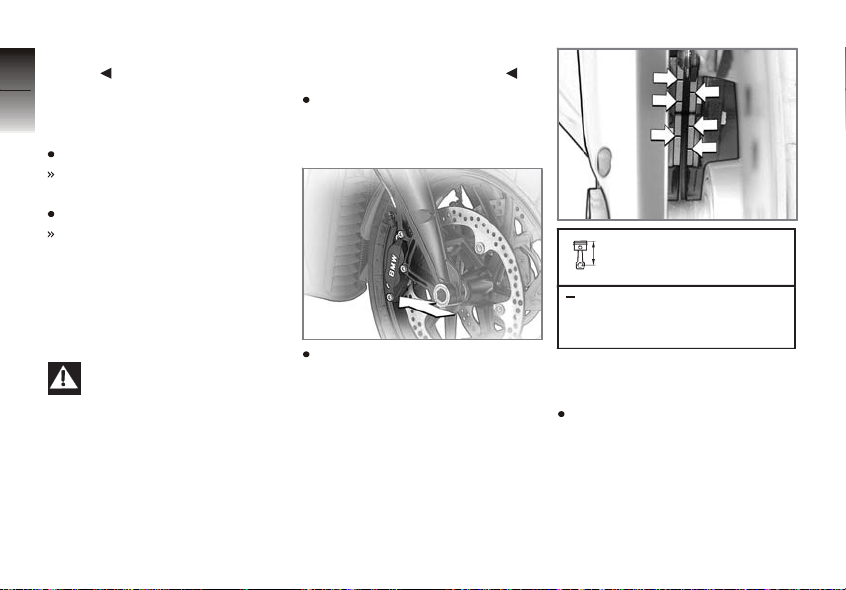

Checking brake-pad thickness, front brakes
Brake pads worn past
the minimum permissible thickness can cause a reduc­tion in braking efficiency and under certain circumstances they can cause damage to the brake system. In order to ensure the de­pendability of the brake sys­tem, do not permit the brake
pads to wear past the minim­um permissible thickness.
Make sure the ground is level and firm and place the motorcycle on its stand.
Visually inspect the left and right brake pads to ascer­tain their thickness.
Brake-pad thickness, front
The wear indicators on the brake pads must be clearly visible.
If the wear indicating mark is no longer clearly visible:
Have the brake pads re­placed by a specialist work­shop, preferably an author­ised BMW Motorrad dealer.
Page 93

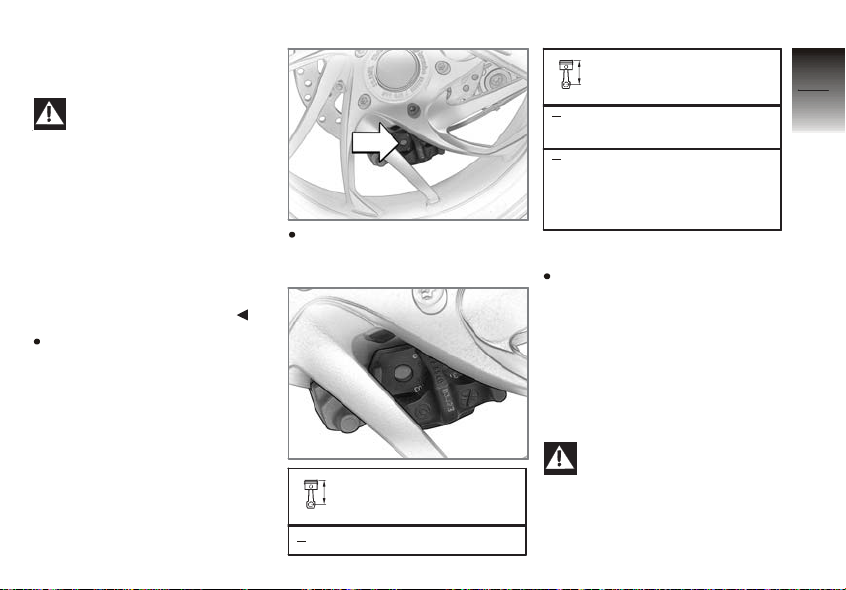

Checking brake pad thickness, rear brakes
Brake pads worn past
the minimum permissible thickness can cause a reduc­tion in braking efficiency and under certain circumstances they can cause damage to the brake system. In order to ensure the de­pendability of the brake sys­tem, do not permit the brake pads to wear past the minim­um permissible thickness.
Make sure the ground is level and firm and place the motorcycle on its stand.
Visually inspect the brake pads from the right to as­certain their thickness.
Rear brake pads, ma­terial thickness
Wear limit
Rear brake pads, ma­terial thickness
1 mm (Friction pad only, without backing plate)
Make sure that the brake disc is not visible through the bore in the inboard brake block.
If the brake disc is visible:
Have the brake pads re­placed by a specialist work­shop, preferably an author­ised BMW Motorrad dealer.

Brake fluid

Check the brake-fluid level, front brakes
A low fluid level in the
brake reservoir can al­low air to penetrate the brake system. This significantly re­duces braking efficiency.
7
91
z
Maintenance
Page 94
Check the brake-fluid level at regular intervals.
7
Make sure the ground is
92
level and firm and hold the motorcycle upright. Move the handlebars to the straight-ahead position.
with OA Centre stand:
Make sure the ground is level and firm and place the motorcycle on its centre stand. Move the handlebars to the
z
Maintenance
straight-ahead position.

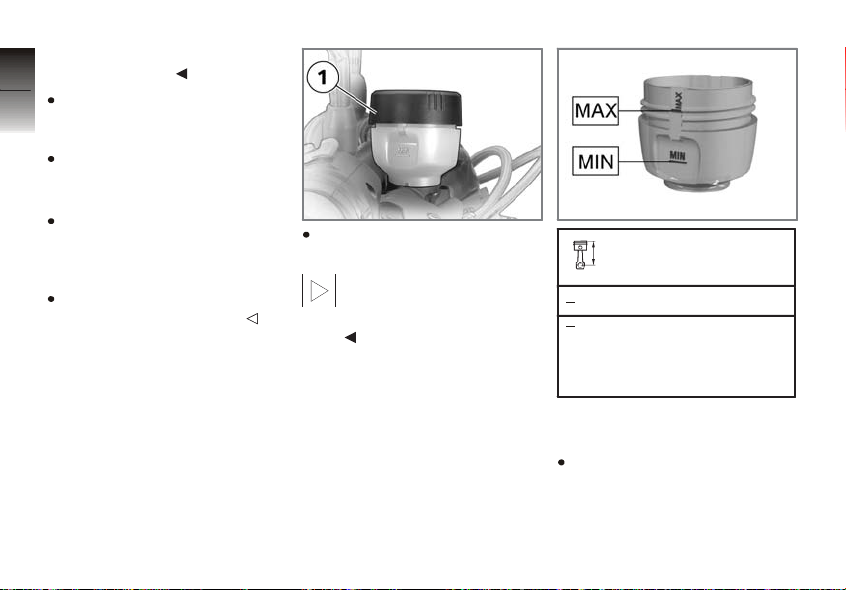

Check the brake fluid level in front reservoir 1.
The brake fluid level in
the brake fluid reser­voir drops as the brake pads wear.
Brake fluid level, front
DOT4 brake fluid Do not permit the brake
fluid level to drop below the MIN mark. (Brake­fluid reservoir horizontal)
If the brake fluid level drops below the permitted level:
Have the defect rectified as quickly as possible by a specialist workshop, prefer­ably an authorised BMW Motorrad dealer.
Page 95
Check the brake-fluid level, rear brakes
A low fluid level in the
brake reservoir can al­low air to penetrate the brake system. This significantly re­duces braking efficiency. Check the brake-fluid level at regular intervals.
Make sure the ground is level and firm and hold the motorcycle upright.
with OA Centre stand:
Make sure the ground is level and firm and place the motorcycle on its centre stand.

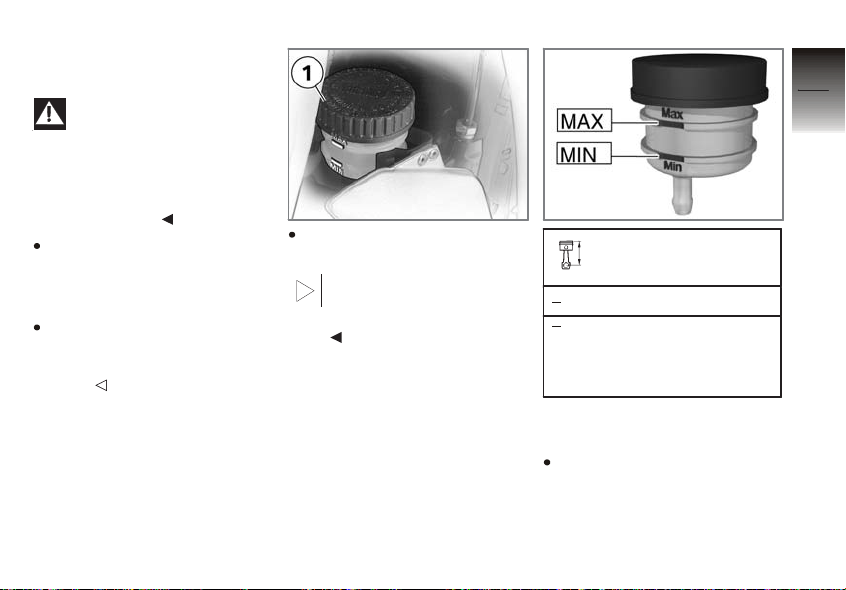

Check the brake fluid level in brake fluid reservoir 1.
The brake fluid level in
the brake fluid reser­voir drops as the brake pads wear.
Brake fluid level, rear
DOT4 brake fluid Do not permit the brake
fluid level to drop below the MIN mark. (Brake­fluid reservoir horizontal)
If the brake fluid level drops below the permitted level:
Have the defect rectified as quickly as possible by a specialist workshop, prefer­ably an authorised BMW Motorrad dealer.
7
93
z
Maintenance
Page 96

Clutch

7
Checking clutch
94
operation
Pull the clutch lever. The pressure point must be
clearly perceptible. If the pressure point is not clearly perceptible:
Have the clutch checked
by a specialist workshop,
preferably an authorised
BMW Motorrad dealer.
z
Maintenance
Check the clutch fluid level
Make sure the ground is
level and firm and hold the
motorcycle upright.
Move the handlebars to the
straight-ahead position. with OA Centre stand:
Make sure the ground is
level and firm and place
the motorcycle on its centre stand. Move the handlebars to the straight-ahead position.
Check the clutch fluid level in clutch fluid reservoir 1.
Wear of the clutch
causes the fluid level in the clutch fluid reservoir to rise.
Clutch fluid level
Do not permit the clutch fluid level to drop.
If the fluid level drops:
Unsuitable hydraulic flu-
ids could cause damage to the clutch system. Do not attempt to top up the system with fluids of any kind.
Have the defect rectified as quickly as possible by a specialist workshop, prefer-
Page 97
ably an authorised BMW Motorrad dealer.
The clutch system is
filled with a special hy­draulic fluid that does not have to be changed.

Tyres

Check the tyre tread depth
Your motorcycle's hand-
ling and grip can be im­paired even before the tyres wear to the minimum tyre tread depth permitted by law. Have the tyres changed in good time before they wear to the minimum permissible tread depth.
Make sure the ground is level and firm and place the motorcycle on its stand.
Measure the tyre tread depth in the main tread grooves with wear marks.
Tyres have wear indic-
ators integrated into the main tread grooves. The tyre is worn out when the tyre tread has worn down to the level of the marks. The loca­tions of the marks are indic­ated on the edge of the tyre, e.g. by the letters TI, TWI or by an arrow.
If the tyre tread is worn to minimum:
Replace tyre or tyres, as ap­plicable.

Rims

Checking rims
Make sure the ground is level and firm and place the motorcycle on its stand.
Visually inspect the rims for defects. Have damaged rims checked and, if necessary, replaced by a specialist workshop, preferably an authorised BMW Motorrad dealer.

Wheels

Approved wheels and tyres
For each size of tyre BMW Motorrad tests certain makes, and approves those that it certifies as roadworthy. If BMW Motorrad has not ap­proved the wheels and tyres, it cannot assess their suitab­ility or provide any guarantee of road safety. Use only wheels and tyres ap­proved by BMW Motorrad for your type of motorcycle.
7
95
z
Maintenance
Page 98
You can obtain detailed in­formation from your author-
7
ised BMW Motorrad dealer or
96
on the Internet at www.bmw­motorrad.com.

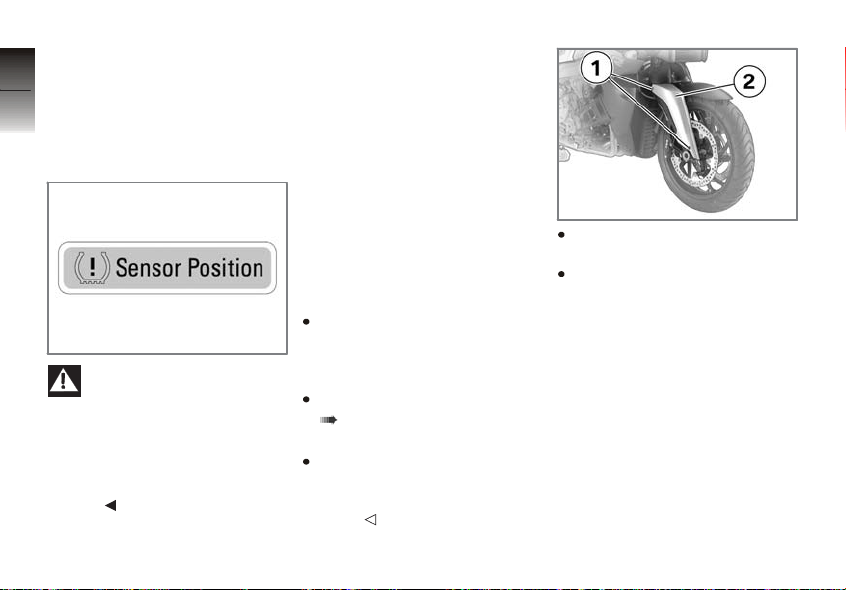

RDC label
z
Maintenance
damage to the RDC sensors. Be sure to notify the author­ised BMW Motorrad dealer or specialist workshop that the wheel is fitted with an RDC sensor.
OE
Incorrect tyre-removal procedures can result in
If the motorcycle is equipped with RDC, each wheel rim bears an adhesive label indic­ating the position of the RDC sensor. When changing the tyre, take care not to damage the RDC sensor. Be sure to draw the attention of the au­thorised BMW Motorrad deal­er or specialist workshop to the fact that the wheel is fitted with an RDC sensor.
Remove the front wheel
Place the motorcycle on an auxiliary stand; BMW Motor­rad recommends the BMW Motorrad rear-wheel stand. Fit the rear-wheel stand ( 106)
with OA Centre stand:
Make sure the ground is level and firm and place the motorcycle on its centre stand.
Remove screws 1 on left and right. Remove covers 2 on left and right.
Page 99
Once the calipers have
been removed, there is a risk of the brake pads be­ing pressed together to the extent that they cannot be slipped back over the brake disc on reassembly. Do not operate the handbrake lever when the brake calipers have been removed.
Remove securing screws 3 of the brake calipers on left and right.
Force the brake pads slightly apart by rocking brake calipers 4 back and forth A against brake discs 5. Mask off the parts of the wheel rim that could be scratched in the process of removing the brake calipers. Carefully pull the brake cal­ipers back and out until clear of the brake discs.
with OE BMW Motorrad Integral ABS:
When removing the left brake caliper, take care not
to damage the ABS sensor cable.
Raise the front of the mo­torcycle until the front wheel can rotate freely. BMW Mo­torrad recommends the BMW Motorrad front wheel stand for lifting the motor­cycle. Fitting the front wheel stand ( 104)
Remove right-hand axle clamping screw 6.
7
97
z
Maintenance
Page 100
with OE BMW Motorrad Integral ABS:
7
98
z
Maintenance
The left axle clamping
screw locates the threaded bush in the front suspension. If the threaded bush is not correctly aligned the gap between the ABS sensor ring and the ABS sensor will not be correct and this can cause the ABS to malfunction or allow the ABS sensor to be damaged. In order to ensure that the threaded bush remains cor­rectly aligned, do not slacken or remove the left axle camp­ing screw.
Remove right-hand axle clamping screw 6.
Remove quick-release axle 7, holding the wheel as you do so.
Lower the front wheel to the ground between the front forks. Roll the front wheel forward
to remove. with OE BMW Motorrad Integral ABS:
Take care not to damage
the ABS sensor when rolling out the front wheel. Note the ABS sensor when rolling out the front wheel.
Roll the front wheel forward to remove.
Installing front wheel
ABS malfunctions on ac-
count of incorrect speed signal. Segmentation differs between individual types of sensor ring; it is very important to en­sure that the correct sensor ring is installed. Install only the sensor ring that matches
the motorcycle's construction status.
Threaded fasteners not
tightened to the spe­cified torque can work loose or their threads can suffer damage. Always have the security of the fasteners checked by a specialist workshop, prefer­ably an authorised BMW Mo­torrad dealer.
The front wheel must be
installed right way round to rotate in the correct direc­tion. Note the direction-of-rotation arrows on the tyre or the wheel rim.
Roll the front wheel into position between the front forks.
Loading...
