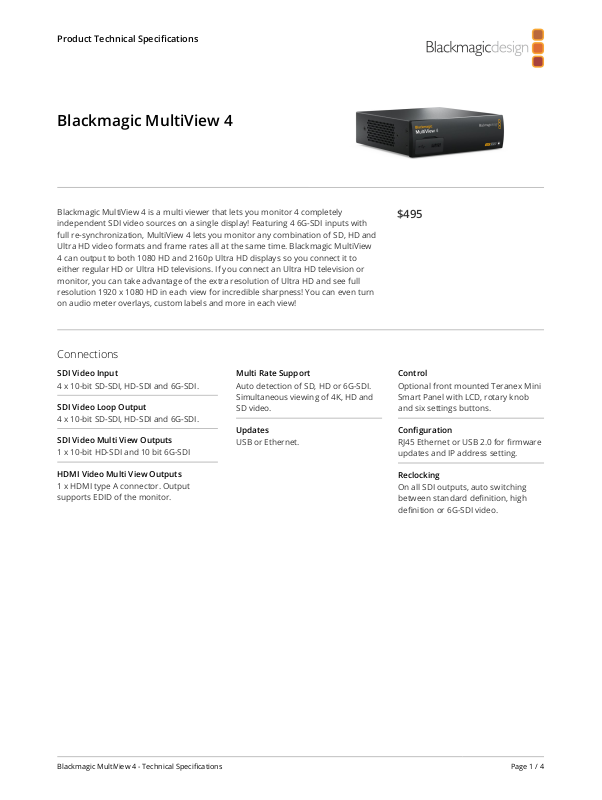

Product Technical Specifications
Blackmagic MultiView 4
Blackmagic MultiView 4 is a multi viewer that lets you monitor 4 completely |
$495 |
independent SDI video sources on a single display! Featuring 4 6G-SDI inputs with |
|
full re-synchronization, MultiView 4 lets you monitor any combination of SD, HD and |
|
Ultra HD video formats and frame rates all at the same time. Blackmagic MultiView |
|
4 can output to both 1080 HD and 2160p Ultra HD displays so you connect it to |
|
either regular HD or Ultra HD televisions. If you connect an Ultra HD television or |
|
monitor, you can take advantage of the extra resolution of Ultra HD and see full |
|
resolution 1920 x 1080 HD in each view for incredible sharpness! You can even turn |
|
on audio meter overlays, custom labels and more in each view! |
|
Connections
SDI Video Input
4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Loop Output
4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Multi View Outputs
1 x 10-bit HD-SDI and 10 bit 6G-SDI
HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video.
Updates
USB or Ethernet.
Control
Optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons.
Configuration
RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
Blackmagic MultiView 4 - Technical Specifications |
Page 1 / 4 |
Standards
SD Format Support
525i29.97 NTSC, 625i25 PAL
HD Format Support
720p50, 720p59.94,720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K 23.98 PsF, 2K 24 PsF, 2K 25 PsF.
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Format Support
2160p24
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6GSDI.
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4.
SDI Color Space
YUV or RGB for inputs, YUV for outputs.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Display
Optional Teranex Mini Smart Panel with 1.5” LCD for menu settings.
Blackmagic MultiView 4 - Technical Specifications |
Page 2 / 4 |
