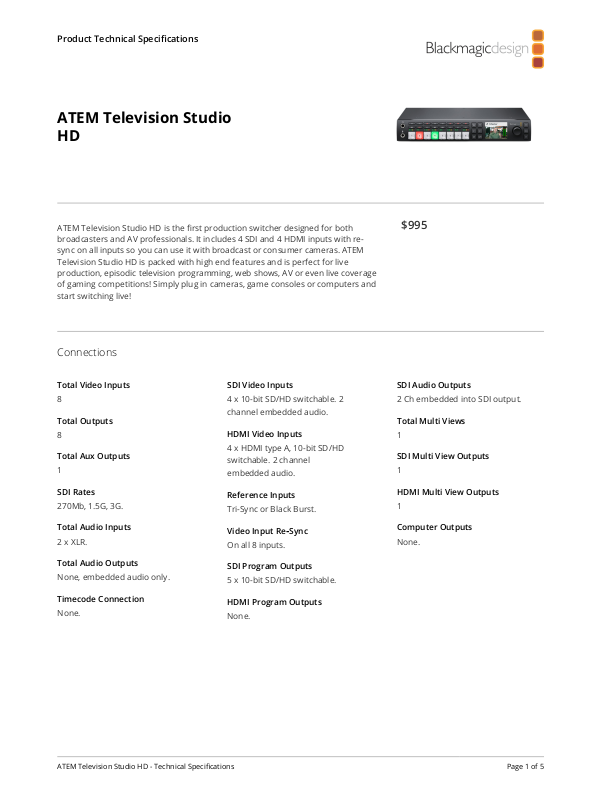

Product Technical Specifications
ATEM Television Studio
HD
ATEM Television Studio HD is the first production switcher designed for both |
$995 |
broadcasters and AV professionals. It includes 4 SDI and 4 HDMI inputs with re- |
|
sync on all inputs so you can use it with broadcast or consumer cameras. ATEM |
|
Television Studio HD is packed with high end features and is perfect for live |
|
production, episodic television programming, web shows, AV or even live coverage |
|
of gaming competitions! Simply plug in cameras, game consoles or computers and start switching live!
Connections
Total Video Inputs
8
Total Outputs
8
Total Aux Outputs
1
SDI Rates
270Mb, 1.5G, 3G.
Total Audio Inputs
2 x XLR.
Total Audio Outputs
None, embedded audio only.
Timecode Connection
None.
SDI Video Inputs
4 x 10-bit SD/HD switchable. 2 channel embedded audio.
HDMI Video Inputs
4 x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio.
Reference Inputs
Tri-Sync or Black Burst.
Video Input Re Sync
On all 8 inputs.
SDI Program Outputs
5 x 10-bit SD/HD switchable.
HDMI Program Outputs
None.
SDI Audio Outputs
2 Ch embedded into SDI output.
Total Multi Views
1
SDI Multi View Outputs
1
HDMI Multi View Outputs
1
Computer Outputs
None.
ATEM Television Studio HD - Technical Specifications |
Page 1 of 5 |
Standards
SD Video Standards
525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9
HD Video Standards
720p50, 720p59.94 1080p23.98, 1080p24, 1080p25,
1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94
Ultra HD Video Standards
None.
SDI Compliance
SMPTE 259M, 292M and 424M.
Video Sampling
4:2:2 10-bit
Color Precision
4:2:2 10-bit
Color Space
4:2:2 YUV
HDMI Input Resolutions for
Computers
720 x 480i 59.94Hz, 720 x 576i 50Hz,
1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz.
Colorspace Conversion
Hardware based real time.
Processing Delay
6 Lines.
Audio Mixer
10 input x 2 channel mixer. Selectable On/Off/Audio-Follow- Video.
Level and Peak metering. Master gain control. Headphone
output level control with separate mix of Program, Talkback and Sidetone.
Product Specifics
Upstream Keyers |
Downstream Keyers |
Chroma Keyers |
1 |
2 |
1 |
ATEM Television Studio HD - Technical Specifications |

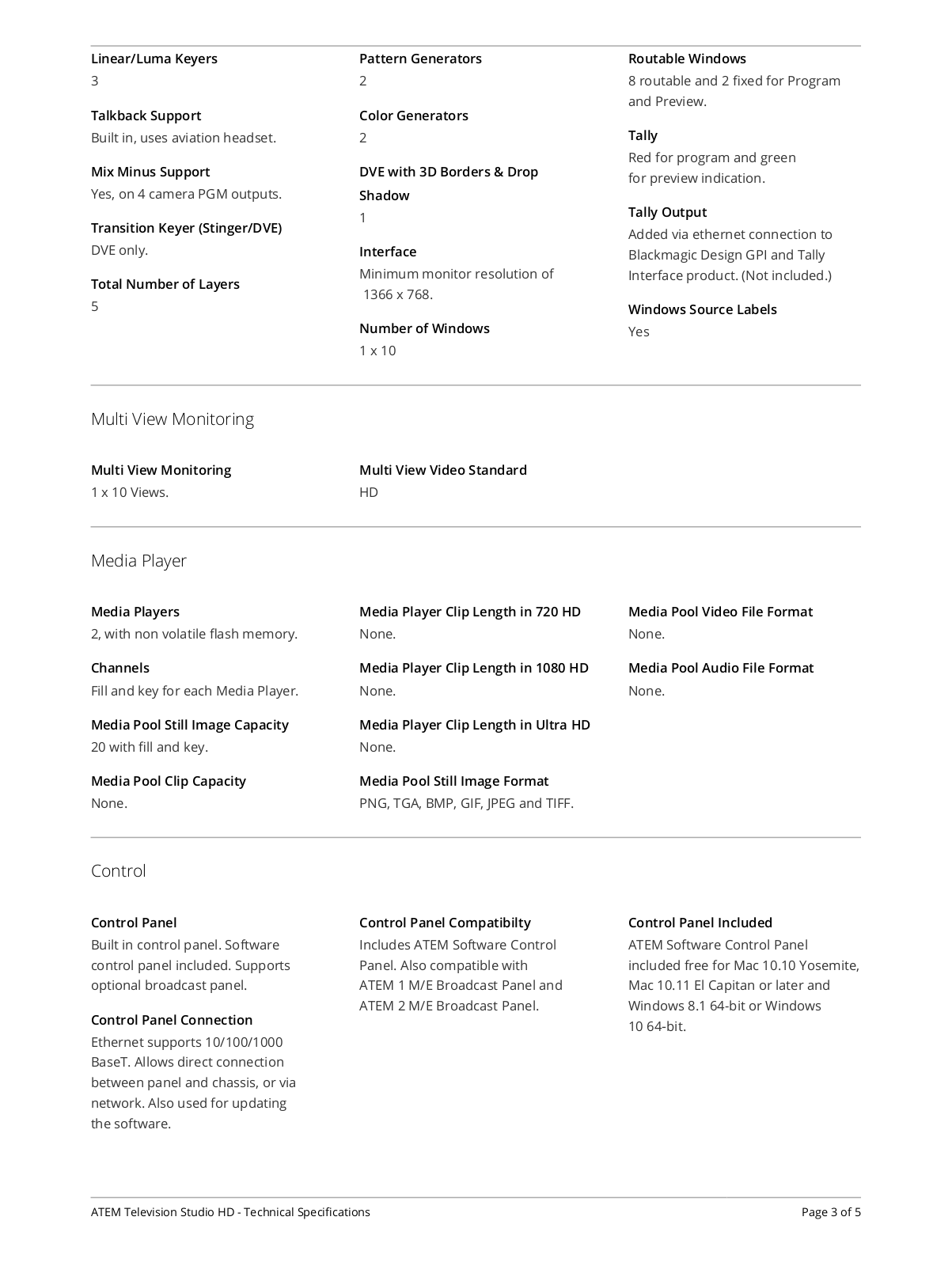

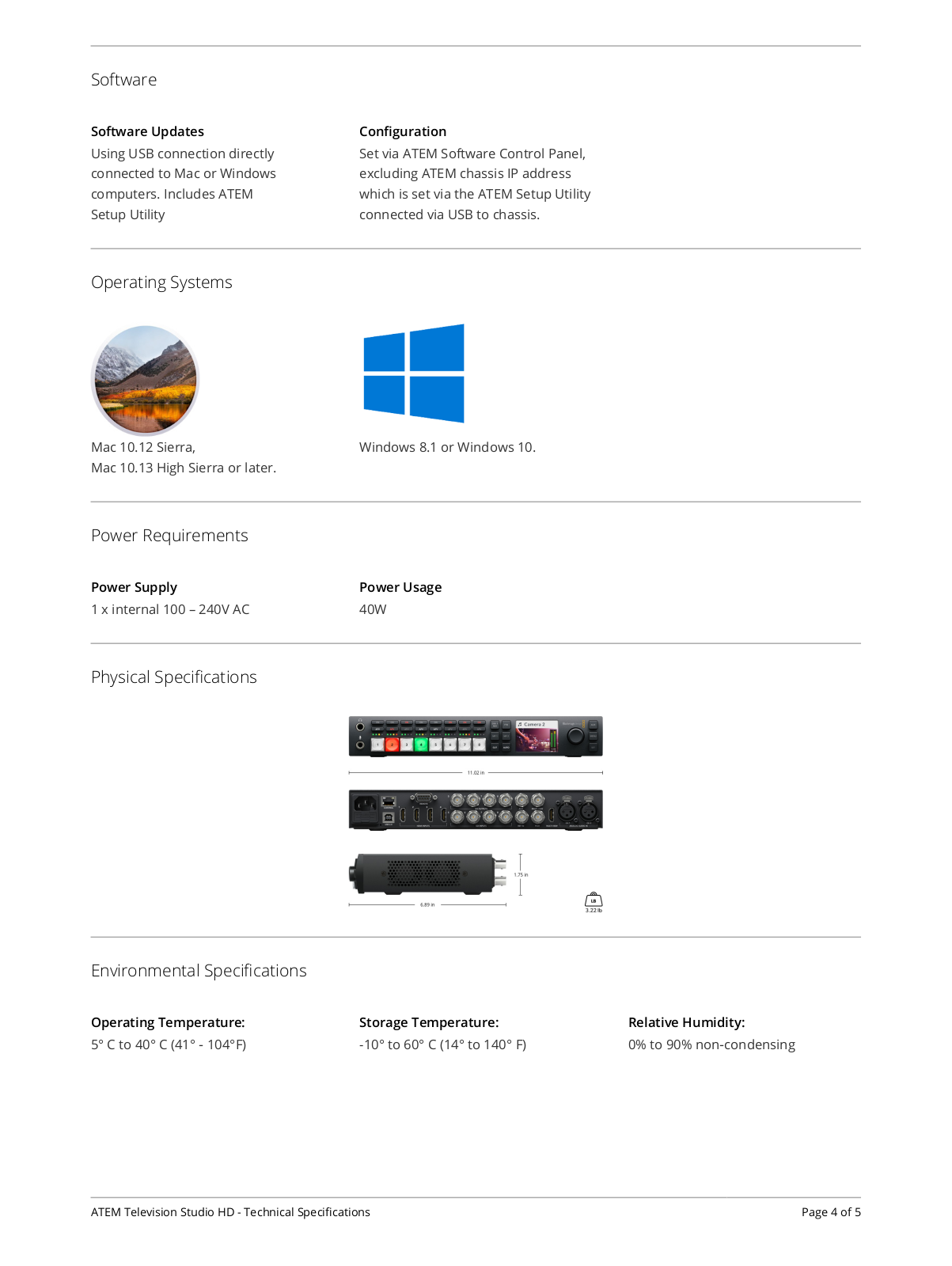

Page 2 of 5 |
