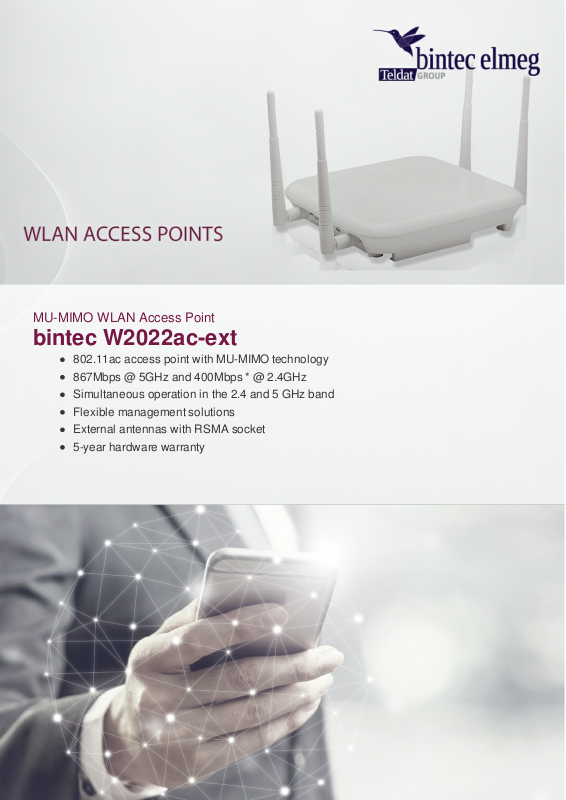

MU-MIMO WLAN Access Point
bintec W2022ac-ext
802.11ac access point with MU-MIMO technology
867Mbps @ 5GHz and 400Mbps * @ 2.4GHz
Simultaneous operation in the 2.4 and 5 GHz band
Flexible management solutions External antennas with RSMA socket 5-year hardware warranty
bintec W2022ac-ext
802.11ac access point with MU-MIMO technology for the high-performance support of mobile devices.
The bintec W2022ac-ext is an access point based on the latest 802.11ac standard and supports MU-MIMO (Multiple User MIMO). The MU-MIMO technology allows mobile devices (such as smartphones) that have only one antenna to use all the transmission streams of an access point. Compared to 802.11ac first-generation access points, which support only singleuser MIMO (SU-MIMO), twice as many mobile devices can connect to the bintec W2022ac-ext without sacrificing performance. This doubles the overall performance.
Together with the WLAN controller integrated in be.IP, commissioning becomes child's play. In larger installations, you have the choice between a local installed bintec WLAN controller solution and the bintec Cloud NetManager*. In addition, the bintec W2022ac-ext is already prepared for the new bintec SD-WAN solution be.SDx.
The new ceiling mount is available as an accessory and allows mounting on suspended system ceilings without drilling and dowels or direct mounting on wood or concrete ceilings. For mounting on the wall, the optional ceiling mount is not necessary.
Five-year warranty on the hardware of the bintec W2022ac-ext.
* In preparation
Variants
bintec W2022ac-ext Part number: 5510000423
Features
Operation Modes
WLAN AP |
WLAN Access Betrieb |
Wireless LAN (Radio 1) |
|
|
||
WLAN Standards |
|
802.11b; 802.11g; 802.11n (MIMO 2x2) 2.4 GHz |
||
Receiver Sensitivity @ 2.4 GHz 802.11b |
-97dBm |
|||
Receiver Sensitivity @ 2.4 |
GHz 802.11g |
-92.5dBm |
||
Receiver Sensitivity @ 2.4 |
GHz 802.11n 20/40 MHz |
MCS0 -91,5dBm; MSC7 -73,5dBm |
||
Tx Power @ 2.4 |
GHz 802.11b/g |
1 Mbps 20dBm; 6Mbps 20dBm; 54Mbps 18 dBm without |
||
antenna gain |
||||
|
|
|
||
|
|
|
||
Tx Power @ 2,4 |
GHz 802.11n 20/40MHz (2 streams) |
MCS0 20dBm; MSC7 20dBm without antenna gain |
||
|
|
|
|
|
bintec W2022ac-ext |
bintec elmeg GmbH – Südwestpark 94 – 90449 Nürnberg – Deutschland |
February 7, 2019 |
Telefon: +49 911 9673 0 – Telefax: +49 911 688 07 25 |
Subject to technical alterations |
E-Mail: info@bintec-elmeg.com – www.bintec-elmeg.com |
20190207023856 |
General Terms and Conditions: https://www.bintec-elmeg.com/en/company/terms-and-conditions/gerneral-terms-and- |
|
conditions/ |
|
Frequency bands 2.4 GHz indoor/outdoor (EU) |
2.4 GHz Indoor/Outdoor (2412-2484 MHz) max. 100 mW |
|
EiRP (20dBm) |
|
|
|
|
|
|
|
|
Data rates for 802.11b,g (2.4 GHz) |
11, 5.5, 2 und 1 Mbps (DSSS modulation); 54, 48, 36, 24, |
|
18, 12, 9 and 6 Mbps (OFDM modulation) |
|
|
|
|
|
|
MCS0-15 allow up to 150 Mbps PHY rate at 20 MHz |
|
Data rates for 802.11n, 20 MHz channel bandwidth |
channel bandwidth, 2 streams, Short guard Intervall. Up to |
|
173,3 Mbps (QAM-256) together with clients there support |
|
|
|
|
|
|
QAM-256. |
|
|
|
|
|
MCS0-15 allow up to 300 Mbps PHY rate at 40 MHz |
|
Data rates for 802.11n, 40 MHz channel bandwidth |
channel bandwidth (under preparation), 2 streams, Short |
|
guard Intervall. Up to 400 Mbps (QAM-256) together with |
|
|
|
|
|
|
clients there support QAM-256. |
|
Output power limitation |
Adjustable in 1dBm steps from 5dBm to 20dBm |
|
|
|
|
Output power @ 2.4 GHz |
Max. 20dBm |
|
Automatic Rate Selection (ARS) |
Available |
|
|
|
|
Transmission rate |
Automatic |
|
Number of spatial streams (802.11n) |
1 or 2 |
|
|
|
|
Bandwidth (802.11n) |
20 MHz / (40MHz with coexistence check under |
|
preparation) |
|
|
|
|
|
Short guard interval (802.11n) |
On/off switchable; increase of throughput by reduction of |
|
the guard intervals from 800ns to 400ns |
|
|
|
|
|
|
|
|
DTIM Period |
Adjustable |
|
|
Beamforming, MRC (Maximum Ratio Combining), Block- |
|
Extended Performance Feature |
Acknowlegde, STBC (Space Time Block Coding), LDPC |
|
|
(Low Density Parity Check |
|
|
|
|
Multi SSID |
Up to 8 service sets, with virtual access points and own |
|
MAC address per SSID |
|
|
|
|
|
Broadcast SSID |
On/off switchable |
|
|
|
|
Wireless LAN (Radio 2) |
|
|
WLAN Standards |
802.11ac/an; MU-MIMO 2x2; 20/40/80 MHz; 5 GHz |
|
Receiver Sensitivity @ 5 GHz 802.11a/h |
6 Mbps -90 dBm; 54 Mbps -73 dBm |
|
Receiver Sensitivity @ 5 GHz 802.11n 20/40/80 MHz |
MCS0 -89.5 dBm; MCS7 -72.5 dBm; MCS8 -68.5 dBm; |
|
MCS9 -64 dBm |
|
|
|
|
|
Tx Power @ 5 GHz 802.11a/h |
6 Mbps 20 dBm; 54 Mbps 17 dBm without antenna gain |
|
Tx Power @ 5 GHz 802.11ac/n 20/40/80 MHz (2 chains) |
MCS0 22 dBm; MCS7 19 dBm; MCS9 14 dBm without |
|
antenna gain |
|
|
|
|
|
Frequency bands 5 GHz indoor (EU) |
5 GHz indoor (5150-5350 MHz) max. 200 mW EiRP allowed. |
|
Frequency bands 5 GHz outdoor (EU) |
5 GHz outdoor (5470-5725 MHz) max. 1000 mW EiRP |
|
allowed. |
|
|
|
|
|
|
|
|
Data rates for 802.11a,h (5 GHz) |
54, 48, 36, 24, 18, 12, 9 and 6 Mbps (OFDM modulation) |
|
Data rates for 802.11n, 20 MHz channel bandwidth |
MCS0-15 allow up to 150 Mbps PHY rate at 20 MHz |
|
channel bandwidth, 2 streams, Short guard intervall |
|
|
|
|
|
Data rates for 802.11n, 40 MHz channel bandwidth |
MCS0-15 allow up to 300 Mbps PHY rate at 40 MHz |
|
channel bandwidth, 2 streams, Short guard intervall |
|
|
|
|
|
|
