B&G RAM T3 User Manual
ENGLISH
RAM T3
Marine Hydraulic Steering System
User Manual
bandg.com
simrad-yachting.com
2
The information in this manual was, to the best of our knowledge,
correct when it went to press and Simrad or B&G cannot be liable for
any inaccuracies or omissions. There may also be differences
between the specifications in the manual and the product as a result
of ongoing development for which we accept no liability.
This precision engineered product was designed and manufactured in
the United Kingdom.
Please keep this manual in a safe place
3
CONTENTS
Important Safety Information
Compliance Statement
Description
Location
System Contents
Maintenance & Service

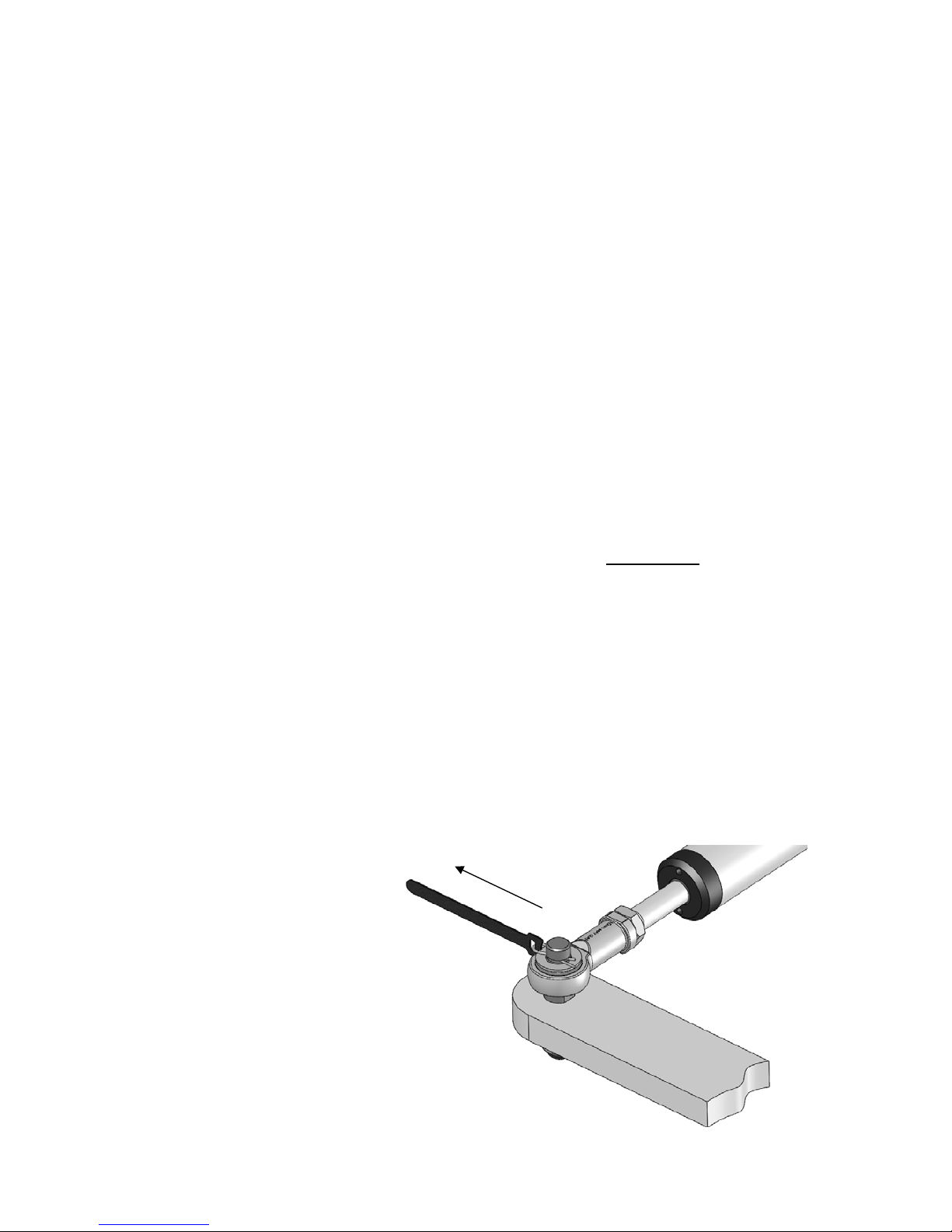

Emergency Quick Release
Emergency Steering - Primary Steering Failure
Technical Data

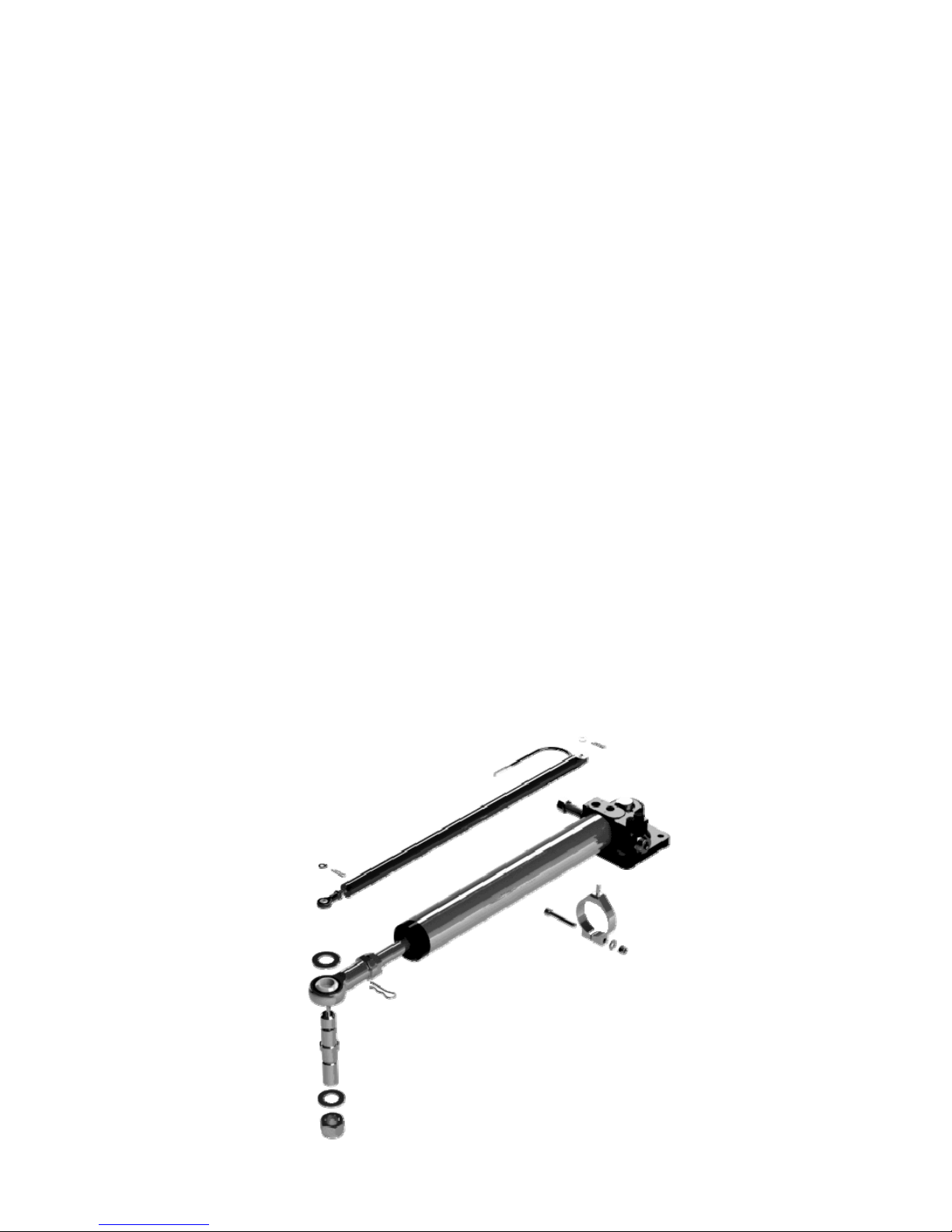

Rudder Feedback Unit (Optional)

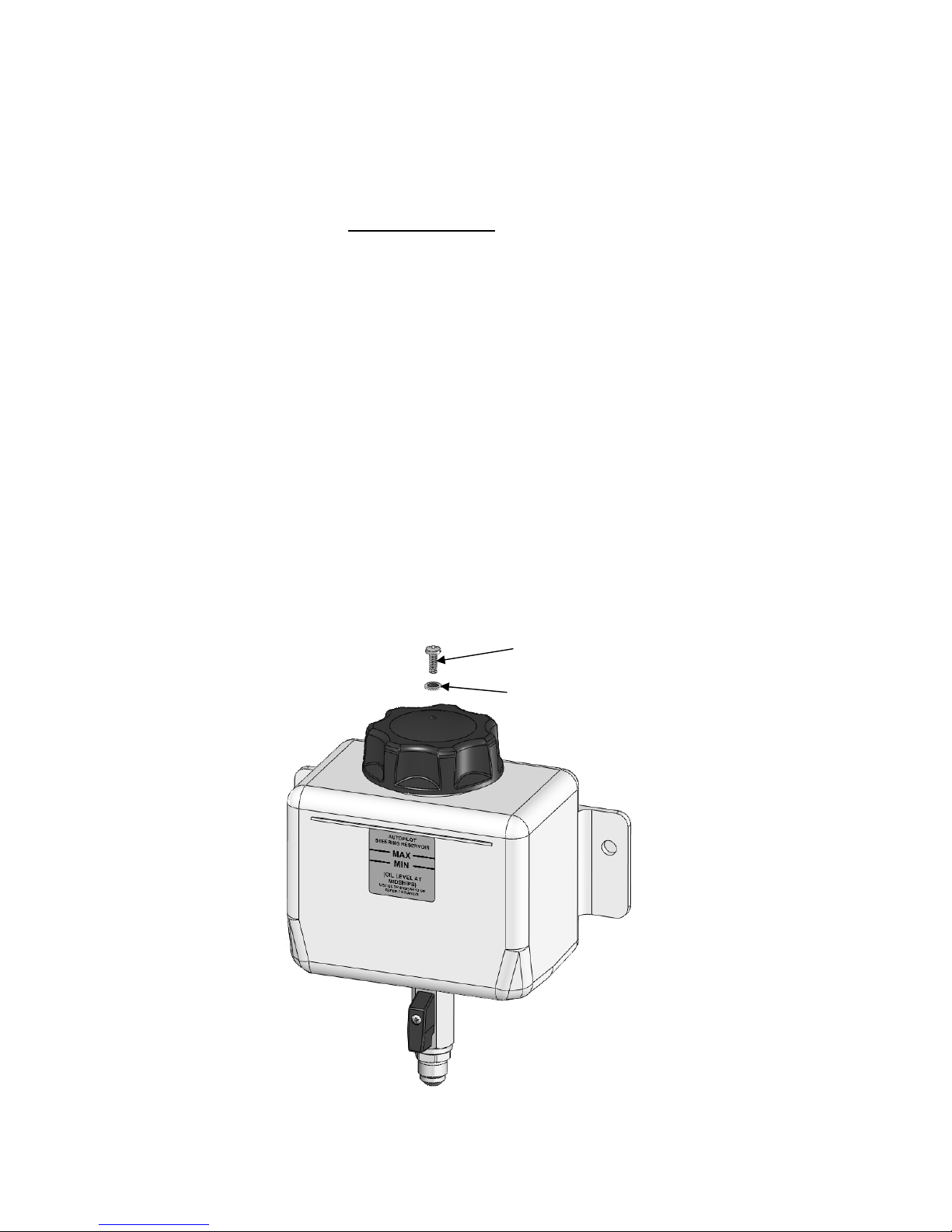

Reservoir Preparation

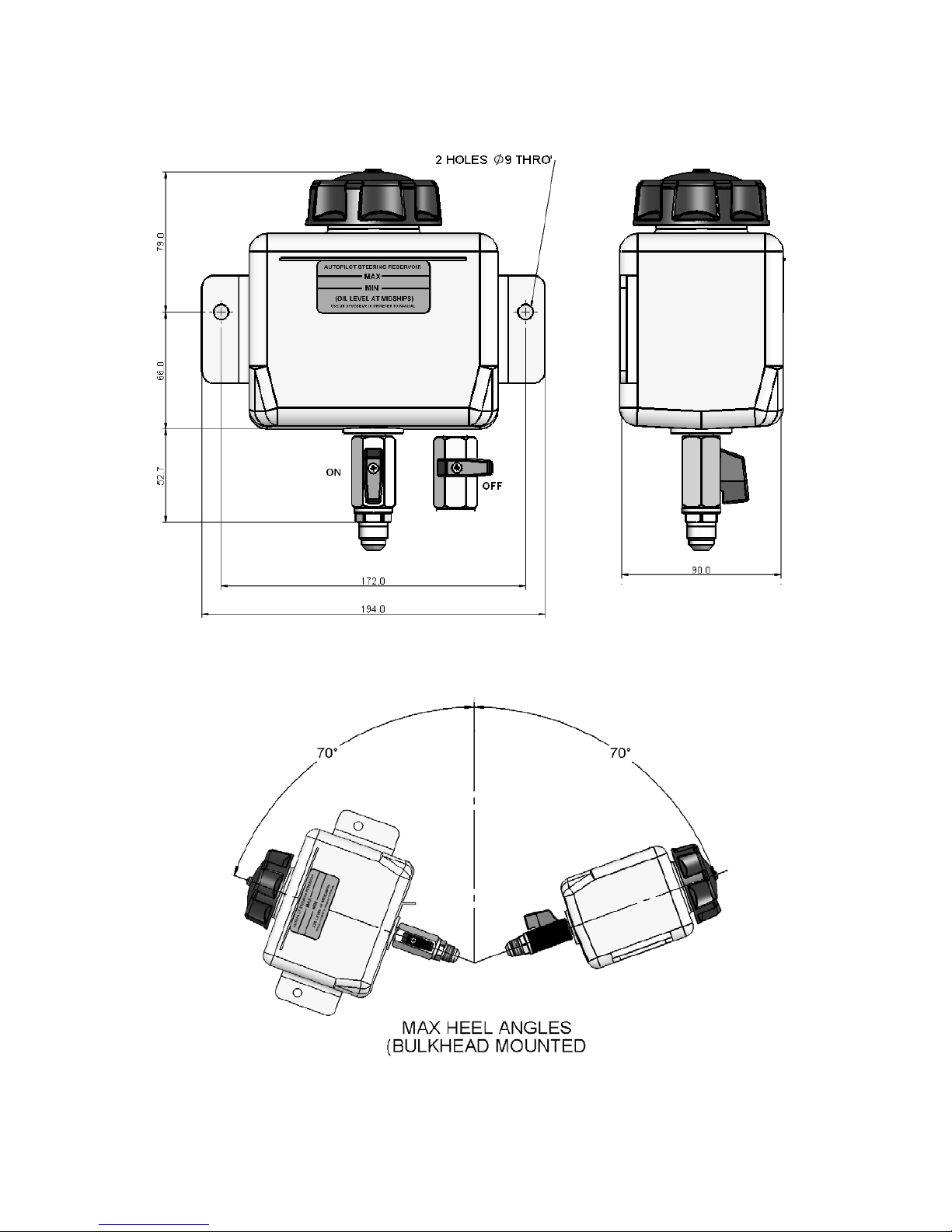

Reservoir Installation

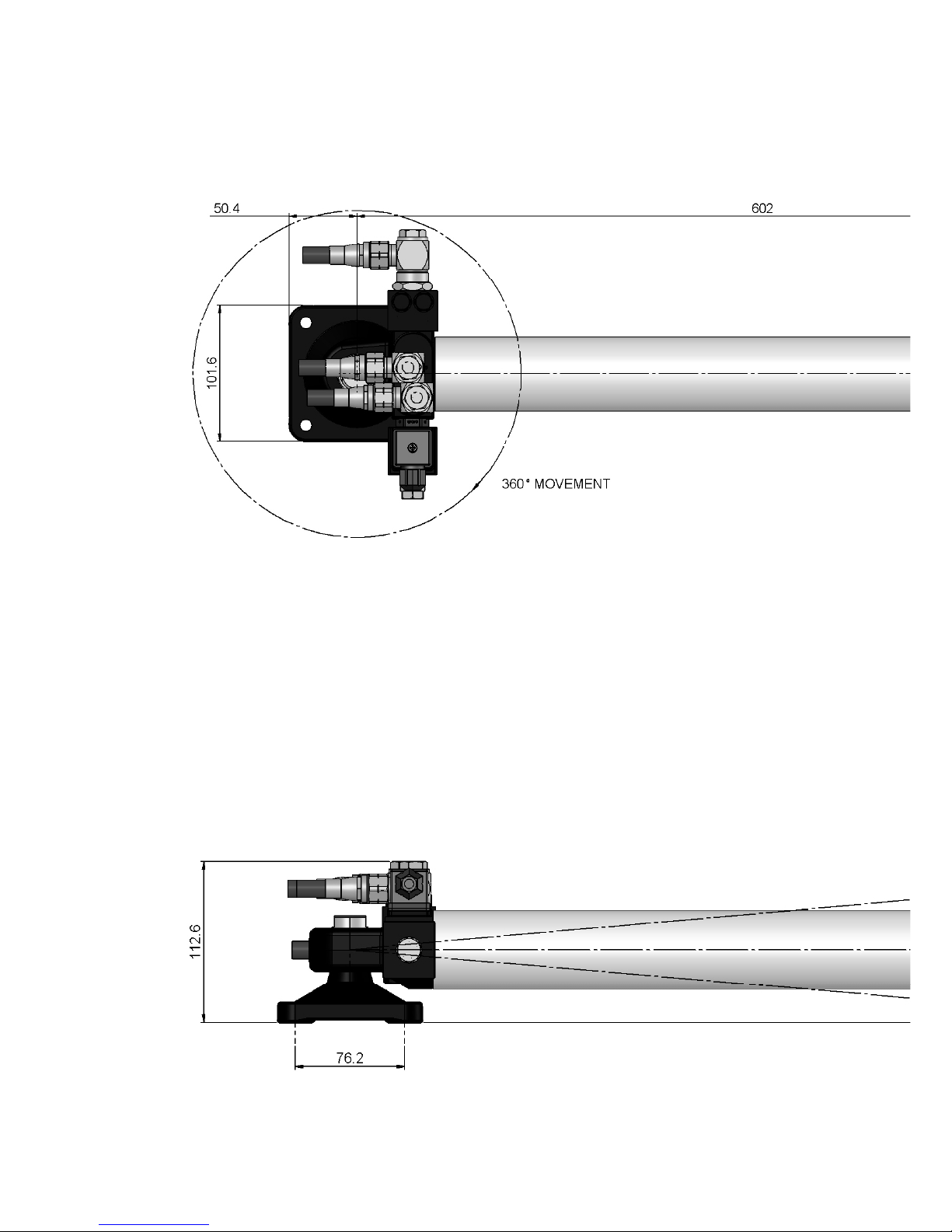

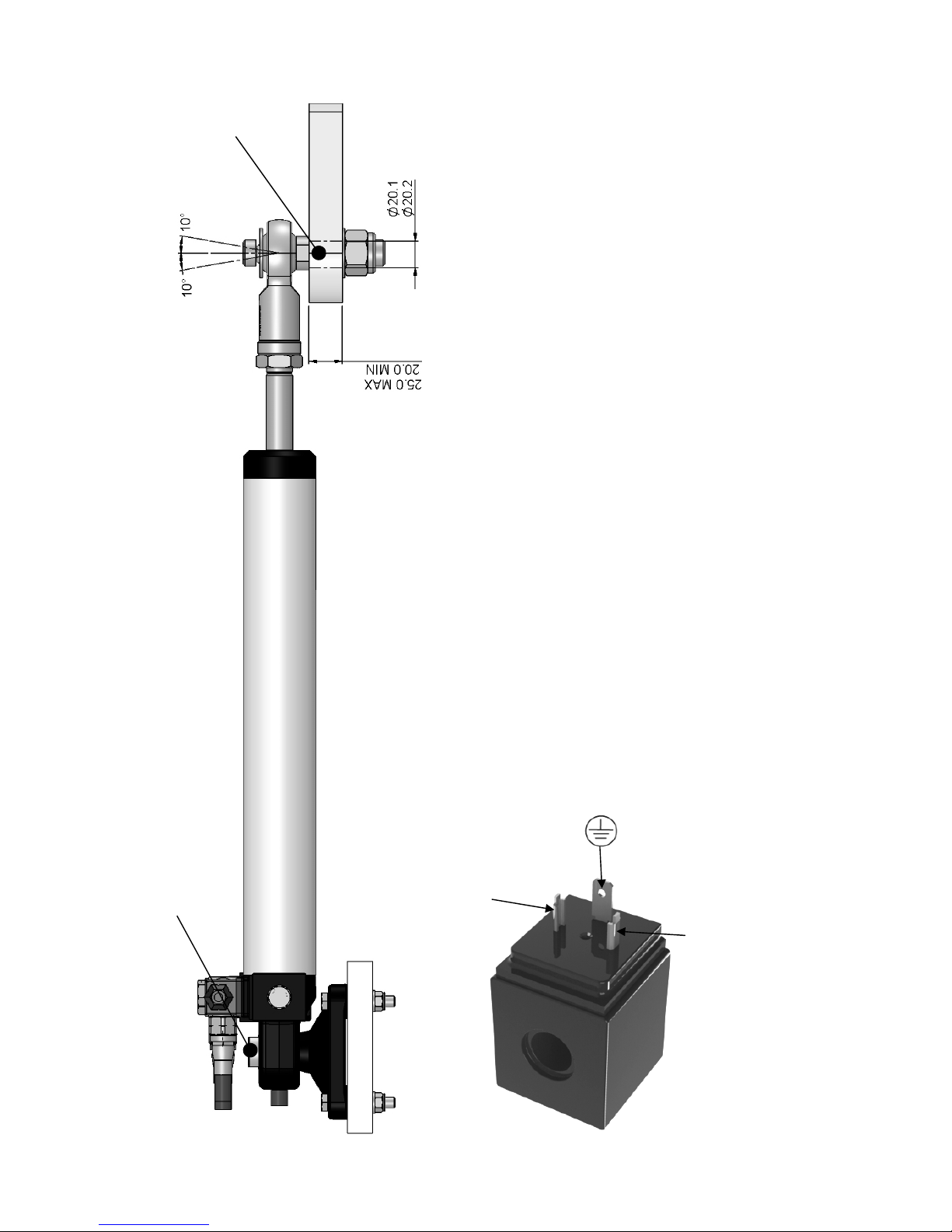

Cylinder Installation

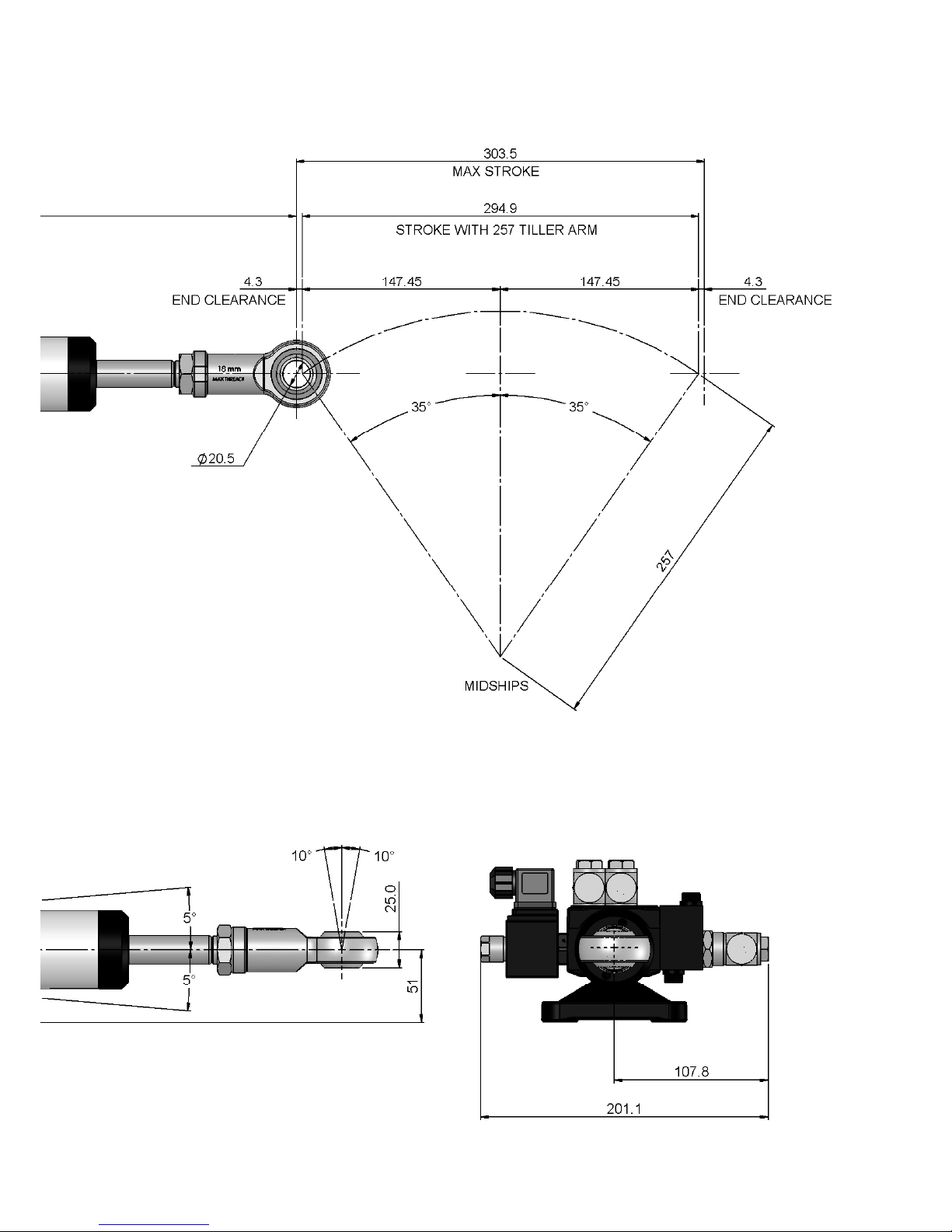

Quadrant

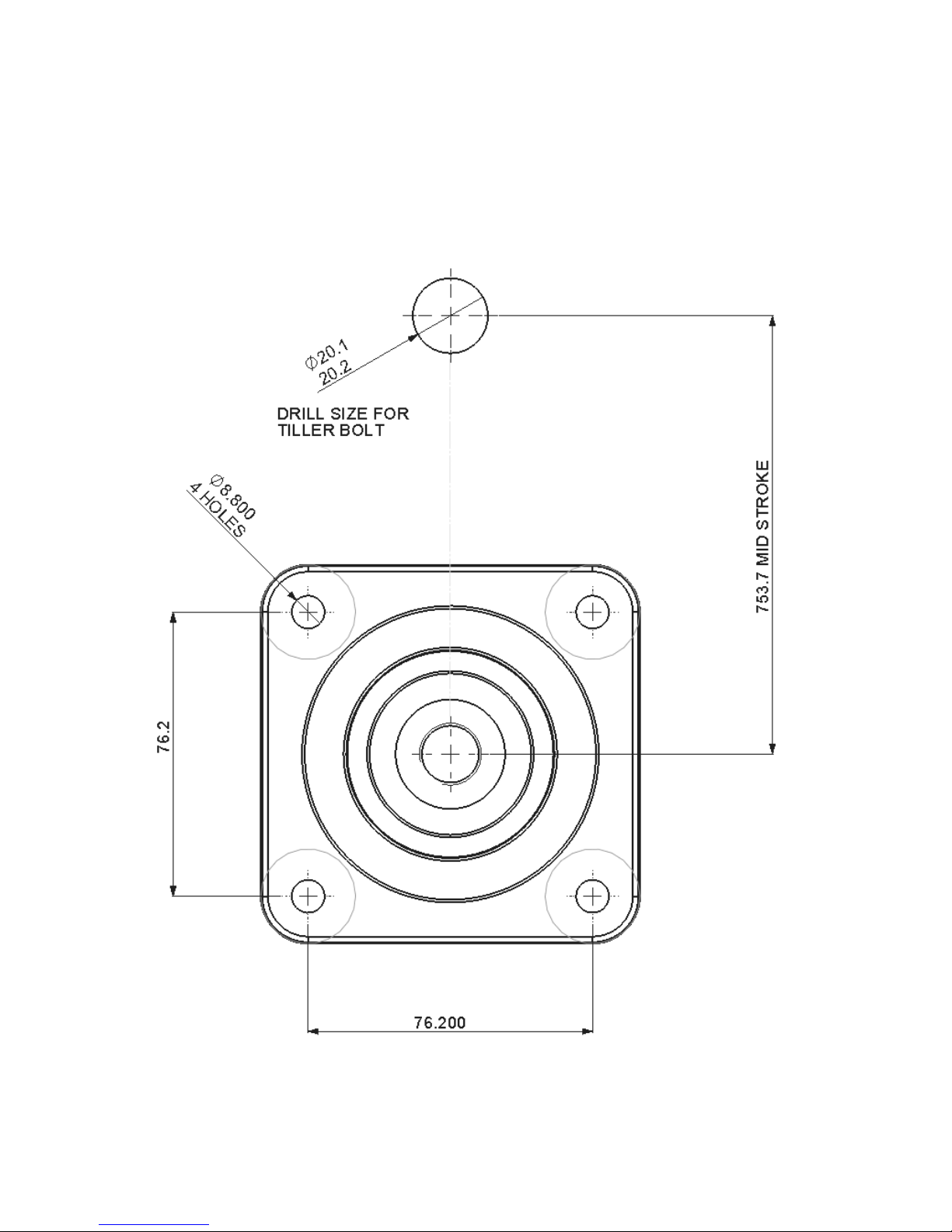

Dimensions for Cylinder Mounting Foot
Tiller Bolt
Mounting Foot
Coil Connections
Refilling and Bleeding
Hydraulic Fluid
Commissioning
Fault Finding
General Information
Contact Details
Environmental
Page 4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
4
IMPORTANT SAFETY INFORMATION
Failure to install and maintain this equipment in accordance with the
instructions contained in this Manual could result in damage or injury.
This equipment must be installed and maintained by a person who is
qualified to do so. This equipment is only for use with marine autopilots
within the limitations stated in the following pages. Autopilot steering
systems are navigational aids and the user must still maintain a permanent watch.
This equipment meets the latest EMC (Electromagnetic Compatibility)
standards required for use in the marine environment.
In order to ensure conformance and to prevent interference with
electronic systems the unit must be properly bonded to earth and the
supply cables screened.
Caution!
In operation this unit can rotate the vessels wheel rapidly.
Keep clear of the wheel when this unit is engaged to avoid entrapment.
Beware of hot motor and solenoid components and the risk of
entrapment from moving parts.
Do not flash test.
COMPLIANCE STATEMENT
The RAM T3 complies with CE under directive 2014/30/EU. The relevant Declaration of Conformity is available in the following websites under model documentation section:
www.simrad-yachting.com or www.bandg.com
Complies with the requirements of level 2 devices of the Radio
communications (Electromagnetic Compatibility) standard 2017.
Warning!
The user is cautioned that any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
5
DESCRIPTION
RAM T3 Hydraulic Steering Systems combine a hydraulic cylinder with
clutch, reversing pump and reservoir in a compact installation.
A solenoid clutch is engaged to extend or retract the rod. The cylinder
and its mounting are protected by integral relief valves. Overall adjustment is incorporated into the stroke of the cylinder. Nominal cylinder
size and pump flow are indicated on the rating plate. Check the voltage
shown is correct for the output of your autopilot.
Please do not disconnect any of the hoses, the system has been filled
and tested prior to shipment.
Ensure you read and understand the special reservoir instructions on
page 10 before commencing installation.
LOCATION
For marine applications these systems are designed for 'under deck'
installations only.
Excessive temperature, vibration and fumes in the atmosphere can
drastically reduce motor life.
It must be mounted securely and on a surface that is able to withstand
the high thrusts generated.
As in common with other electrical equipment contact with water and
excessive humidity must be avoided.
Any attitude of mounting may be used but horizontal is preferred. Refer
to the installation and technical data pages for further information.
The reservoir must be located in an area that is not subject to extremes
of temperature and humidity and away from refrigeration compressors
and air-conditioning plant.
5
6

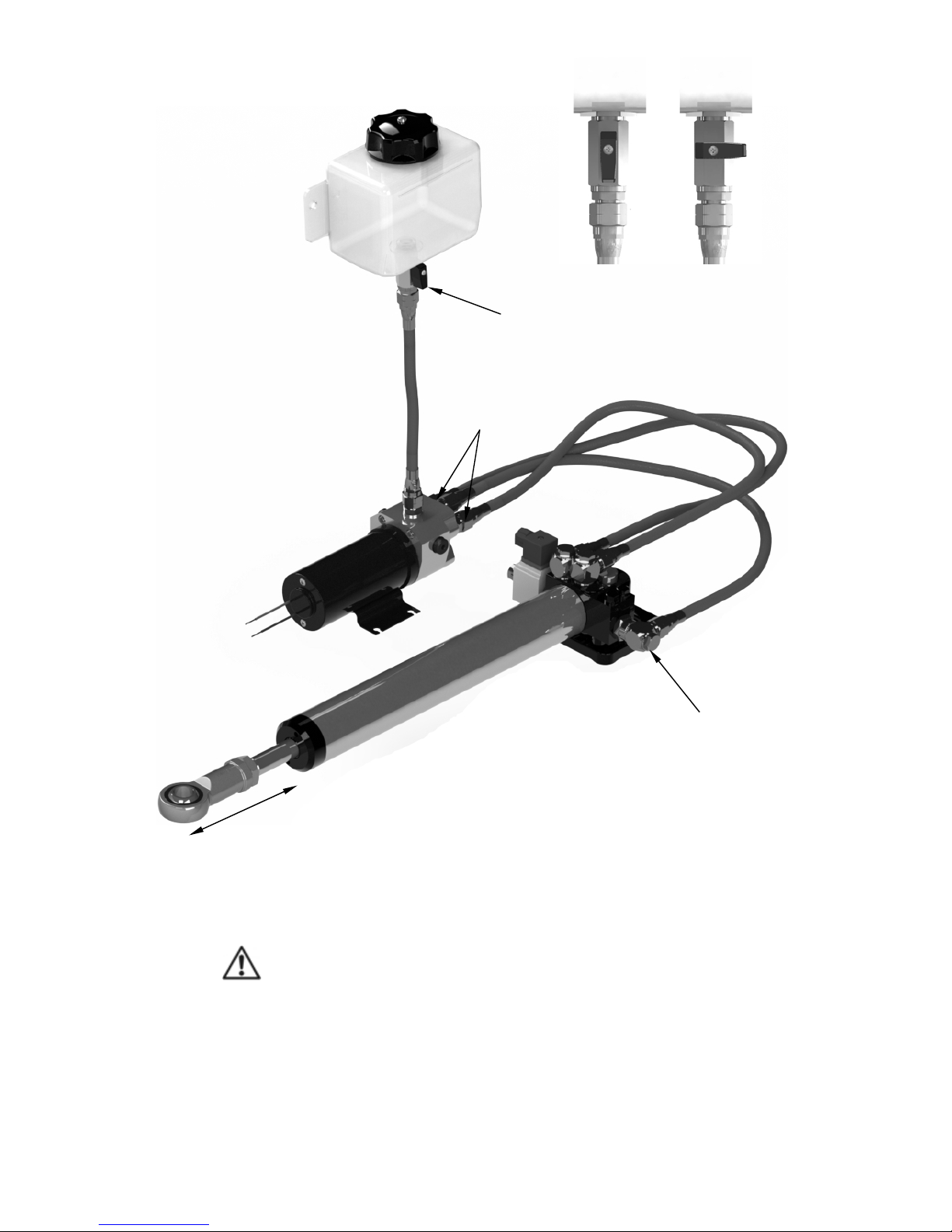

SYSTEM CONTENTS
PUMP
CYLINDER
RESERVOIR
CLUTCH
TILLER BOLT
& FITTINGS
PUMP
FASTENERS
CYLINDER
FASTENERS
TOP-UP OIL
RUDDER
FEEDBACK KIT
(OPTIONAL)
