Bg PD-6CSi Specifications

PD-6 CSi

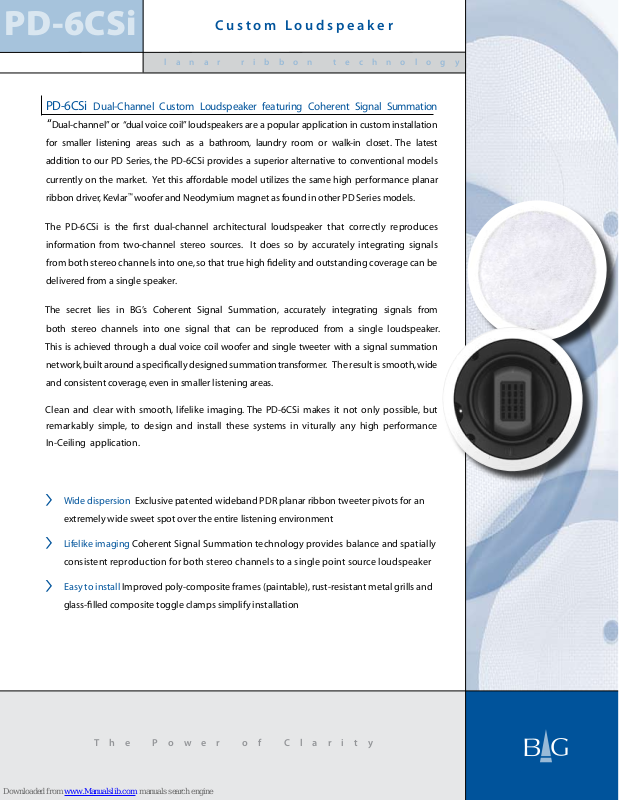

PD-6CSi Dual-Channel Custom Loudspeaker featuring Coherent Signal Summation

“Dual-channel” or “dual voice coil” loudspeakers are a popular application in custom installation

for smaller listening areas such as a bathroom, laundry room or walk-in closet. The latest

addition to our PD Series, the PD-6CSi provides a superior alternative to conventional models

currently on the market. Yet this affordable model utilizes the same high performance planar

ribbon driver, Kevlar™ woofer and Neodymium magnet as found in other PD Series models.

The PD-6CSi is the first dual-channel architectural loudspeaker that correctly reproduces

information from two-channel stereo sources. It does so by accurately integrating signals

from both stereo channels into one, so that true high fidelity and outstanding coverage can be

delivered from a single speaker.

The secret lies in BG’s Coherent Signal Summation, accurately integrating signals from

C u s t o m L o u d s p e a k e r

l a n a r r i b b o n t e c h n o l o g y

both stereo channels into one signal that can be reproduced from a single loudspeaker.

This is achieved through a dual voice coil woofer and single tweeter with a signal summation

network, built around a specifically designed summation transformer. The result is smooth, wide

and consistent coverage, even in smaller listening areas.

Clean and clear with smooth, lifelike imaging. The PD-6CSi makes it not only possible, but

remarkably simple, to design and install these systems in viturally any high performance

In-Ceiling application.

Wide dispersion Exclusive patented wideband PDR planar ribbon tweeter pivots for an

›

extremely wide sweet spot over the entire listening environment

Lifelike imaging Coherent Signal Summation technology provides balance and spatially

›

consistent reproduction for both stereo channels to a single point source loudspeaker

Easy to install Improved poly-composite frames (paintable), rust-resistant metal grills and

›

glass-filled composite toggle clamps simplify installation

T h e P o w e r o f C l a r i t y

C u s t o m L o u d s p e a k e r

p l a n a r r i b b o n t e c h n o l o g y

G E N E R A L P A R A M E T E R S :

PD-6 CSi

D e s c r i p t i o n Dual-channel 2-way coaxial hybrid

D i m e n s i o n s 8 13/16” x 4 1/4”

W e i g h t 3.5 lbs.

C u t o u t s i z e 7 5/8” diameter

I n s t a l l e d d e p t h 4 1/4” from surface

D r i v e r c o m p l e m e n t 1 x 6” dual-voice coil Kevlar™, Neo magnet woofer

1 x Neo3PDR planar ribbon tweeter, pivoting

N o m i n a l i m p e d a n c e 8 ohms per channel

F r e q u e nc y r e s p o n s e 50 Hz - 25 kHz (-6dB, half space)

P o w e r h a n d l i n g 100 W RMS

S e n s i t i v i t y 87 dB/1W/1M

C r o s s o v e r f r e q u e n c y 2.3 kHz, passive

A d j u s t m e n t s -3 dB, 0 dB, +3 dB tweeter level adjustment

I n s t a l l a t i o n The PD Series loudspeakers use high-quality, glass-lled, composite dog-

toggle clamps for easy mounting in panel thicknesses from 3/8” - 1 7/8”

Wa r r a n t y1 Lifetime

1

Please see BG warranty for complete details
